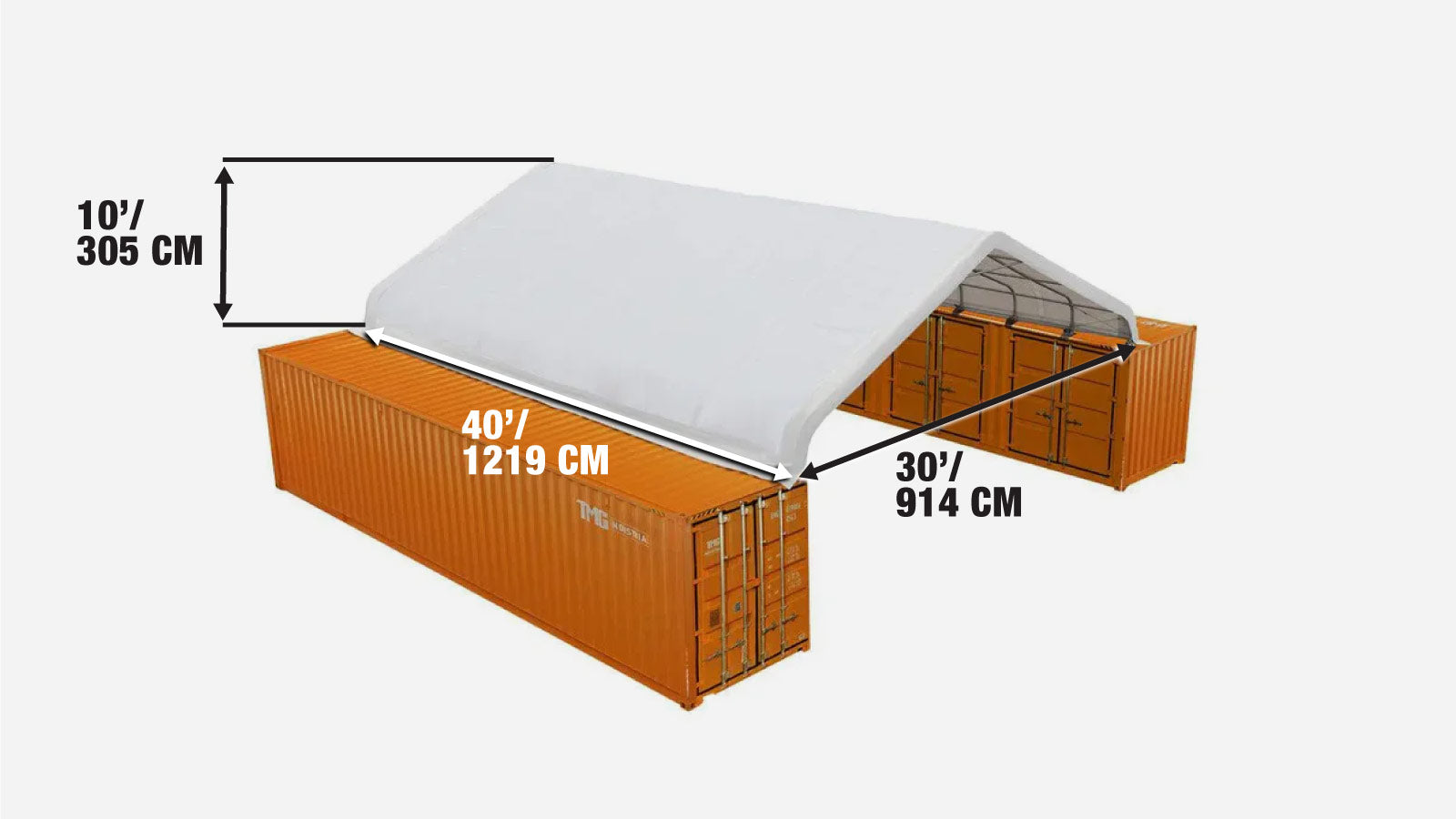

• Footprint (W × L): 30' × 39'5" (9.14 × 12.01 m)
• Exact Floor Footprint (W × L): 30' × 39'5" (9.14 × 12.01 m)

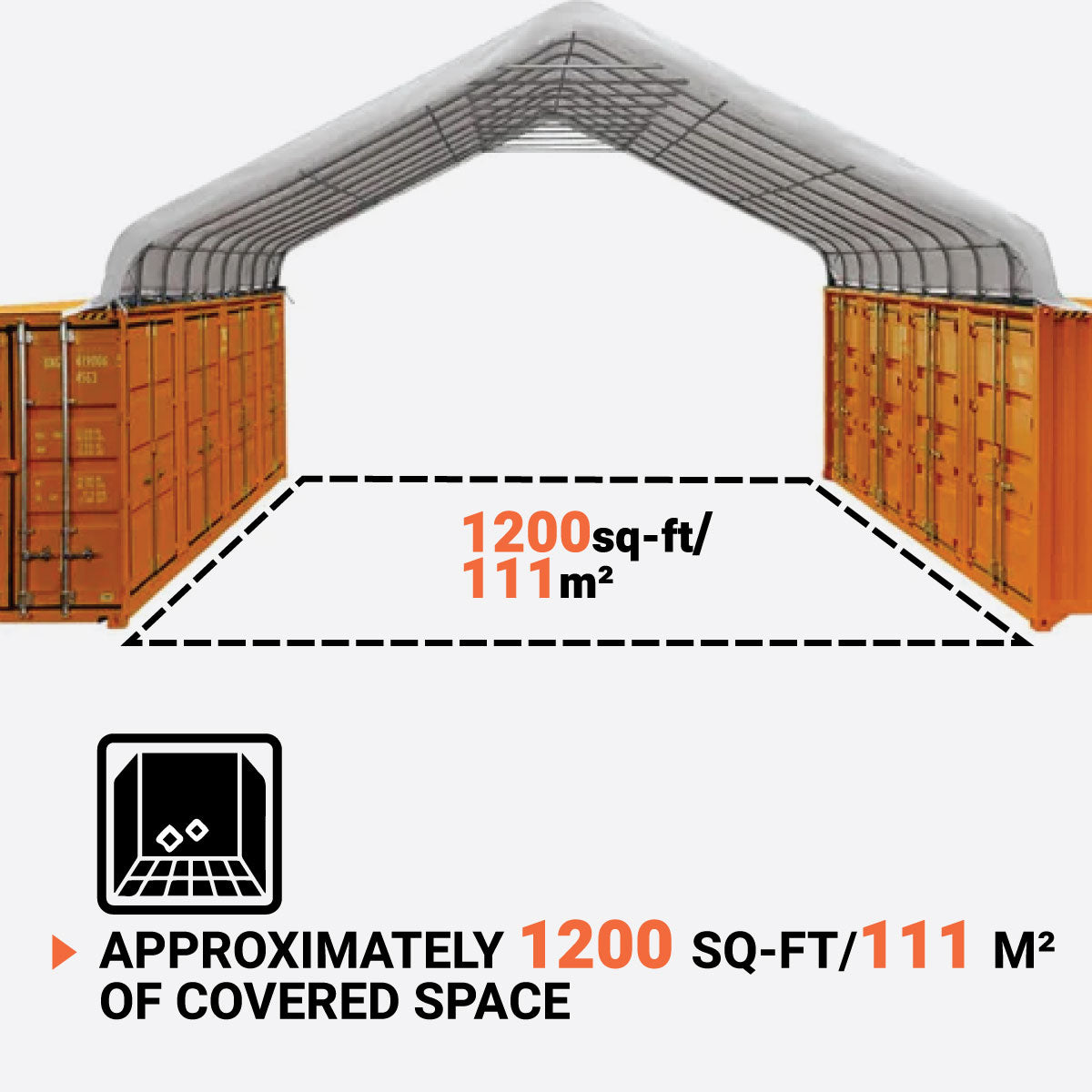

• Covered Area: Approx. 1200 sq ft (111.48 m²)

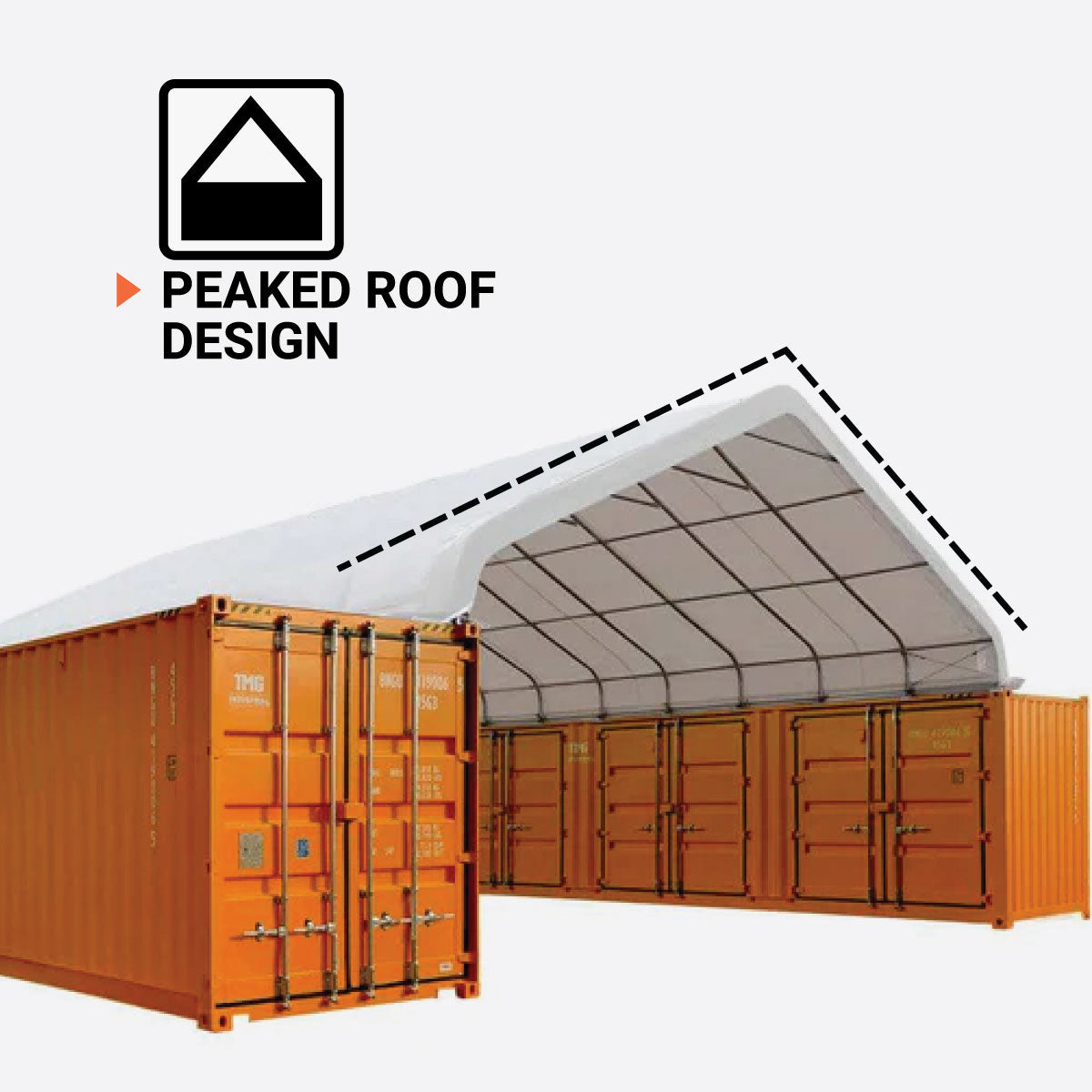

• Roof Type: Peak
• Cover Material: 17 oz PVC Fabric
• Fabric Weave: Not specified
• Fabric Thickness: Not specified
• Fabric Properties: Resistant to flame, chemicals, and oil. UV protected and waterproof. Stands strong against tearing, leaking, and chemical corrosion
• Fabric Colour: White with Green Trim

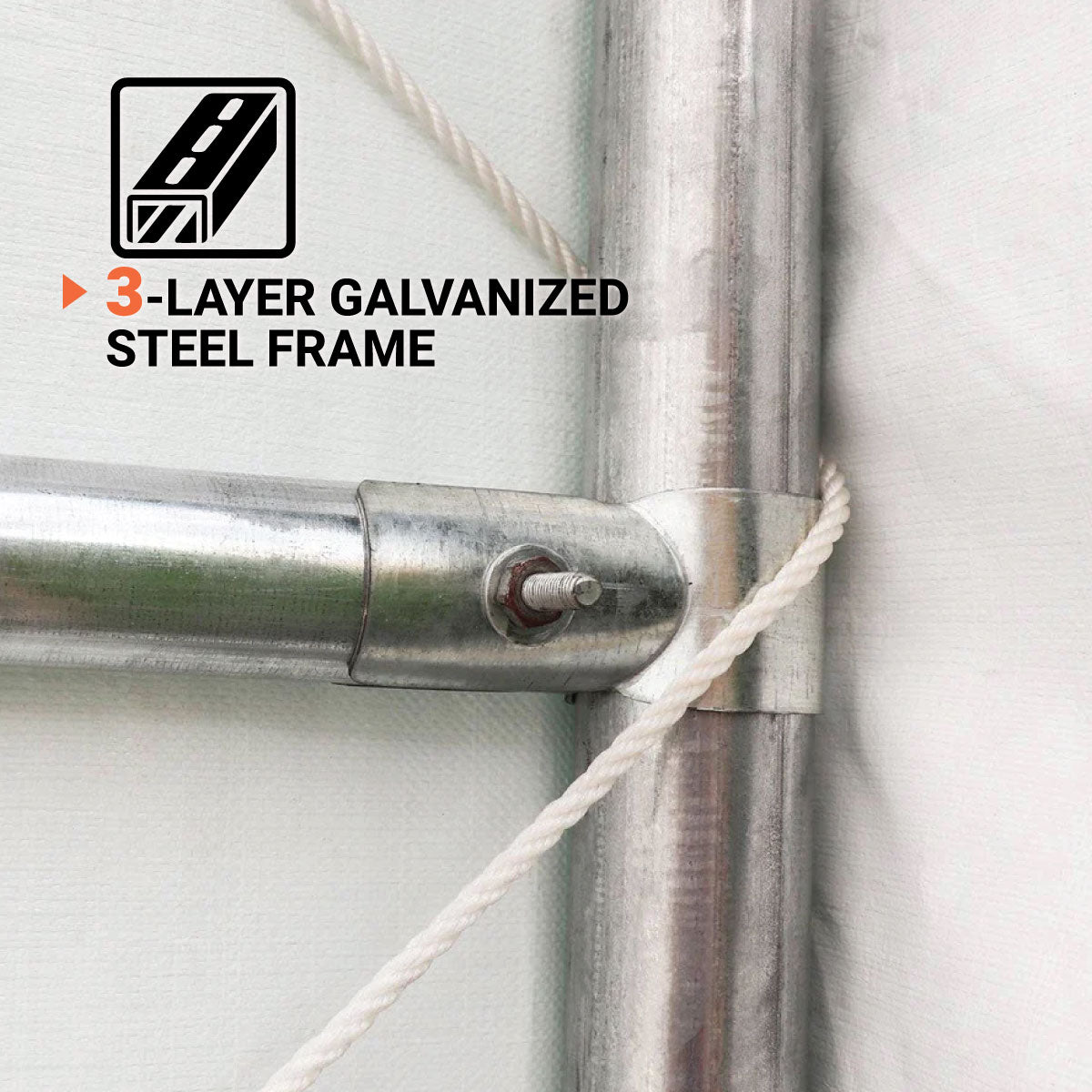

• Frame Structure: Commercial Grade, 3-Layer Galvanized Steel
• Truss Spacing: 50" (127 cm)
• Truss Quantity: 10 groups
• Truss Tubes: Ø2.3" – 15 GA (Ø5.84 cm – approx. 1.8 mm wall)
• Purlin Tubes: Ø1.65" – 16 GA (Ø4.19 cm – approx. 1.6 mm wall)
• Arch/Peak Ceiling Height (from ground, with container): 19.5' (5.94 m) with 40' HC container
• Arch/Peak Ceiling Height (from base, top of container): 10' (3.05 m)

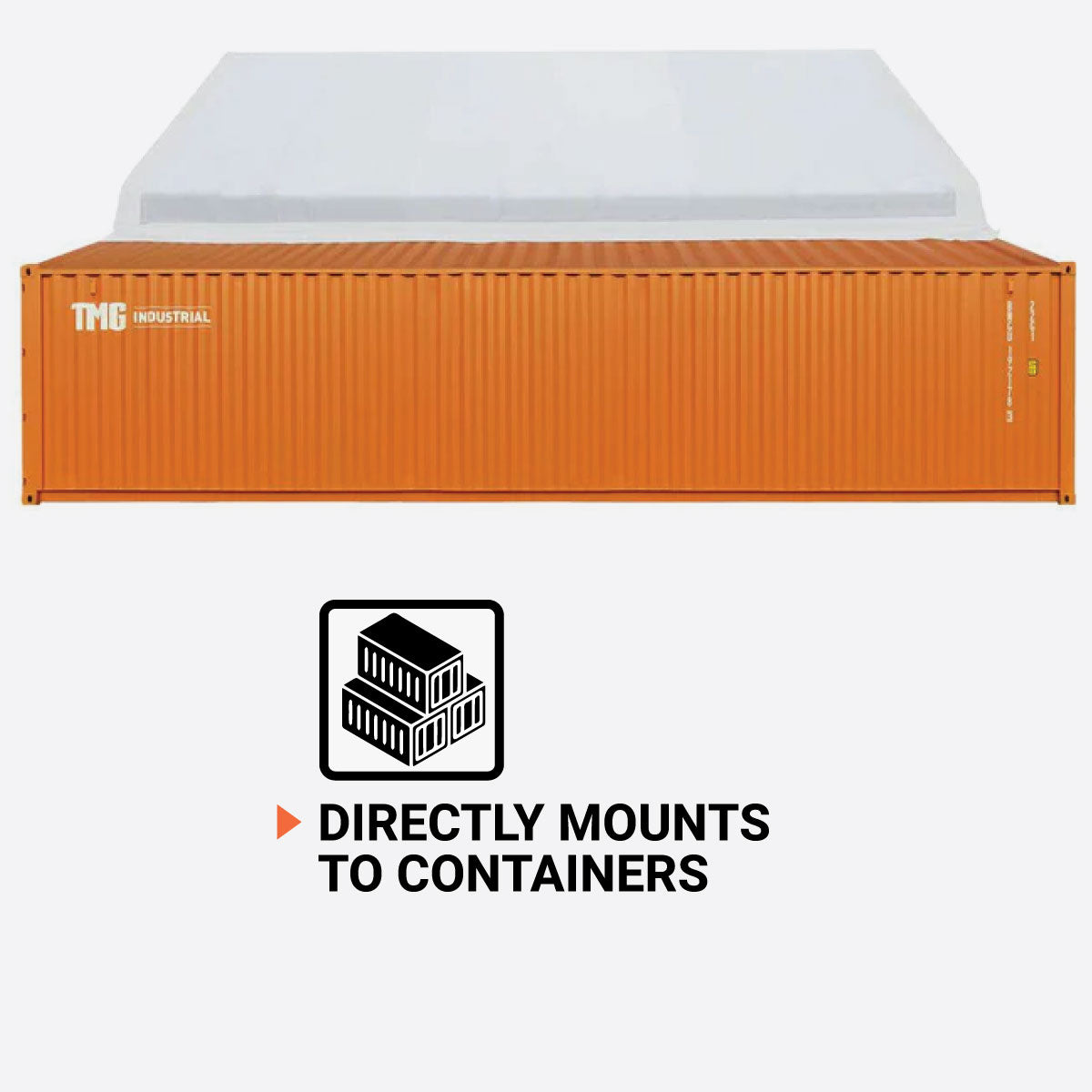

• Mounting: On shipping containers or pony walls
• Container Requirement: Shipping containers (often 40' HC for full height)
• End Walls: Open at both ends (variant with end wall available as TMG-ST3041CVF)
• Welding Required: For all footplates
• Shipping Weight: 1555 lb (705.34 kg)

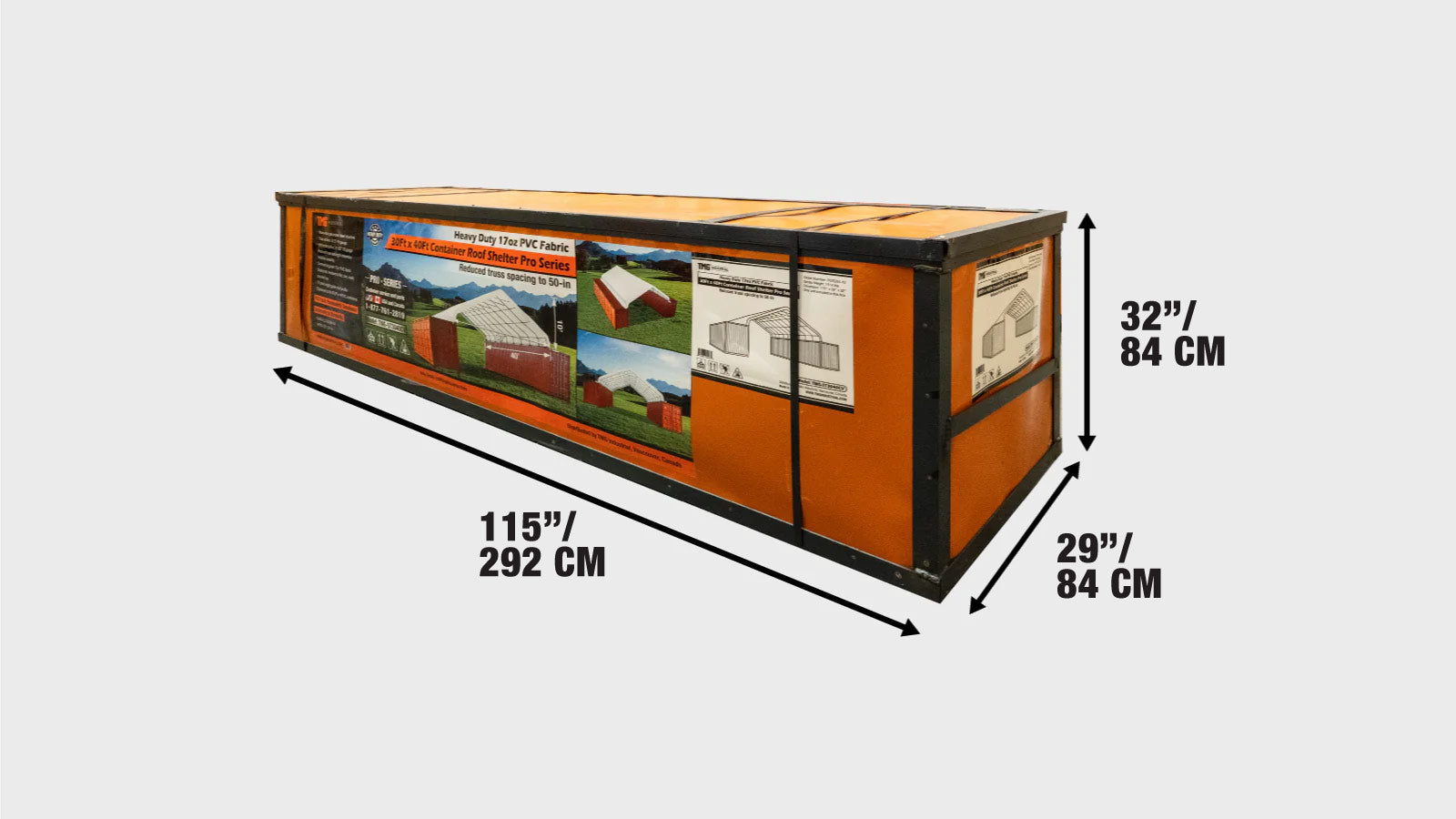

• Shipping Dimensions (L × W × H): 115" × 29" × 32" (292.1 × 73.66 × 81.28 cm)
• Package Quantity: 1 metal crate
• Model: TMG-ST3041CV (SKU: ST3041CV)

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

• This product is packed in a metal crate
• Shipping Dimensions: 292 cm x 74 cm x 82 cm (L x W x H)
• Shipping Weight: 707 kg
• Note: A forklift is required for unloading

• Q: What are the dimensions of the TMG-ST3041CV shelter?
  A: The exact floor footprint of this shelter is 9.14 metres (30 feet) wide by 12.01 metres (39 feet 5 inches) long. It provides an approximate covered area of 111.48 square metres (1200 sq ft).
• Q: What is the maximum height of the shelter?
  A: When installed on standard 40-foot high cube (HC) shipping containers, the peak ceiling height from the ground is approximately 5.94 metres (19 feet 6 inches). The peak ceiling height from the top of the container is 3.05 metres (10 feet).
• Q: What type of fabric is used for the cover?

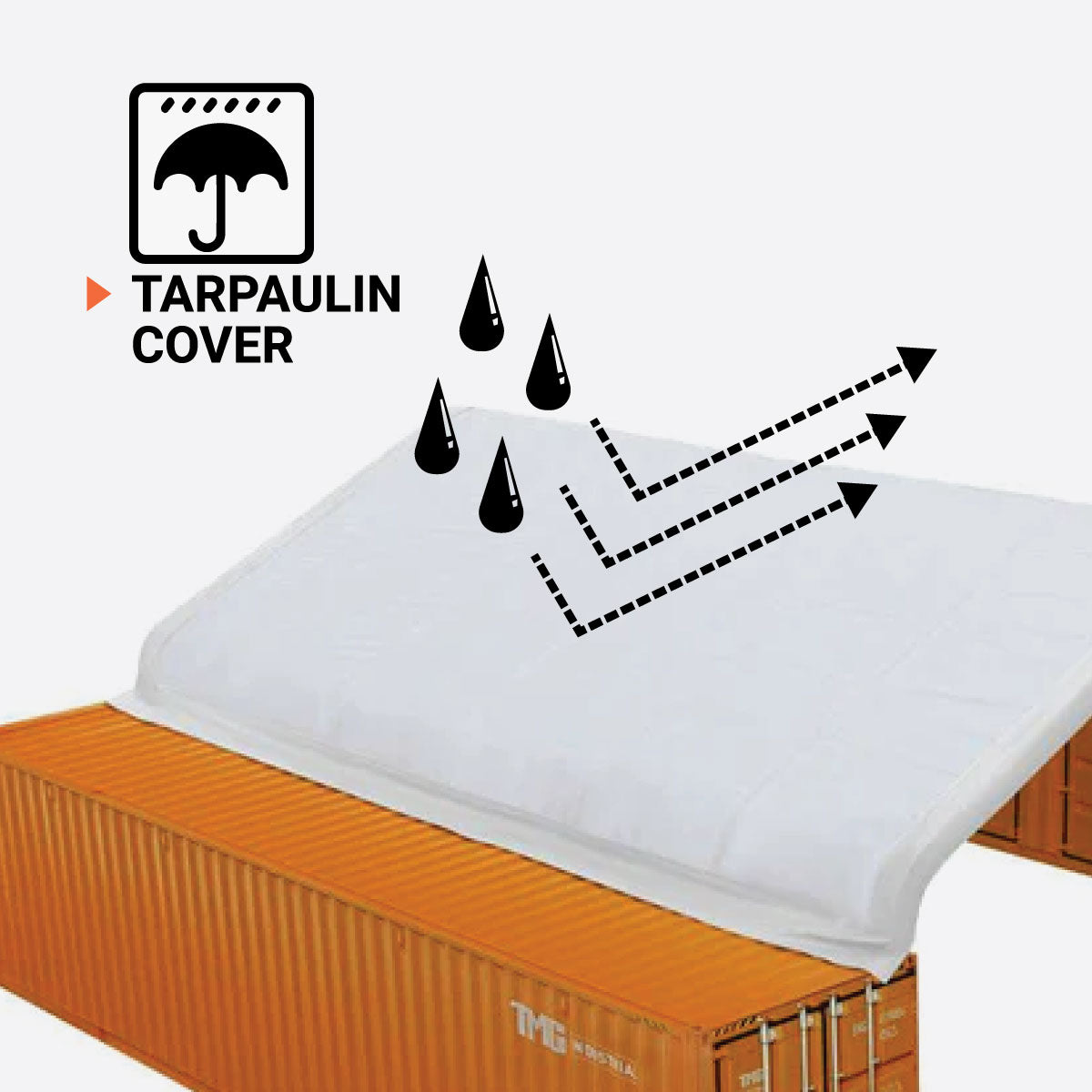

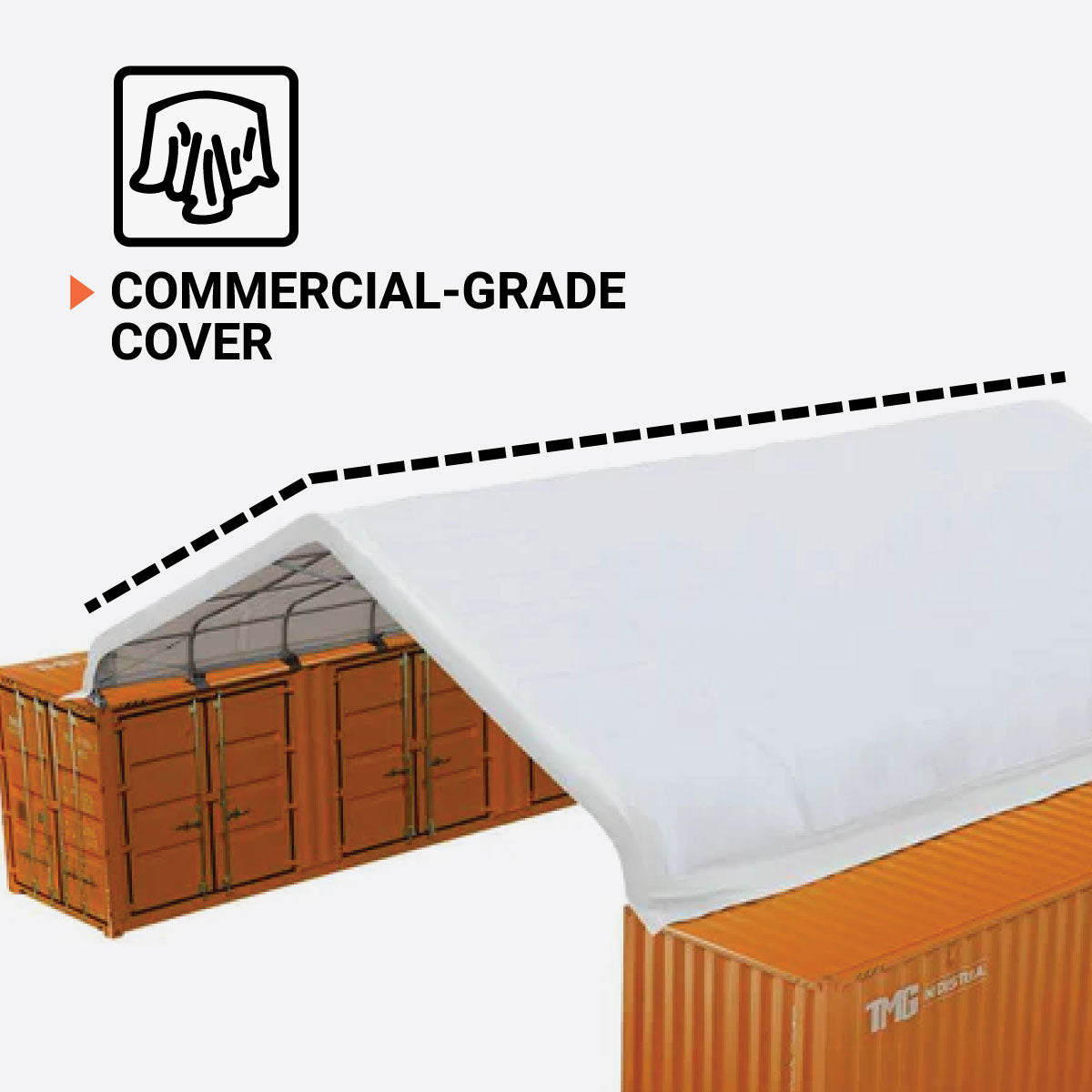

  A: The TMG-ST3041CV features a heavy-duty 17 oz (ounce per square yard) / 580 gsm commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover. This fabric is naturally flame retardant, resistant to chemicals and oil, UV protected, and waterproof. It's designed to stand strong against tearing, leaking, and chemical corrosion. The fabric colour is white.
• Q: What is the frame made of?
  A: The frame is constructed from commercial grade, 3-layer galvanized steel tubing for long-lasting durability, rigidity, and resistance to rust, wear, and corrosion.
• Q: What are the dimensions of the frame tubes?
  A: The truss tubes are approximately 5.84 cm (2.3 inches) in diameter with a 15 gauge (approx. 1.8 mm wall thickness). The purlin tubes are approximately 4.19 cm (1.65 inches) in diameter with a 16 gauge (approx. 1.6 mm wall thickness).
• Q: What is the truss spacing on this shelter?
  A: The shelter is designed with 1.27 metres (50 inches) truss spacing, with 10 truss groups.
• Q: Do I need shipping containers to install this shelter?
  A: Yes, this shelter is designed to be mounted on shipping containers or pony walls. Containers are not included with the purchase of the shelter.
• Q: Are the ends of the shelter enclosed?
  A: The TMG-ST3041CV comes with an open entry/exit space on both ends, approximately 9.14 metres (30 feet) wide. A variant with an end wall is available as the TMG-ST3041CVF. Optional front and back end wall kits are also available separately (e.g., TMG-ST30FW8V/9V and TMG-ST30BW8V/9V, compatible with this model for standard or high cube containers).
• Q: What are the shipping dimensions and weight of the TMG-ST3041CV?
  A: The product is packed in a metal crate shipping box. The approximate shipping dimensions are 292.1 cm (115 inches) long x 73.66 cm (29 inches) wide x 81.28 cm (32 inches) high, with a total shipping weight of approximately 705.34 kg (1555 lb).
• Q: How long does delivery typically take to Australia?
  A: Under normal circumstances, it will take up to 10 to 15 business days for the order to reach you in Australia, based on your location and how accessible the location is.
• Q: Is there a warranty on the TMG-ST3041CV?
  A: Yes, the TMG-ST3041CV is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
