• Truss Quantity: 15 groups
• Truss Tubes: 58 mm diameter – 15 gauge (approx.)

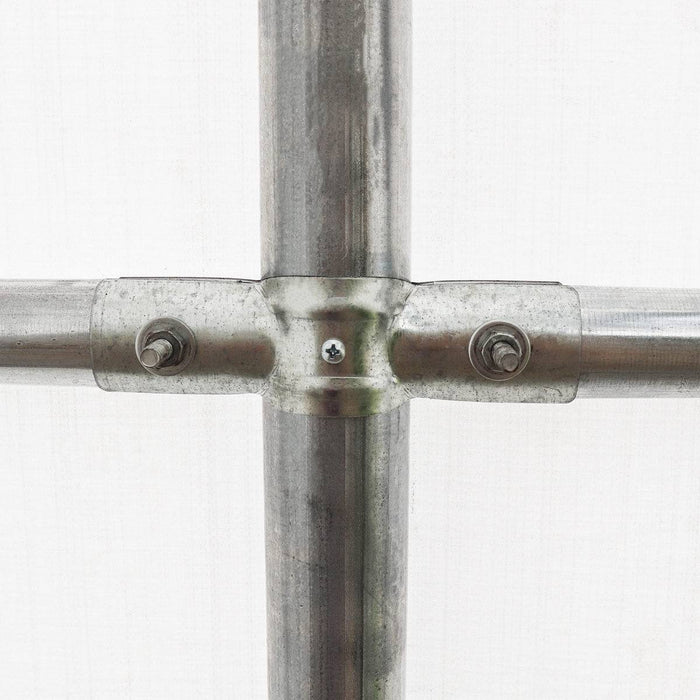

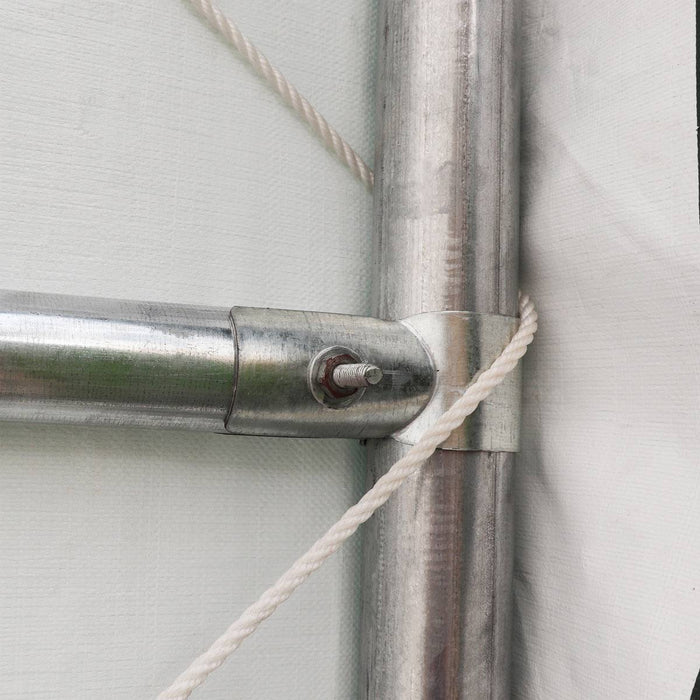

• Purlin Tubes: 42 mm diameter – 17 gauge (approx.)
• Purlins on Rafter: 140 purlins across 14 rows
• Truss Spacing: 1.5 m (59")

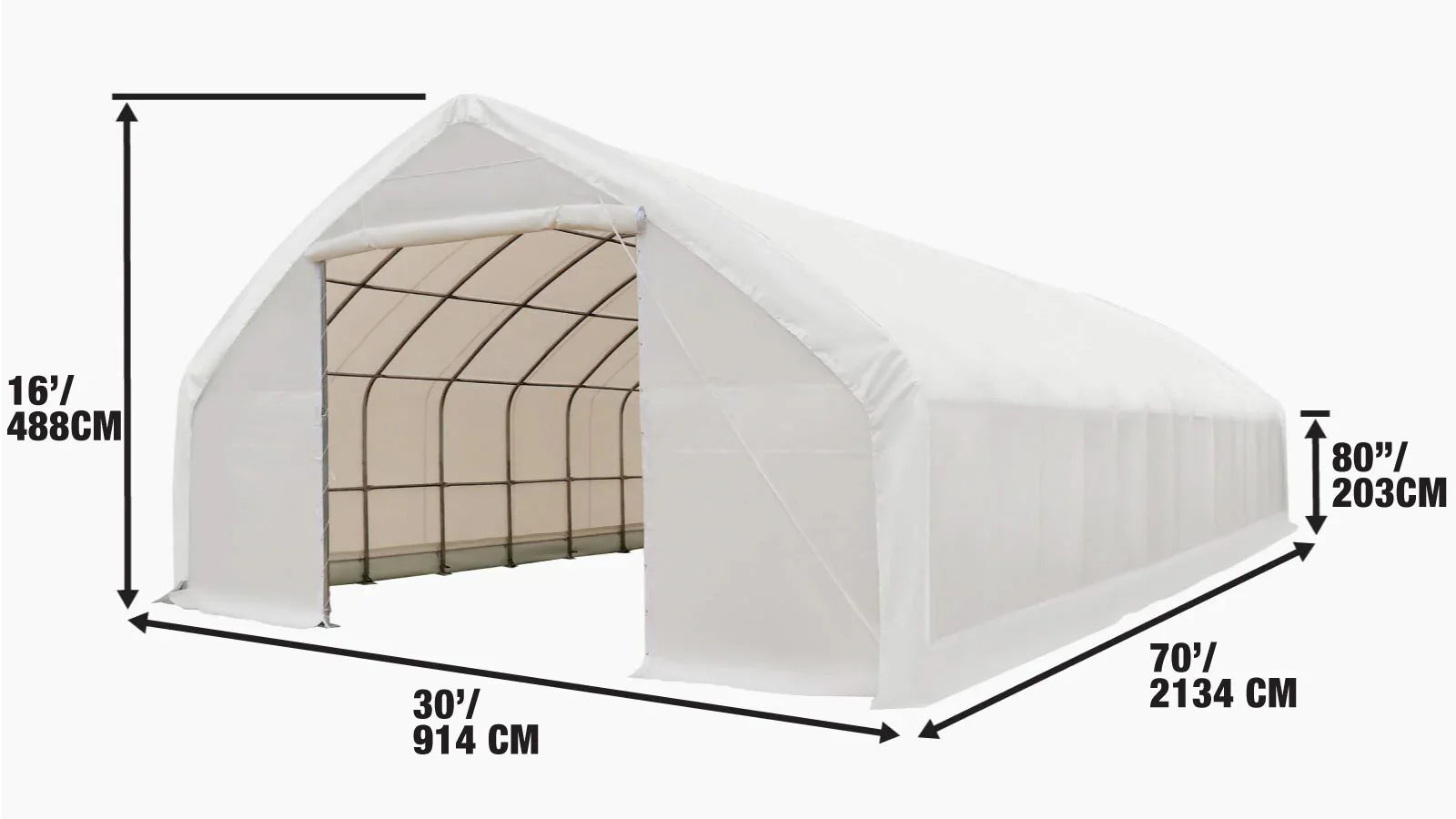

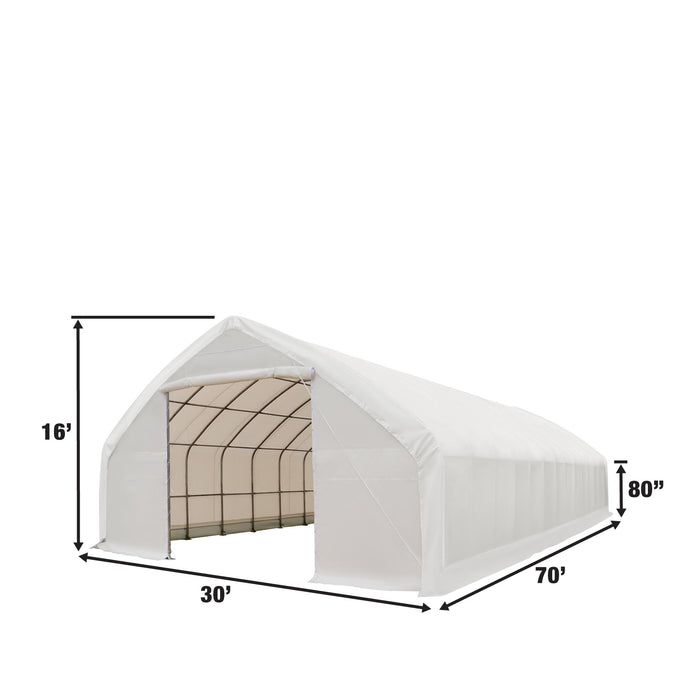

• Covered Size: 9.2 × 21.5 m (30' × 70')
• Covered Area: 200 m² (2,100 sq ft)
• Peak Ceiling Height: 4.88 m (16')
• Side-Wall Height: 2.03 m (80")

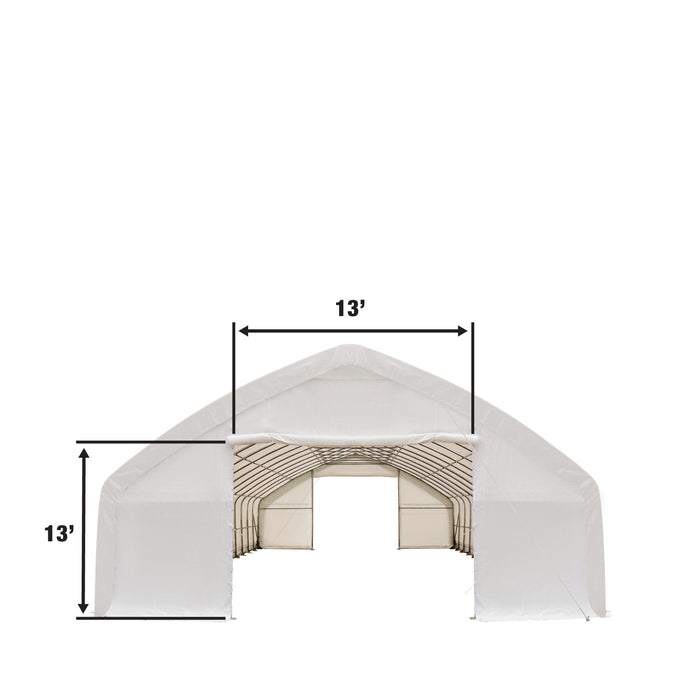

• Door Clearance: 3.96 × 3.96 m (13' × 13')
• Cover Material: 17 oz PVC fabric, 14 × 14 weave, 0.508 mm thick
• Shipping Dimensions: 2.92 × 0.74 × 1.24 m (115" × 29" × 49")
• Shipping Weight: 1,415 kg (3,120 lb)

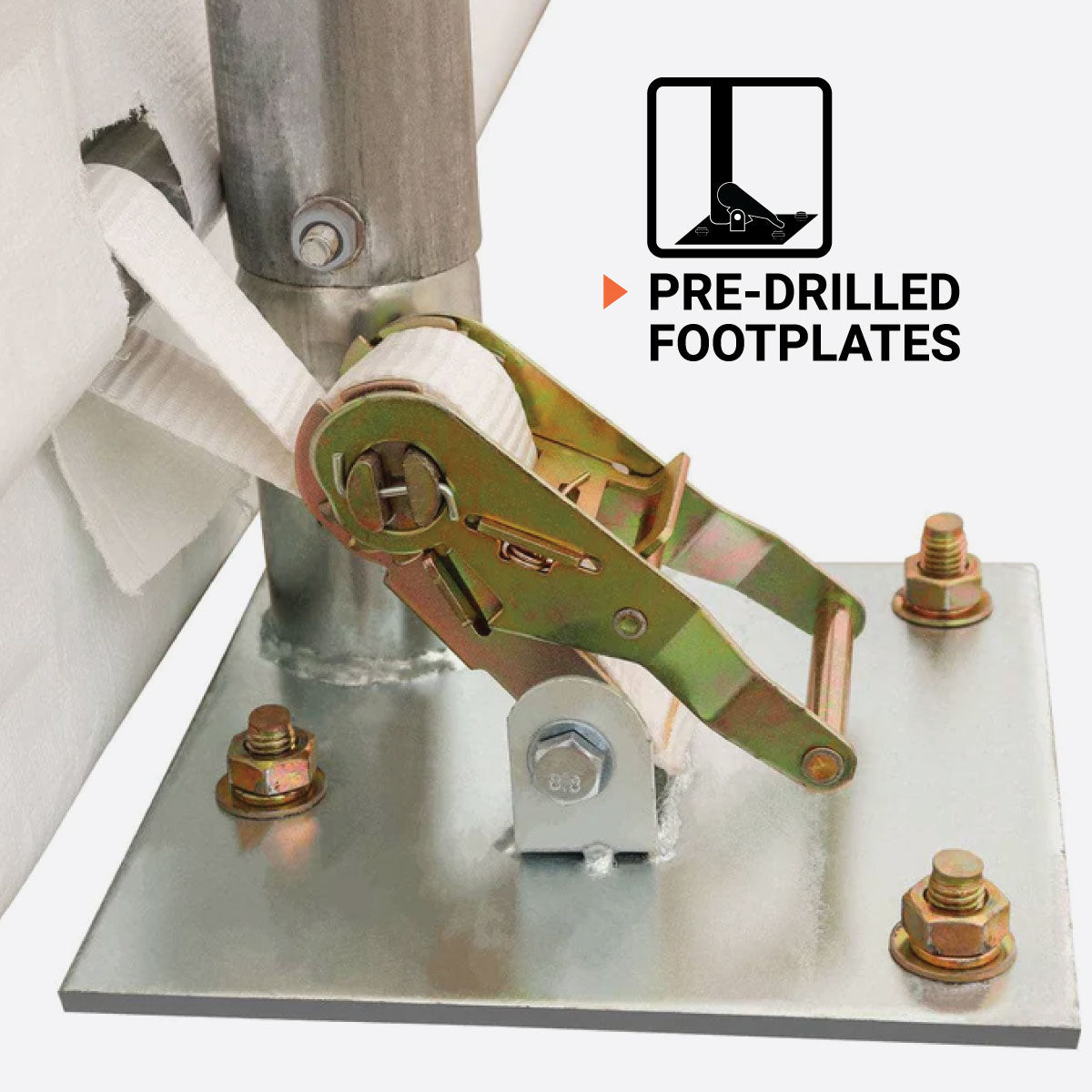

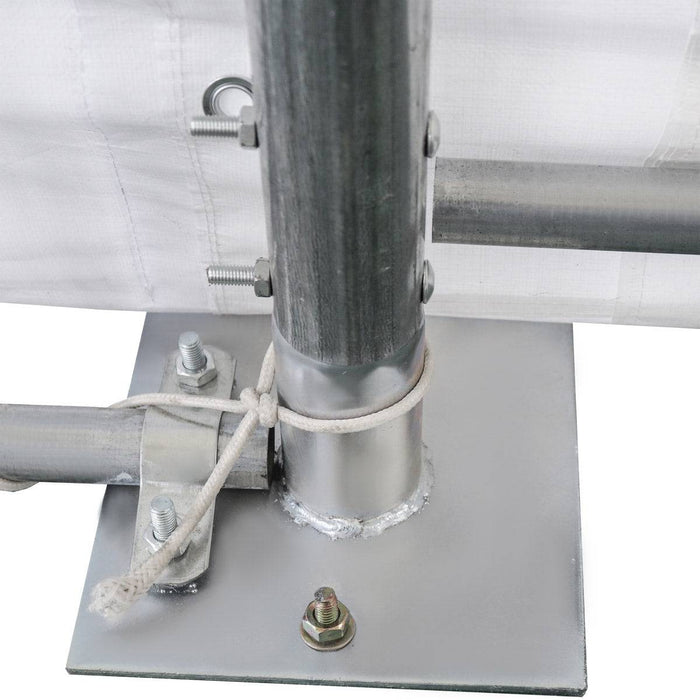

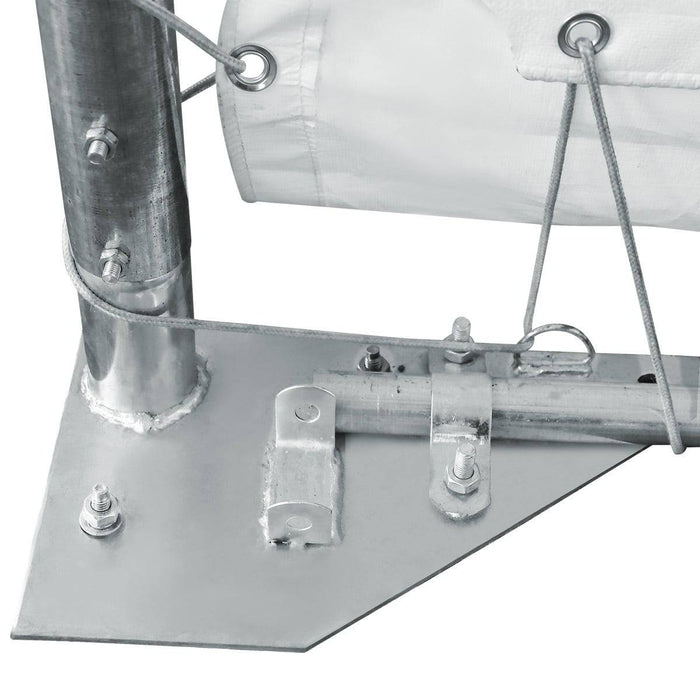

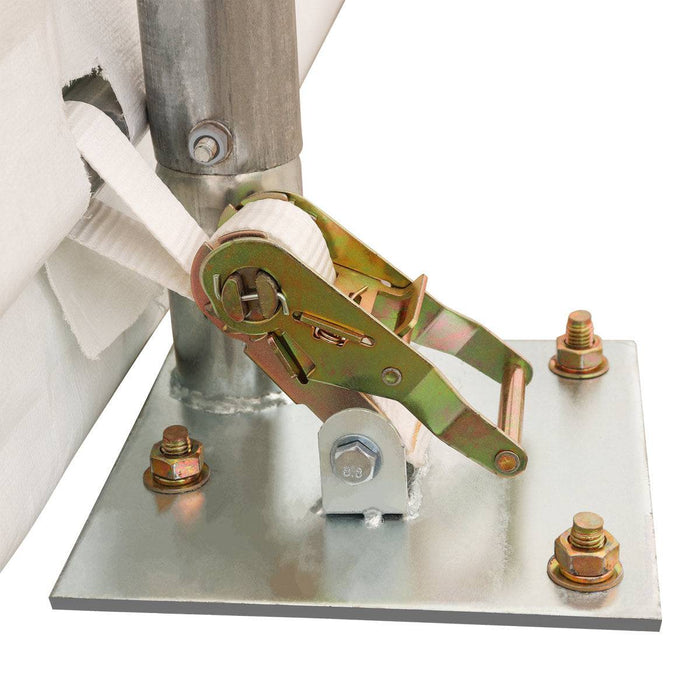

• Footplates: Pre-drilled holes (anchor bolts not included)

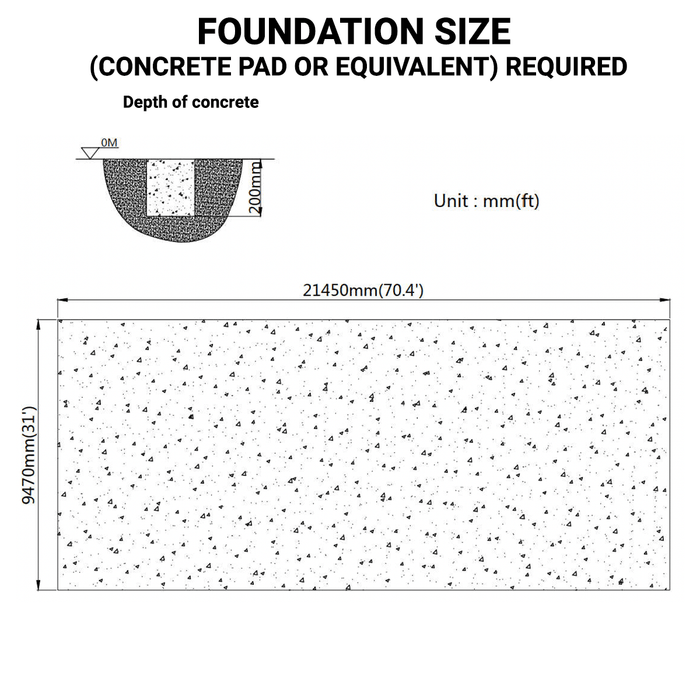

• Foundation Requirement: Concrete slabs or equivalent

Your order will be shipped from our warehouse in Australia. Typically, we process and dispatch orders within 2 to 3 business days. Delivery time varies depending on your location and accessibility, with most orders arriving within 10 to 15 business days.

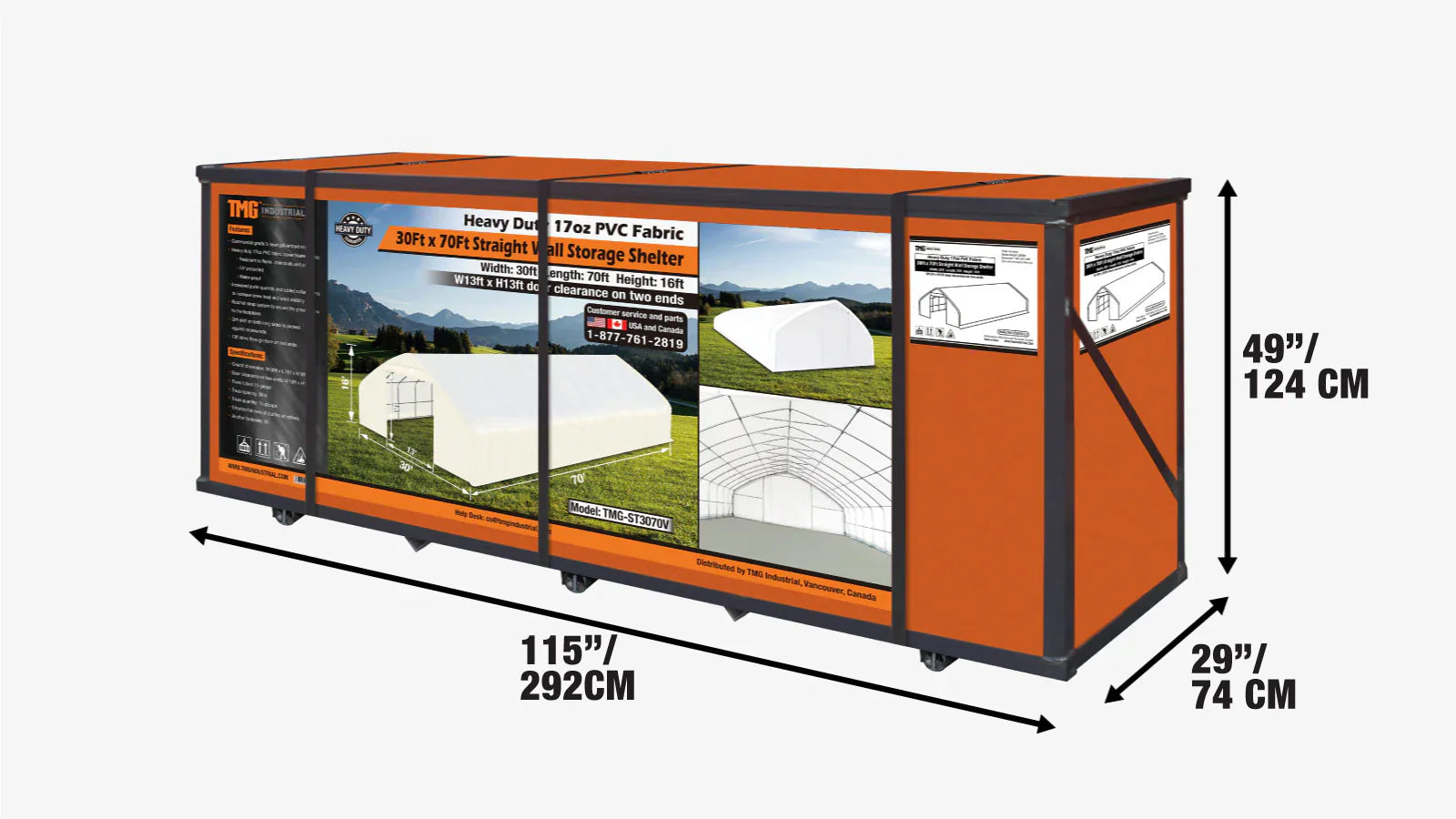

• This product is packed in a metal crate shipping box.
• Shipping dimensions: 292 × 74 × 124 cm (L × W × H) / 115″ × 29″ × 49″
• Shipping weight: 1,415 kg (3,120 lb)

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

• Q: What are the overall dimensions and covered area of the TMG-ST3070V shelter?

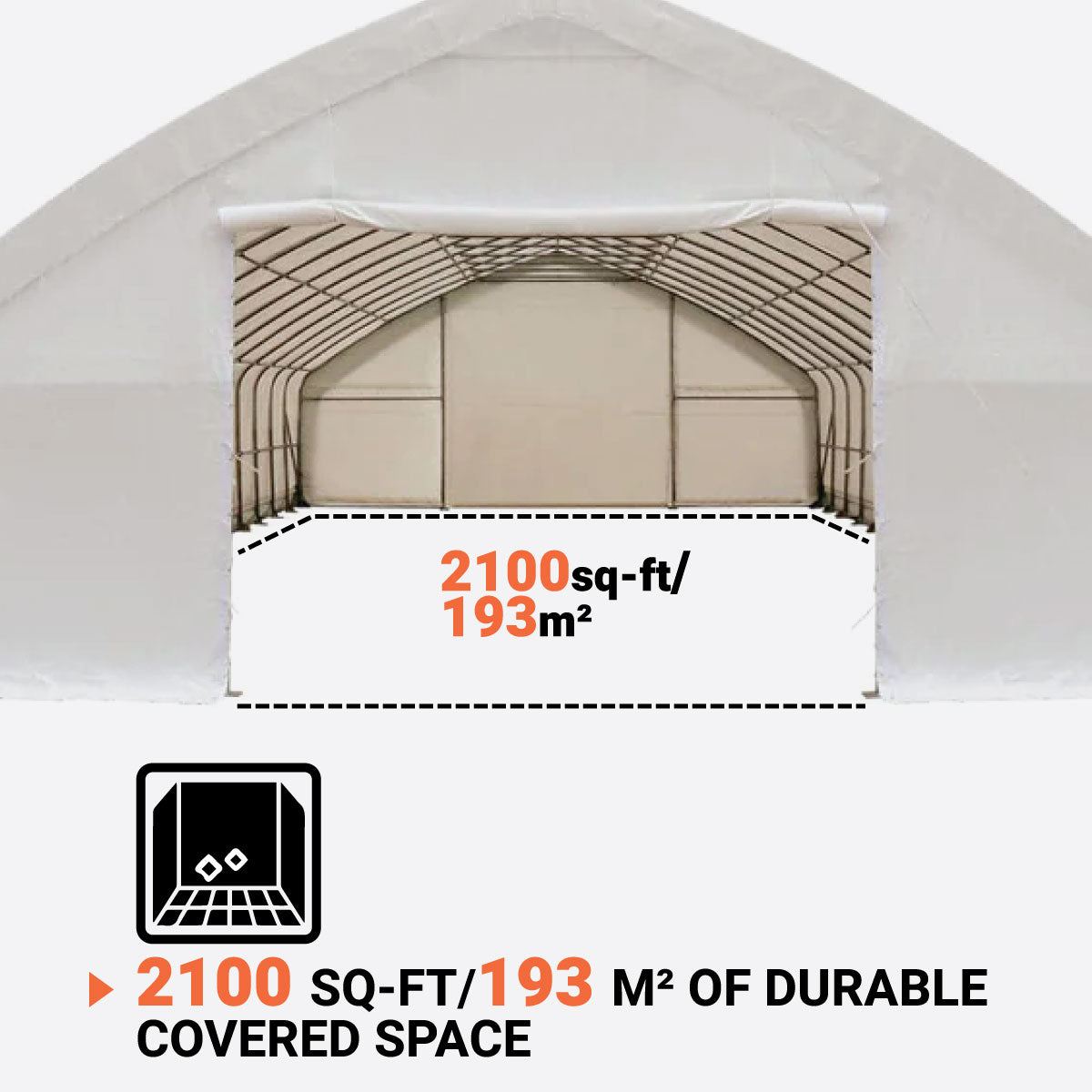

  A: The shelter measures 9.2 meters (30 feet) in width and 21.5 meters (70 feet) in length. It provides approximately 200 square meters (2100 square feet) of covered space.

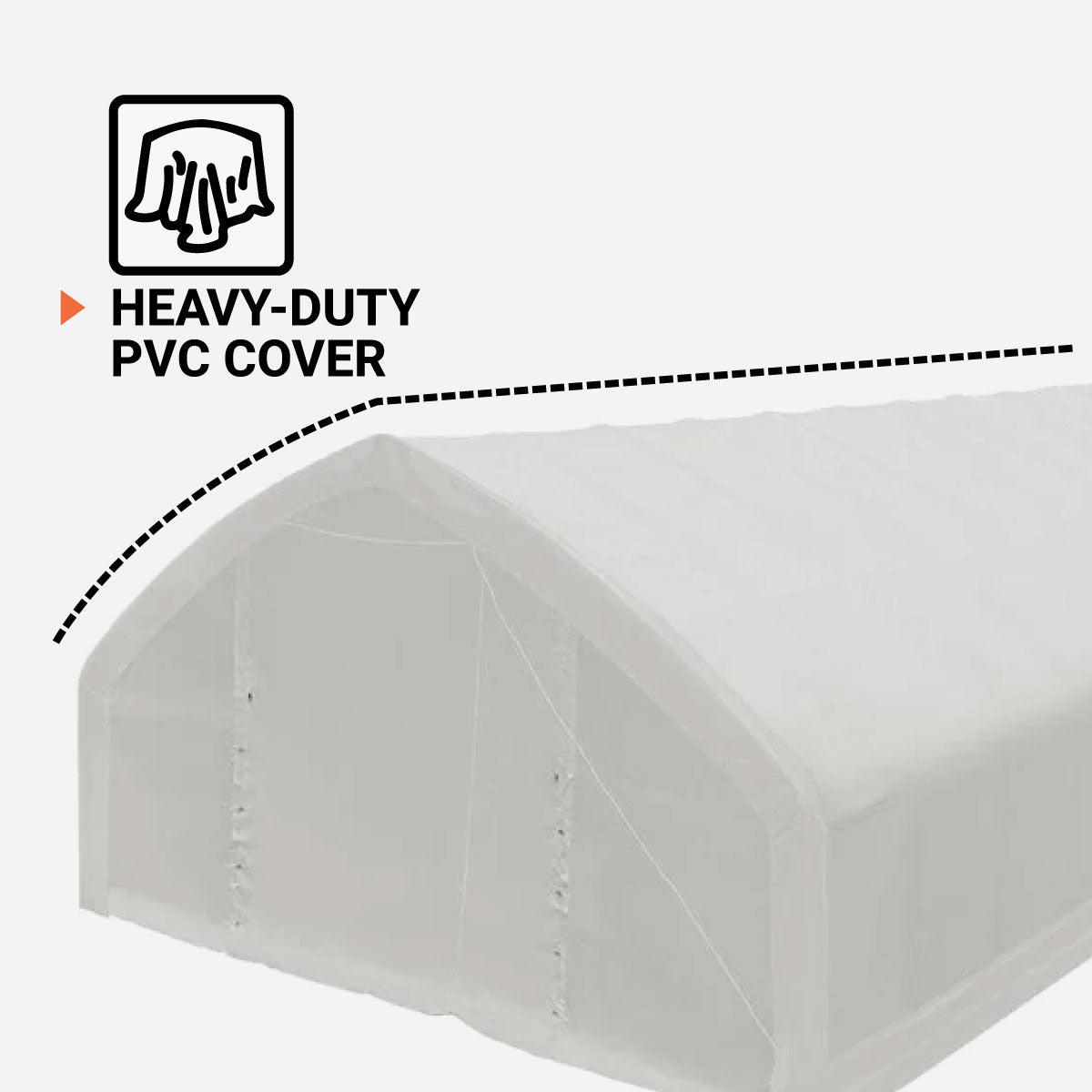

• Q: What materials are used for the frame and cover of the shelter?

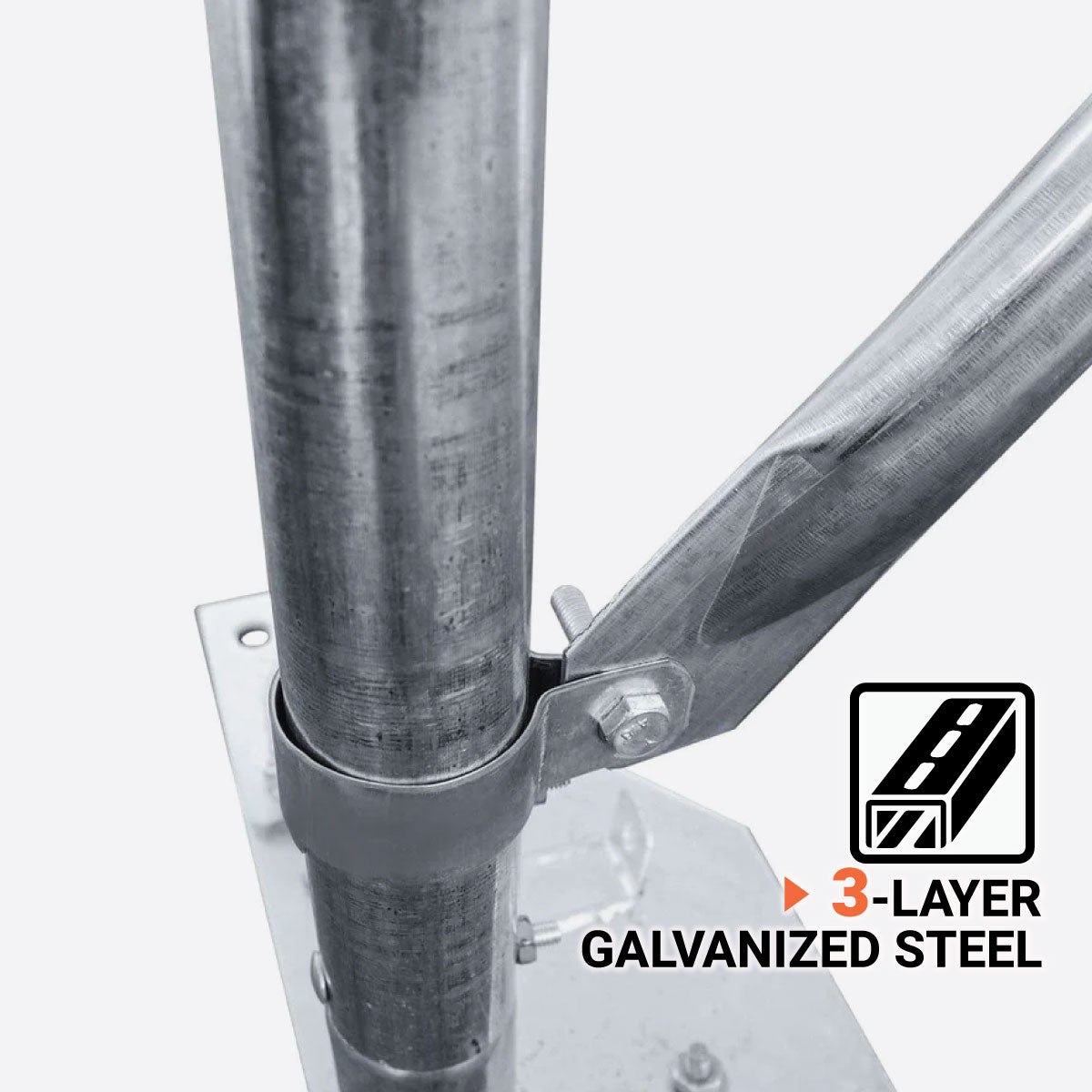

  A: The TMG-ST3070V features a commercial-grade, 3-layer galvanized steel frame that is resistant to rust, wear, and corrosion. The cover is made from heavy-duty 17 oz triple-layer ripstop polyvinyl chloride (PVC) tarpaulin.
• Q: Is the cover durable and resistant to the elements?
  A: Yes, the PVC tarpaulin cover is designed to withstand tearing, leaking, and chemical corrosion. It is also natural flame retardant, UV protected, and waterproof, offering robust protection from the elements.

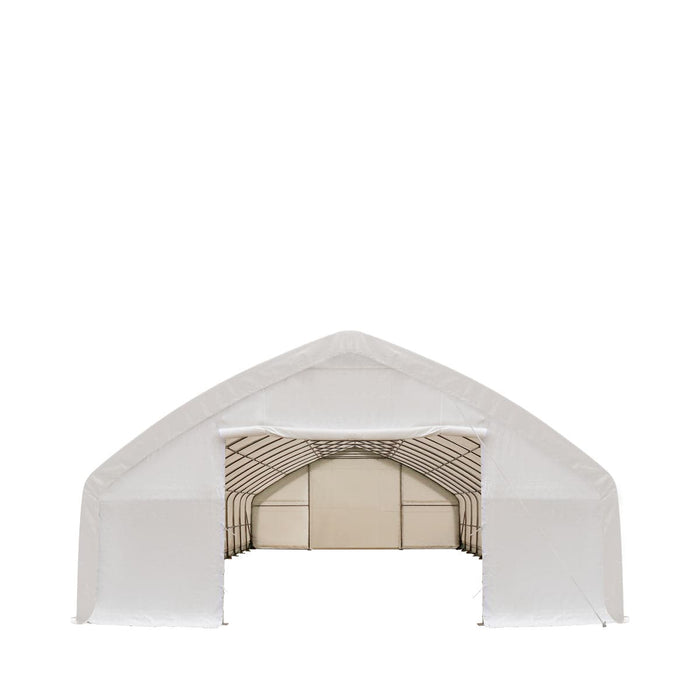

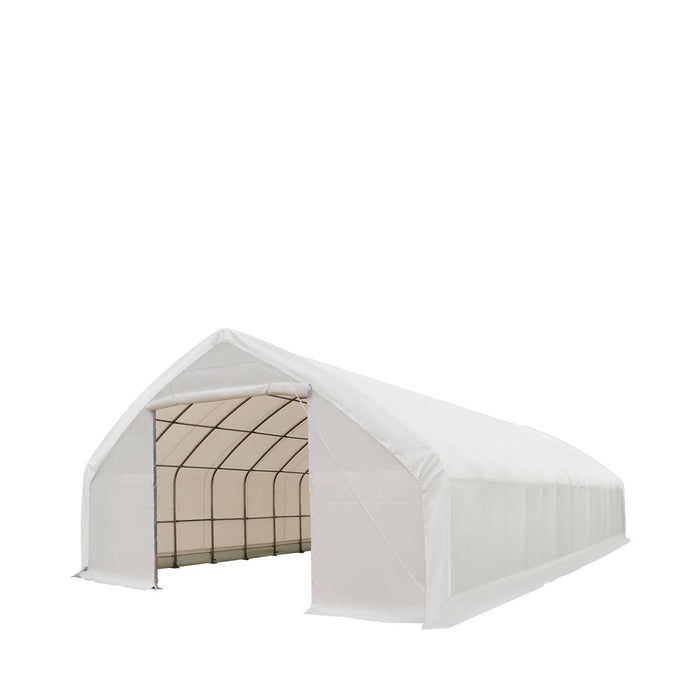

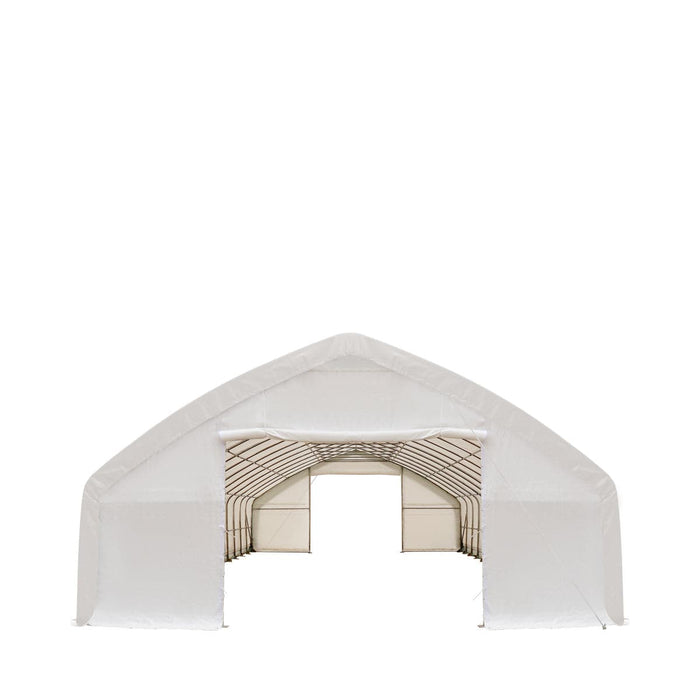

• Q: Does the shelter have drive-through access?

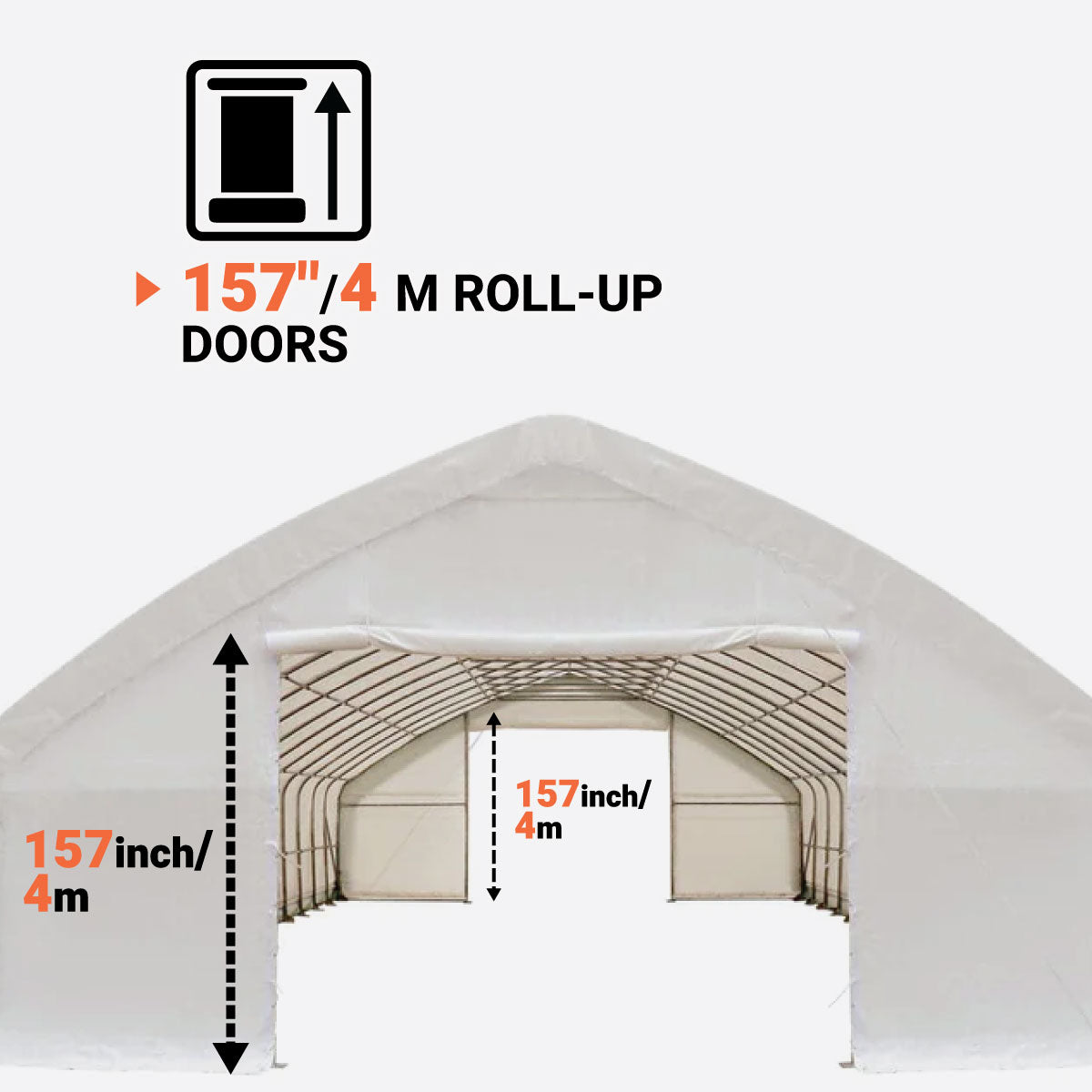

  A: Yes, it features drive-through roll-up doors of 3.96 m (13’) x 3.96 m (13’) on both ends, providing convenient access.
• Q: What foundation is required for installation?
  A: A concrete slab or an equivalent solid foundation is recommended for optimal stability and longevity of the shelter.
• Q: Is the TMG-ST3070V easy to assemble?
  A: While designed for easy assembly, customers have noted that it may require machinery and several people to pull the heavy cover over the frame.
• Q: What are the shipping details for the TMG-ST3070V?
  A: Free shipping is available to most locations, with an expected delivery time of 10 to 15 business days.
• Q: What type of ceiling design does the TMG-ST3070V shelter have?

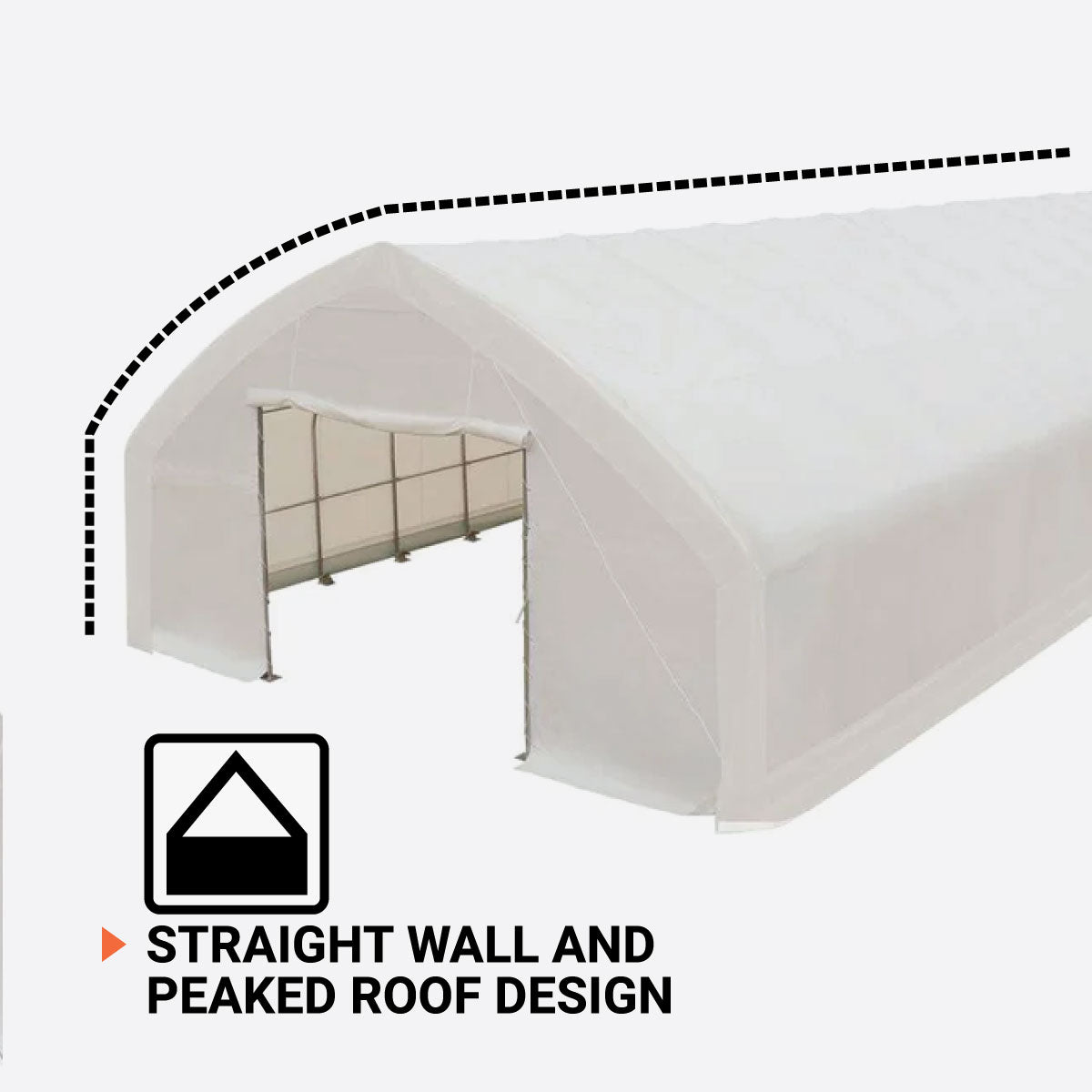

  A: The TMG-ST3070V features a straight wall with a peak ceiling design, which helps with shedding rain and snow, and provides ample internal space.

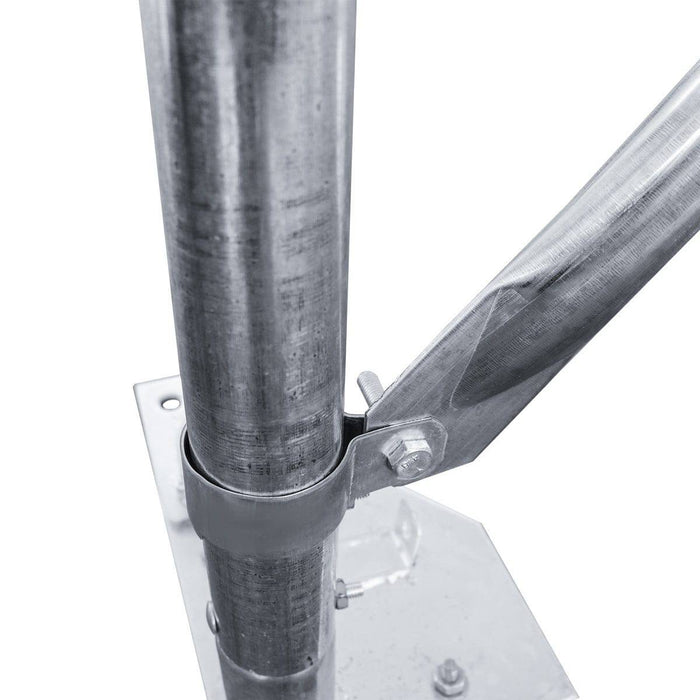

• Q: Are there any specific structural reinforcements for the shelter?
  A: Yes, the shelter incorporates collar beams on the end trusses to significantly enhance its support strength and rigidity.
• Q: What is the warranty for the TMG-ST3070V?
  A: The TMG-ST3070V is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
