• Overall Dimensions: 130 × 70 × 173 cm

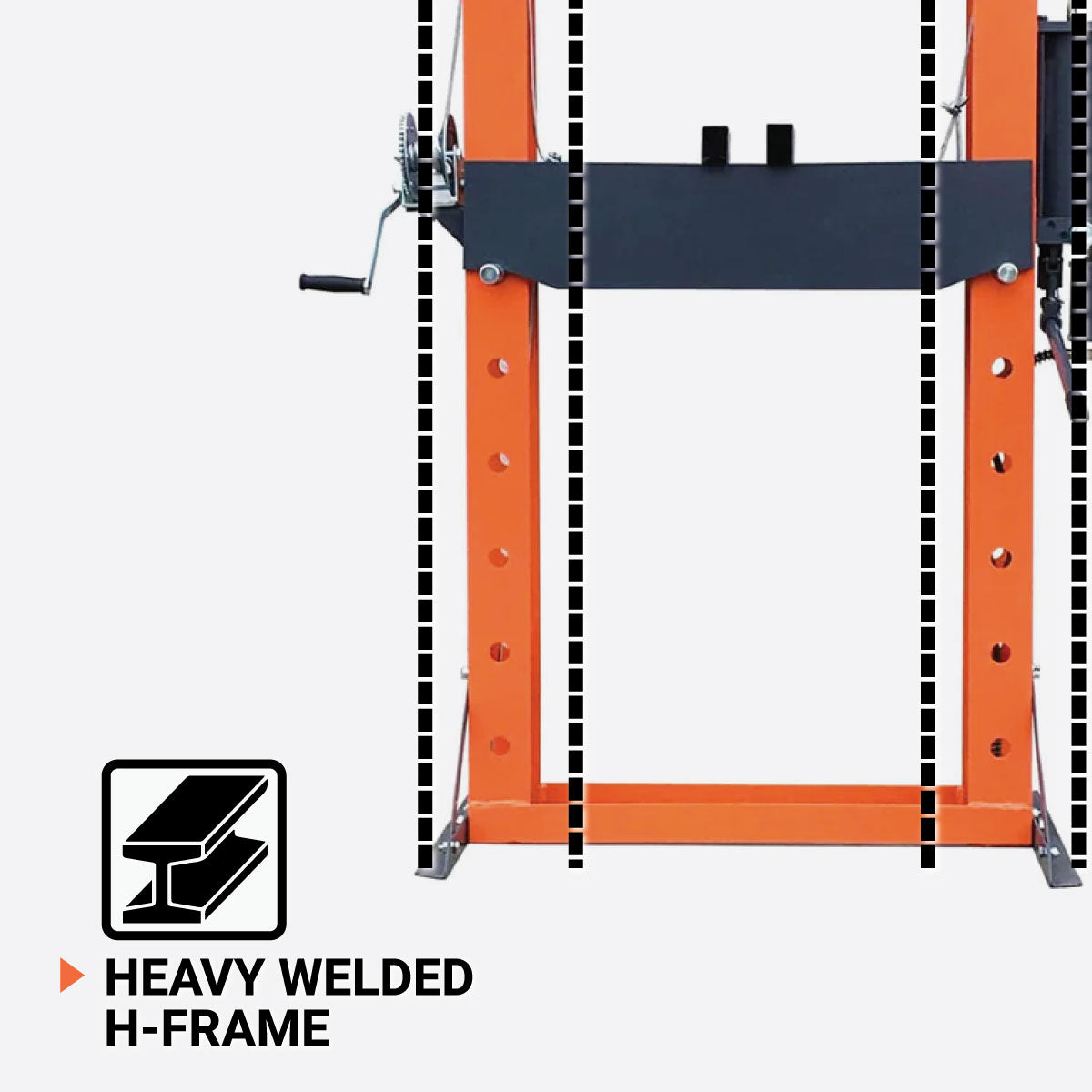

• Frame Construction: Fully Welded Heavy-Duty H-Frame
• Frame Overall Dimensions: 90 × 17 × 165 cm
• Operation Type: Air & Manual Dual Operation
• Protective Grid Guard: –
• Bed Adjustment Mechanism: Steel Cable Crank Winch

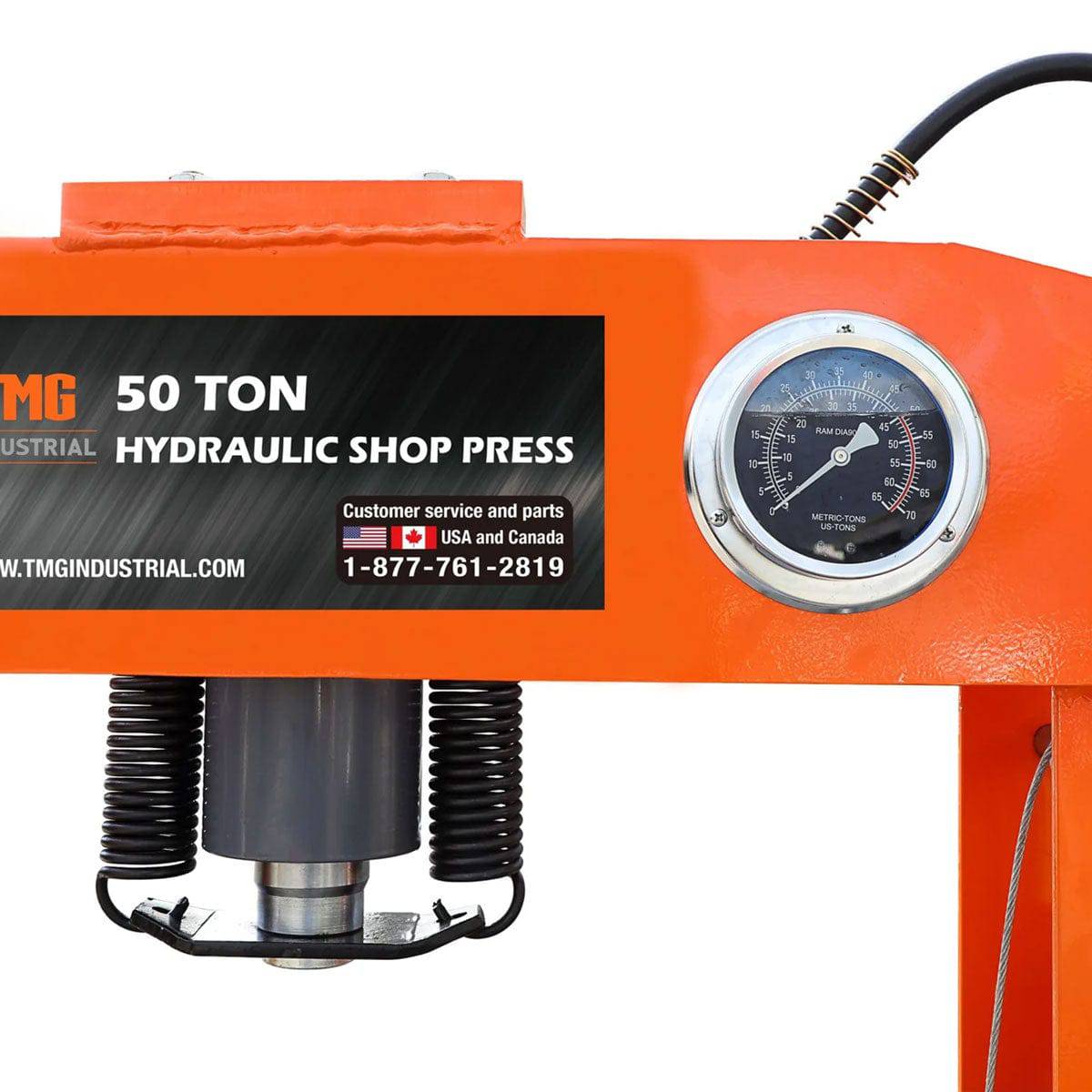

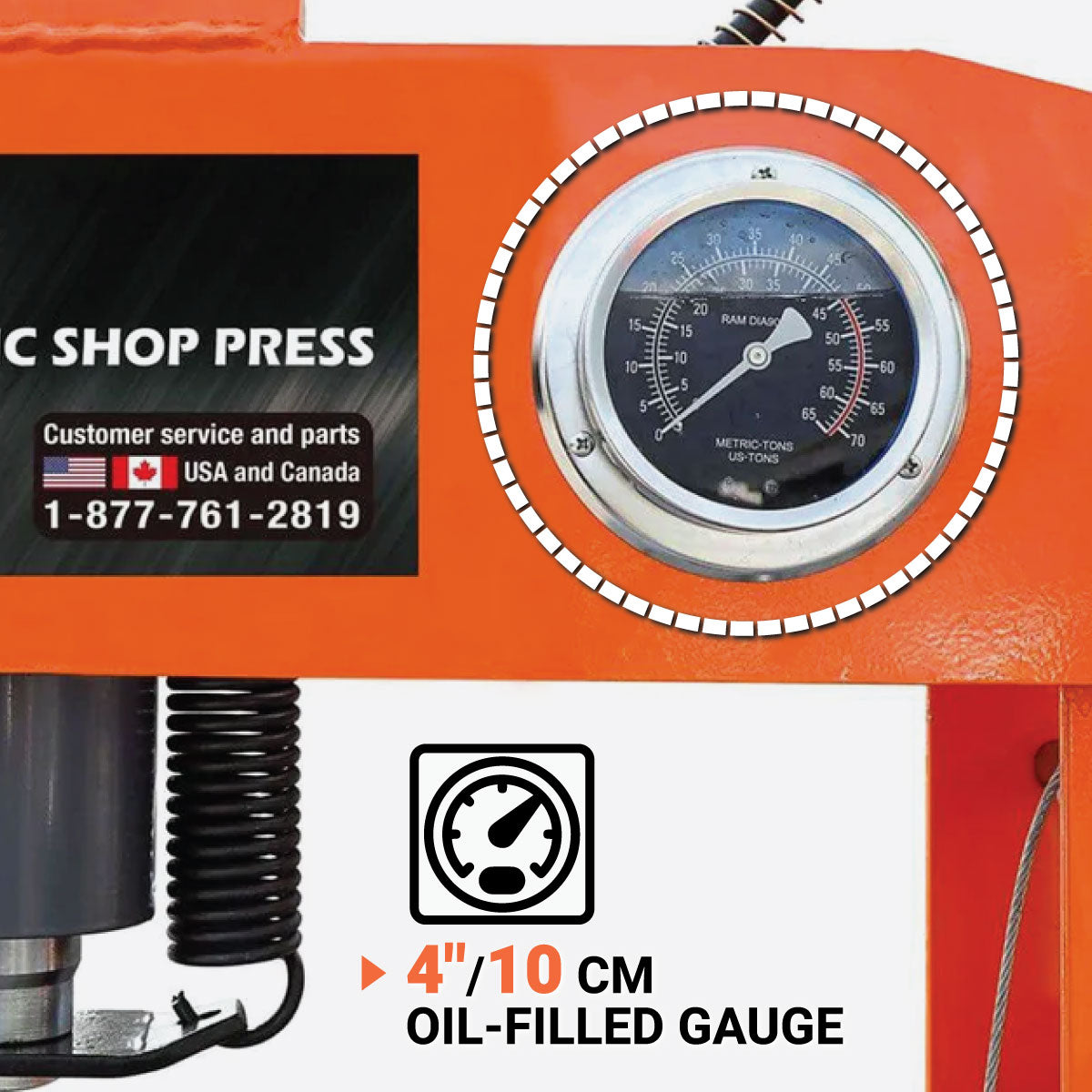

• Gauge Type: 4" Oil-Filled Pressure Gauge
• Overload Protection: No

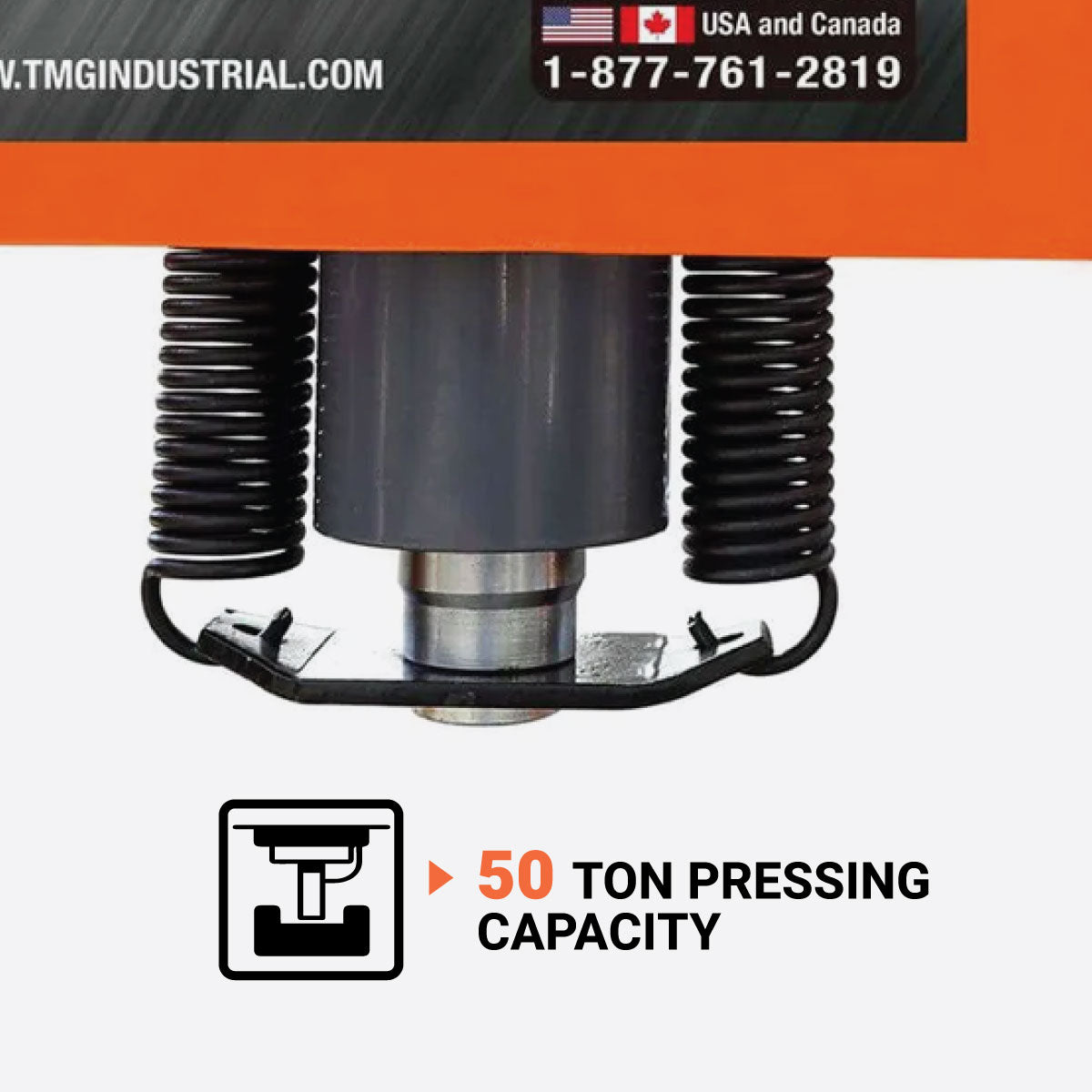

• Retracting Springs: Twin Springs
• Air / Pneumatic Pressure: 758 – 862 KPa
• Max Pump Pressure: N/A
• Maximum Work Range: 1010 mm
• Ram Stroke: 190 mm
• Ram Dia. / Cylinder Bore: 87 mm
• Ram Pressing Head Diameter: N/A
• Ram Left-Right Movement: No
• Carriage Bed Depth: 204 mm
• Carriage Bed Width: 695 mm
• Carriage Bed Pin Diameter: N/A

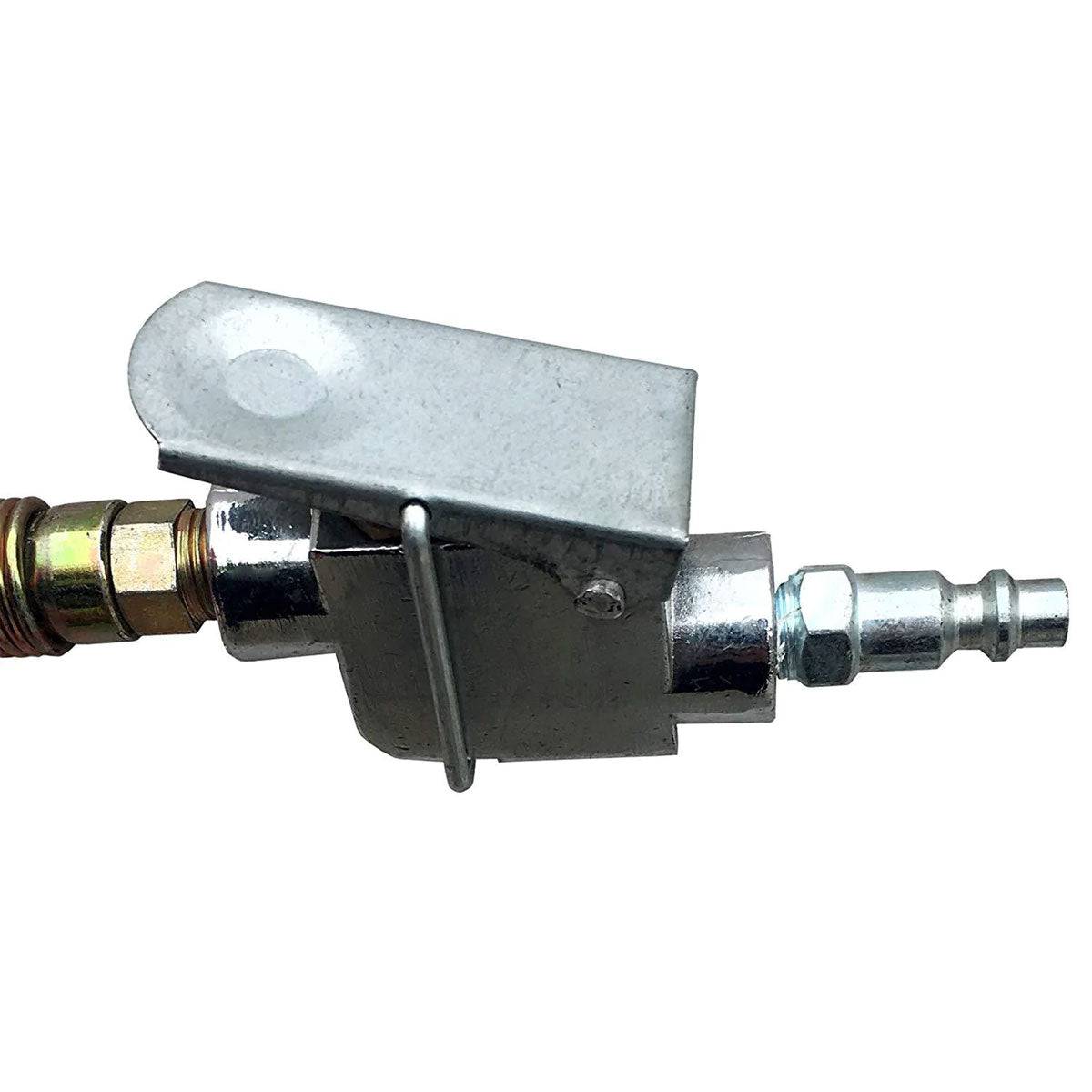

• Air Inlet Size: 1/4" NPT
• Foot Switch: No
• Steel Cable Crank Winch: Yes
• Discharge Pressure: N/A
• Frame Internal Width: N/A
• Frame Internal Length / Upright Opening: 104 cm
• Electric Motor Certification (AU): N/A
• Electric Motor Certification (CA/US): N/A
• Hydraulic Tank Capacity: N/A
• Hydraulic Fluid Recommended: ISO AW32
• Net Weight: 216 kg
• Shipping Dimensions (L × W × H): 181 × 97 × 36 cm
• Shipping Weight: 248 kg

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

• Packaging: Packed in a wood crate shipping box
• Shipping dimensions: 180 x 97 x 87 cm (L x W x H)
• Shipping weight: 248 kg

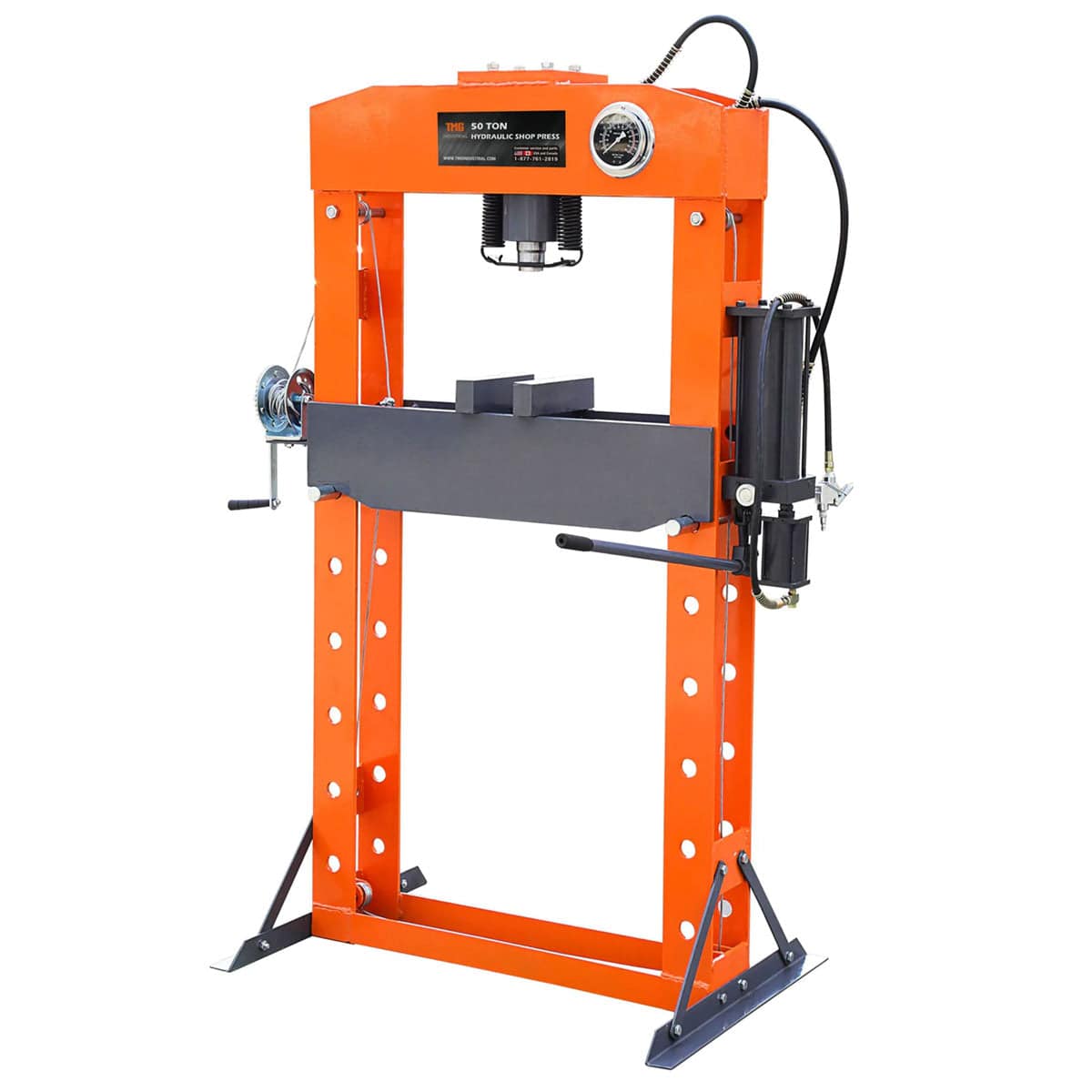

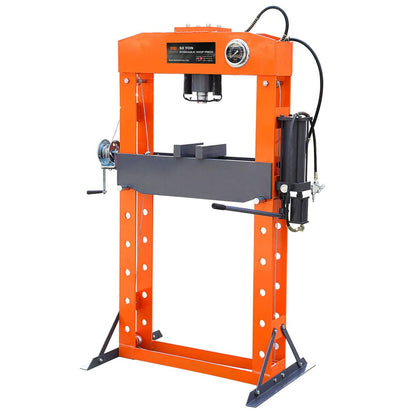

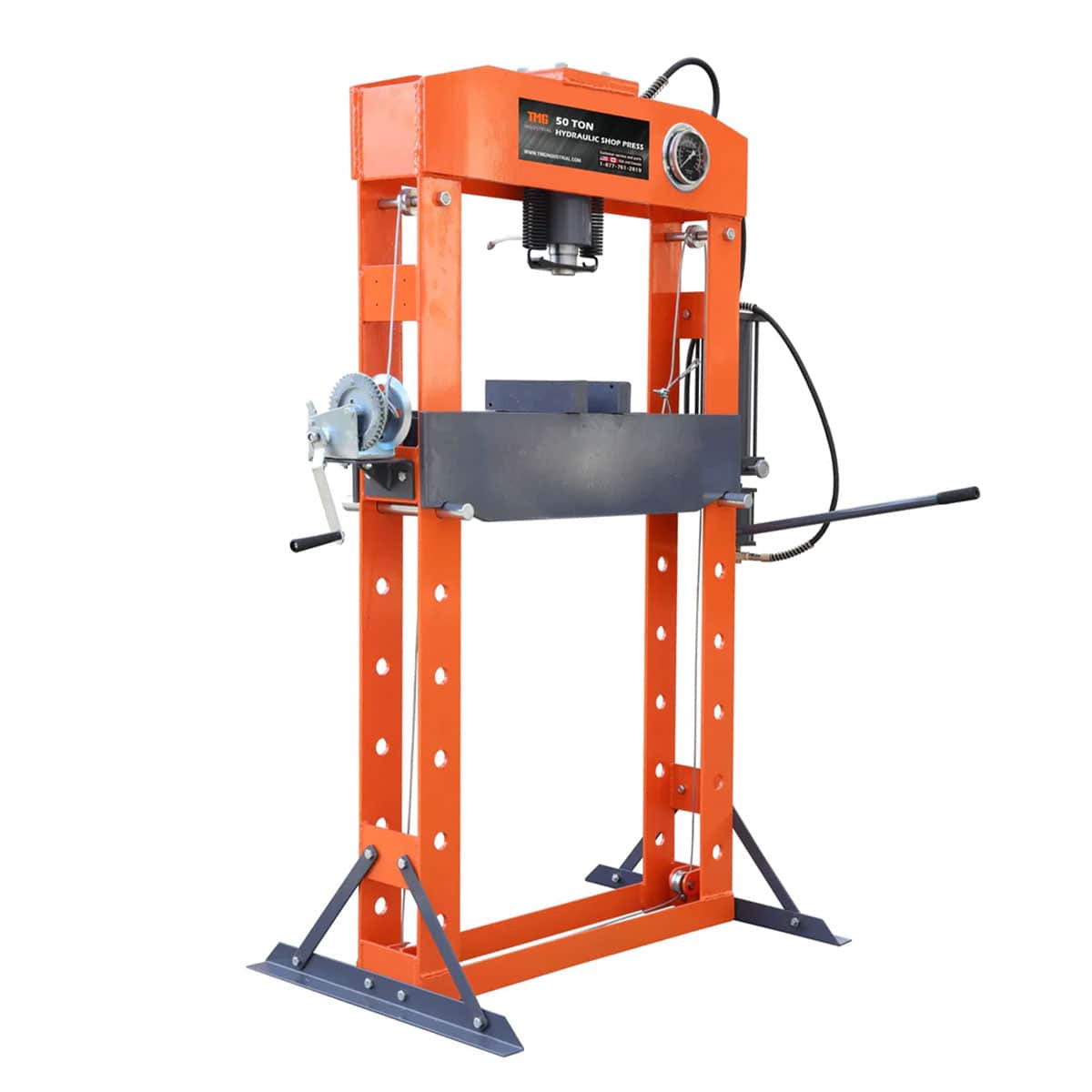

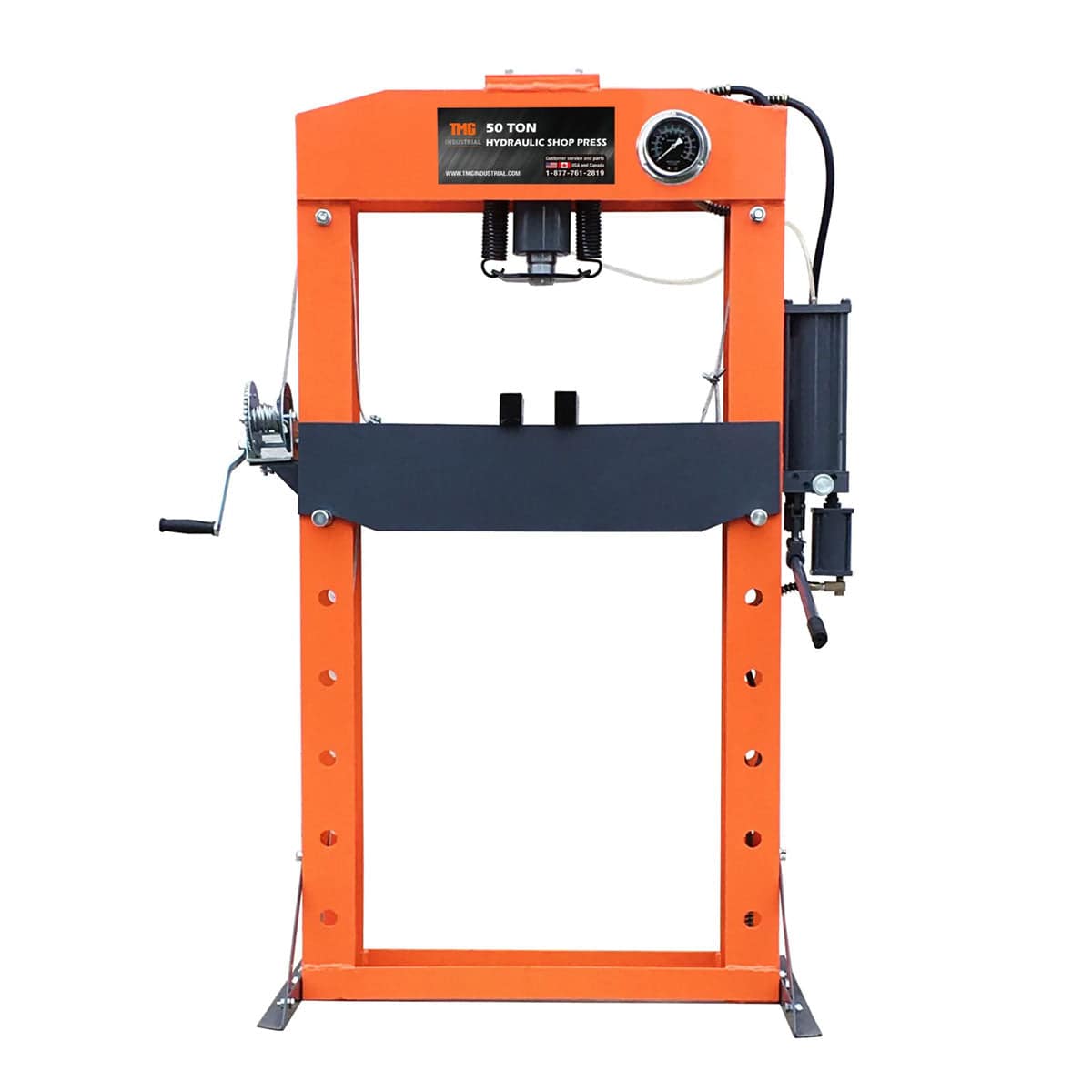

• Q: What is the TMG-SP50 Hydraulic Shop Press?
  A: The TMG-SP50 is a heavy-duty hydraulic shop press designed for various industrial and automotive tasks such as pushing bearings, stamp work, bending, and flattening metal. It features a 50-ton pressing capacity and can be operated both pneumatically and manually.
• Q: What is the maximum pressing force of the TMG-SP50?
  A: The TMG-SP50 has a maximum pressing force capacity of 50 tons.
• Q: How does the TMG-SP50 operate?

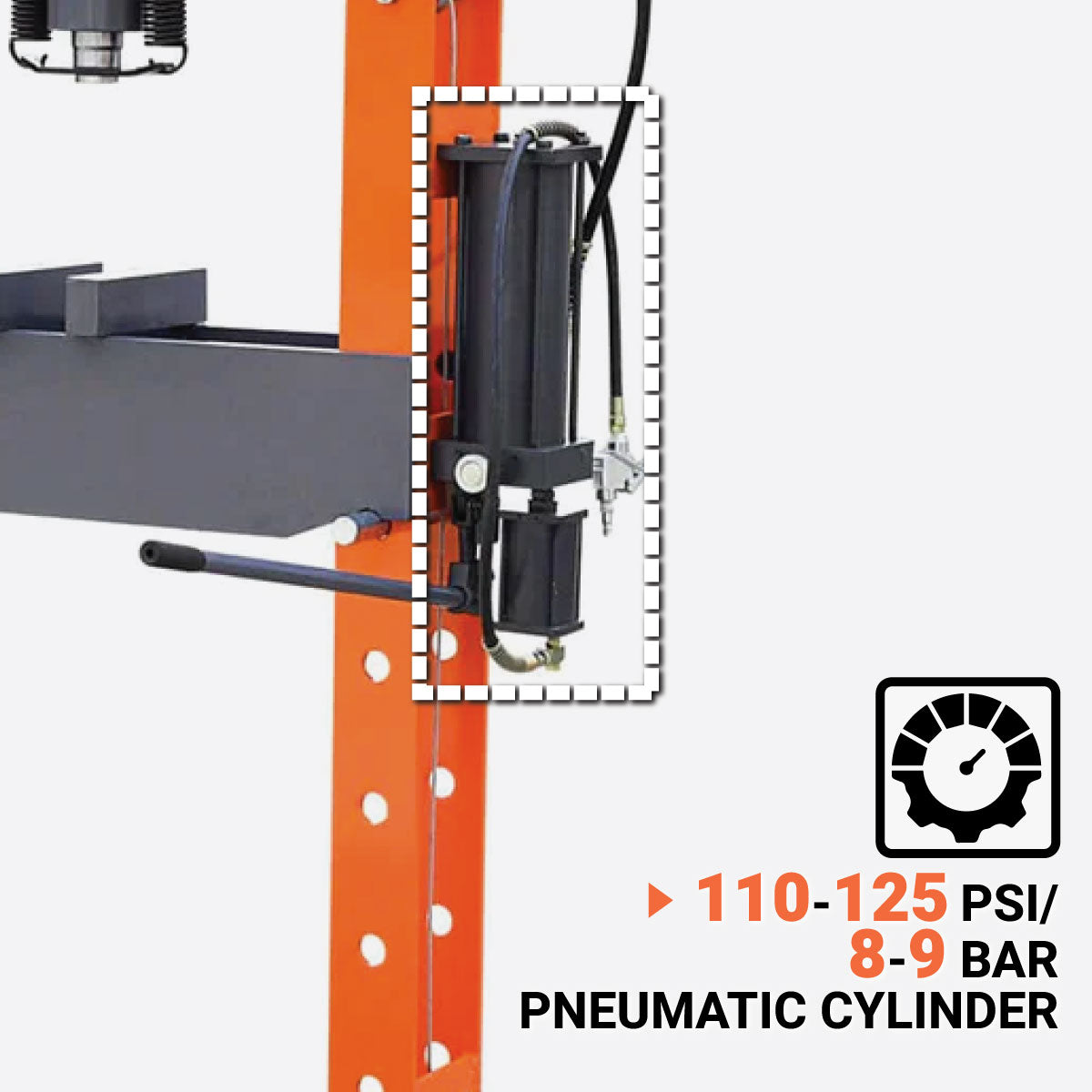

  A: The TMG-SP50 operates using a dual hydraulic cylinder, allowing for both pneumatic (air-powered, requiring 110-125 PSI) and manual operation.
• Q: What are the main assembled dimensions of the press?

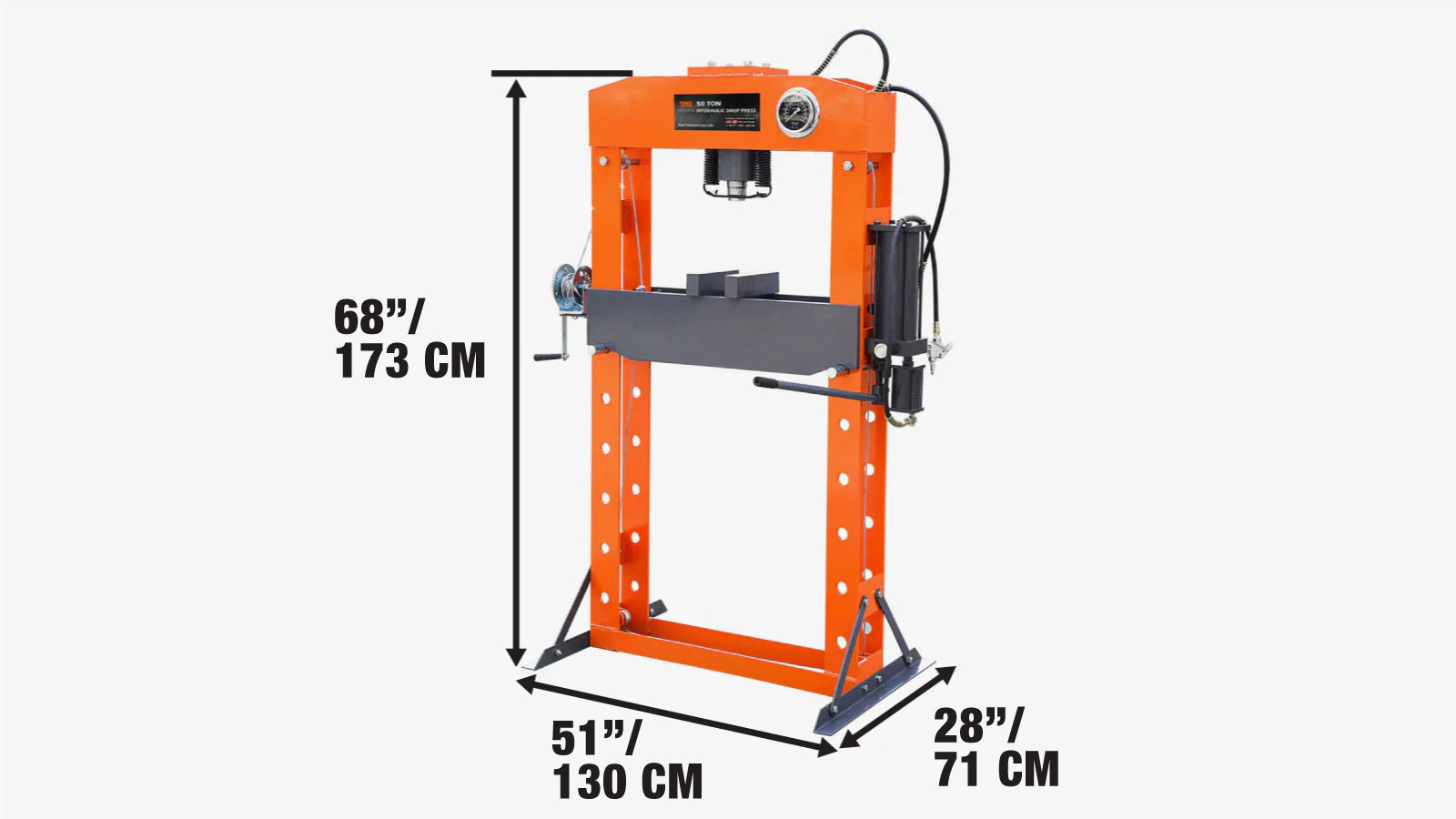

  A: The assembled dimensions of the TMG-SP50 are 51 inches (130 cm) in length, 28 inches (72 cm) in width, and 68 inches (173 cm) in height.

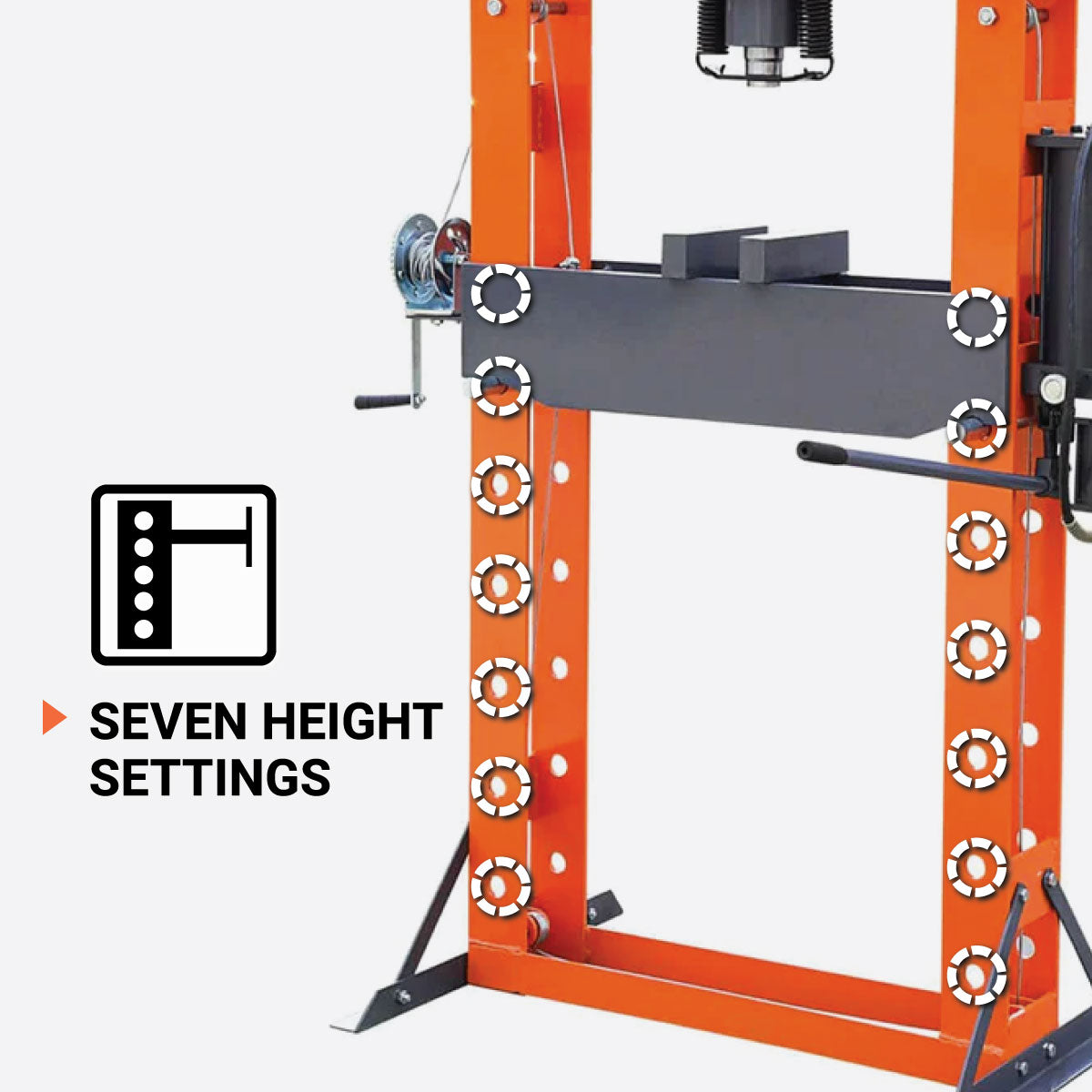

• Q: Is the press bed height adjustable?

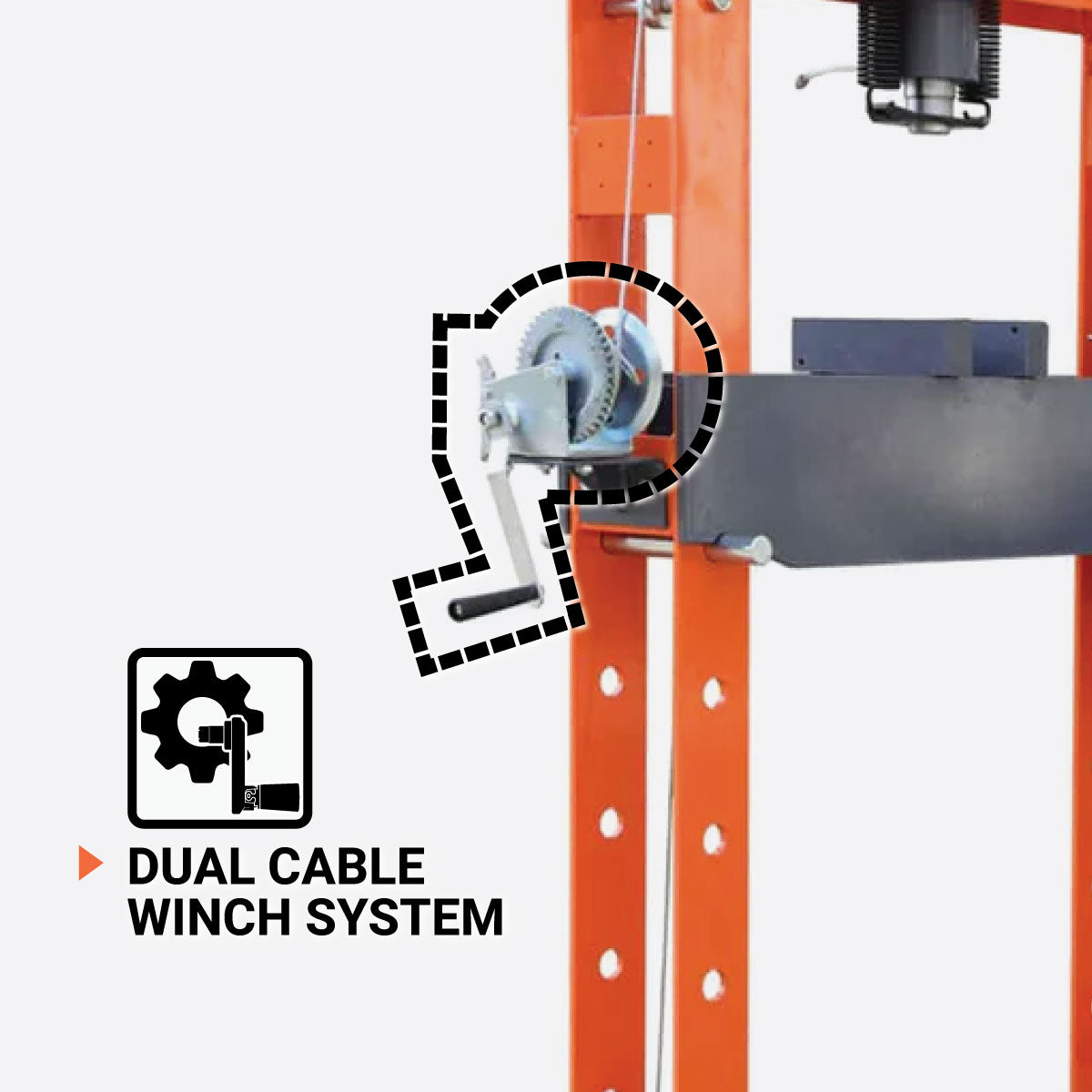

  A: Yes, the press bed is adjustable with seven height positions, and adjustments are made easy with a steel cable crank winch.
• Q: Where can I find the product manual and additional support?
  A: The product manual for the TMG-SP50 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
• Q: What is the warranty for the TMG-SP50?
  A: The TMG-SP50 is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
