CURRENTLY IN STOCK
TMG-HB53S

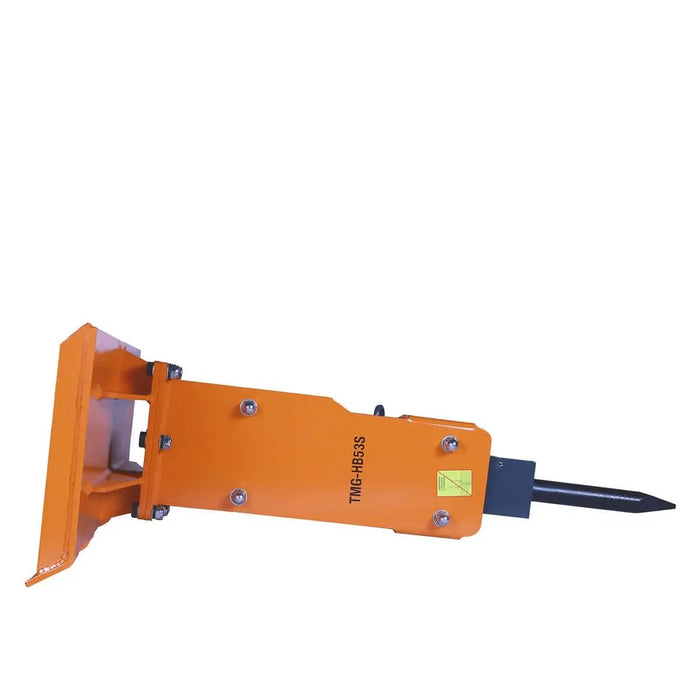

Hydraulic Breaker for 30-70 HP Skid Steer with Universal Mount, TMG-HB53S

Product Manual

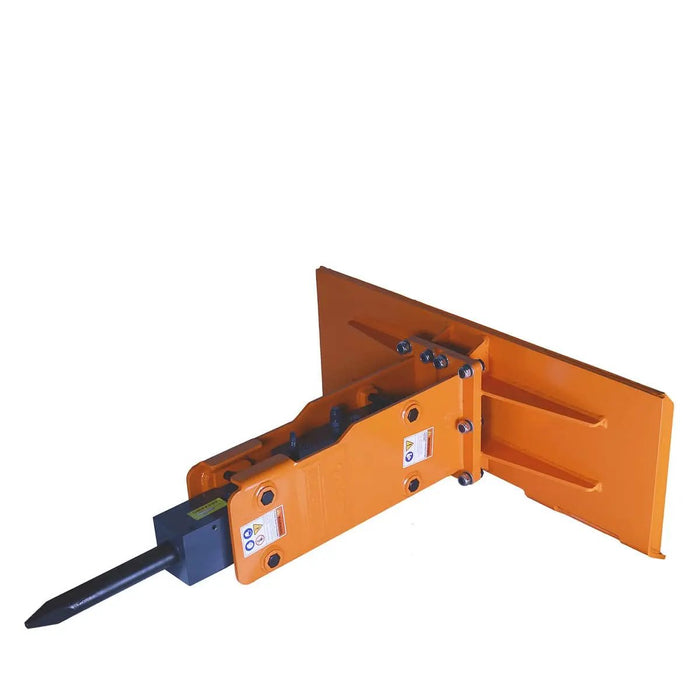

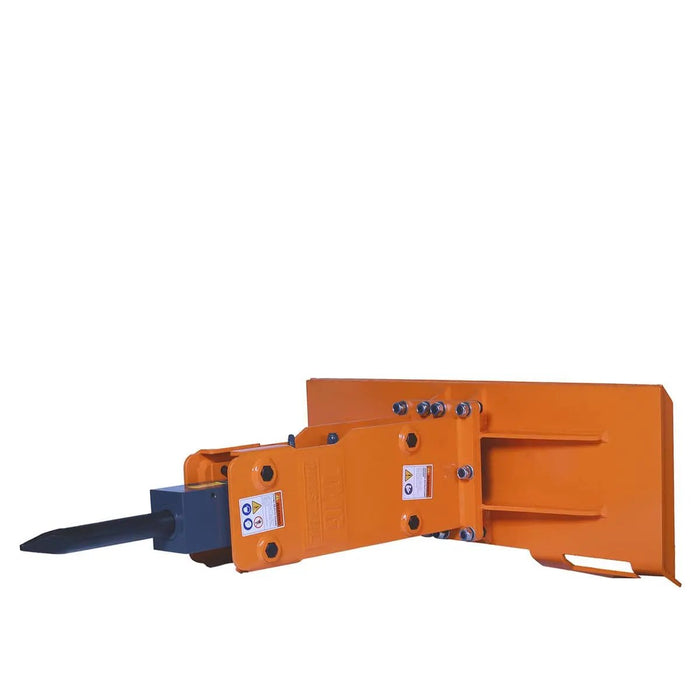

TMG Industrial 30-70 HP Skid Steer Hydraulic Breaker, 2” Moil Point Chisel, 350 J Impact Energy, Universal Mount, TMG-HB53S
CURRENTLY IN STOCK
TMG-HB53S
$3,199.00
$3,199.00 - $3,199.00
$3,199.00
$2,799.00
$2,799.00 - $2,799.00
$2,799.00
$3,199.00 Save $400.00
$2,799.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

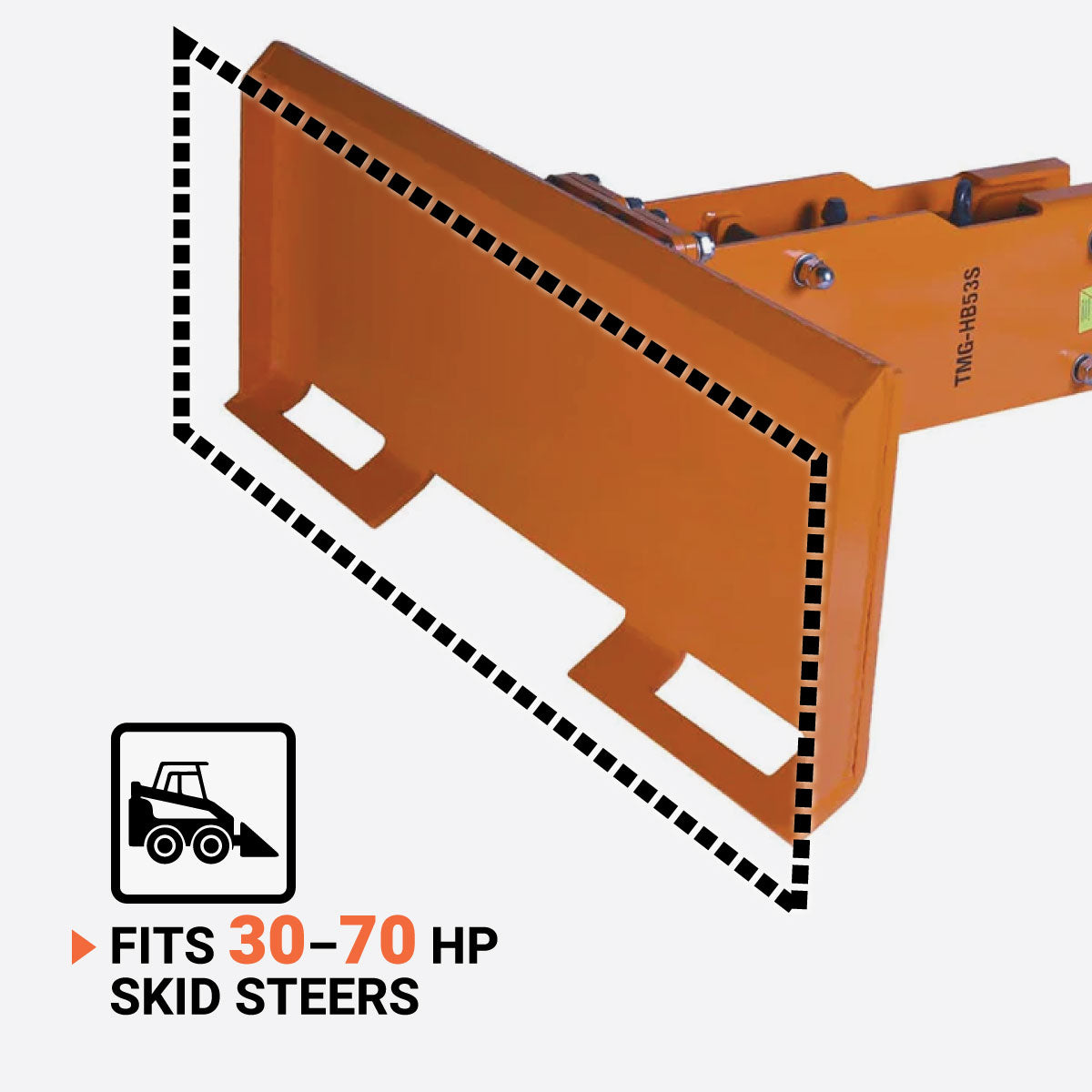

Compatible with 30-70 HP skid steers using a universal mount
Feature Image

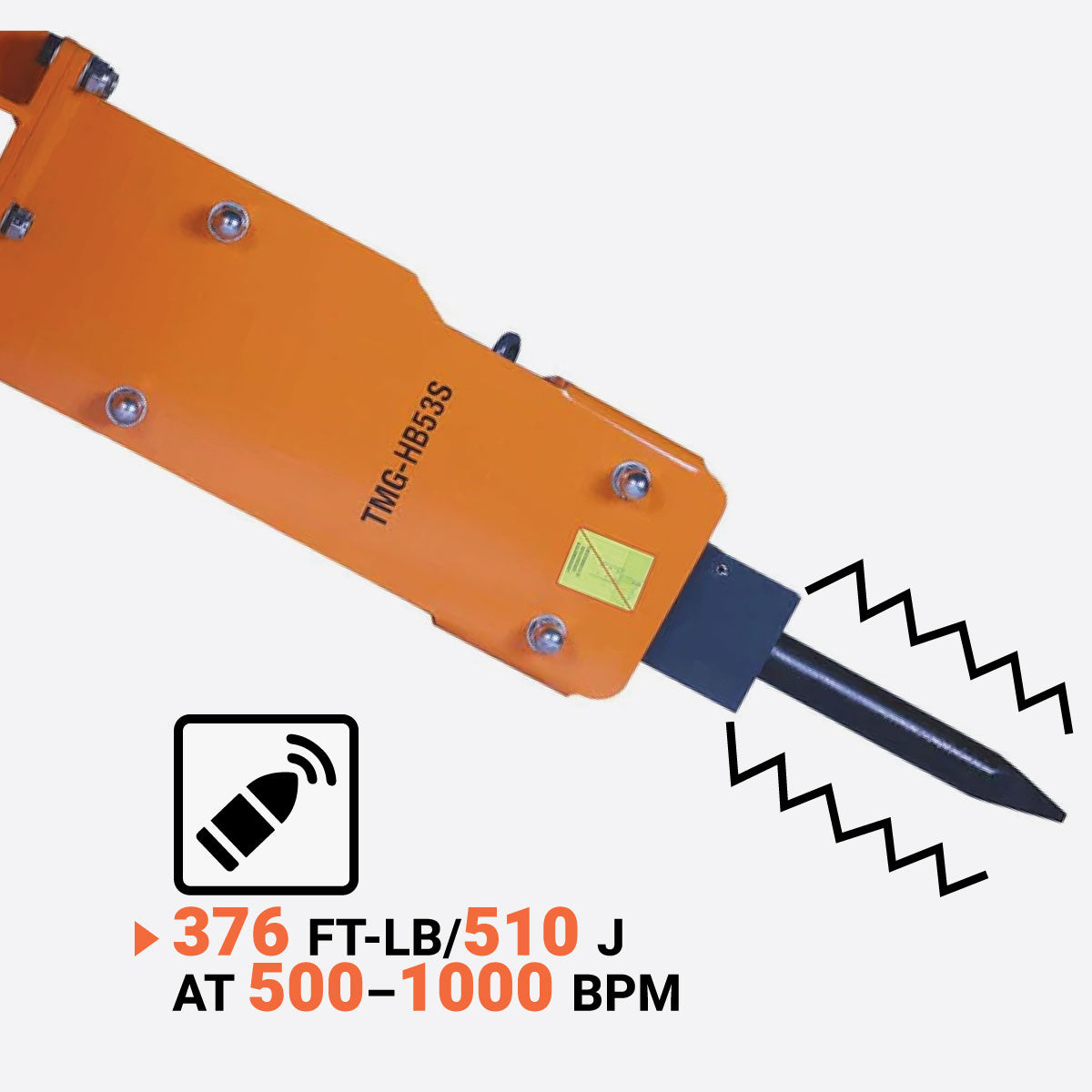

Delivers 510 J impact energy at 500-1000 BPM for small to medium sized projects
Feature Image

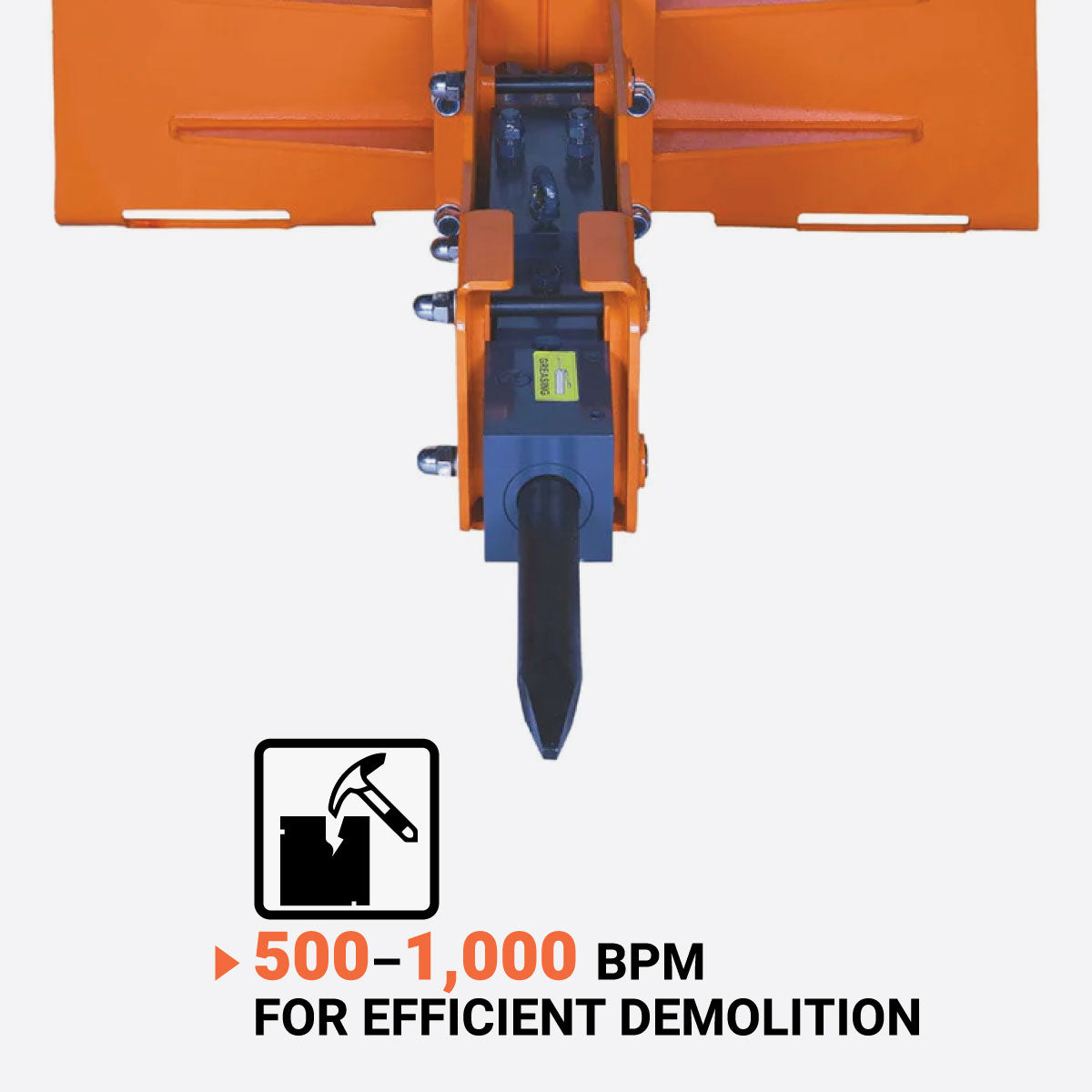

500 – 1,000 blows per minute for efficient rock and concrete demolition
Feature Image

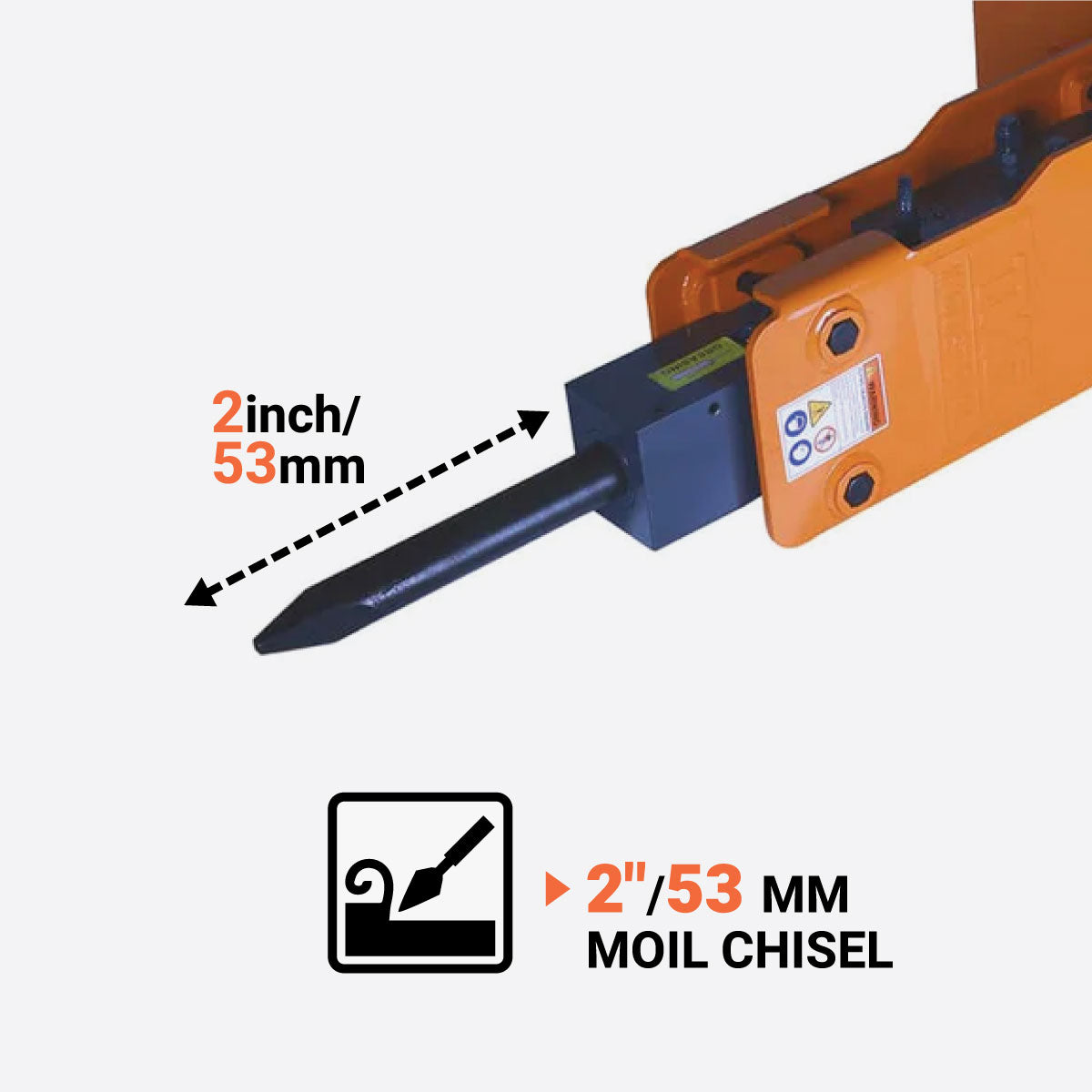

53 mm moil point chisel built for heavy-duty performance
Feature Image

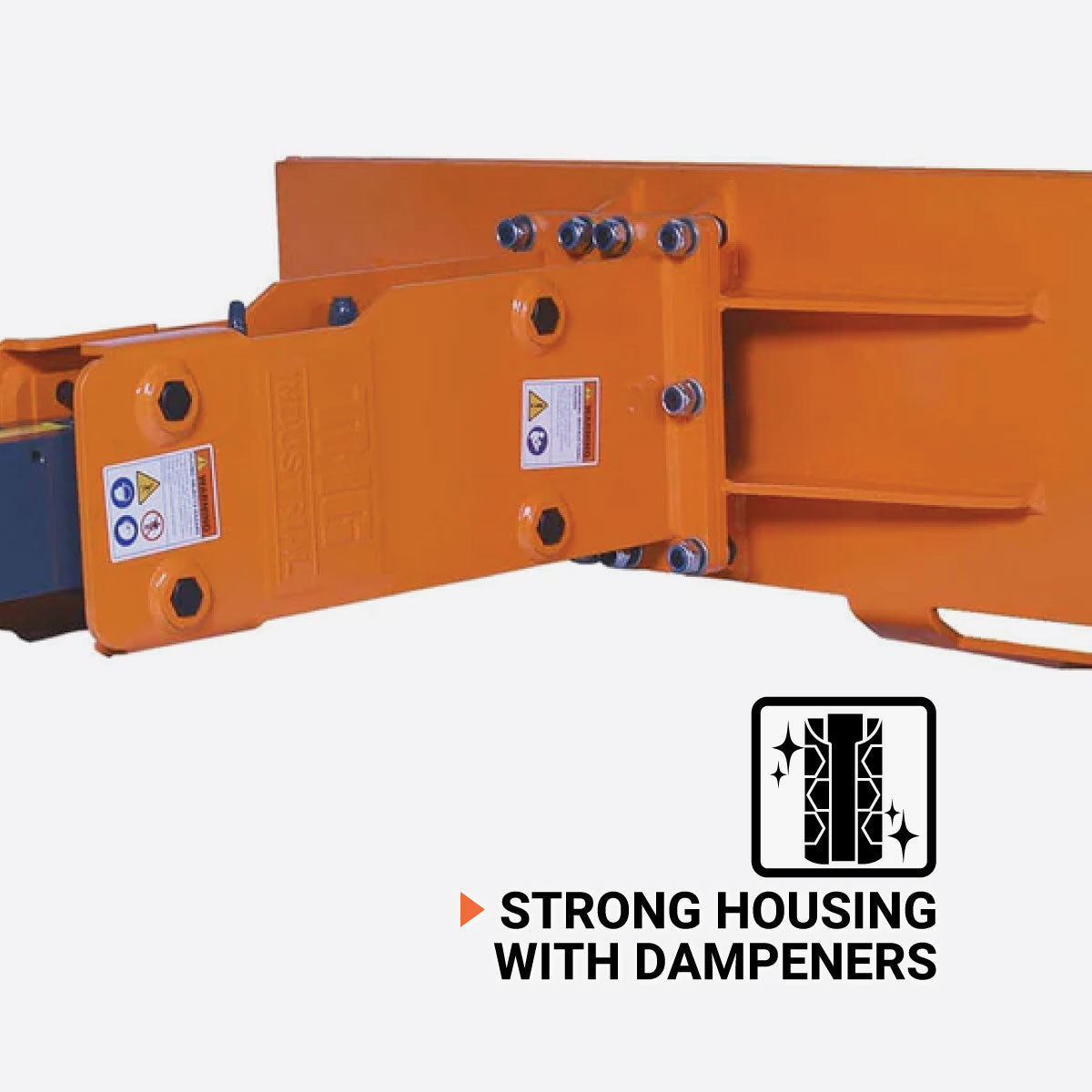

High-strength housing with shock-absorbing dampeners for reduced carrier stress
Feature Image

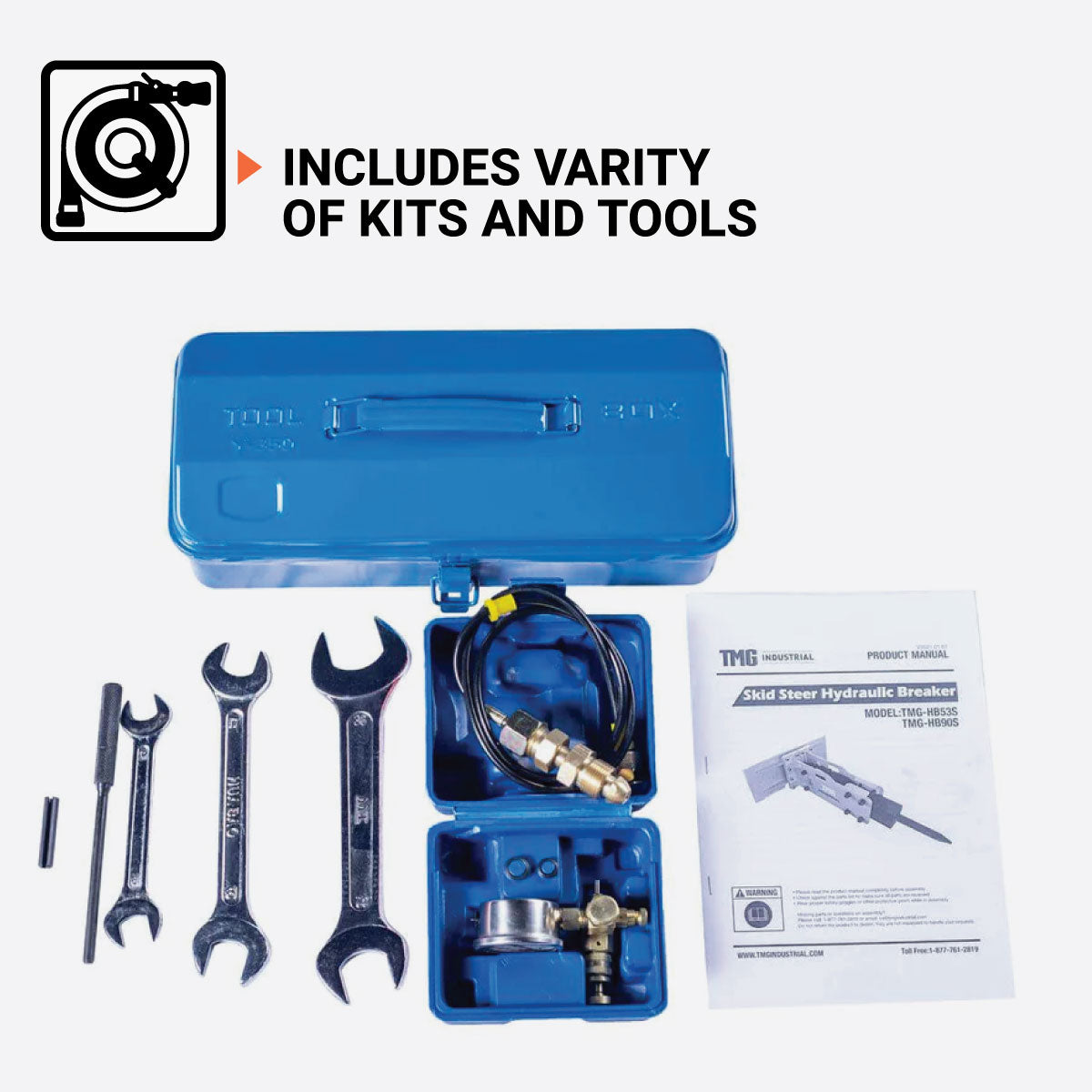

Includes hydraulic hoses, flat-face couplers, nitrogen charging kit, and service tool kit

Specifications icon Specifications

  • Compatible Equipment: 30–70 HP Skid Steers

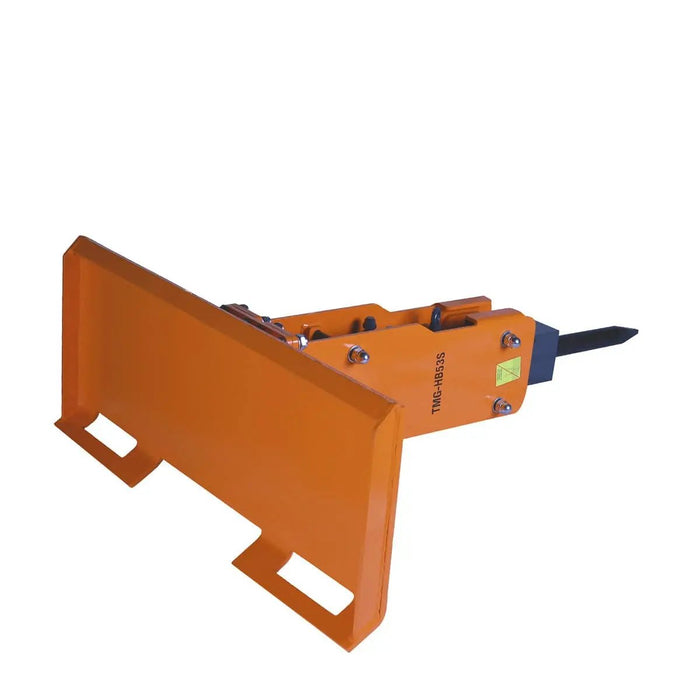

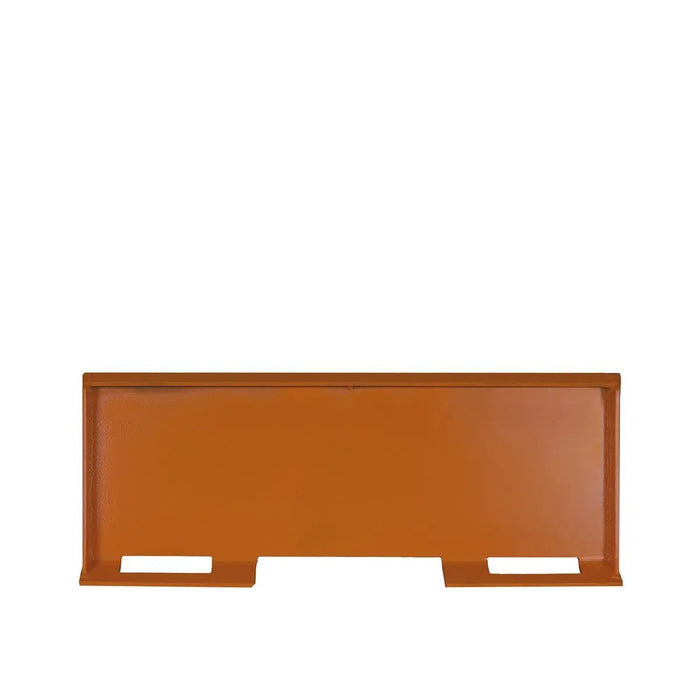

  • Mount Type: Universal Skid Steer Mount
  • Impact Rate (BPM): 500-1000 BPM
  • Impact Energy in Joules: 510 J
  • Hydraulic Flow (litres per minute): 25-45 L/min
  • Hydraulic Pressure in PSI: 1300-1700 PSI
  • Hydraulic Hoses & Couplers Included?: Yes, both
  • Hydraulic Couplers Type: 1/2" NPT
  • Hydraulic hoses quantity and diameter: 1/2" x 2.4 m, 2 pcs
  • Chisel Diameter in mm: 53 mm
  • Operating Weight in kg: 225 kg

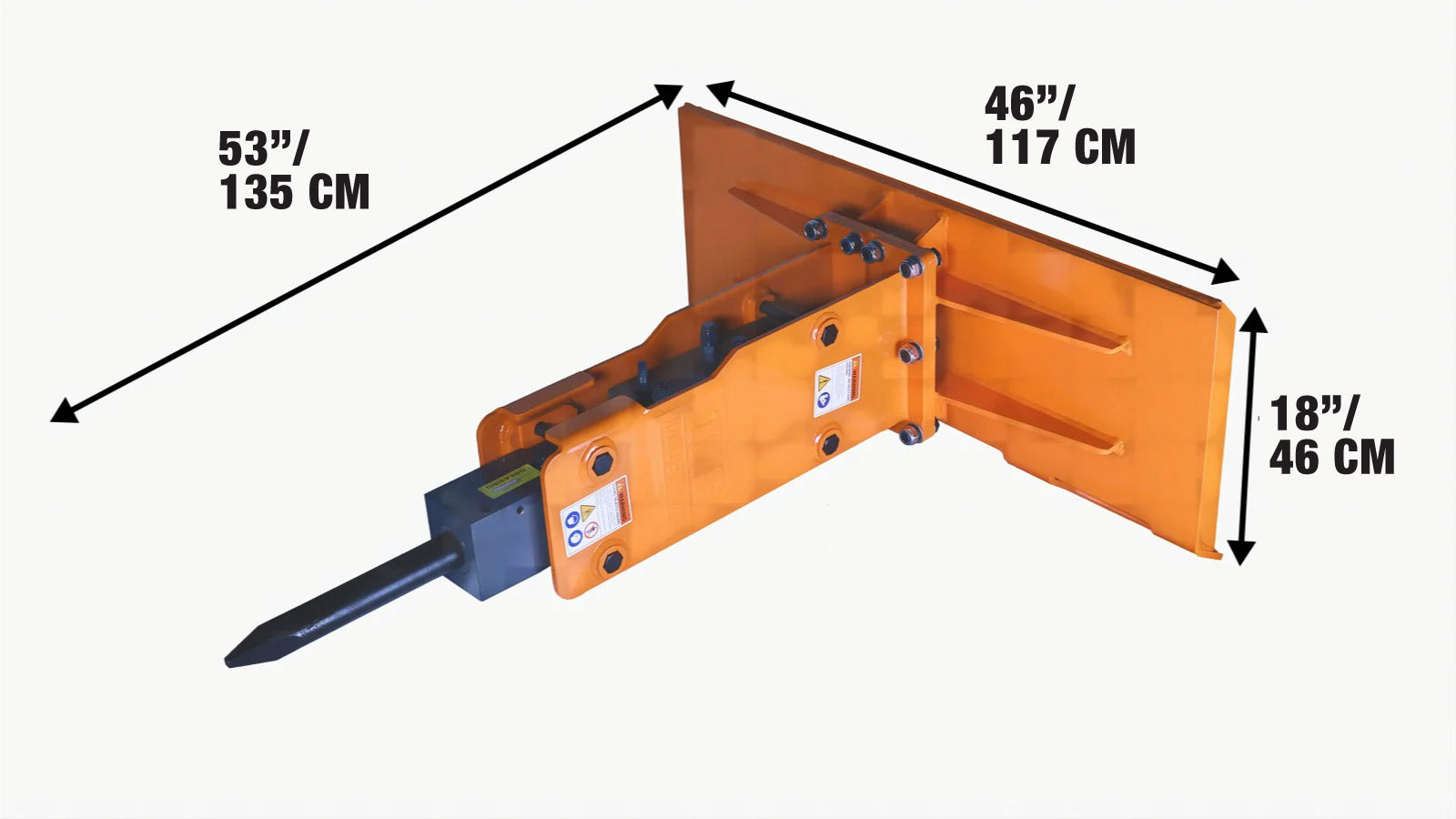

Hydraulic Breaker for 30-70 HP Skid Steer with Universal Mount, TMG-HB53S-specifications-image

Shipping Information icon Shipping Information

Your order will ship from our main Australian warehouse. Orders typically leave the warehouse within 2–3 business days. Standard delivery time is 10–15 business days depending on location.

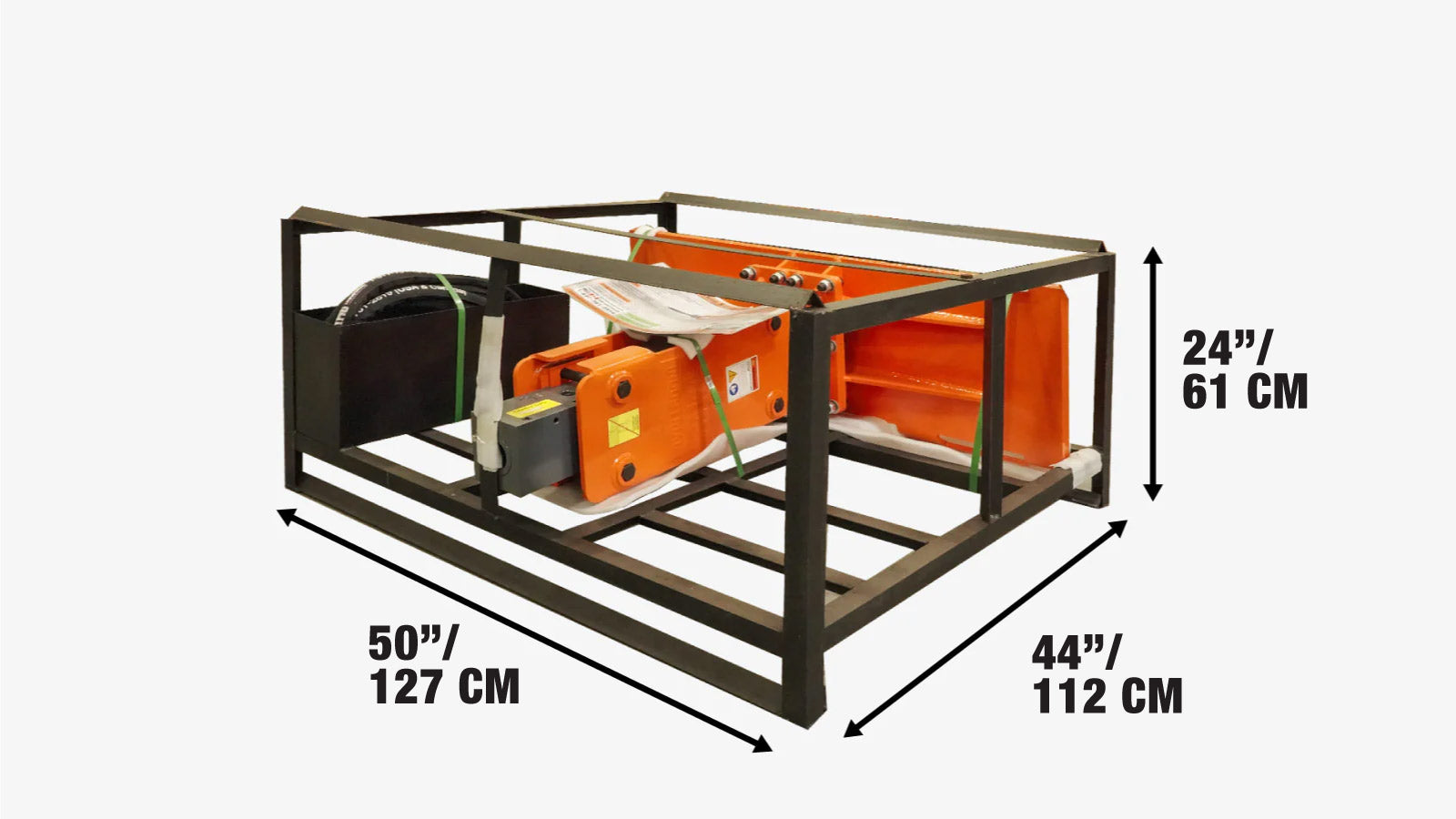

  • Packed in a steel shipping crate
  • Shipping dimensions: 132 x 114 x 61 cm (L x W x H)
  • Shipping weight: approx. 272 kg
  • Delivery available Australia-wide (forklift required for unloading)
Shipping from Rowville,VIC
What happens after you place your order?
Hydraulic Breaker for 30-70 HP Skid Steer with Universal Mount, TMG-HB53S-shipping-info-image

Product Description icon Product Description

The TMG-HB53S Hydraulic Breaker Attachment for 30-70 HP Skid Steer with Universal Mount is a powerful and dependable solution for across Australian job sites. Designed for 30-70 HP skid steers, this breaker features a 53 mm moil point chisel and delivers up to 1000 BPM of force—efficiently handling concrete, stone, and demolition materials.

It comes equipped with everything needed for installation and operation, including hoses, flat-face couplers, a charging kit, and a service tool kit. The housing incorporates anti-vibration dampeners to protect the carrier machine, making it ideal for prolonged work shifts and heavy-duty usage.

Whether used in road construction, mining, or site preparation, the HB53S offers excellent breaking performance while minimising stress on your equipment.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

1. What equipment is the TMG-HB53S compatible with?

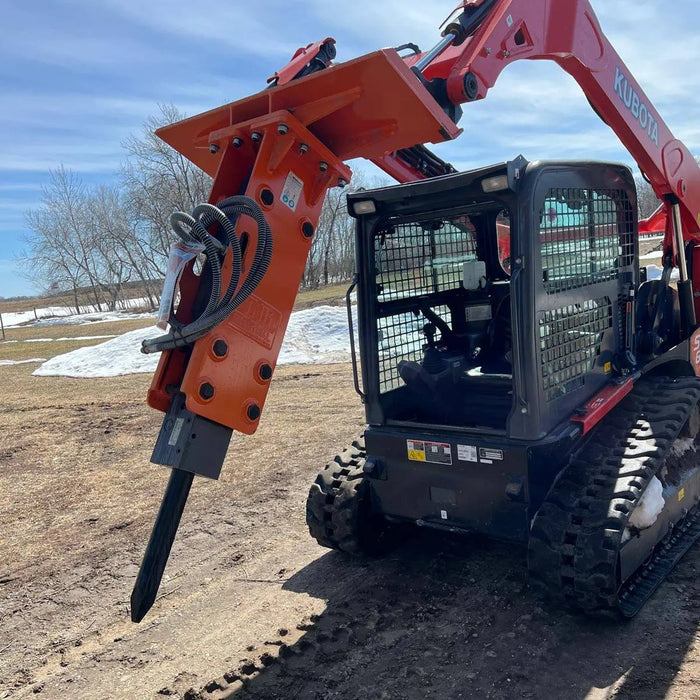

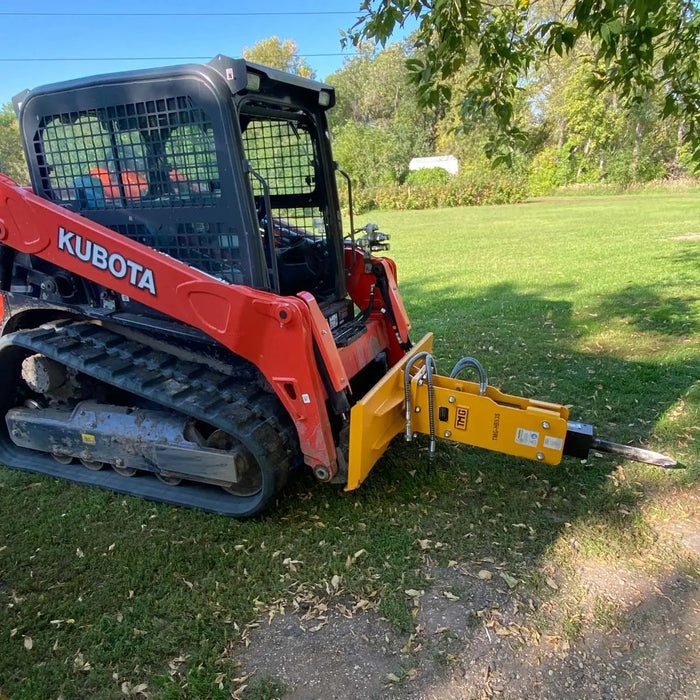

The TMG-HB53S is designed for skid steer loaders with engine power ranging from 30 to 70 horsepower (approximately 22 to 52 kilowatts). It features a universal skid steer mount, ensuring compatibility with most standard skid steer models.
2. What are the key performance specifications of this hydraulic breaker?
The TMG-HB53S delivers an impact energy of 510 joules and operates at a rate of 500 to 1000 blows per minute (BPM). It requires a hydraulic flow between 6.5 to 12 gallons per minute (GPM) and a working pressure of 1300 to 1700 PSI. The chisel diameter is 2 inches (approximately 53 mm).
3. What is included with the TMG-HB53S upon purchase?

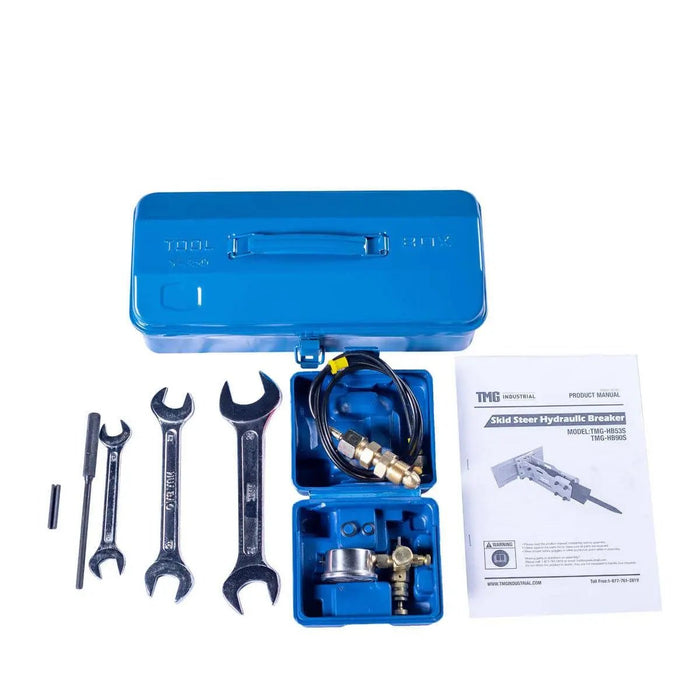

The package includes:
– One 53 mm (2-inch) moil point chisel
– Two ½-inch hydraulic hoses with flat face couplers
– One nitrogen charge kit with CGA580 cylinder adaptor
– One service tool kit
These components facilitate immediate setup and operation.
4. What industrial applications is the TMG-HB53S suitable for?
The TMG-HB53S is versatile and can be used in construction, demolition, mining, oil and gas, logging, tunneling, and other quarry operations. Its robust design and high impact energy make it suitable for light to medium-sized projects.
5. What maintenance features does the TMG-HB53S offer?
The breaker features a bottom tie rod bolted design, allowing for easy maintenance. Additionally, its nitrogen-charged operation provides superior break force efficiency and long-lasting work capacity.
6. Does the TMG-HB53S come with a warranty?
Yes, the TMG-HB53S hydraulic breaker comes with a one-year limited manufacturer’s warranty.
