CURRENTLY IN STOCK
TMG-RT165

1650 mm (65") Rotary Tiller, 30 - 50 HP Tractor, 3-Point Hitch, Category 1 & 2, TMG-RT165

Product Manual
TMG Industrial 65” 3-Point Hitch Rotary Tiller, 30-50 HP Tractor, 6” Tilling Depth, PTO Shaft Included, Category 1 & 2 Hookup, TMG-RT165
CURRENTLY IN STOCK
TMG-RT165
$2,899.00
$2,899.00 - $2,899.00
$2,899.00
$2,499.00
$2,499.00 - $2,499.00
$2,499.00
$2,899.00 Save $400.00
$2,499.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Specifications icon Specifications

  • Overall Width: 1800 mm
  • Working Width: 1650 mm
  • Tractor Power Required: 30–50 HP
  • 3-Point Hitch Category 1 & 2: Yes
  • PTO Shaft Included: Yes
  • Overrun Protection: Shear Pin
  • PTO Shaft RPM: 540

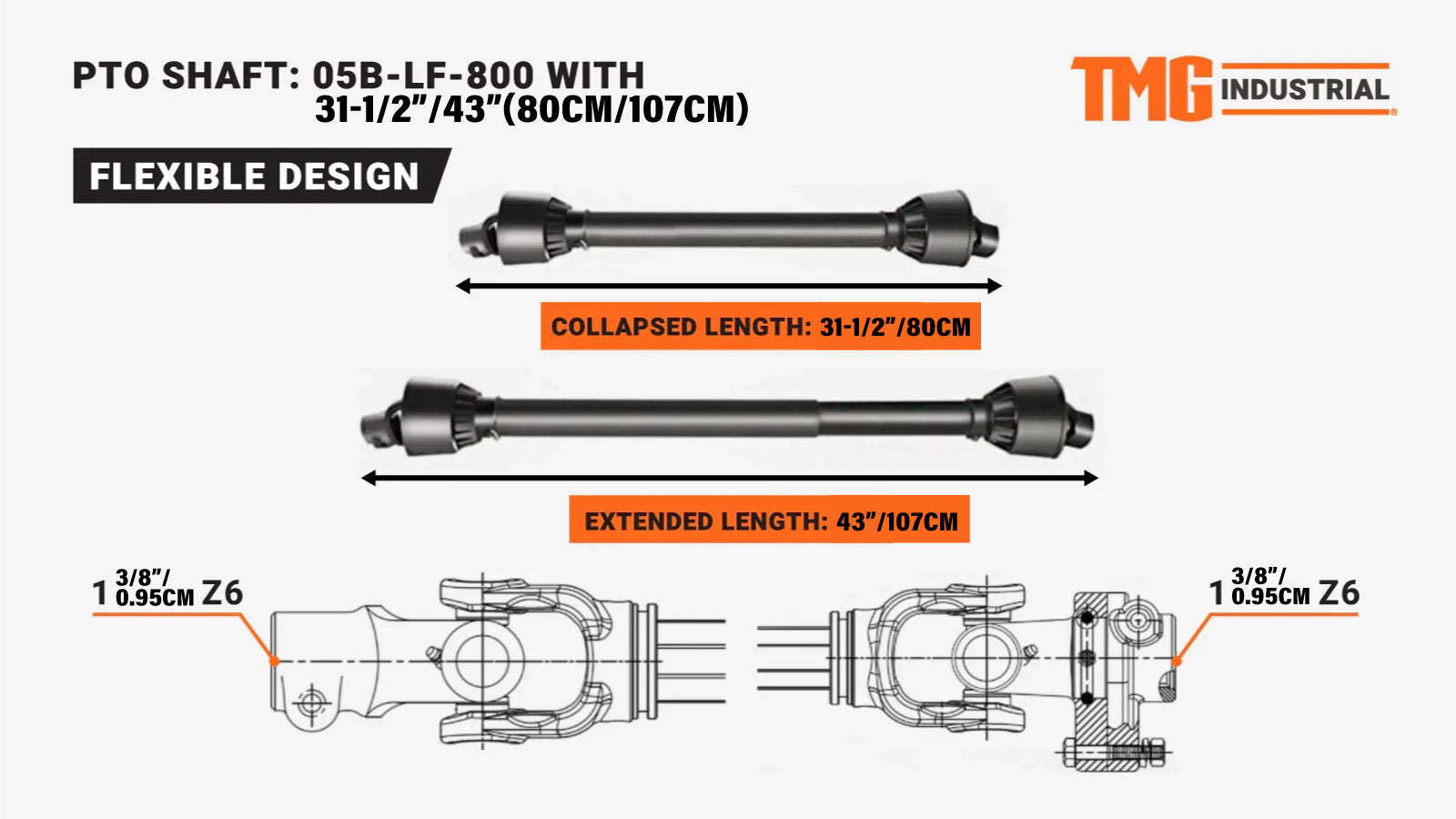

  • PTO Shaft Model: TMG-05B-LF-800
  • PTO Shaft Length: 750 mm
  • Tilling Depth: 38–76 mm
  • Rotary Shaft Speed: 241 RPM
  • Rotor Swing Diameter: 420 mm
  • Number of Flange: 8
  • Total Tilling Blades: 48
  • Blade Material: 60Si2Mn
  • Gearbox Oil Type: SAE 90
  • Drive Gear Ratio: 1.46 : 1
  • Drive Type: Gear Drive
  • Thickness of Deck: 7 mm
  • Thickness of Side Plate: 8 mm
  • Surface Finish: Powder Coating
  • Overall Dimension: 1800 × 690 × 810 mm
  • Net Weight: 250 kg
1650 mm (65

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

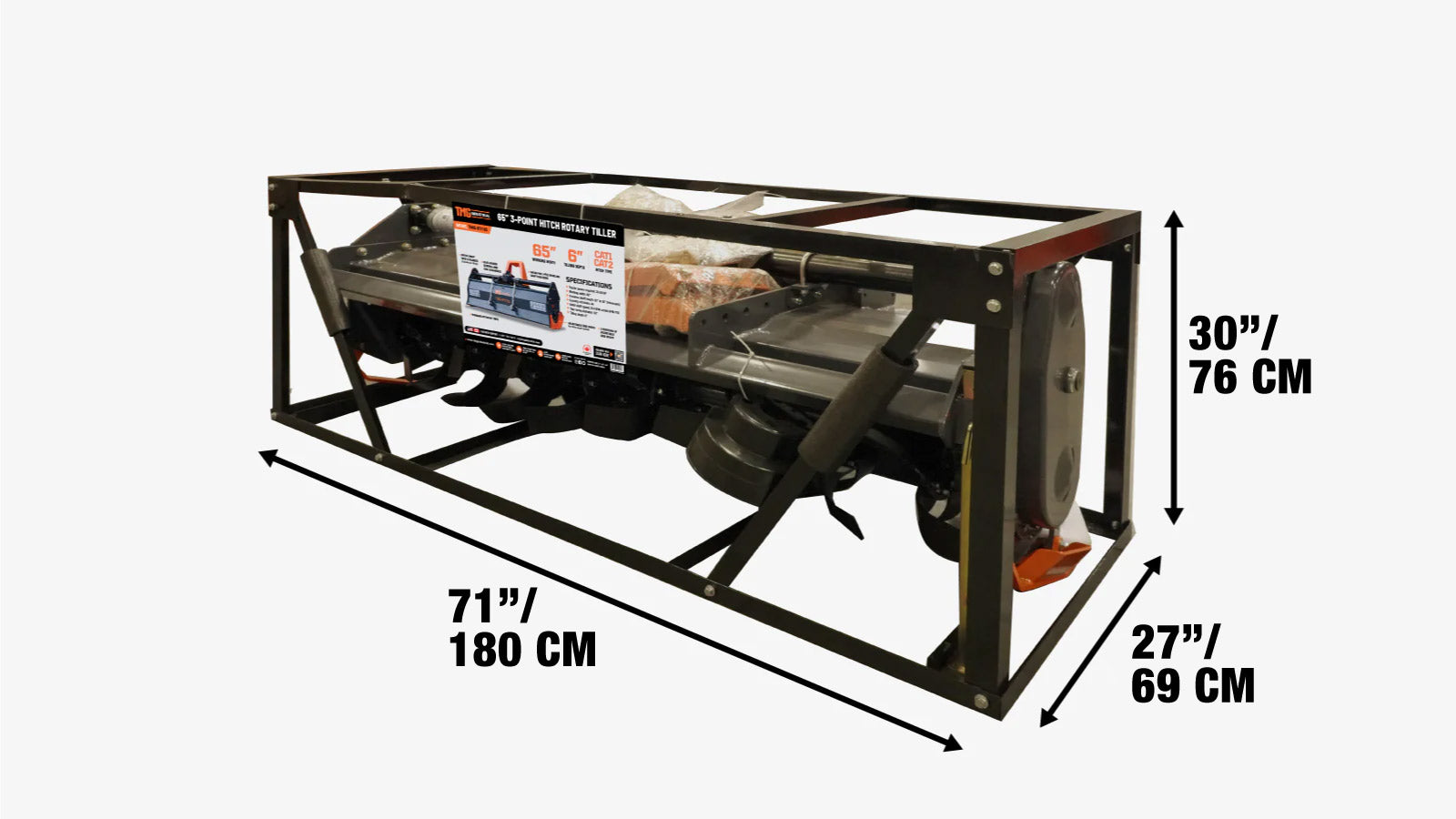

  • This product is packed in a metal crate shipping box
  • Shipping Dimension: 180 × 69 × 76 cm (71″ × 27″ × 30″)
  • Shipping Weight: 286 kg (630 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1650 mm (65

Product Description icon Product Description

The TMG-RT165 3-Point Hitch Rotary Tiller prepares your garden beds, nursery or hobby farm for seeding applications, landscaping and overall long-term land health and maintenance. Bring new life to your dirt by turning up old, tired grounds to reveal the fresh, nutrient rich soil available underneath. It comes with an included PTO shaft for Category 1 and 2 hookups and is compatible with most 30-50 HP tractors.

48 replaceable heavy-duty tines powerfully dig into the ground at a low, forceful speed of 214 RPM. This ensures a thorough, efficient reworking of the land after just one pass and leaves a beautiful layer of organic material settled evenly on top. The critical process for proper aeration and eco-diversity amongst the different sediments and starts to improve growing potential immediately.

Adjustable skid shoes allow you to control the tilling depth from 40 to 80 mm, and the 1650 mm workings width makes quick work of larger plots. Minor assembly required and easy to access gear boxes for simple maintenance over time. Enclosed side gearbox protects your power transmission and a powder coated finish ensures a dependable, long-lasting piece of equipment for you and your property.

TMG Industrial also carries other similar models: TMG-RT185.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What tractor HP range does this fit?
    A: Supports 30–50 HP tractors.
  • Q: How wide and how deep does it till?
    A: The working width is 1650 mm, and adjustable tilling depth is from 40 to 80 mm.
  • Q: How many tines?
    A: It has 48 tines (8 flanges with 6 tines each).
  • Q: What speed does the rotor run?
    A: Rotor operates at 214 RPM when using a 540 RPM PTO.
  • Q: What drivetrain and gearbox setup is used?
    A: Direct drive central and side gearboxes transmit power.
  • Q: Is a PTO shaft included?
    A: Yes — includes PTO driveline shaft and supports Category 1 & 2 hookups.
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
