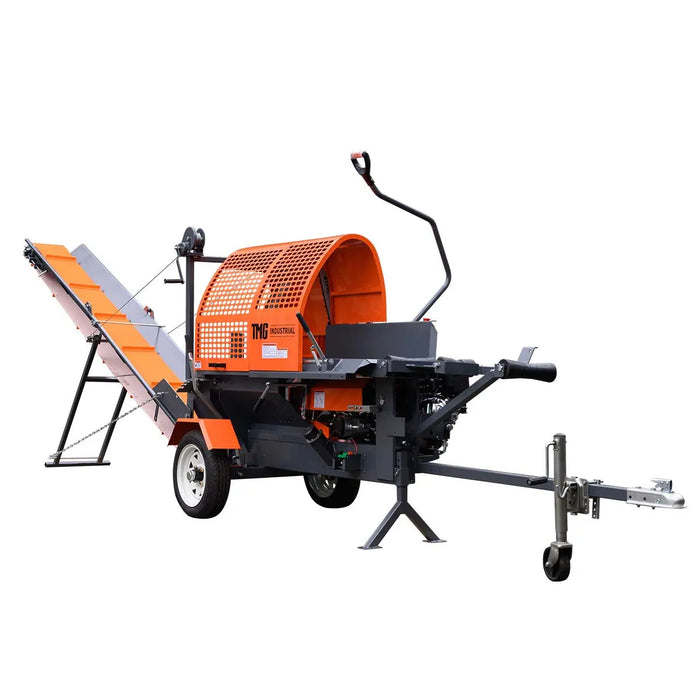

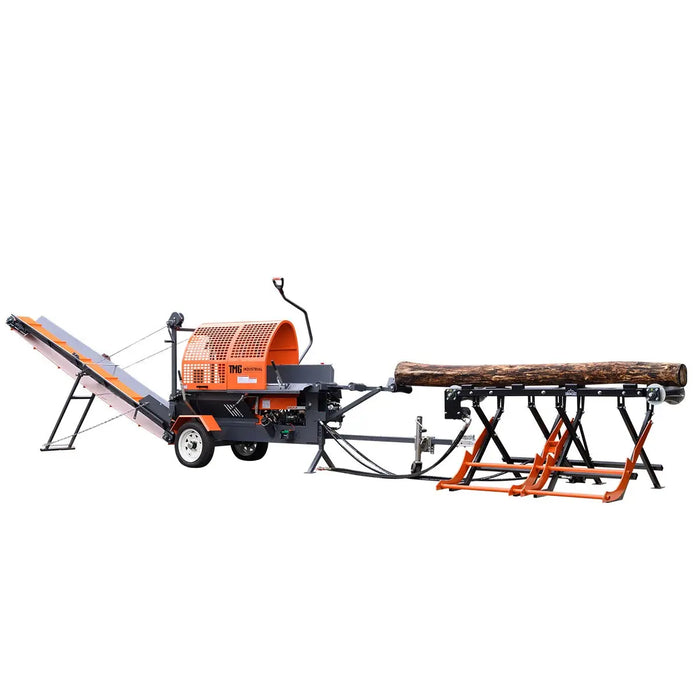

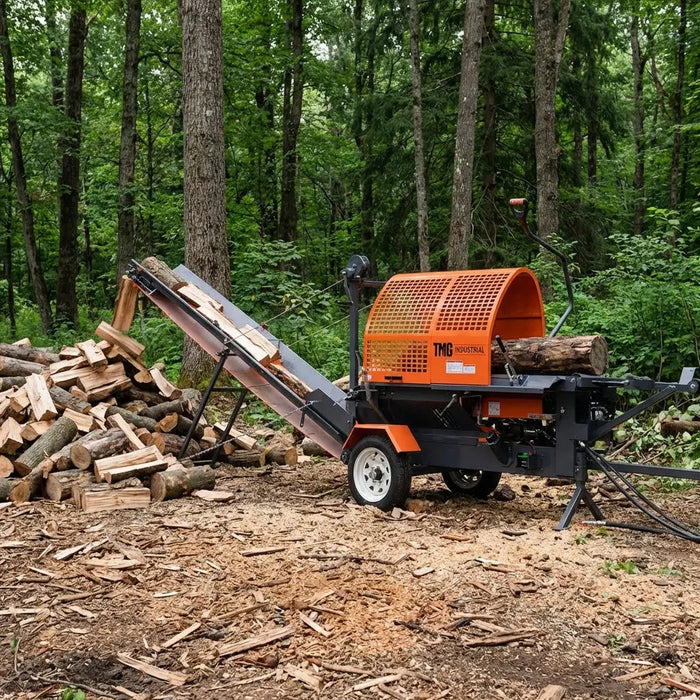

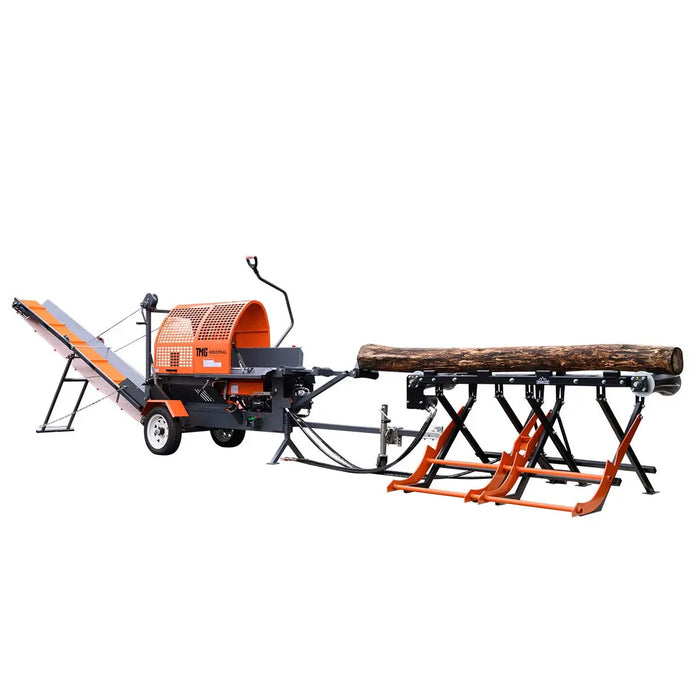

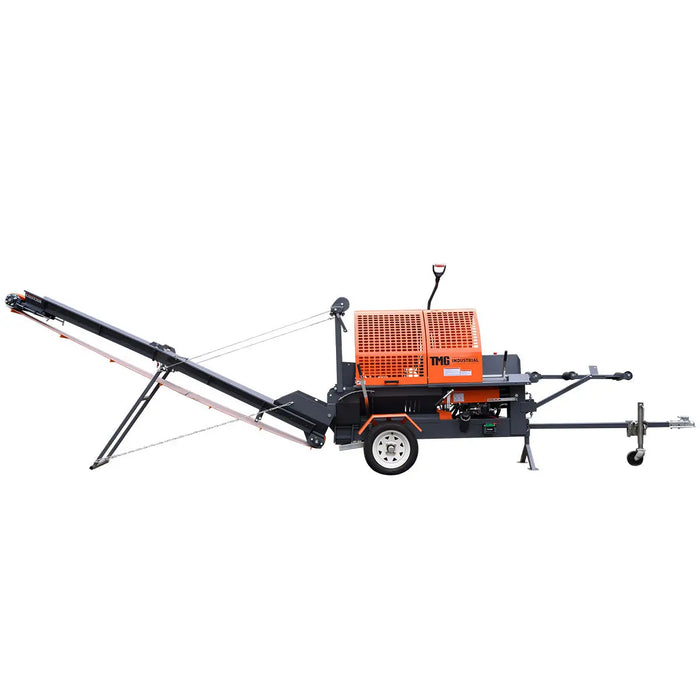

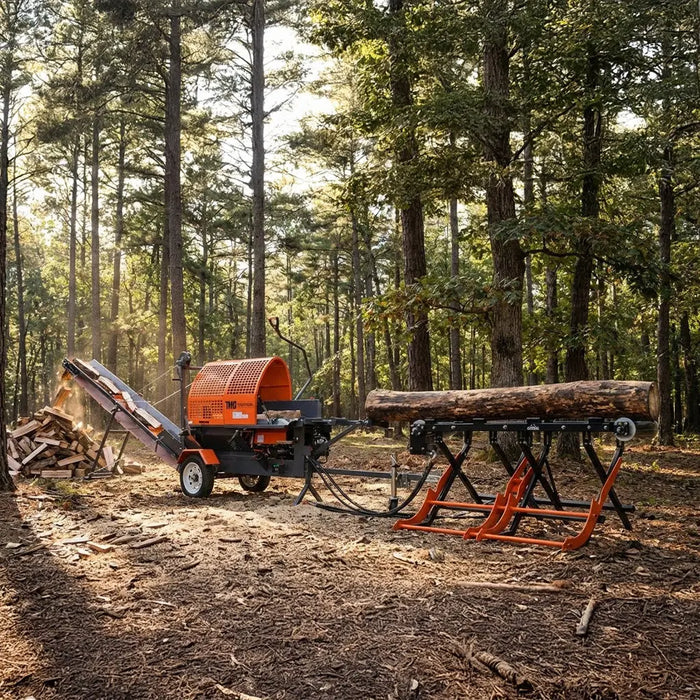

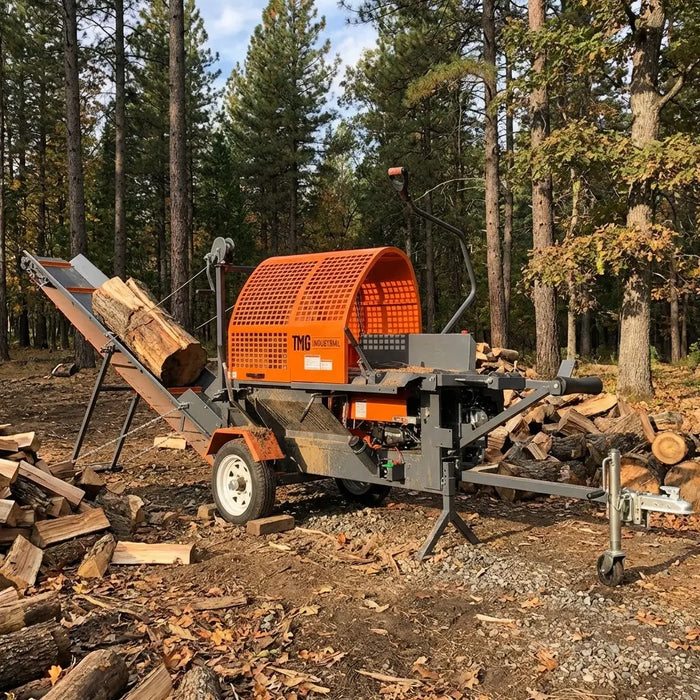

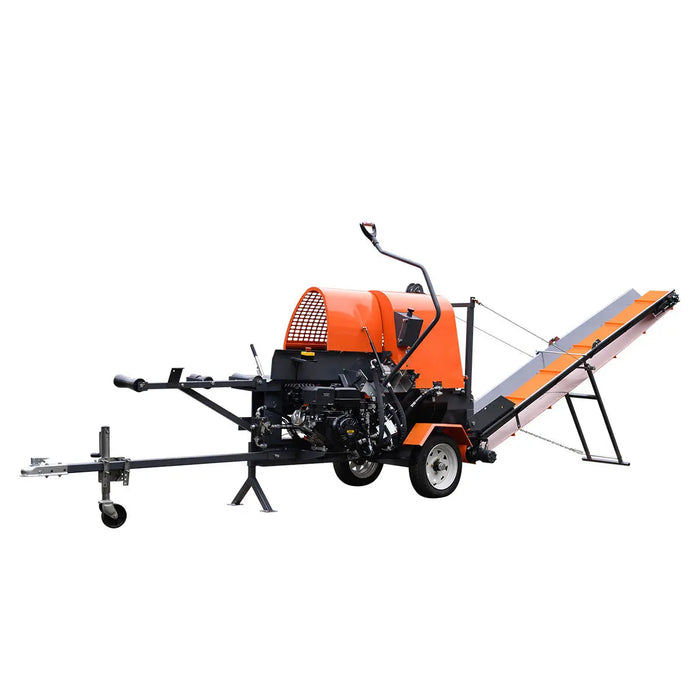

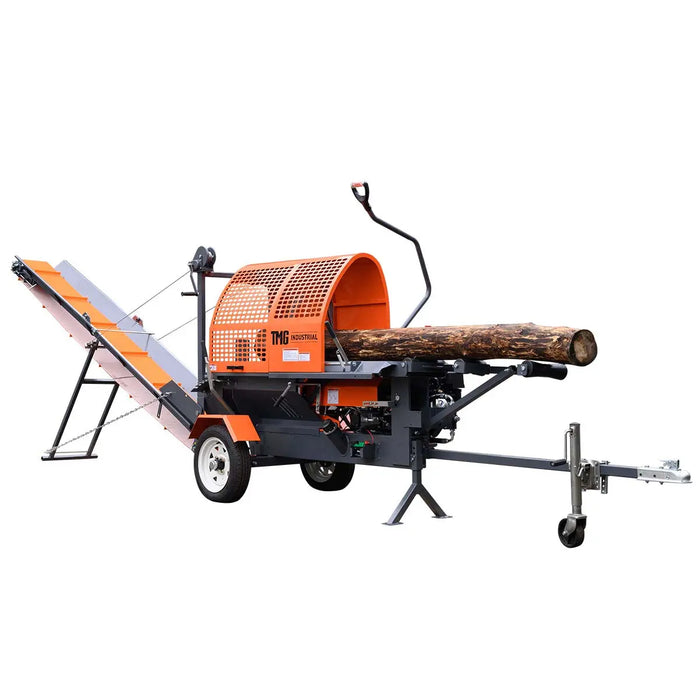

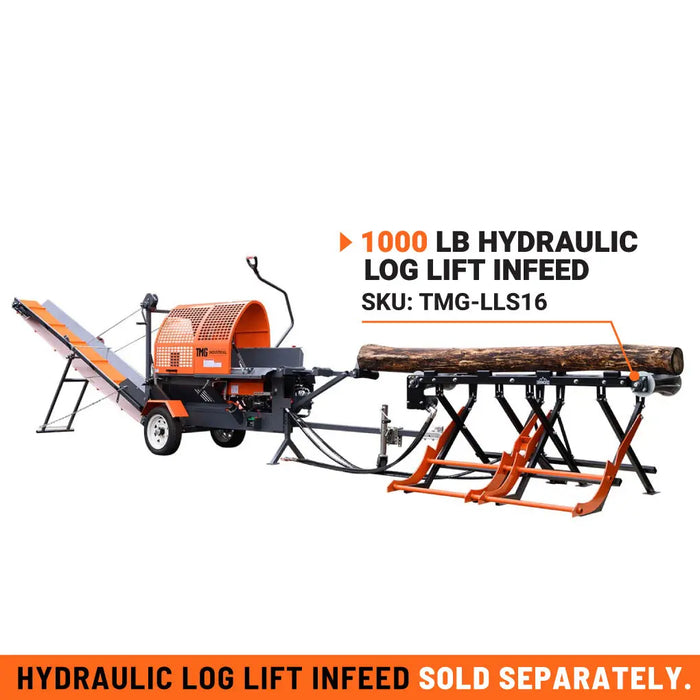

• Power Performance: Equipped with a reliable 15 HP gas engine and 20 tons of splitting force to deliver exceptional power for effortless processing of logs up to 380 mm (15") in diameter.

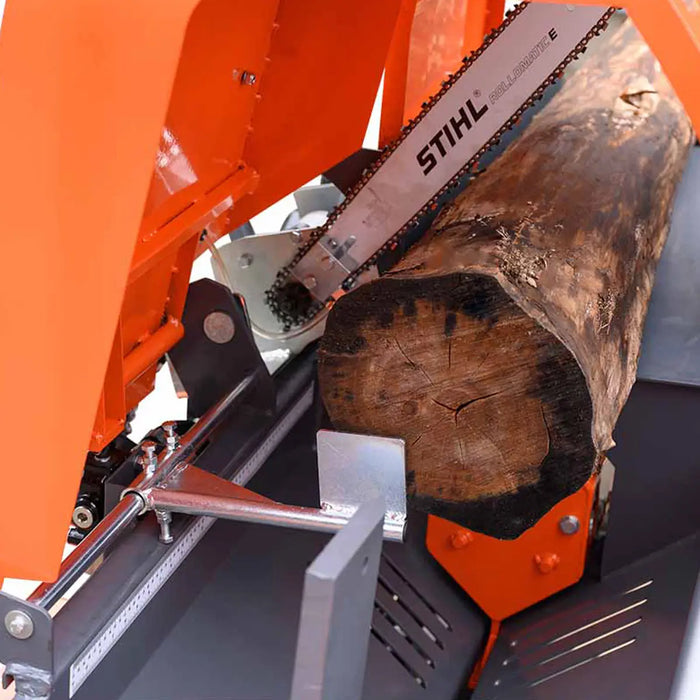

• Precision Cutting: Hydraulic-driven 460 mm (18") chainsaw bar effortlessly cuts through logs to provide clean and accurate cuts for high-quality firewood production.
• 2–4 Way Splitter: Adjustable 2-way and 4-way splitter accommodates different wood sizes, allowing you to customize splitting into 2 or 4 logs, each up to 610 mm (24") in length.

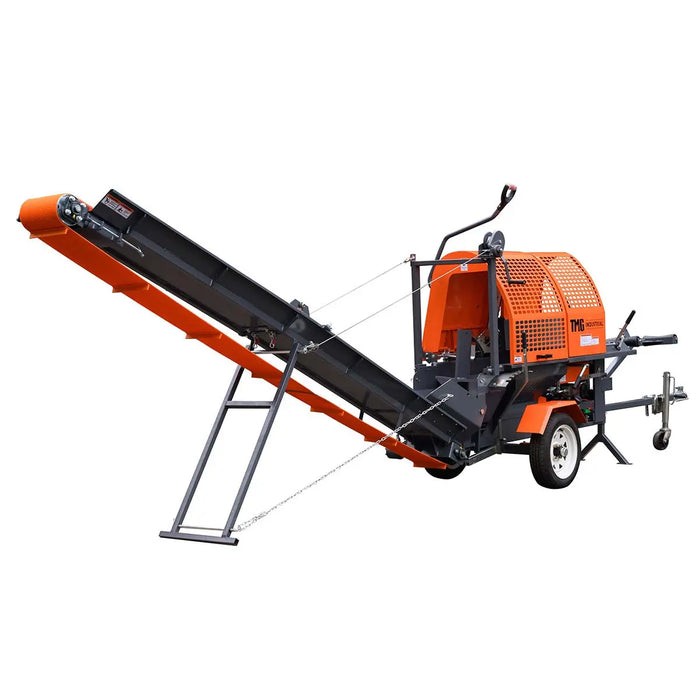

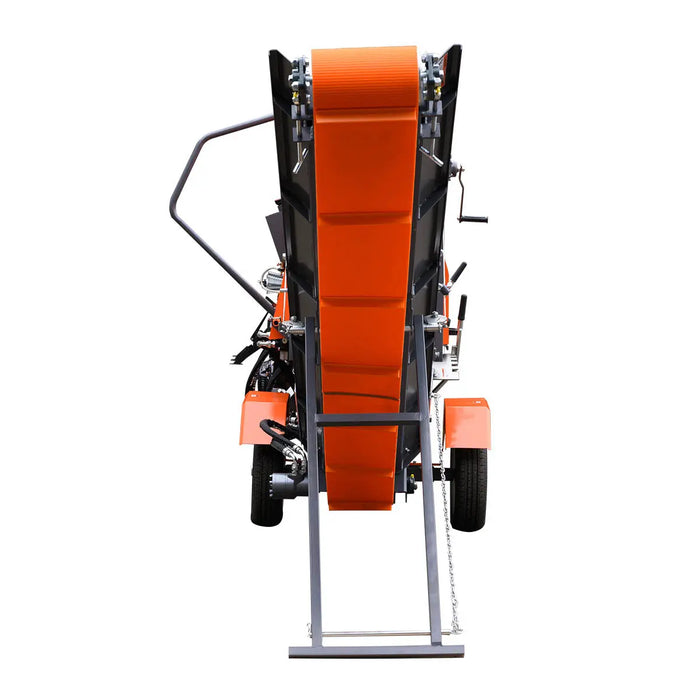

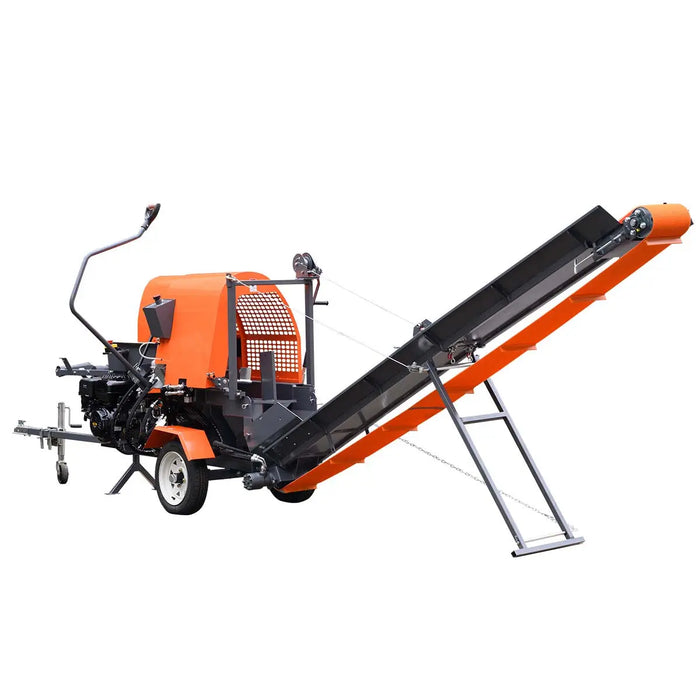

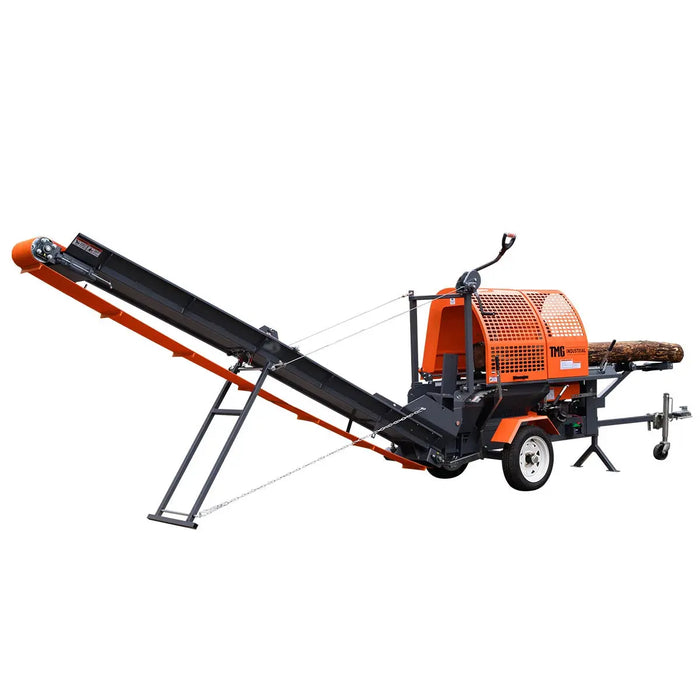

• Foldable Conveyor: Foldable output conveyor design allows for easy transportation and compact storage, maximizing convenience and minimizing space requirements.

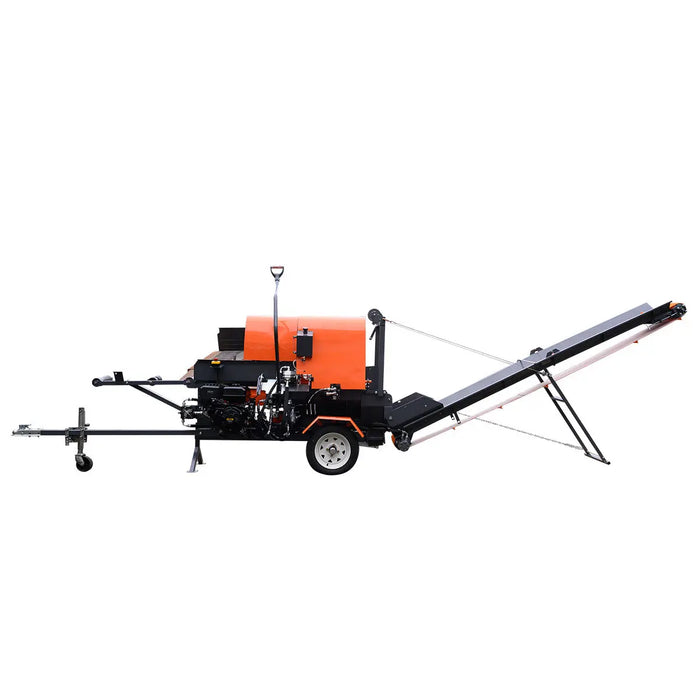

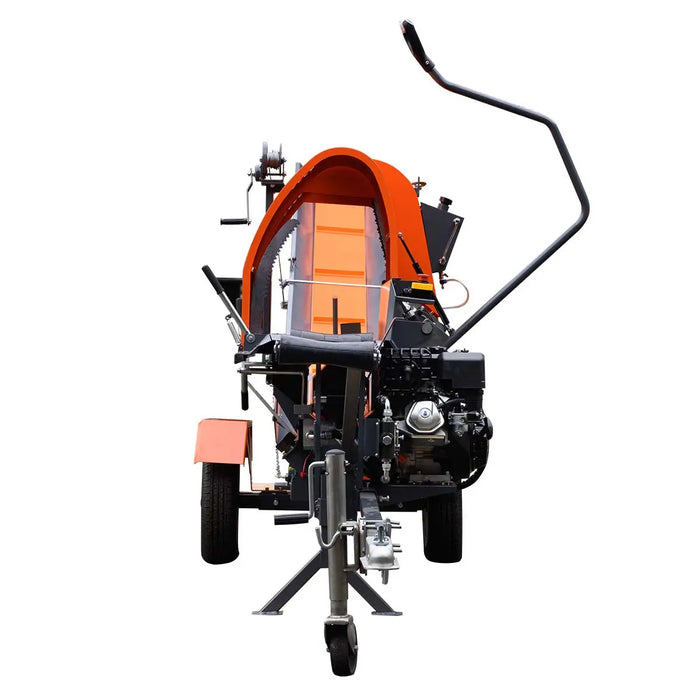

• Easy Mobility: Equipped with a 50 mm (2") coupler and trailer jack for easy transport between job sites, including remote areas.
• Safety First: Emergency stop switch ensures quick and effective prevention of accidents, prioritizing operator safety during wood processing.

• Maximum log diameter: 380 mm (15")
• Maximum splitting length: 610 mm (24")
• Maximum splitting force: 20 tons
• Hydraulic chainsaw: 450 mm (18") bar, 8.25 mm (0.325") pitch
• Inlet conveyor size: 1040 x 255 mm (41" x 10") (L x W)
• Outlet conveyor size: 3200 x 255 mm (126" x 10") (L x W)
• Hydraulic tank capacity: 26 L (6.9 gal)
• Splitter configuration: 2-way / 4-way
• Foldable output conveyor
• 50 mm (2") coupler and trailer jack
• Metal safety splitting cage

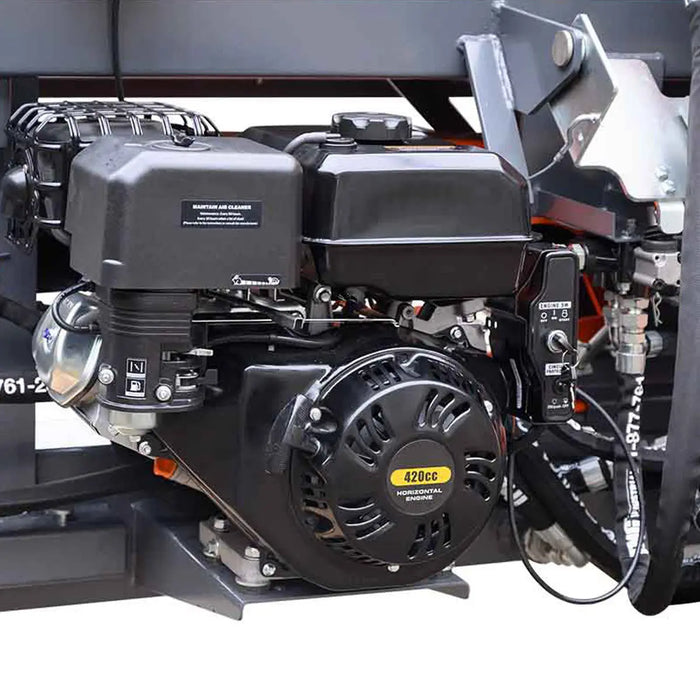

Engine Specifications

• Engine model: RATO® R420
• Engine type: Four-cycle, OHV, aluminum head and crankcase
• Power output: 15 HP
• Displacement: 420 cc
• Start type: Electric start and recoil
• Oil capacity: 1.1 L
• Low-oil shutdown system
• Easy-start, low-noise design
• Low fuel consumption
• Cast iron cylinder liners for long-term durability

The order will ship from one of our warehouses in Australia. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is. In-store pickup is also available.

• This product is packed in a wood crate shipping box
• Shipping dimension: 220 x 91 x 125 cm (87" x 36" x 49") (L x W x H)
• Shipping weight: 626 kg (1380 lb)

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
