• Overall Dimensions: 155 × 100 × 195 cm

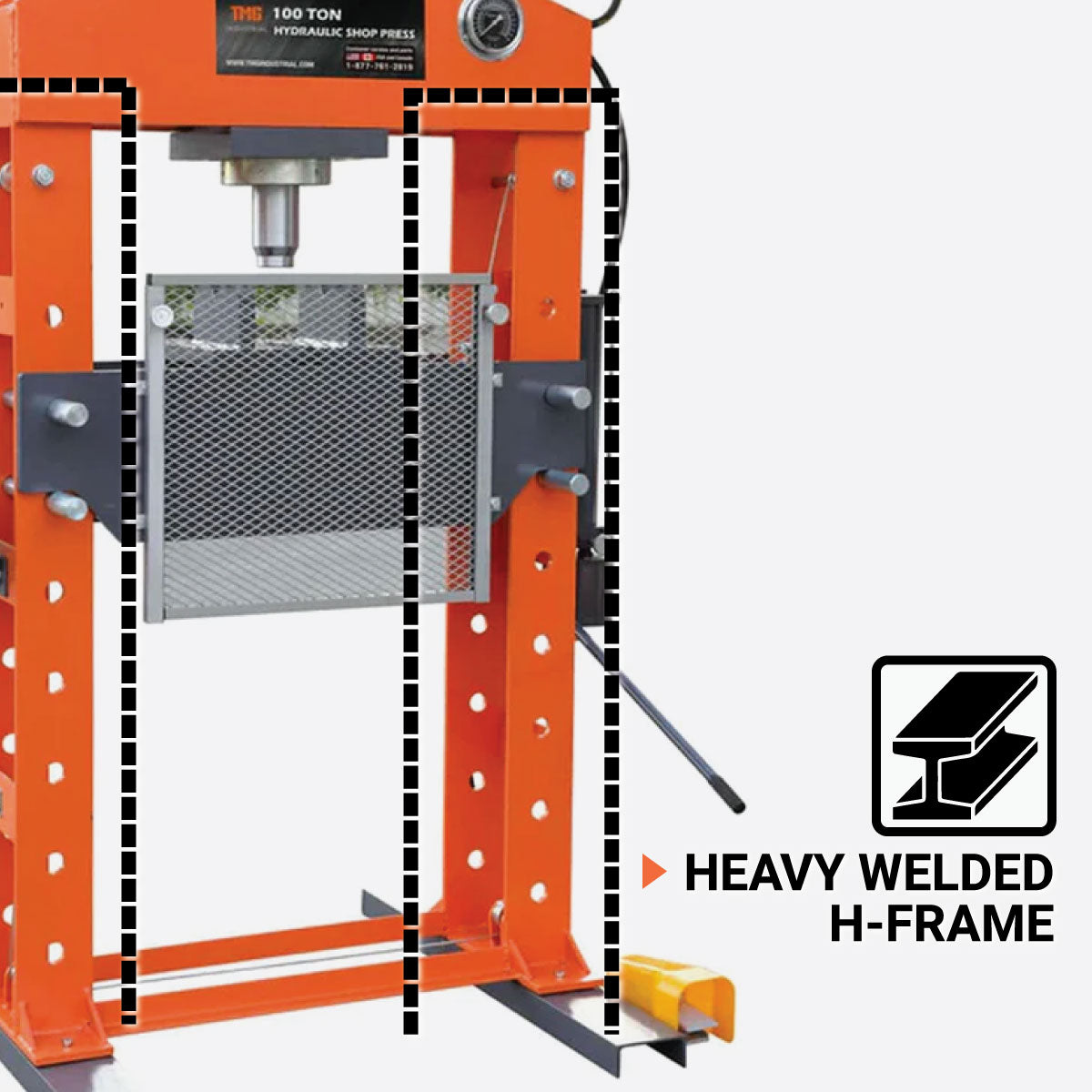

• Frame Construction: Fully Welded Heavy-Duty H-Frame
• Frame Overall Dimensions: 110 × 48 × 187 cm
• Operation Type: Air & Manual Dual Operation
• Protective Grid Guard: Included

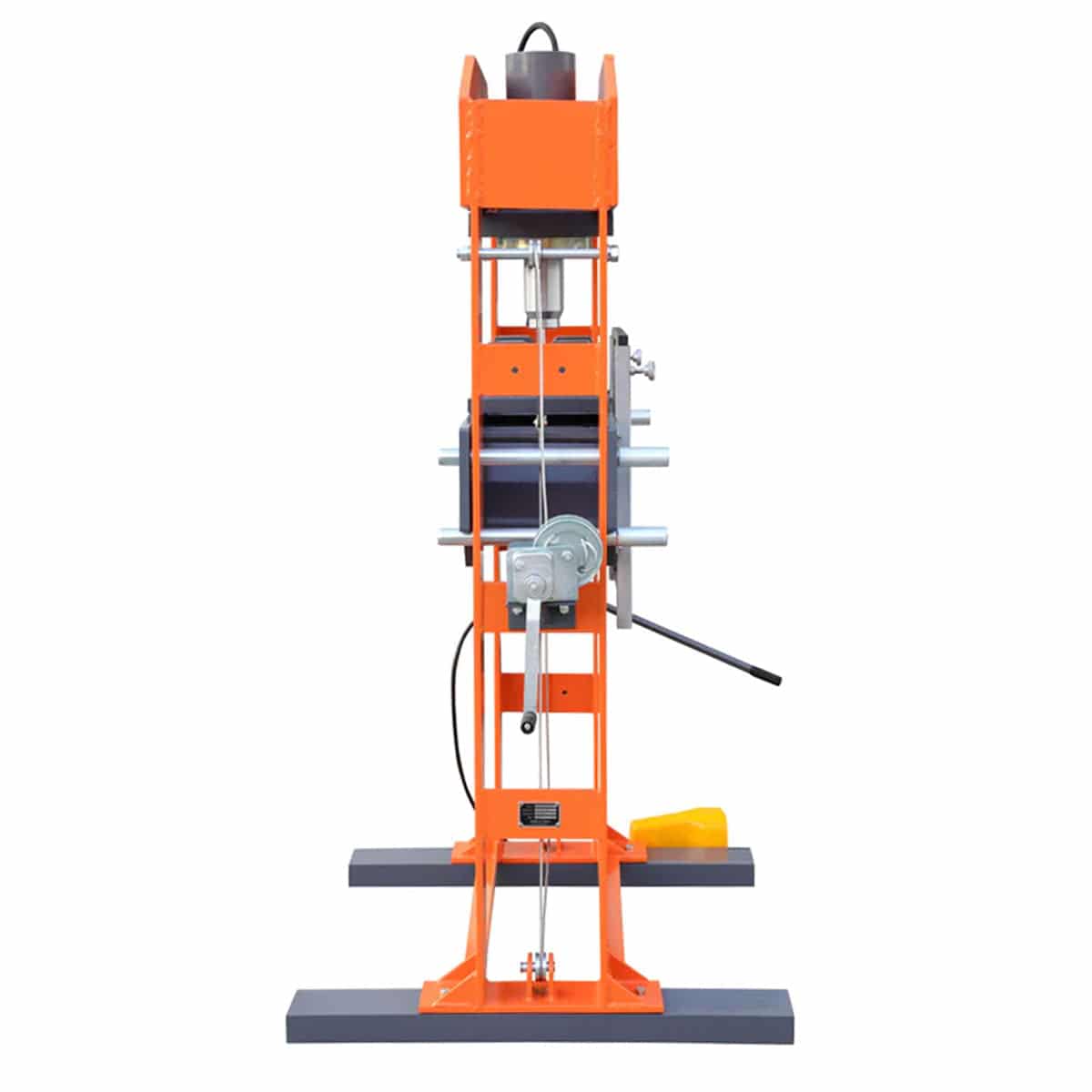

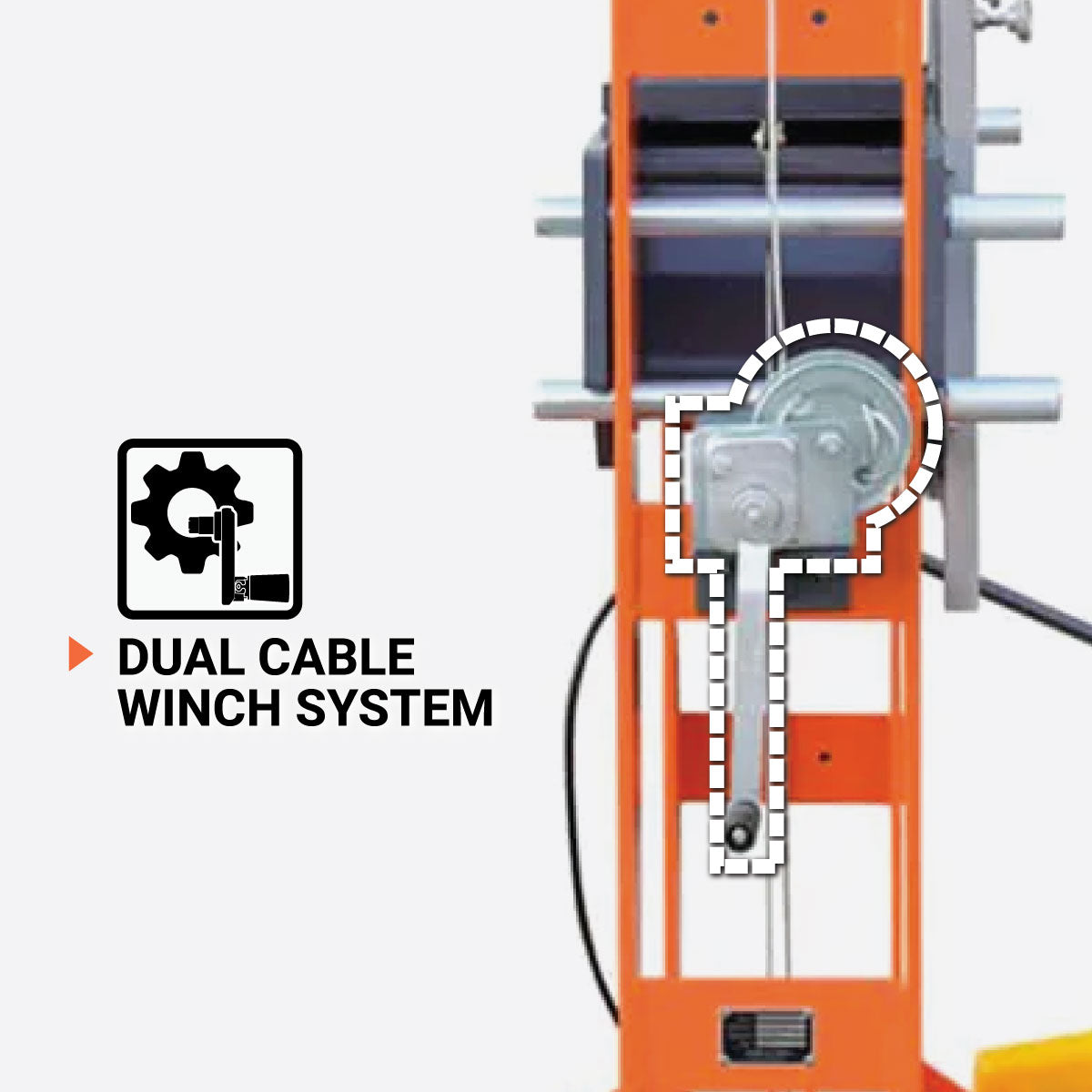

• Bed Adjustment Mechanism: Steel Cable Crank Winch

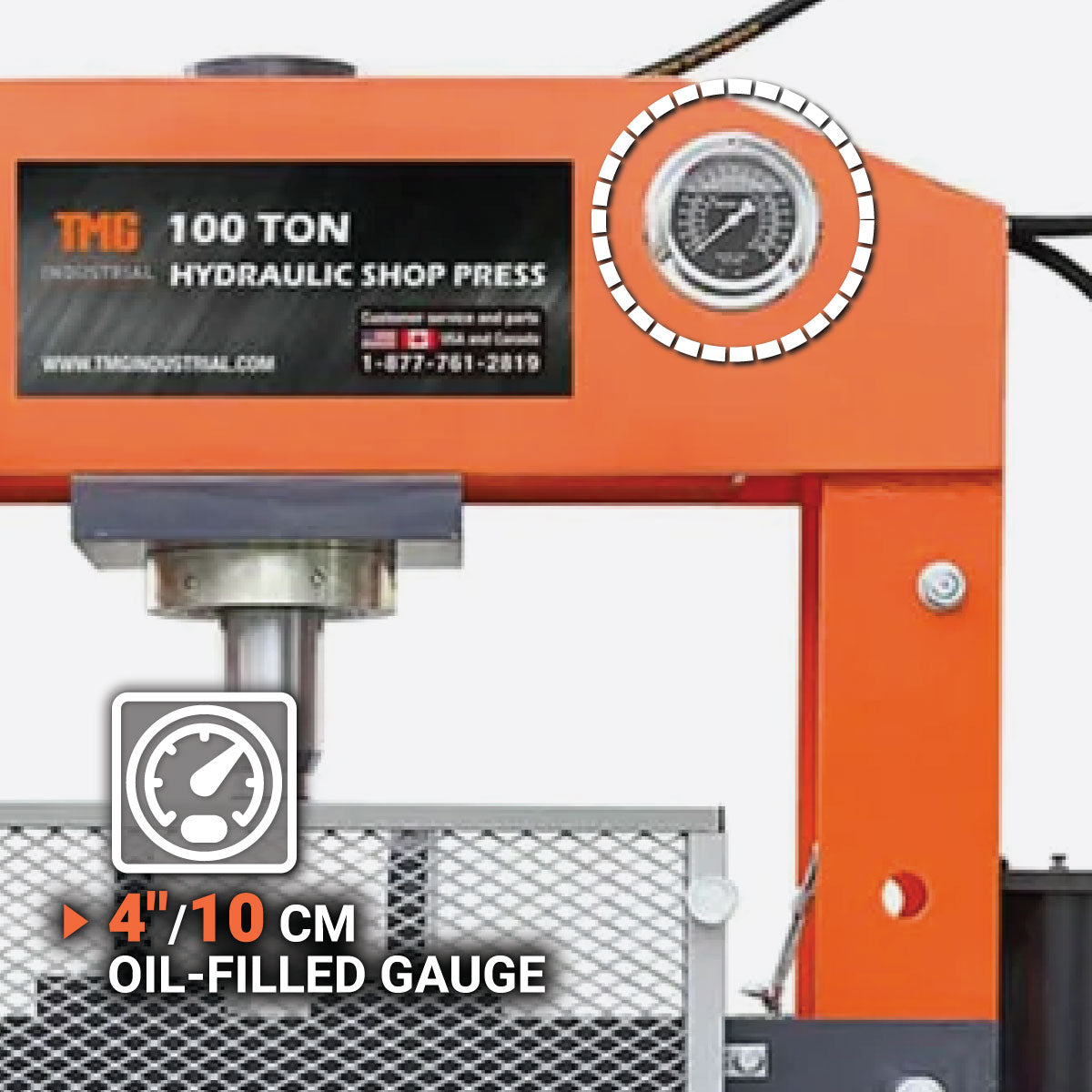

• Gauge Type: 4" Oil-Filled Pressure Gauge
• Overload Protection: No
• Retracting Springs: Twin Springs

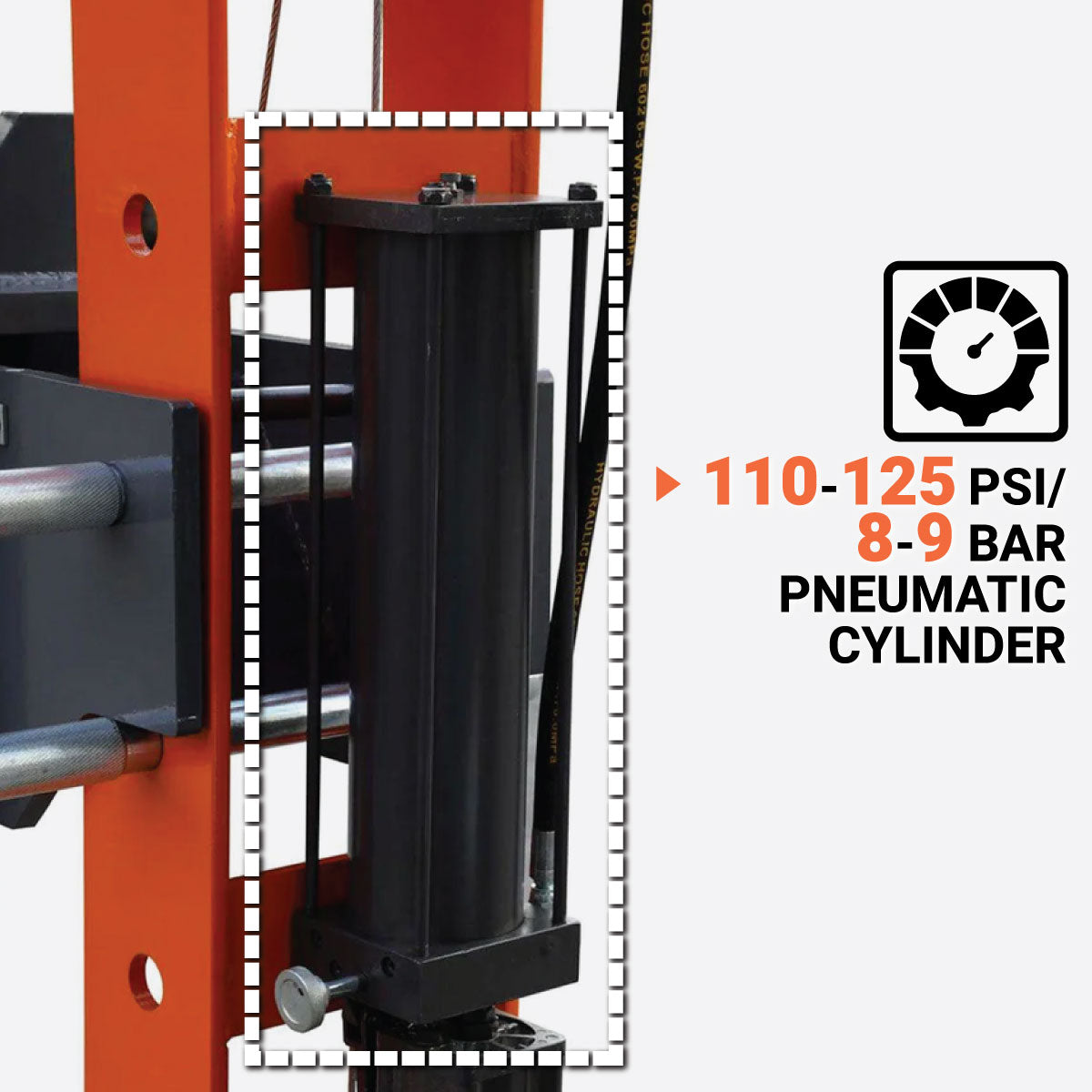

• Air / Pneumatic Pressure: 758 – 862 KPa
• Max Pump Pressure: N/A
• Maximum Work Range: 1010 mm

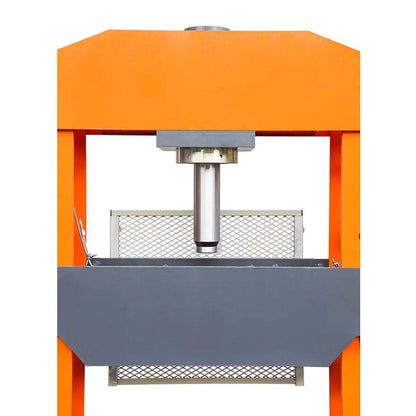

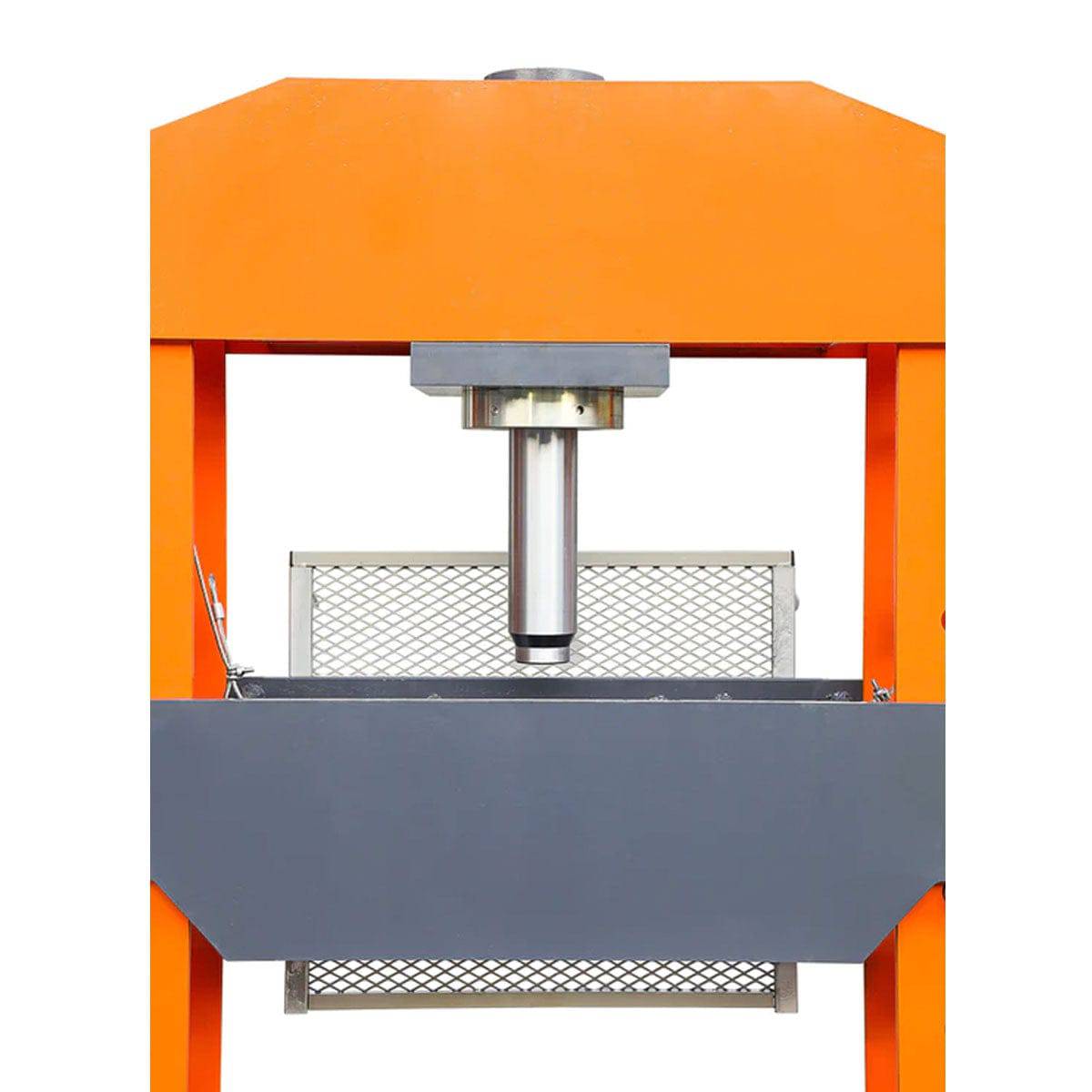

• Ram Stroke: 275 mm
• Ram Dia. / Cylinder Bore: 125 mm
• Ram Pressing Head Diameter: N/A
• Ram Left-Right Movement: 250 mm
• Carriage Bed Depth: 304 mm
• Carriage Bed Width: 820 mm
• Carriage Bed Pin Diameter: N/A
• Air Inlet Size: 1/4" NPT

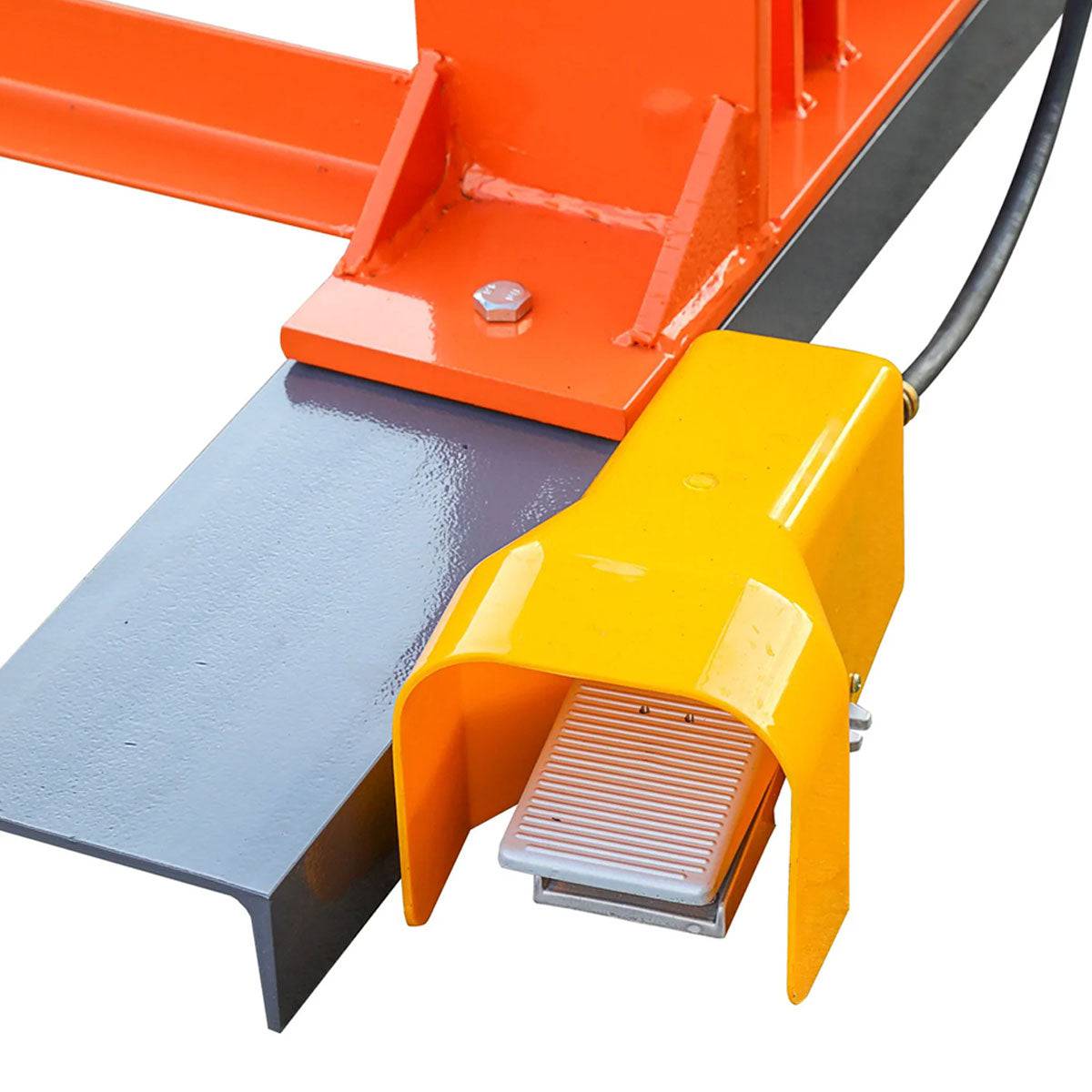

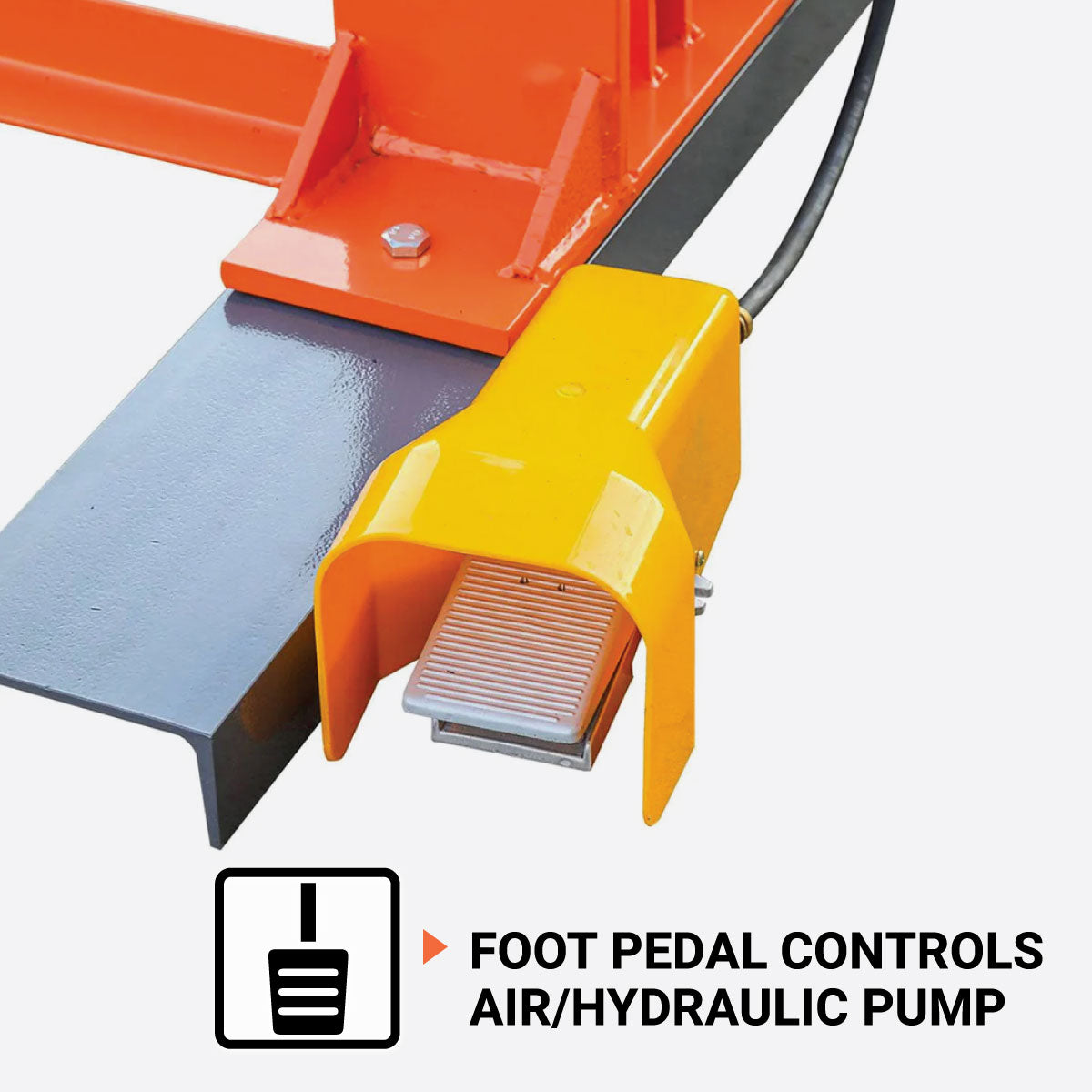

• Foot Switch: Yes
• Steel Cable Crank Winch: Yes
• Discharge Pressure: N/A
• Frame Internal Width: N/A
• Frame Internal Length / Upright Opening: 110 cm
• Electric Motor Certification (AU): N/A
• Electric Motor Certification (CA/US): N/A
• Hydraulic Tank Capacity: N/A
• Hydraulic Fluid Recommended: ISO AW32
• Net Weight: 552 kg
• Shipping Dimensions (L × W × H): 196 × 115 × 61 cm
• Shipping Weight: 604 kg

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

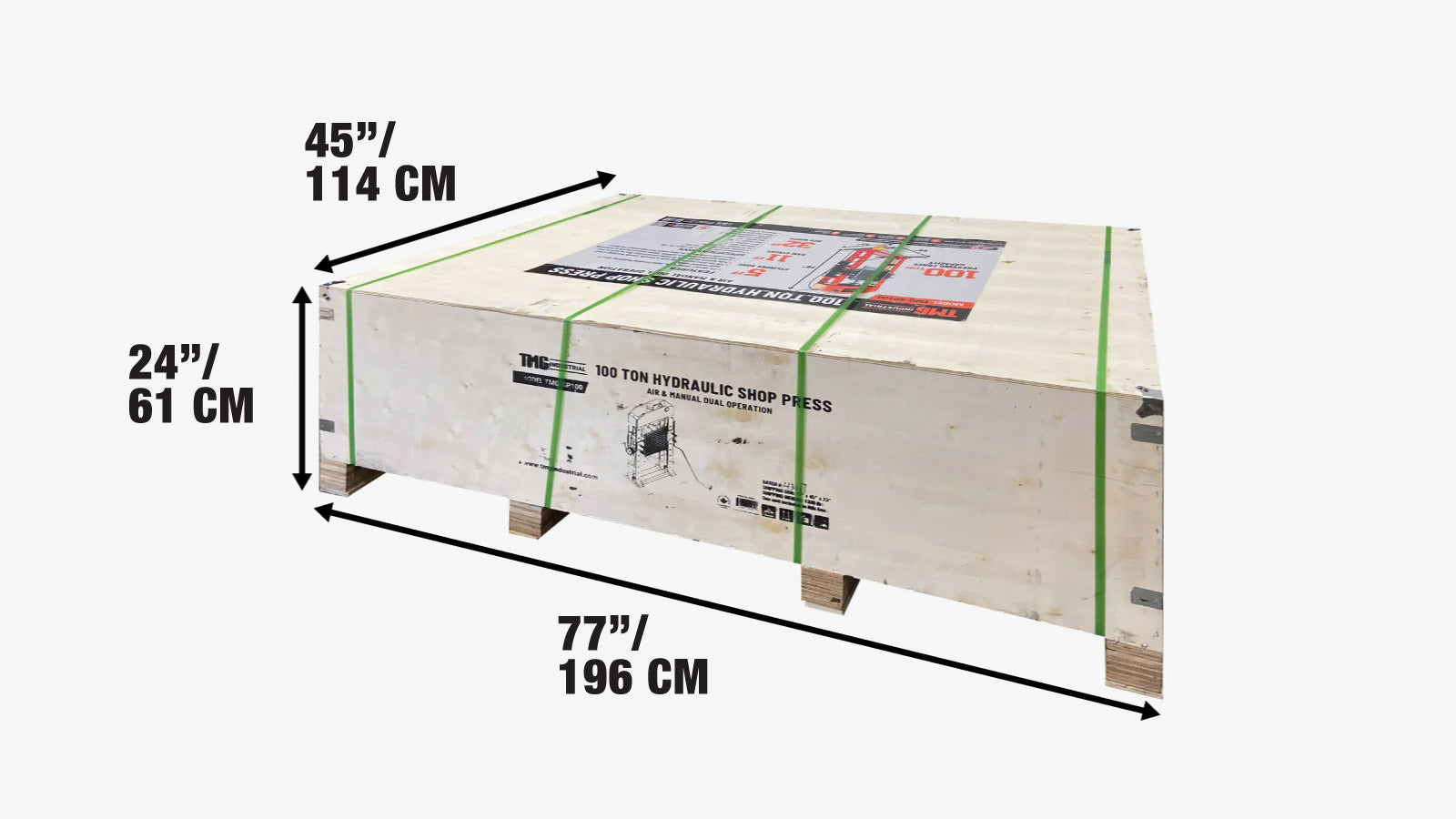

• Packaging: Packed in a wood crate shipping box
• Shipping dimensions: 196 x 115 x 61 cm (L x W x H)
• Shipping weight: 604 kg

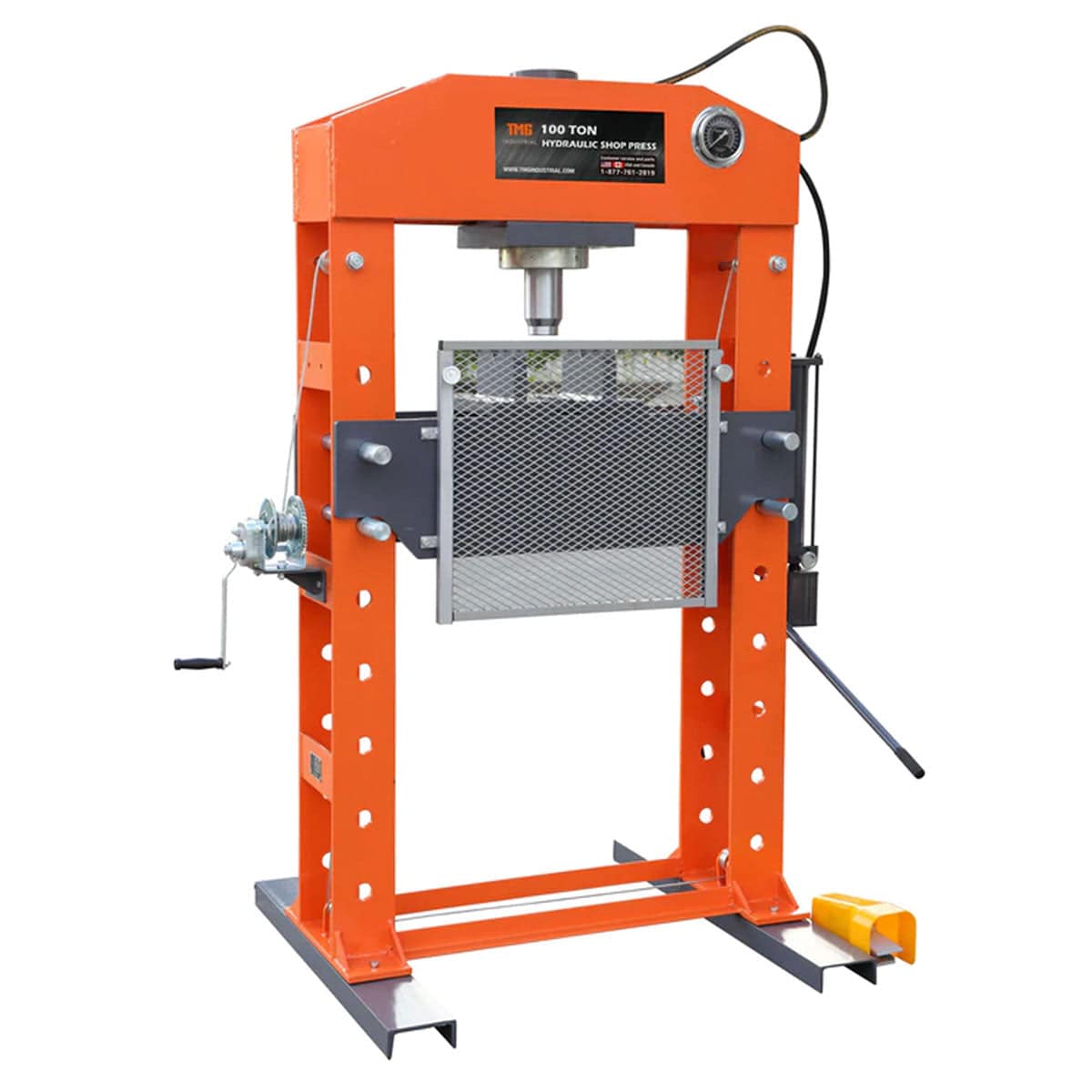

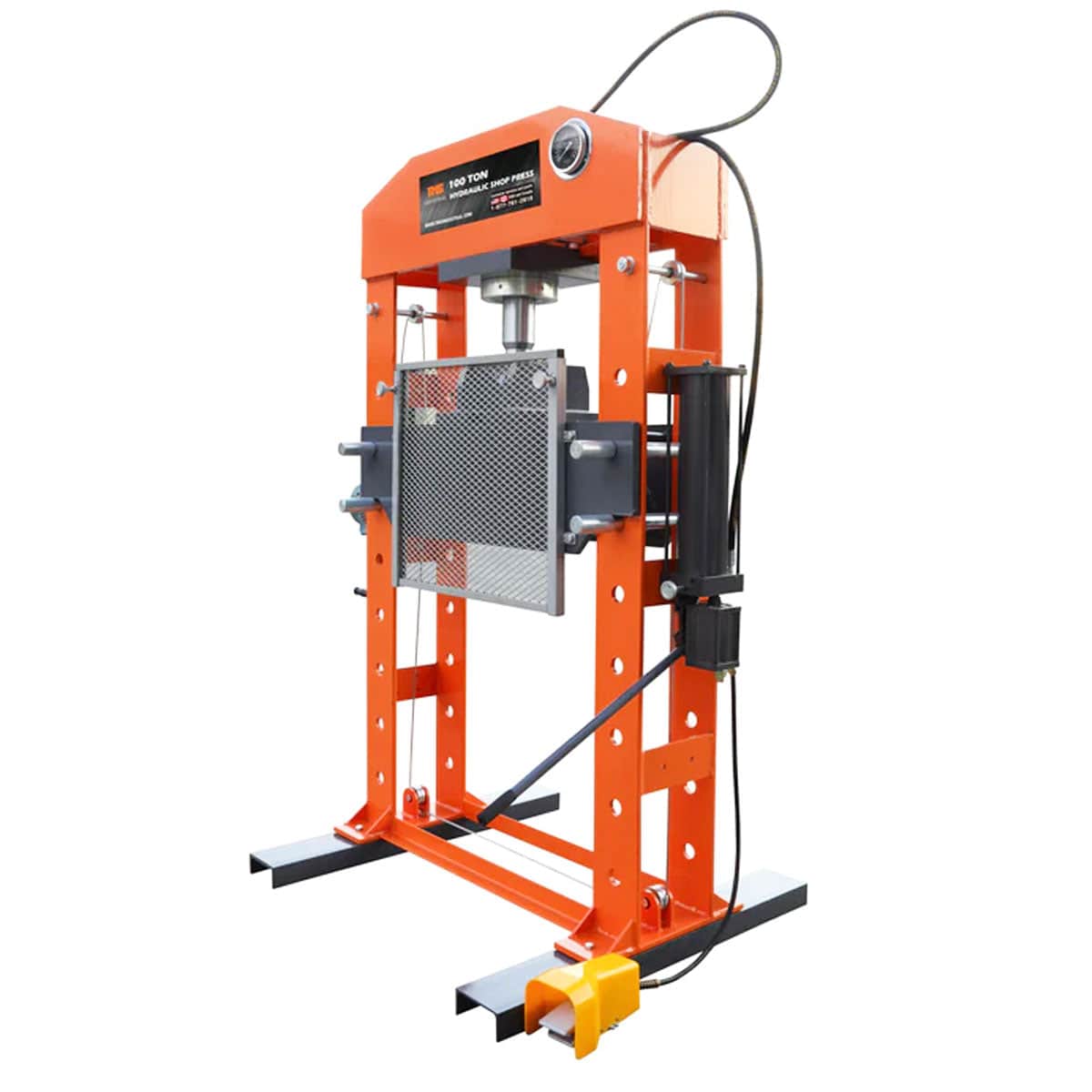

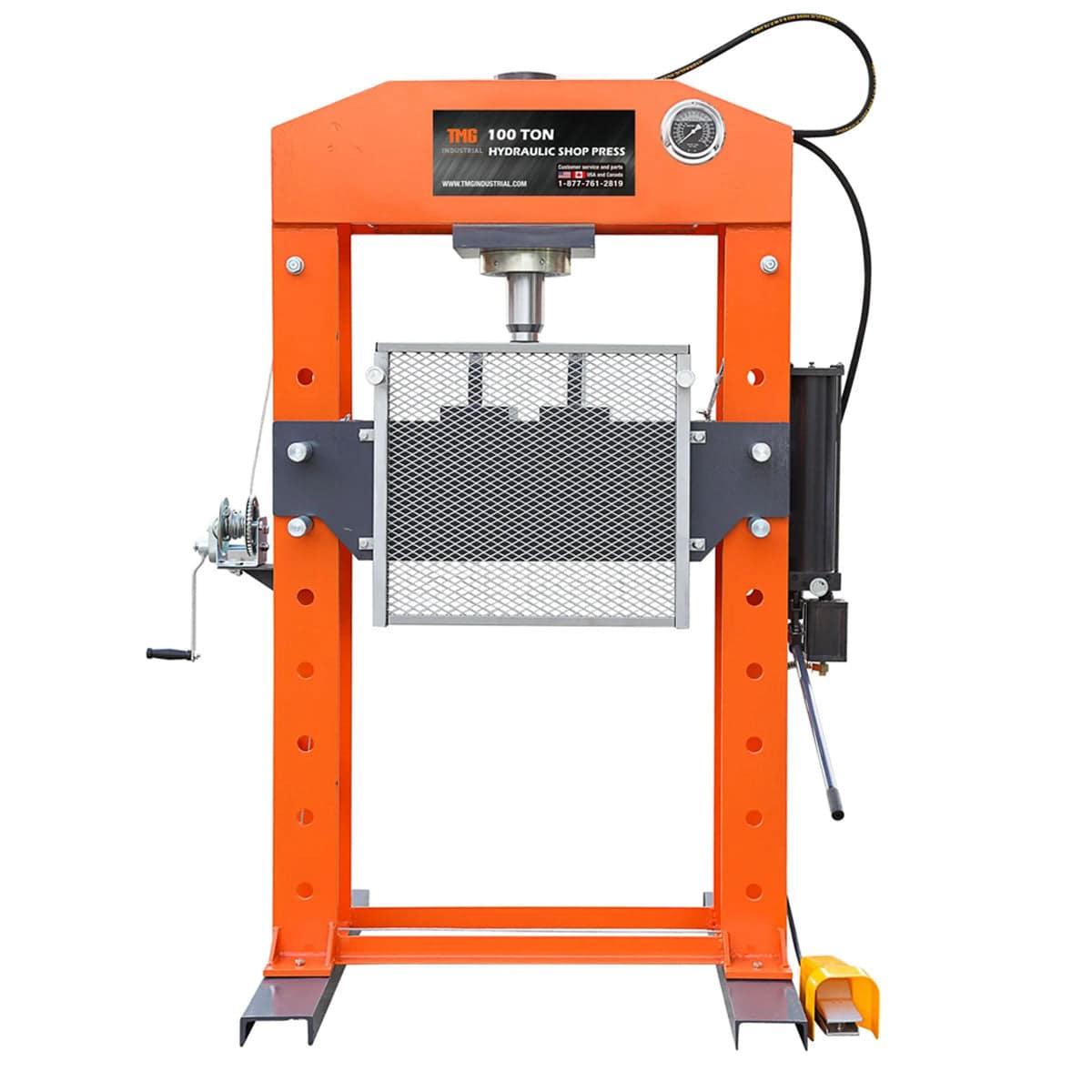

• Q: What is the TMG-SP100 Hydraulic Shop Press?
  A: The TMG-SP100 is a heavy-duty hydraulic shop press designed for various industrial and automotive tasks such as pushing bearings, stamp work, and bending metal. It features a 100-ton pressing capacity and can be operated both pneumatically and manually.

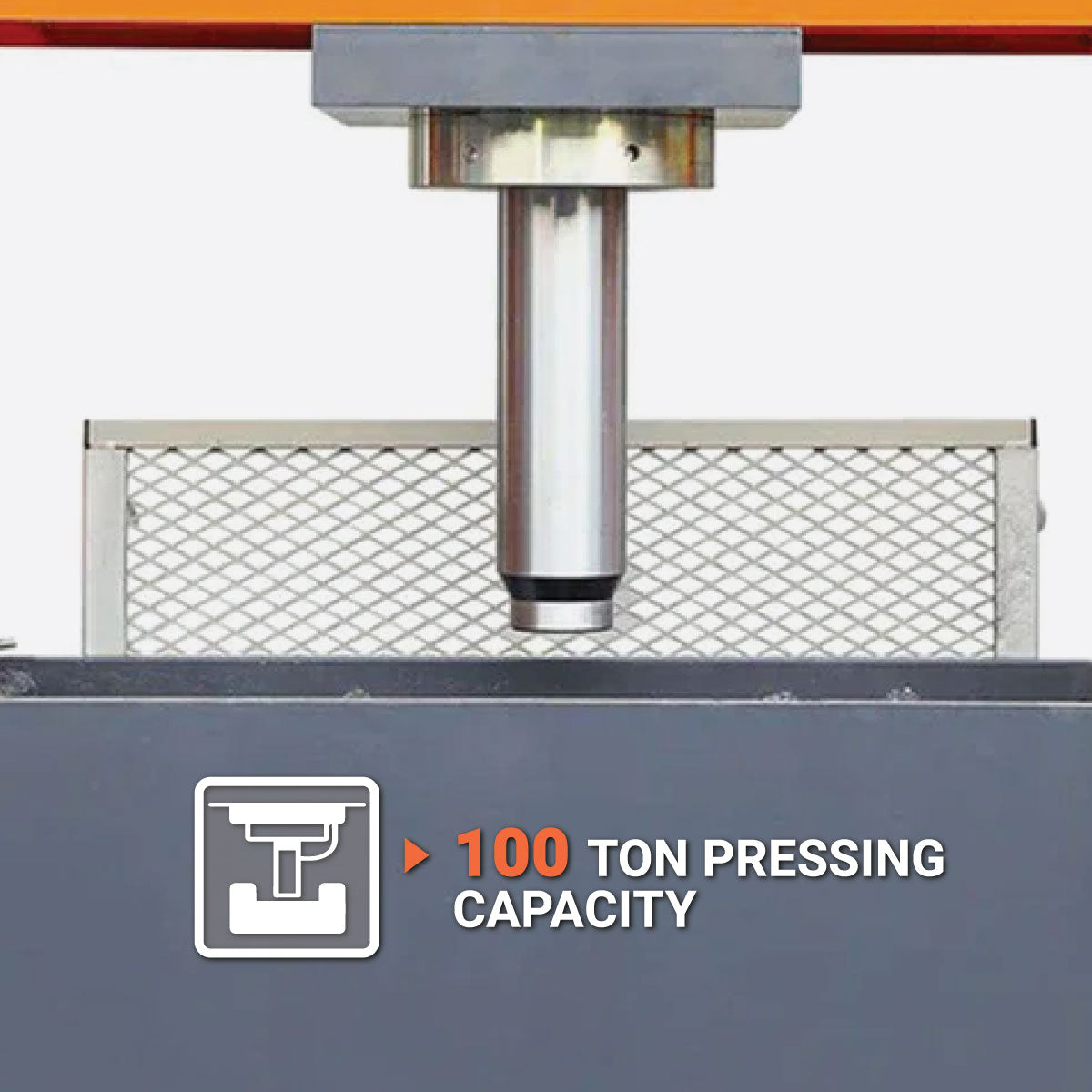

• Q: What is the maximum pressing force of the TMG-SP100?
  A: The TMG-SP100 has a maximum pressing force capacity of 100 tons.

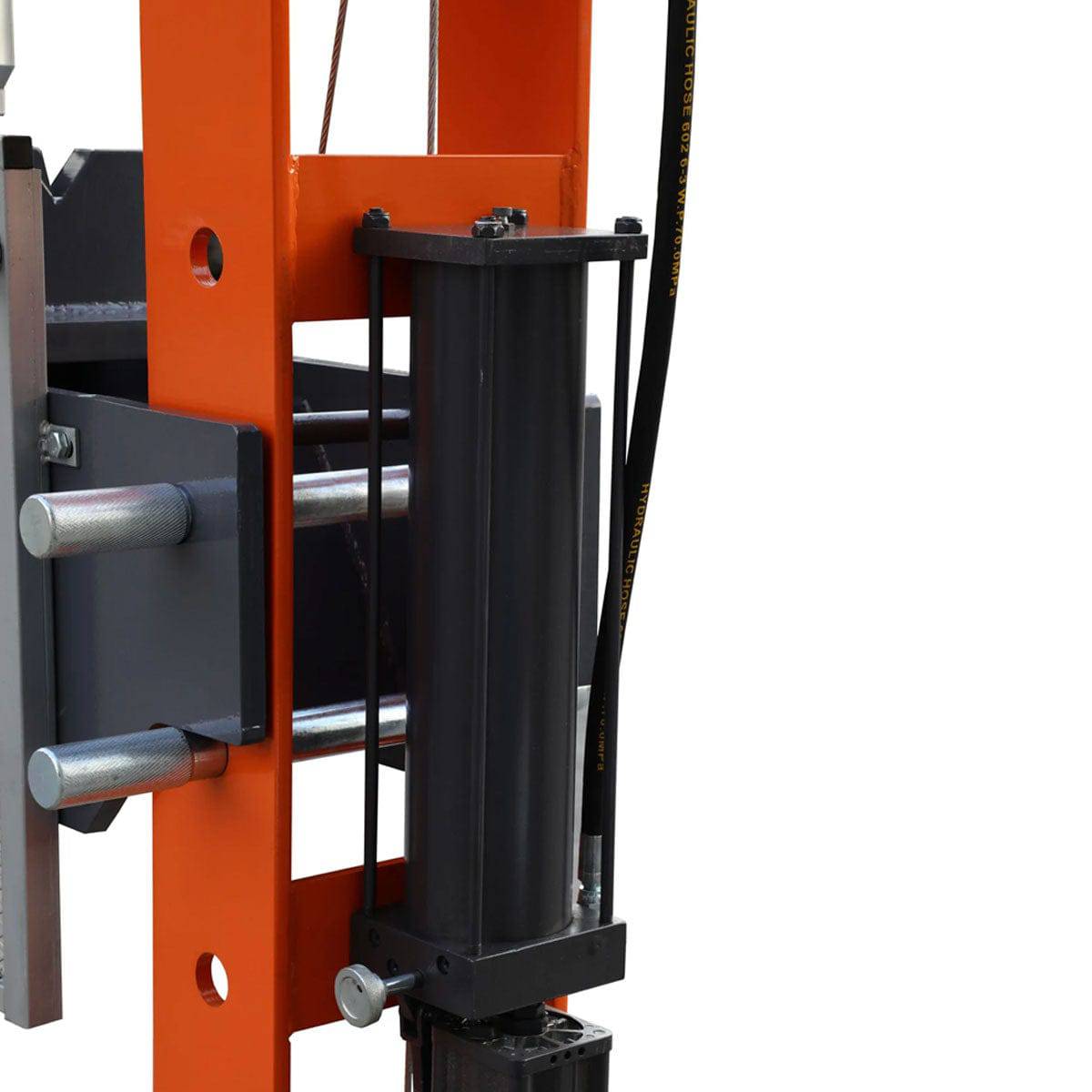

• Q: How does the TMG-SP100 operate?
  A: The TMG-SP100 operates using a dual hydraulic cylinder, allowing for both pneumatic (air-powered, requiring 110-125 PSI) and manual operation.

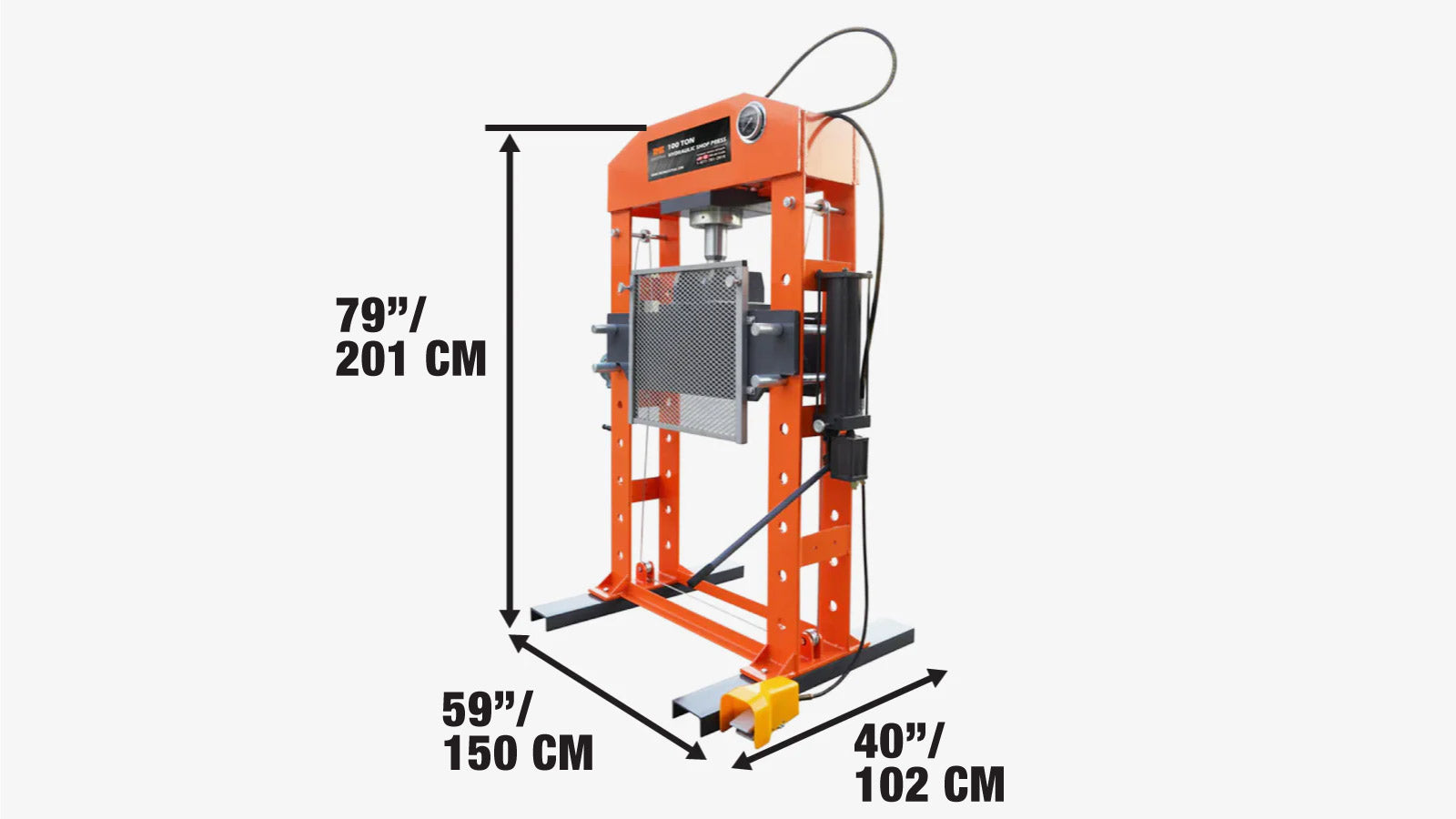

• Q: What are the main assembled dimensions of the press?
  A: The assembled dimensions of the TMG-SP100 are 59 inches (150 cm) in length, 40 inches (102 cm) in width, and 79 inches (201 cm) in height.
• Q: Is the press bed height adjustable?
  A: Yes, the press bed is adjustable with seven height positions, and adjustments are made easy with a steel cable crank winch.
• Q: Where can I find the product manual and additional support?
  A: The product manual for the TMG-SP100 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
• Q: What is the warranty for the TMG-SP100?
  A: The TMG-SP100 is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
