TMG-GLS20

Firewood Log Splitter Processor Conveyor, 610 x 380 mm (24" x 15") Log Capacity, 14 HP Kohler Engine, TMG‑GLS20

Product Manual

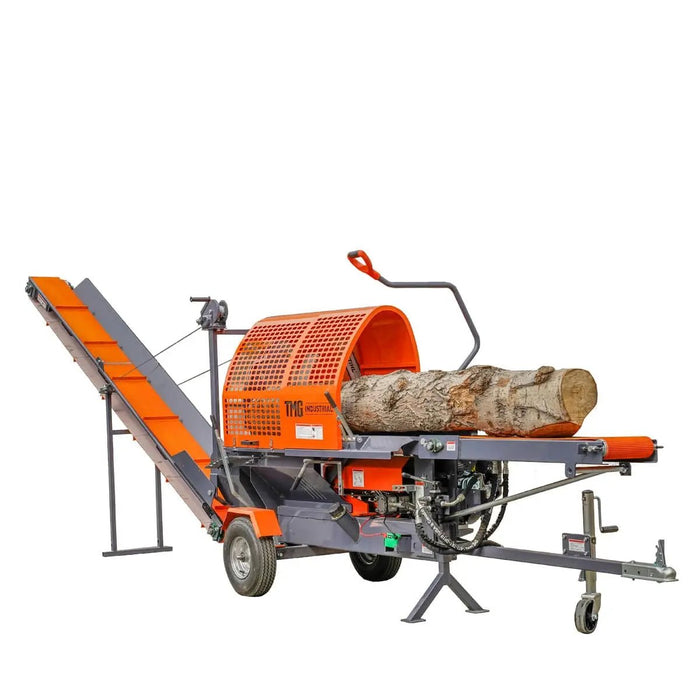

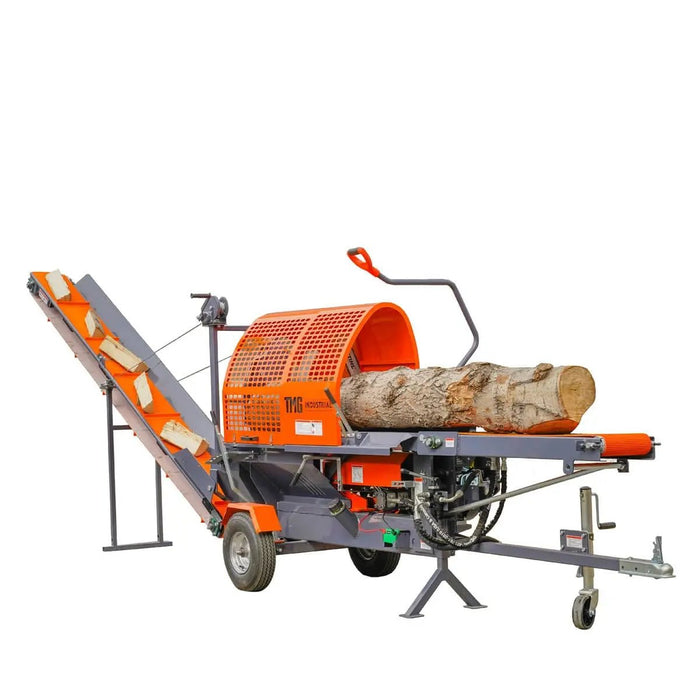

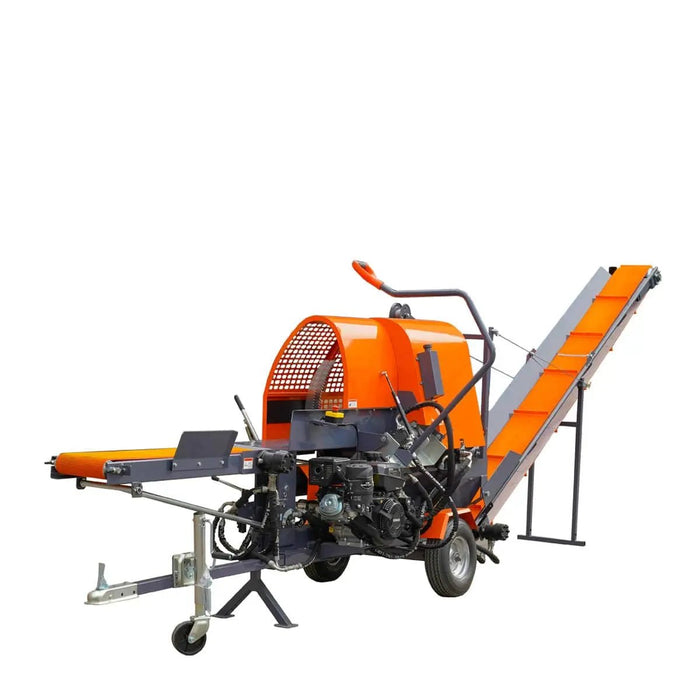

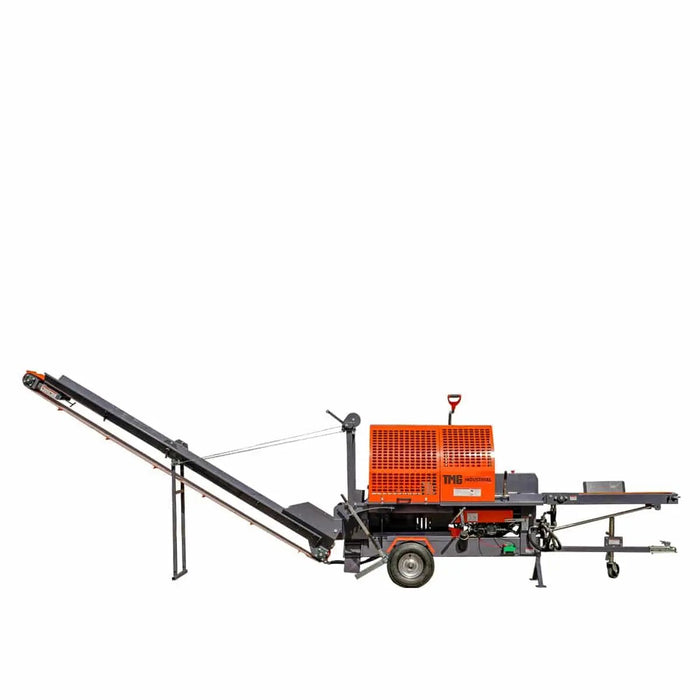

TMG Industrial Firewood Log Splitter Processor Conveyor, 24" x 15" Log Capacity, 14 HP Kohler Engine, 18” STIHL Chainsaw, TMG-GLS20
CURRENTLY IN STOCK
TMG-GLS20
$10,999.00
$10,999.00 - $10,999.00
$10,999.00
$9,799.00
$9,799.00 - $9,799.00
$9,799.00
$10,999.00 Save $1,200.00
$9,799.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

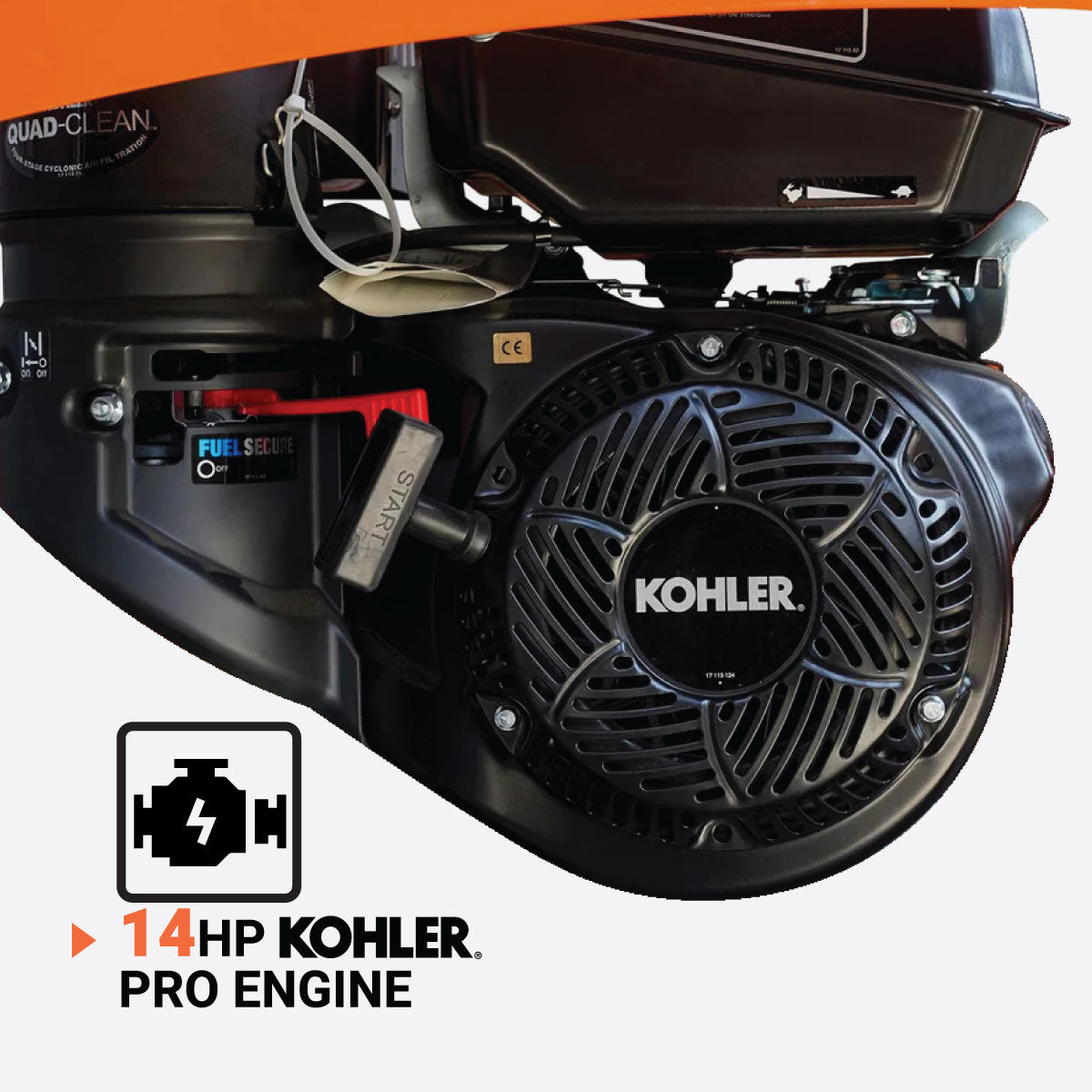

14 HP Kohler engine delivers consistent 20‑ton splitting force
Feature Image

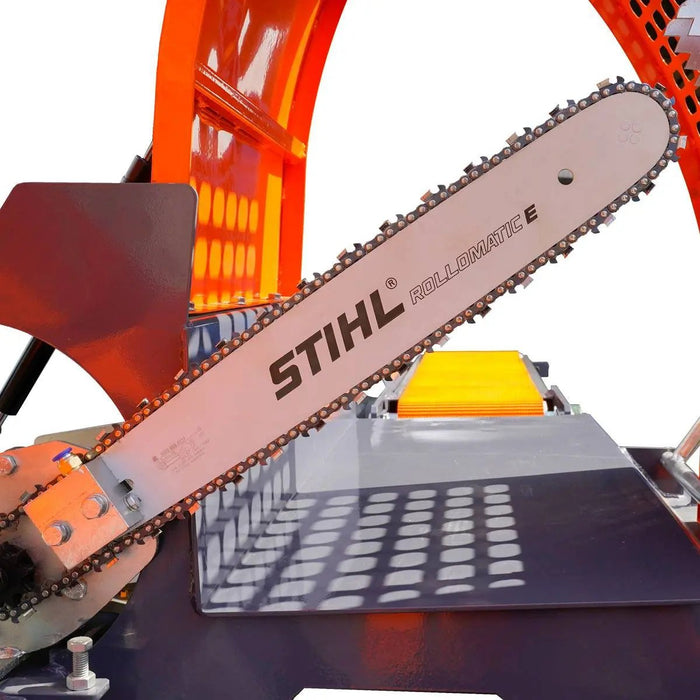

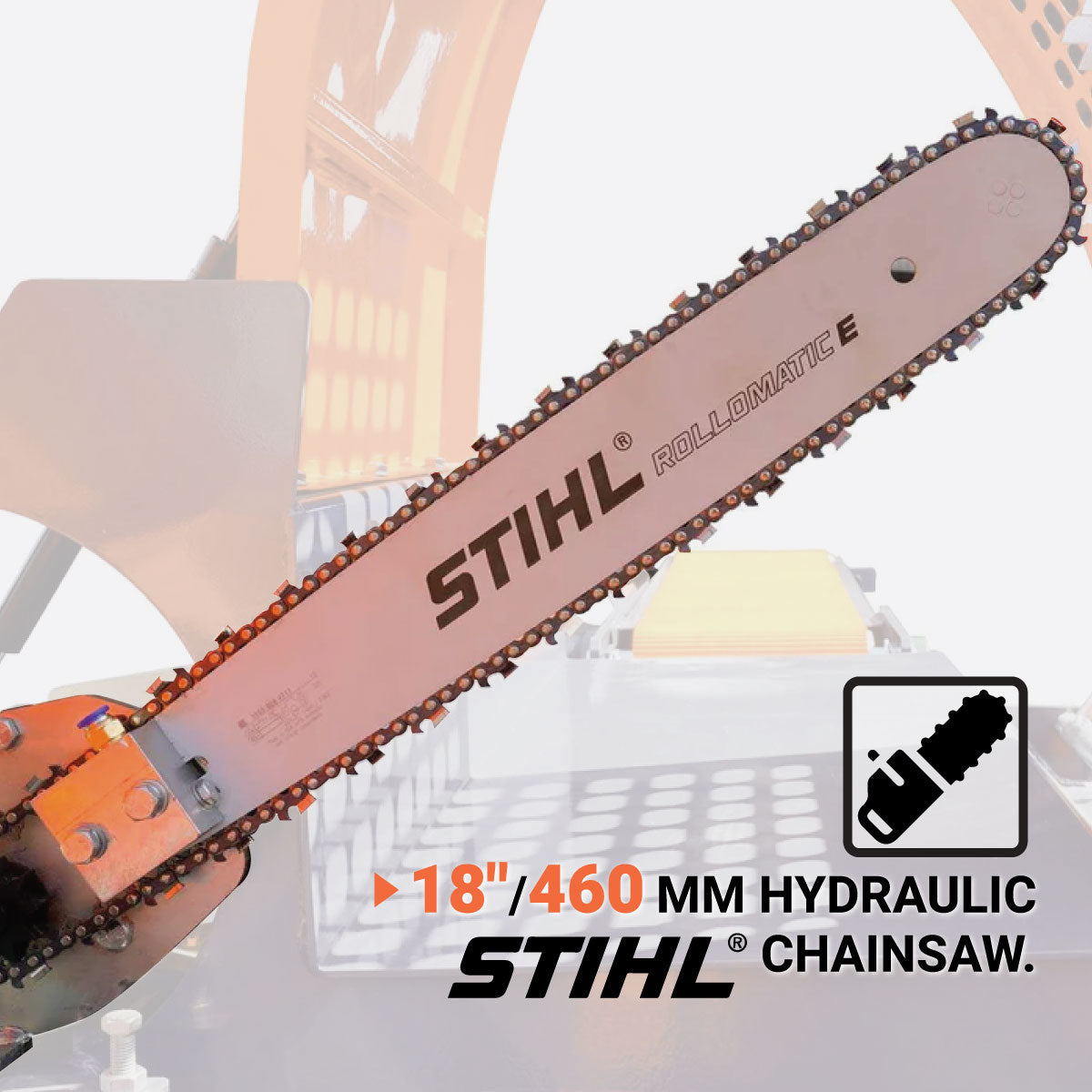

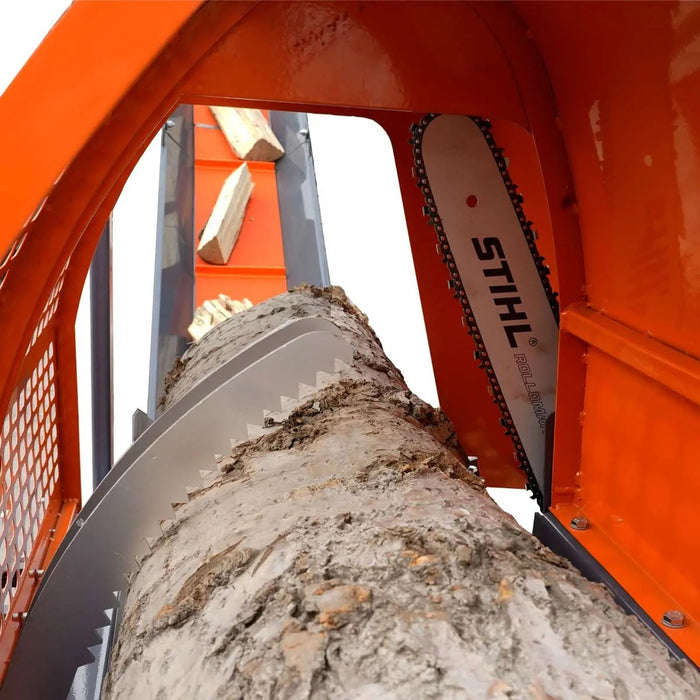

Hydraulic 460 mm (18″) STIHL® chainsaw
Feature Image

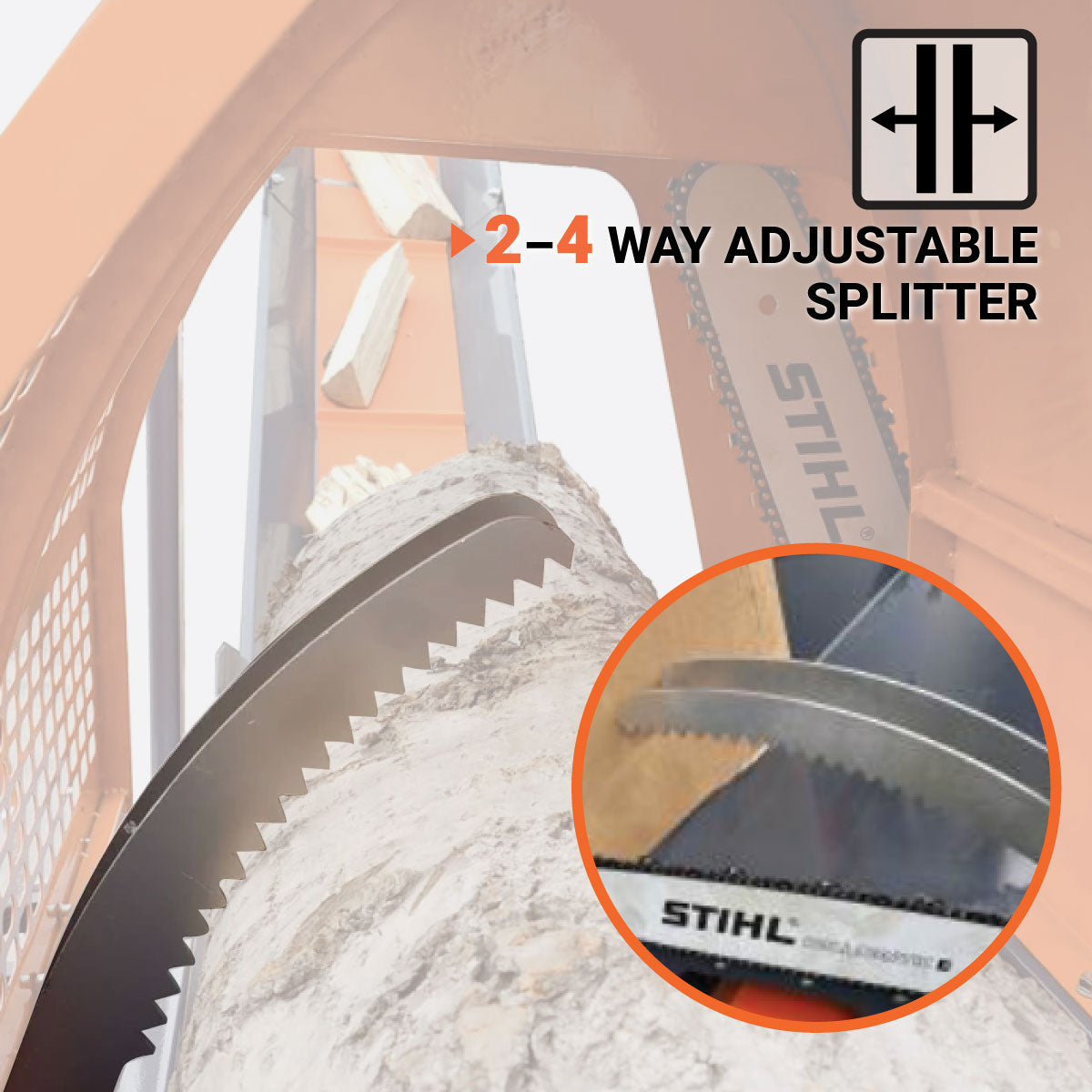

Adjustable 2-4 way splitter accommodates different wood sizes
Feature Image

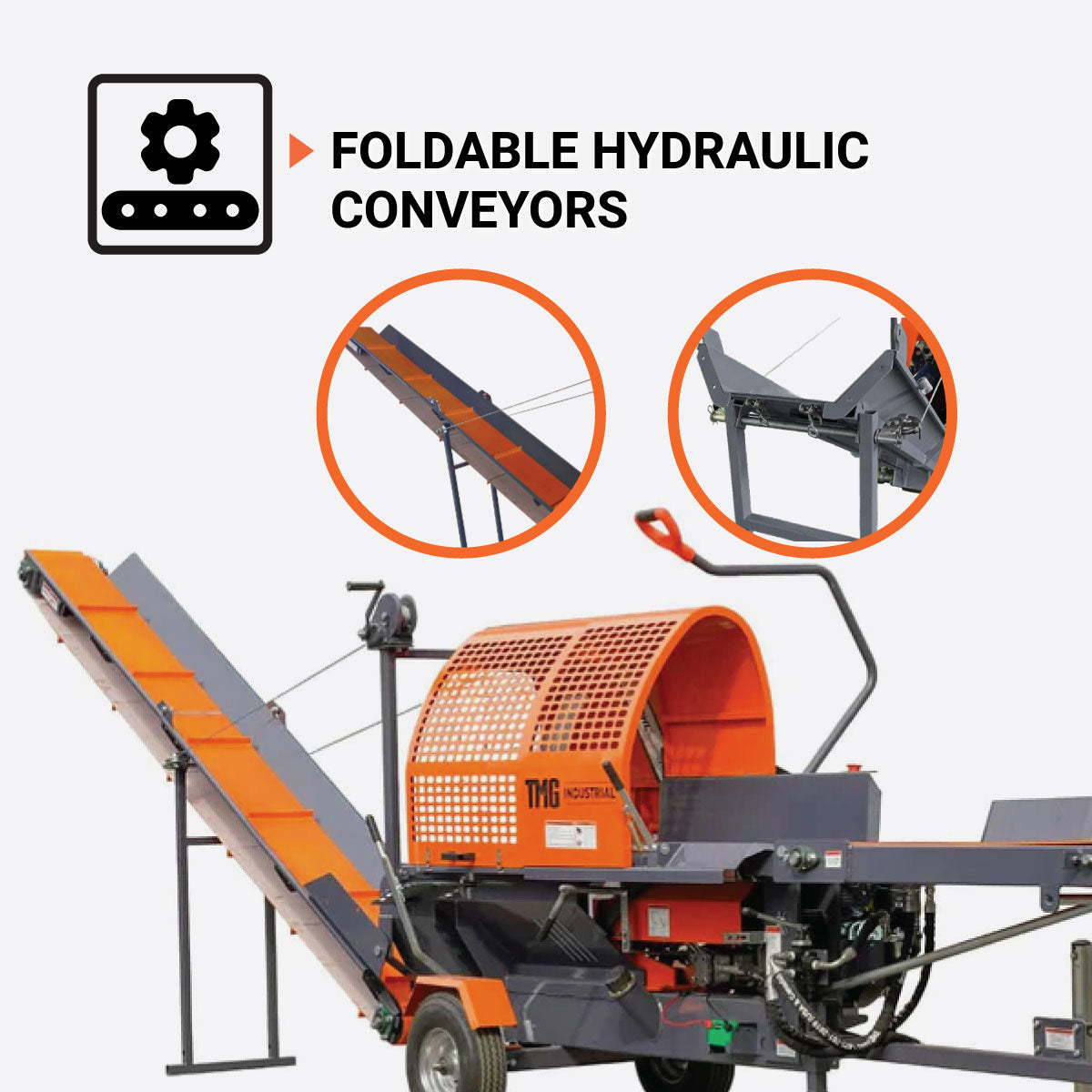

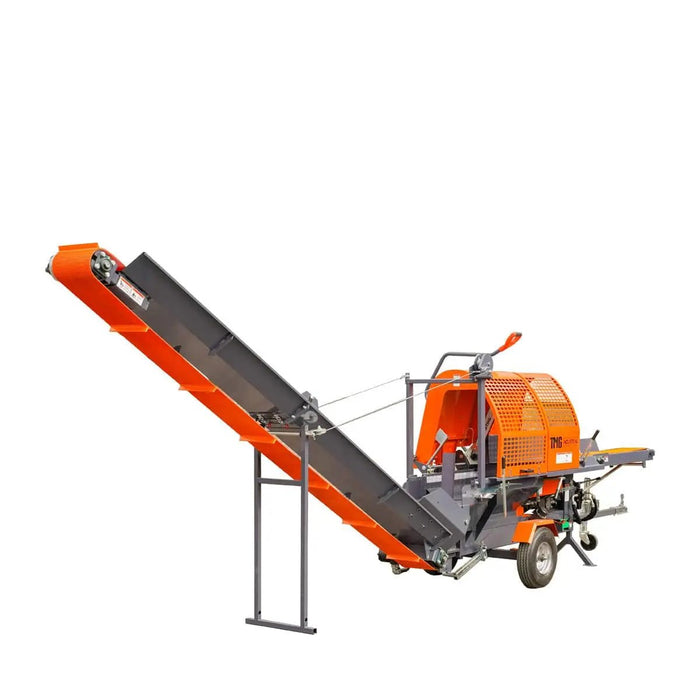

Foldable hydraulic conveyors for easy wood stacking and transport
Feature Image

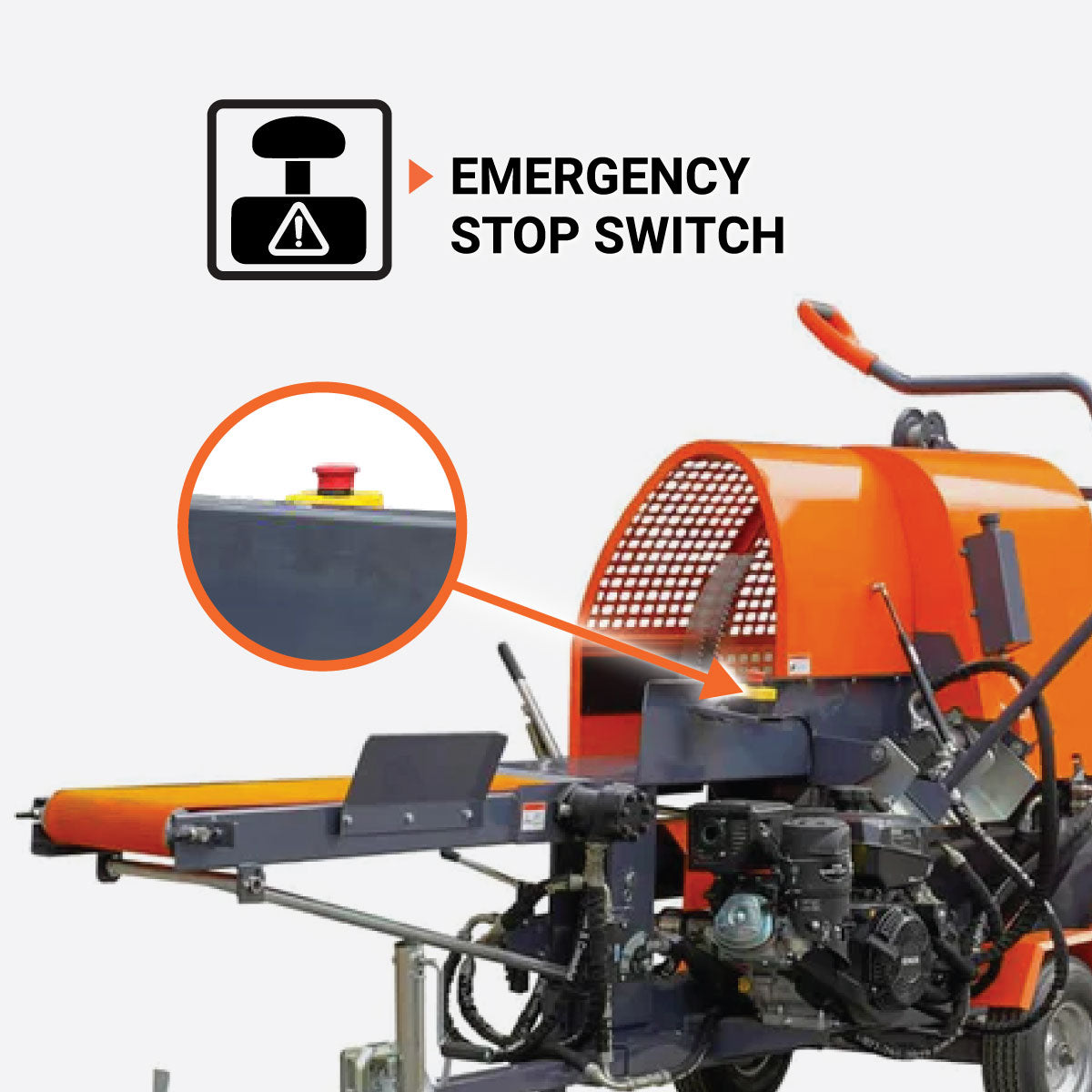

Enhanced safety with Emergency Stop Switch
Feature Image

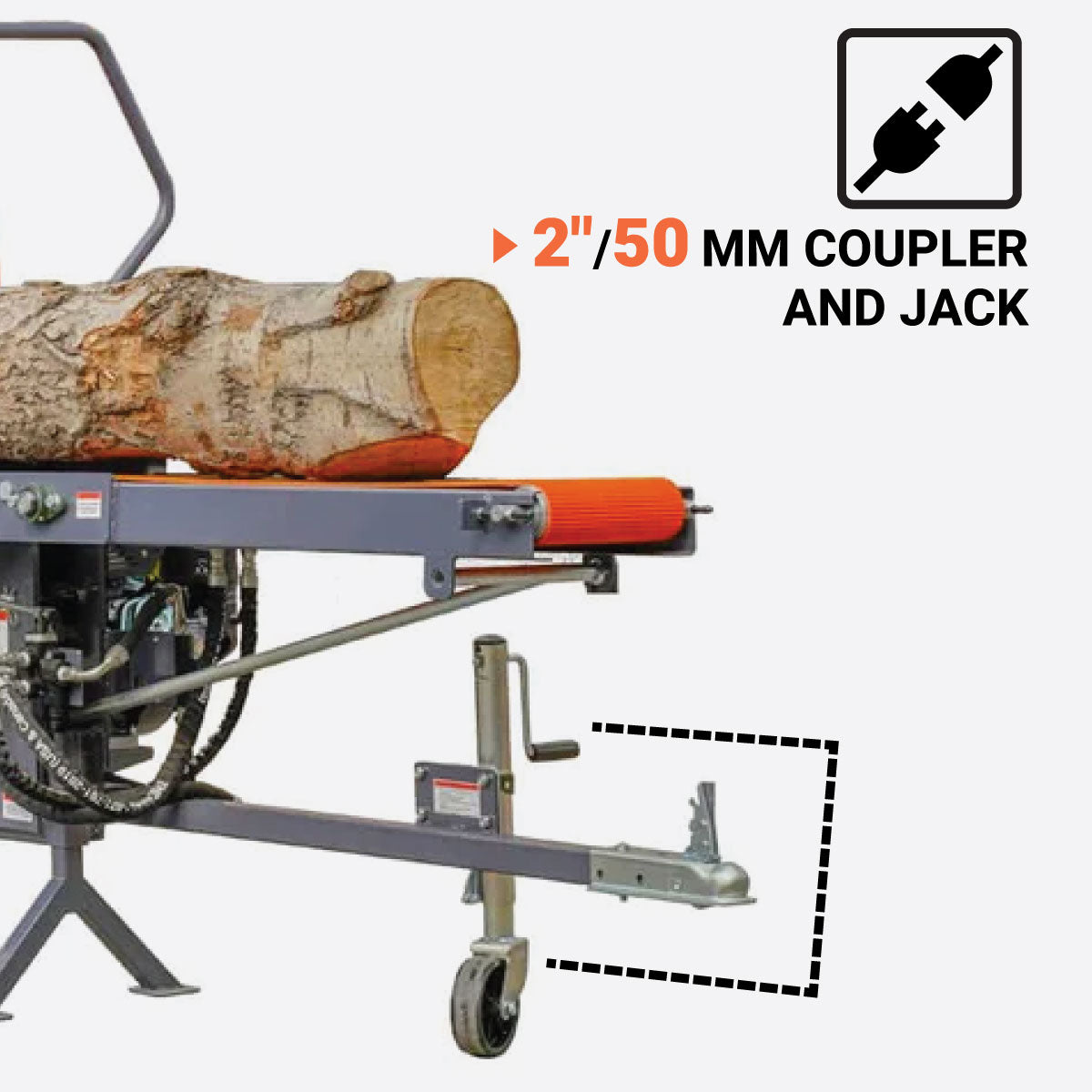

50 mm (2″) coupler and trailer jack for easy movement

Specifications icon Specifications

  • Maximum Log Diameter: 380 mm (15″)
  • Maximum Splitting Length: 610 mm (24″)
  • Maximum Splitting Force: 20 ton
  • Hydraulic Chainsaw: 457 mm (18″)
  • Chainsaw Thickness: 8 mm (0.325″)
  • Hydraulic Inlet Conveyor: 1000 mm x 250 mm (40″ x 10″)
  • Hydraulic Outlet Conveyor: 3200 mm x 250 mm (126″ x 10″)
  • Hydraulic Tank Capacity: 26 L
  • Splitter: 2-4 Way
  • Output Conveyor: Foldable
  • Coupler & Trailer Jack: 50 mm (2″)
  • Maximum Towing Speed: 72 km/h
  • Tire: 494 mm x 135 mm (19″ x 5.3″)
  • Surface Finish: Galvanizing and Powder Coating
  • Safety: Metal Safety Splitting Cage
  • Overall Dimensions (L x W x H): 6300 x 1360 x 1950 mm (248″ x 54″ x 77″)
  • Net Weight: 590 kg (1300 lb)

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

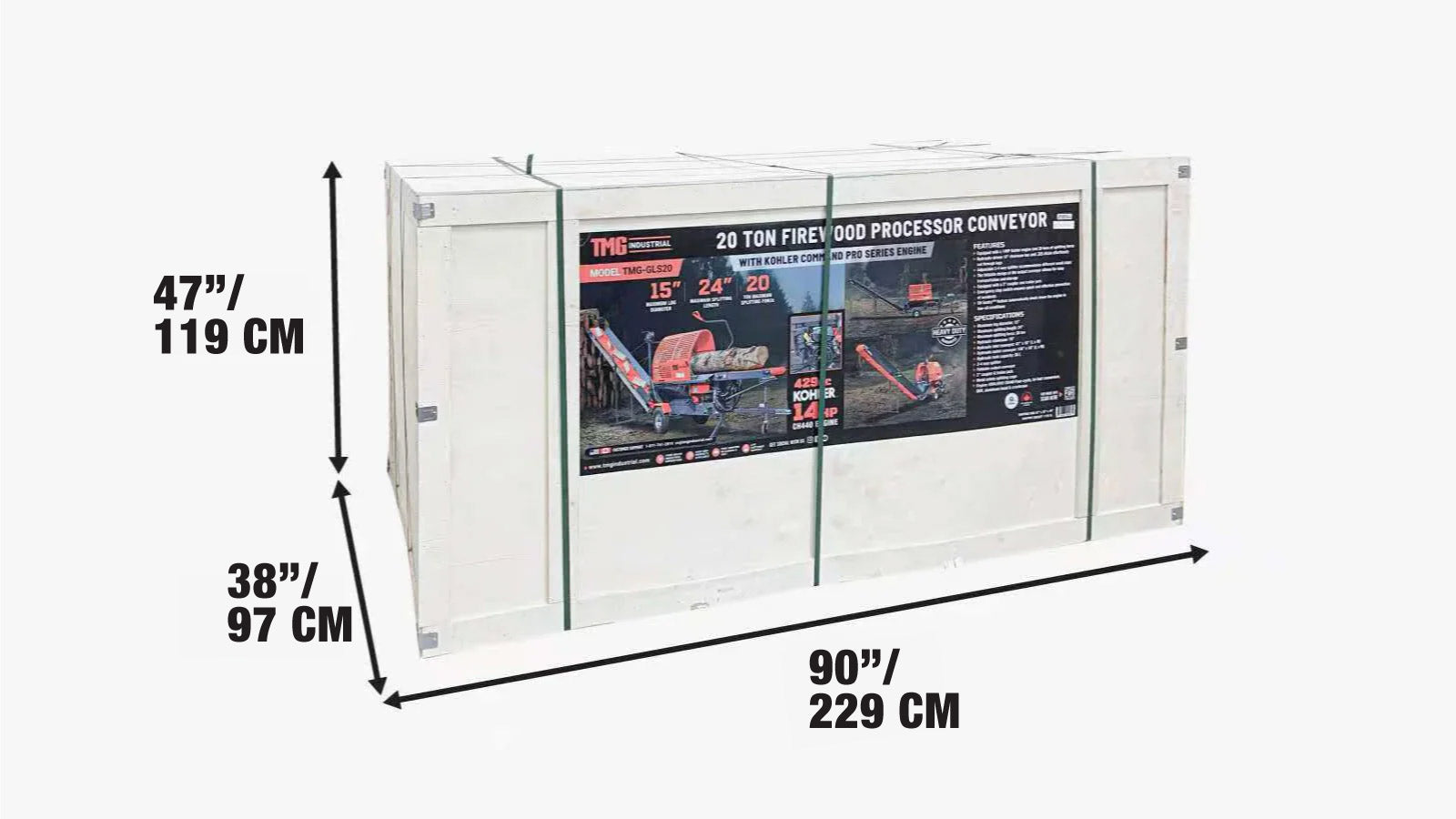

  • The product is packed in a wood-crate shipping box
  • Shipping dimensions: 229 cm × 96 cm × 119 cm (L × W × H) / 90″ × 38″ × 47″
  • Shipping weight: 665 kg (1465 lb)
Shipping from Rowville,VIC
What happens after you place your order?
Firewood Log Splitter Processor Conveyor, 610 x 380 mm (24

Product Description icon Product Description

The TMG‑GLS20 Firewood Processor is a rugged, trailer-ready solution for high-volume firewood production. Powered by a reliable 14 HP Kohler engine, it delivers 20 ton splitting force, processes log up to 610 mm (24″) in length and 380 mm (15″) in diameter and offers versatility with a 2‑4‑way splitter. Hydraulic conveyors and a safety cage make it easy and safe to operate on diverse job sites.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What size logs can the TMG-GLS20 process?
    A: TMG-GLS20 can handle logs up to 380 mm (15″) diameter and 610 mm (24″) length.
  • Q: How powerful is the splitter engine?

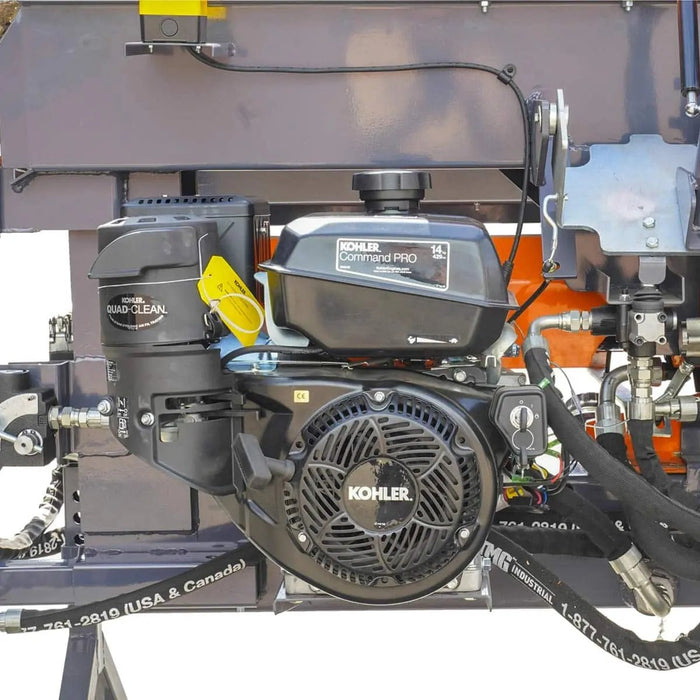

    A: The splitter features a 14 HP Kohler CH440 engine delivering 20 ton of splitting force.
  • Q: Can I adjust the splitting options?
    A: Yes — choose between 2-way or 4-way splitter modes to match wood size.
  • Q: How is wood discharged?
    A: The wood is discharged through foldable hydraulic outlet conveyors for easy stacking.
  • Q: What safety features are included?
    A: The splitter comes with a heavy-duty metal cage and emergency shut-off switch for operator safety.
  • Q: Is it easy to transport?
    A: Yes — The splitter is equipped with a 50 mm (2″) coupler and trailer jack for convenient mobility.
  • Q: What is the warranty for the TMG-GLS20?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
