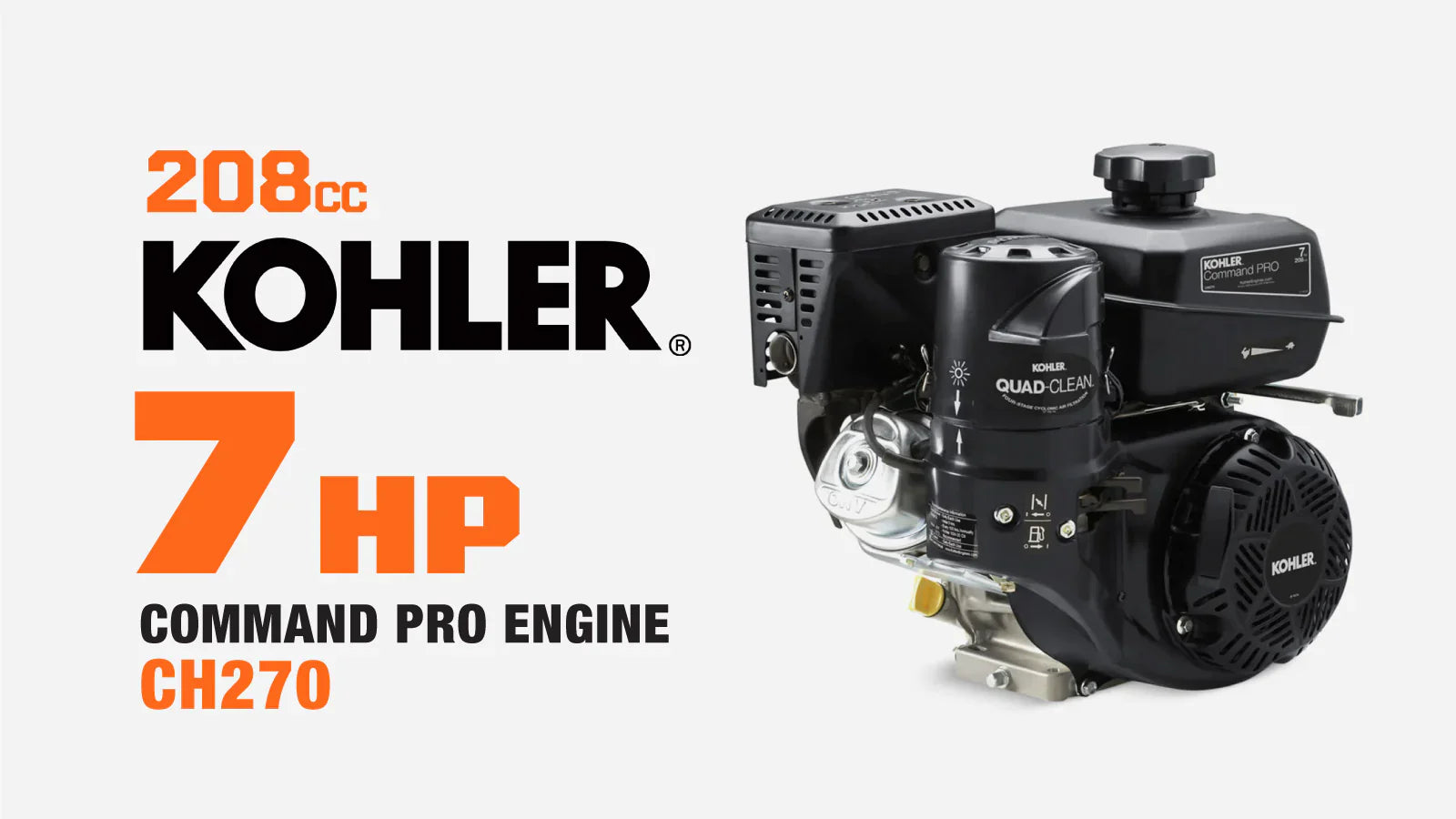

• Engine Model: Kohler CH270
• Engine Horsepower: 7 HP

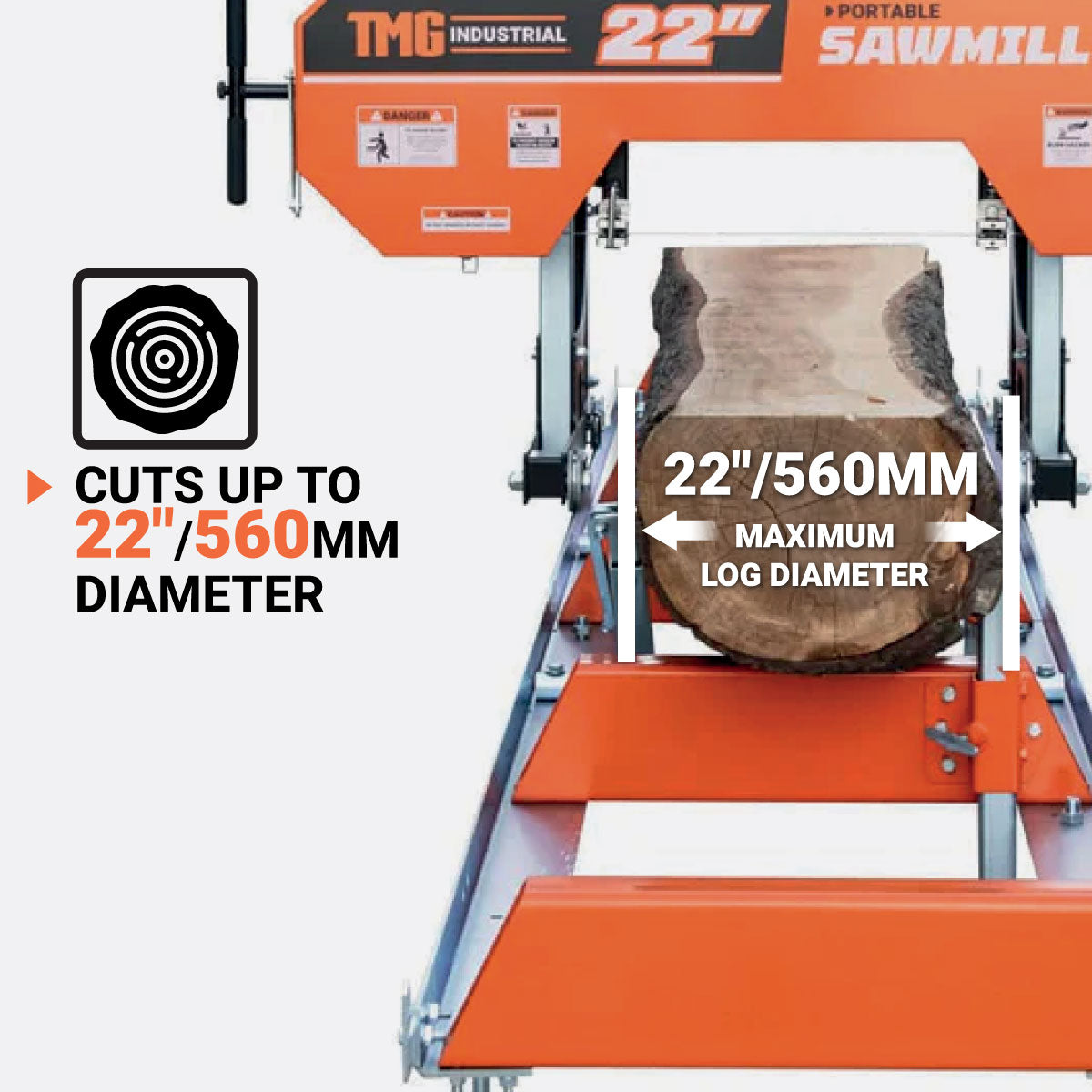

• Max Log Diameter: 560 mm
• Max Log Length: 3550 mm

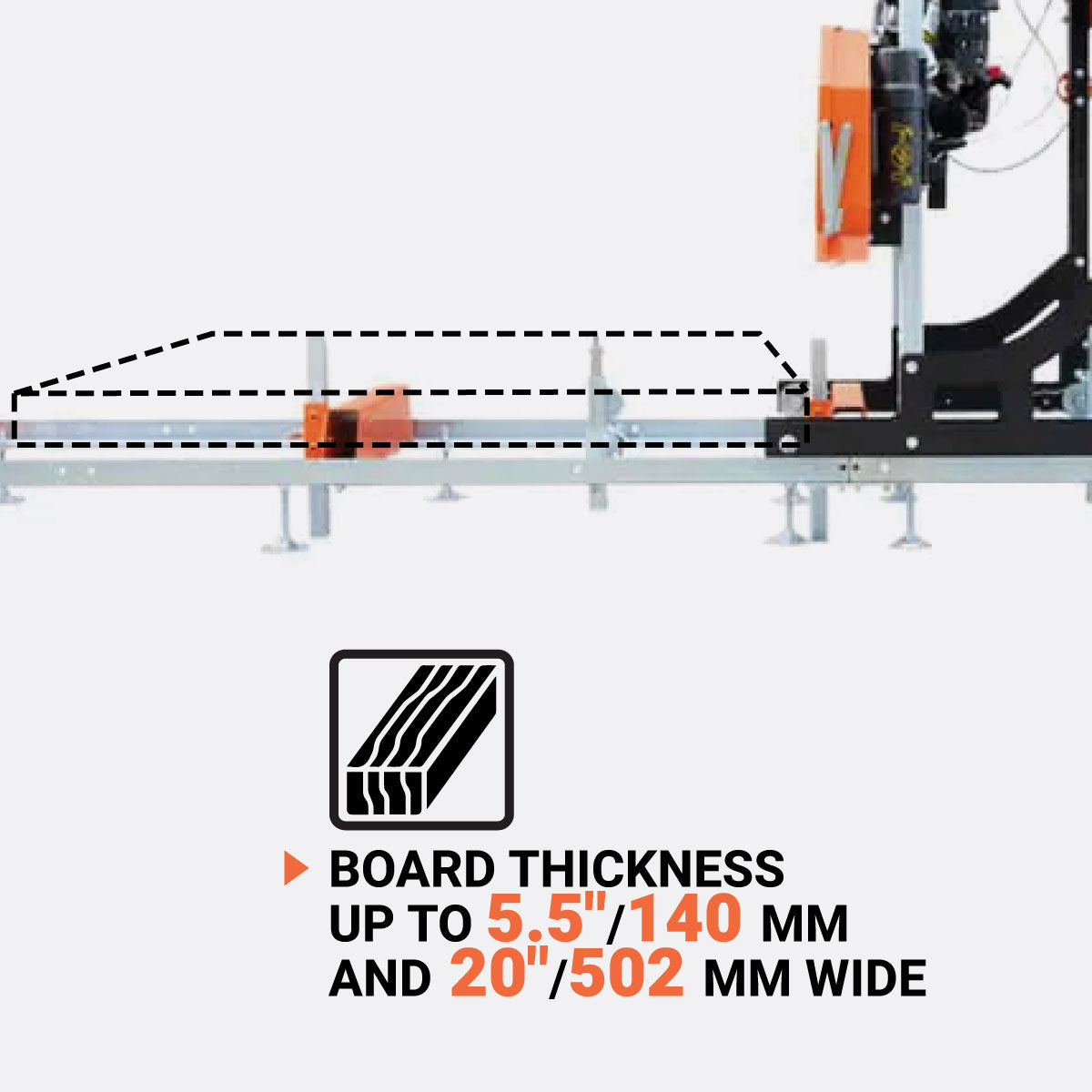

• Max Board Width: 502 mm
• Max Cut Thickness: 140 mm
• Track Bed Length: 4420 mm
• Blade Engagement System: Centrifugal Clutch
• Blade Wheel Diameter: 400 mm
• Blade Guide: Yes
• Blade Tension Adjustment: T-Handle Tension Adjustment
• Blade Length: 3226 mm
• Blade Width: 32 mm
• Blade Kerf: 1.1 mm
• Blade Lubrication: Water
• Extension Kit Available: No
• Finish: Galvanizing and Powder Coating
• Overall Dimensions: 1665 × 1550 × 4535 mm
• Carriage Design: 4-Post Carriage with Saw Head Anti-tip Locking
• Weight: 300 kg

Your order will be shipped from our main Australian warehouse. Orders typically leave the warehouse within 2–3 business days. Standard delivery time is 10–15 business days depending on location.

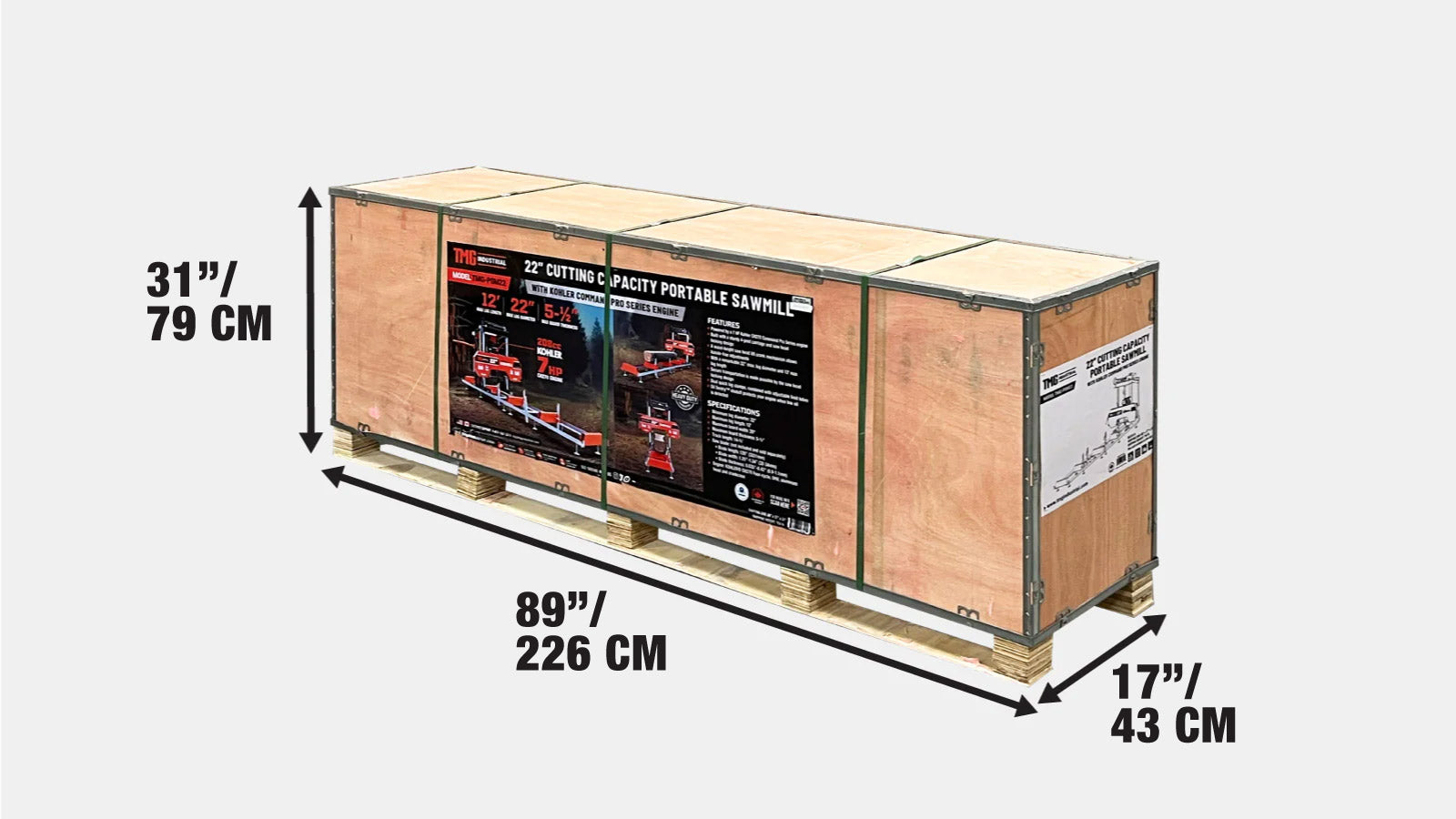

• Packed in a wood crate shipping box
• Shipping Dimensions: 226 x 44 x 79 cm (L x W x H)
• Shipping Weight: 341 kg

Q: What is the TMG-PSM22 Portable Sawmill?

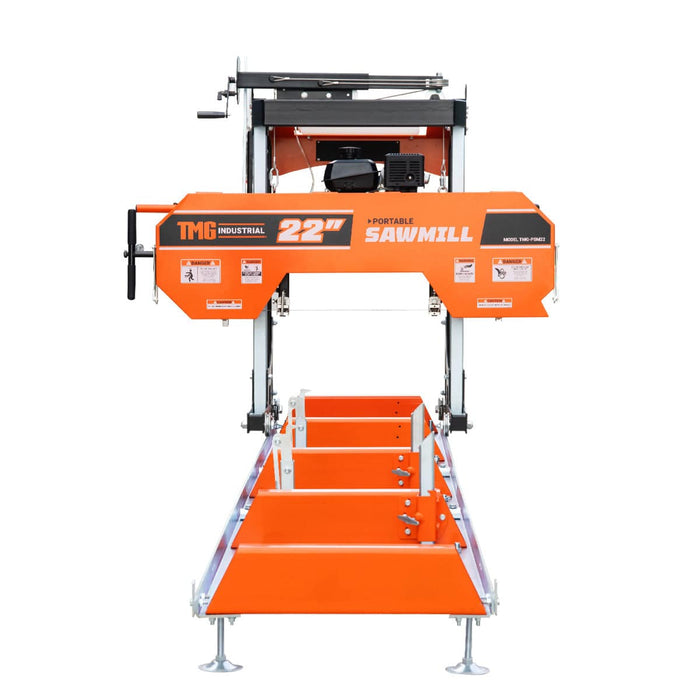

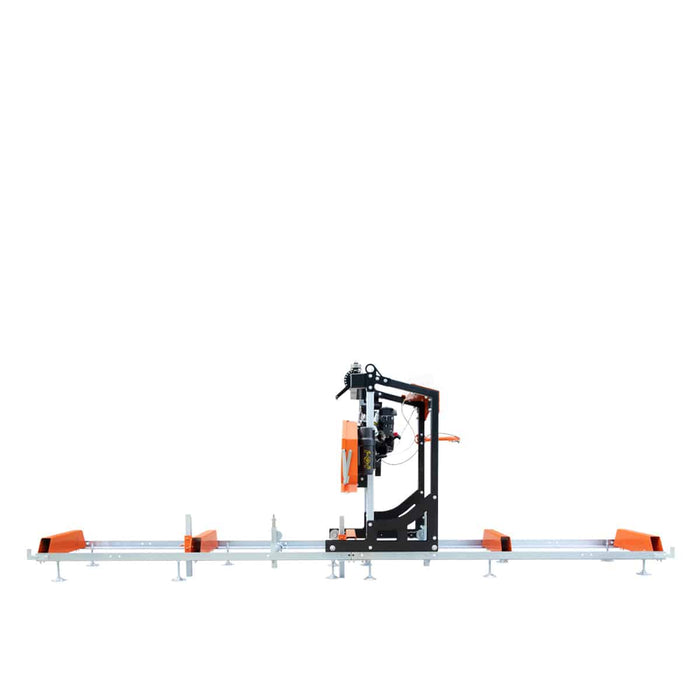

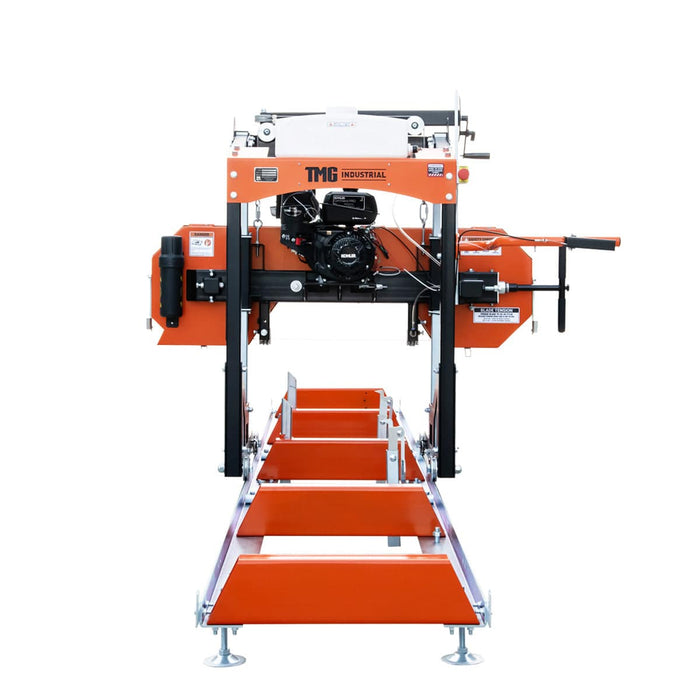

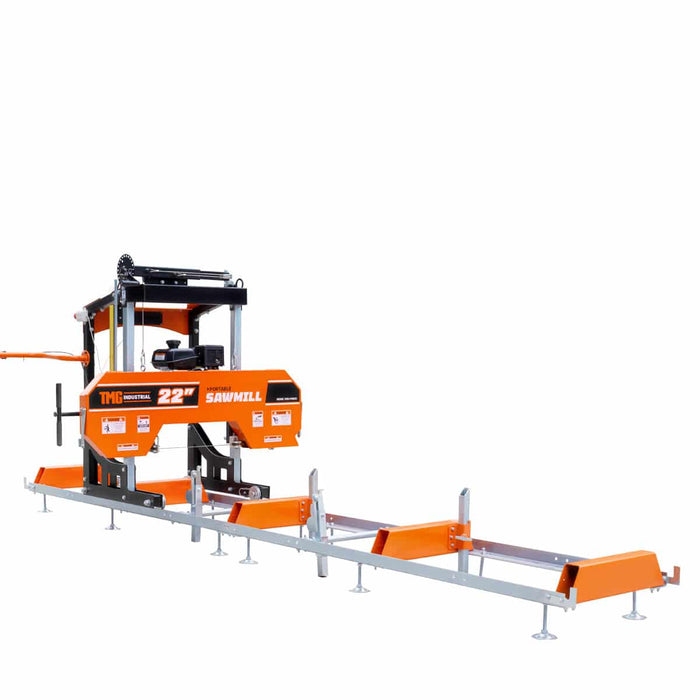

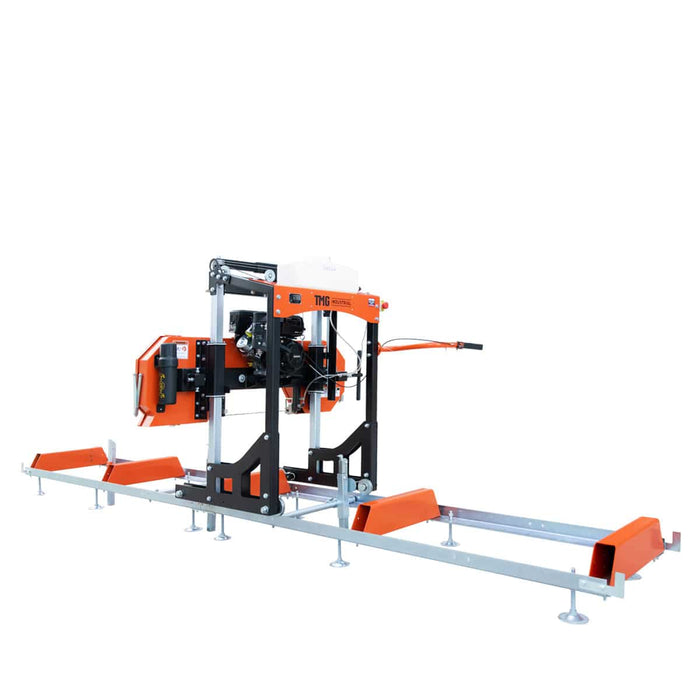

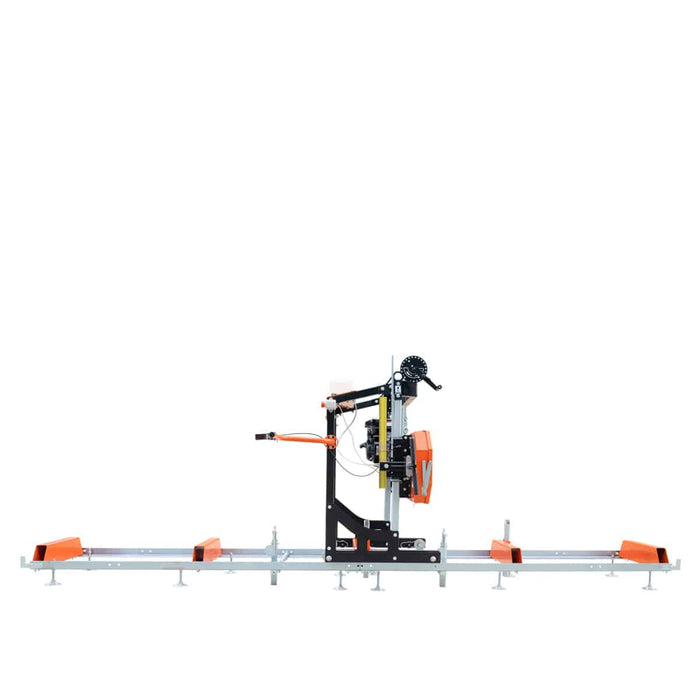

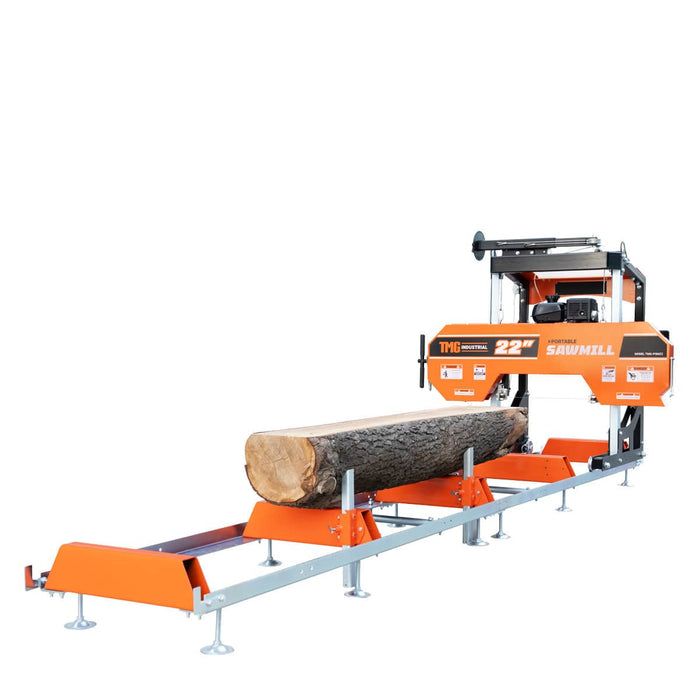

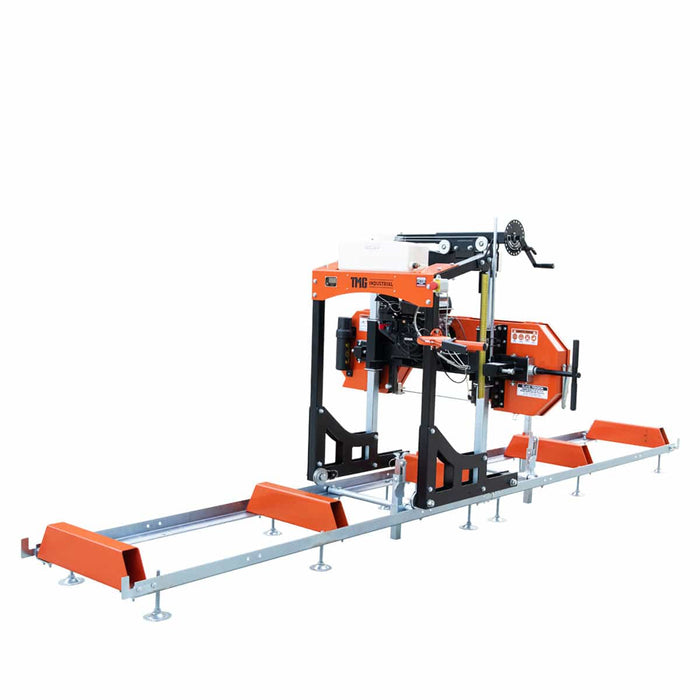

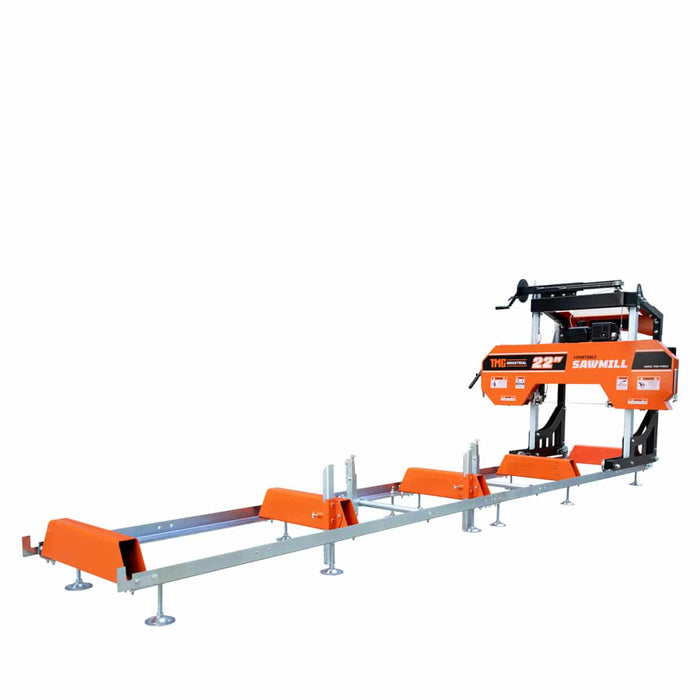

The TMG-PSM22 is a compact, entry-level bandsaw mill designed for hobbyists and small-scale timber processing. It features a reliable 7 HP Kohler Command Pro Series petrol engine and a sturdy 4-post carriage system with an anti-tip locking mechanism, ensuring stability and precision during operation. This sawmill is ideal for DIY woodworking projects and small-scale milling tasks.

Q: What are the maximum log dimensions the TMG-PSM22 can handle?

The sawmill can process logs up to:
– 560 mm in diameter
– 3.55 metres in length
– 502 mm in board width

Q: What is the size of the sawmill blade?

The TMG-PSM22 uses a 128-inch long (approximately 3.25 metres) × 1.25 inch wide (31.75 mm) bandsaw blade. Replacement blades are available on tmgindustrial.com.

Q: What are the key features of the TMG-PSM22?

Key features include:

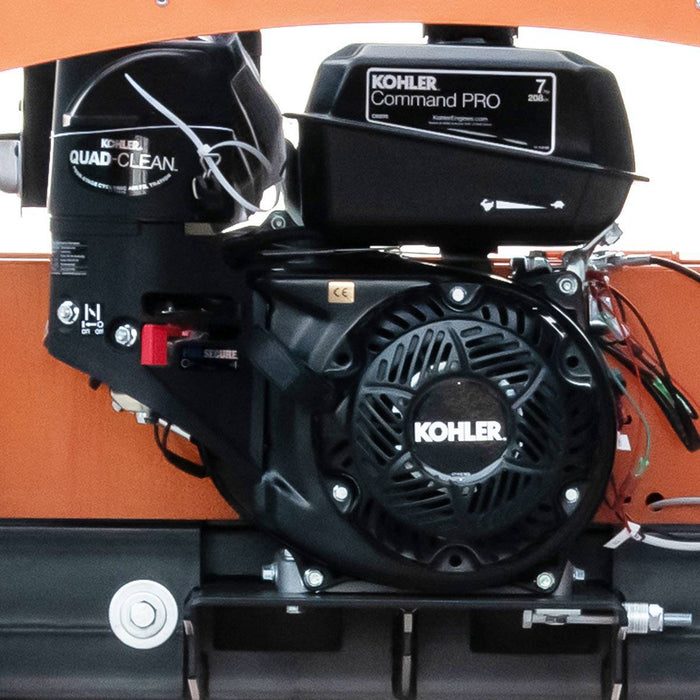

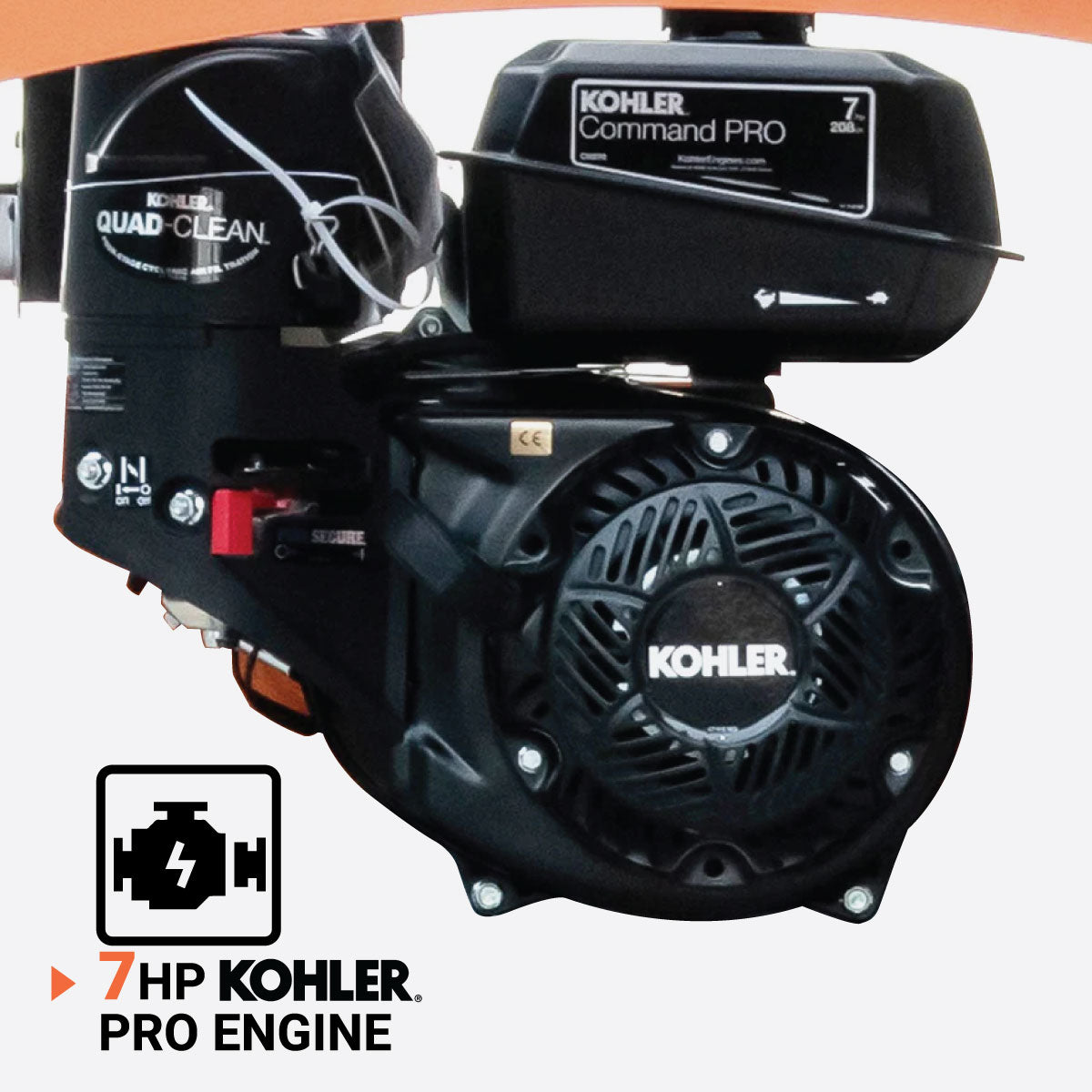

– 7 HP Kohler Command Pro Series Engine for consistent power

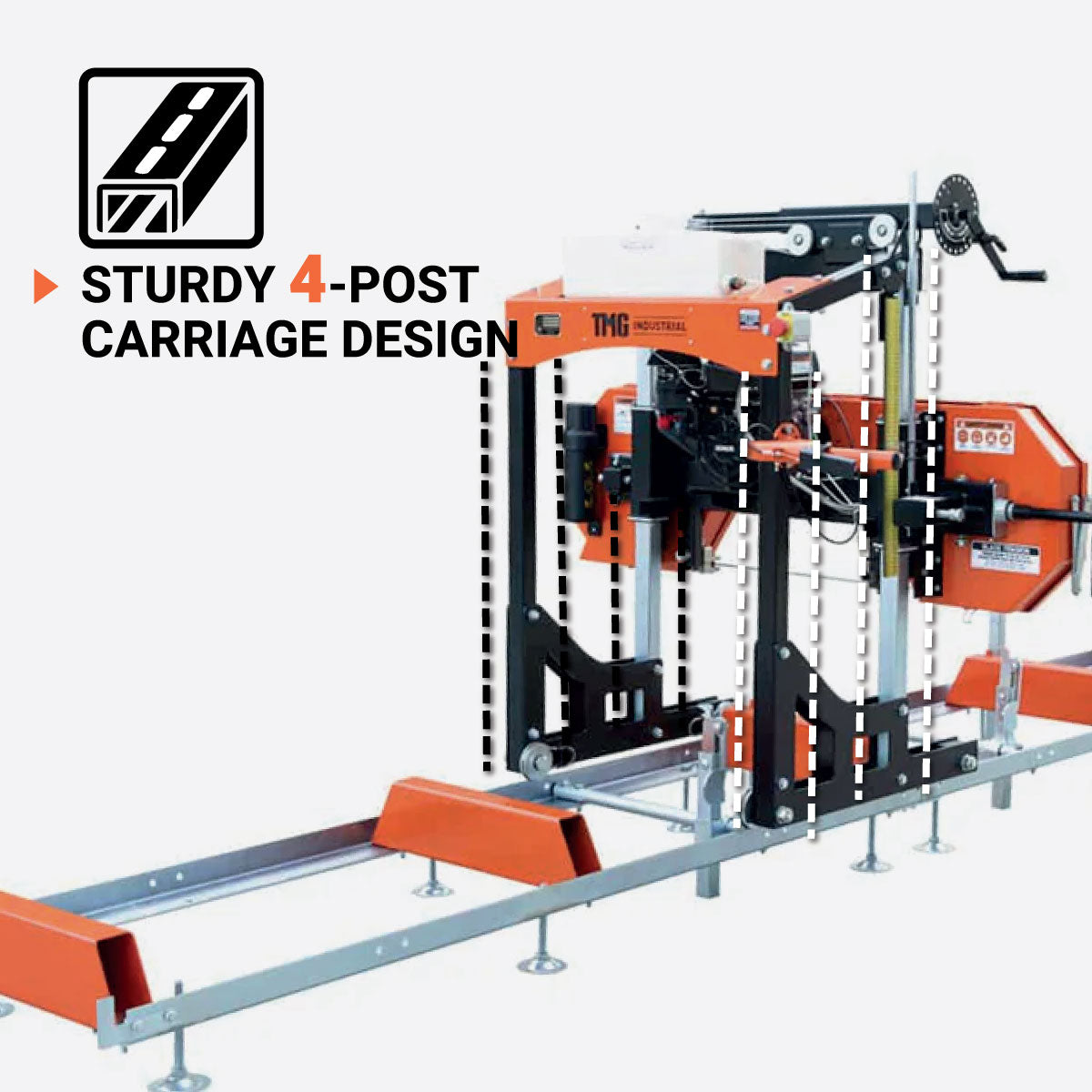

– 4-post carriage design with anti-tip self-locking for enhanced stability
– Waist-height saw head lift crank for easy adjustments
– 10-litre translucent water tank to keep the blade cool and sharp

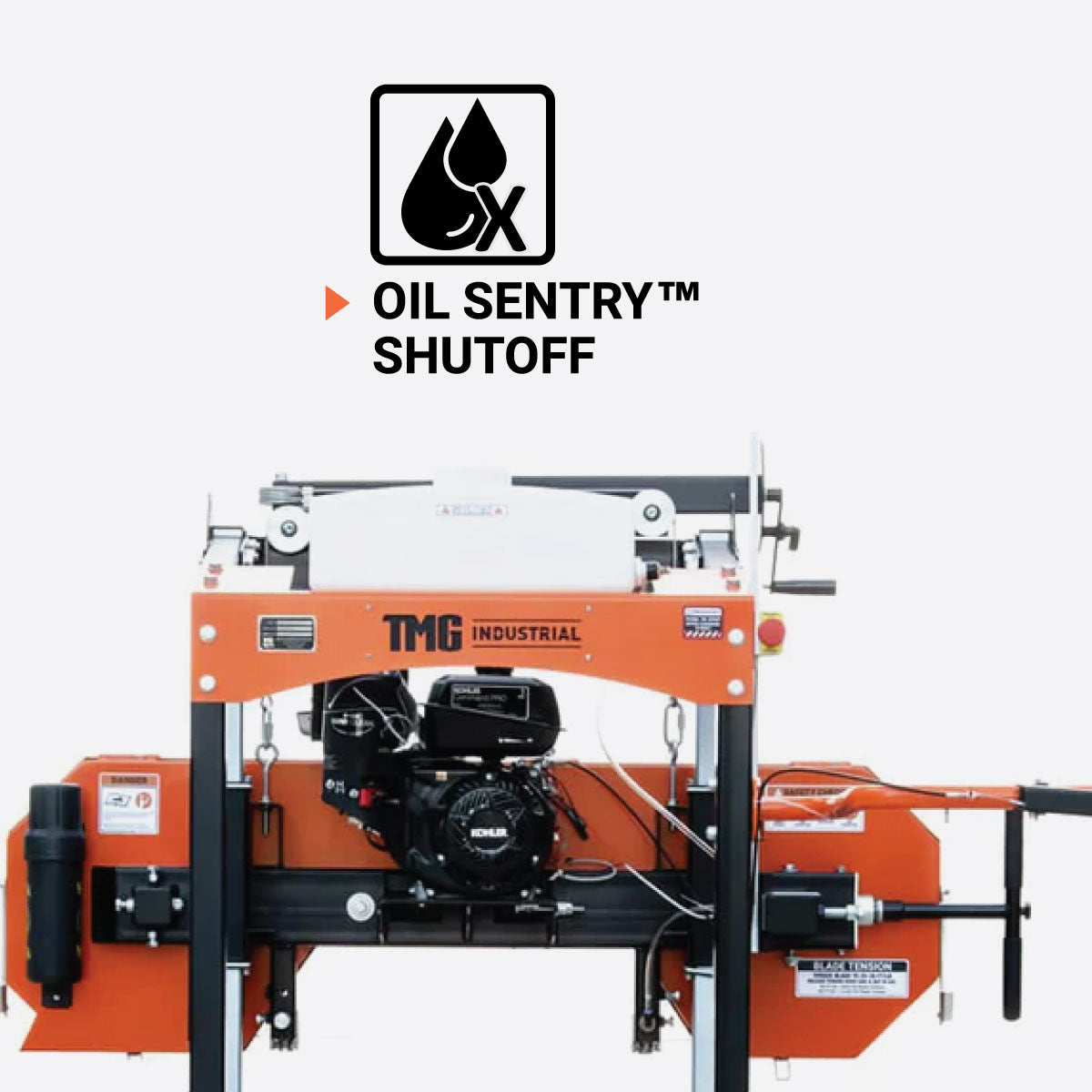

– Oil Sentry™ shutoff to protect the engine from low oil levels
– Free blade included with the sawmill

Q: Is the sawmill easy to assemble and operate?

Yes, the TMG-PSM22 is designed for ease of assembly and operation. It comes with a comprehensive product manual, and the waist-height crank allows for comfortable adjustments, making it user-friendly for hobbyists.

Q: What maintenance is required for the TMG-PSM22?

Regular maintenance includes:
– Checking and changing the engine oil
– Inspecting and replacing the bandsaw blade as needed
– Ensuring the water tank is filled to keep the blade cool
– Lubricating moving parts to prevent wear

Q: Where can I find the product manual and additional support?

The product manual for the TMG-PSM22 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
