• For Container Length: 40' / 12 metres
• Floor Footprint (m): 12 x 9 m
• Shelter Footage (sq m): 110
• Number of Truss Frames: 4
• Truss Spacing (m): 3 m
• Truss Tubes Diameter (mm): 48
• Truss Tubes Thickness (mm): 1.8
• Purlin Tubes Diameter (mm): 48
• Purlin Tubes Thickness (mm): 1.8
• Structure Tube Treatment: 3-layer galvanized
• Ceiling Peak Height from Container Top (m): 4.0
• Ceiling Peak Height from Ground (Standard Containers) (m): 6.6
• Ceiling Peak Height from Ground (HC Containers) (m): 6.9
• Sidewall Rise Above Container Top (m): 1.24
• Cover Material: 581 gsm Ripstop PVC
• Cover Colour: White

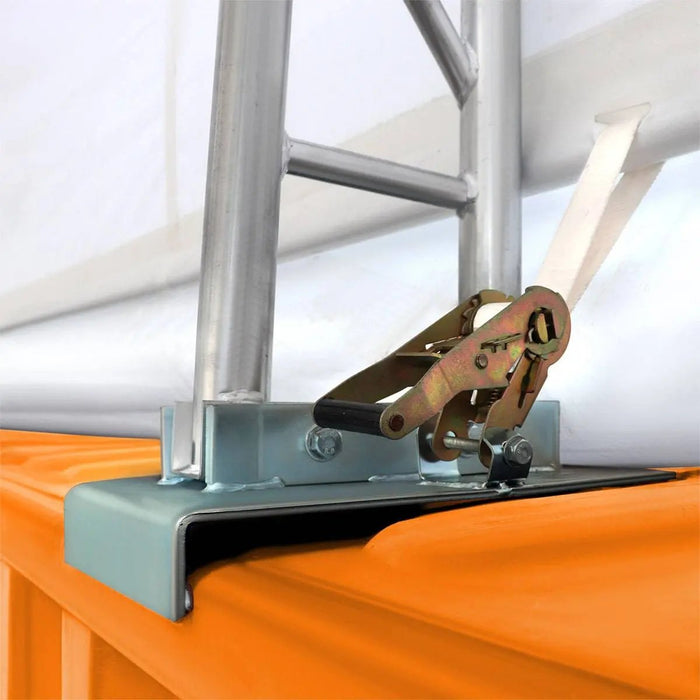

• Footplate Welding Required: Yes
• Shipping Dimensions (cm): 310 x 115 x 69 cm
• Shipping Weight (kg): 870 kg
• Package Type: Metal crate

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

• This product is packed in a metal crate shipping box
• Shipping dimension: 3.5 x 1.2 x 0.7 metres (L x W x H)
• Shipping weight: Approx. 873 kg
• A forklift is required for unloading; tailgate delivery is not available

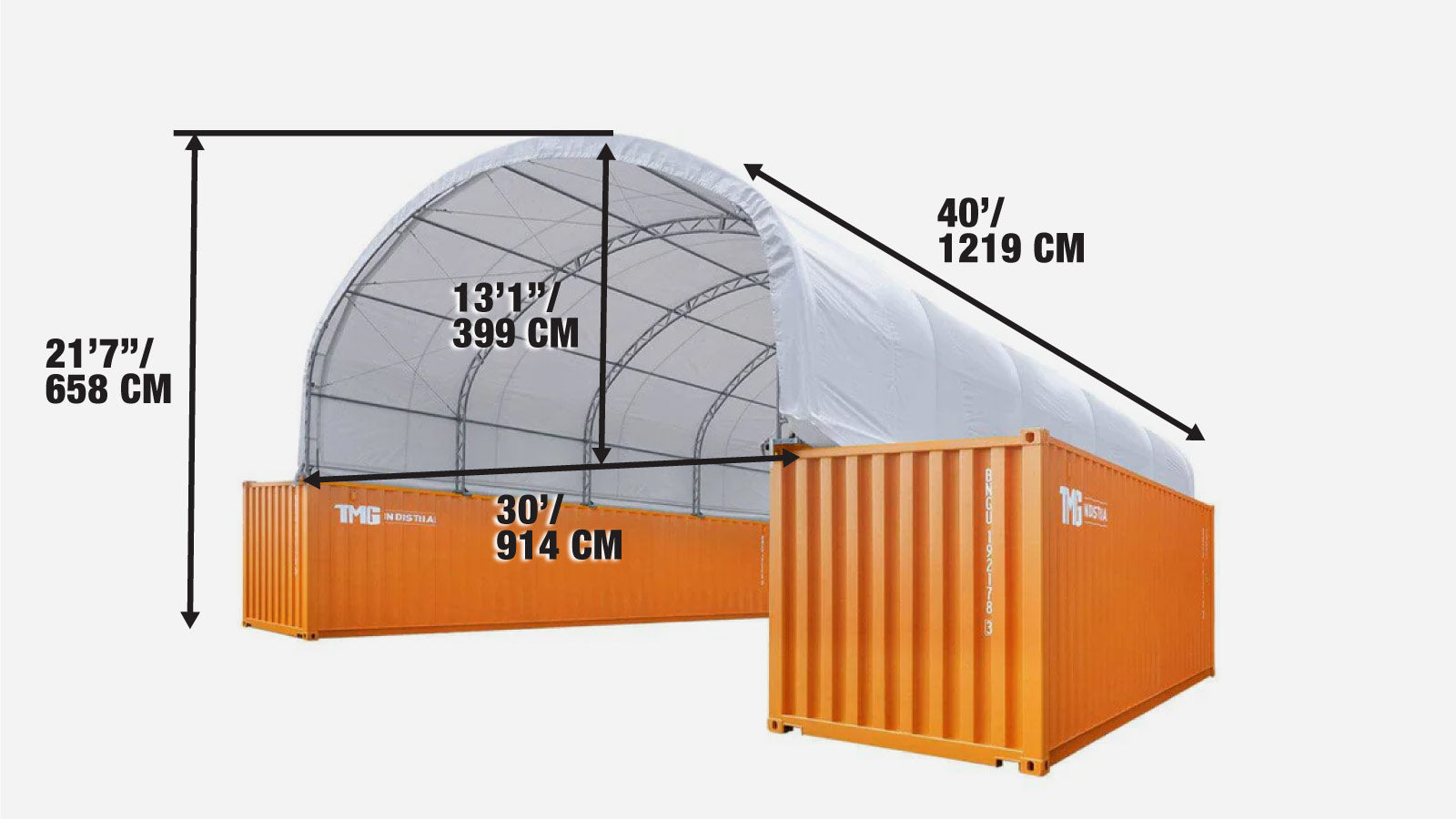

Q: What are the dimensions of the TMG-DT3040C shelter?

The exact floor footprint of the shelter is 9.14 metres (30 feet) wide by 12.01 metres (39 feet 5 inches) long. It provides approximately 110 square metres (1200 sq ft) of covered storage or workspace.

Q: What is the maximum height of the shelter?

When installed on standard high cube (HC) shipping containers (approx. 2.9 metres or 9'6" tall), the peak ceiling height from the ground is approximately 6.58 metres (21 feet 7 inches). The peak ceiling height from the top of the container is 3.96 metres (13 feet).

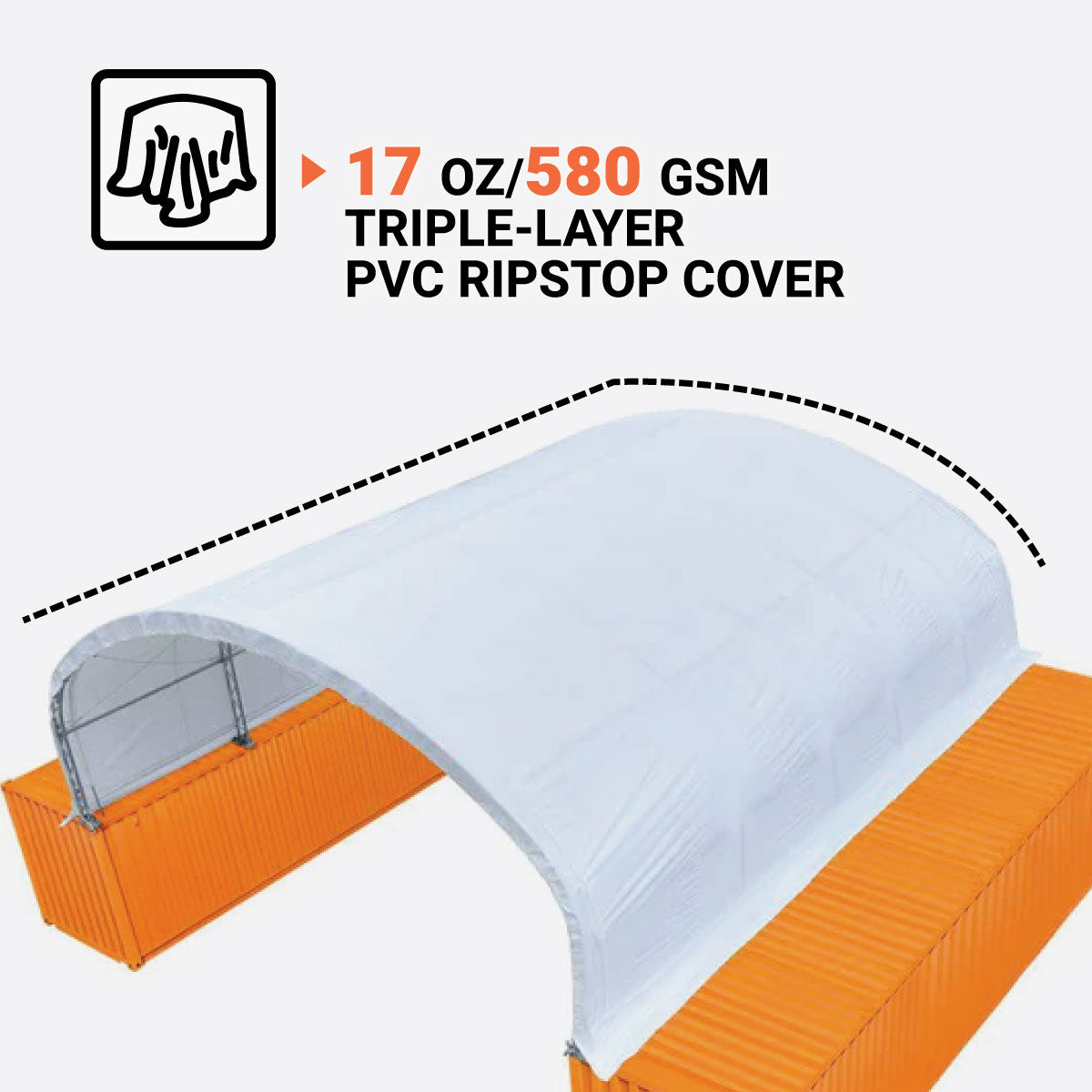

Q: What type of fabric is used for the cover?

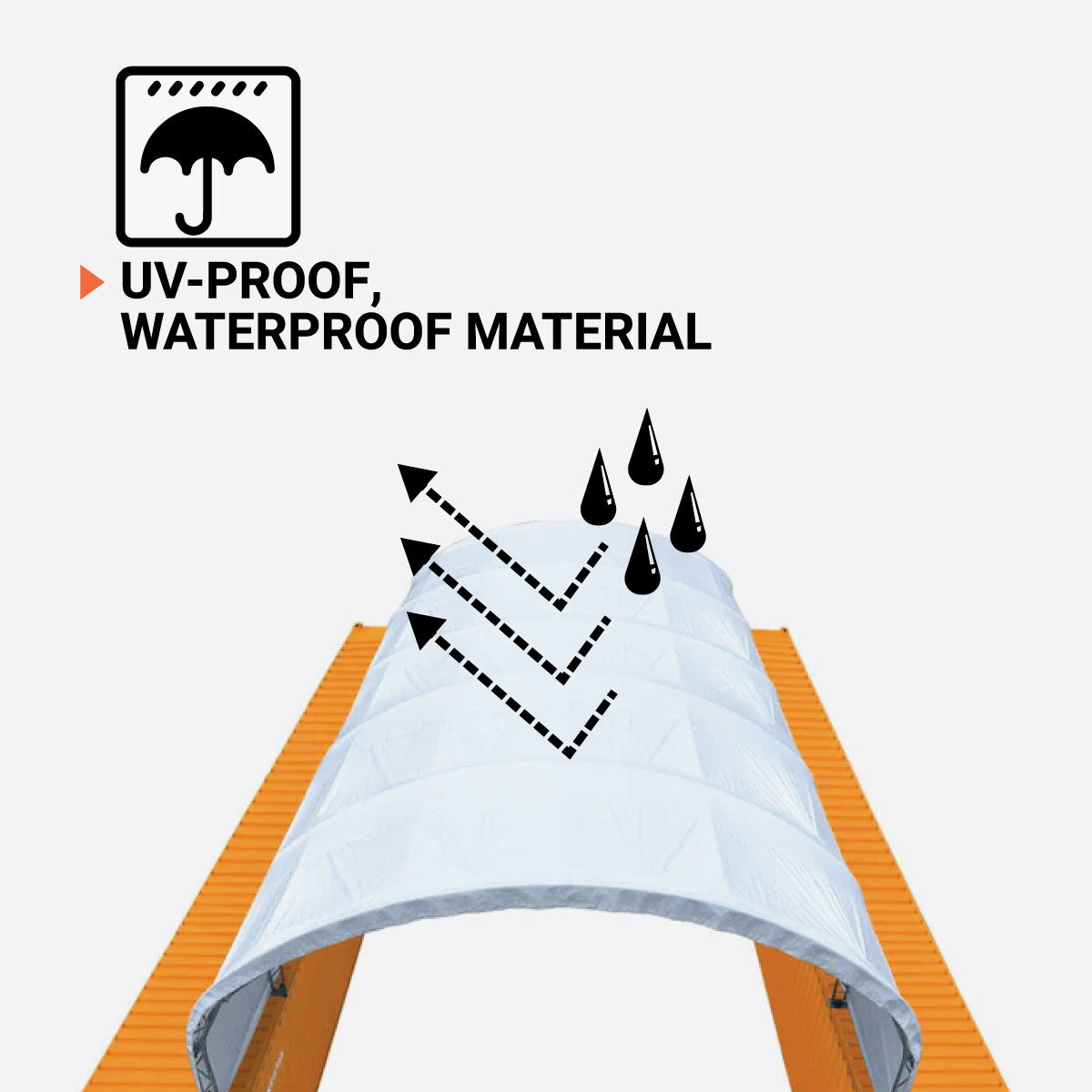

The TMG-DT3040C features a heavy-duty 17 oz (ounce per square yard) / 580 gsm triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover. This fabric is naturally flame retardant, resistant to chemicals and oil, UV protected, and waterproof. It's designed to stand strong against tearing, leaking, and chemical corrosion.

Q: What is the frame made of?

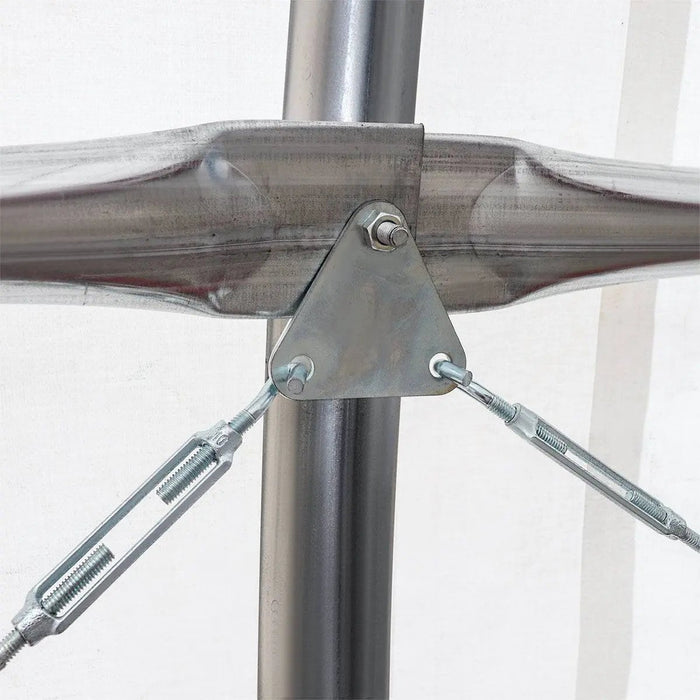

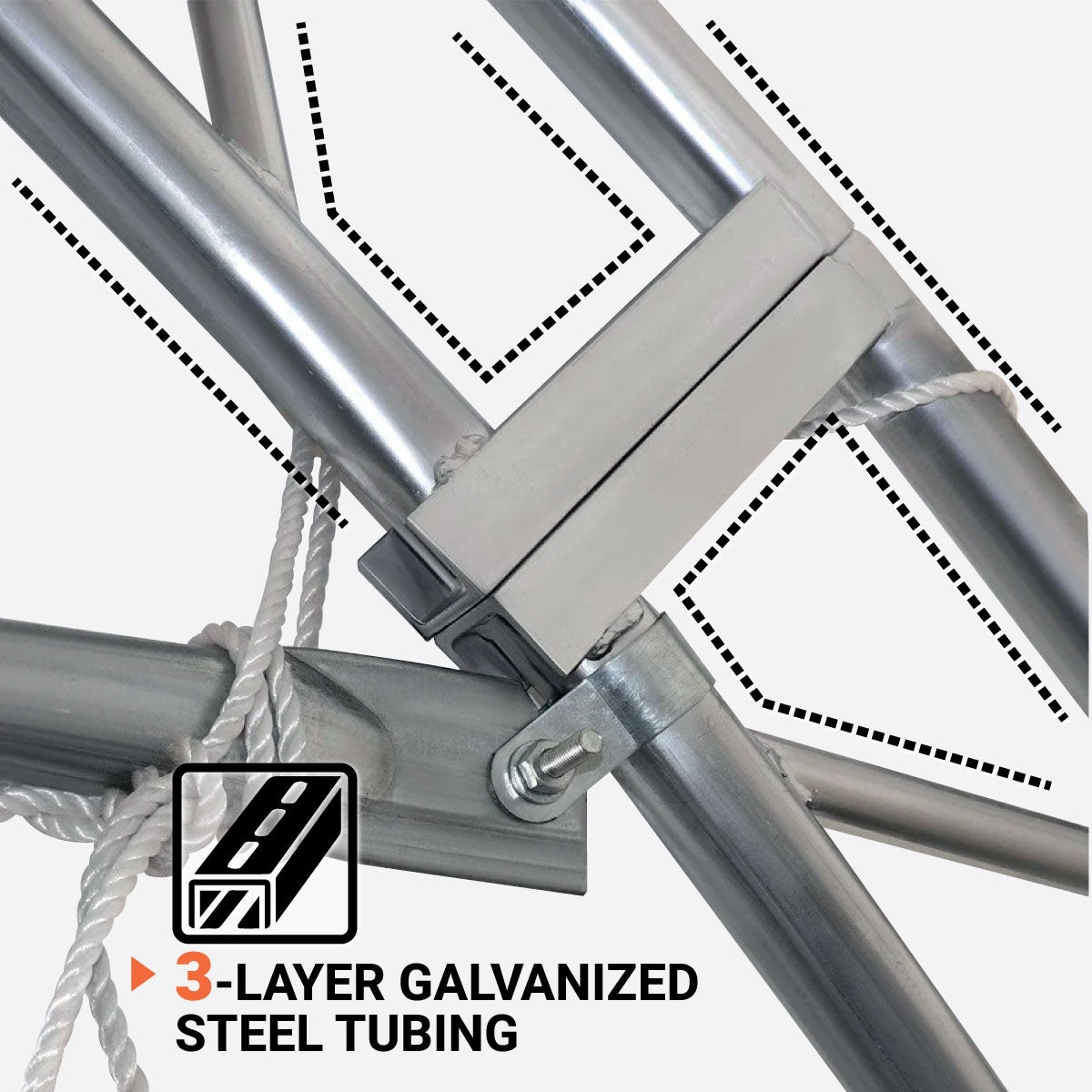

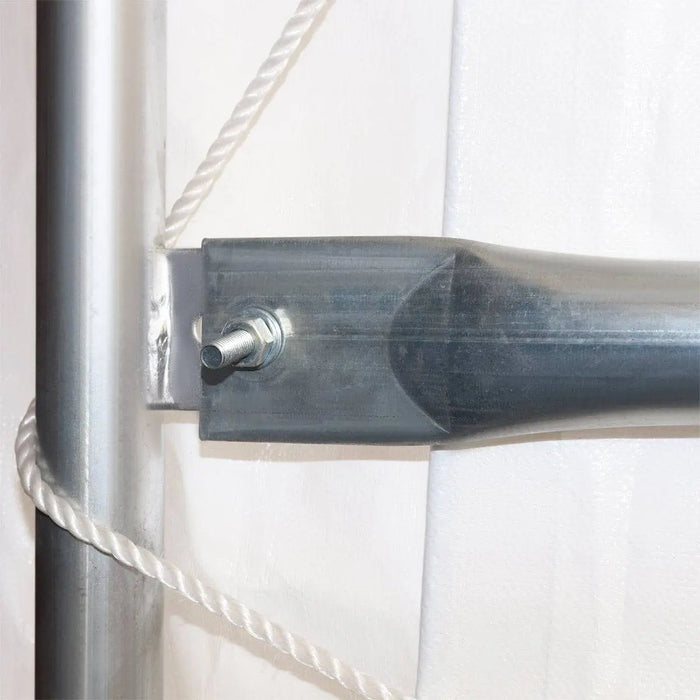

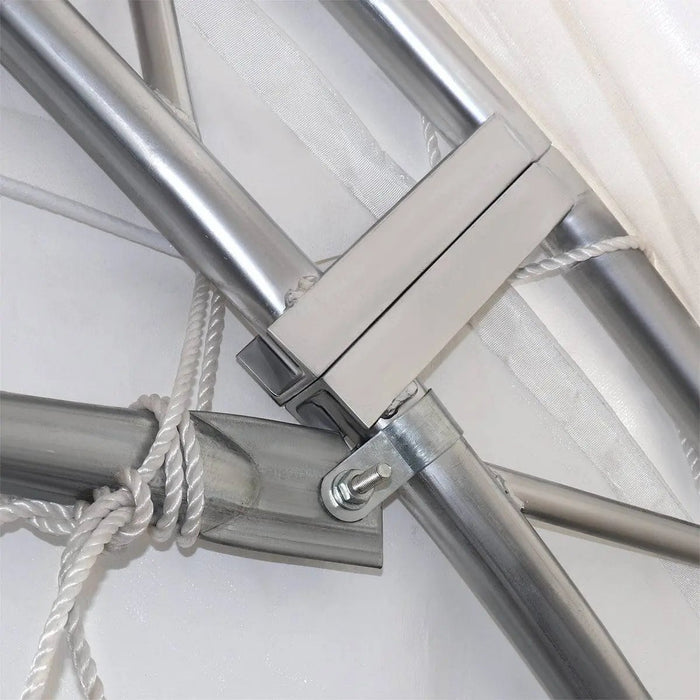

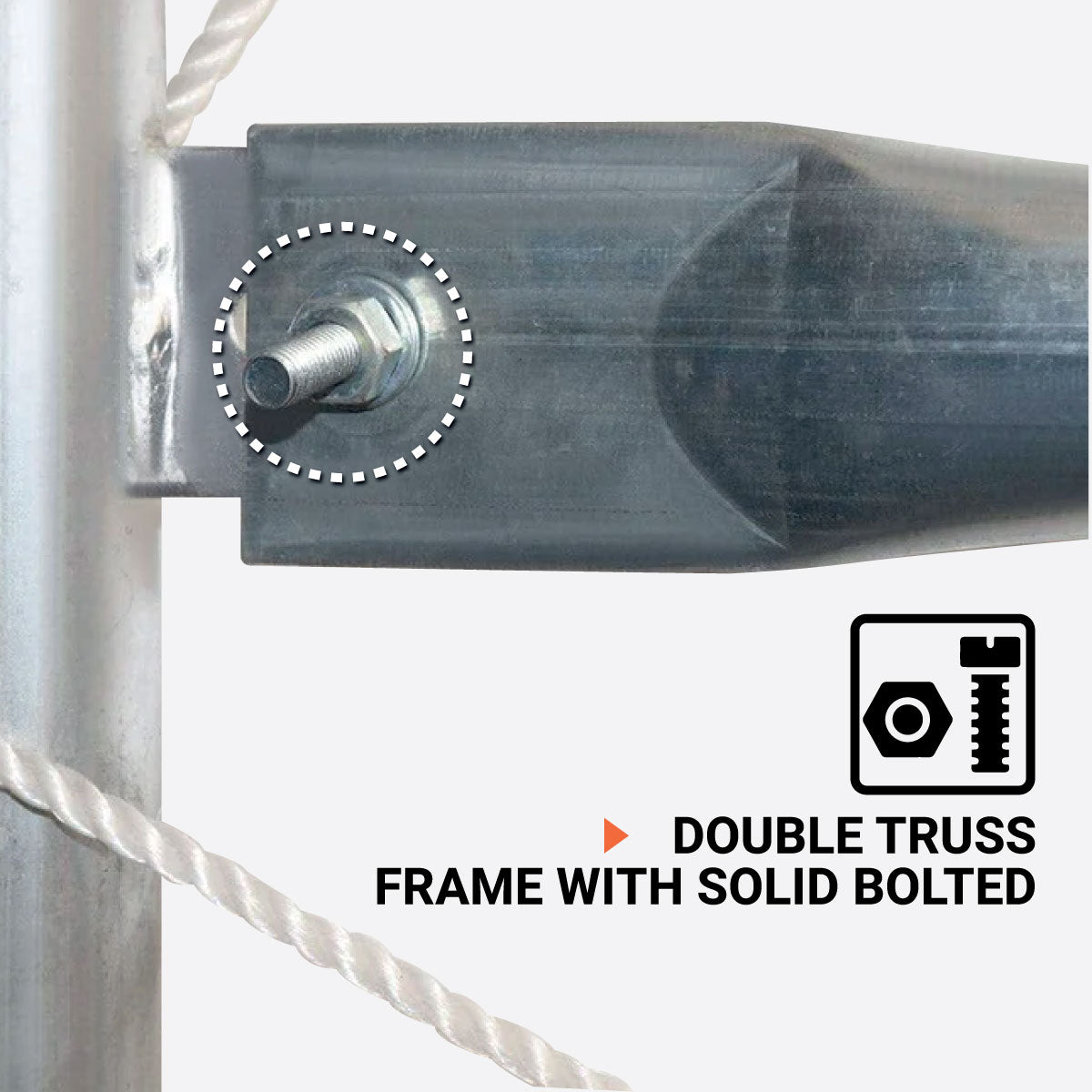

The frame is constructed from commercial-grade, 3-layer galvanized steel tubing for long-lasting durability, rigidity, and resistance to rust, wear, and corrosion.

Q: What are the dimensions of the frame tubes?

The truss tubes are approximately 5.08 cm (2.0 inches) in diameter with a 15 gauge (approx. 1.8 mm wall thickness). The purlin tubes are also approximately 5.08 cm (2.0 inches) in diameter with a 15 gauge (approx. 1.8 mm wall thickness).

Q: What is the truss spacing on this shelter?

The shelter is designed with 3.05 metre (10-foot) truss spacing.

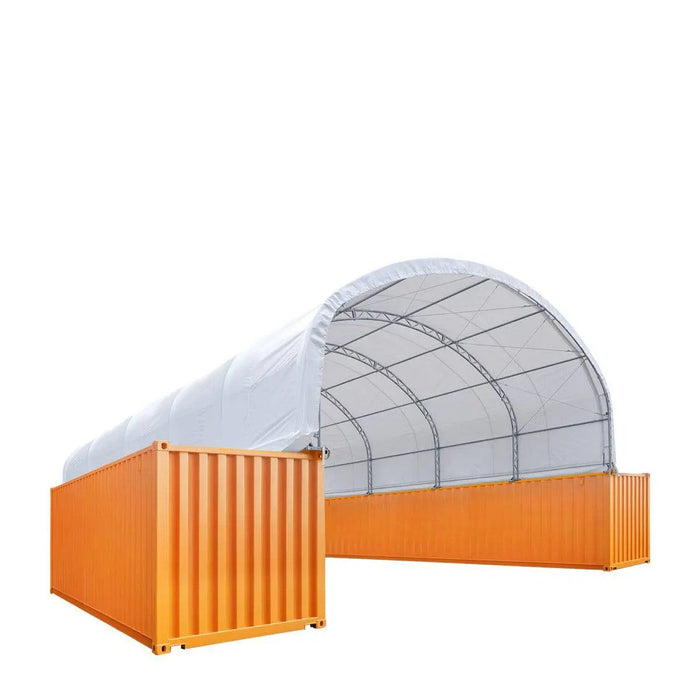

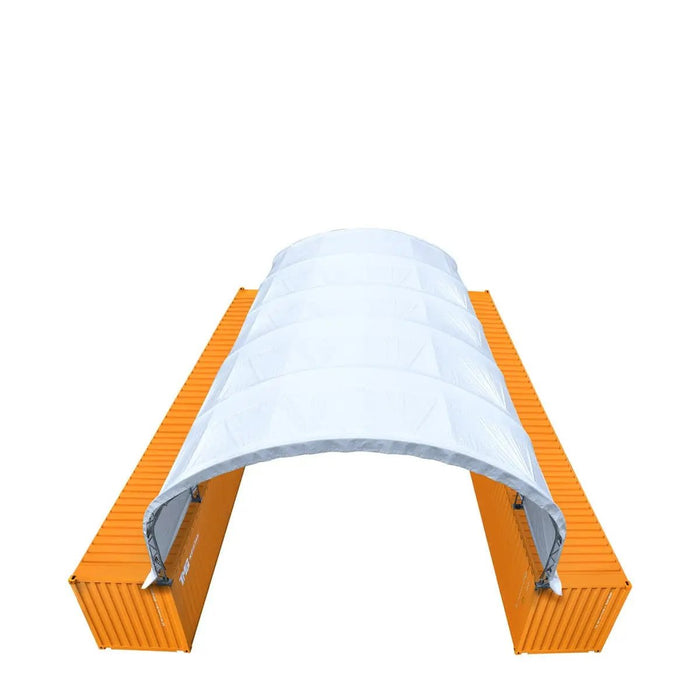

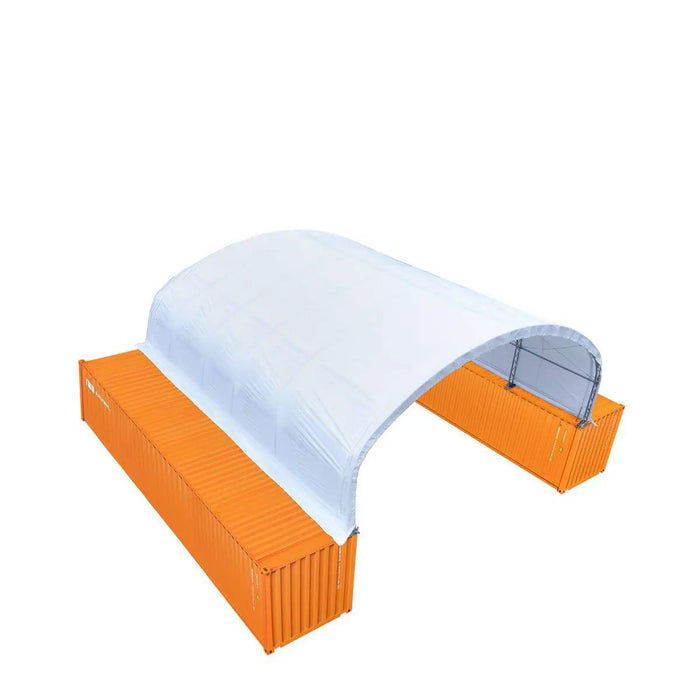

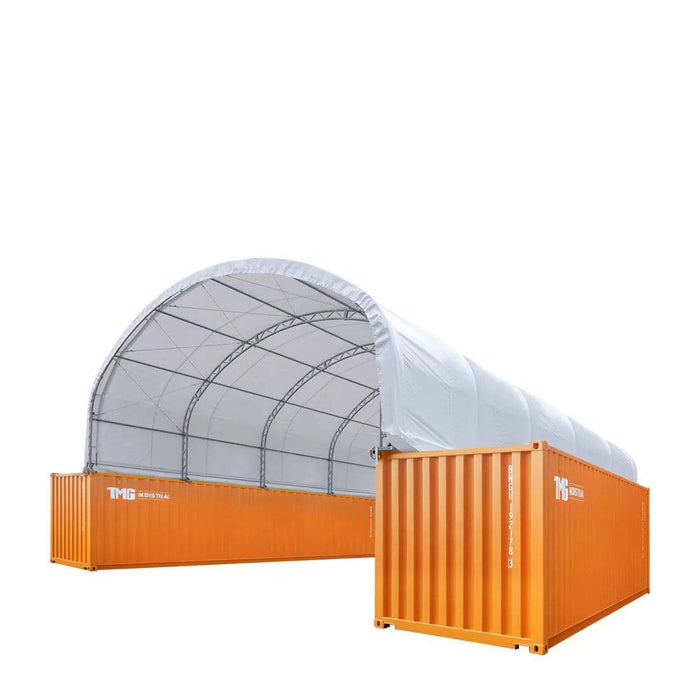

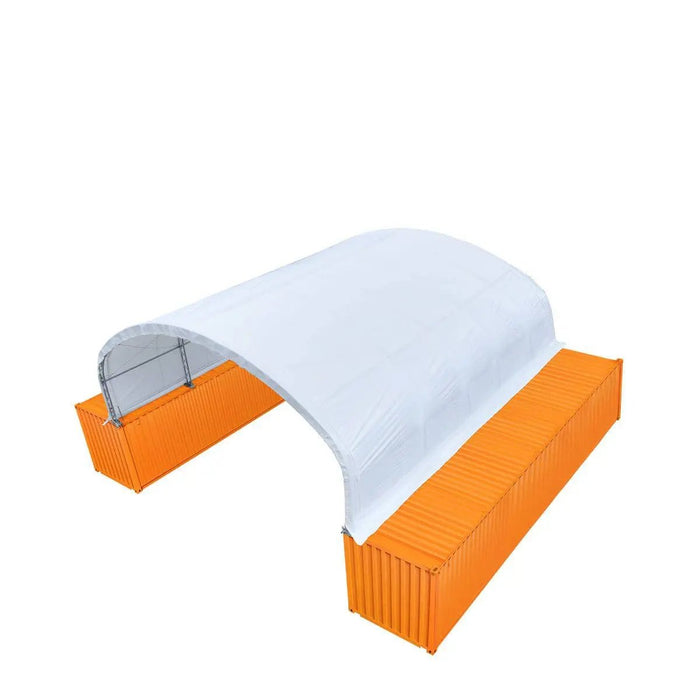

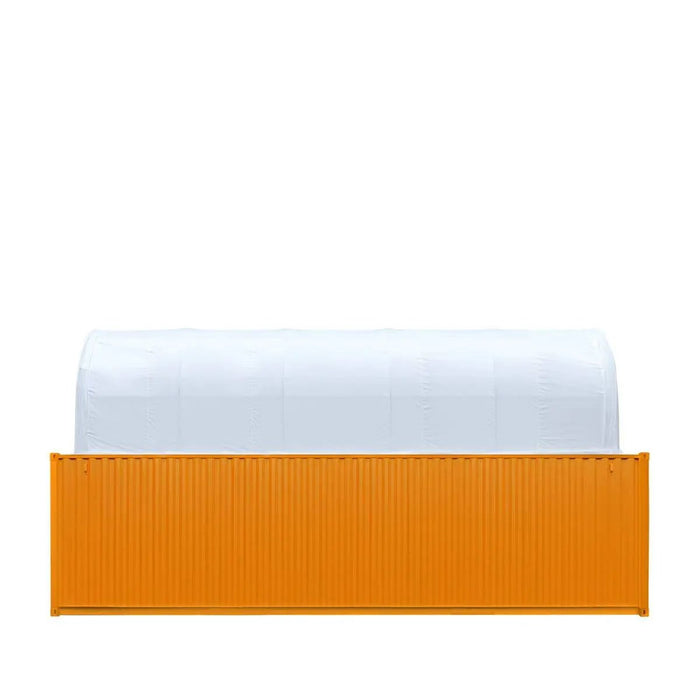

Q: Do I need shipping containers to install this shelter?

Yes, this shelter is designed to be installed on standard 40-foot shipping containers. Containers are not included with the purchase of the shelter.

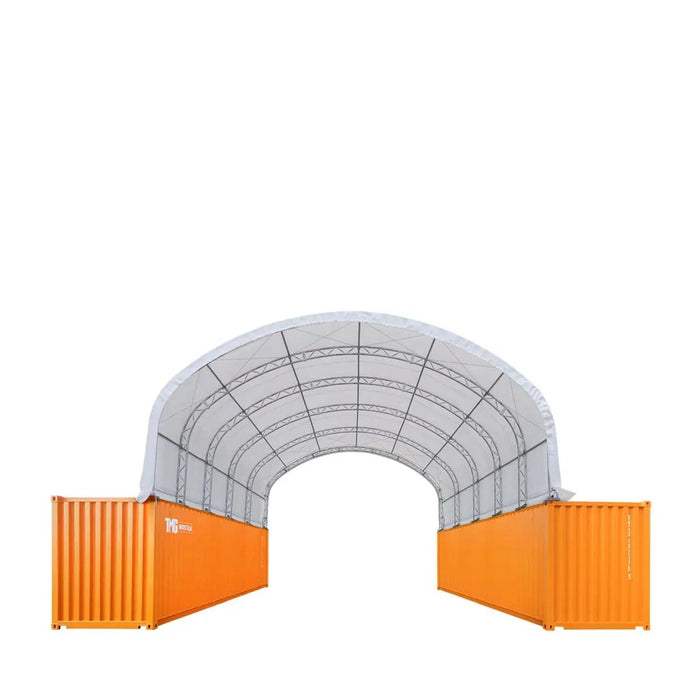

Q: Are the ends of the shelter enclosed?

The TMG-DT3040C comes with an open entry/exit space on both ends, approximately 9.14 metres (30 feet) wide. Optional front and back end wall kits (such as TMG-DT30FW8V/9V and TMG-DT30BW8V/9V) are available separately to fully enclose the shelter if desired.

Q: What are the shipping dimensions and weight of the TMG-DT3040C?

The product is packed in a metal crate shipping box. The approximate shipping dimensions are 309.88 cm (122 inches) long × 114.3 cm (45 inches) wide × 50.8 cm (20 inches) high, with a total shipping weight of approximately 793.79 kg (1750 lb).

Q: How long does delivery typically take to Australia?

Orders are generally processed and shipped within 2 to 3 business days. Under normal circumstances, it will take up to 10 to 15 business days for the order to reach you, depending on your location and accessibility. Please note that a forklift or equivalent will be required to receive the order, as it is too large for tailgate delivery.

Q: Is there a warranty on the TMG-DT3040C?

Yes, the TMG-DT3040C is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
