TMG-PSM38

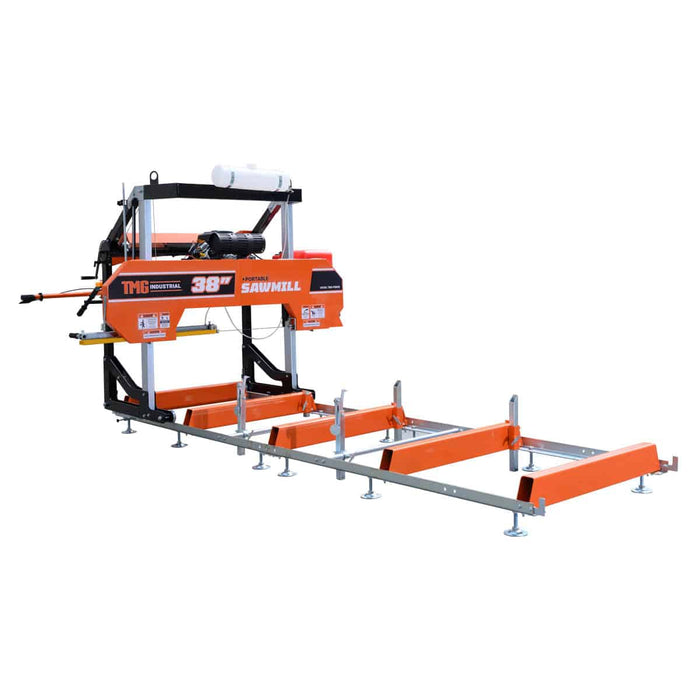

2.9 m Portable Sawmill (Blade is not Included), 1010 mm Diameter, 22 HP 740cc Engine, TMG-PSM38

Product Manual
TMG Industrial 38” Portable Sawmill, 14-½’ Track Length, 22 HP V-Twin Engine, 4-Post Carriage, 10 L Water Tank, EPA Certified Fuel Tank, TMG-PSM38
CURRENTLY OUT OF STOCK
TMG-PSM38
$6,699.00
$6,699.00 - $6,699.00
$6,699.00
$5,699.00
$5,699.00 - $5,699.00
$5,699.00
$6,699.00 Save $1,000.00
$5,699.00

+ SHIPPING FEE
61-03-4151-5011

Features icon Features

Feature Image

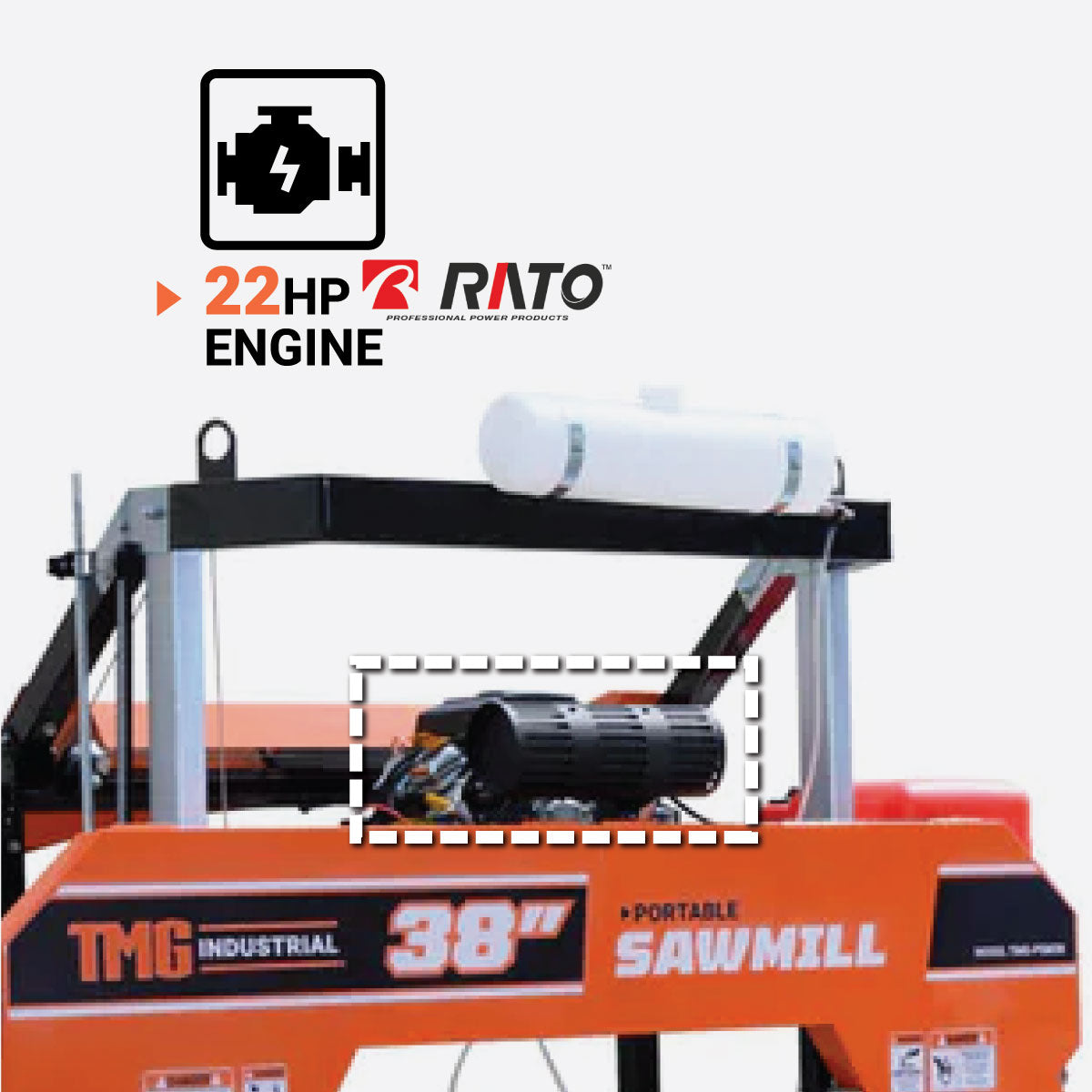

Powerful 22 HP Rato 740cc R740 engine for industrial-grade performance
Feature Image

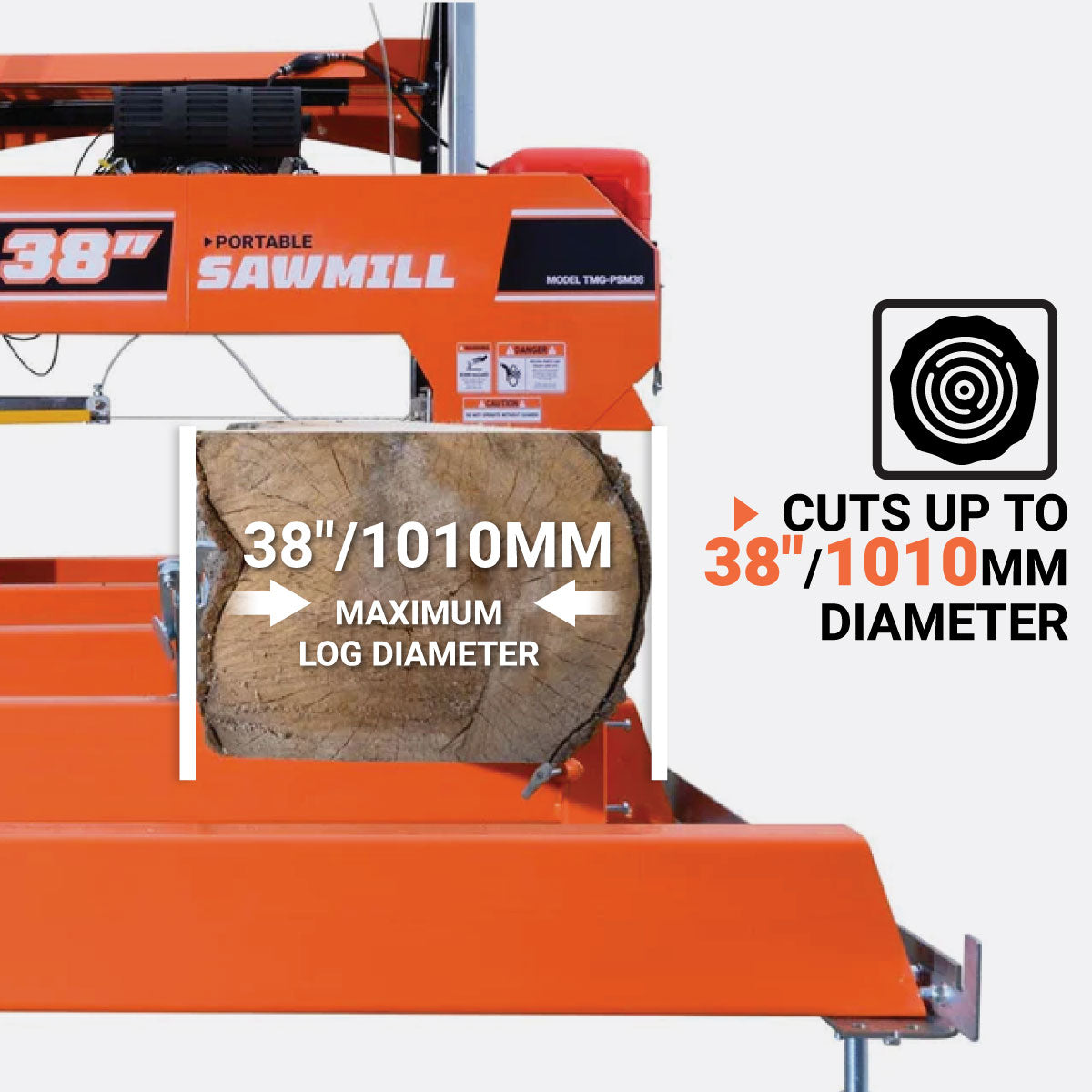

Large capacity: 1010 mm max log diameter, 2980 mm max length
Feature Image

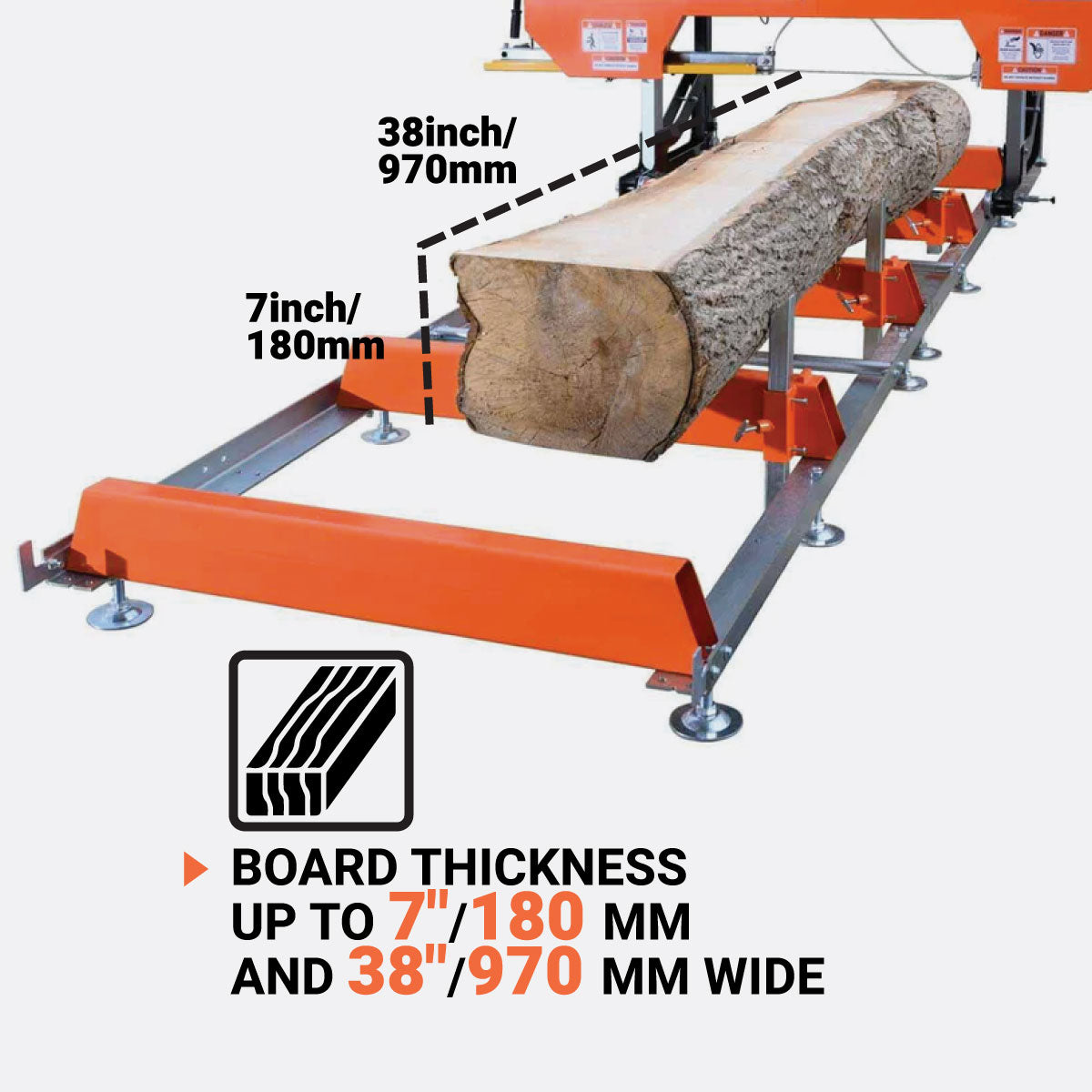

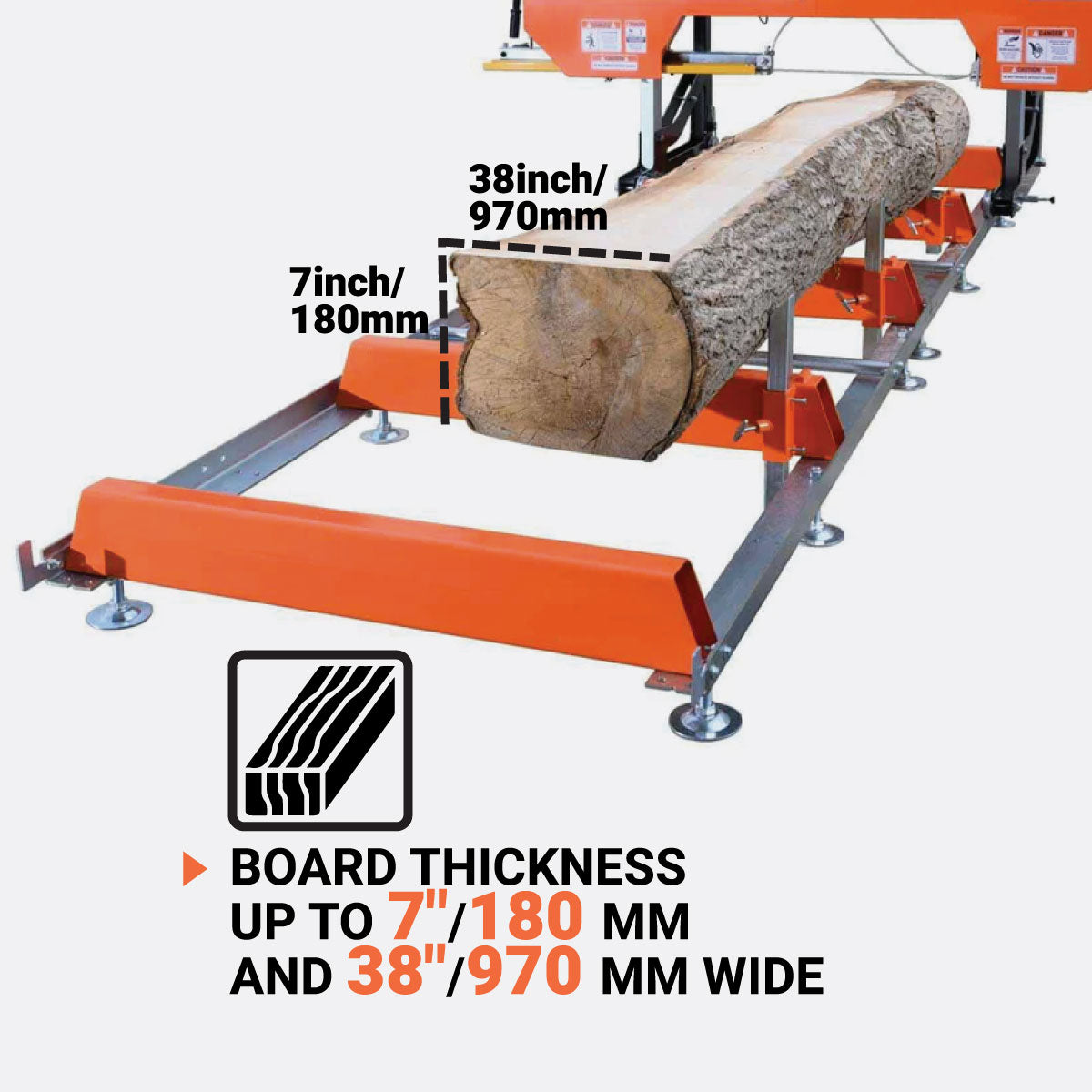

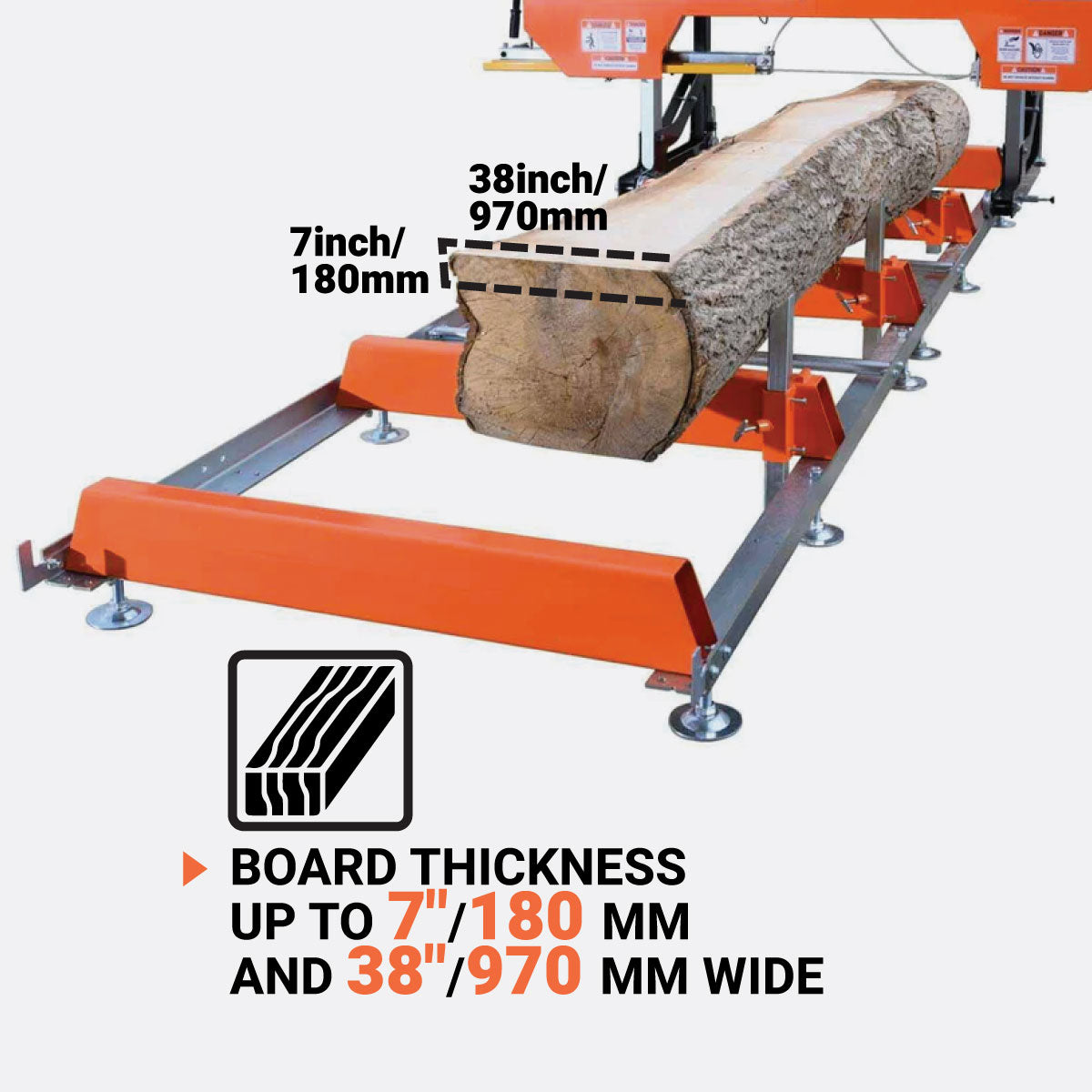

Cuts boards up to 970 mm wide and 180 mm thick
Feature Image

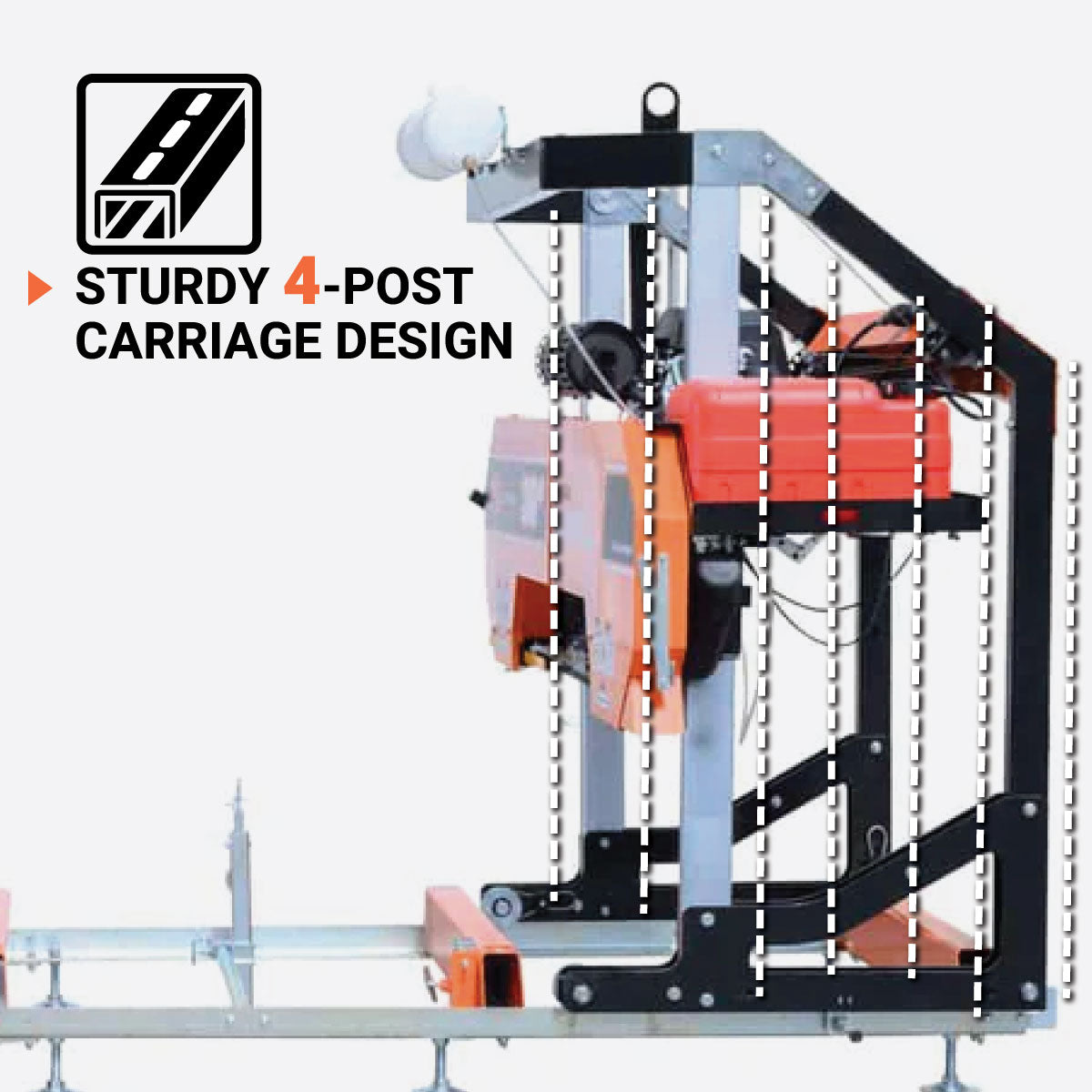

Heavy-duty 4-post carriage design with precision linear guides
Feature Image

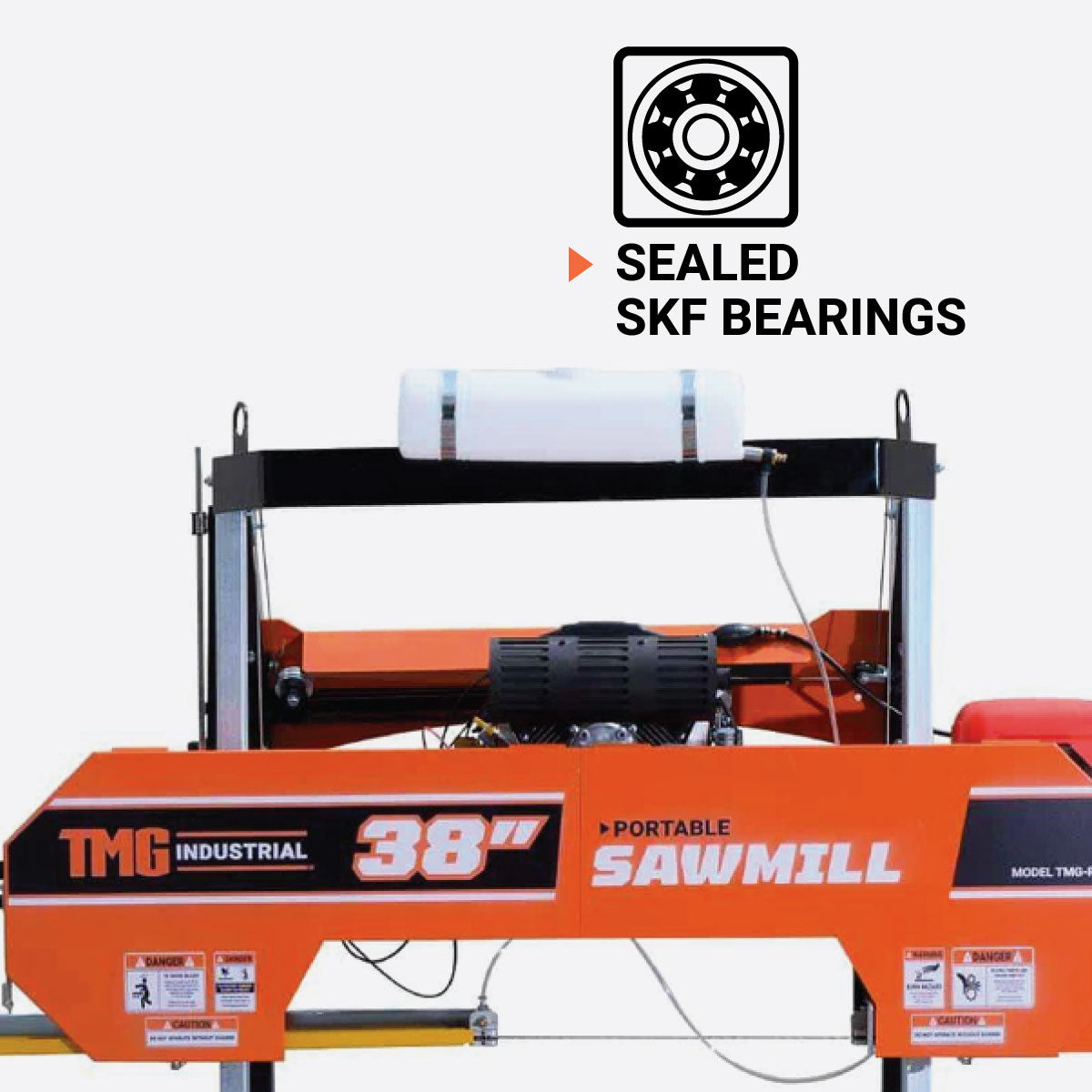

Permanent Sealed SKF Bearings reduce vibration and improve accuracy

Specifications icon Specifications

  • Engine Model: RATO R740
  • Engine Horsepower: 22 HP
  • Max Log Diameter: 1010 mm
  • Max Log Length: 2980 mm
  • Max Board Width: 970 mm
  • Max Cut Thickness: 180 mm
  • Track Bed Length: 3950 mm
  • Blade Engagement System: Centrifugal Clutch
  • Blade Wheel Diameter: 480 mm
  • Blade Guide: Yes
  • Blade Tension Adjustment: T-Handle Tension Adjustment
  • Blade Length: 4440 mm
  • Blade Width: 34 mm
  • Blade Kerf: 1.1 mm
  • Blade Lubrication: Water
  • Extension Kit Available: No
  • Finish: Galvanizing and Powder Coating
  • Overall Dimensions: 2550 × 2250 × 4350 mm
  • Carriage Design: 4-Post Carriage
  • Weight: 430 kg

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

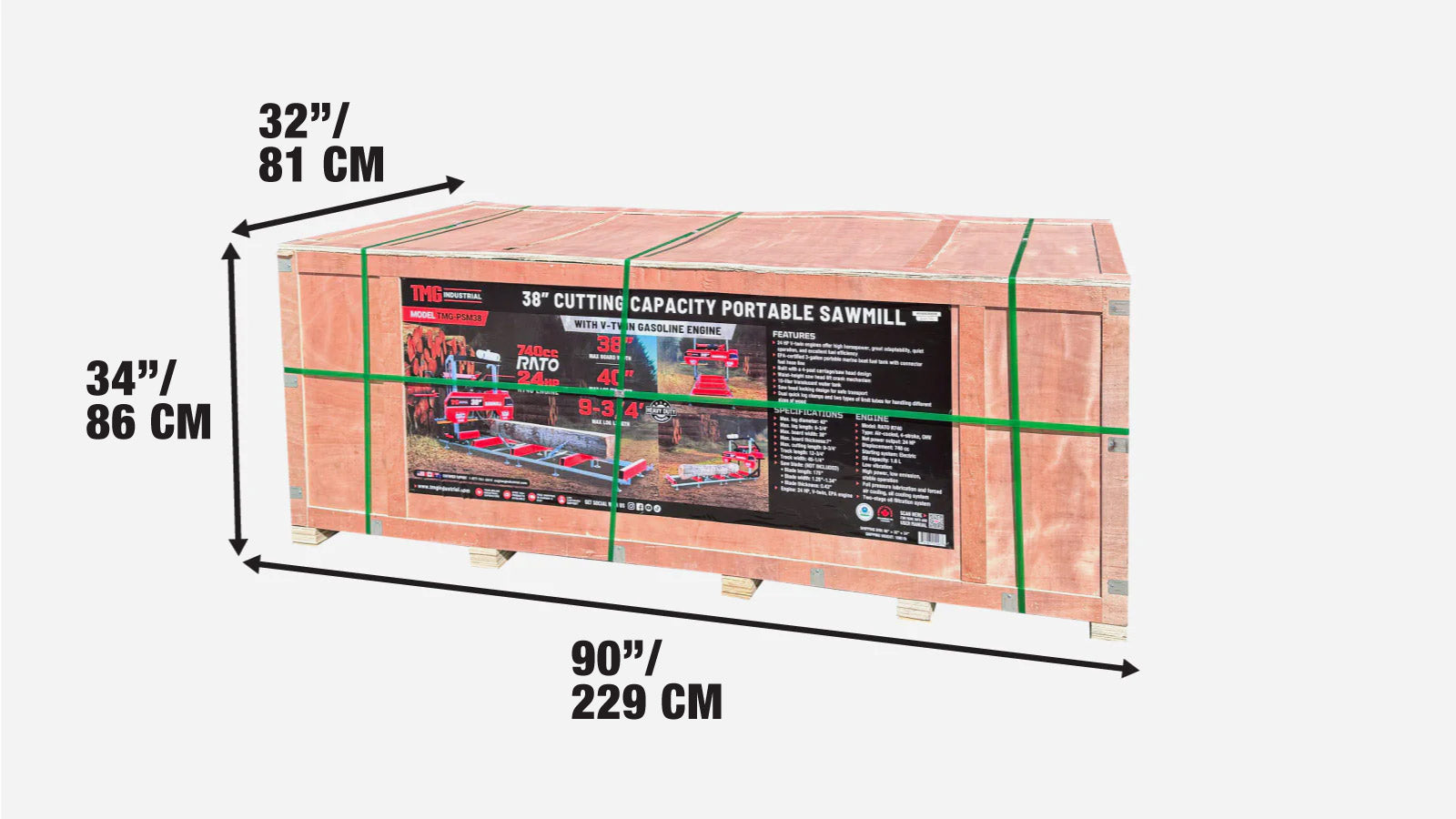

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 229 x 82 x 87 cm (L x W x H)
  • Shipping weight: 542 kg
Shipping from Rowville,VIC
What happens after you place your order?
2.9 m Portable Sawmill (Blade is not Included), 1010 mm Diameter, 22 HP 740cc Engine, TMG-PSM38-shipping-info-image

Product Description icon Product Description

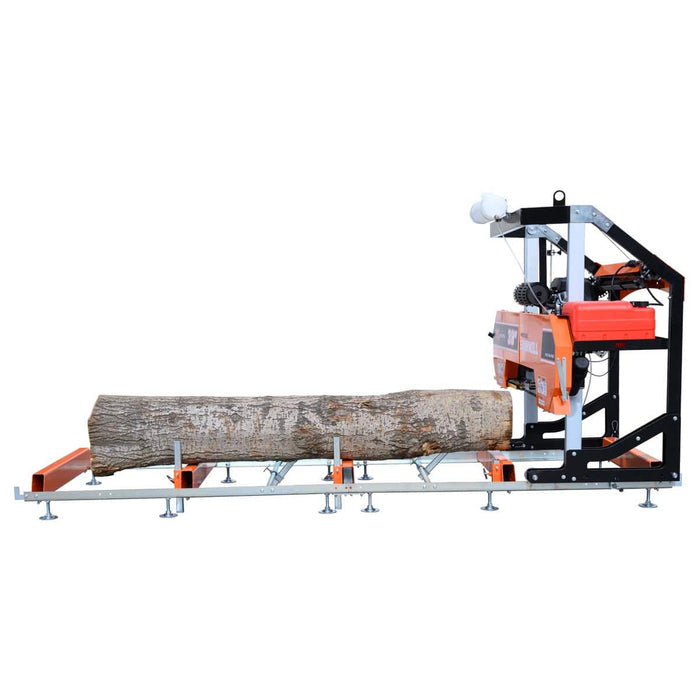

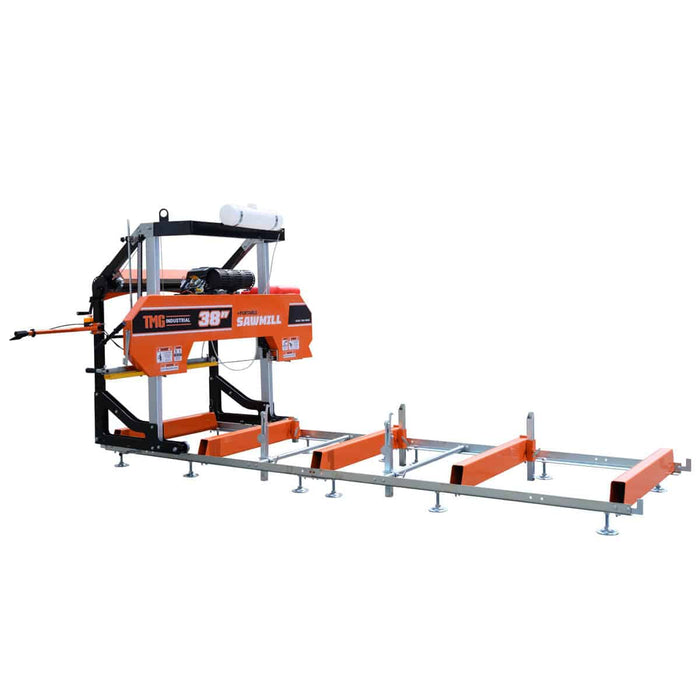

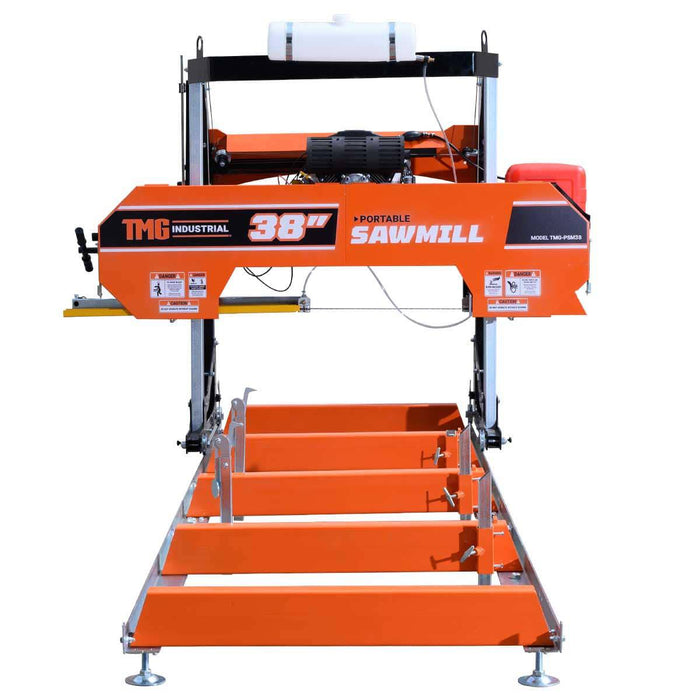

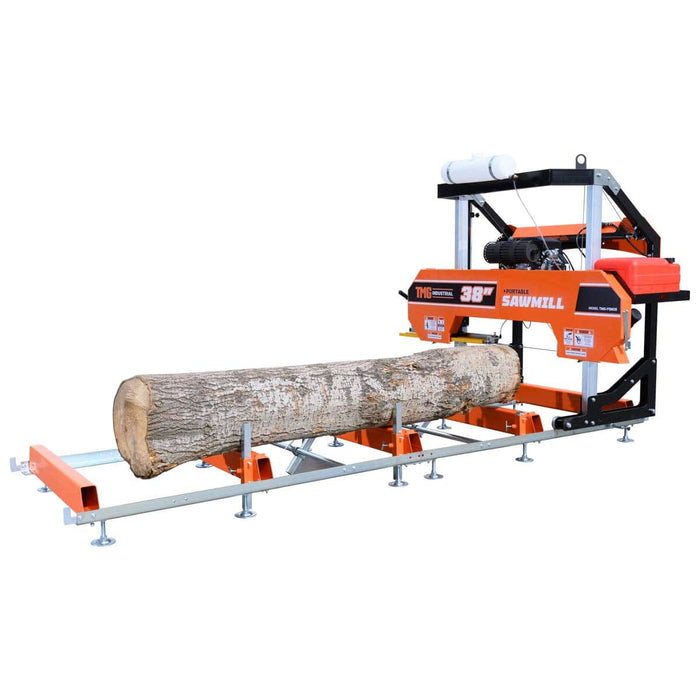

The TMG-PSM38 Portable Sawmill is built for those who demand more power, precision, and capacity in their timber processing work. With a high-output 22 HP Rato 740cc R740 engine and large-scale cutting ability, this sawmill is perfect for professionals, rural property owners, and serious DIYers in Australia.

Able to handle logs up to 2.98 metres long and 1010 mm in diameter, the TMG-PSM38 makes quick work of converting raw logs into clean, usable timber. The waist-height lift crank and solid carriage frame enhance ease-of-use and safety, while the water-cooling tank helps maintain blade condition.

Whether you’re harvesting your own timber, building sheds or outdoor furniture, or processing lumber for sale, the TMG-PSM38 offers the capacity, power, and performance to get the job done right.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What are the maximum log dimensions the TMG-PSM38 can handle?
The TMG-PSM38 is designed to handle logs with a maximum diameter of 1010 mm (40 inches). The maximum log length it can cut is 2.98 metres (9.75 feet).
Q: What is the maximum board width I can mill with this saw?
You can mill boards up to 97 cm (38 inches) wide.
Q: What is the maximum cut thickness I can achieve?
The sawmill allows for a maximum cut thickness of 18 cm (7 inches).
Q: What kind of engine does the TMG-PSM38 use?
It's powered by a robust 22 HP RATO R740 engine. This air-cooled, 4-stroke OHV engine has a displacement of 740 cc and features an electric starting system.
Q: What are the dimensions of the track bed?
The standard track bed length is 3.9 metres (12.75 feet). The track width is 115 cm (45.25 inches).
Q: What are the specifications for the saw blade?
The saw blade has a length of 4458 mm (175.5 inches), a width between 31.75 mm – 34 mm (1.25 inches – 1.34 inches), and a thickness of 1.1 mm (0.43 inch). A free blade is included with the sawmill.
Q: How is the saw head adjusted for cutting thickness?
The saw head features a convenient waist-height lift crank mechanism for effortless and precise adjustments. It also has a 4-post carriage design for stability and precision.
Q: How is the blade lubricated during operation?
The sawmill includes a 10-litre water tank to provide lubrication to the saw bla
