1200 mm (48″) Notched Disc Harrow, 3-Point Hitch, CAT 1, 20–30 HP Tractors, TMG-TDH04

TMG Industrial 48” Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 20-30 HP Tractors, TMG-TDH04
CURRENTLY OUT OF STOCK
TMG-TDH04
$0.00 - $0.00
$0.00
$1,599.00
$1,599.00 - $1,599.00
$1,599.00
$1,599.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011
Product Image 1 Product Image 2 Product Image 3

Features icon Features

Feature Image

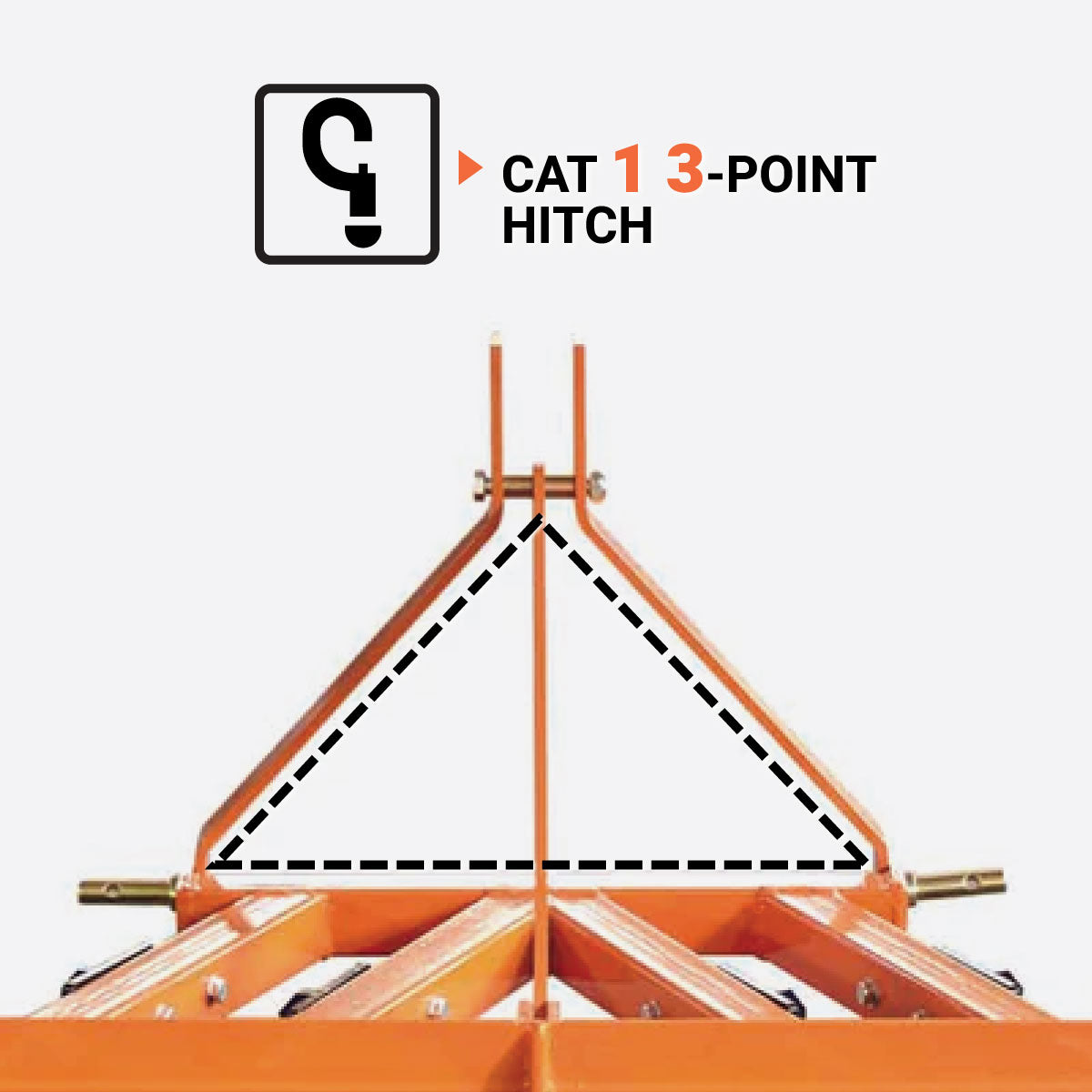

CAT 1 3-Point Hitch for standard compact tractors
Feature Image

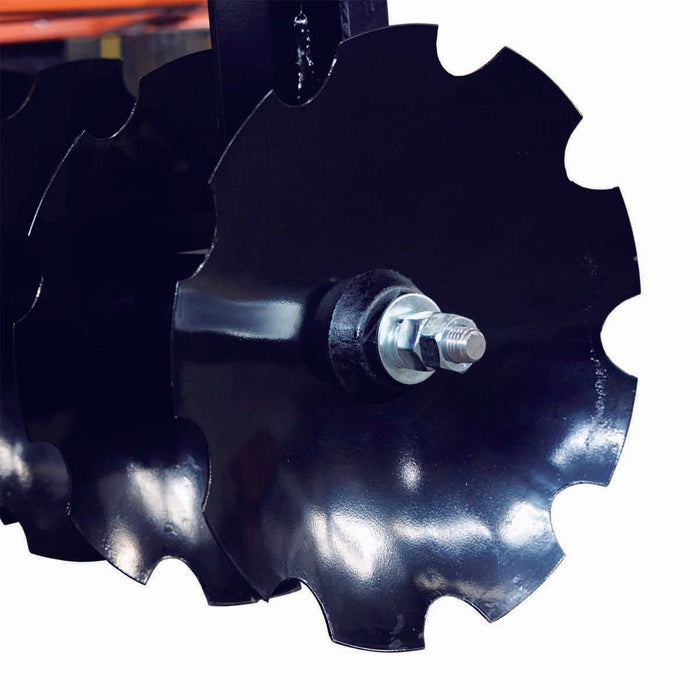

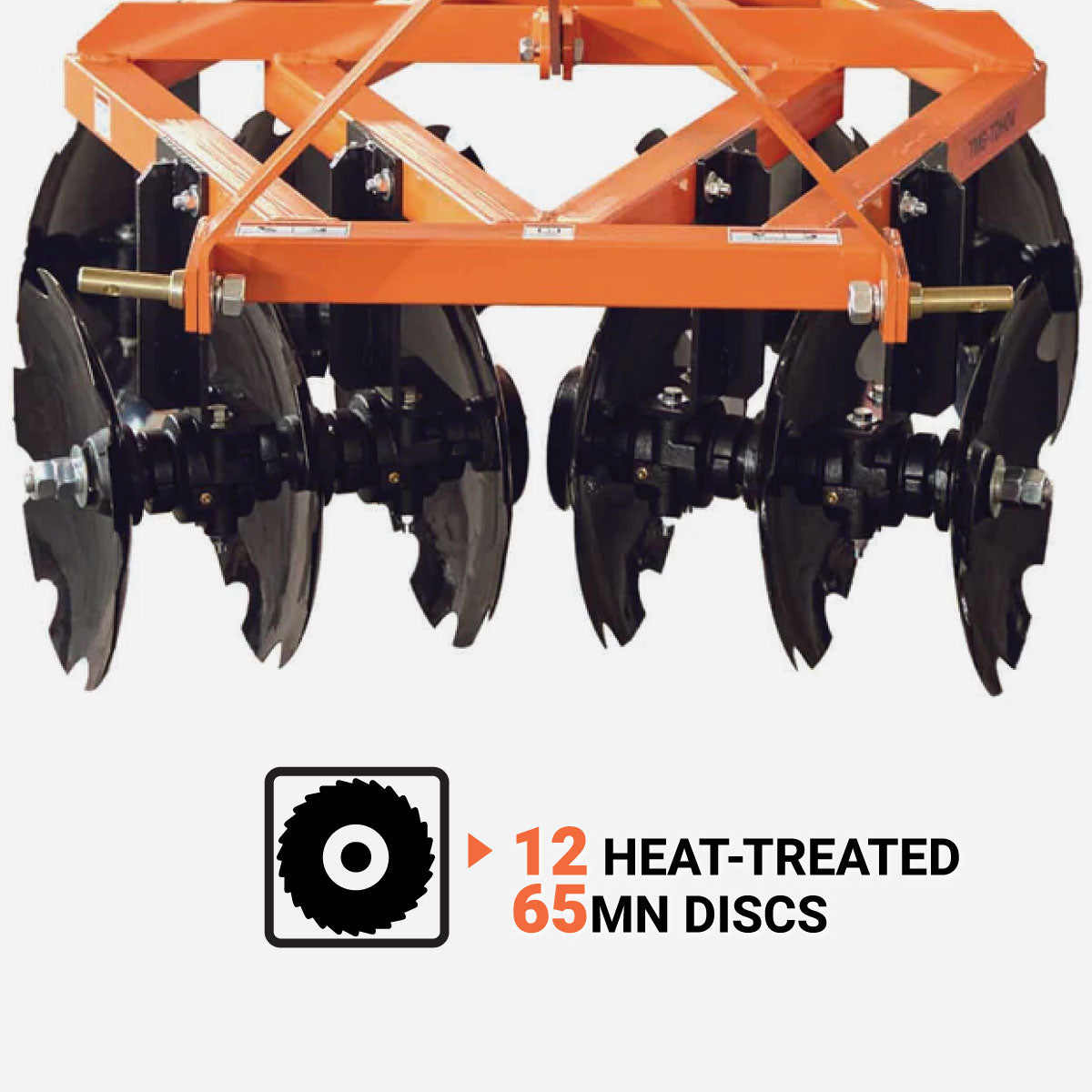

12 heat treated notched cutting discs made of 65Mn alloy steel
Feature Image

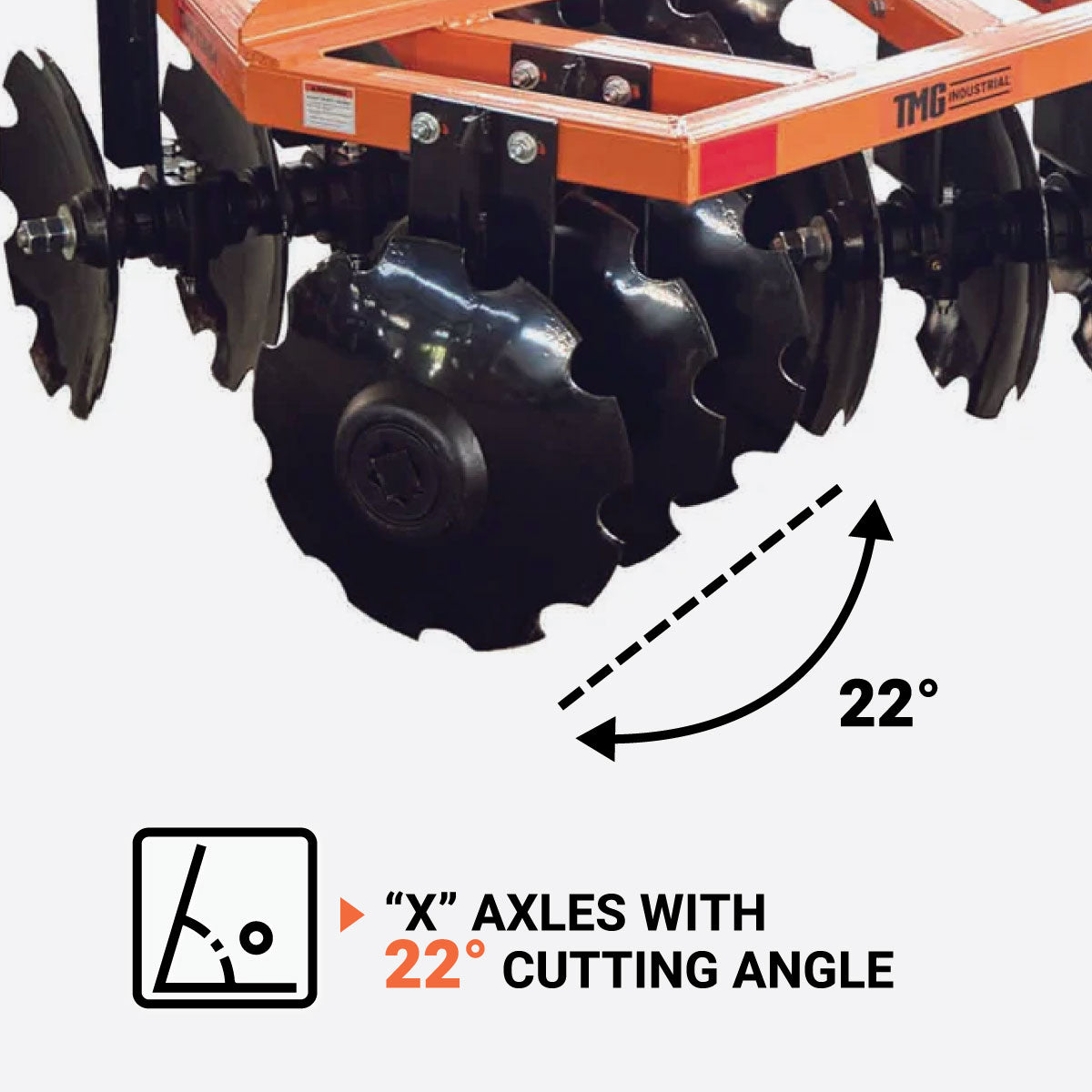

Optimized soil penetration with “X” shaped gang axles and fixed 22° Cutting Angle
Feature Image

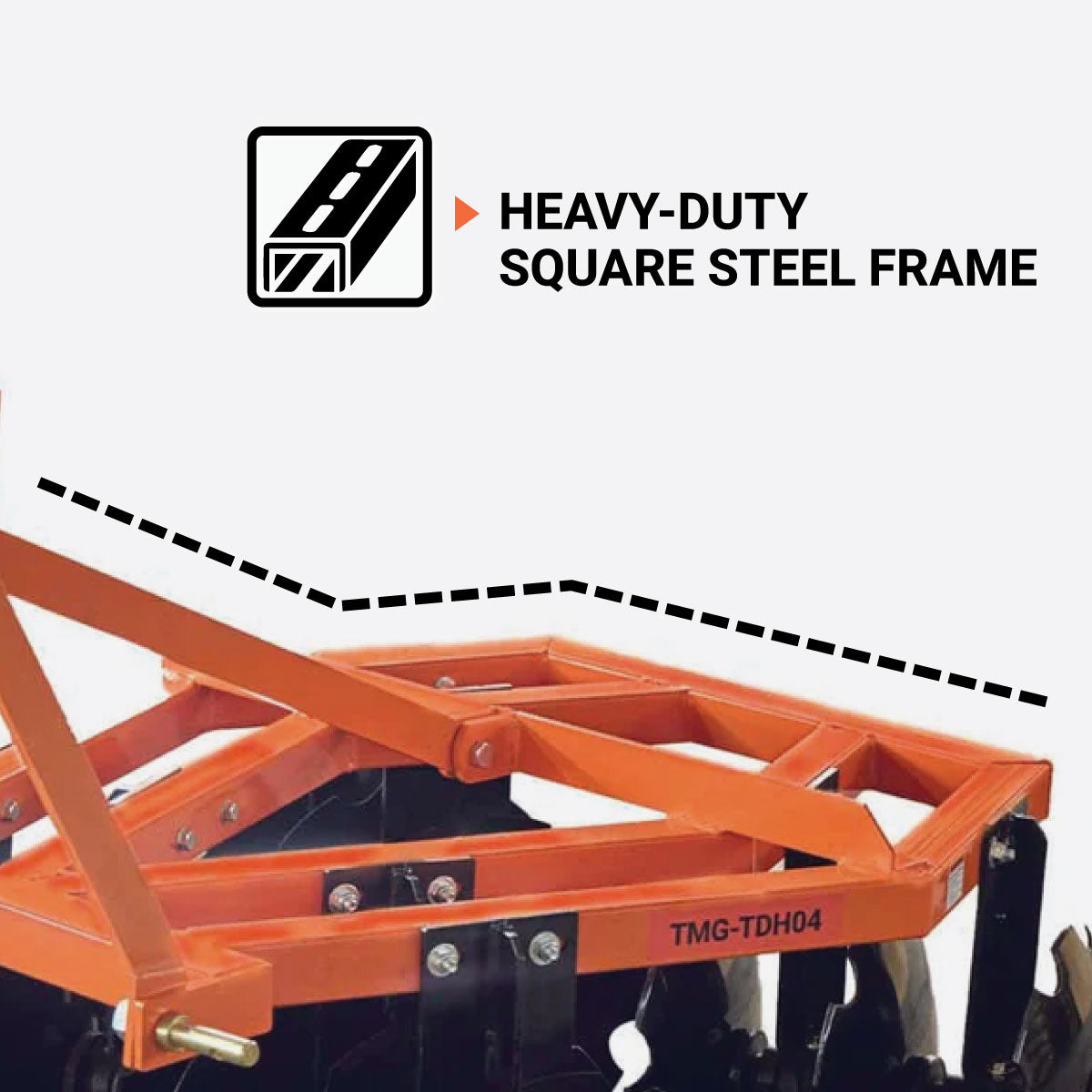

HeavyDuty powder coated square steel tube frame
Feature Image

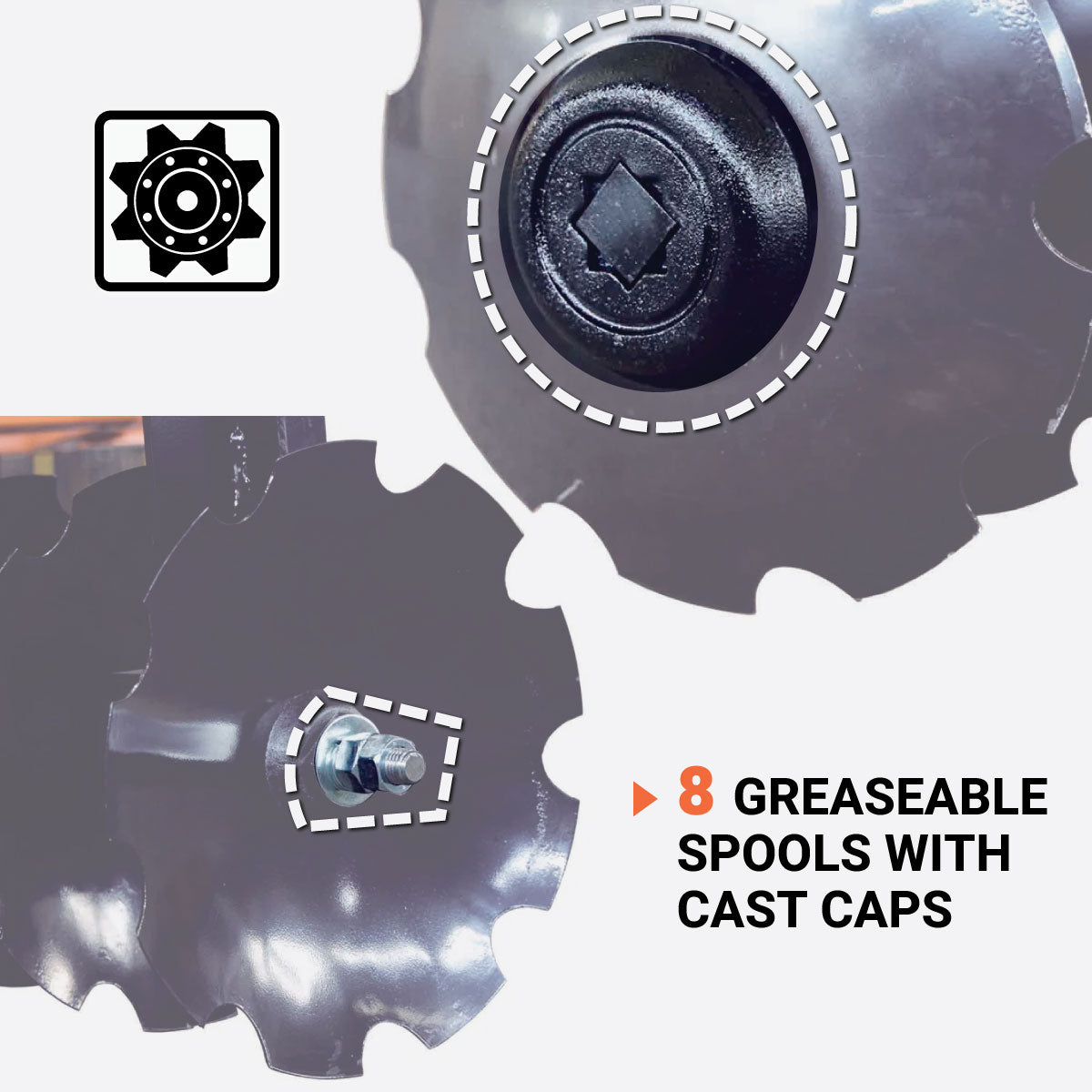

Sealed cast iron caps and 8 greaseable spools for seamless disc rotation
Feature Image

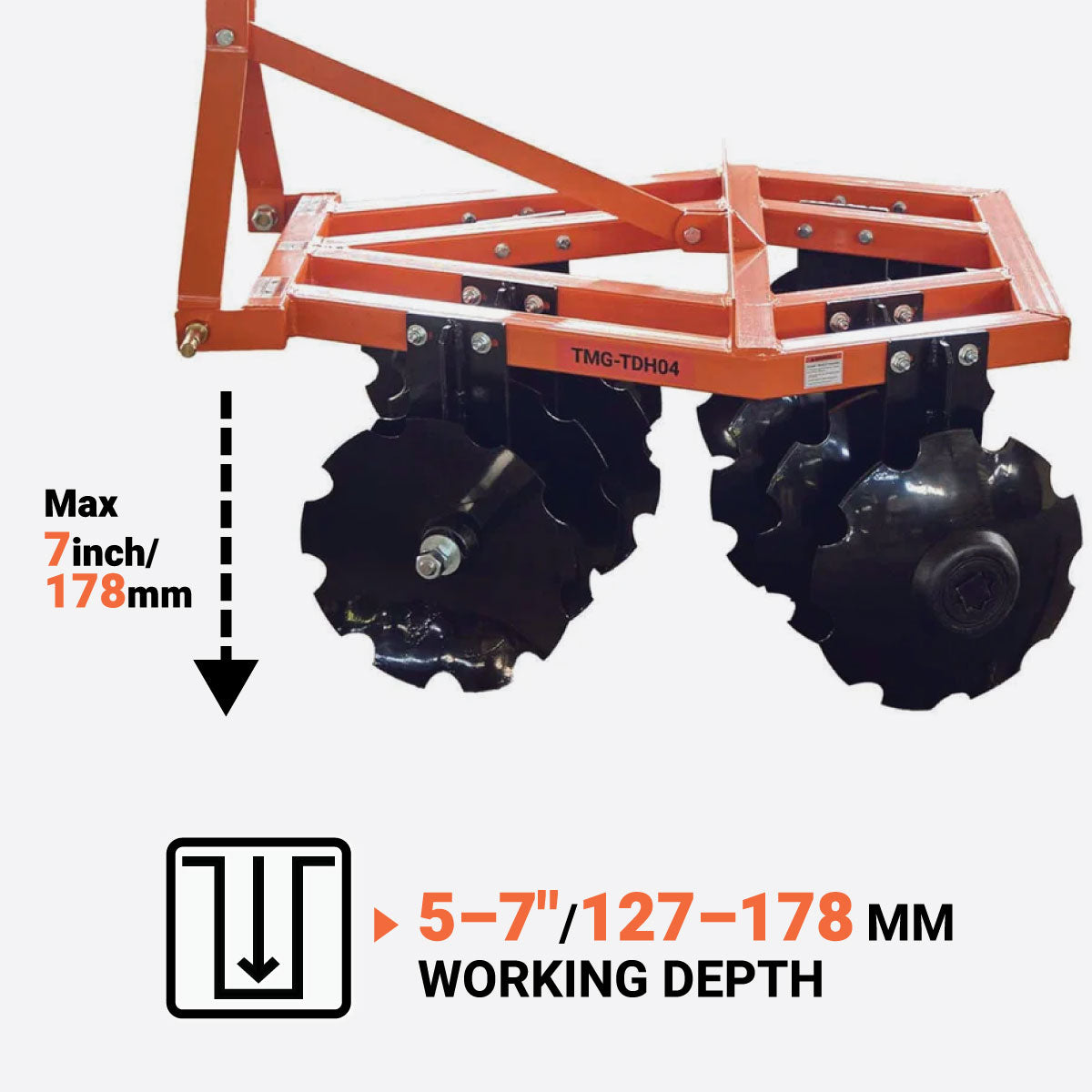

5–7″ (127–178 mm) Working Depth for seedbed prep and residue mixing

Specifications icon Specifications

  • Cutting Width: 48 in (1.2 m)
  • Required Tractor HP: 20 – 30 HP
  • Hitch Type: 3-Point Category 1
  • Cutting Angle: Fixed 22°
  • Cutting Depth: 5" - 7" (127 – 178 mm)
  • Notched Blades Material: 65Mn Heat-Treated Alloy Steel
  • Notched Blades Size: 16" × 11 GA (406 mm × 3 mm)
  • Number of Notched Blades: 3 x 4 = 12
  • Blade Spacing: 7-1/2" (190 mm)
  • Square Gang Axle Sizes: 18-1/4″ × 1″ × 1″, 4 pcs (464 × 25 × 25 mm, 4 pcs)
  • Frame Construction: 2-1/2″ × 2-1/2″ × 1/8″ square tube steel (60 × 60 × 3 mm)

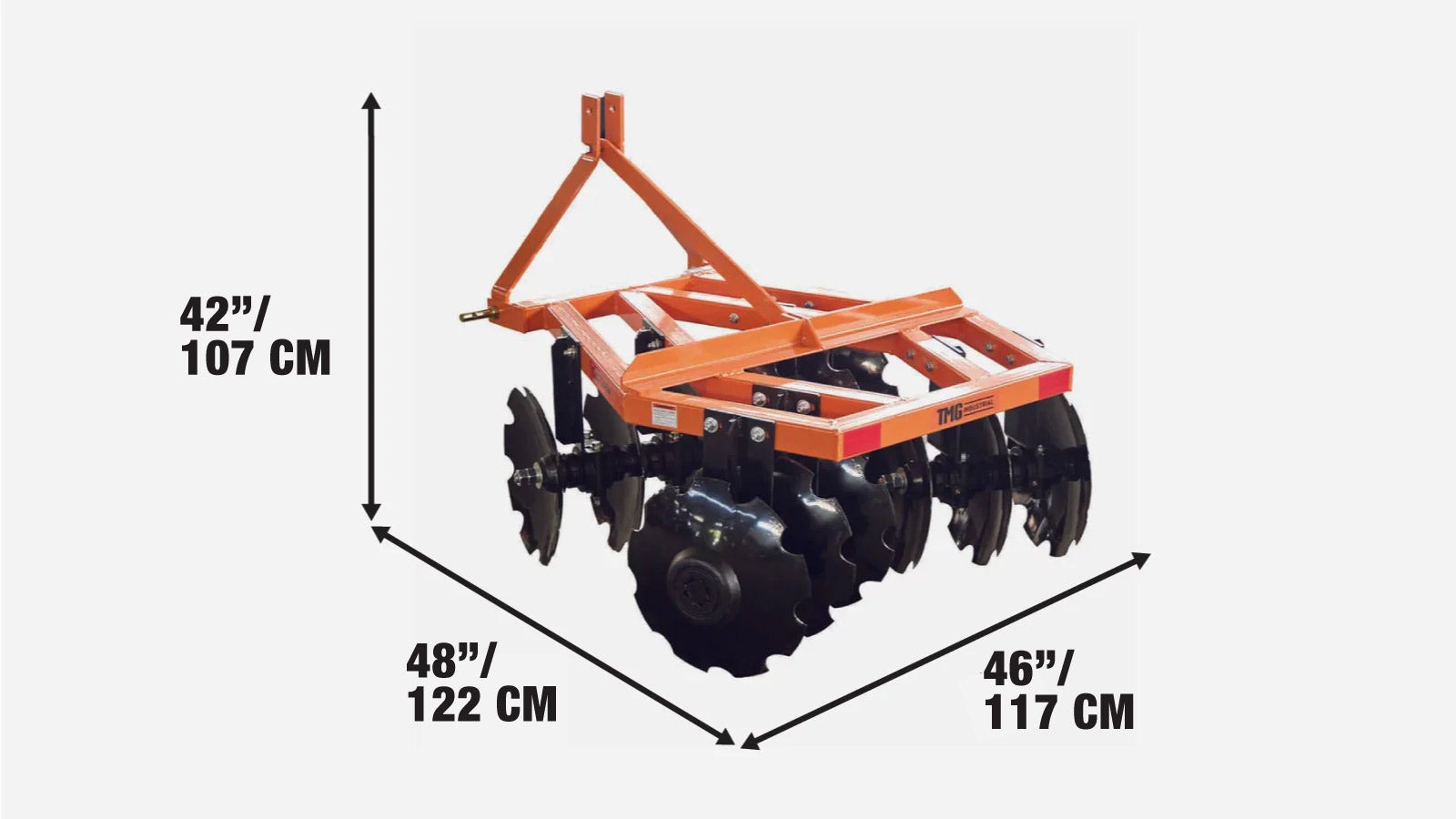

  • Overall Dimensions (L x W x H): 46" × 48" × 42" (117 × 122 × 107 cm)
  • Product Net Weight: 418 lb (190 kg)
1200 mm (48″) Notched Disc Harrow, 3-Point Hitch, CAT 1, 20–30 HP Tractors, TMG-TDH04-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

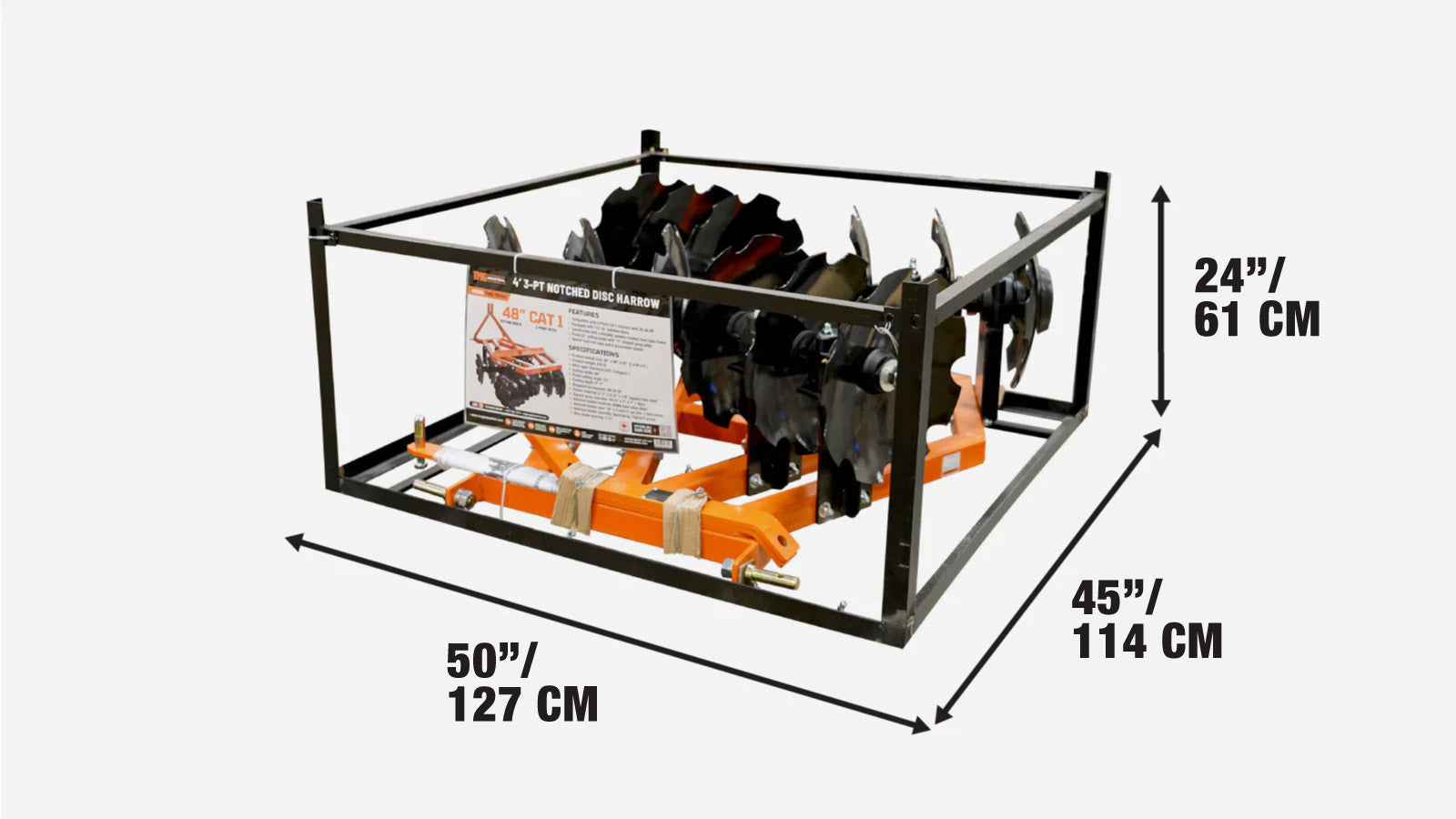

  • Packaging: Packed in a metal crate shipping box
  • Shipping dimensions: 127 x 115 x 61 cm (L x W x H) / 50" x 45" x 24"
  • Shipping weight: 213 kg (470 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1200 mm (48″) Notched Disc Harrow, 3-Point Hitch, CAT 1, 20–30 HP Tractors, TMG-TDH04-shipping-info-image

Product Description icon Product Description

The TMGTDH04 Notched Disc Harrow is a rugged, compact soil working implement aimed at small-scale farmers, acreage owners, and compact tractor users. It features a 1200 mm (48″) working width, powered by twelve 406 mm (16″) heat treated alloy steel notched discs set at a fixed 22° angle for improved soil slicing and residue mixing. Built with a 64 mm × 64 mm (2½″ × 2½″) steel frame and sealed gang bearings, the unit supports a working depth of 127–178 mm (5–7″) and pairs with 20–30 HP CAT 1 three-point tractors—a perfect balance of efficiency and versatility.

TMG also carries a larger Notched Disc Harrow: TMG-TDH06.

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Questions & Answers icon Questions & Answers

  • Q: What HP range is needed?
    A: Suitable for 15–22 kW (20–30 HP) tractors with CAT 1 hitch.
  • Q: Tell me about the discs.
    A: 406 mm × 3 mm (16″ × 0.12″) heat-treated 65Mn alloy steel, 12.
  • Q: How deep can it work?
    A: Cuts 127–178 mm (5–7″) deep for deep tillage.
  • Q: What hitch do I need?
    A: Standard Category 1 3-point hitch.
  • Q: Can it break sod?
    A: Yes—with aggressive notched discs and fixed cutting angle, it’s well-suited for residue and sod tilling.
  • Q: What is the warranty for the TMG-TDH04?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
