TMG-SPG45

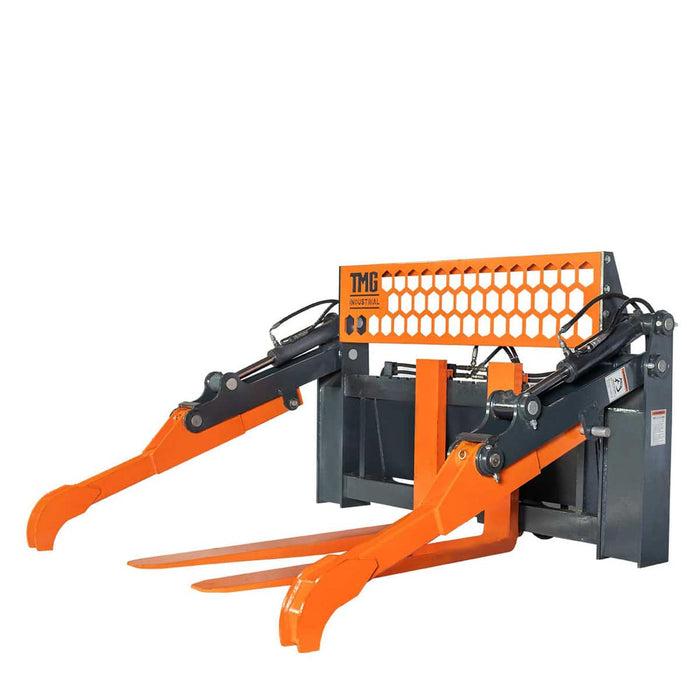

1.2 m Skid Steer Pallet Fork Pipe Grapple, Dual Hydraulic Cylinders, 2700kg Capacity, TMG-SPG45

Product Manual
TMG Industrial 48” Two-Cylinder Pallet Fork Pipe Grapple, 6200-lb Lift Capacity, ITA Class III Forged Tines, Skid Steer Mount, TMG-SPG45
CURRENTLY IN STOCK
TMG-SPG45
$7,199.00
$7,199.00 - $7,199.00
$7,199.00
$5,999.00
$5,999.00 - $5,999.00
$5,999.00
$7,199.00 Save $1,200.00
$5,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

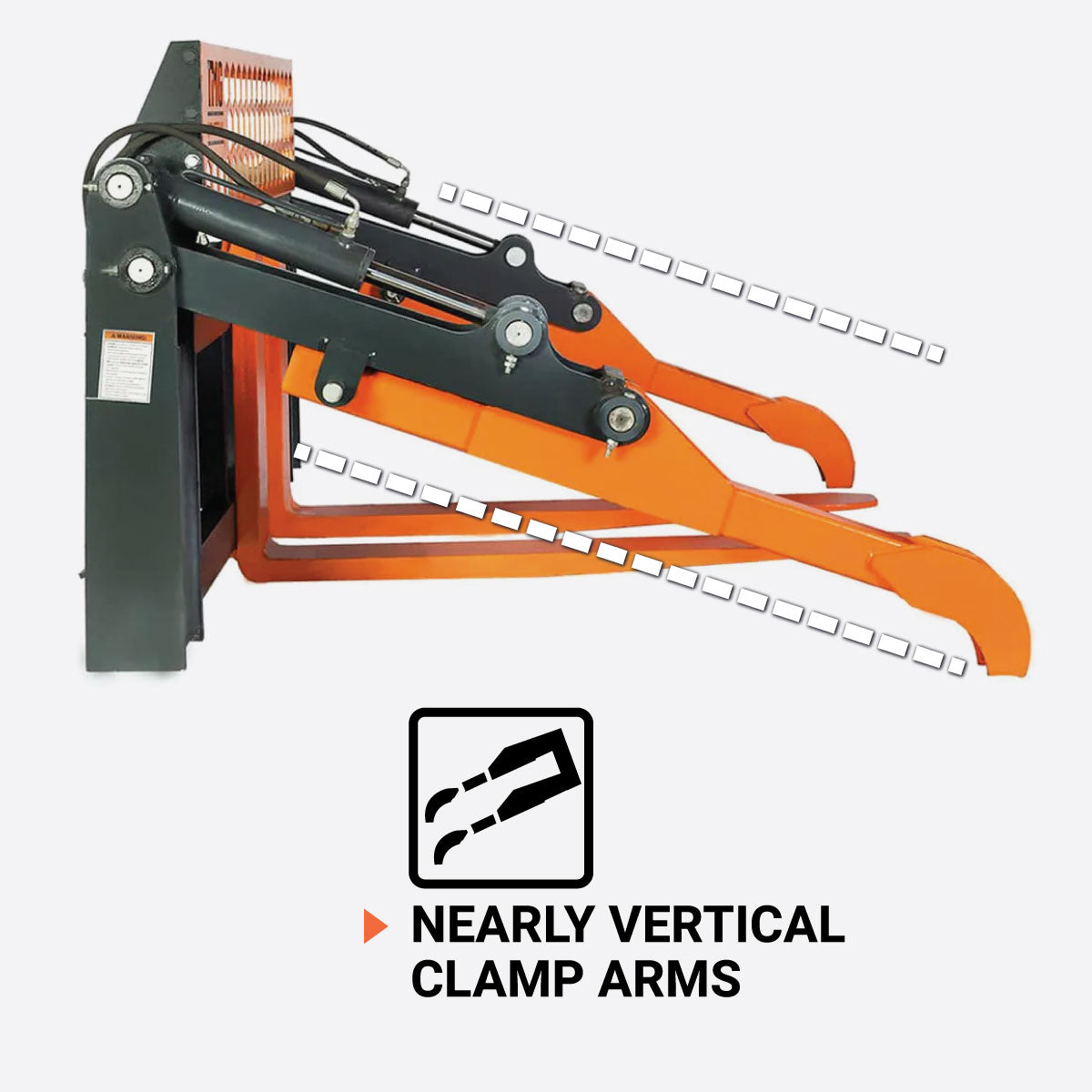

Clamp arms open almost vertically, allowing adaptation to various tasks
Feature Image

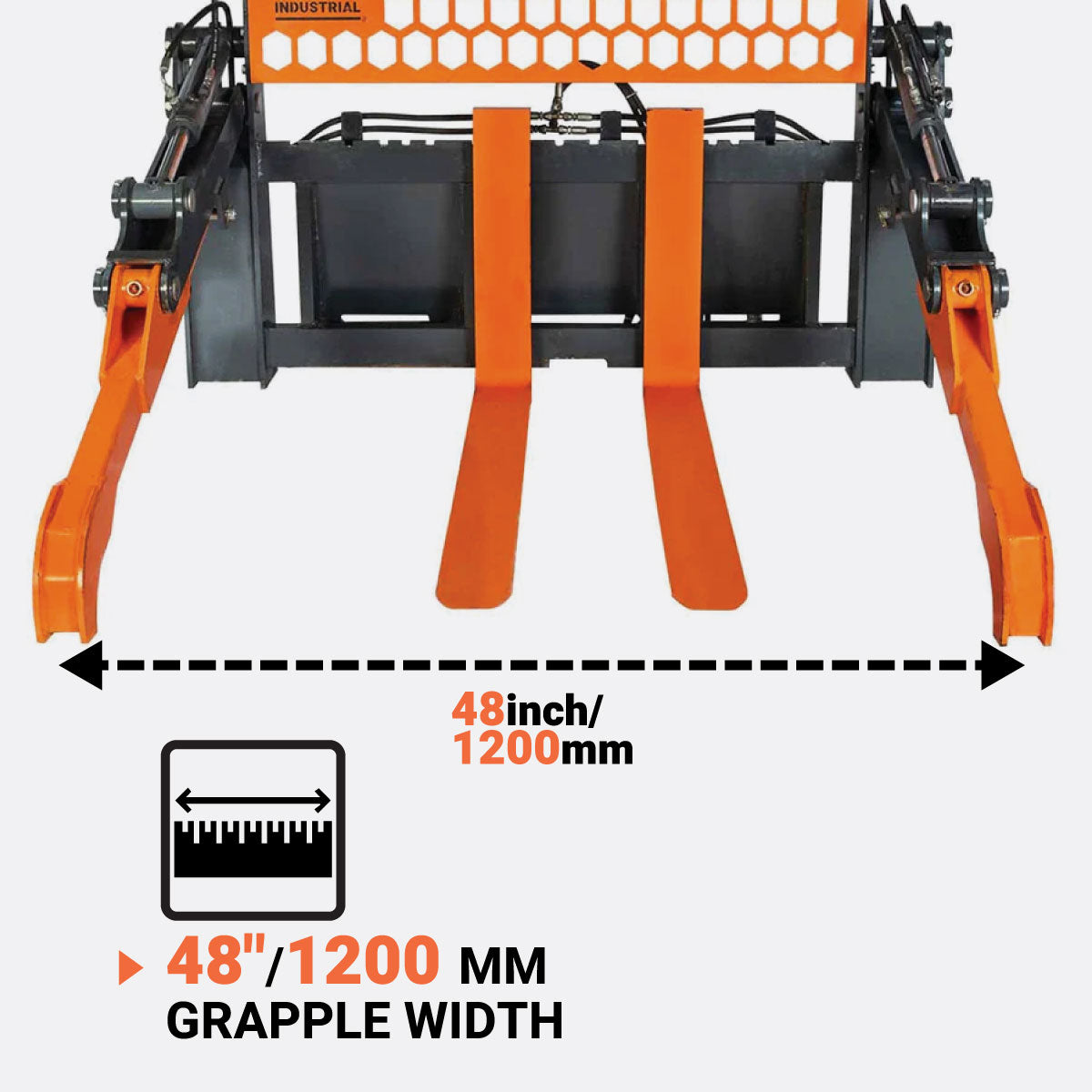

1200 mm grapple width for efficient material grabbing and lifting
Feature Image

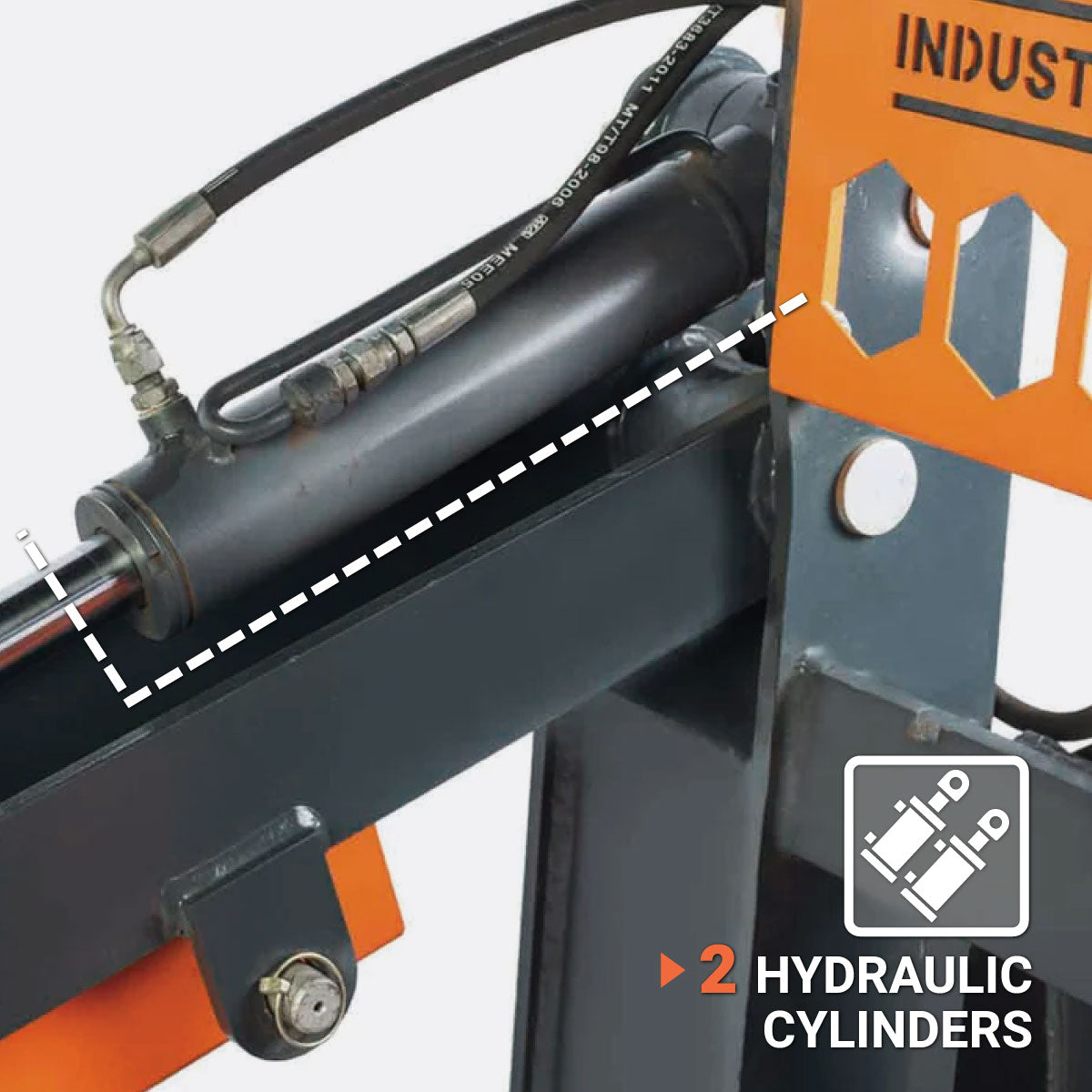

Twin hydraulic cylinders deliver strong clamping force and stable operation
Feature Image

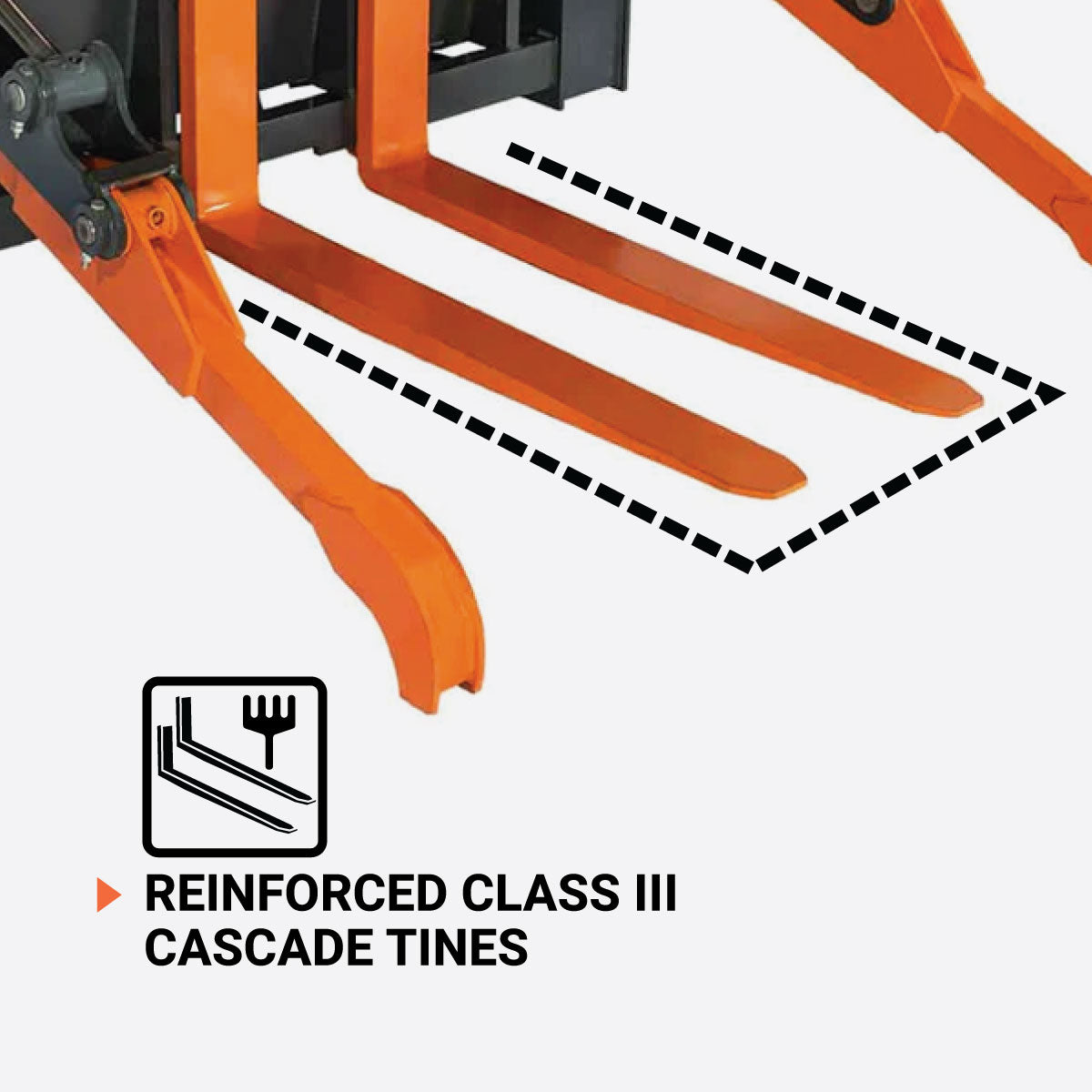

Reinforced, Cascade ITA Class III forged tines ensure superior grip and durability
Feature Image

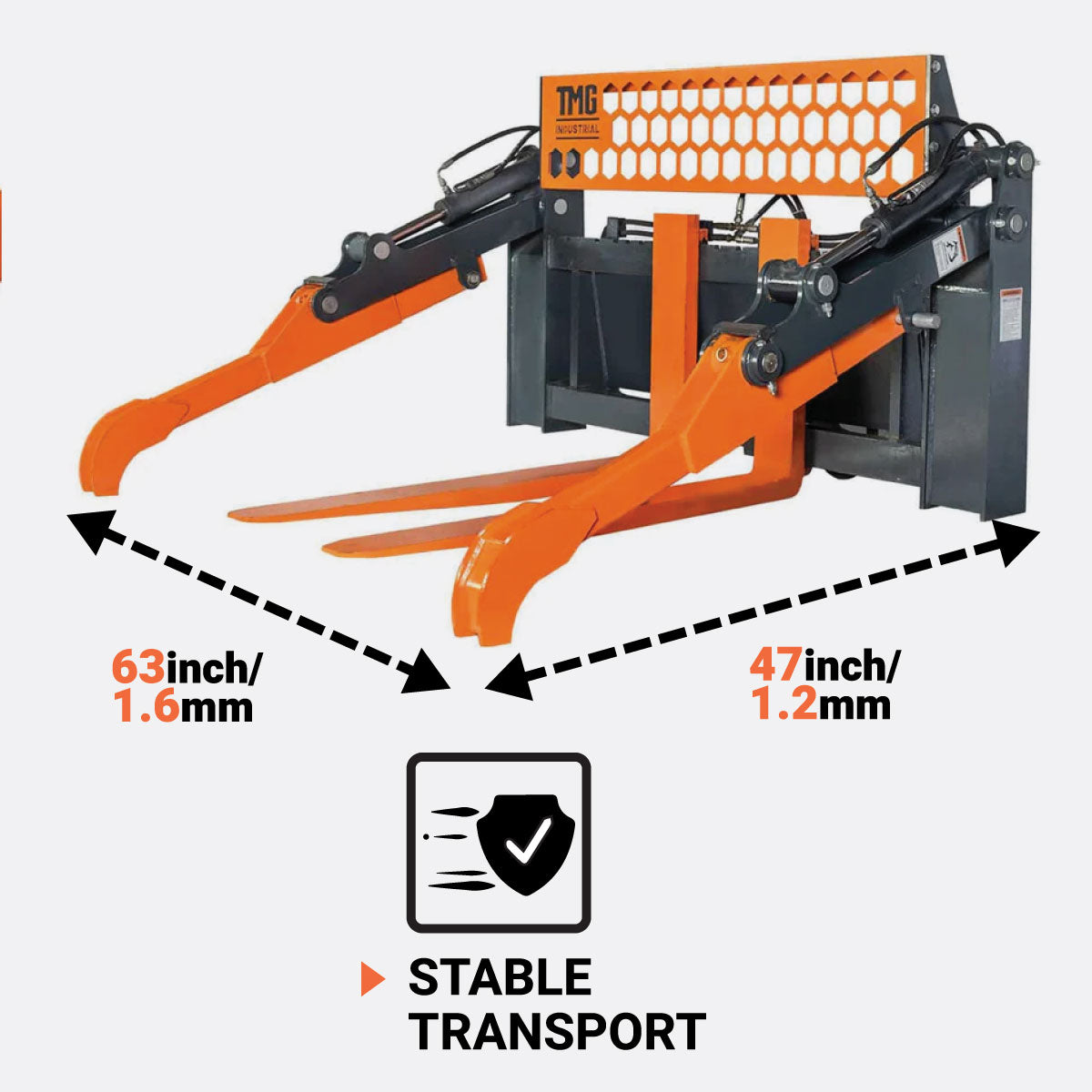

The 1.6m wide frame and 1.2m long forks stabilize long materials during transport
Feature Image

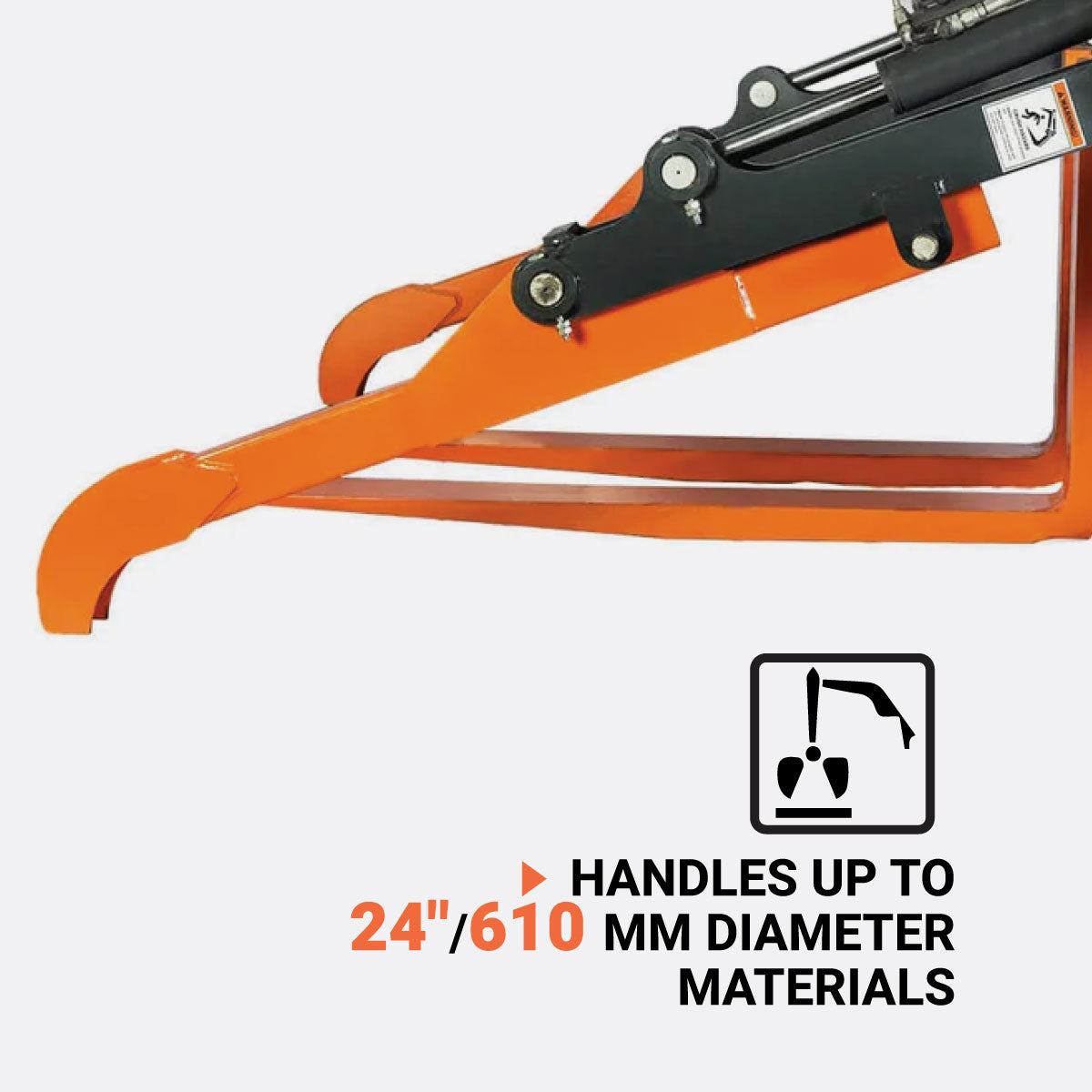

Grapple handles pipes/material up to 610mm in diameter

Specifications icon Specifications

  • Lift Capacity: 2700 kg
  • Mount Type: Universal Skid Steer
  • Recommended Loader Lifting Capacity: 680 kg
  • Tine Class: ITA Class III Forged
  • Fork Length: 1220 mm
  • Fork Width: 122 mm
  • Fork Height: 44.5 mm (4.45 cm)

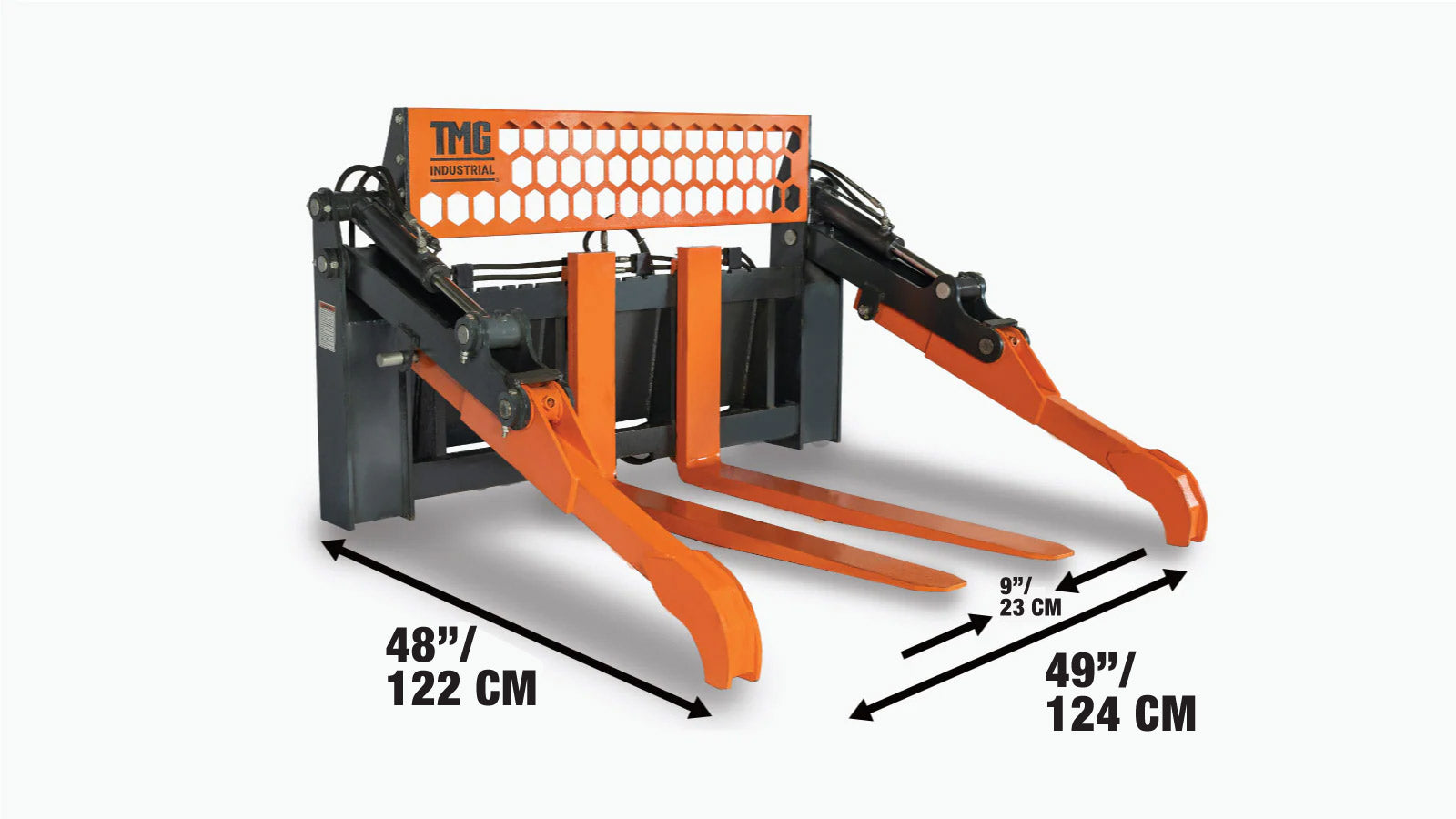

  • Fork Spacing (Min – Max): 228.6 mm (22.86 cm) – 1244.6 mm (124.46 cm)
  • Grapple Arm Width: 209 mm
  • Frame Width: 1574.8 mm (157.48 cm)
  • Cylinders: Two
  • Hydraulic Flow: 38–87 L/min
  • Hydraulic Pressure: 100–180 bar
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Coupler Size: 1/2" NPT
  • Hydraulic Hoses (Quantity × Size): 2 pcs, 1/2" × 1.5 m
  • Net Weight: 546 kg
1.2 m Skid Steer Pallet Fork Pipe Grapple, Dual Hydraulic Cylinders, 2700kg Capacity, TMG-SPG45-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. We typically process and ship orders within 2 to 3 business days. Delivery time varies depending on your location and site access, with most orders arriving within 10 to 15 business days.

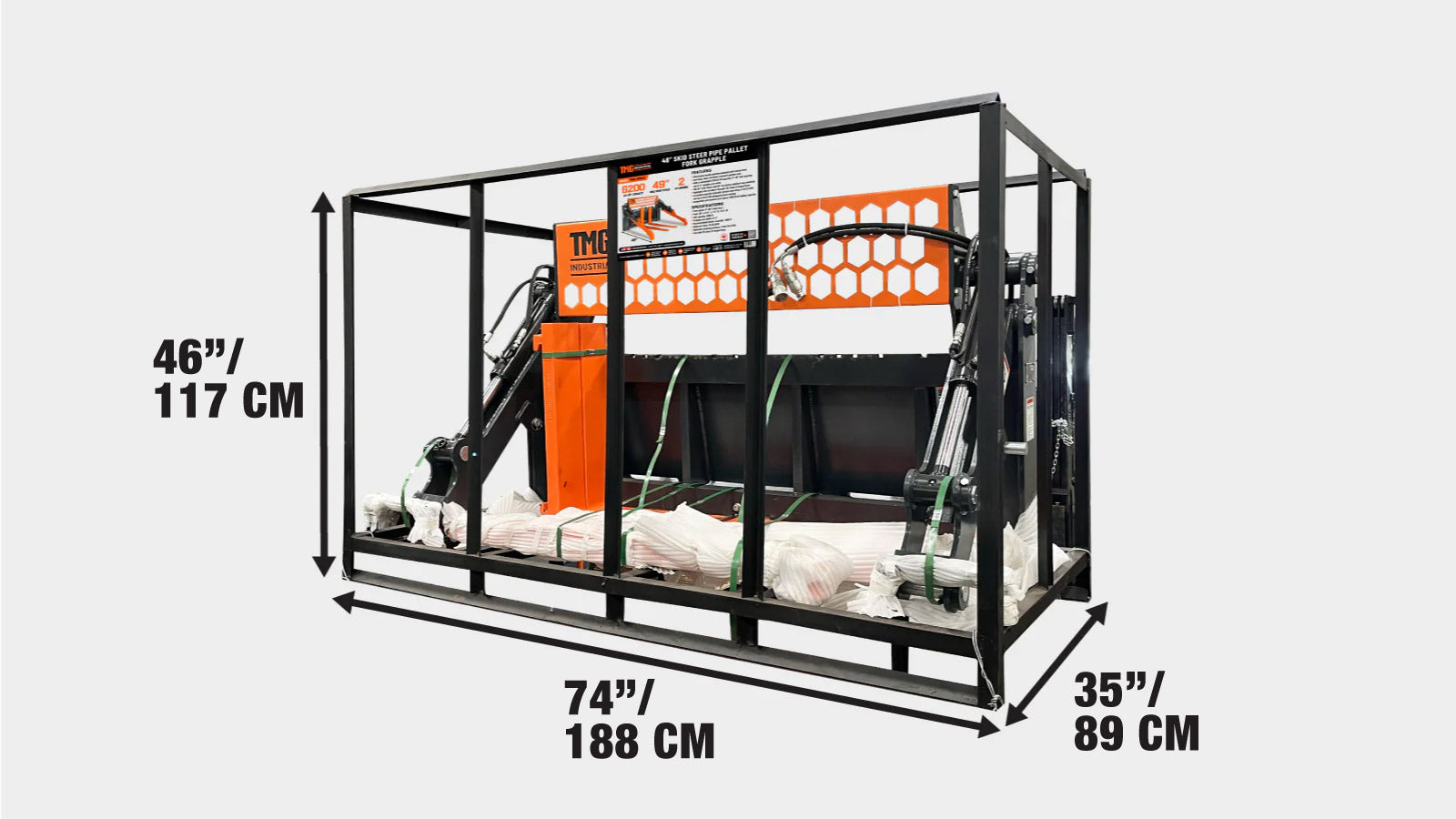

  • This product is packed in a steel framed shipping box
  • Shipping Dimension: 188 x 89 x 117 cm (L x W x H)
  • Shipping Weight: 595 kg
Shipping from Rowville,VIC
What happens after you place your order?
1.2 m Skid Steer Pallet Fork Pipe Grapple, Dual Hydraulic Cylinders, 2700kg Capacity, TMG-SPG45-shipping-info-image

Product Description icon Product Description

The TMG-SPG45 Skid Steer Power Grapple is your go-to attachment for land clearing, storm cleanup, and general material handling across Australian job sites. It combines powerful dual hydraulic clamping with compact dimensions for reliable operation in both urban and rural environments. From lifting broken branches to moving scrap piles, this grapple is engineered to boost your productivity while withstanding tough working conditions.

With 1200 mm of gripping width and a robust 610 mm jaw opening, the TMG-SPG45 handles a wide range of materials with precision. It’s an essential tool for any contractor, landscaper, or property owner looking for a dependable grapple solution.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What is the TMG-SPG45 used for?
This power grapple is used to clamp and transport brush, logs, rocks, and construction debris. It's ideal for landscaping, land clearing, and cleanup operations.
Q: What skid steers is it compatible with?
It’s built with a universal skid steer quick-attach system, compatible with most major brands and models.
Q: Can the forks be swapped out for our other pallet forks?
Yes, the forks can be swapped out for other pallet forks.
Q: What is the max jaw opening?
The grapple jaws open up to 610 mm wide, allowing it to grip large or irregular-shaped materials.
Q: How is the grapple powered?
The grapple operates via dual hydraulic cylinders connected to the skid steer's auxiliary hydraulics.
Q: Are the hydraulic lines protected?
Yes, all hydraulic lines are routed inside the grapple frame tubing to prevent snags or punctures.
Q: Does it come assembled?
The grapple is shipped partially assembled in a steel crate with a user manual included for final setup.
Q: Is there a warranty?
Yes, this product comes with a 1-year manufacturer warranty.
