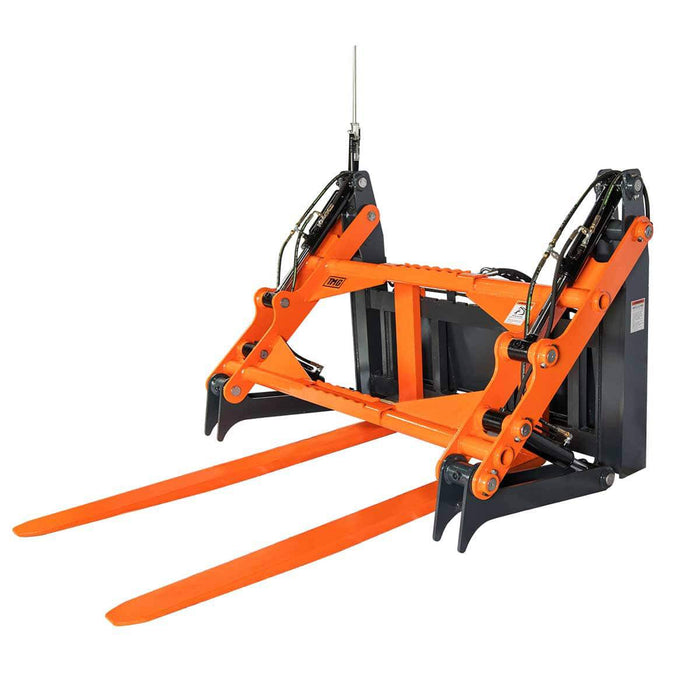

1.5 m Skid Steer Pallet Fork Pipe Grapple, 4 Hydraulic Cylinders, 2800 kg Capacity, TMG-SPG60

Product Manual
TMG Industrial 60” Four-Cylinder Pallet Fork Pipe Grapple, 6200-lb Lift Capacity, ITA Class III Forged Tines, Skid Steer Mount, TMG-SPG60
CURRENTLY IN STOCK
TMG-SPG60
$8,499.00
$8,499.00 - $8,499.00
$8,499.00
$7,199.00
$7,199.00 - $7,199.00
$7,199.00
$8,499.00 Save $1,300.00
$7,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

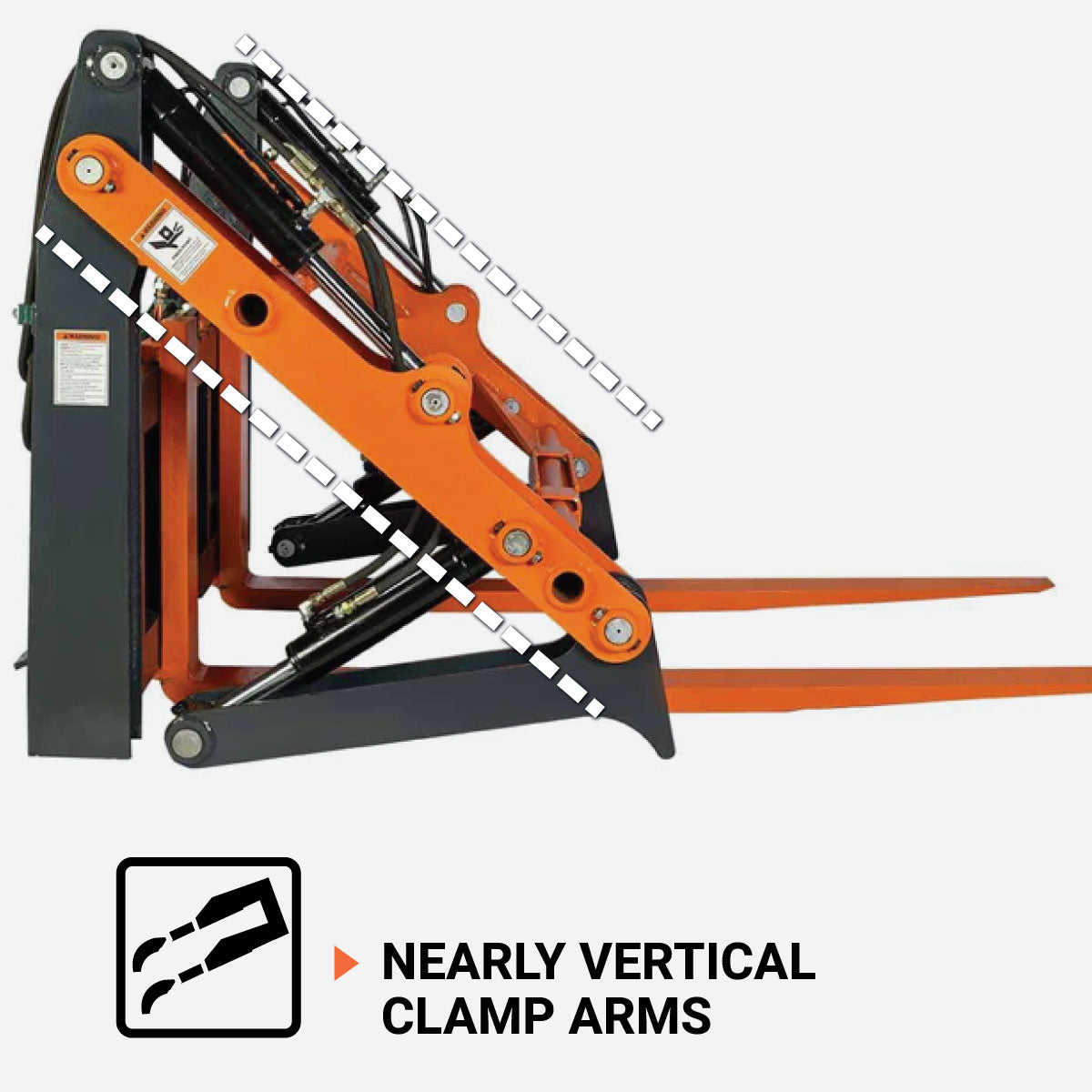

Clamp arms open almost vertically, allowing adaptation to various tasks
Feature Image

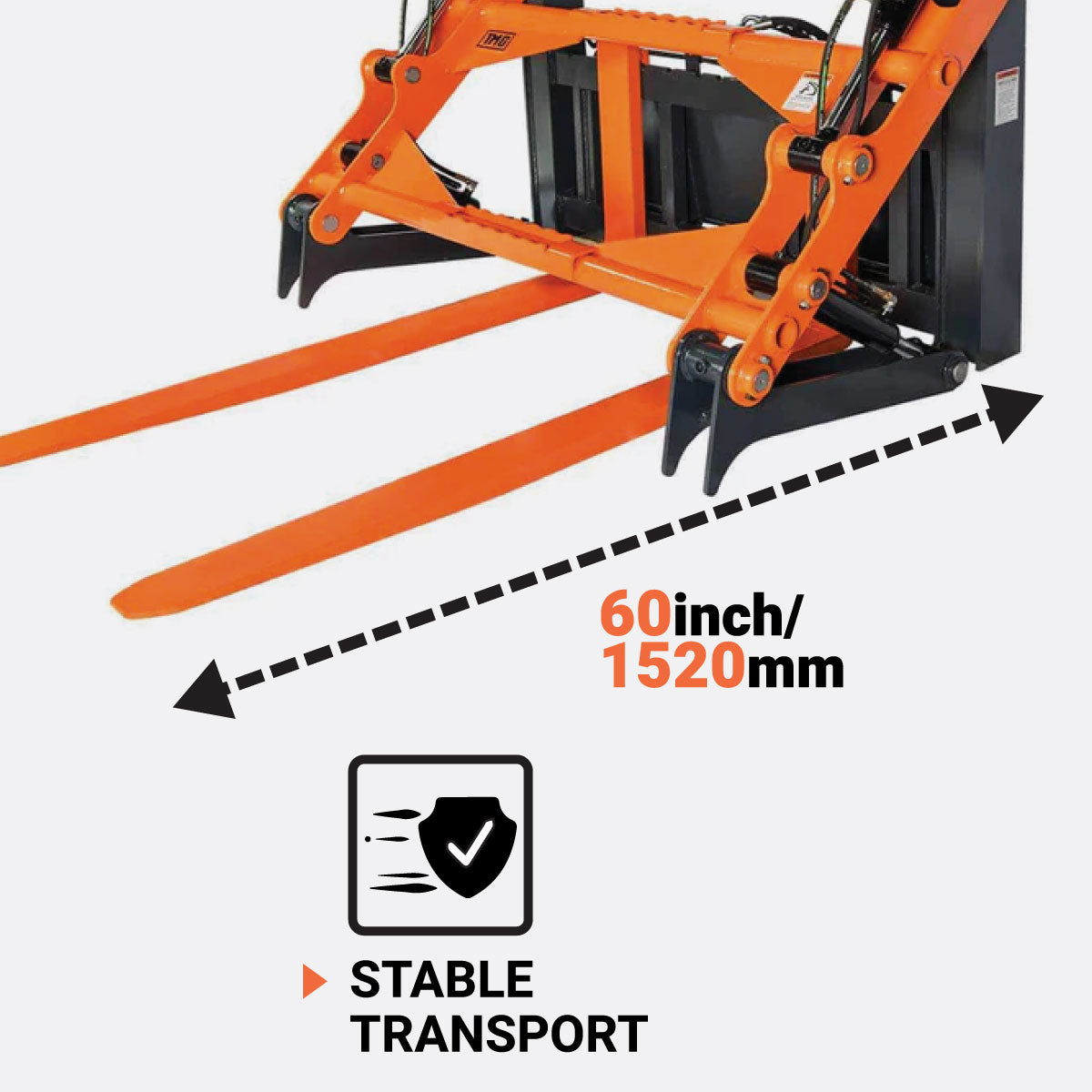

1580 mm wide frame with 1520 mm long forks stabilizes long materials during transport
Feature Image

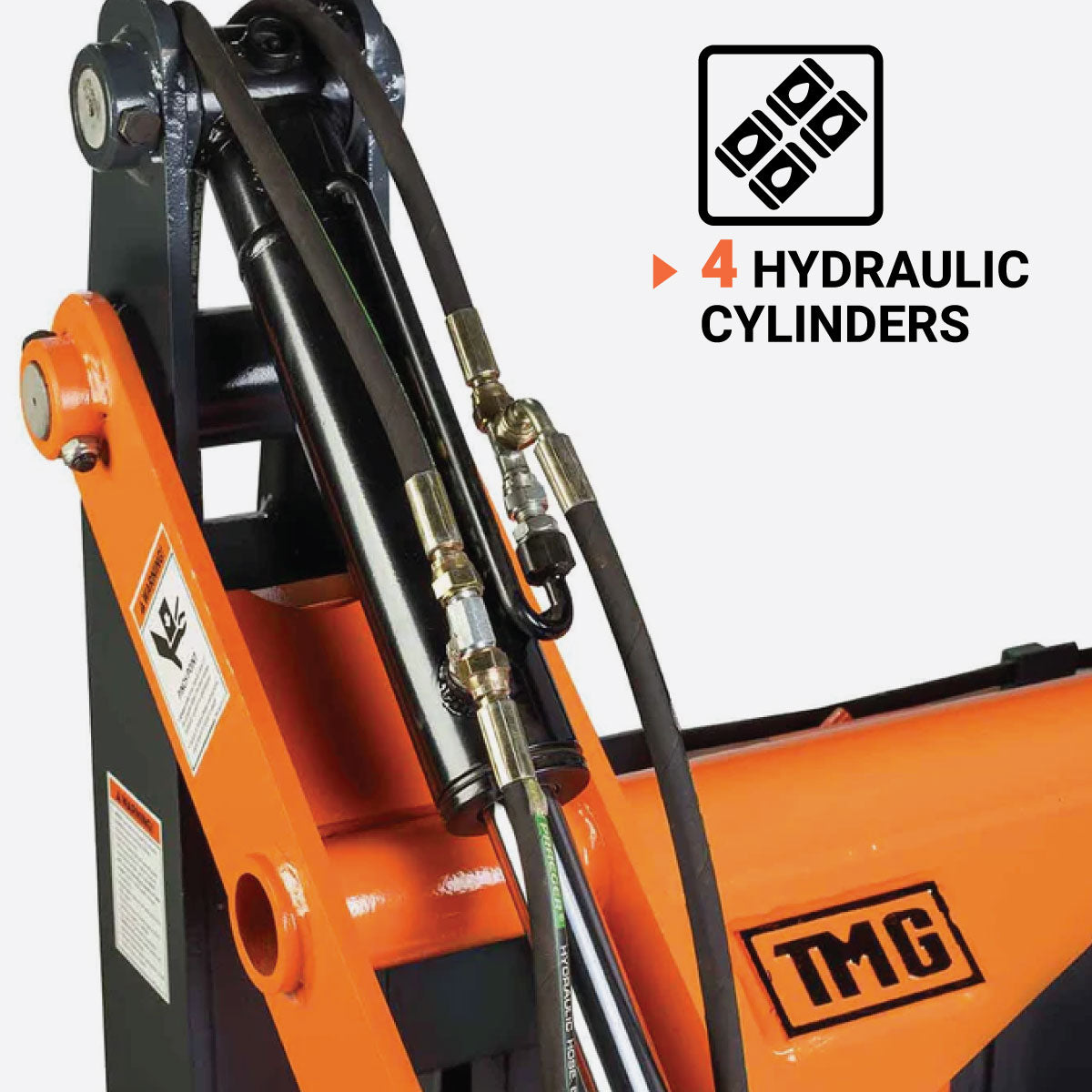

Four hydraulic cylinders provide powerful and efficient clamping force
Feature Image

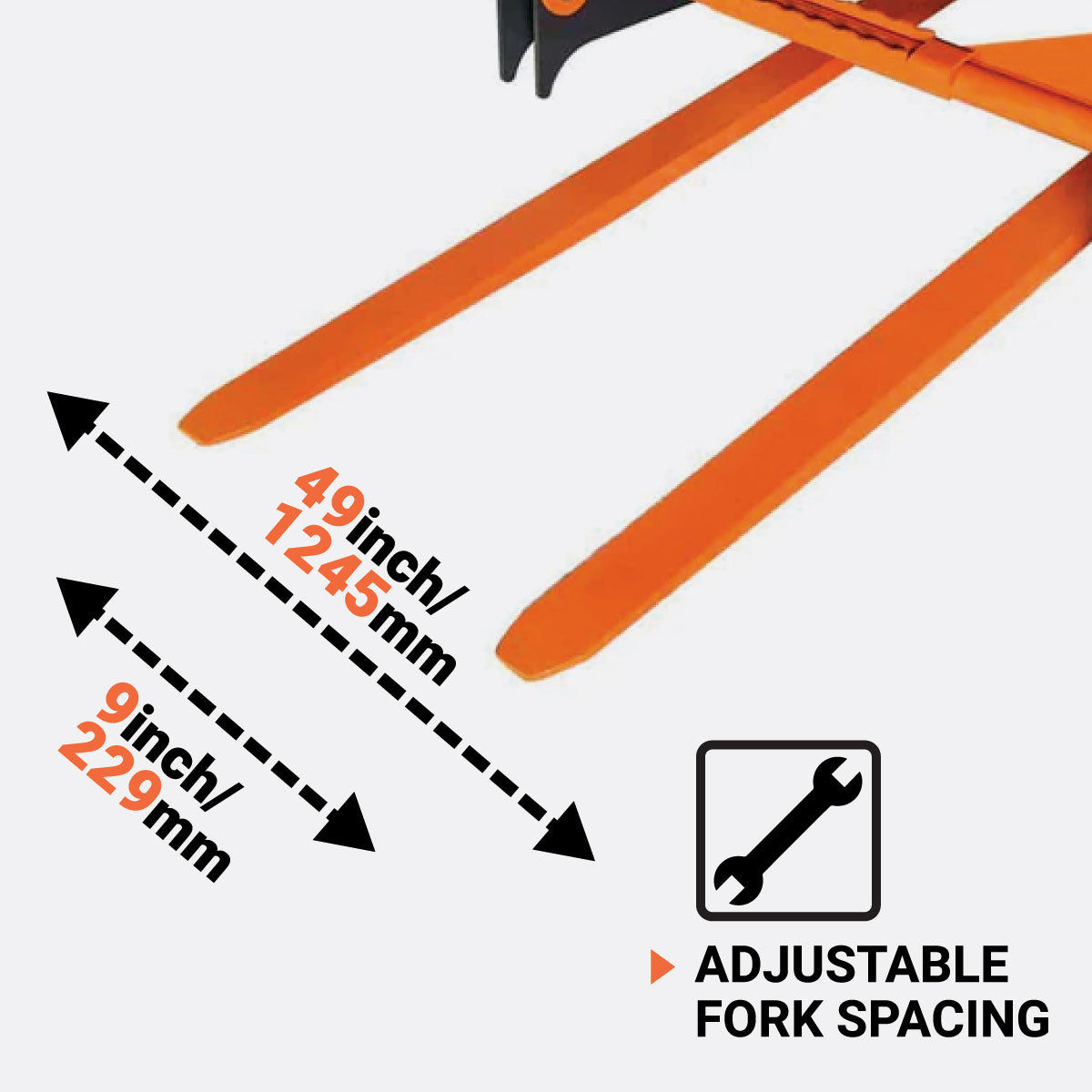

Adjustable fork spacing from 229 mm to 1245 mm accommodates various load sizes
Feature Image

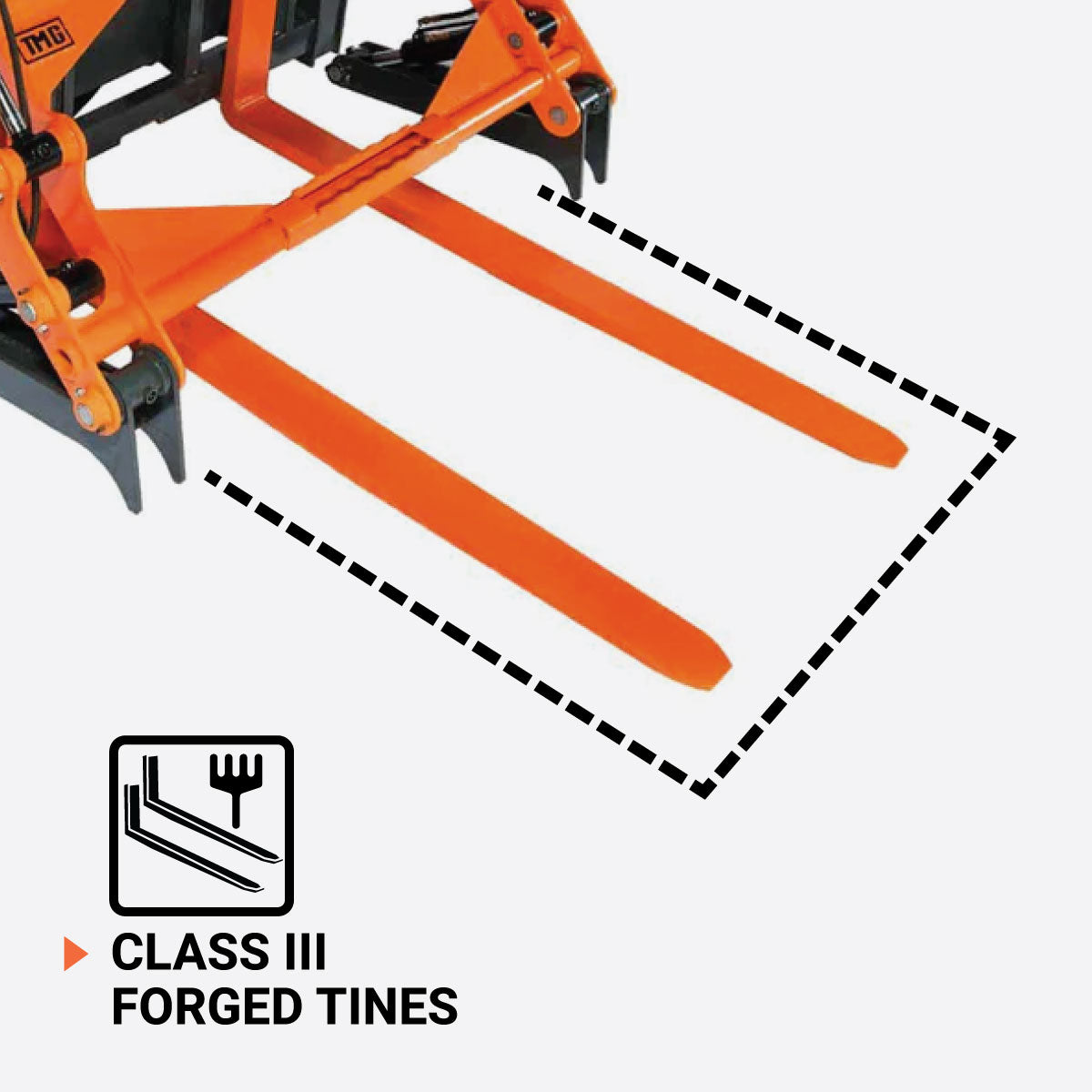

ITA Class III forged tines ensure durability and strength
Feature Image

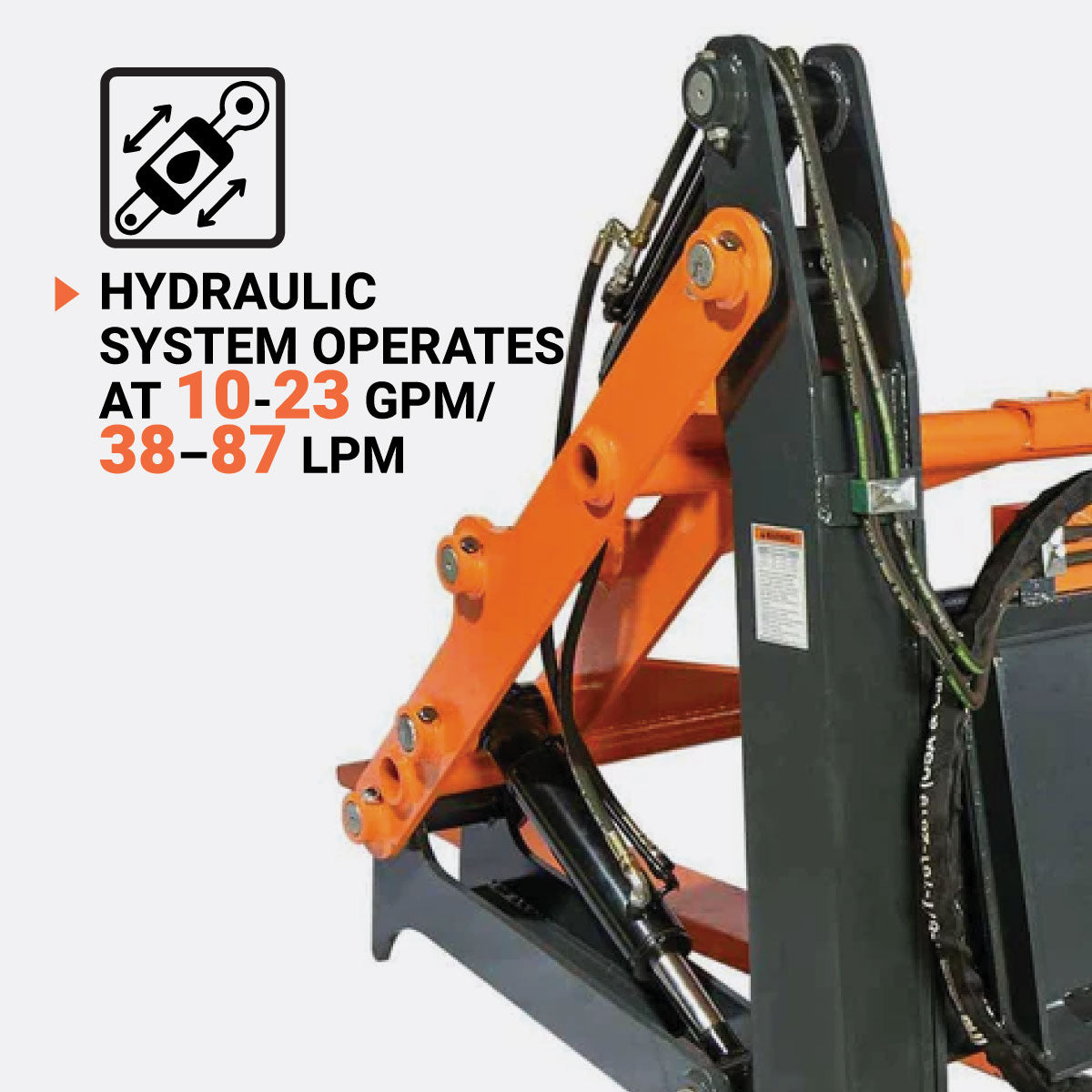

Hydraulic system operates at 38–87 LPM and up to 180 bar for optimal performance

Specifications icon Specifications

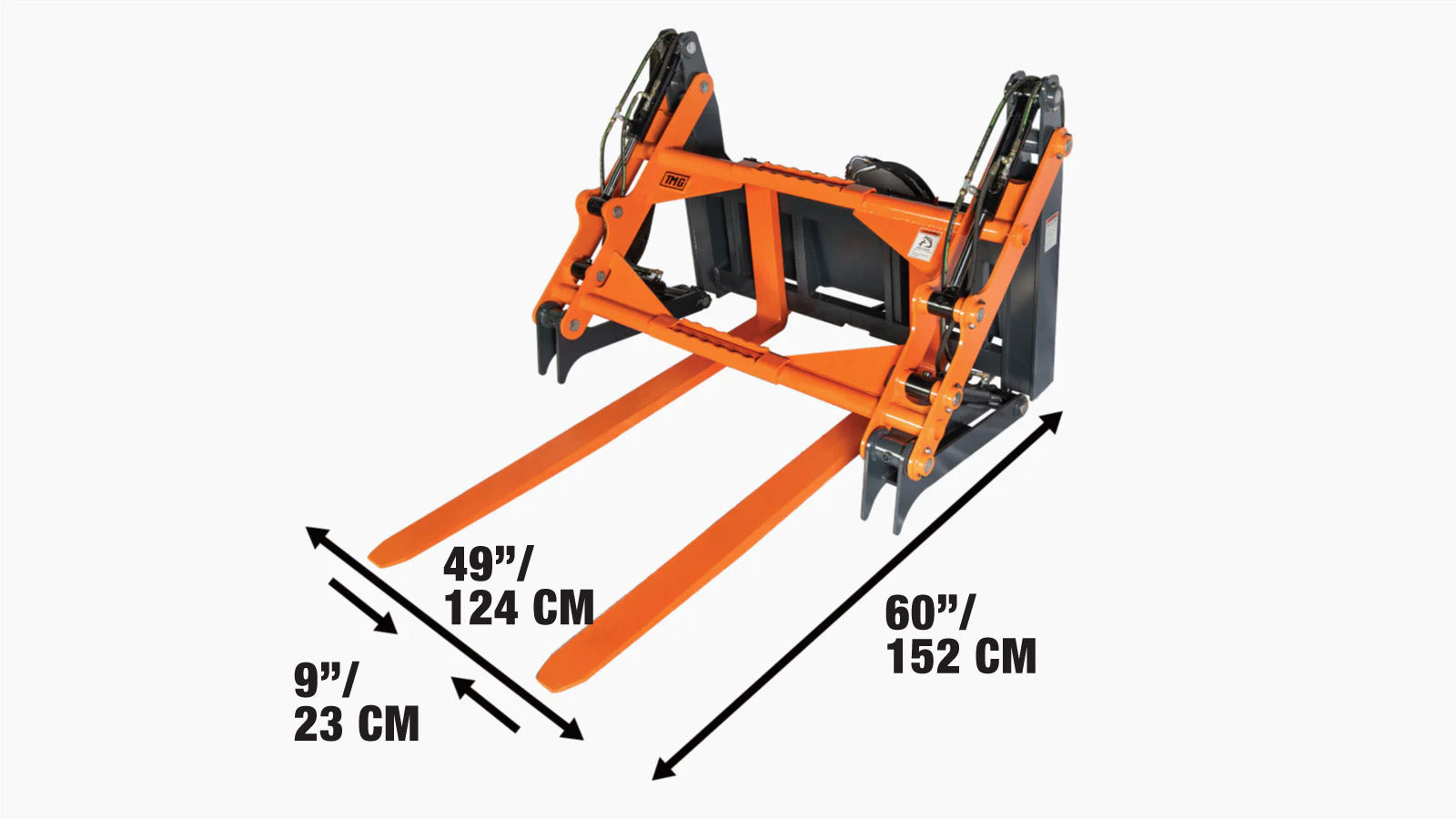

  • Lift Capacity: 2800 kg
  • Mount Type: Universal Skid Steer
  • Recommended Loader Lifting Capacity: 680 kg
  • Tine Class: ITA Class III Forged
  • Fork Length: 1520 mm
  • Fork Width: 122 mm
  • Fork Height: 44.5 mm (4.45 cm)
  • Fork Spacing (Min – Max): 228.6 mm (22.86 cm) – 1244.6 mm (124.46 cm)
  • Grapple Arm Width: 209 mm
  • Frame Width: 1574.8 mm (157.48 cm)
  • Cylinders: Four
  • Hydraulic Flow: 38–87 L/min
  • Hydraulic Pressure: 100–180 bar
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Coupler Size: 1/2" NPT
  • Hydraulic Hoses (Quantity × Size): 2 pcs, 1/2" × 1.5 m
  • Net Weight: 690 kg
1.5 m Skid Steer Pallet Fork Pipe Grapple, 4 Hydraulic Cylinders, 2800 kg Capacity, TMG-SPG60-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. We typically process and ship orders within 2 to 3 business days. Delivery time varies depending on your location and site access, with most orders arriving within 10 to 15 business days.

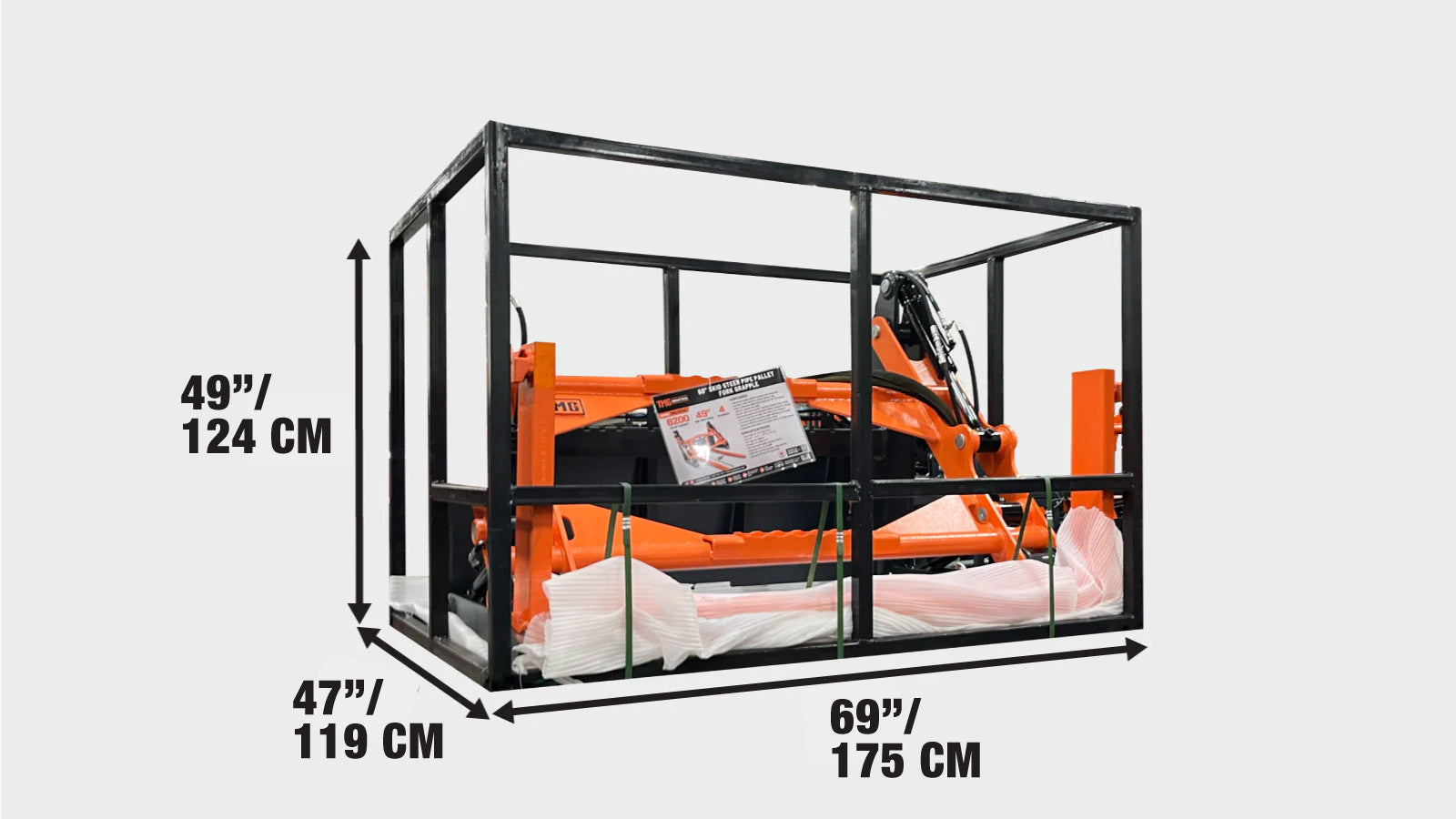

  • This product is shipped in a steel-framed shipping box.
  • Shipping Dimensions: 175 cm x 119 cm x 124 cm (L x W x H)
  • Shipping Weight: 767 kg
Shipping from Rowville,VIC
What happens after you place your order?
1.5 m Skid Steer Pallet Fork Pipe Grapple, 4 Hydraulic Cylinders, 2800 kg Capacity, TMG-SPG60-shipping-info-image

Product Description icon Product Description

The TMG-SPG60 Skid Steer Pallet Fork Pipe Grapple is a versatile and durable attachment designed for efficient handling of pipes, logs, and other cylindrical materials. With its robust construction, powerful hydraulic clamping, and adjustable fork spacing, this grapple enhances the material handling capabilities of your skid steer loader. Ideal for use in construction, agriculture, and industrial settings across Australia, the TMG-SPG60 delivers reliable performance and increased productivity.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What is the TMG-SPG60 used for?
The TMG-SPG60 is designed for handling pipes, logs, and other cylindrical materials, making it ideal for construction, agricultural, and industrial applications.
Q: Can the forks be swapped out for our other pallet forks?
Yes, the forks can be swapped out for other pallet forks.
Q: What skid steers is it compatible with?
It features a universal skid steer quick-attach mount, making it compatible with most skid steer models.
Q: What is the maximum lift capacity?
The grapple has a lift capacity of 2812 kg, allowing it to handle heavy loads with ease.
Q: How adjustable is the fork spacing?
The fork spacing is adjustable from 229 mm to 1245 mm, providing flexibility for various load sizes.
Q: What are the hydraulic requirements?
The grapple operates at a hydraulic flow rate of 38–87 LPM and up to 180 bar, ensuring efficient performance.
Q: Does it come assembled?
The grapple is shipped partially assembled in a steel-framed shipping box, with a user manual included for final setup.
Q: Is there a warranty?
Yes, this product comes with a 1-year manufacturer warranty.
