TMG-HB90Q

Hydraulic Breaker for 6–9 Ton Excavators, Quick-Change Lugging, TMG-HB90Q

Product Manual
TMG Industrial 6-9 Ton Excavator/Backhoe Hydraulic Breaker, Quick Change (Q/C) Lugging, 3” Moil Point Chisel, 785 J Impact Energy, TMG-HB90Q
CURRENTLY IN STOCK
TMG-HB90Q
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
$3,999.00 Save $500.00
$3,499.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

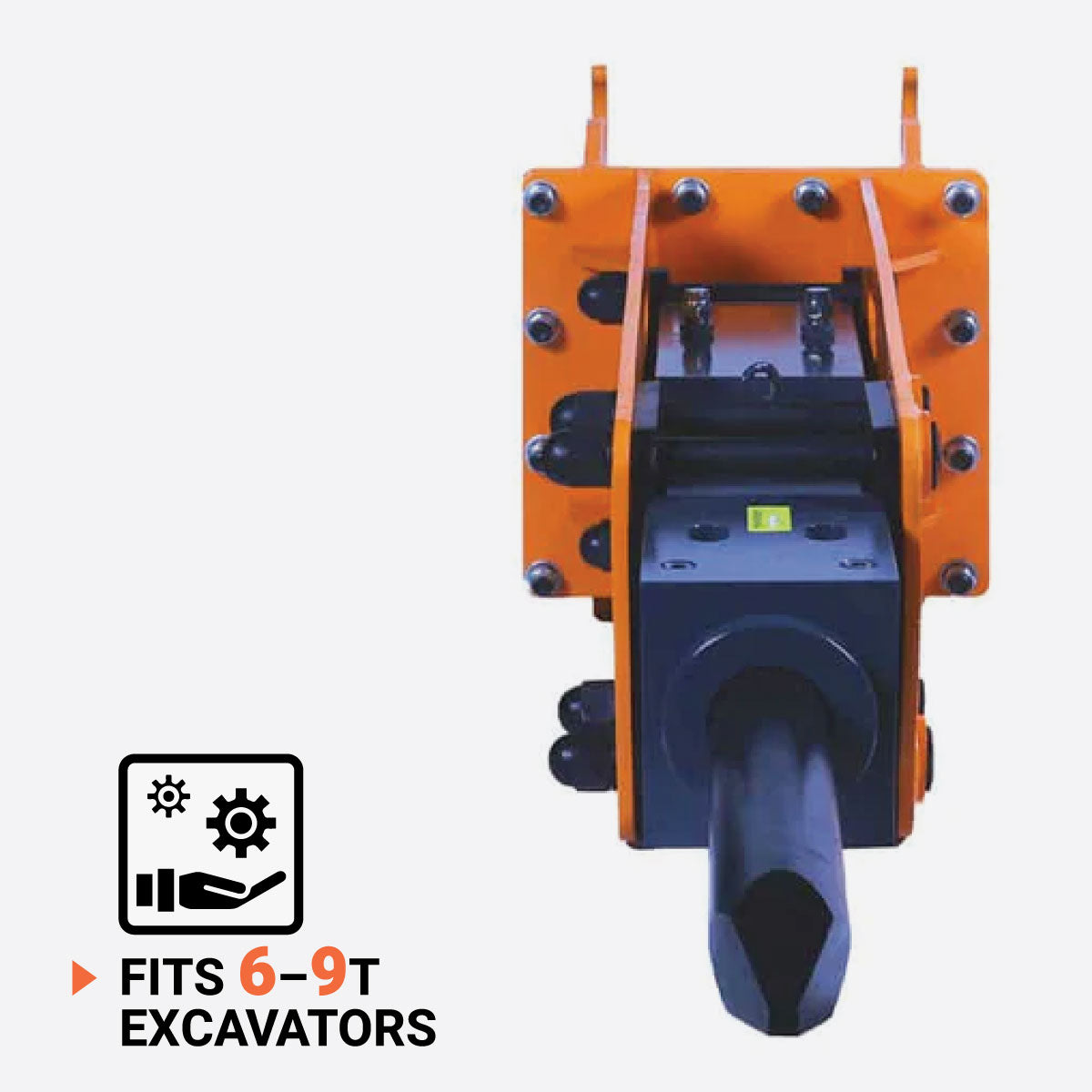

Compatible with 6–9 ton excavators using quick-change lugging
Feature Image

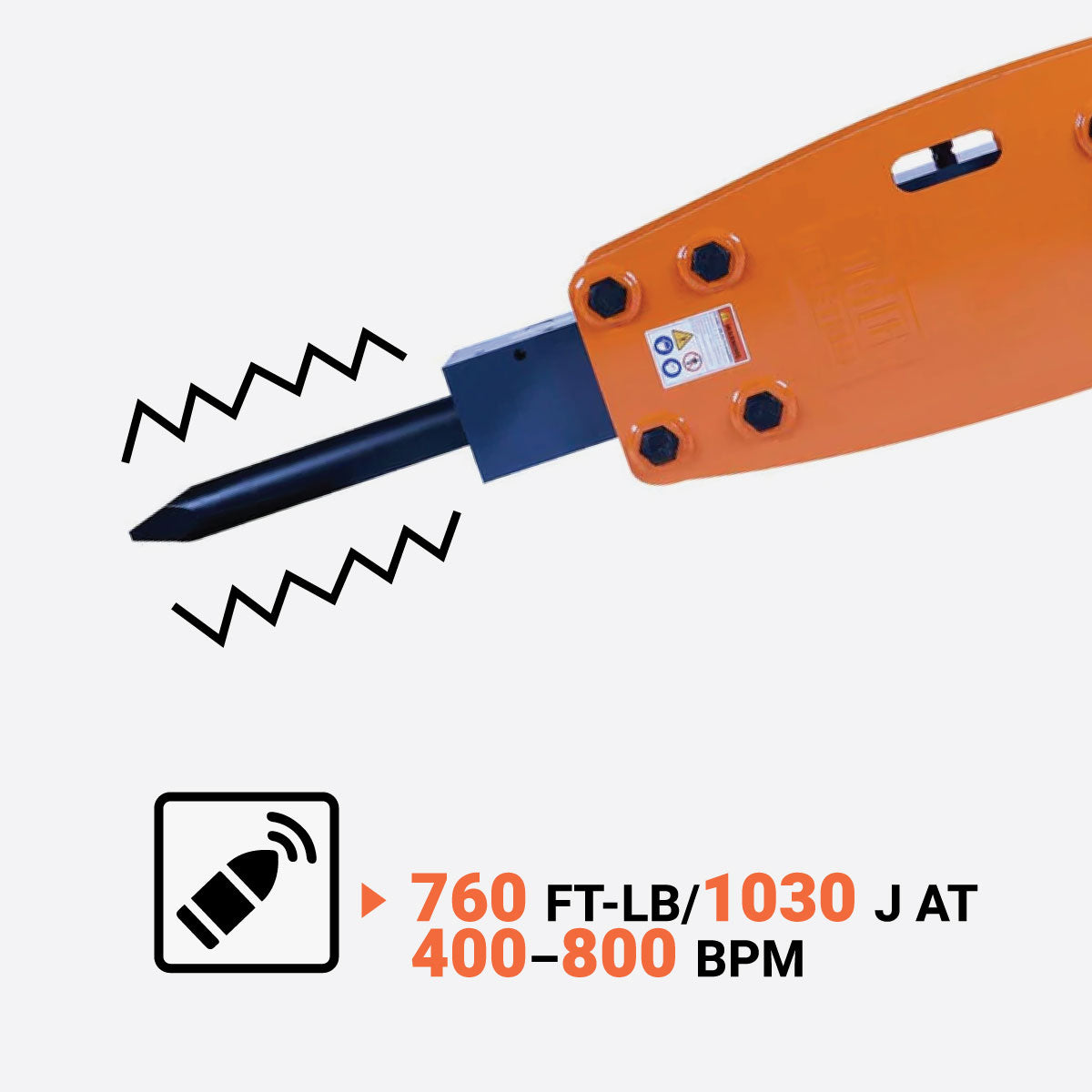

Delivers 1030 J impact energy at 400–800 BPM for mid-size demolition work
Feature Image

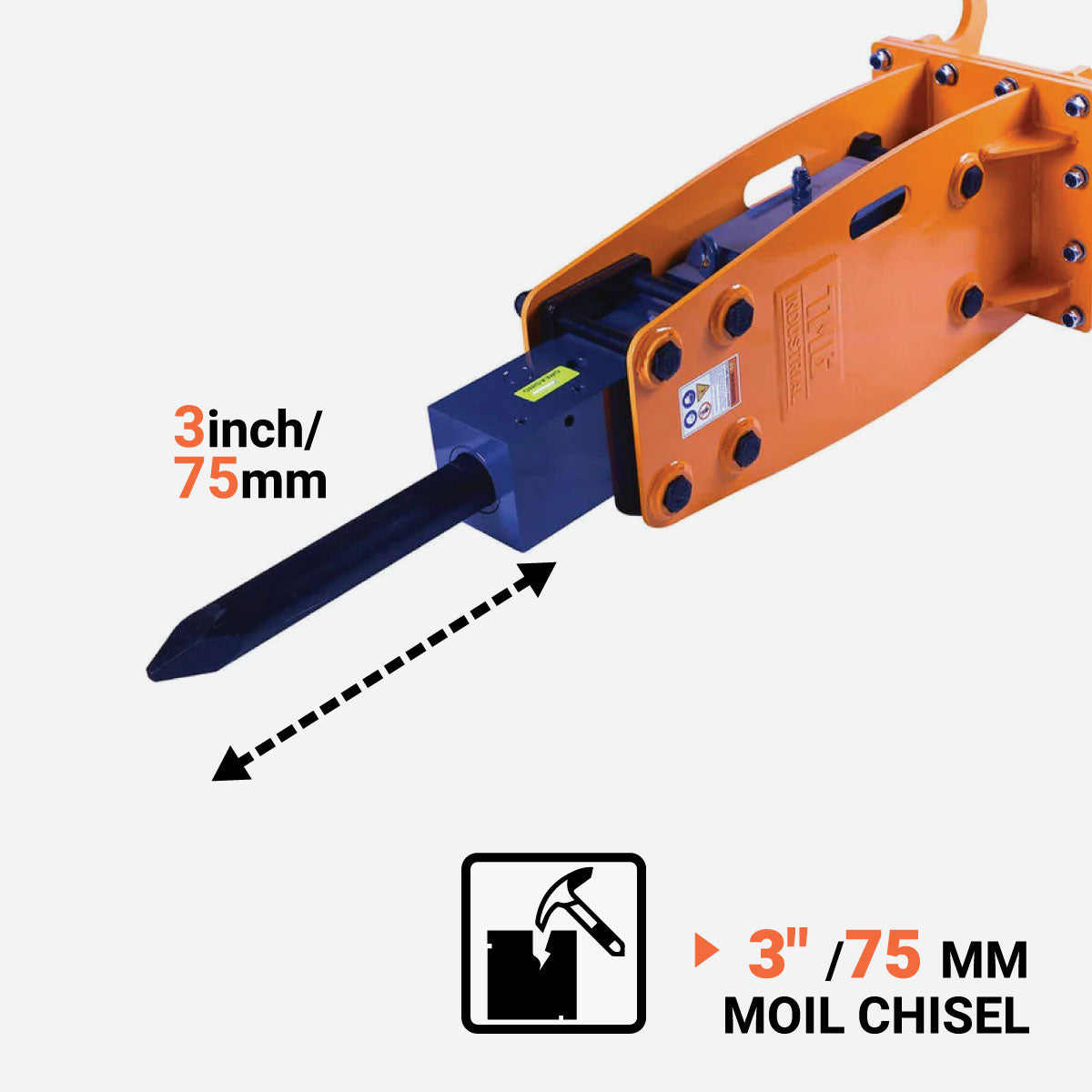

75 mm moil point chisel for efficient breaking of rock and concrete
Feature Image

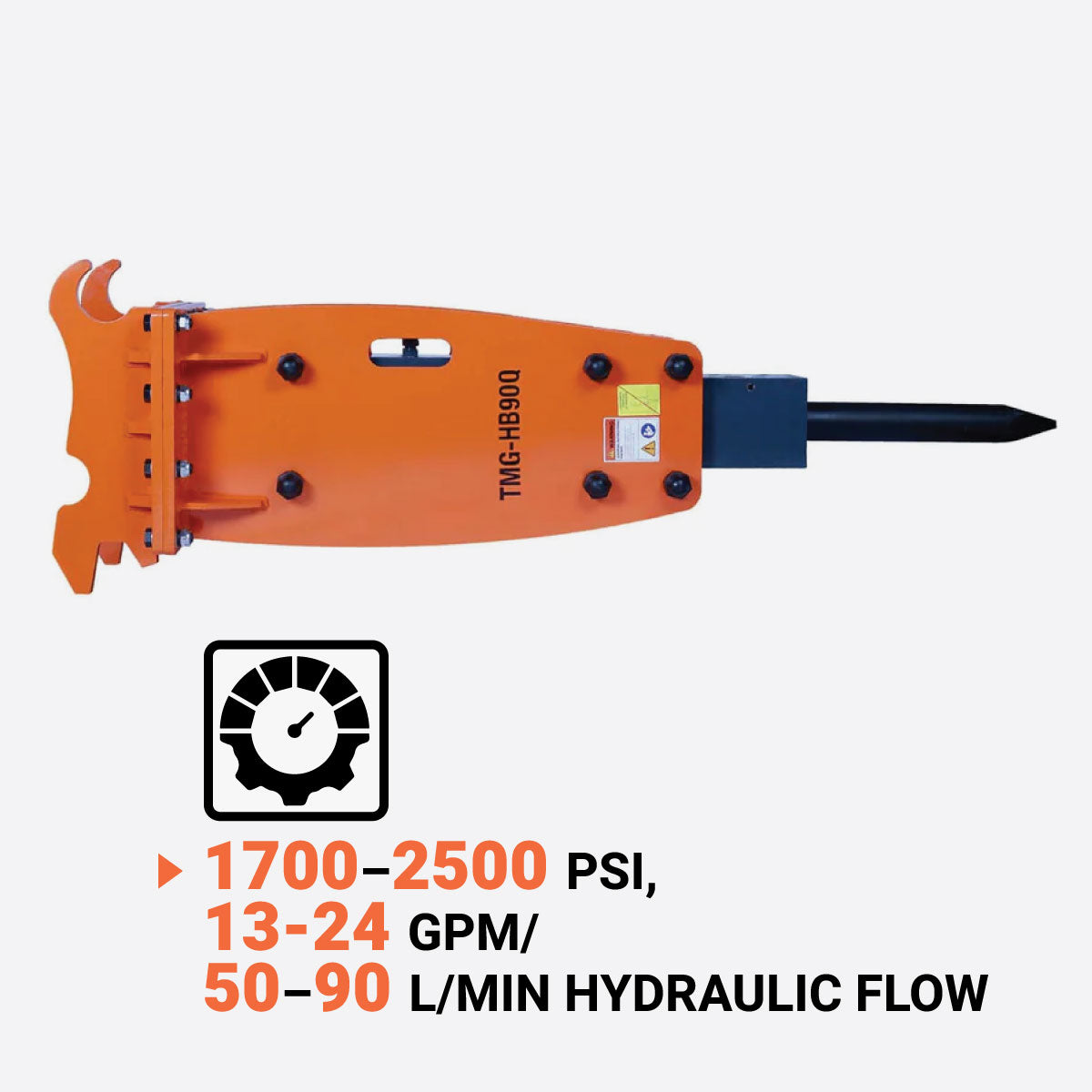

Operates at 1700–2500 PSI with 50–90 L/min hydraulic flow range
Feature Image

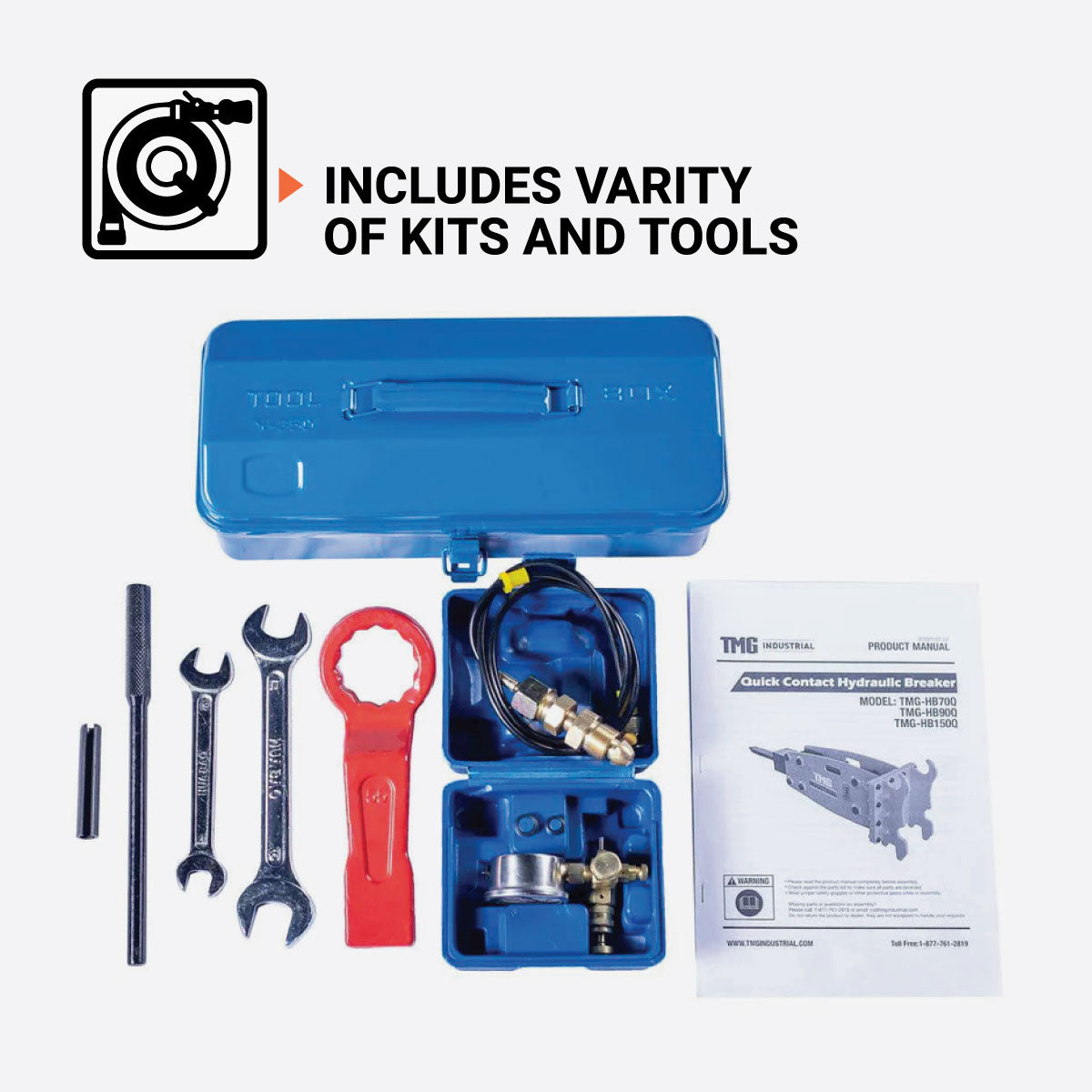

Includes hydraulic hoses, nitrogen charging kit, and service tool kit
Feature Image

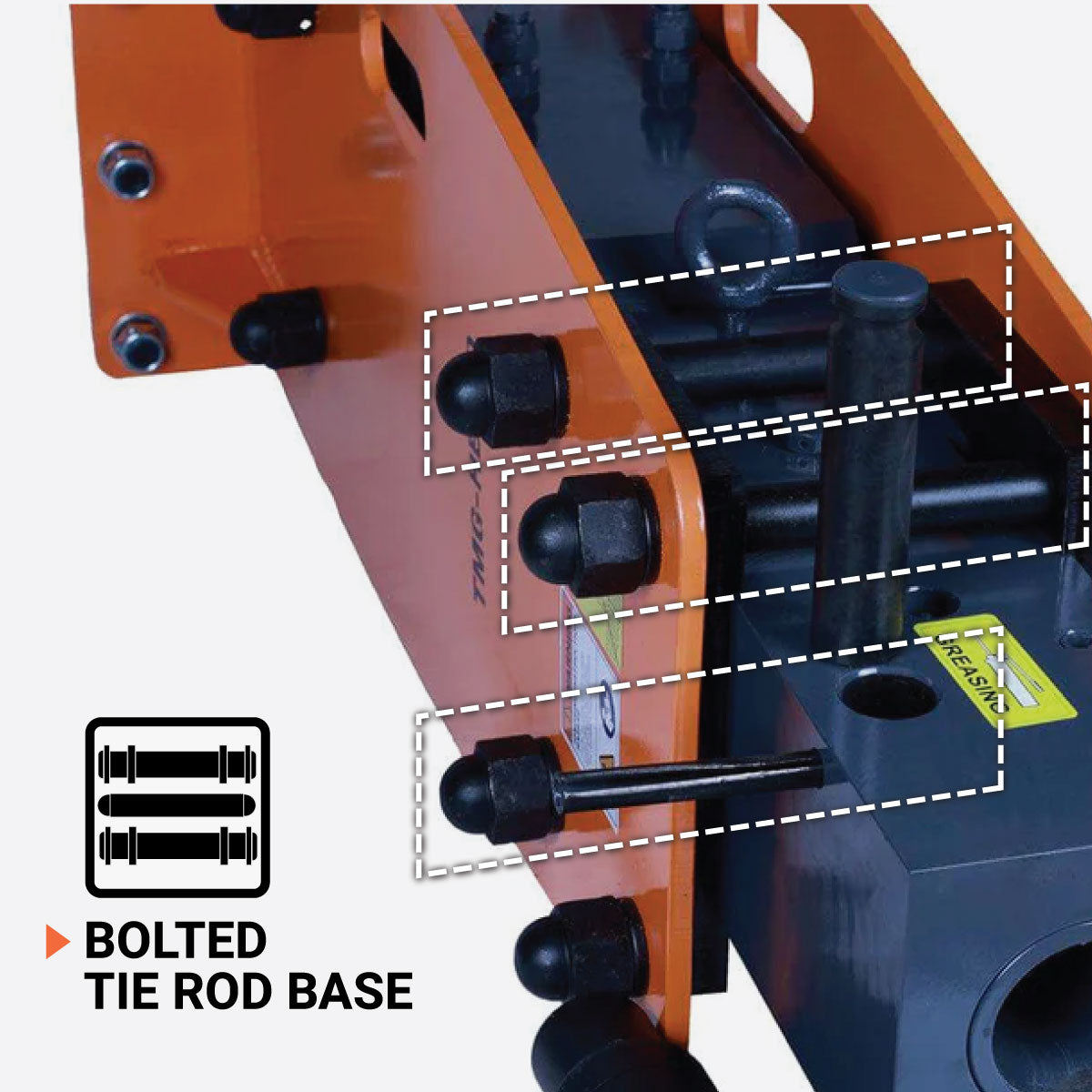

Bottom tie rod bolted structure for ease of maintenance and long-term reliability

Specifications icon Specifications

  • Compatible Equipment: 6–9 Ton Excavators
  • Mount Type: Quick-change (Q/C)
  • Impact Rate (BPM): 400–800 BPM
  • Impact Energy: 1030 J
  • Hydraulic Flow (L/min): 50–90 L/min
  • Hydraulic Pressure (PSI): 1700–2500 PSI
  • Hydraulic Hoses & Couplers Included: Only hoses included
  • Hydraulic Couplers Type: –
  • Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 1.8 m
  • Chisel Diameter: 75 mm
  • Operating Weight: 400 kg

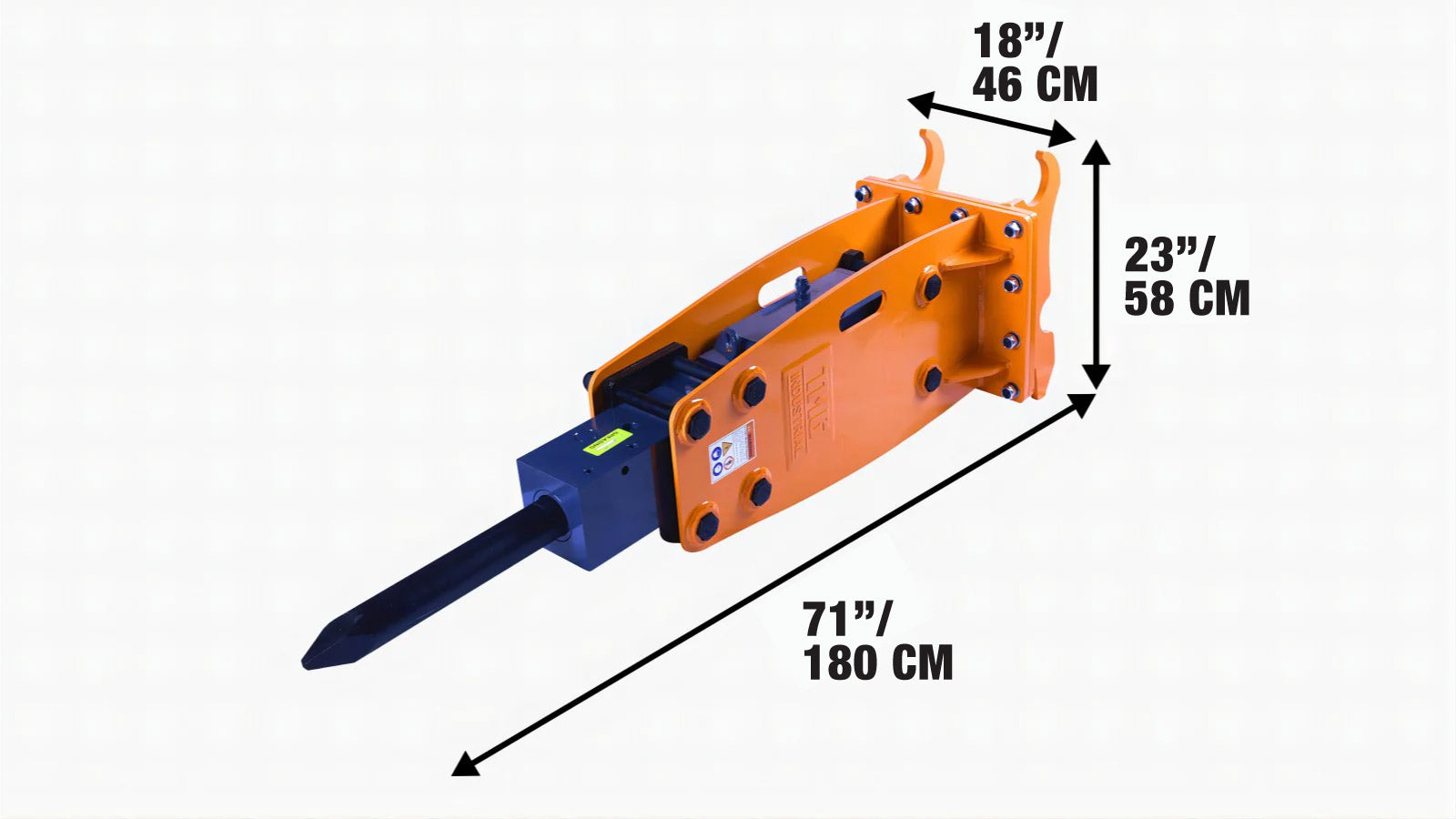

Hydraulic Breaker for 6–9 Ton Excavators, Quick-Change Lugging, TMG-HB90Q-specifications-image

Shipping Information icon Shipping Information

Your order will ship from our main Australian warehouse. Orders typically leave the warehouse within 2–3 business days. Standard delivery time is 10–15 business days depending on location.

  • Packed in a steel shipping crate
  • Shipping dimensions: 145 x 61 x 69 cm (L x W x H)
  • Shipping weight: approx. 450 kg
  • Delivery available Australia-wide (forklift required for unloading)
Shipping from Rowville,VIC
What happens after you place your order?

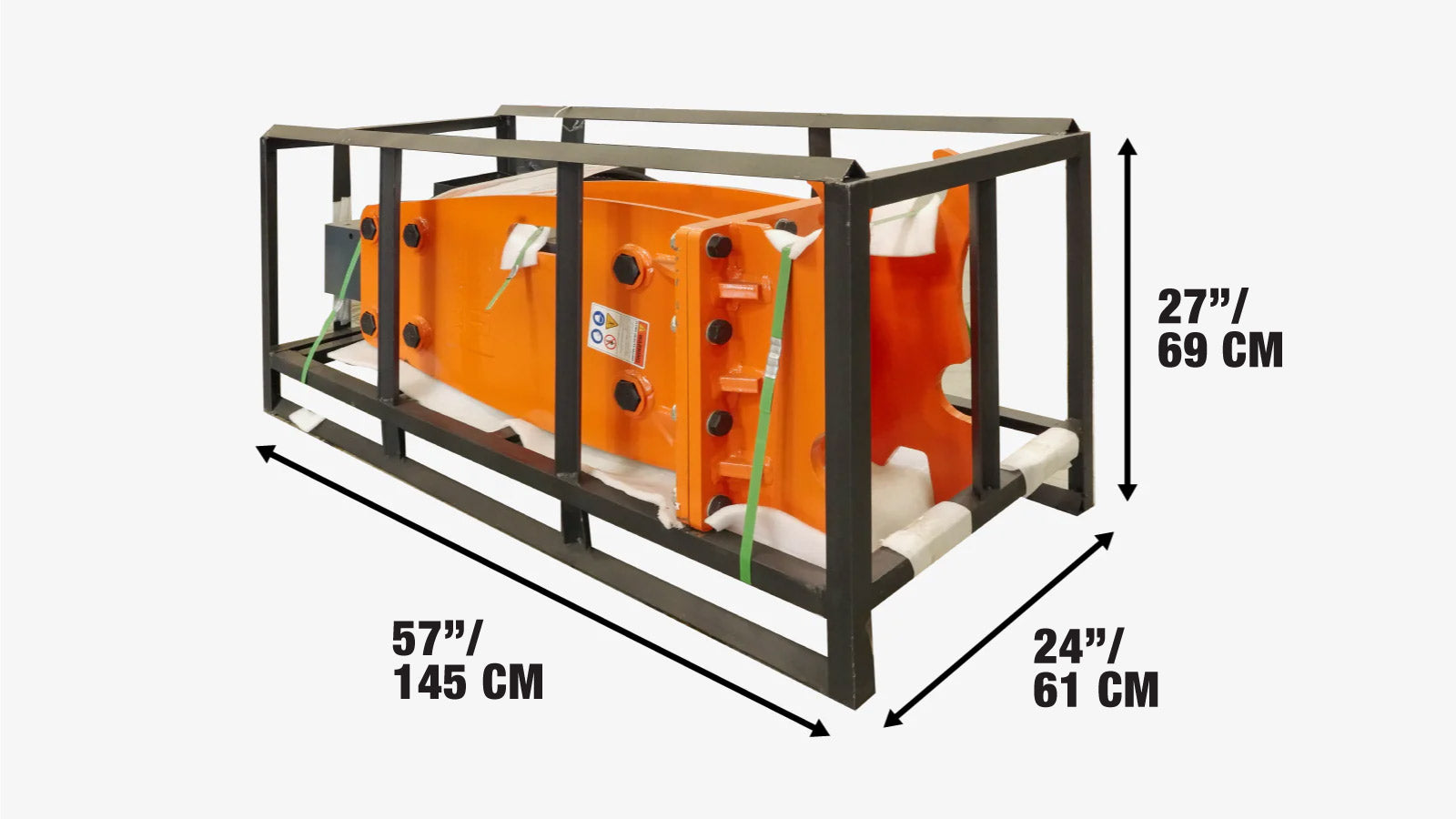

Hydraulic Breaker for 6–9 Ton Excavators, Quick-Change Lugging, TMG-HB90Q-shipping-info-image

Product Description icon Product Description

The TMG-HB90Q Hydraulic Breaker Attachment is a rugged, high-output solution built for operators of 6–9 ton excavators and backhoes across Australia. Its 75 mm chisel and 1030 J of impact energy make it a strong choice for concrete and rock breaking in commercial and industrial settings.

With a 400–800 BPM blow rate, reinforced structure, and shock-absorbing nitrogen assist, the HB90Q is engineered to minimize machine wear and maximise work efficiency. Its ease of maintenance and inclusive installation kit ensure a quick start and long-term usability.

Whether you’re tackling site preparation, foundation breaking, or controlled demolition, the TMG-HB90Q provides the performance and dependability you need.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

1. What equipment is the TMG-HB90Q compatible with?
The TMG-HB90Q is designed for excavators and backhoe loaders with an operating weight ranging from 6 to 9 tonnes. It features a quick-connect lugging design, ensuring compatibility with most standard quick-attach systems on these machines.
2. What are the key performance specifications of this hydraulic breaker?
The TMG-HB90Q delivers an impact energy of 1030 joules and operates at a rate of 400 to 800 blows per minute (BPM). It requires a hydraulic flow between 50 to 90 litres per minute (13–24 GPM) and a working pressure of 1700 to 2500 PSI (approximately 11,721 to 17,237 kPa). The chisel diameter is 75 mm (3 inches).
3. What is included with the TMG-HB90Q upon purchase?
The package includes:
– One 75 mm (3-inch) moil point chisel
– Two 12.7 mm (½-inch) hydraulic hoses with NPT fittings
– One nitrogen charge kit with CGA580 cylinder adaptor
– One service tool kit
These components facilitate immediate setup and operation.
4. What industrial applications is the TMG-HB90Q suitable for?
The TMG-HB90Q is versatile and can be used in construction, cleanup, demolition, mining, oil and gas, logging, tunneling, and other quarry operations.
5. What maintenance features does the TMG-HB90Q offer?
The breaker features a bottom tie rod bolted design, which allows for easy maintenance.
6. Does the TMG-HB90Q come with a warranty?
The TMG-HB90Q hydraulic breaker comes with a one-year limited manufacturer’s warranty.
