CURRENTLY IN STOCK
TMG-TBH88

2380 mm (8’) Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation TMG-TBH88

Product Manual

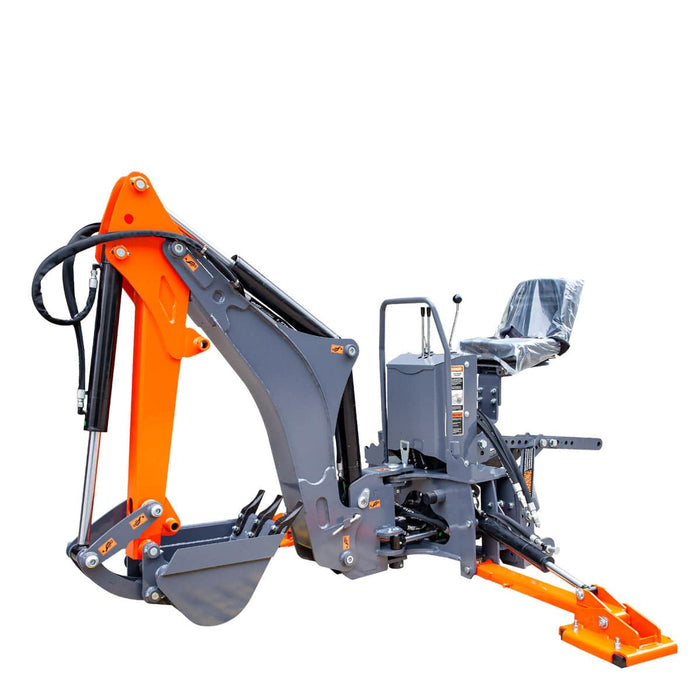

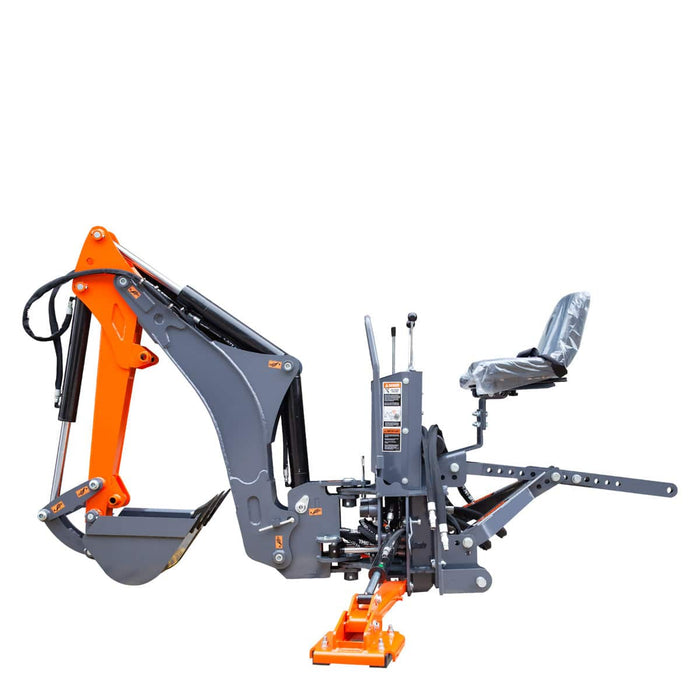

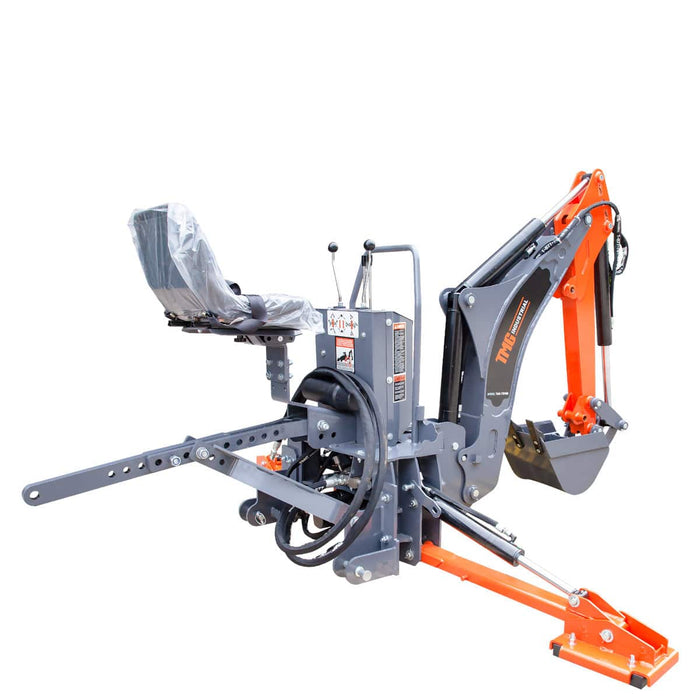

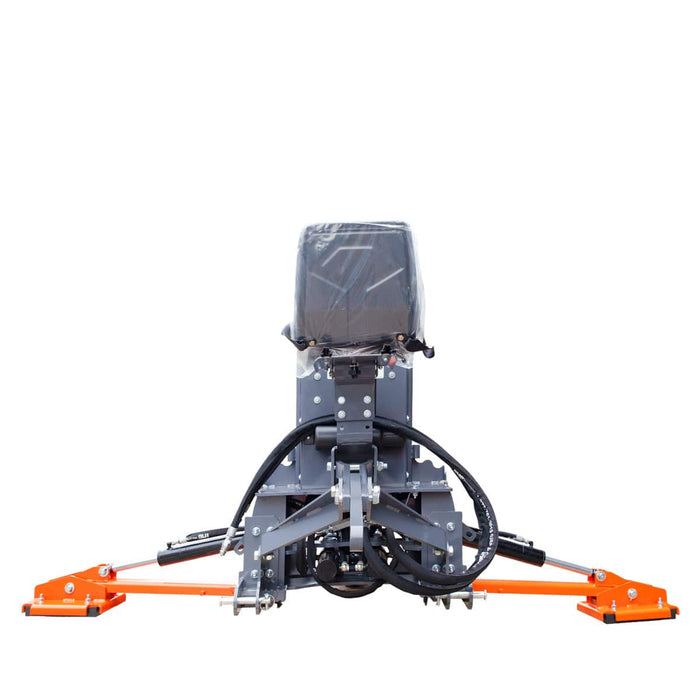

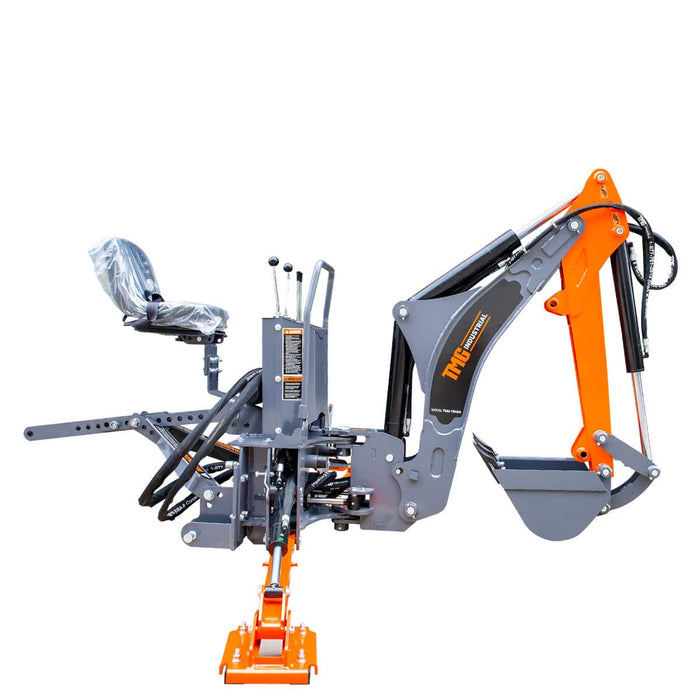

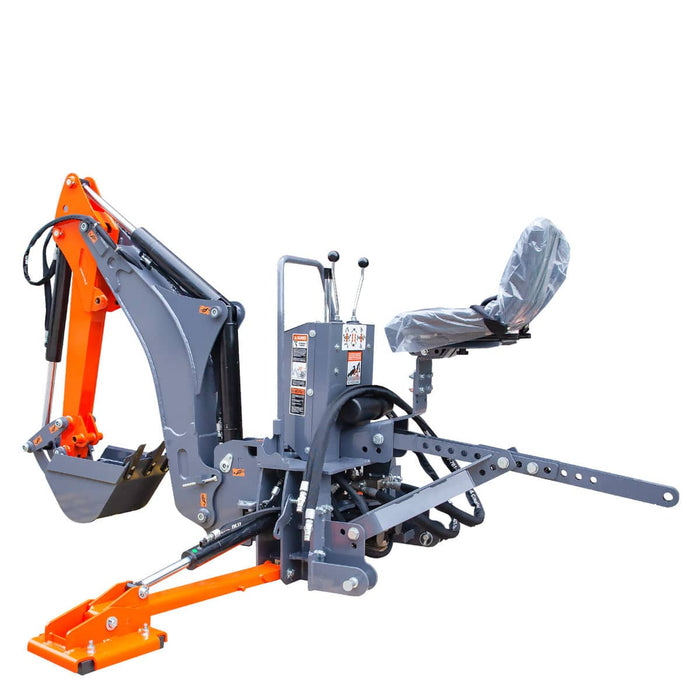

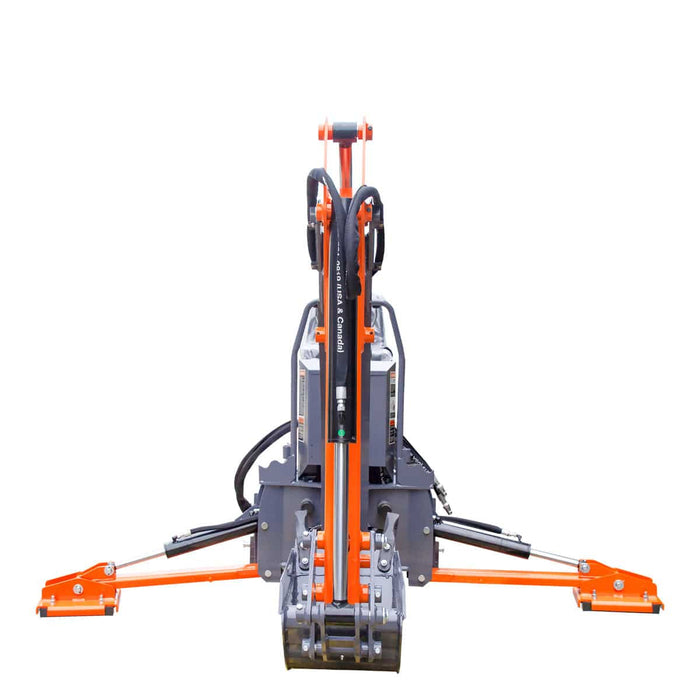

TMG Industrial 8-ft Tractor Swing Backhoe Attachment, Category 1 Hookup, 180° Boom and Bucket Rotation, 12” Bucket Included, TMG-TBH88
CURRENTLY IN STOCK
TMG-TBH88
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
$6,199.00
$6,199.00 - $6,199.00
$6,199.00
$6,999.00 Save $800.00
$6,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

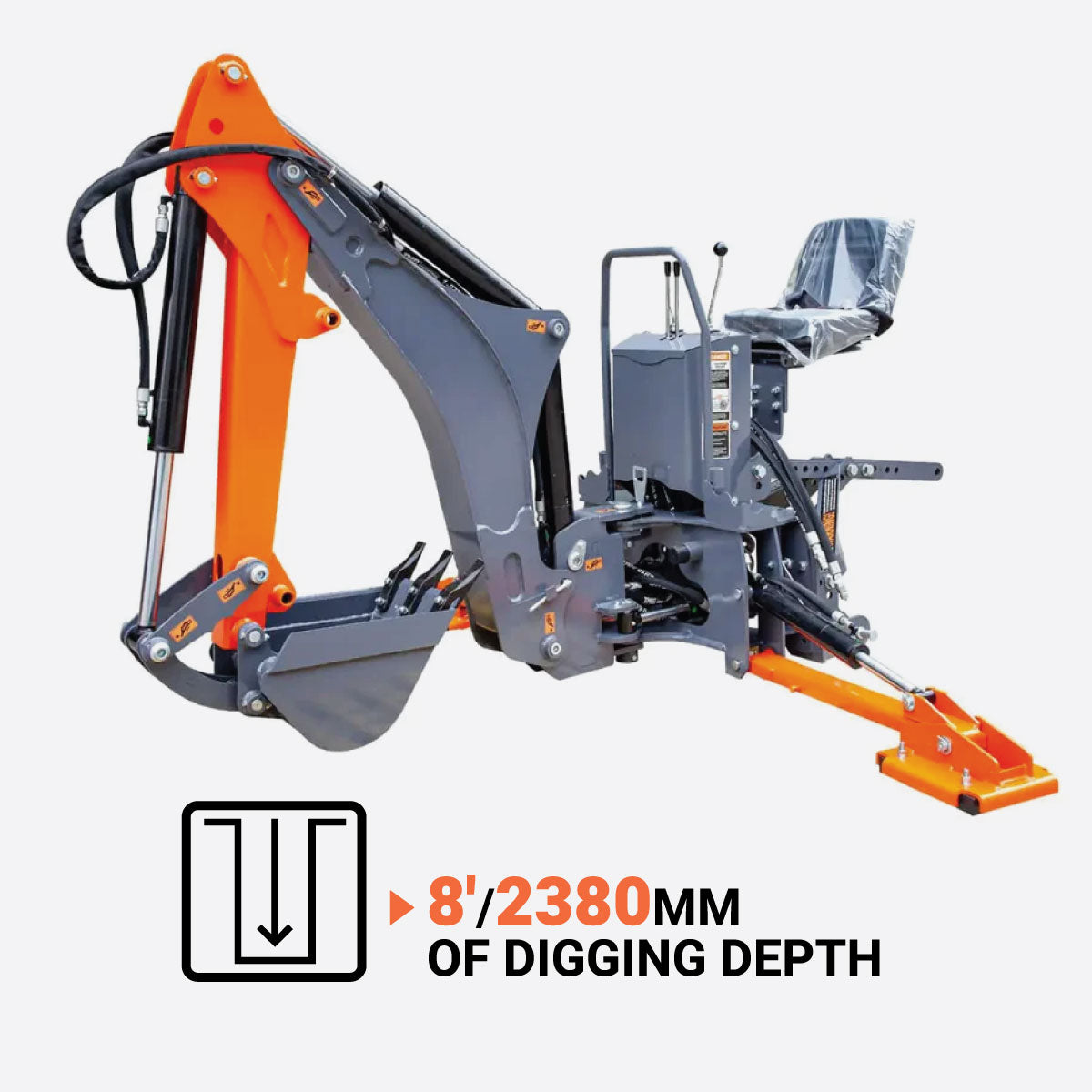

2380 mm (8’) of digging depth for easy access to hard-to-reach areas
Feature Image

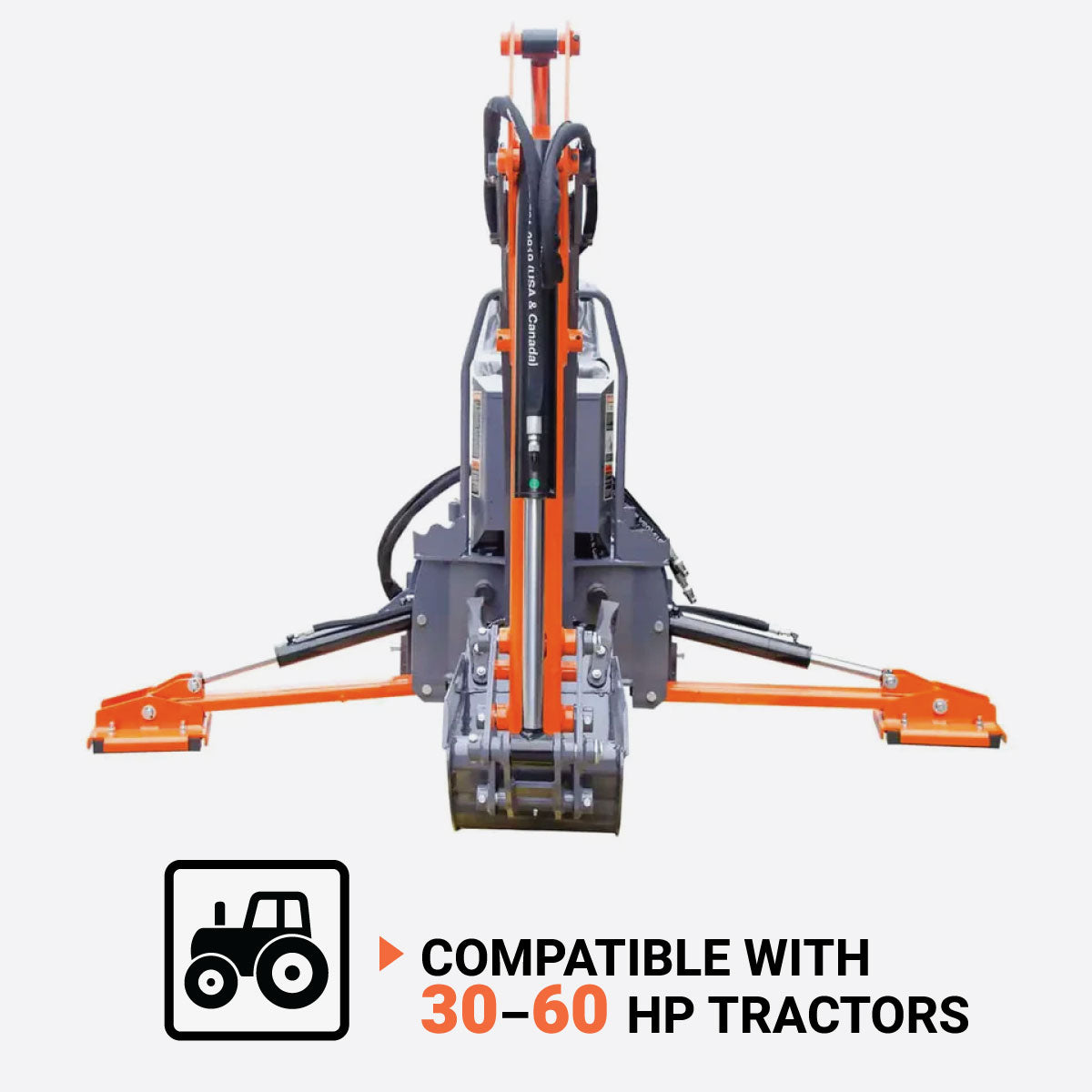

Compatible with 30 – 60 HP tractors and includes 305 mm (12") digging bucket
Feature Image

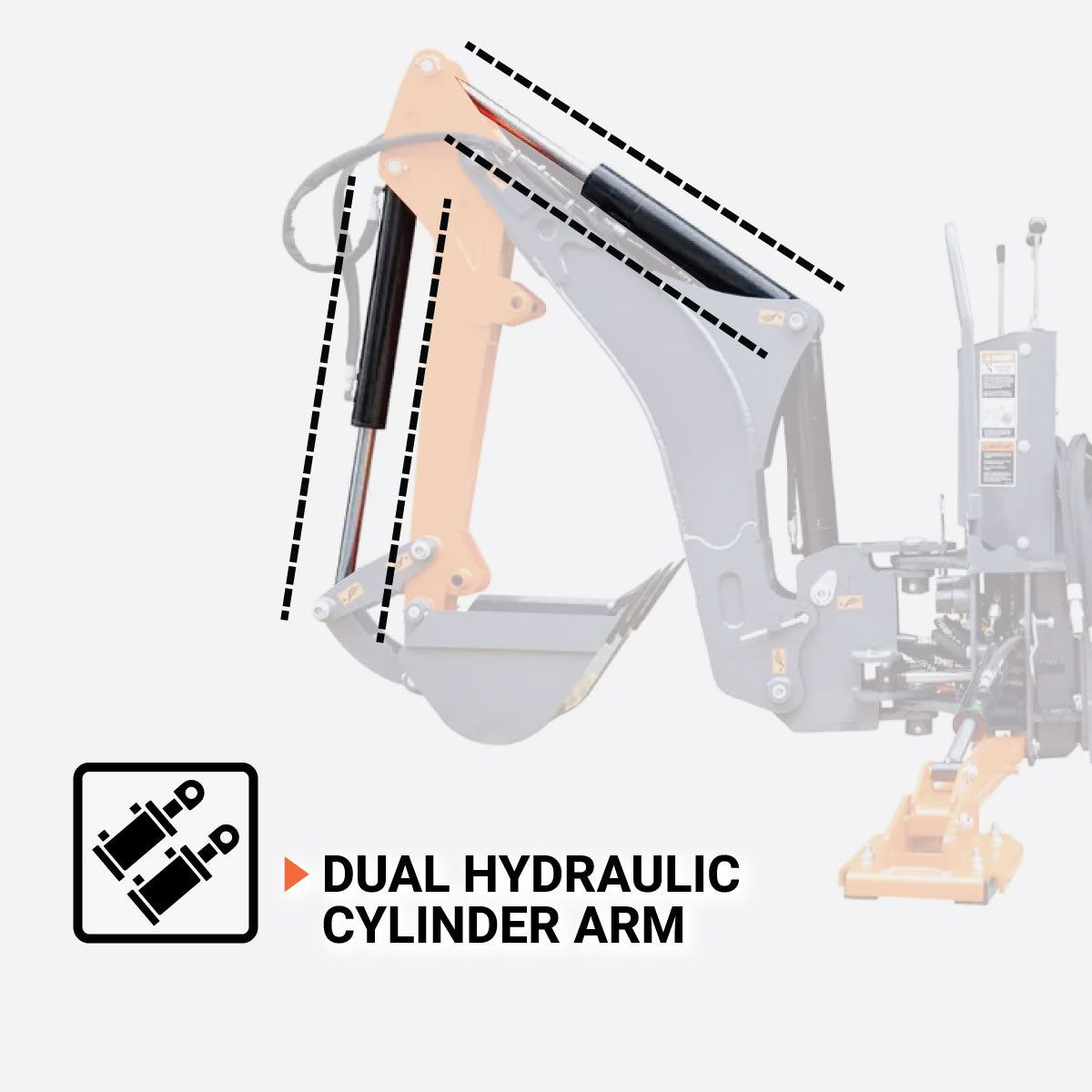

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

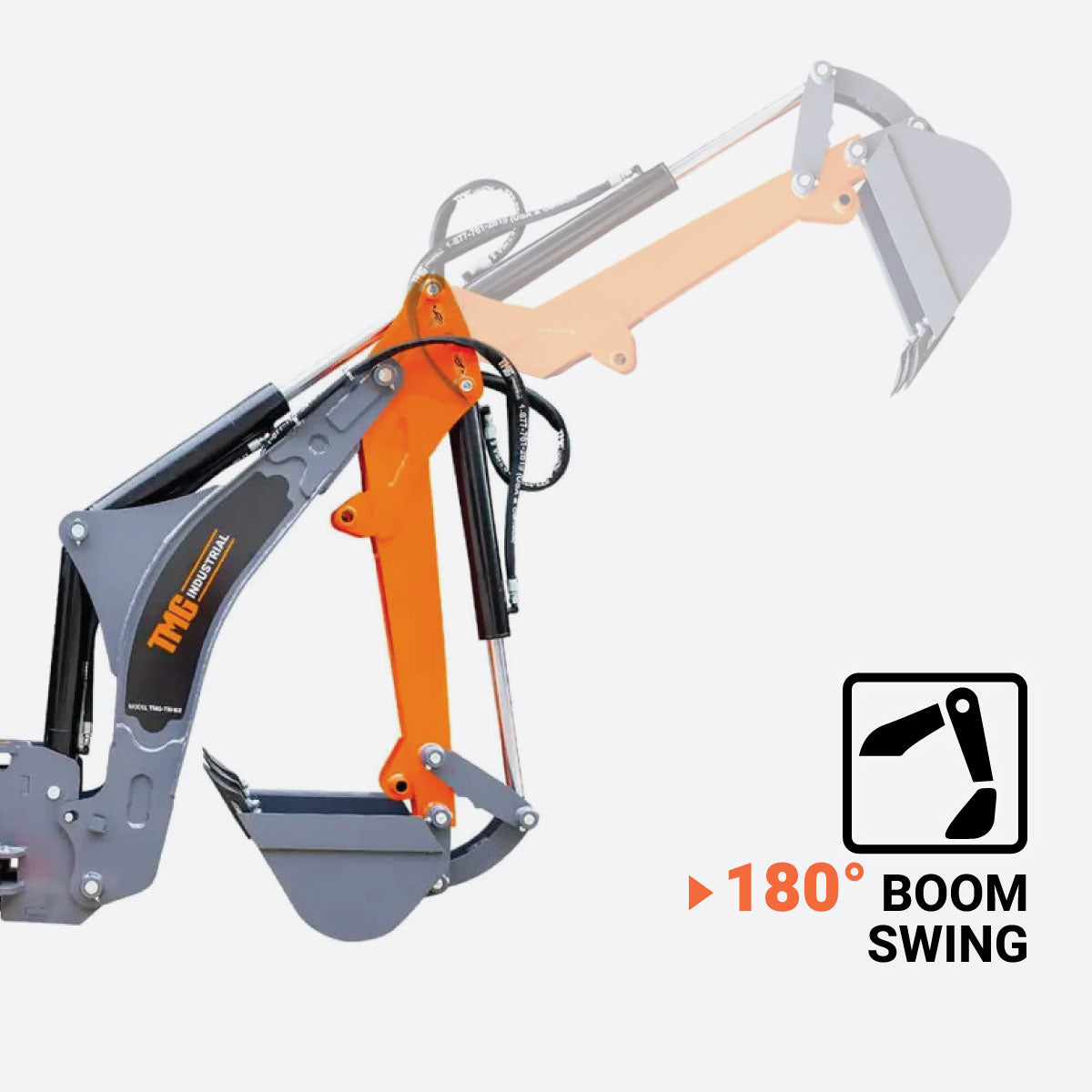

Extensive reach capacity in all directions with 180° of boom swing
Feature Image

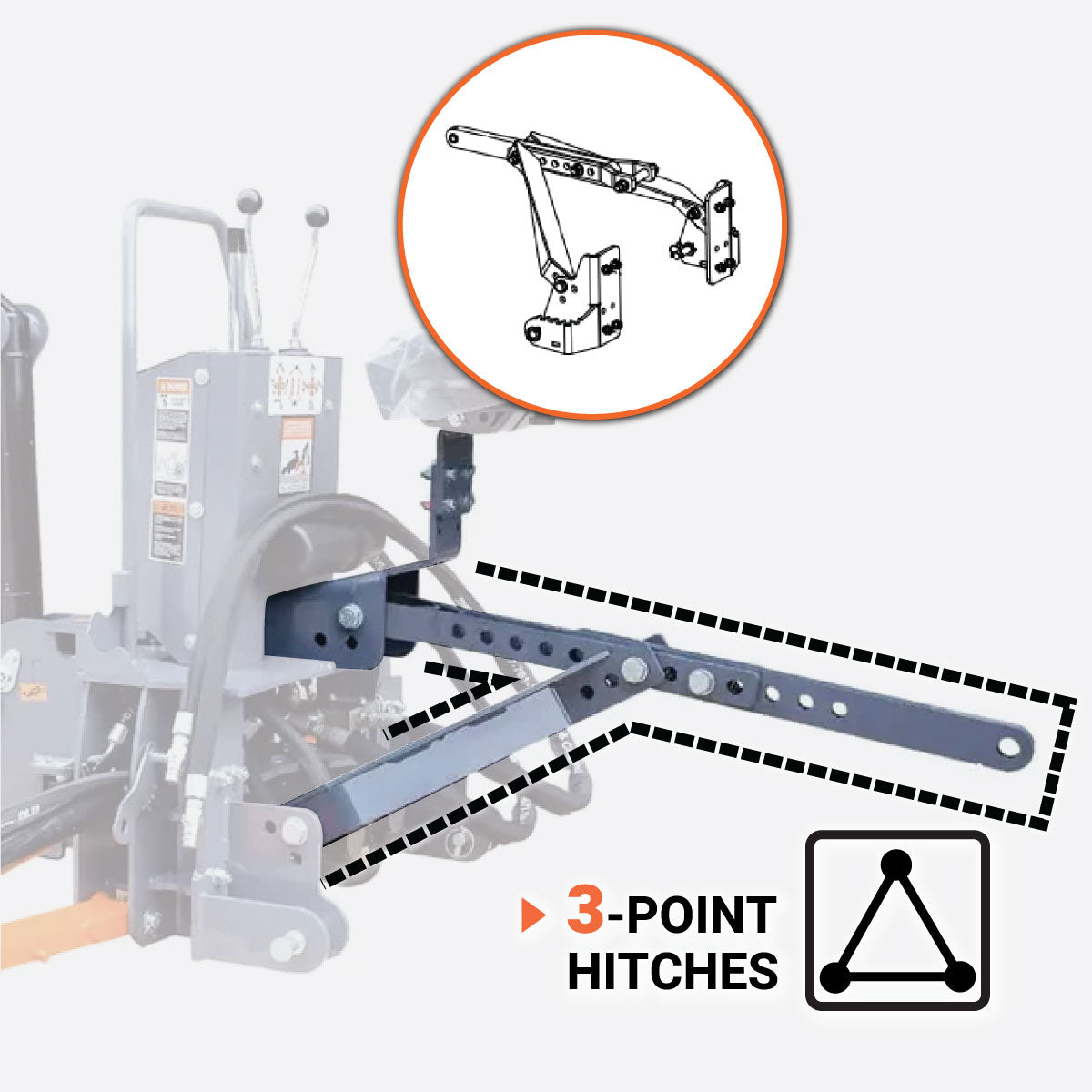

3-point hitch fits most Category 1 tractors for easy attachment
Feature Image

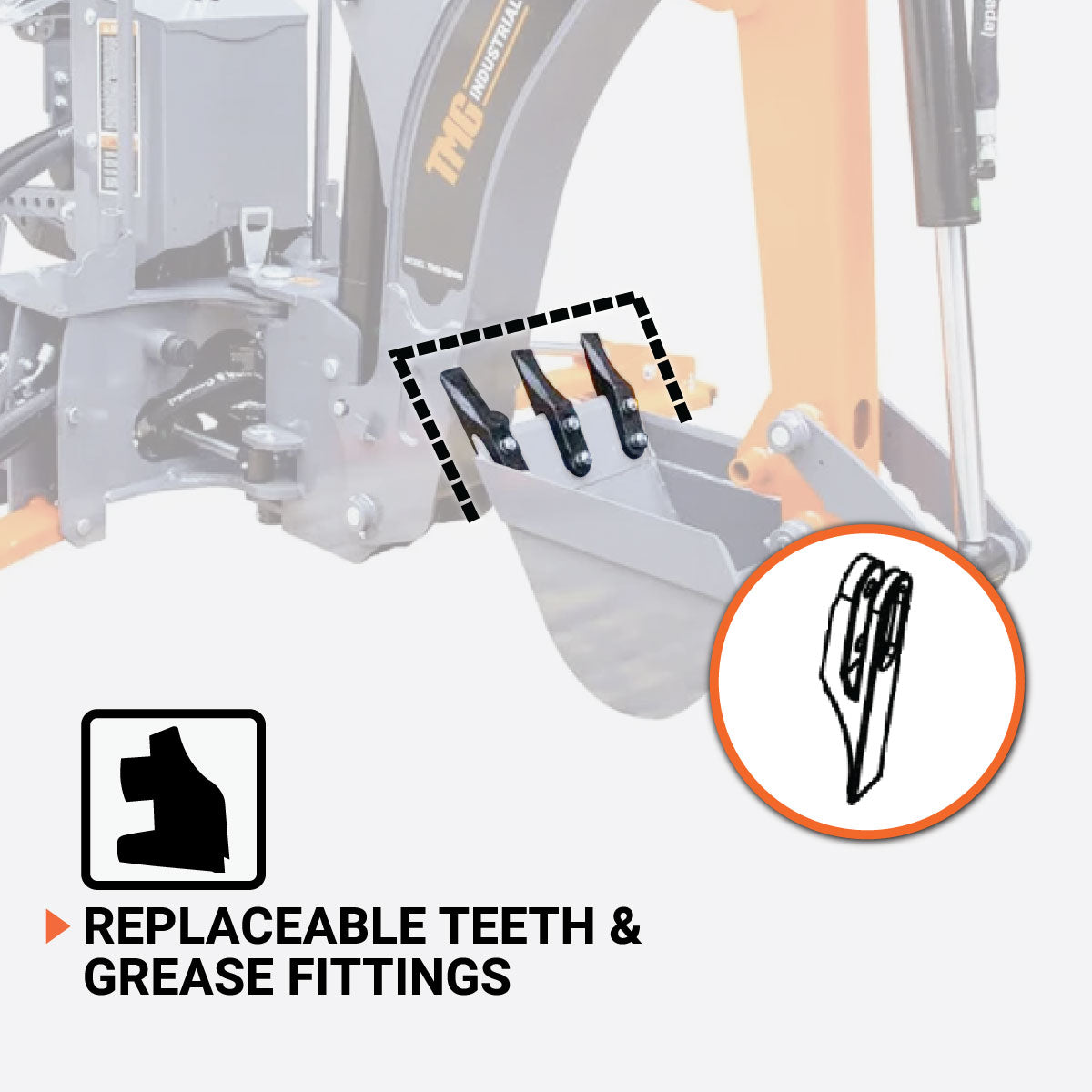

Replaceable teeth and grease fittings allow durable, low-maintenance operation

Specifications icon Specifications

  • Tractor power required: 30 - 60 HP
  • Mounting type: 3-point hitch CAT 1
  • Hydraulic flow: 19 - 50 L/min (5 - 13 GPM)
  • Hydraulic pressure: 16 MPa (2320 PSI)
  • Hydraulic hoses & flat face couplers: Included
  • Hydraulic flat face couplers: 1/2"
  • Maximum digging depth: 2380 mm (92")
  • Maximum working height: 2600 mm (112")
  • Maximum working length: 2900 mm (118")
  • Maximum loading height: 1600 mm (72")
  • Ground clearance: 260 mm (10.2")
  • Bucket size: 305 mm (12")
  • Bucket capacity: 0.014 m³ (0.5 ft³)
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Dipper boom digging force: 930 kg (2050 lb)
  • Bucket digging force: 1440 kg (3175 lb)
  • Simultaneous bucket and boom operation: Yes
  • Stabilizer width (spread): 2400 mm
  • Stabilizer width (transport): 1600 mm
  • Flow divider: Included
  • Mechanical thumb: Available
  • Surface finish: Powder coating
  • Overall dimension: 2420 x 1650 x 1520 mm

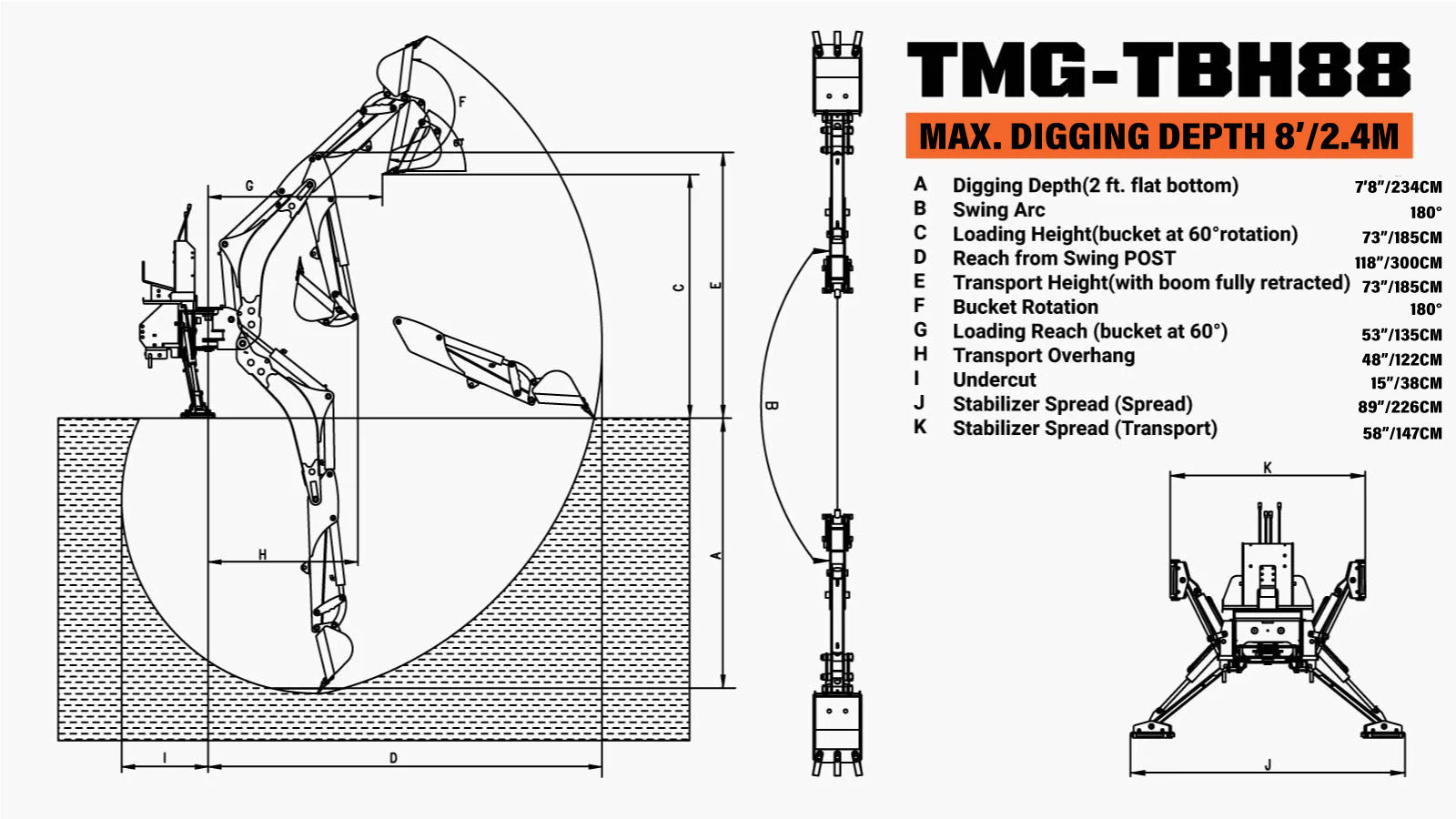

2380 mm (8’) Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation TMG-TBH88-specifications-image

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

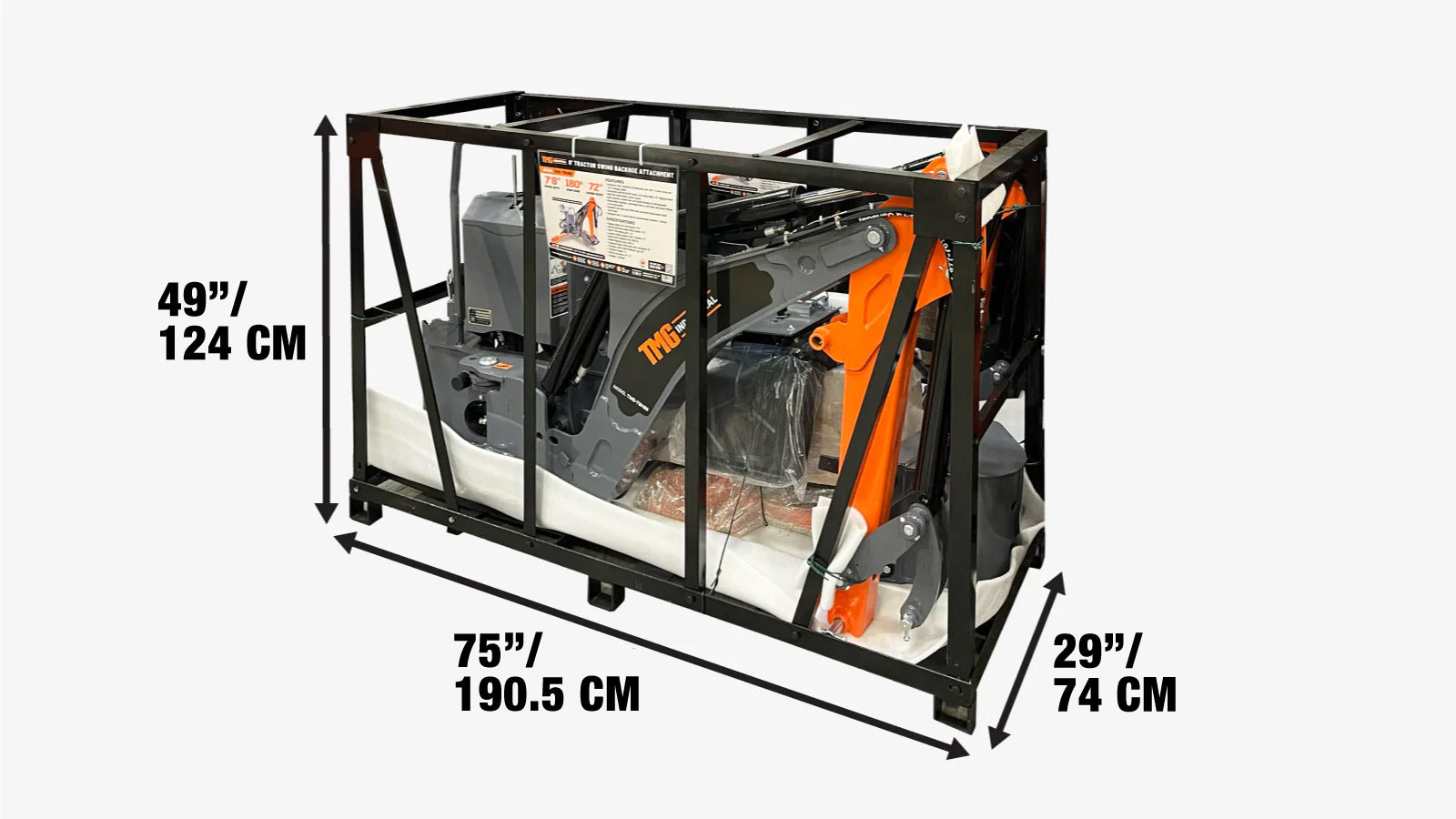

  • This product is packed in a metal crate shipping box.
  • Shipping dimension: 191 x 74 x 125 cm (W x L x H) 75" x 29" x 49"
  • Shipping weight: 515 kg (1135 lb)
Shipping from Rowville,VIC
What happens after you place your order?
2380 mm (8’) Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation TMG-TBH88-shipping-info-image

Product Description icon Product Description

The TMG-TBH88 Tractor Swing Backhoe Attachment is a great tool for all your digging and excavation needs. With a digging depth of 2380 mm (7’8"), it is designed to truly revolutionize your productivity and efficiency on the job. It has a dynamic reach capacity in all directions, allowing you to cover a large area without the hassle of constantly relocating your setup. Compatible with 30 - 60 HP tractors, it comes complete with a 305 mm (12") bucket, making it perfect for tasks like digging ditches, installing sprinkler systems, and landscaping projects.

What sets the TMG-TBH88 apart is its precision-engineered Italian hydraulic control valves, which optimize hydraulic distribution for impeccable timing and work performance. The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, burrowing power, and a full 180° of bucket rotation.

Maintenance is made easy with replaceable bushings, replaceable bolt-on cast teeth, and grease fittings on all pivot points. The stabilizer legs are designed with removable/replaceable rubber street pads to prevent damage to lawns, blacktop and concrete. For tractors not equipped with hydraulic auxiliary system, an optional external self-contained hydraulic pump TMG-TBH90-J is also available for efficient energy transmission and to maximize digging force (sold separately).

TMG Industrial also carries other similar models: TMG-TBH90.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Frequently Asked Questions (FAQ)

  • Q: What tractor power is the TMG-TBH88 compatible with?
    A: It supports 30 – 60 HP tractors.
  • Q: What bucket size is included?
    A: Comes standard with a 305 mm (12") digging bucket.
  • Q: How deep can this backhoe dig?
    A: Maximum digging depth is 2380 mm (92").
  • Q: What is the boom reach?
    A: The boom’s maximum reach is 2900 mm (118").
  • Q: What is the swing and rotation capacity?
    A: Boom swing range is 180°, and bucket rotation is 180°.
  • Q: What are the force ratings (digging / breakout)?
    A: Bucket digging force: 1440 kg (3175 lb). Excavating digging force: 930 kg (2050 lb).
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
