CURRENTLY IN STOCK
TMG-SBH60

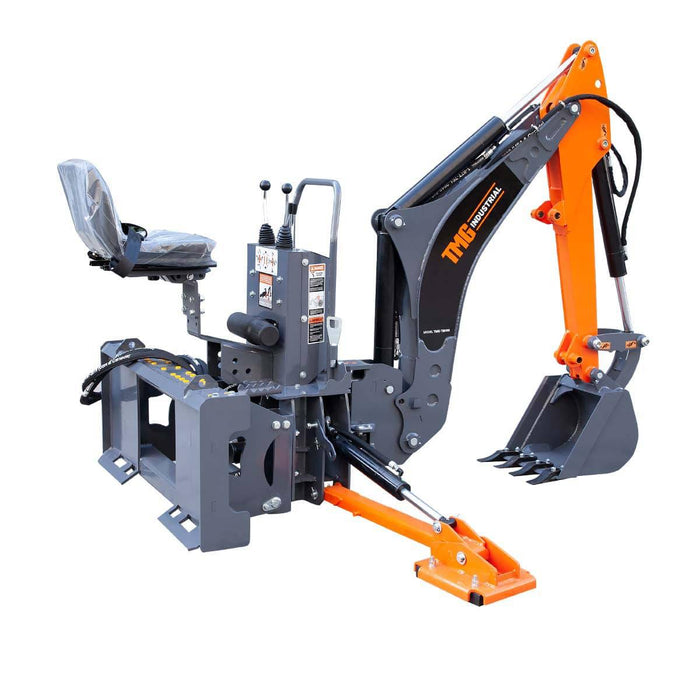

2740 mm Skid Steer Backhoe Attachment, Universal Mount, 180° Boom and Bucket Rotation TMG-SBH60

Product Manual
TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 30-100 HP Skid Steers, Italian Hydraulic Control Valves, 15” Bucket, TMG-SBH60
CURRENTLY IN STOCK
TMG-SBH60
$7,899.00
$7,899.00 - $7,899.00
$7,899.00
$6,799.00
$6,799.00 - $6,799.00
$6,799.00
$7,899.00 Save $1,100.00
$6,799.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image
Compatible with 30 – 100 HP skid steer and includes 380 mm (15") digging bucket
Feature Image

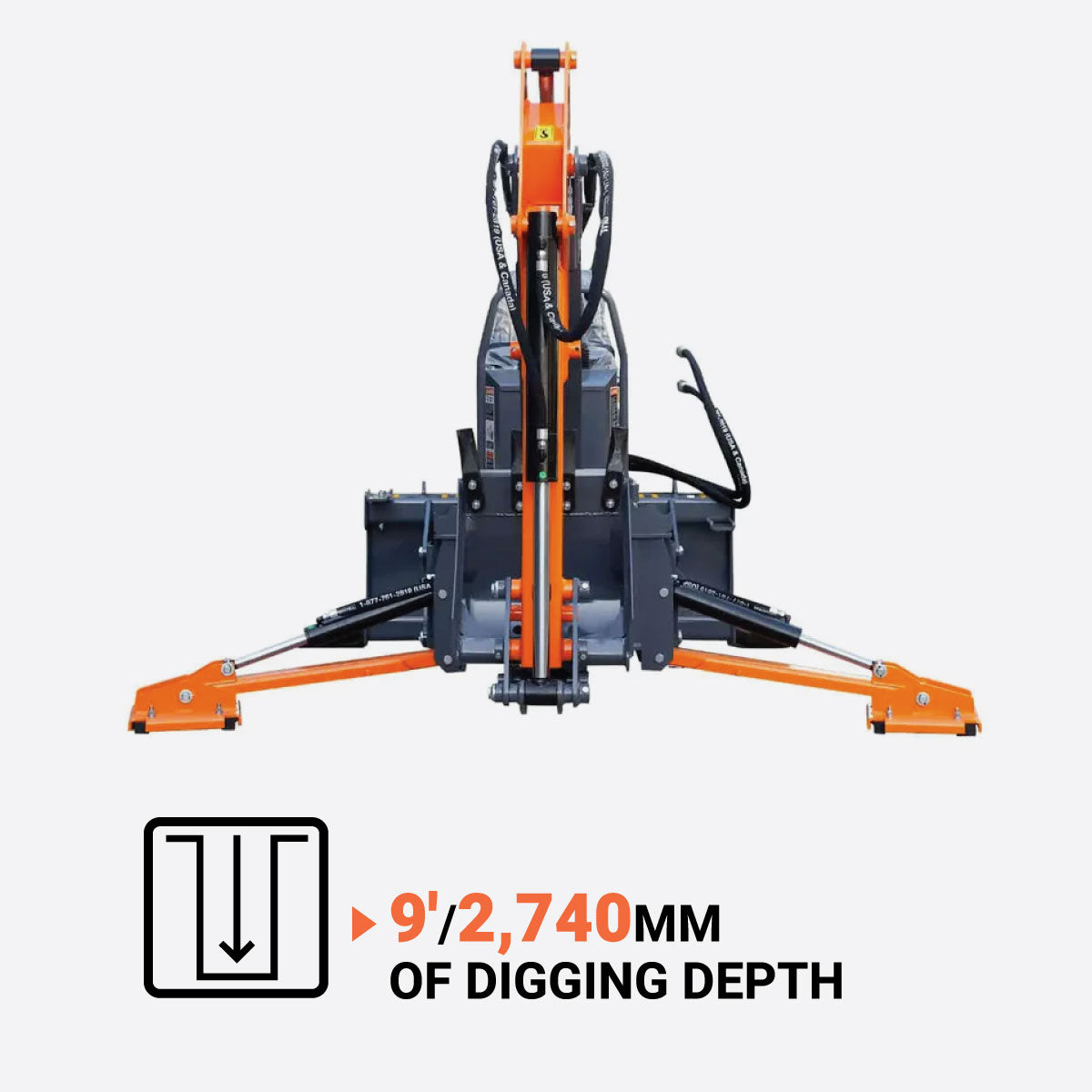

2740 mm (9’) of digging depth for easy access to hard-to-reach areas
Feature Image

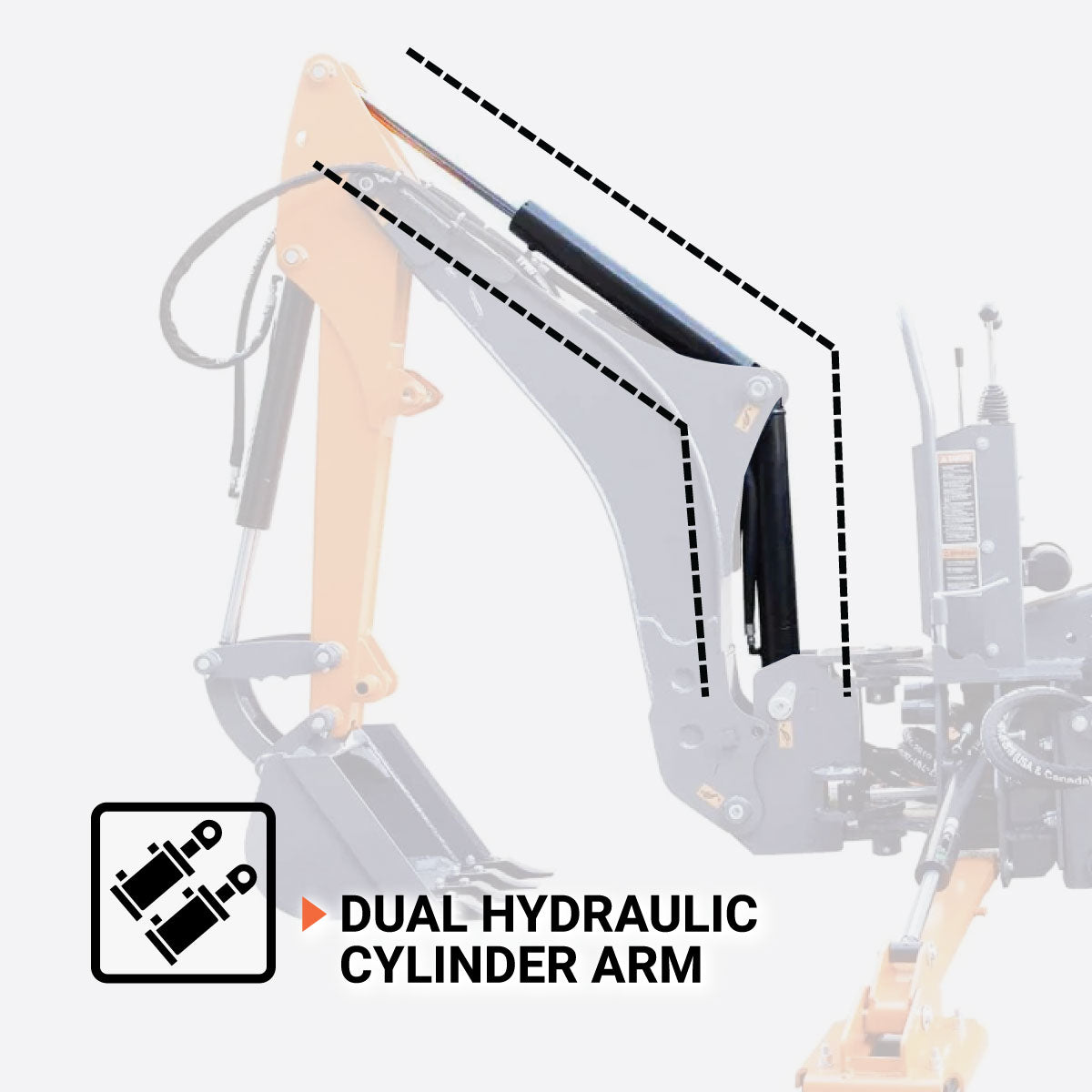

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

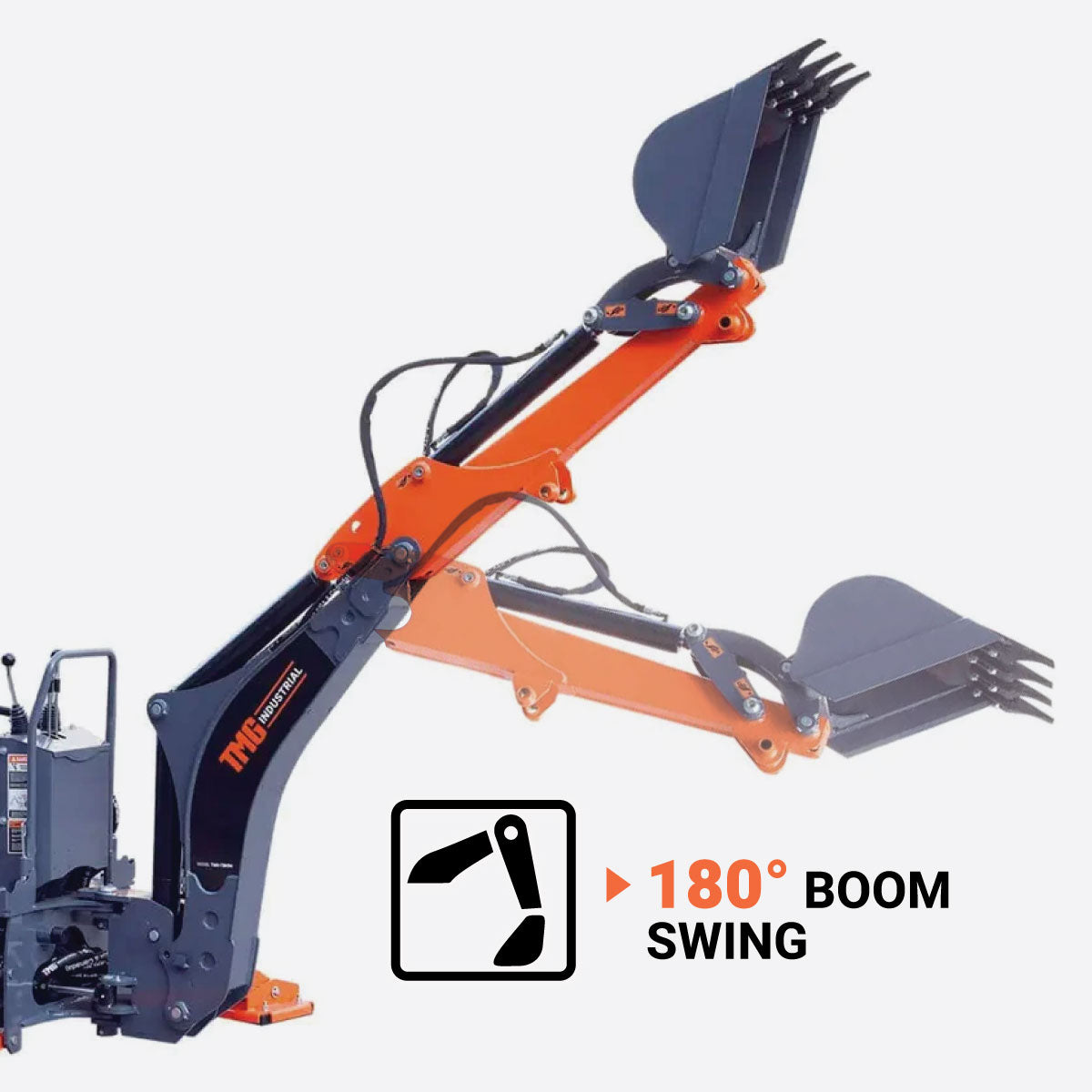

Extensive reach capacity in all directions with 180° of boom swing
Feature Image

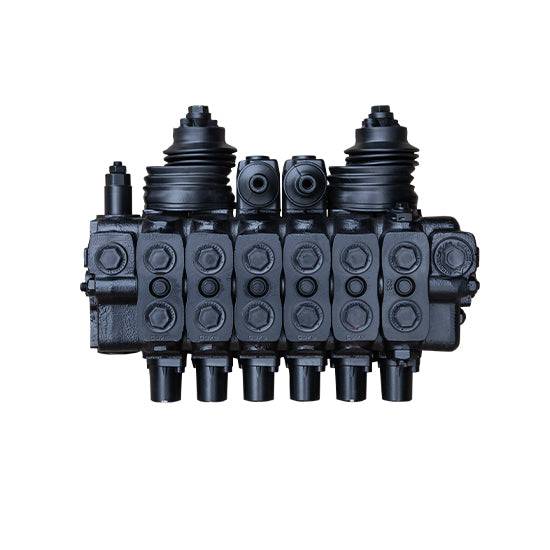

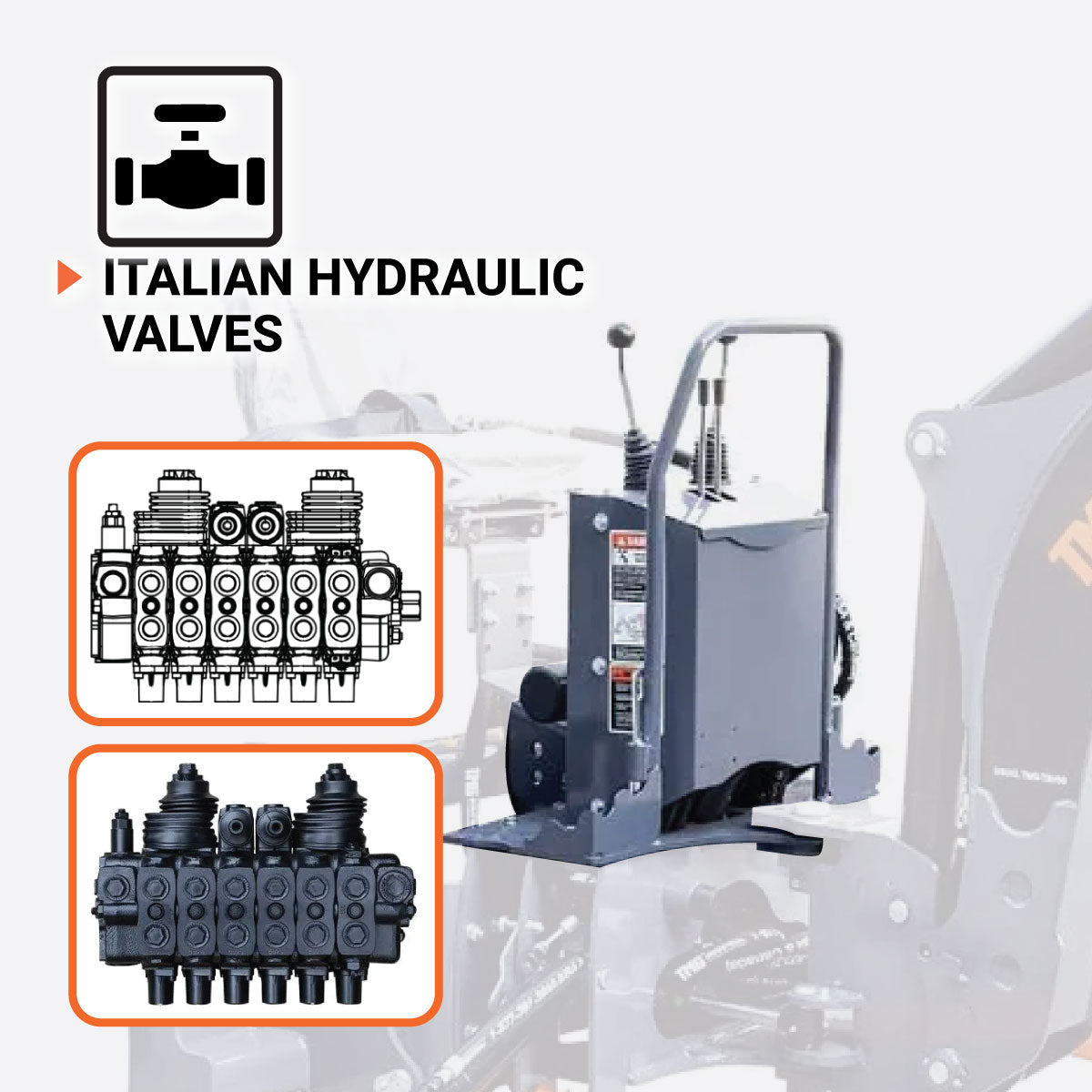

Italian hydraulic control valves finely tuned for impeccable timing and performance
Feature Image

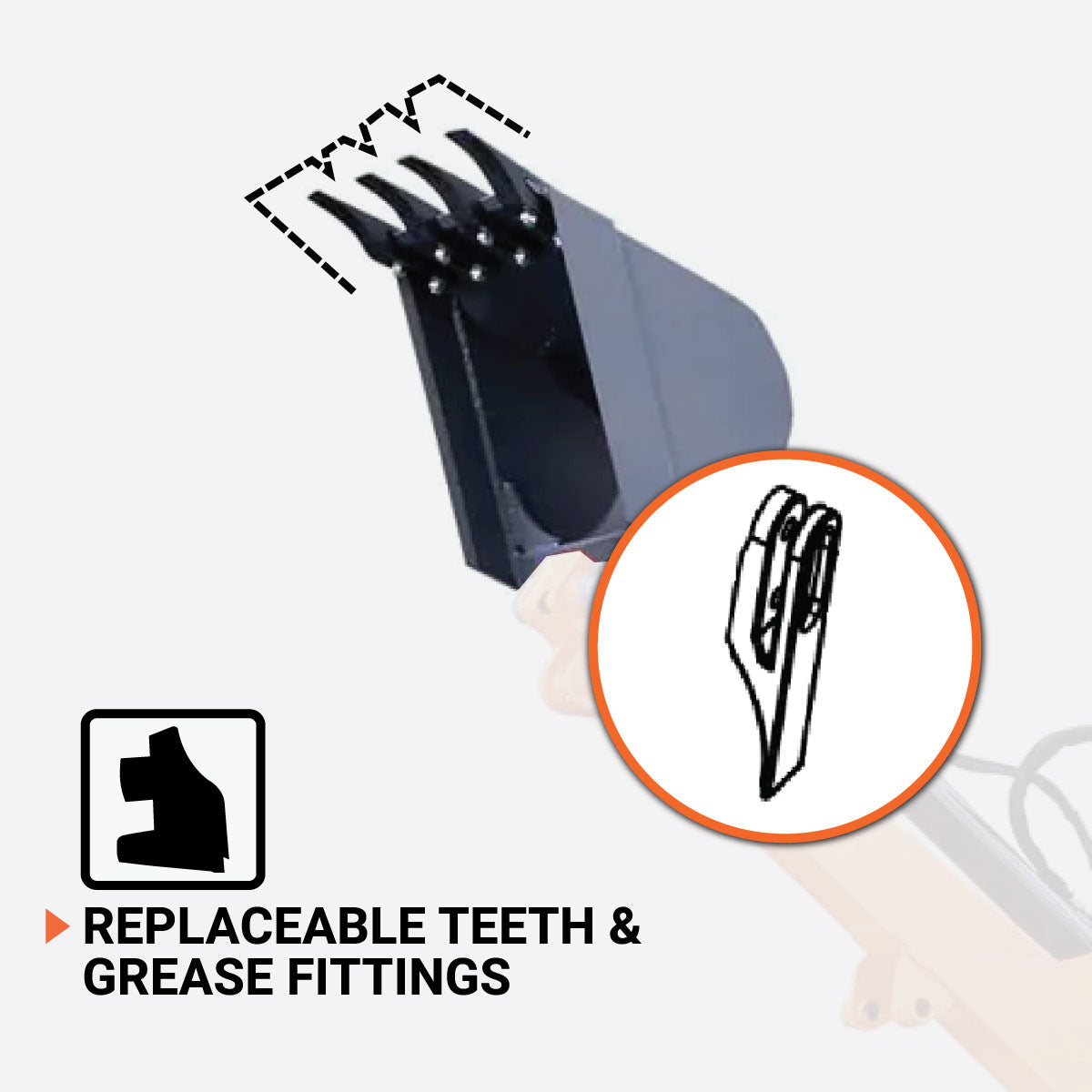

Replaceable teeth and grease fittings allow durable, low-maintenance operation

Specifications icon Specifications

  • Skid Steer Power Required: 30–100 HP
  • Mount Type: Universal skid steer mount
  • Hydraulic Flow Rate: 19–26 L/min
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Spec: 1/2"
  • Number of Hydraulic Hoses: 2
  • Hydraulic Hoses Diameter: DN13
  • Bucket Rotation Degree: 180°
  • Swing Arc: 180°
  • Max. Digging Depth: 2740 mm (9')
  • Max. Working Height: 2120 mm (123")
  • Max. Working Length: 3275 mm (129")
  • Max. Loading Height: 2130 mm (84")
  • Stabilizer Width (Spread): 2360 mm (89")
  • Stabilizer Width (Transport): 1650 mm (58")
  • Ground Clearance: 250–305 mm (10"–12")
  • Bucket Size: 380 mm (15")
  • Bucket Capacity: 0.036 m³ (1.3 cu-ft)
  • Dipper Boom Digging Force: 960 kg (2200 lb)
  • Bucket Digging Force: 1460 kg (3210 lb)
  • Bucket and Boom Dig Simultaneously: Yes
  • Surface Finish: Powder coating
  • Overall Dimensions: 2300 × 1650 × 1700 mm (90.5" × 65" × 67")
  • Net Weight: 548 kg (1210 lb)

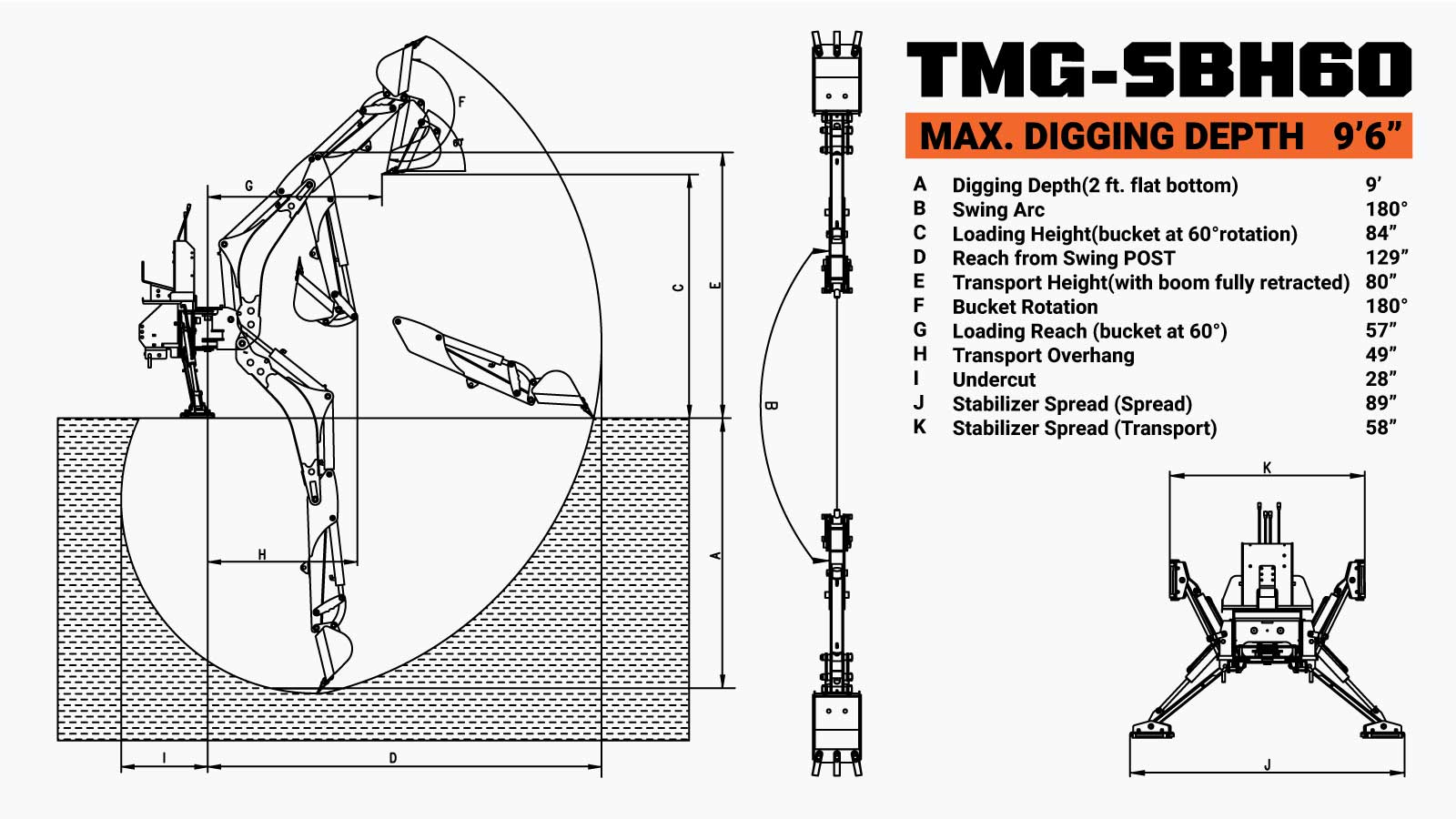

2740 mm Skid Steer Backhoe Attachment, Universal Mount, 180° Boom and Bucket Rotation TMG-SBH60-specifications-image

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

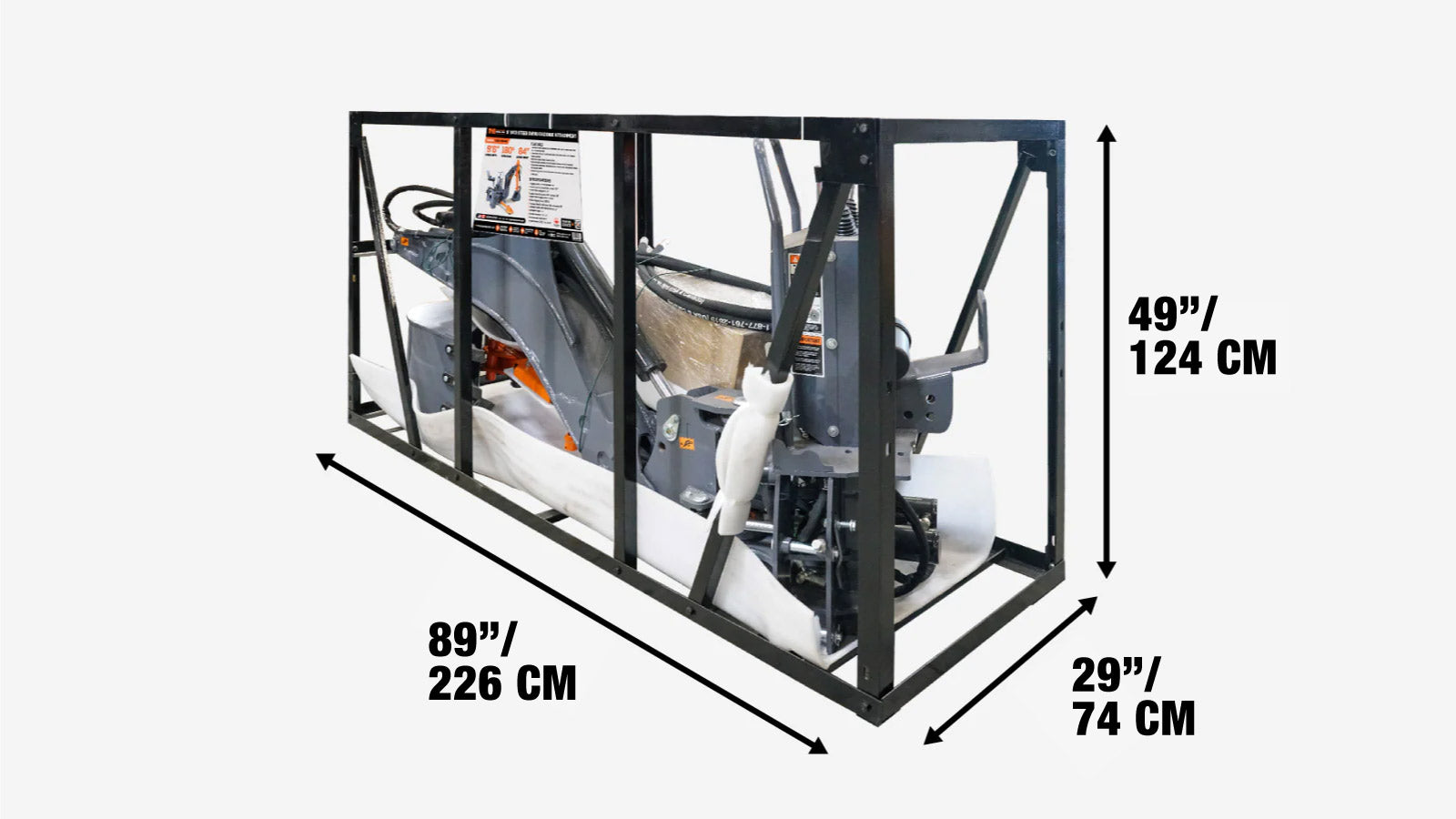

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 89” x 29” x 49” (L x W x H)
  • Shipping weight: 1425 lb
Shipping from Rowville,VIC
What happens after you place your order?
2740 mm Skid Steer Backhoe Attachment, Universal Mount, 180° Boom and Bucket Rotation TMG-SBH60-shipping-info-image

Product Description icon Product Description

The TMG-SBH60 Skid Steer Backhoe Attachment is a great tool for all your digging and excavation needs. With a digging depth of 2740 mm (9’), it is designed to truly revolutionize your productivity and efficiency on the job. It has a dynamic reach capacity in all directions, allowing you to cover a large area without the hassle of constantly relocating your setup. Compatible with 30-100 HP skid steers, it comes complete with a 380 mm (15") bucket, making it perfect for tasks like digging ditches, installing sprinkler systems, and landscaping projects.

What sets the TMG-SBH60 apart is its precision-engineered Italian hydraulic control valves, which optimize hydraulic distribution for impeccable timing and work performance. The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, burrowing power, and a full 180° of bucket rotation.

Maintenance is made simple with replaceable bushings, bolt-on cast teeth, and grease fittings on all pivot points. The removable/replaceable rubber street pads on the stabilizer legs reduce damage to surfaces, while open seat visibility and foldable stabilizers ensure you stay in place and maintain a clear view of your work area at all times.



TMG Industrial also carries other similar models: TMG-SBH55.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What skid steer power is the TMG-SBH60 compatible with?
    A: It supports 30–100 HP skid steers.
  • Q: What bucket size is included?
    A: Comes standard with a 380 mm (15") digging bucket.
  • Q: How deep can this backhoe dig?
    A: Maximum digging depth is 2740 mm (9').
  • Q: What is the boom reach?
    A: The boom’s maximum reach is 3275 mm (129").
  • Q: What is the swing and rotation capacity?
    A: Boom swing range is 180°, and bucket rotation is 180°.
  • Q: What are the force ratings (digging / breakout)?
    A: Bucket digging force: 1460 kg (3210 lb). Excavating digging force: 960 kg (2200 lb).
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty covering defects in materials and workmanship. Customer support and spare parts are also available.
