CURRENTLY IN STOCK
TMG-TMB90

2260mm (89") Forestry Brush Mulcher, 36 WIDIA Cutting Teeth, For 70 - 130 HP Tractors, TMG-TMB90

Product Manual
TMG Industrial 90” Forestry Brush Mulcher, Category 2 Hookup, Widia Cutting Teeth, 70-130 HP Tractors, 3-PTO Shaft Included, TMG-TMB90
CURRENTLY IN STOCK
TMG-TMB90
$19,999.00
$19,999.00 - $19,999.00
$19,999.00
$17,999.00
$17,999.00 - $17,999.00
$17,999.00
$19,999.00 Save $2,000.00
$17,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 1 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

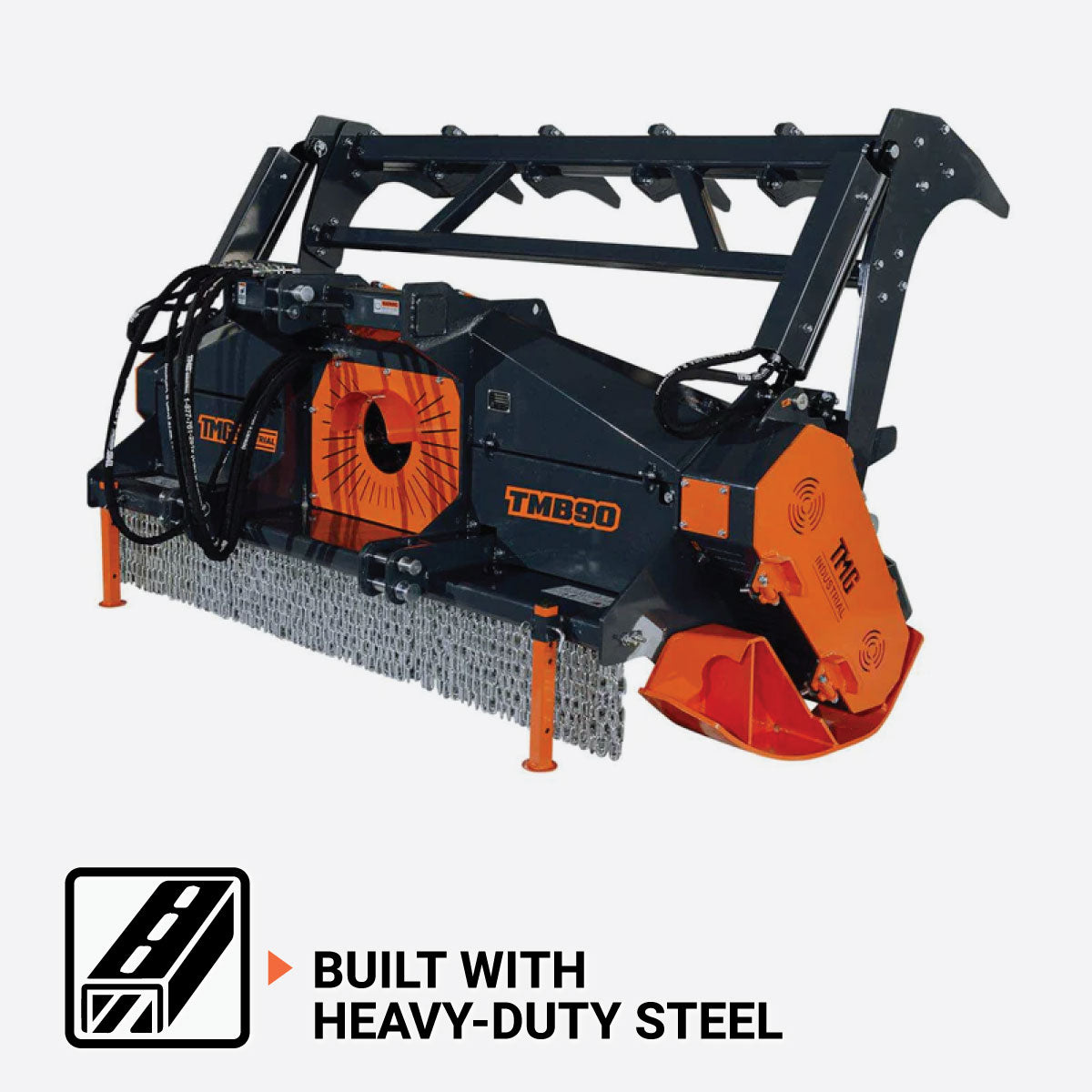

Built with heavy-duty steel to withstand the toughest conditions
Feature Image

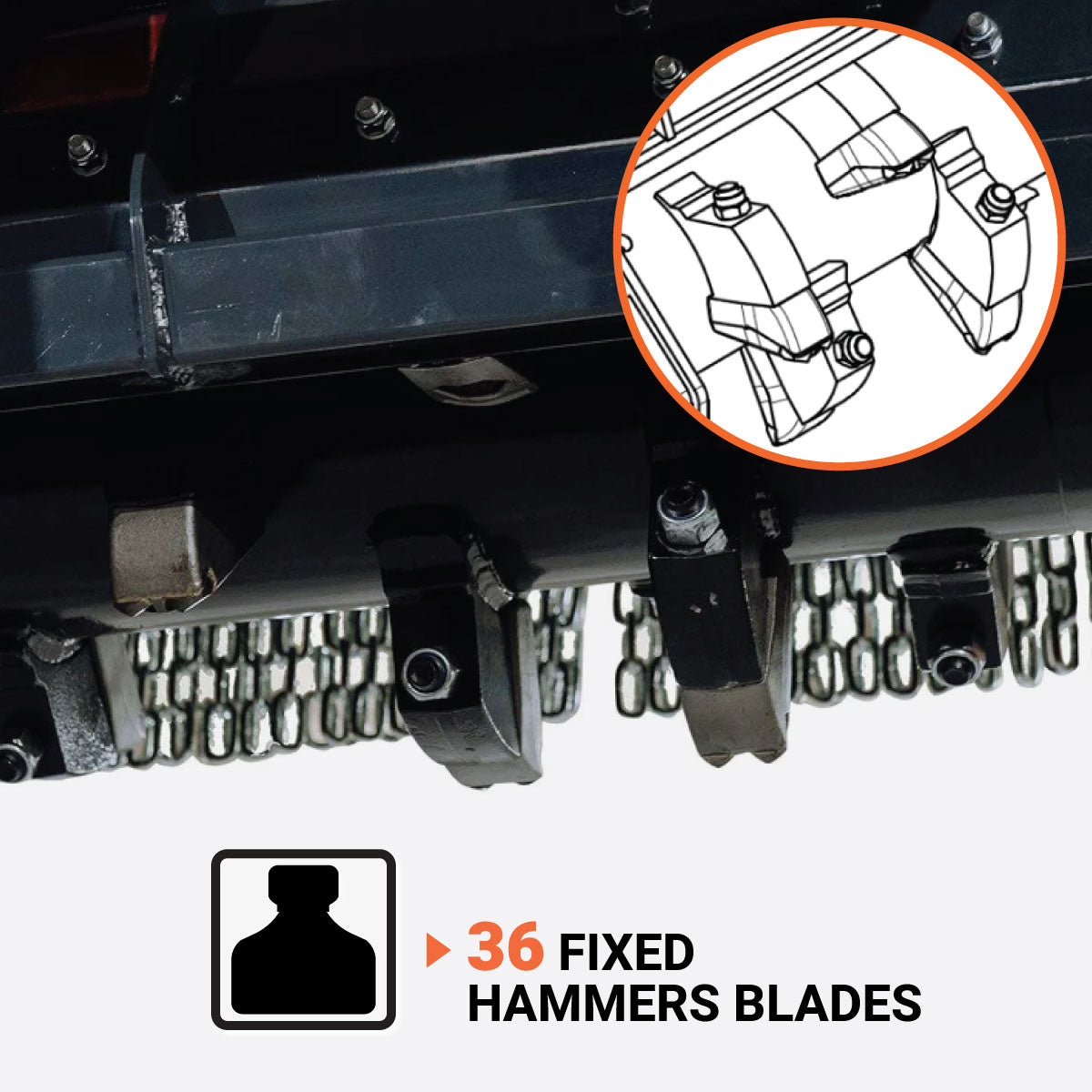

Equipped with 36 fixed hammers blades
Feature Image

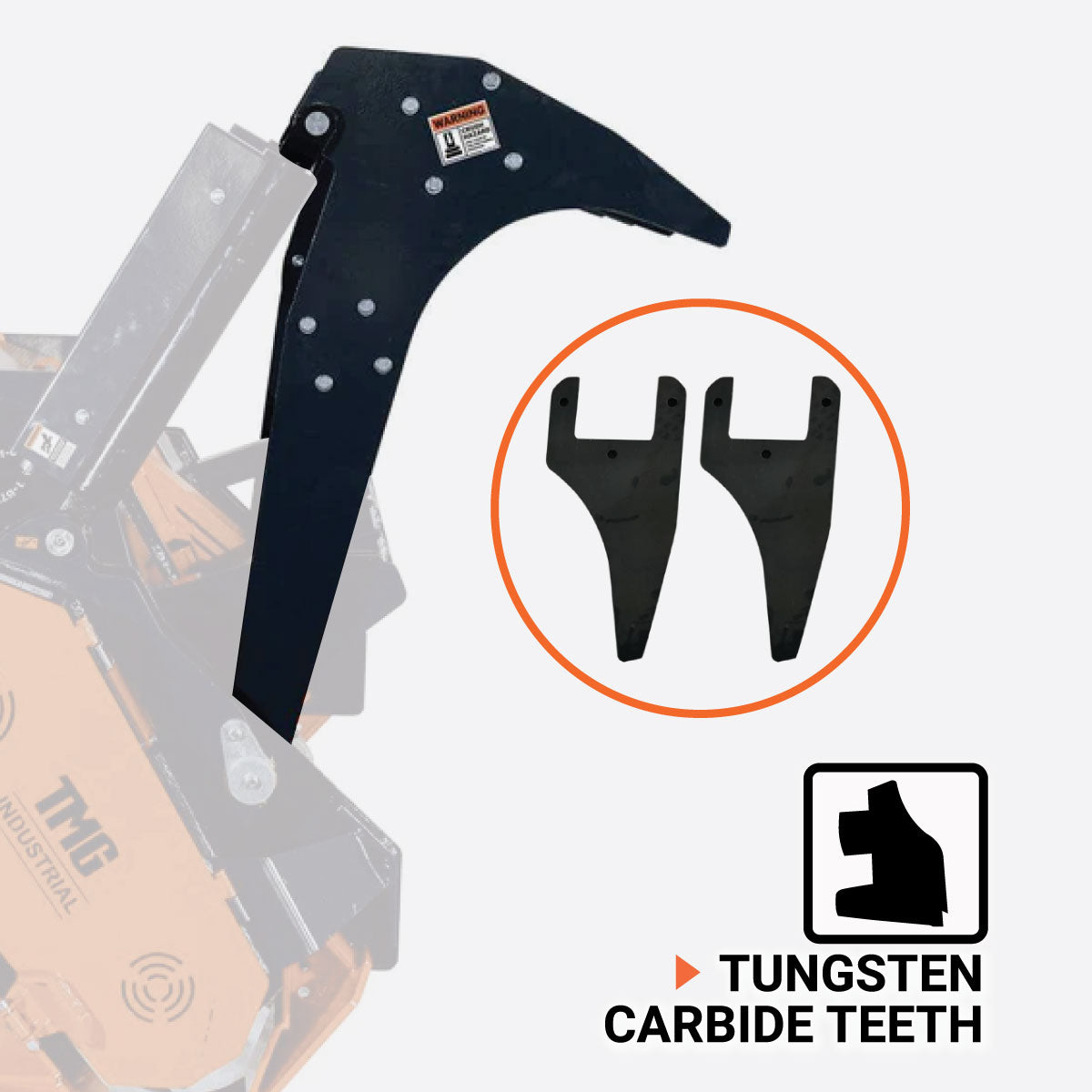

Tungsten carbide steel teeth for robust grinding
Feature Image

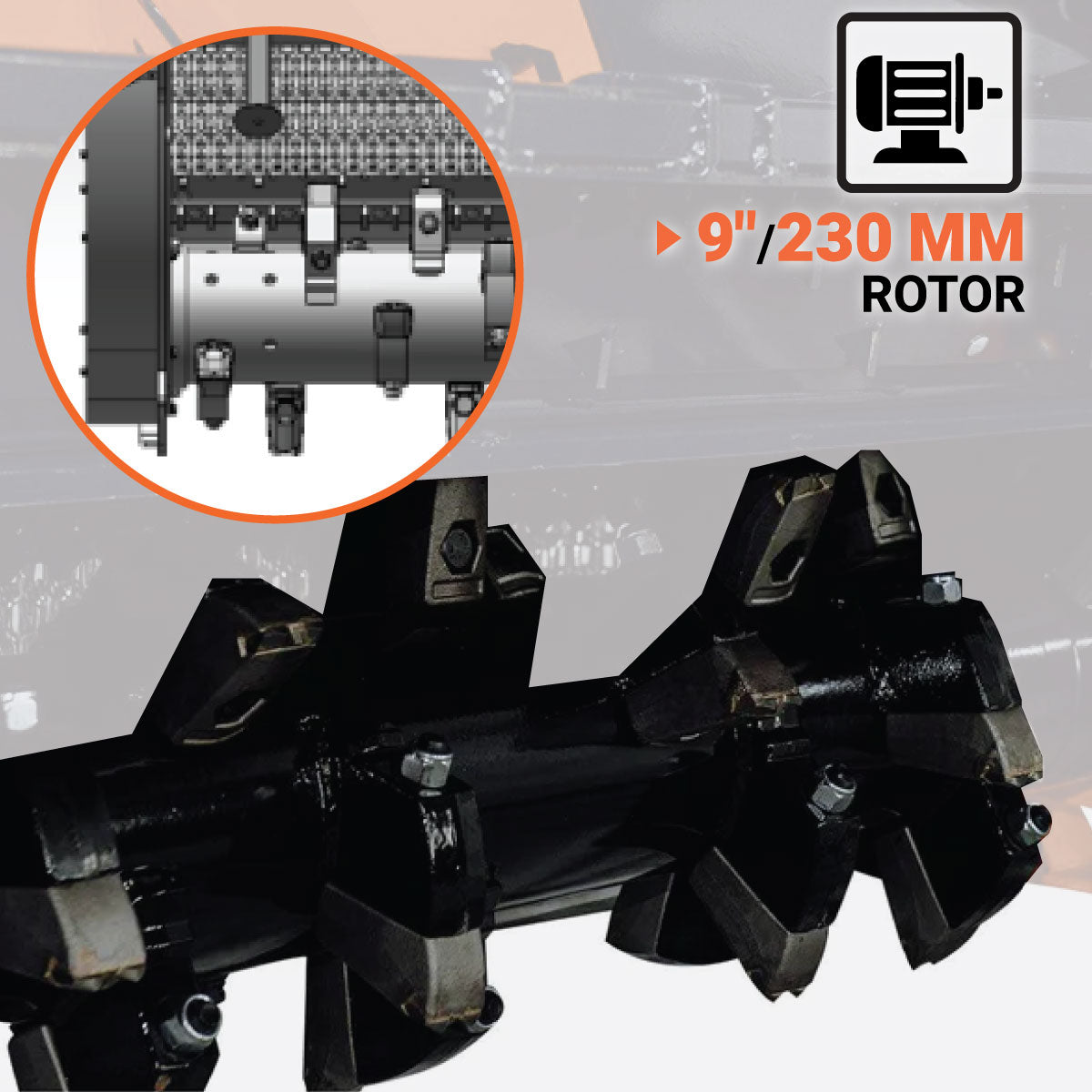

230 mm (9″) diameter rotor for powerful operation
Feature Image

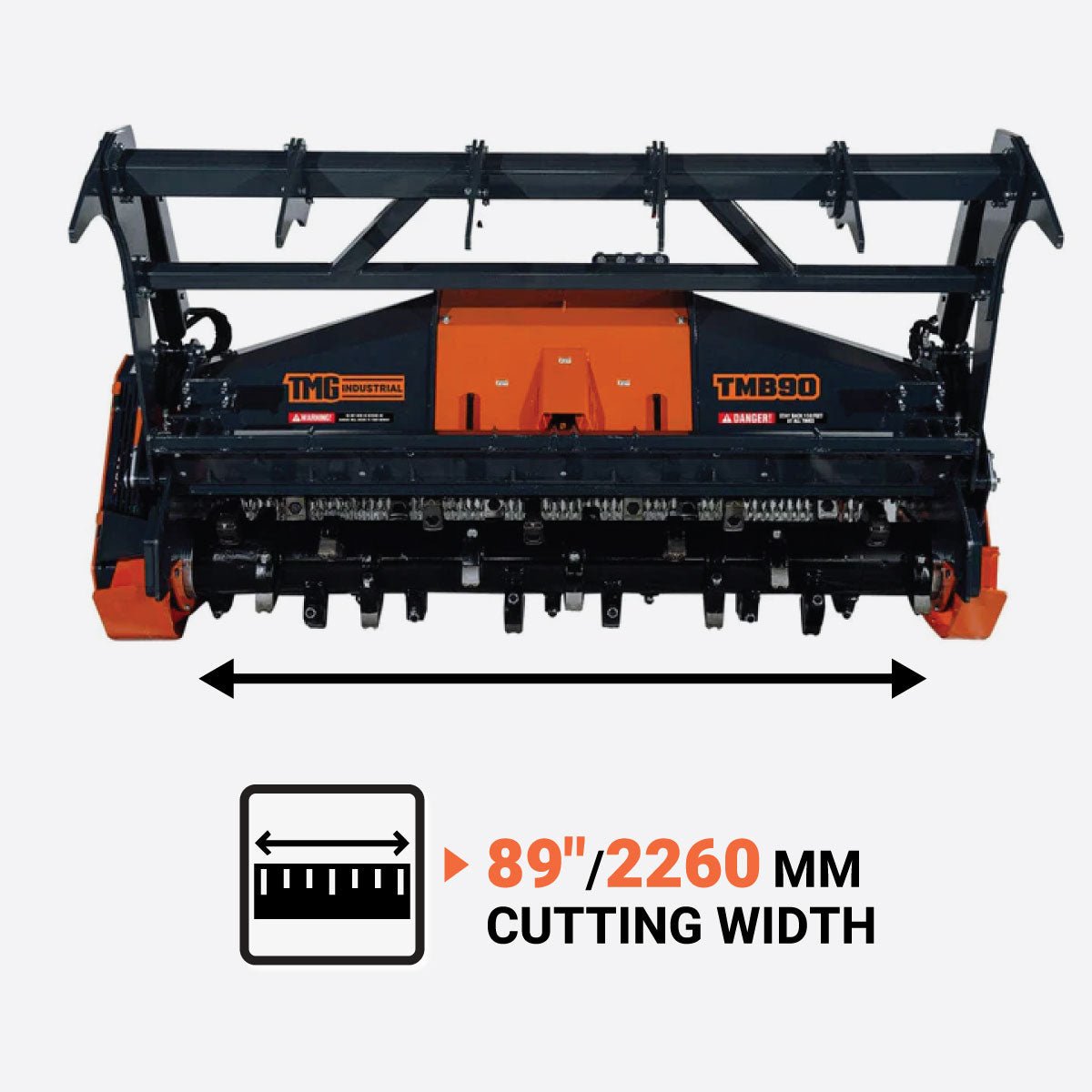

2260 mm (89″) cutting width to cover more ground efficiently
Feature Image

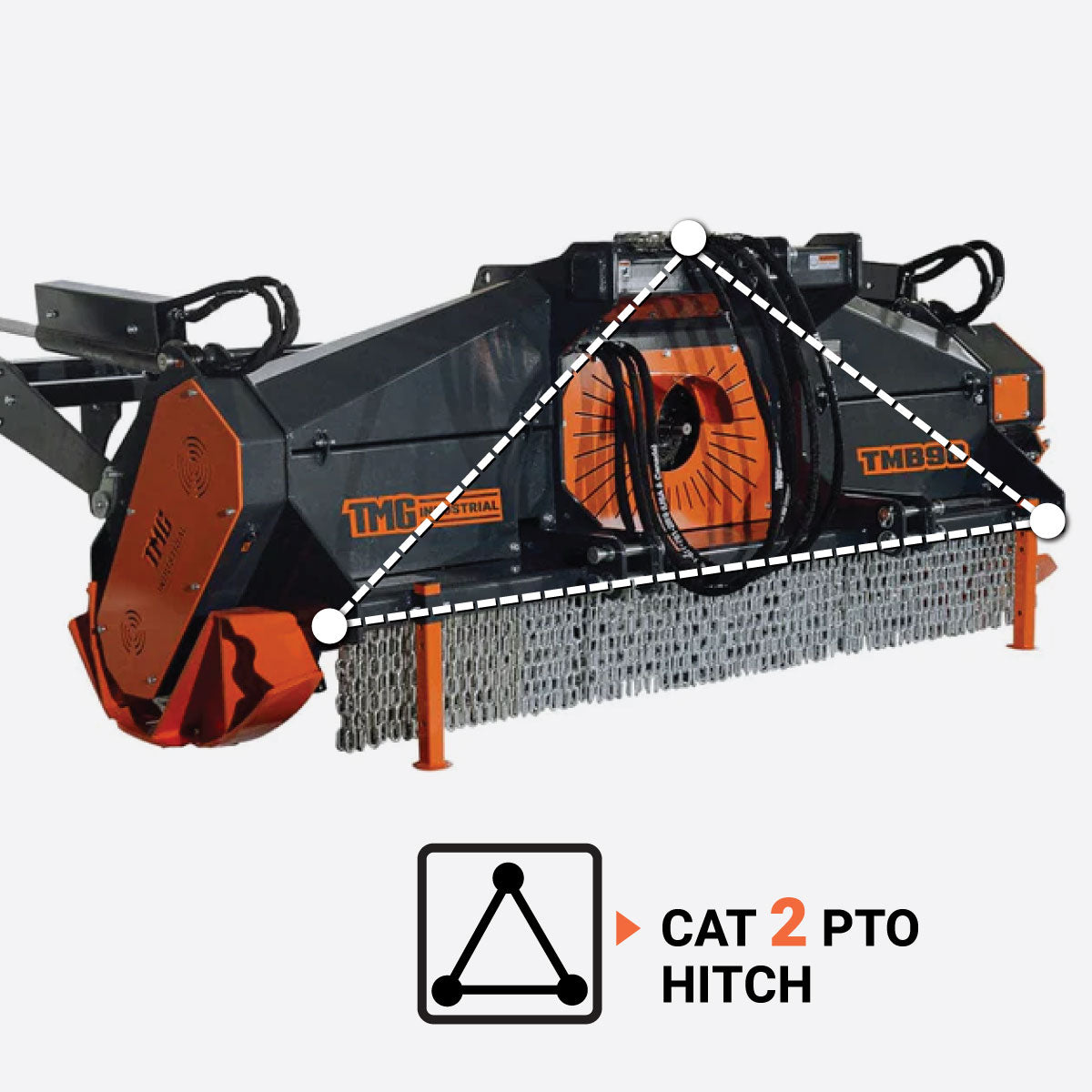

3-point hitches PTO (category 2) for easy attachment

Specifications icon Specifications

  • Working Width: 2260 mm (89″)
  • Working Depth: -70 mm, -30 mm, +10 mm
  • Tractor Power Required: 70–130 HP
  • Mounting: 3-Point Hitch CAT 2 & 3N
  • PTO Shaft: Yes, 6 splines (adapter required for 21 splines tractor)
  • PTO Shaft Model: 07-1000 with safety pin
  • PTO Shaft Speed: 1000 RPM
  • PTO Shaft Length: 1000 mm
  • Hydraulic Flat Face Coupler Size: G 1/2"
  • Number of Hydraulic Hoses: 4
  • Max. Shredding Diameter: 254 mm (10″)
  • Rotor Diameter: 230 mm (9″)
  • Rotor Diameter with Fixed Hammers: 457 mm (18″)
  • Rotor Thickness: 20 mm (3/4″)
  • Number of Teeth: 36
  • Teeth Material: WIDIA / 40CrMo + Tungsten Carbide
  • Thickness of Mower Deck: 6 mm
  • Thickness of Side Skid: 13 mm
  • Thickness of Pushing Bar: 25 mm
  • Number of Belts: 7
  • Belt Model: V Belt XPB1540
  • Finish: Powder-coated

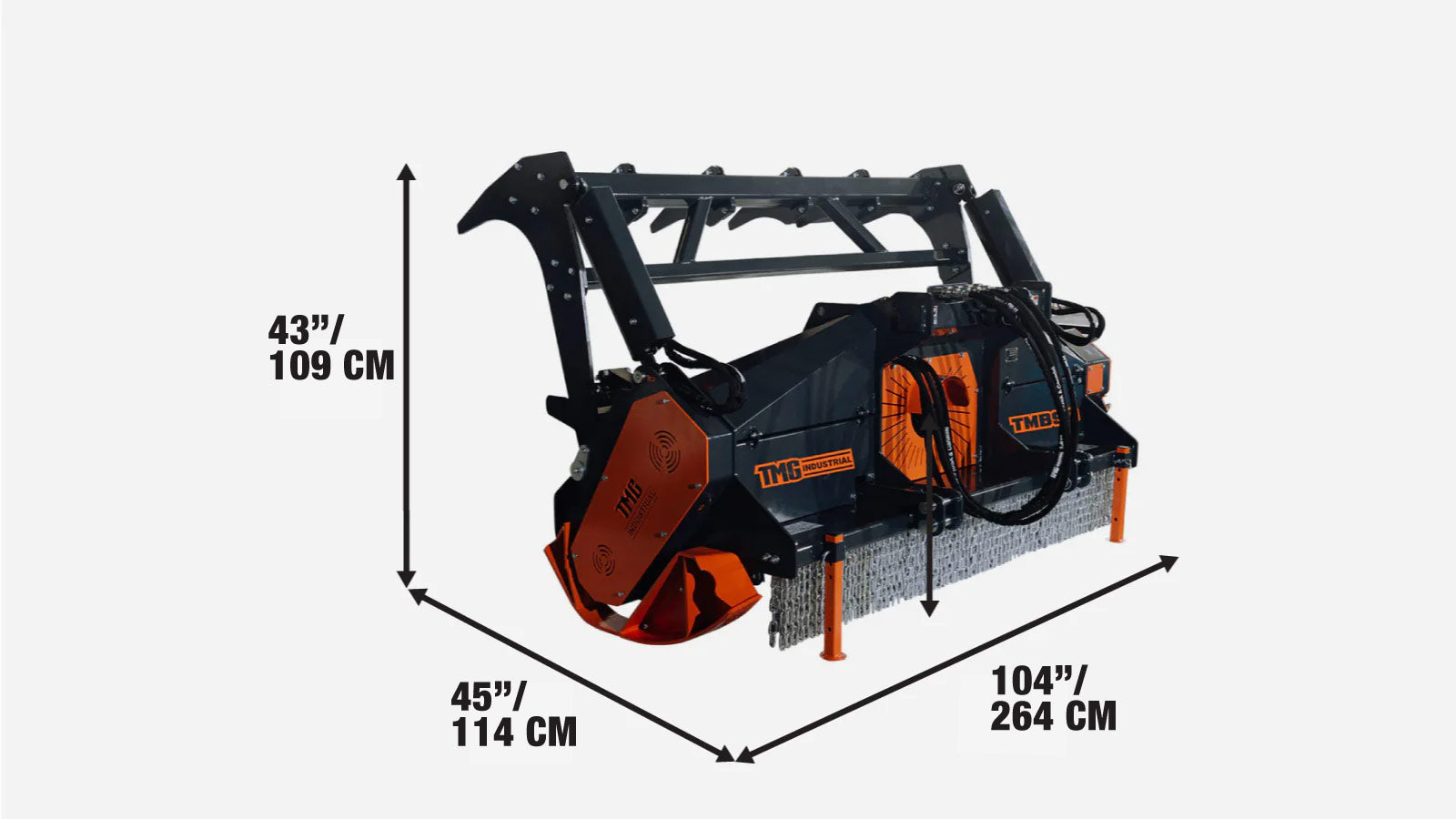

  • Overall Dimensions (L x W x H): 2642 x 1143 x 1092 mm (104″ x 45″ x 43″)
  • Net Weight: 1668 kg (3677 lb)
2260mm (89

Shipping Information icon Shipping Information

Your order will be shipped from our main warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

  • This product is packed in a metal crate shipping box
  • Shipping dimensions (L × W × H): 264 cm × 114 cm × 109 cm / 104" × 45" × 43"
  • Shipping weight: 1744 kg (3845 lb.)
Shipping from Rowville,VIC
What happens after you place your order?
2260mm (89

Product Description icon Product Description

The TMG-TMB90 Forestry Brush Mulcher is engineered for professional land clearing and forestry applications. With its 2260 mm (89") working width and 36 WIDIA cutting teeth, it delivers efficient mulching of dense brush and small trees. The mulcher is compatible with 70 - 130 HP tractors and features a Category 2 hitch for easy attachment.

TMG Industrial also carries other models of forestry brush mulcher: TMG-TMB72.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What is the recommended tractor horsepower for the TMG-TMB90?
    A: The TMG-TMB90 is compatible with tractors ranging from 70 to 130 HP.
  • Q: What is the working width of the mulcher?
    A: The mulcher offers a working width of 2260 mm (89″), allowing for efficient coverage.
  • Q: What type of cutting teeth does the mulcher use?
    A: The mulcher is equipped with 36 fixed hammers made of 40CrMo steel with tungsten carbide, known as WIDIA cutting teeth, for durability and effective grinding.
  • Q: What is the rotor diameter and shaft thickness?
    A: The mulcher features a 230 mm (9″) diameter rotor with a 20 mm (3/4″) thick shaft for powerful operation.
  • Q: Is the PTO shaft included with the mulcher?
    A: Yes, the TMG-TMB90 comes with a 1000 RPM PTO shaft included for convenient connection to your tractor.
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
