CURRENTLY IN STOCK
TMG-ECP21

40 kN Hydraulic Plate Compactor for 2–4 Ton Mini Excavators, Quick Change Lugging Mount, TMG-ECP21

Product Manual

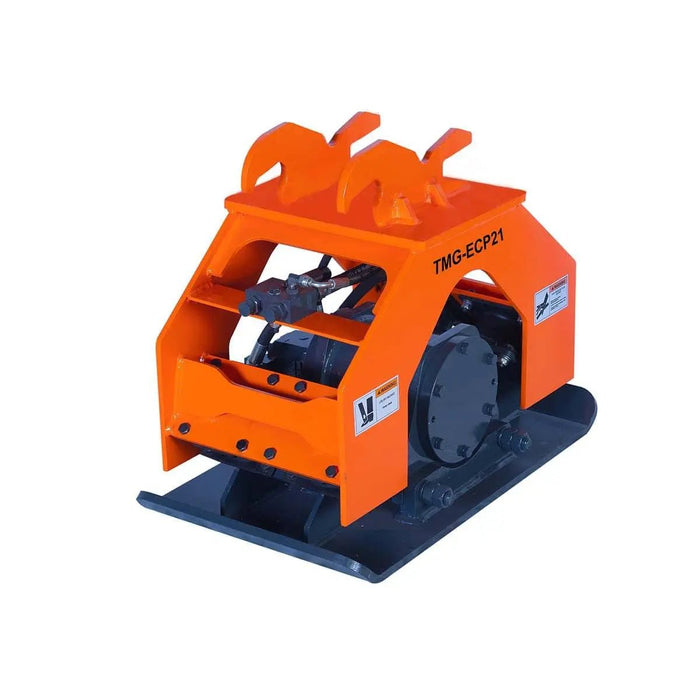

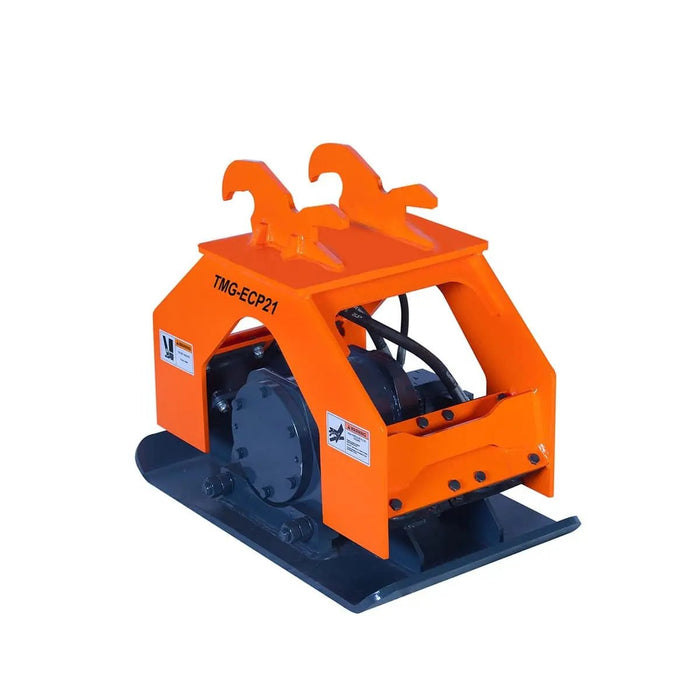

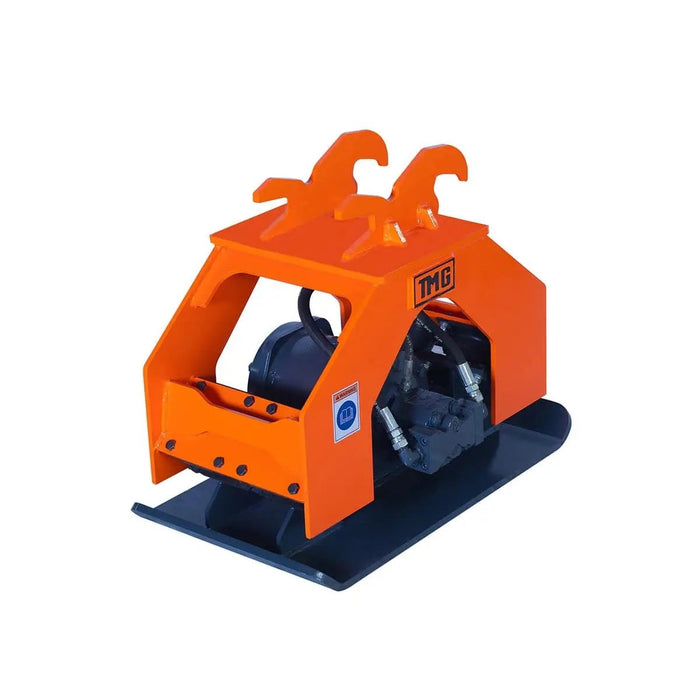

TMG Industrial 8,800-lbf Hydraulic Plate Compactor, 2-4 Ton Excavator Weight, 19” Compact Capacity, TMG-ECP21
CURRENTLY IN STOCK
TMG-ECP21
$3,199.00
$3,199.00 - $3,199.00
$3,199.00
$2,899.00
$2,899.00 - $2,899.00
$2,899.00
$3,199.00 Save $300.00
$2,899.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

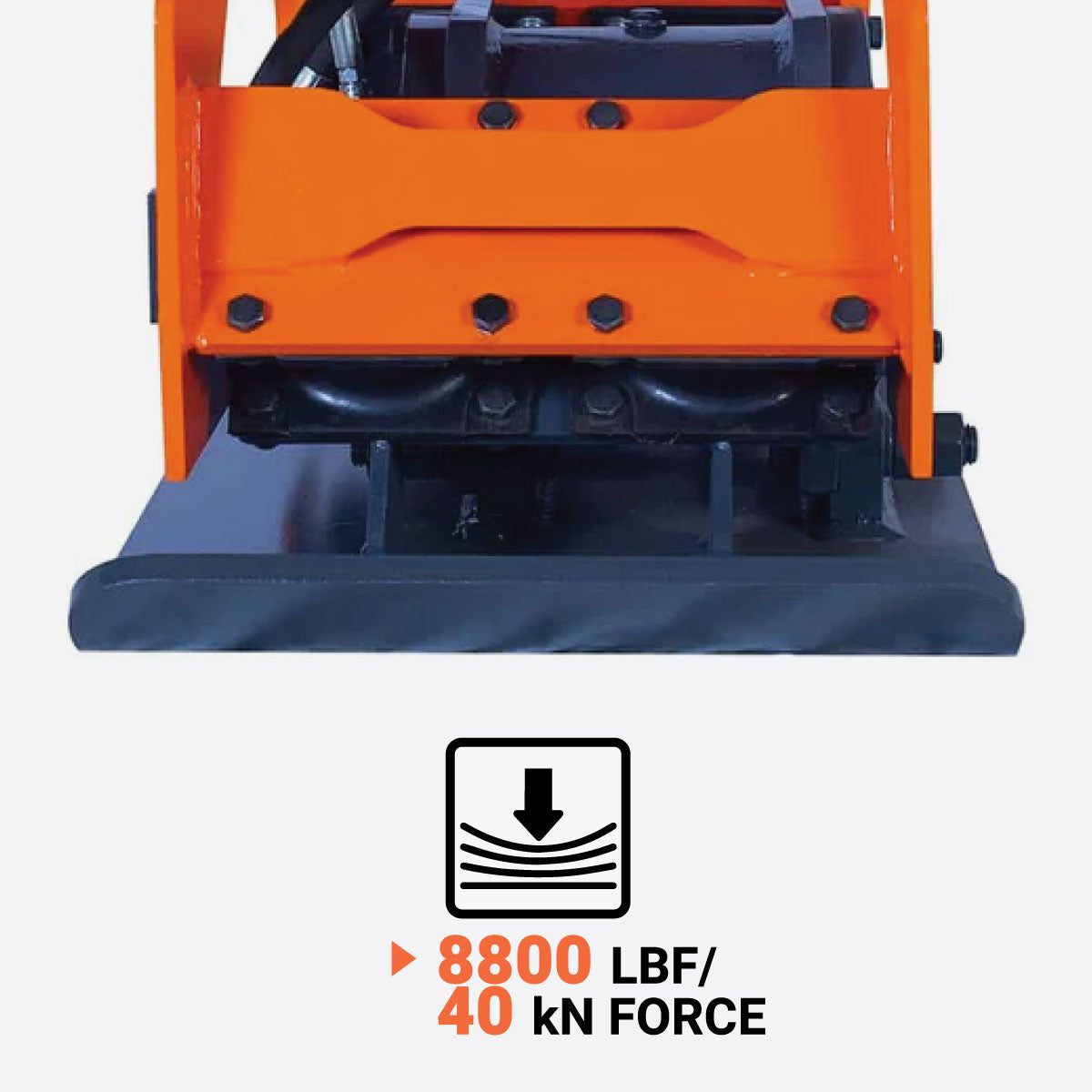

Delivers 40 kN of impulse force for effective soil compaction
Feature Image

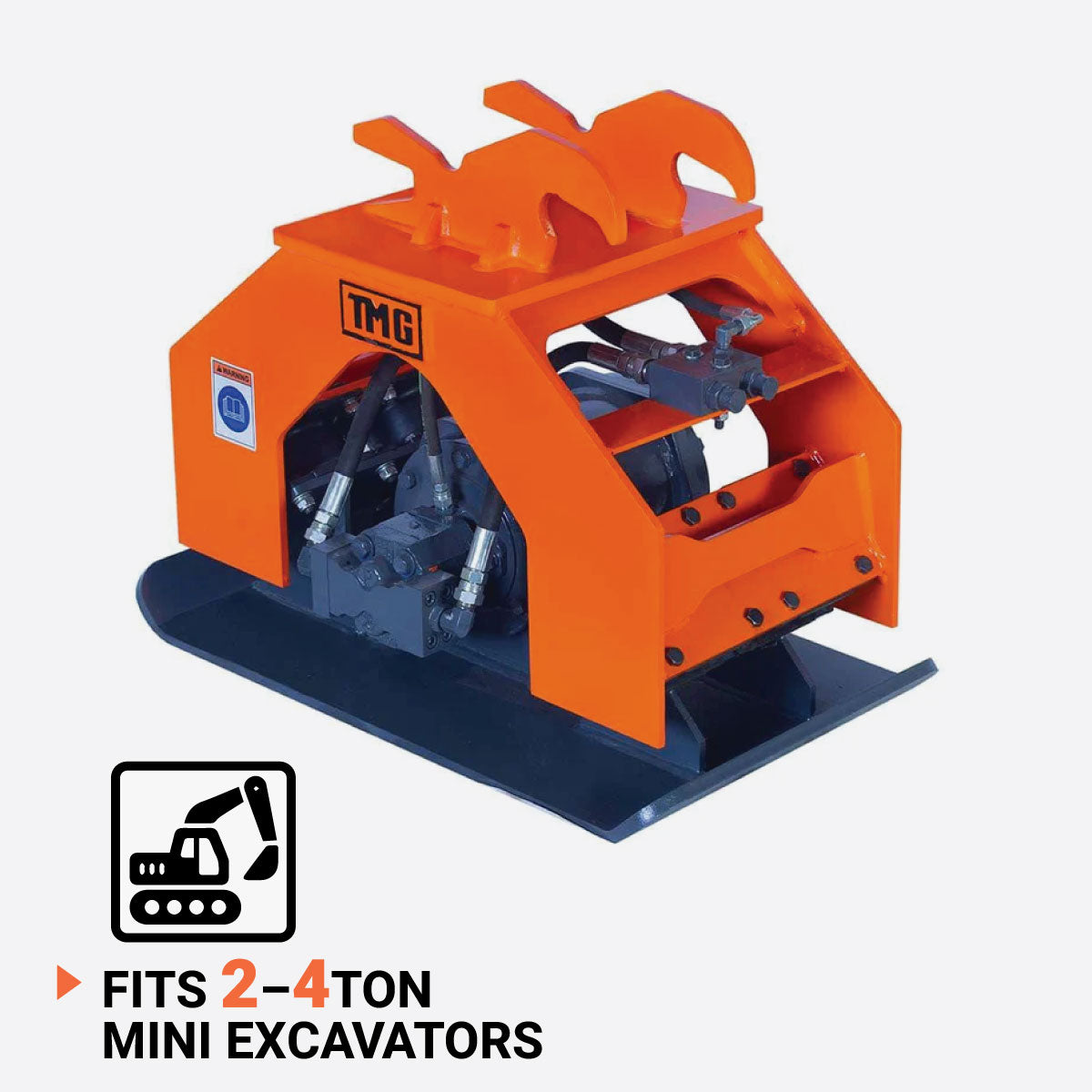

Designed for commonly used 2–4 ton mini excavators
Feature Image

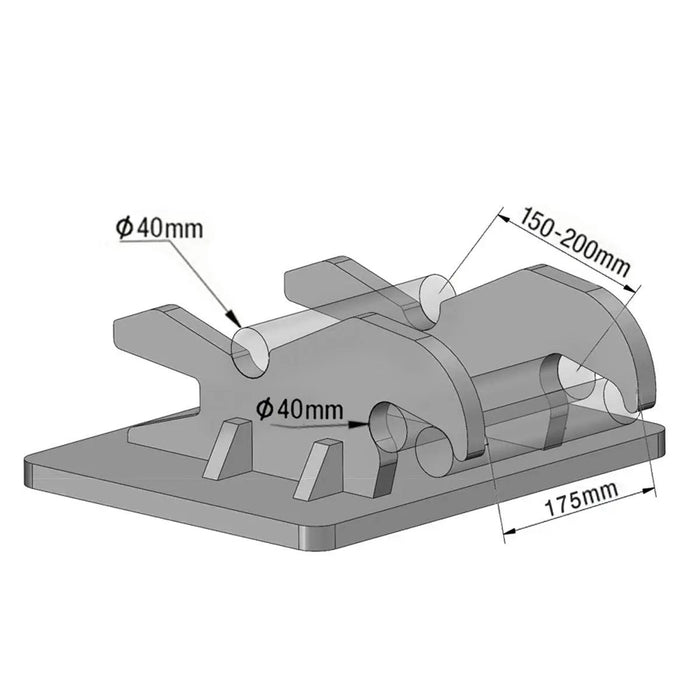

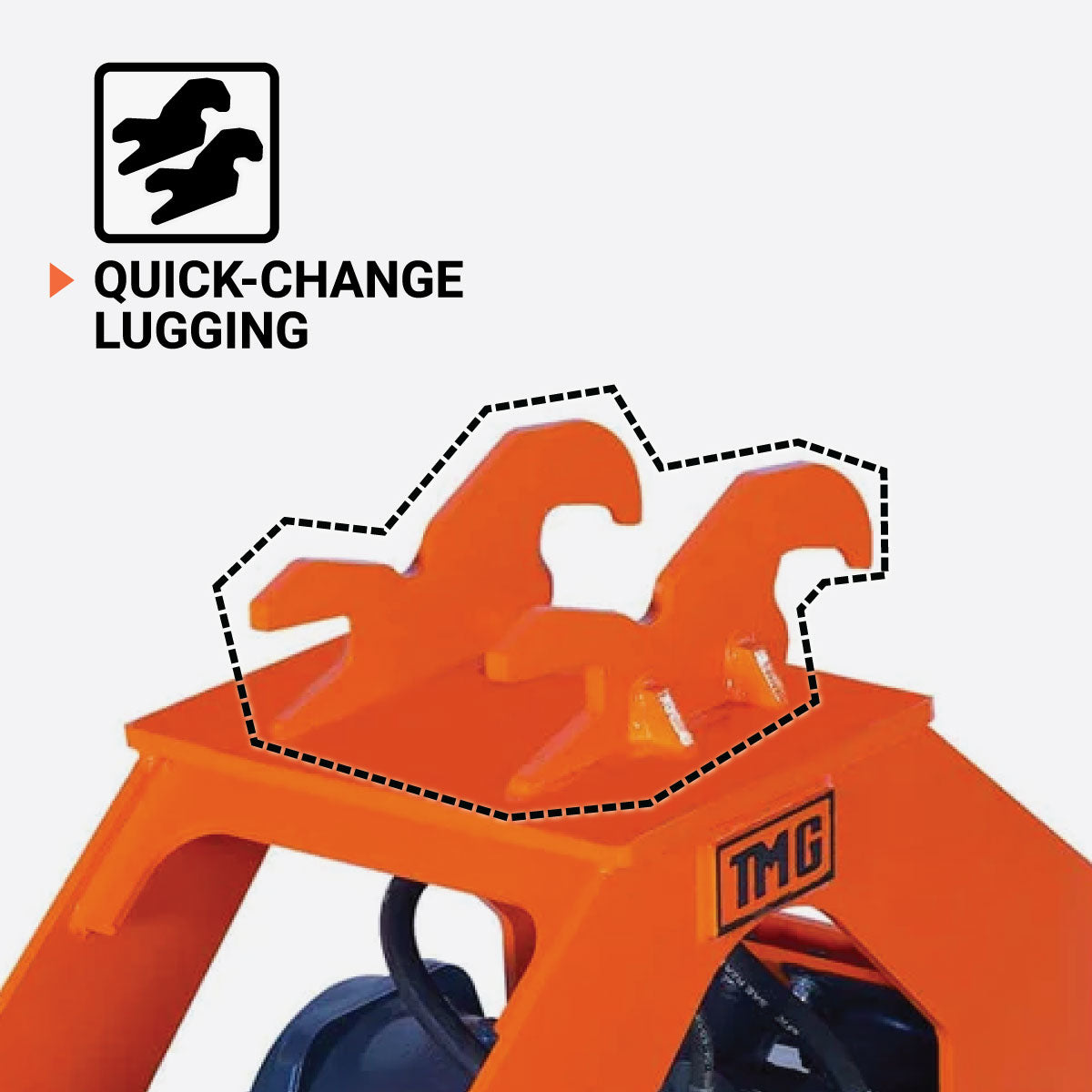

Quick-change Lugging Mount works with couplers for easy attachment change
Feature Image

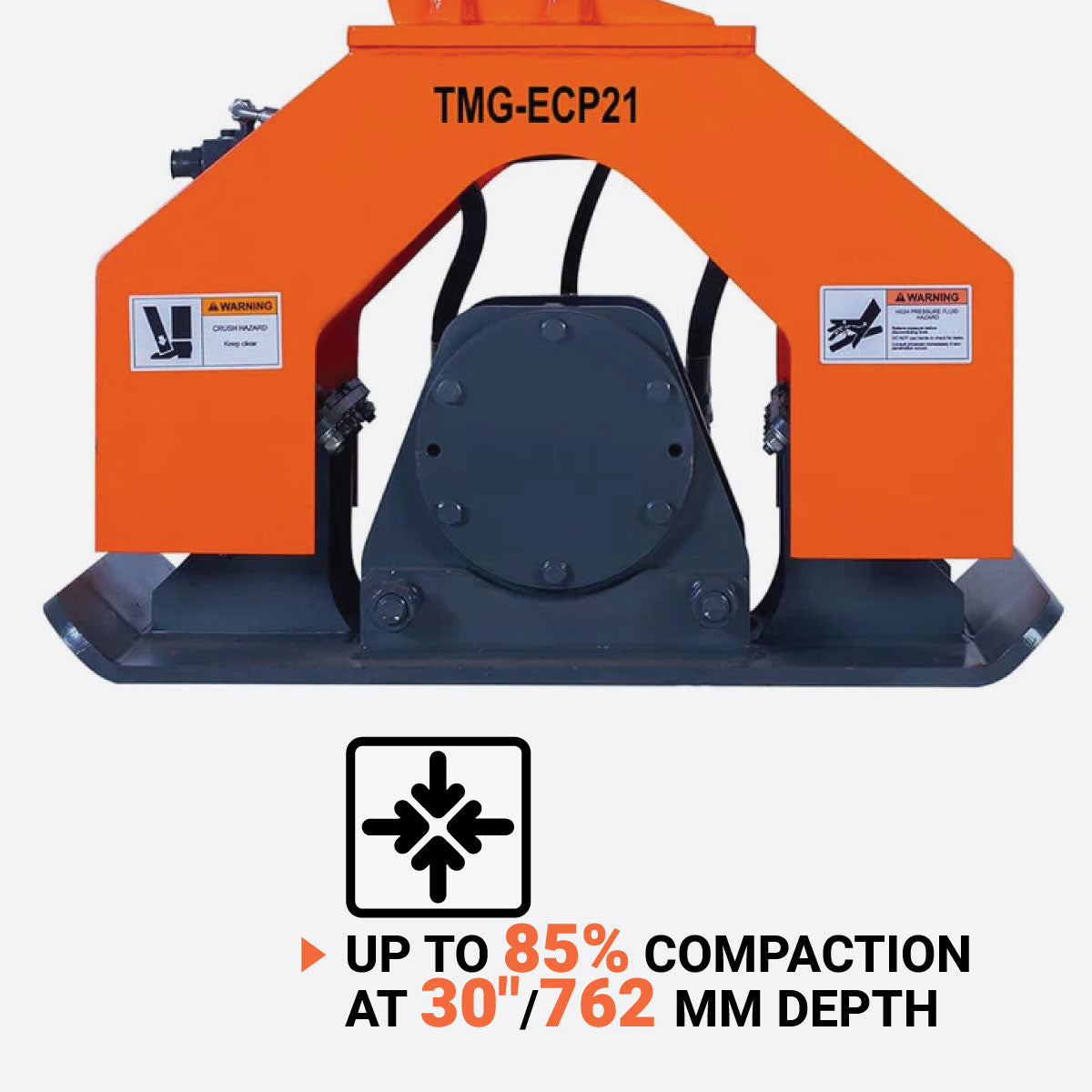

Achieves up to 85% compaction density up to 762mm depth
Feature Image

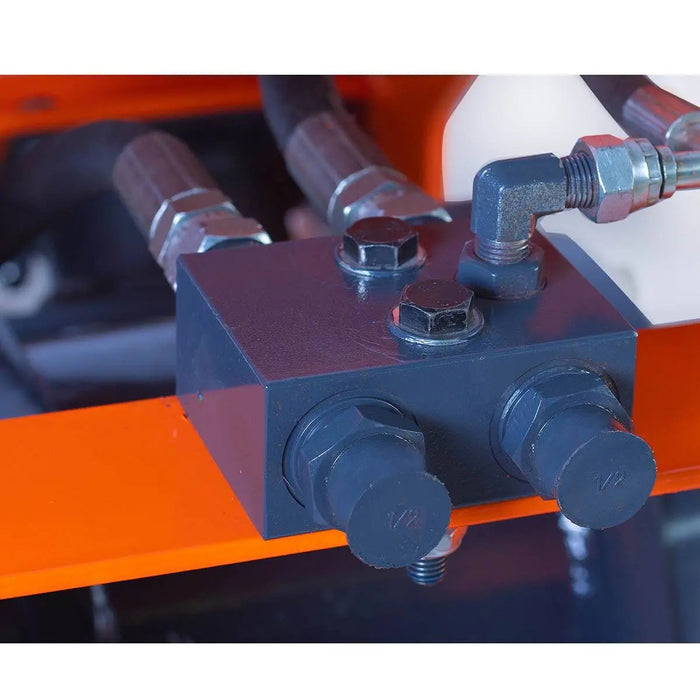

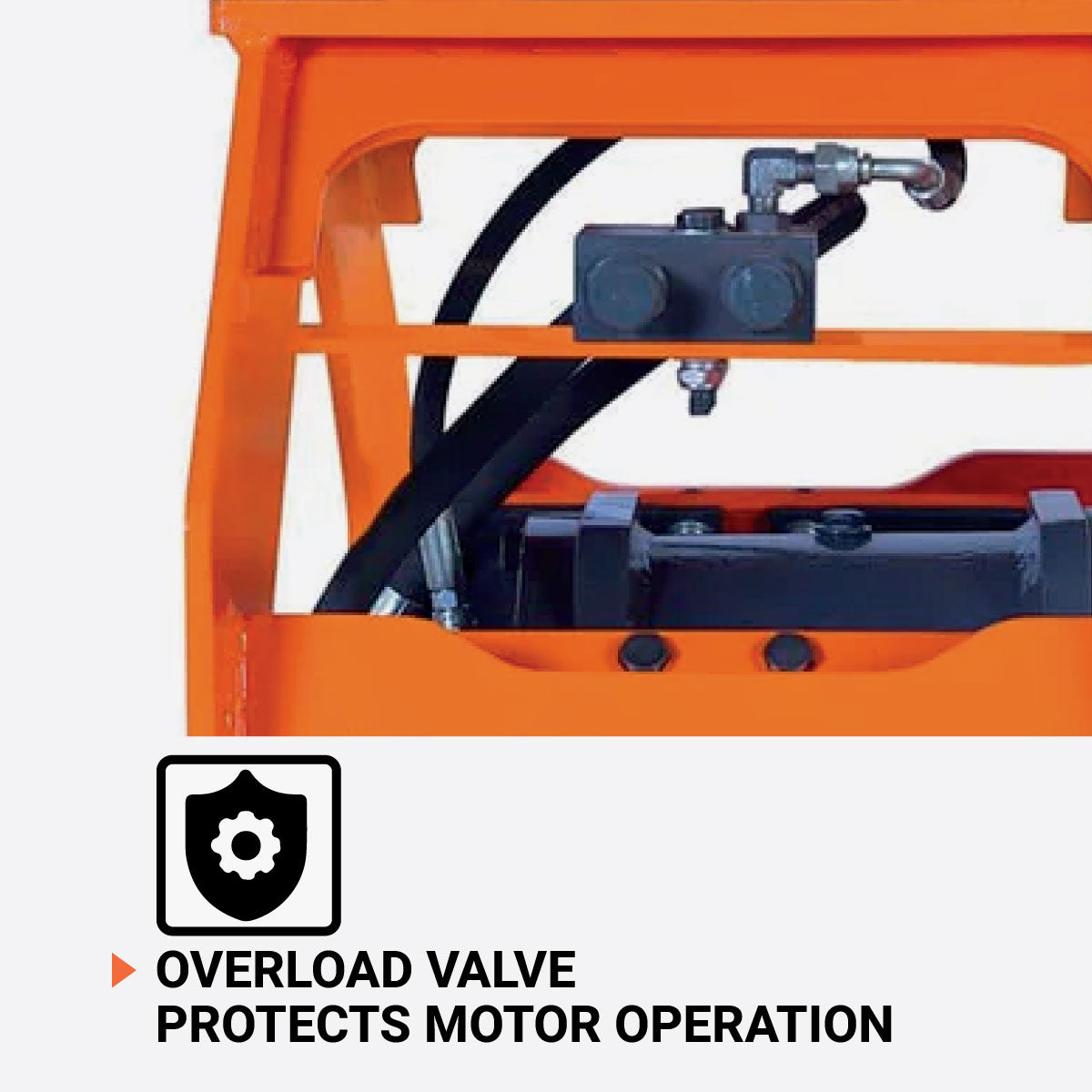

Overload shutoff valve maintains motor within safe operating range
Feature Image

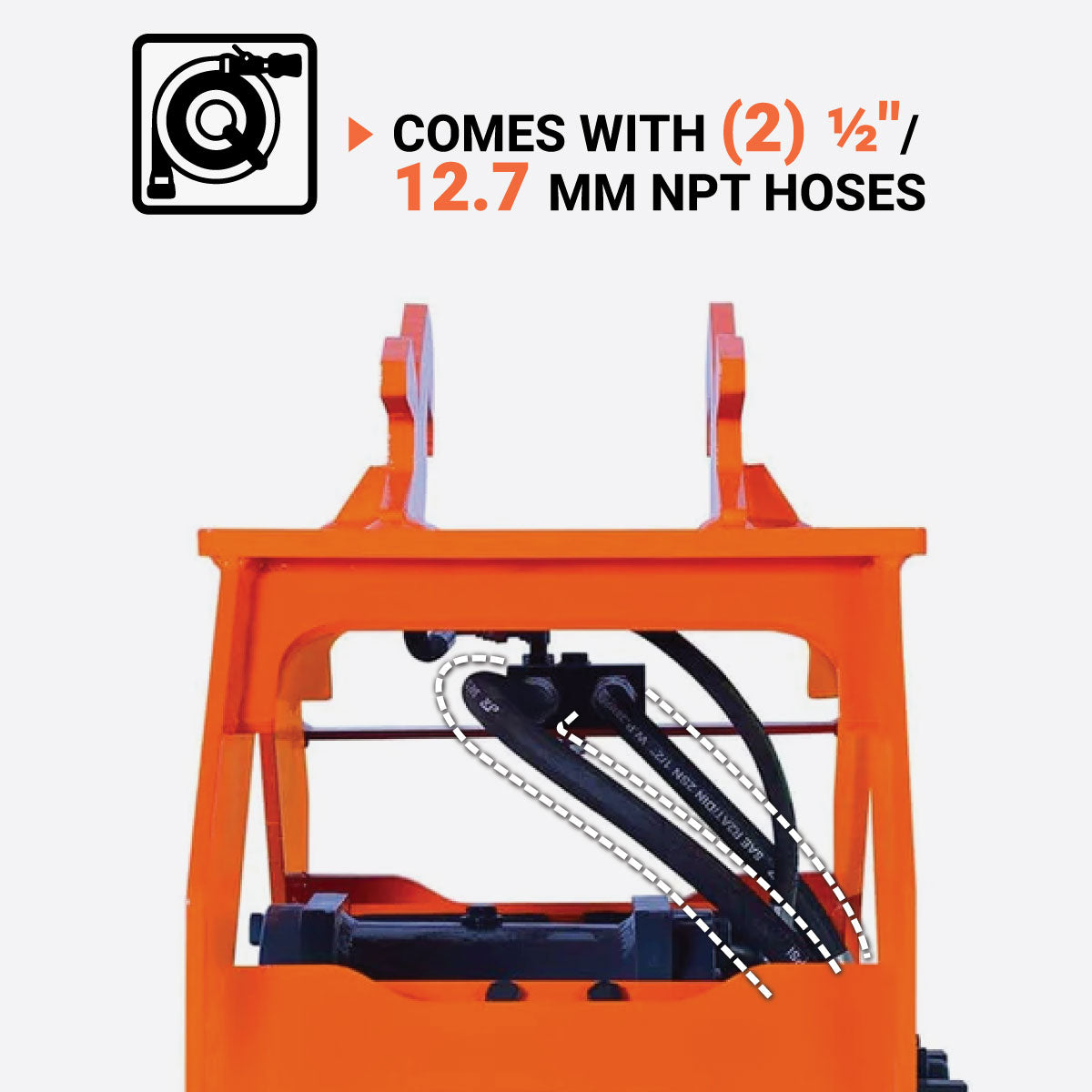

Includes two ½” NPT high-pressure hydraulic hoses for easy connection

Specifications icon Specifications

  • Compatible Excavators: 2–4 Ton
  • Impulse Force: 39.1 kN
  • Compaction Force: 3 ton
  • Compaction Depth (mm): 380–480 mm
  • Compaction Density: 85% at 762 mm
  • Exciter Frequency: 2000 RPM
  • Bottom Plate Size (mm): 814 x 520 mm
  • Hydraulic Flow (L/min): 25–45 L/min
  • Hydraulic Pressure: 80–120 bar
  • Hydraulic Hoses Included: (2) ½" NPT thread high-pressure hoses
  • Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 1.5 m
  • Net Weight: 240 kg

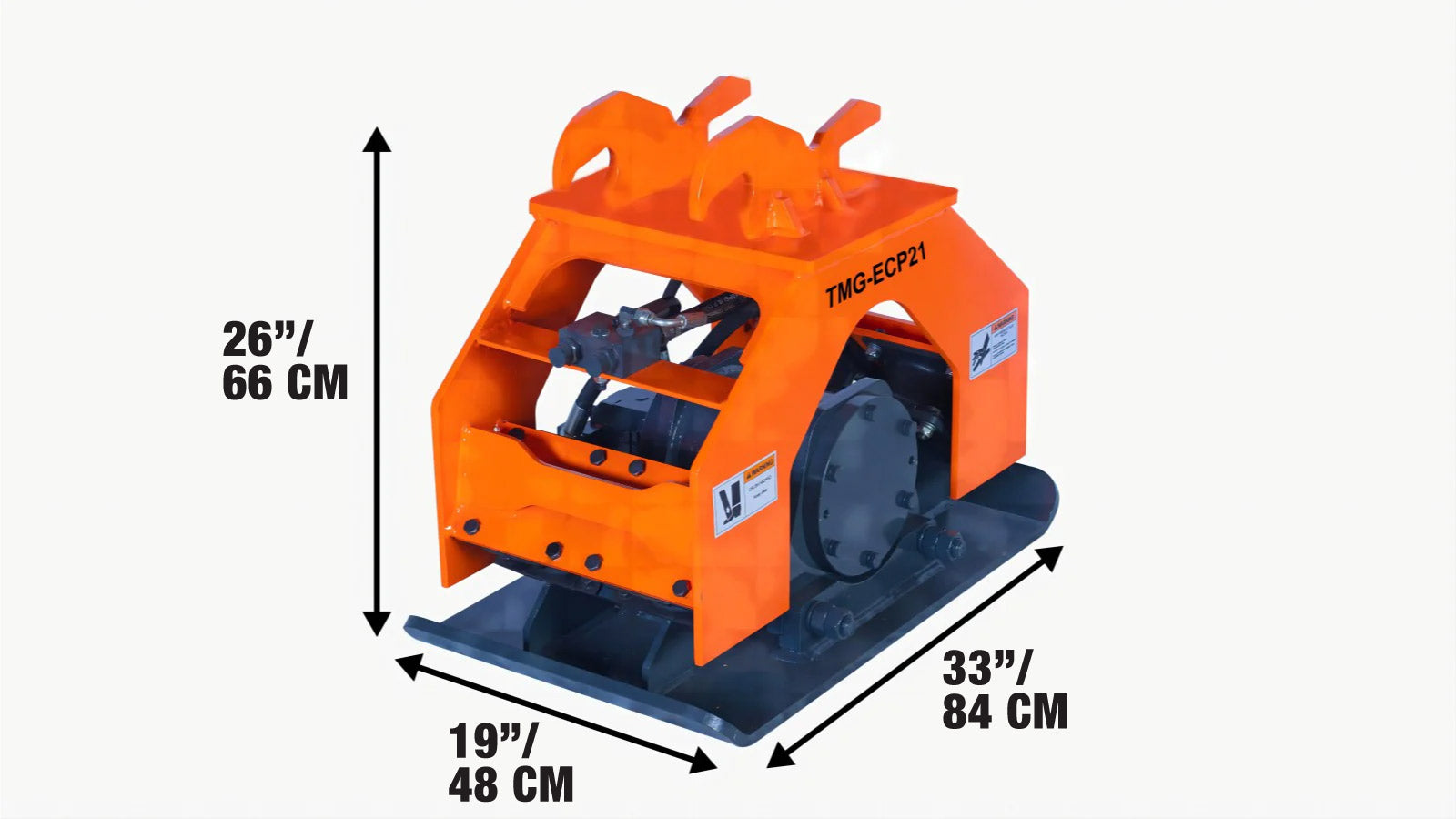

40 kN Hydraulic Plate Compactor for 2–4 Ton Mini Excavators, Quick Change Lugging Mount, TMG-ECP21-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

  • This product is packed in a metal crate shipping box

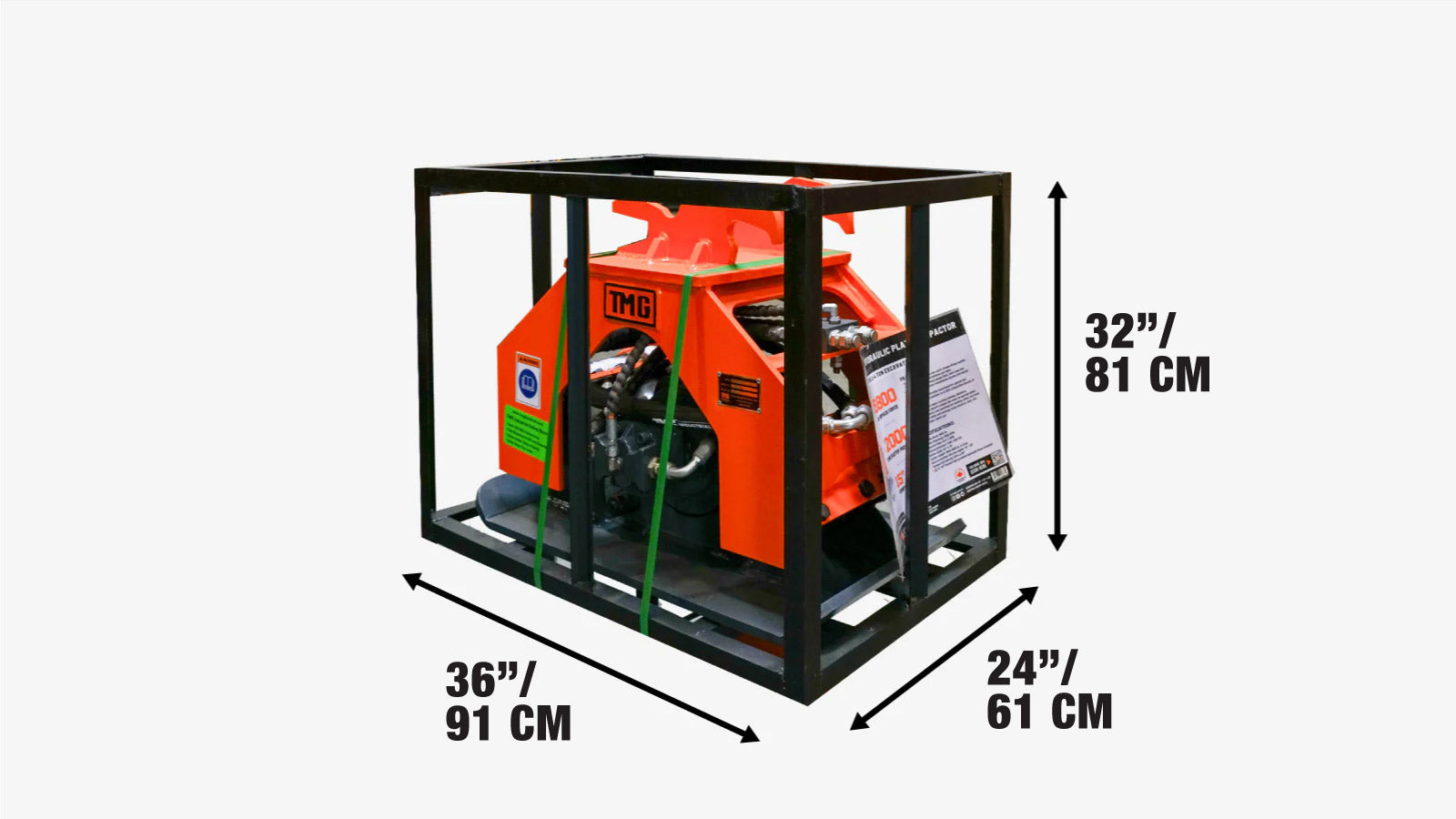

  • Shipping Dimensions: 92 cm × 61 cm × 82 cm (L × W × H)
  • Shipping Weight: 254 kg
Shipping from Rowville,VIC
What happens after you place your order?
40 kN Hydraulic Plate Compactor for 2–4 Ton Mini Excavators, Quick Change Lugging Mount, TMG-ECP21-shipping-info-image

Product Description icon Product Description

The TMG-ECP21 Hydraulic Plate Compactor is a robust attachment designed for 2–4 ton excavators, delivering 40 kN of impulse force for effective soil compaction. Its quick-change lugging system enhances workflow efficiency, making it an ideal choice for Australian contractors involved in construction, landscaping, and roadwork projects.

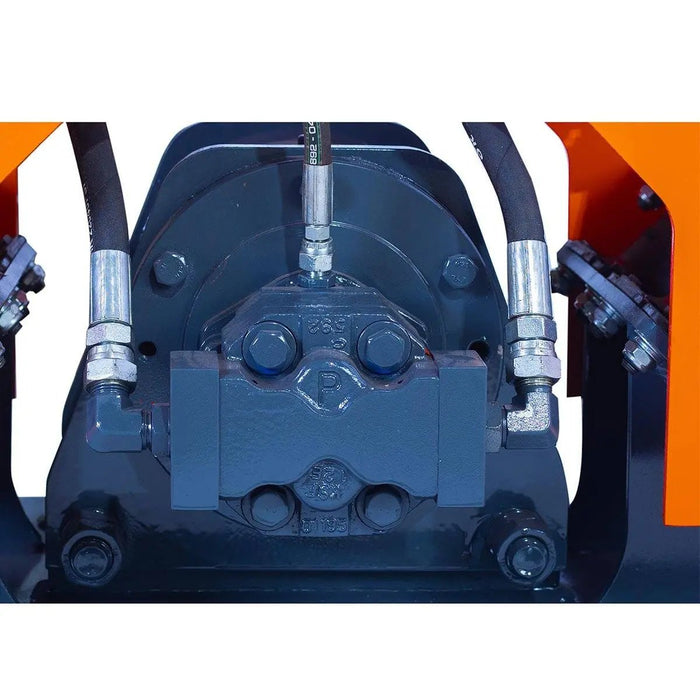

With features like a fully sealed motor, overload protection, and optimized vibration control, the TMG-ECP21 ensures reliable performance and durability in demanding work environments.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What is the TMG-ECP21 used for?
The TMG-ECP21 is a powerful hydraulic plate compactor designed for compacting soils, gravels, and sands. It's ideal for foundation prep, road construction, and trench backfilling in tight areas.
Q: What size excavator is the TMG-ECP21 compatible with?
This unit is compatible with mini excavators weighing 2 to 4 tons (approximately 1,996 to 3,992 kg).
Q: What is the impulse force of the TMG-ECP21?
The compactor delivers 8,800 lbf (40 kN) of impulse force for powerful and consistent soil compaction.
Q: What is the effective compaction depth?
You can achieve 15 to 19 inches (38.1 to 48.3 cm) of effective compaction depth depending on soil type.
Q: What is the compaction density?
Up to 85% density can be achieved at 30 inches (76.2 cm) depth with optimal vibration and compaction.
Q: What are the hydraulic requirements?
Hydraulic flow: 6.6–11 GPM (25–41.6 LPM); Operating pressure: 1420–1850 PSI (9.8–12.8 MPa).
Q: What are the dimensions of the bottom plate?
The bottom plate measures 33" × 19" (83.8 cm × 48.3 cm).
Q: Are hydraulic hoses included?
Yes, two 1/2" NPT high-pressure hydraulic hoses are included for immediate hookup.
Q: Does it have any protection features?
Yes, it includes an overload shutoff valve, industrial-grade rubber vibration isolators, and fully sealed motor and bearings to protect against dust, moisture, and vibration damage.
Q: What is the warranty?
Backed by a 1-year manufacturer warranty. Refer to TMG Industrial’s warranty policy for details.
