• Mount Type: Universal Skid Steer Mount
• Overall Size: 1910 × 470 × 940 mm (75” × 18-½” × 37”)
• Max Opening: 990 mm (39”)
• Working Width: 1830 mm (72”)
• Tine Spacing: 180 mm (7”)
• Number of Teeth: 12 (Bottom), 13 (Top)
• Teeth Thickness: 13 mm (½”)
• Grapple Capacity: 1180 kg (2600 lb)
• Hydraulic Pressure: 21 MPa (3000 PSI)
• Hydraulic Hoses & Flat Face Couplers: Included
• Number of Hydraulic Hoses: 2
• Hydraulic Flat Face Couplers Spec: NPT ½"
• Product Weight: 254 kg (560 lb)

The order will be shipped from our main warehouse in Australia. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. Delivery may take up to 10 to 15 business days depending on your location and accessibility.

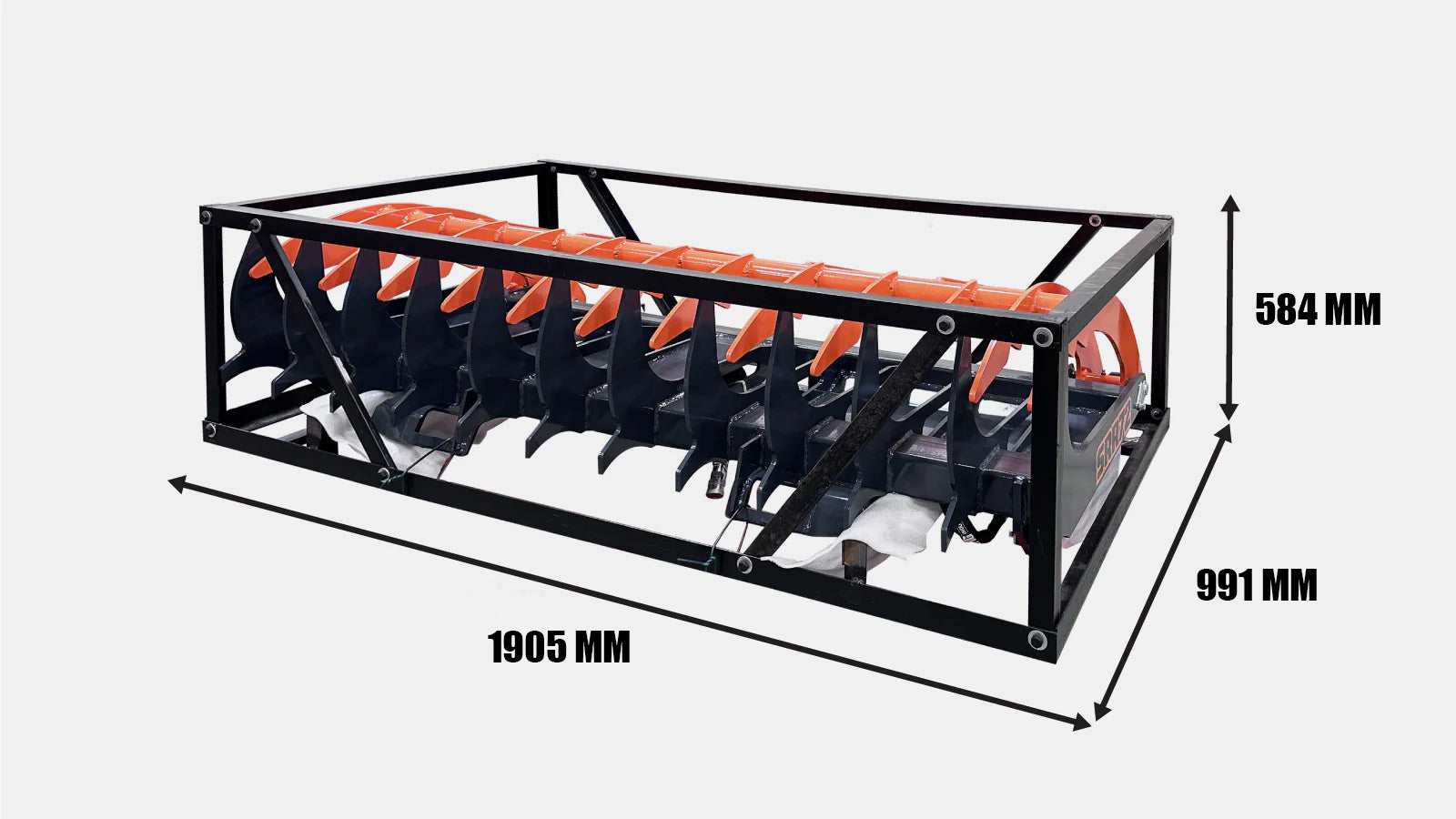

• This product is packed in a metal crate shipping box
• Shipping dimension: 1905 mm x 991 mm x 584 mm (L x W x H)
• Shipping weight: 297 kg

• Q: What skid steer models are compatible with the TMG-SRR72?
  A: The TMG-SRR72 comes with a universal skid steer quick-attach mount that fits most major skid steer brands.
• Q: What is the maximum material weight this grapple can handle?
  A: The grapple is rated for a robust capacity of 1180 kg (2600 lb), making it ideal for lifting logs, brush, rocks, and general debris during land-clearing or site-prep operations.

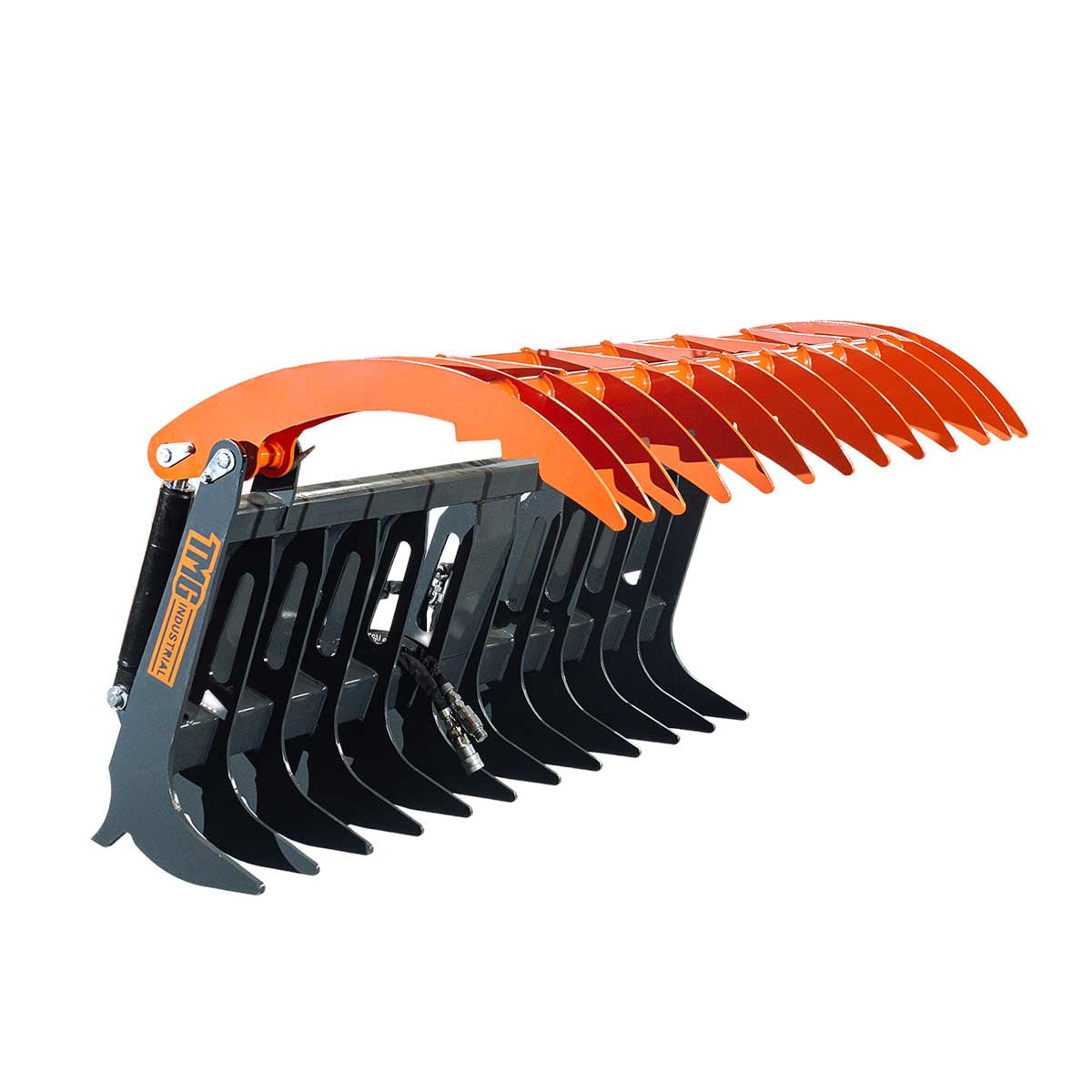

• Q: How does the skeleton tine bottom design work?

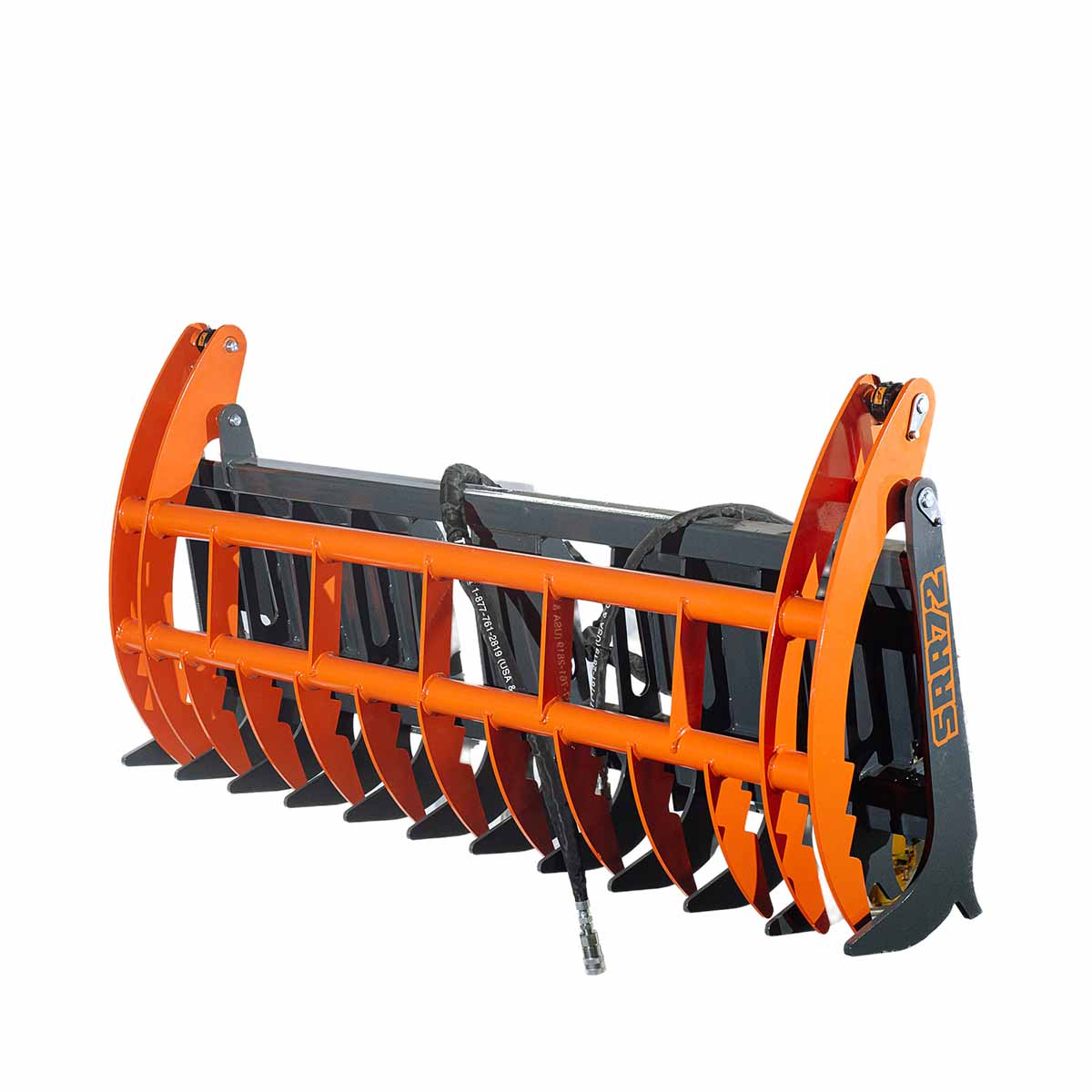

  A: The skeleton tine bottom allows loose dirt, soil, and small debris to fall through the gaps while holding larger materials securely. This makes it excellent for sorting rocks, logs, and branches efficiently.
• Q: What is the hydraulic pressure requirement?

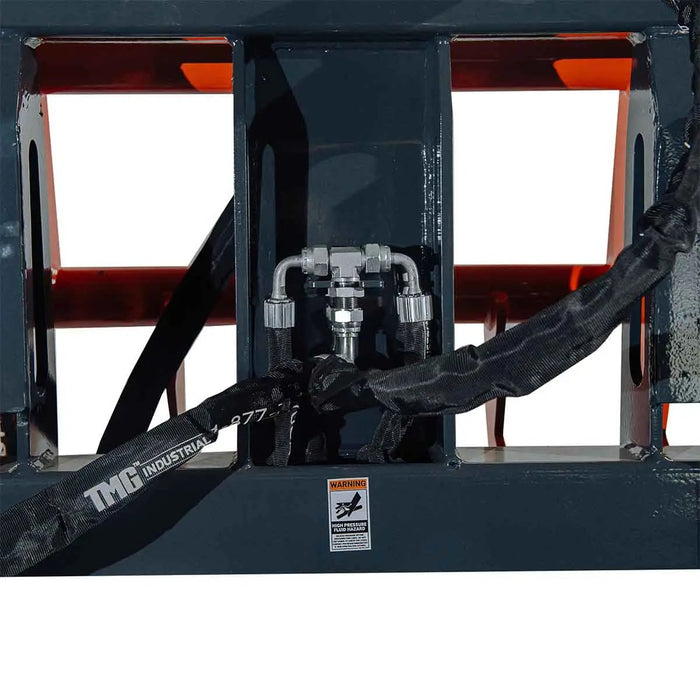

  A: The TMG-SRR72 operates optimally at 21 MPa (3000 psi). It connects easily to your skid steer’s auxiliary hydraulics using the included 1/2″ NPT flat-face couplers and hoses.
• Q: What maintenance is required for this grapple?

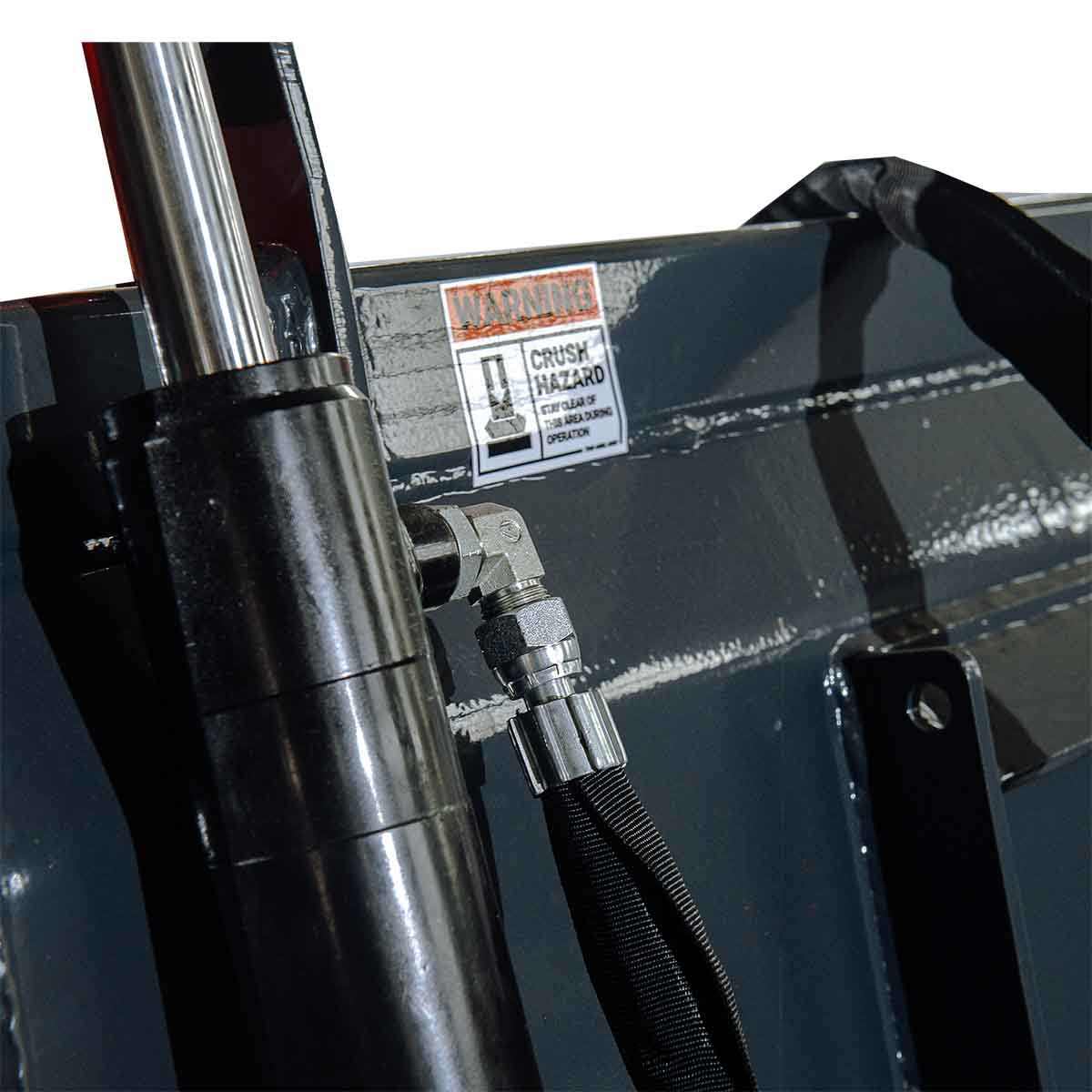

  A: Regularly lubricate all greaseable pins and bushings to ensure smooth operation and minimize wear. Always inspect hoses and fittings before each use for leaks or damage.
• Q: Can the grapple handle uneven or irregular materials?

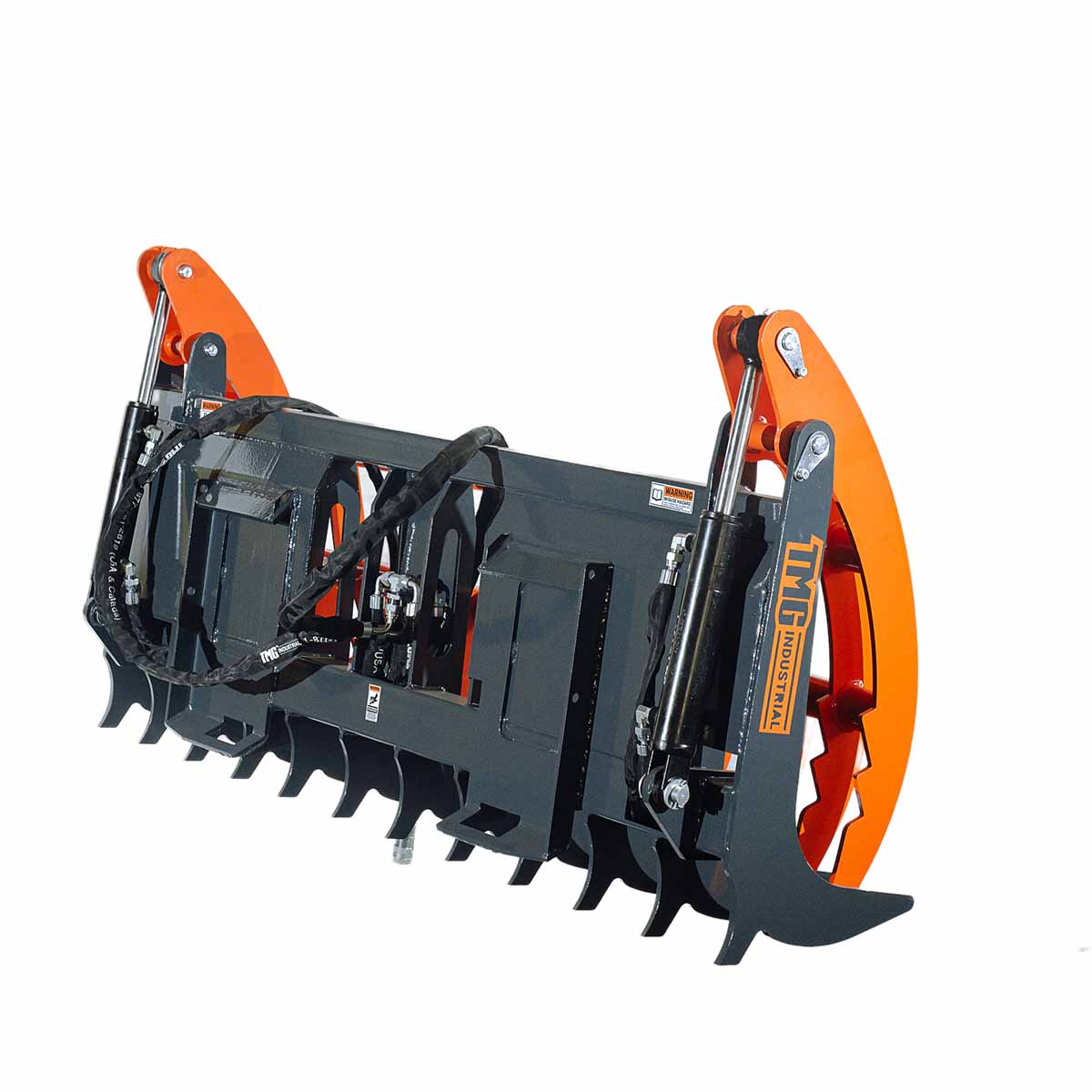

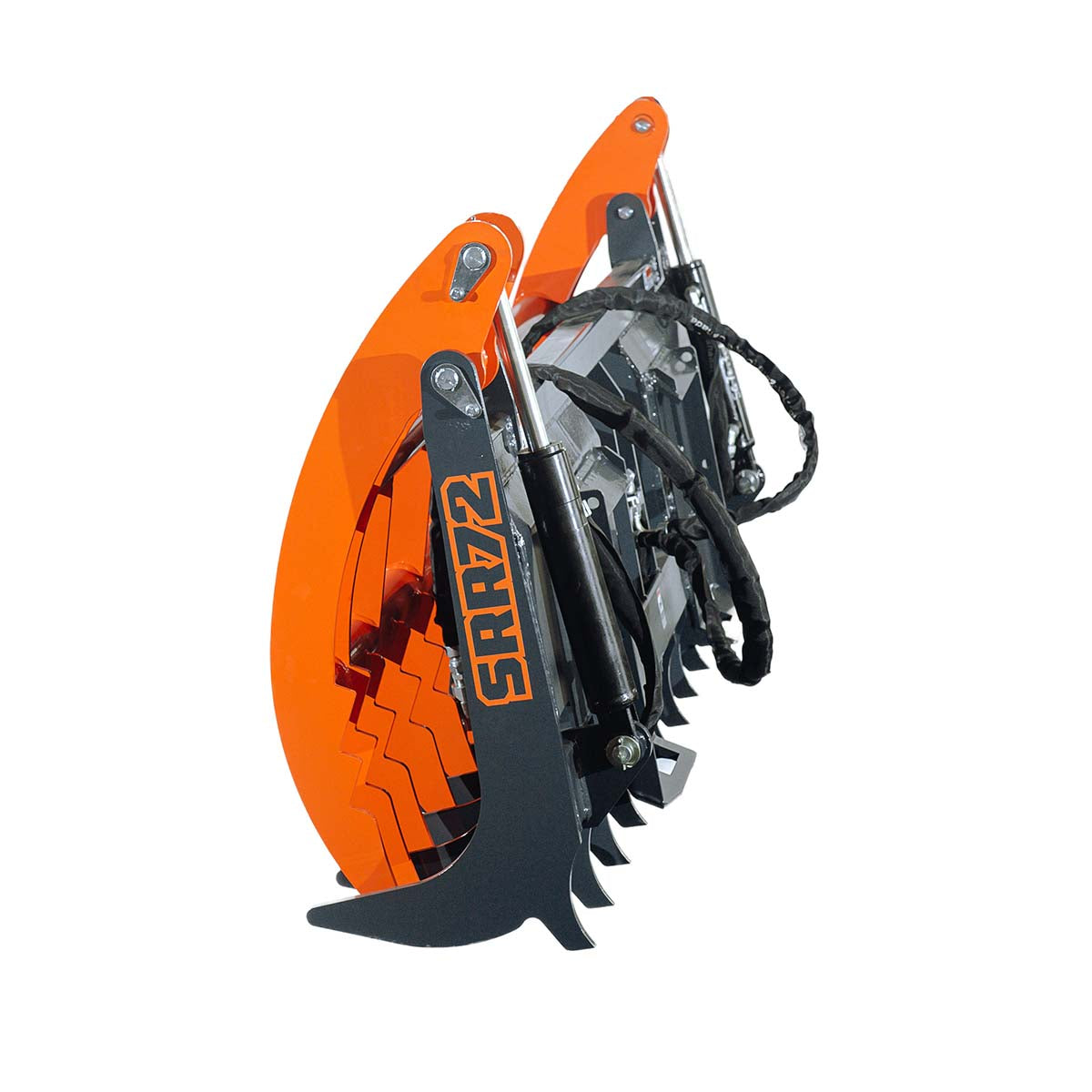

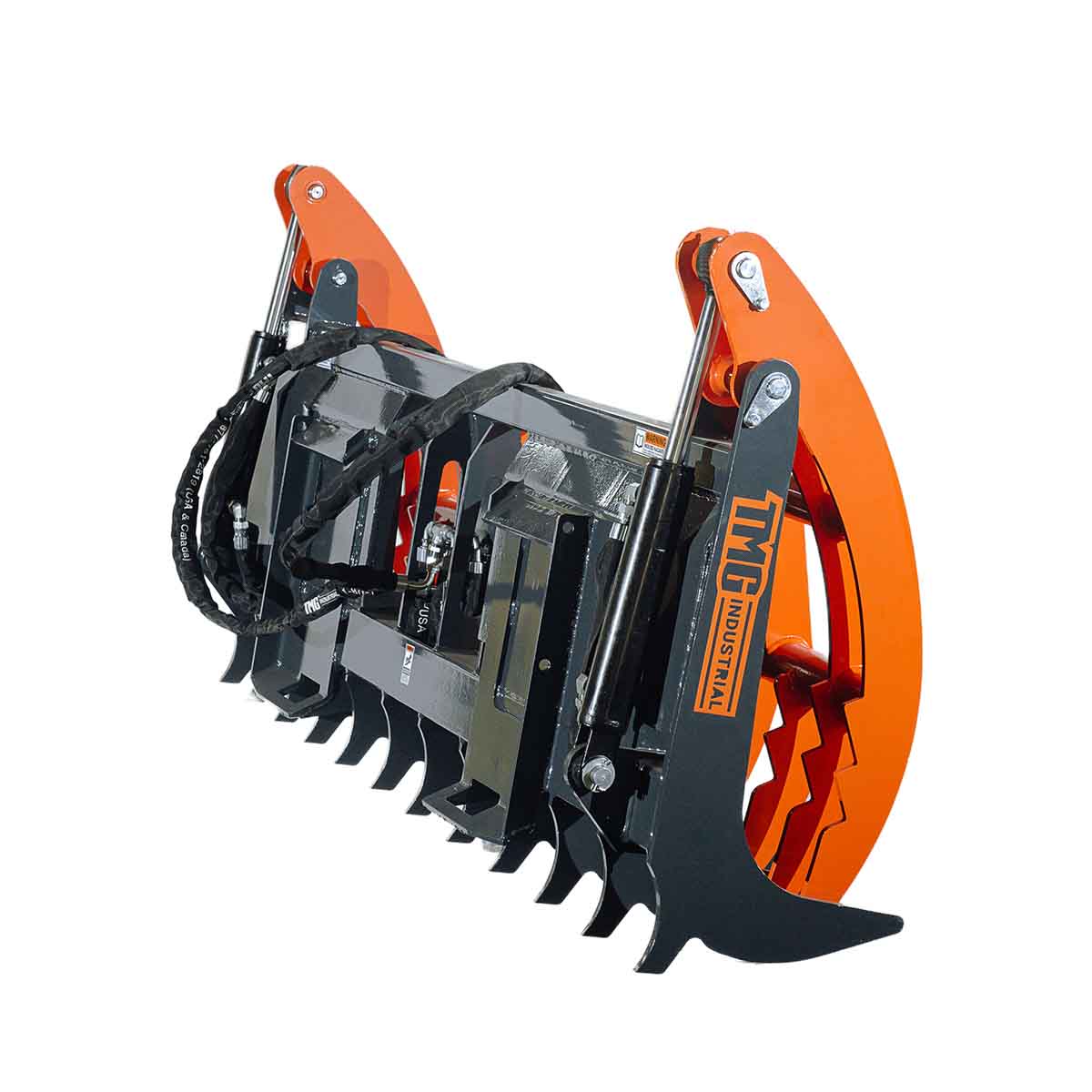

  A: Yes. The twin hydraulic cylinders and dual grapple arms allow for even pressure and a secure grip on irregular or uneven loads, preventing slippage during operation.
• Q: What is the shipping size and weight of the unit?
  A: The TMG-SRR72 ships in a metal crate measuring 190 × 97 × 58 cm (75″ × 38″ × 23″) with a total shipping weight of approximately 297 kg (655 lb).
• Q: Is there a larger model available?
  A: Yes. For larger skid steers or higher load requirements, TMG Industrial also offers the TMG-SRR75 Root Rake Grapple, providing similar design features with increased width and capacity.
• Q: What is the warranty for TMG-SRR72?
  A: The attachment comes with a 1-year manufacturer warranty that covers materials and workmanship, with full support and parts available.
