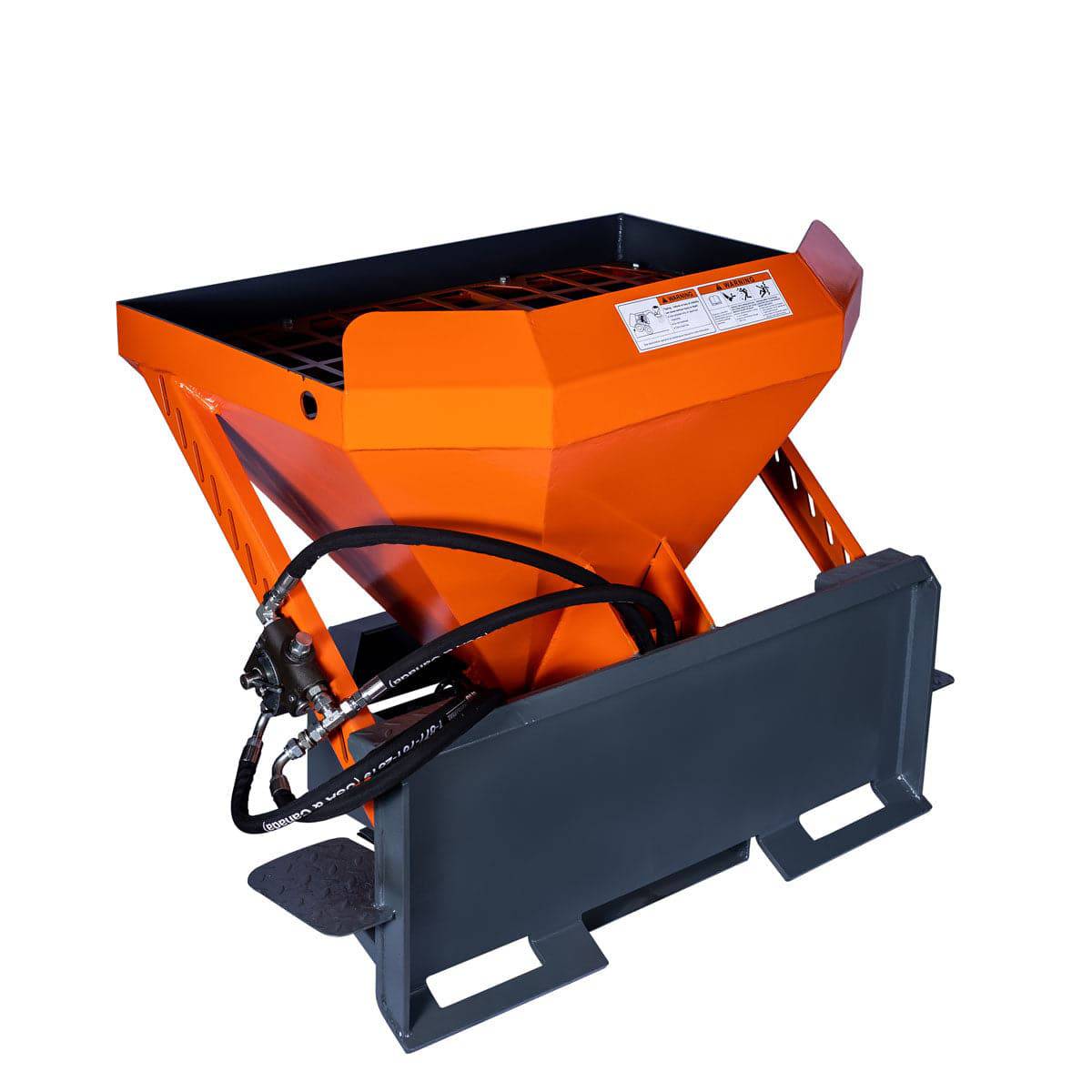

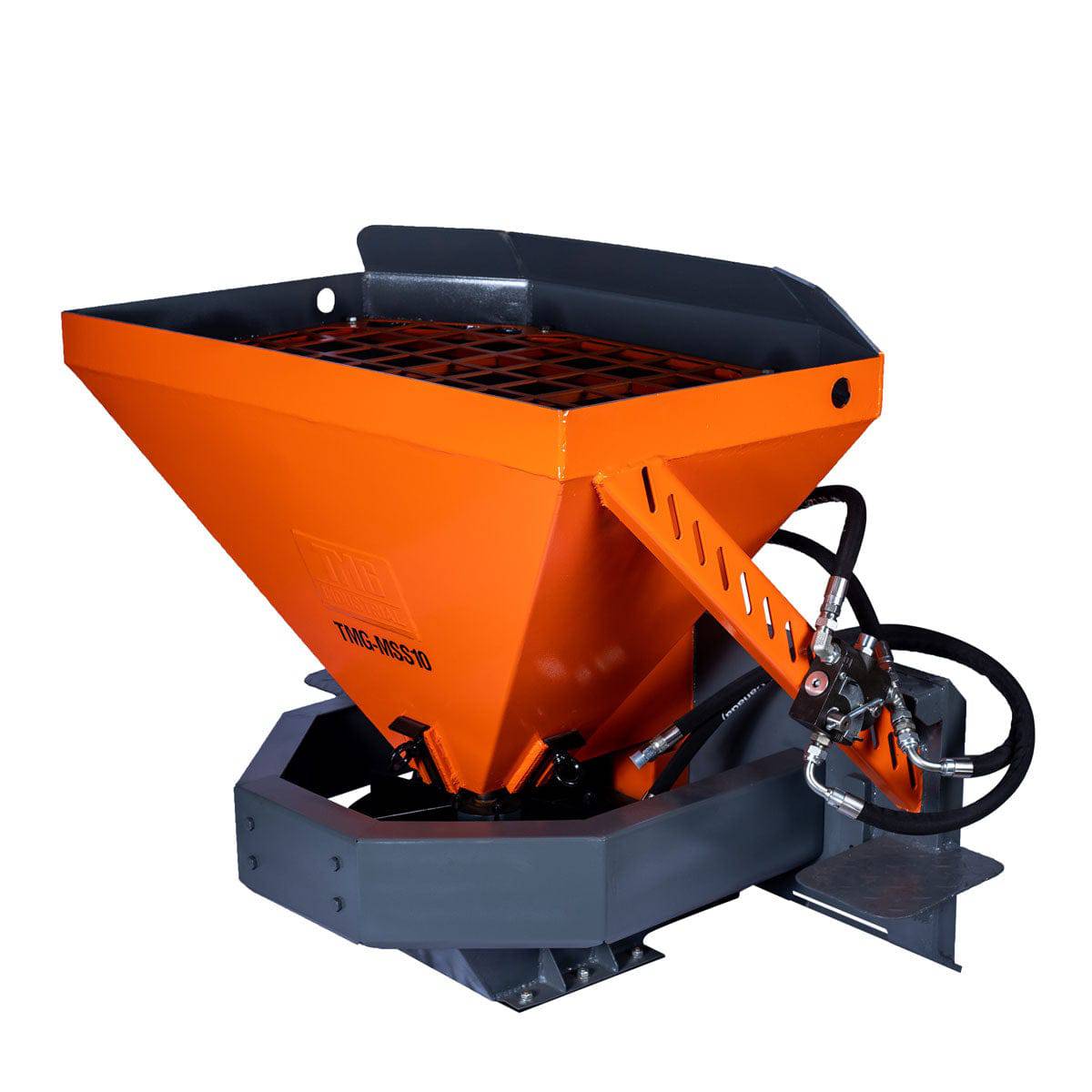

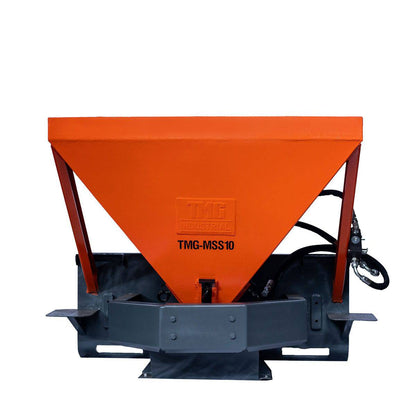

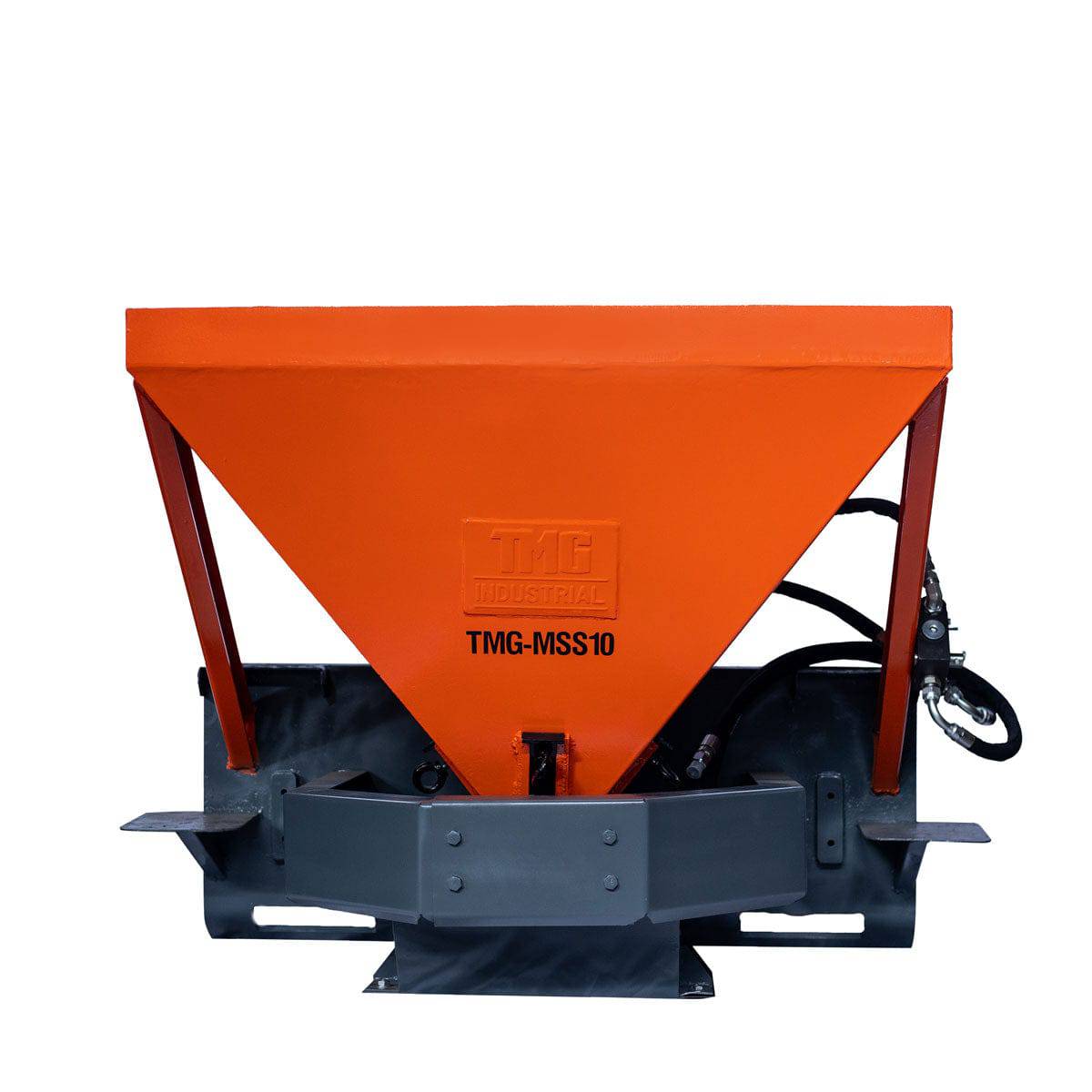

Skid Steer Tilt‑N‑Scoop Material Spreader, 283 L (10 Cu-ft) Capacity, 9.1 m (30’) Spread Range, TMG‑MSS10

Product Manual
TMG Industrial Skid Steer Tilt-N-Scoop Material Spreader, 10 Cu-Ft Capacity, 30’ Wide Spread Range, 6.5-12 GPM Flow Rate, Sidewalk Skirt, Universal Mount, TMG-MSS10
CURRENTLY OUT OF STOCK
TMG-MSS10
$4,599.00
$4,599.00 - $4,599.00
$4,599.00
$4,199.00
$4,199.00 - $4,199.00
$4,199.00
$4,599.00 Save $400.00
$4,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

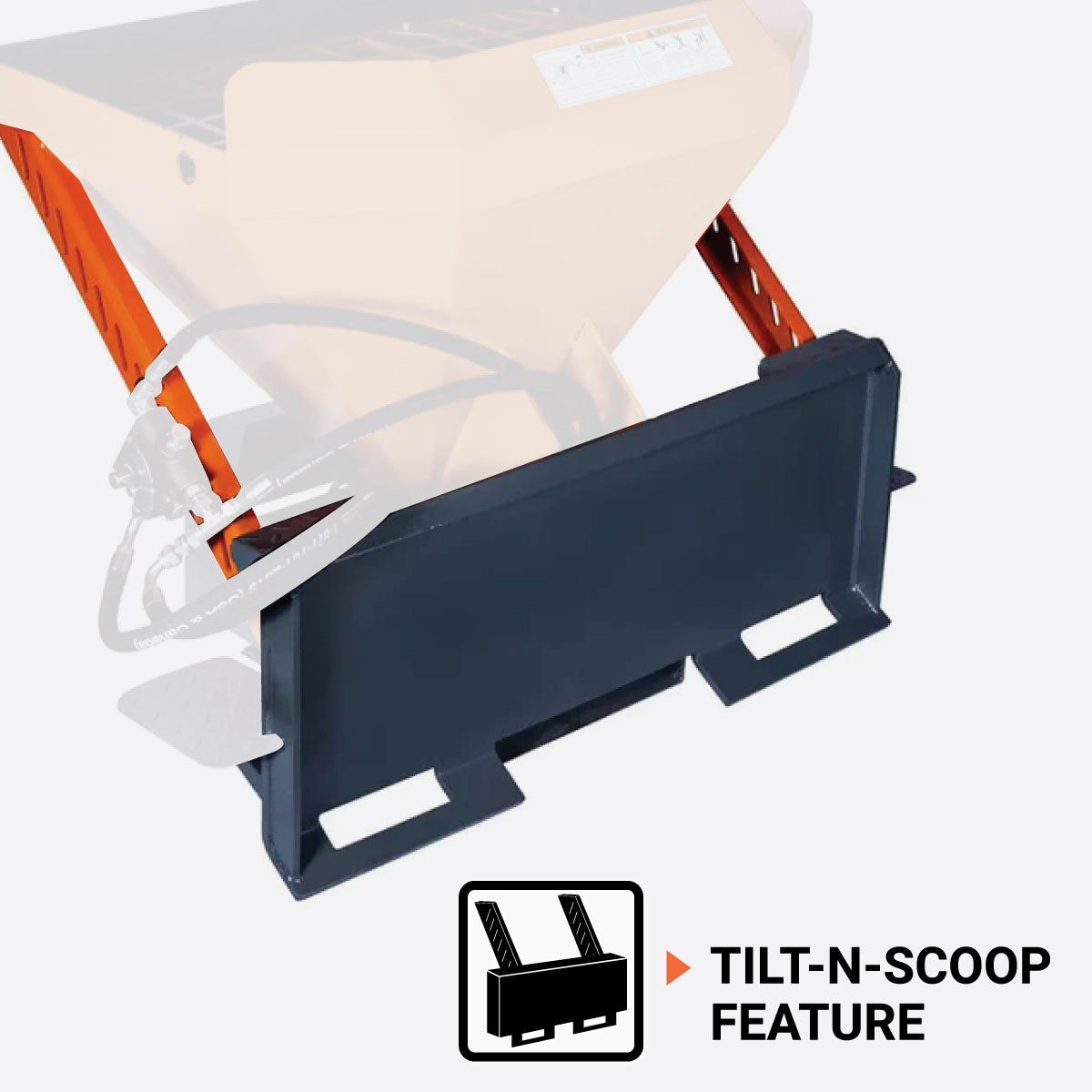

Tilt‑N‑Scoop lets you load without exiting the skid steer
Feature Image

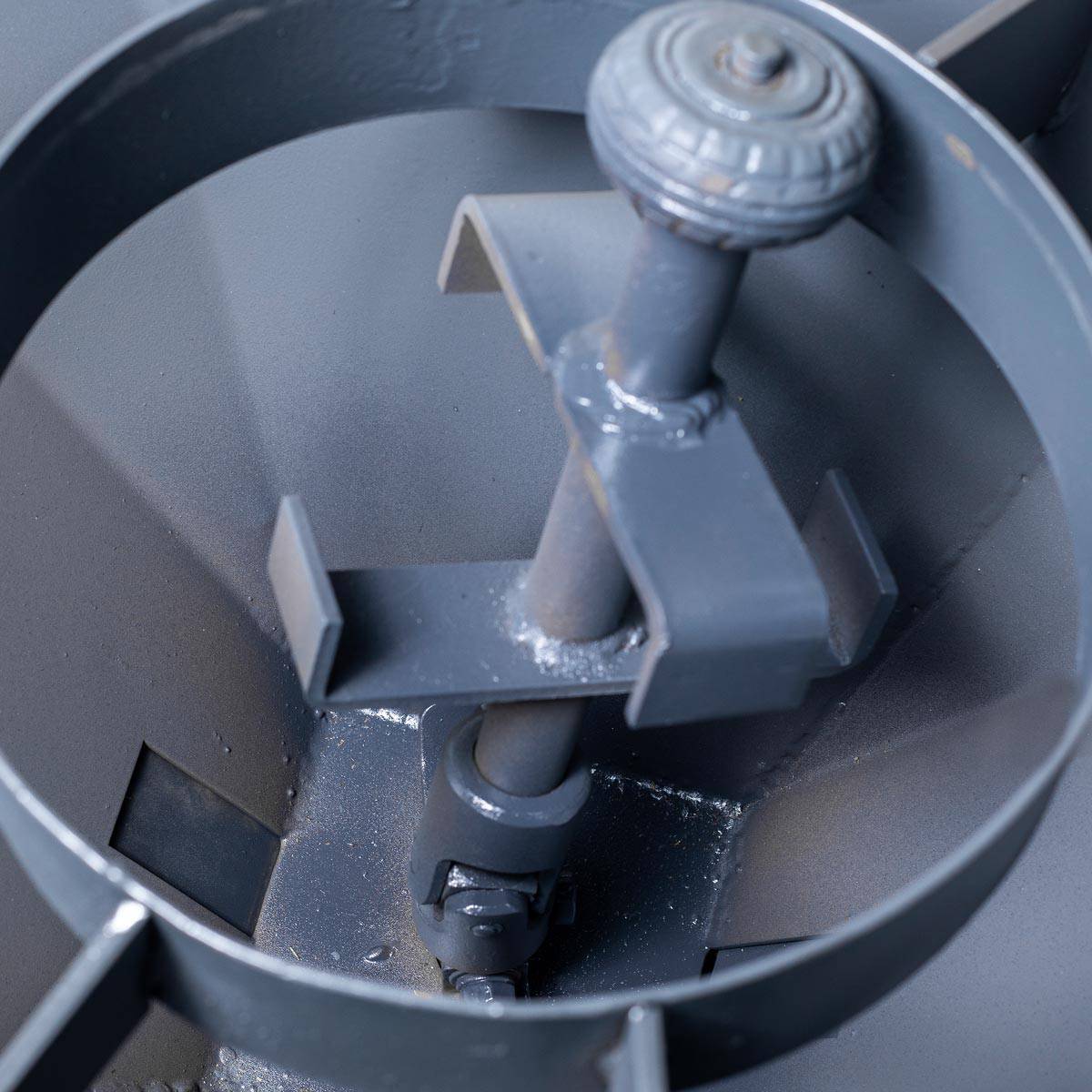

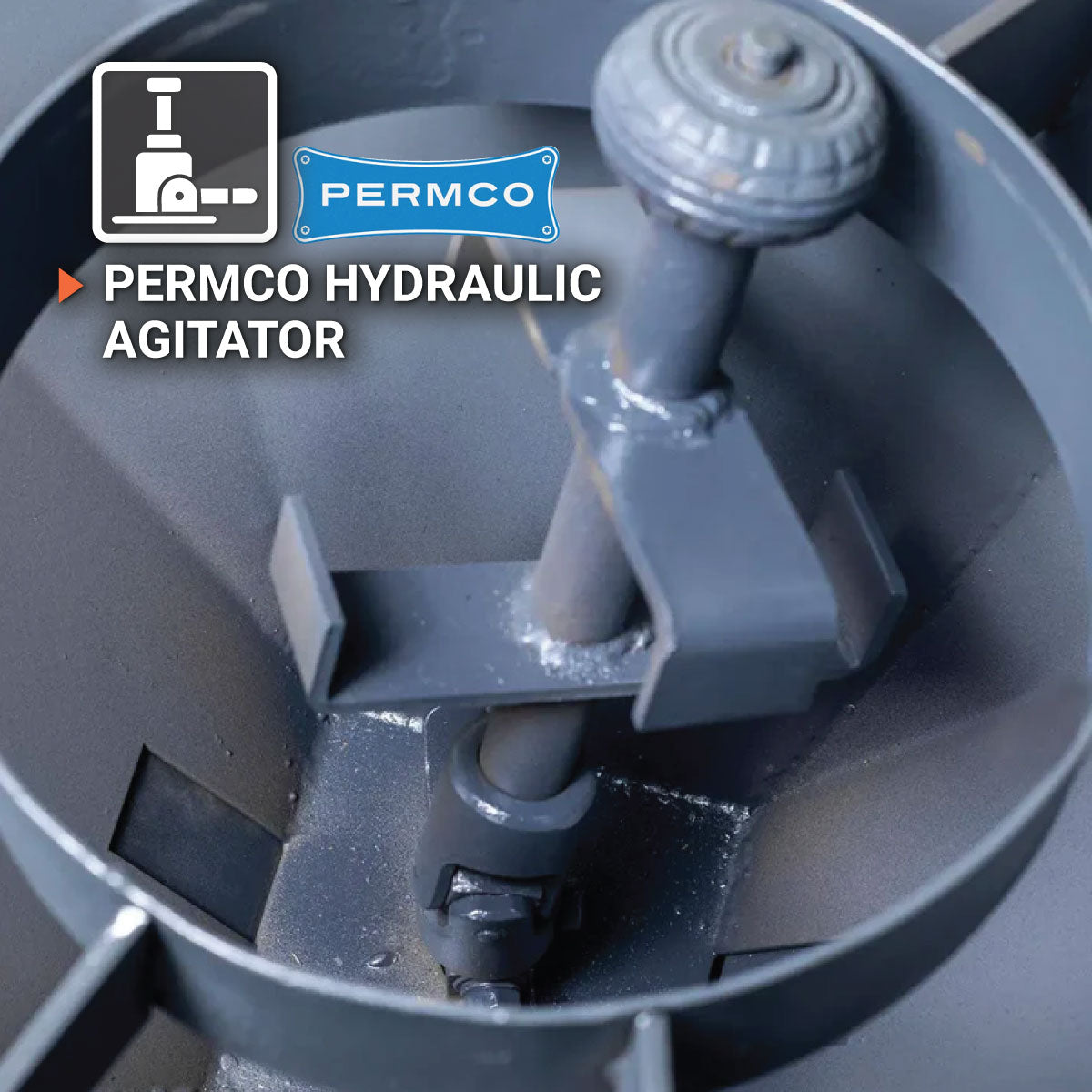

PERMCO hydraulic agitator ensures even material flow
Feature Image

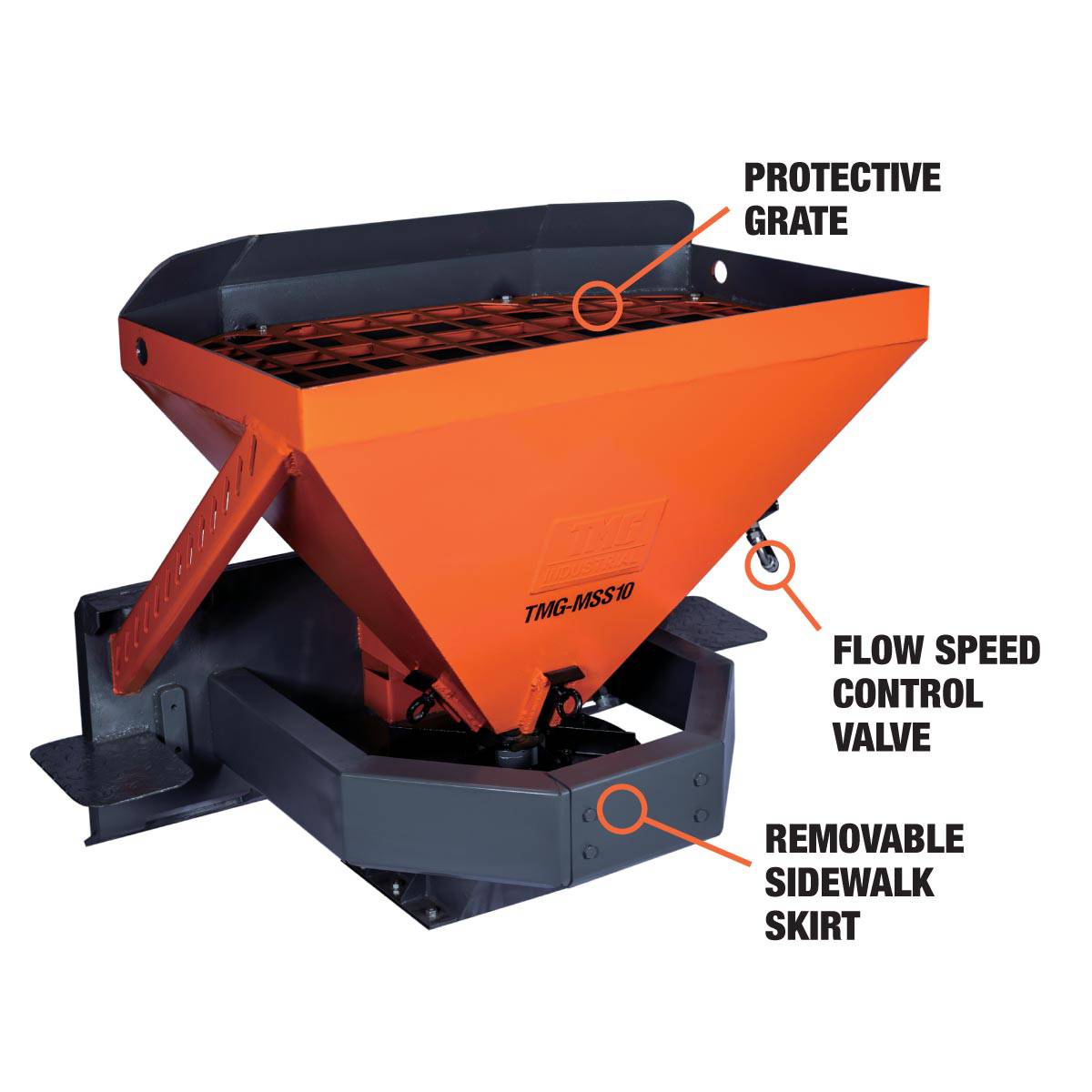

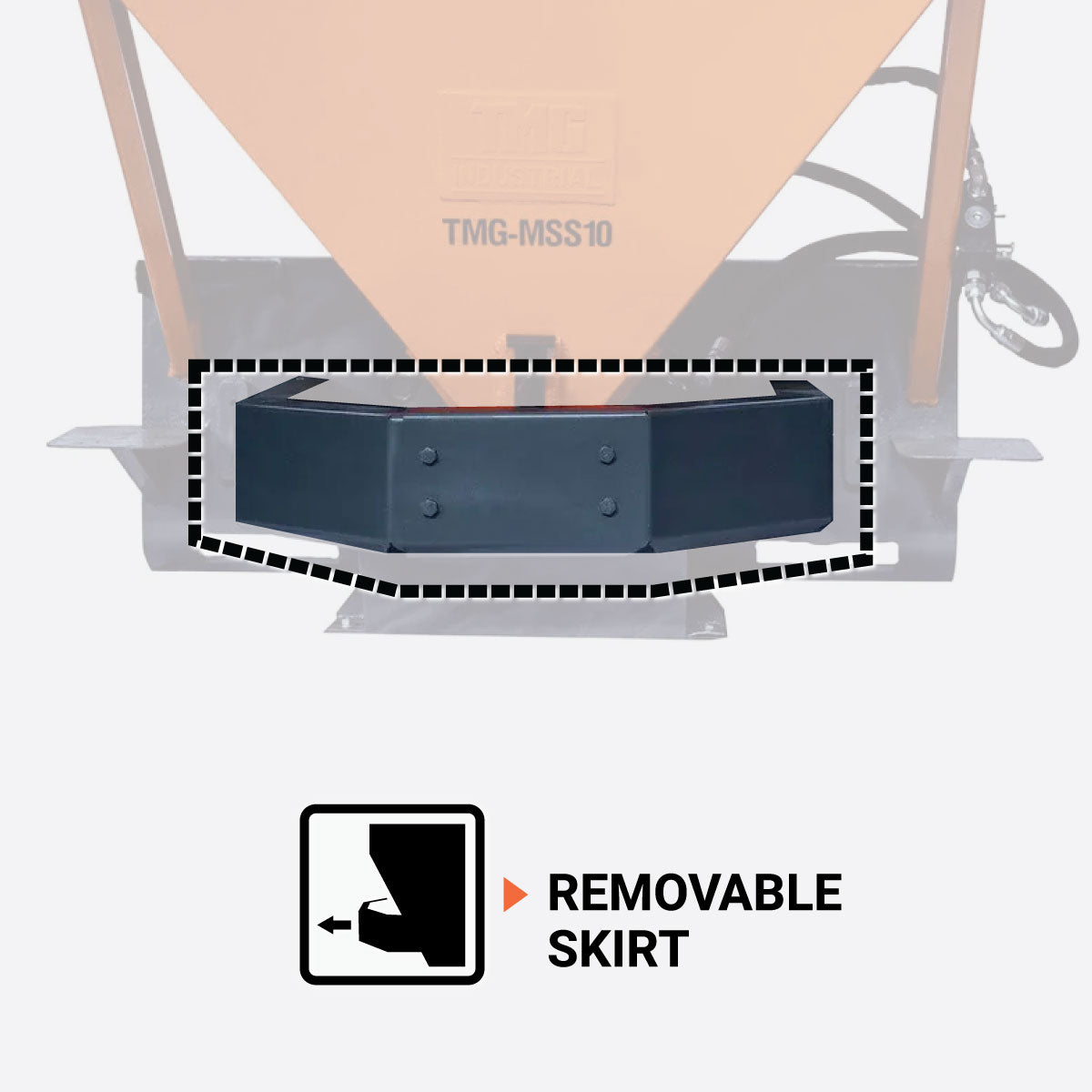

Removable sidewalk skirt contains spread to narrow paths
Feature Image

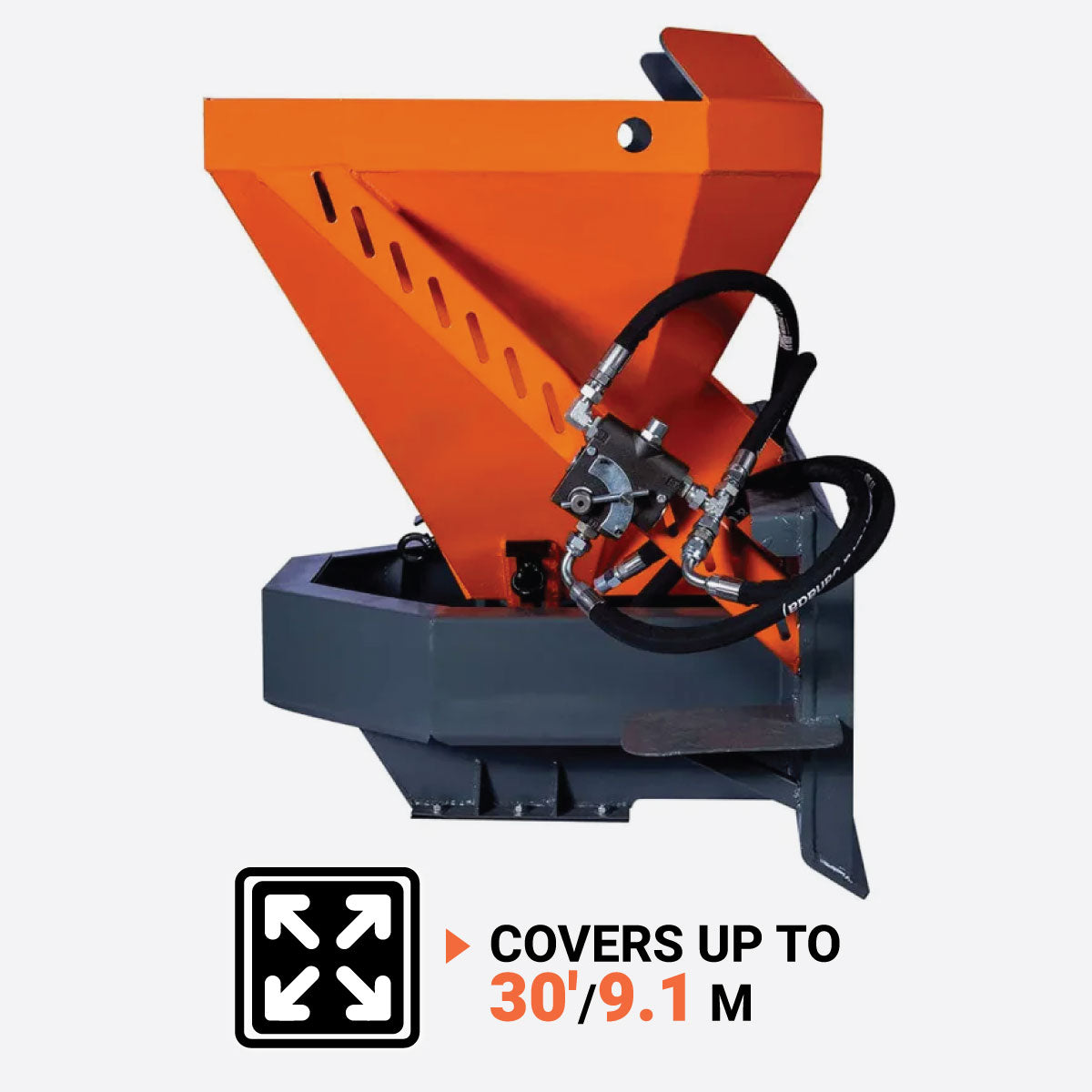

Covers up to 9.1 m (30’) for fast, large‑area application
Feature Image

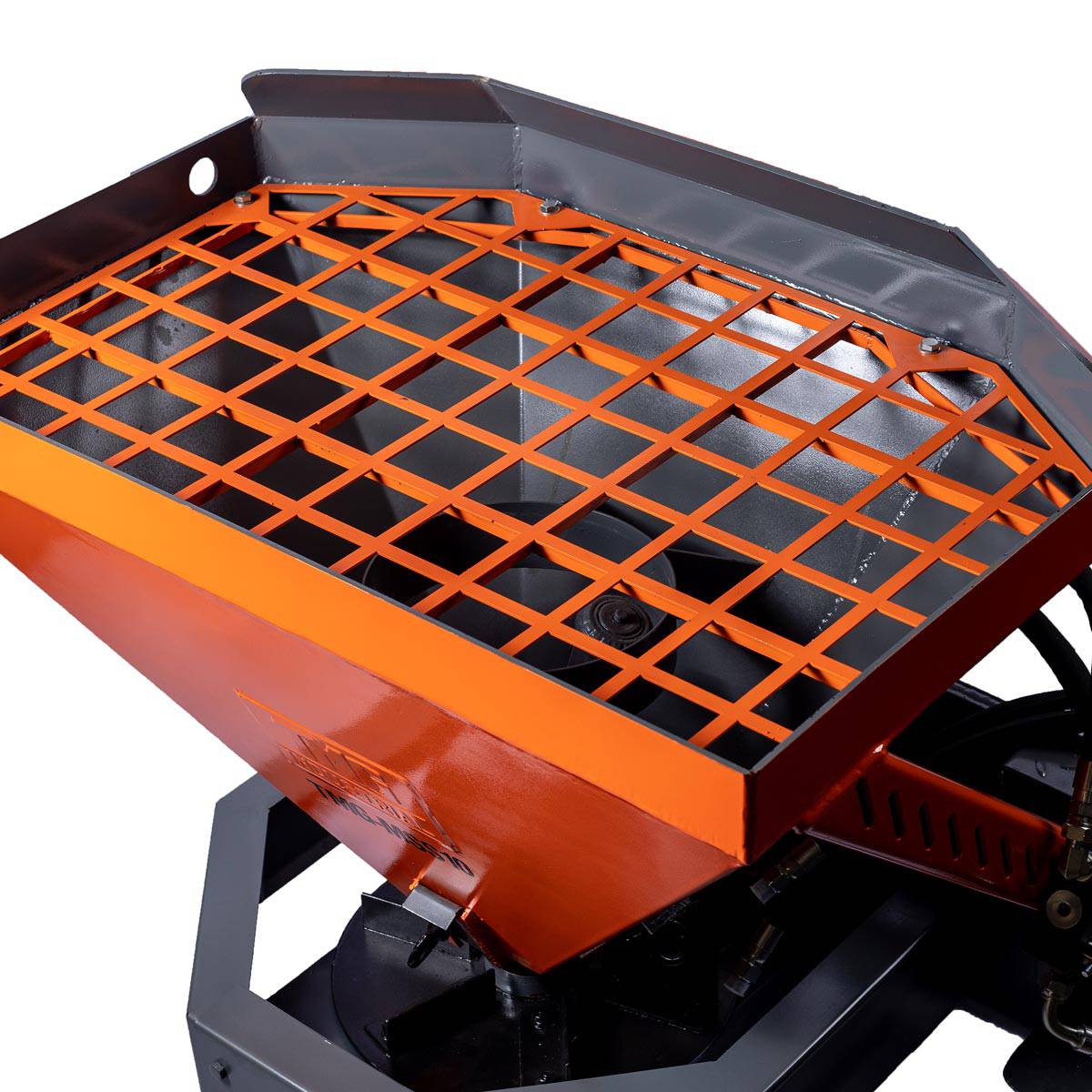

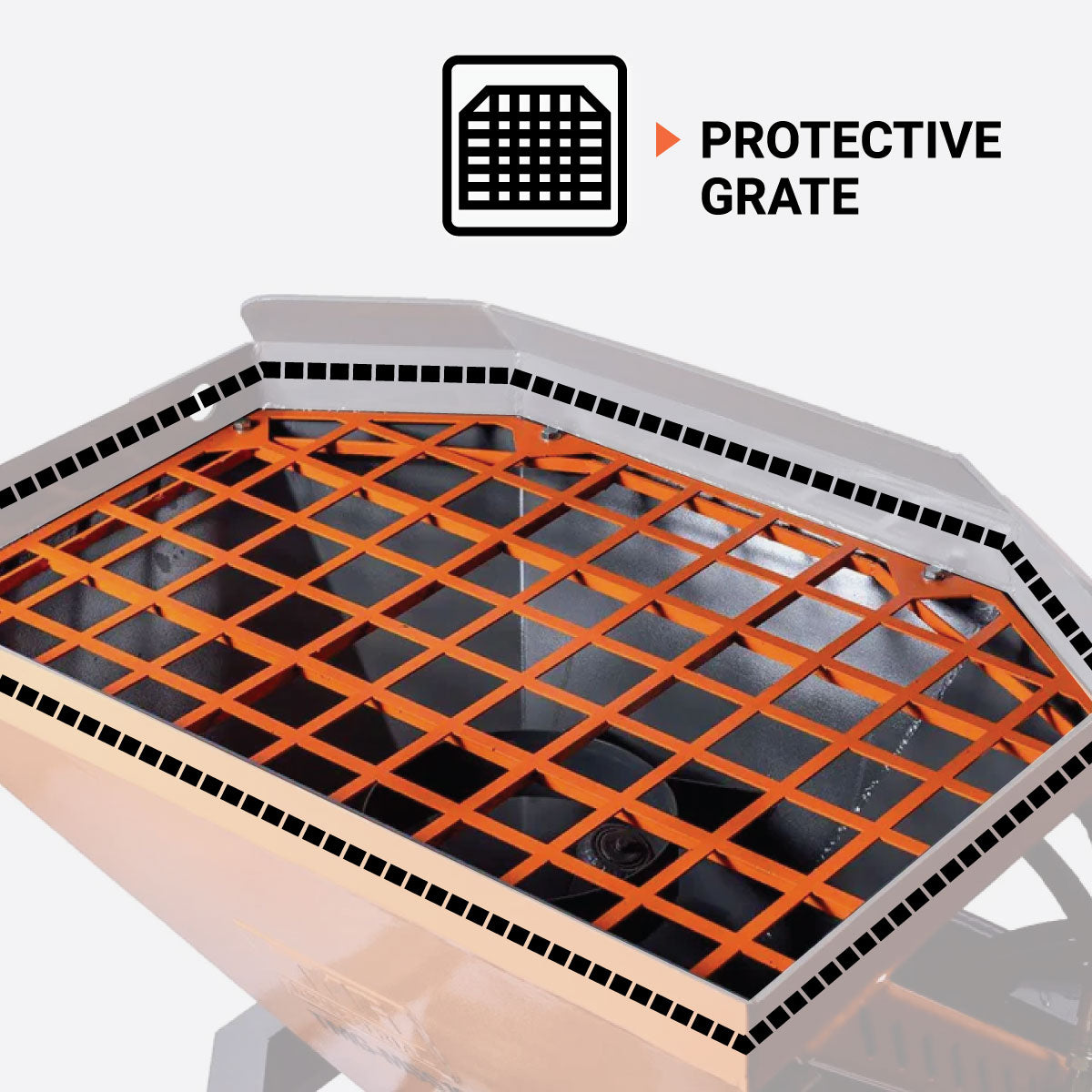

Protective grate prevents clogging
Feature Image

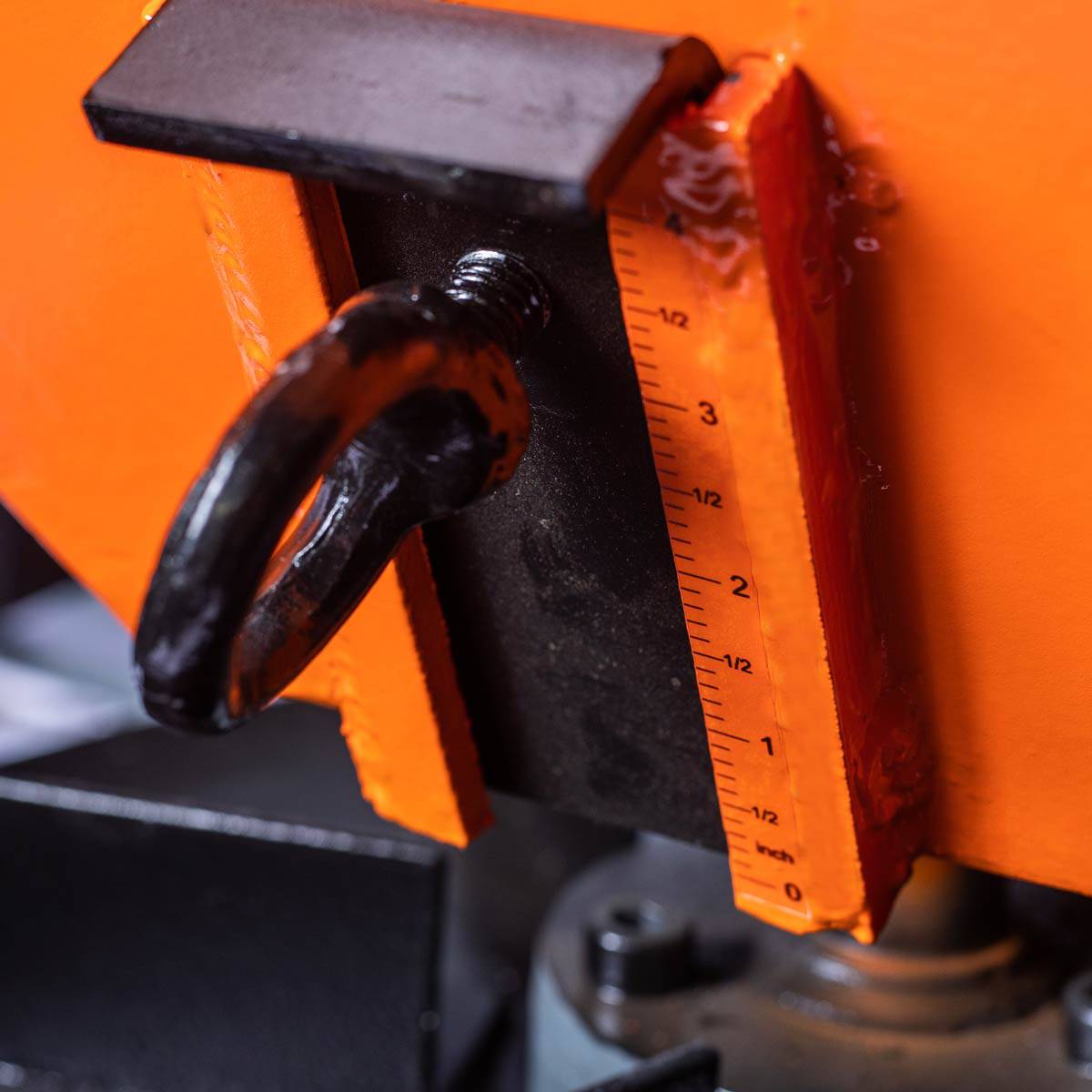

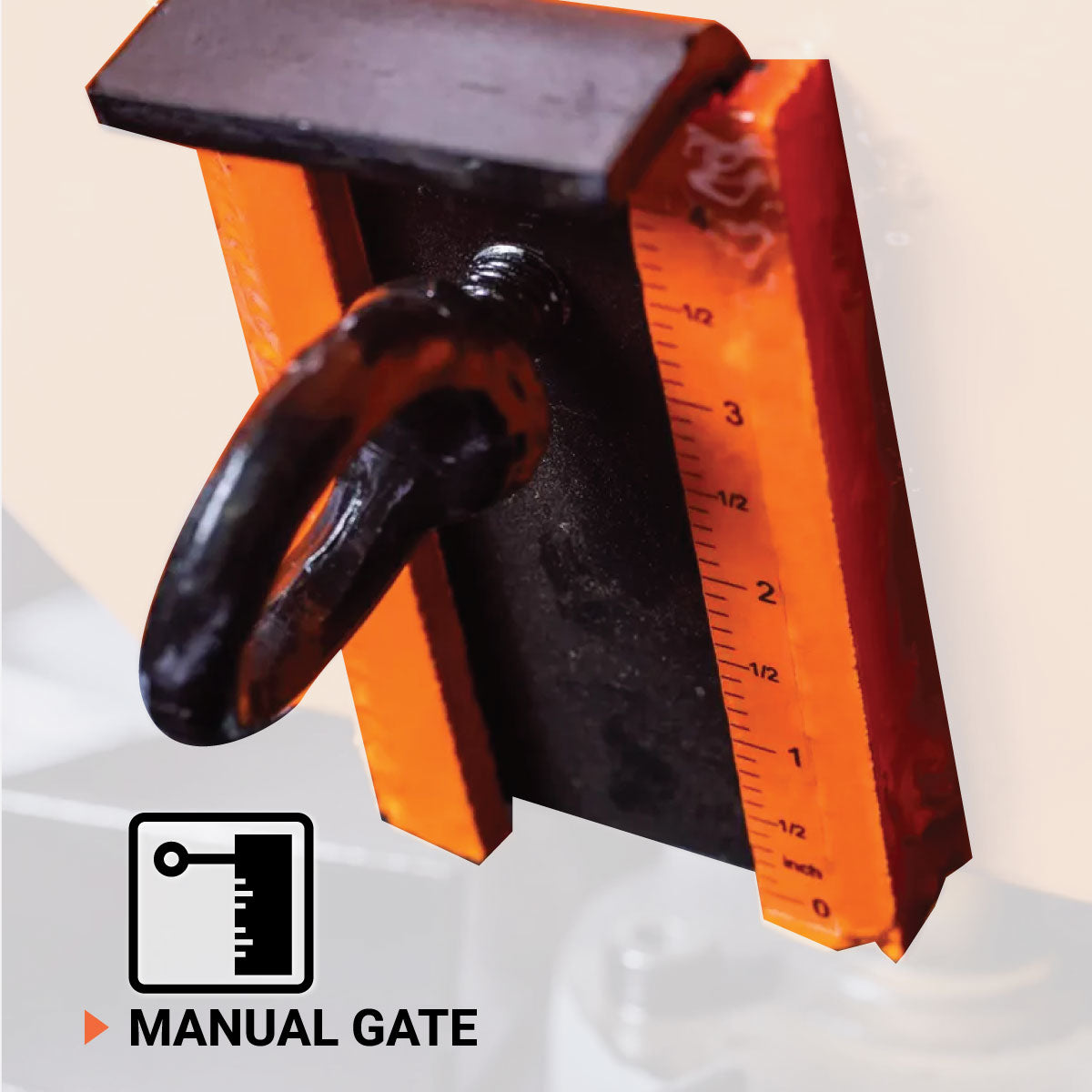

Manual gate controls flow

Specifications icon Specifications

  • Load Capacity: 283 L (10 cu-ft)
  • Spreading Range: Up to 9.1 m (30’)
  • Skid Steer Power Required: 37-75 kW (50-100 hp)
  • Working Flow: 36-60 L/min (6.5-12 GPM)
  • Working Pressure: 100-130 bar (1300-1700 PSI)
  • Hydraulic Flat Face Couplers Size: 1/2" NPT
  • Hydraulic Hoses Diameter: 1/2" x 1.5 m (59")
  • Hydraulic Hoses Amount: 2 pcs
  • Surface Finish: Spray Painting
  • Hydraulic Motor: Permco
  • Motor Model: M124A882CVDA10
  • Protective Grate: Included
  • Sidewalk Skirt: Removable
  • Flat Face Couplers & Hydraulic Hose: Included
  • Mount Type: Universal Skid Steer Mount
  • Overall Dimensions (L x W x H): 1370 x 812 x 1040 mm (54" x 32" x 41")
  • Net Weight: 227 kg (500 lb)

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

  • This product is packed in a metal crate shipping box
  • Shipping dimensions: 132 × 92 × 119 cm (L × W × H) / 52″ × 36″ × 47″
  • Shipping weight: 261 kg (575 lb)
Shipping from Rowville,VIC
What happens after you place your order?
Skid Steer Tilt‑N‑Scoop Material Spreader, 283 L (10 Cu-ft) Capacity, 9.1 m (30’) Spread Range, TMG‑MSS10-shipping-info-image

Product Description icon Product Description

The TMG‑MSS10 Skid Steer Tilt‑N‑Scoop Material Spreader is built to make seasonal and site work efficient and safe. With a 283 L (10 cu-ft) hopper, hydraulic agitator, and removable sidewalk skirt, this spreader lets you load without leaving your skid steer and apply a consistent 9.1 m (30 ft) spread of salt, sand, feed, fertilizer, and more. A protective grate, manual flow gate, and universal quick‑attach system ensure reliable operation and easy switch‑out between attachments. Ideal for agriculture, landscaping, municipal, and winter maintenance use.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What materials can I spread with the MSS10?
    A: Spread various materials including salt, sand, feed, and fertilizer, for use in landscaping, agriculture, or winter maintenance.
  • Q: Do I need to exit the skid steer to load the hopper?
    A: No—its Tilt-N-Scoop design allows you to load the 283 L hopper directly from your skid steer cab.
  • Q: How far can it spread material?
    A: Materials can be spread up to 9.1 m (30 ft), making it efficient for covering large areas.
  • Q: How is material flow controlled?

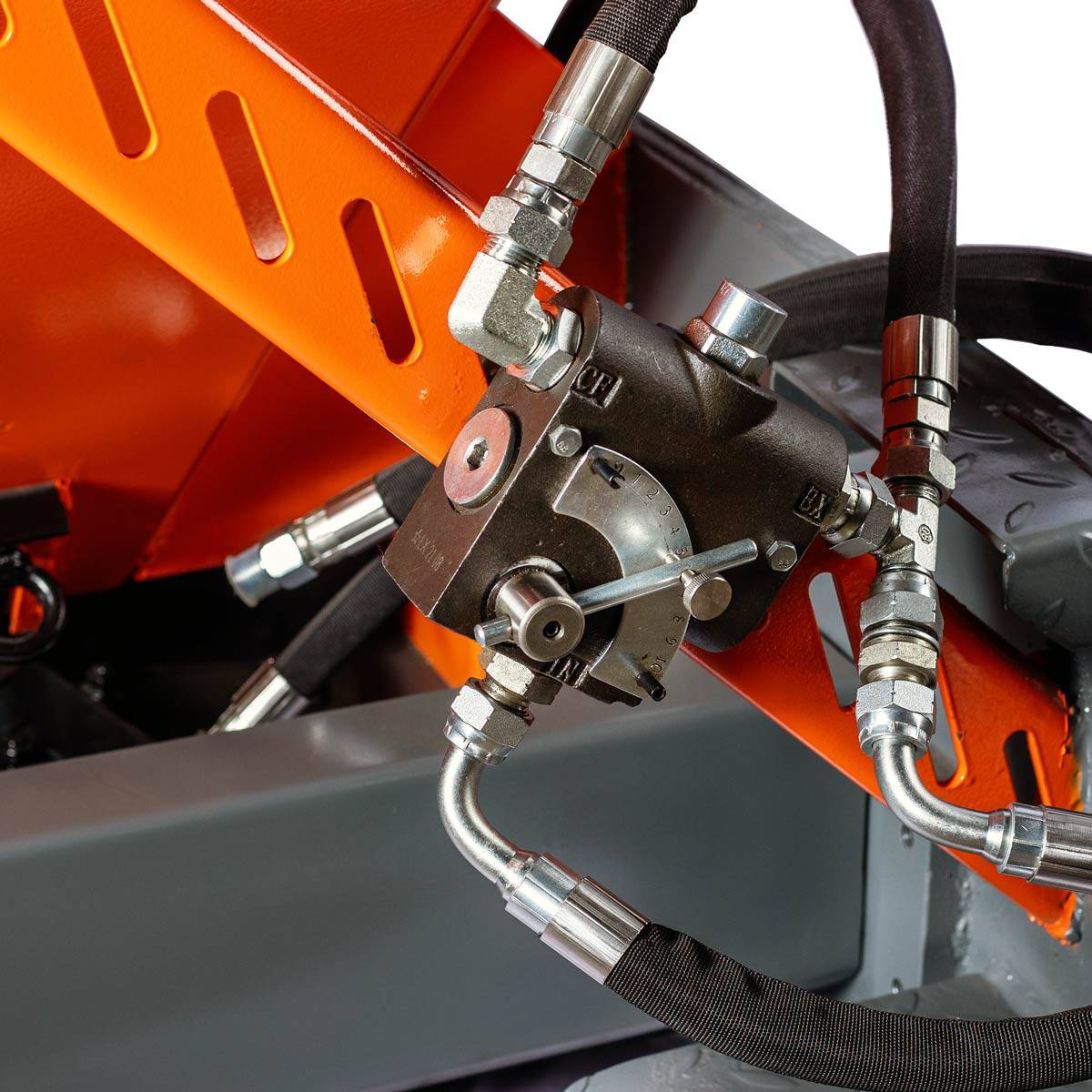

    A: A hydraulic Permco agitator ensures consistent mixing, while the protective grate and manual gate prevent clogging and allow flow adjustment.
  • Q: Is it easy to switch between attachments?
    A: Yes—the universal skid steer mount allows quick attachment changes and straightforward operation.
  • Q: Can I use it on narrow paths?
    A: Yes—the removable sidewalk skirt contains the spread for precision on pathways or sidewalks.
  • Q: What are the shipping dimensions and weight?
    A: Packed in a wood crate measuring 132 × 92 × 119 cm (L x W x H) / 52″ × 36″ × 47″ and weighing 261 kg (575 lb).
  • Q: What is the warranty for the TMG-MSS10?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
