TMG-PSM30

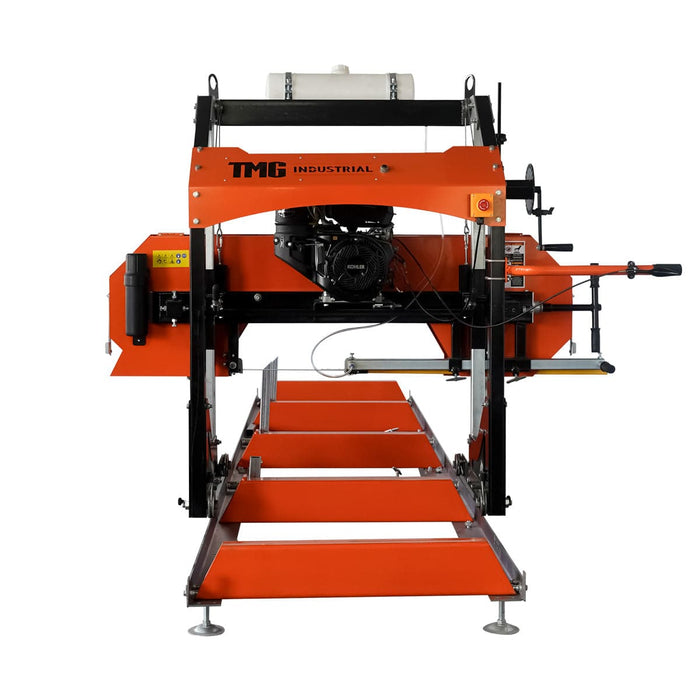

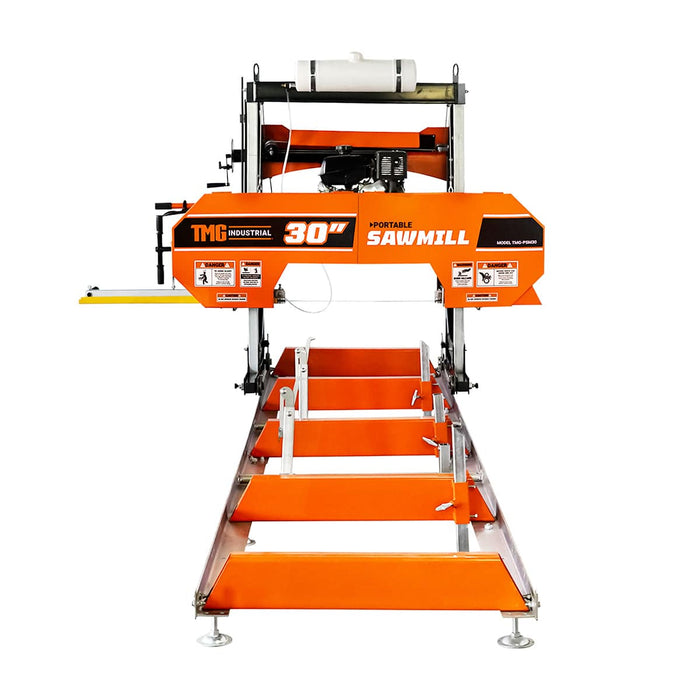

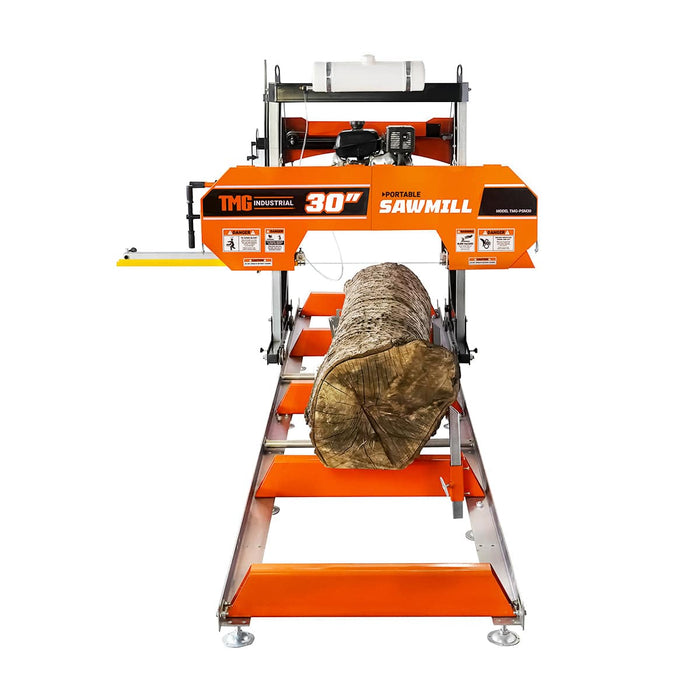

3.6 m Portable Sawmill (Blade is not Included), 760 mm Diameter, 14 HP Kohler Engine, TMG-PSM30

Product Manual
TMG Industrial 30" Portable Sawmill, 14 HP Kohler Engine, 28" Board Width, 12' Log Length, 14.5' Track Bed, TMG-PSM30
CURRENTLY IN STOCK
TMG-PSM30
$4,799.00
$4,799.00 - $4,799.00
$4,799.00
$4,199.00
$4,199.00 - $4,199.00
$4,199.00
$4,799.00 Save $600.00
$4,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

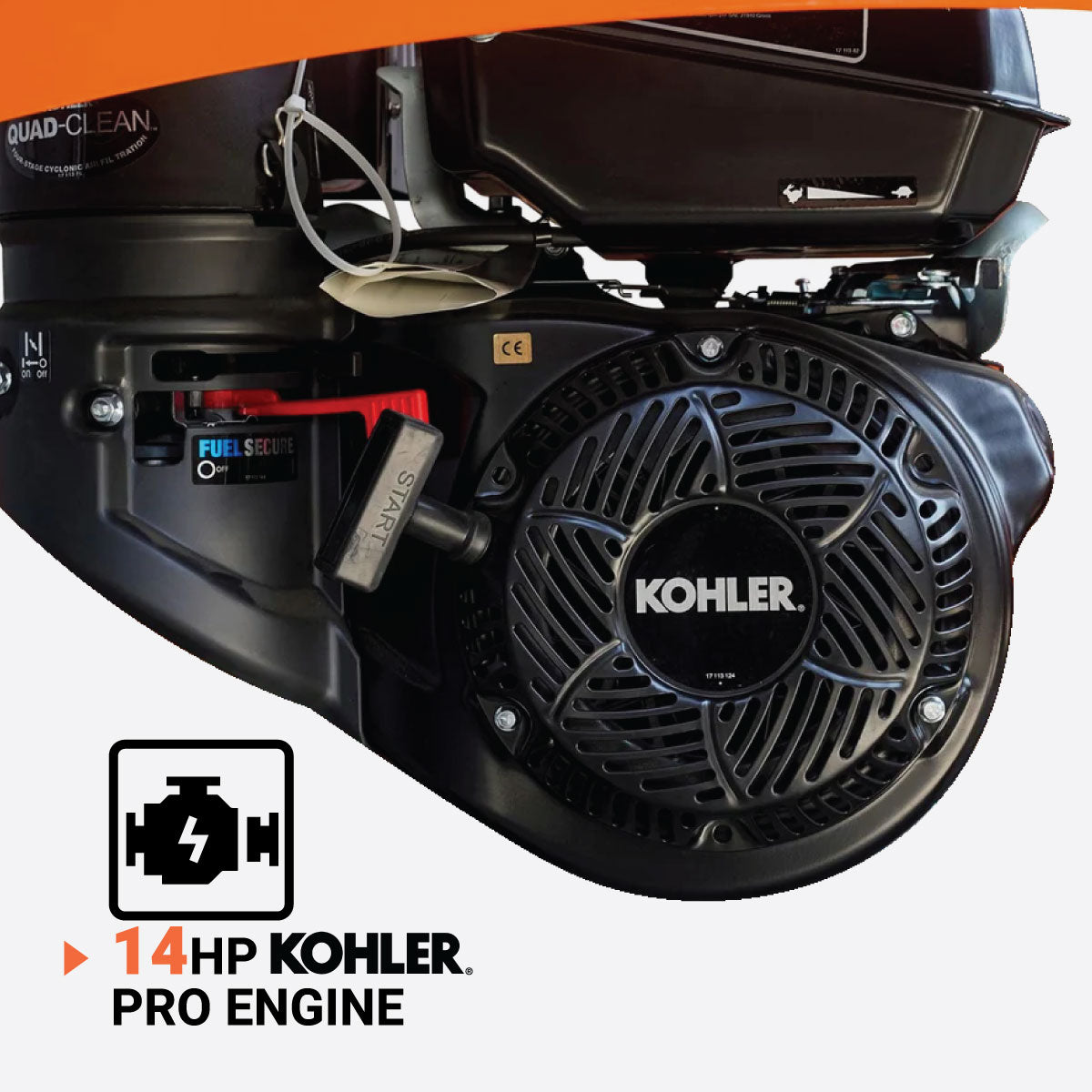

14 HP Kohler Command Pro Series Engine for professional cutting performance
Feature Image

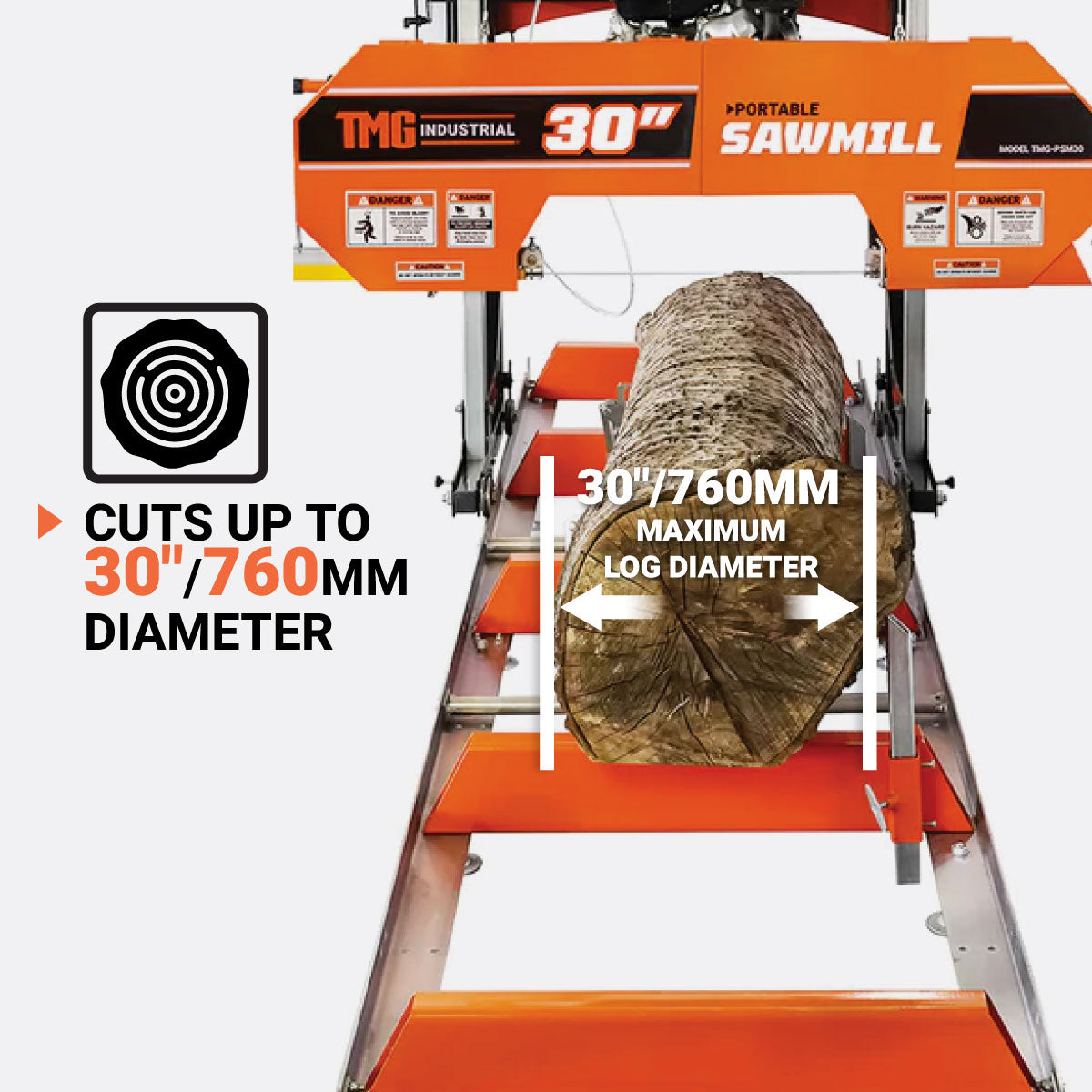

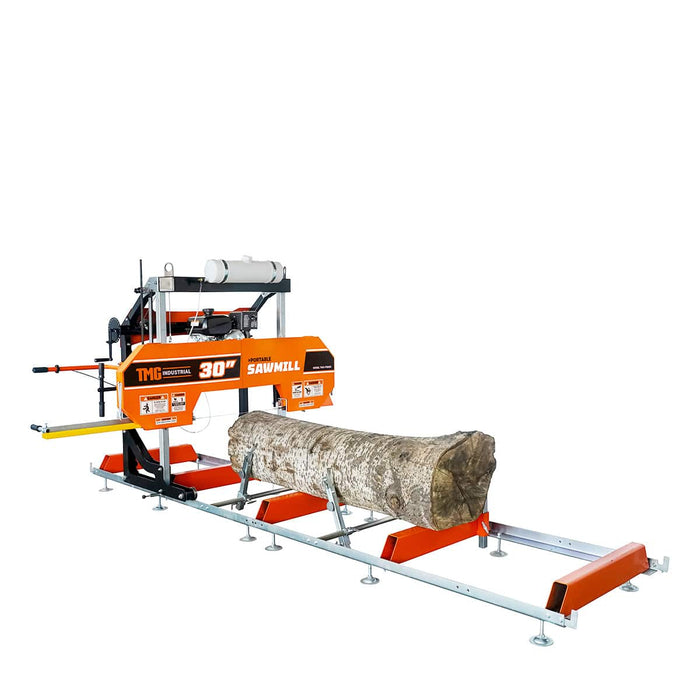

Large capacity: 760 mm max log diameter, 3600 mm max length
Feature Image

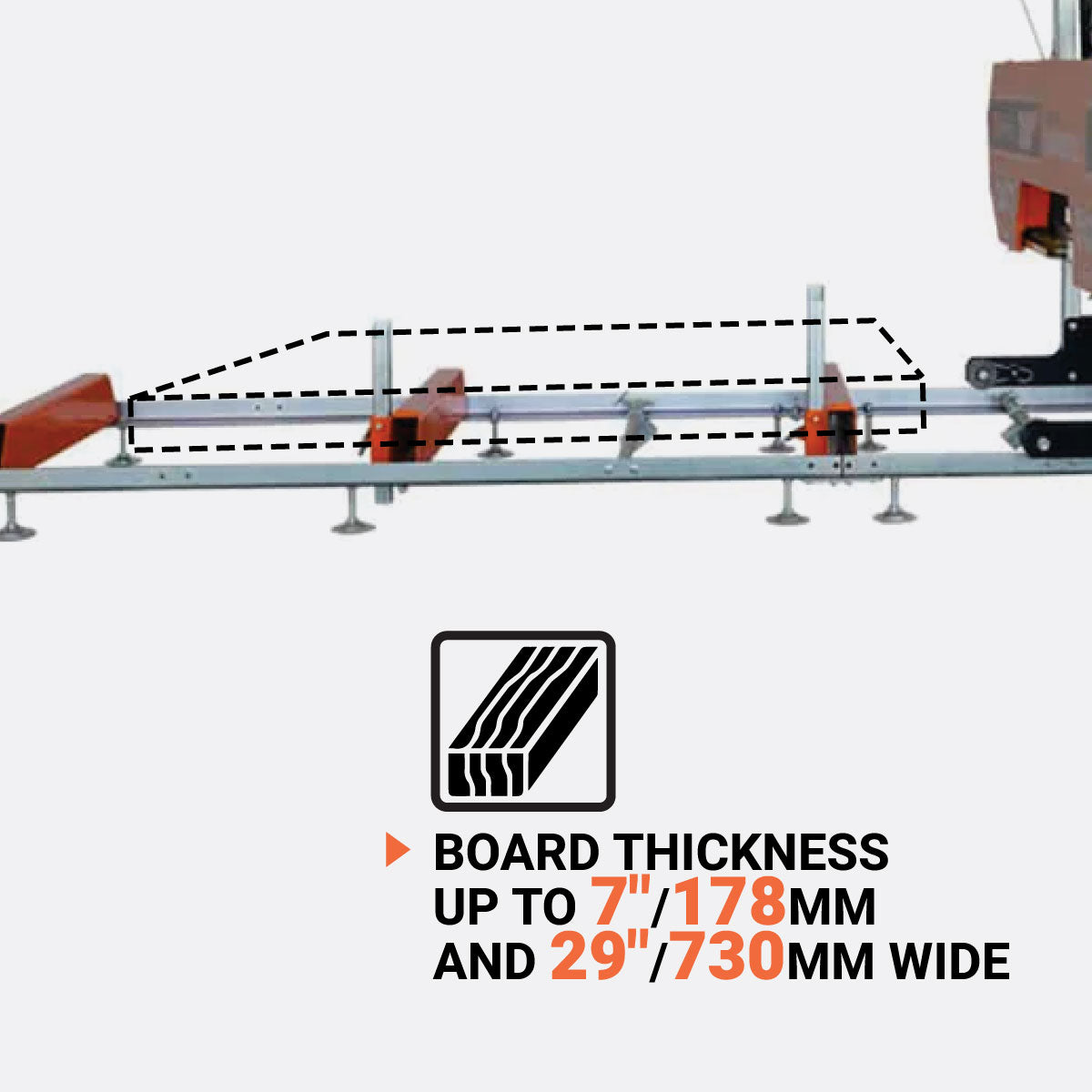

Cuts boards up to 730 mm wide and 178 mm thick
Feature Image

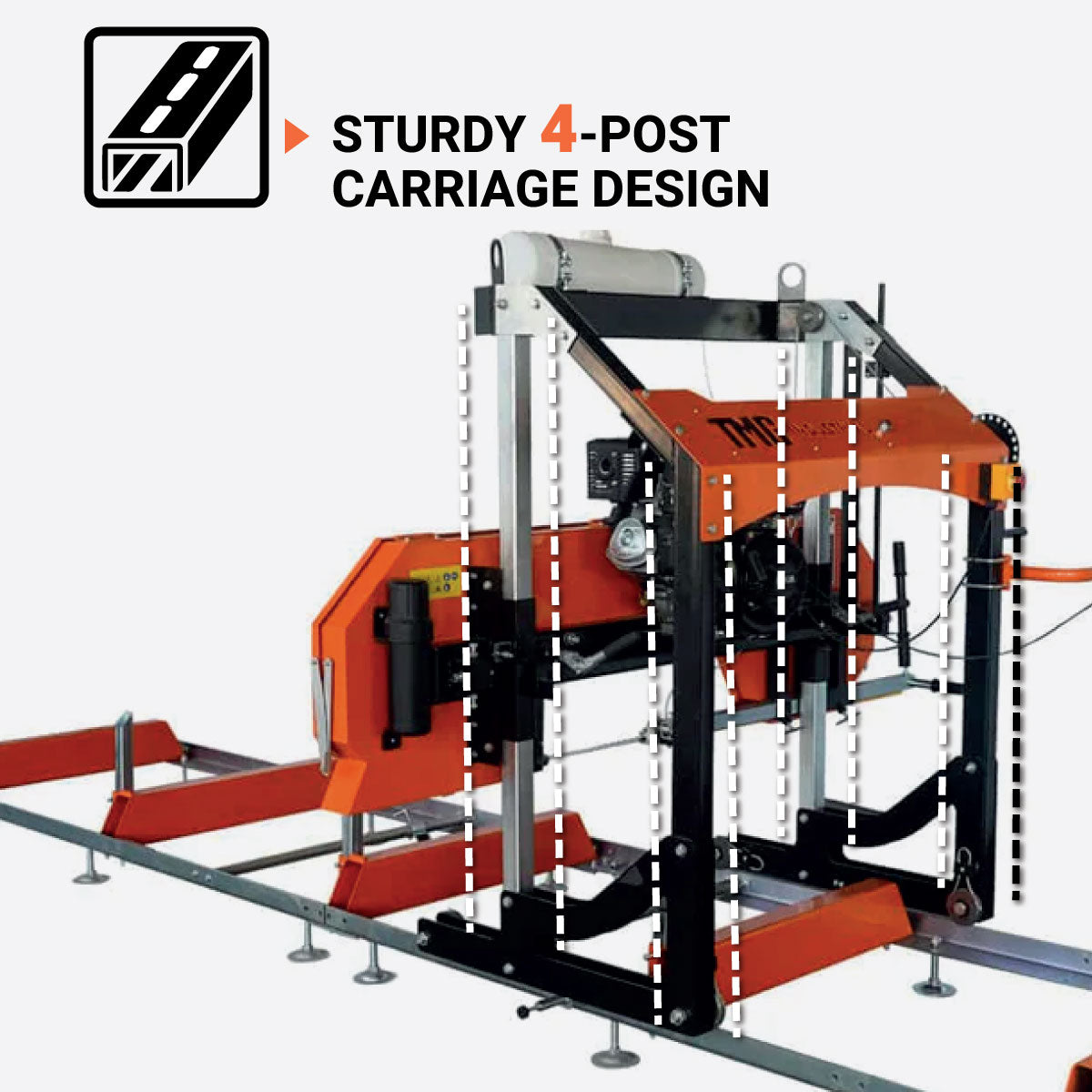

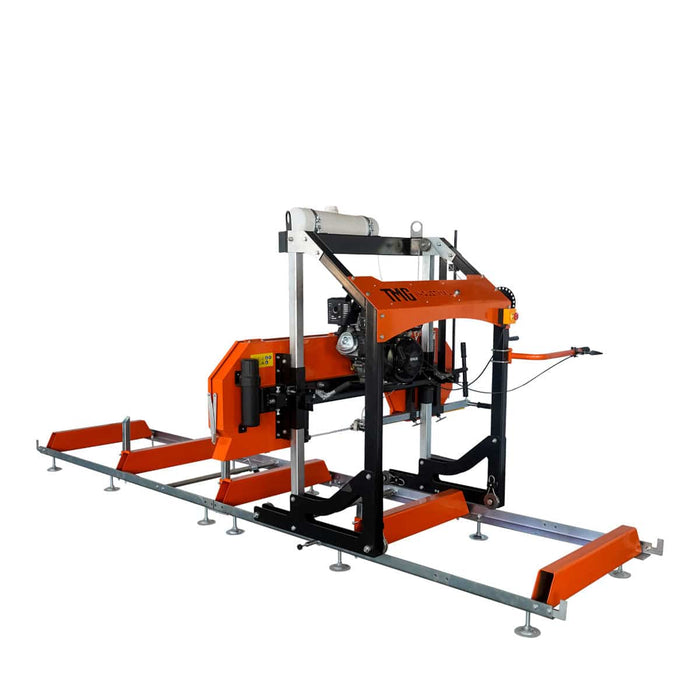

Heavy-duty 4-post carriage design with precision linear guides
Feature Image

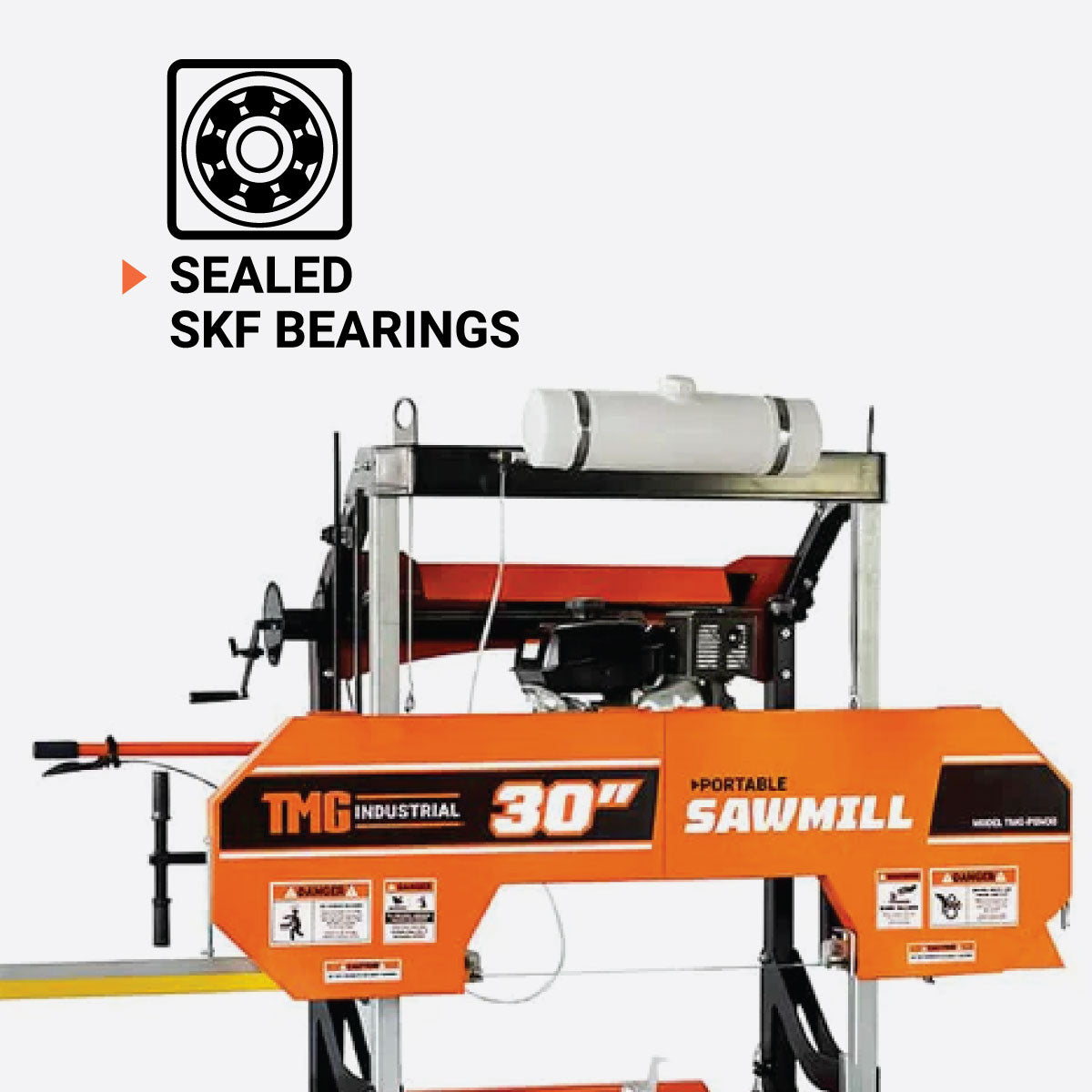

Permanent Sealed SKF Bearings reduce vibration and improve accuracy 
Feature Image

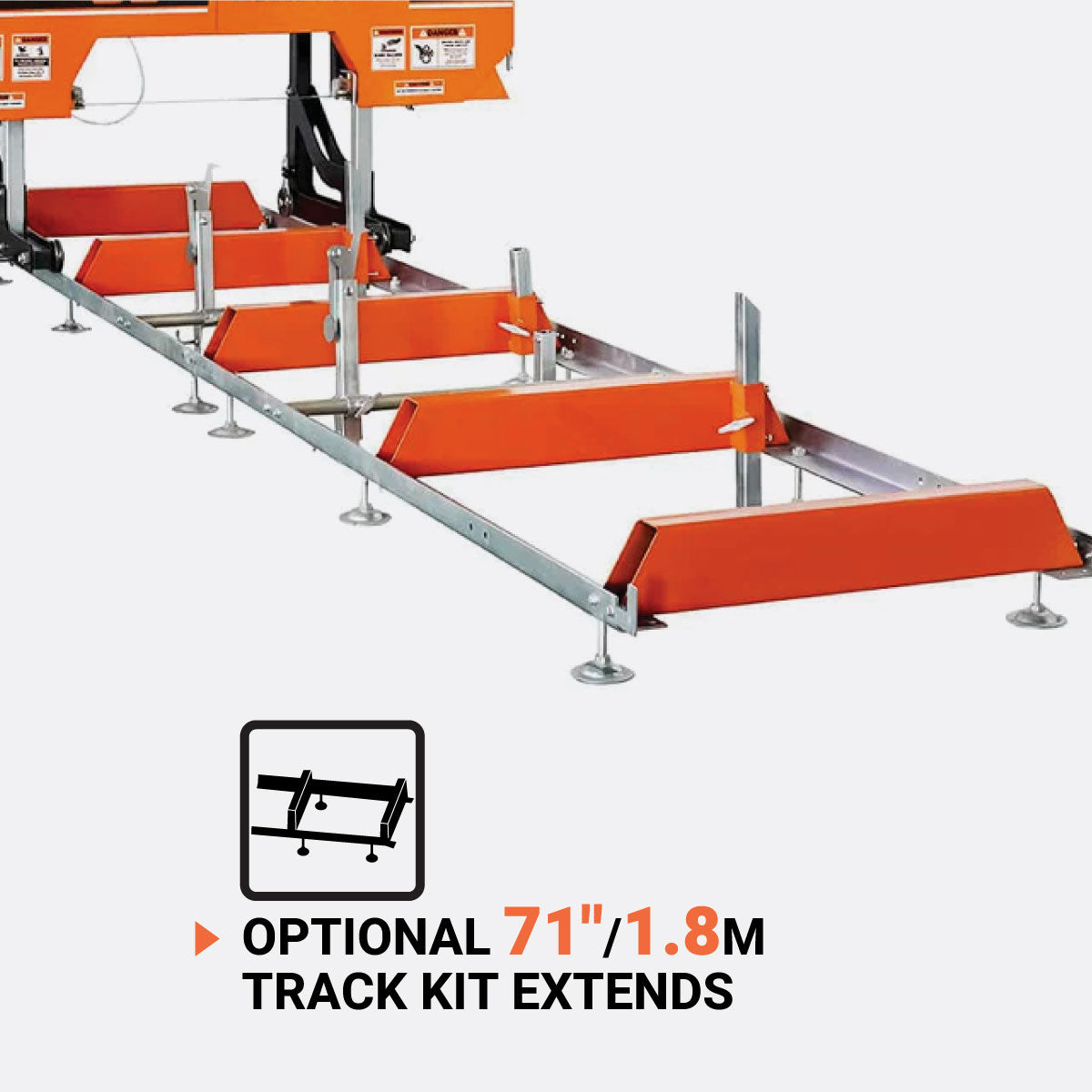

Optional 1.8m Track Extension Kit expands cutting capacity up to 5.4m

Specifications icon Specifications

  • Engine Model: Kohler CH440
  • Engine Horsepower: 14 HP
  • Max Log Diameter: 760 mm
  • Max Log Length: 3600 mm
  • Max Board Width: 730 mm
  • Max Cut Thickness: 178 mm
  • Track Bed Length: 4420 mm
  • Blade Engagement System: Centrifugal Clutch
  • Blade Wheel Diameter: 480 mm
  • Blade Guide: Yes
  • Blade Tension Adjustment: T-Handle Tension Adjustment
  • Blade Length: 4013 mm
  • Blade Width: 32 mm
  • Blade Kerf: 1.1 mm
  • Blade Lubrication: Water
  • Extension Kit Available: Yes
  • Extension Kit Model: TMG-PSM30-6EX
  • Finish: Galvanizing and Powder Coating
  • Overall Dimensions: 2350 × 2100 × 4880 mm
  • Carriage Design: 4-Post Carriage
  • Weight: 375 kg

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

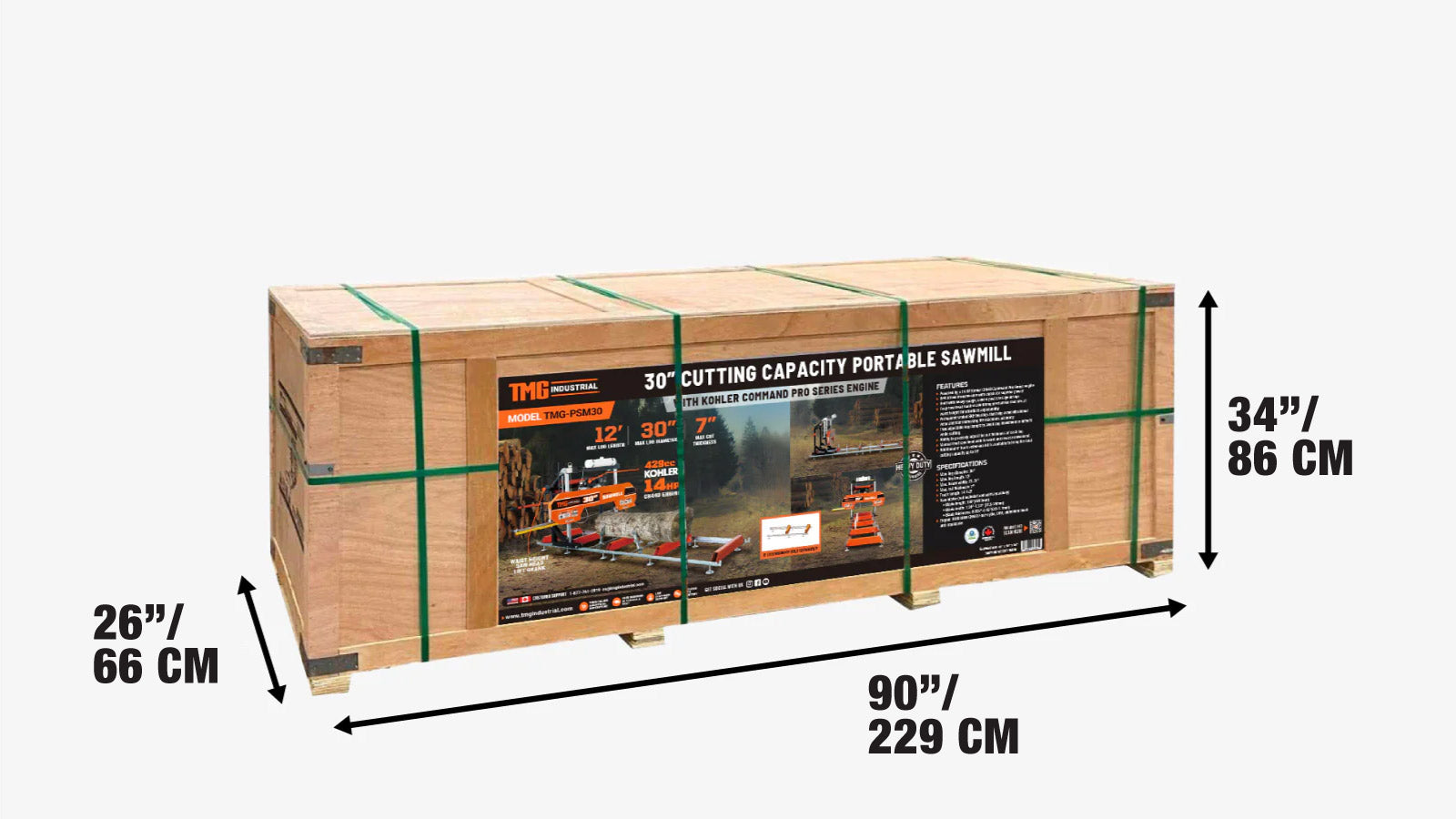

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 229 x 66 x 87 cm (L x W x H)
  • Shipping weight: 436 kg
Shipping from Rowville,VIC
What happens after you place your order?
3.6 m Portable Sawmill (Blade is not Included), 760 mm Diameter, 14 HP Kohler Engine, TMG-PSM30-shipping-info-image

Product Description icon Product Description

The TMG-PSM30 Portable Sawmill is built for those who demand more power, precision, and capacity in their timber processing work. With a high-output 14 HP Kohler engine and large-scale cutting ability, this sawmill is perfect for professionals, rural property owners, and serious DIYers in Australia.

Able to handle logs up to 3.60 metres long and 760 mm in diameter, the PSM30 makes quick work of converting raw logs into clean, usable timber. The waist-height lift crank and solid carriage frame enhance ease-of-use and safety, while the water-cooling tank helps maintain blade condition.

Whether you’re harvesting your own timber, building sheds or outdoor furniture, or processing lumber for sale, the TMG-PSM30 offers the capacity, power, and performance to get the job done right.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What are the maximum log dimensions the TMG-PSM30 can handle?
The TMG-PSM30 can cut logs with a maximum diameter of 76 cm (30 inches) and a maximum length of 3.6 metres (12 feet).
Q: What is the maximum board width I can mill with this saw?
You can mill boards up to 73 cm (28 inches) wide.
Q: What is the maximum cut thickness I can achieve?
The sawmill allows for a maximum cut thickness of 17.8 cm (7 inches).
Q: What kind of engine does the TMG-PSM30 use?
It's powered by a reliable 14 HP Kohler CH440 Command Pro series engine, with a displacement of 429 CC. It features a recoil start and includes Oil Sentry automatic shutdown for engine protection.
Q: How is the saw head adjusted for cutting thickness?
The saw head uses an easy hand-crank lifting mechanism, positioned at waist height, allowing for effortless and precise adjustments without bending over.
Q: What are the dimensions of the track bed?
The standard track bed length is 4.42 metres (14.5 feet).
Q: Can I cut longer logs than the standard 3.66 metres?
Yes! An additional 1.8-metre (6-foot) track extension kit is available, extending the total cutting capacity to 5.4 metres (18 feet).
Q: What are the specifications for the saw blade?
The saw blade has a length of 4013 mm (158 inches), a width of 31.75 mm (1.25 inches).
Q: How is the blade lubricated?
The saw blade system includes a 10-litre water tank for lubrication.
Q: What are the shipping dimensions and weight of the TMG-PSM30?
The product is packed in a wood crate. The shipping dimensions are approximately 228.6 cm (90 inches) long × 66 cm (26 inches) wide × 86.4 cm (34 inches) high, with a shipping weight of approximately 435 kg (960 lb).
Q: How long does delivery typically take to Australia?
While delivery times vary based on your location and accessibility, most orders typically arrive within 10 to 15 business days.
Q: Is there a warranty on the TMG-PSM30?
Yes, the TMG-PSM30 is backed by a 1-year manufacturer warranty. Customer support and spare parts are available.
