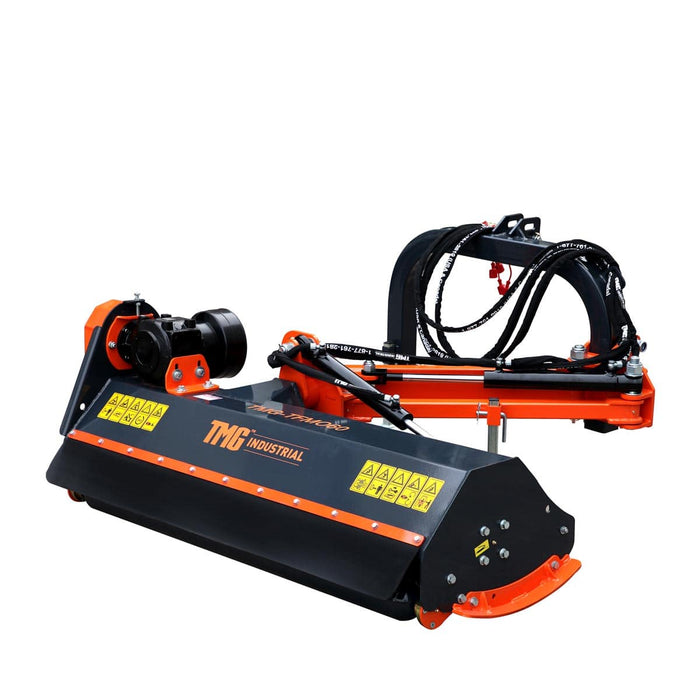

1450 mm (60") Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 25–60 HP Tractors, TMG-TFMO60 

1450 mm (60") Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 25–60 HP Tractors, TMG-TFMO60 

TMG Industrial 60” Offset Ditch Bank Flail Mower with 90° Tilt, 3-Point Hitch, 30-60 HP Tractor, PTO Drive Shaft, TMG-TFMO60
CURRENTLY IN STOCK
SKU TMG-TFMO60
$4,599.00
$4,599.00 - $4,599.00
$4,599.00
$2,999.00
$2,999.00 - $2,999.00
$2,999.00
$4,599.00 Save $1,600.00
$2,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011
Product Manual
Find Parts

Features

Feature Image

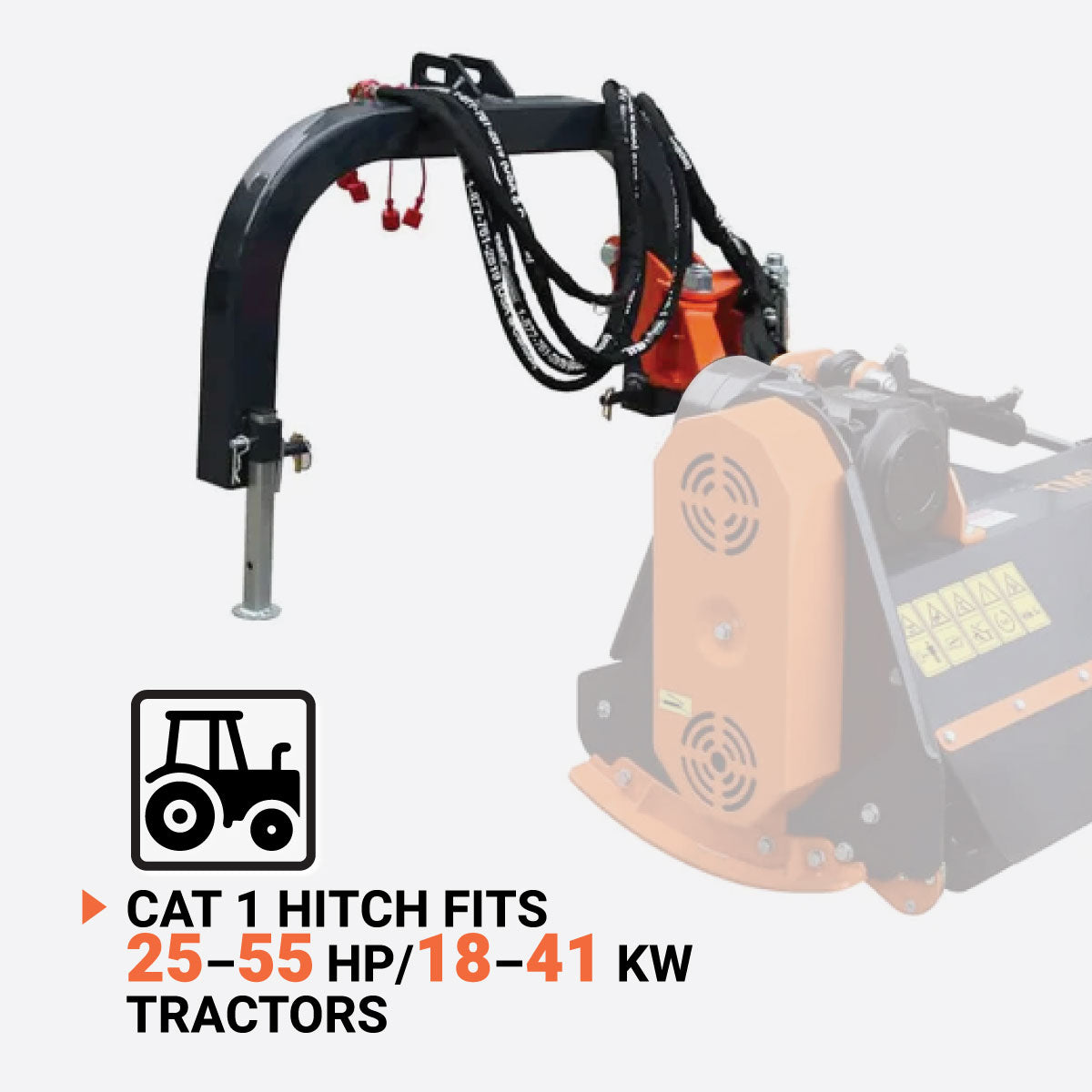

Category 1 three-point hitch fits standard 18–41 kW (25–55 HP) tractors 
Feature Image

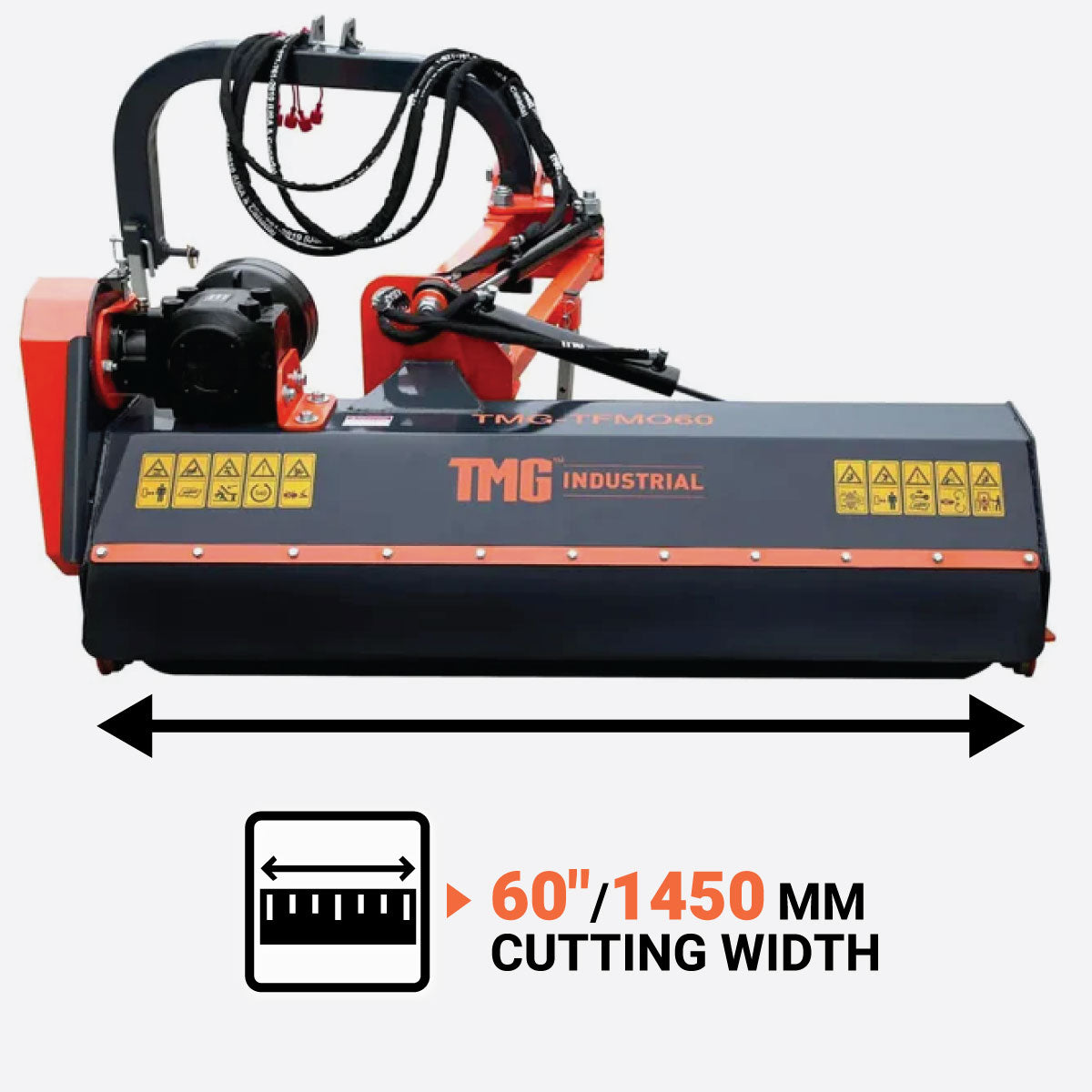

1450 mm (60″) cutting width for fast and efficient roadside and slope maintenance 
Feature Image

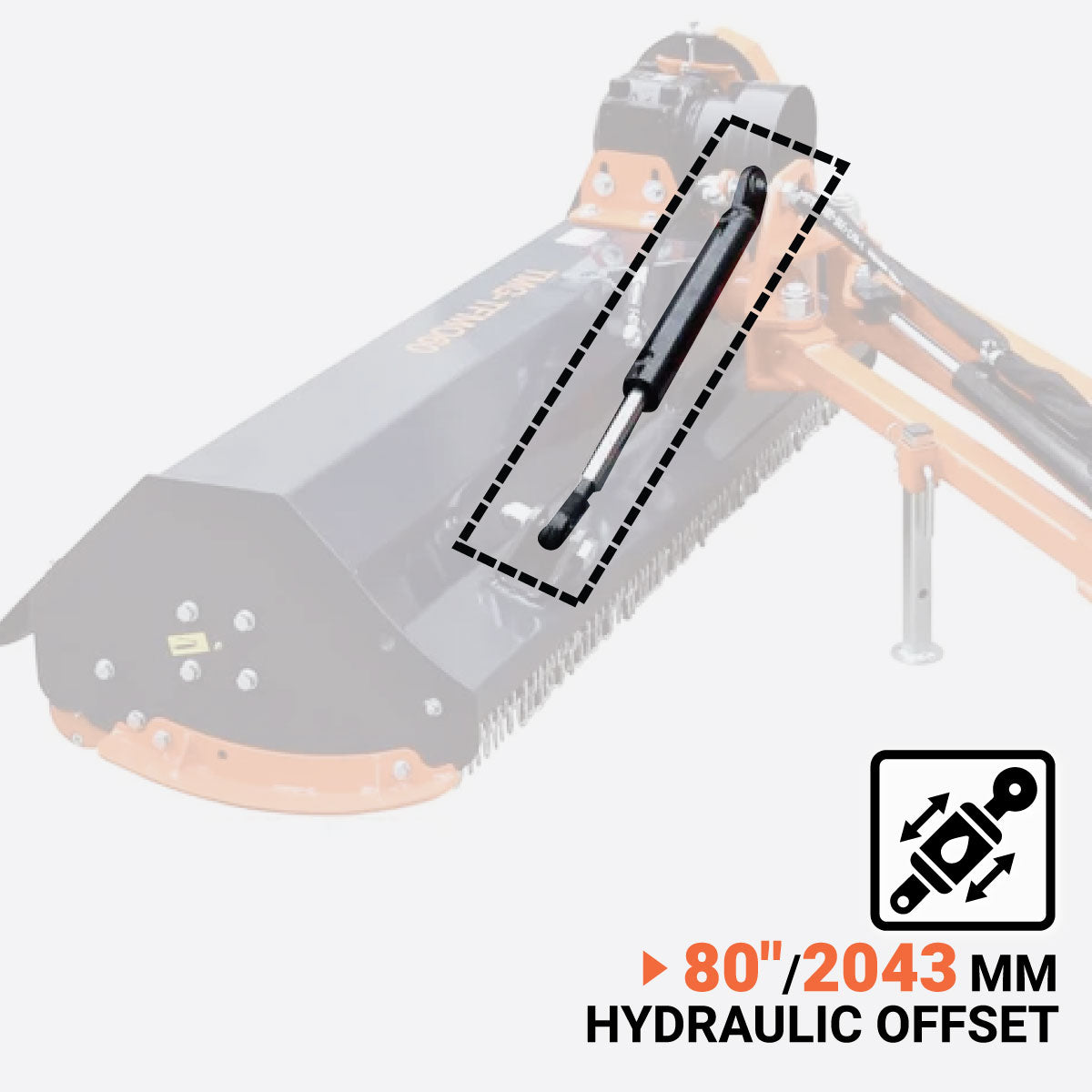

Maximum 2043 mm (80″) hydraulic side offset reach for extended ditch and fence line trimming 
Feature Image

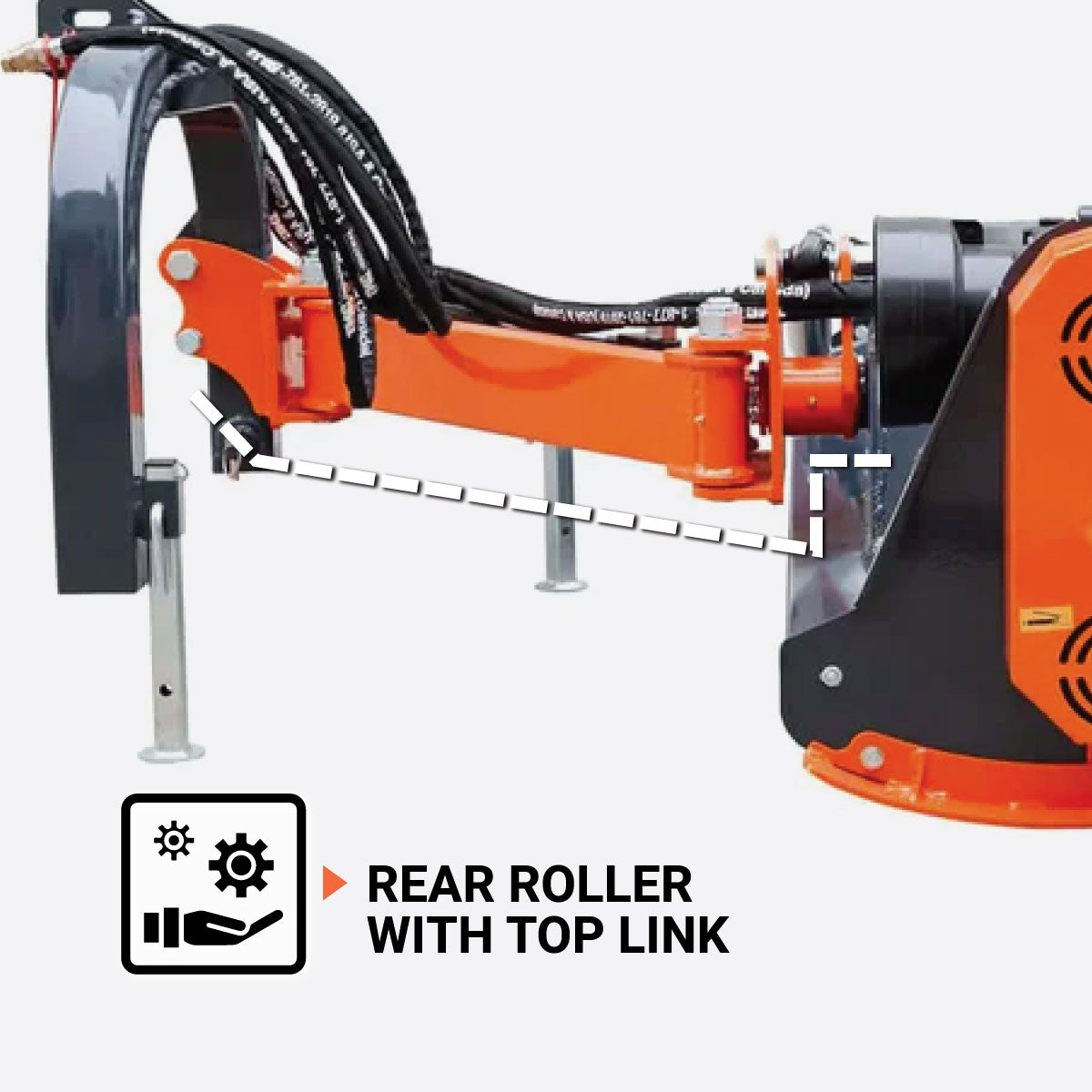

Adjustable cutting height with rear roller and skid shoes for consistent performance 
Feature Image

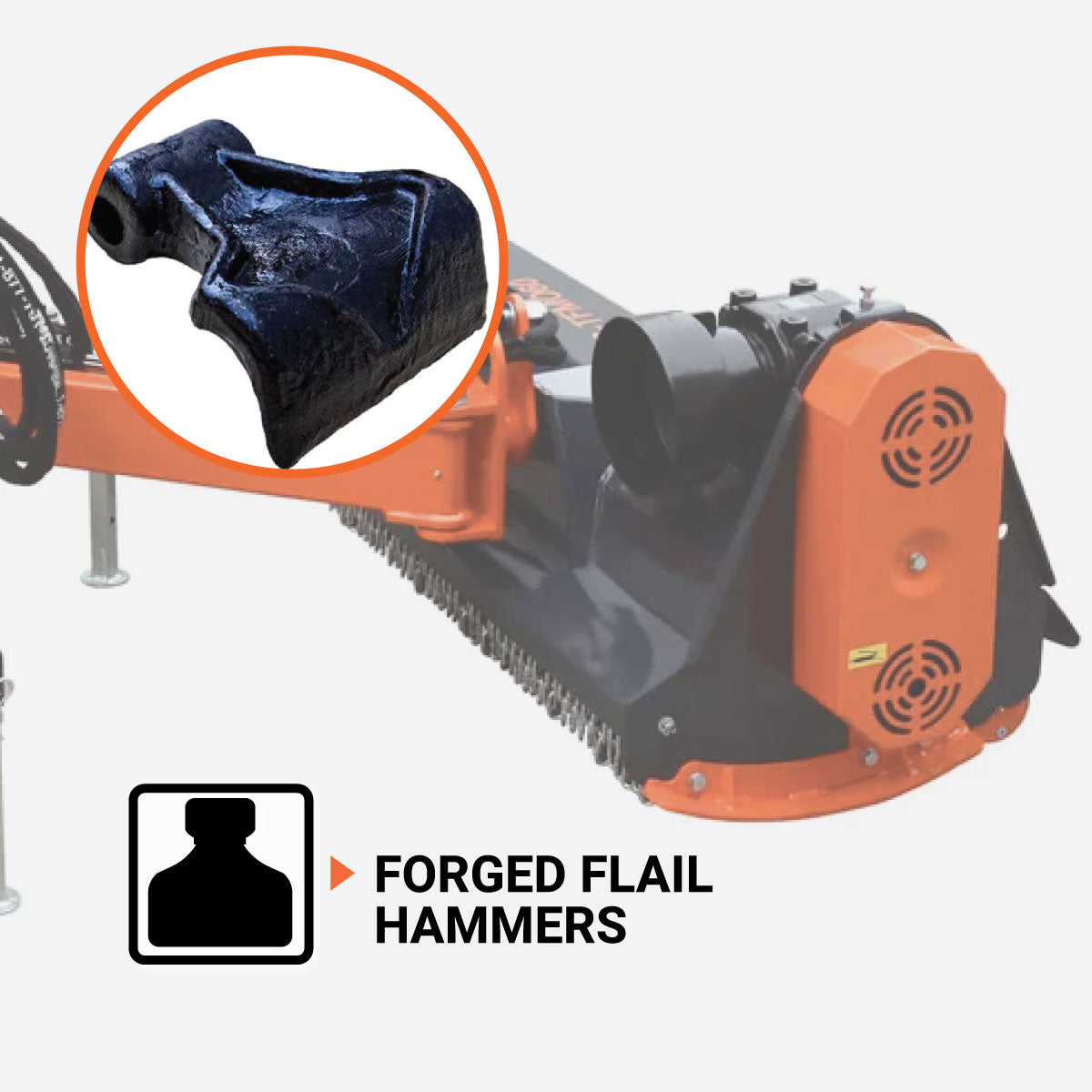

Forged flail hammers designed for shredding overgrowth and expelling clean mulch 
Feature Image

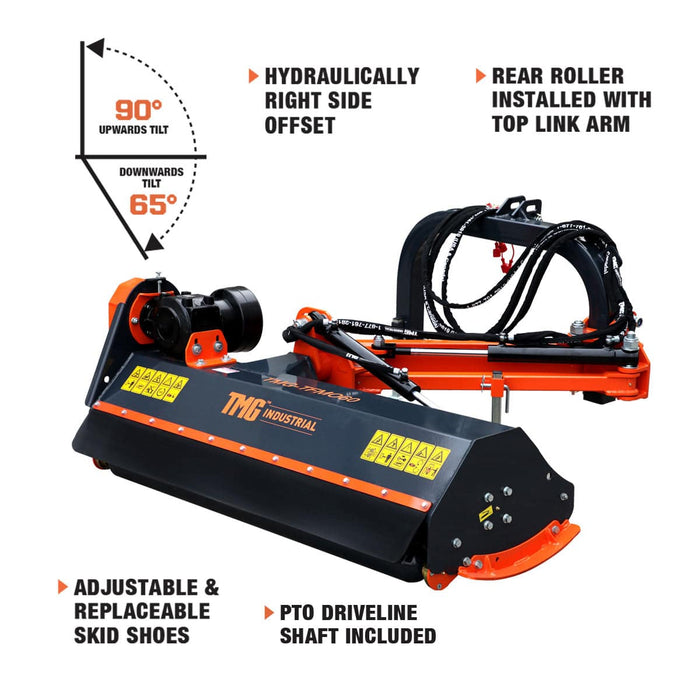

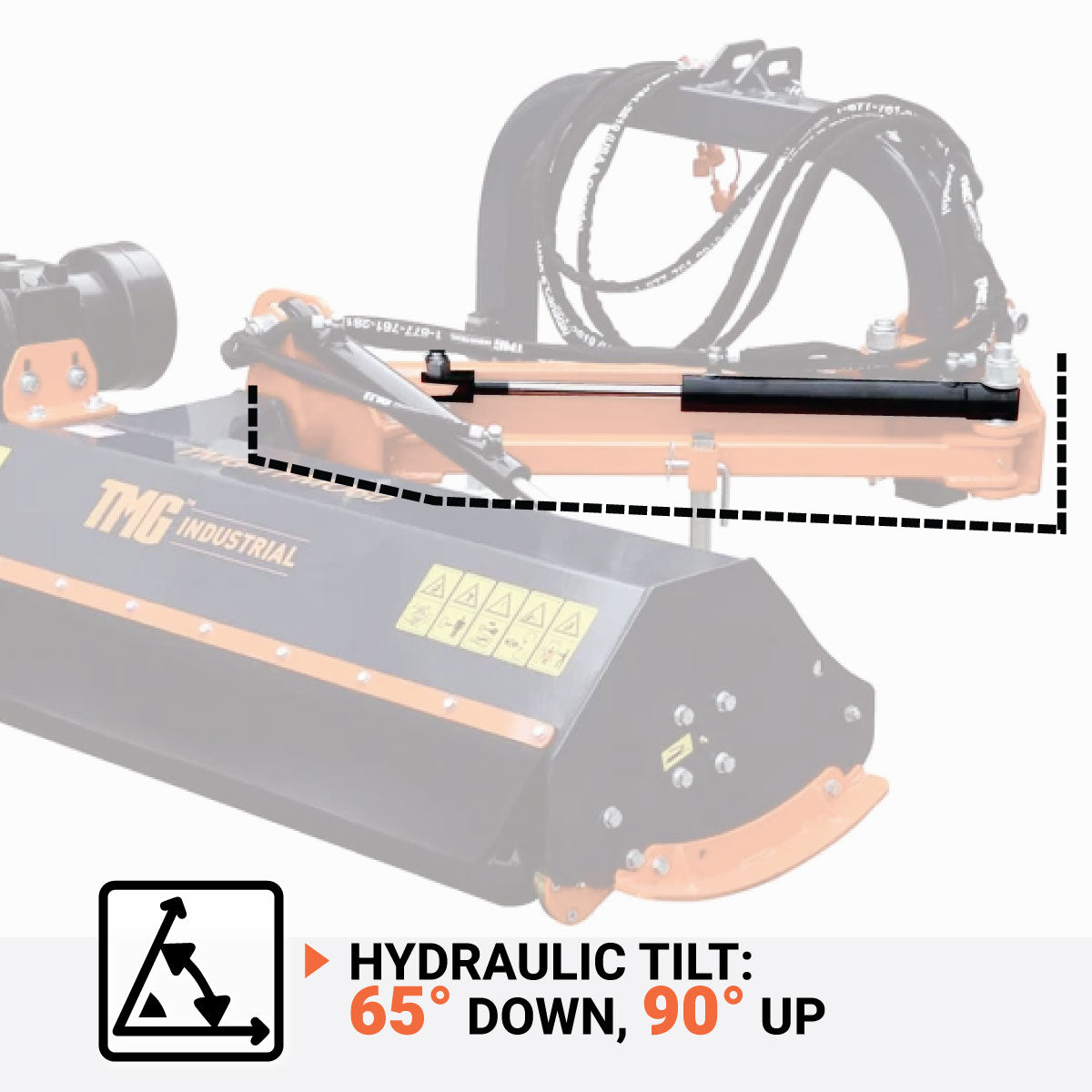

Hydraulic tilt with 65° downward and 90° upward for angled surfaces and transportation 

Specifications

  • Tractor Horse Power Range: 25-50 hp
  • Mounting Type: 3 Point Hitch CAT 1
  • Working Width (mm): 1450 mm
  • Working Width (inch): 60"
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Size: G 1/2" Pioneer Coupler
  • Number of Hydraulic Hoses: 4
  • PTO Shaft: Included
  • Overrun Protection: Shear Pin
  • PTO Shaft RPM: 540
  • PTO Shaft Model: 04B-LF-1400
  • PTO Shaft Length (mm): 1400 mm
  • PTO Shaft Length (inch): 55"
  • Rotor Shaft Speed RPM: 2335
  • Rotor Diameter: 108 mm
  • Rotor Thickness: 8 mm
  • Max. Offset From Centre (mm): 1260 mm
  • Max. Offset From Centre (inch): 50"
  • Max. Offset Distance / Reach (mm): 2043 mm
  • Max. Offset Distance / Reach (inch): 80"
  • Tilt-Up Angle: 90°
  • Tilt-Down Angle: 45°
  • Number of Blades: 24
  • Blade Type: Hammers (Y Blades Sold Separately)
  • Blade Material: Forged Carbon Steel
  • Blade Ground Clearance: 10 - 33 mm
  • Adjustable & Replaceable Skid Shoes: Yes
  • Drive Type: Belt

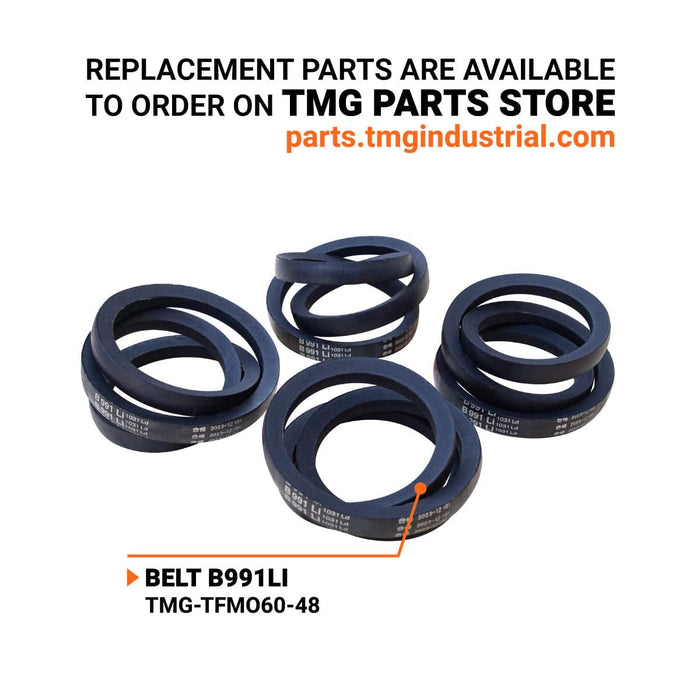

  • Number of Belts: 3
  • Gearbox Oil Type: SAE 90
  • Deck Thickness: 3 mm
  • Side Skid Thickness: 8 mm
  • Finish: Powder Coated

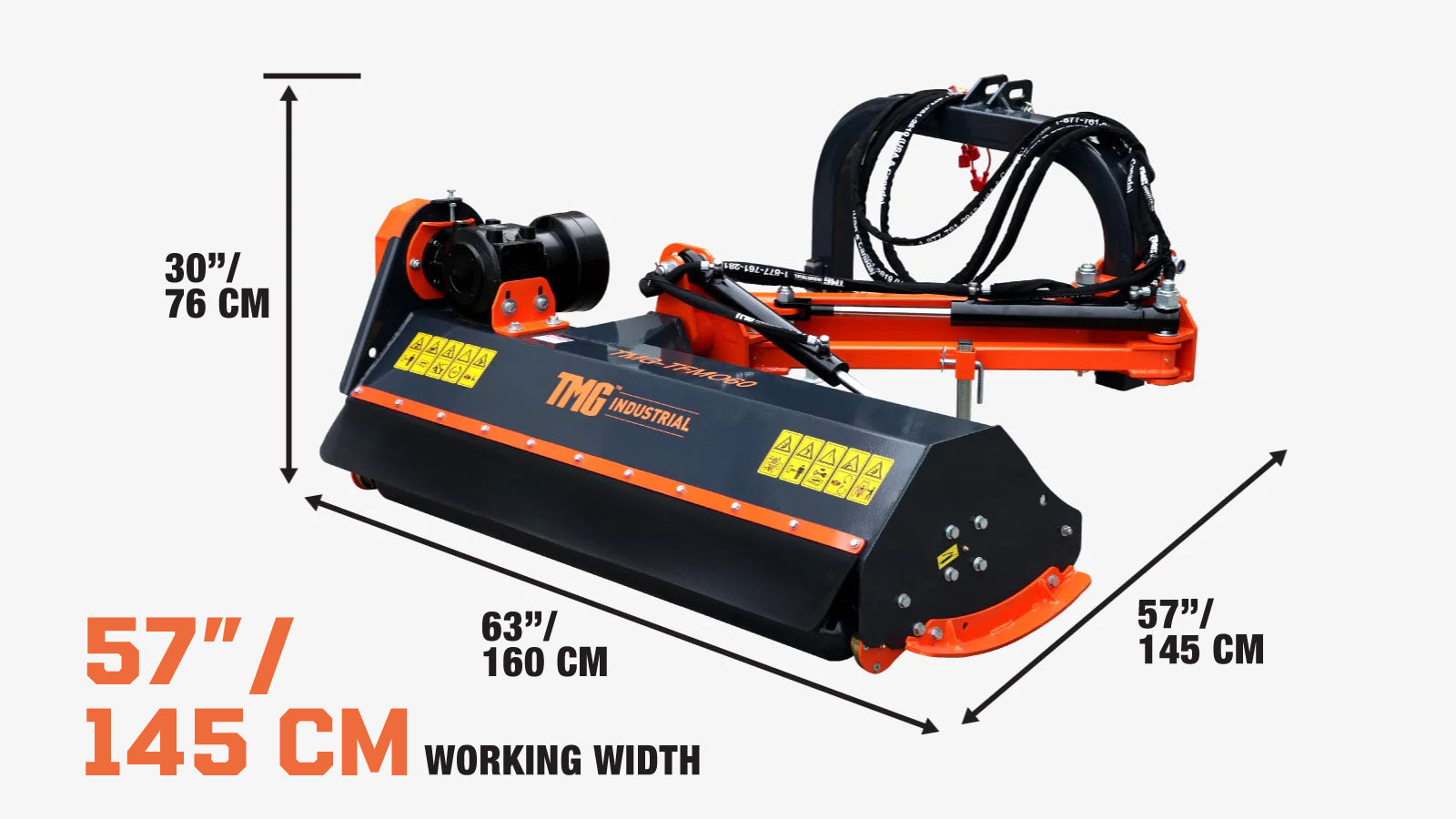

  • Overall Dimensions: 1600 x 1450 x 760 mm
  • Net Weight (kg): 295 kg
  • Net Weight (lb): 649 lb
1450 mm (60

Shipping Information

Your order will be shipped from our warehouse in Australia. Orders are generally processed within 2 to 3 business days, with most deliveries arriving within 10 to 15 business days depending on location.

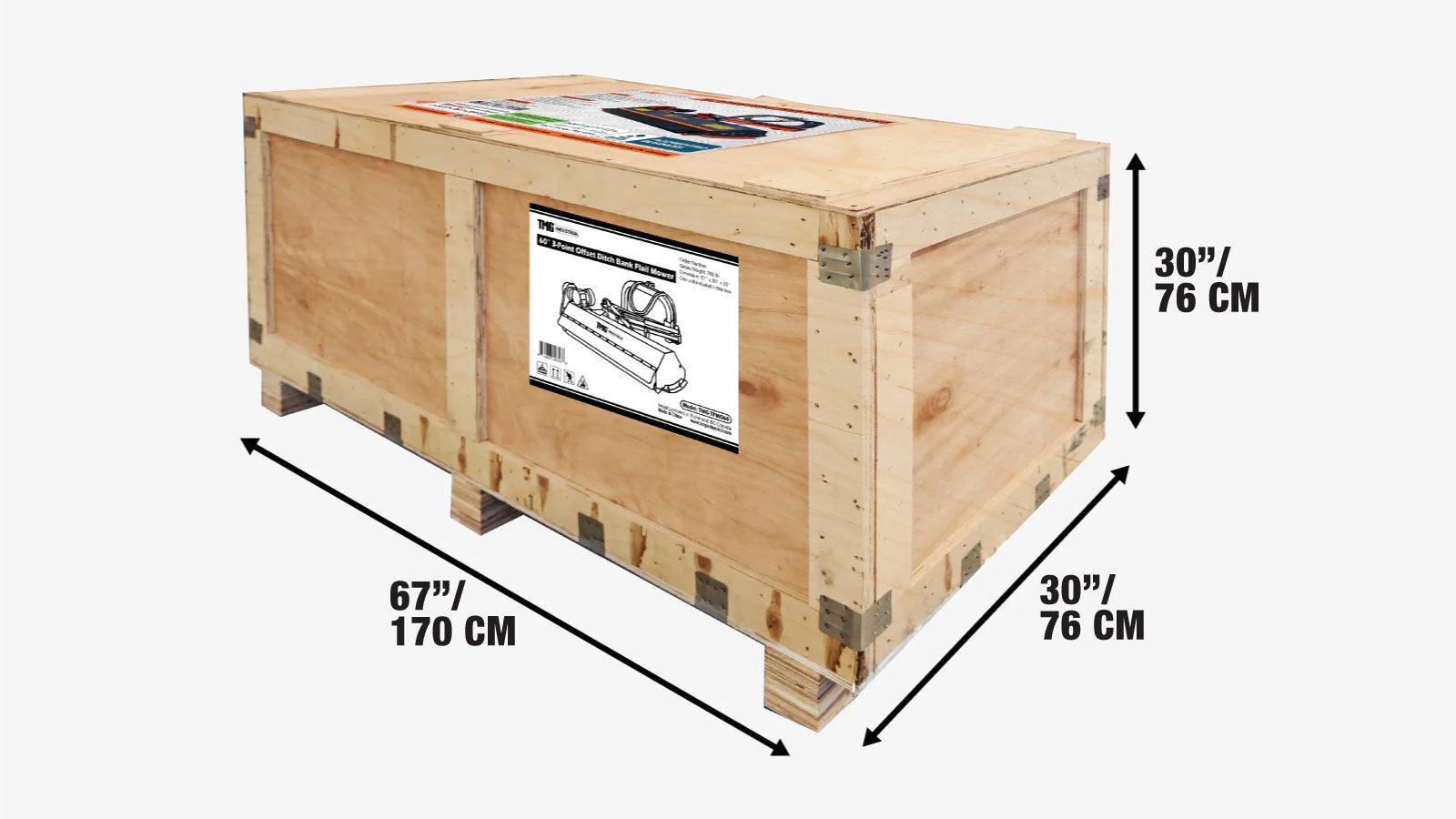

  • This product is packed in a wood crate shipping box
  • Shipping dimensions (L × W × H): 175 cm × 80 cm × 80 cm / 67″ × 30″ × 30″
  • Shipping weight: 350 kg (760 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1450 mm (60

Product Description

The TMG-TFMO60 Offset Ditch Bank Flail Mower is an ideal attachment for maintaining roadsides, sloped banks, and field margins. It features a 1450 mm (60") cutting width and a 2043mm (80") hydraulic reach for extended side trimming. Capable of cutting on gradients with up to 65° down tilt and 90° up angles for transportation, it offers powerful slope-clearing performance. With durable forged flails, a 295 kg (650 lb) powder-coated frame, and a balanced rear roller, it delivers clean, even results on rugged terrain. Built for 25–60 HP tractors with standard 3-point hitches, this mower is perfect for rural landowners, municipal maintenance, and agricultural operations. 
 
TMG Industrial carries a full range of Offset Ditch Bank Flail Mowers of different sizes: TMG-TFMO50, TMG-TFMO70, TMG-TFMO80 and TMG-TFMO90. 



Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
