2000 mm (80″) Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 50–90 HP Tractors, TMGTFMO80

2000 mm (80″) Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 50–90 HP Tractors, TMGTFMO80

TMG Industrial 80” Offset Ditch Bank Flail Mower with 90° Tilt, 3-Point Hitch, 50-90 HP Tractor, PTO Drive Shaft, TMG-TFMO80
CURRENTLY IN STOCK
SKU TMG-TFMO80
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
$6,399.00
$6,399.00 - $6,399.00
$6,399.00
$6,999.00 Save $600.00
$6,399.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011
Product Manual
Find Parts

Features

Feature Image

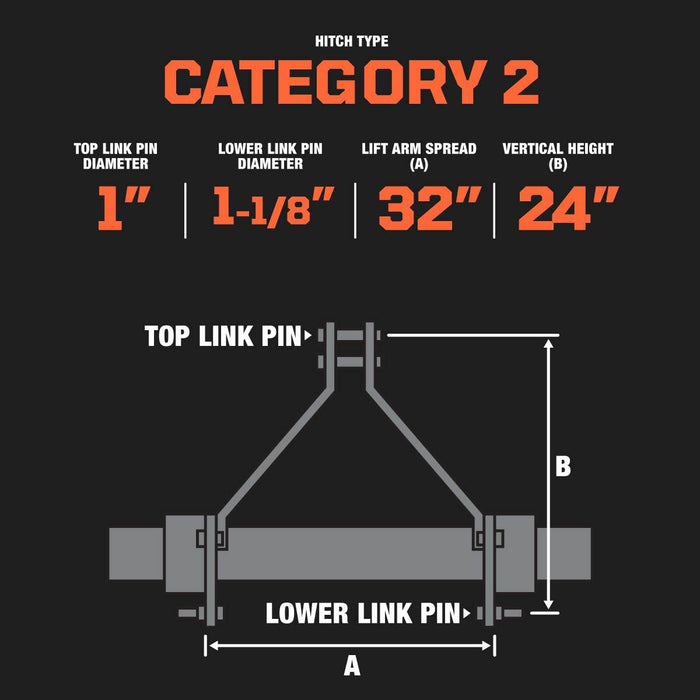

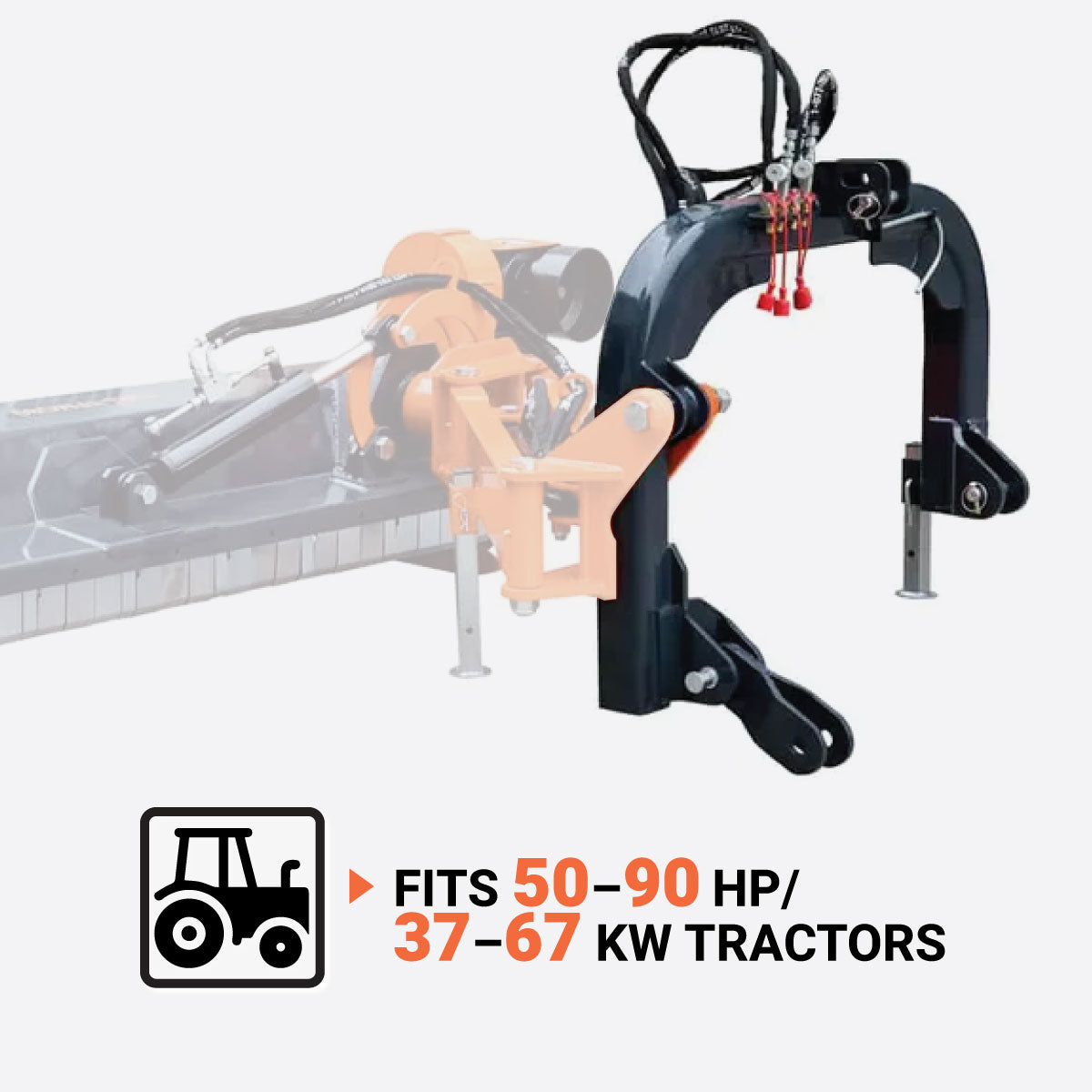

Designed for 50–90 HP (37–67 kW) tractors via Category 2 threepoint system
Feature Image

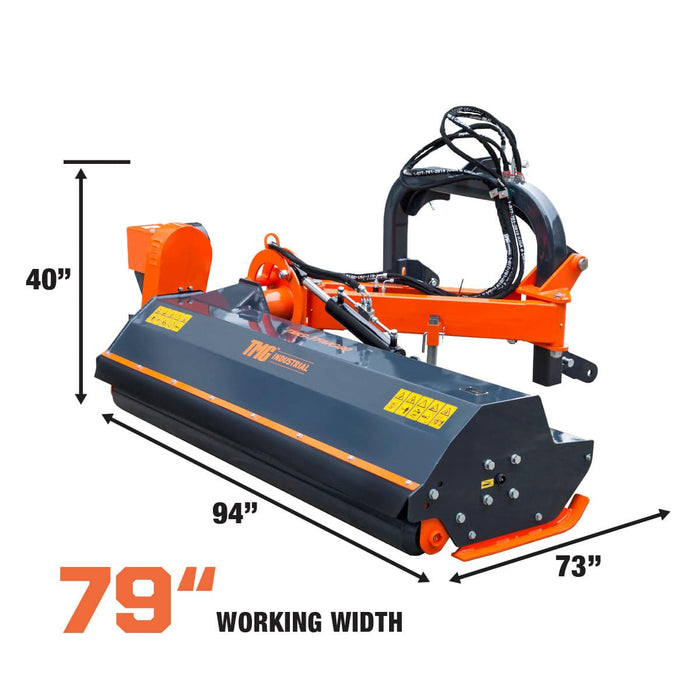

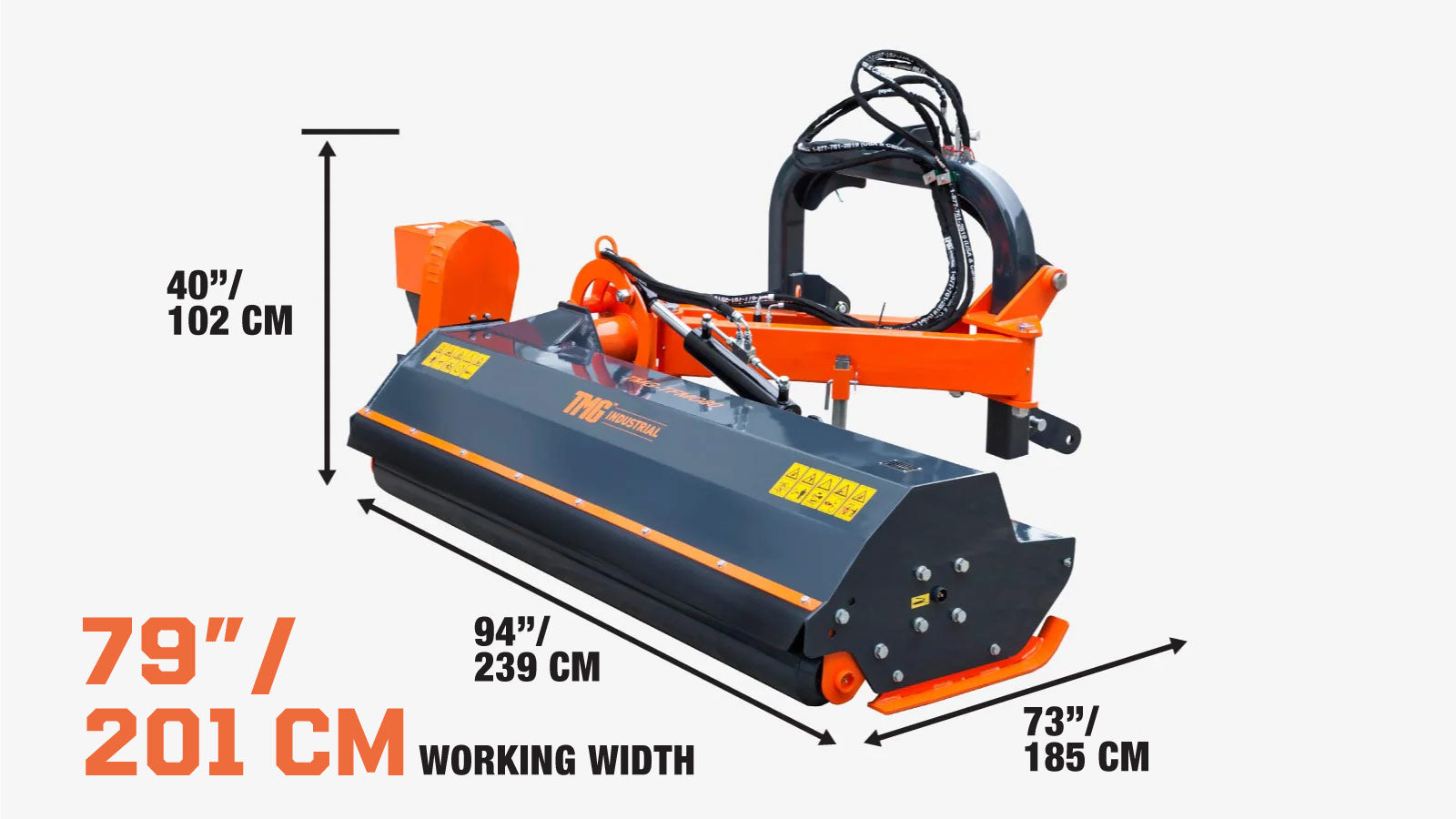

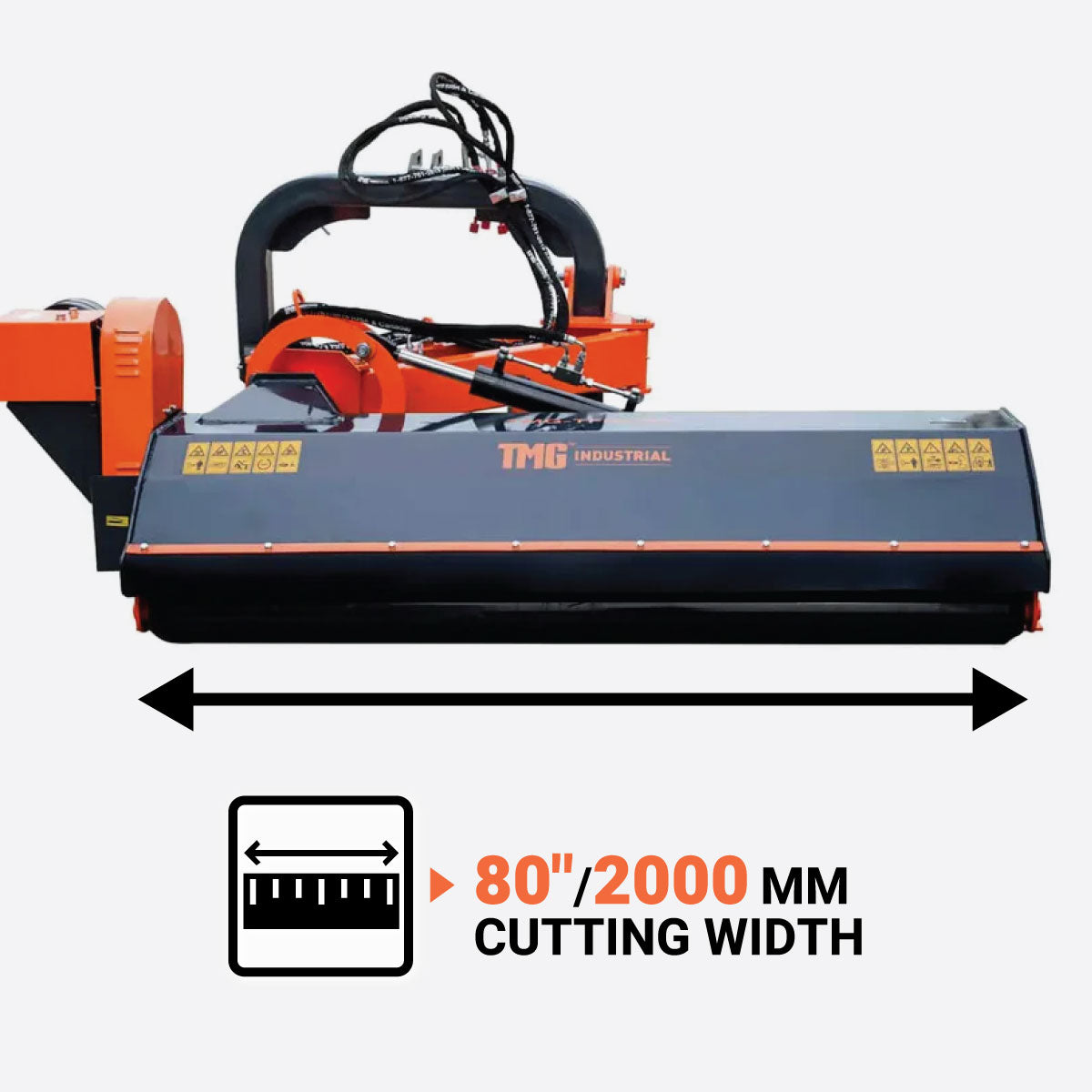

2000 mm (80″) working width for efficient coverage of ditches, verges, and perimeter maintenance
Feature Image

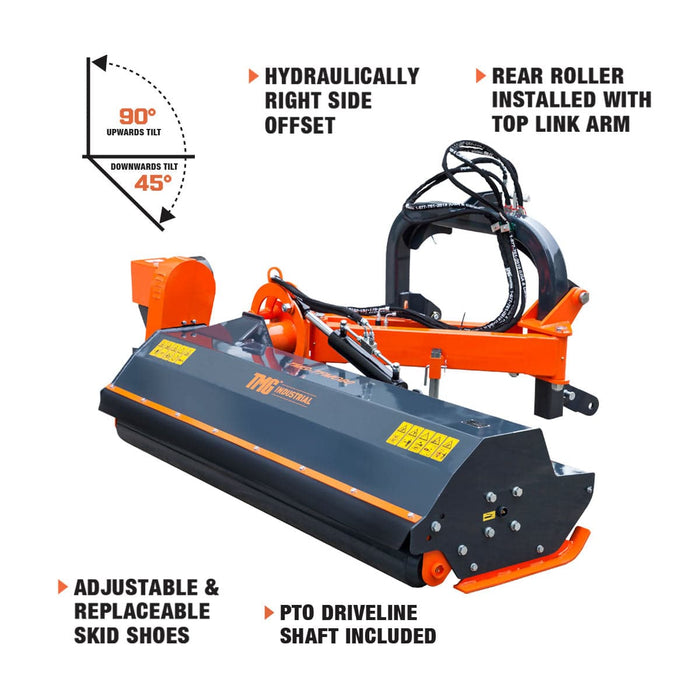

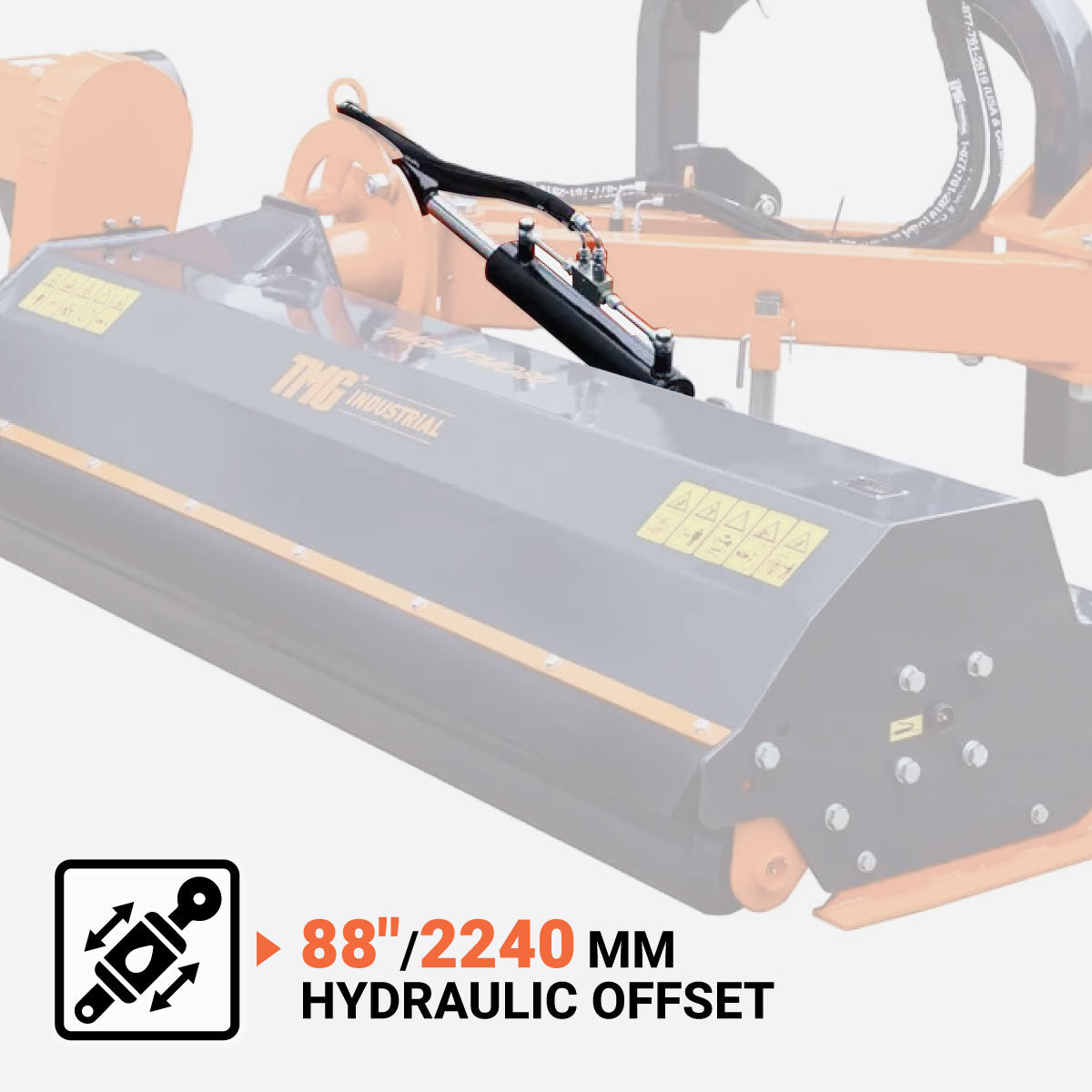

Hydraulically controlled side offset up to 2240 mm (88″) for reaching to ditch and fence line cutting
Feature Image

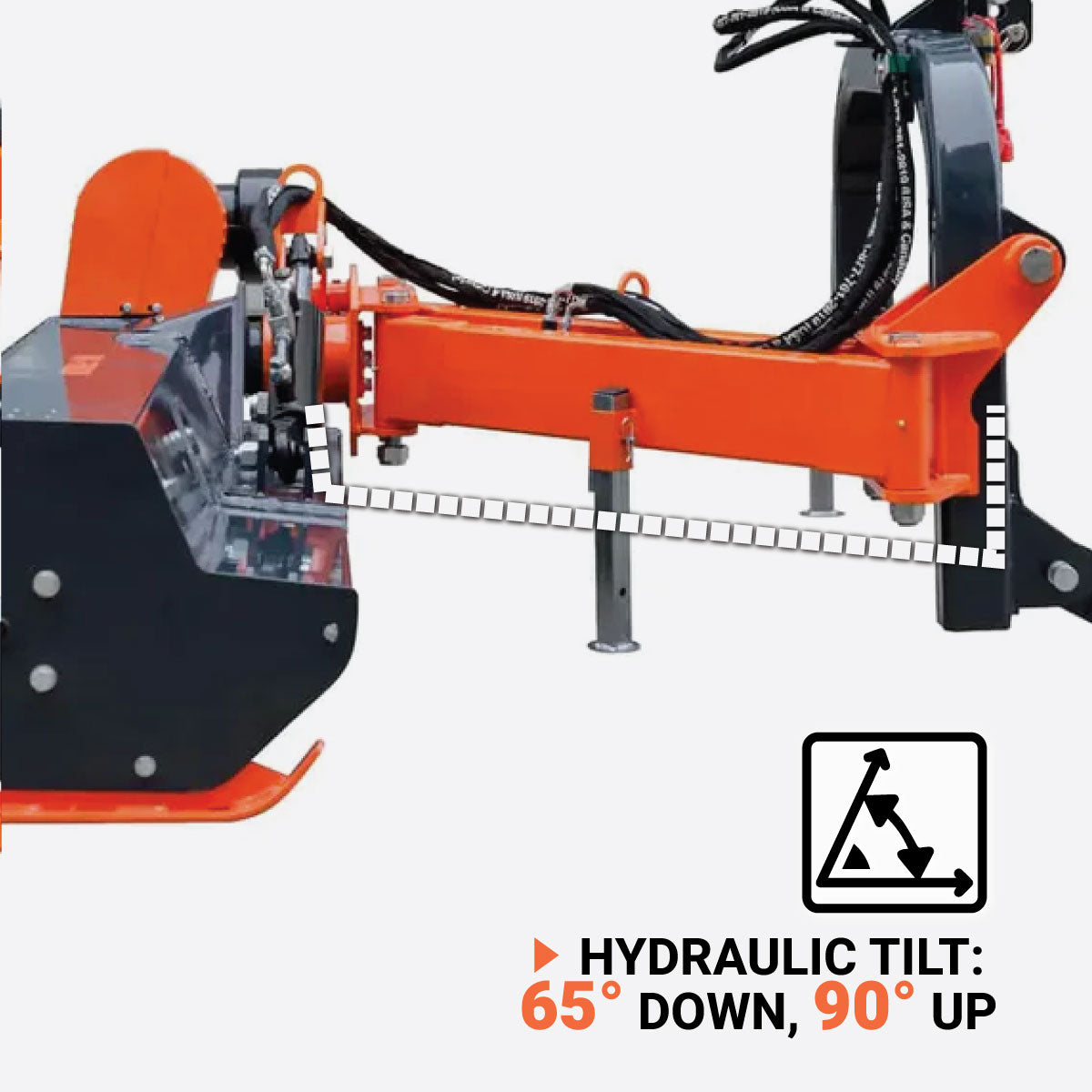

65° downwards for ditch bank mowing and 90° upwards tilt for easy transportation
Feature Image

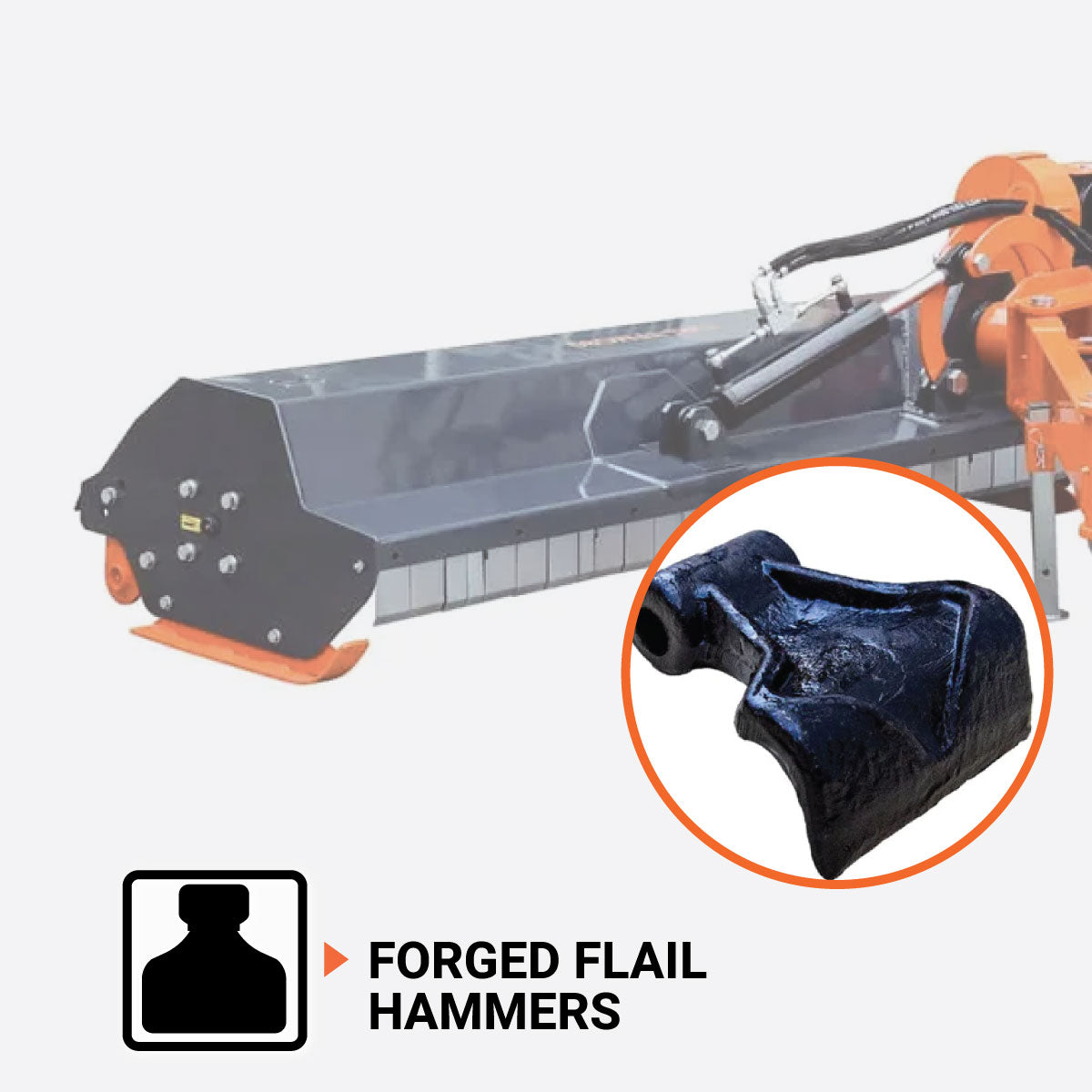

Long lasting forged flail hammers shred tough vegetation into uniform mulch
Feature Image

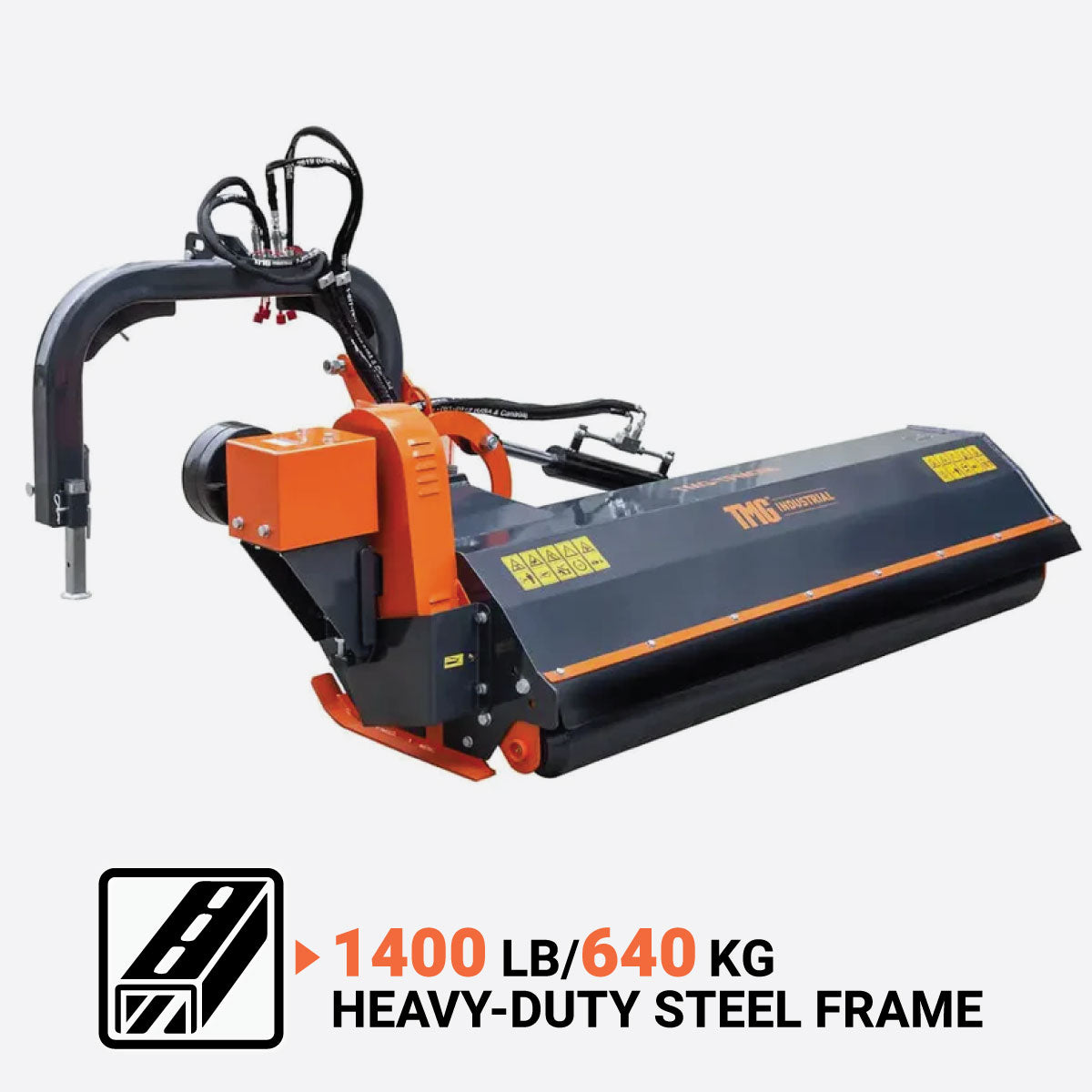

Heavy duty 640 kg (1400 lb) industrial steel frame for reliable and safe operation

Specifications

  • Tractor Horse Power Range: 50-90 hp
  • Mounting Type: 3 Point Hitch CAT 2
  • Working Width (mm): 2000 mm
  • Working Width (inch): 80"
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Size: G 1/2" Pioneer Coupler
  • Number of Hydraulic Hoses: 4

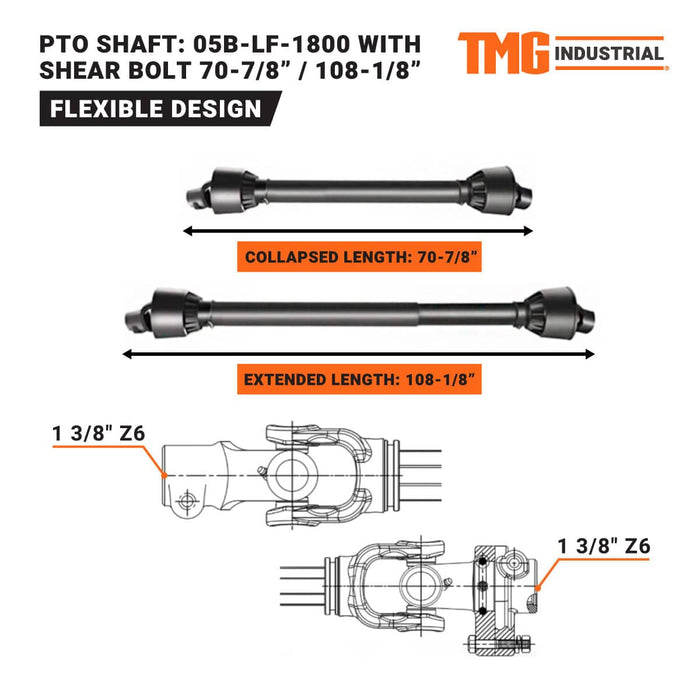

  • PTO Shaft: Included
  • Overrun Protection: Shear Pin
  • PTO Shaft RPM: 540
  • PTO Shaft Model: 05B-LF-1800
  • PTO Shaft Length (mm): 1800 mm
  • PTO Shaft Length (inch): 71"
  • Rotor Shaft Speed RPM: 2146
  • Rotor Diameter: 127 mm
  • Rotor Thickness: 10 mm
  • Max. Offset From Centre (mm): 1400 mm
  • Max. Offset From Centre (inch): 55"
  • Max. Offset Distance / Reach (mm): 2243 mm
  • Max. Offset Distance / Reach (inch): 88"
  • Tilt-Up Angle: 90°
  • Tilt-Down Angle: 45°
  • Number of Blades: 18
  • Blade Type: Hammer
  • Blade Material: Forged Carbon Steel
  • Blade Ground Clearance: 13 - 43 mm
  • Adjustable & Replaceable Skid Shoes: Yes
  • Drive Type: Belt
  • Number of Belts: 4
  • Gearbox Oil Type: SAE 90
  • Deck Thickness: 5 mm
  • Side Skid Thickness: 8 mm
  • 2000 mm (80″) Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 50–90 HP Tractors, TMGTFMO80-specifications-image

Shipping Information

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

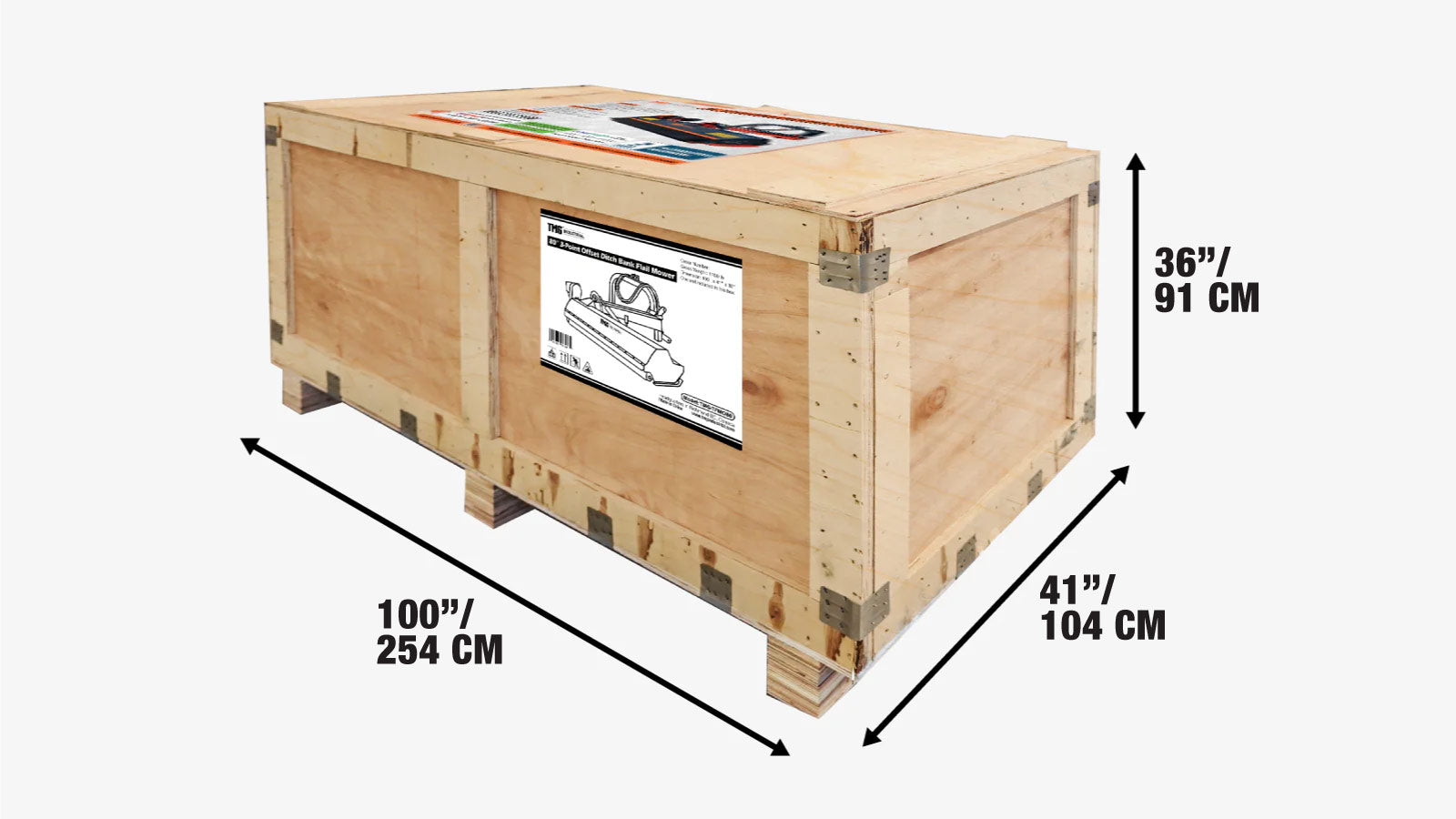

  • This product is packed in a wood crate shipping box
  • Shipping dimensions (L × W × H): 255 cm × 105 cm × 95 cm / 100″ × 41″ × 36″
  • Shipping weight: 775 kg (1700 lb)
Shipping from Rowville,VIC
What happens after you place your order?
2000 mm (80″) Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 50–90 HP Tractors, TMGTFMO80-shipping-info-image

Product Description

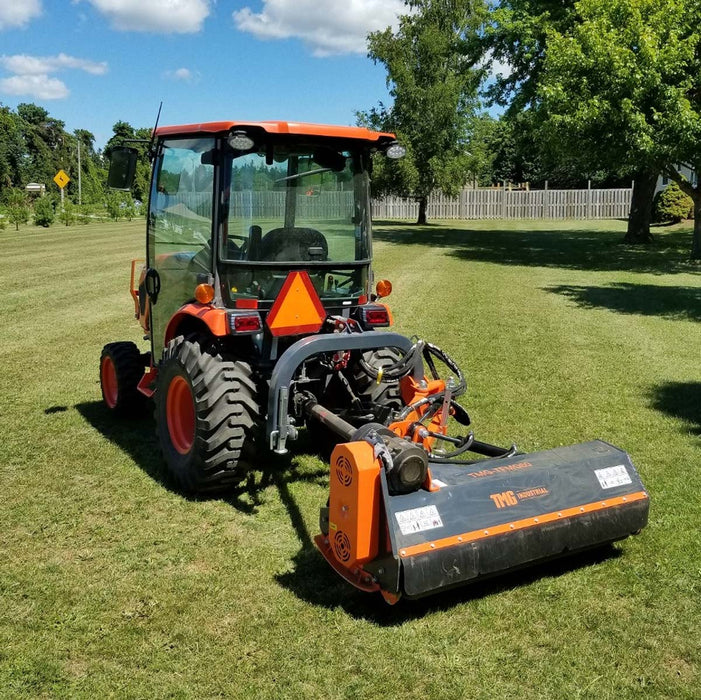

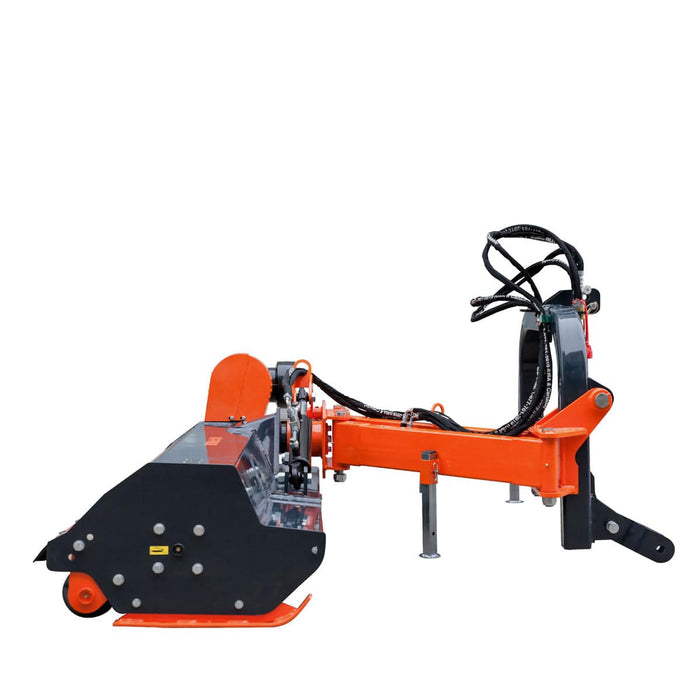

The TMGTFMO80 is a commercial-grade ditch bank flail mower built for contractors, municipalities, and large property owners. With its 2000 mm (80″) cutting width, hydraulic offset/tilt range of 2240 mm (88”), tough frame, and forged hammer design, it delivers powerful performance on steep slopes, roadside embankments, and overgrown field edges. Designed for 50–90 HP tractors using a Category 2 system, it combines versatility, durability, and precision to tackle demanding jobs efficiently. It features a hydraulic side offset that pivots 65° down and 90° up, making it ideal for challenging, uneven terrain.

TMG Industrial carries a full range of Offset Ditch Bank Flail Mowers of different sizes: TMG-TFMO50, TMG-TFMO60, TMG-TFMO70 and TMG-TFMO90. 

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
