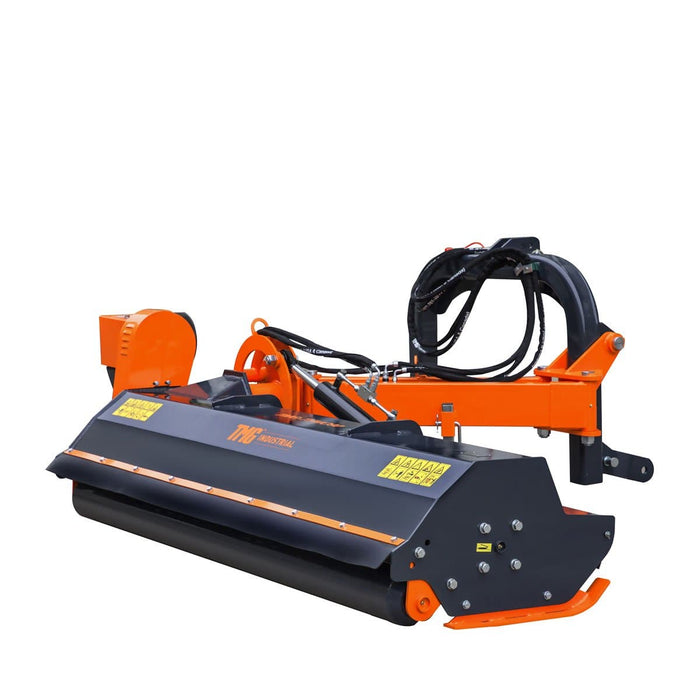

2200 mm (90") Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 50–90 HP Tractors, TMGTFMO90

2200 mm (90") Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 50–90 HP Tractors, TMGTFMO90

TMG Industrial 90” 50-90 HP Tractor, 3-Point Hitch, PTO Drive Shaft, Offset Ditch Bank Flail Mower with 90° Tilt, TMG-TFMO90
CURRENTLY IN STOCK
SKU TMG-TFMO90
$7,599.00
$7,599.00 - $7,599.00
$7,599.00
$6,599.00
$6,599.00 - $6,599.00
$6,599.00
$7,599.00 Save $1,000.00
$6,599.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 1 LEFT IN STOCK
61-03-4151-5011
Product Manual
Find Parts

Features

Feature Image

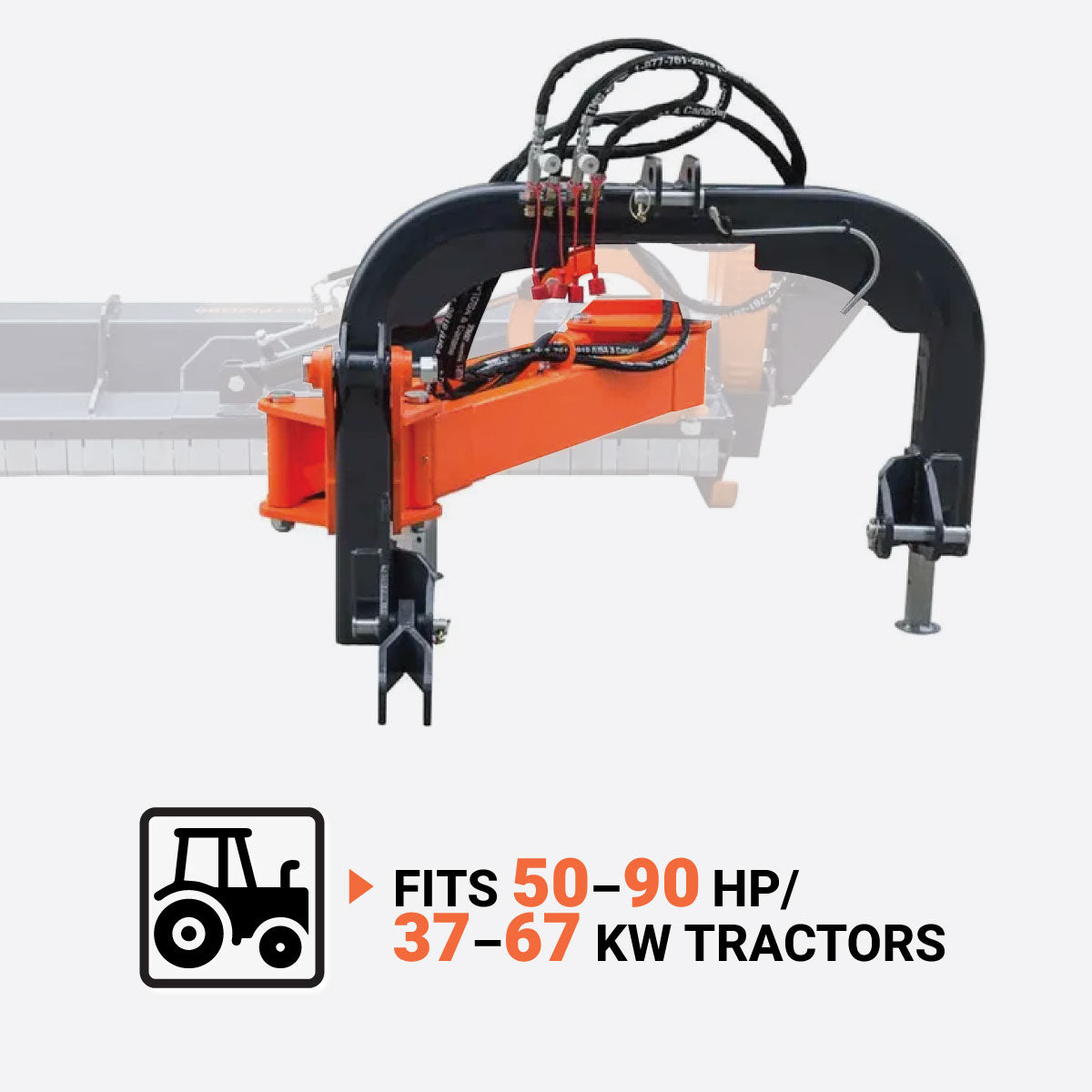

Compatible with 50–90 HP (37–67 kW) tractors via Category 2 threepoint or QuickHitch
Feature Image

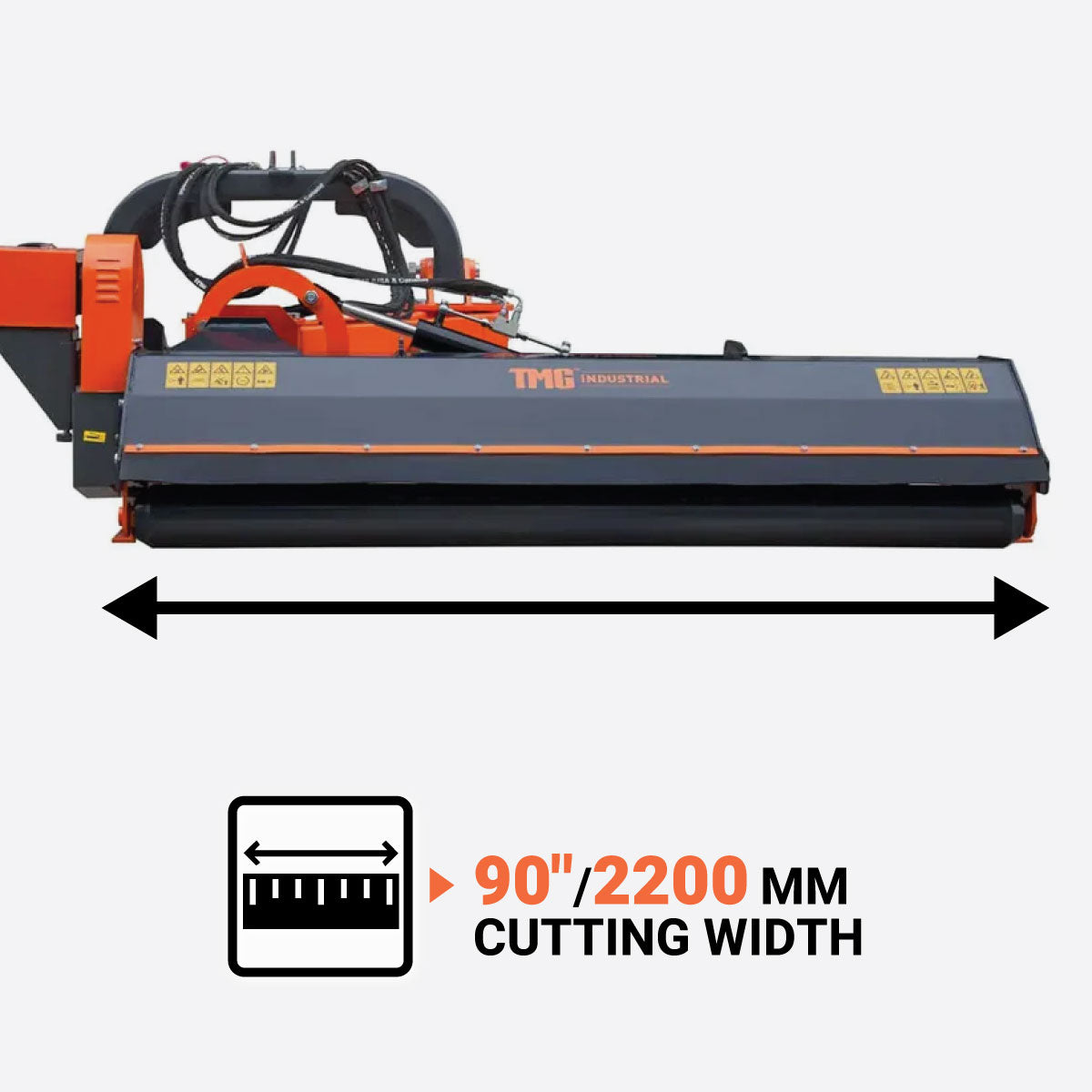

2200 mm (90″) cutting width for largescale mowing of perimeters, ditches, and embankments
Feature Image

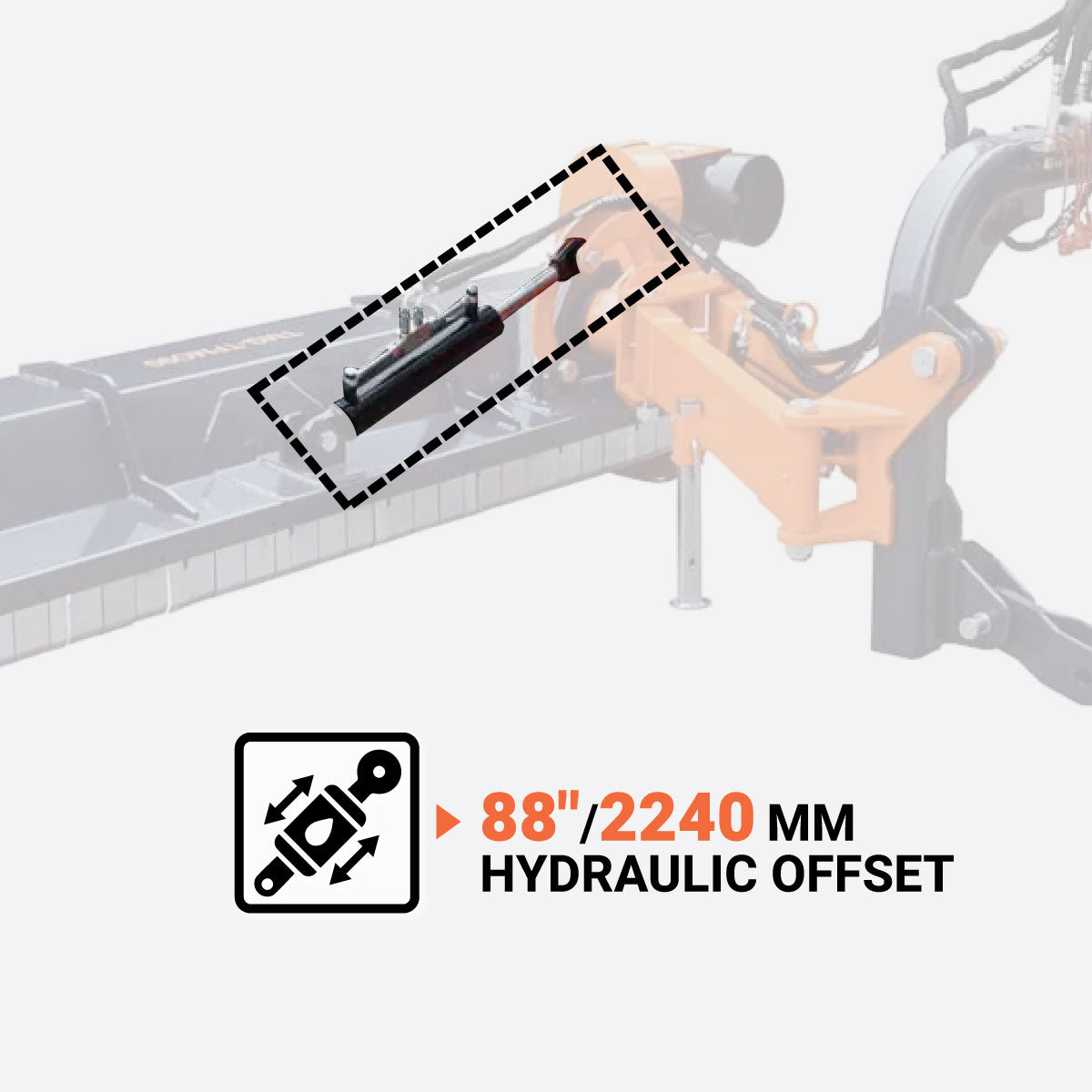

2240 mm (88″) maximum hydraulic side offset to the right
Feature Image

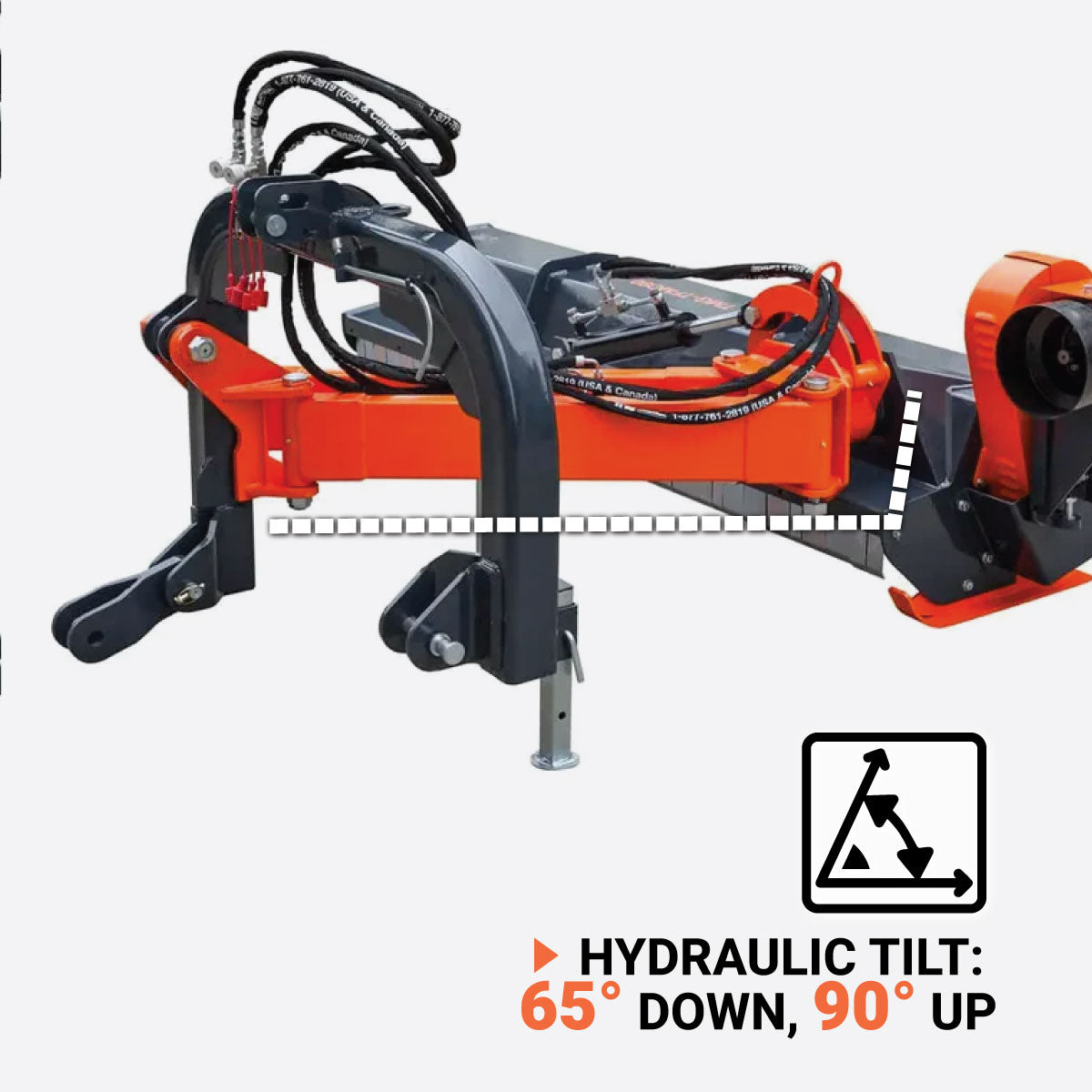

65° downwards for ditch bank mowing and 90° upwards tilt for easy transportation 
Feature Image

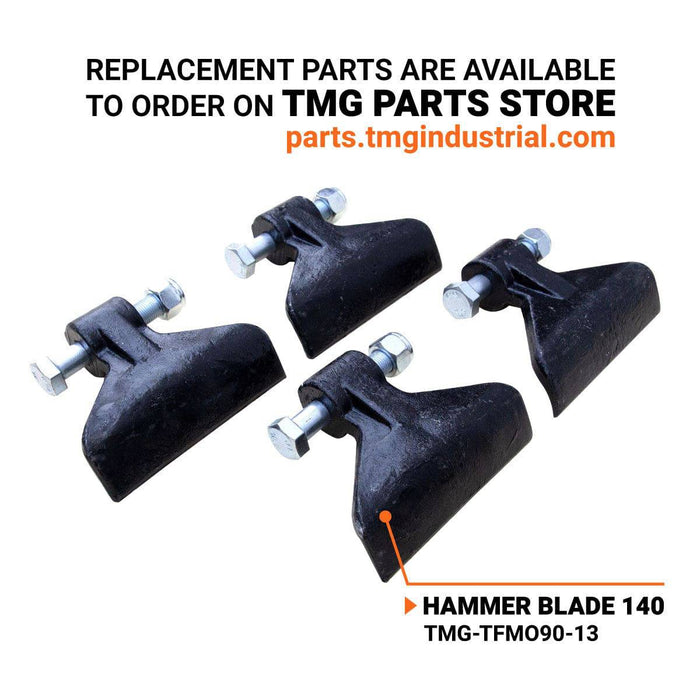

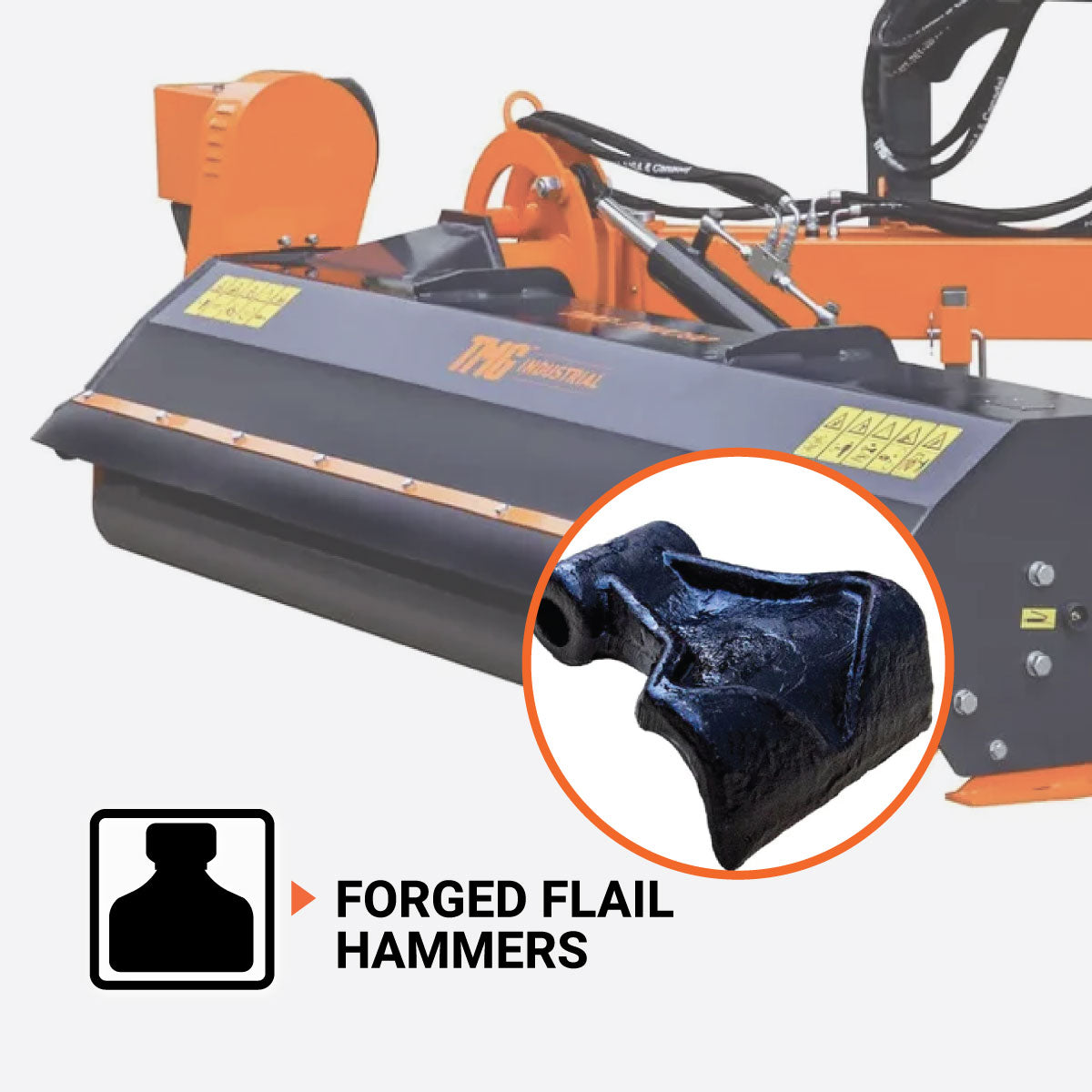

Robust forged flail hammers grind thick vegetation into uniform mulch
Feature Image

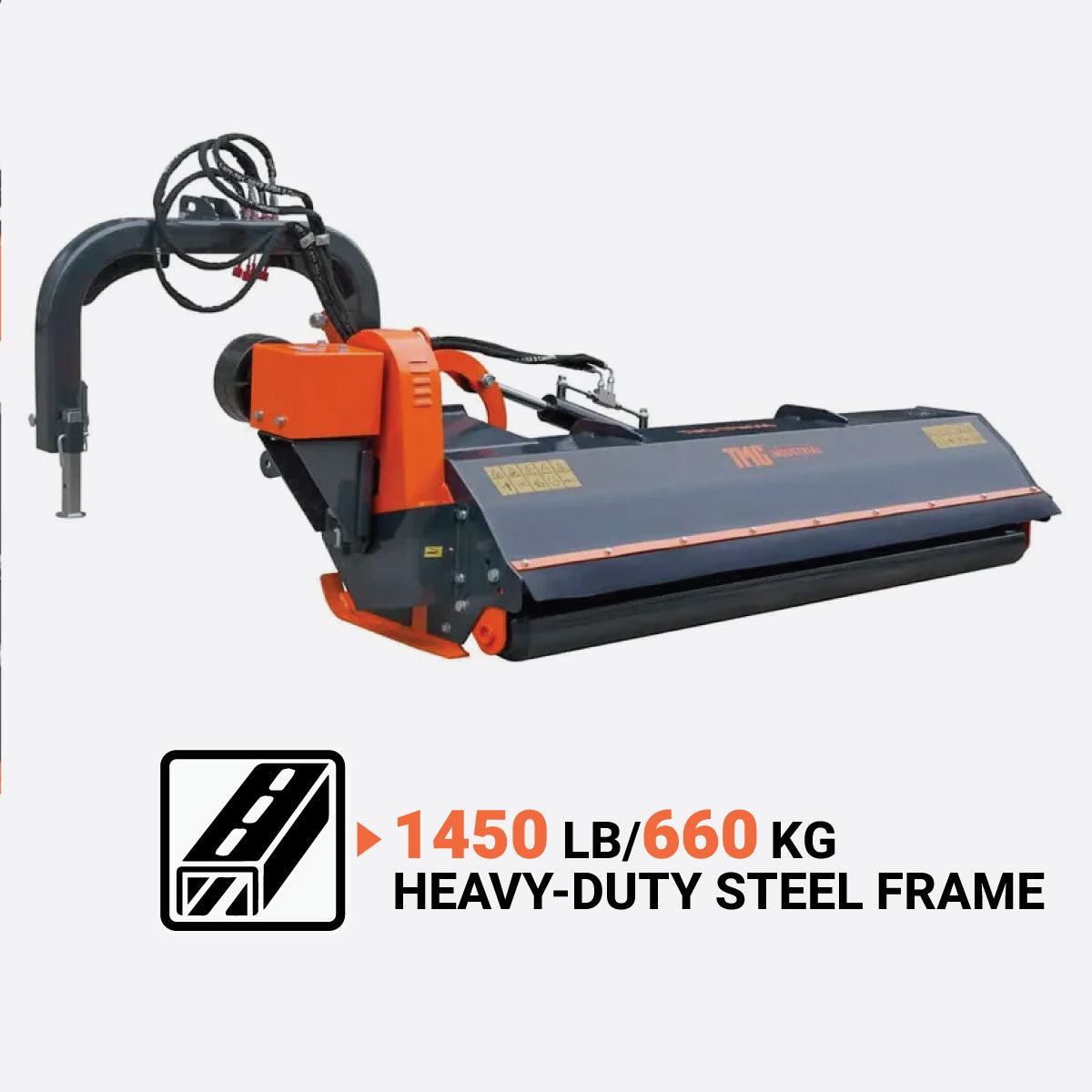

Heavy-duty 660 kg (1450 lb) industrial steel frame for reliable and safe operation

Specifications

  • Tractor Horse Power Range: 50-90 hp
  • Mounting Type: 3 Point Hitch CAT 2
  • Working Width (mm): 2200 mm
  • Working Width (inch): 90"
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Size: G 1/2" Pioneer Coupler
  • Number of Hydraulic Hoses: 4
  • PTO Shaft: Included
  • Overrun Protection: Shear Pin
  • PTO Shaft RPM: 540
  • PTO Shaft Model: 05B-LF-1800
  • PTO Shaft Length (mm): 1800 mm
  • PTO Shaft Length (inch): 71"
  • Rotor Shaft Speed RPM: 2146
  • Rotor Diameter: 127 mm
  • Rotor Thickness: 10 mm
  • Max. Offset From Centre (mm): 1400 mm
  • Max. Offset From Centre (inch): 55"
  • Max. Offset Distance / Reach (mm): 2243 mm
  • Max. Offset Distance / Reach (inch): 88"
  • Tilt-Up Angle: 90°
  • Tilt-Down Angle: 45°
  • Number of Blades: 20
  • Blade Type: Hammer
  • Blade Material: Forged Carbon Steel
  • Blade Ground Clearance: 13 - 43 mm
  • Adjustable & Replaceable Skid Shoes: Yes

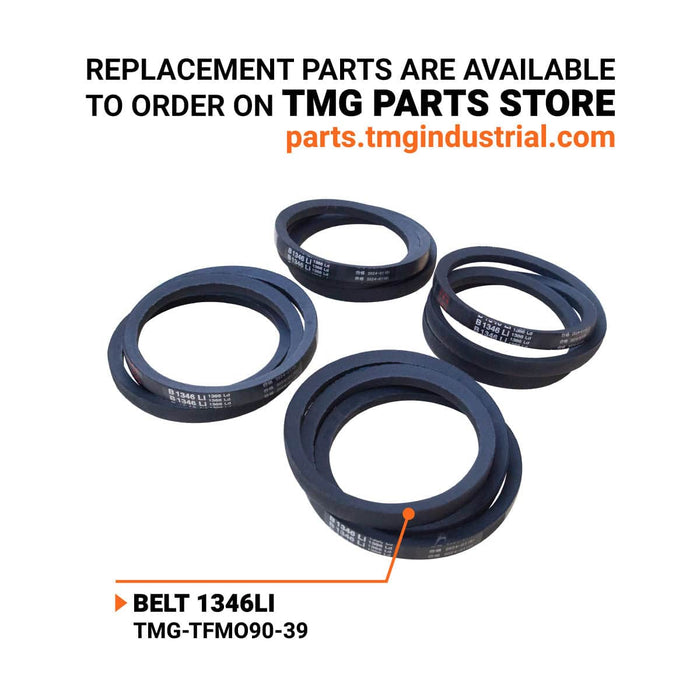

  • Drive Type: Belt
  • Number of Belts: 4
  • Gearbox Oil Type: SAE 90
  • Deck Thickness: 5 mm
  • Side Skid Thickness: 8 mm
  • Finish: Powder Coated

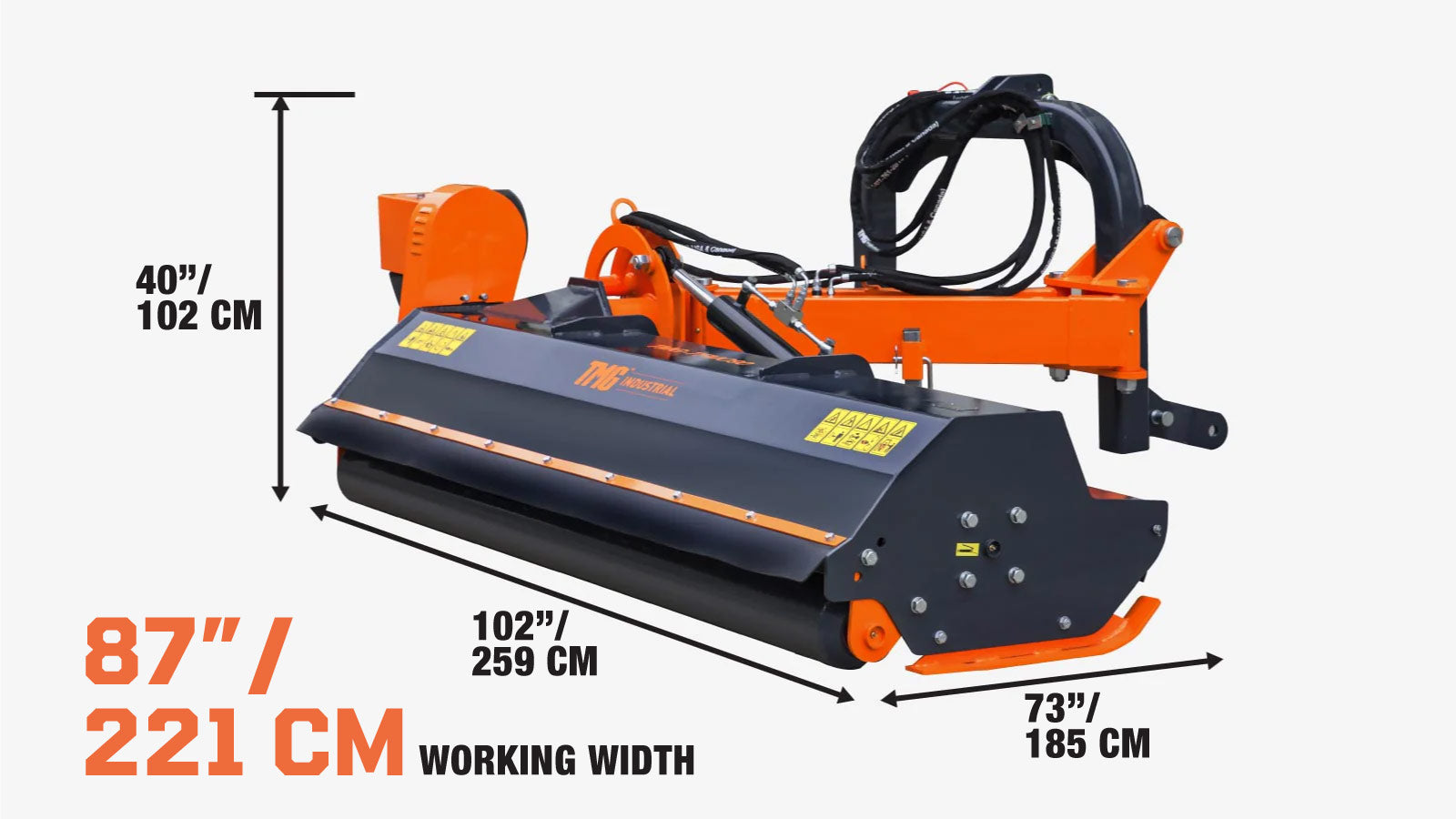

  • Overall Dimensions: 2600 x 1850 x 1020 mm
  • Net Weight (kg): 660 kg
  • Net Weight (lb): 1452 lb
2200 mm (90

Shipping Information

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

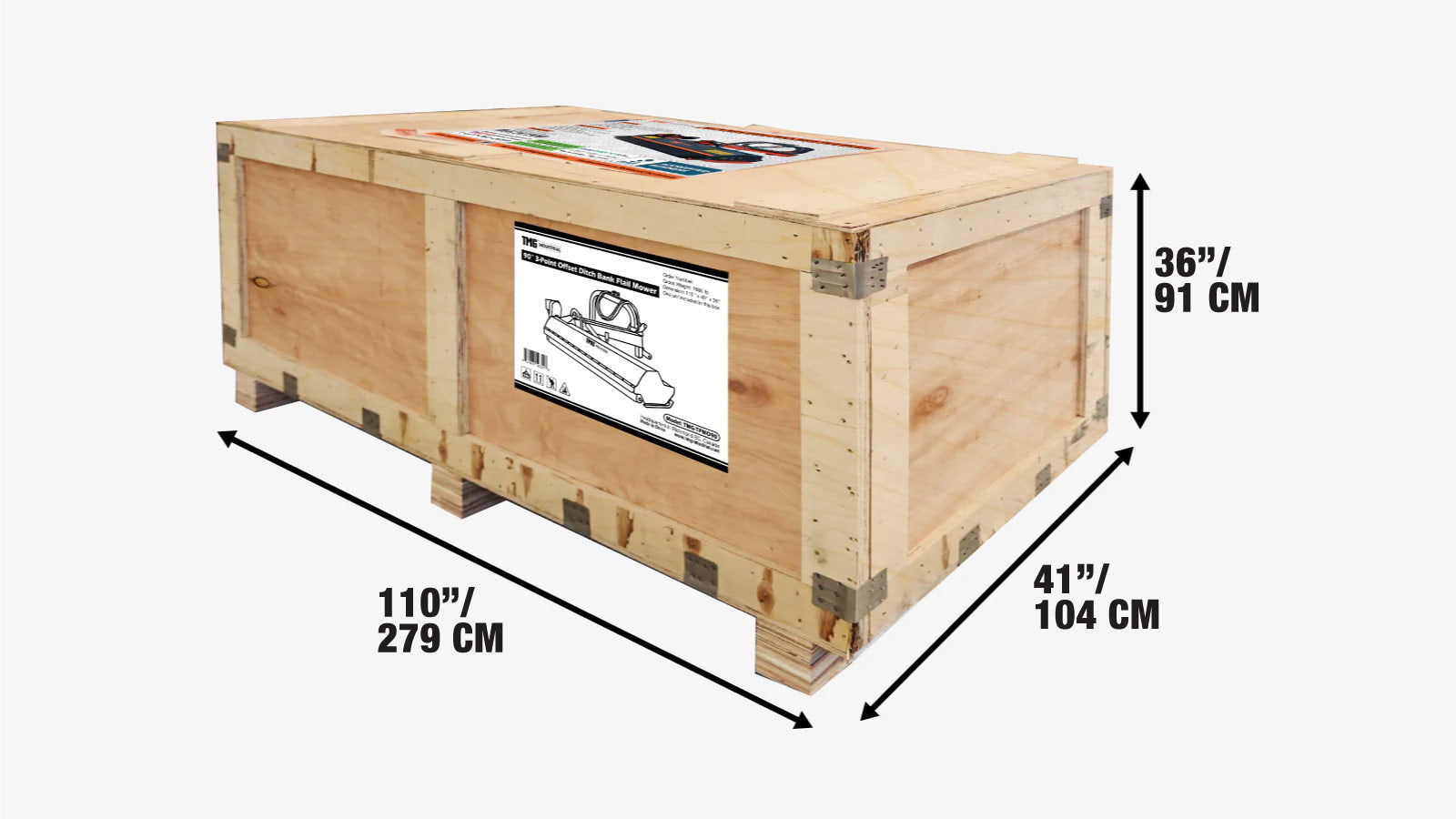

  • This product is packed in a wood crate shipping box
  • Shipping dimensions (L × W × H): 280 cm × 105 cm × 95 cm / 110″ × 41″ × 36″
  • Shipping weight: 820 kg (1800 lb)
Shipping from Rowville,VIC
What happens after you place your order?
2200 mm (90

Product Description

The TMGTFMO90 is a commercial-grade ditch bank flail mower engineered for contractors, municipalities, and largescale property owners. Its expansive 2240 mm (90″) cutting width, 2240mm (88”) hydraulic side swing offset and 65° downward tilt capability enable efficient mowing of embankments, perimeter landscapes, and undergrowth.

Built on a rugged 660 kg (1450 lb) industrial steel frame with forged flails and triple belt drive, it delivers powerful, reliable performance. Ideal for 50–90 HP tractors equipped with a Category 2 3-point hitch connection, it combines versatility, durability, and clean finishing for demanding mowing applications.

TMG Industrial carries a full range of Offset Ditch Bank Flail Mowers of different sizes: TMG-TFMO50, TMG-TFMO60, TMG-TFMO70 and TMG-TFMO80.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
