TMG-RS10

3 x 2 m Heavy-Duty Grizzly Rock Screen with Adjustable Deck Bars, 2200 kg Capacity, TMG-RS10

Product Manual
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
CURRENTLY IN STOCK
TMG-RS10
$5,799.00
$5,799.00 - $5,799.00
$5,799.00
$4,999.00
$4,999.00 - $4,999.00
$4,999.00
$5,799.00 Save $800.00
$4,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

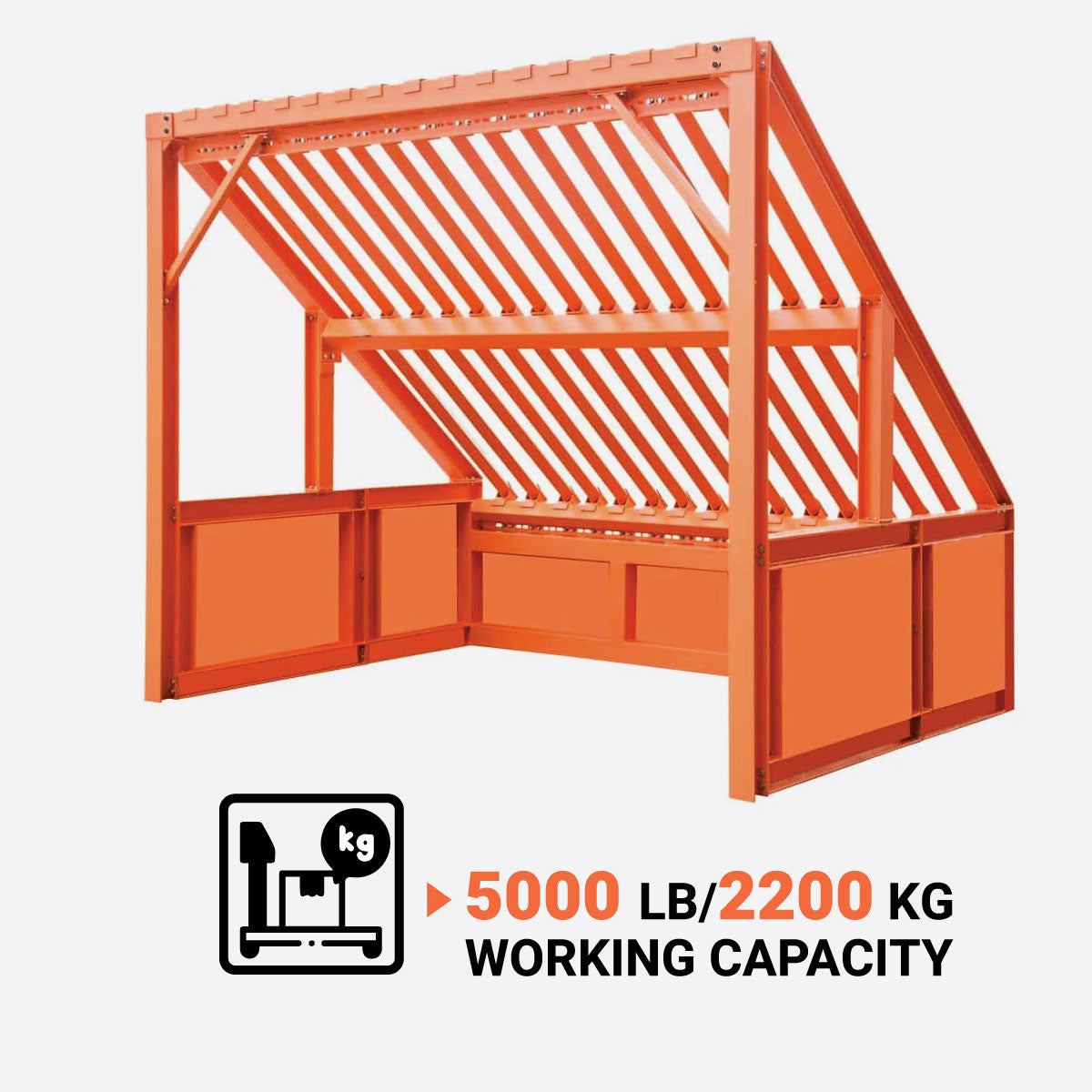

2200 kg working capacity will handle any material sorting tasks
Feature Image

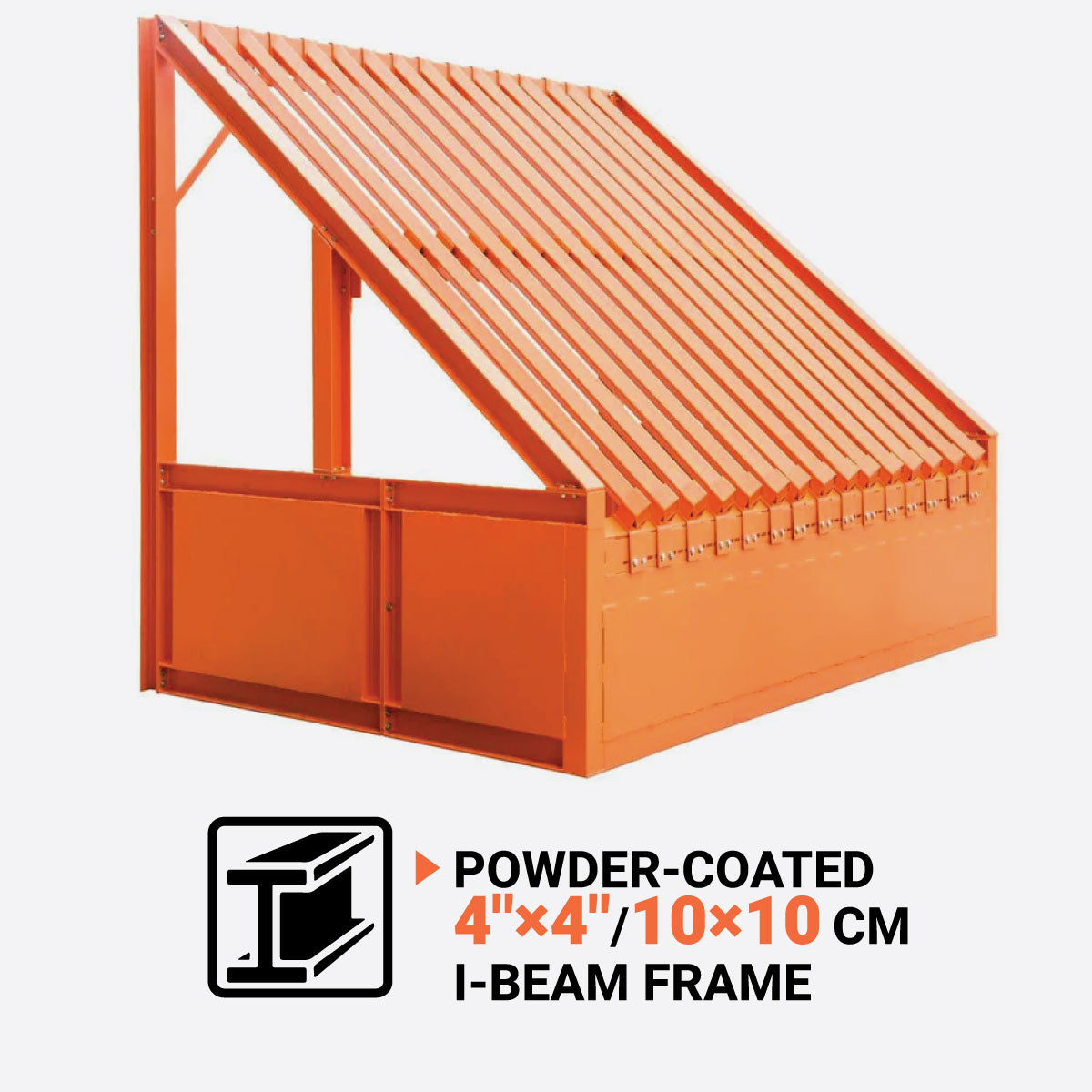

Robust 10 x 10cm I-beam frame with powder-coating for enhanced durability
Feature Image

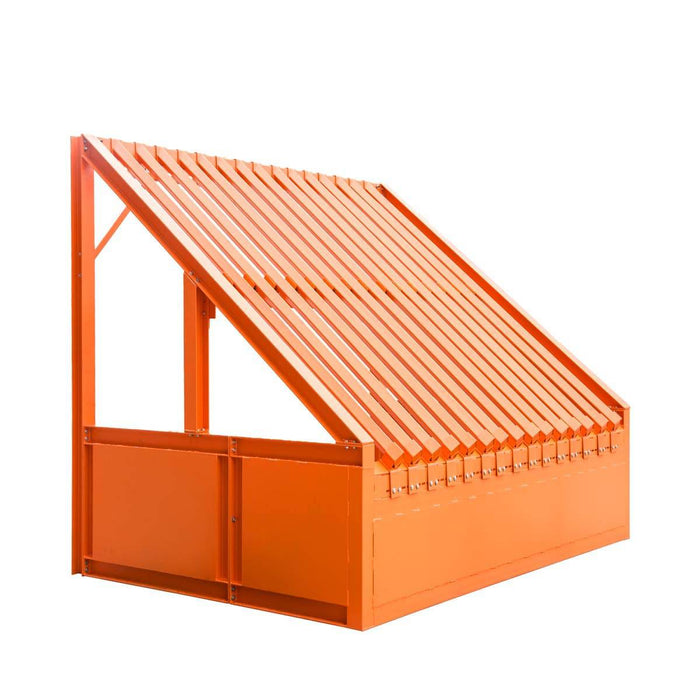

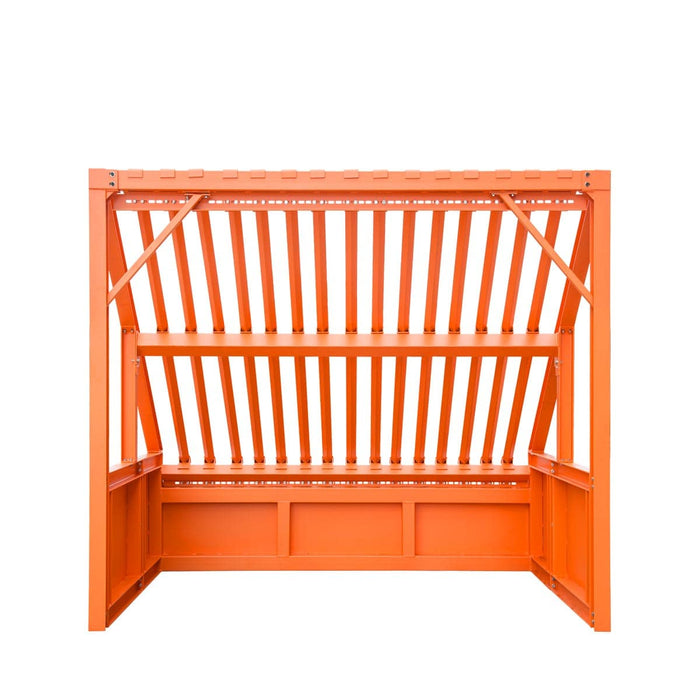

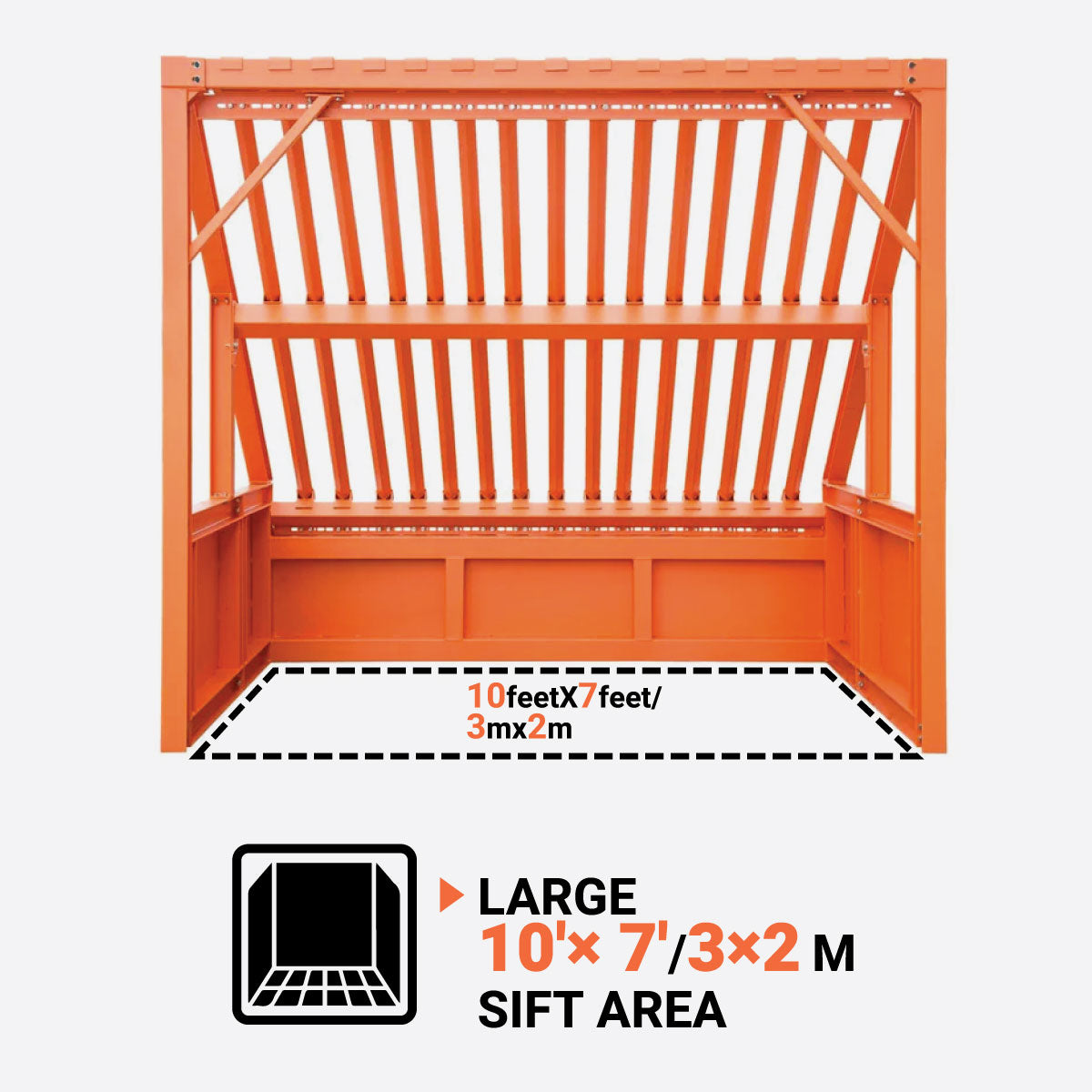

Features a large 3 x 2m sift accepting area suitable for handling mixed loads
Feature Image

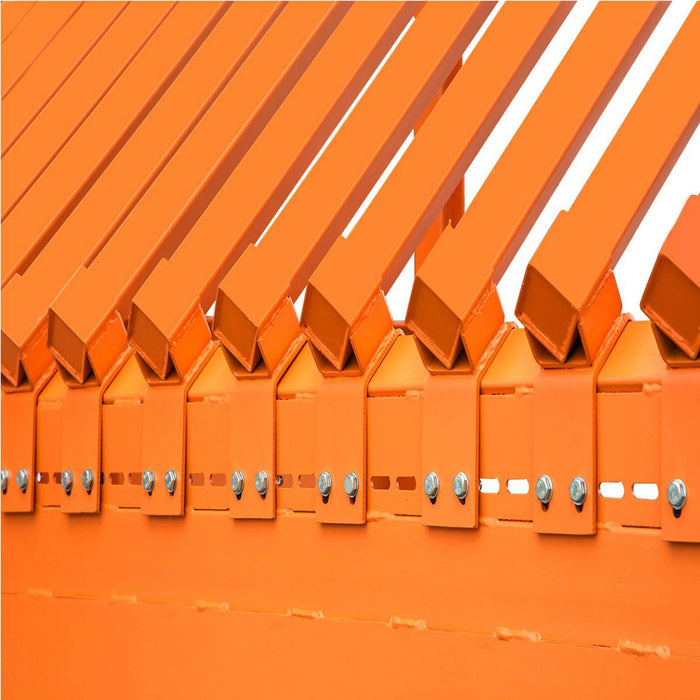

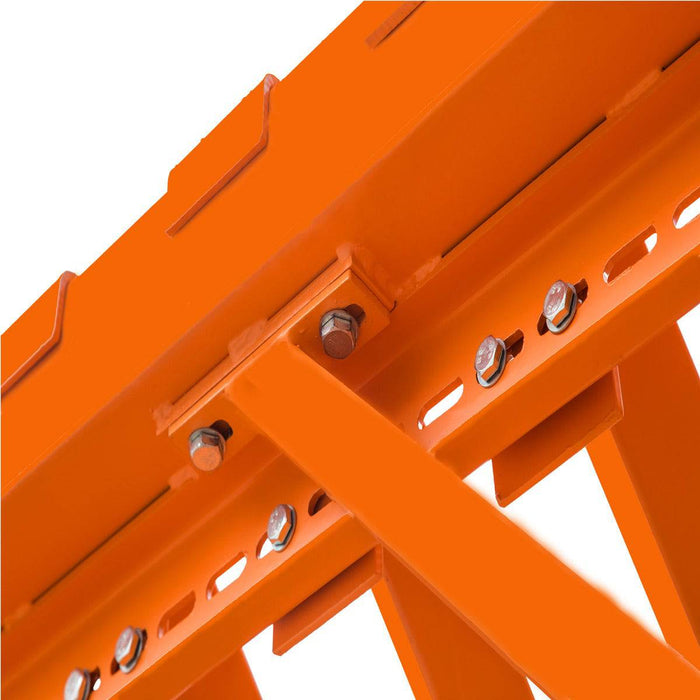

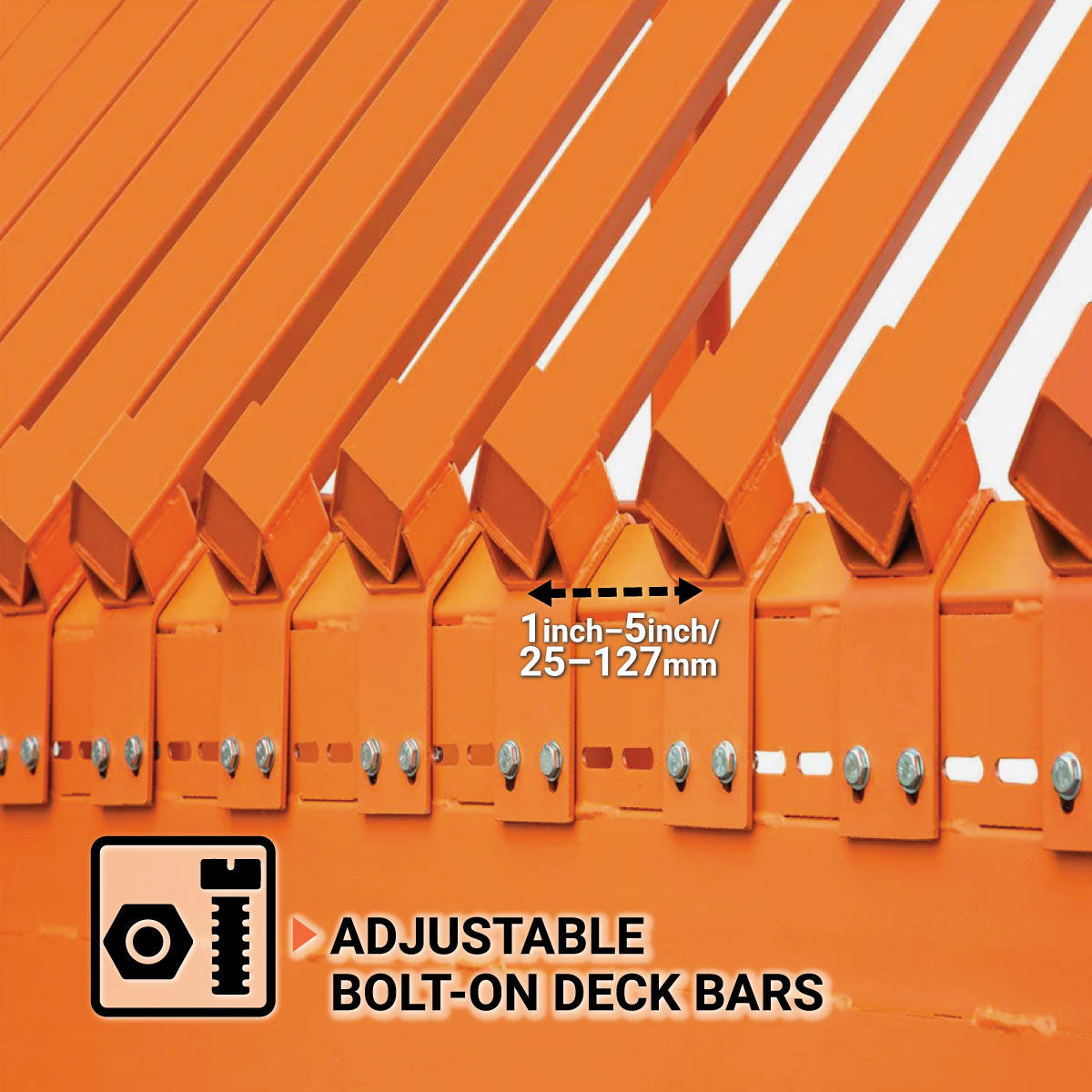

Equipped with adjustable bolt-on deck bars, with spacing options from 25 to 127 mm
Feature Image

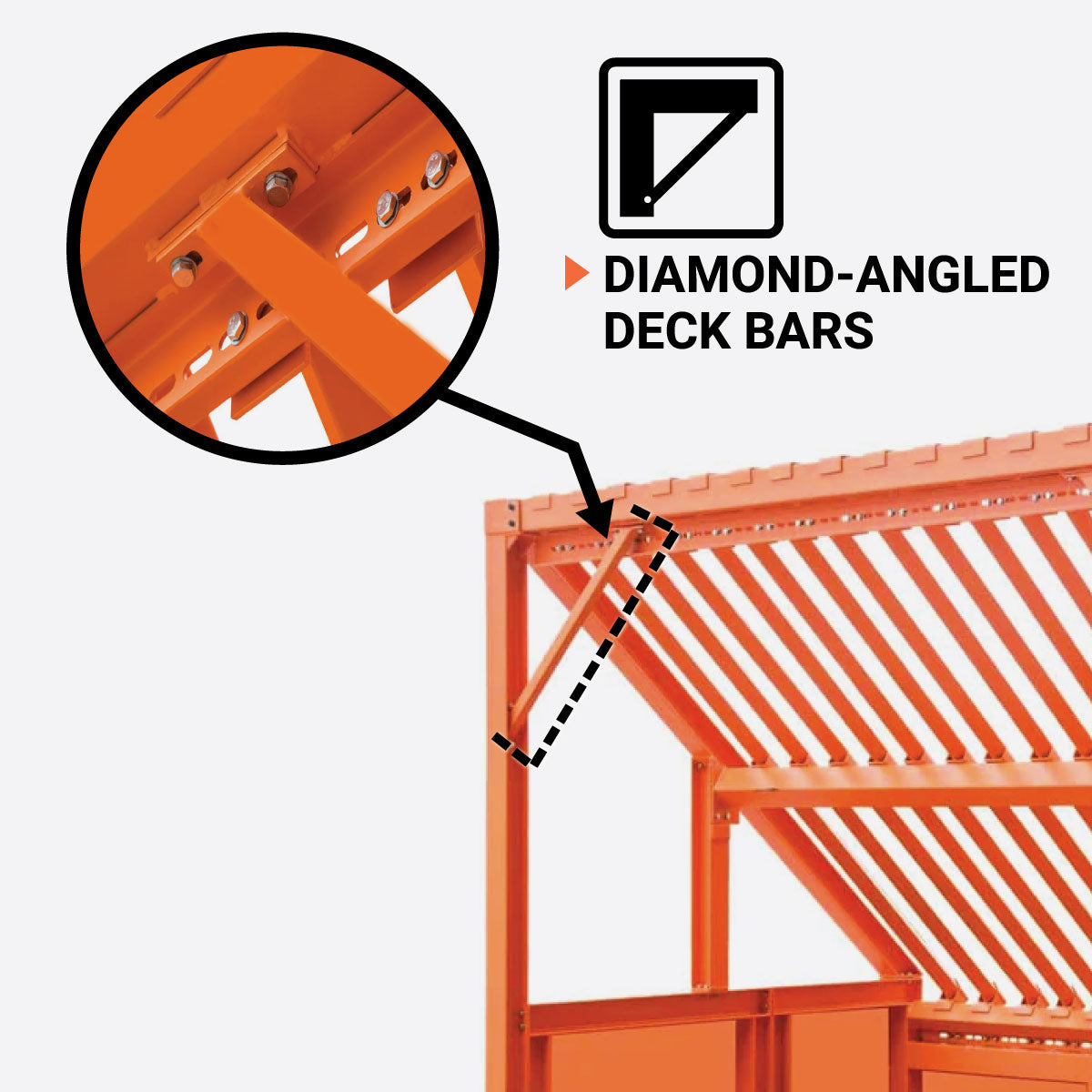

Deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
Feature Image

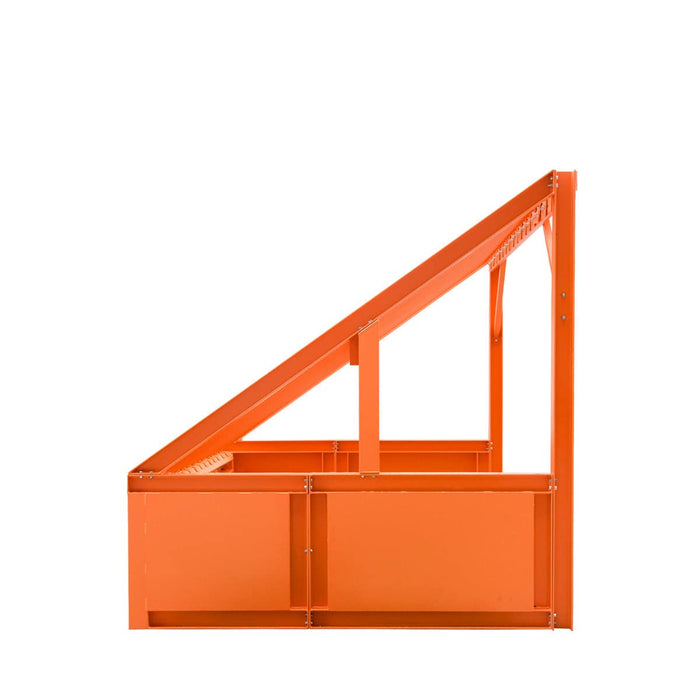

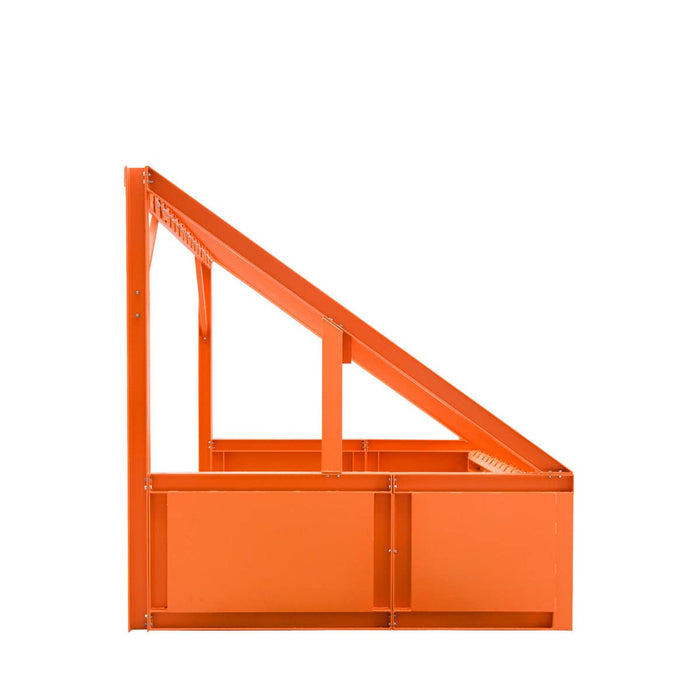

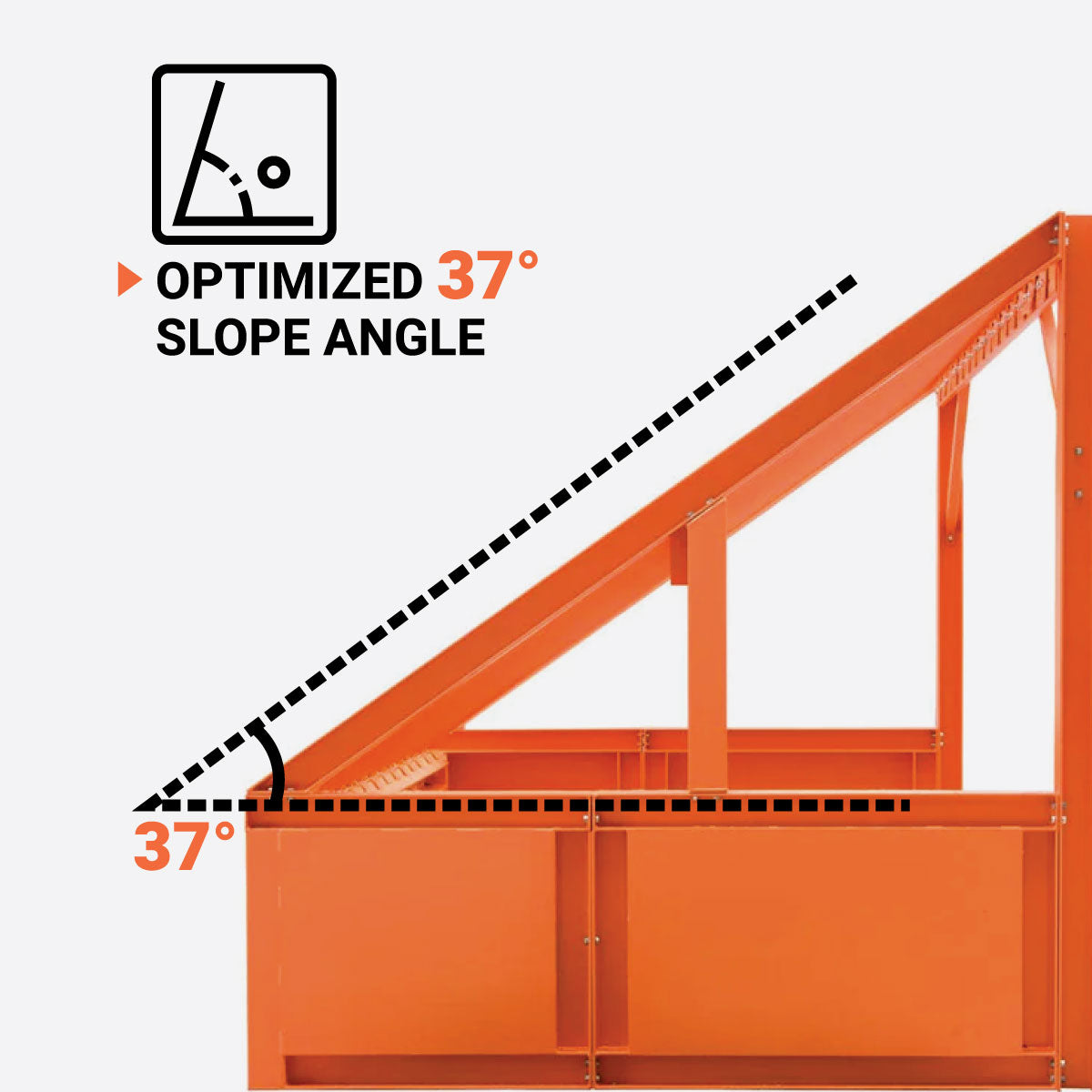

Optimized 37° slope angle for efficient debris removal and material separation

Specifications icon Specifications

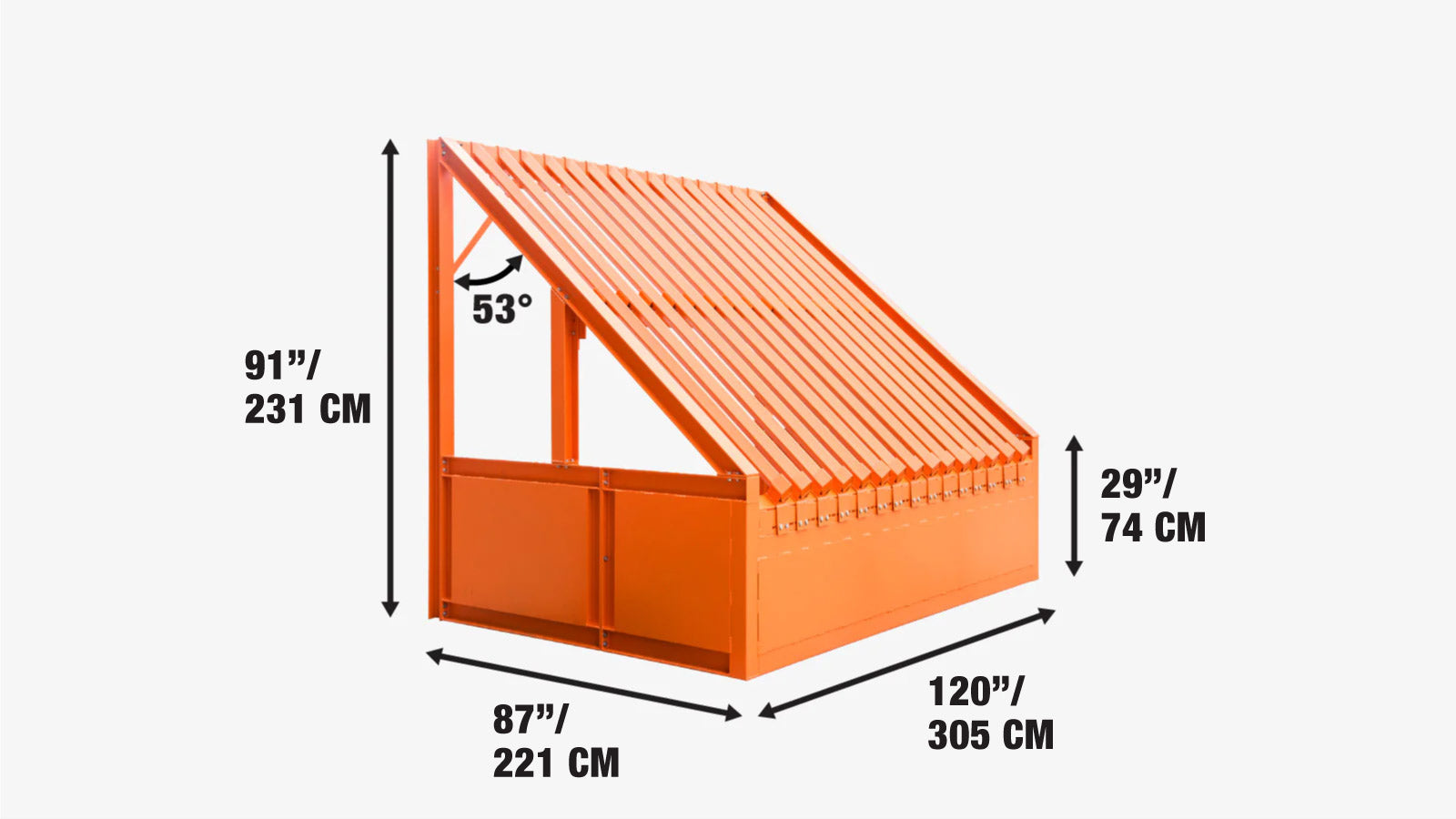

  • Structure Size (L × W × H): 3 × 2.2 × 2.3 m
  • Sift Accepting Area: 3 × 2 m
  • Average Load Capacity: 2200 kg
  • Primary Frame Specs: 10 × 10 cm I-beam posts & crossing square tubing
  • Sidewall & Front Wall Steel Plate: 3.5 mm / 10 GA
  • Deck Bar Size: 40 × 40 mm square tubing
  • Deck Bar Length: 2.7 m
  • Deck Bar Gauge: 4 mm / 8 GA
  • Standard Bar Spacing: 76 mm
  • Number of Standard Bars: 18
  • Minimum Bar Spacing: 25 mm (extra deck bars required)
  • Maximum Number of Bars: 26 (at 25 mm / 1” spacing)
  • Maximum Bar Spacing Capacity: 127 mm
  • First & Last Deck Bar Opening: 70 mm
  • Slope Angle: 37°
3 x 2 m Heavy-Duty Grizzly Rock Screen with Adjustable Deck Bars, 2200 kg Capacity, TMG-RS10-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

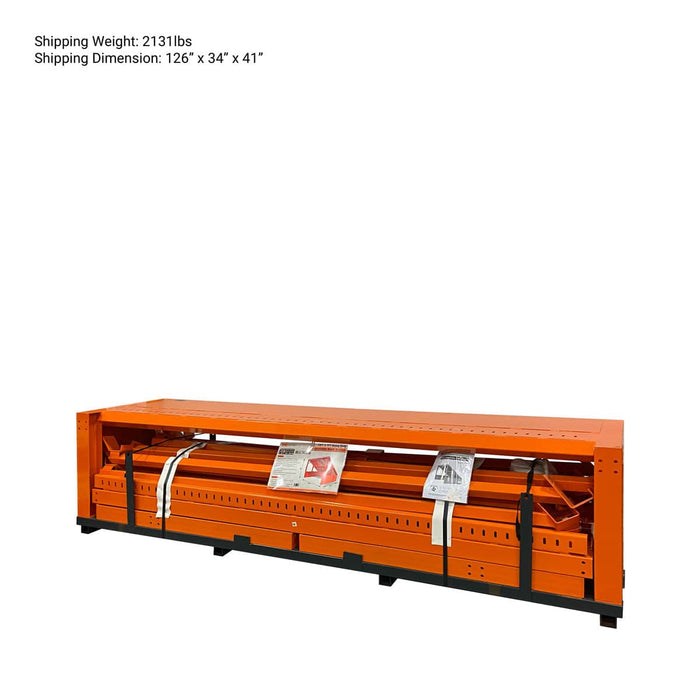

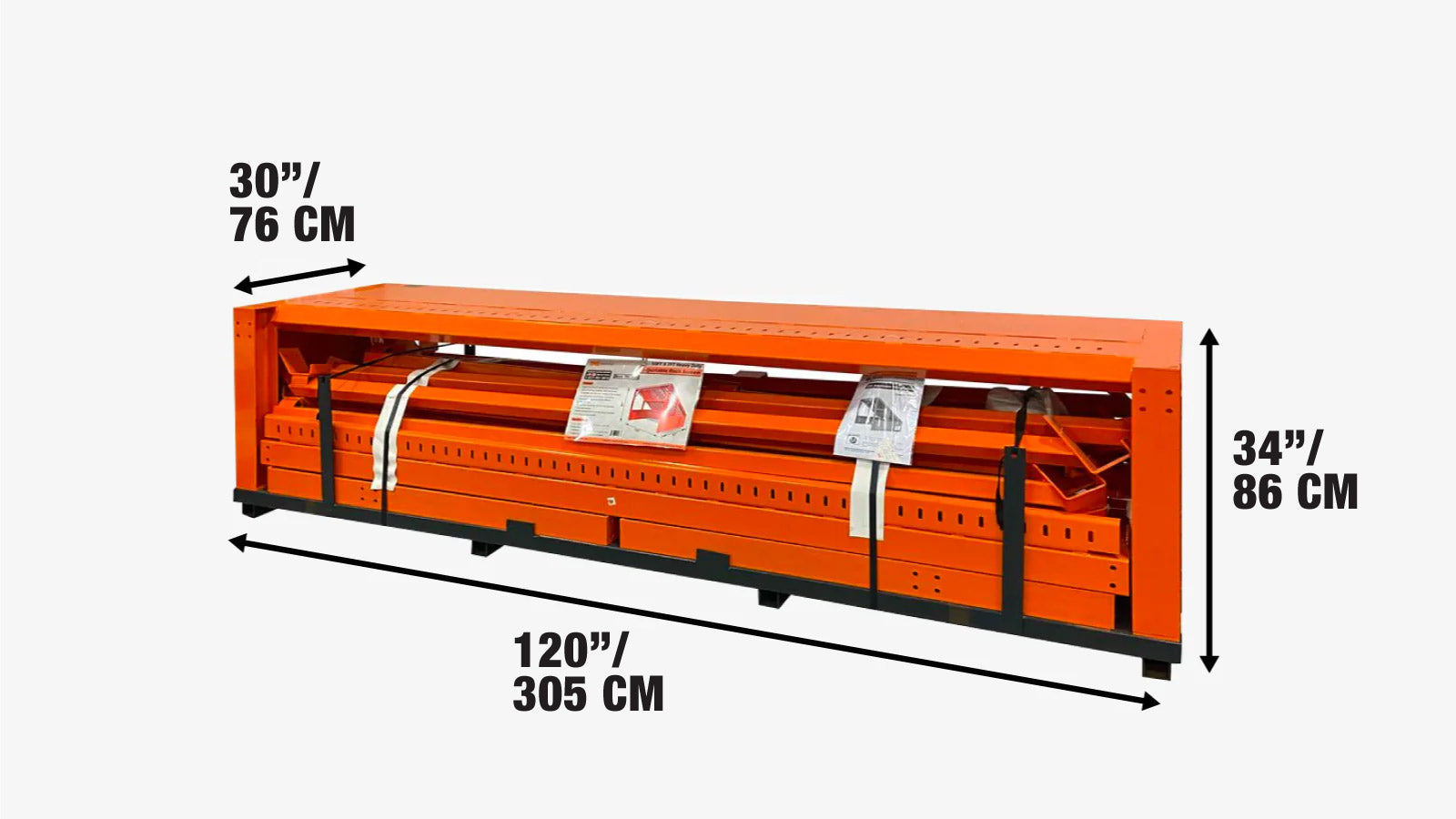

  • Packaging: Packed in a metal crate shipping box
  • Shipping dimensions: 305 x 77 x 87 cm (L x W x H)
  • Shipping weight: 1066 kg
Shipping from Rowville,VIC
What happens after you place your order?
3 x 2 m Heavy-Duty Grizzly Rock Screen with Adjustable Deck Bars, 2200 kg Capacity, TMG-RS10-shipping-info-image

Product Description icon Product Description

The TMG-RS10 Heavy-Duty Grizzly Static Rock Screen is an indispensable tool for operations in Australia requiring efficient material classification. With its generous 3 m x 2 m sift loading area and a robust 2200 kg load capacity, this screen is built to handle significant volumes of mixed materials. Its construction features a resilient 10 x 10 cm I-beam frame and a powder-coated steel structure, guaranteeing durability in harsh conditions typical of mining, construction, aggregates, recycling, and landscaping industries.

The TMG-RS10 incorporates adjustable bolt-on deck bars, allowing for spacing customization from 25 to 127 mm (1" to 5") to suit various material sizes. The unique diamond-shaped installed, self-cleaning design of the deck bars, combined with an optimal 37° slope, ensures smooth material flow and minimizes maintenance. This rock screen is quick to assemble and is engineered for heavy-duty use, providing an efficient solution for pre-sorting oversized materials before further processing.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What is the primary use of the TMG-RS10 rock screen?
    A: The TMG-RS10 is a heavy-duty grizzly static rock screen primarily designed for efficient material sorting and pre-screening oversized materials in industries like mining, construction, aggregates, recycling, and landscaping.
  • Q: What is the load capacity of the TMG-RS10?
    A: The TMG-RS10 has an impressive average load capacity of 2200 kg (5000 lb), allowing it to handle significant volumes of mixed loads.
  • Q: What kind of frame does the TMG-RS10 have?
    A: It features a robust 4"x4" (10 cm x 10 cm) I-beam frame and a powder-coated steel structure, ensuring durability and resistance to harsh working conditions.
  • Q: Are the deck bars adjustable?
    A: Yes, the TMG-RS10 is equipped with adjustable bolt-on deck bars that offer spacing options from 25 mm (1") to 127 mm (5"), allowing customization for different material sizes.
  • Q: What is the slope angle of the screen?
    A: The screen has a 37° slope, which is designed to facilitate efficient debris removal and smooth material flow.
  • Q: Is the TMG-RS10 easy to assemble?
    A: Yes, the rock screen is designed for quick assembly, making it convenient to set up for immediate use.
  • Q: Is there a warranty on the TMG-RS10?
    A: Yes, the TMG-RS10 is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
