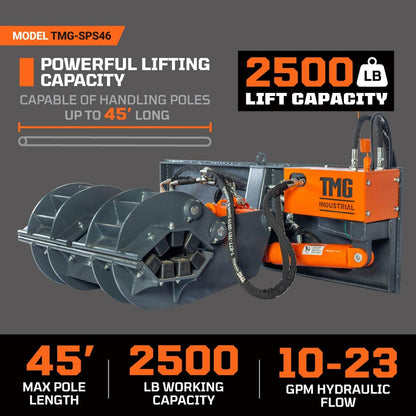

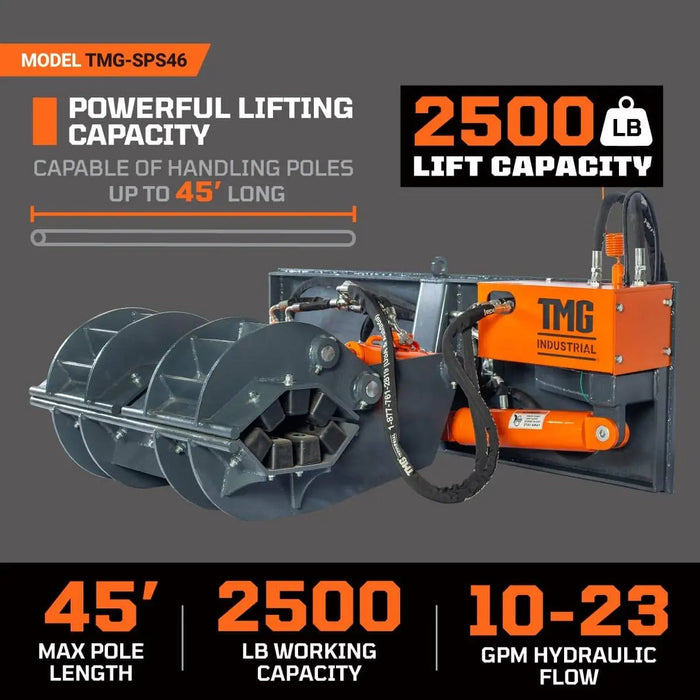

1134 kg (2500 lb) Skid Steer Pole Setter, 13.7 m (45′) Pole Capacity, 0° - 100° Claw Rotation, TMG‑SPS46

Product Manual
TMG Industrial 2500-lb Skid Steer Pole Setter, 45' Pole Capacity, 0°-100° Claw Rotation, Jaw Claw Opening 4" to 20", TMG-SPS46
CURRENTLY IN STOCK
TMG-SPS46
$11,999.00
$11,999.00 - $11,999.00
$11,999.00
$10,999.00
$10,999.00 - $10,999.00
$10,999.00
$11,999.00 Save $1,000.00
$10,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 1 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

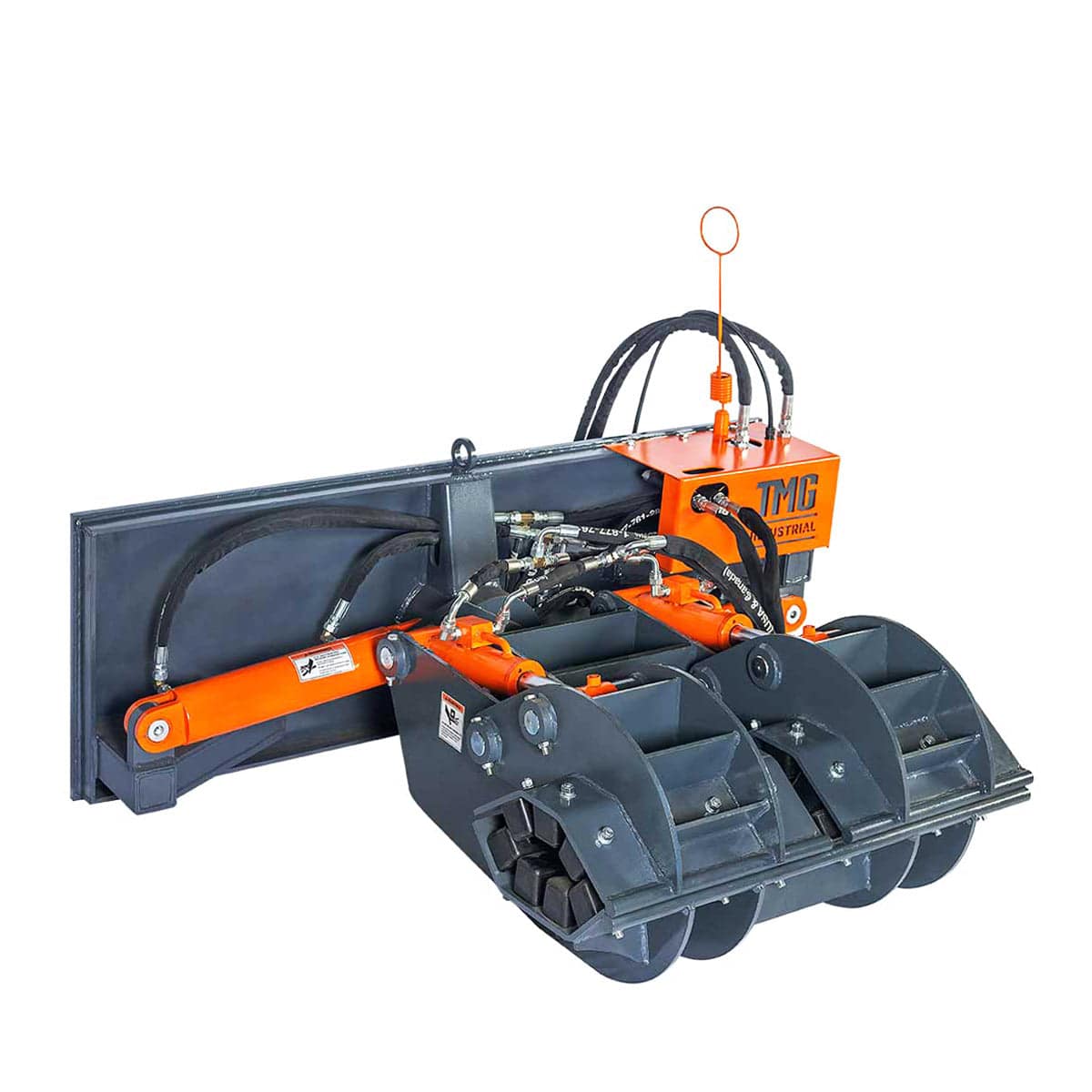

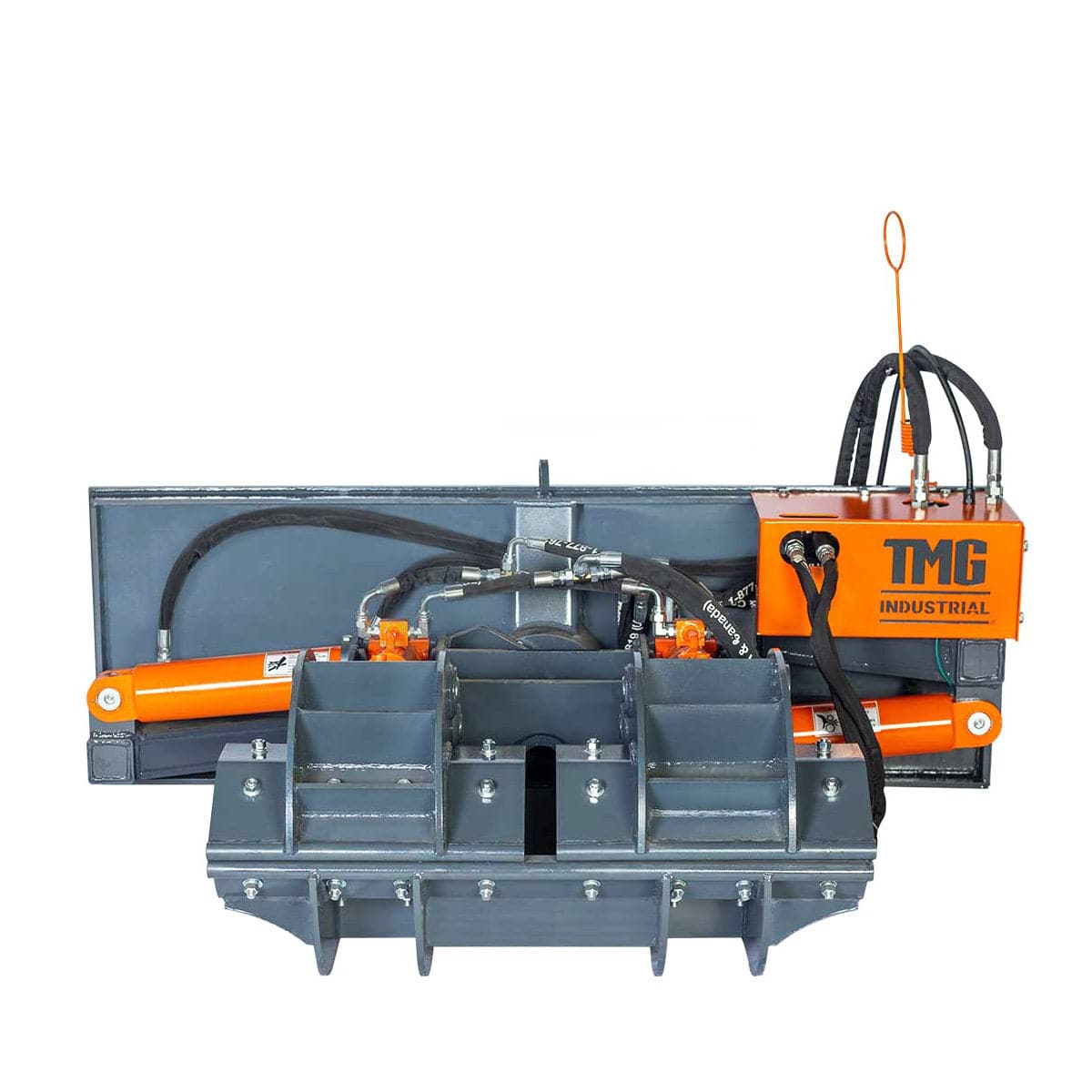

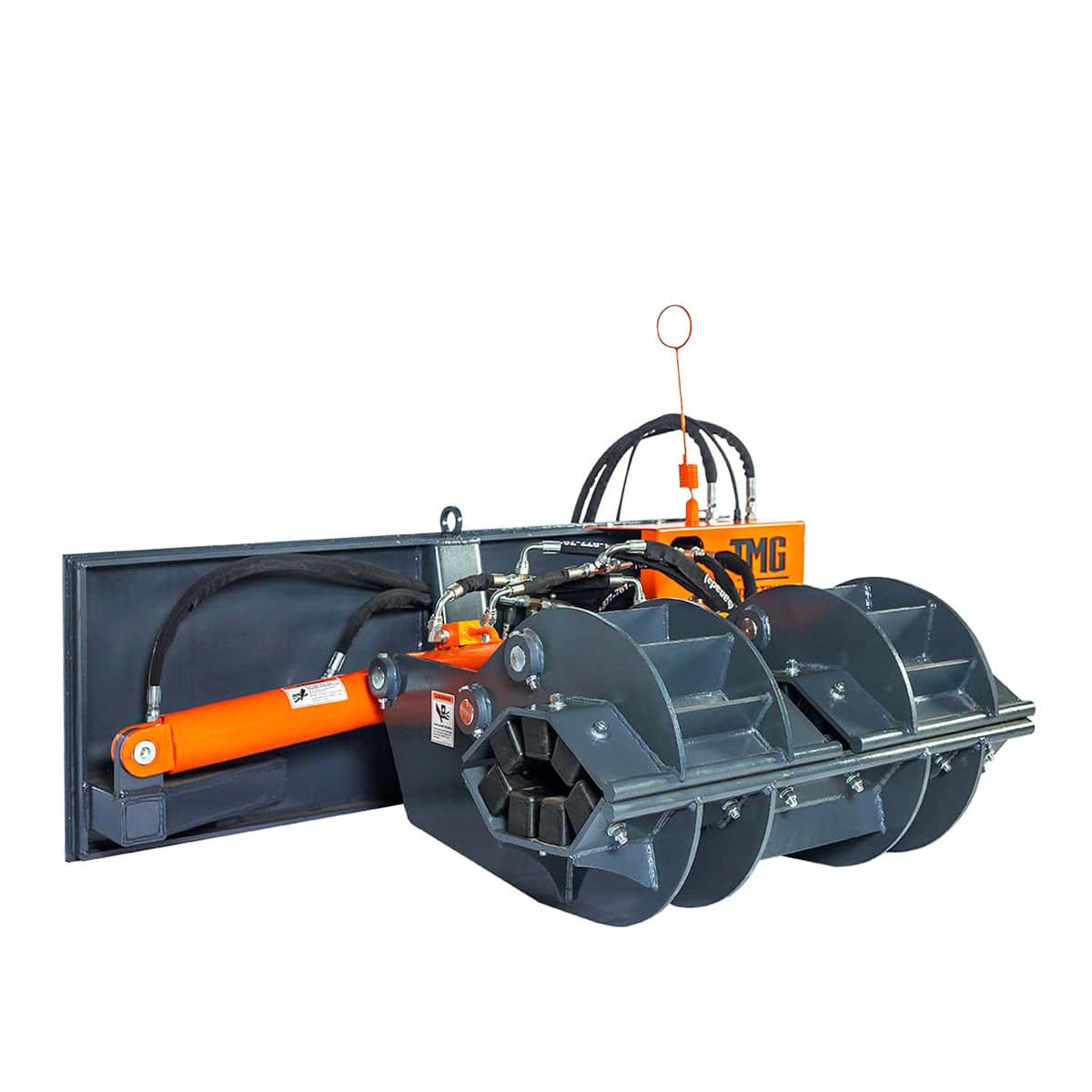

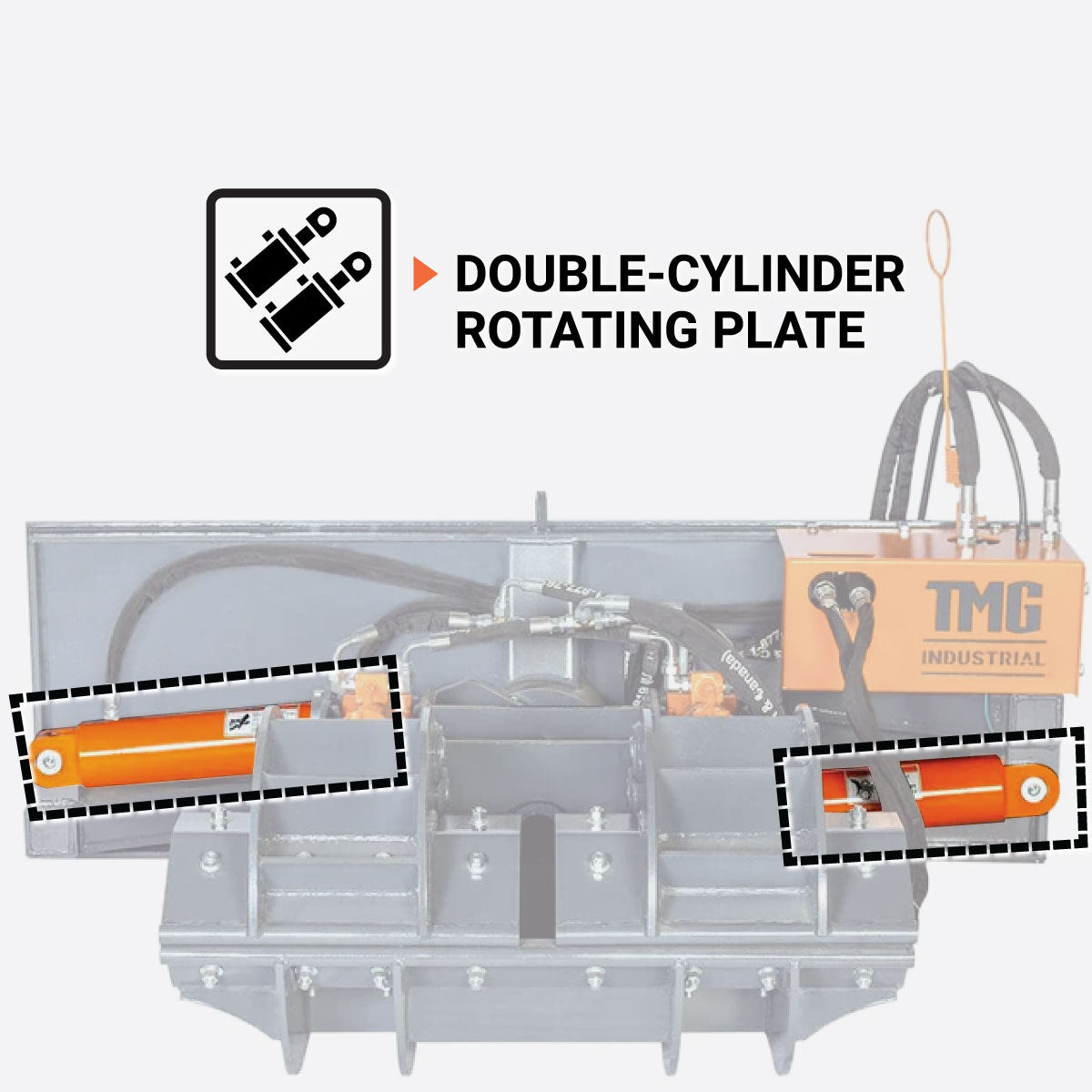

Double‑cylinder rotating plate ensures precise and stable pole positioning
Feature Image

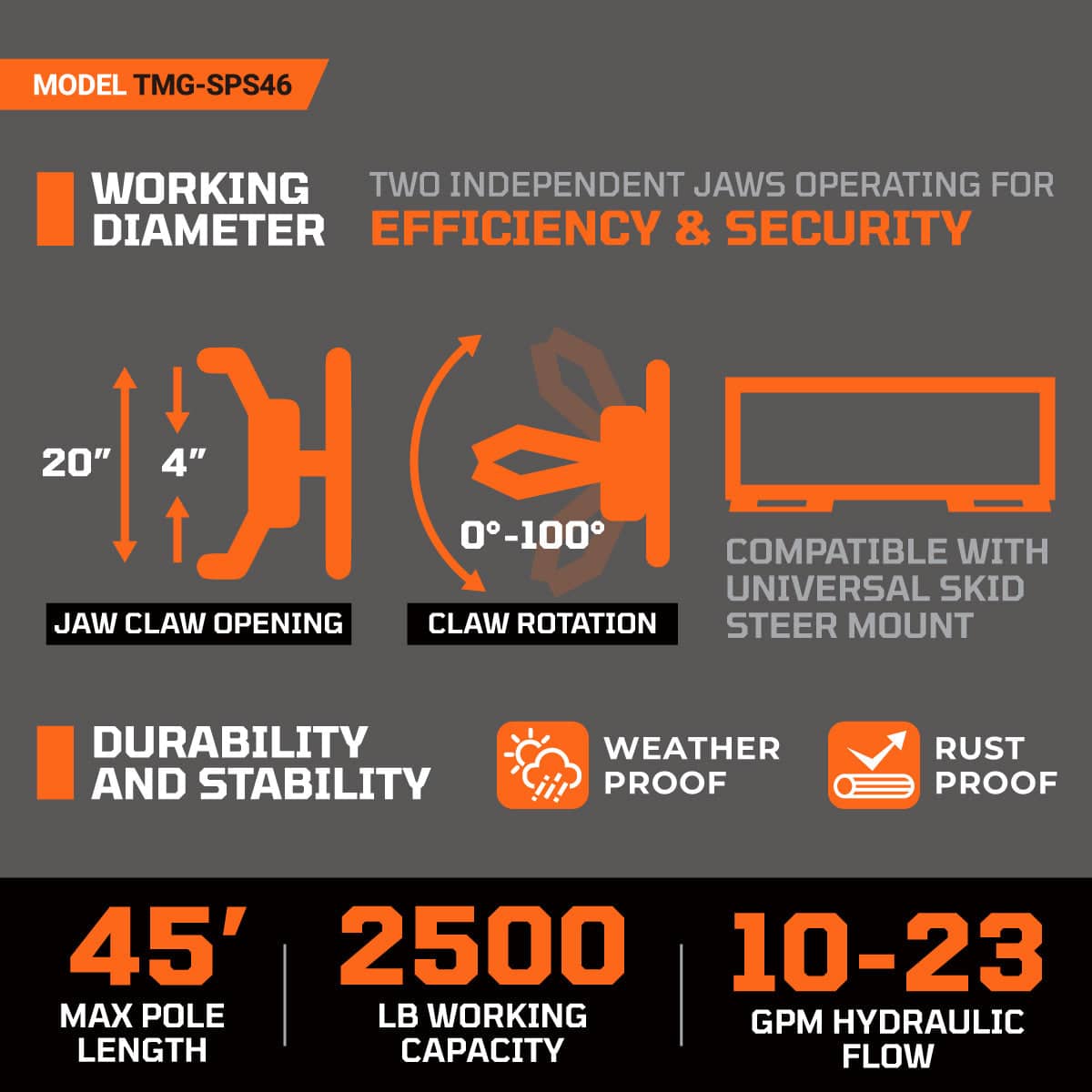

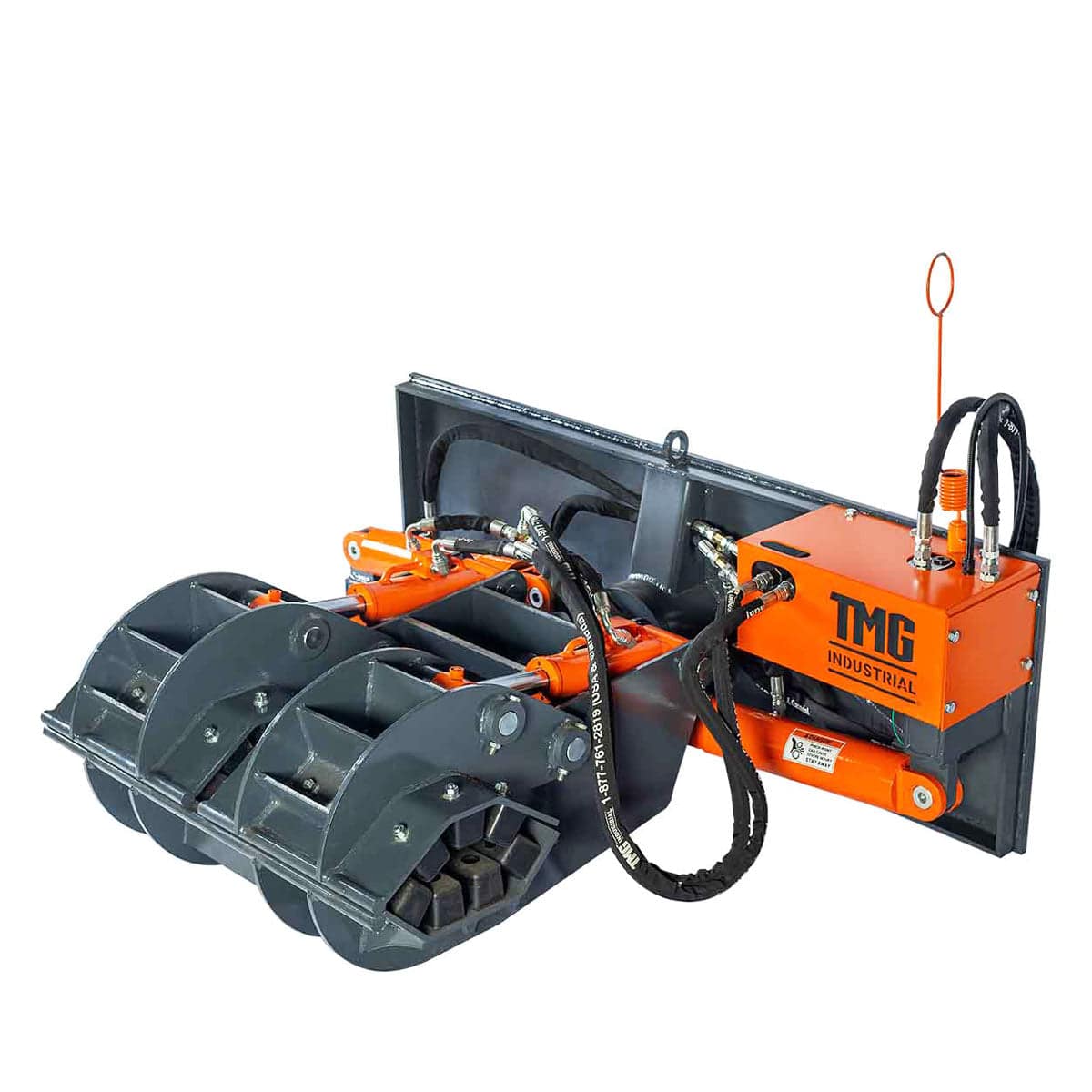

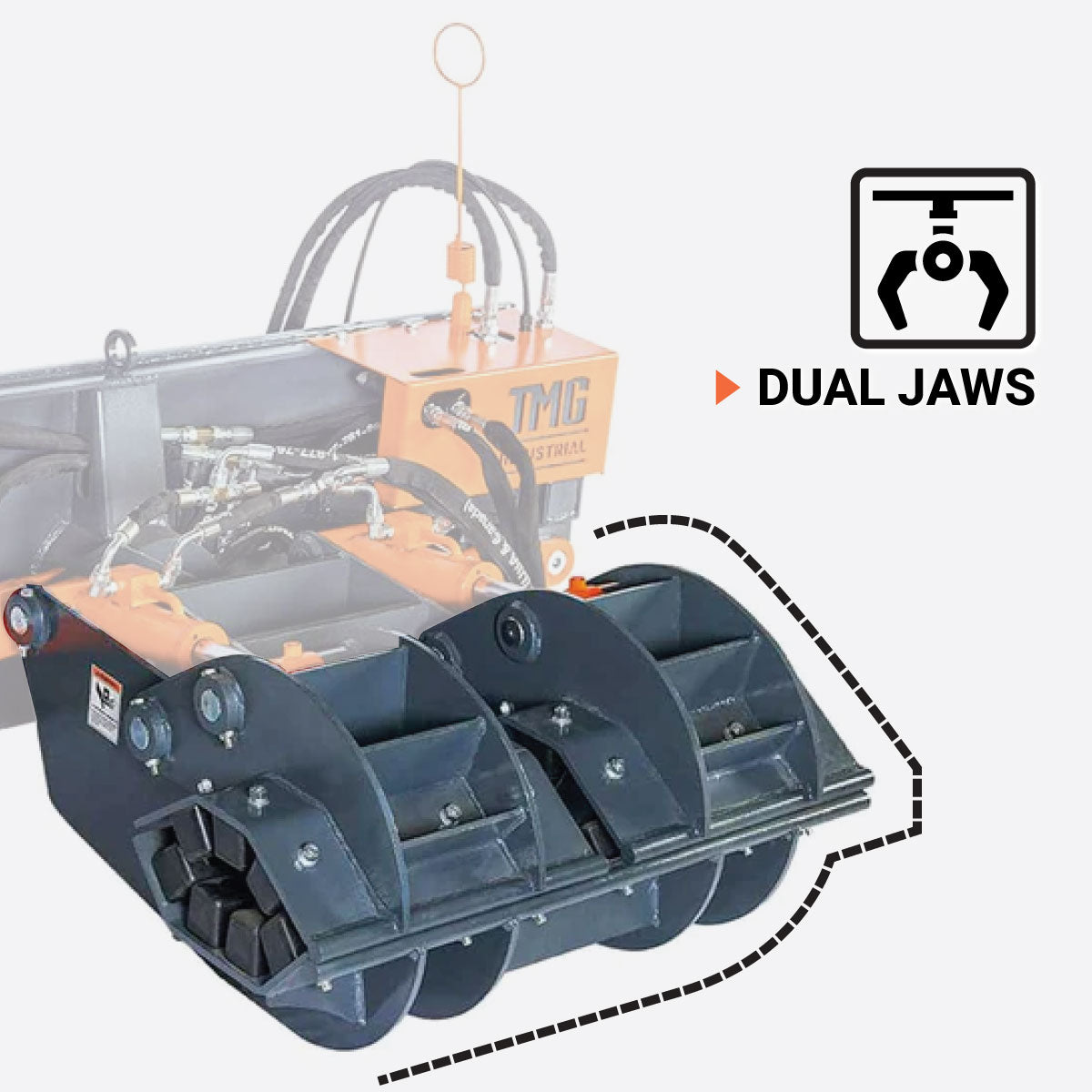

Two independent jaws offer reliable sequential gripping
Feature Image

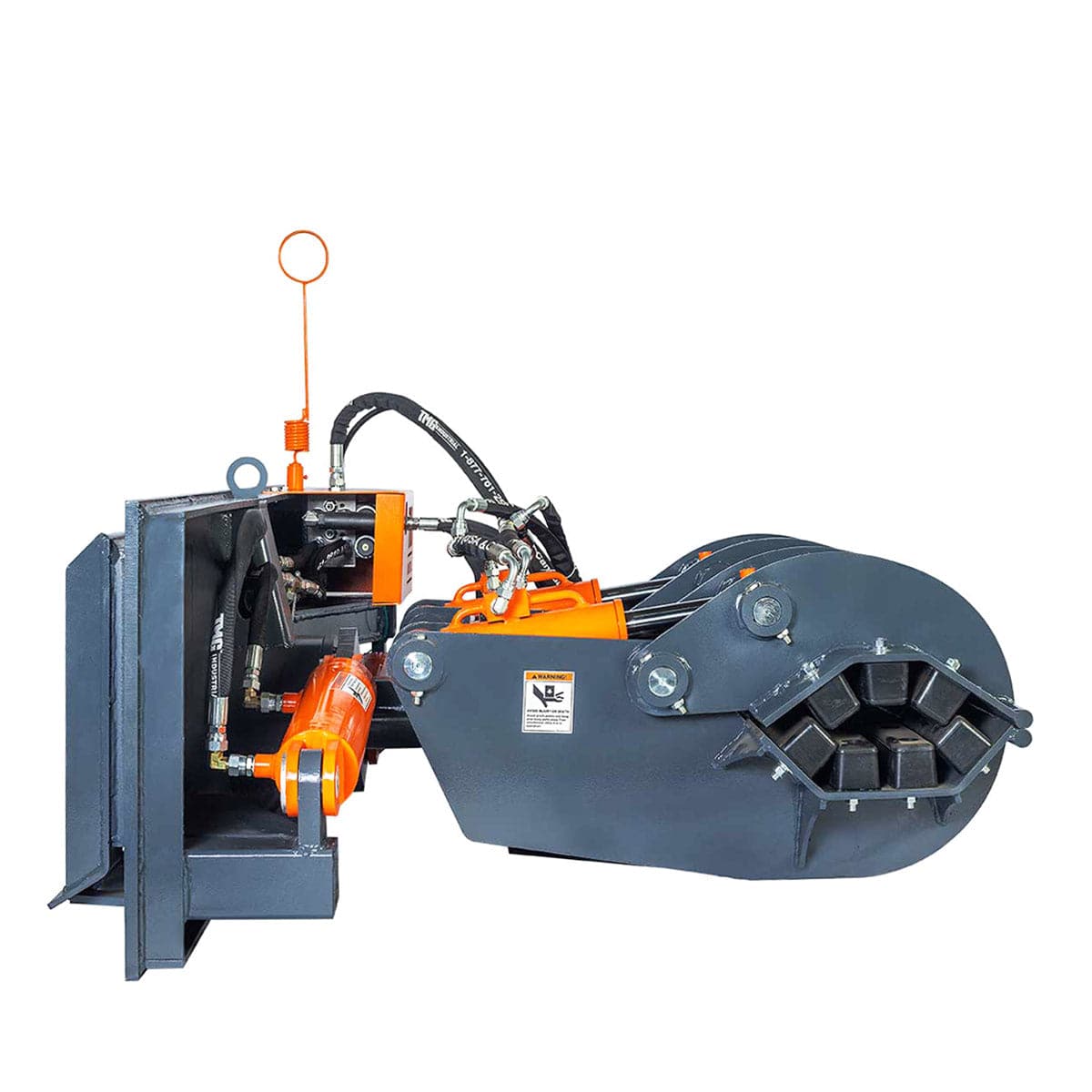

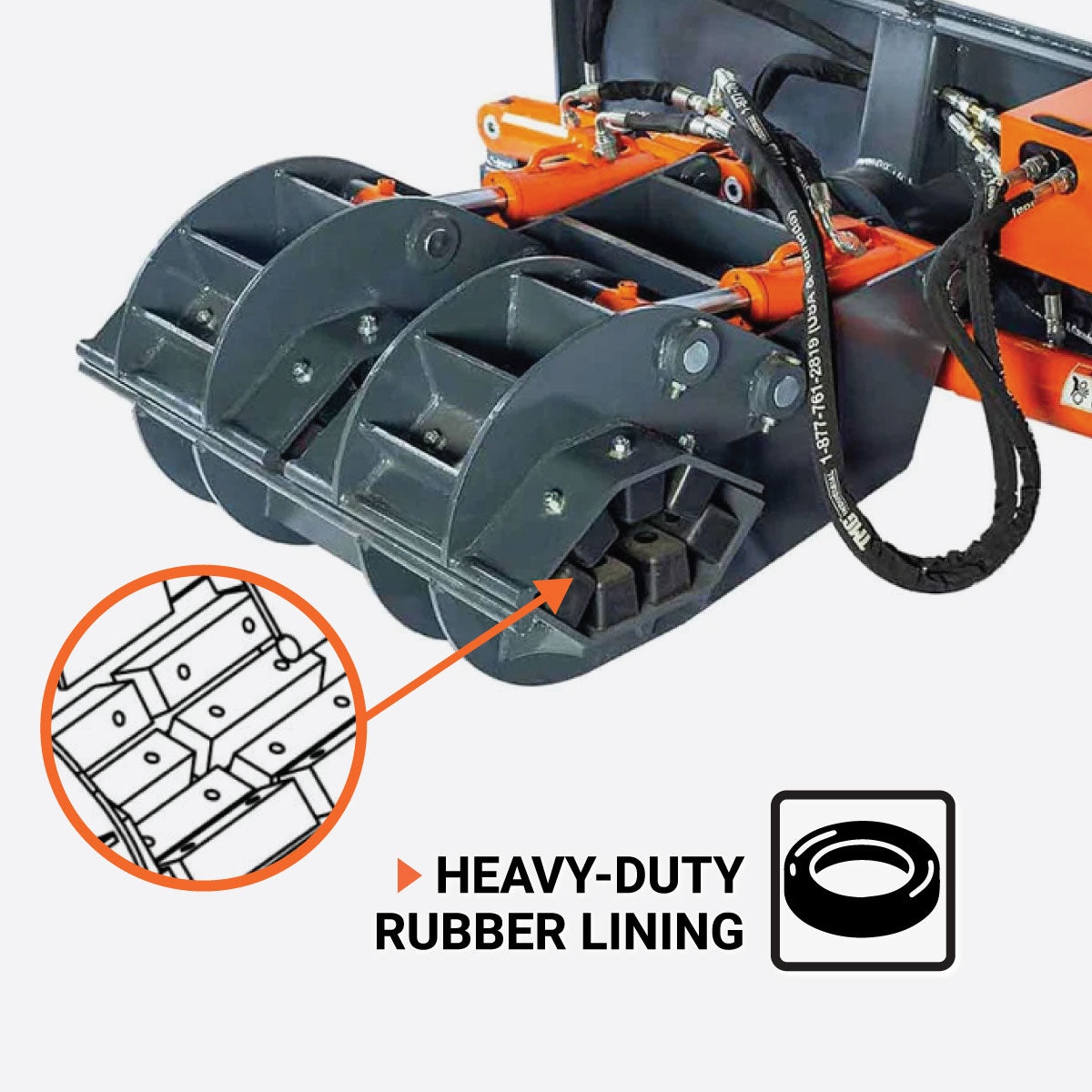

Heavy‑duty rubber lining protects poles and improves grip during lifting
Feature Image

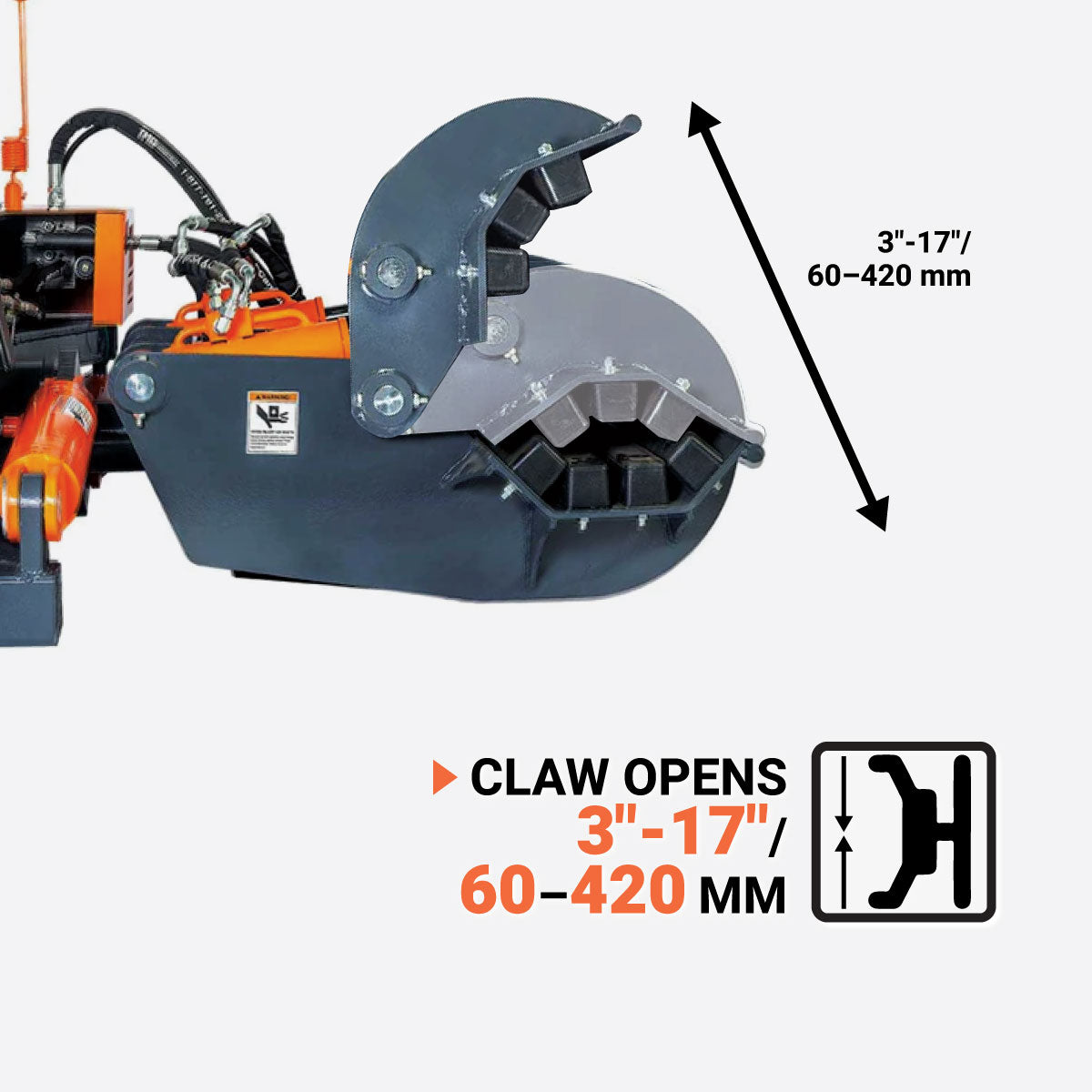

Claw opening from 60 mm to 420 mm (3″-17″)
Feature Image

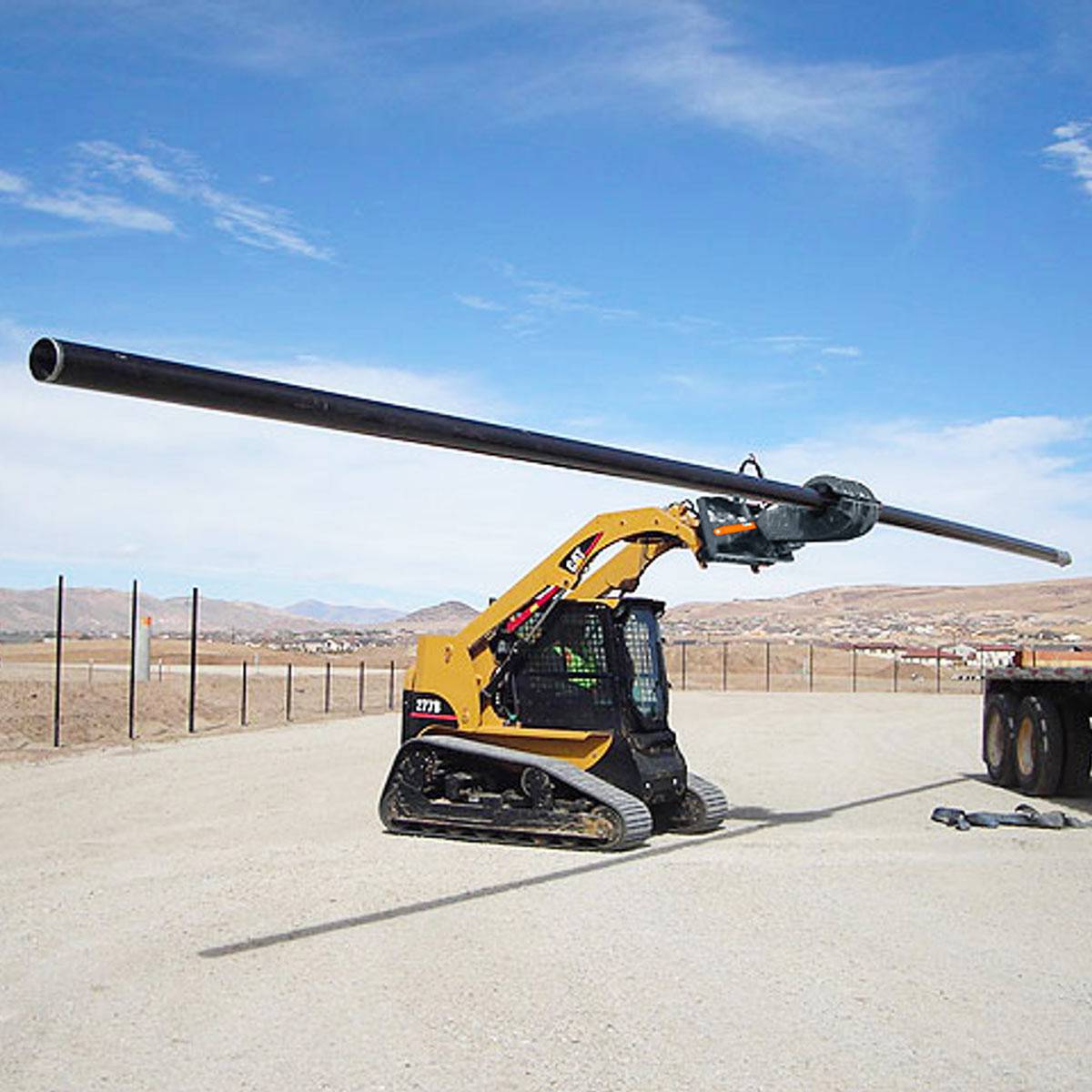

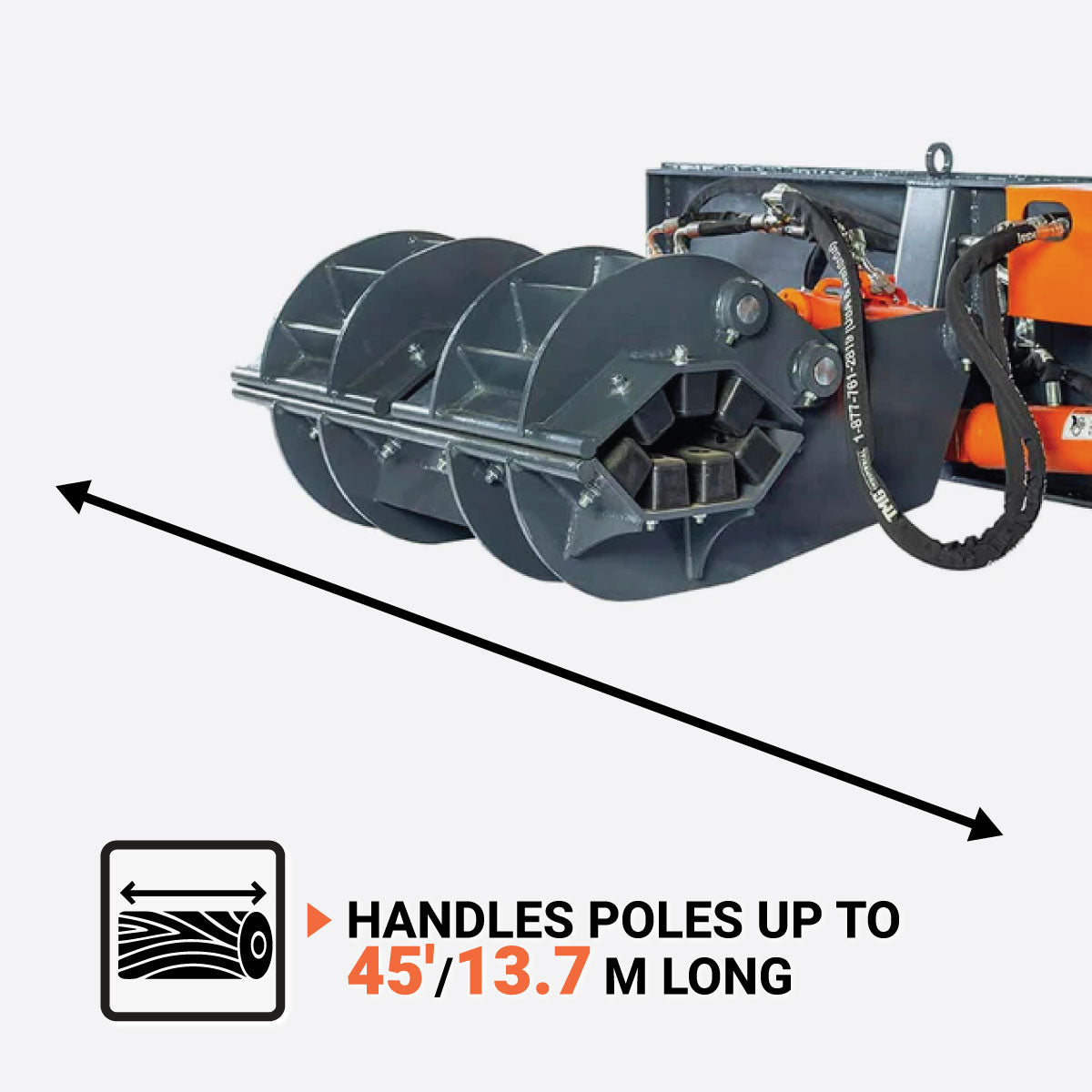

Handle up to 13.7 m (45′) pole length
Feature Image

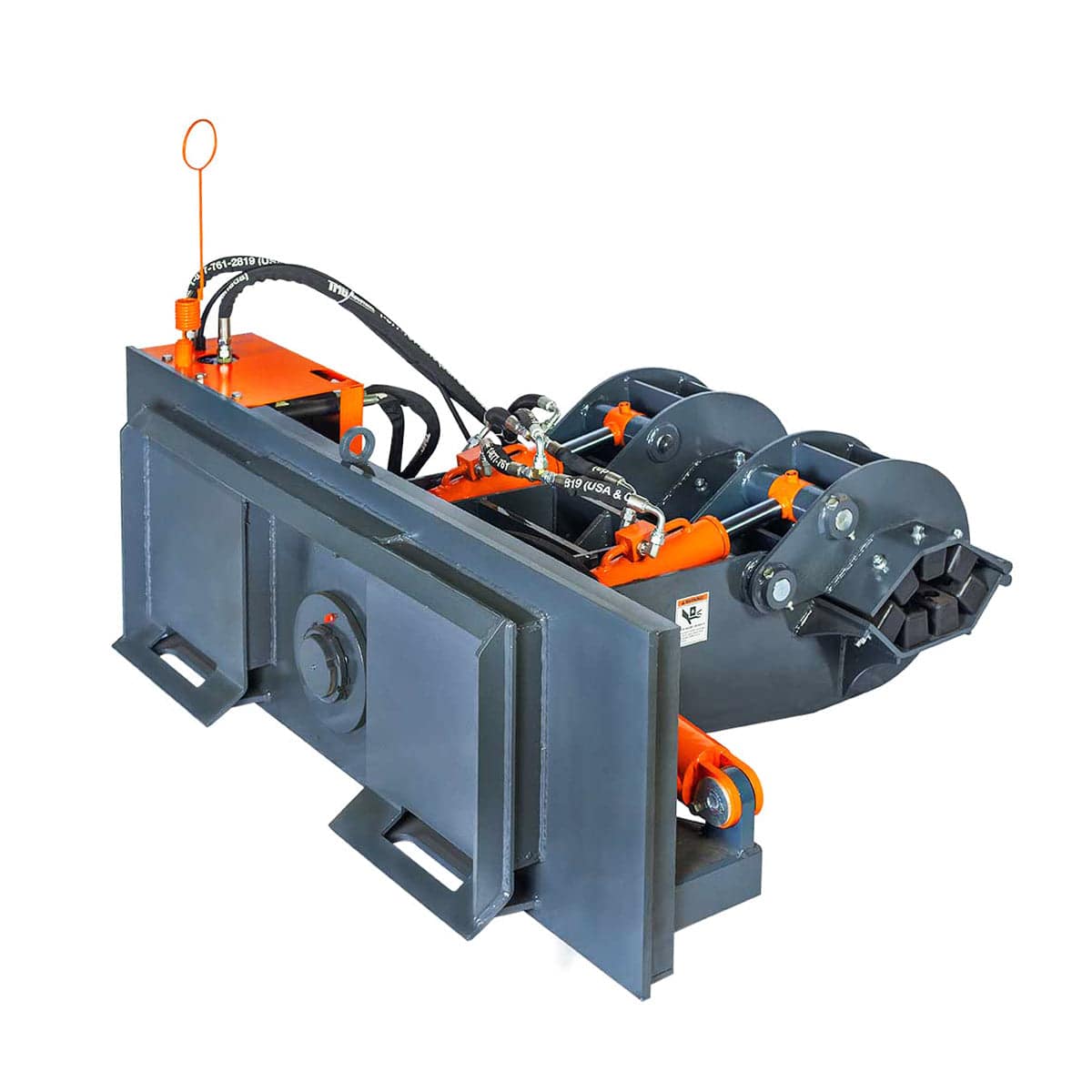

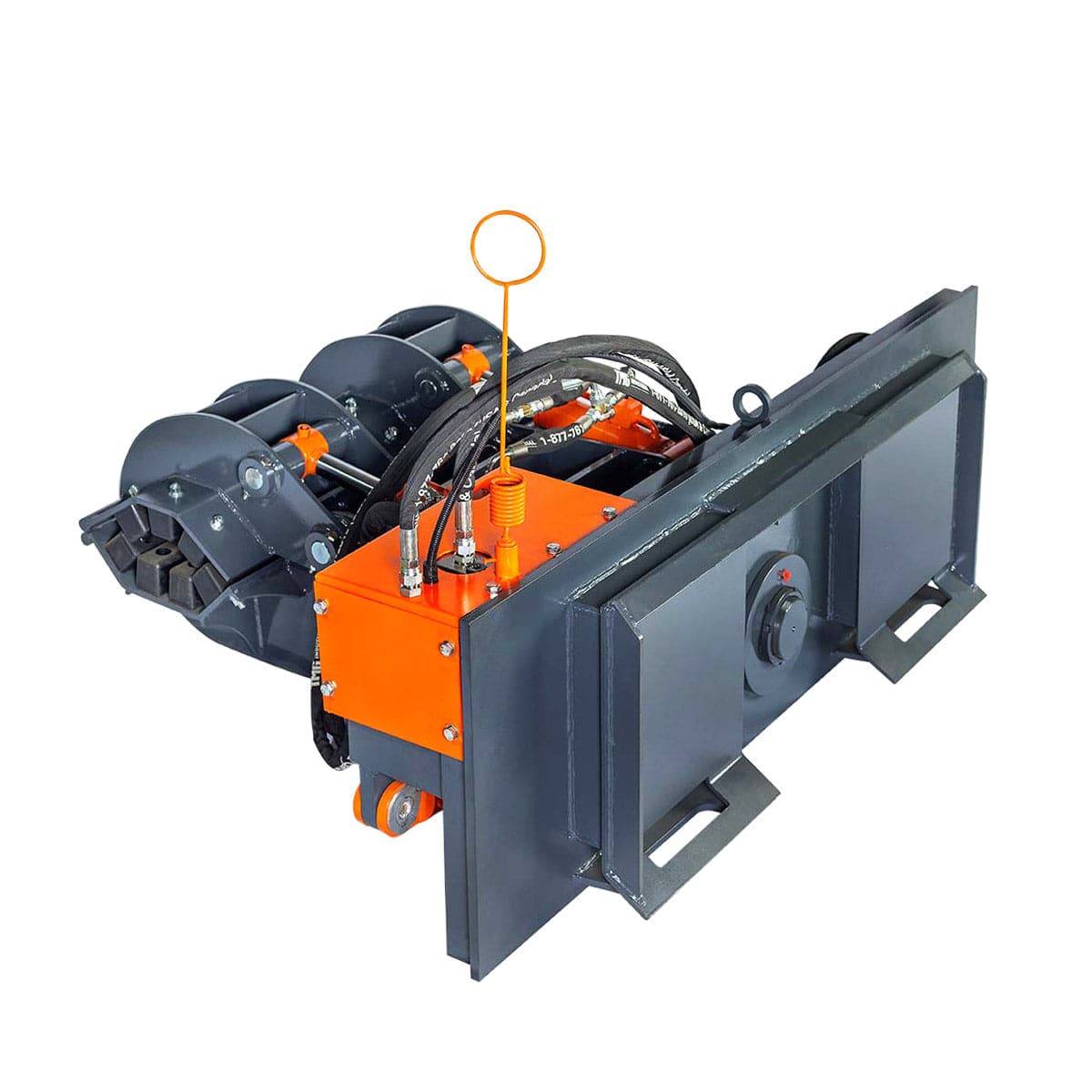

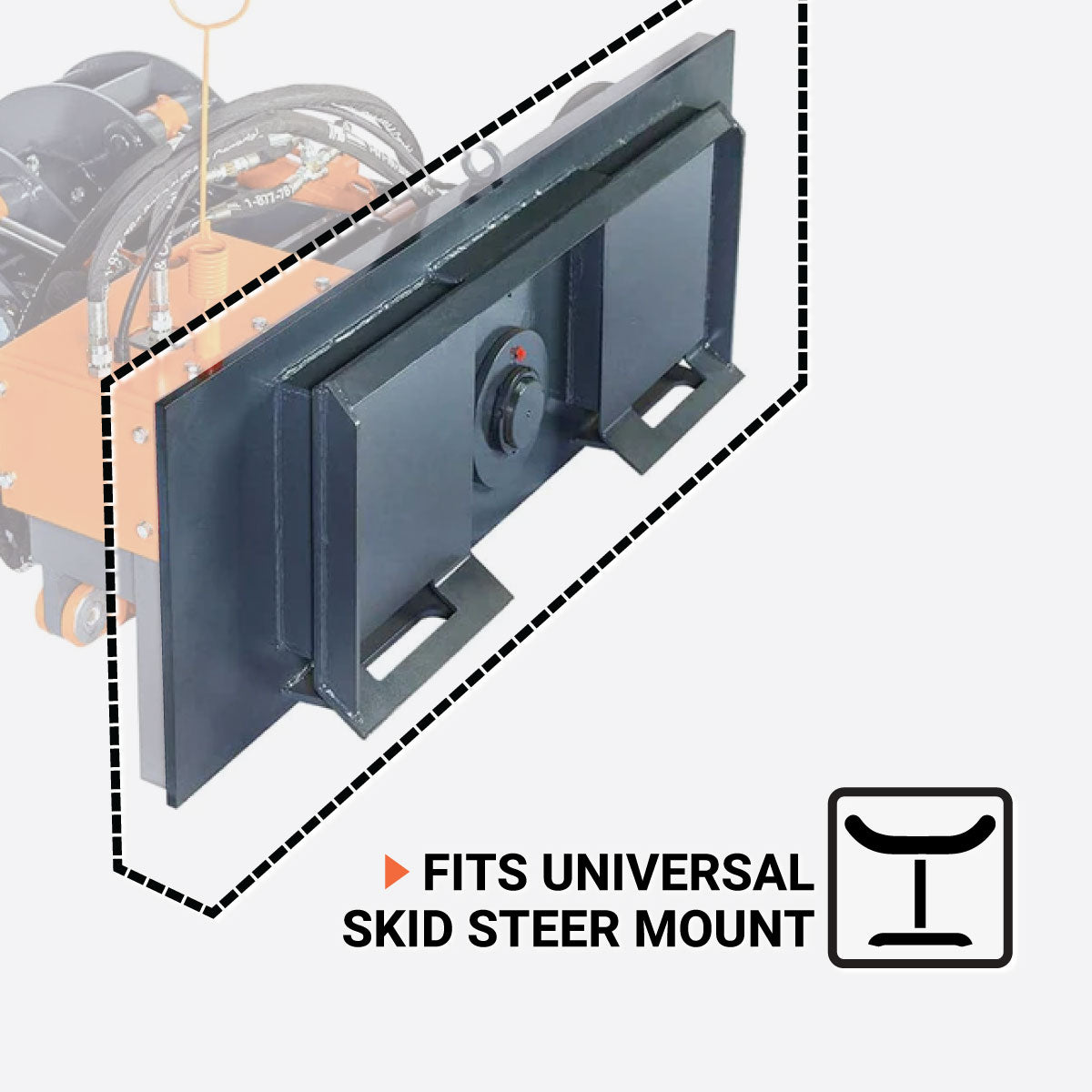

Compatible with universal skid steer mount

Specifications icon Specifications

  • Skid Steer Power Required: 37-75 kW (75-130 HP)
  • Jaw Opening: 60-420 mm (3″-17″)
  • Claw Rotation: 0°-100°
  • Maximum Working Capacity: 1134 kg (2500 lb)
  • Maximum Pole Length: 13.7 m (45')
  • Hydraulic Flow: 38-87 L/min (10-23 GPM)
  • Hydraulic Working Pressure: 100-180 bar (1450-2610 PSI)
  • Lining: Heavy-Duty Rubber

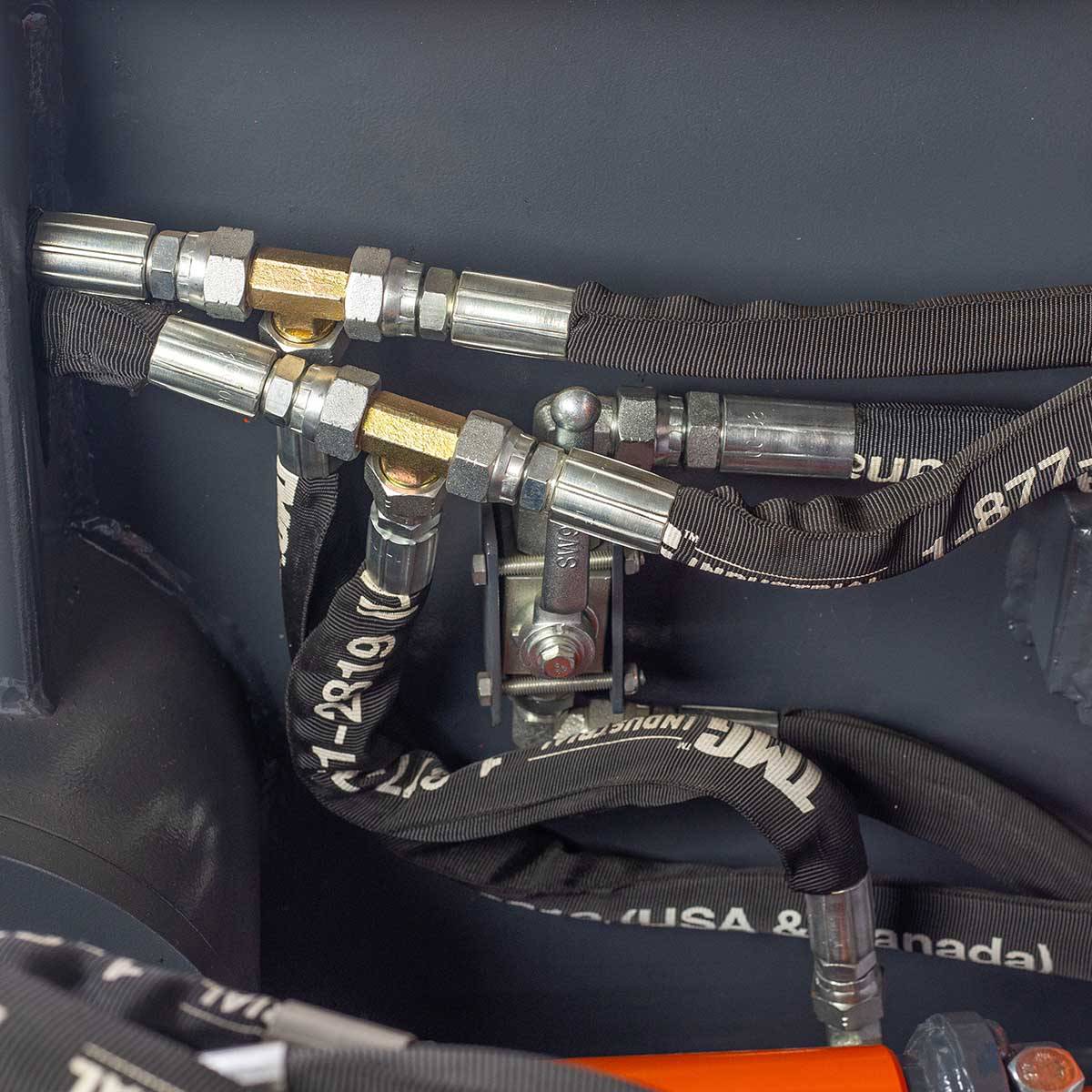

  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Size: 1/2" NPT
  • Hydraulic Hoses Diameter & Quantity: 1/2" x 1.5 m, 2 pcs
  • Surface Finish: Powder Spraying

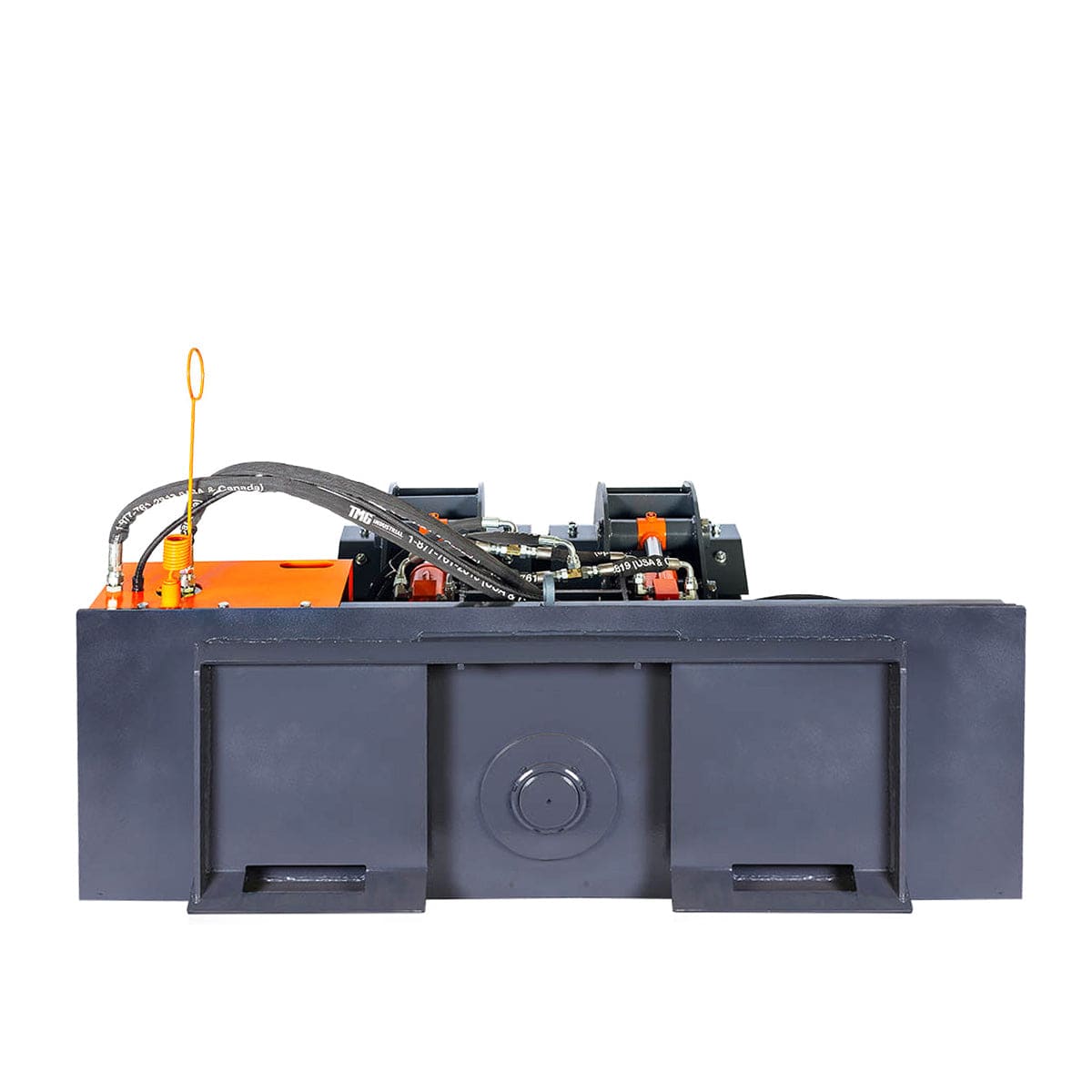

  • Mount Type: Universal Skid Steer Mount
  • Overall Dimensions (L x W x H): 1600 x 1300 x 990 mm (63" x 51" x 39")
  • Net Weight: 620 kg (1369 lb)
1134 kg (2500 lb) Skid Steer Pole Setter, 13.7 m (45′) Pole Capacity, 0° - 100° Claw Rotation, TMG‑SPS46-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

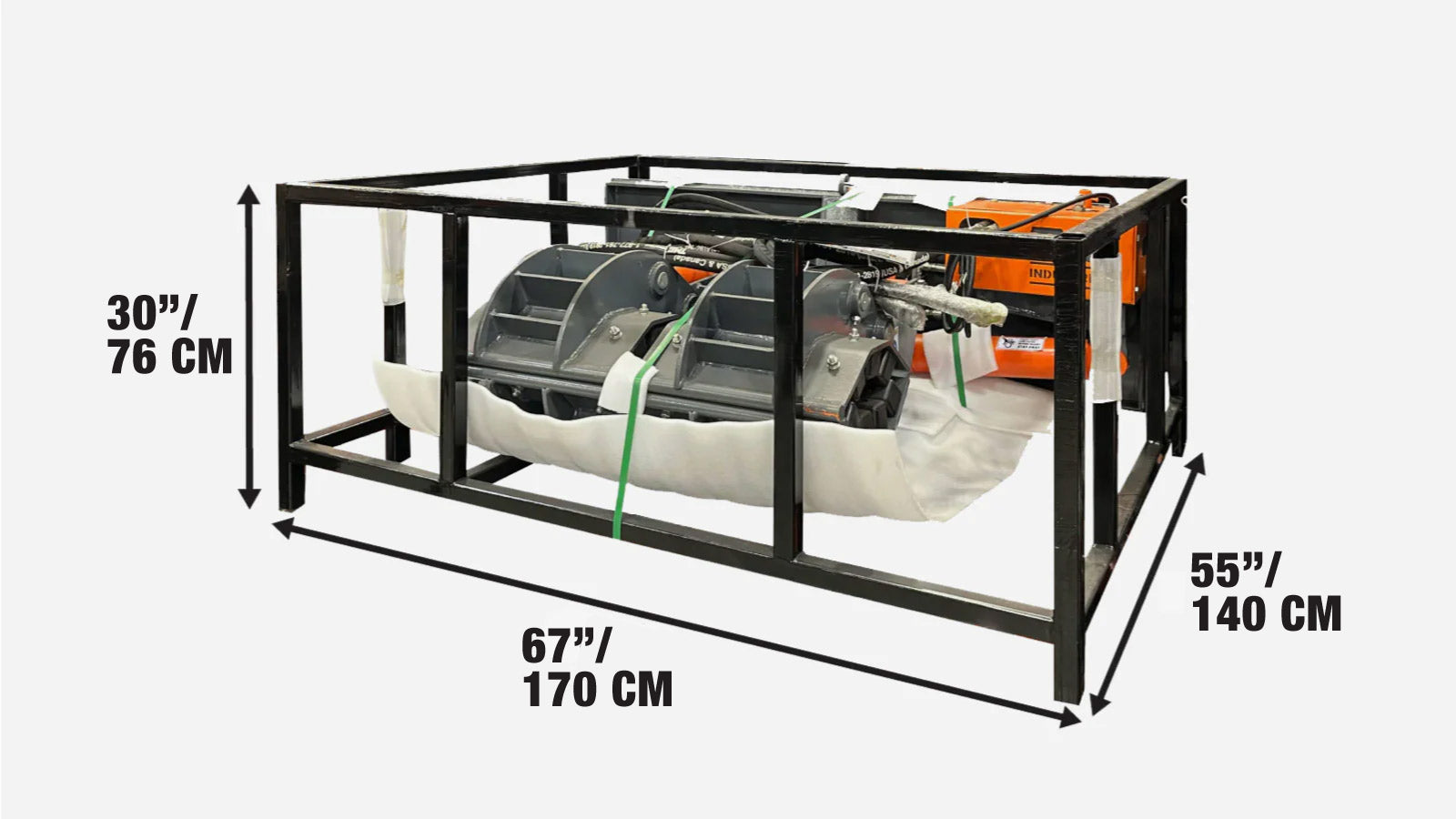

  • This product is packaged in a steel frame shipping crate
  • Shipping dimensions: 170 cm × 140 cm × 80 cm (L × W × H) / 67″ × 55″ × 31″
  • Shipping weight: 674 kg (1485 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1134 kg (2500 lb) Skid Steer Pole Setter, 13.7 m (45′) Pole Capacity, 0° - 100° Claw Rotation, TMG‑SPS46-shipping-info-image

Product Description icon Product Description

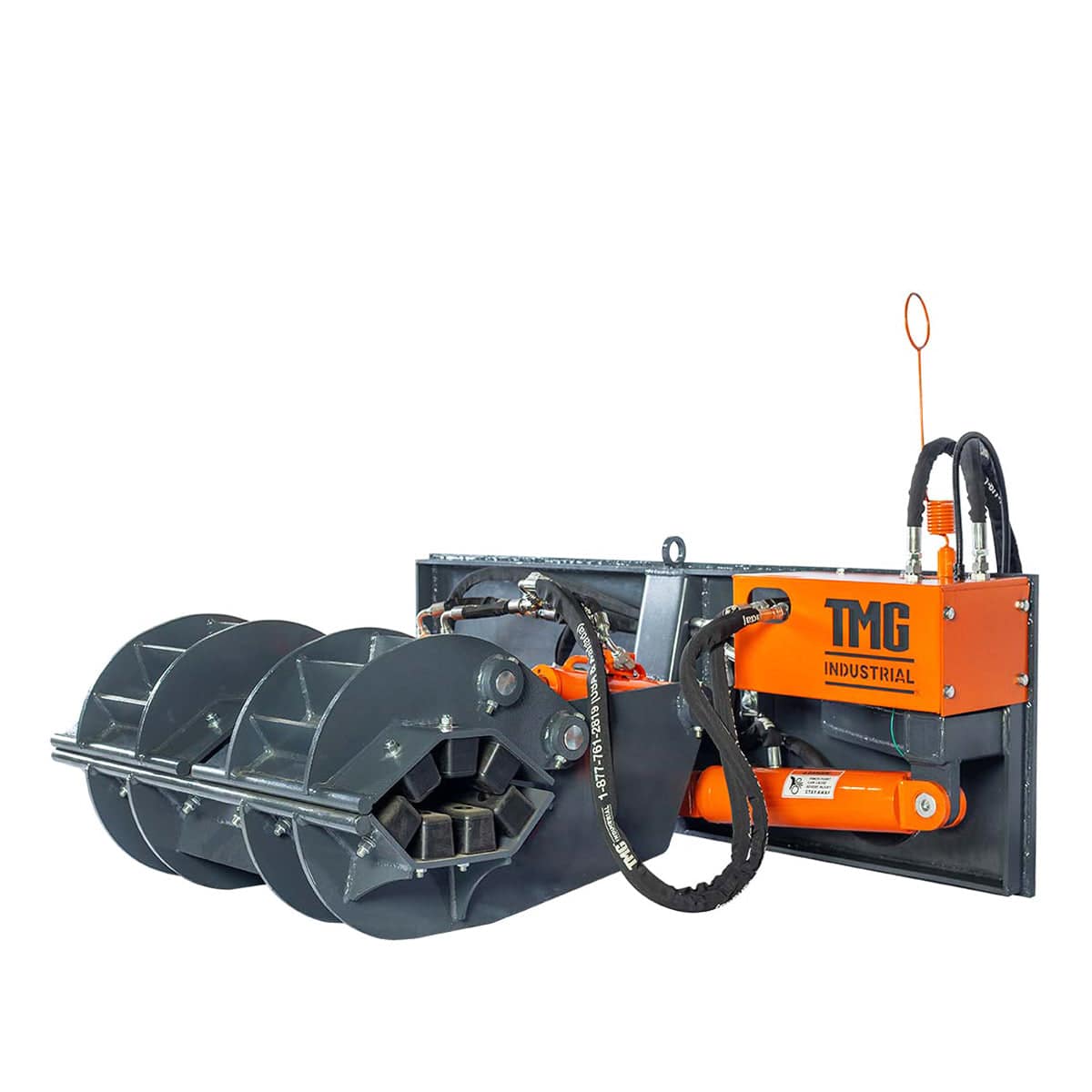

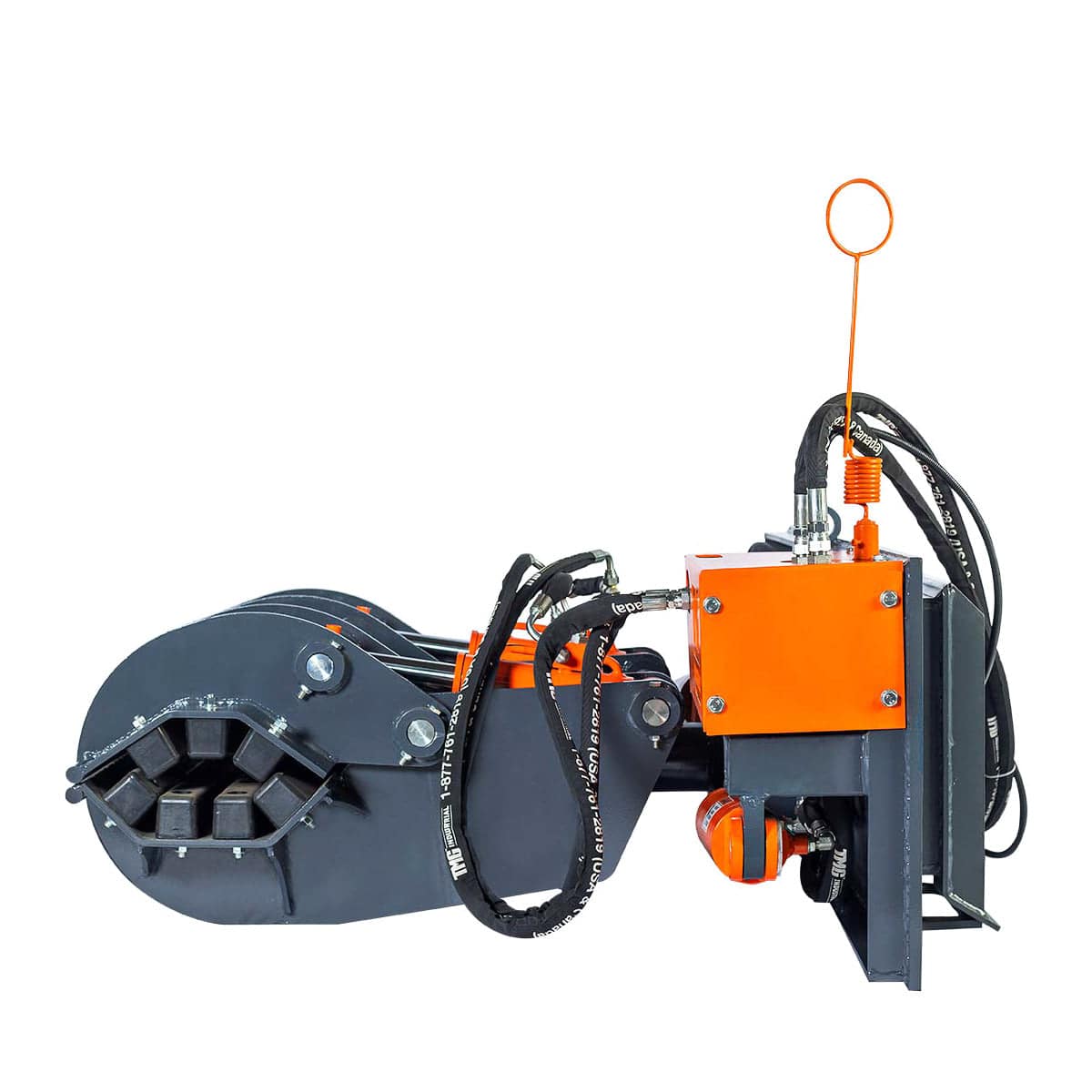

The TMG‑SPS46 Skid Steer Pole Setter revolutionizes utility pole handling, combining heavy-duty lifting power with fine control. Its imposing 1134 kg (2500 lb) capacity and 13.7 m (45') reach accommodate long poles effortlessly, while the 0°–100° claw rotation and adjustable jaws adapt to various pole sizes. Dual hydraulic cylinders stabilize the rotating plate for precision alignment, and rubber-lined jaws protect pole surfaces during setting. Delivered with all necessary hydraulic fittings and wiring, this attachment is ready for fast deployment on-site. Rugged, adaptable, and efficient, the TMG‑SPS46 is ideal for utility installers, contractors, and forestry professionals.



Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What pole sizes and lengths does the TMG-SPS46 support?
    A: Capable of handling poles up to 13.7 m (45′) long and 60-420 mm (3″-17″) in diameter, thanks to its adjustable claw design.
  • Q: How stable is the unit during lifting and setting?
    A: The double-cylinder rotating plate ensures exceptional stability and precision, minimizing operator fatigue and risk.
  • Q: Can the TMG-SPS46 rotate poles on-site?
    A: Yes—its claw rotates smoothly through 0°-100°, allowing precise alignment during installation.
  • Q: Will the pole setter damage the poles?
    A: No—the equipped heavy-duty rubber-lined jaws protect surfaces while maintaining a strong, secure grip.
  • Q: Is the pole setter ready for immediate use?
    A: Yes—it includes a flush-face coupler, spring hose mount, and wiring harness for plug-and-play operation.
  • Q: What are the hydraulic requirements for optimal performance?
    A: It requires 38-87 L/min (10-23 GPM) hydraulic flow and 100-180 bar (1450-2610 PSI) working pressure to operate effectively.
  • Q: What is the warranty for the TMG-SPS46?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
