TMG-RS12

3.6 x 2.7 m Heavy-Duty Grizzly Rock Screen with Adjustable Deck Bars, 2200 kg Capacity, TMG-RS12

TMG Industrial 12ā€™ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4ā€ x 4ā€ I-Beams, 5000 lb Load Capacity, TMG-RS12
CURRENTLY OUT OF STOCK
TMG-RS12
$6,999.00 - $6,999.00
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
$6,999.00

+ SHIPPING CHARGES APPLY
Delivered in 10 to 15 business days Learn More
1-800-870-844
Product Manual
Find Parts
Product Image 1 Product Image 2 Product Image 3

Features icon Features

Feature Image

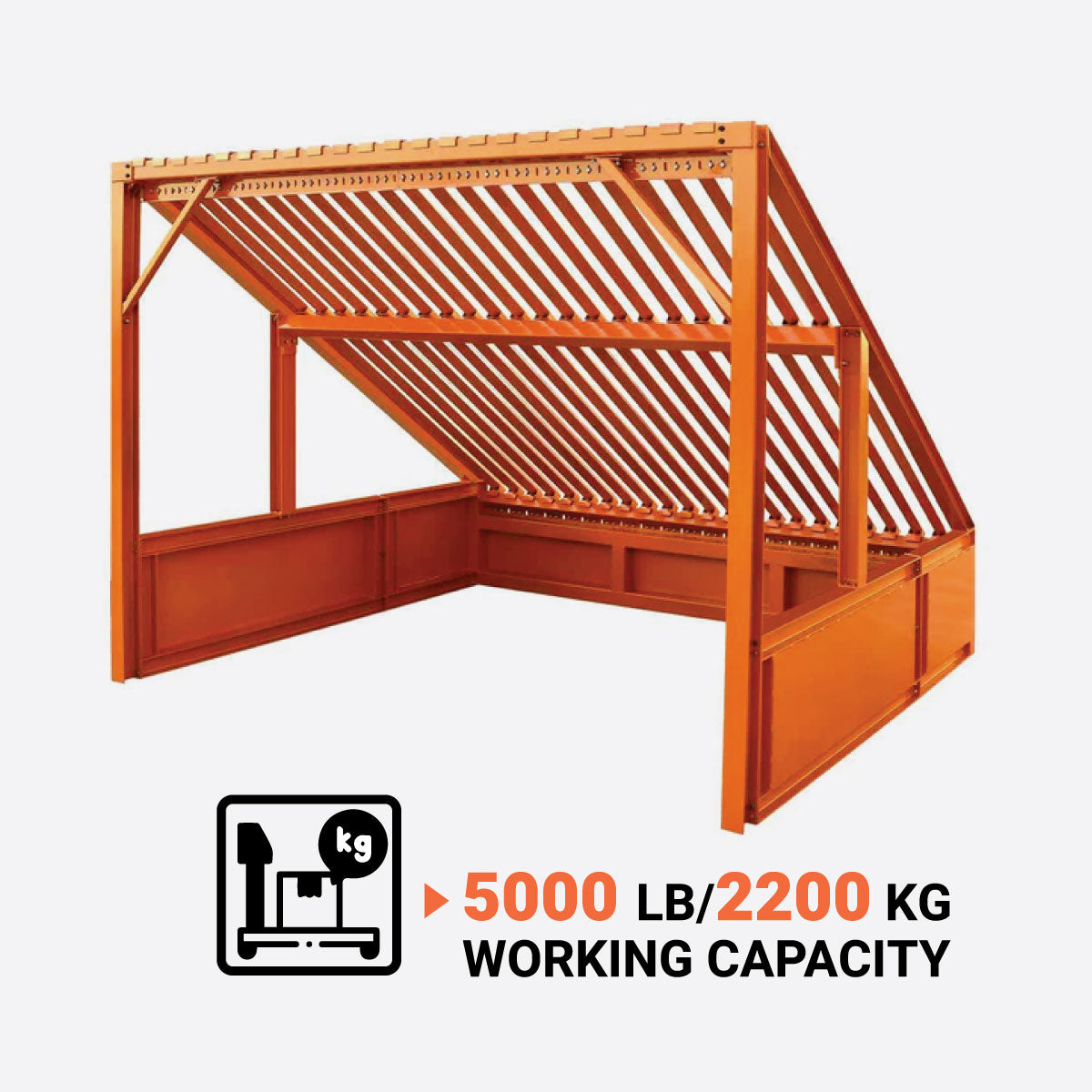

2200 kg working capacity will handle any material sorting tasks
Feature Image

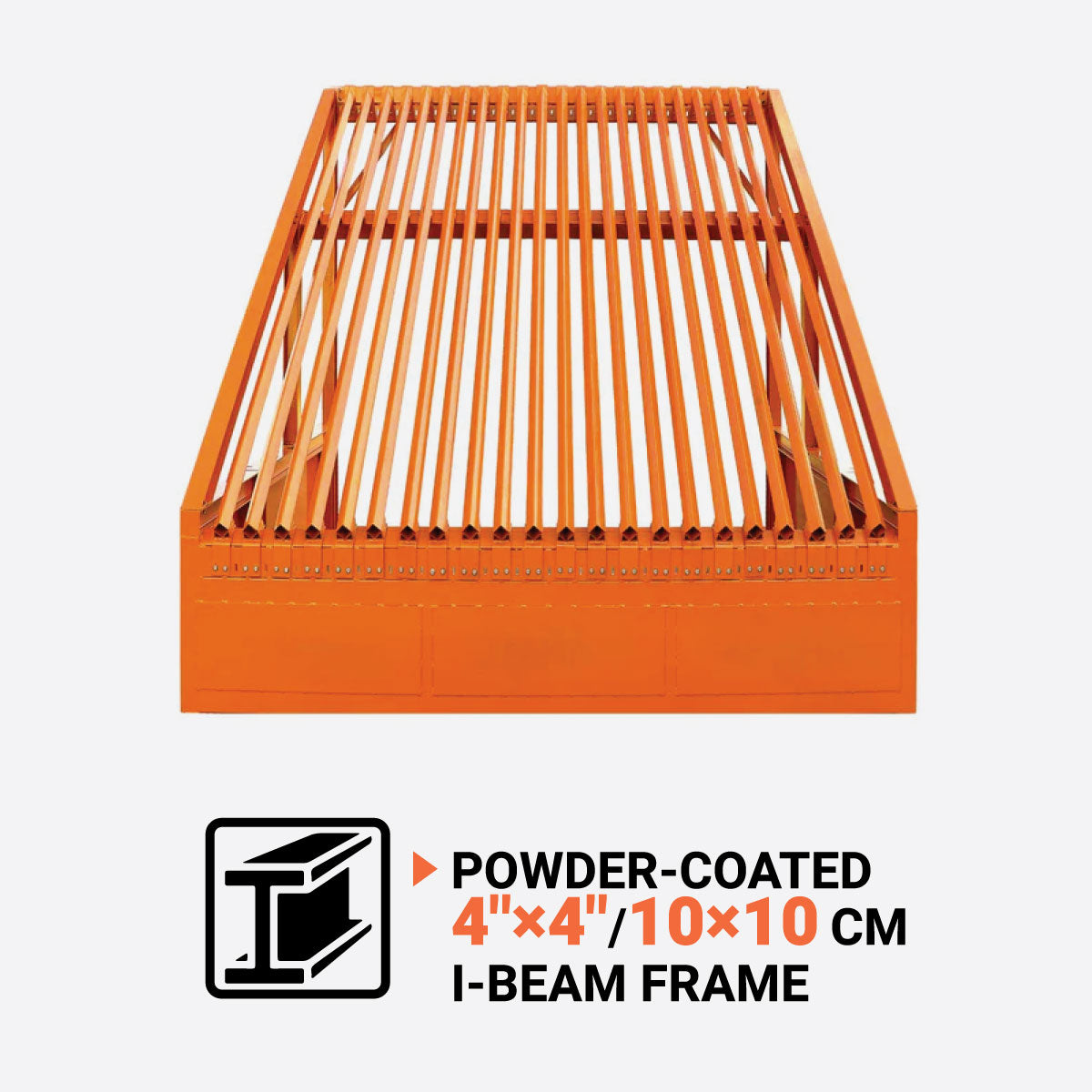

Robust 10 x 10cm I-beam frame with powder-coating for enhanced durability
Feature Image

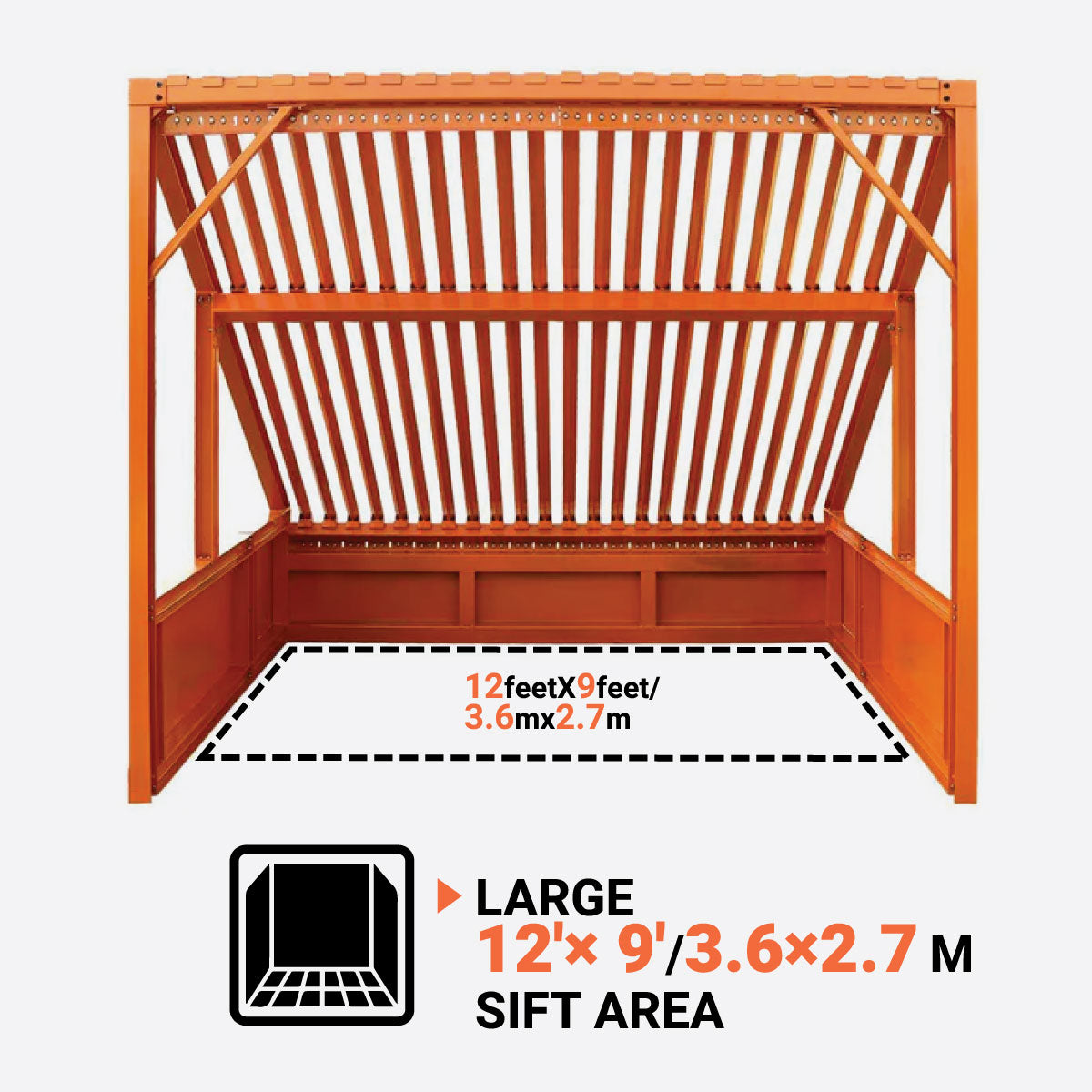

Features a large 3.6 x 2.7m sift accepting area suitable for handling mixed loads
Feature Image

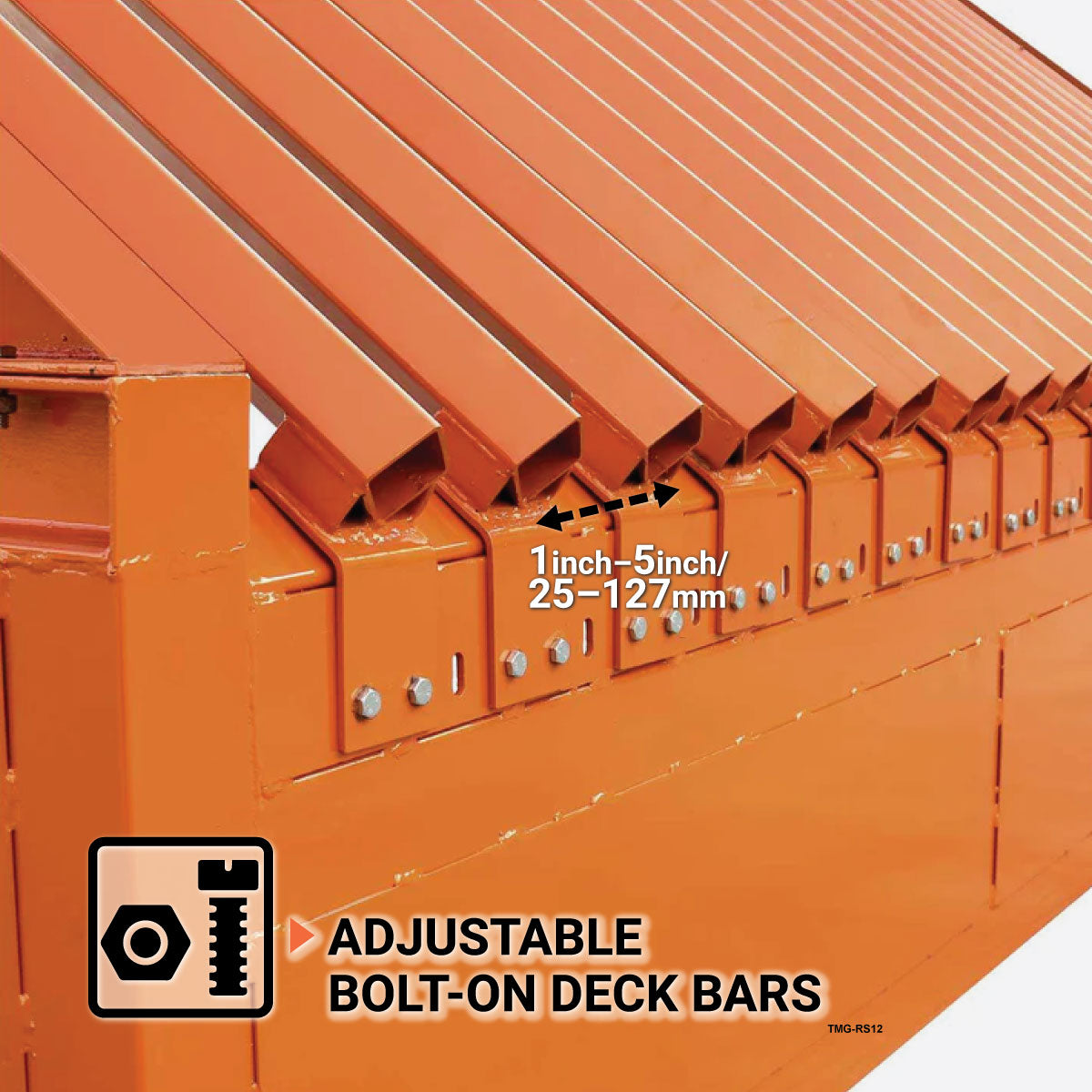

Equipped with adjustable bolt-on deck bars, with spacing options from 25 to 127 mm
Feature Image

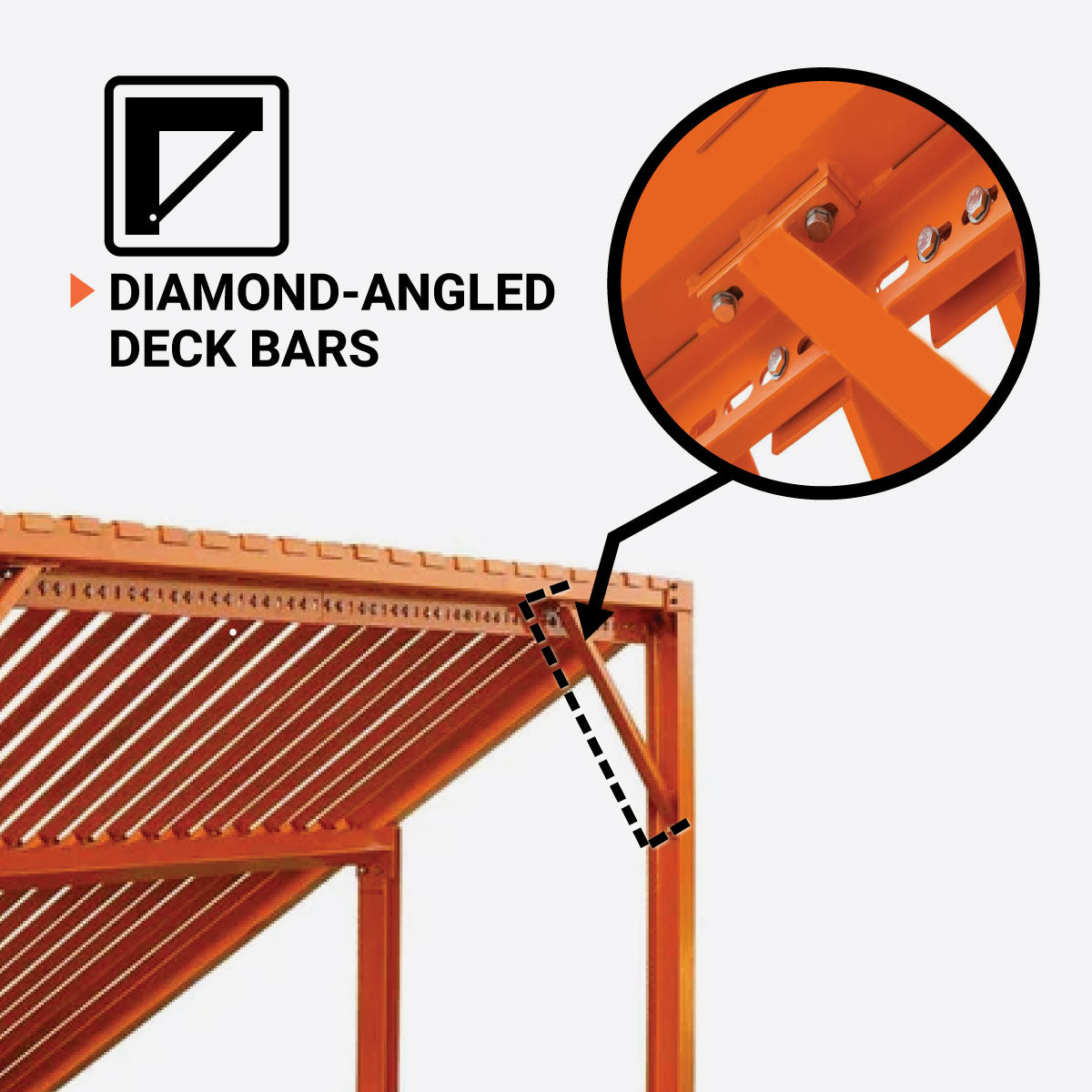

Deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
Feature Image

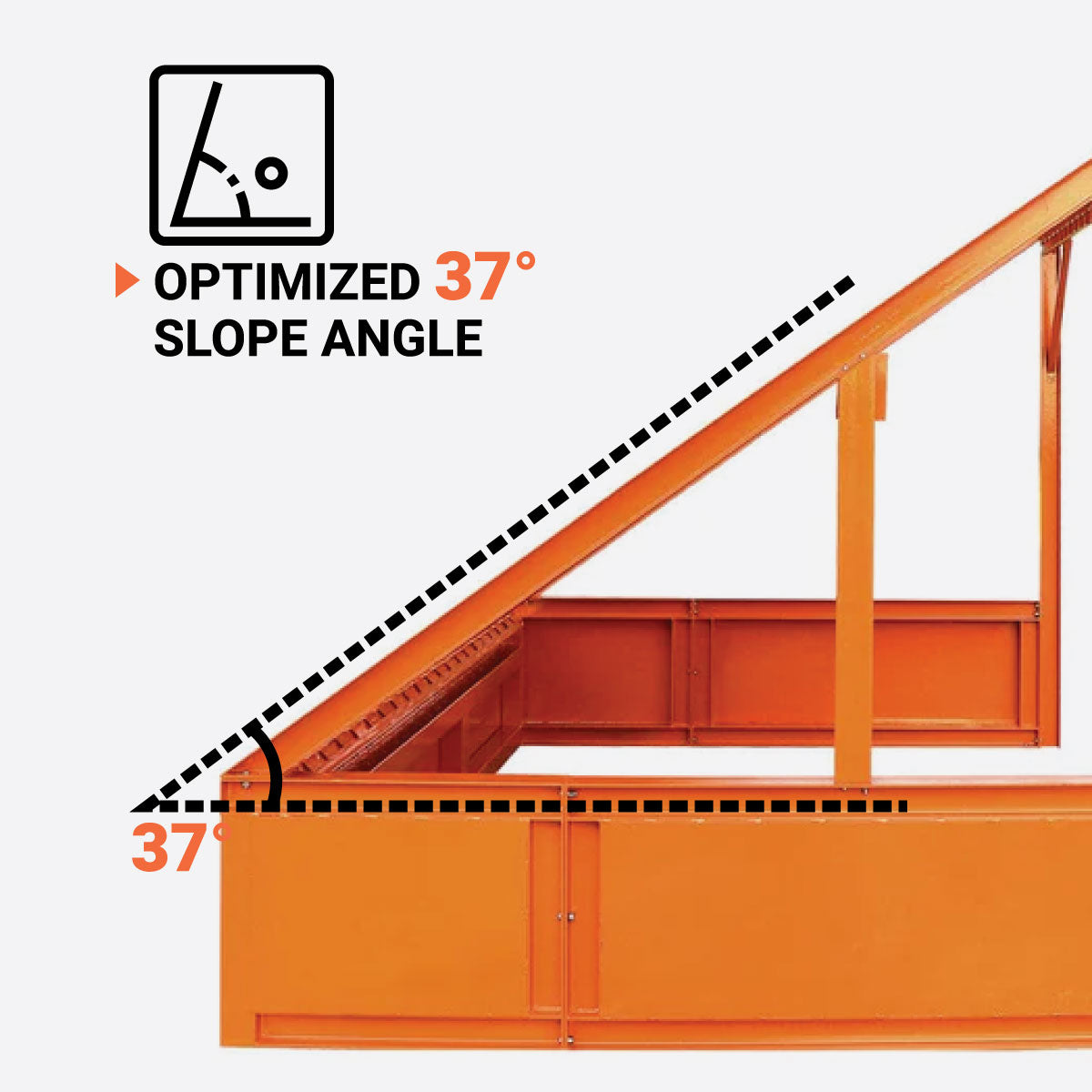

Optimized 37Ā° slope angle for efficient debris removal and material separation

Specifications icon Specifications

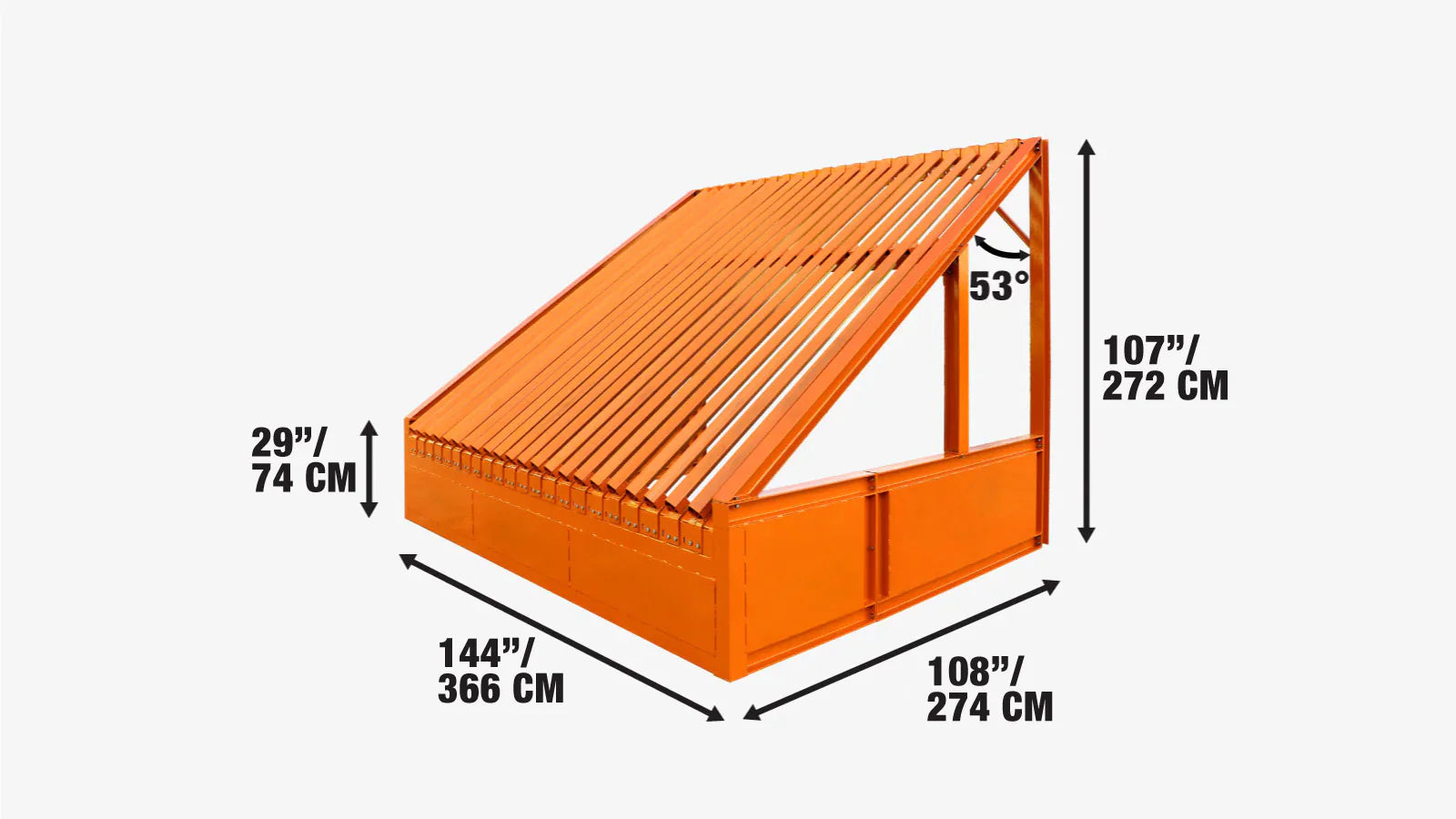

  • Structure Size (L Ɨ W Ɨ H): 3.7 Ɨ 2.75 Ɨ 2.7 m
  • Sift Accepting Area: 3.6 Ɨ 2.7 m
  • Average Load Capacity: 2200 kg
  • Primary Frame Specs: 10 Ɨ 10 cm I-beam posts & crossing square tubing
  • Sidewall & Front Wall Steel Plate: 3.5 mm / 10 GA
  • Deck Bar Size: 40 Ɨ 40 mm square tubing
  • Deck Bar Length: 3.3 m
  • Deck Bar Gauge: 4 mm / 8 GA
  • Standard Bar Spacing: 76 mm
  • Number of Standard Bars: 22
  • Minimum Bar Spacing: 25 mm (extra deck bars required)
  • Maximum Number of Bars: 32 (at 25 mm / 1" spacing)
  • Maximum Bar Spacing Capacity: 127 mm
  • First & Last Deck Bar Opening: 70 mm
  • Slope Angle: 37Ā°
3.6 x 2.7 m Heavy-Duty Grizzly Rock Screen with Adjustable Deck Bars, 2200 kg Capacity, TMG-RS12-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

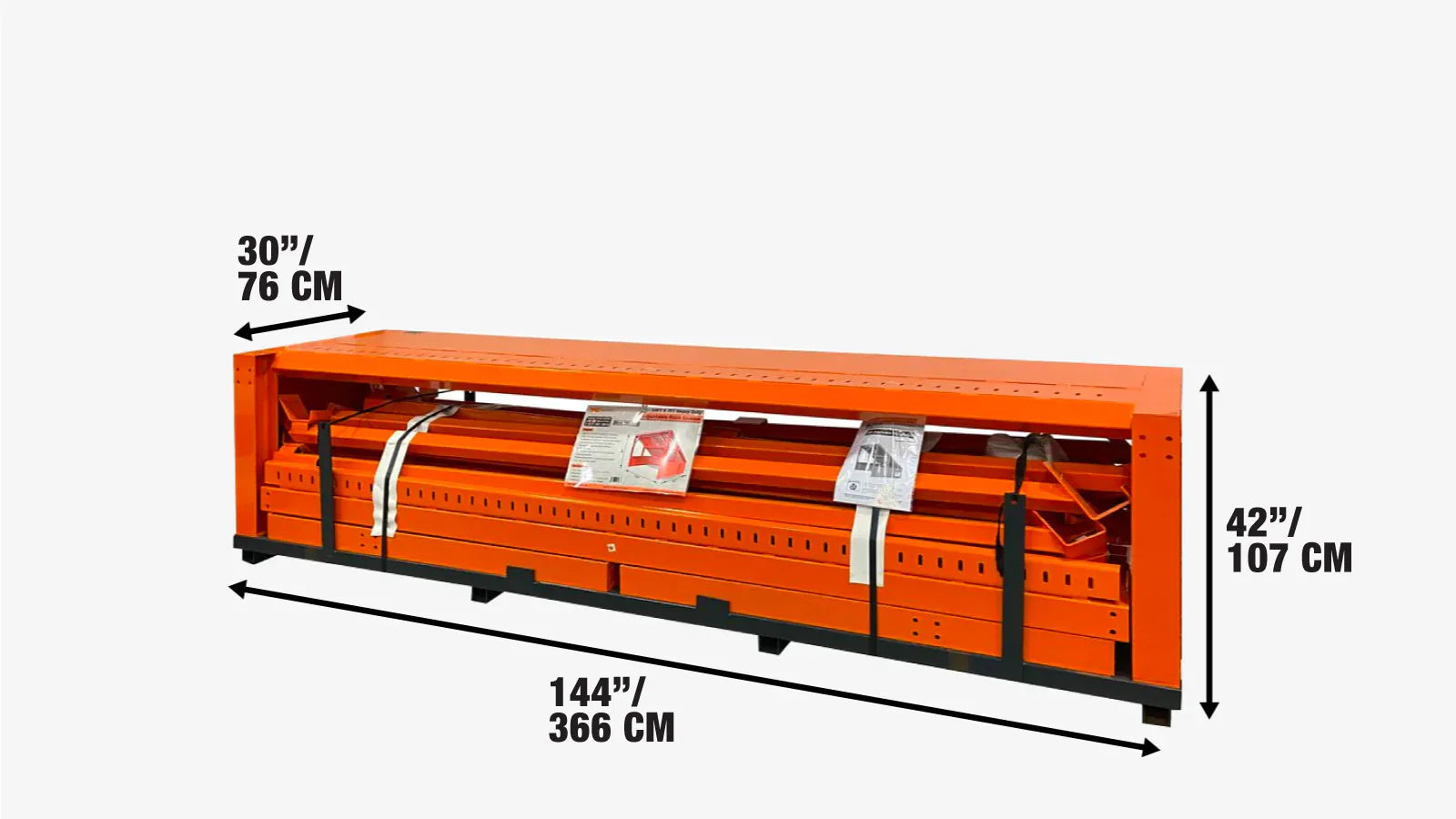

  • Packaging: Packed in a metal crate shipping box
  • Shipping dimensions: 366 x 77 x 107 cm (L x W x H)
  • Shipping weight: 1398 kg
Shipping from Rowville,VIC
What happens after you place your order?
3.6 x 2.7 m Heavy-Duty Grizzly Rock Screen with Adjustable Deck Bars, 2200 kg Capacity, TMG-RS12-shipping-info-image

Product Description icon Product Description

The TMG-RS12 Heavy-Duty Grizzly Static Rock Screen is an indispensable tool for operations in Australia requiring efficient material classification. With its generous 3.6 m x 2.7 m sift loading area and a robust 2200 kg load capacity, this screen is built to handle significant volumes of mixed materials. Its construction features a resilient 10 x 10 cm I-beam frame and a powder-coated steel structure, guaranteeing durability in harsh conditions typical of mining, construction, aggregates, recycling, and landscaping industries.Ā Ā

The TMG-RS12 incorporates adjustable bolt-on deck bars, allowing for spacing customization from 25 to 127 mm (1" to 5") to suit various material sizes. The unique diamond-shaped installed, self-cleaning design of the deck bars, combined with an optimal 37Ā° slope, ensures smooth material flow and minimizes maintenance. This rock screen is quick to assemble and is engineered for heavy-duty use, providing an efficient solution for pre-sorting oversized materials before further processing.Ā

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. Thatā€™s why we include a 1-year Warranty with every product we sellā€”because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, weā€™re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Questions & Answers icon Questions & Answers

  • Q: What is the primary use of the TMG-RS12 rock screen?
    A: The TMG-RS12 is a heavy-duty grizzly static rock screen primarily designed for efficient material sorting and pre-screening oversized materials in industries like mining, construction, aggregates, recycling, and landscaping.
  • Q: What is the load capacity of the TMG-RS12?
    A: The TMG-RS12 has an impressive average load capacity of 2200 kg (5000 lb), allowing it to handle significant volumes of mixed loads.
  • Q: What kind of frame does the TMG-RS12 have?
    A: It features a robust 4"x4" (10 cm x 10 cm) I-beam frame and a powder-coated steel structure, ensuring durability and resistance to harsh working conditions.
  • Q: Are the deck bars adjustable?
    A: Yes, the TMG-RS12 is equipped with adjustable bolt-on deck bars that offer spacing options from 25 mm (1") to 127 mm (5"), allowing customization for different material sizes.
  • Q: What is the slope angle of the screen?
    A: The screen has a 37Ā° slope, which is designed to facilitate efficient debris removal and smooth material flow.
  • Q: Is the TMG-RS12 easy to assemble?
    A: Yes, the rock screen is designed for quick assembly, making it convenient to set up for immediate use.
  • Q: Is there a warranty on the TMG-RS12?
    A: Yes, the TMG-RS12 is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
