• Overall Dimensions: 203 × 100 × 214 cm

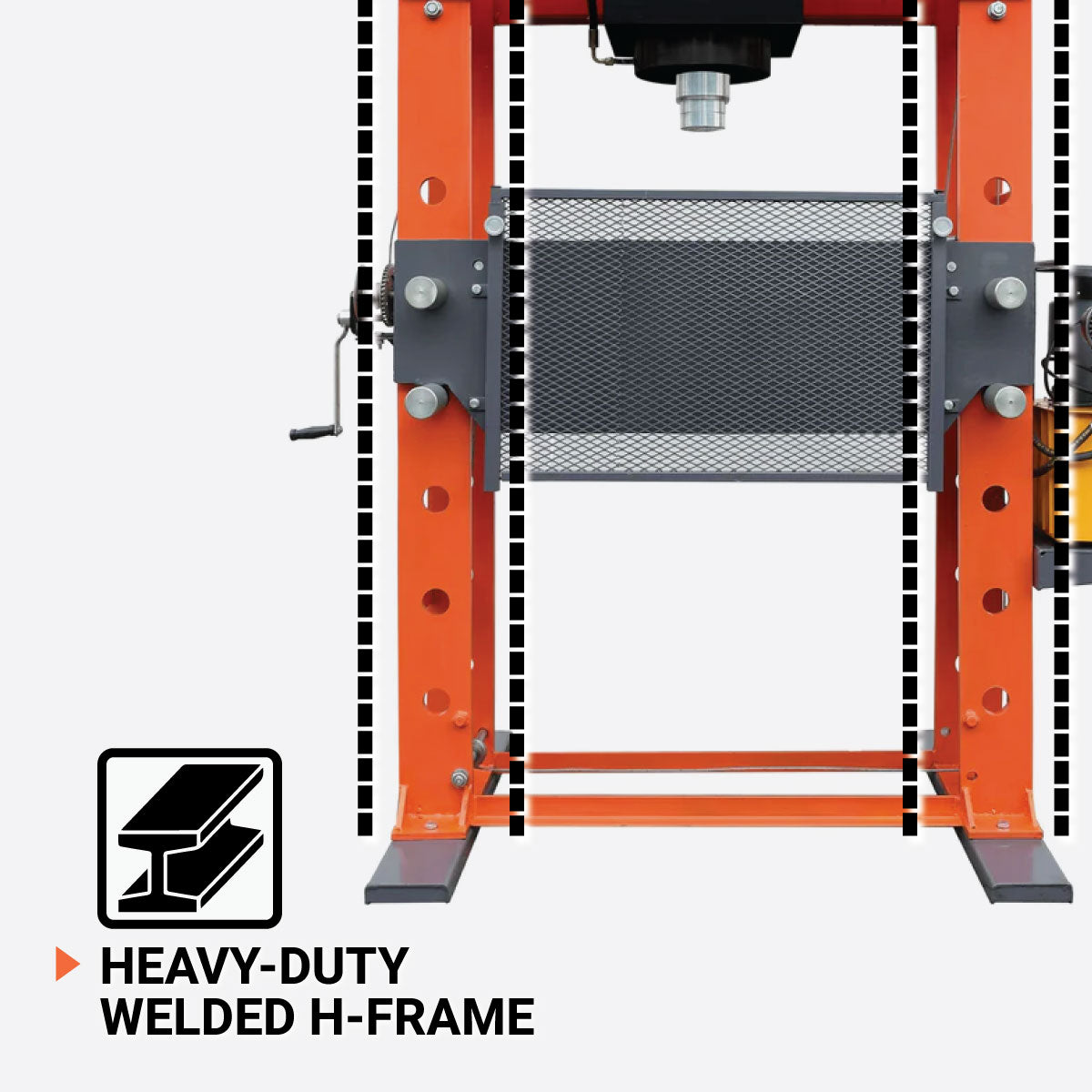

• Frame Construction: Fully Welded Heavy-Duty H-Frame
• Frame Overall Dimensions: 130 × 54 × 210 mm

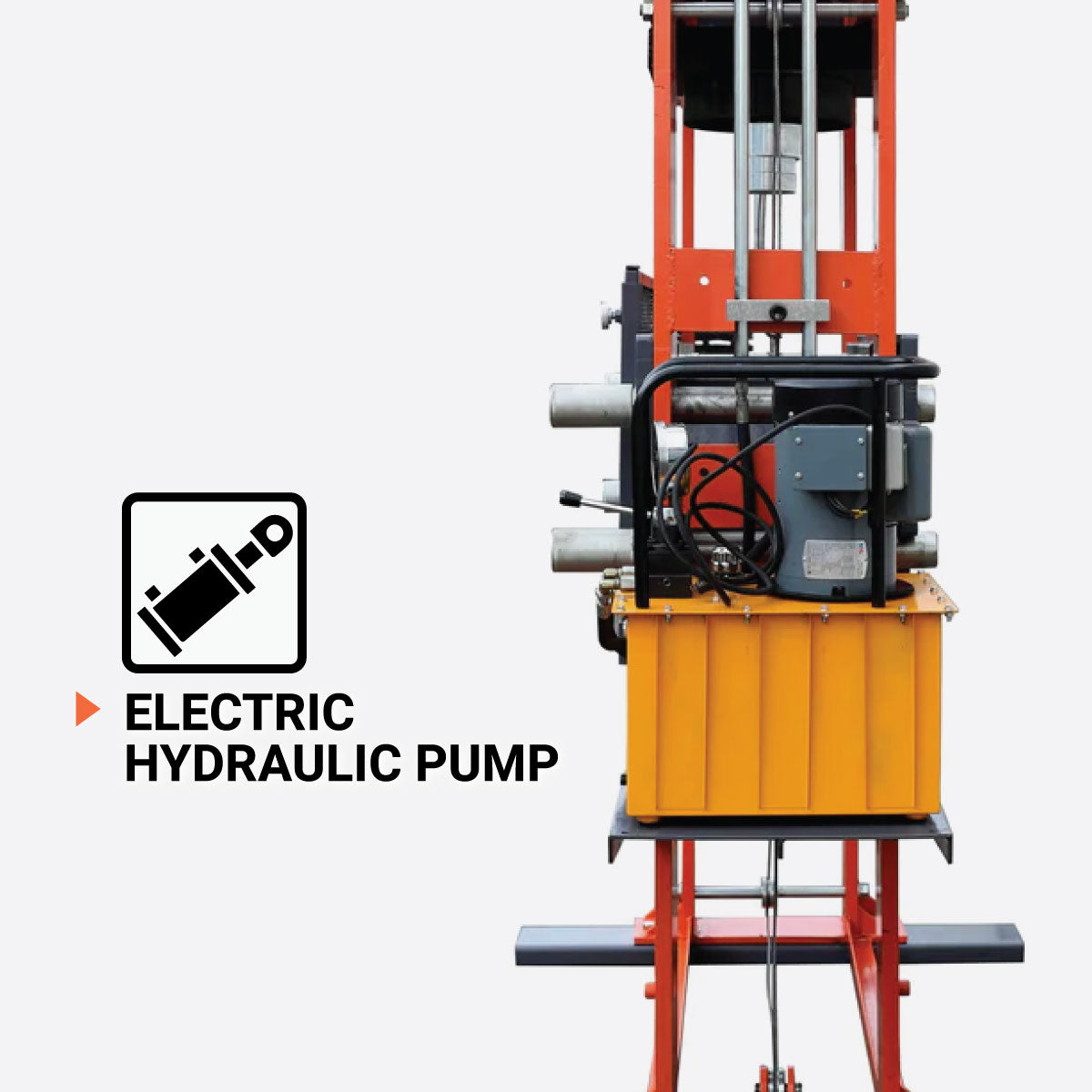

• Operation Type: Electric Hydraulic Operation
• Protective Grid Guard: Included, 36” × 23”

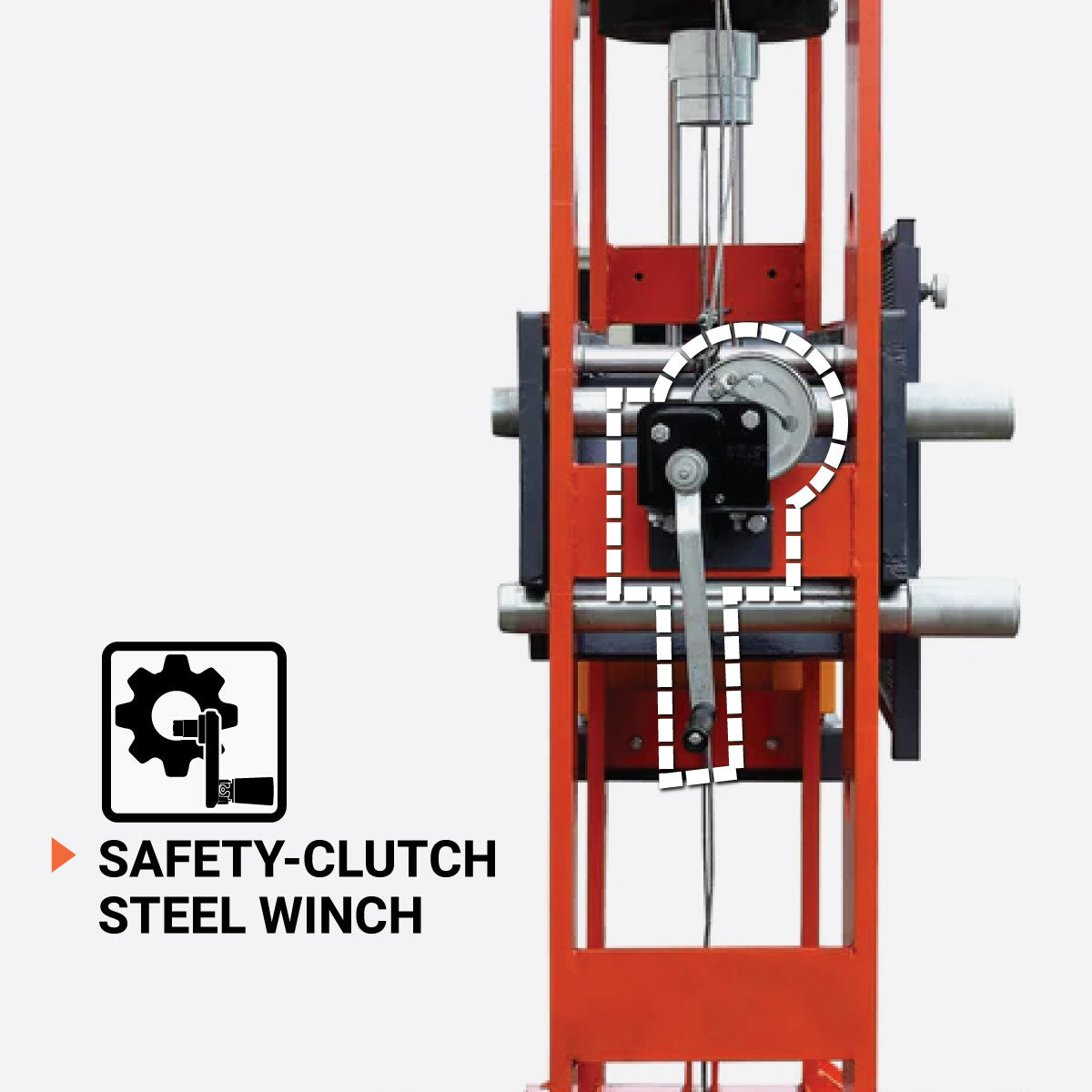

• Bed Adjustment Mechanism: Steel Cable Crank Winch

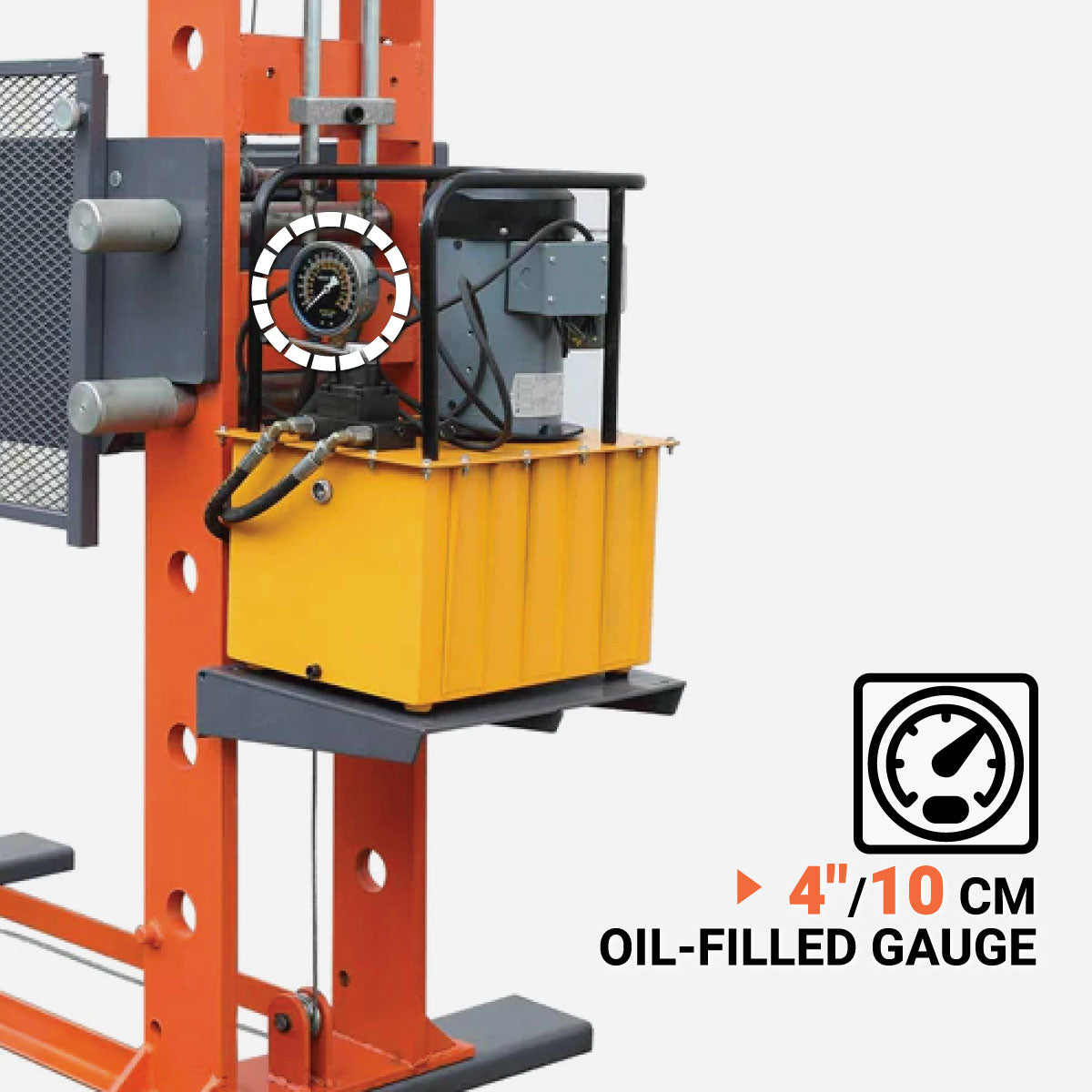

• Gauge Type: 4" Oil-Filled Pressure Gauge
• Overload Protection: Yes
• Retracting Springs: Twin Springs
• Air / Pneumatic Pressure: N/A
• Max Pump Pressure: 58,605 KPa / 58.6 MPa
• Maximum Work Range: 940 mm
• Ram Stroke: 344 mm
• Ram Dia. / Cylinder Bore: 117 mm
• Ram Pressing Head Diameter: 98 mm (9.8 cm)

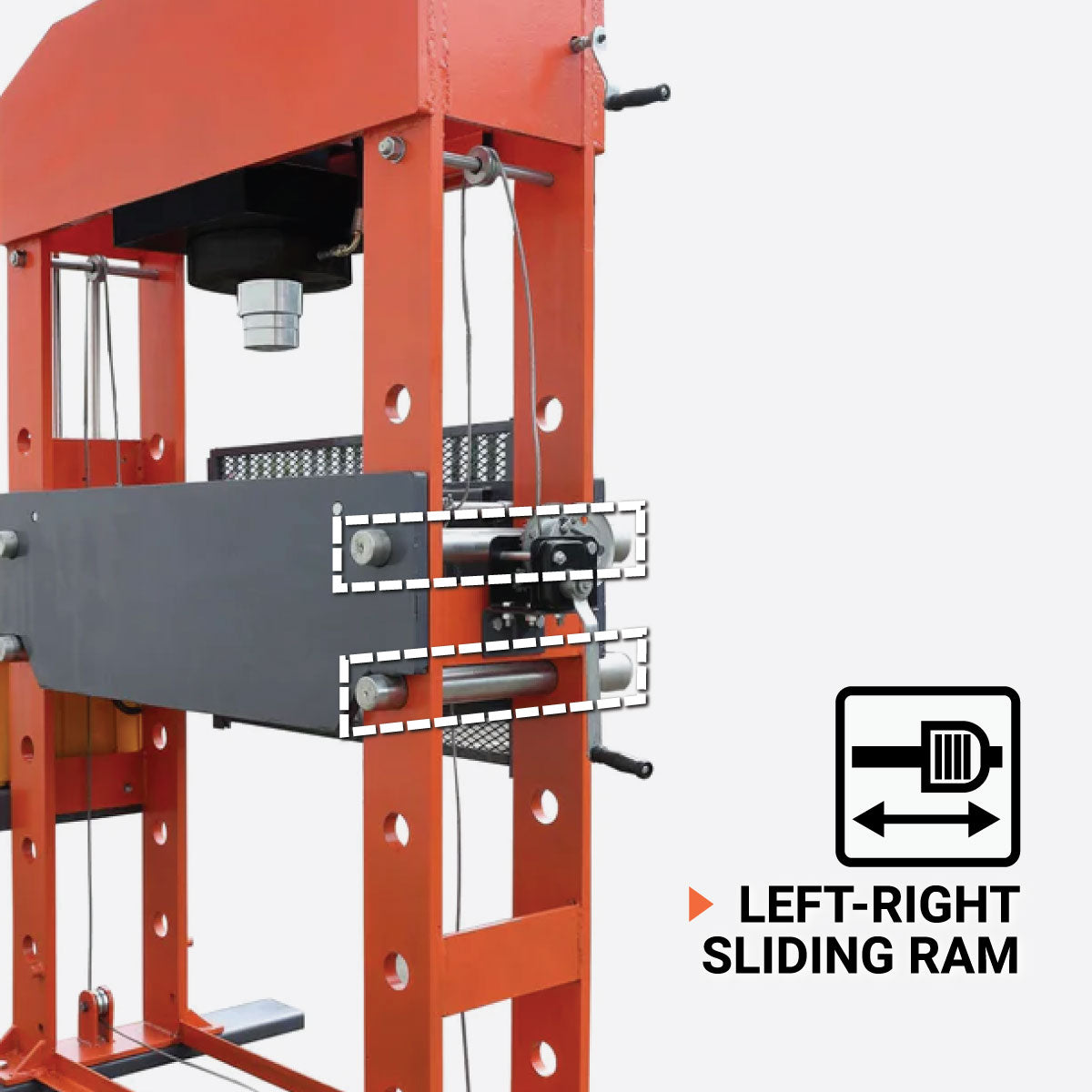

• Ram Left-Right Movement: 320 mm
• Carriage Bed Depth: 406 mm
• Carriage Bed Width: 860 mm
• Carriage Bed Pin Diameter: 55 mm
• Air Inlet Size: N/A
• Foot Switch: No
• Steel Cable Crank Winch: Yes
• Discharge Pressure: 105–115%
• Frame Internal Width: 35 cm
• Frame Internal Length / Upright Opening: 100 cm
• Electric Motor Certification (AU): CE Certified
• Electric Motor: 230V, 50Hz, 1.5KW
• Hydraulic Tank Capacity: 28 L / 7.5 Gal
• Hydraulic Fluid Recommended: ISO AW32
• Net Weight: 1056 kg
• Shipping Dimensions (L × W × H): 138 × 56 × 214 cm
• Shipping Weight: 1225 kg

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

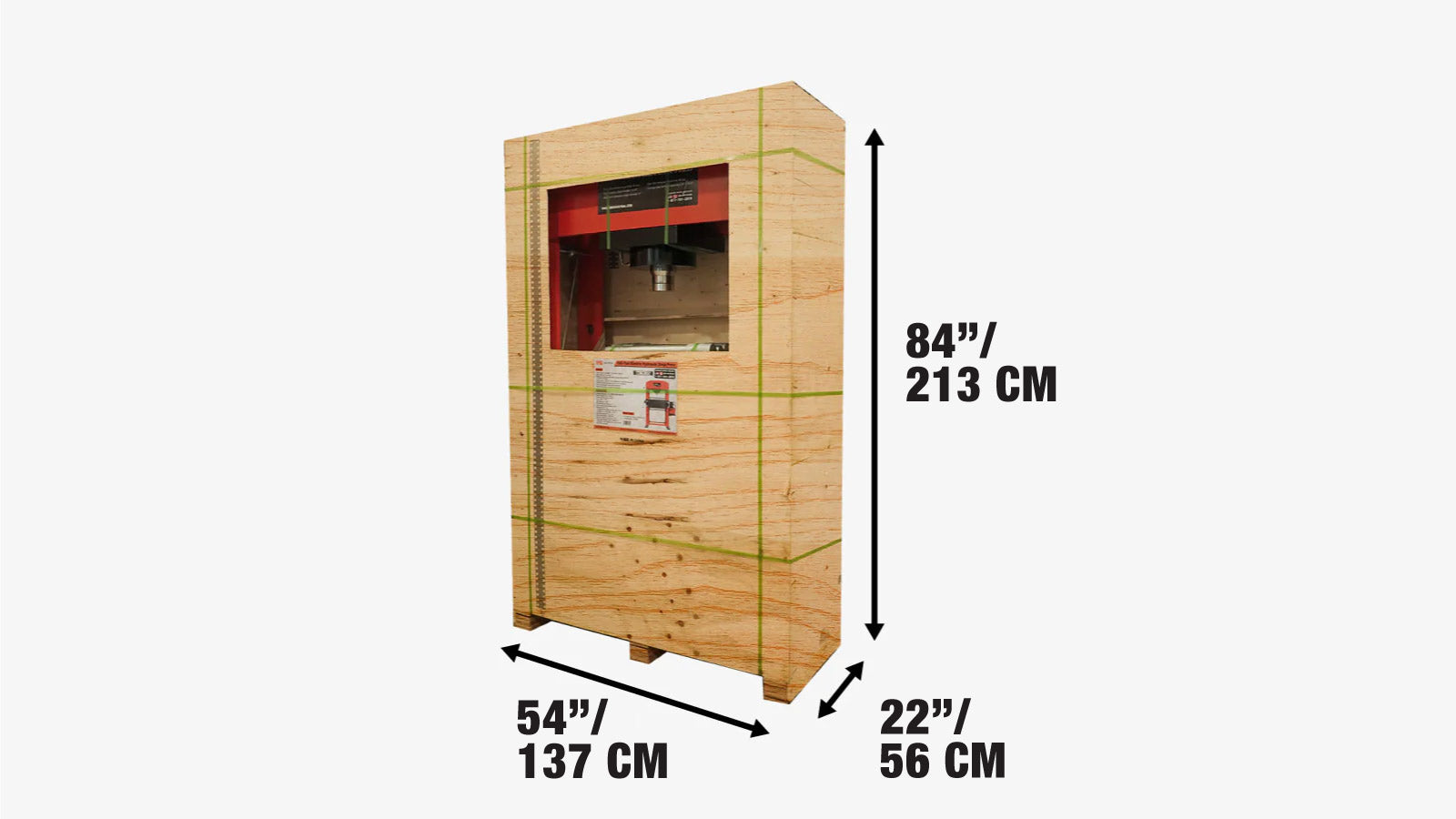

• Packaging: Packed in a wood crate shipping box
• Shipping dimensions: 138 x 56 x 214 cm (L x W x H)
• Shipping weight: 1225 kg

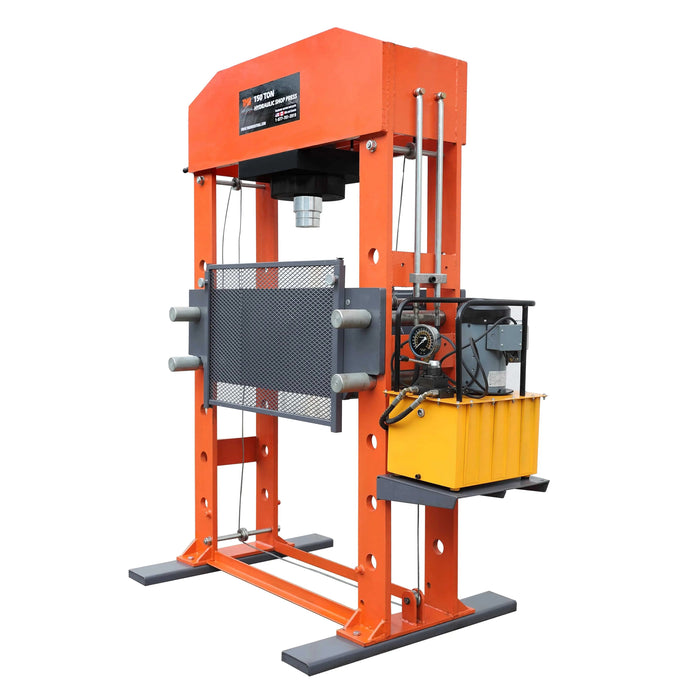

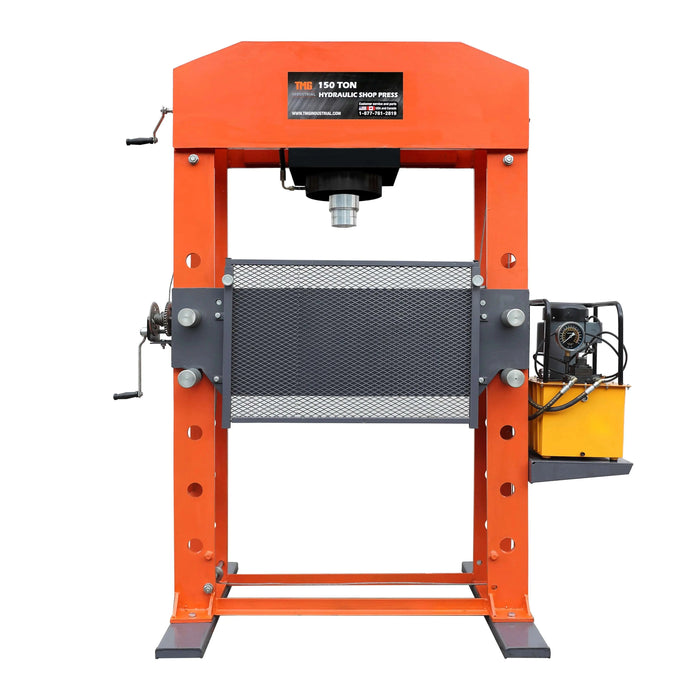

• Q: What is the TMG-SP150 Electric Hydraulic Shop Press?
  A: The TMG-SP150 is a heavy-duty electric hydraulic shop press designed for industrial and automotive tasks. It features a 150-ton pressing capacity and is built with a fully welded H-frame and a protective grid guard.
• Q: What is the maximum pressing force of the TMG-SP150?

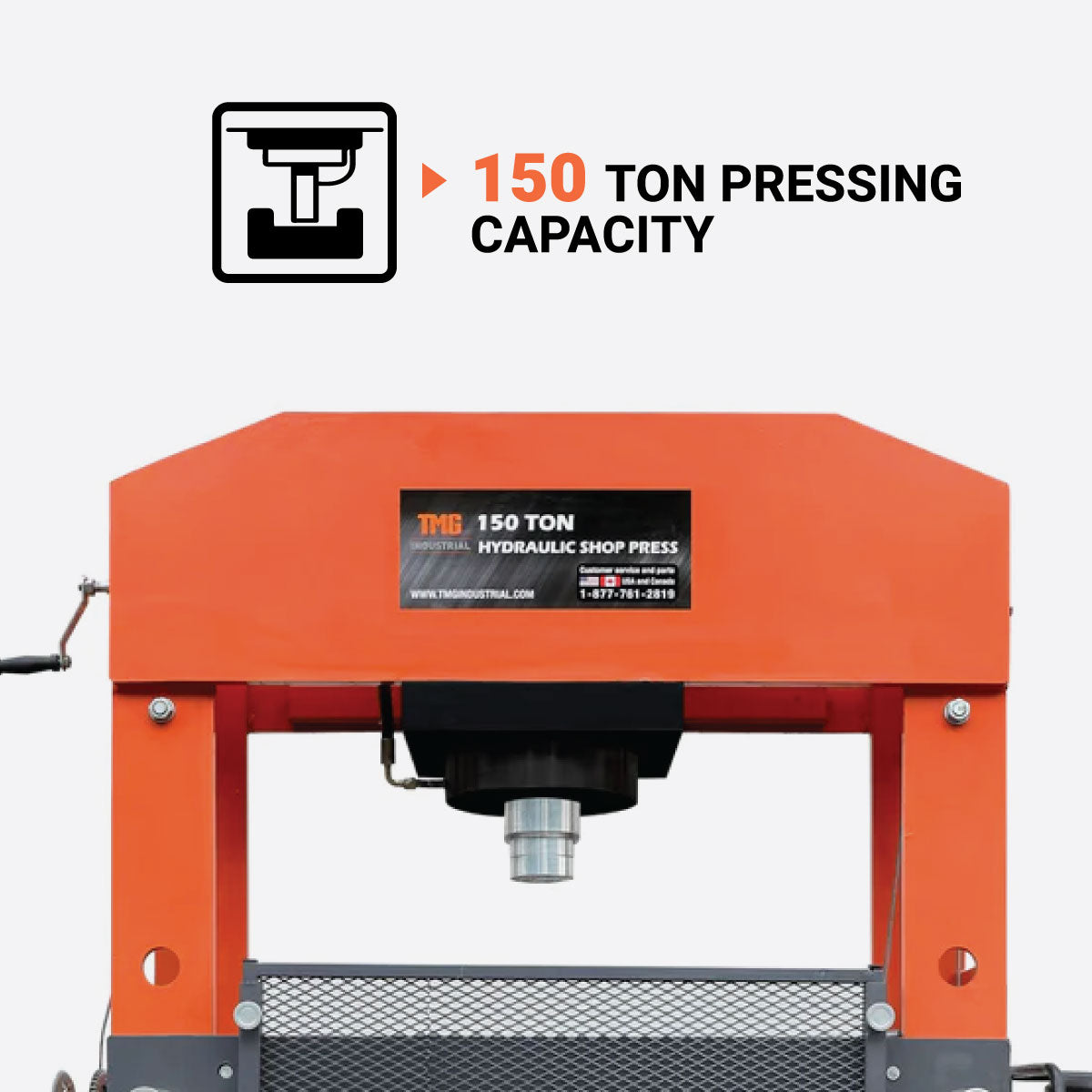

  A: The TMG-SP150 has a maximum pressing force capacity of 150 tons.

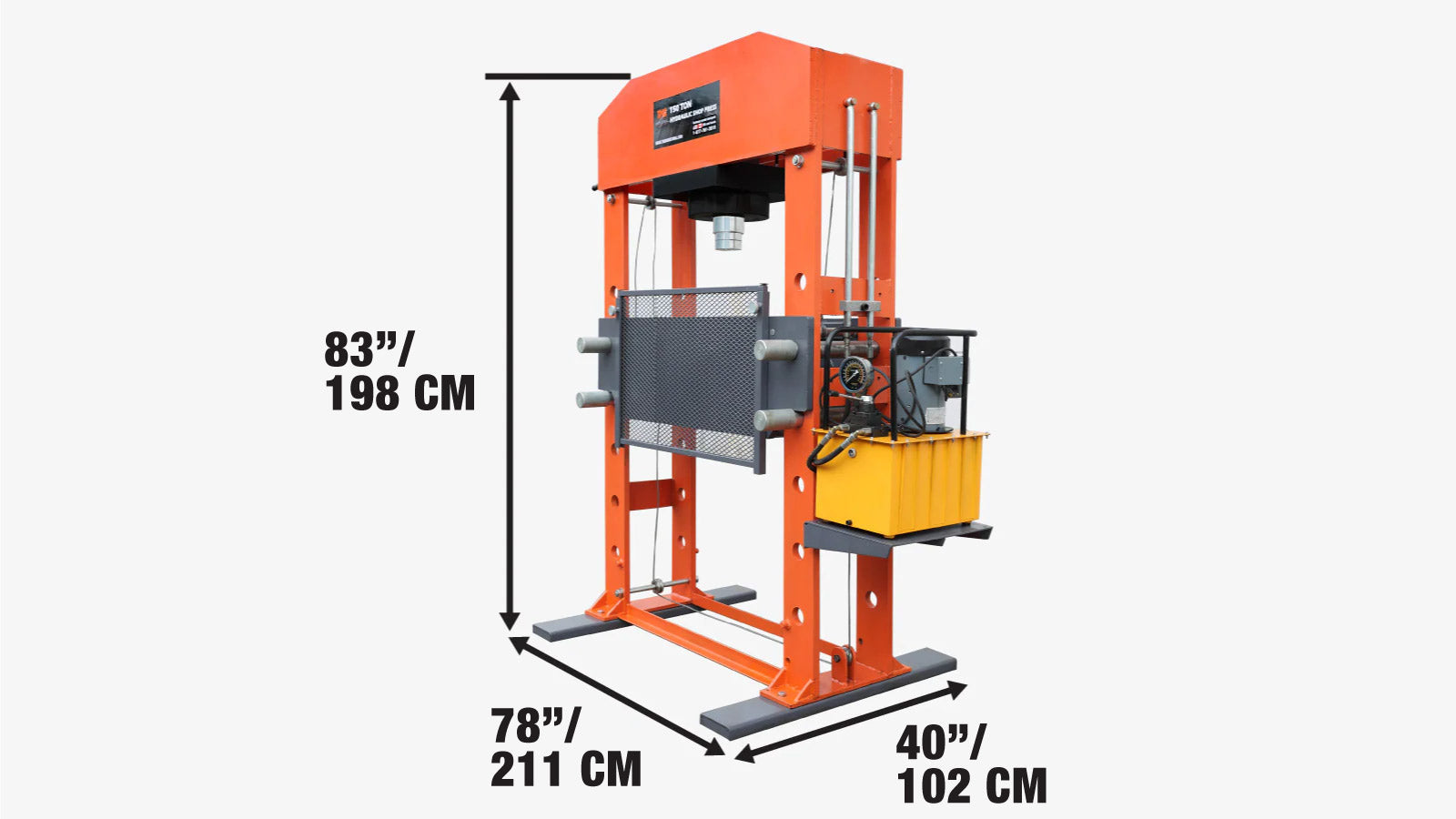

• Q: What are the overall dimensions of the assembled press?
  A: The overall dimensions are 78 inches (199 cm) in length, 40 inches (102 cm) in width, and 83 inches (211 cm) in height.
• Q: What is the ram stroke length?
  A: The ram stroke length is 13-¾ inches (35 cm).
• Q: Does it have a protective guard?
  A: Yes, it includes a protective grid guard.
• Q: Is the press bed height adjustable?
  A: Yes, the press bed is adjustable with seven height positions, and adjustments are made easy with a steel cable crank winch.
• Q: Where can I find the product manual and additional support?
  A: The product manual for the TMG-SP150 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
• Q: What is the warranty for the TMG-SP150?
  A: The TMG-SP150 is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
