TMG-1500PML

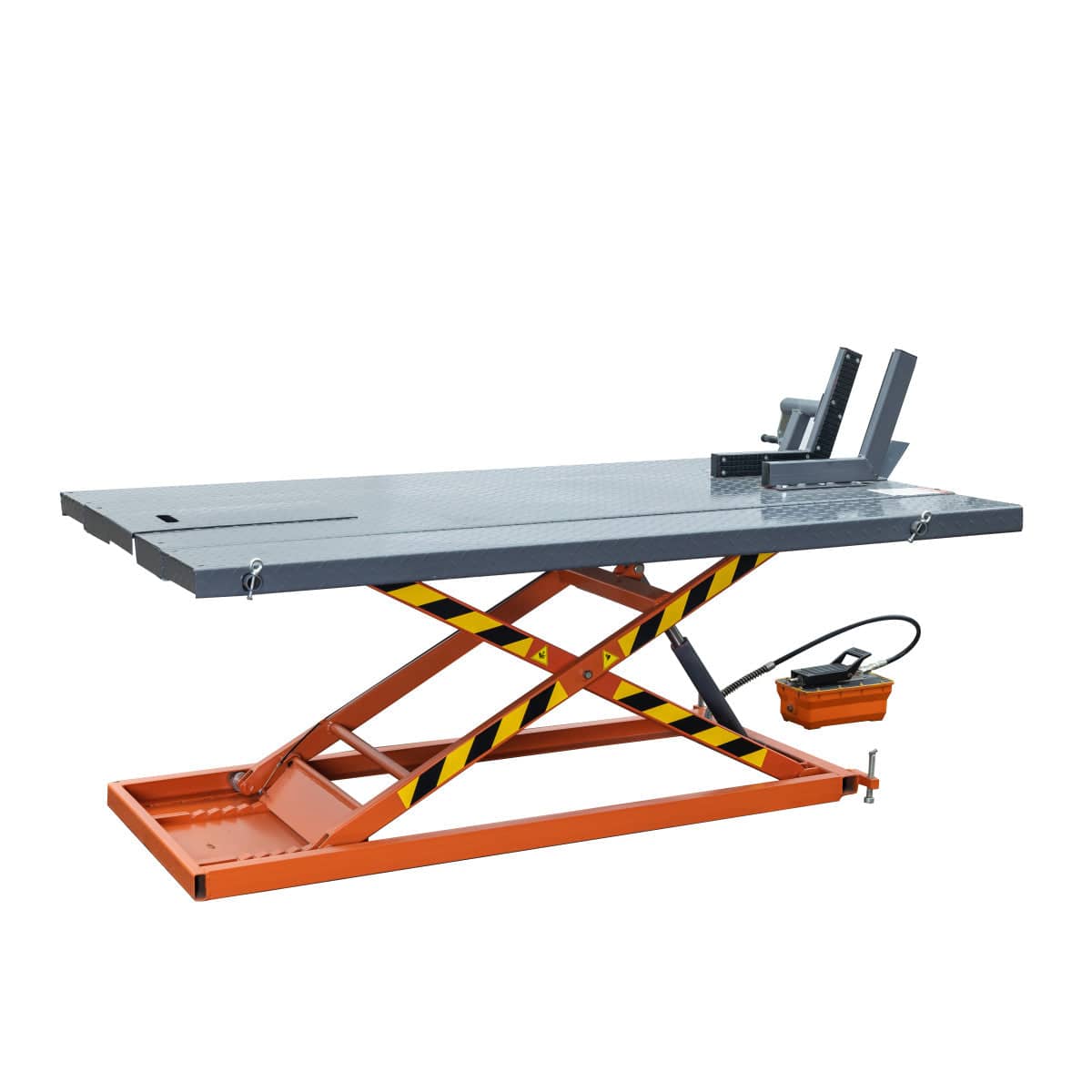

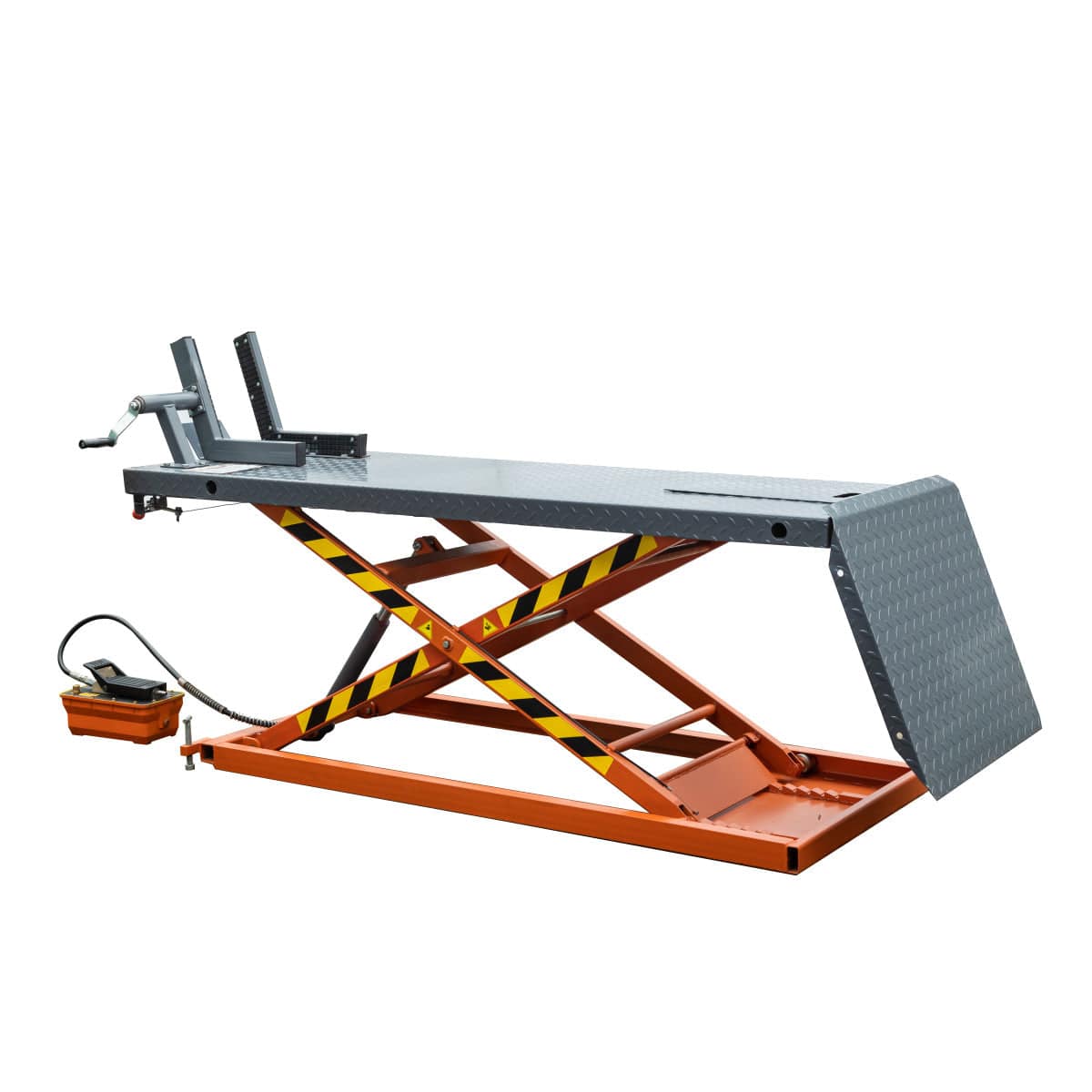

680 kg (1500 lb) Portable Motorcycle/ATV Scissor Lift, 1.22 m (48″) Work Platform, TMG‑1500PML

Product Manual
TMG Industrial 1500-lb Portable Motorcycle/ATV Scissor Lift, 48” Work Platform, Side Extensions, Foot Pedal Air Pump, Front-wheel vise grip, TMG-1500PML
CURRENTLY IN STOCK
TMG-1500PML
$1,699.00
$1,699.00 - $1,699.00
$1,699.00
$1,399.00
$1,399.00 - $1,399.00
$1,399.00
$1,699.00 Save $300.00
$1,399.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

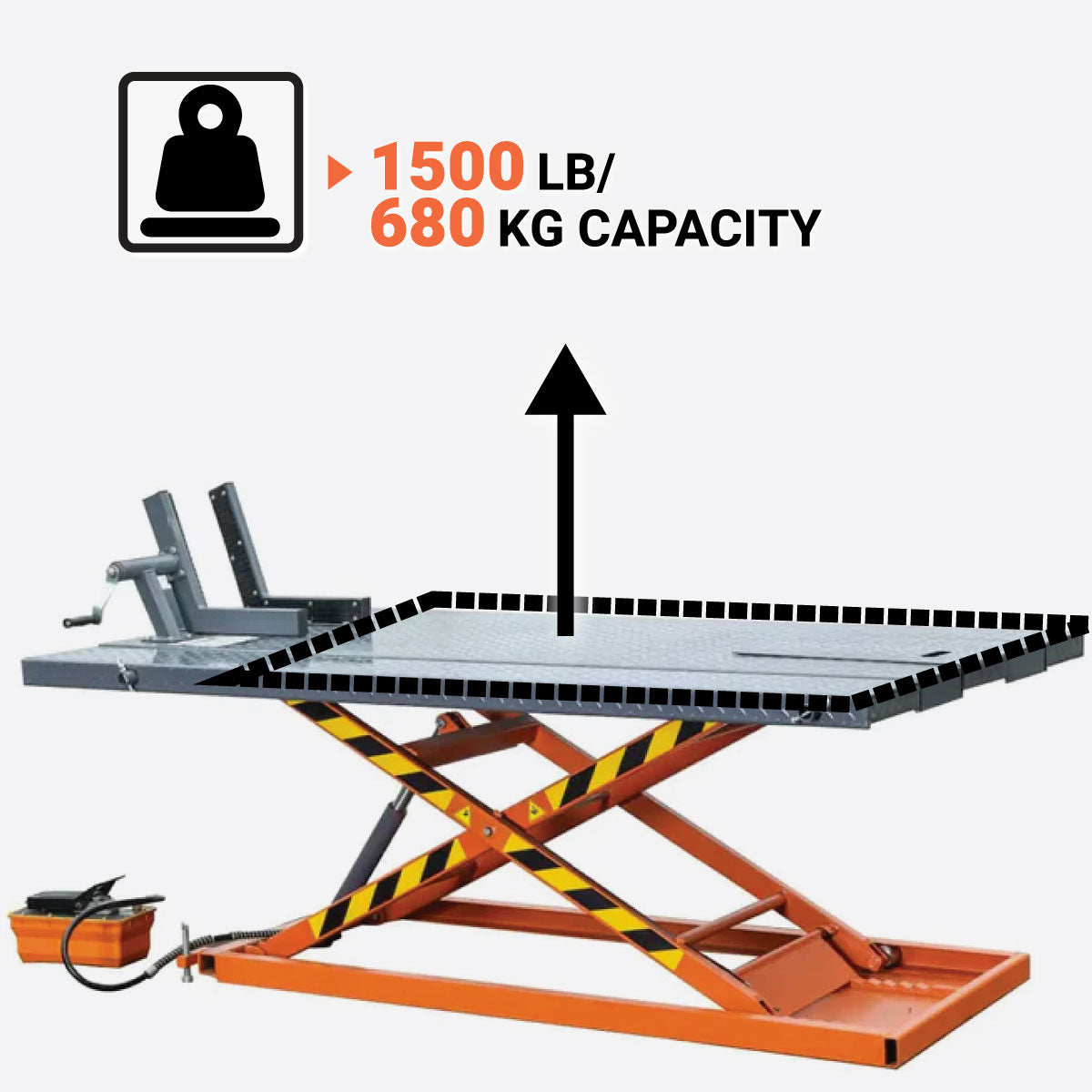

680 kg (1500 lb) capacity supports motorcycles, ATVs, UTVs, and lawn equipment
Feature Image

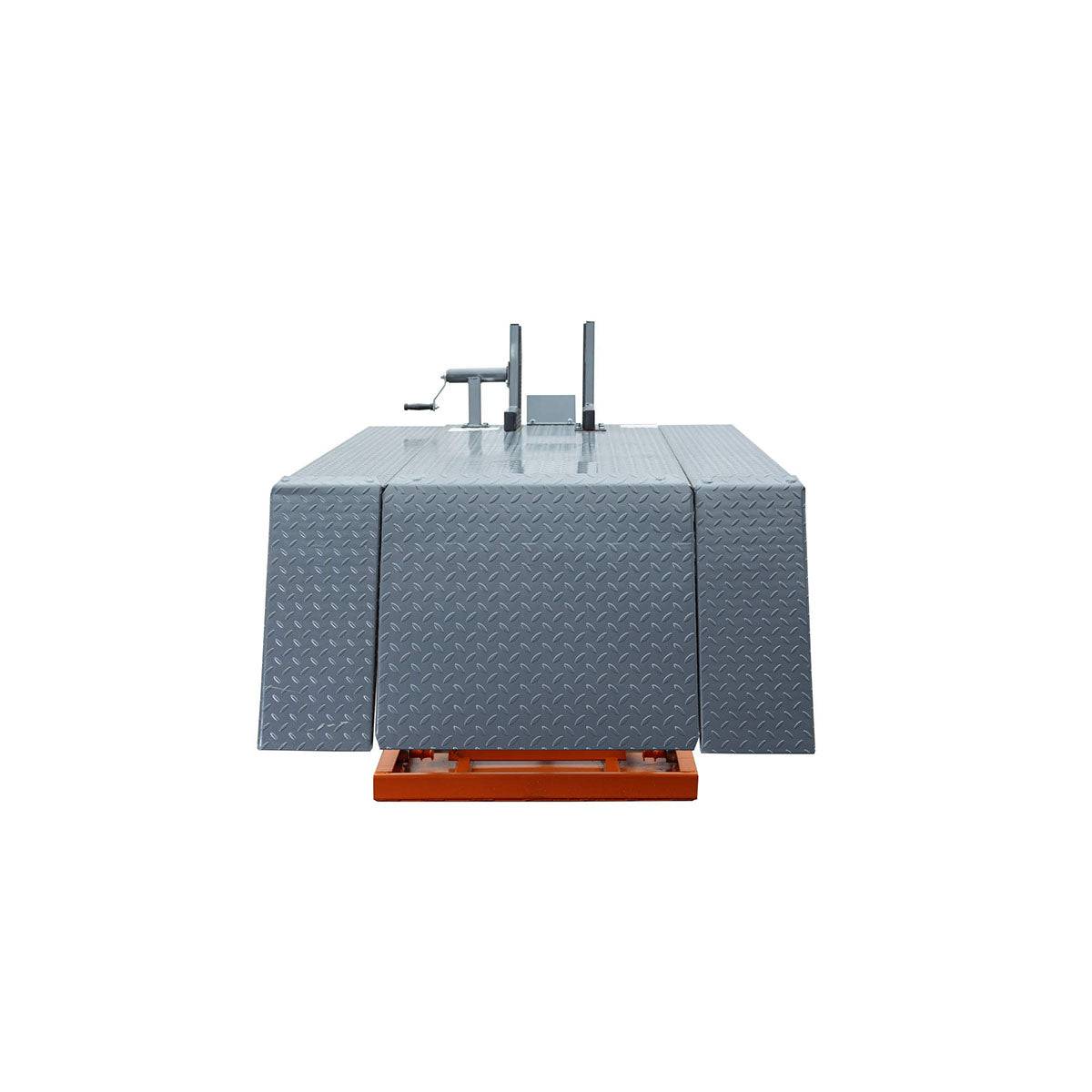

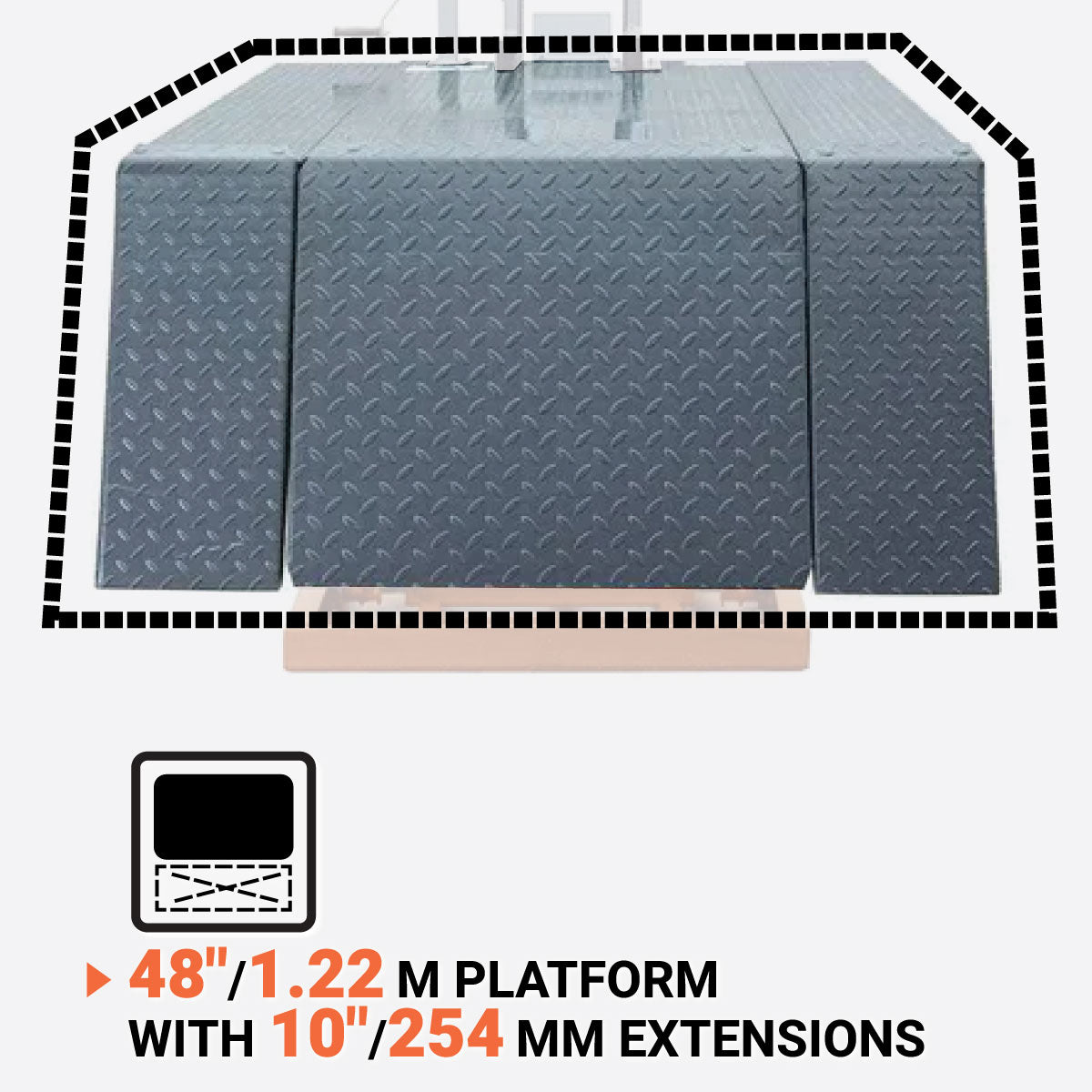

1.22 m (48″) wide plate platform, extended with 254 mm (10″) bolt-on side decks
Feature Image

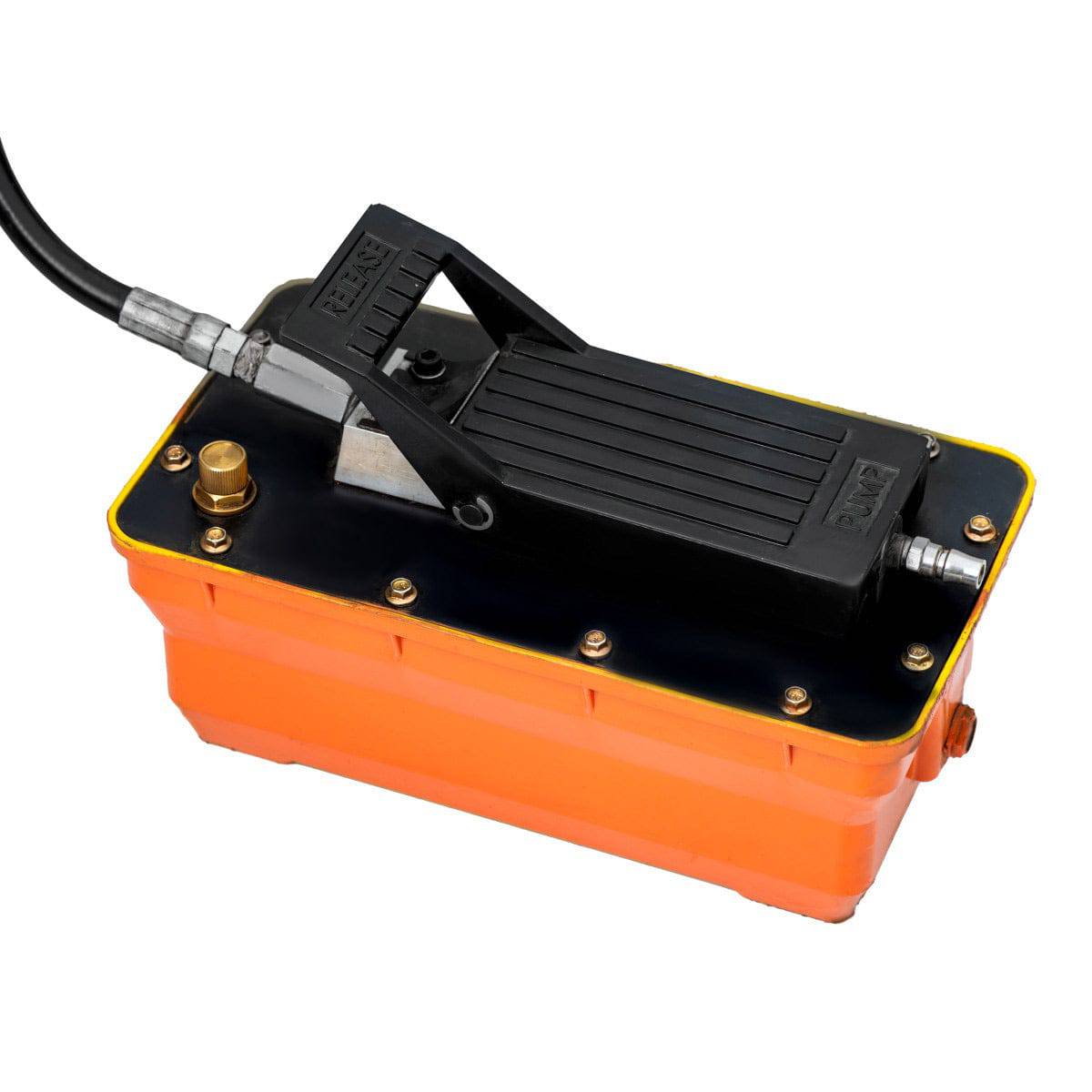

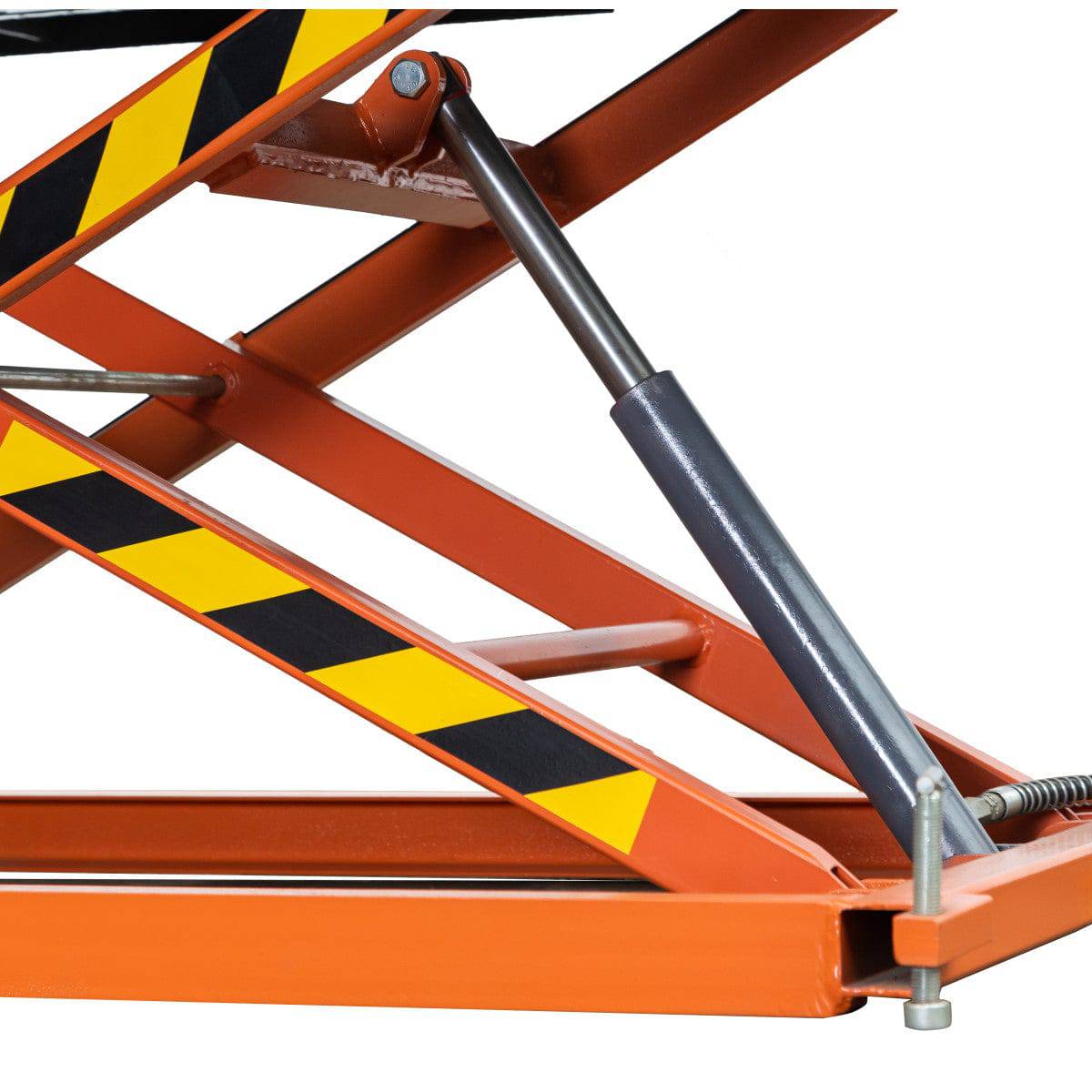

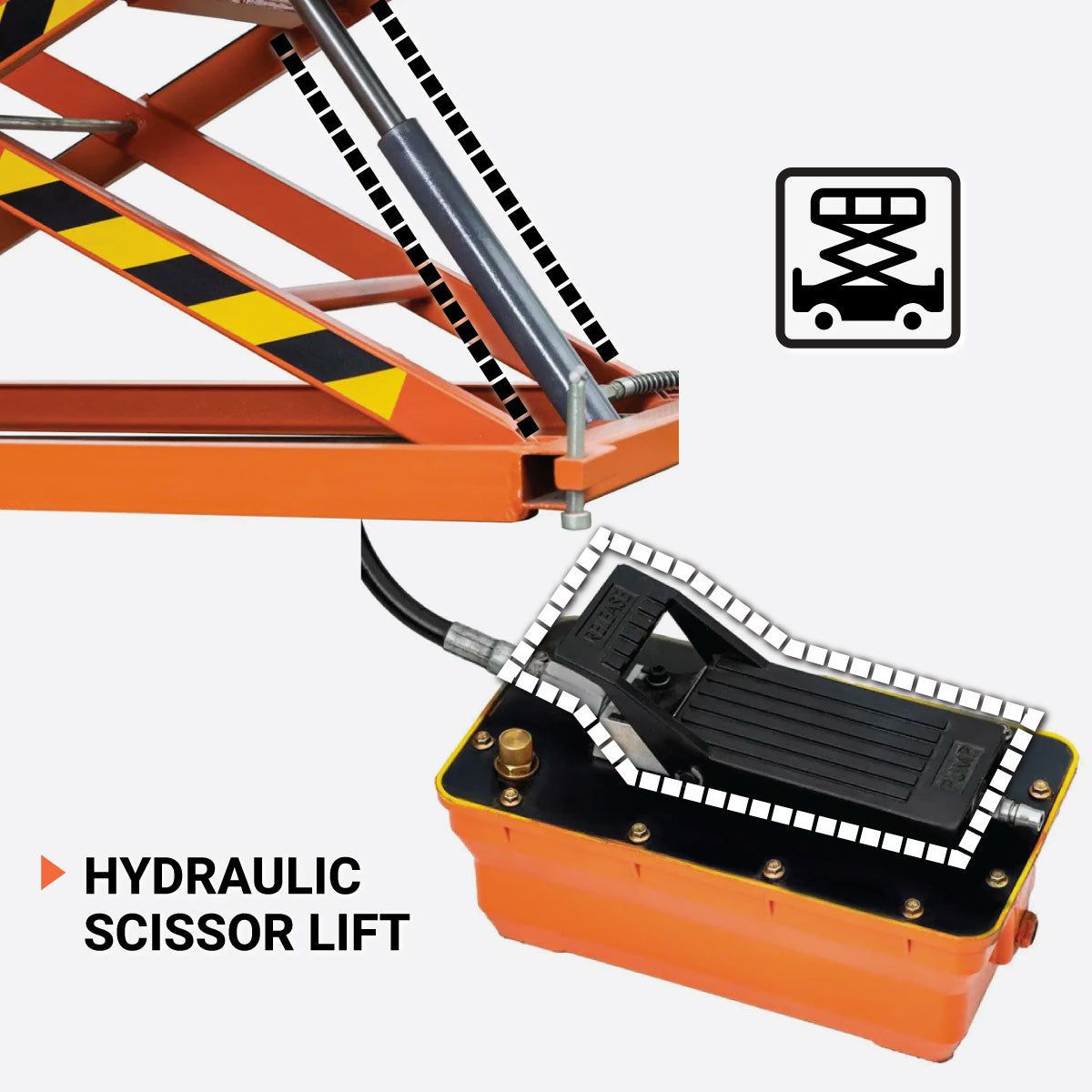

Hydraulic cylinder scissor lift powered by foot‑pedal air pump
Feature Image

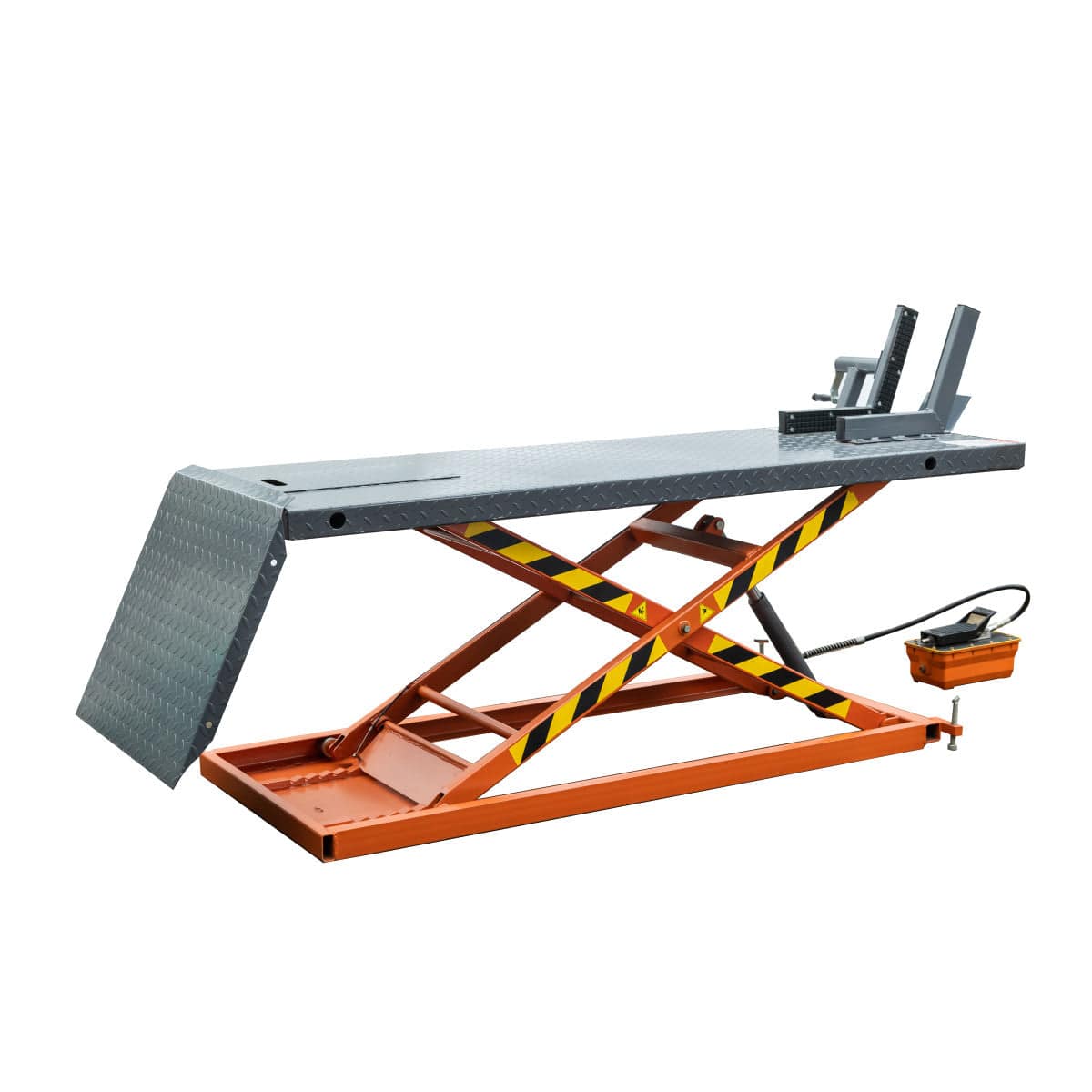

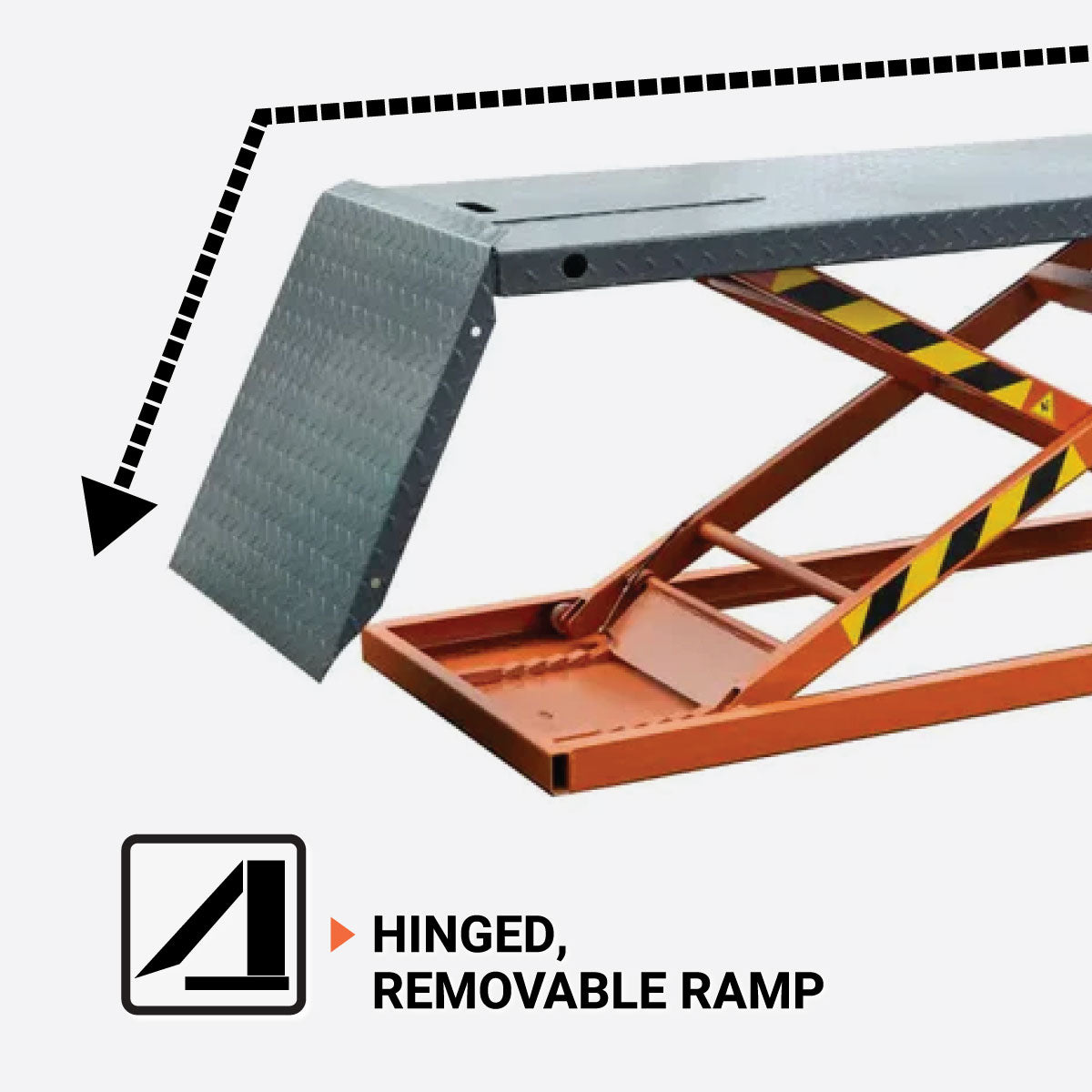

Hinged & removable drive-on ramp provides easy vehicle loading/unloading
Feature Image

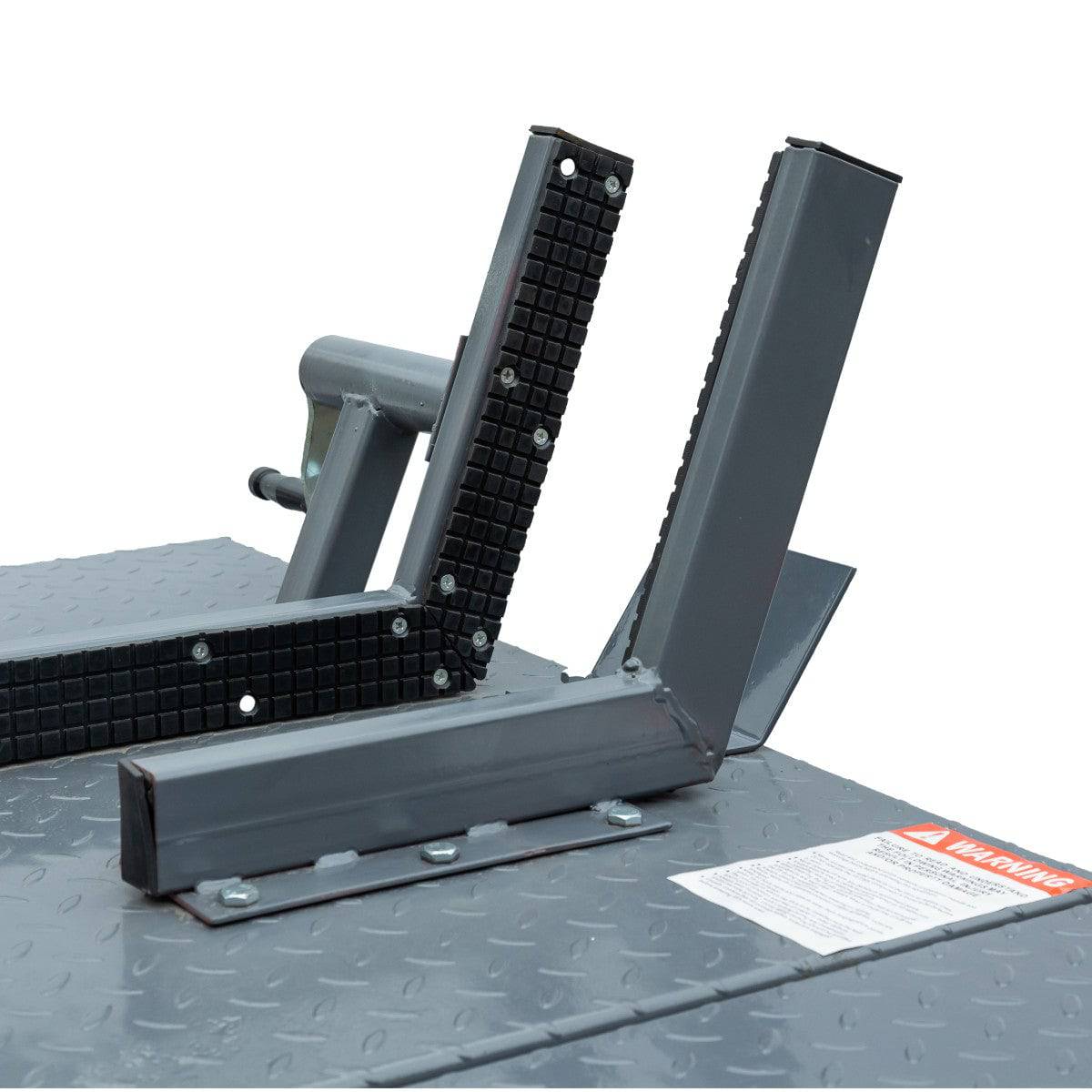

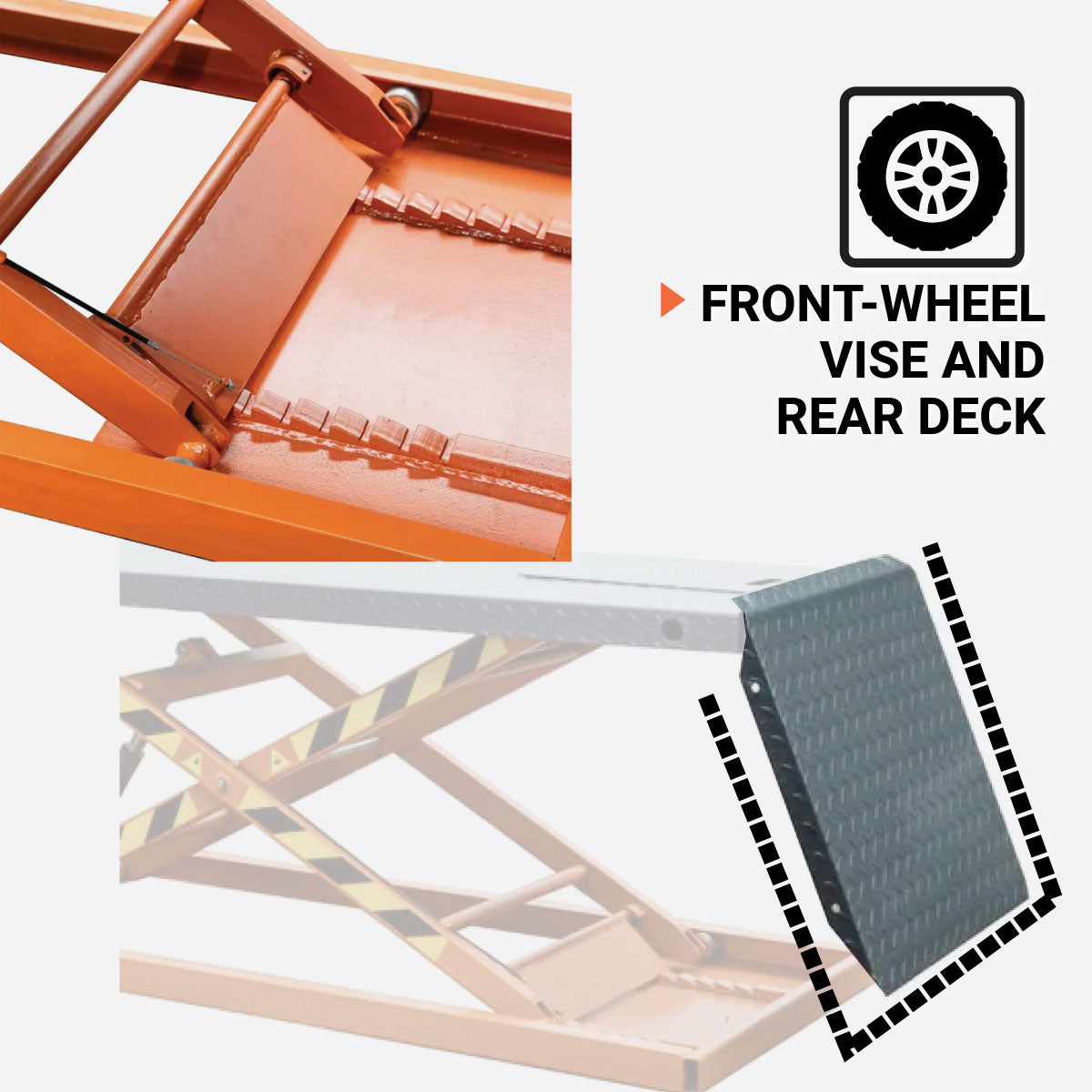

Front-wheel vise and removable rear deck enable secure positioning and access
Feature Image

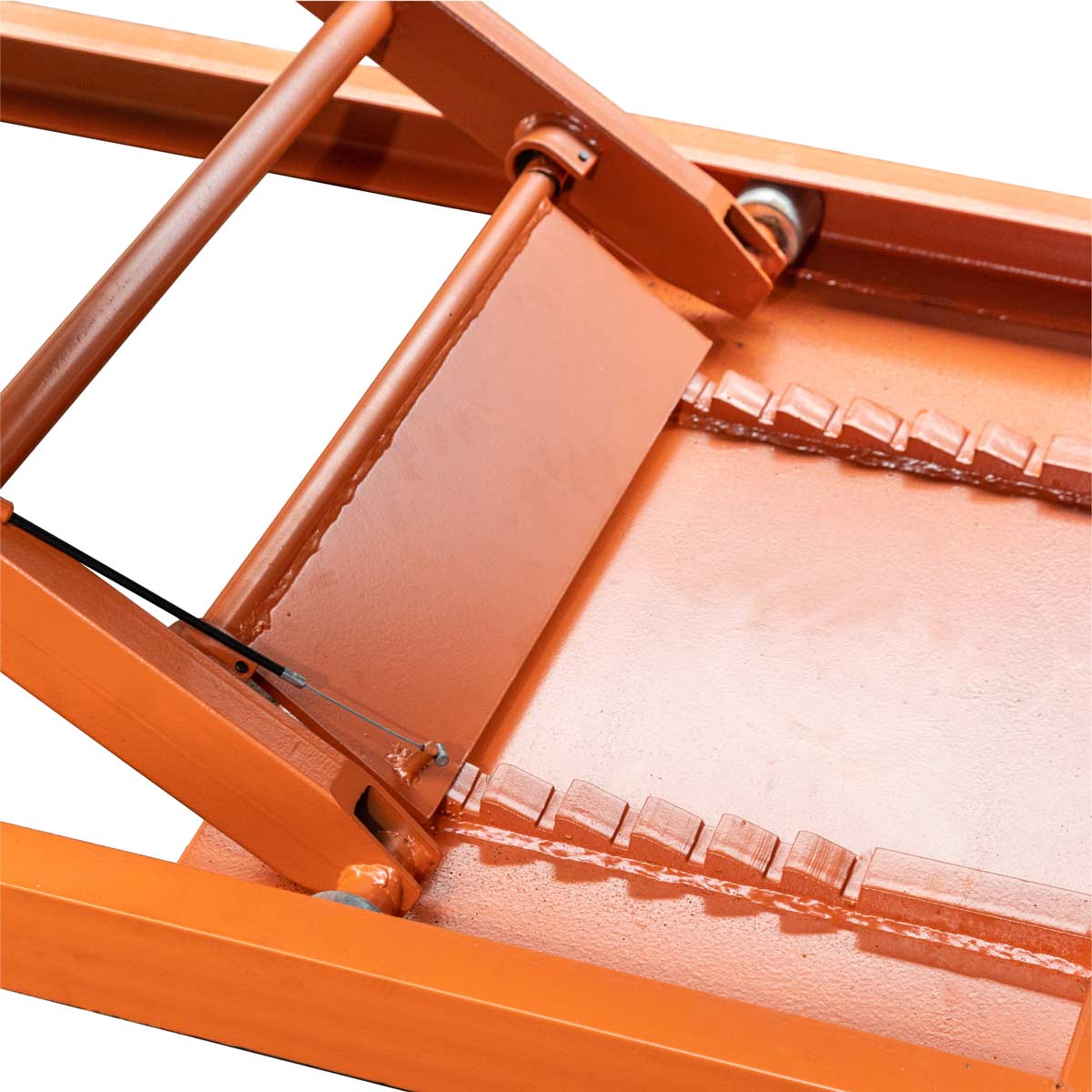

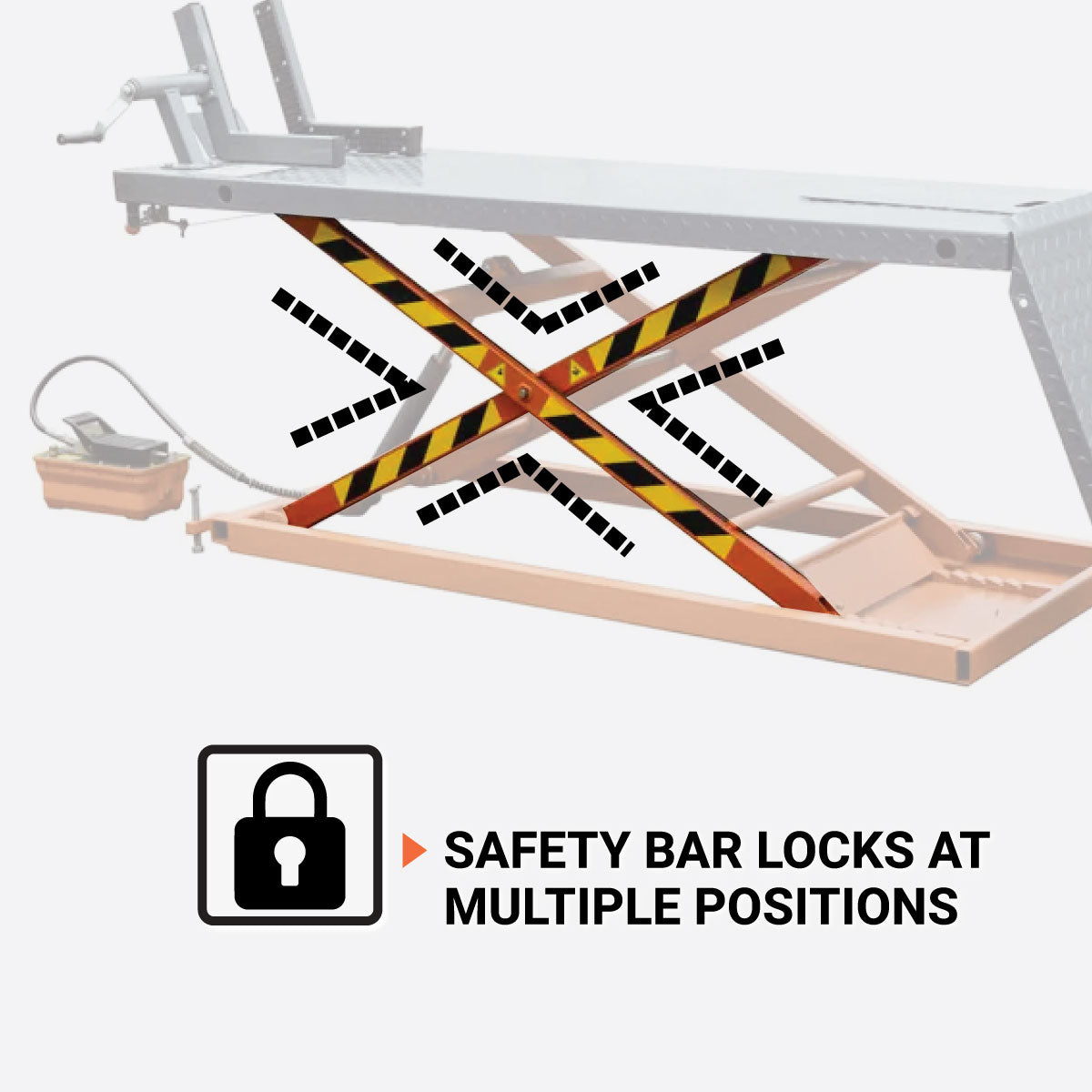

Multi-position safety lock ensures platform stability at select heights

Specifications icon Specifications

  • Lifting Capacity: 680 kg (1500 lb)
  • Maximum Lifting Height: 825 mm (32-1/2")
  • Minimum Height: 184 mm (7-1/4")
  • Platform Dimension: 2000 x 710 mm (79" x 28")
  • Platform Width with Side Decks: 1219 mm (48")
  • Platform Length with Ramp: 2642 mm (104")
  • Air Compressor Output Requirement: 8 bar (115 psi)
  • Front-Wheel Vise Kit: 160 mm (6" max.)
  • Removable Rear Wheel Deck: 710 x 640 mm (28" x 25")
  • Multi-Position Safety Lock: Yes, 6 Stage
  • Pneumatic Scissor Lift: –
  • Hydraulic Cylinder Scissor Lift: ✓
  • Hinged & Removable Drive-On Ramp: ✓
  • Side Panel Extensions: 10" bolt-on, each side
  • Overall Dimensions: 2580 x 1210 x 825 mm (102" x 48" x 32-1/2")
  • Net Weight: 250 kg (551 lb)

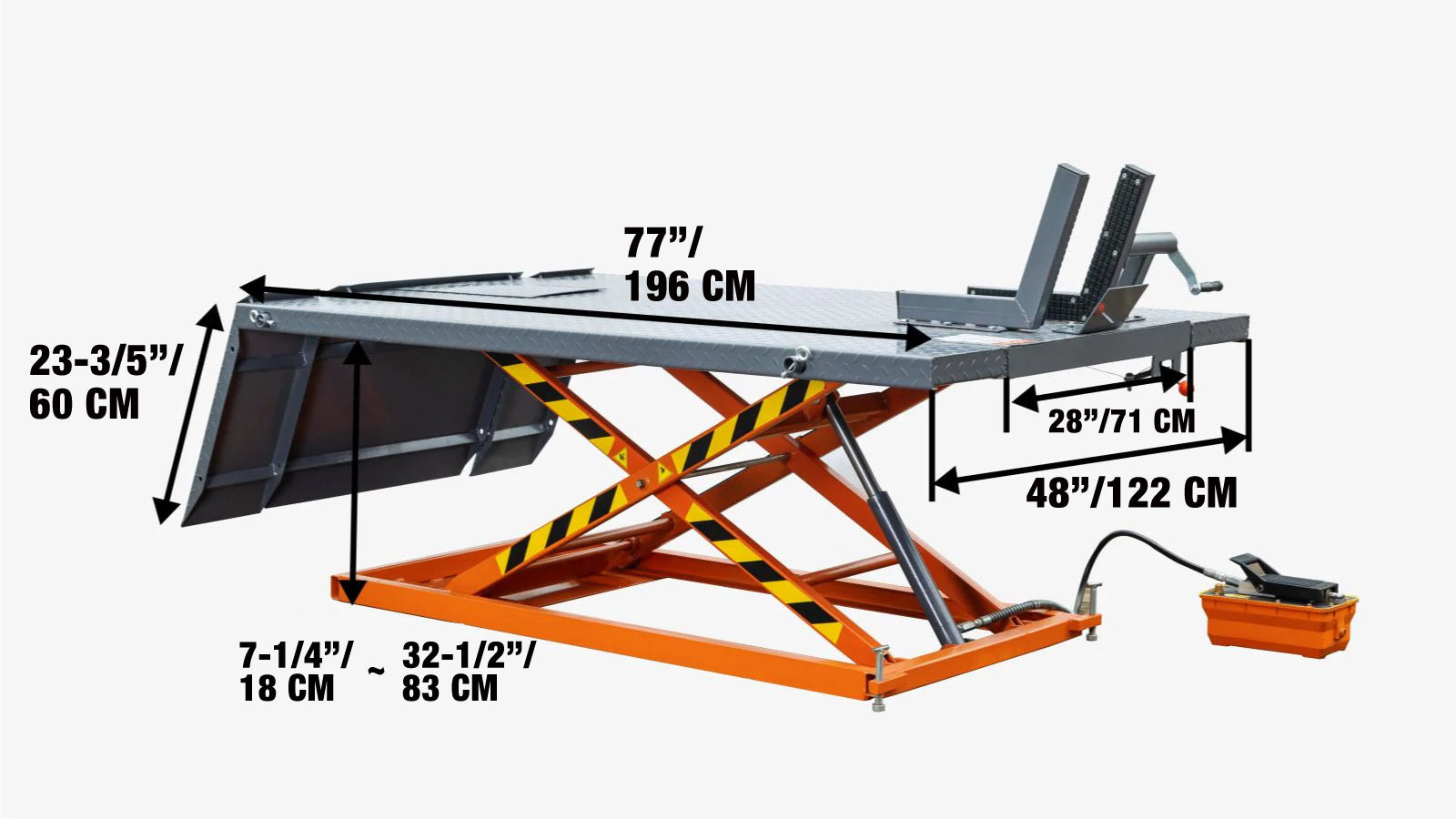

680 kg (1500 lb) Portable Motorcycle/ATV Scissor Lift, 1.22 m (48″) Work Platform, TMG‑1500PML-specifications-image

Shipping Information icon Shipping Information

Your order will be shipped from our warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

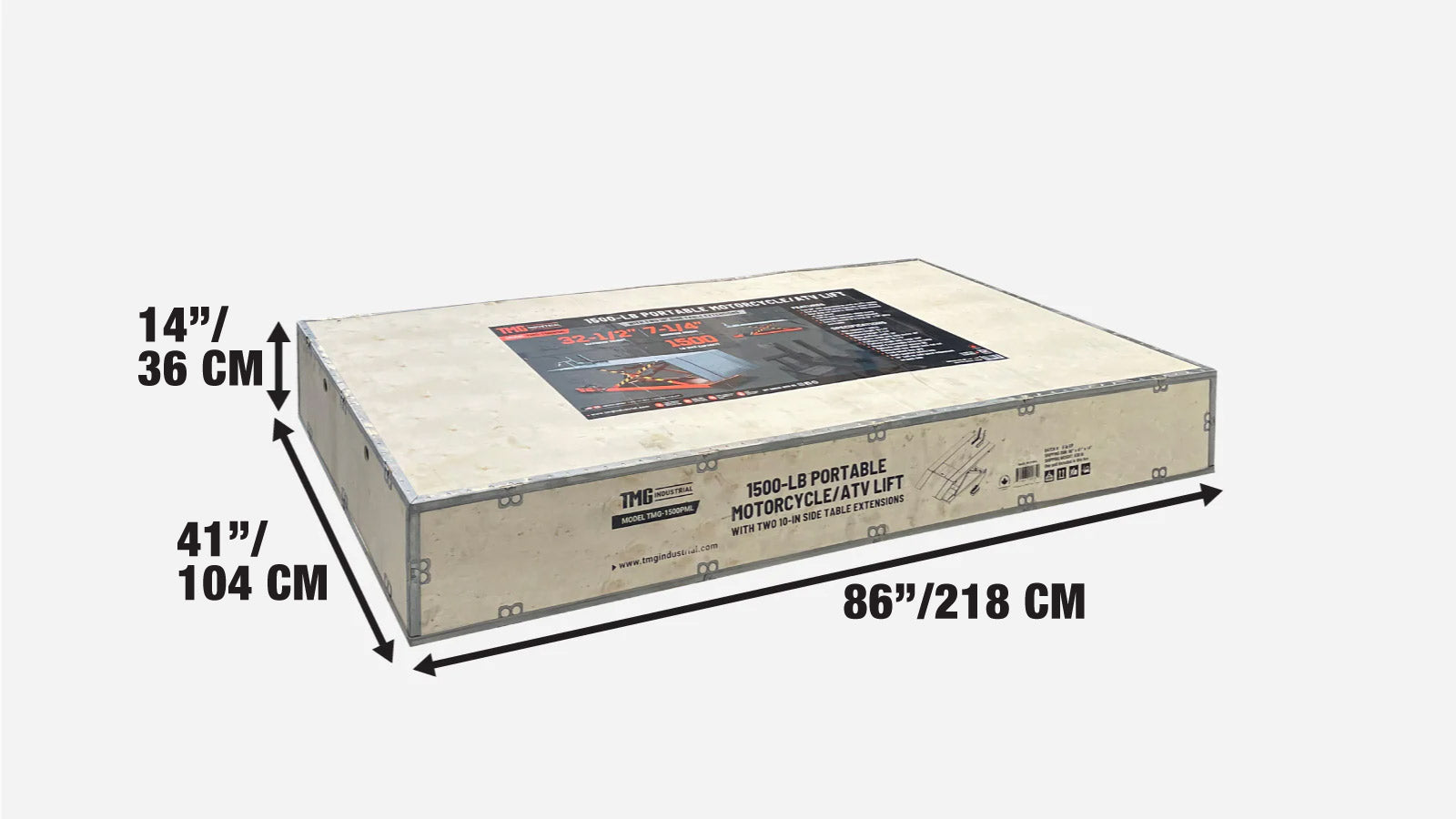

  • Packed in a wood-crate shipping box
  • Shipping dimensions: 218 × 104 × 36 cm (L × W × H) / 86″ × 41″ × 14″
  • Shipping weight: 283 kg (625 lb)
Shipping from Rowville,VIC
What happens after you place your order?
680 kg (1500 lb) Portable Motorcycle/ATV Scissor Lift, 1.22 m (48″) Work Platform, TMG‑1500PML-shipping-info-image

Product Description icon Product Description

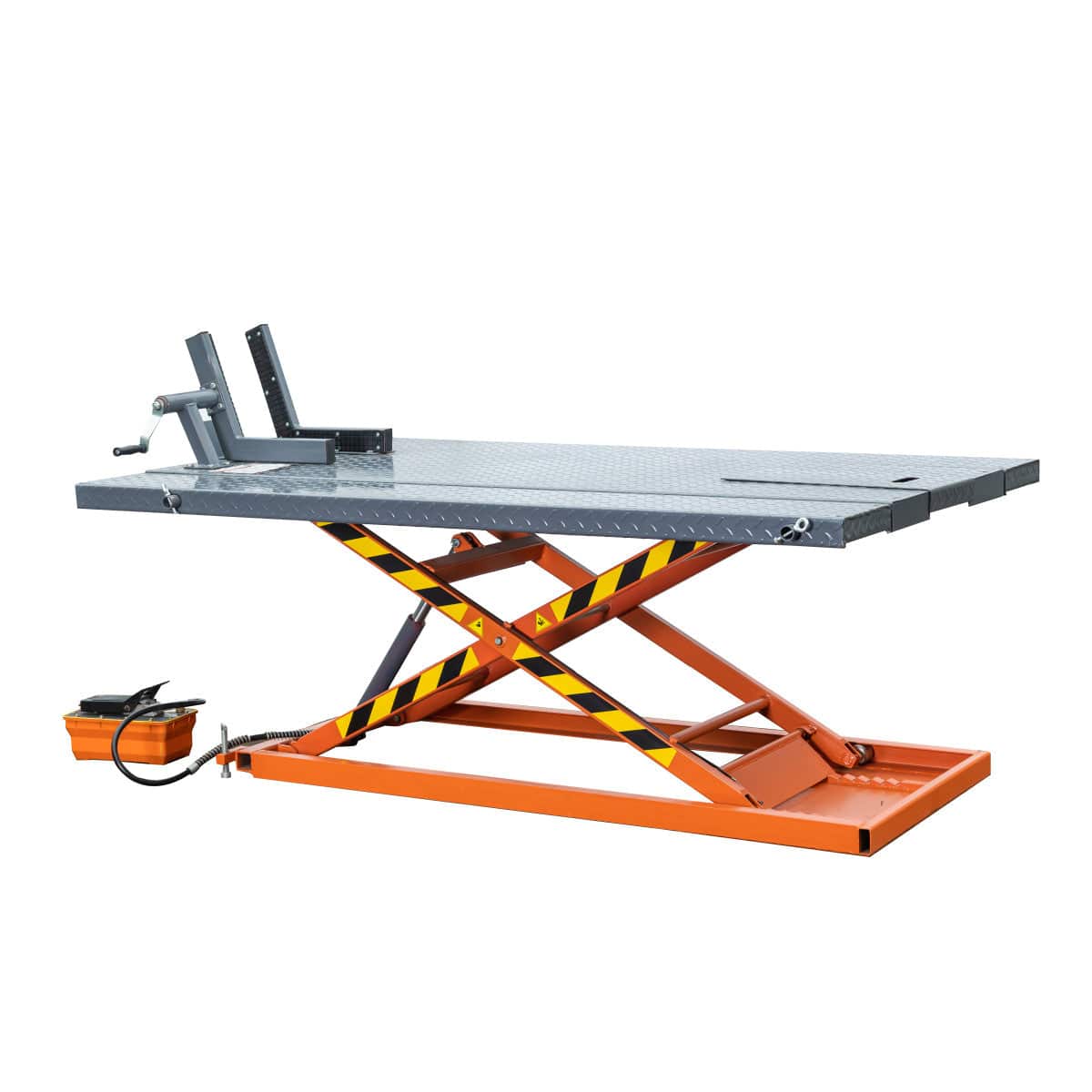

The TMG‑1500PML Portable  Motorcycle/ATV Scissor Lift is designed for serious workshop and field service use. With its 680 kg (1500 lb) hydraulic lift capacity, 1.22 m (48″) diamond-plate worktop, and bolt-on decks, it supports a secure, versatile service environment. The hinged ramp, front-wheel vise, and removable rear panel simplify loading and servicing, while the safety lock ensures stability. This rugged, all-steel platform is ideal for home garages, mobile mechanics, and detailing shops.

TMG also carries another model of Portable  Motorcycle/ATV Scissor Lift: TMG‑1000PML.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What is the lifting capacity of the 1500PML?
    A: Rated to lift up to 680 kg (1500 lb), it's suitable for a broad range of motorcycles, ATVs, UTVs, and comparable equipment.
  • Q: How large is the working platform?
    A: The main platform measures 1.22 m (48″) wide including two 254 mm (10″) bolt-on side decks.
  • Q: How is the lift operated?
    A: Hydraulic scissor lift is engaged by a pneumatic foot-pump for controlled elevation.
  • Q: How do I load a bike onto the lift?
    A: It includes a hinged and removable ramp for easy vehicle loading without manual lifting.
  • Q: What provides stability during service?
    A: The front-wheel vise stabilizes the vehicle while the multi-position safety lock secures the platform.
  • Q: What materials ensure durability?

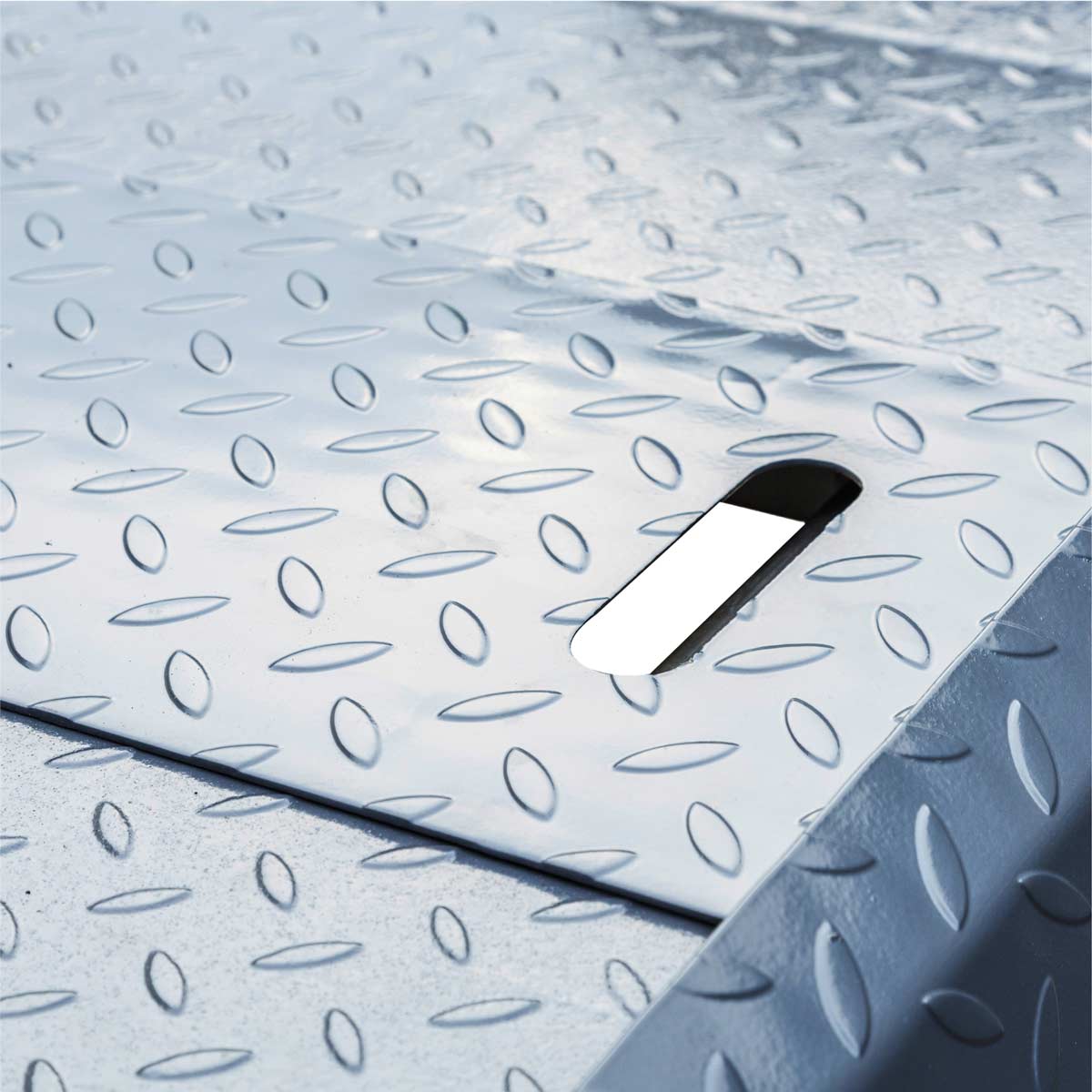

    A: Built on a rugged diamond-plate steel table with hydraulic components, it’s designed for daily commercial use.
  • Q: What is the warranty for the TMG-1500PML?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
