• Footprint (W × L): 20' × 20' (6.05 × 6.05 m)
• Exact Floor Footprint (W × L): 19'8-1/2" × 19'8-1/2" (6.01 × 6.01 m)

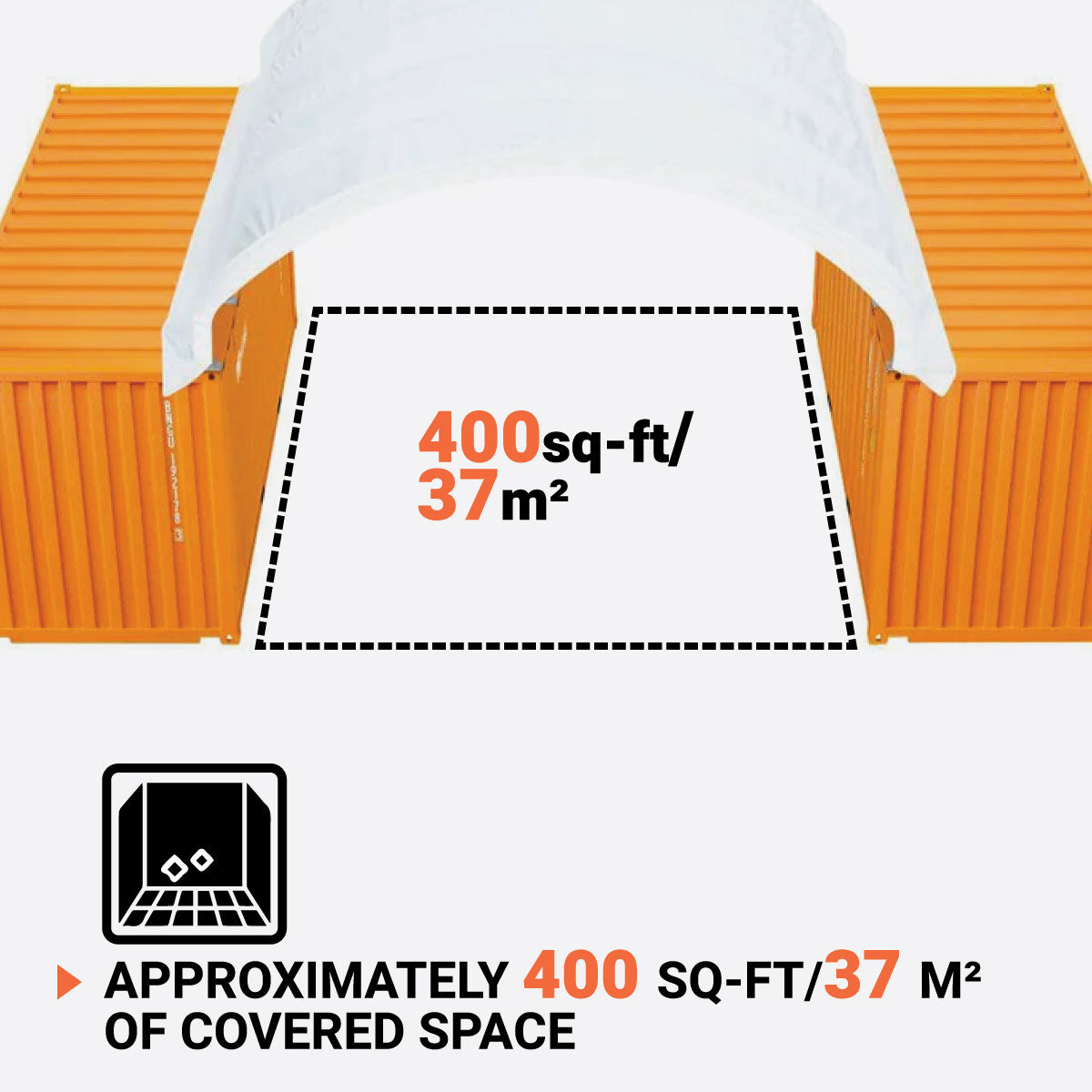

• Covered Area: Approx. 400 sq ft (37.16 m²)
• Roof Type: Dome
• Cover Material: 11 oz PE Fabric
• Fabric Weave: 14 × 14
• Fabric Thickness: 20 mil (0.5 mm)
• Fabric Properties: Fire Retardant, Water Resistant, UV Protected, stands strong against tearing, leaking, and chemical corrosion
• Fabric Colour: White

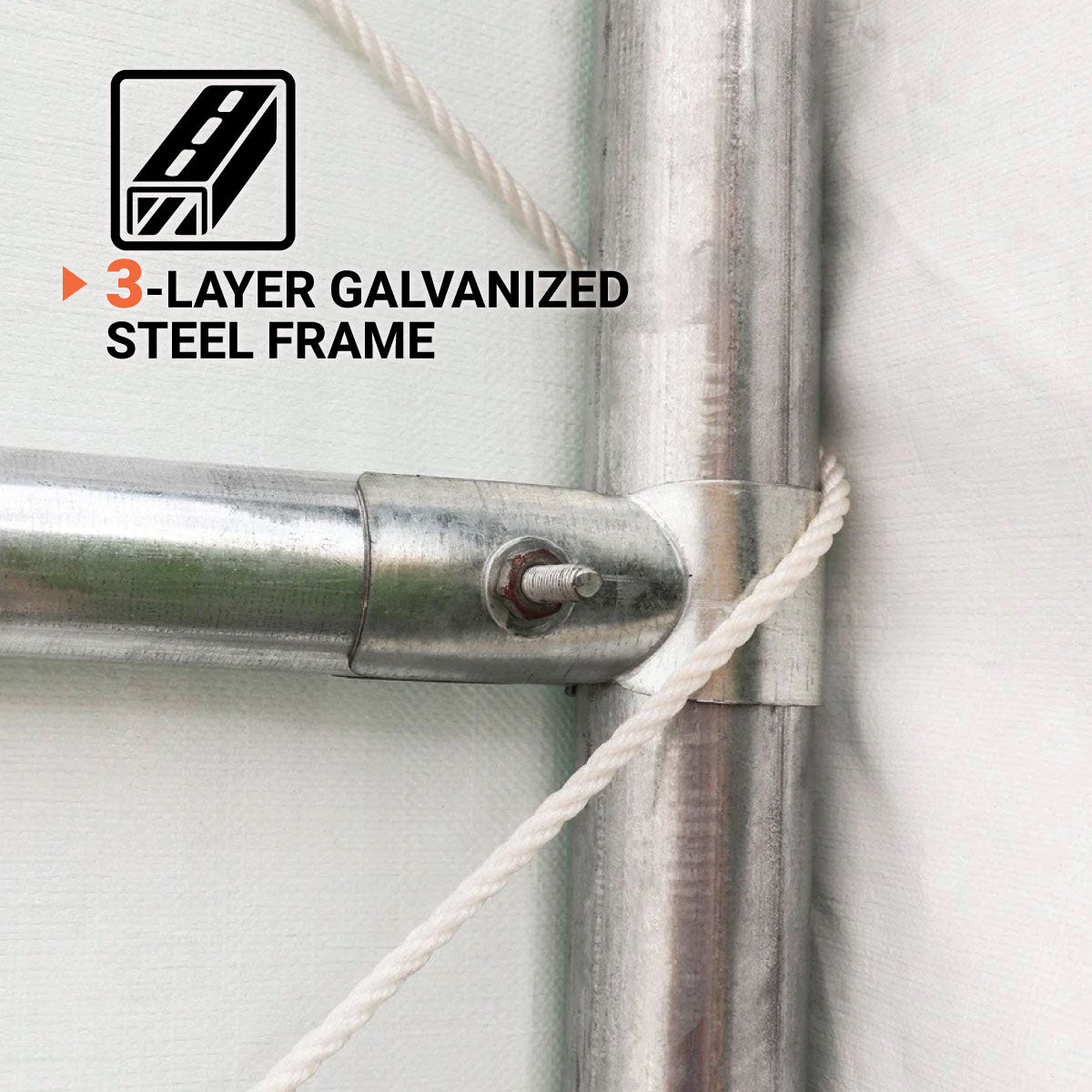

• Frame Structure: Commercial Grade, 3-Layer Galvanized Steel
• Truss Spacing: 59" (149.86 cm)
• Truss Quantity: 5 groups
• Truss Tubes: Ø1.9" – 15 GA (Ø4.83 cm – approx. 1.8 mm wall)
• Purlin Tubes: Ø1.65" – 16 GA (Ø4.19 cm – approx. 1.6 mm wall)

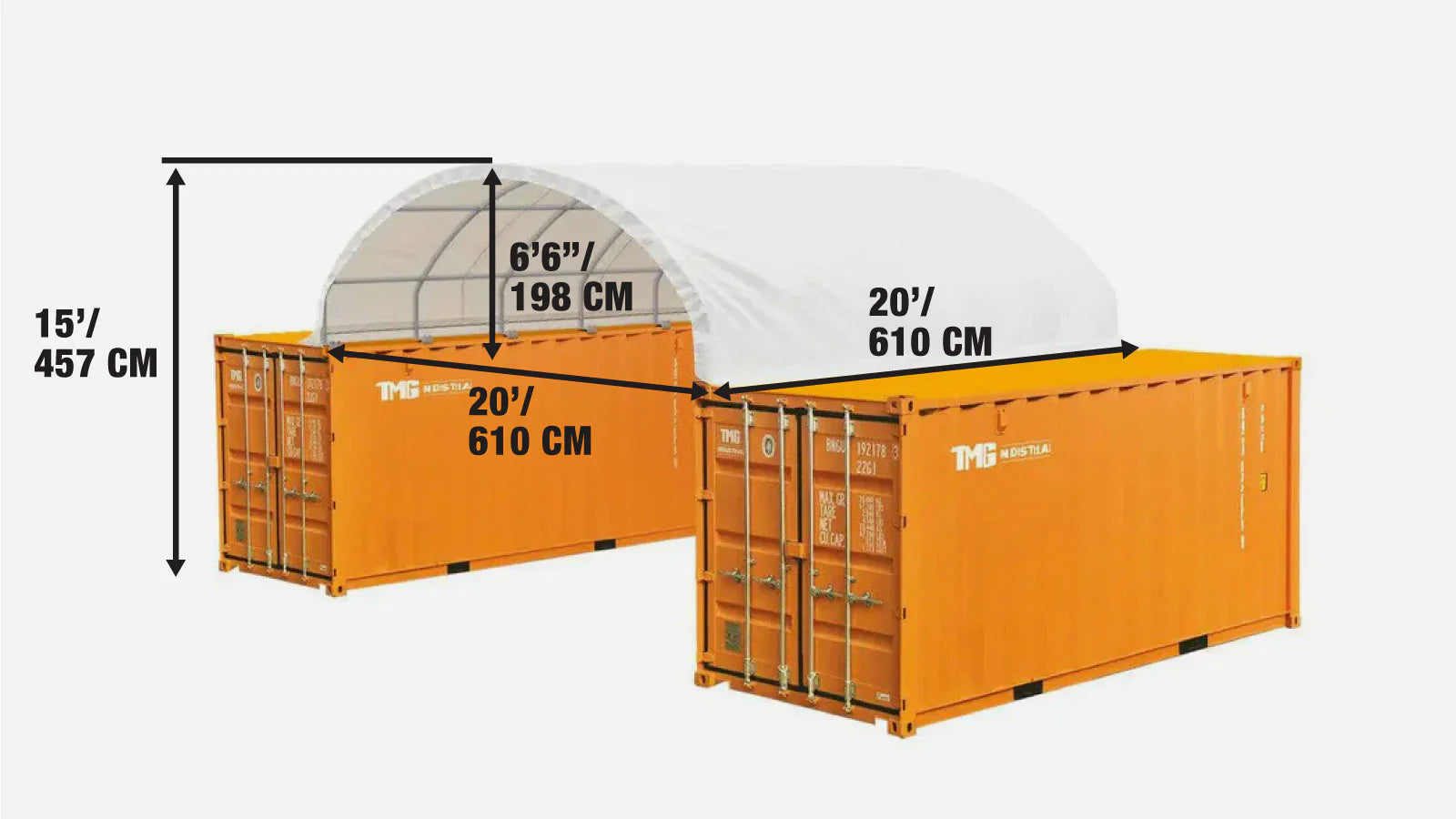

• Arch/Peak Ceiling Height (from ground, with container): 15' (4.57 m)
• Arch/Peak Ceiling Height (from base, top of container): 6.5' (1.98 m)

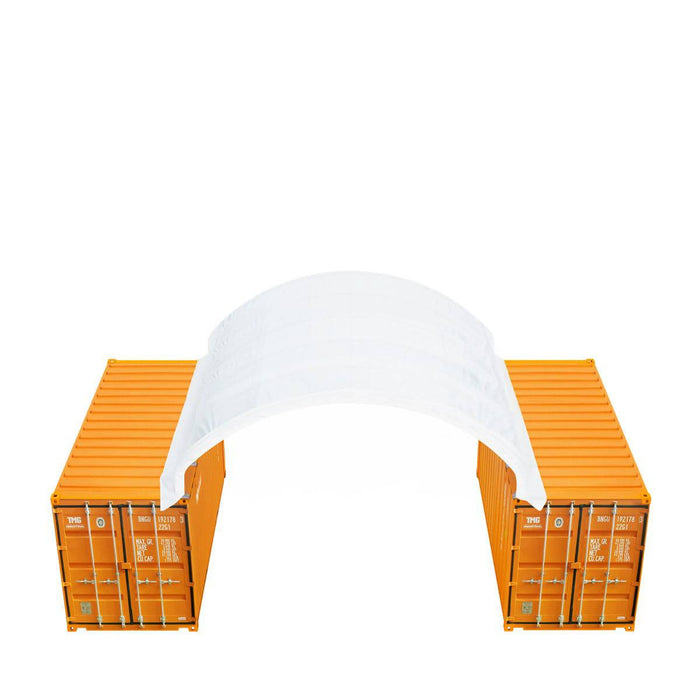

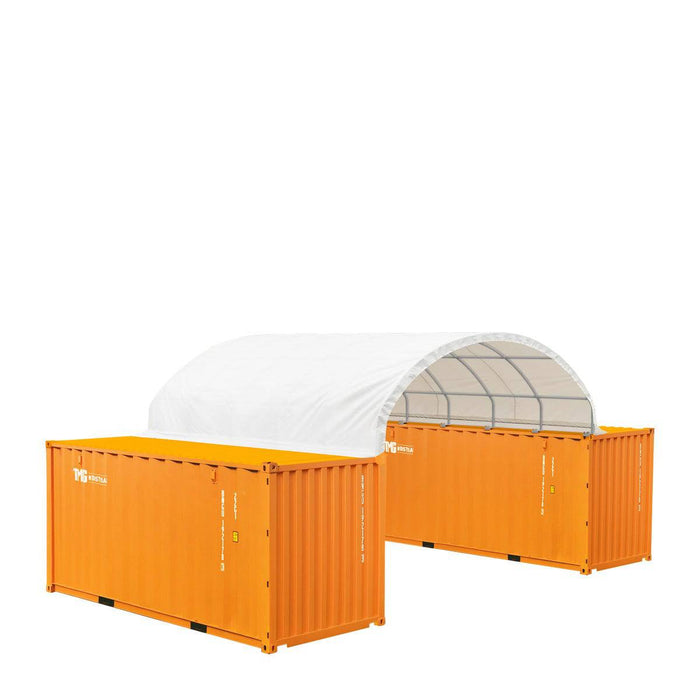

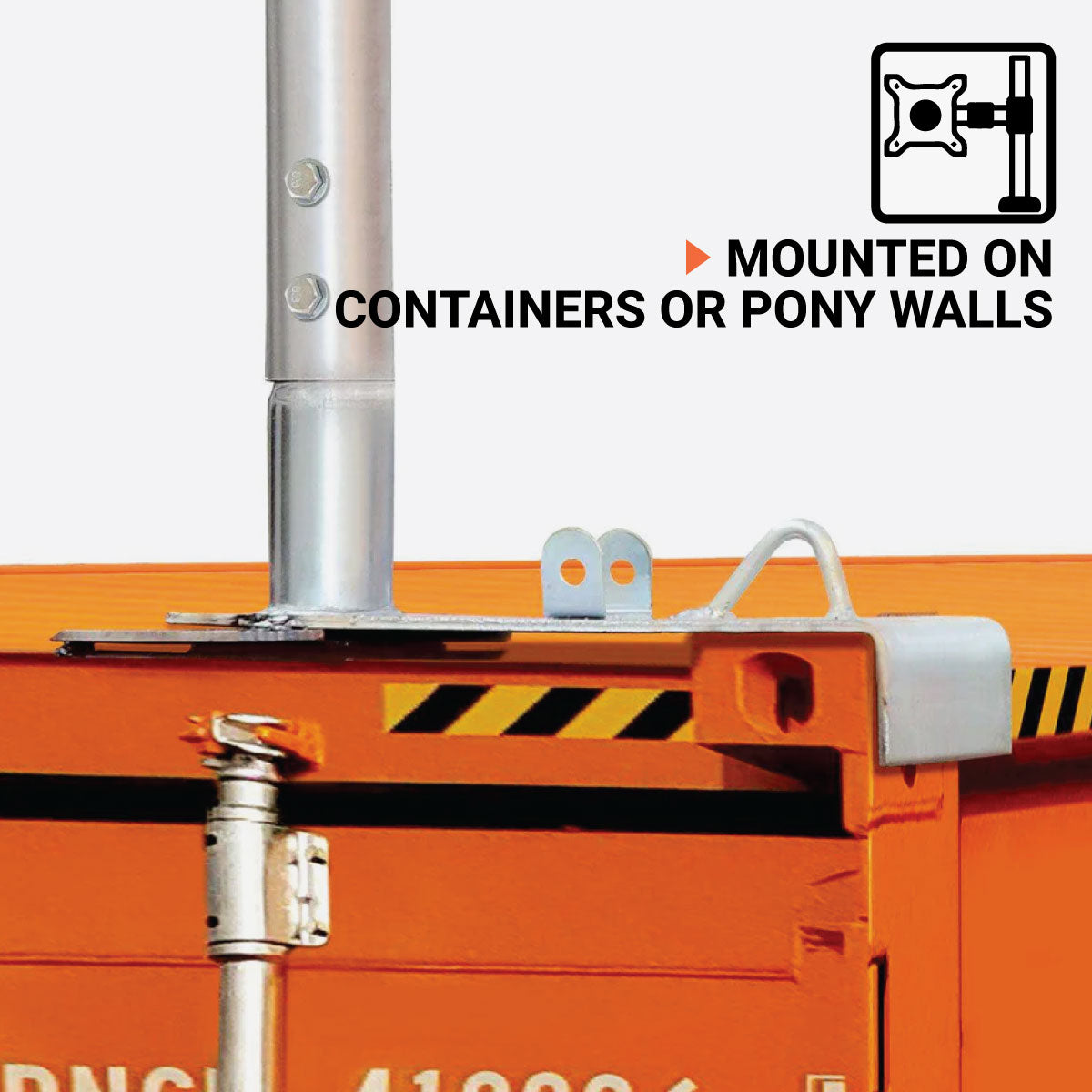

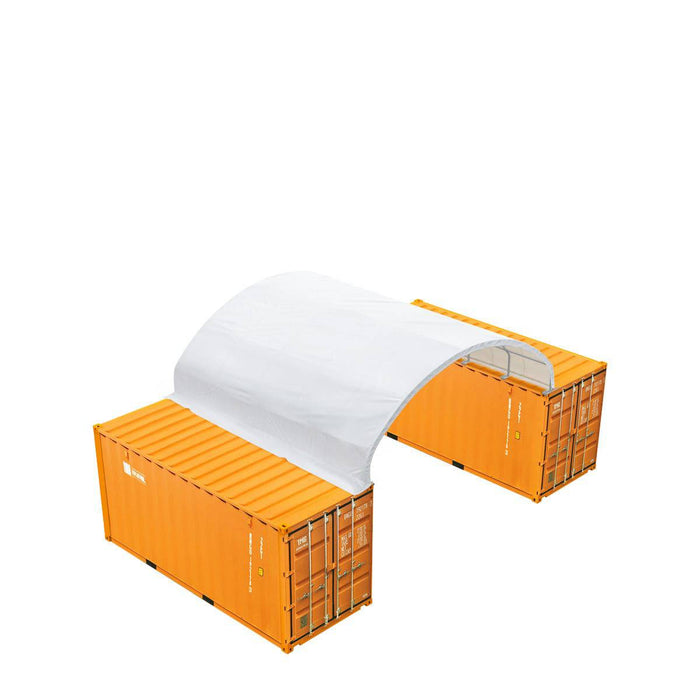

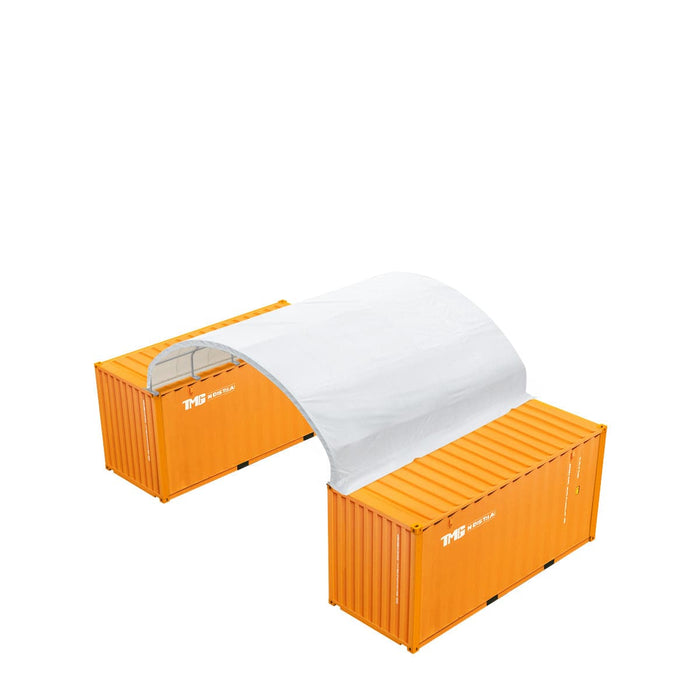

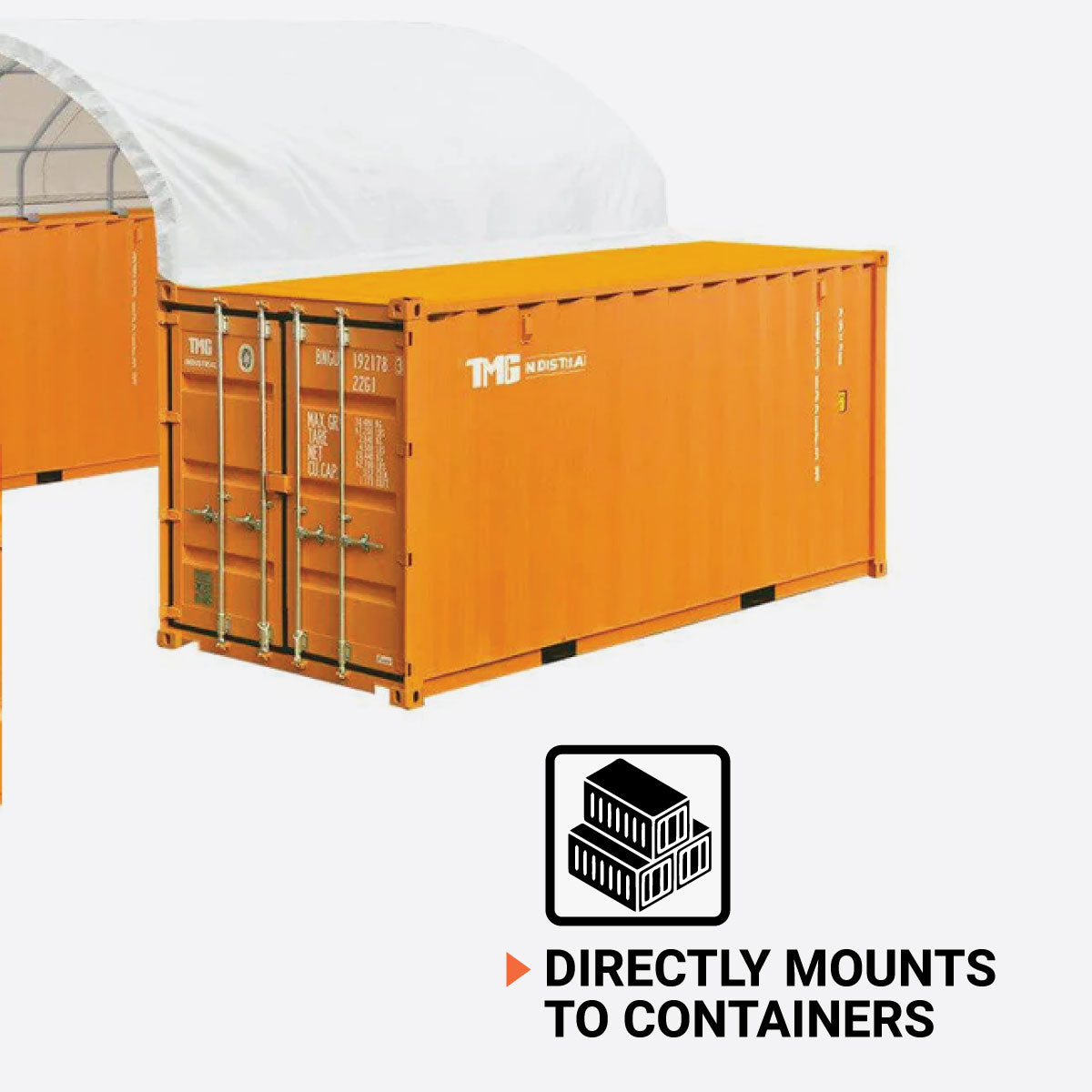

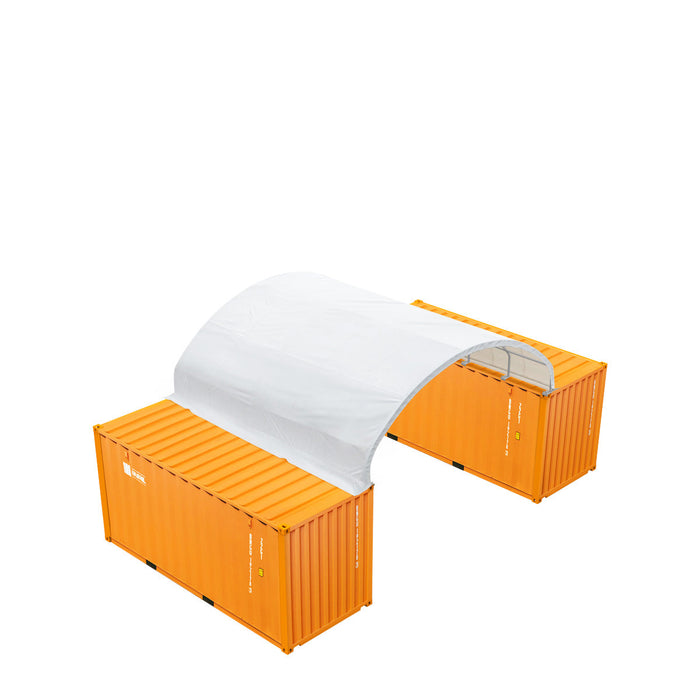

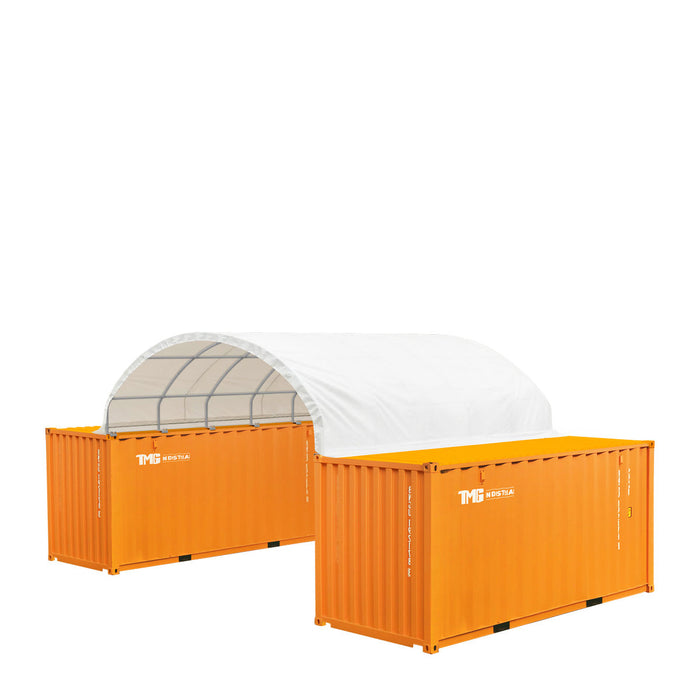

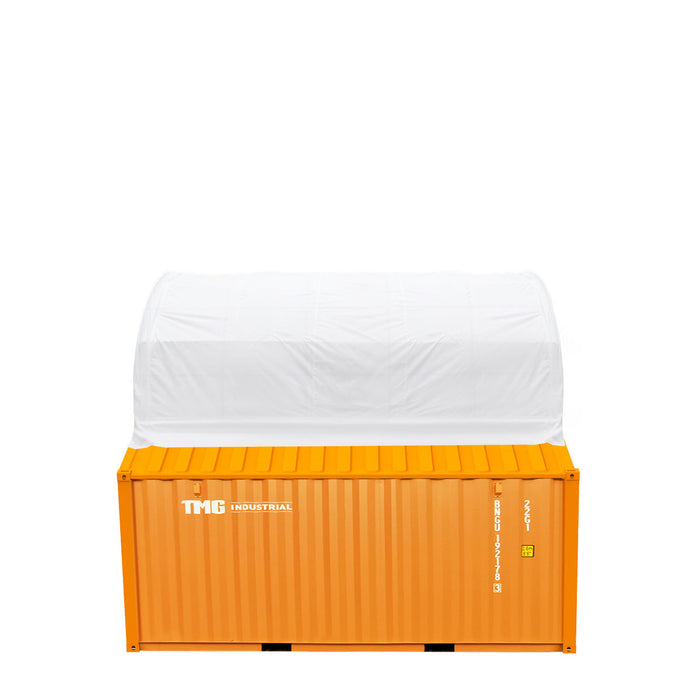

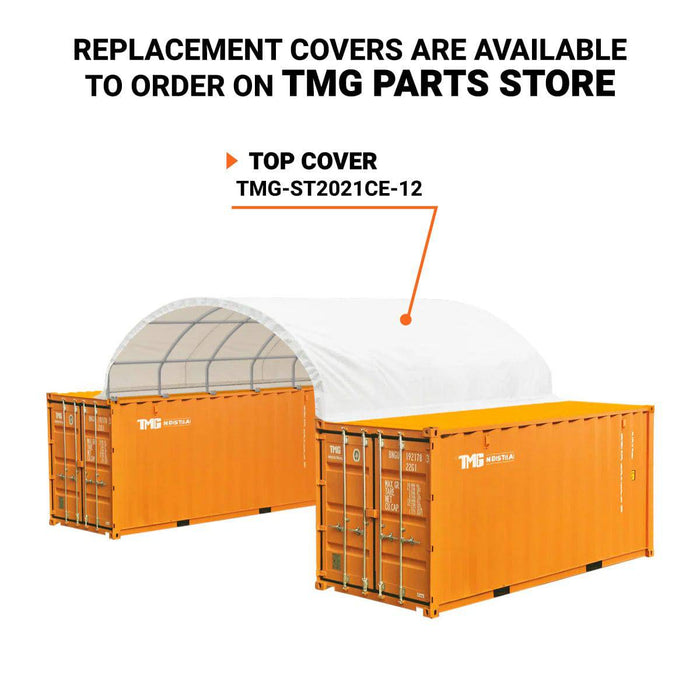

• Mounting: On 20' shipping containers or pony walls
• Container Requirement: 20' shipping containers

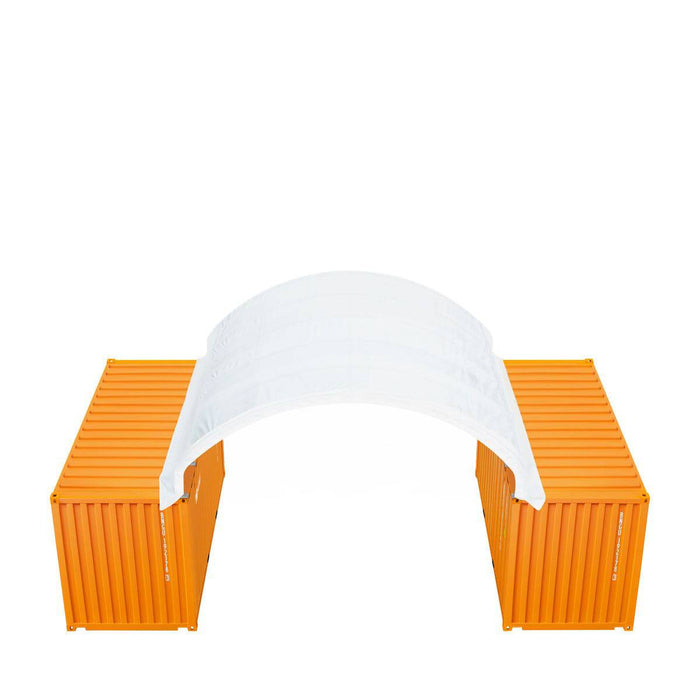

• End Walls: Open at both ends
• Welding Required: For all footplates
• Shipping Weight: 635 lb (288.03 kg)

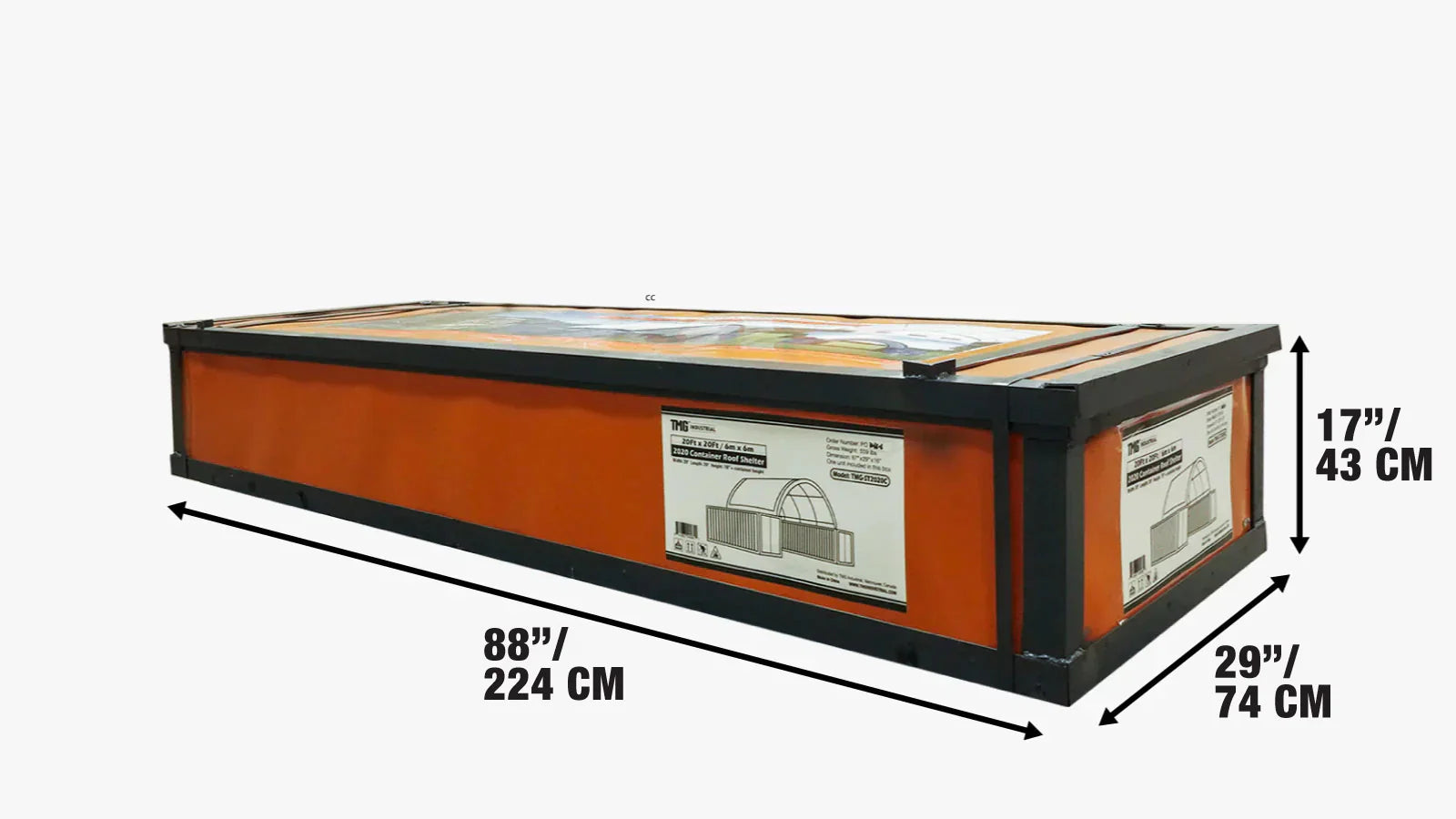

• Shipping Dimensions (L × W × H): 88" × 29" × 17" (223.52 × 73.66 × 43.18 cm)
• Package Quantity: 1 metal crate
• Model: TMG-ST2021CE (SKU: ST2021CE)

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

• This product is packed in a metal crate shipping box
• Shipping Dimensions: 223.5 cm x 73.7 cm x 43.2 cm (L x W x H)
• Shipping Weight: 288 kg
• Note: A forklift is required for unloading

• Q: What are the dimensions of the TMG-ST2021CE shelter?
  A: The exact floor footprint of this shelter is 6.01 metres (19 feet 8-1/2 inches) wide by 6.01 metres (19 feet 8-1/2 inches) long. It provides an approximate covered area of 37.16 square metres (400 sq ft).

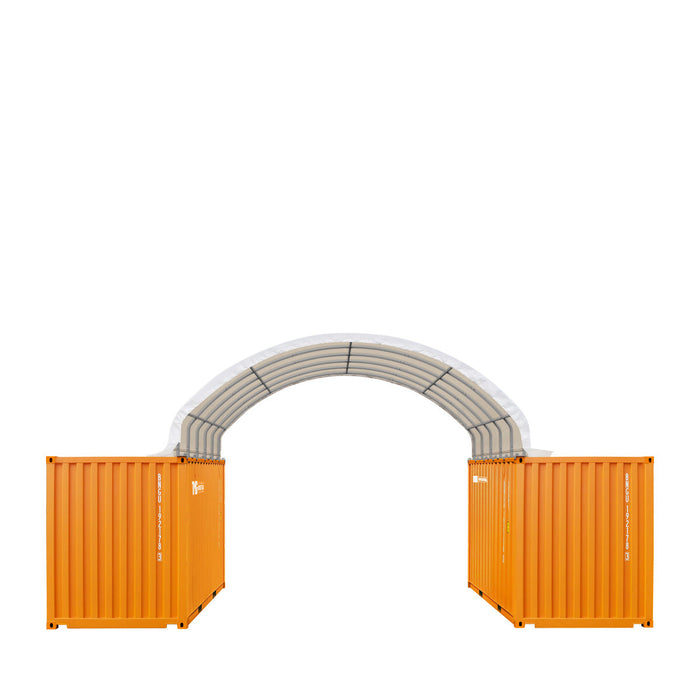

• Q: What is the maximum height of the shelter?
  A: When installed on standard 20-foot shipping containers, the peak ceiling height from the ground is approximately 4.57 metres (15 feet). The peak ceiling height from the top of the container is 1.98 metres (6 feet 6 inches).

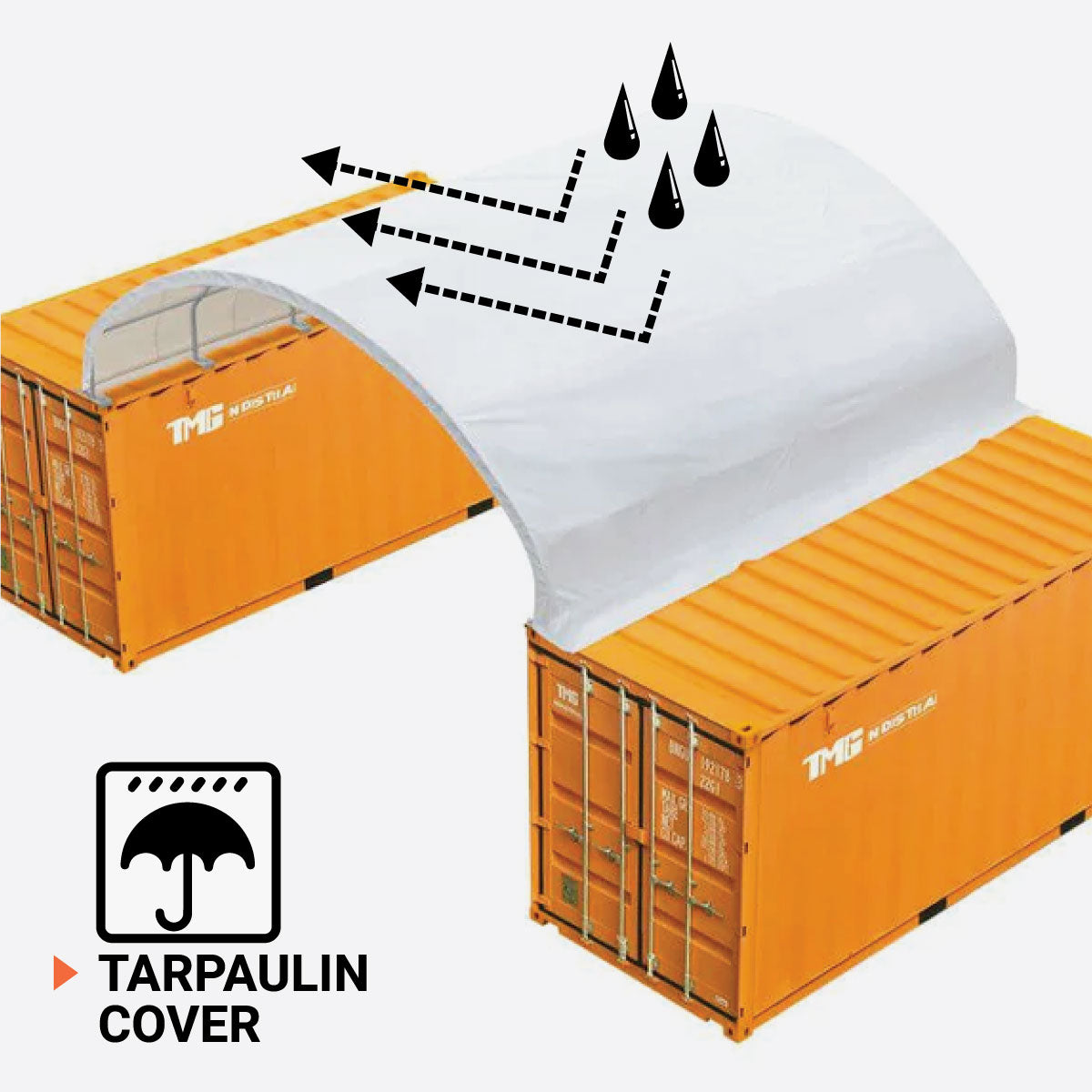

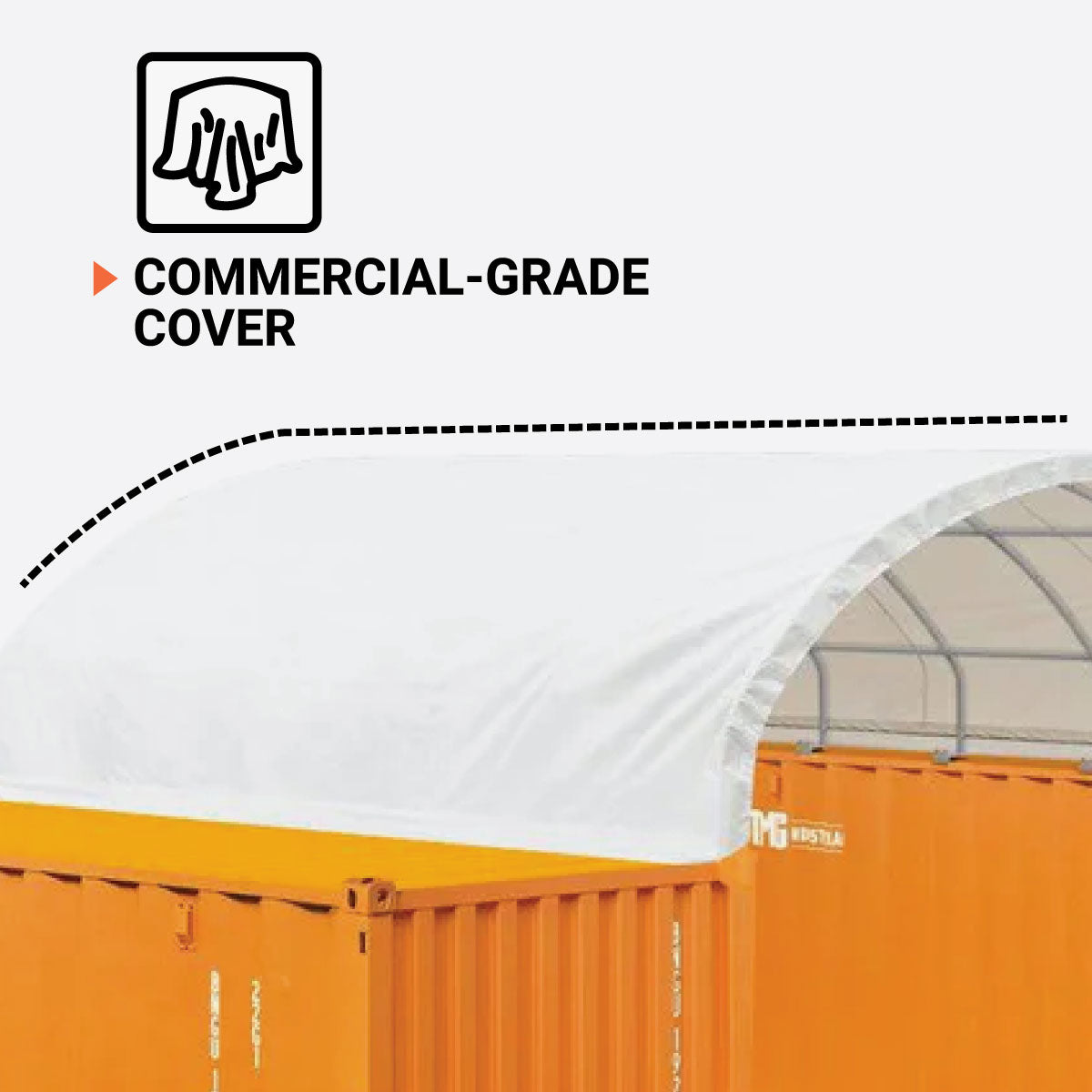

• Q: What type of fabric is used for the cover?
  A: The TMG-ST2021CE features a heavy-duty 11 oz (ounce per square yard) / 380 gsm triple-layer ripstop polyethylene (PE) fabric cover with a 14 x 14 weave and a thickness of 20 mil (approximately 0.5 mm). This fabric is fire retardant, water resistant, and UV protected, designed to stand strong against tearing, leaking, and chemical corrosion.
• Q: What is the frame made of?
  A: The frame is constructed from commercial-grade, 3-layer galvanized steel tubing for long-lasting durability, rigidity, and resistance to rust, wear, and corrosion.

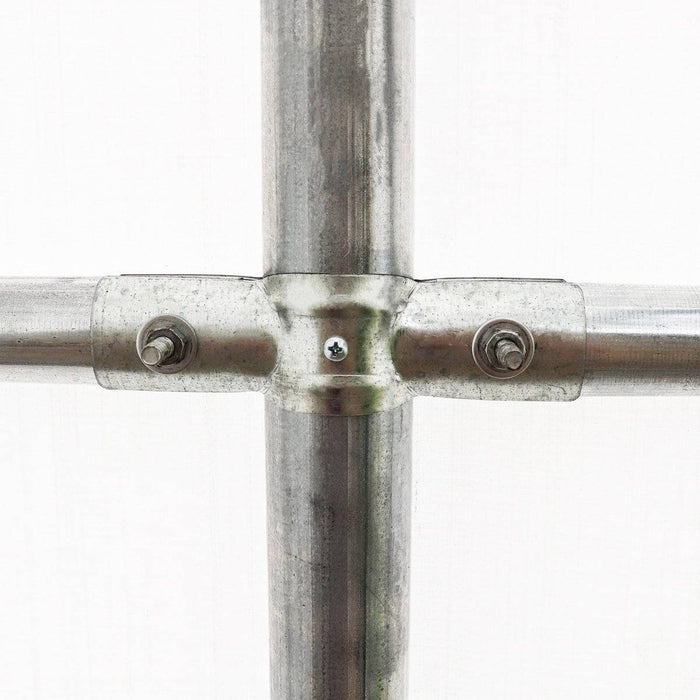

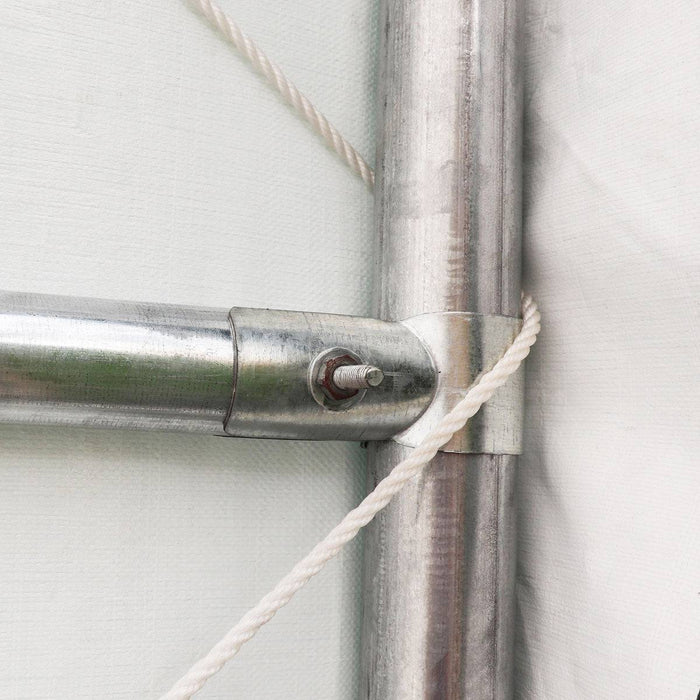

• Q: What are the dimensions of the frame tubes?
  A: The truss tubes are approximately 4.83 cm (1.9 inches) in diameter with a 15 gauge (approx. 1.8 mm wall thickness). The purlin tubes are approximately 4.19 cm (1.65 inches) in diameter with a 16 gauge (approx. 1.6 mm wall thickness).
• Q: What is the truss spacing on this shelter?
  A: The shelter is designed with 1.4986 metres (59 inches) truss spacing, with 5 truss groups.

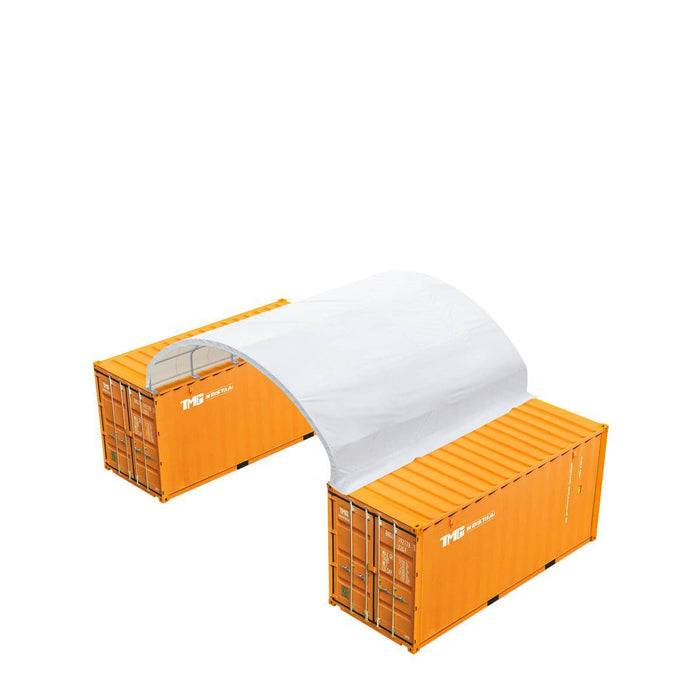

• Q: Do I need shipping containers to install this shelter?

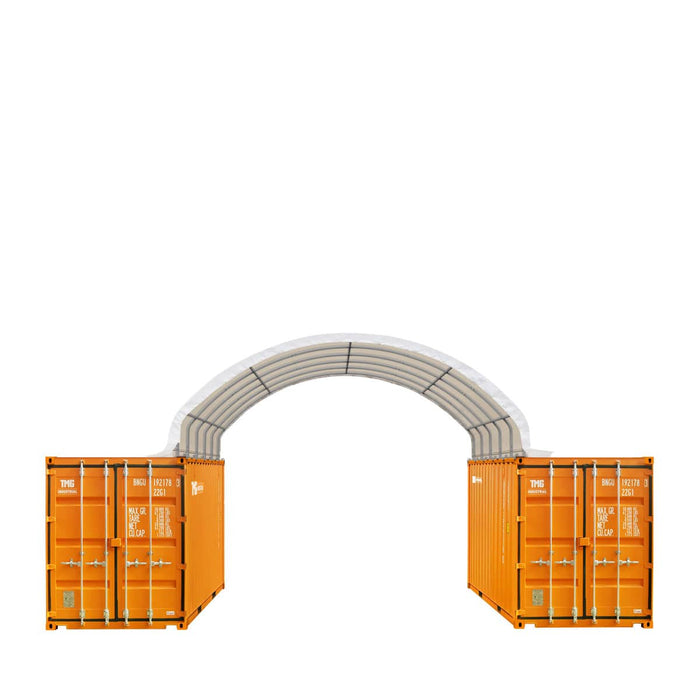

  A: Yes, this shelter is designed to be installed on standard 20-foot shipping containers or custom-built pony walls. Containers are not included with the purchase of the shelter.

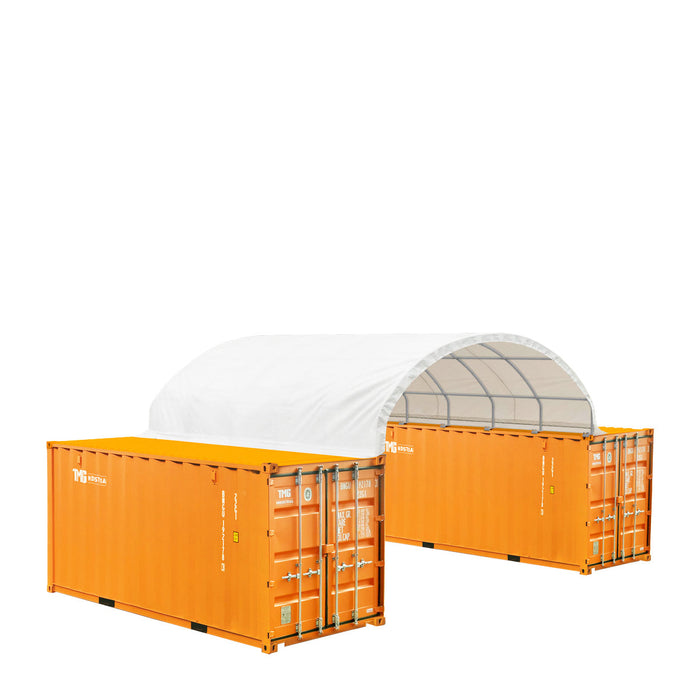

• Q: Are the ends of the shelter enclosed?
  A: The TMG-ST2021CE features an open entry/exit space on both ends. End wall kits are not listed as available for this specific model on the TMG Industrial Canada website.

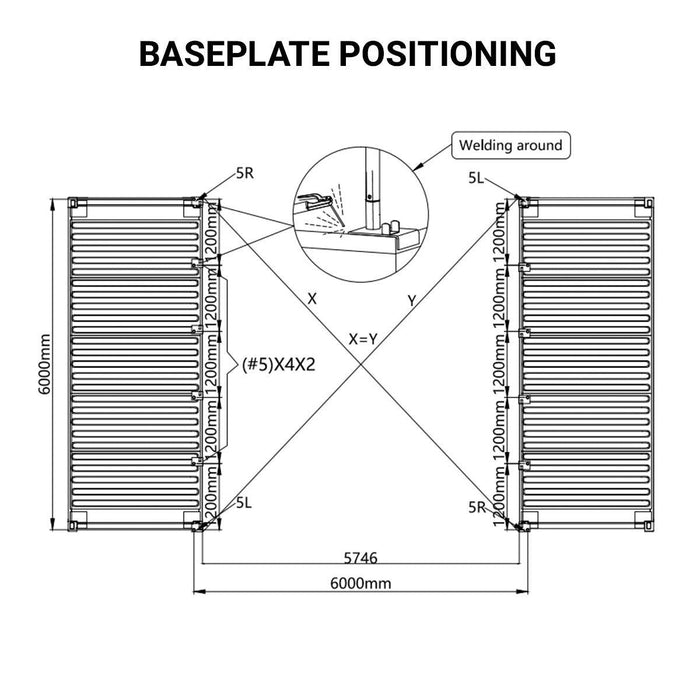

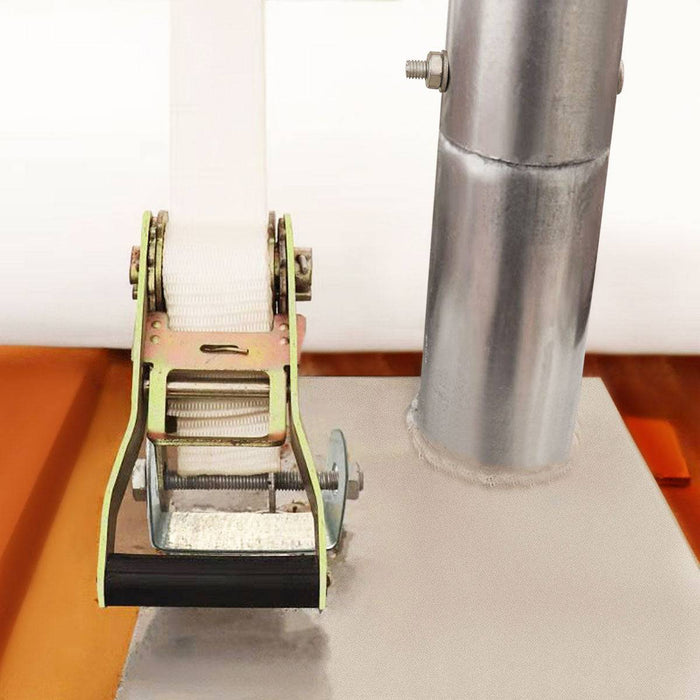

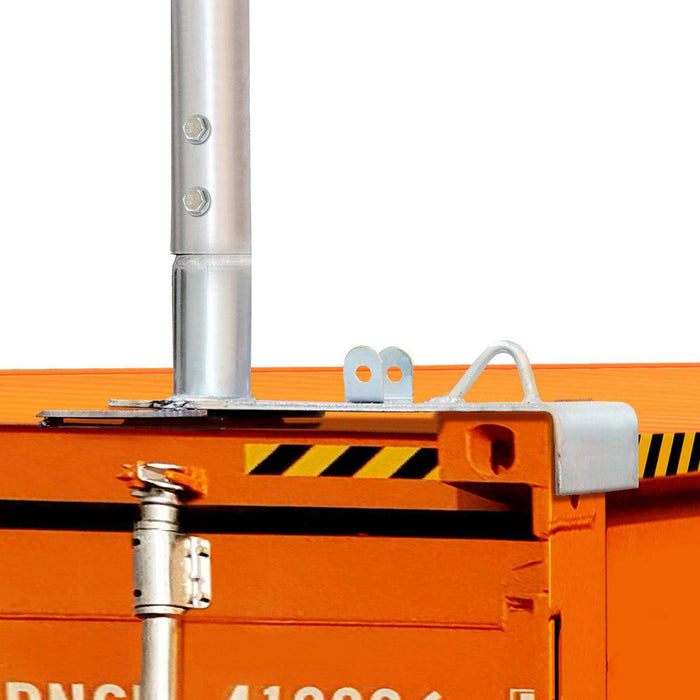

• Q: Is welding required for installation?
  A: Yes, welding is required for all footplates during installation to ensure superior strength and solid bolted connections.
• Q: What are the shipping dimensions and weight of the TMG-ST2021CE?
  A: The product is packed in a metal crate shipping box. The approximate shipping dimensions are 223.52 cm (88 inches) long x 73.66 cm (29 inches) wide x 43.18 cm (17 inches) high, with a total shipping weight of approximately 288.03 kg (635 lb).
• Q: How long does delivery typically take to Australia?
  A: Orders are generally processed and shipped within 2 to 3 business days. Under normal circumstances, it will take up to 10 to 15 business days for the order to reach you, depending on your location and accessibility.
• Q: Is there a warranty on the TMG-ST2021CE?
  A: Yes, the TMG-ST2021CE is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
