• For Container Length: 40' / 12 metres
• Floor Footprint (m): 12 x 12 m
• Shelter Footage (sq m): 144

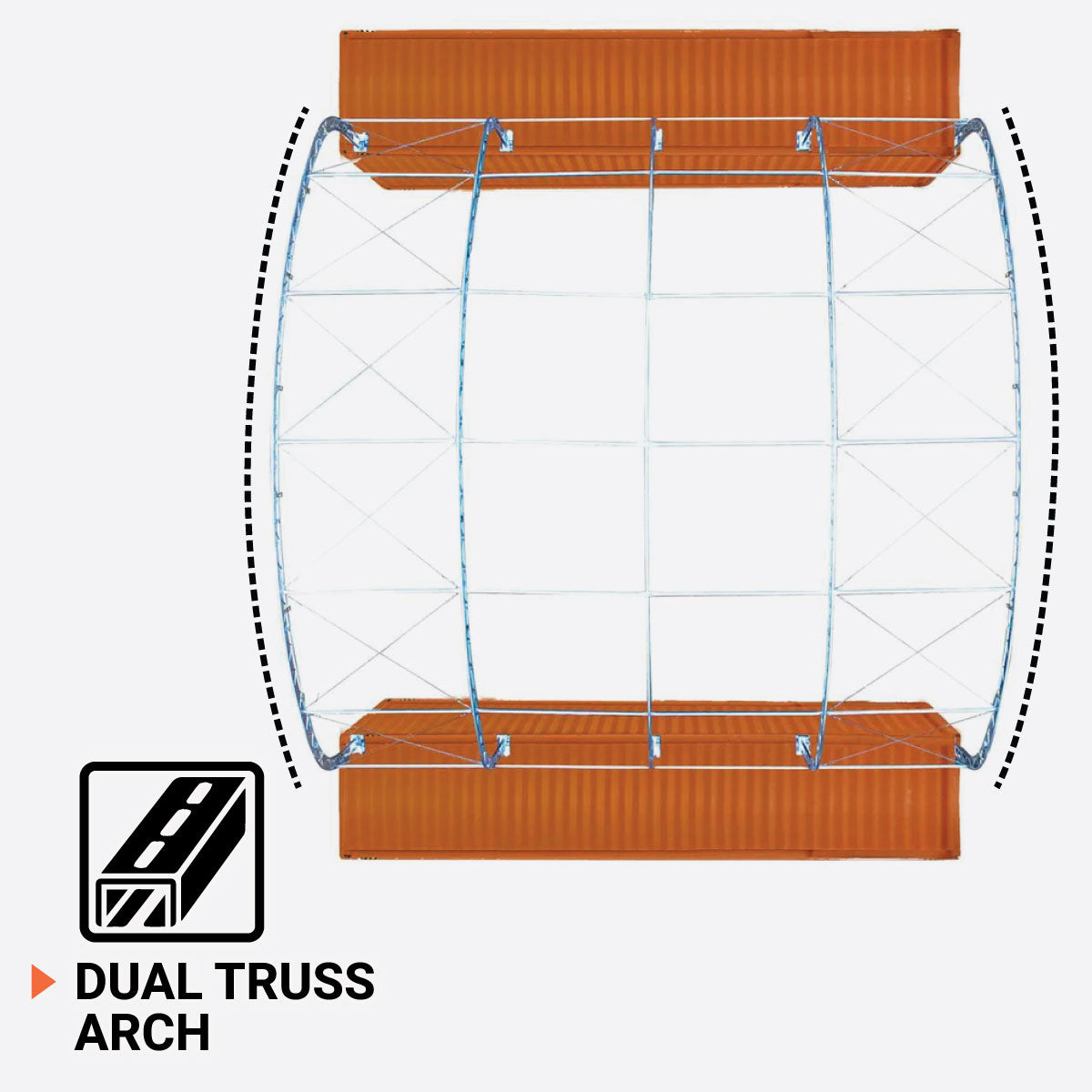

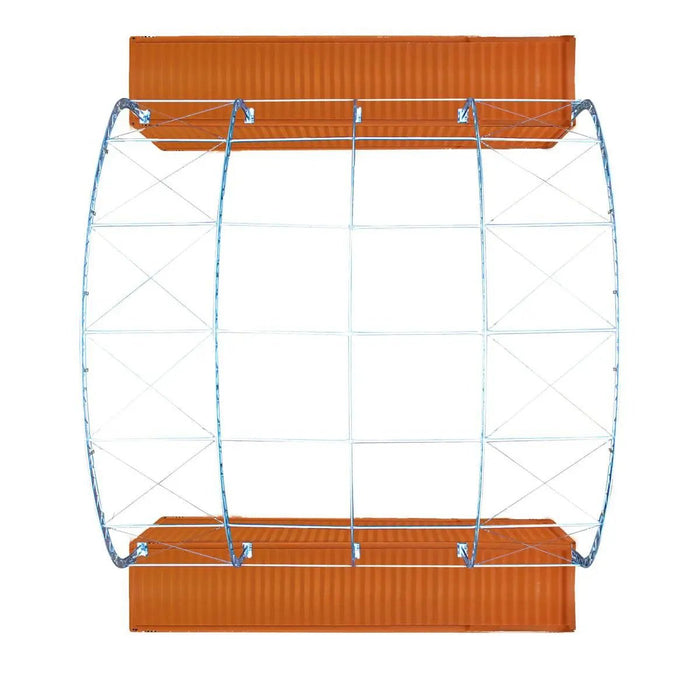

• Number of Truss Frames: 4

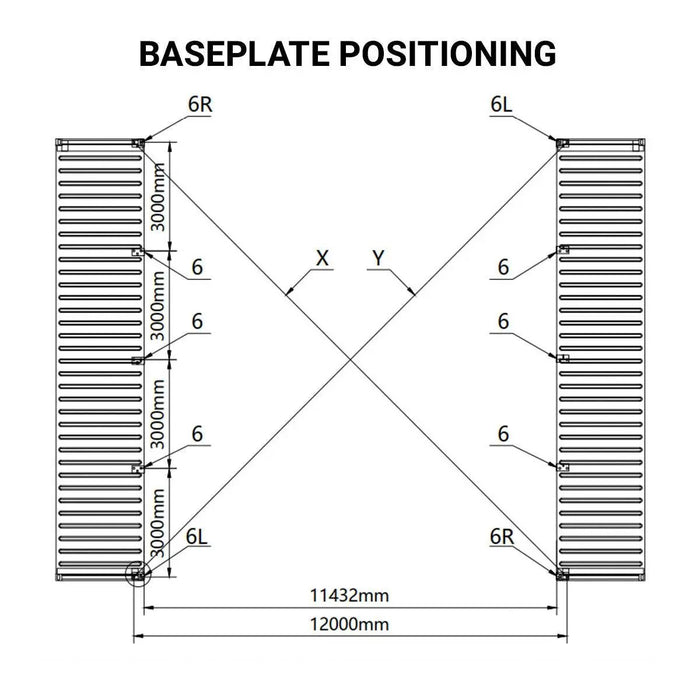

• Truss Spacing (m): 3 m
• Truss Tubes Diameter (mm): 58
• Truss Tubes Thickness (mm): 1.7
• Purlin Tubes Diameter (mm): 58
• Purlin Tubes Thickness (mm): 1.7
• Structure Tube Treatment: 3-layer galvanized
• Ceiling Peak Height from Container Top (m): 4.5
• Ceiling Peak Height from Ground (Standard Containers) (m): 6.9
• Ceiling Peak Height from Ground (HC Containers) (m): 7.4
• Sidewall Rise Above Container Top (m): 1.05
• Cover Material: 710 gsm Ripstop PVC
• Cover Colour: White

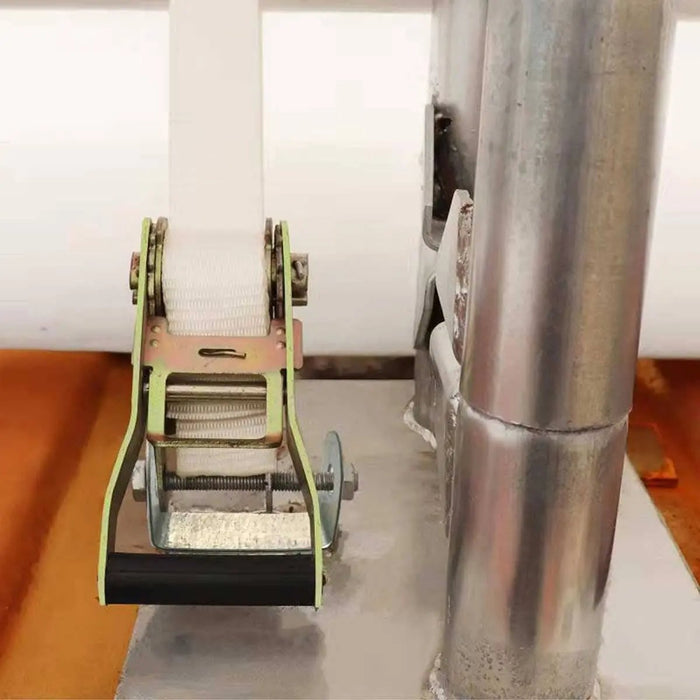

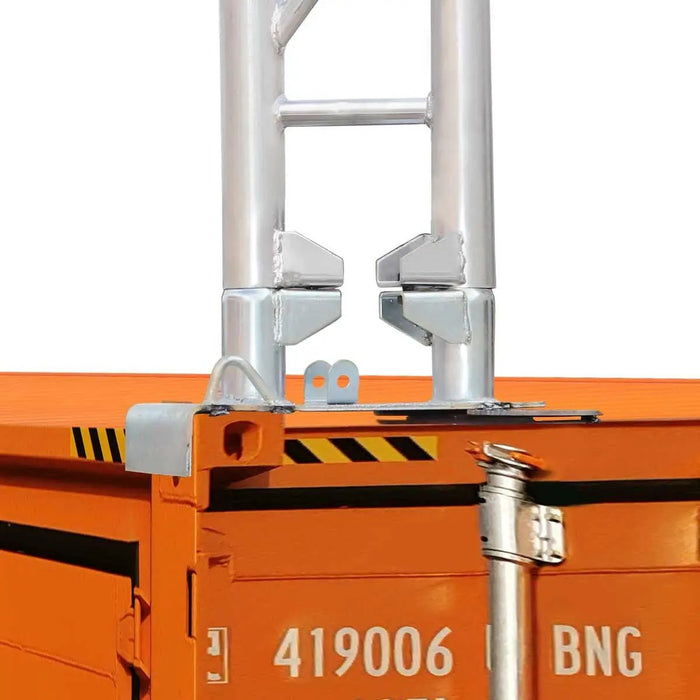

• Footplate Welding Required: Yes
• Shipping Dimensions (cm): 310 x 115 x 115 cm
• Shipping Weight (kg): 1090 kg
• Package Type: Metal crate

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

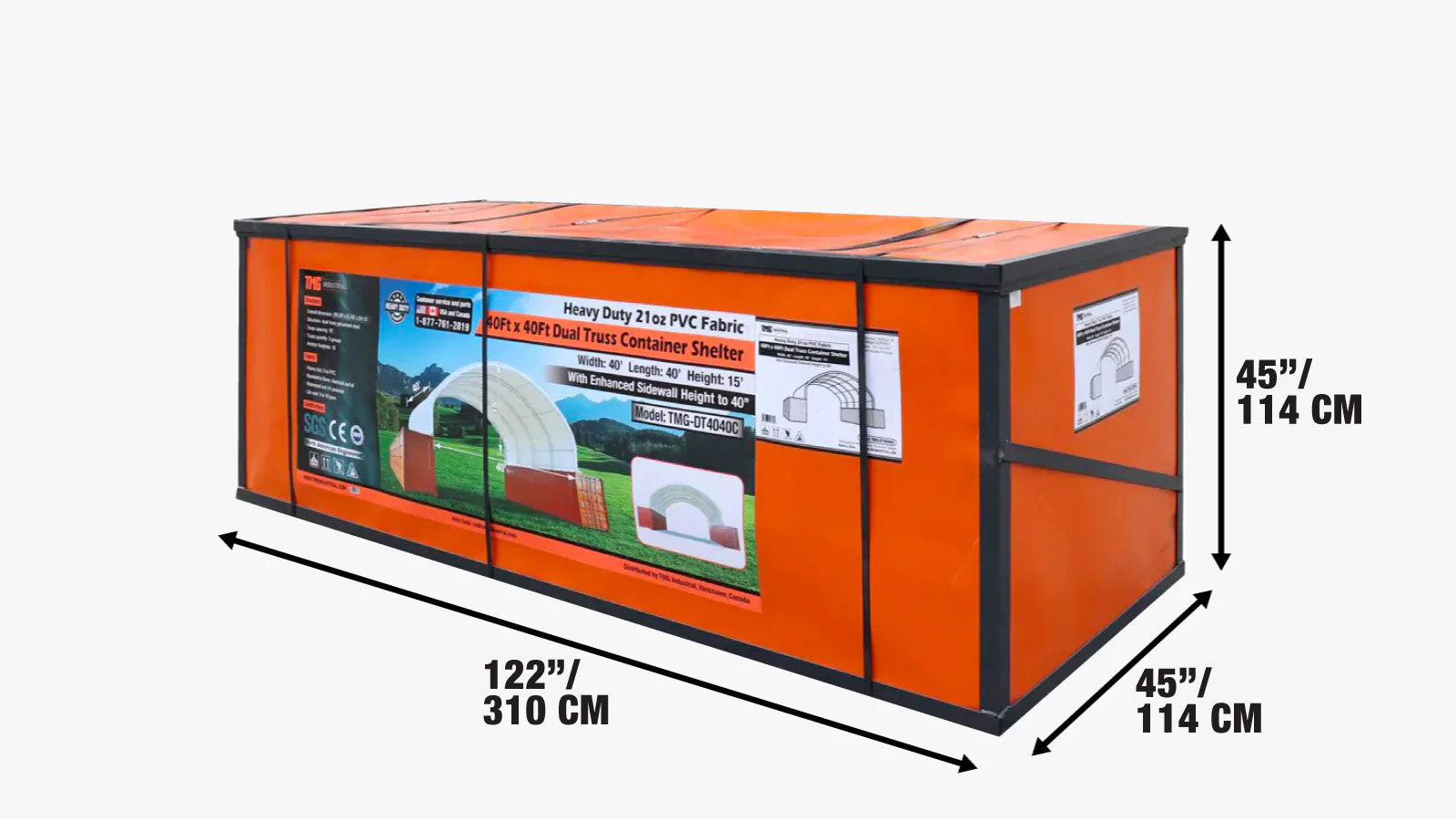

• This product is packed in a metal crate shipping box
• Shipping Dimensions: 310 cm x 114 cm x 114 cm (L x W x H)
• Shipping Weight: 1170 kg
• Note: A forklift is required for unloading

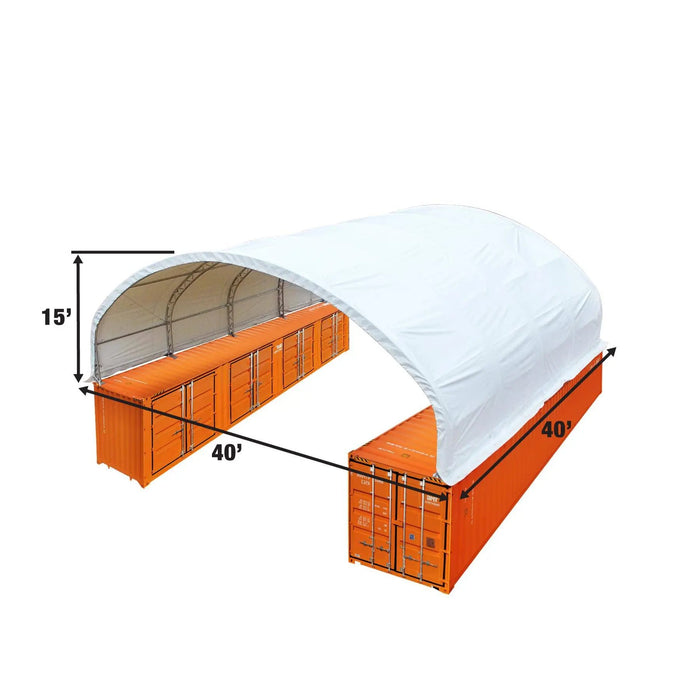

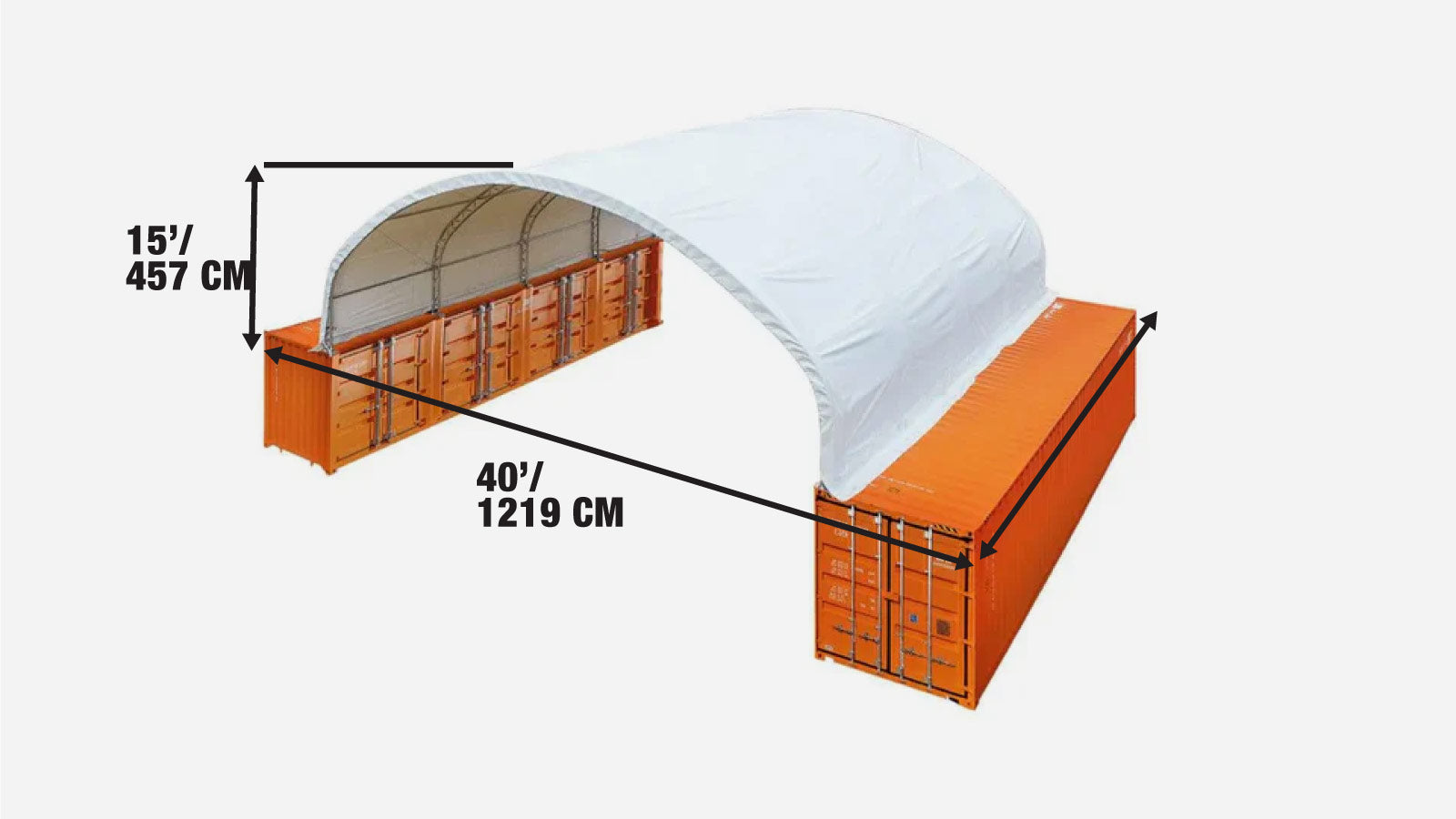

Q: What are the dimensions of the TMG-DT4041C shelter?

The exact floor footprint of the shelter is 12.19 metres (40 feet) wide by 12.50 metres (41 feet) long. This provides an approximate covered area of 152.4 square metres (1640 sq ft).

Q: What is the maximum height of the shelter?

When installed on standard high cube (HC) shipping containers (approx. 2.9 metres or 9'6" tall), the peak ceiling height from the ground is approximately 7.62 metres (25 feet). The peak ceiling height from the top of the container is 4.88 metres (16 feet).

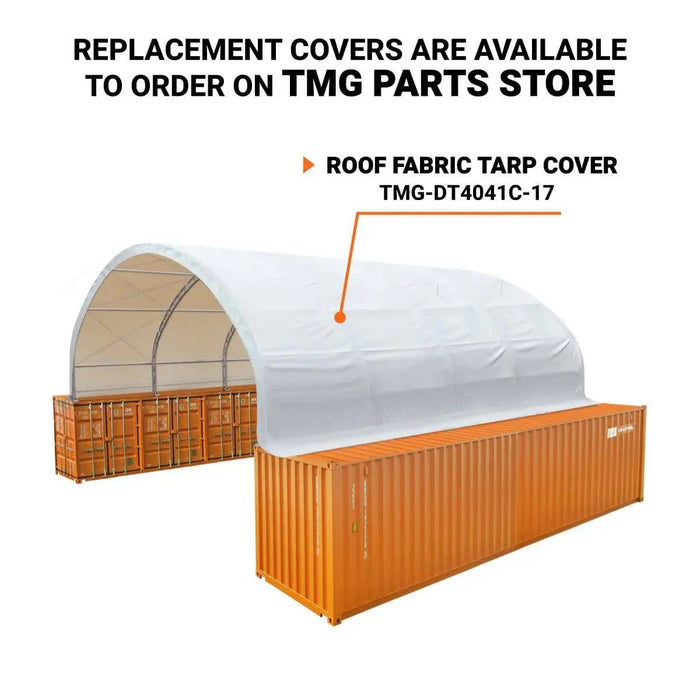

Q: What type of fabric is used for the cover?

The TMG-DT4041C features a heavy-duty 17 oz (ounce per square yard) / 710 gsm triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover. This fabric is designed to be fire retardant, resistant to chemicals and oil, UV protected, and waterproof. It stands strong against tearing, leaking, and chemical corrosion.

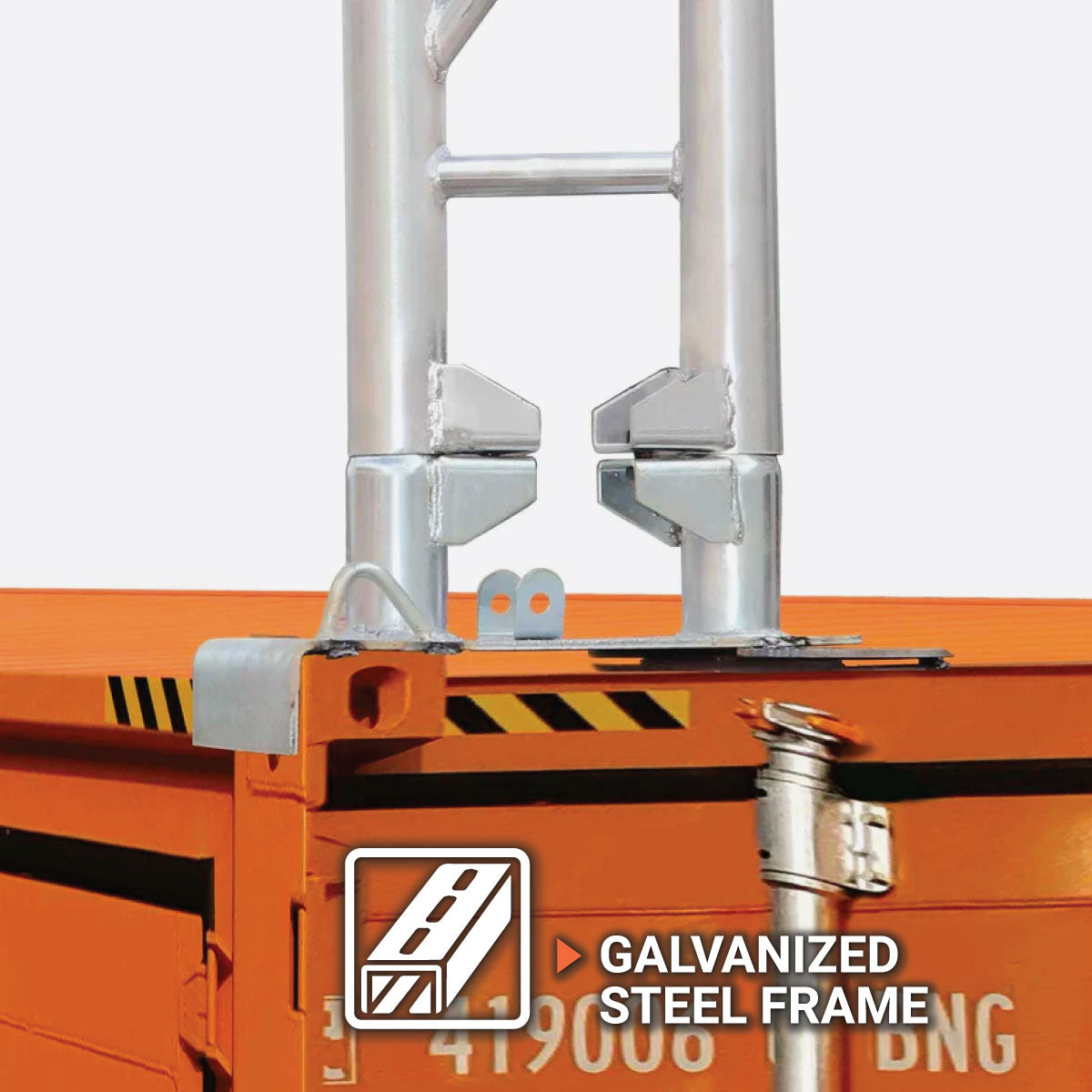

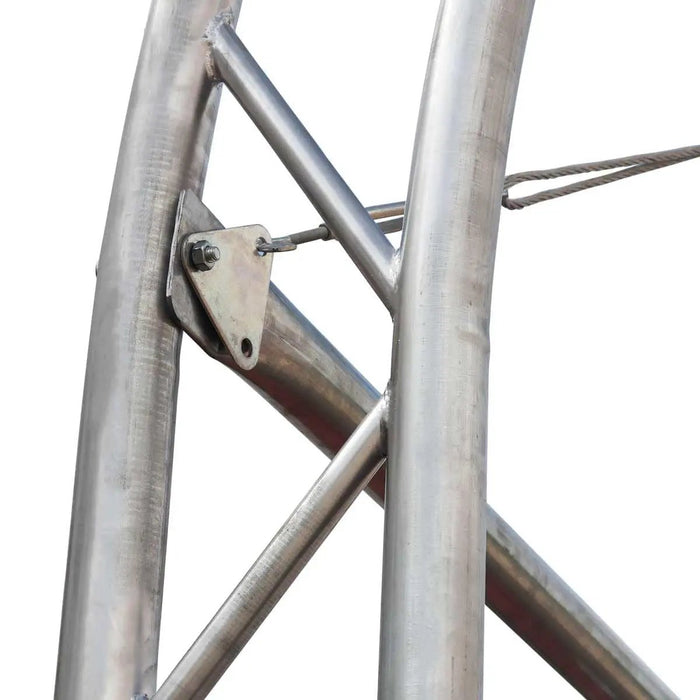

Q: What is the frame made of?

The frame is constructed from commercial-grade, 3-layer galvanized steel tubing for long-lasting durability, rigidity, and resistance to rust, wear, and corrosion.

Q: What are the dimensions of the frame tubes?

The truss tubes are approximately 6.03 cm (2.375 inches) in diameter with a 15 gauge (approx. 1.8 mm wall thickness). The purlin tubes are approximately 5.08 cm (2.0 inches) in diameter with a 15 gauge (approx. 1.8 mm wall thickness).

Q: What is the truss spacing on this shelter?

The shelter is designed with 3.0 metre (10 feet) truss spacing.

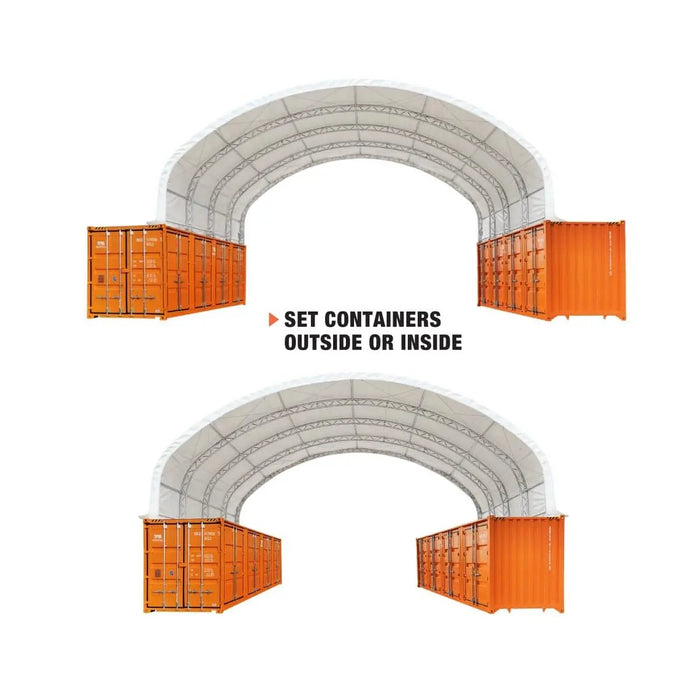

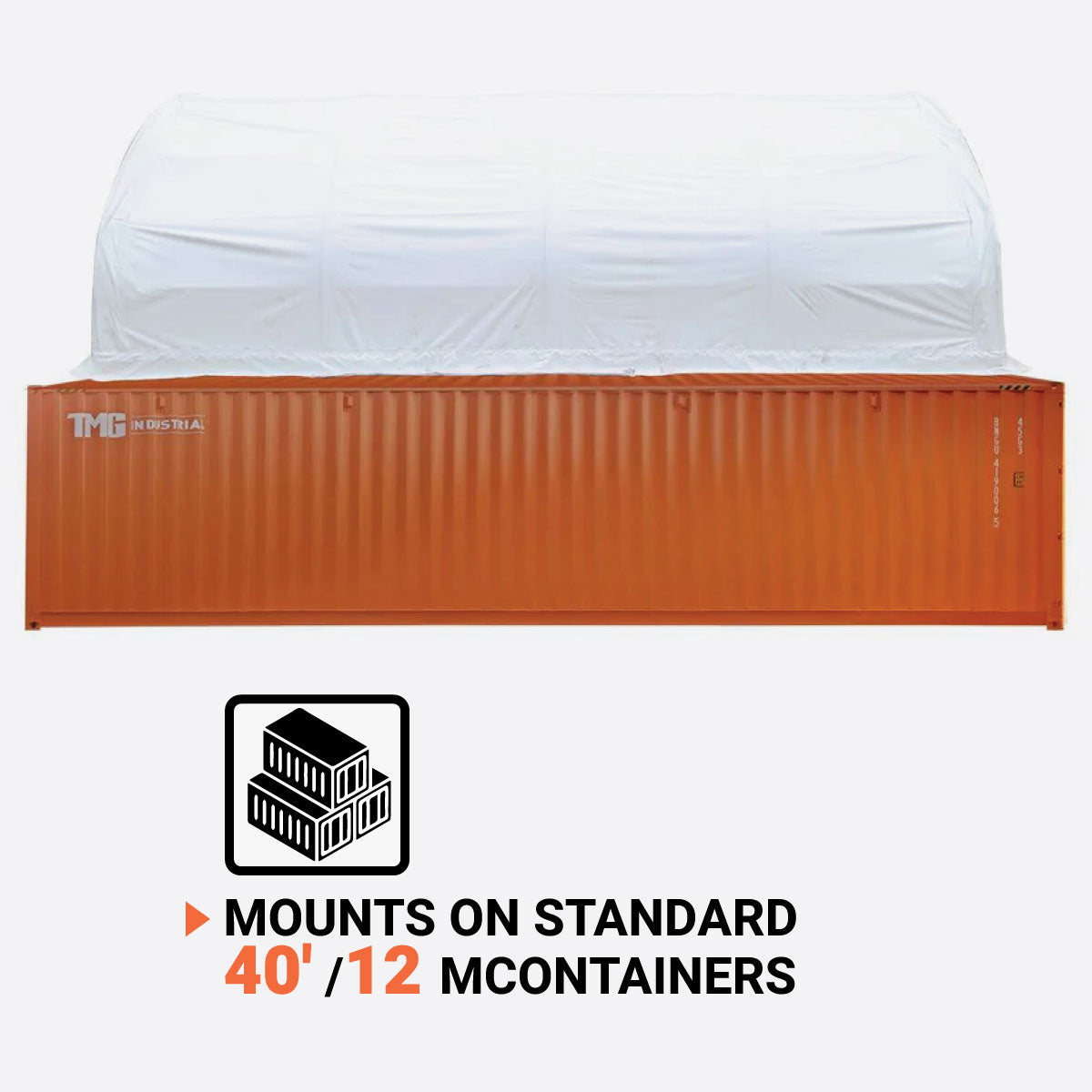

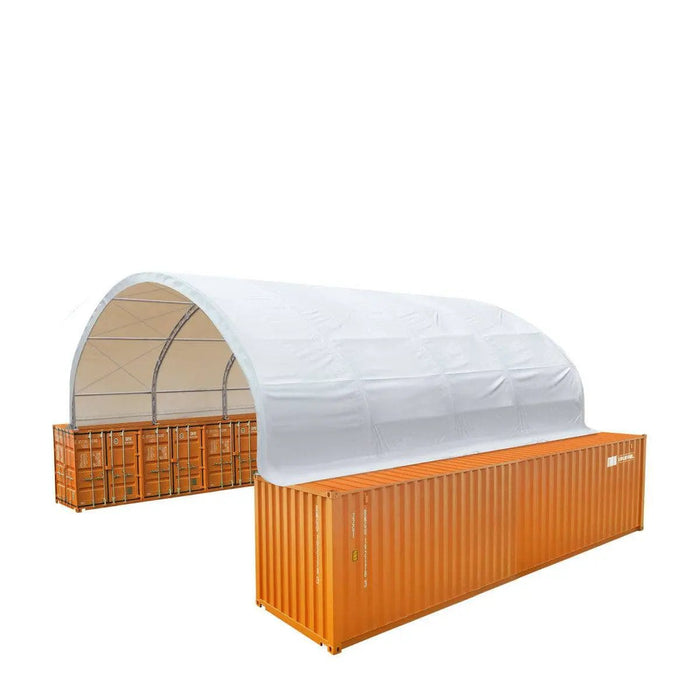

Q: Do I need shipping containers to install this shelter?

Yes, this shelter is specifically designed to be installed on standard shipping containers. Containers are not included with the purchase of the shelter.

Q: Are the ends of the shelter enclosed?

The TMG-DT4041C comes with an open entry/exit space on both ends, approximately 12.19 metres (40 feet) wide. Optional front and back end wall kits (such as TMG-DT40FW8V/9V and TMG-DT40BW8V/9V) are available separately to fully enclose the shelter if desired.

Q: What are the shipping dimensions and weight of the TMG-DT4041C?

The product is packed in a metal crate shipping box. The approximate shipping dimensions are 375.92 cm (148 inches) long × 114.3 cm (45 inches) wide × 68.58 cm (27 inches) high, with a total shipping weight of approximately 1088.6 kg (2400 lb).

Q: How long does delivery typically take to Australia?

Orders are generally processed and shipped within 2 to 3 business days. Under normal circumstances, it will take up to 10 to 15 business days for the order to reach you, depending on your location and accessibility. Please note that a forklift or equivalent will be required to receive the order, as it is too large for tailgate delivery.

Q: Is there a warranty on the TMG-DT4041C?

Yes, the TMG-DT4041C is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
