TMG-RT175

1750 mm (70") Rotary Tiller, 35- 55 HP Tractor, 3-Point Hitch, Category 1 & 2 TMG-RT175

Product Manual
TMG Industrial 70” 3-Point Hitch Rotary Tiller, 35-55 HP Tractor, 6” Tilling Depth, PTO Shaft Included, Category 1 & 2 Hookup, TMG-RT175
CURRENTLY IN STOCK
TMG-RT175
$3,299.00
$3,299.00 - $3,299.00
$3,299.00
$2,899.00
$2,899.00 - $2,899.00
$2,899.00
$3,299.00 Save $400.00
$2,899.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 1 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

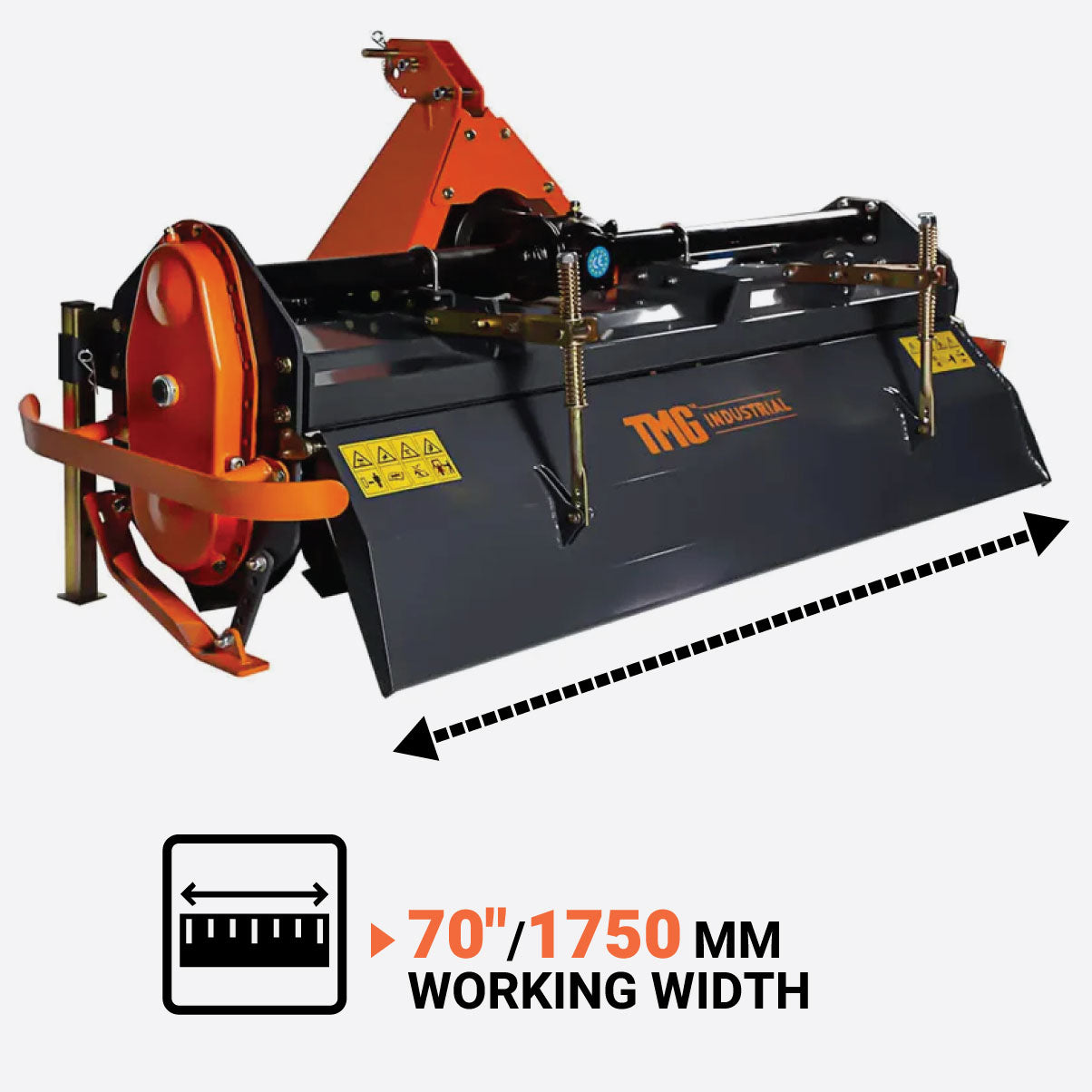

1750 mm (70") working width ideal for the reworking and preparation
Feature Image

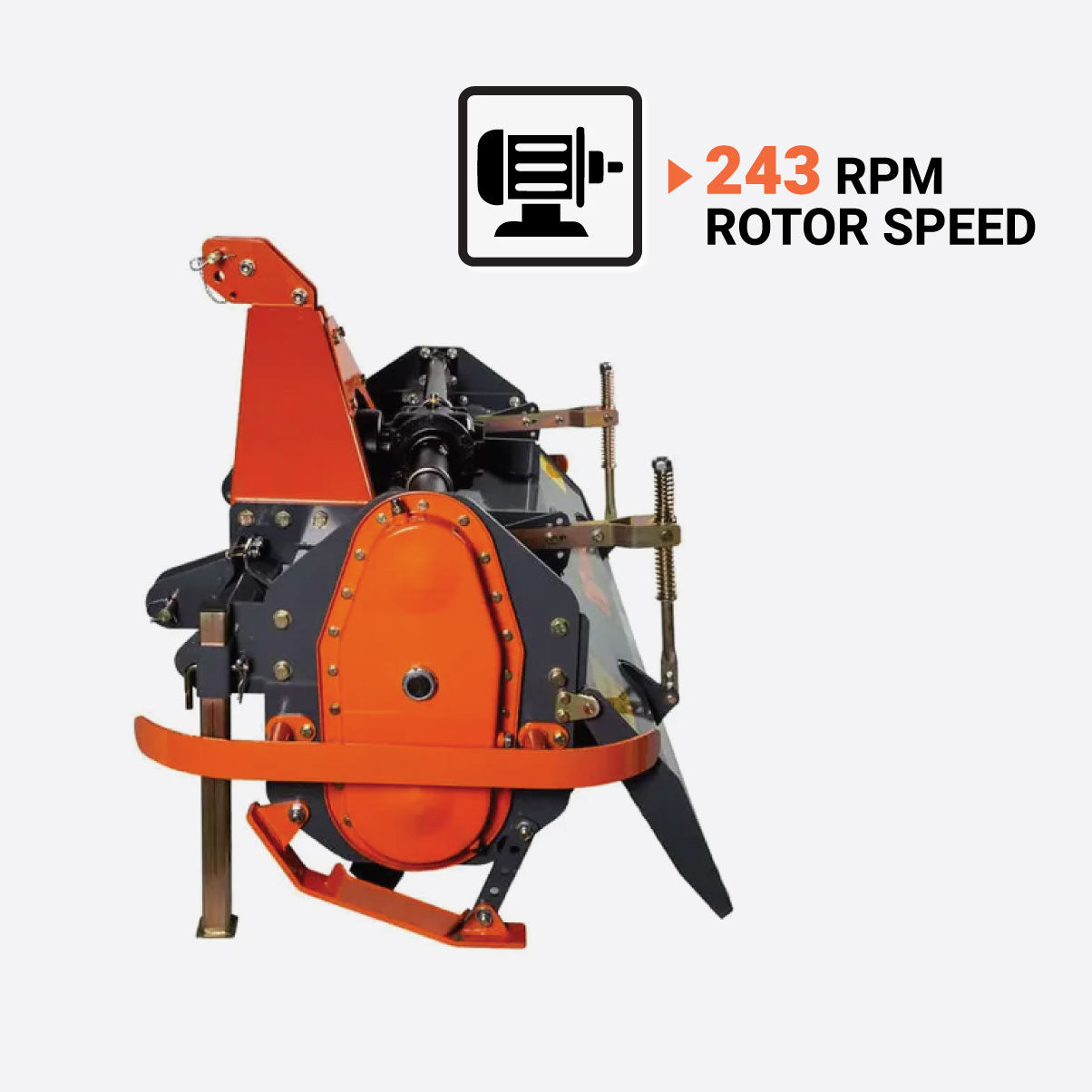

243 RPM rotor speed balances force and efficiency 
Feature Image

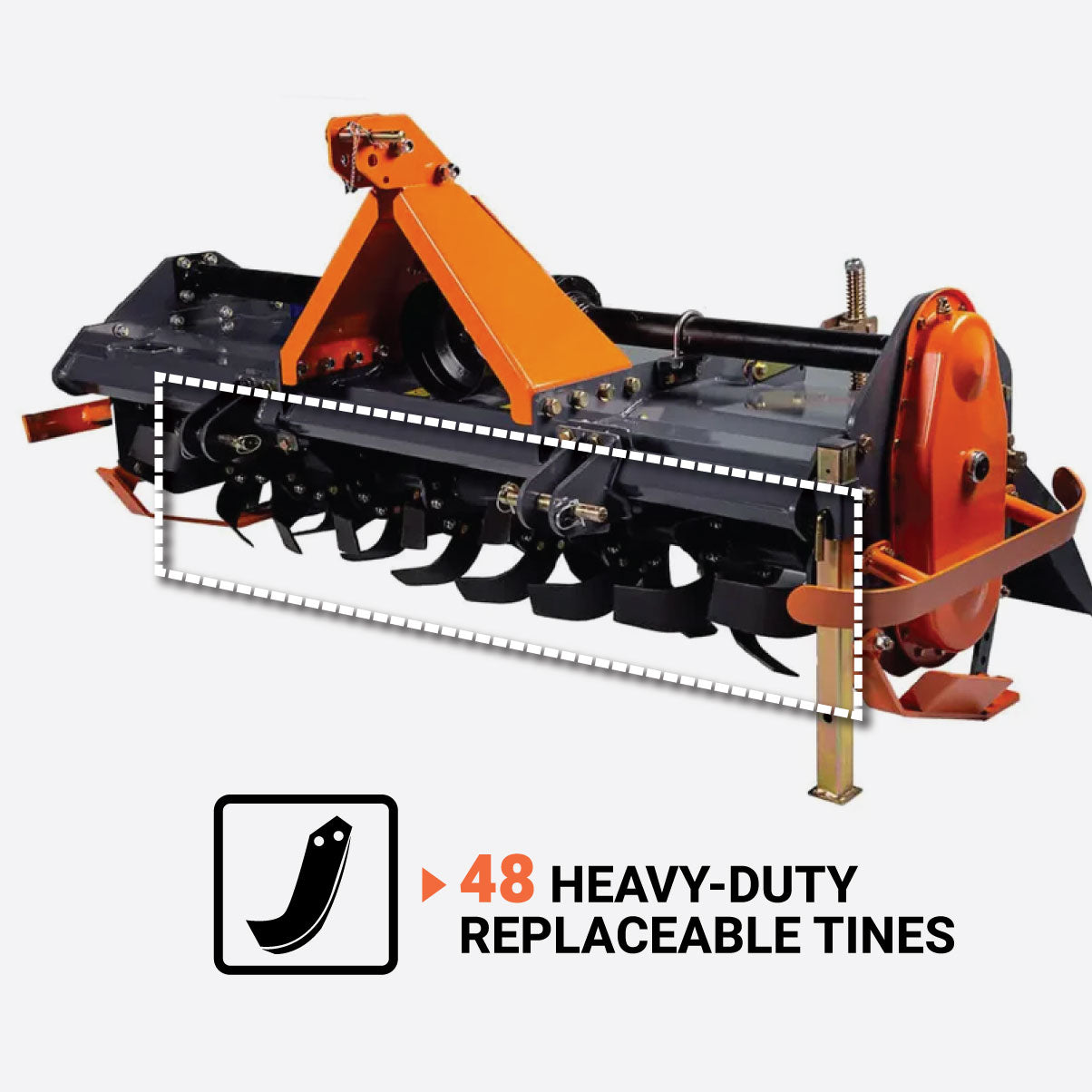

48 heavy-duty replaceable tines ensure powerful digging into the ground
Feature Image

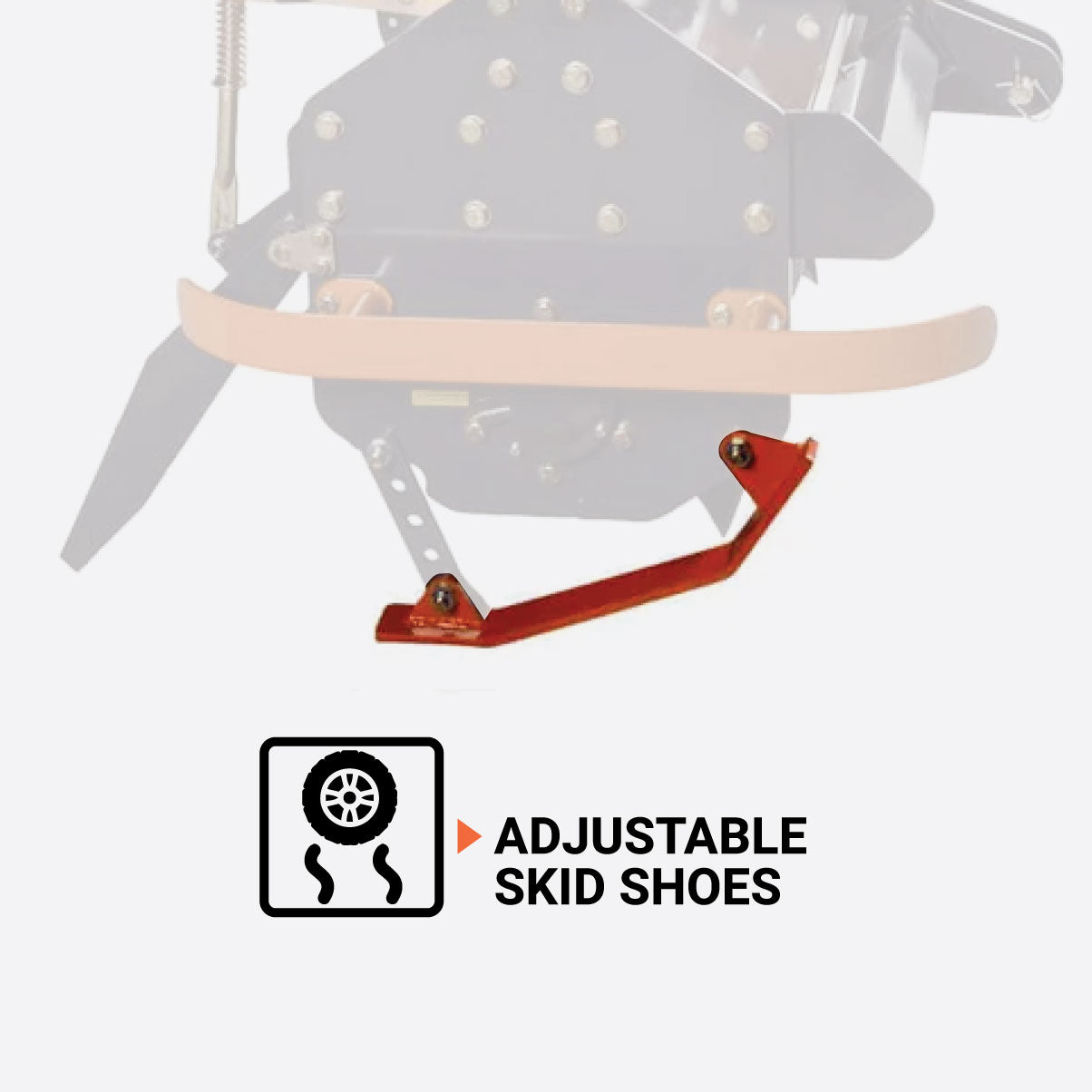

Adjustable skid shoes and rear deflector for tilling depth and finish control  
Feature Image

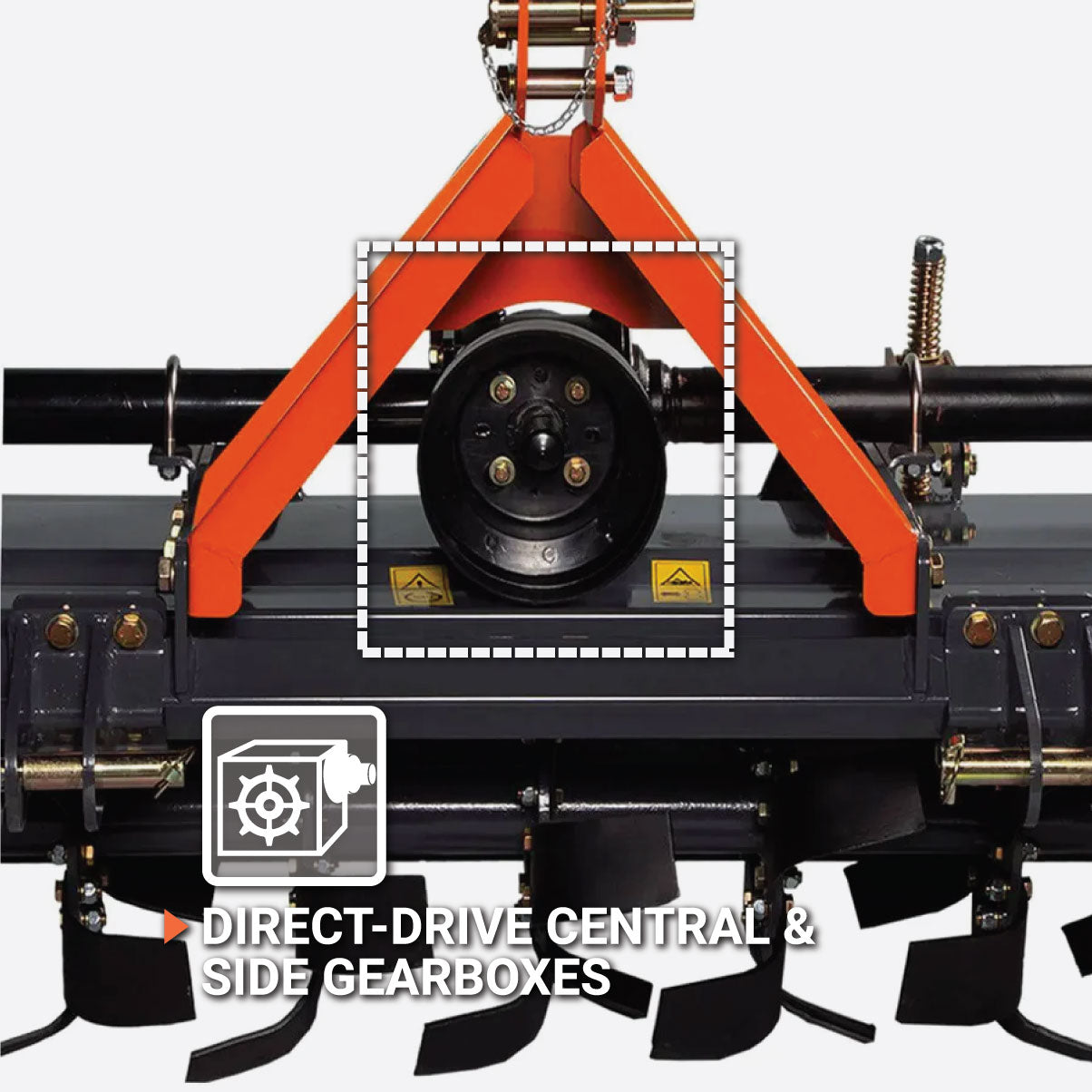

Direct drive central and side gearboxes for reliable power transmission 
Feature Image

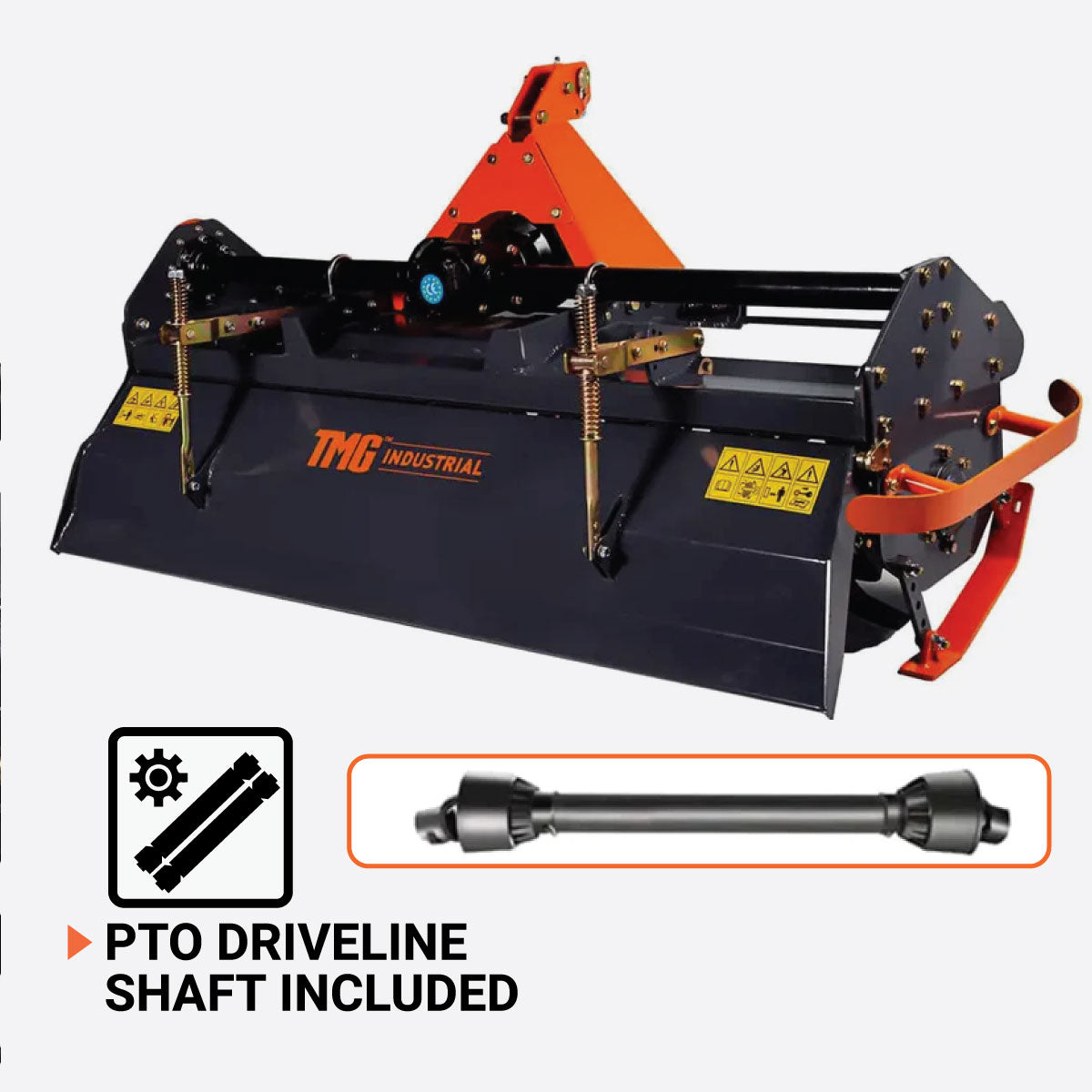

PTO driveline shaft included for 3-point Category 1 & 2 hookups  

Specifications icon Specifications

  • Overall width: 2060 mm
  • Working width: 1750 mm
  • Tractor power required: 40 - 50 HP

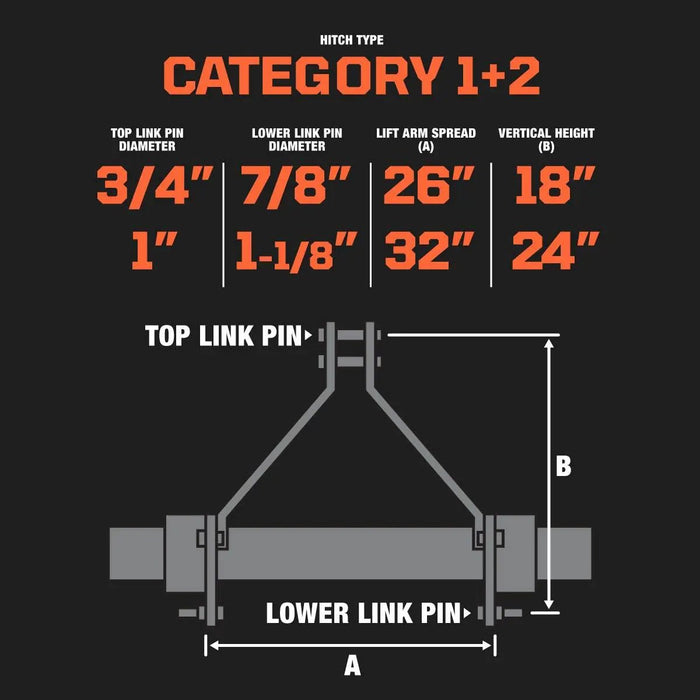

  • 3-point hitch: Category 1 & 2
  • PTO shaft included: Yes
  • Overrun protection: Shear pin
  • PTO shaft speed: 540 RPM

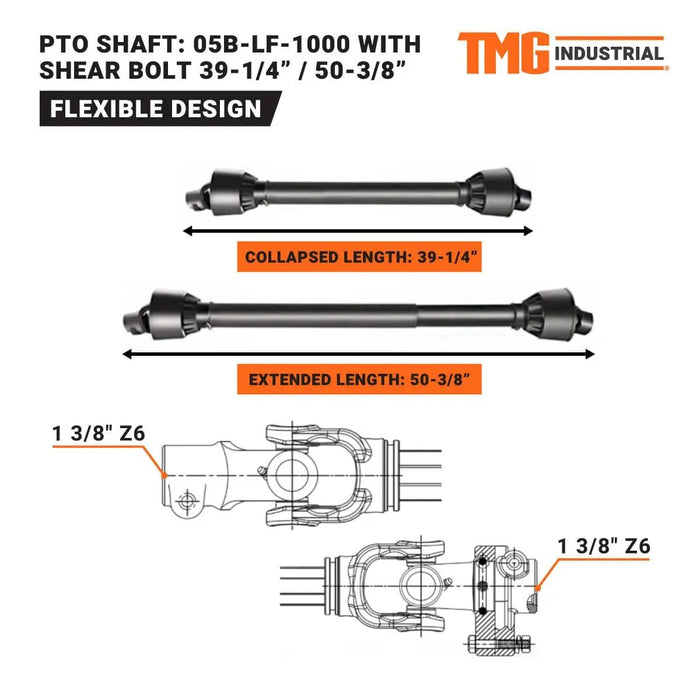

  • PTO shaft model: TMG-05B-LF-1000
  • PTO shaft length: 1000 mm
  • Tilling depth: 100 - 150 mm
  • Rotary shaft speed: 243 RPM
  • Rotor swing diameter: 466 mm
  • Number of flanges: 8
  • Total tilling blades: 48
  • Blade material: 60Si2Mn
  • Gearbox oil type: SAE 90 oil
  • Drive gear ratio: 1.47:1
  • Drive type: Gear drive
  • Thickness of deck: 4 mm
  • Thickness of side plate: 10 mm
  • Surface finish: Powder coating

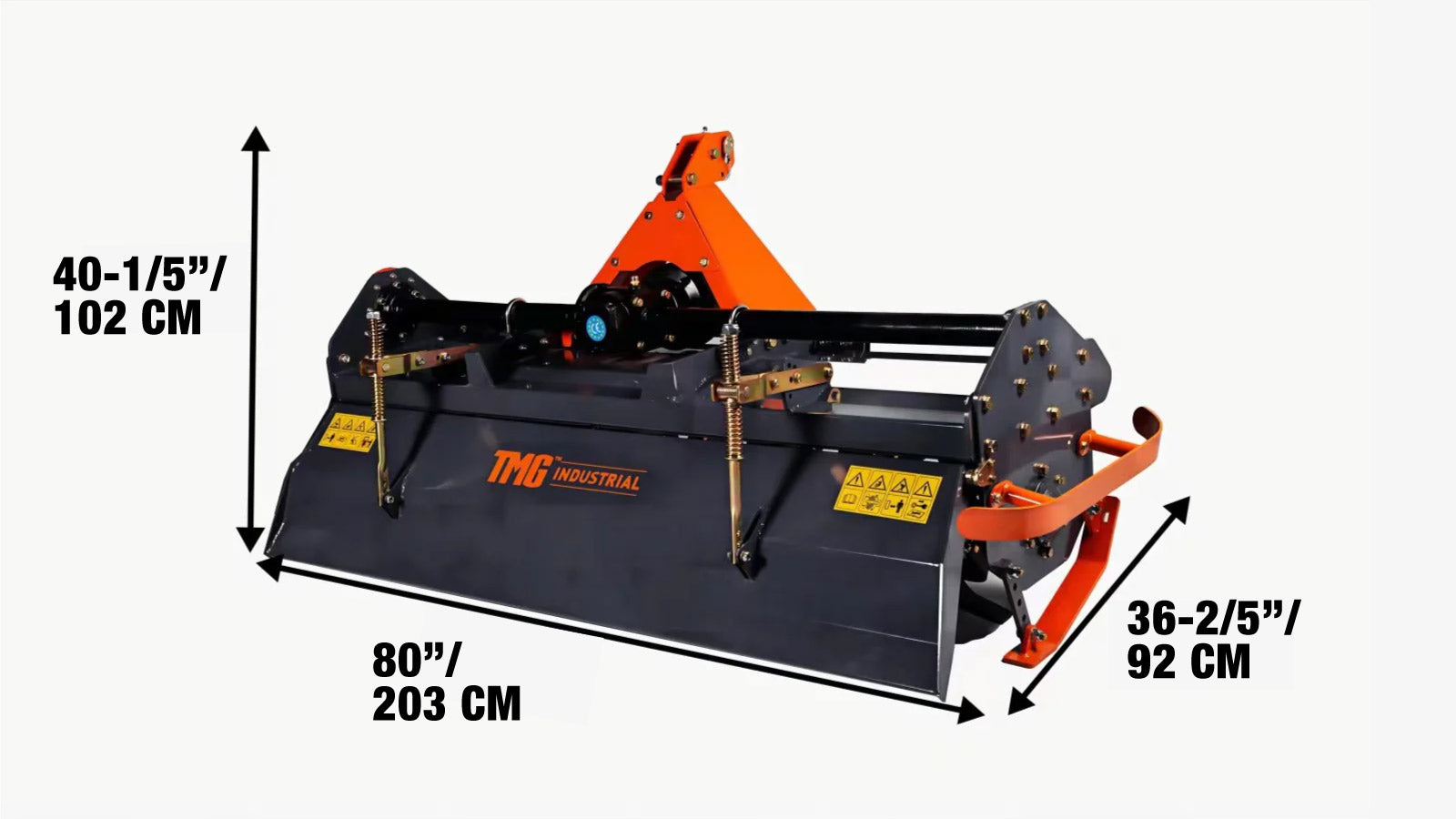

  • Overall dimension: 2060 x 925 x 1020 mm
  • Net weight: 395 kg
1750 mm (70

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

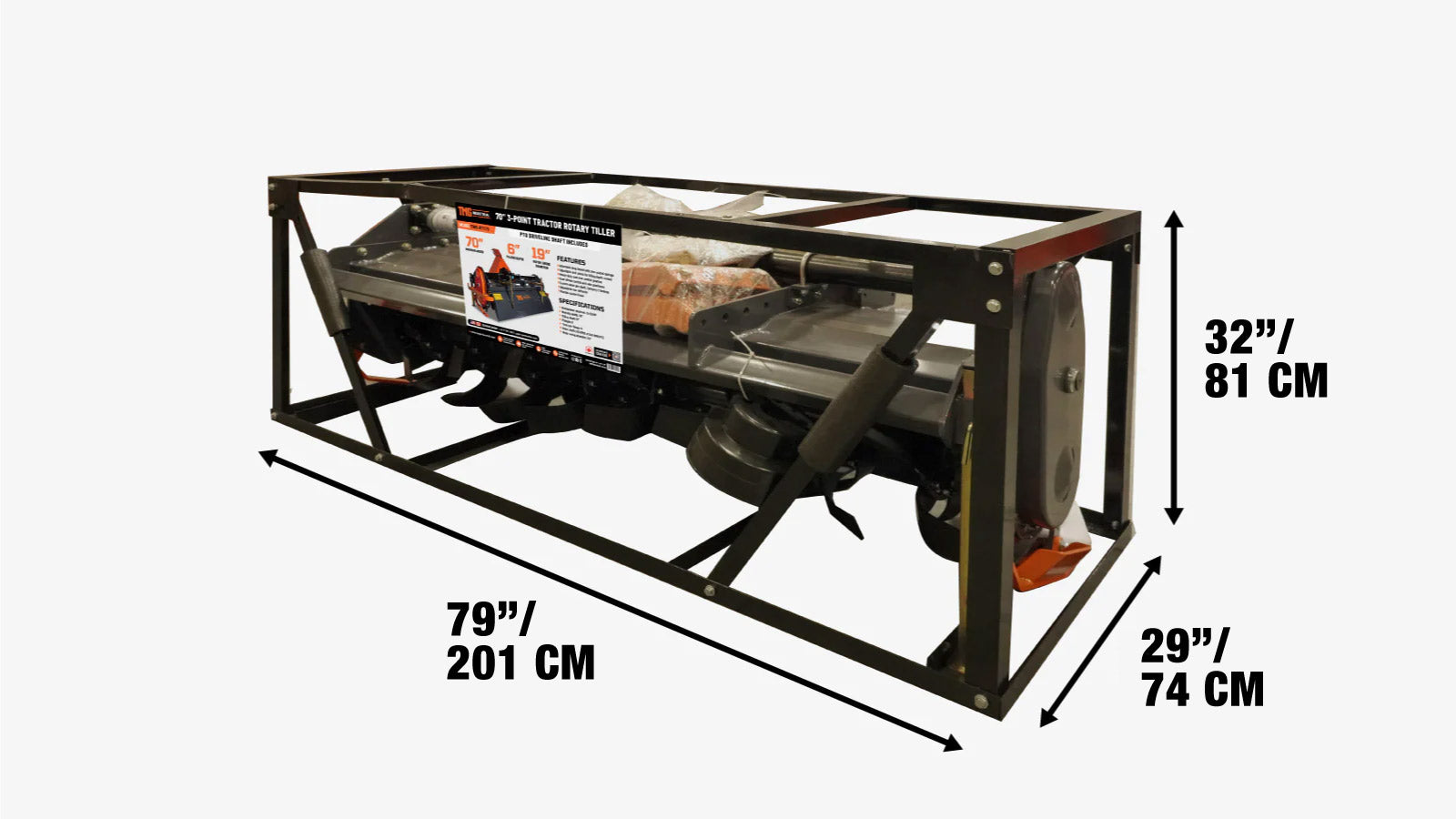

  • This product is packed in a metal crate shipping box.
  • Shipping dimension: 201 x 74 x 81 cm (W x L x H) 79" x 29" x 32"
  • Shipping weight: 429 kg (945 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1750 mm (70

Product Description icon Product Description

The TMG-RT175 3-Point Hitch Sub-Compact Rotary Tiller prepares your garden beds, nursery or hobby farm for seeding applications, landscaping and overall long-term land health and maintenance. Bring new life to your dirt by turning up old, tired grounds to reveal the fresh, nutrient rich soil available underneath. Comes with an included PTO shaft for Category 1 and 2 hookups and is compatible with most 35 - 55 HP sub-compact tractors.

48 replaceable heavy-duty tines powerfully dig into the ground at a low, forceful speed of 243 RPM. This ensures a thorough, efficient reworking of the land after just one pass and leaves a beautiful layer of organic material settled evenly on top. Critical process for proper aeration and eco-diversity amongst the different sediments and starts to improve growing potential immediately.

Adjustable skid shoes allow you to control the tilling depth from 100- 150 mm, and the 1750 mm width makes quick work of larger plots. Minor assembly required and easy to access gear boxes for simple maintenance over time. Enclosed side drive chain protects your power transmission and a powder coated finish ensures a dependable, long-lasting piece of equipment for you and your property.

TMG Industrial also carries other similar models: TMG-RT120, TMG-RT135.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What tractor HP range does this fit?
    A: Supports 35 - 55 HP tractors.
  • Q: How wide and how deep does it till?
    A: The working width is 1750 mm, and adjustable tilling depth is from 100 to 150 mm.
  • Q: How many tines?
    A: It has 48 tines (8 flanges with 6 tines each).
  • Q: What speed does the rotor run?
    A: Rotor operates at 243 RPM when using a 540 RPM PTO.
  • Q: What drivetrain and gearbox setup is used?
    A: Direct drive central and side gearboxes transmit power.
  • Q: Is a PTO shaft included?
    A: Yes — includes PTO driveline shaft and supports Category 1 and 2 hookups.
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
