TMG-PD700S

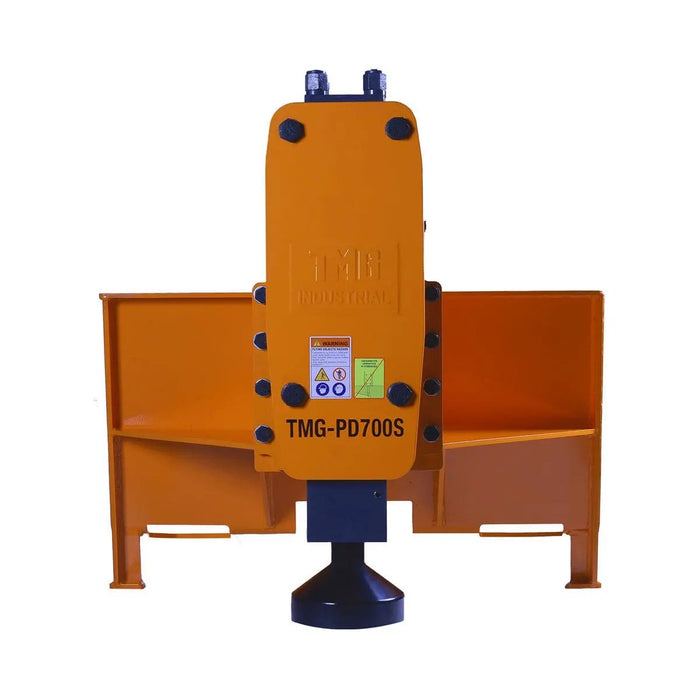

Skid Steer Post Pounder, Universal Mount, 838 Joules Energy, TMG-PD700S

Product Manual
TMG Industrial Skid Steer Post Pounder, 8” Post Diameter, 700 Ft-lb Energy Class, 500-900 BPM Pounding Rate, TMG-PD700S
CURRENTLY IN STOCK
TMG-PD700S
$4,799.00
$4,799.00 - $4,799.00
$4,799.00
$4,199.00
$4,199.00 - $4,199.00
$4,199.00
$4,799.00 Save $600.00
$4,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

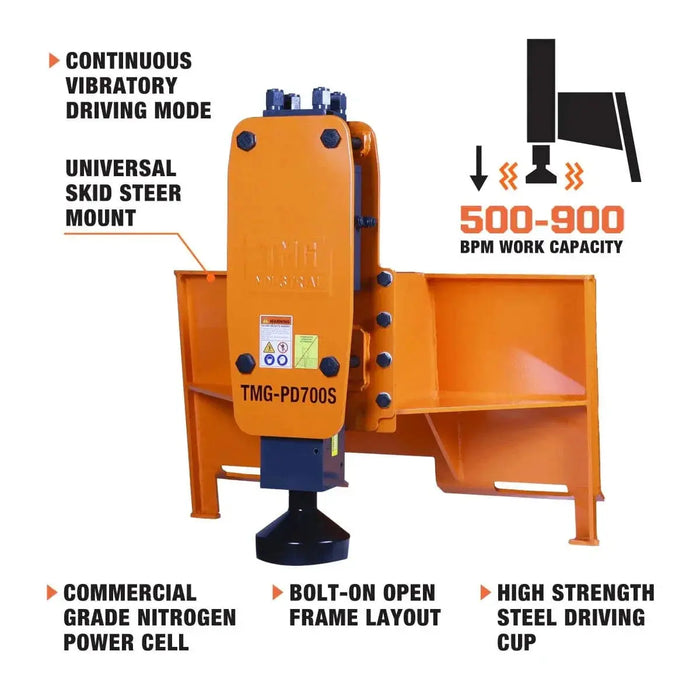

Features icon Features

Feature Image

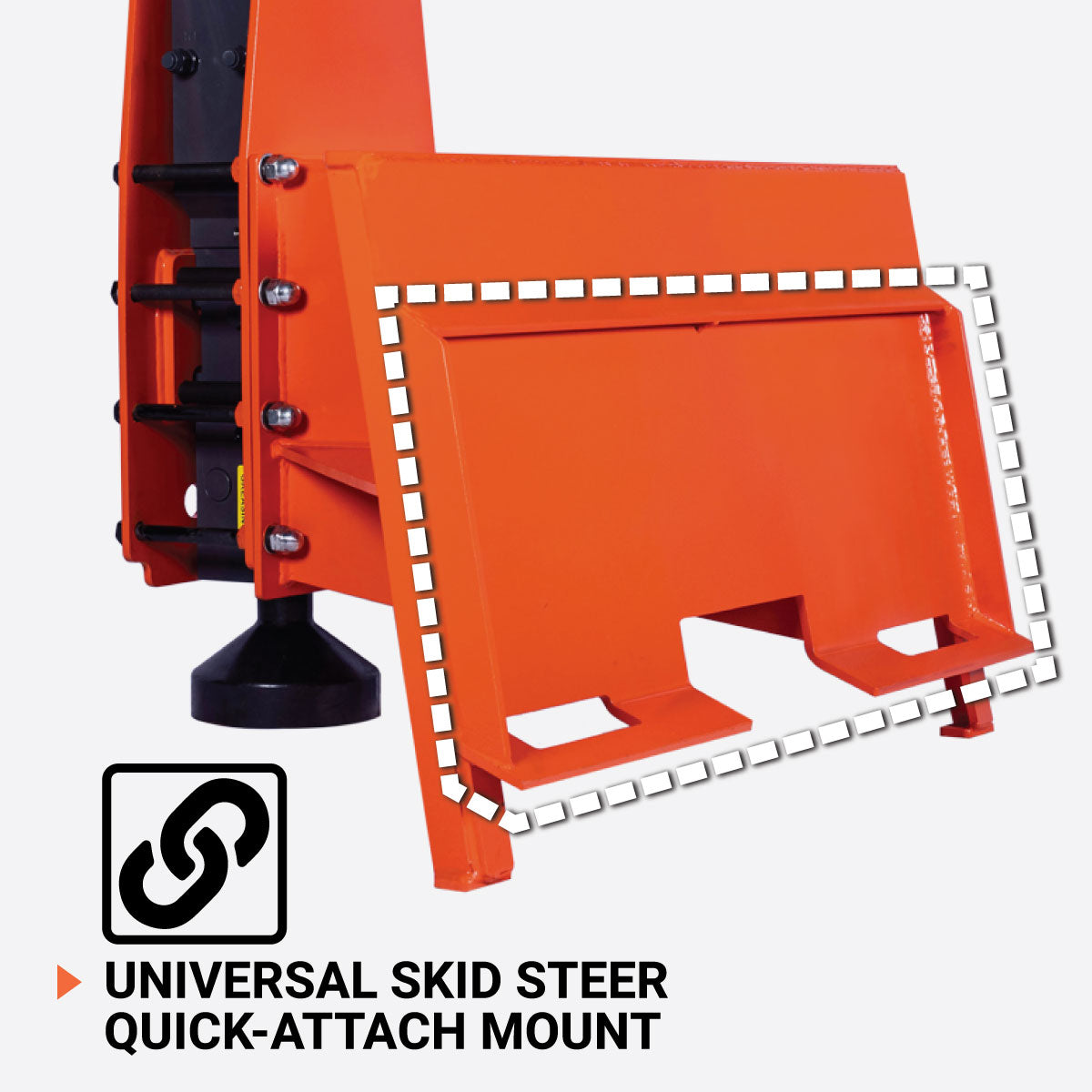

Universal skid steer quick-attach mount for seamless integration
Feature Image

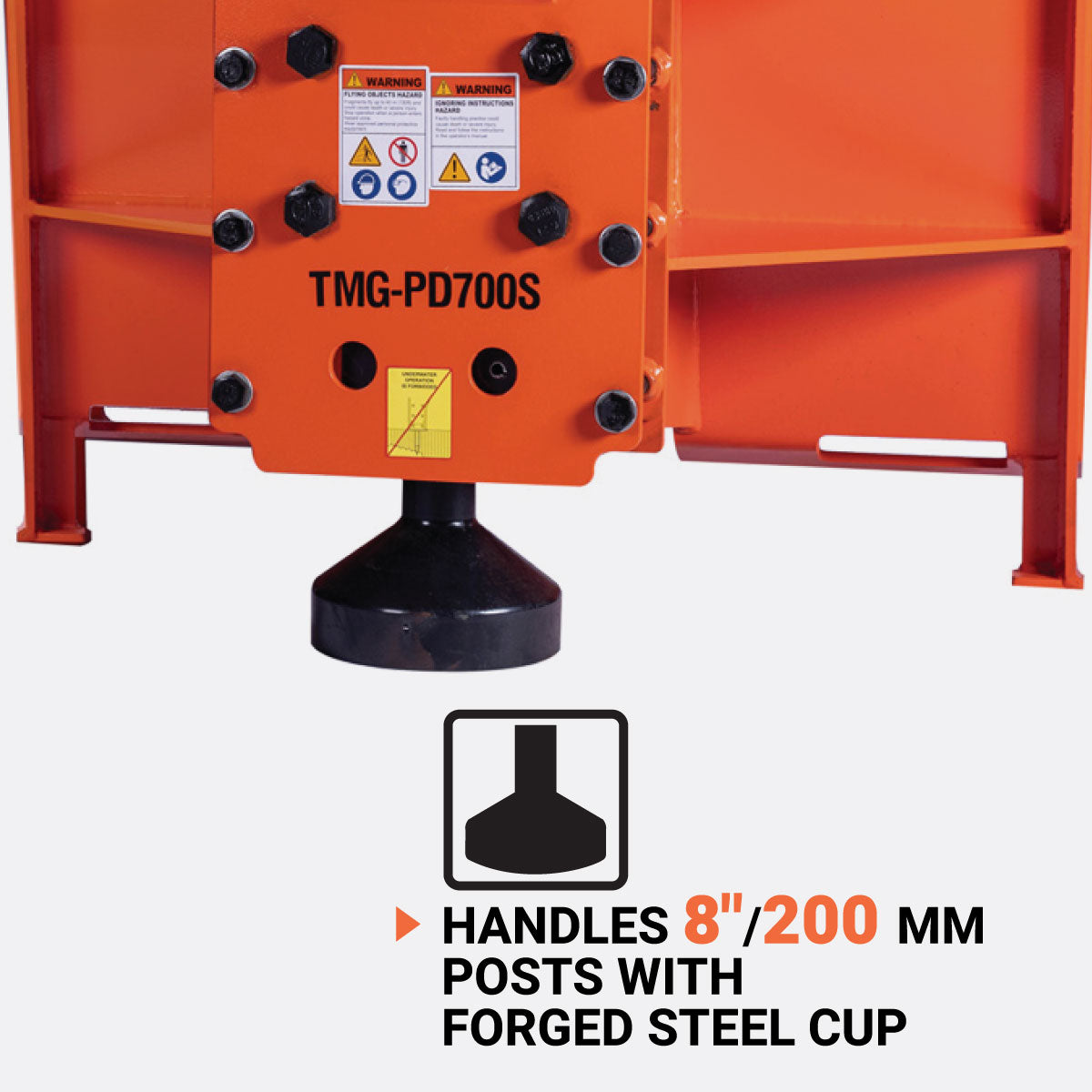

Handles posts up to 200 mm in diameter with a forged steel driving cup
Feature Image

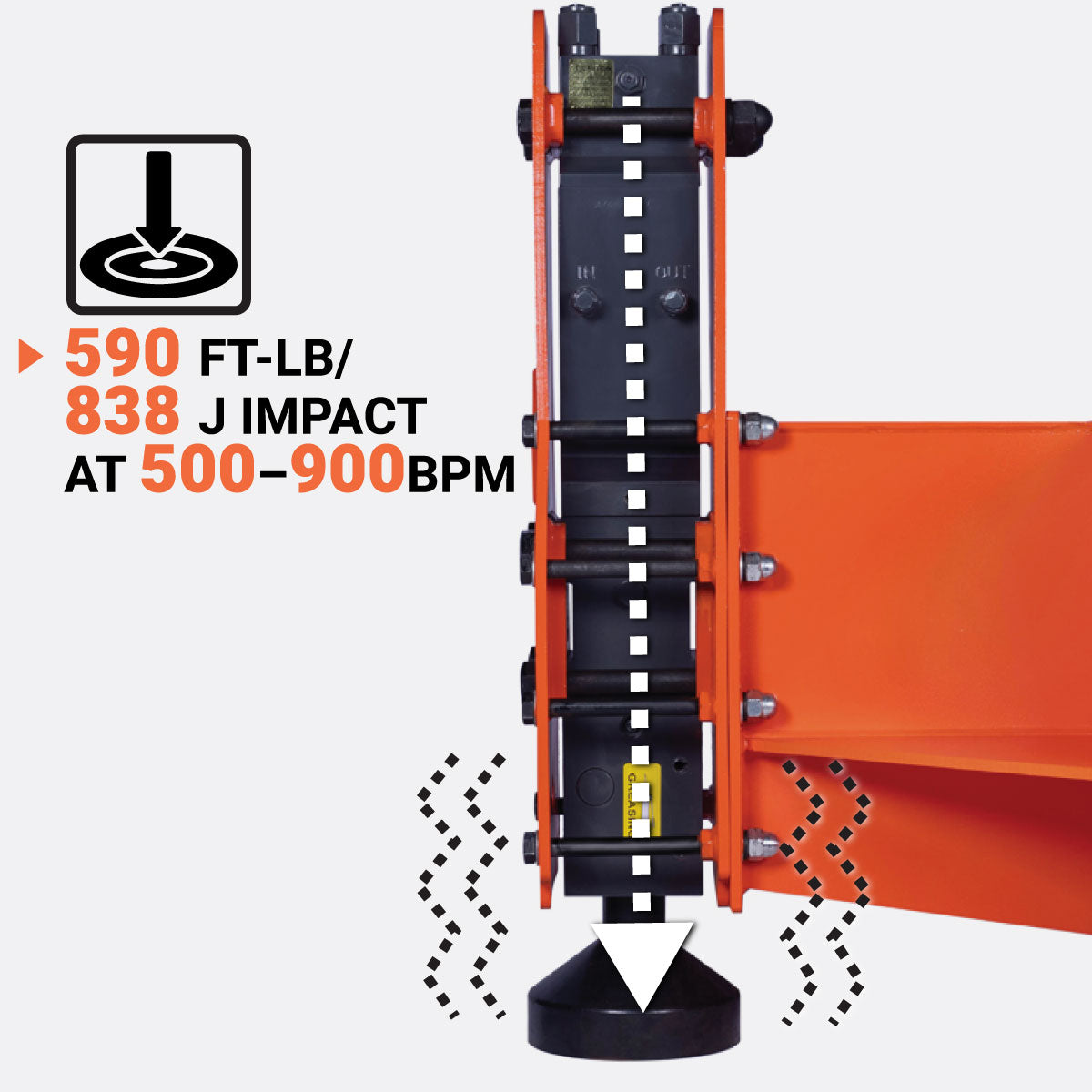

Delivers 838 J impact energy at 500–900 BPM pounding rate
Feature Image

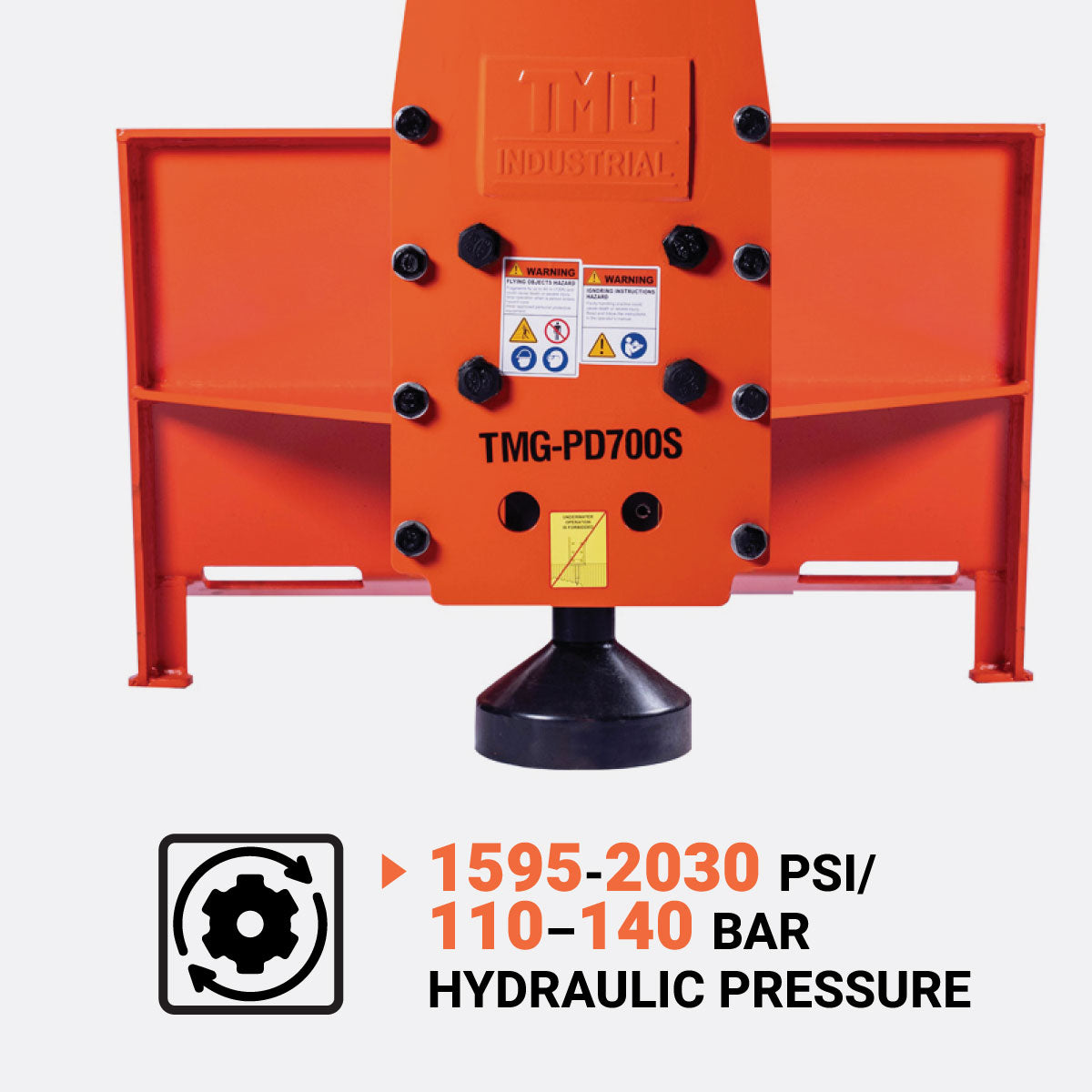

Operates at 110–140 bar hydraulic pressure with 36–60 L/min flow rate
Feature Image

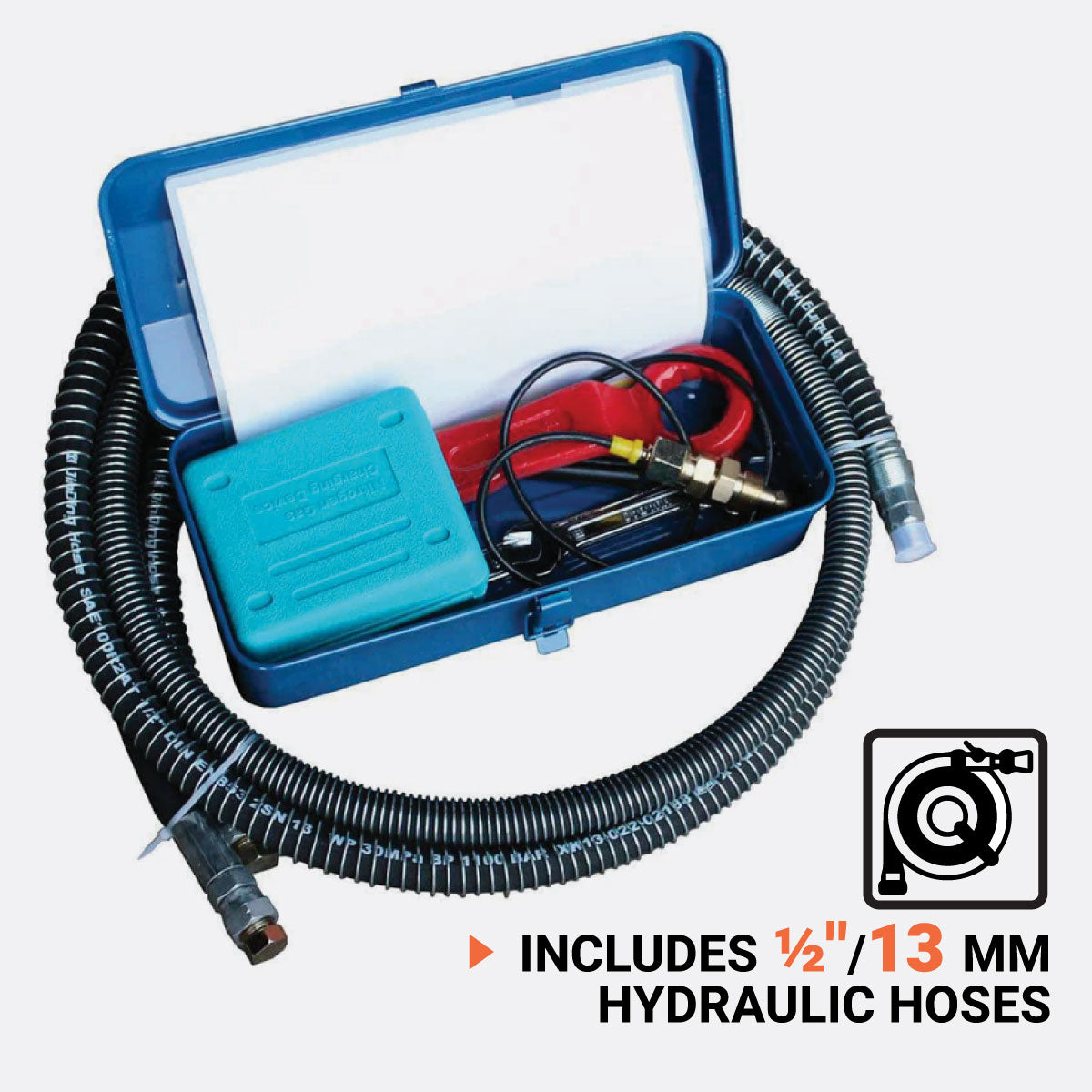

Includes ½" hydraulic hoses with flat face couplers and nitrogen charge kit
Feature Image

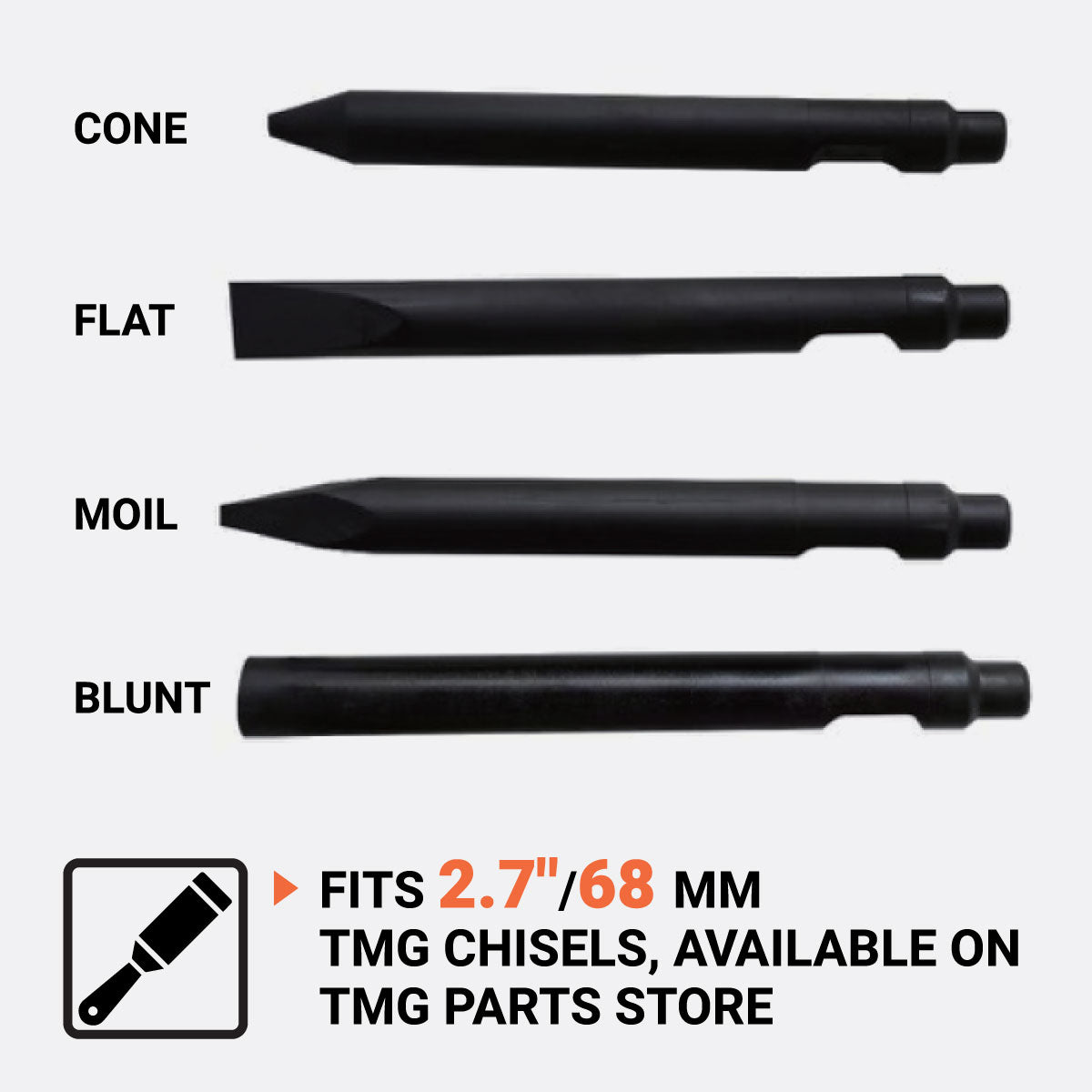

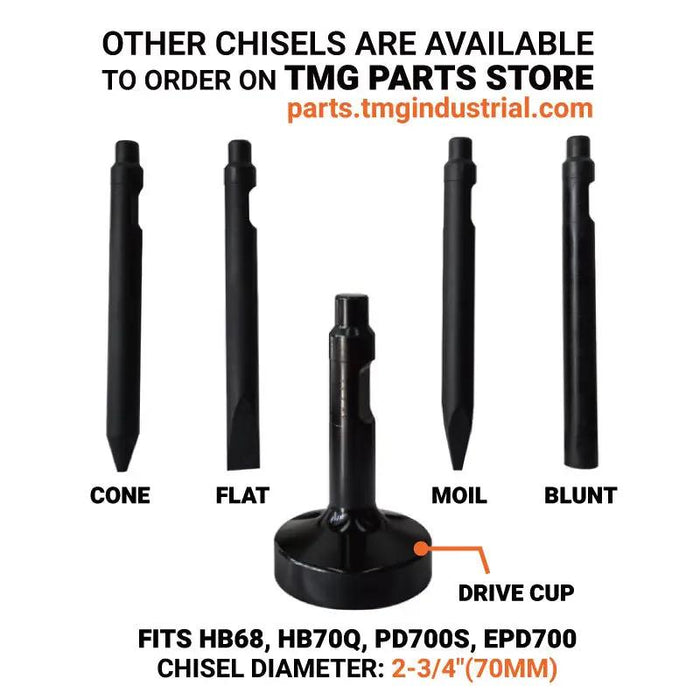

Compatible with various TMG chisel heads of 68mm diameter

Specifications icon Specifications

  • Skid Steer Lifting Capacity Required: 680 kg
  • Recommended Skid Steer Power: 22–52 kW
  • Mount Type: Universal Skid Steer Mount
  • Hydraulic Flow: 36–60 L/min
  • Hydraulic Pressure: 110–140 bar
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Coupler Size: 1/2" NPT
  • Hydraulic Hoses (Quantity × Size): 2 pcs, 1/2" × 2.4 m
  • Energy Class: 838 Joule
  • Pounding Rate: 500–900 BPM
  • Chisel Shaft Diameter: 68 mm
  • Driving Cup Size: 200 mm
  • Net Weight: 432 kg

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

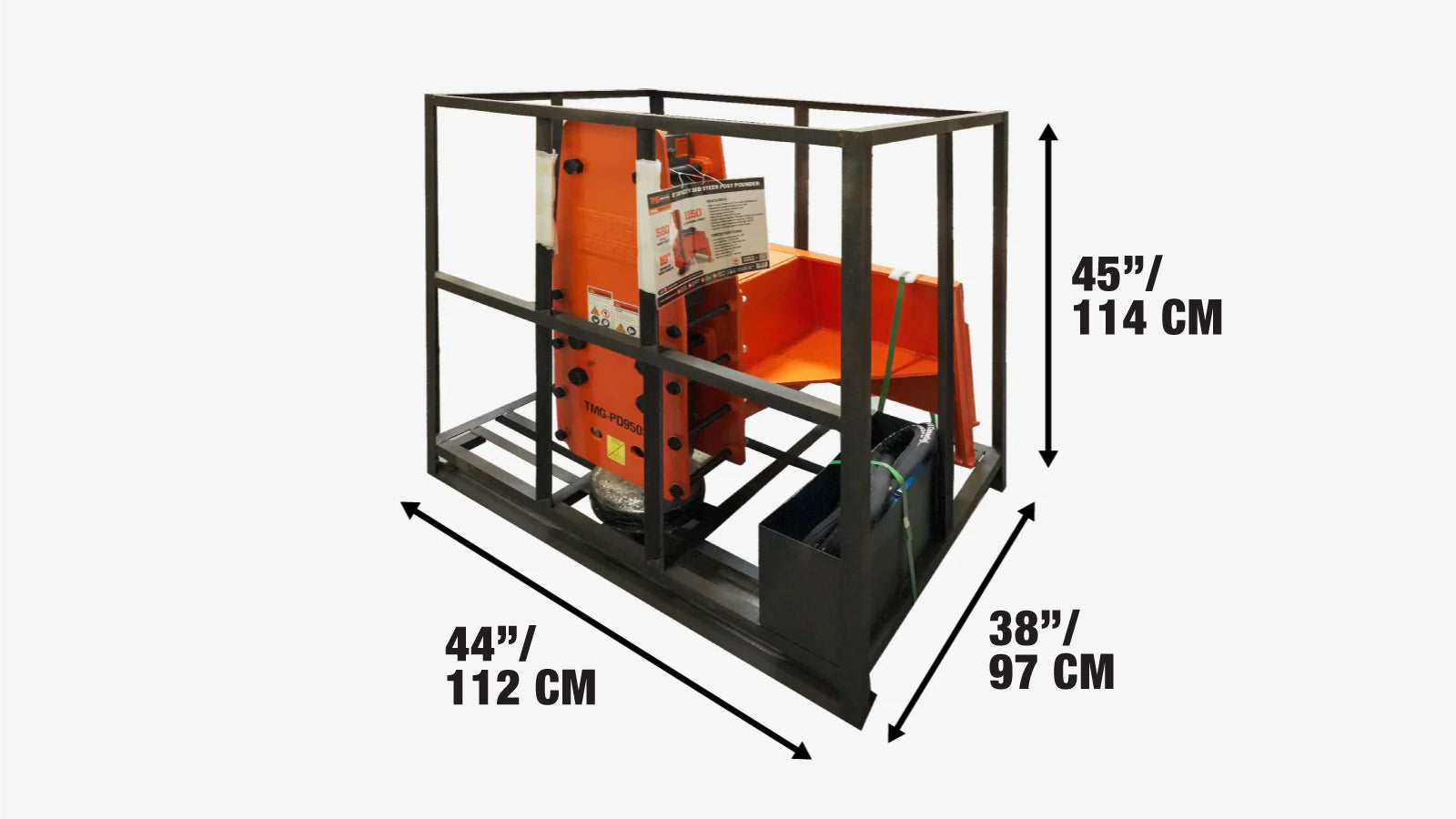

  • This product is packed in a metal crate shipping box
  • Shipping Dimension: 112 cm × 97 cm × 115 cm (L × W × H)
  • Shipping Weight: 545 kg
Shipping from Rowville,VIC
What happens after you place your order?
Skid Steer Post Pounder, Universal Mount, 838 Joules Energy, TMG-PD700S-shipping-info-image

Product Description icon Product Description

The TMG-PD700S Skid Steer Post Driver is a robust hydraulic attachment built for efficient post installation in fencing, signage, and property development projects across Australia. Delivering up to 838 joules of impact energy at 500–900 BPM, it drives posts quickly and securely into various soil conditions without the need for pre-drilling.

This unit mounts easily to most skid steers using a universal quick-attach plate and is built with a 19 mm thick steel frame for long-lasting durability. A nitrogen-charged cushion chamber reduces recoil and wear while improving operator comfort during extended use.



With a 203 mm post capacity, it handles wood, steel, or composite posts with ease. The package includes hydraulic hoses with flat face couplers, a nitrogen charging kit, and service tools—ready for immediate use out of the crate. Whether on the farm or job site, the TMG-PD700S delivers professional results with minimal setup.



Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: The working pressure on my skid steer is more than 140 Bar. Will this affect the TMG-PD700S?
No, having excess pressure on your skid steer will not affect how the post pounder operates.
Q: What is the TMG-PD700S Skid Steer Post Pounder?
A heavy-duty hydraulic post pounder that attaches to skid steers for driving fence posts, piping, and signage into the ground—ideal for fencing, agriculture, and property maintenance.
Q: What kind of posts can it handle?
It includes a high-strength steel driving cup that accommodates posts up to 203 mm (8") in diameter.
Q: What are the key specifications?
Operating Weight: ~499 kg (1100 lb)
Energy Class: 838 Joules (700 ft-lb)
Pounding Rate: 500–900 BPM
Chisel Shaft Diameter: 68 mm
Steel Frame Thickness: 19 mm (¾")
Driving Cup Inside Diameter: 203 mm (8")
Q: What skid steer requirements are needed?
Lifting Capacity: ≥ 680 kg (1500 lb)
Power: 22–52 kW (30–70 HP)
Hydraulic Flow: 36–60 L/min (9.5–16 GPM)
Working Pressure: 1600–2000 PSI (11,031–13,790 kPa)
Hose Diameter: 12.7 mm (1/2")

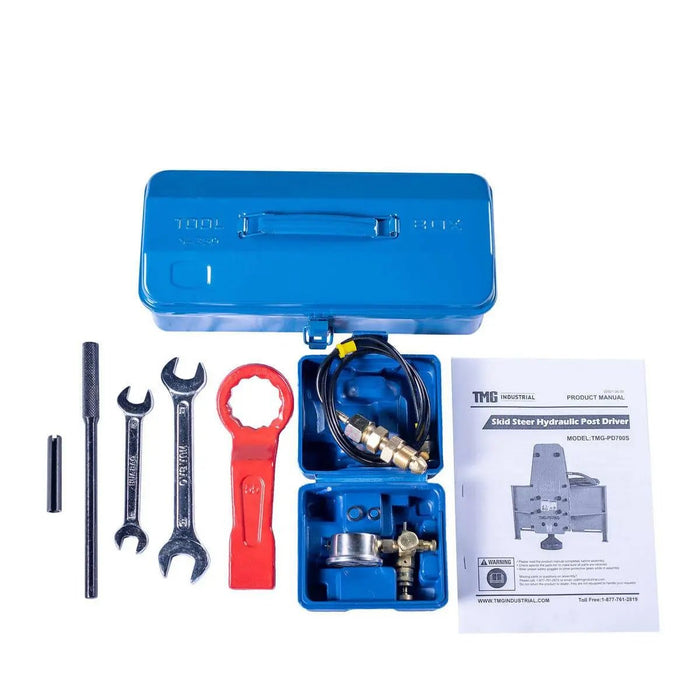

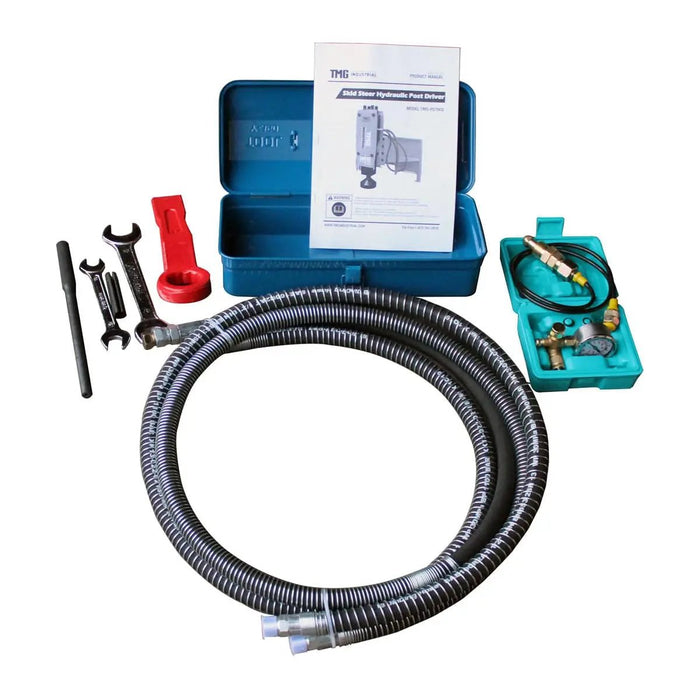

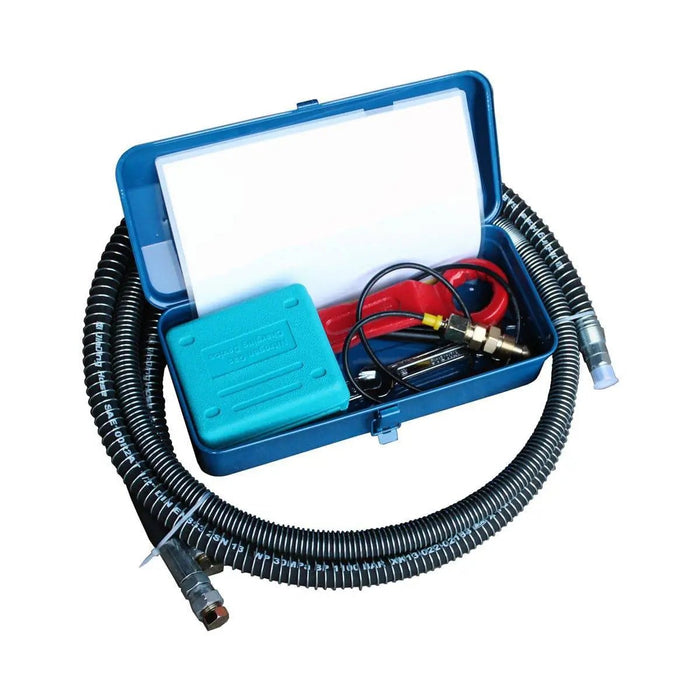

Q: Does it come with everything I need to get started?
Yes. Includes:
– 1x Service toolbox
– 2x 1/2" hydraulic hoses with flat face couplers
– 1x Nitrogen charge kit with CGA580 adaptor (nitrogen not included; source locally)
Q: How does the post pounder generate power?
It uses a nitrogen-charged power cell that absorbs piston recoil and stores energy between impacts. The system operates in continuous vibratory driving mode for efficient energy transfer.
Q: Is it easy to attach to my skid steer?

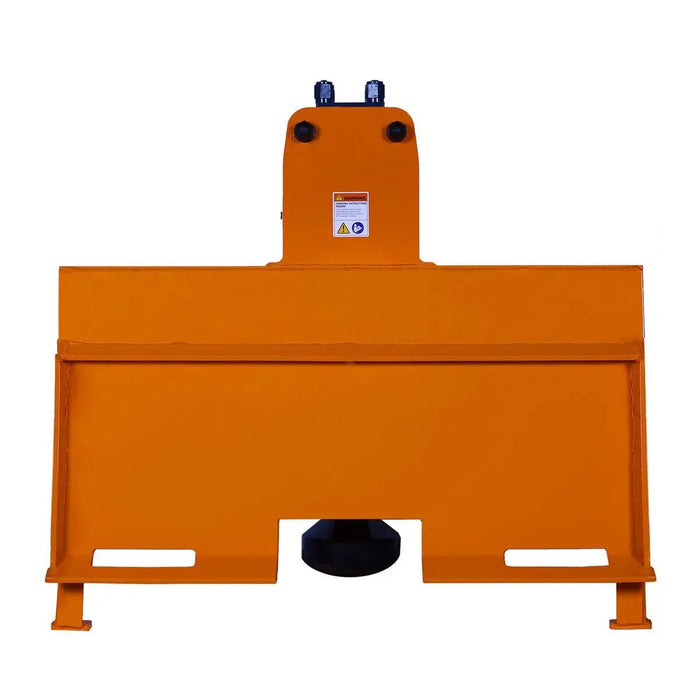

Yes, it features a universal quick-attach mount and bolt-on open-frame plate for easy and secure installation.
Q: Is this product suitable for Australian conditions?
Yes. The TMG-PD700S is engineered for rugged use and performs well in Australian agricultural and contracting environments, provided your skid steer meets the operating specs.
Q: What is the warranty?
TMG provides a 1-year manufacturer warranty. Refer to the TMG Industrial website or your distributor for full details.
