42 kN Log Skidding Winch for 30 - 50 HP Tractors, 3-Point Hitch, Category 1, TMG-FW50T 

Product Manual
42 kN Log Skidding Winch for 30 - 50 HP Tractors, 3-Point Hitch, Category 1, TMG-FW50T  TMG Industrial AU
CURRENTLY OUT OF STOCK
TMG-FW50T
$3,199.00
$3,199.00 - $3,199.00
$3,199.00
$2,799.00
$2,799.00 - $2,799.00
$2,799.00
$3,199.00 Save $400.00
$2,799.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Specifications icon Specifications

  • Tractor Power Required: 30 - 50 HP
  • Mounting Type: 3-Point Hitch CAT 1
  • PTO Shaft Included: Yes

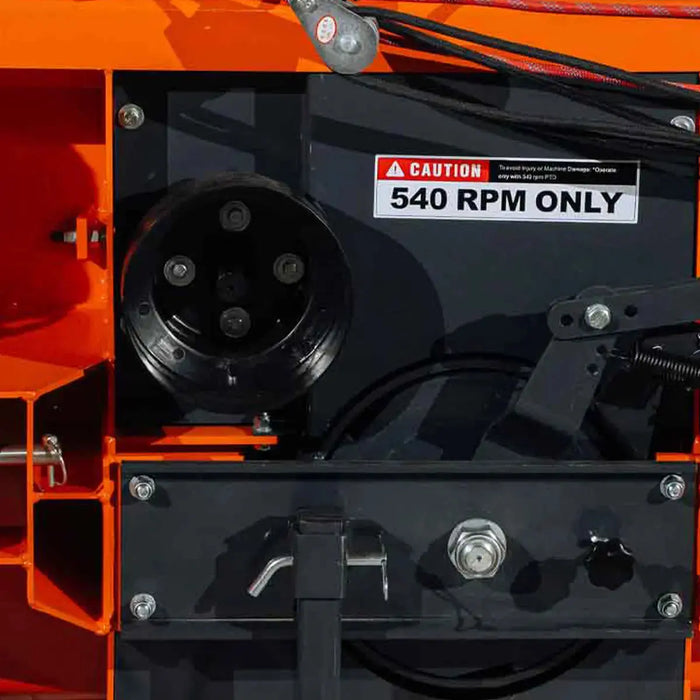

  • PTO Shaft Speed: 540 RPM
  • Pulling Capacity: 42 kN
  • Winching Speed: 0.85 m/s
  • Clutch Brake System: Rope-controlled
  • Cable Material: Steel wire
  • Cable Length: 60 m
  • Cable Diameter: 9.5 mm
  • Overall Dimension: 1500 × 450 × 1885 mm
  • Net Weight: 280 kg

Shipping Information icon Shipping Information

The order will ship from our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

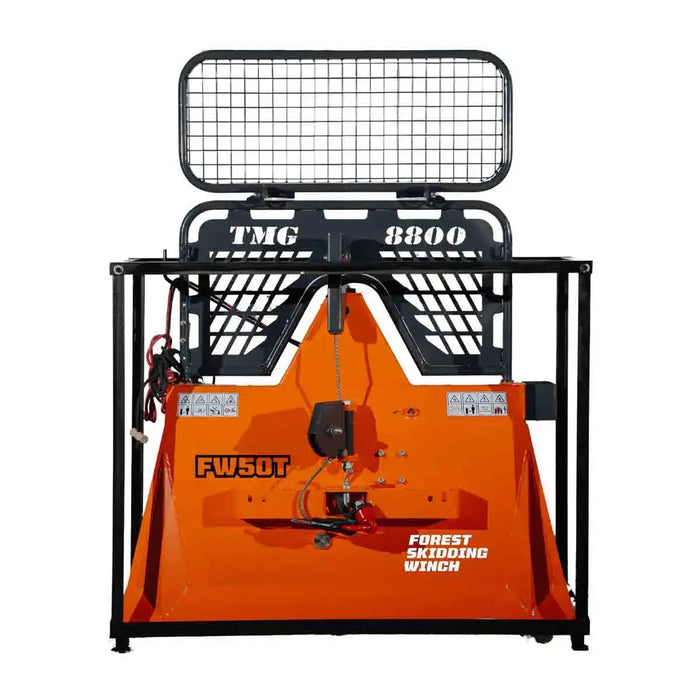

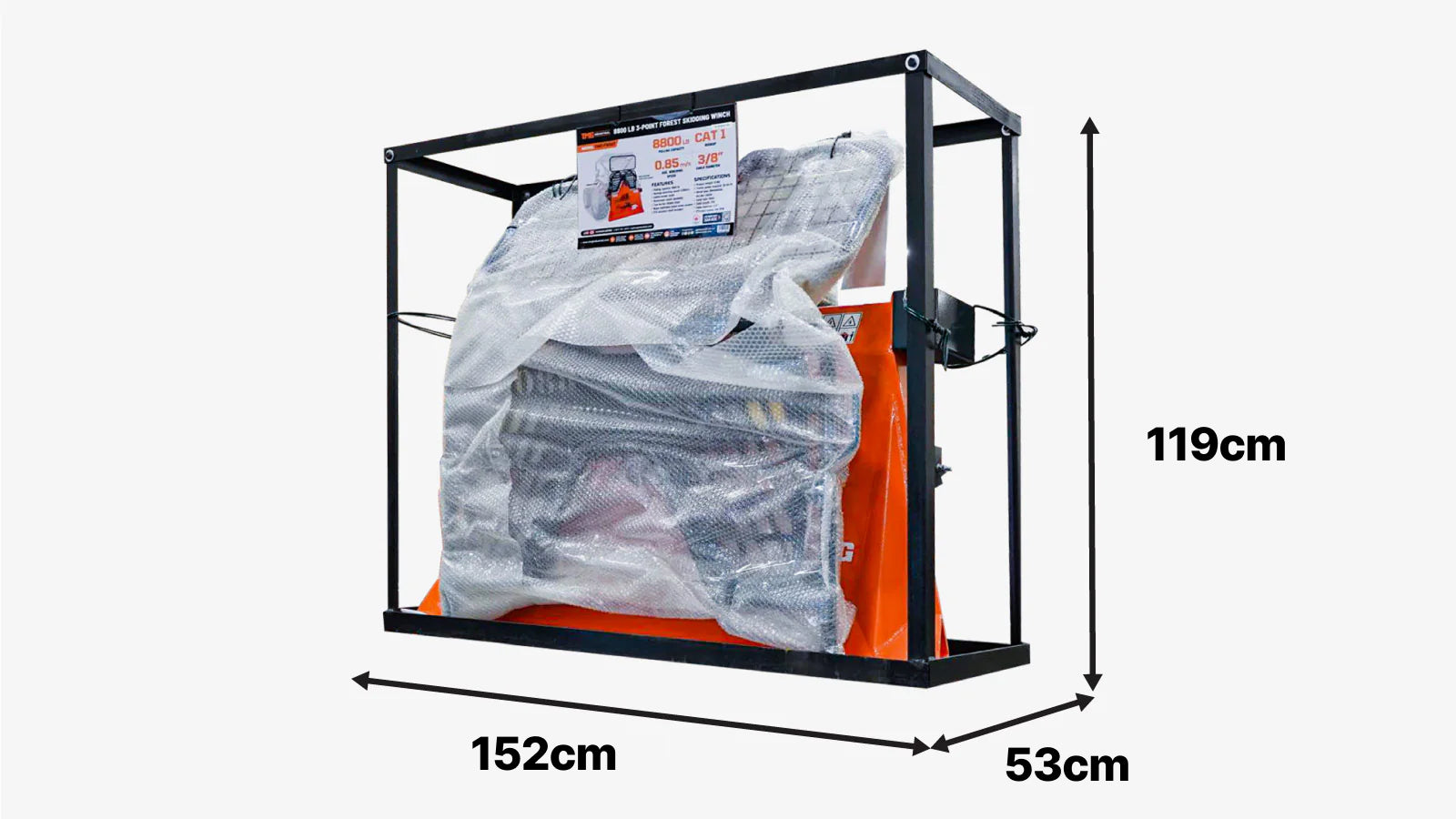

  • This product is packed in a metal crate shipping box.
  • Shipping dimensions: 152 × 53 × 119 cm (L × W × H), 60″ × 21″ × 47″
  • Shipping weight: 322 kg (710 lb)
Shipping from Rowville,VIC
What happens after you place your order?

Product Description icon Product Description

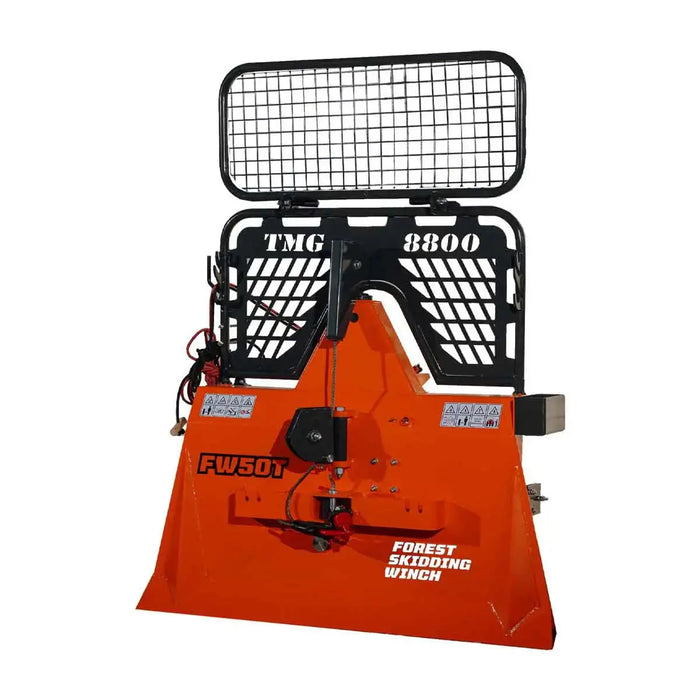

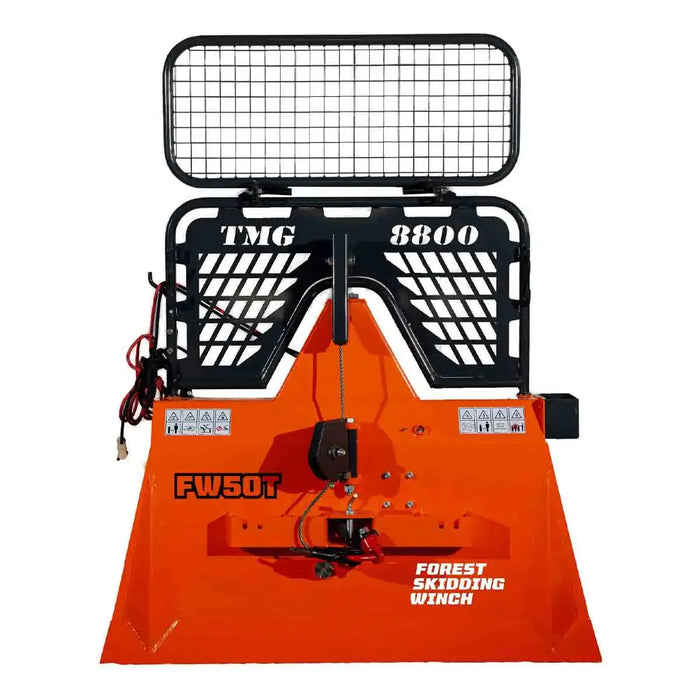

The TMG-FW50T Forest Skidding Winch 3-Point Hitch allows you to haul trees and lumber up to 42 kN from the woods, up hills, across fields and anywhere you need them cleared from or brought to on your farm or rural property. Equipped with an included PTO driveline shaft and Category 1 hookup that is compatible with 30-50 HP tractors for a simple, quick-attach system that gets you working in no time.

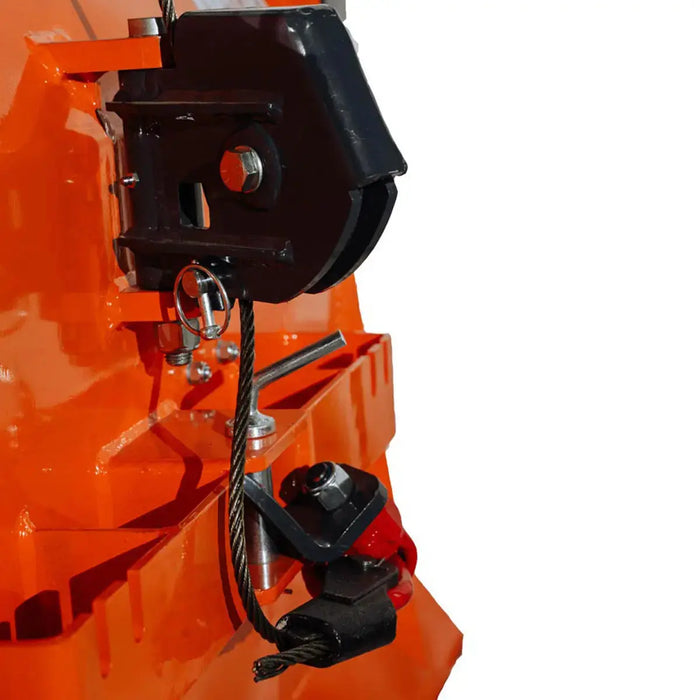

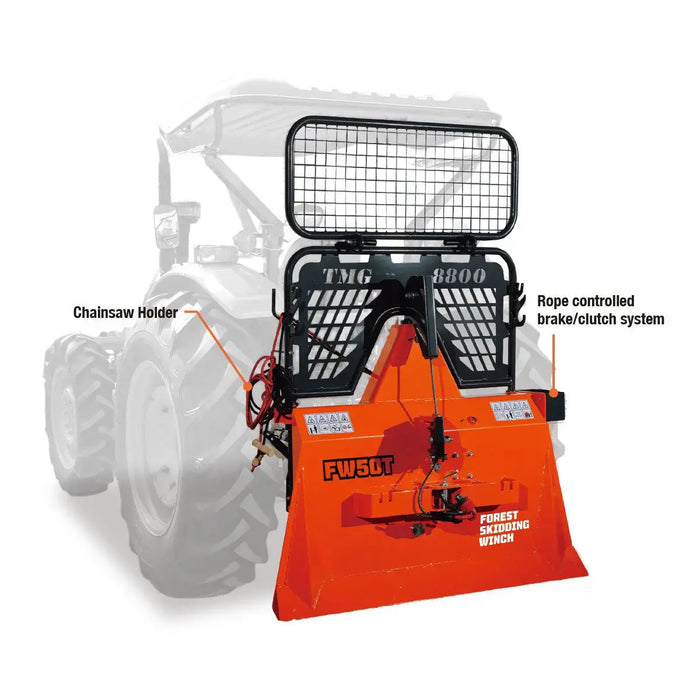

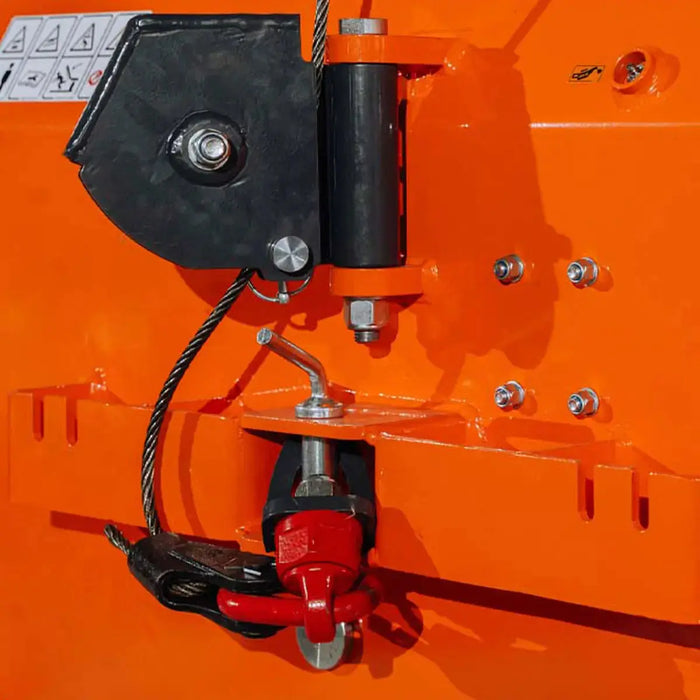

A heavy-duty 60 m (200’) steel cable is dragged by a mechanical, dry disc clutch winch that has a pulling speed of up to 0.85 m/s (180′/min). This winch is built with safety in mind and has an integrated safety screen mesh, a tow bar for the choker chain, removable clutch assembly and rope controlled clutch brake system giving the operator total control over its working action.

Save money, time, and labour by moving heavy timber on your own. Perfect for the commercial or personal use of contractors, farmers, landowners and anyone residing in a wooded or remote area. Haul trees for firewood processing and clear land to increase its utility, aesthetic, and value.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Frequently Asked Questions (FAQ)

  • Q: Which tractors does the TMG-FW50T fit?
    A: Compatible with Category 1 tractors between 30 - 50 HP using a standard 3-point hitch PTO.
  • Q: What is the pulling capacity and cable length?
    A: Rated for 42 kN with a 60 m (200′) steel cable.
  • Q: What kind of clutch system is used?
    A: Mechanical dry-disc clutch with rope-controlled brake for safe, smooth operation.
  • Q: Is there a warranty included?
    A: Yes, a 1-year manufacturer warranty with full support and parts availability.
