• Overall Dimensions: 144 × 100 × 193 cm
• Frame Construction: Fully Welded Heavy-Duty H-Frame
• Frame Overall Dimensions: 100 × 45 × 179 cm
• Operation Type: Air & Manual Dual Operation
• Protective Grid Guard: –

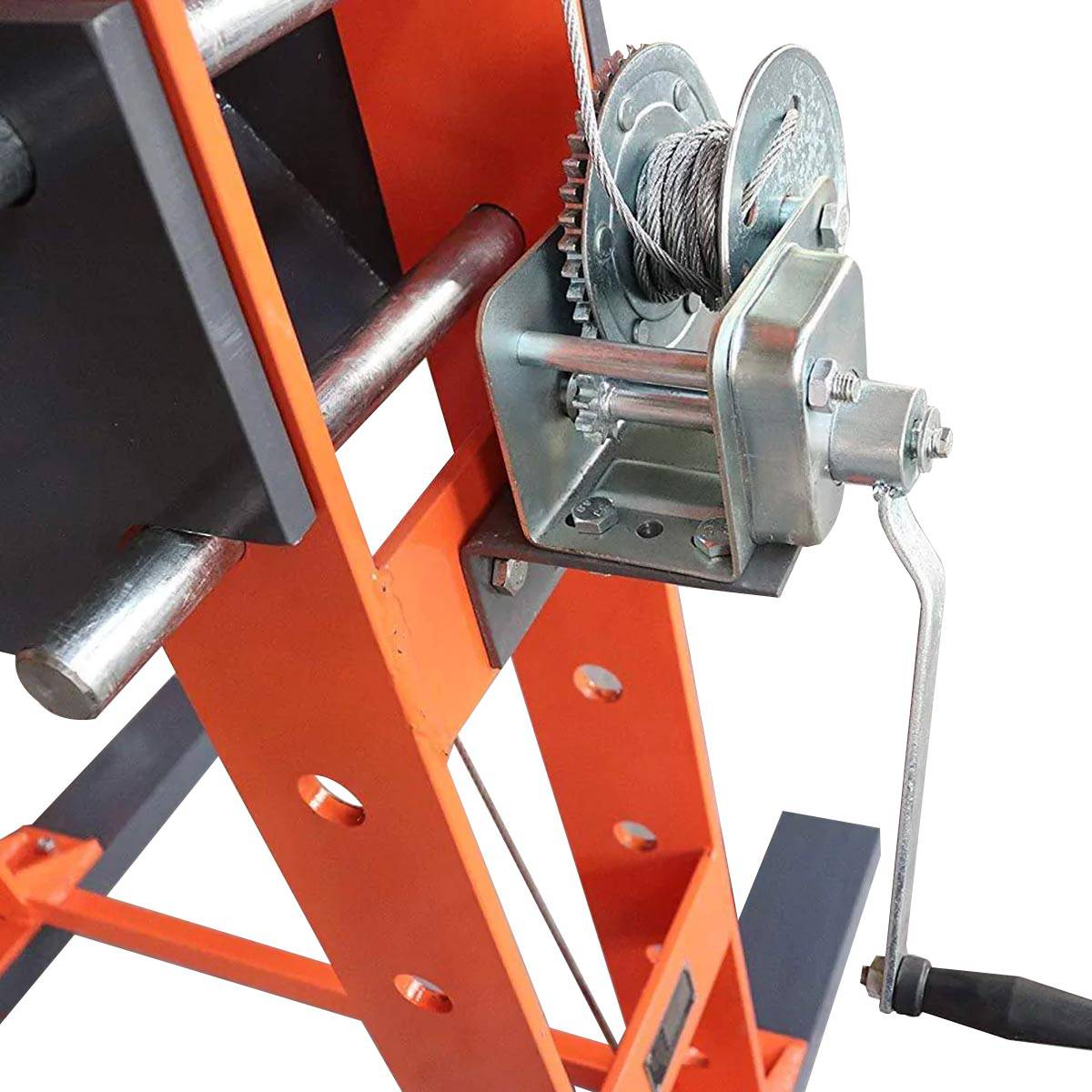

• Bed Adjustment Mechanism: Steel Cable Crank Winch

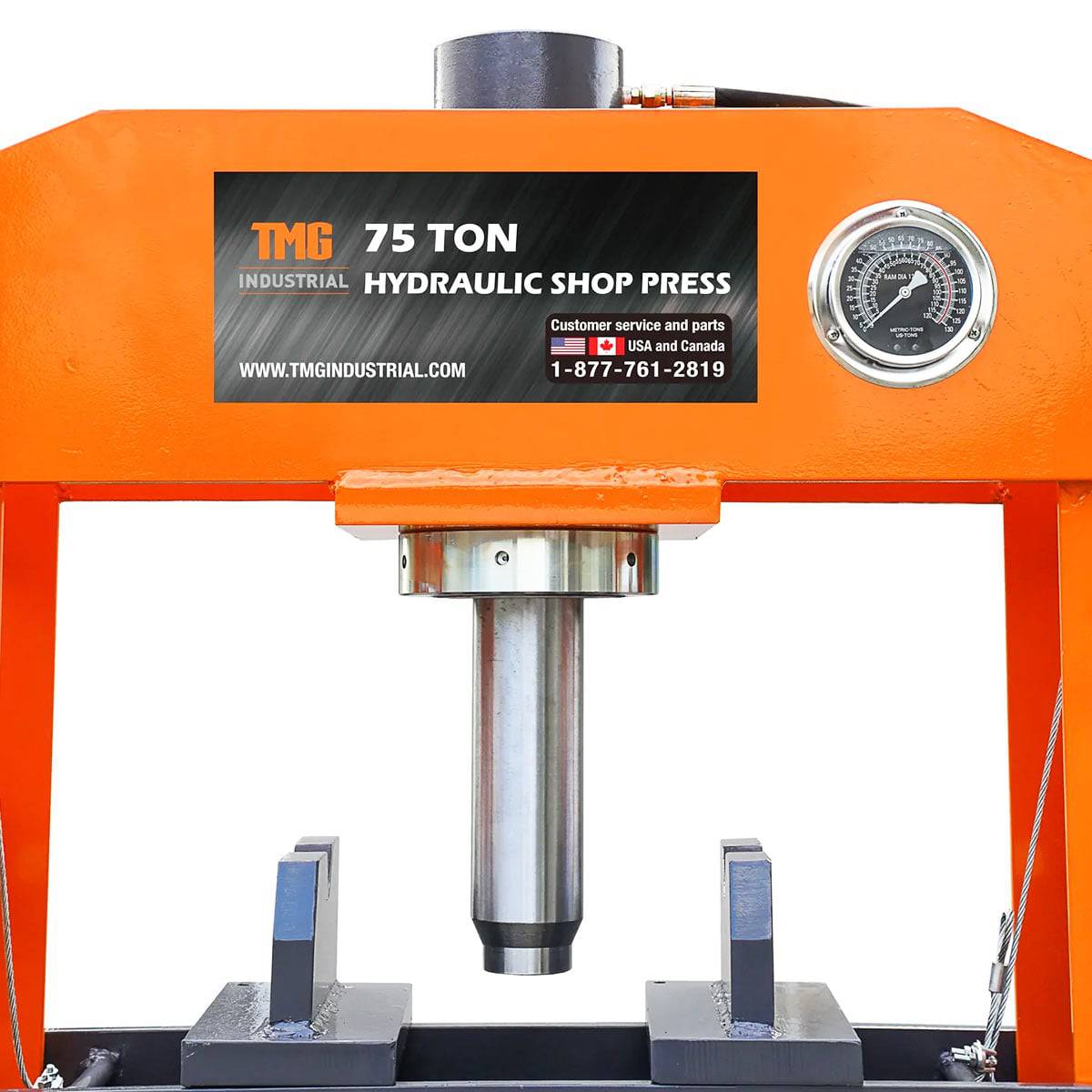

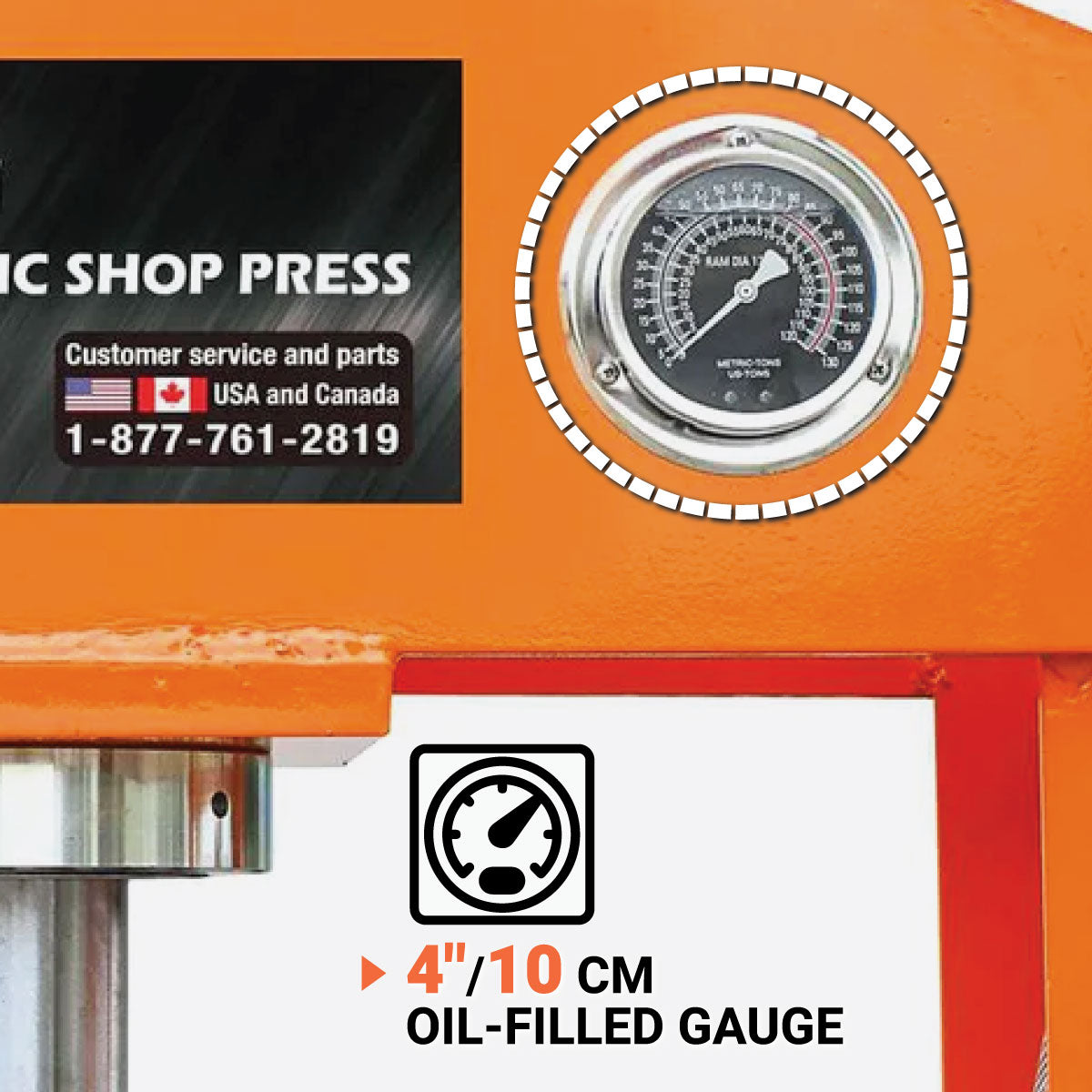

• Gauge Type: 4" Oil-Filled Pressure Gauge
• Overload Protection: No
• Retracting Springs: Twin Springs
• Air / Pneumatic Pressure: 758 – 862 KPa
• Max Pump Pressure: N/A
• Maximum Work Range: 800 mm
• Ram Stroke: 250 mm
• Ram Dia. / Cylinder Bore: 125 mm
• Ram Pressing Head Diameter: N/A
• Ram Left-Right Movement: No
• Carriage Bed Depth: 298 mm
• Carriage Bed Width: 760 mm
• Carriage Bed Pin Diameter: N/A
• Air Inlet Size: 1/4" NPT
• Foot Switch: No

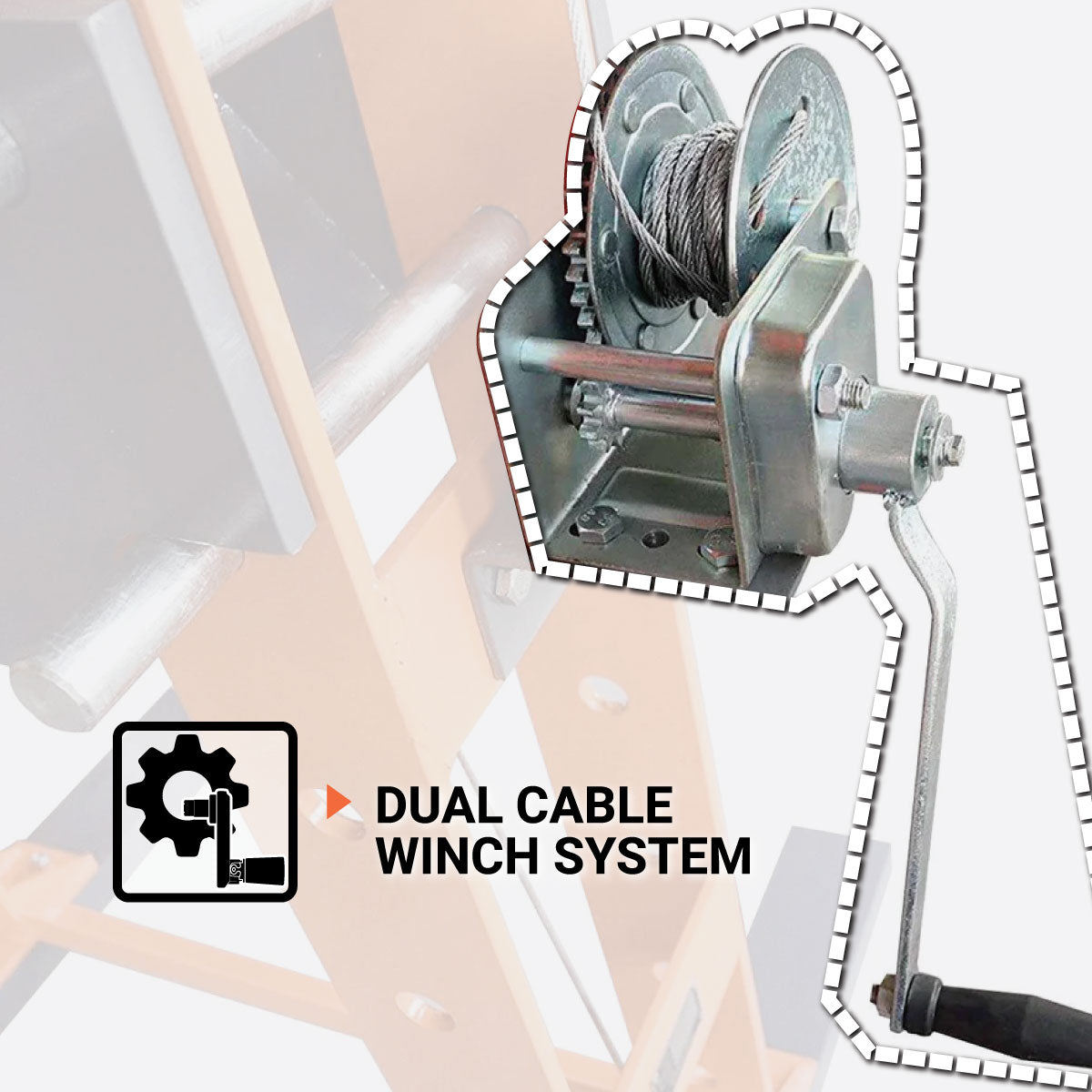

• Steel Cable Crank Winch: Yes
• Discharge Pressure: N/A
• Frame Internal Width: N/A
• Frame Internal Length / Upright Opening: 108 cm
• Electric Motor Certification (AU): N/A
• Electric Motor Certification (CA/US): N/A
• Hydraulic Tank Capacity: N/A
• Hydraulic Fluid Recommended: ISO AW32
• Net Weight: 448 kg
• Shipping Dimensions (L × W × H): 107 × 49 × 206 cm
• Shipping Weight: 479 kg

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

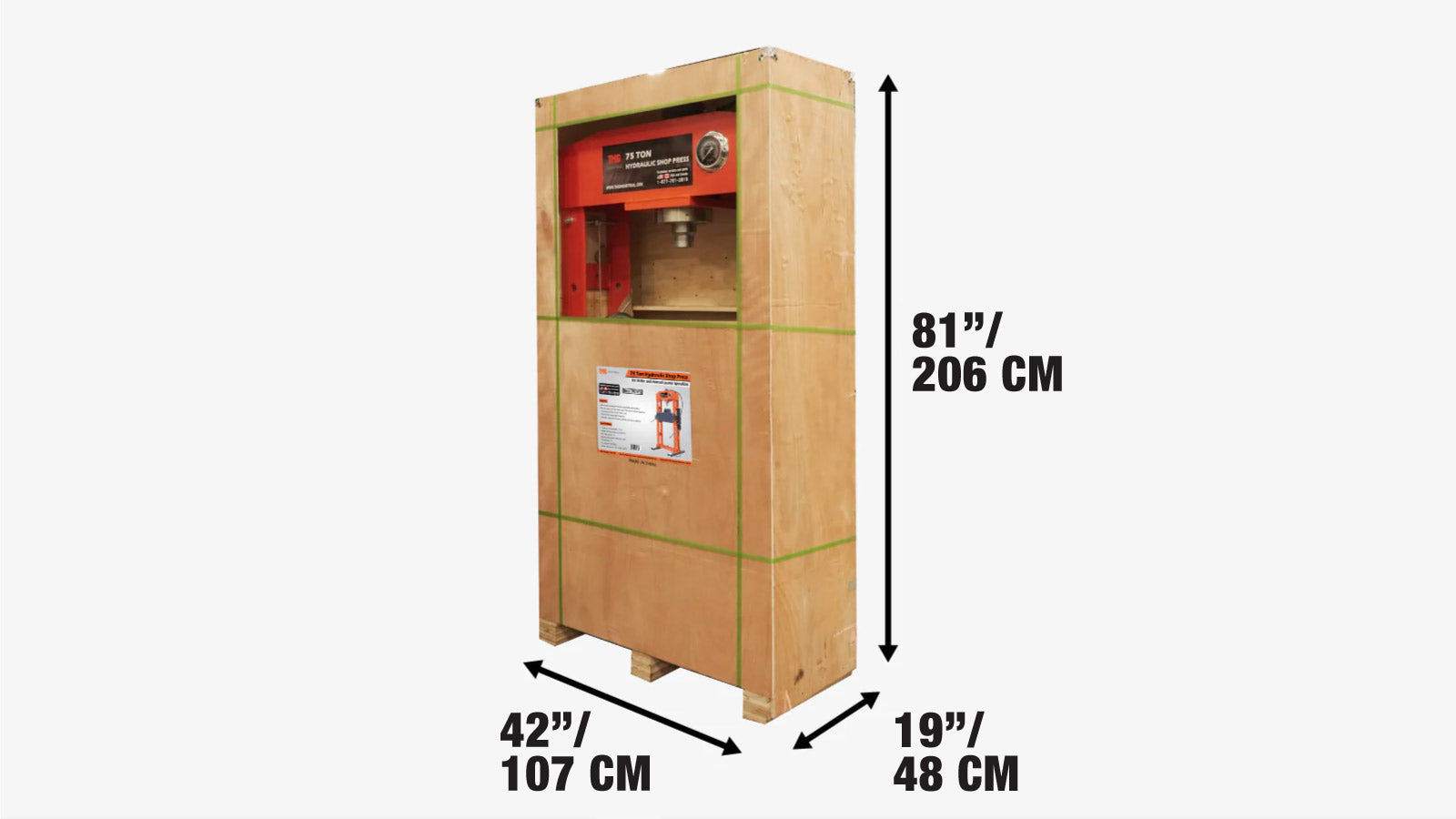

• Packaging: Packed in a wood crate shipping box
• Shipping dimensions: 107 x 49 x 206 cm (L x W x H)
• Shipping weight: 479 kg

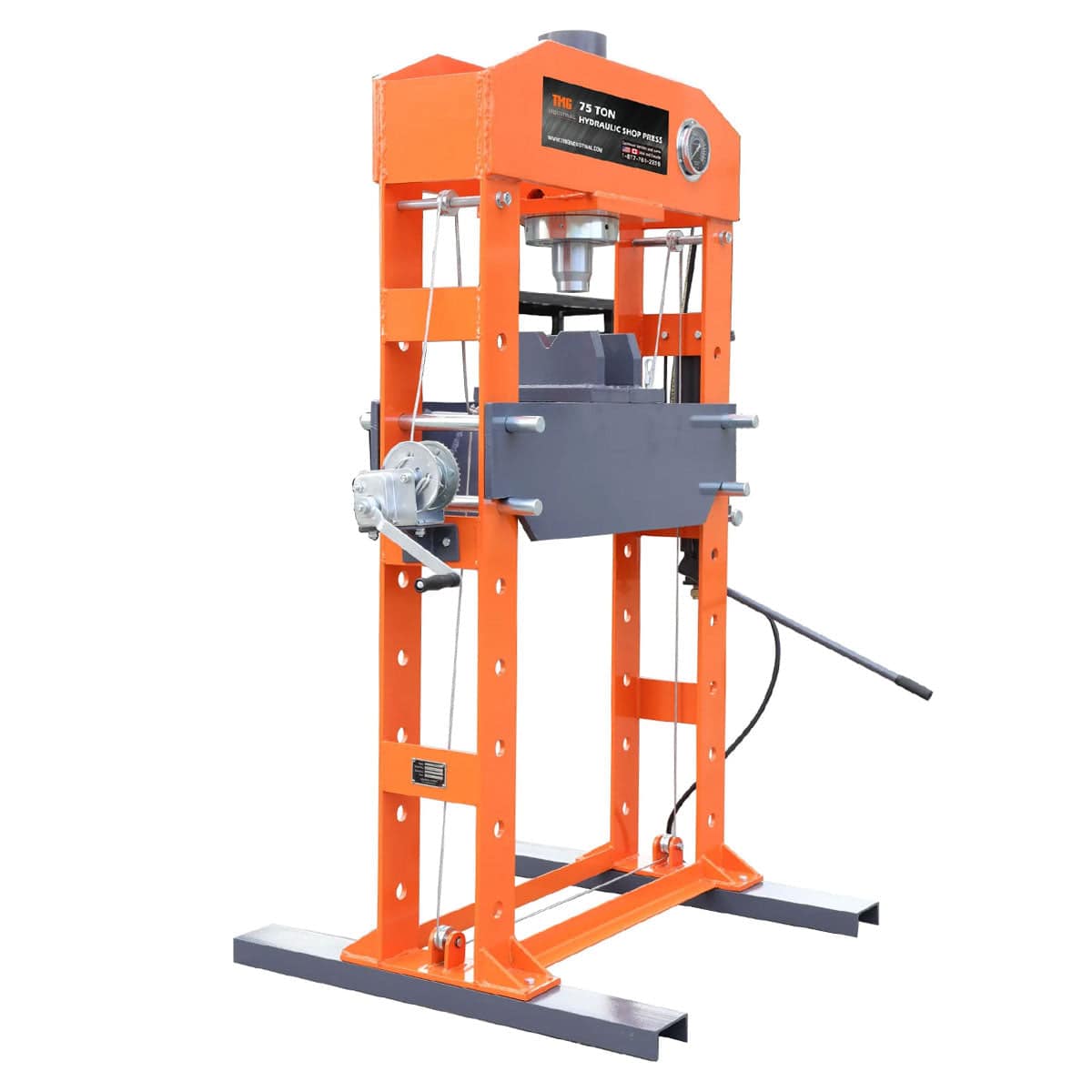

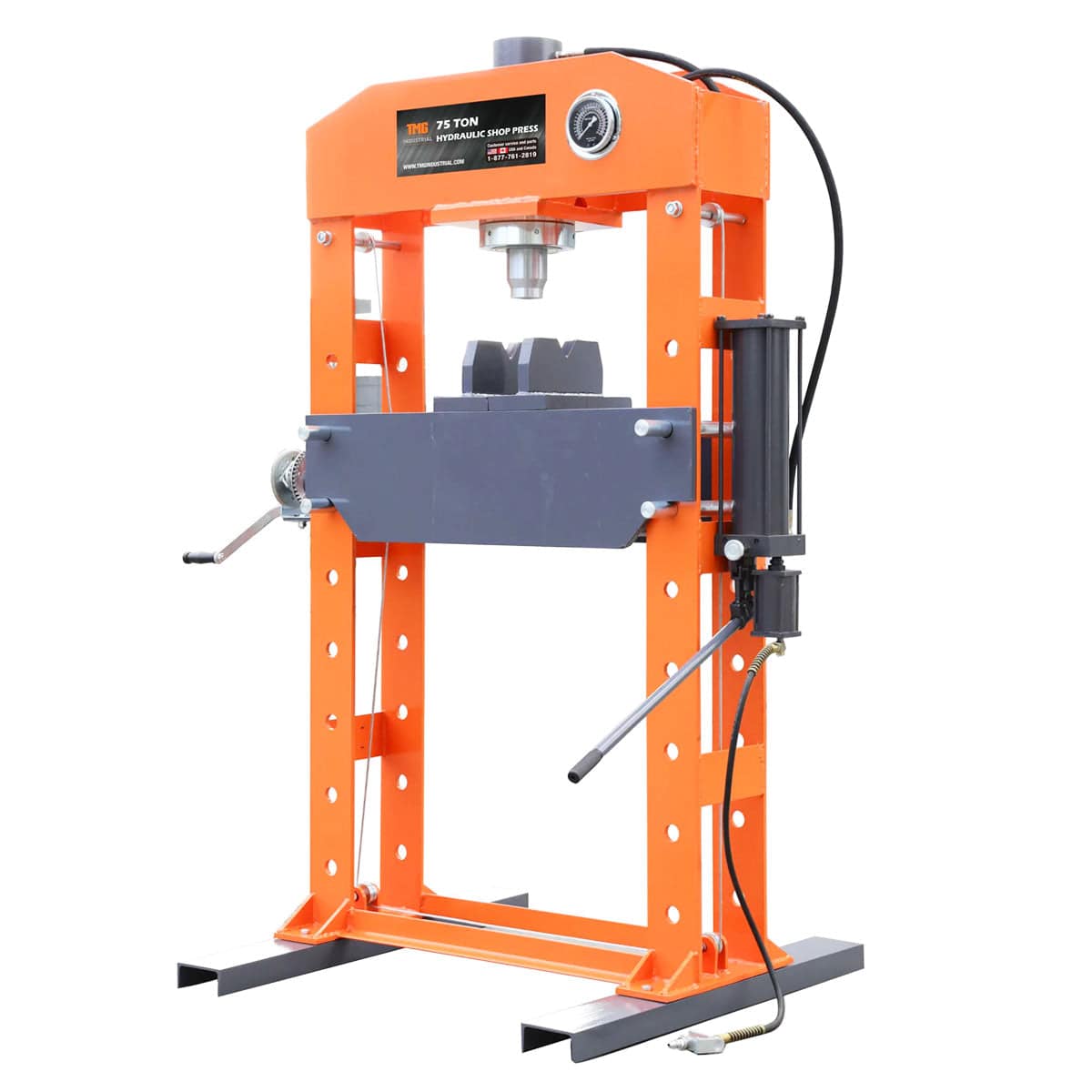

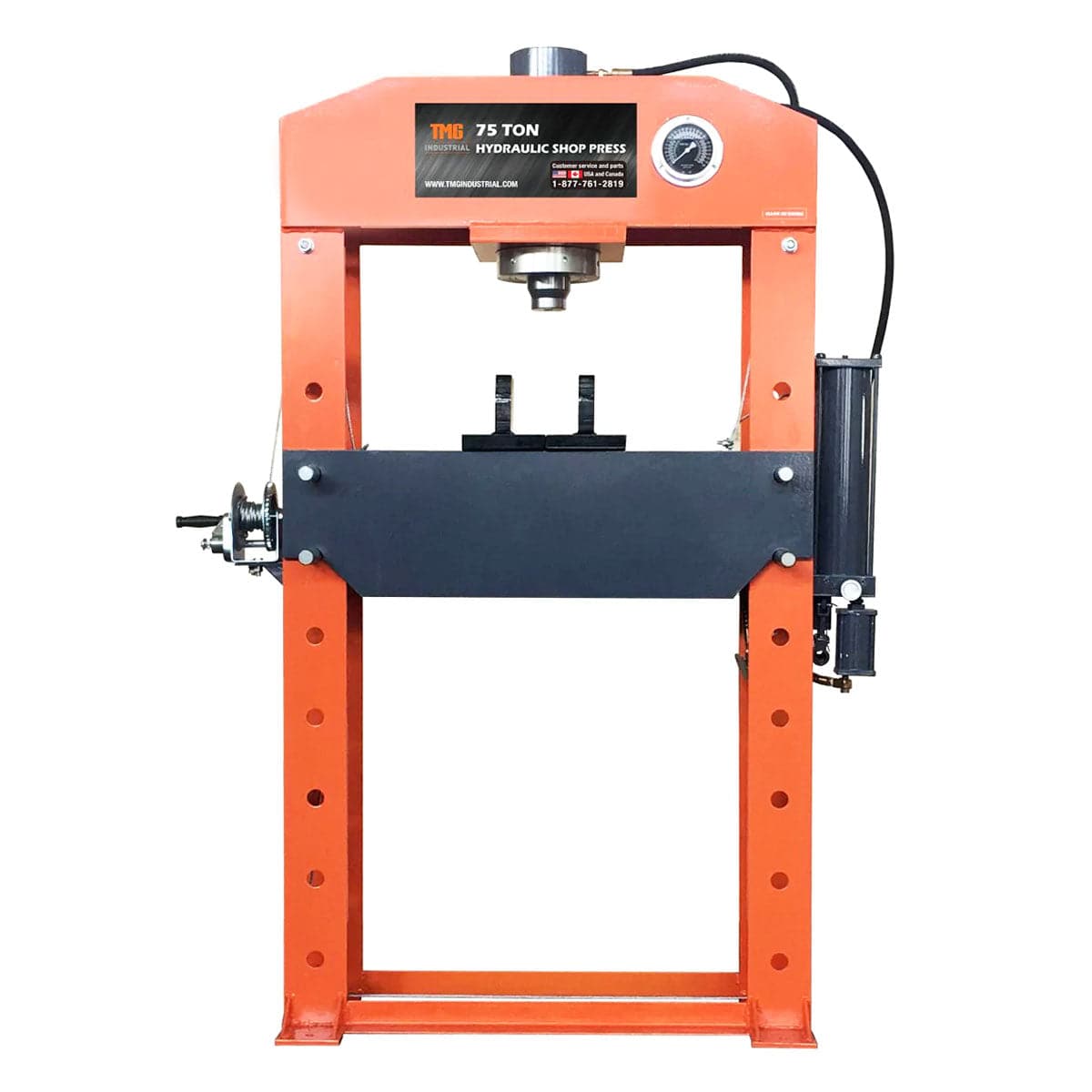

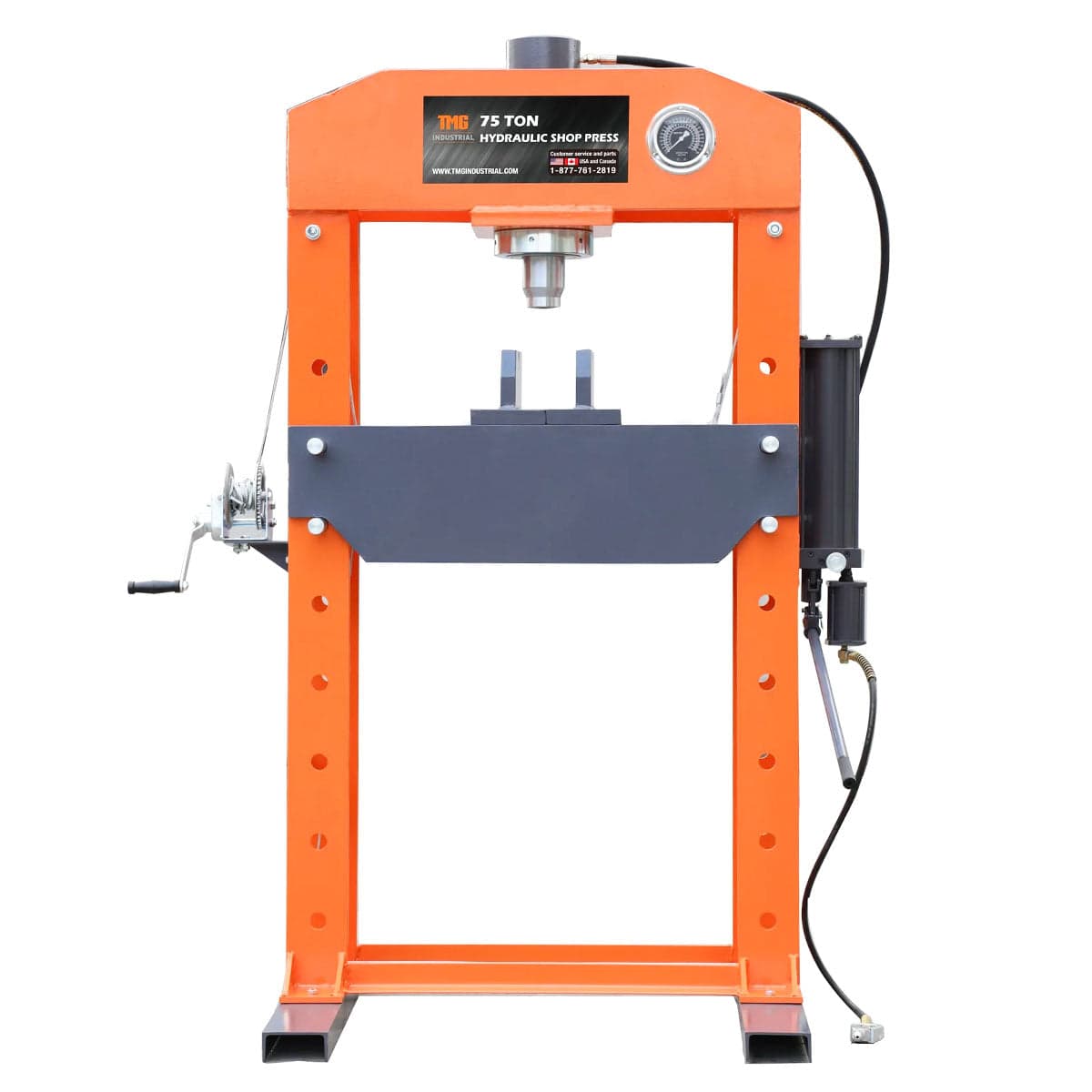

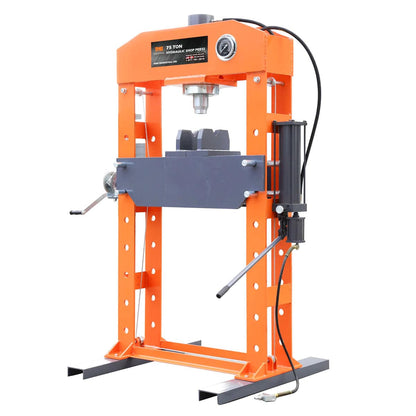

• Q: What is the TMG-SP75 Hydraulic Shop Press?
  A: The TMG-SP75 is a heavy-duty hydraulic shop press designed for various industrial tasks such as pushing bearings, stamp work, and bending metal. It features a 75-ton pressing capacity and can be operated both pneumatically and manually.
• Q: What is the maximum pressing force of the TMG-SP75?

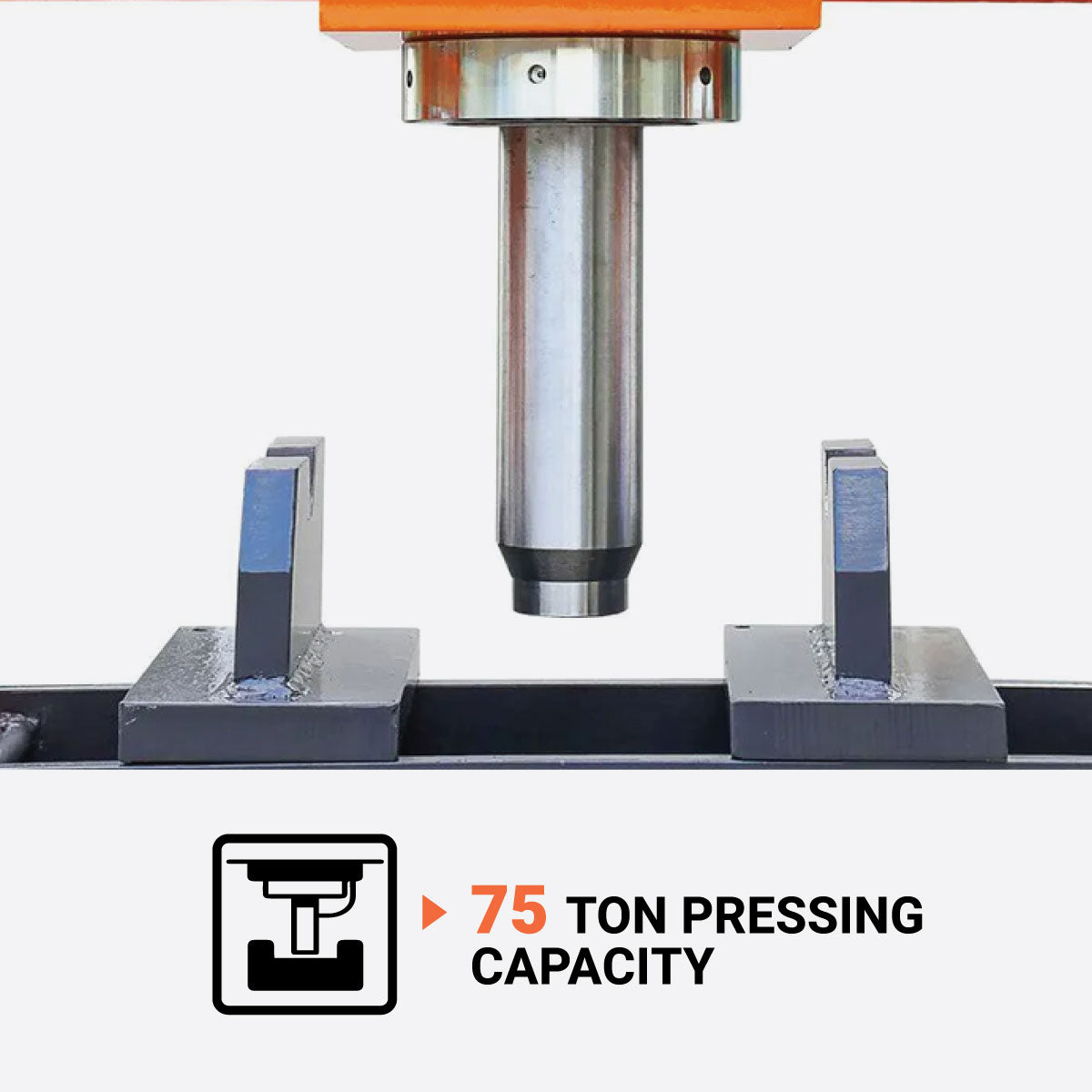

  A: The TMG-SP75 has a maximum pressing force capacity of 75 tons.
• Q: How does the TMG-SP75 operate?

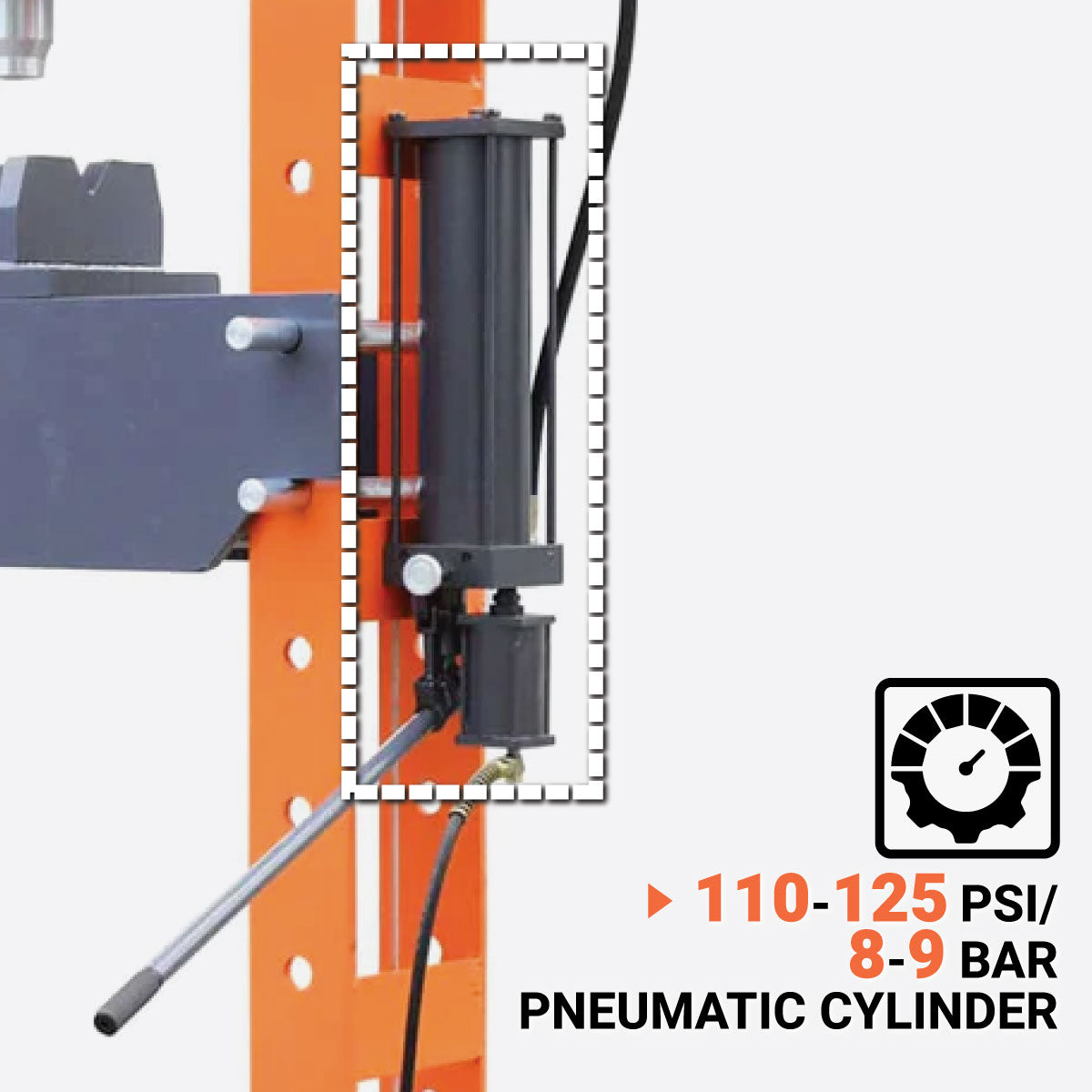

  A: The TMG-SP75 operates using a dual hydraulic cylinder, allowing for both pneumatic (air-powered, requiring 110-125 PSI) and manual operation.
• Q: What are the main assembled dimensions of the press?

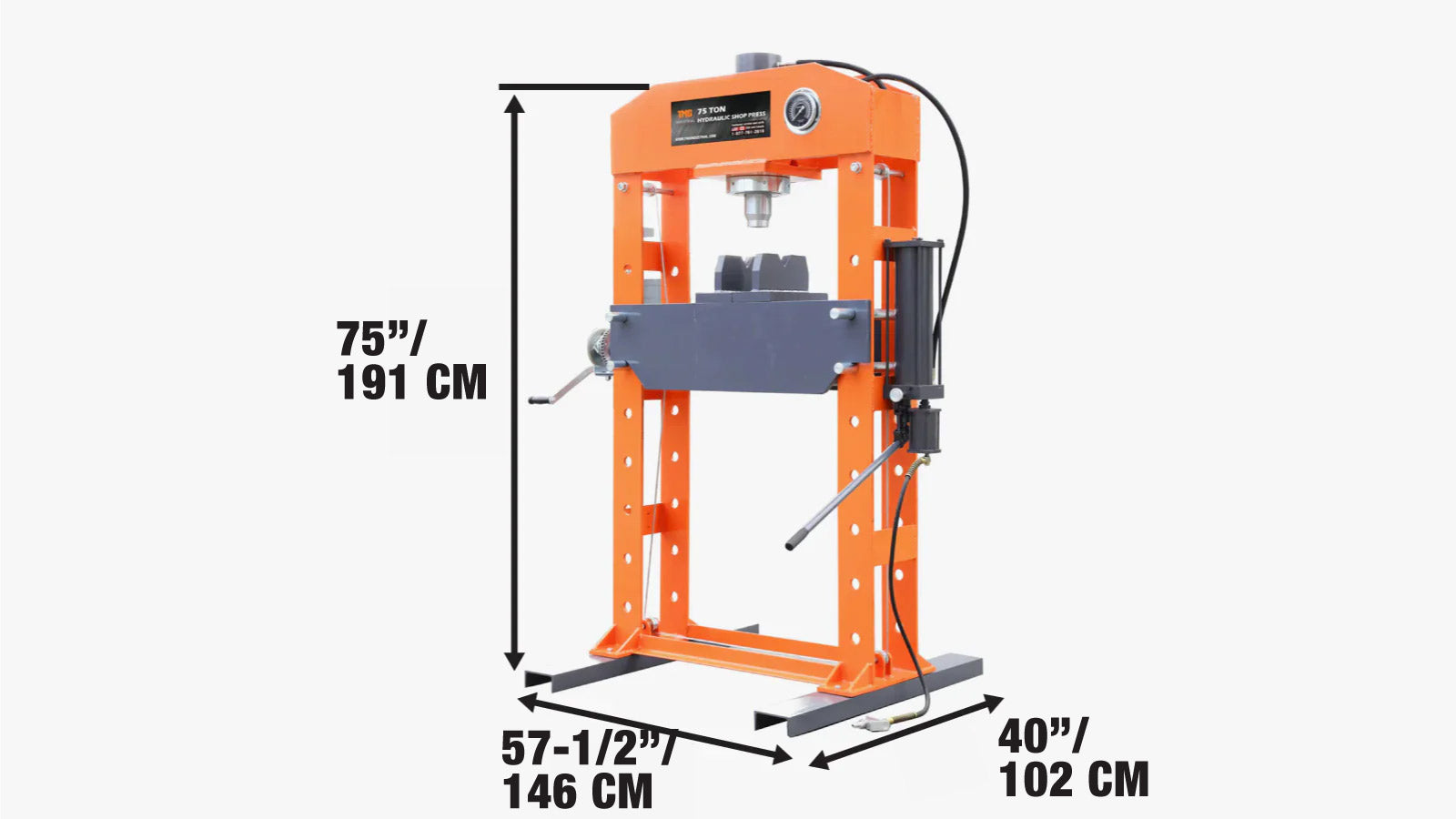

  A: The assembled dimensions of the TMG-SP75 are 57-1/2 inches (146 cm) in length, 40 inches (102 cm) in width, and 75 inches (191 cm) in height.
• Q: Is the press bed height adjustable?

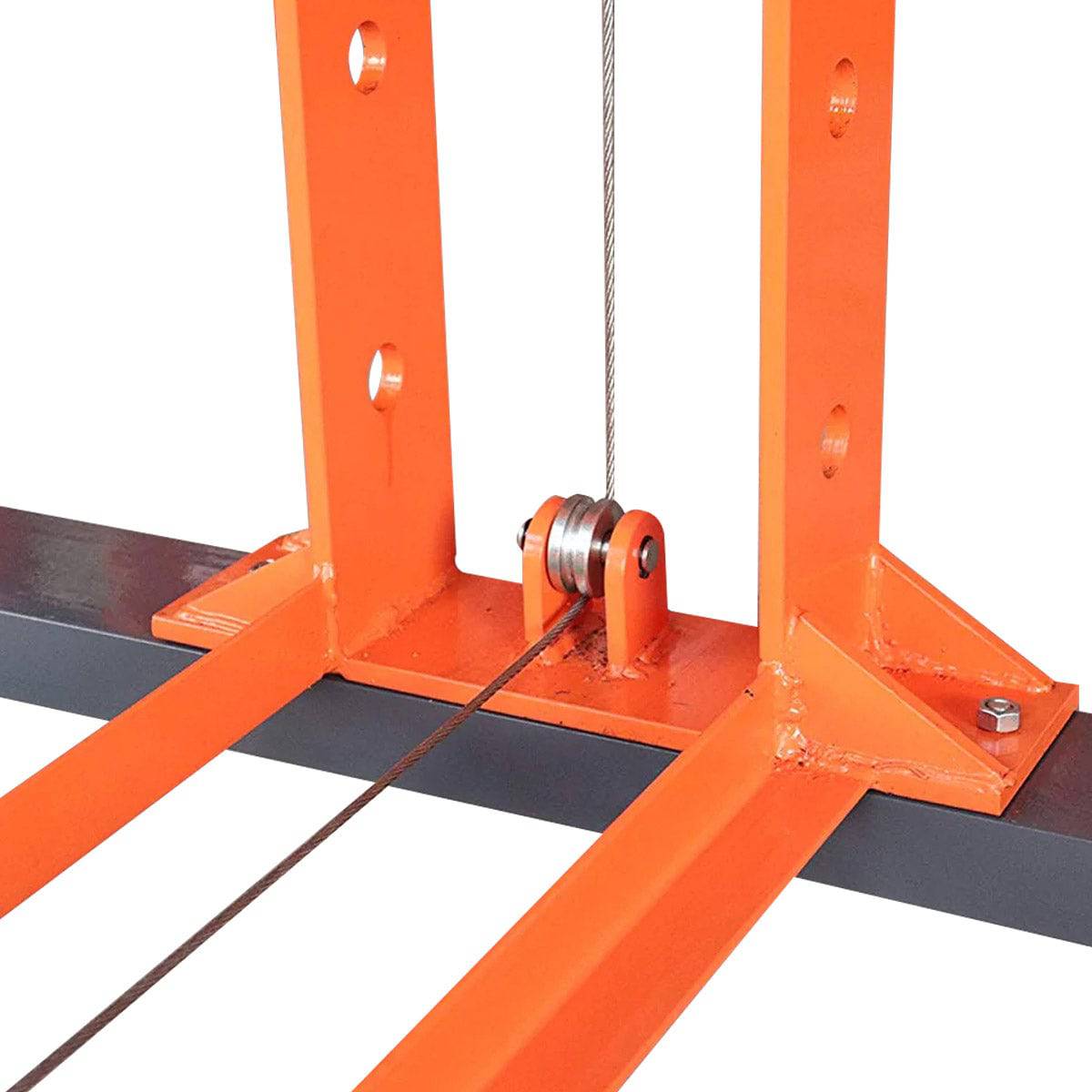

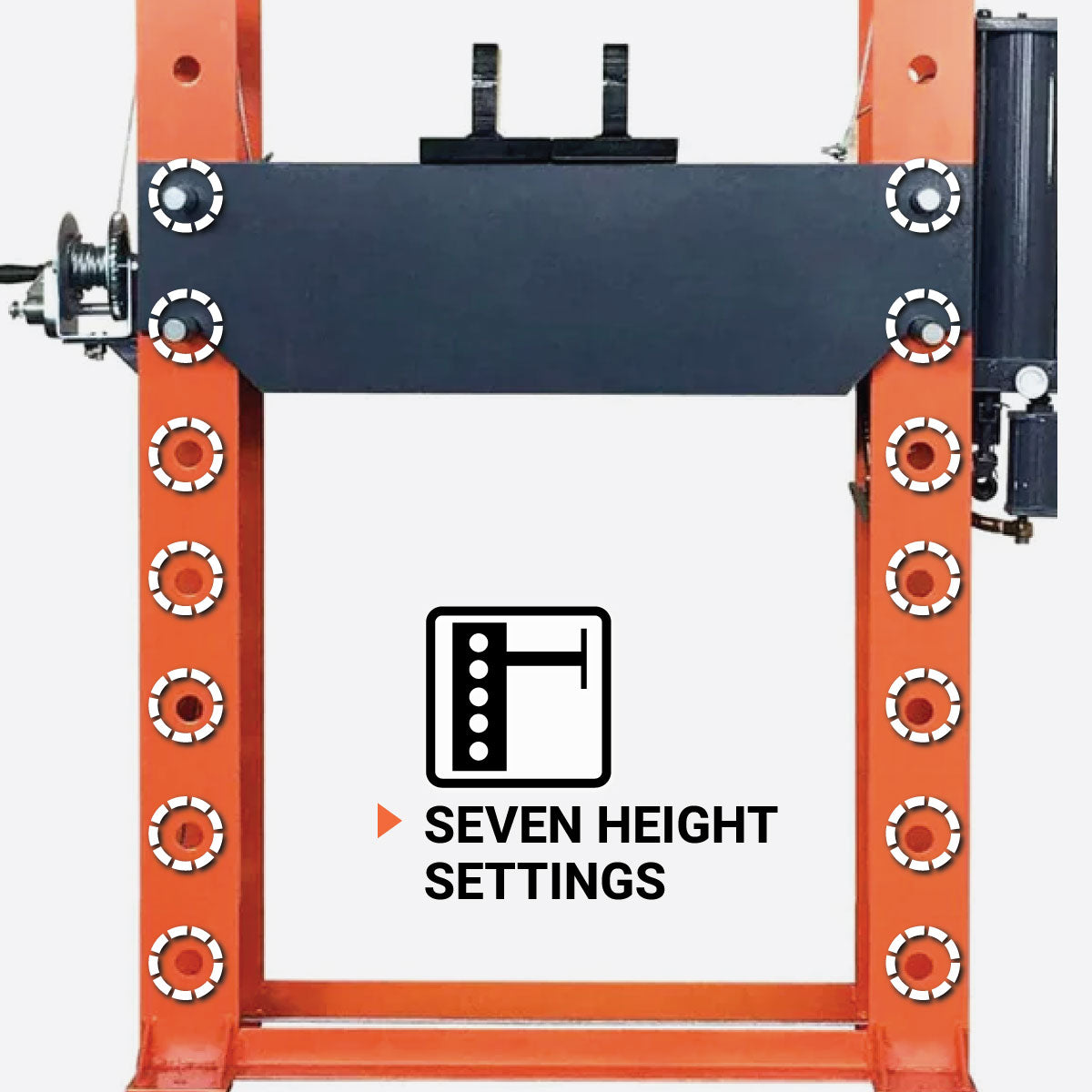

  A: Yes, the press bed is adjustable with seven height positions, and adjustments are made easy with a steel cable crank winch.
• Q: Where can I find the product manual and additional support?
  A: The product manual for the TMG-SP75 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
• Q: What is the warranty for the TMG-SP75?
  A: The TMG-SP75 is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
