1200 mm (48″) ATV/UTV Flail Mower Slasher, Tow-Behind Side Shift TMG-AFM48

1200 mm (48″) ATV/UTV Flail Mower Slasher, Tow-Behind Side Shift TMG-AFM48

TMG Industrial 48” ATV Tow-Behind Offset Flail Mower, Briggs & Stratton 13.5 HP Engine, Adjustable Mowing Height, 15” Cut Capacity, TMG-AFM48
CURRENTLY OUT OF STOCK
SKU TMG-AFM48
$3,599.00
$3,599.00 - $3,599.00
$3,599.00
$3,399.00
$3,399.00 - $3,399.00
$3,399.00
$3,599.00 Save $200.00
$3,399.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011
Product Manual
Find Parts

Features

Feature Image

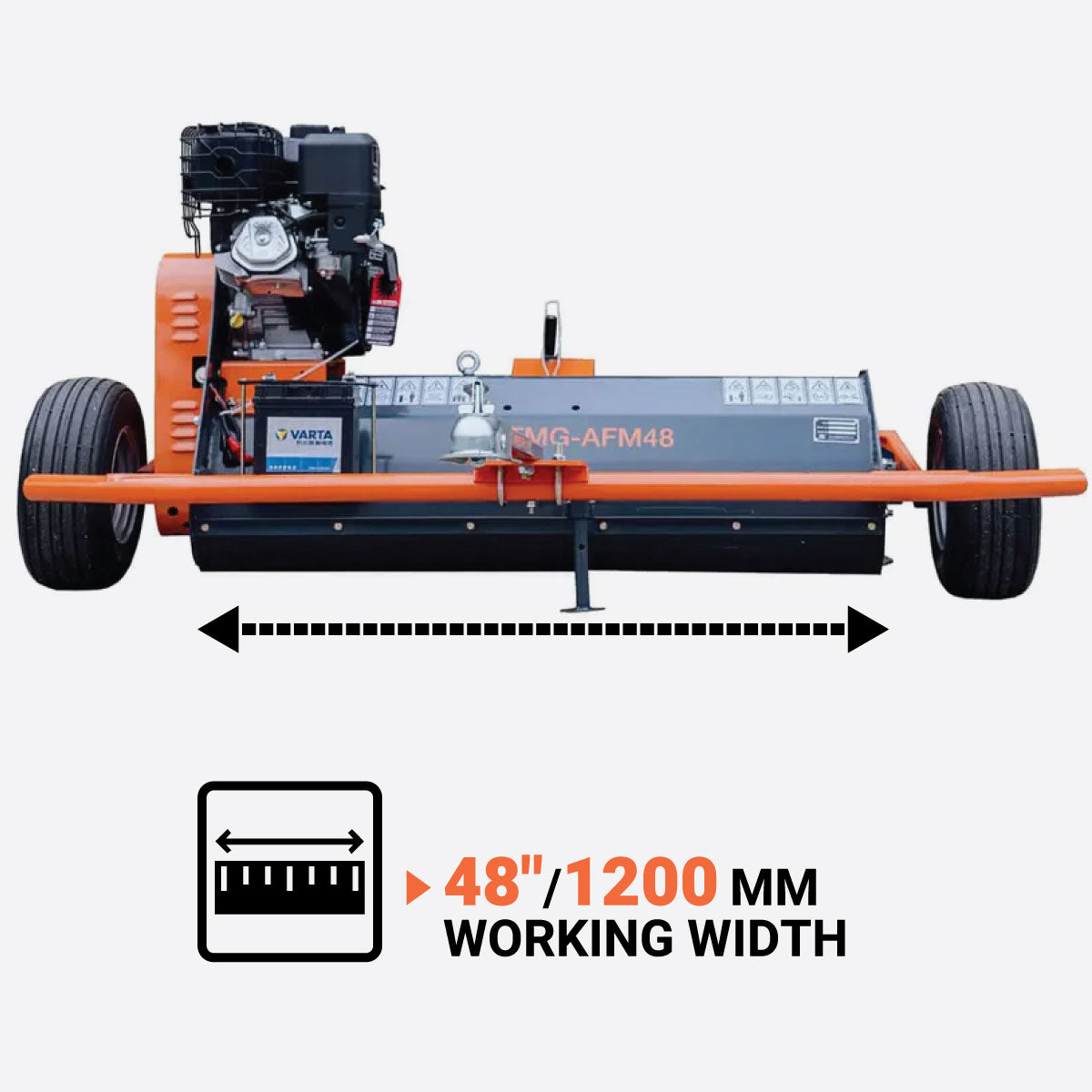

1200 mm (48″) working width for quick precision mowing
Feature Image

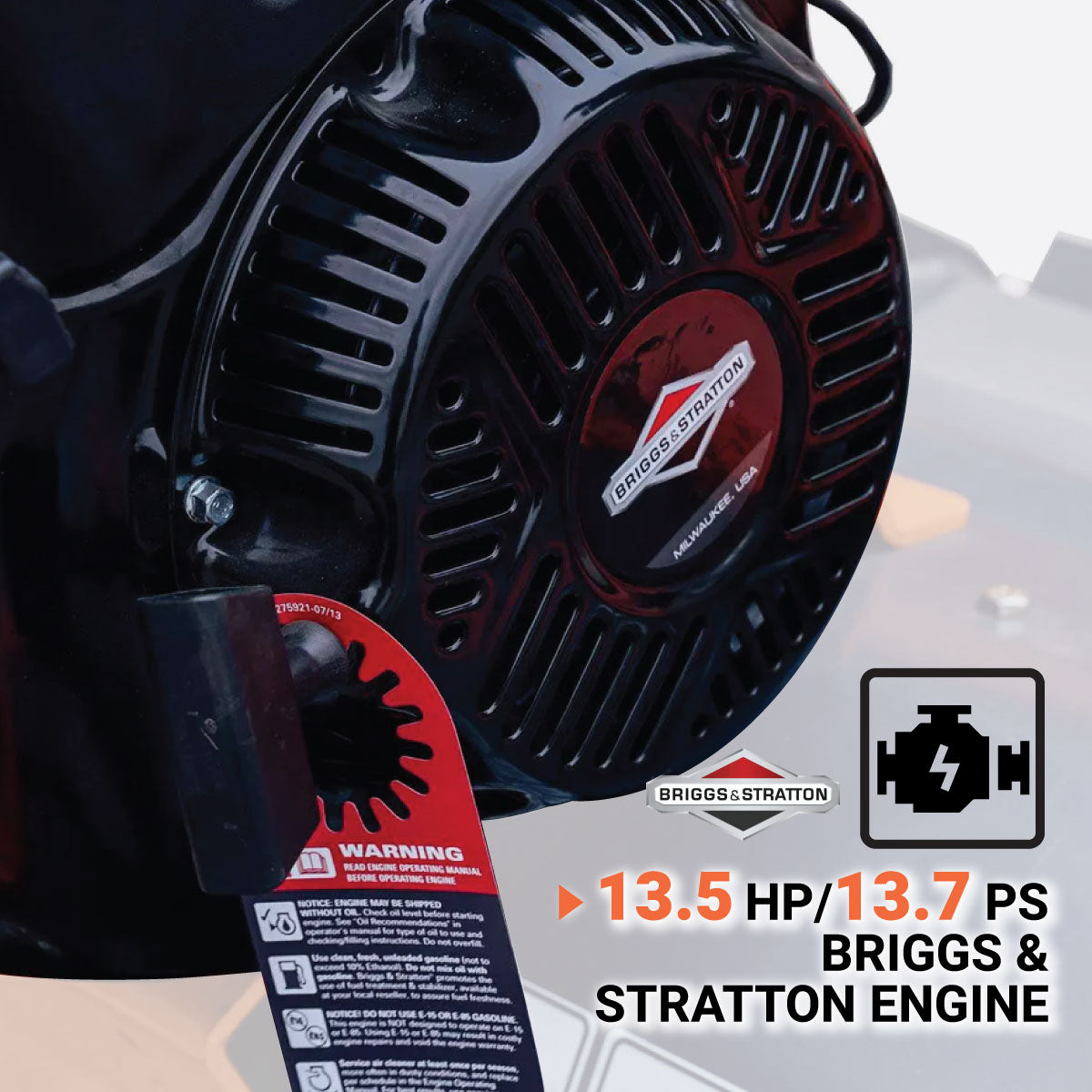

13.5 HP Briggs & Stratton for high performance and long durability
Feature Image

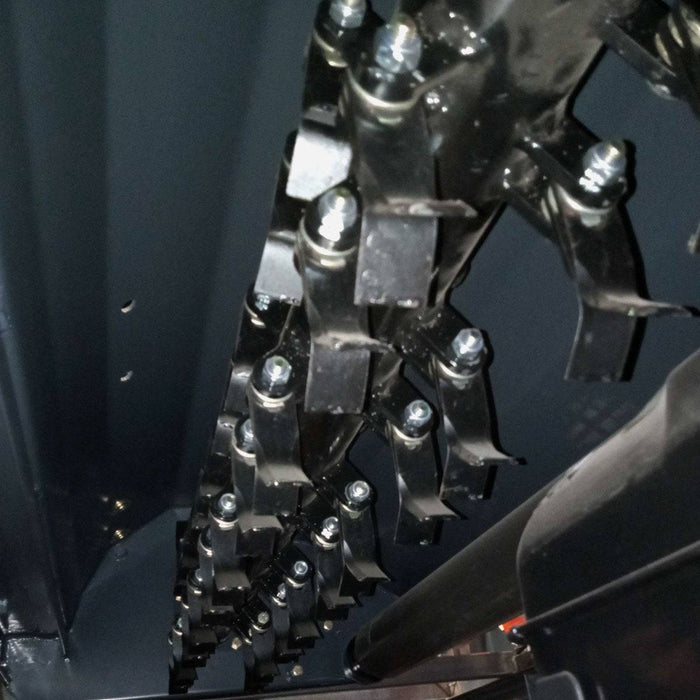

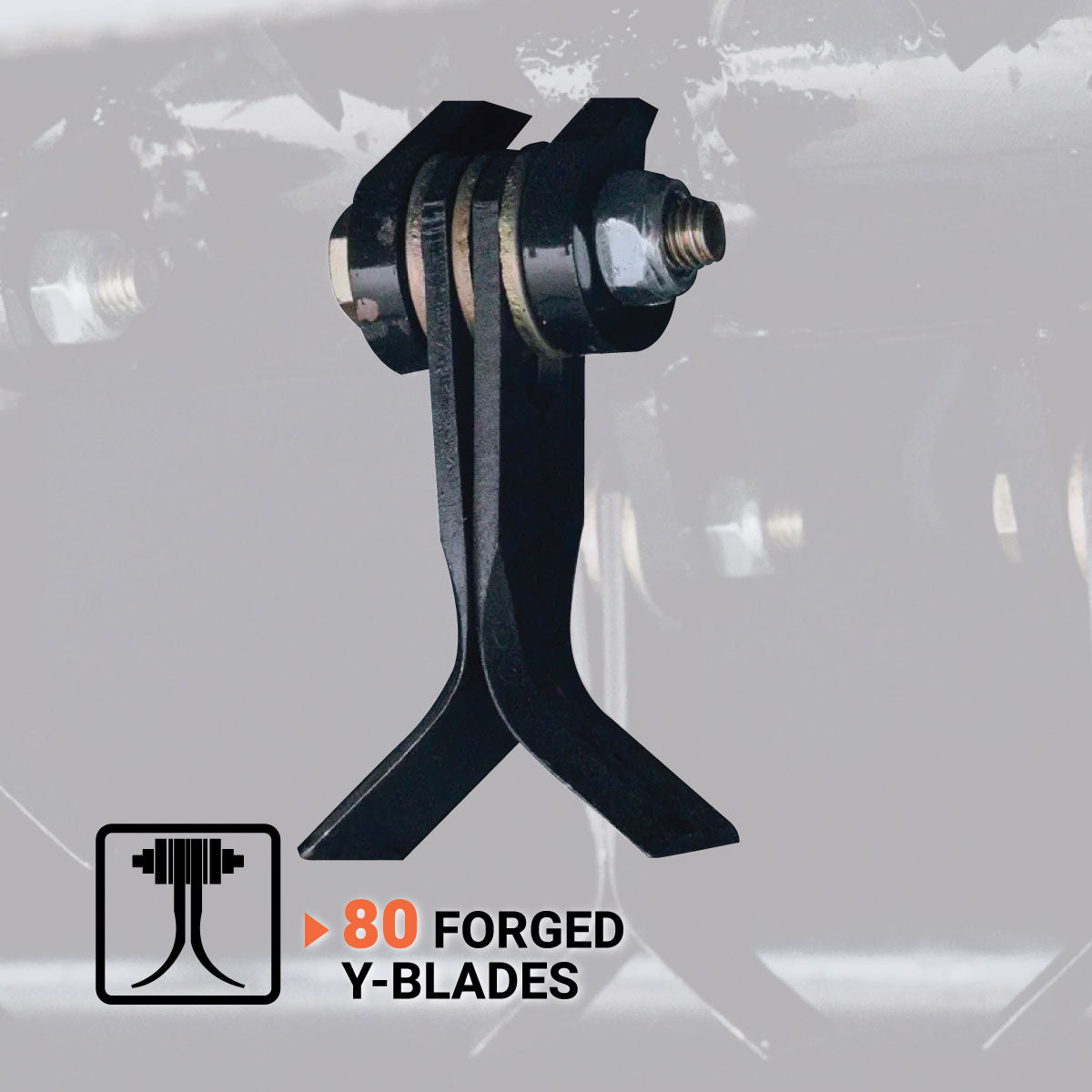

80 forged Y-blades cut through brush and grass
Feature Image

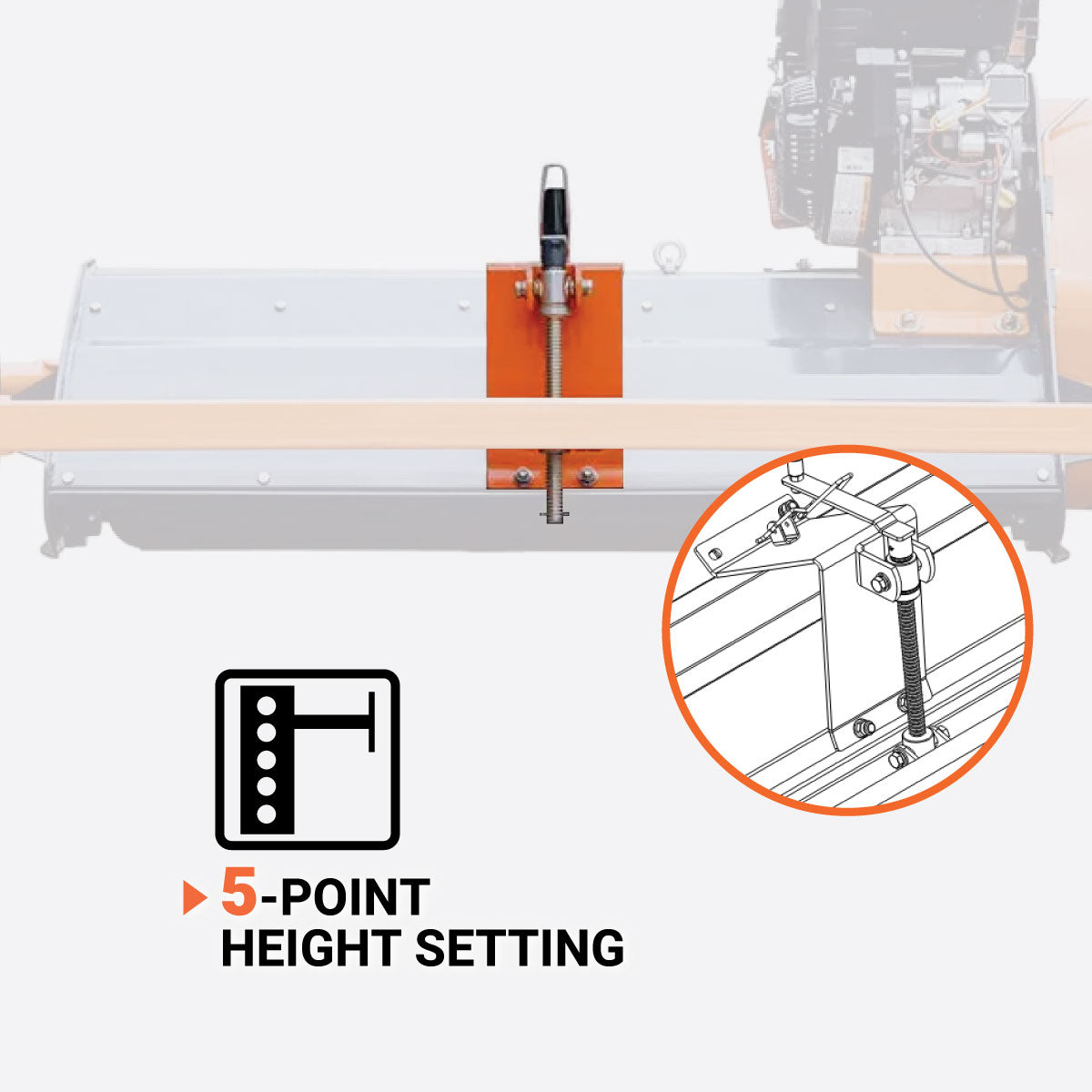

5-point mowing height setting for terrain adaptation
Feature Image

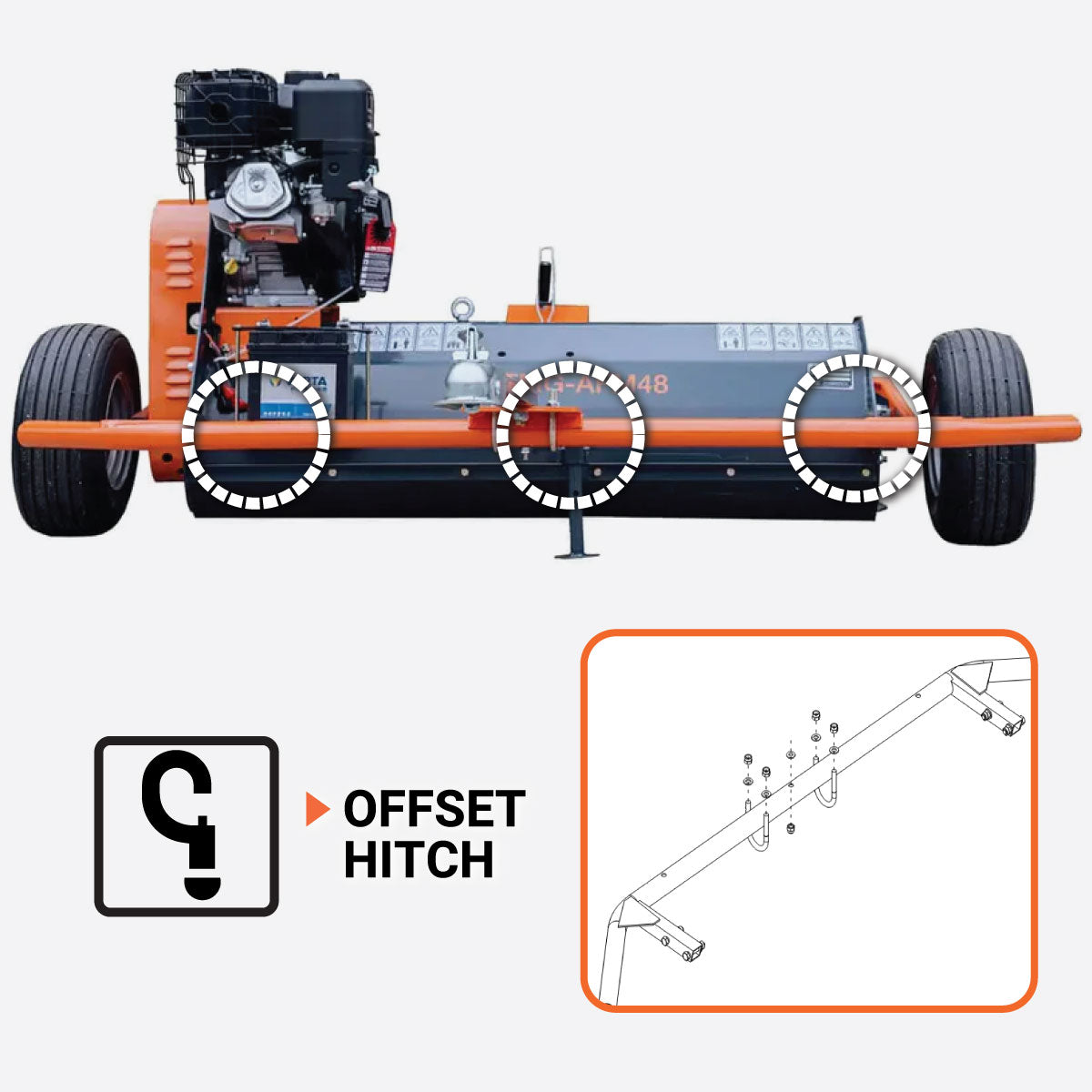

Offset hitch for easier fence and edge mowing
Feature Image

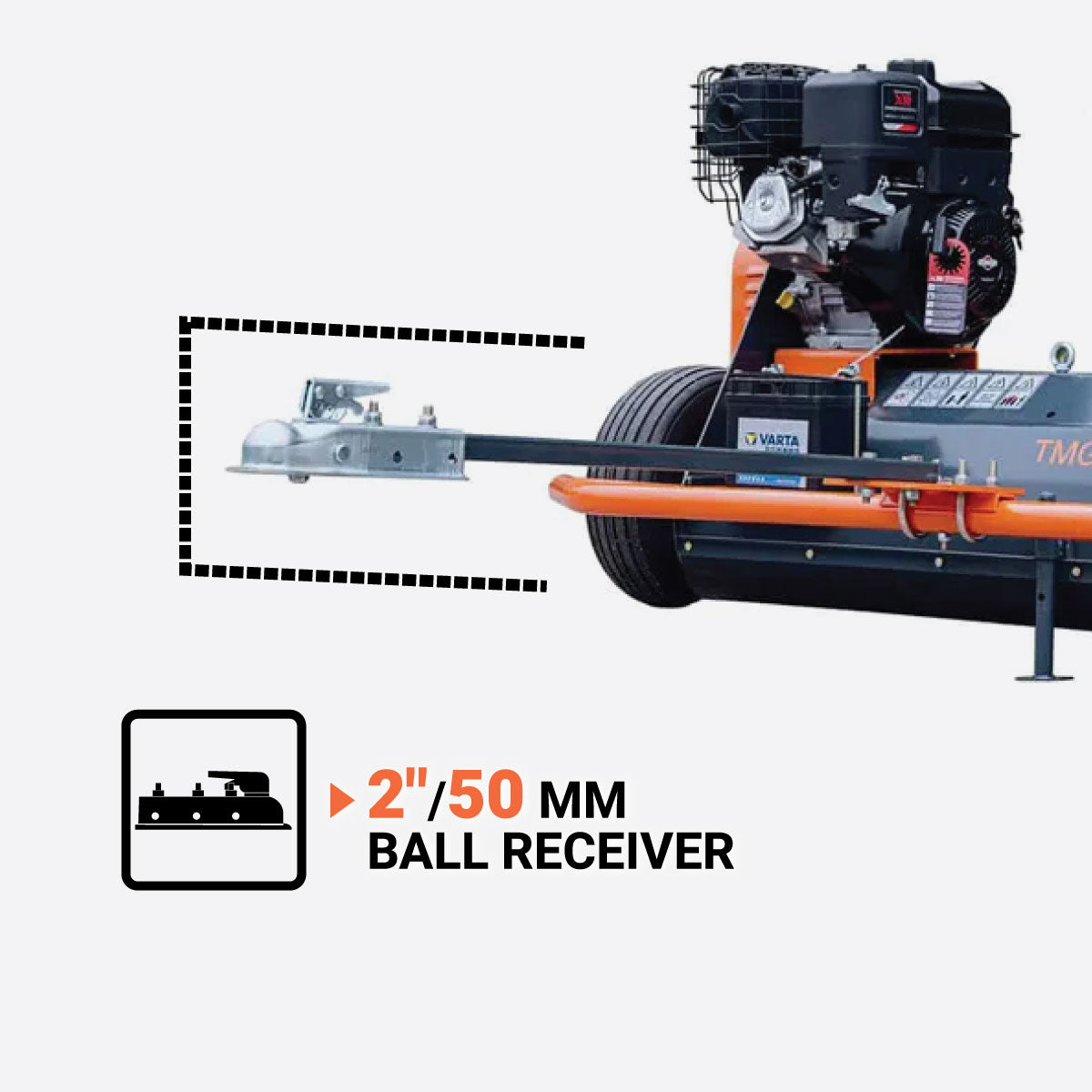

50 mm (2″) ball receiver offers universal compatibility

Specifications

  • Drive Path Width: 2000 mm
  • Working Width: 1200 mm
  • Work Efficiency: 2420 - 3030 ㎡/h
  • Tire Size: 4P/TL 16 x 6.5-8
  • Cut Capacity: Up to 380 mm Height
  • Mowing Height: 30 - 170 mm
  • Ground Clearance: 0 - 140 mm
  • Offset Distance (Left): 1300 mm
  • Offset Distance (Right): 1300 mm
  • Number of Blades: 80
  • Blade Type: Y Model
  • Blade Size: 100 x 30 x 4 mm
  • Blade Material: 65Mn
  • Max Rotor Speed: 3200 RPM
  • Drive Type: Belt
  • Number of Belts: 2
  • Belt Model: XPB 1174La (1152Ld)
  • Engine Model: Briggs & Stratton XR Pro Series
  • Engine Power: 13.5 HP
  • Dura-Bore™ Cast Iron Sleeve: Yes
  • Cartridge Air Cleaner With Standard Pre-cleaner: Yes
  • Electric Start (Battery Included): Yes
  • Compatible with 2” Ball Receiver: Yes
  • Finish: Powder coating
  • Overall Dimension (L x W x H): 2000 x 1065 x 790 mm

Shipping Information

The order will ship from our Australian warehouse. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 196 x 102 x 86 cm (77" x 40" x 34") (L x W x H)
  • Shipping weight: 324 kg (715 lb)
Shipping from Rowville,VIC
What happens after you place your order?

Product Description

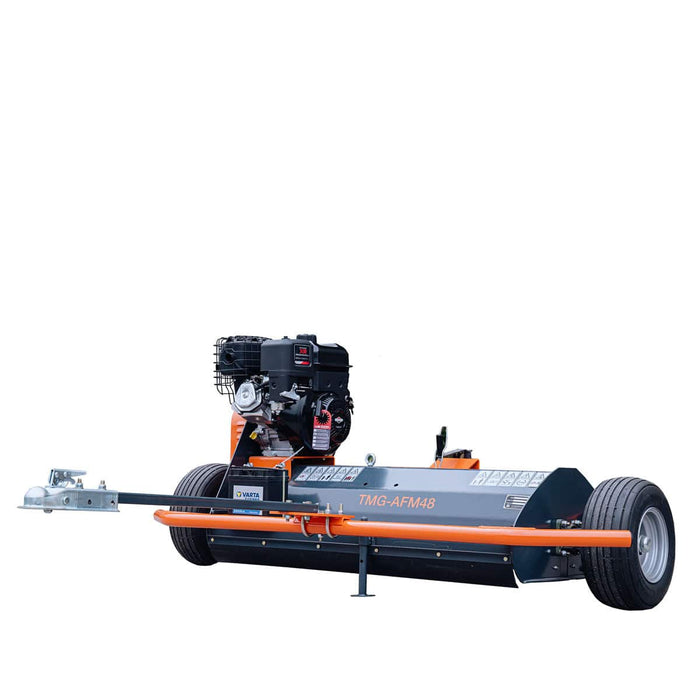

The TMG-AFM48 ATV Flail Mower makes the cutting of uneven, overgrown and harsh terrain efficient and easy to do. Simple, easy hookup to a 50 mm (2″) ball receiver on your ATV or UTV for use around your home, farm or commercial property. This mower is the perfect attachment for your four-wheeler and turns it into a versatile maintenance machine to keep your property looking sharp.

1200 mm of working width for fast, efficient cutting and 5-point offset capabilities for when you’re working around trees and bush lines or getting close to buildings and garden areas. Cut grass up to 380 mm in height and leave a smooth, finished surface with the attached heavy-duty rear roller. A two-belt drive system provides efficient energy transfer and reduces slippage for a long-lasting, low-maintenance mower that will last for many years.

80 razor sharp 100 mm Y-shaped blades are powered by a reliable, electric start 13.5 HP Briggs & Stratton XR Professional Series engine to make sure you get the job done right. The engine is durable and features a Dura-Bore™ cast iron sleeve and cartridge air cleaner that includes a standard pre-cleaner.

We also carry a 1000 mm (40") model of this mower: TMG-AFM40.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
