TMG-ECP41

50 kN Hydraulic Plate Compactor for 4–7 Ton Excavators, Quick Change Lugging Mount, TMG-ECP41

Product Manual

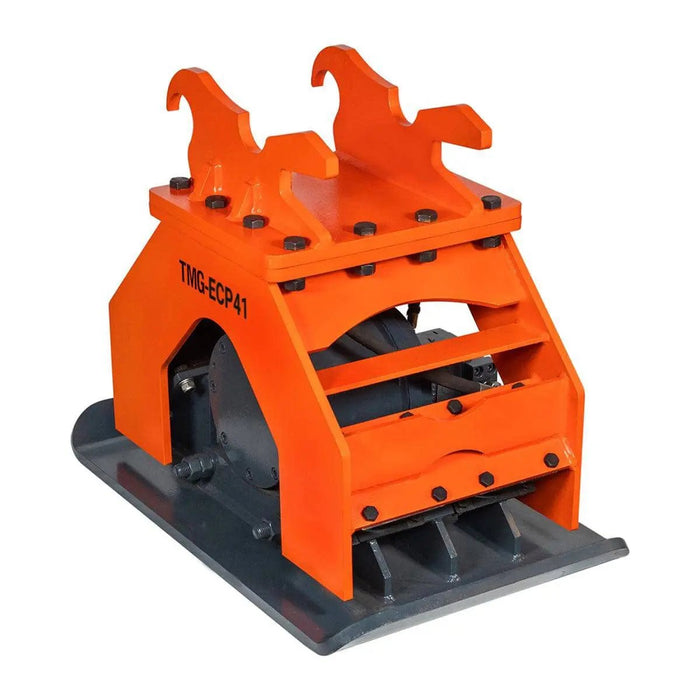

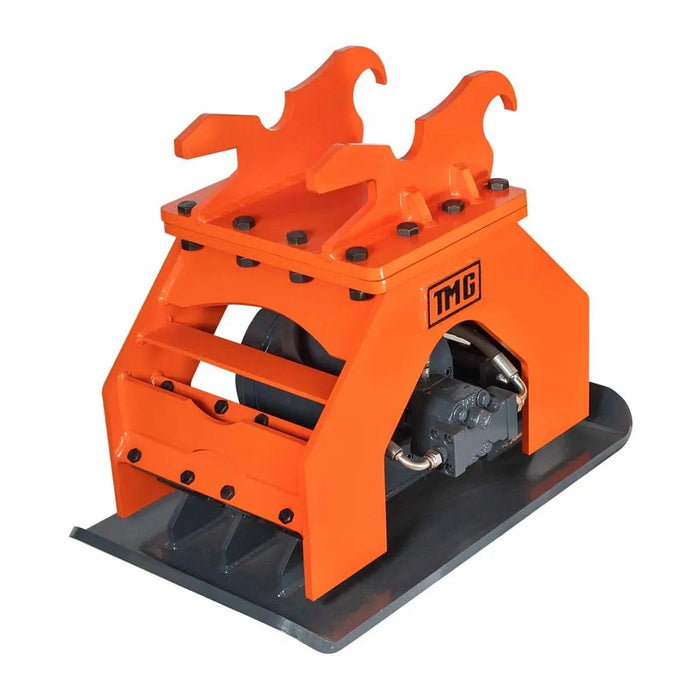

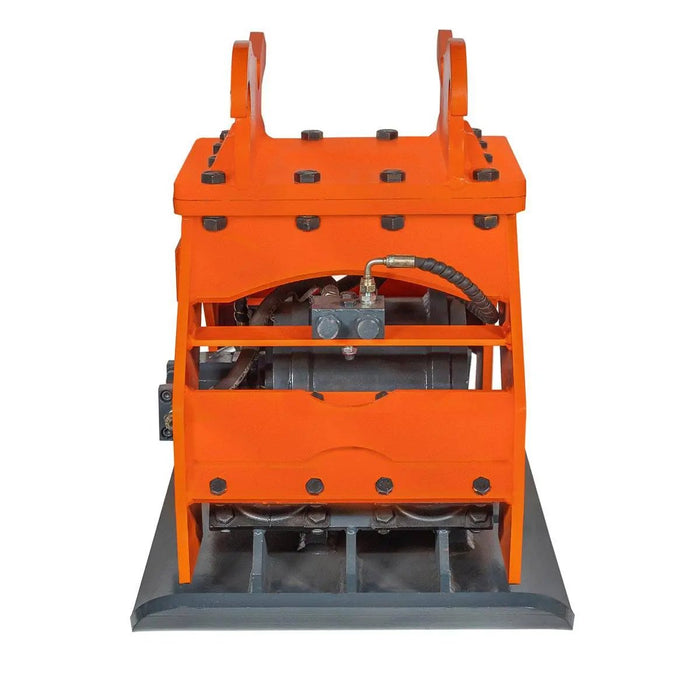

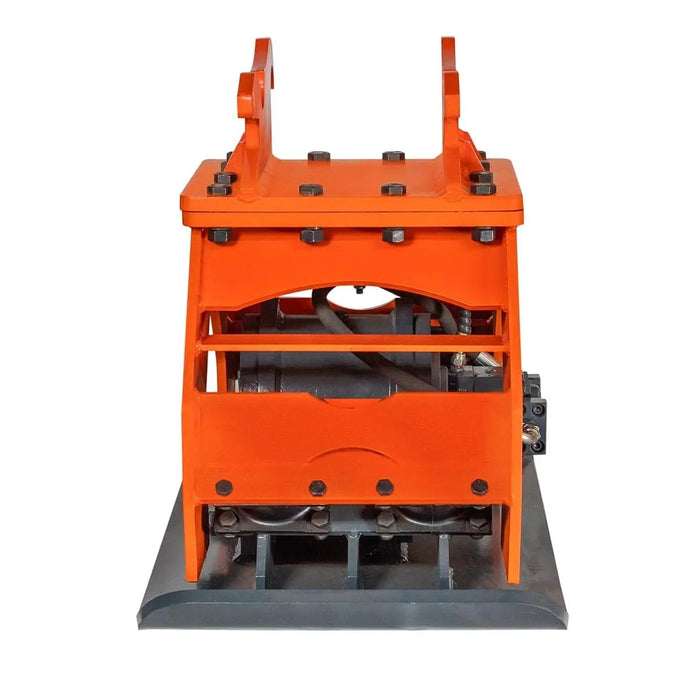

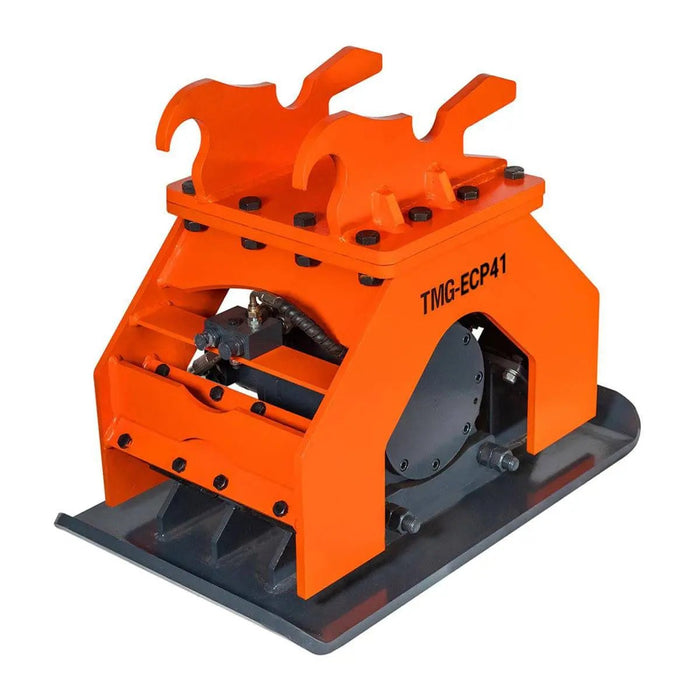

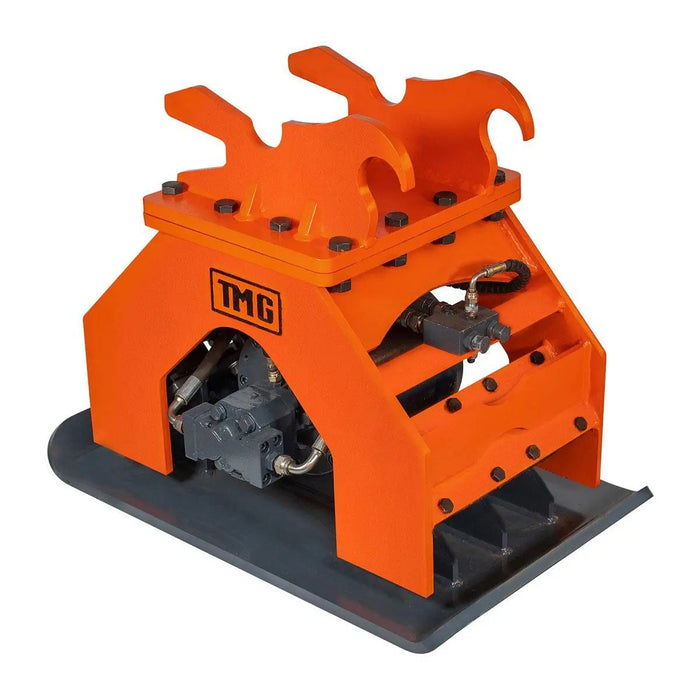

TMG Industrial 11,000-lbf Hydraulic Plate Compactor, 4-7 Ton Excavator Weight, 39” Compact Capacity, TMG-ECP41
CURRENTLY IN STOCK
TMG-ECP41
$4,199.00
$4,199.00 - $4,199.00
$4,199.00
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
$4,199.00 Save $200.00
$3,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

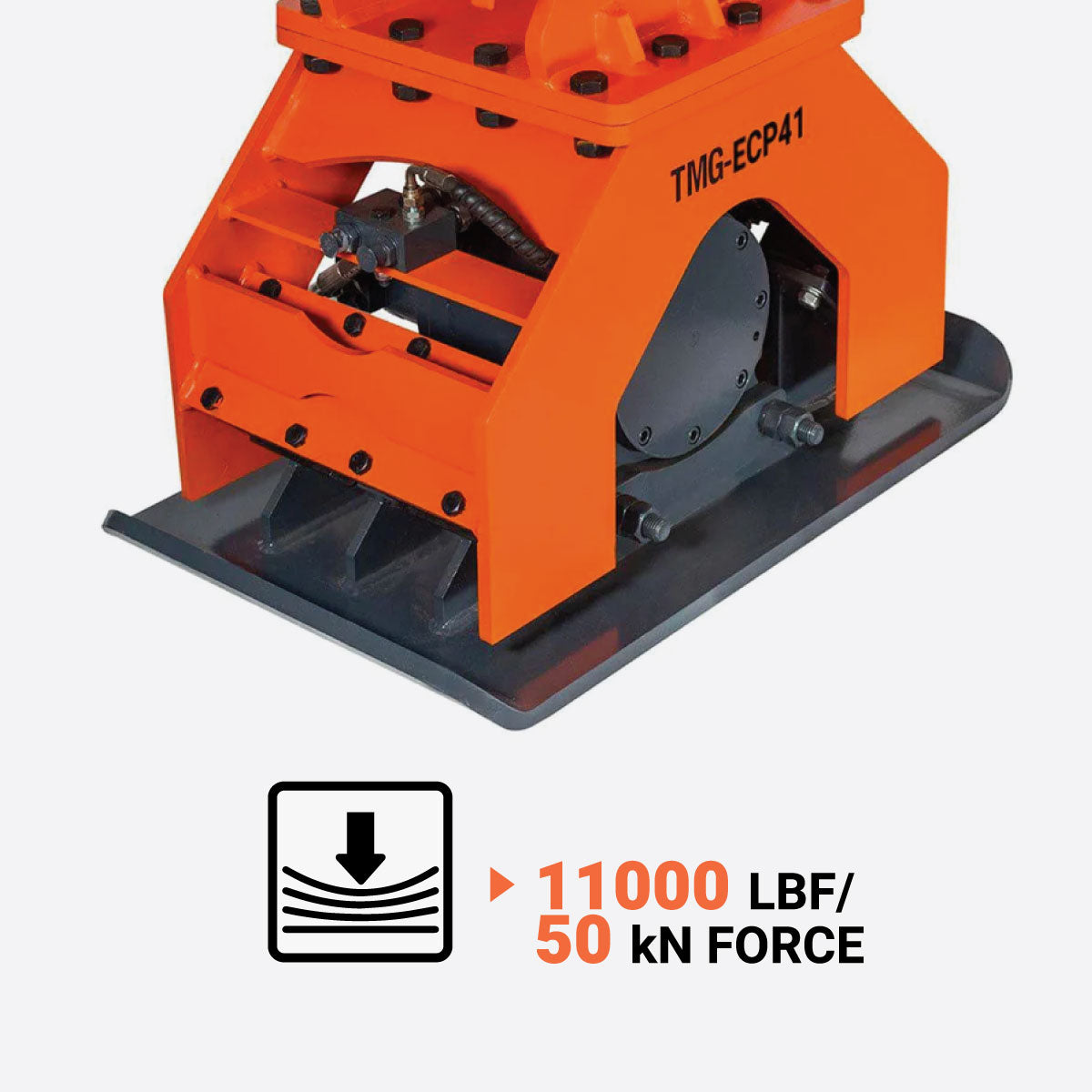

Delivers 50 kN (11,000 lbf) of impulse force for effective soil compaction
Feature Image

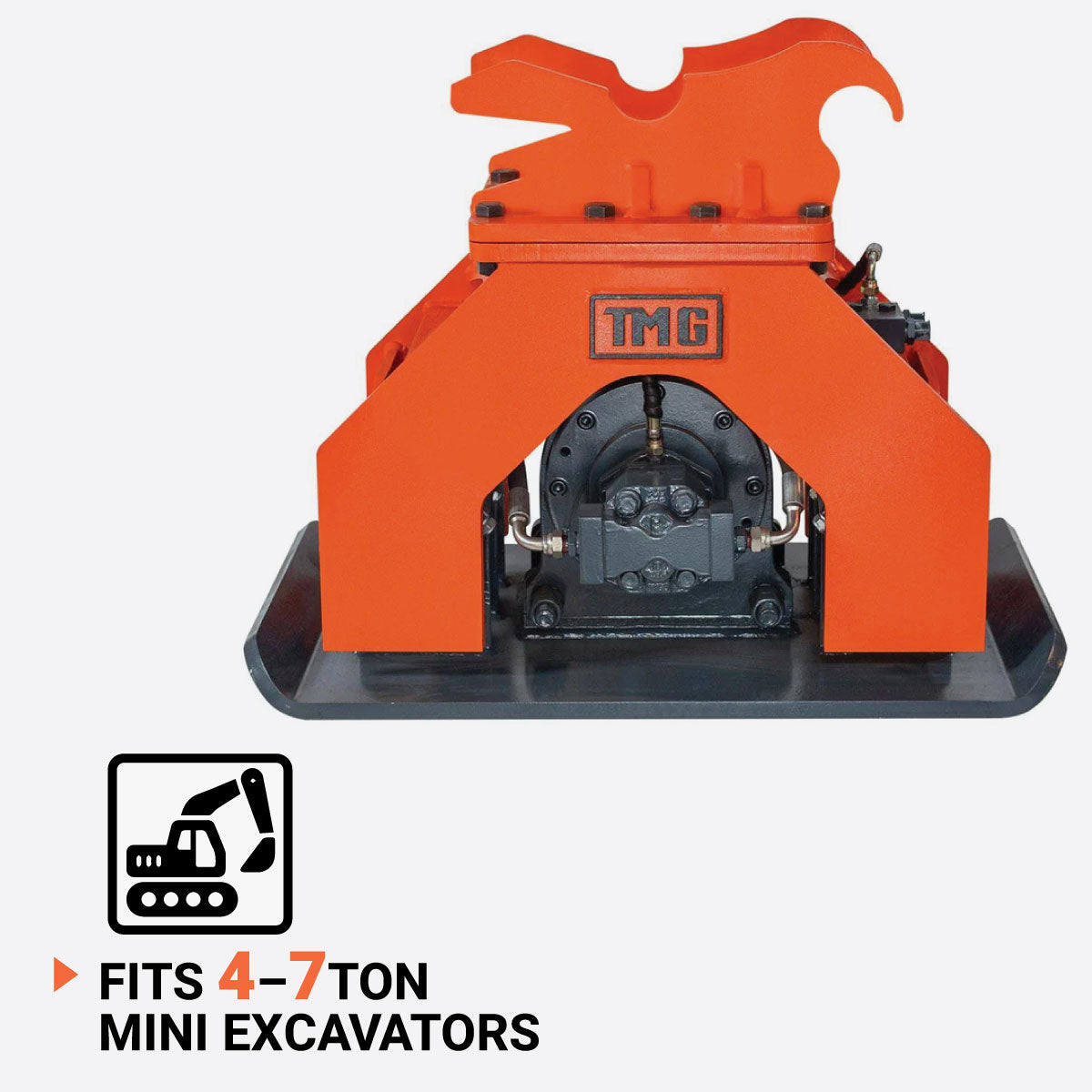

Designed for 4–7 ton excavators
Feature Image

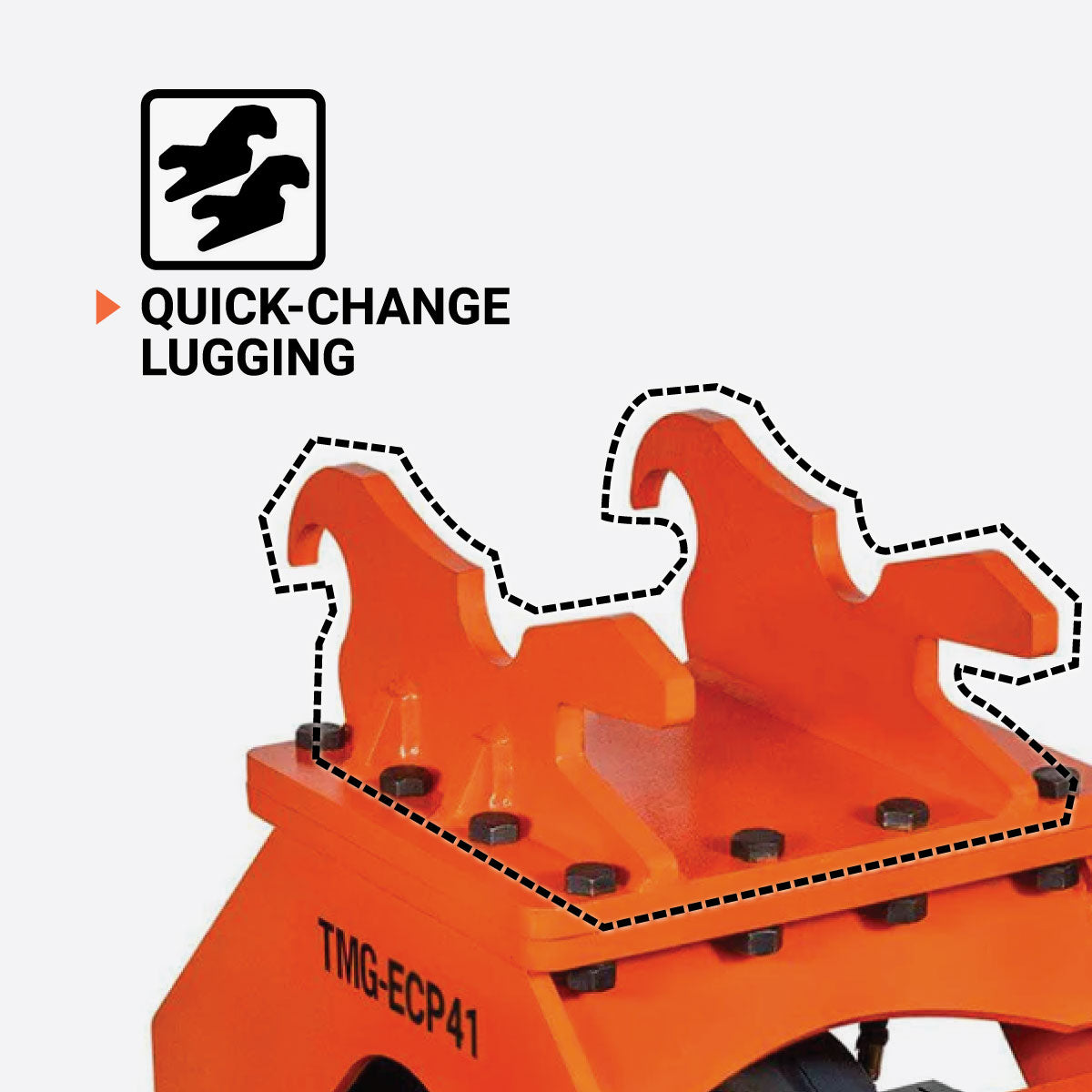

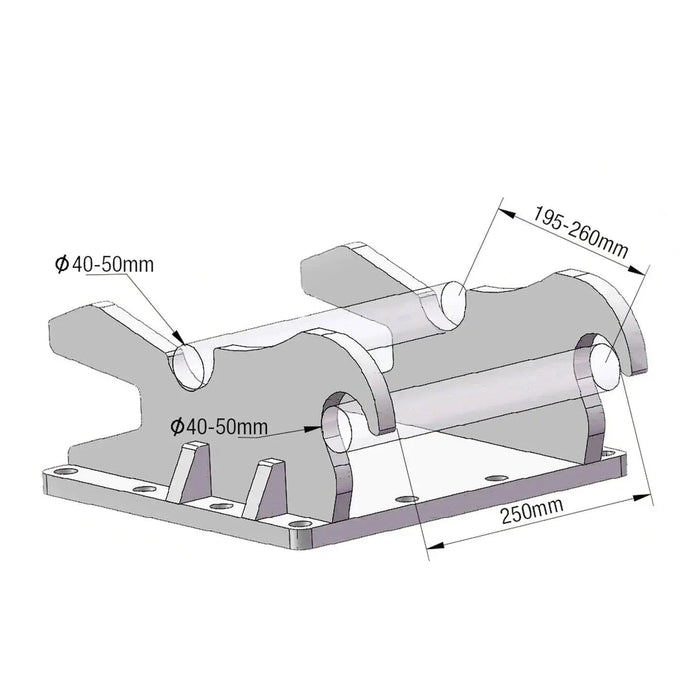

Quick-change Lugging Mount works with couplers for easy attachment change 
Feature Image

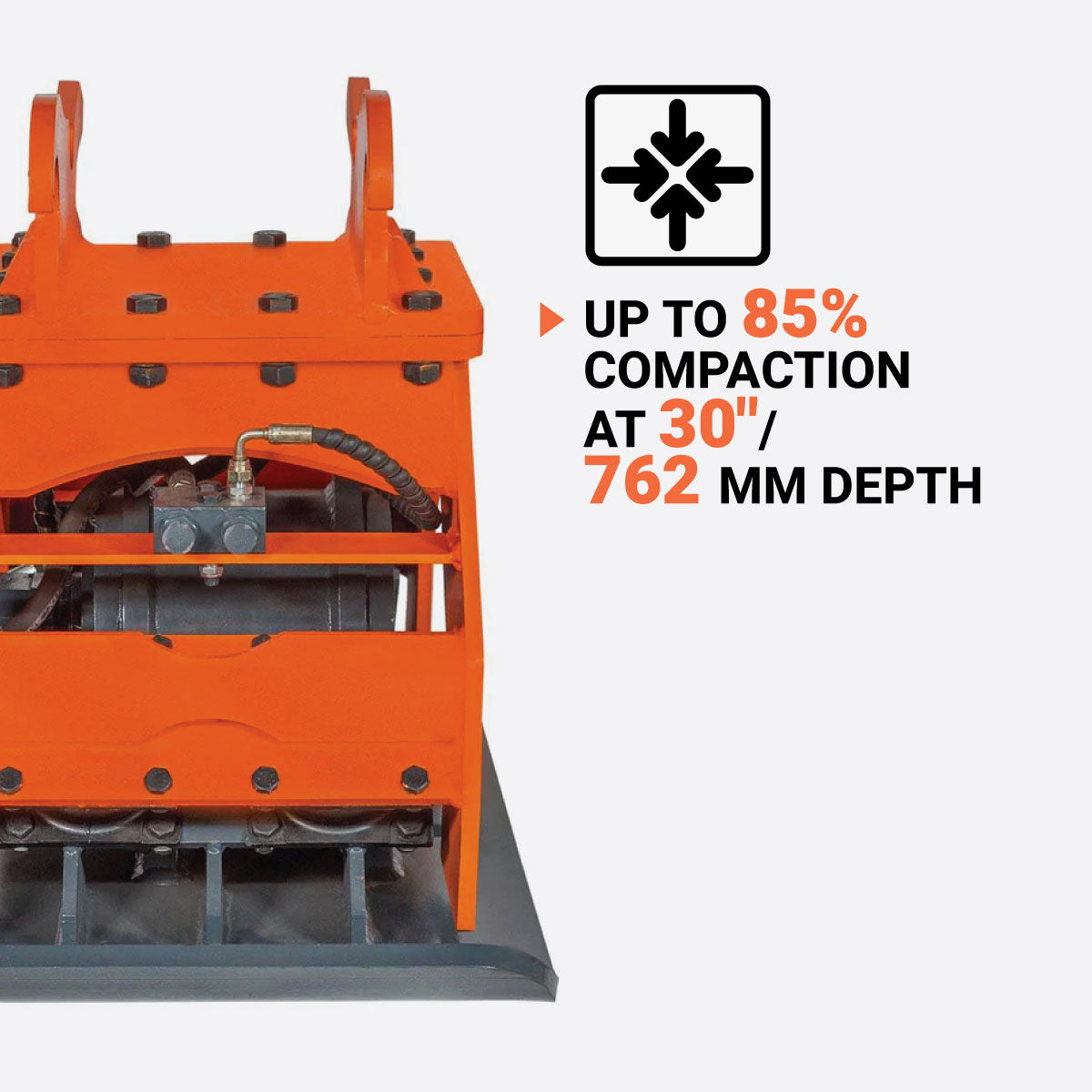

Achieves up to 85% compaction density at 762 mm depth
Feature Image

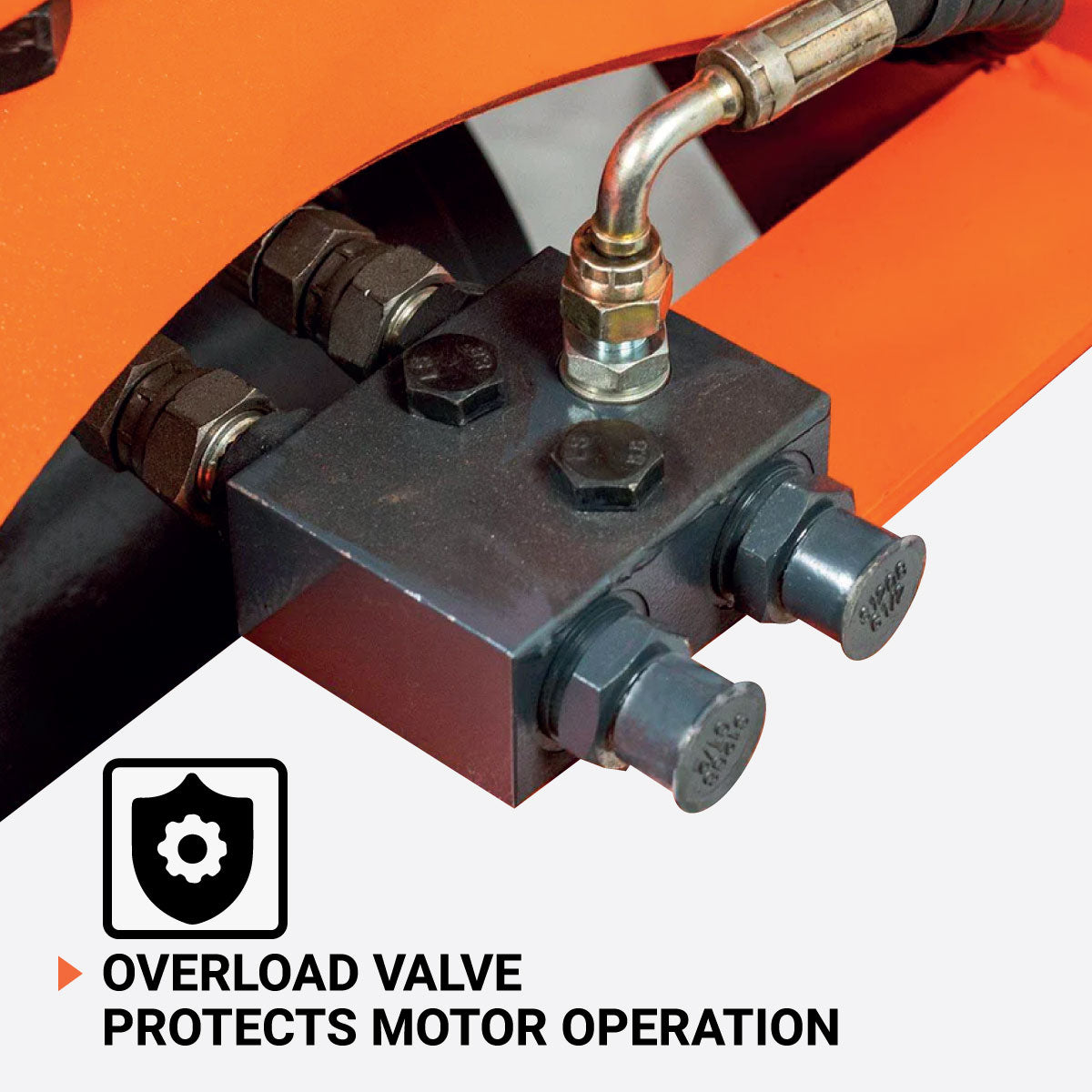

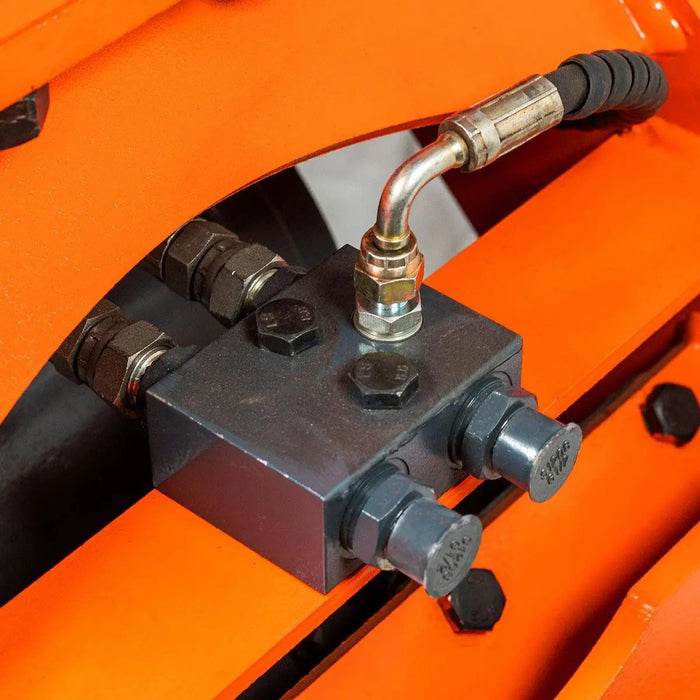

Overload shutoff valve maintains motor within safe operating range
Feature Image

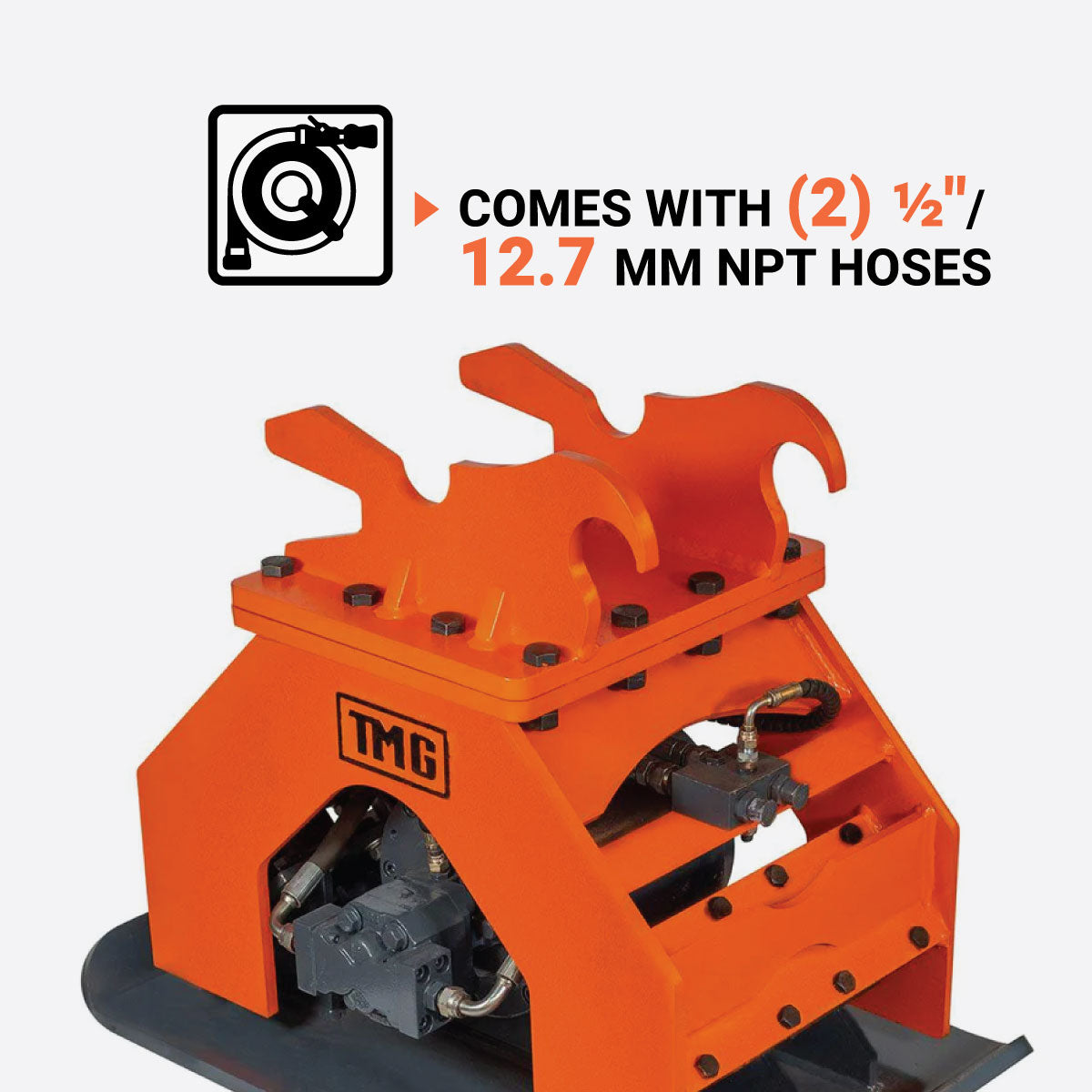

Includes two ½” NPT high-pressure hydraulic hoses for easy connection

Specifications icon Specifications

  • Compatible Excavators: 4–7 Ton
  • Impulse Force: 48.9 kN
  • Compaction Force: 5 ton
  • Compaction Depth (mm): 710–990 mm
  • Compaction Density: 85% at 762 mm
  • Exciter Frequency: 2000 RPM
  • Bottom Plate Size (mm): 927 x 550 mm
  • Hydraulic Flow (L/min): 45–85 L/min
  • Hydraulic Pressure: 100–130 bar
  • Hydraulic Hoses Included: (2) ½" NPT thread high-pressure hoses
  • Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 1.8 m
  • Net Weight: 362 kg

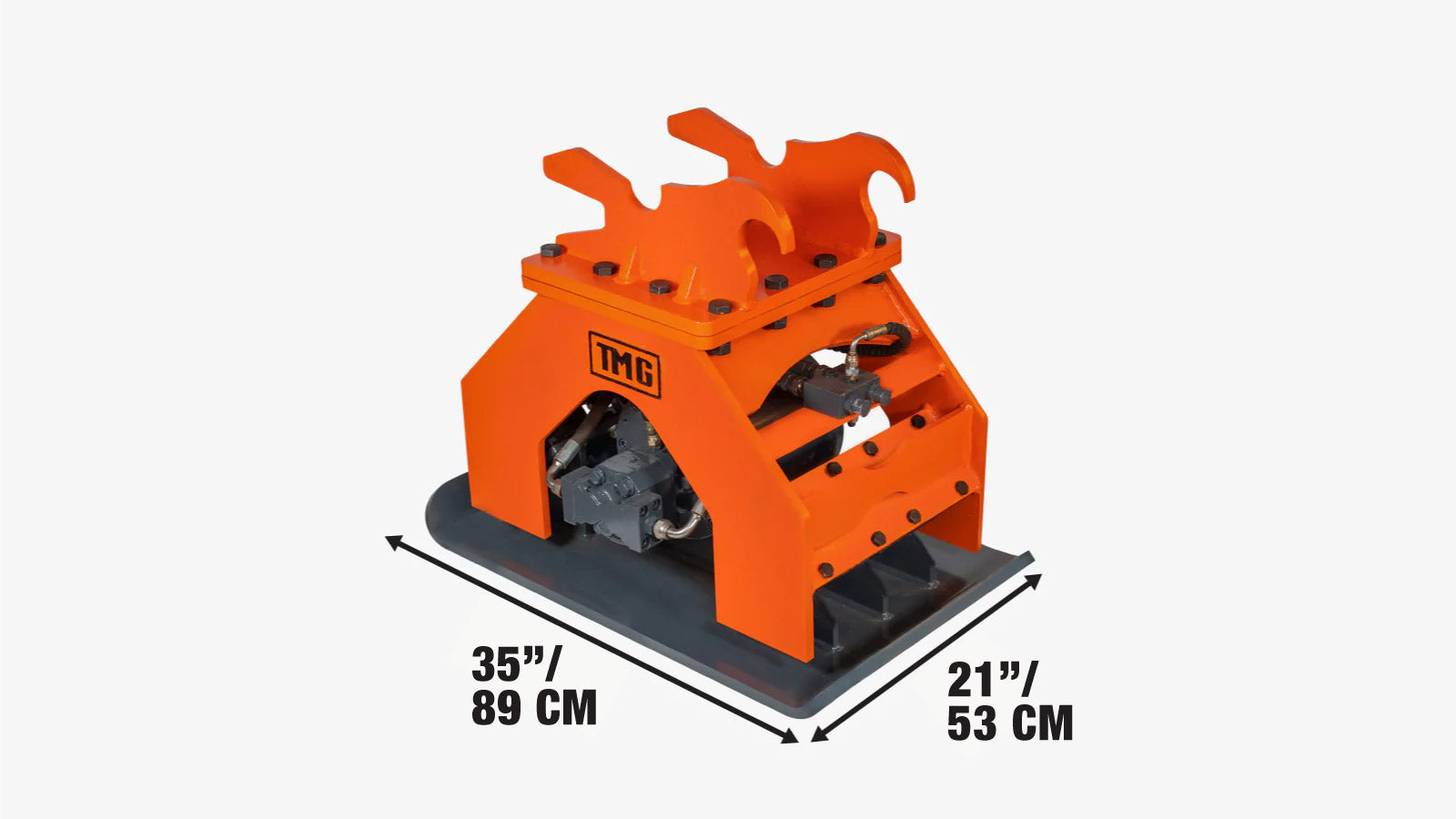

50 kN Hydraulic Plate Compactor for 4–7 Ton Excavators, Quick Change Lugging Mount, TMG-ECP41-specifications-image

Shipping Information icon Shipping Information

Orders are dispatched from our primary Australian distribution centers. Processing typically takes 2–3 business days, with delivery expected within 10–15 business days, depending on your location and accessibility.

  • Packaging: Securely packed in a metal crate

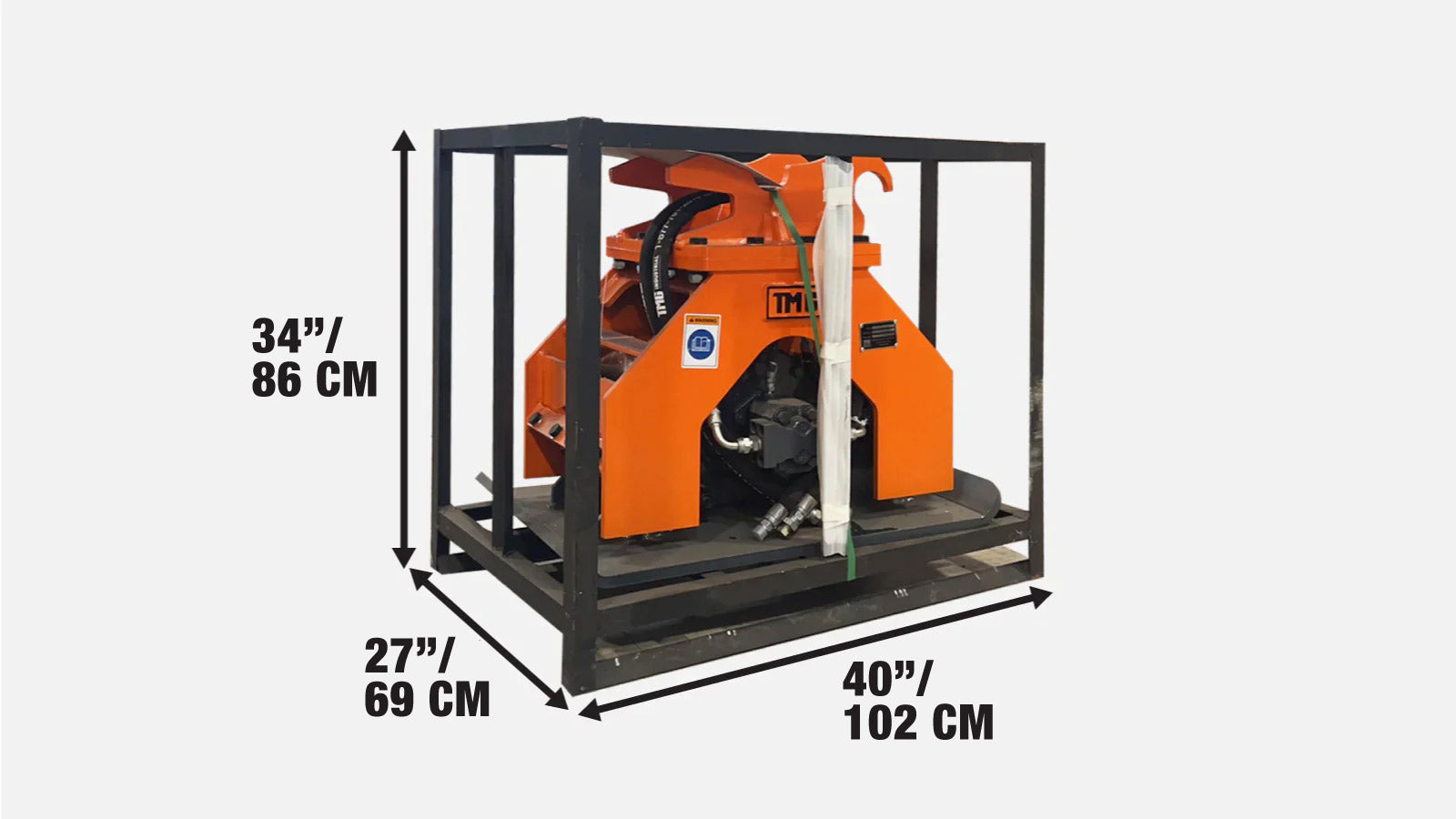

  • Shipping Dimensions: 1016 × 686 × 864 mm (L × W × H)
  • Shipping Weight: Approximately 367 kg
  • Delivery: Australia-wide; forklift required for unloading
Shipping from Rowville,VIC
What happens after you place your order?
50 kN Hydraulic Plate Compactor for 4–7 Ton Excavators, Quick Change Lugging Mount, TMG-ECP41-shipping-info-image

Product Description icon Product Description

The TMG-ECP41 Hydraulic Plate Compactor is a robust attachment designed for 4–7 ton excavators, delivering 50 kN of impulse force for effective soil compaction. Its quick-change lugging system enhances workflow efficiency, making it an ideal choice for Australian contractors involved in construction, landscaping, and roadwork projects.

With features like a fully sealed motor, overload protection, and optimized vibration control, the TMG-ECP41 ensures reliable performance and durability in demanding work environments.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What is the TMG-ECP41 designed for?
The TMG-ECP41 is a robust hydraulic plate compactor built for compacting soils, gravel, and sand in demanding applications such as foundations, road building, and trench backfilling. It performs well on both bituminous and granular surfaces.
Q: What size excavator is suitable for the TMG-ECP41?
Suitable for excavators in the 4–7 ton range (approximately 3,992 to 6,985 kg).
Q: How much impulse force does the TMG-ECP41 generate?
It delivers 11,000 lbf (50 kN) of impulse force for effective soil compaction.
Q: What is the maximum compaction depth?
Effective compaction depth ranges from 28 to 39 inches (71.1 to 99.1 cm).
Q: What is the compaction density?
Up to 85% compaction density at a depth of 30 inches (76.2 cm).
Q: What are the hydraulic requirements?
Hydraulic flow: 12–20 GPM (45.4–75.7 LPM); Pressure: 1450–1885 PSI (10.0–13.0 MPa).

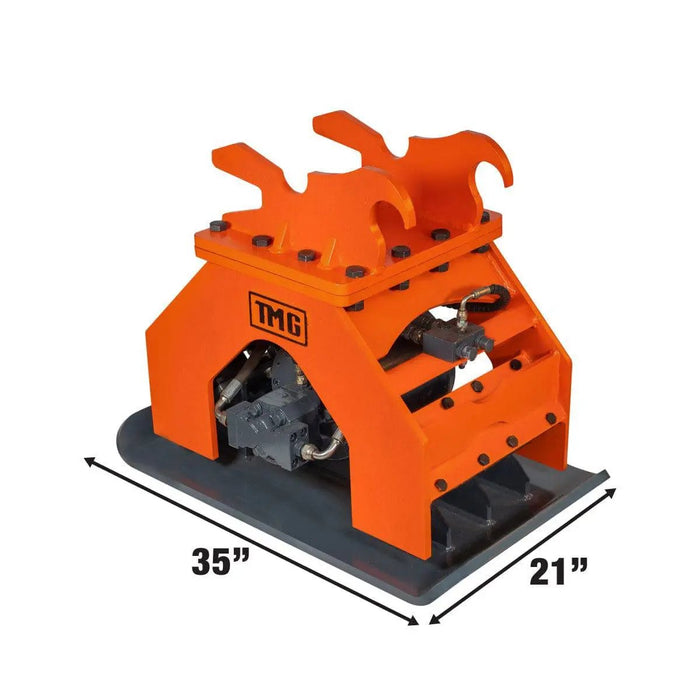

Q: What are the dimensions of the bottom plate?
35" × 21" (88.9 cm × 53.3 cm).
Q: How much does the TMG-ECP41 weigh?
Approximately 810 lb (367.4 kg) net and shipping weight.
Q: Are hydraulic hoses included?
Yes, includes two 1/2" NPT high-pressure hydraulic hoses for fast hookup.
Q: Does the TMG-ECP41 protect my equipment?

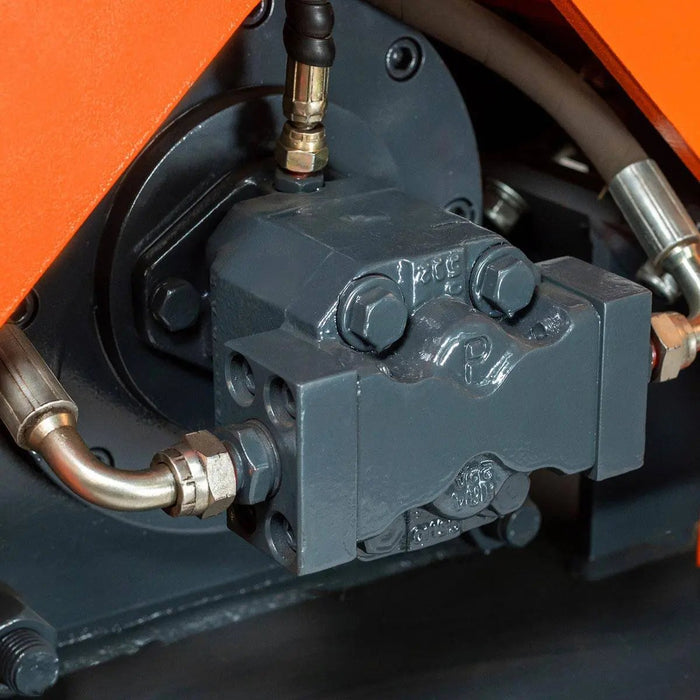

Yes. It includes an overload shutoff valve and industrial rubber cushions to isolate vibration and prevent damage. Motor and bearings are fully sealed to protect from dust and moisture.
Q: What is the warranty on the TMG-ECP41?
This product includes a 1-year manufacturer warranty. Refer to the TMG Industrial website for policy details.
