TMG-HB150Q

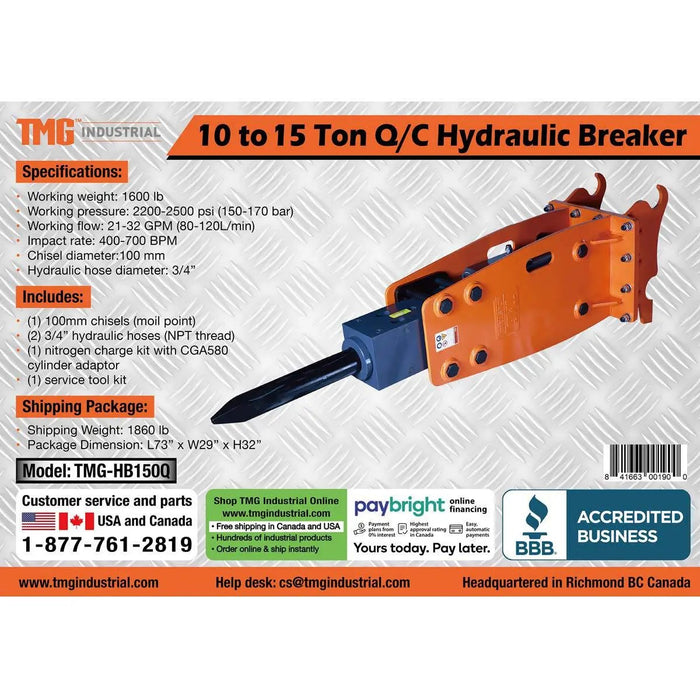

Hydraulic Breaker for 10–15 Ton Excavators, Quick-Change Lugging, TMG-HB150Q

Product Manual

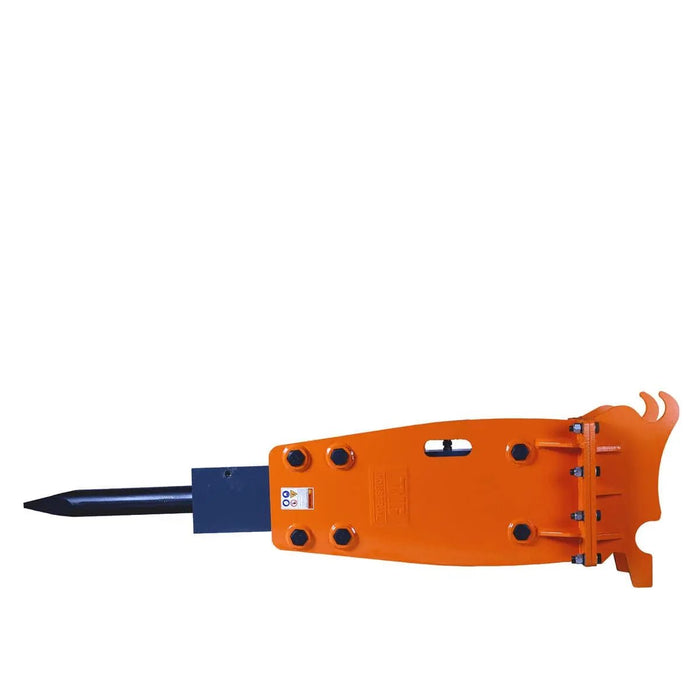

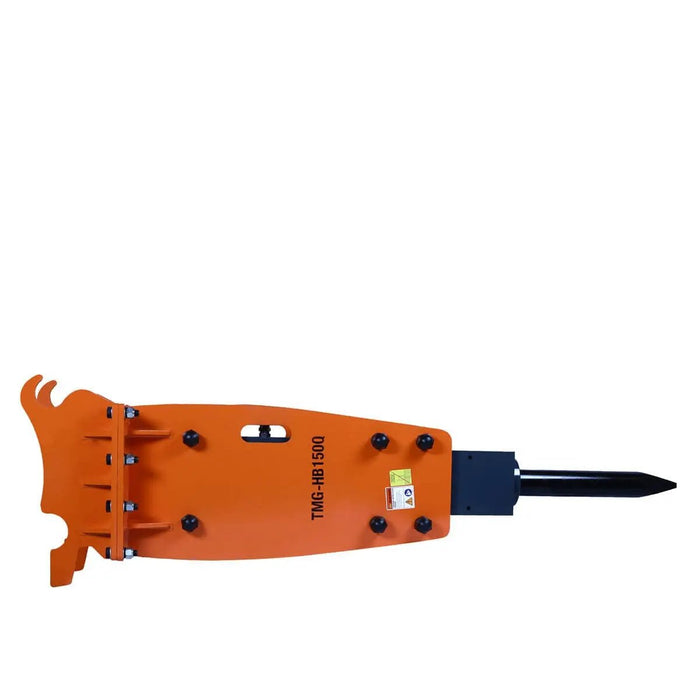

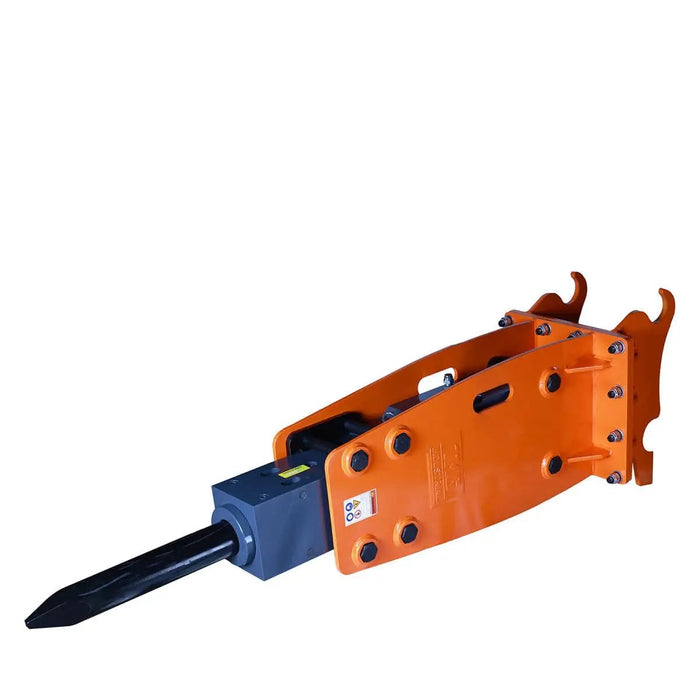

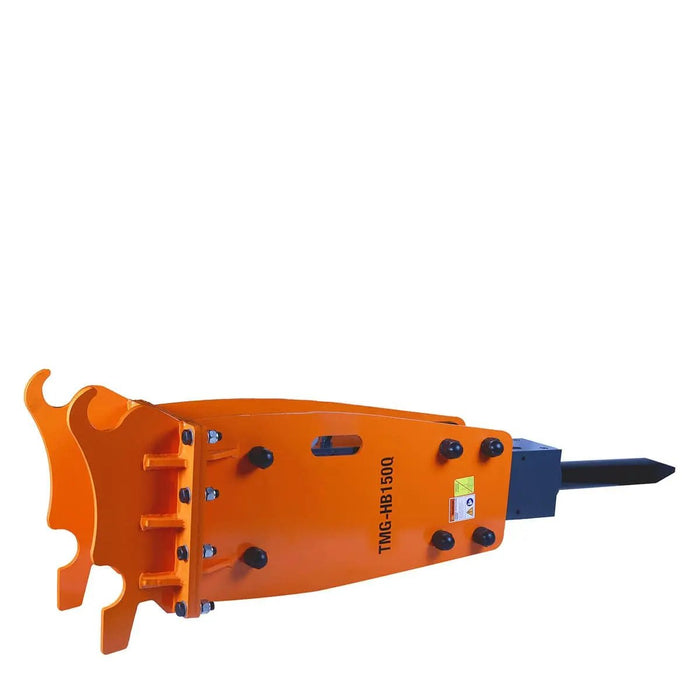

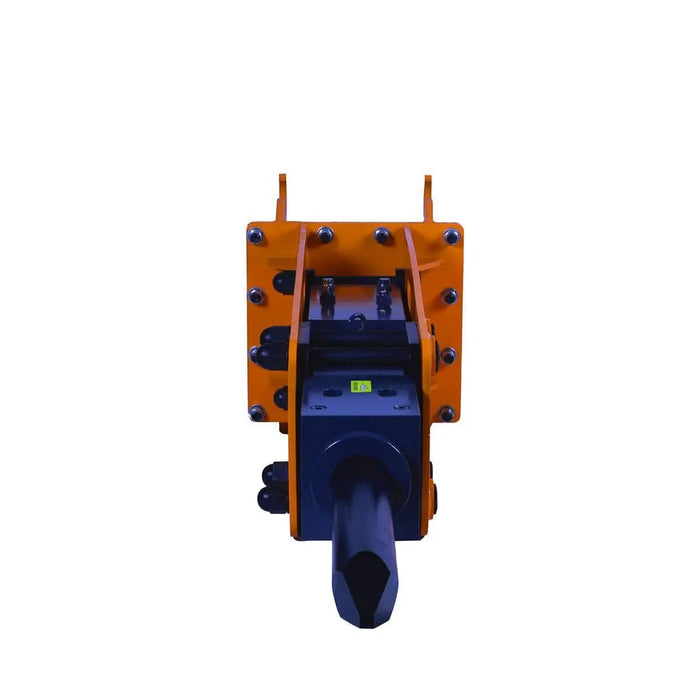

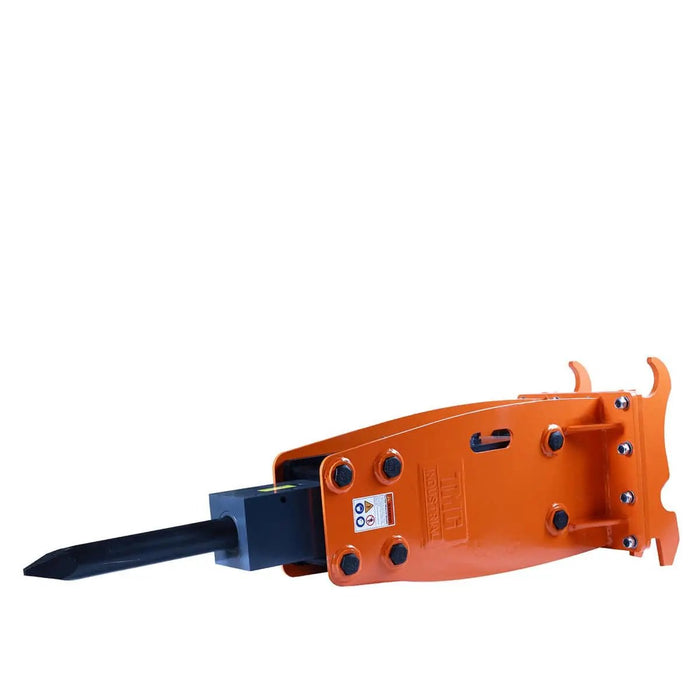

TMG-HB150Q 10 to 15 Ton Q/C Excavator Hydraulic Breaker, 4'' (100mm) Moil Point Chisel, 1960 Joules Impact Energy, 400-700BPM
CURRENTLY IN STOCK
TMG-HB150Q
$7,499.00
$7,499.00 - $7,499.00
$7,499.00
$6,599.00
$6,599.00 - $6,599.00
$6,599.00
$7,499.00 Save $900.00
$6,599.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 1 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

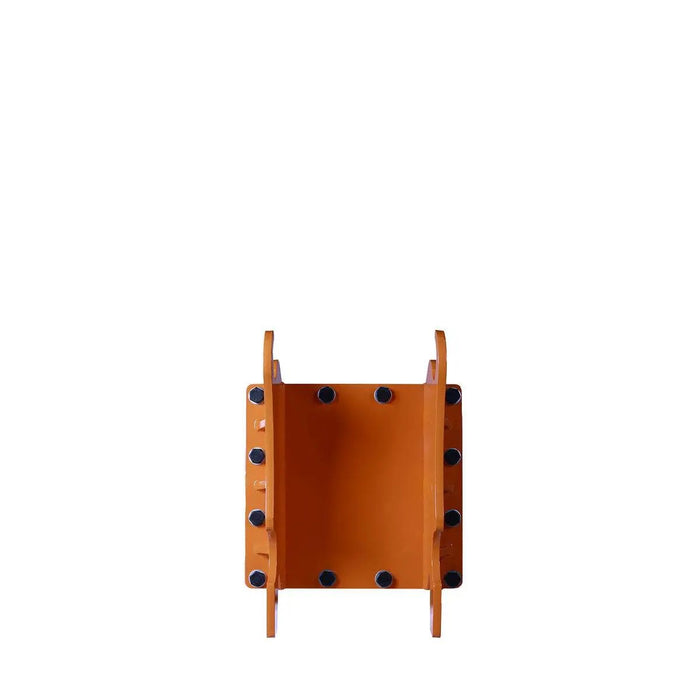

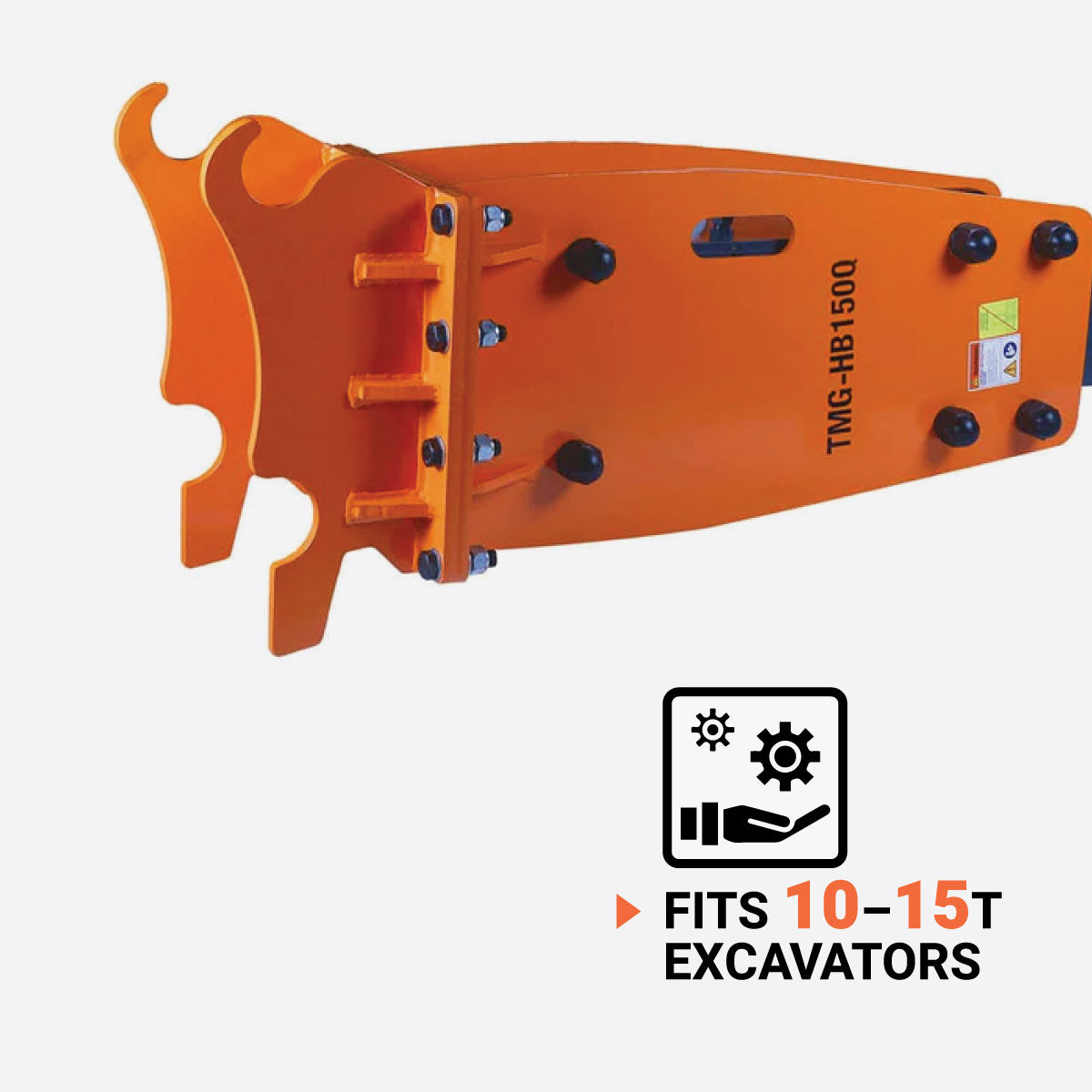

Compatible with 10 to 15 ton excavators using a quick-change lugging system
Feature Image

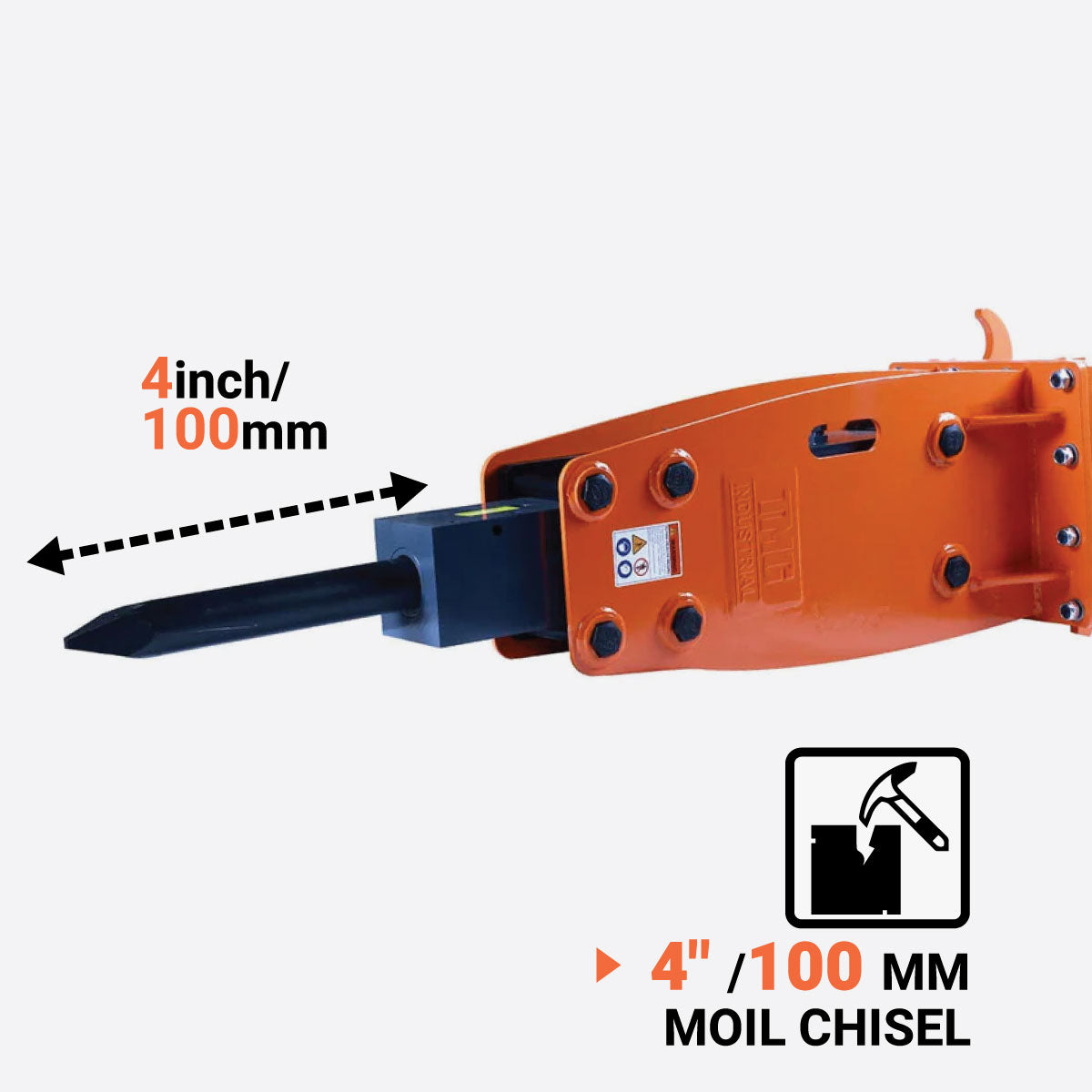

100 mm moil point chisel for large-scale demolition of reinforced concrete and stone
Feature Image

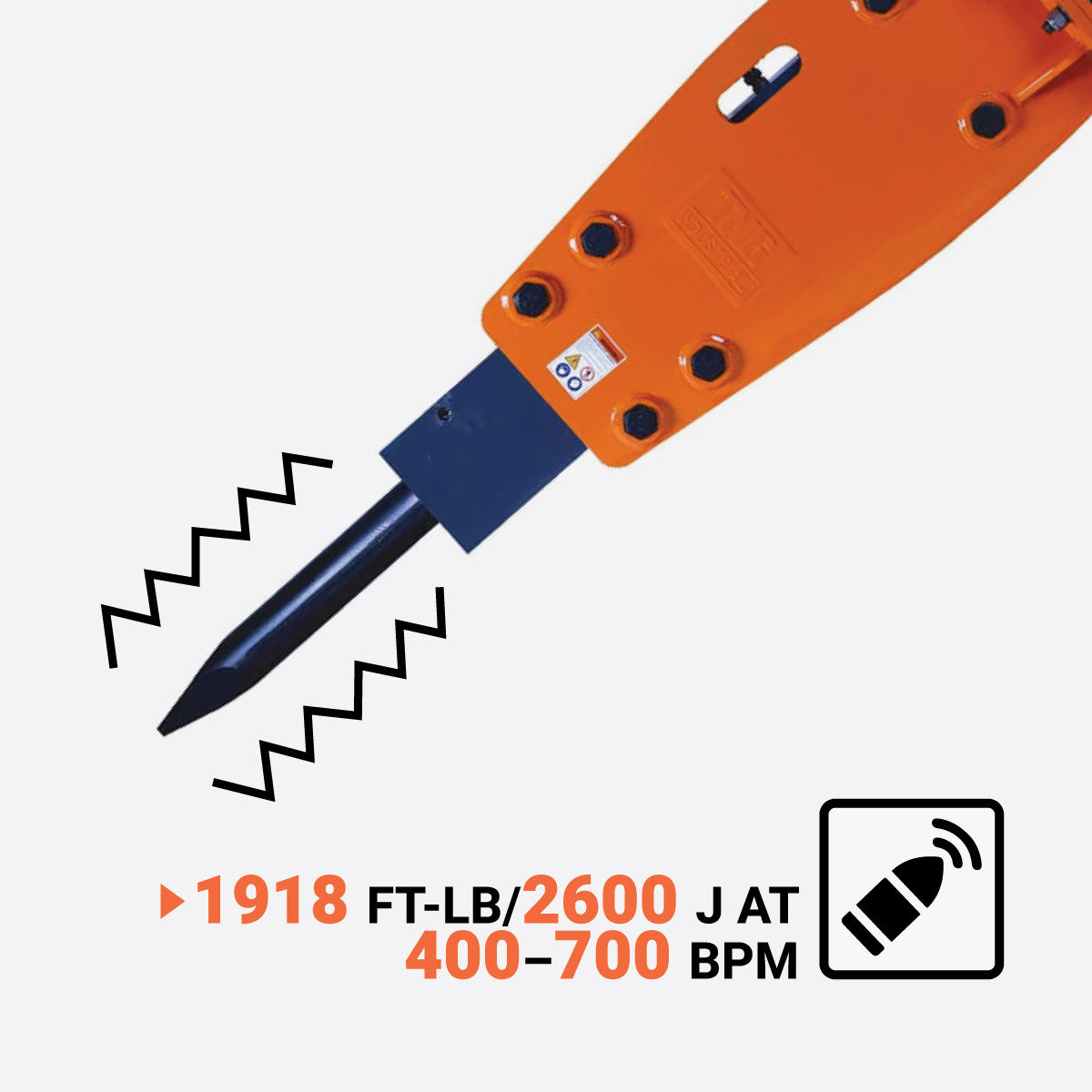

Delivers 2600 J impact energy at 400–700 BPM for heavy-duty performance
Feature Image

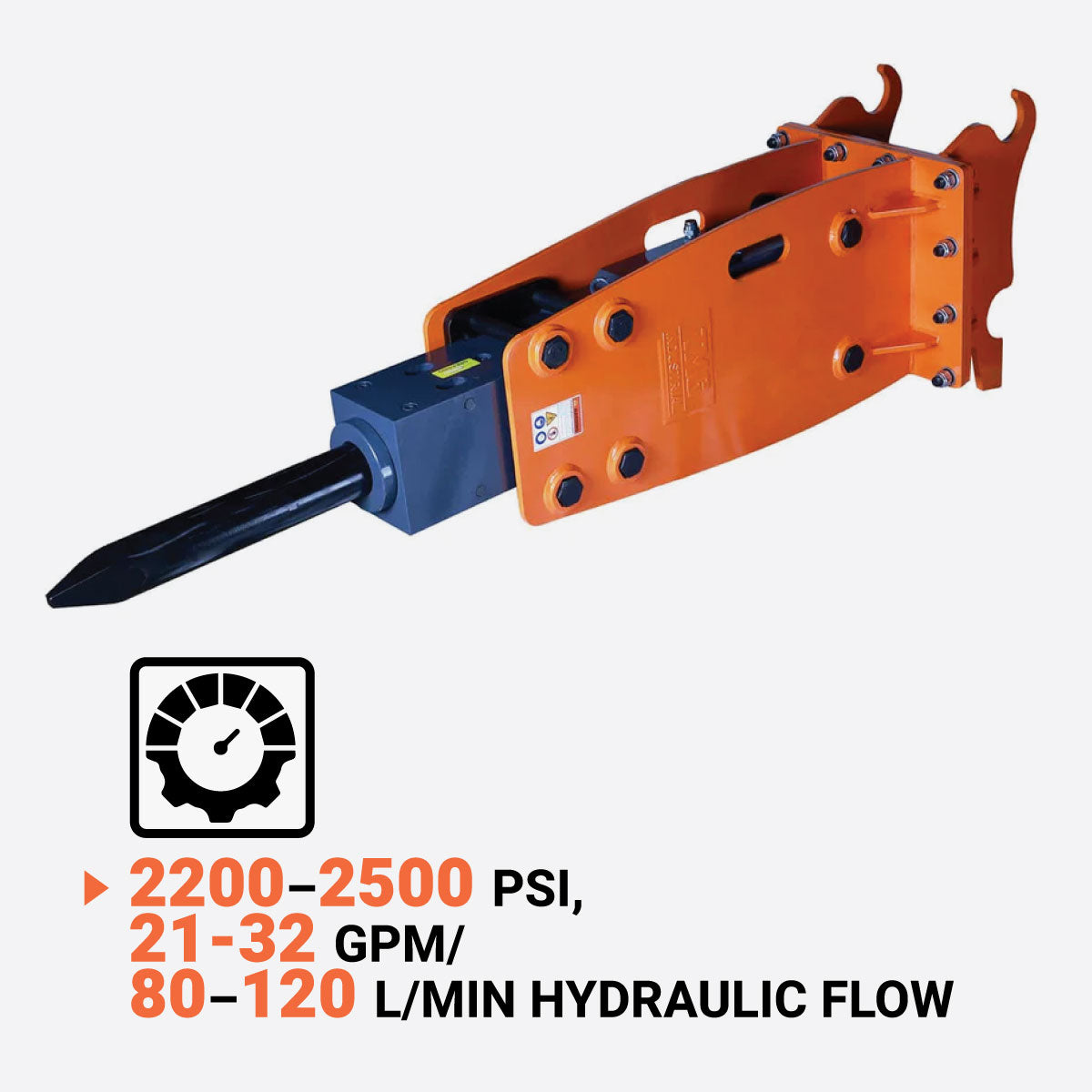

Operates at 2200–2500 PSI with 80–120 L/min hydraulic flow
Feature Image

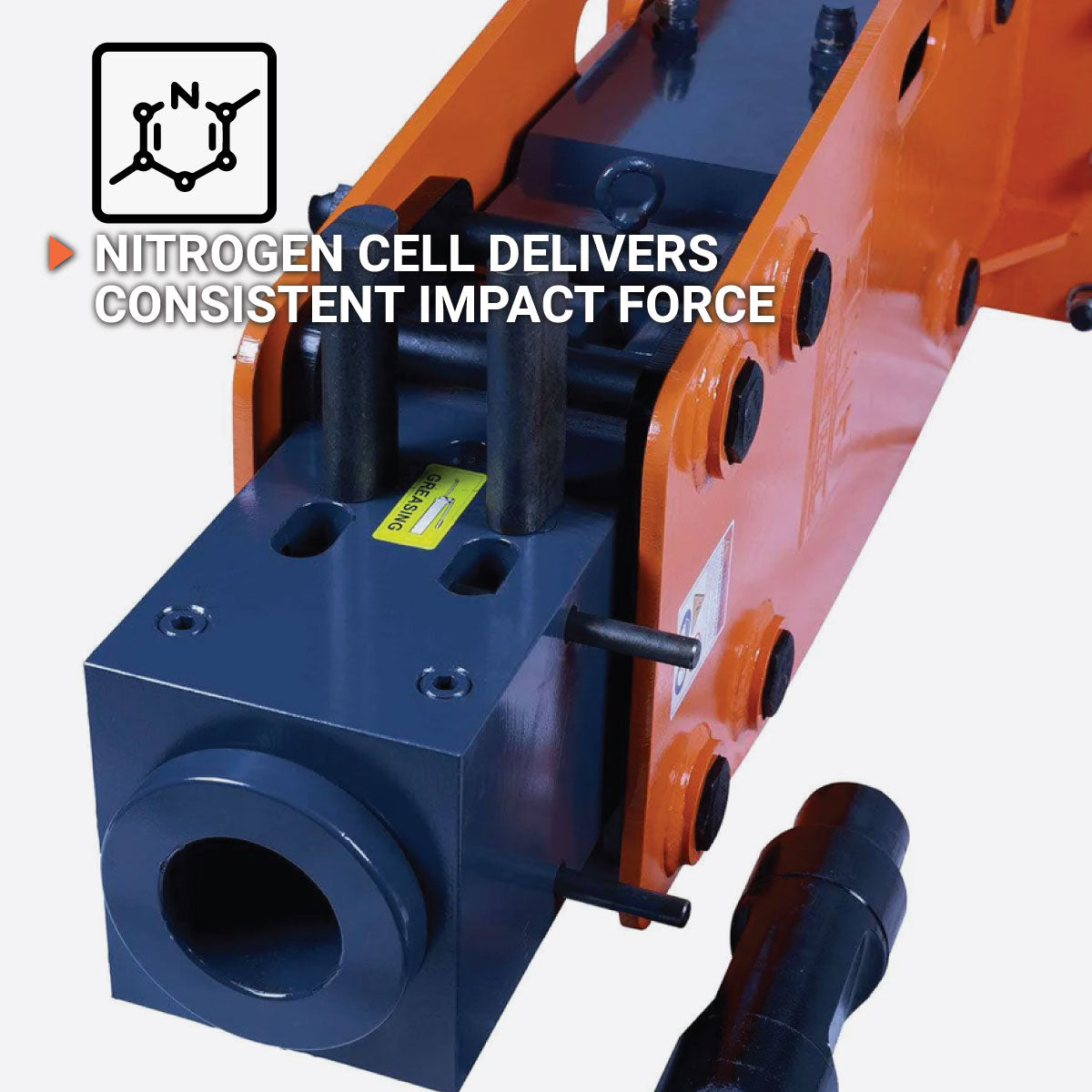

Nitrogen-charged power cell ensures efficient, consistent impact force
Feature Image

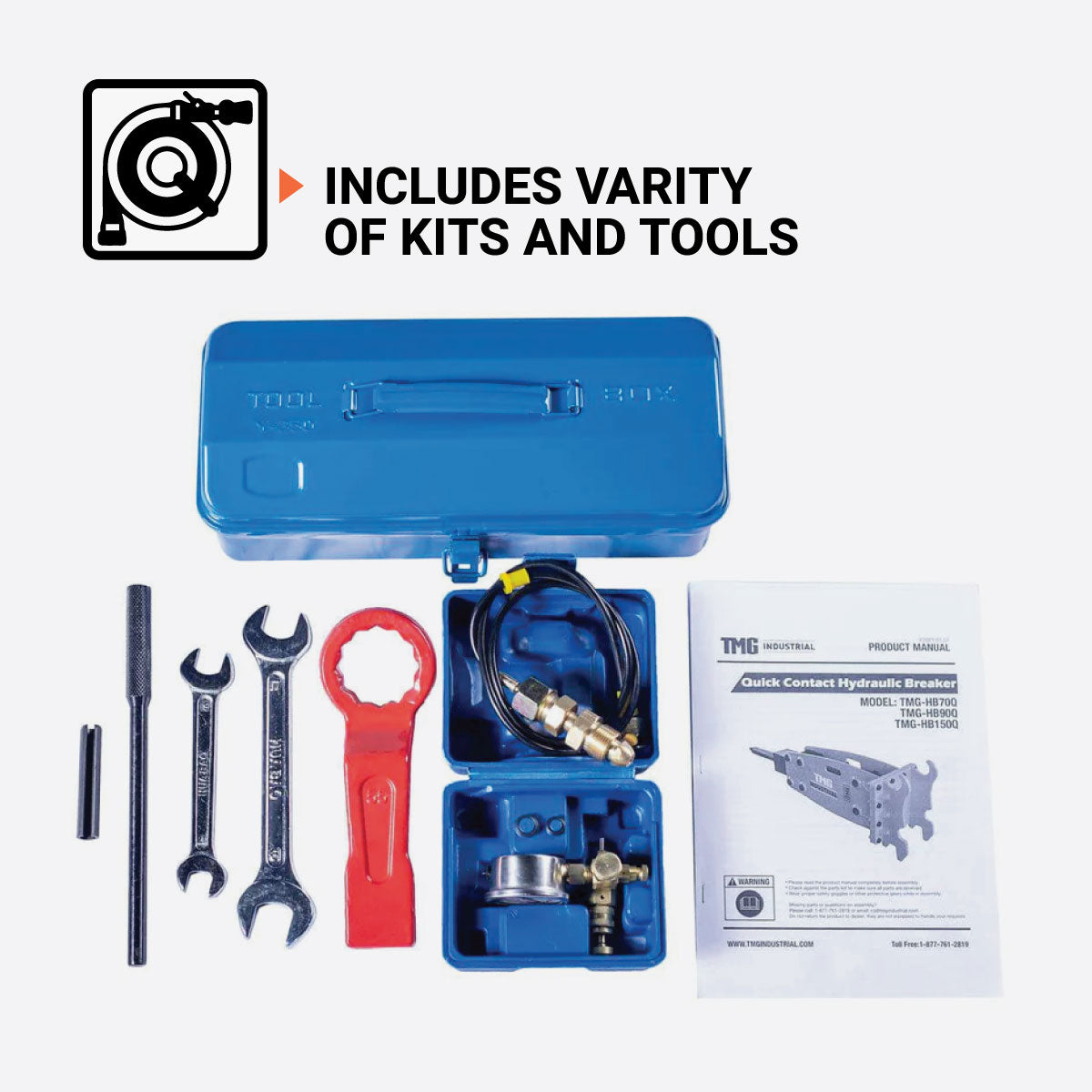

Includes hydraulic hoses with NPT fittings, nitrogen charging kit, and service tool kit Shape

Specifications icon Specifications

  • Compatible Equipment: 10–15 Ton Excavators

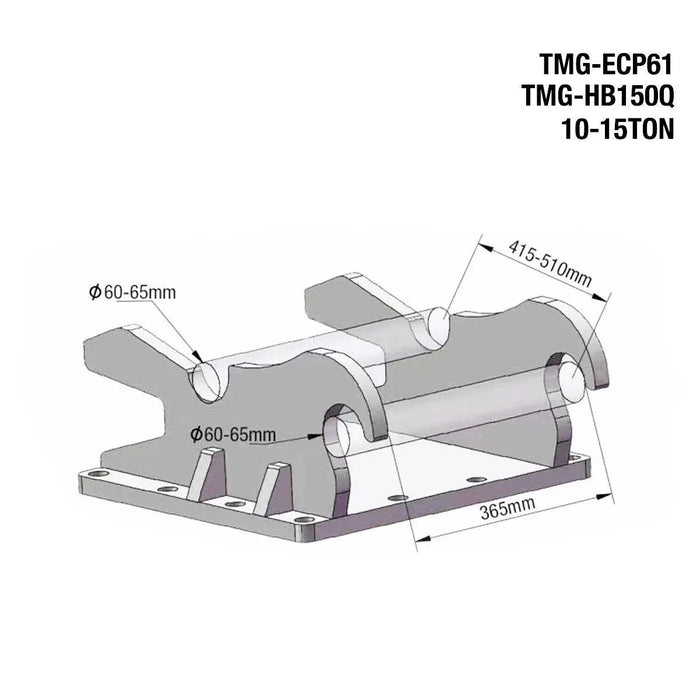

  • Mount Type: Quick-change (Q/C)
  • Impact Rate (BPM): 400–700 BPM
  • Impact Energy: 2600 J
  • Hydraulic Flow (L/min): 80–120 L/min
  • Hydraulic Pressure (PSI): 2200–2500 PSI
  • Hydraulic Hoses & Couplers Included: Only hoses included
  • Hydraulic Couplers Type: –
  • Hydraulic Hoses (Qty & Size): 2 pcs, 3/4" x 2.1 m
  • Chisel Diameter: 100 mm
  • Operating Weight: 725 kg

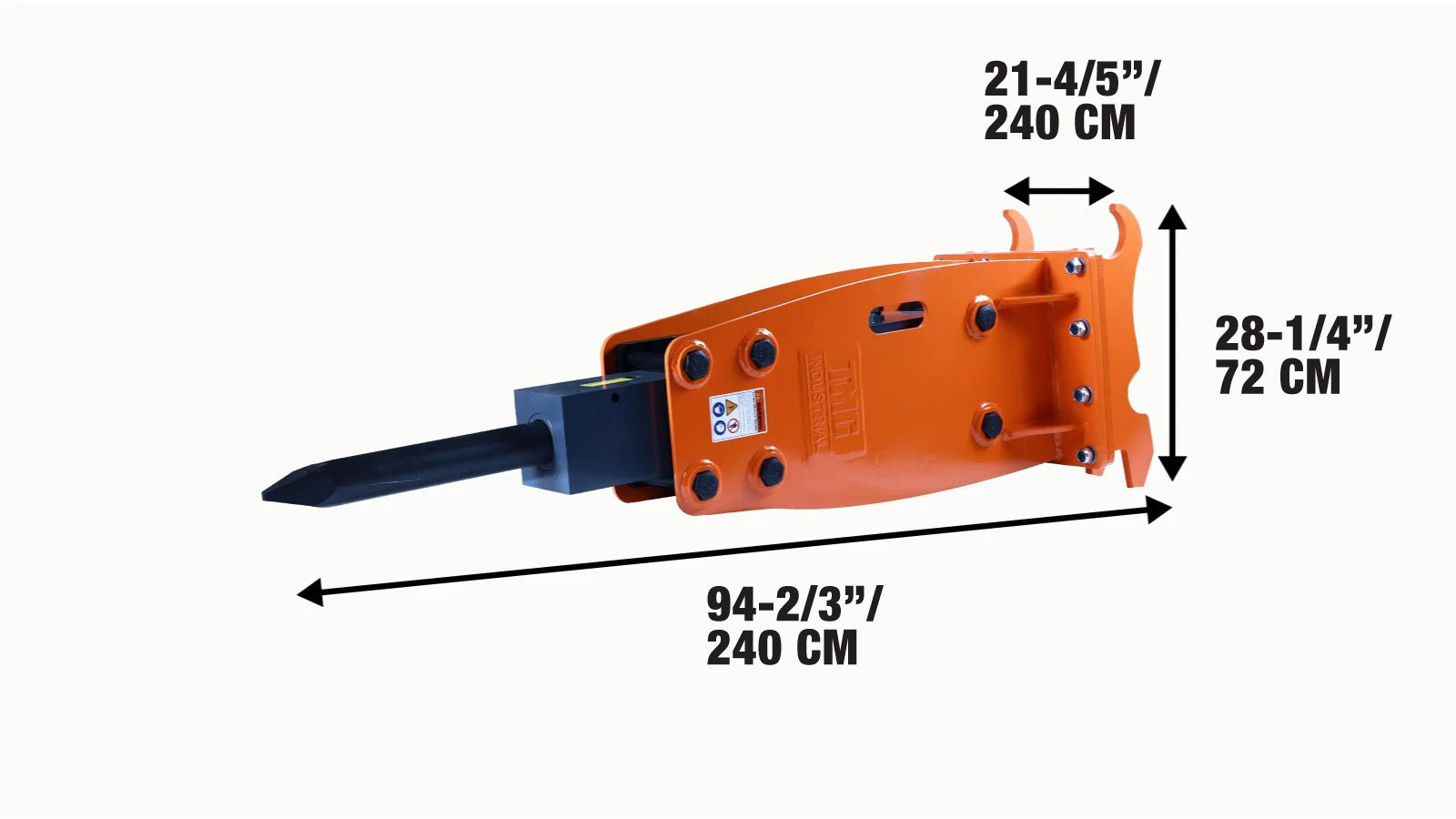

Hydraulic Breaker for 10–15 Ton Excavators, Quick-Change Lugging, TMG-HB150Q-specifications-image

Shipping Information icon Shipping Information

Your order will ship from our main Australian warehouse. Orders typically leave the warehouse within 2–3 business days. Standard delivery time is 10–15 business days depending on location.

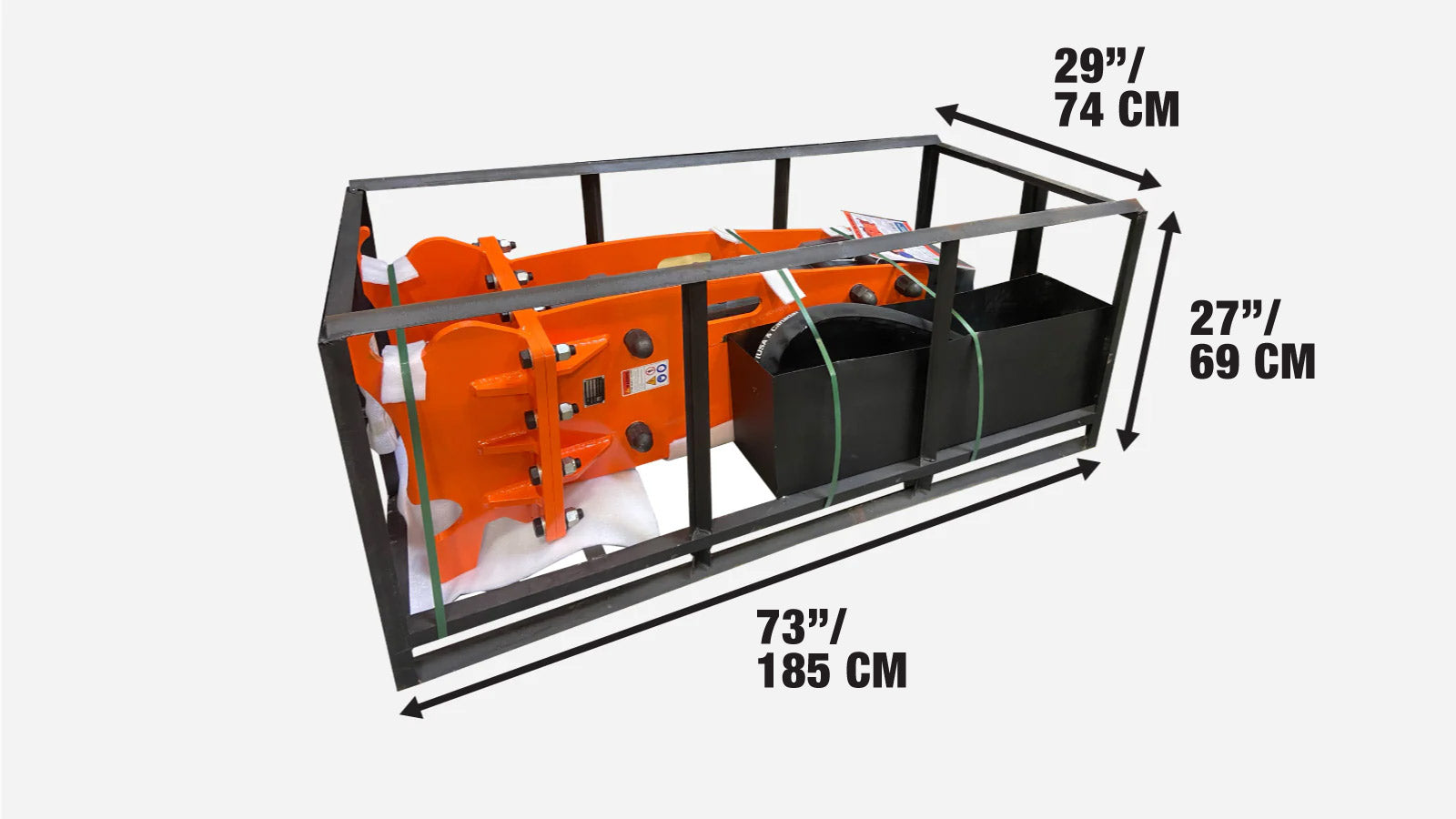

  • Packed in a heavy-duty steel crate
  • Shipping Dimensions: 186 x 74 x 69 cm (L x W x H)
  • Shipping Weight: approx. 844 kg
  • Delivery available Australia-wide (forklift required for unloading)
Shipping from Rowville,VIC
What happens after you place your order?
Hydraulic Breaker for 10–15 Ton Excavators, Quick-Change Lugging, TMG-HB150Q-shipping-info-image

Product Description icon Product Description

The TMG-HB150Q Hydraulic Breaker Attachment is a high-output solution for demanding work across Australian job sites. Built for 10–15 tonne excavators, this industrial-grade hammer packs 2600 J of impact energy and is equipped with a 100 mm moil point chisel capable of breaking reinforced concrete, large rocks, and other tough materials with ease.

Its quick-change lugging design makes it compatible with most standard quick-attach systems, and the included accessories ensure a fast, hassle-free setup. Whether you're working in roadworks, demolition, trenching, or mining, the TMG-HB150Q delivers unmatched power and efficiency for your heaviest jobs.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

1. What equipment is the TMG-HB150Q compatible with?
The TMG-HB150Q is designed for use with 10 to 15 ton excavators. It features a quick-change (Q/C) lugging profile, ensuring compatibility with most standard quick-attach systems on these machines.
2. What are the key performance specifications of this hydraulic breaker?
The TMG-HB150Q delivers an impact energy of 2600 joules and operates at an impact rate of 400 to 700 blows per minute (BPM). It requires a hydraulic flow between 21 to 32 GPM (approximately 79.5 to 121.1 litres per minute) and a working pressure of 2200 to 2500 PSI (approximately 15,168 to 17,237 kPa). The chisel diameter is 100 mm (4 inches).
3. What is included with the TMG-HB150Q upon purchase?

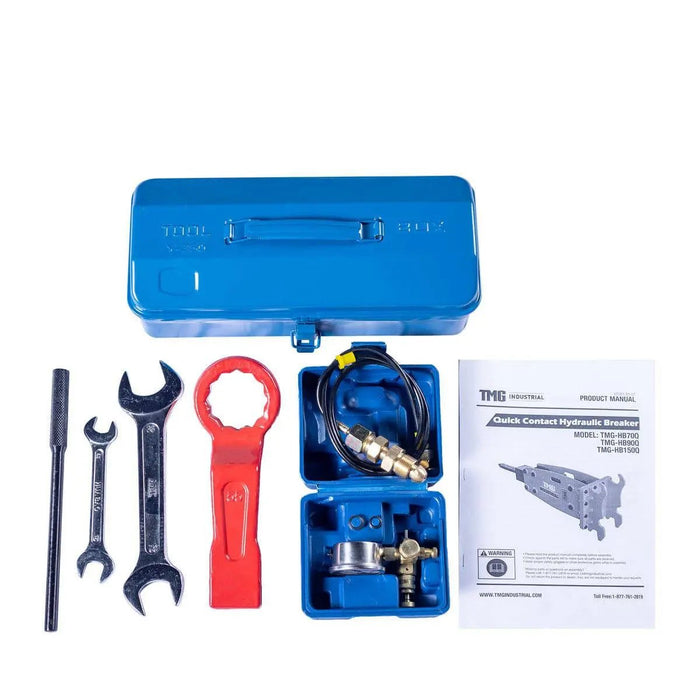

The package includes:
– One 100 mm (4-inch) moil point chisel
– Two 19 mm (3/4-inch) hydraulic hoses with NPT fittings
– One nitrogen charge kit with CGA580 cylinder adaptor
– One service tool kit
These components facilitate immediate setup and operation.
4. What industrial applications is the TMG-HB150Q suitable for?
The TMG-HB150Q is suitable for heavy-duty use in demolition, landscaping, and excavation sites.
5. What maintenance features does the TMG-HB150Q offer?

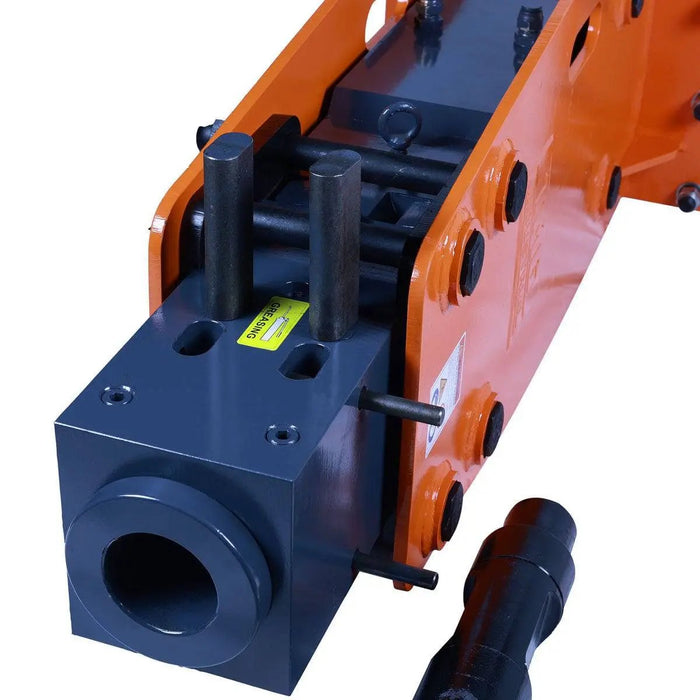

The breaker features a bottom tie rod bolted design for easy maintenance. It also has a tool bushing for quick and easy replacement.
6. Does the TMG-HB150Q come with a warranty?
It comes with a one-year limited manufacturer’s warranty.
