TMG-PSM36

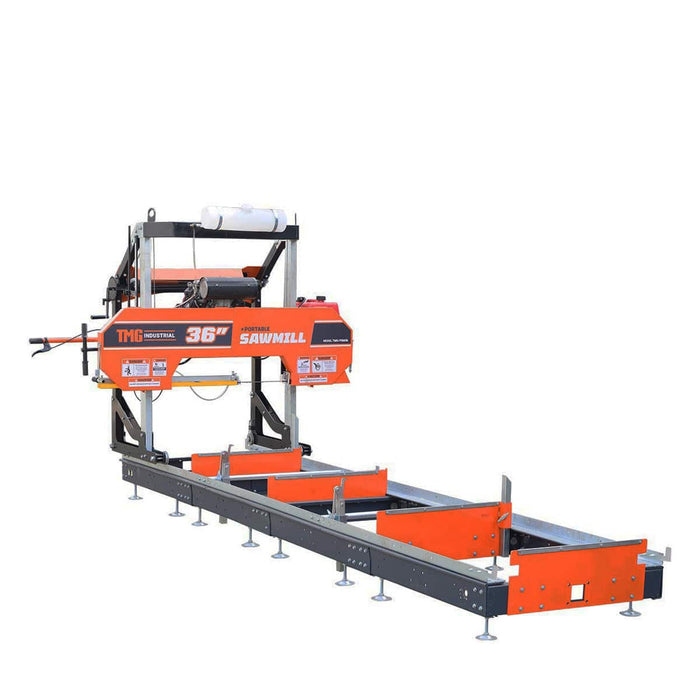

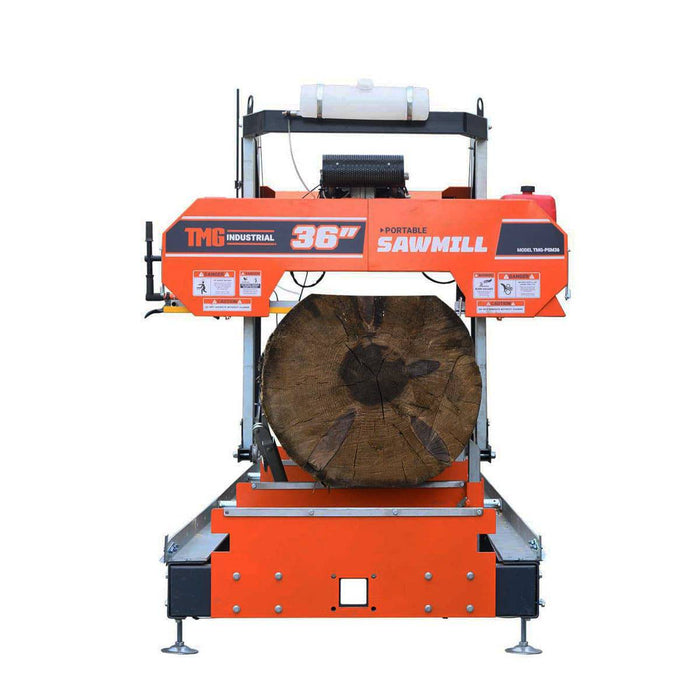

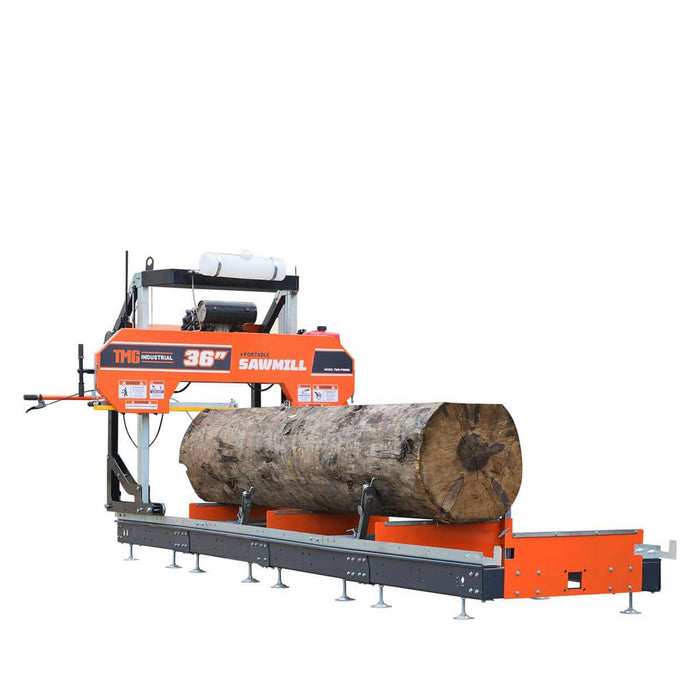

3.9 m Portable Sawmill (Blade is not Included), 910 mm Diameter, 21 HP Honda V-Twin Engine, TMG-PSM36

Product Manual
TMG Industrial 36” Portable Sawmill, 21 HP Honda V-Twin Engine, 13’ Log Length, 4-Post Carriage with Saw Head Anti-tip Self-locking, TMG-PSM36
CURRENTLY OUT OF STOCK
TMG-PSM36
$13,999.00
$13,999.00 - $13,999.00
$13,999.00
$11,999.00
$11,999.00 - $11,999.00
$11,999.00
$13,999.00 Save $2,000.00
$11,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

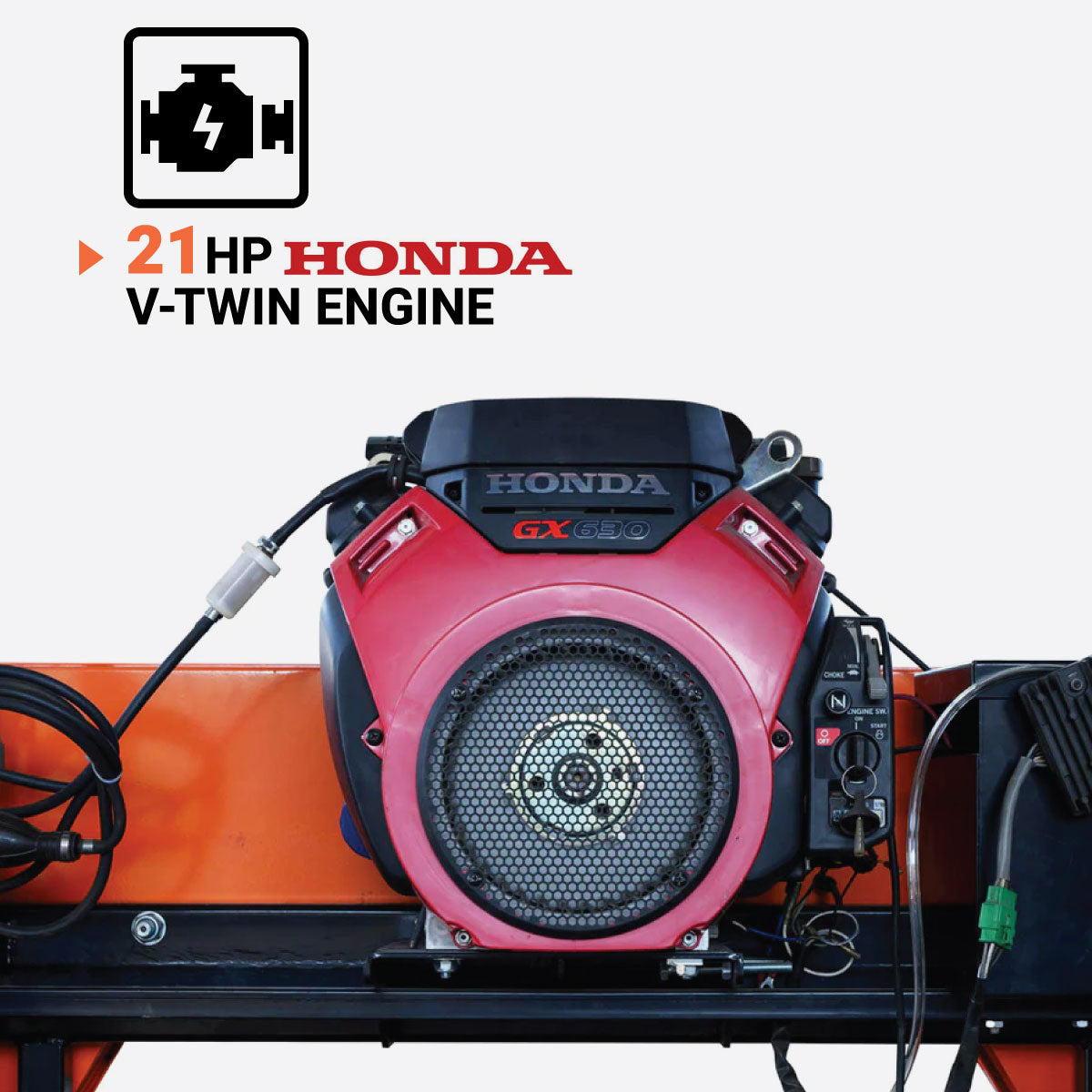

Reliable 21 HP Honda V-Twin Engine for industrial-grade cutting performance
Feature Image

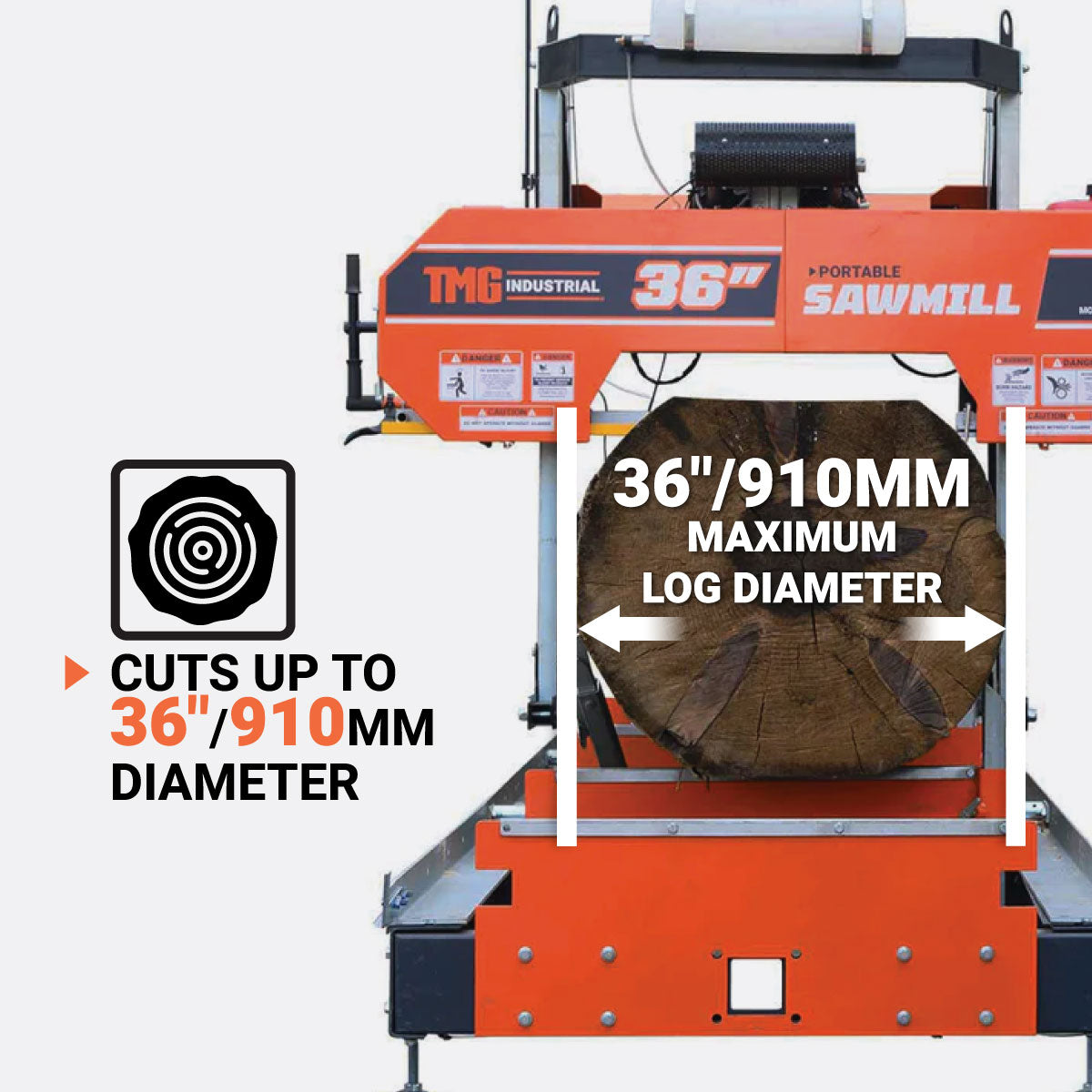

Large capacity: 910 mm max log diameter, 3940 mm max length
Feature Image

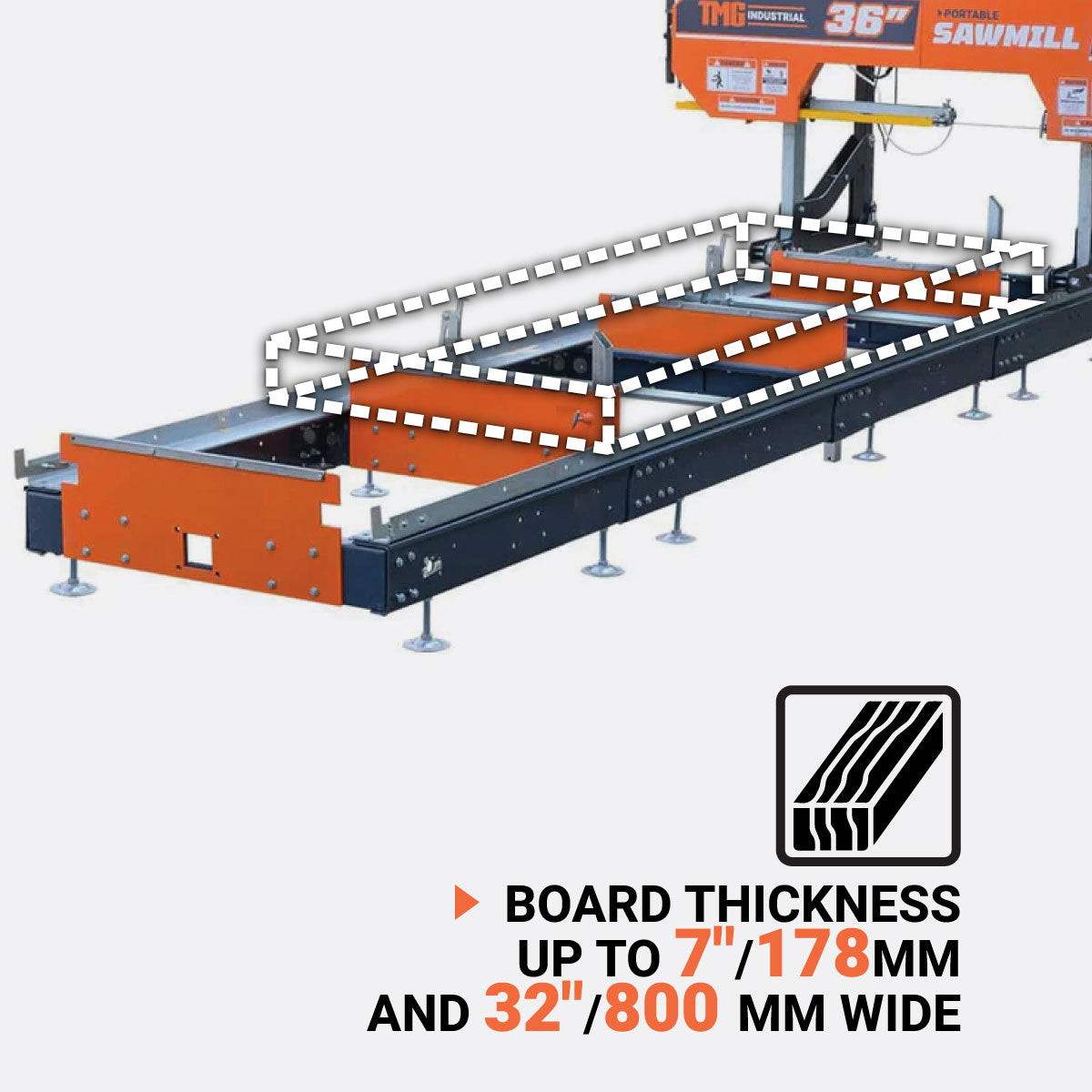

Cuts boards up to 800 mm wide and 178 mm thick
Feature Image

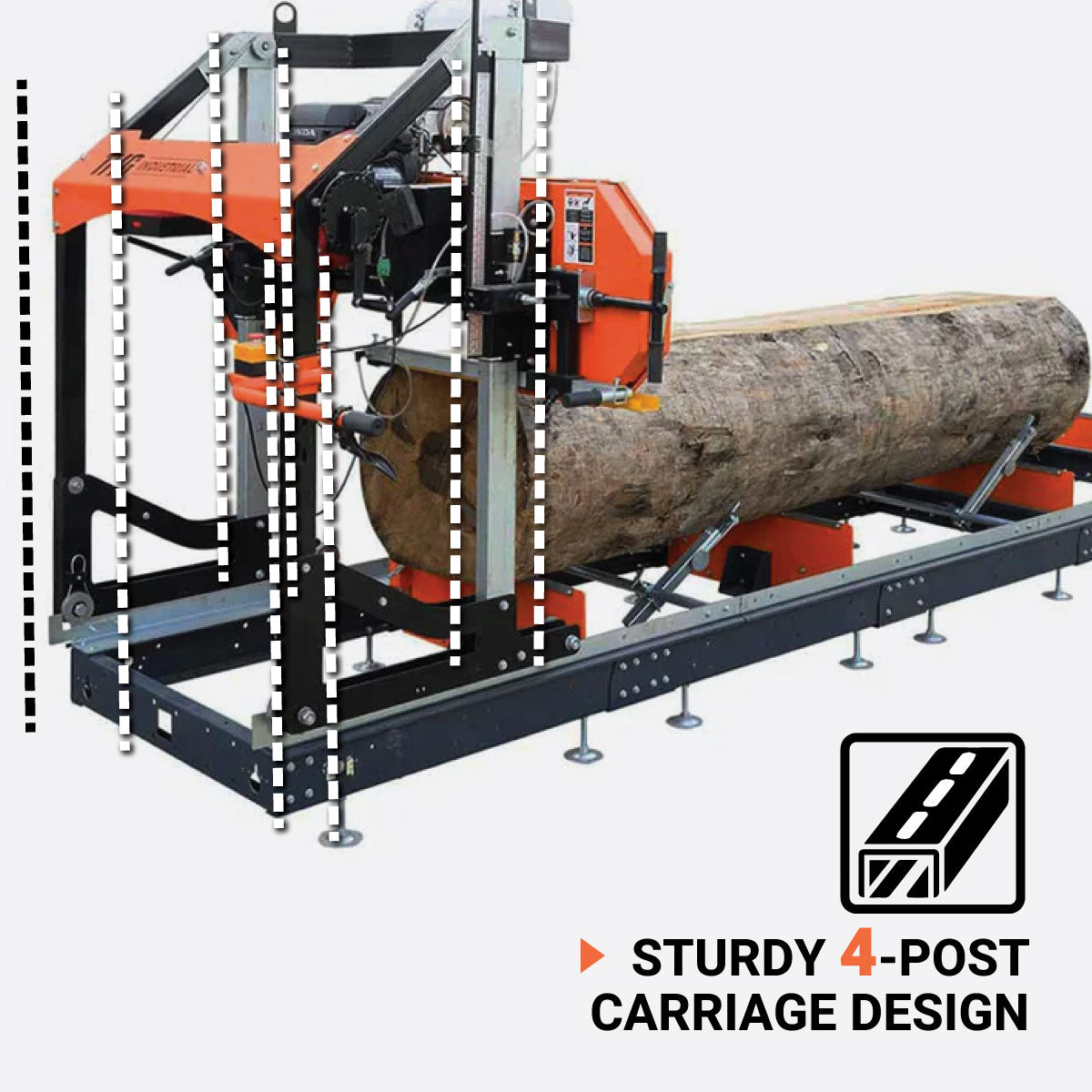

Heavy-duty 4-post carriage design with precision linear guides
Feature Image

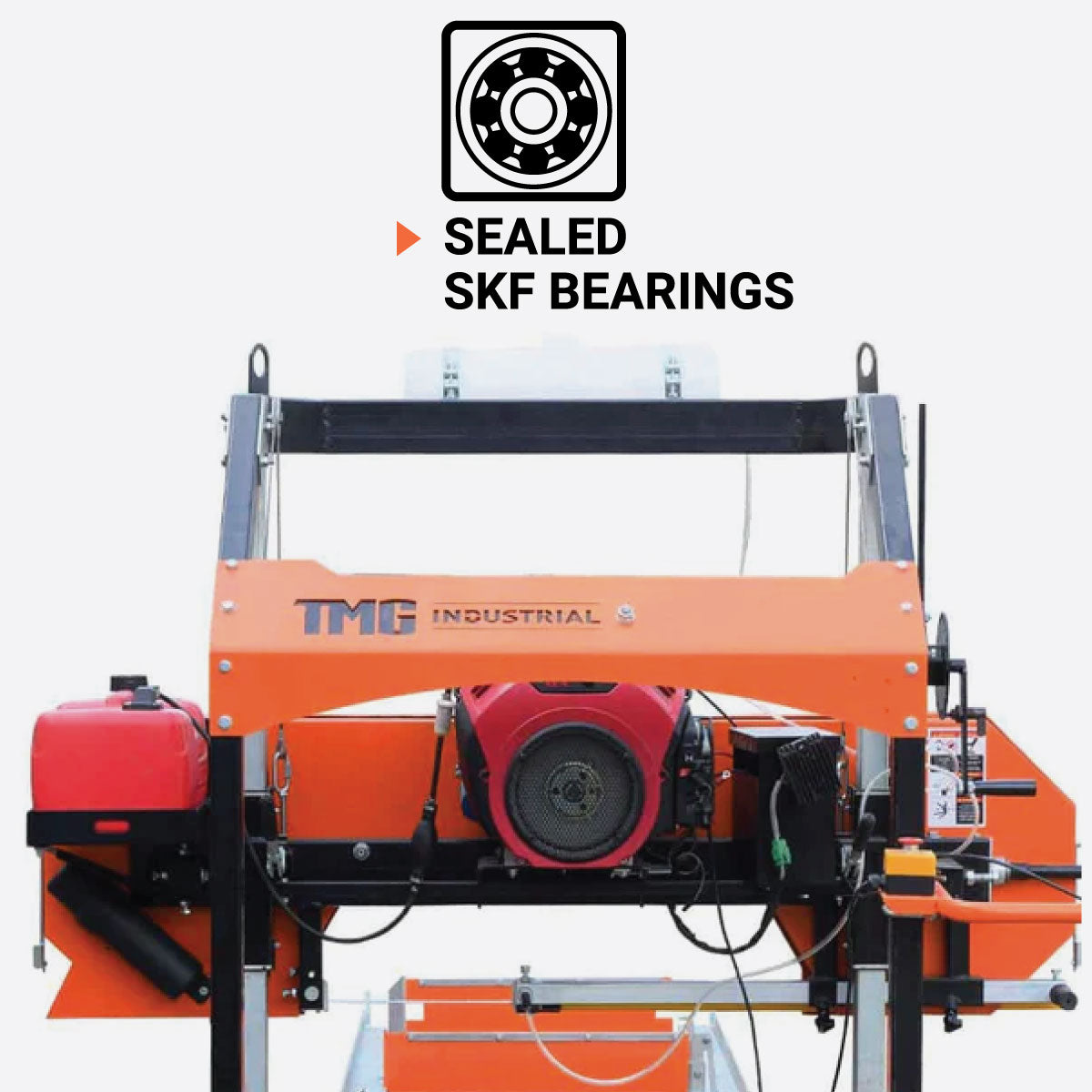

Permanent Sealed SKF Bearings reduce vibration and improve accuracy
Feature Image

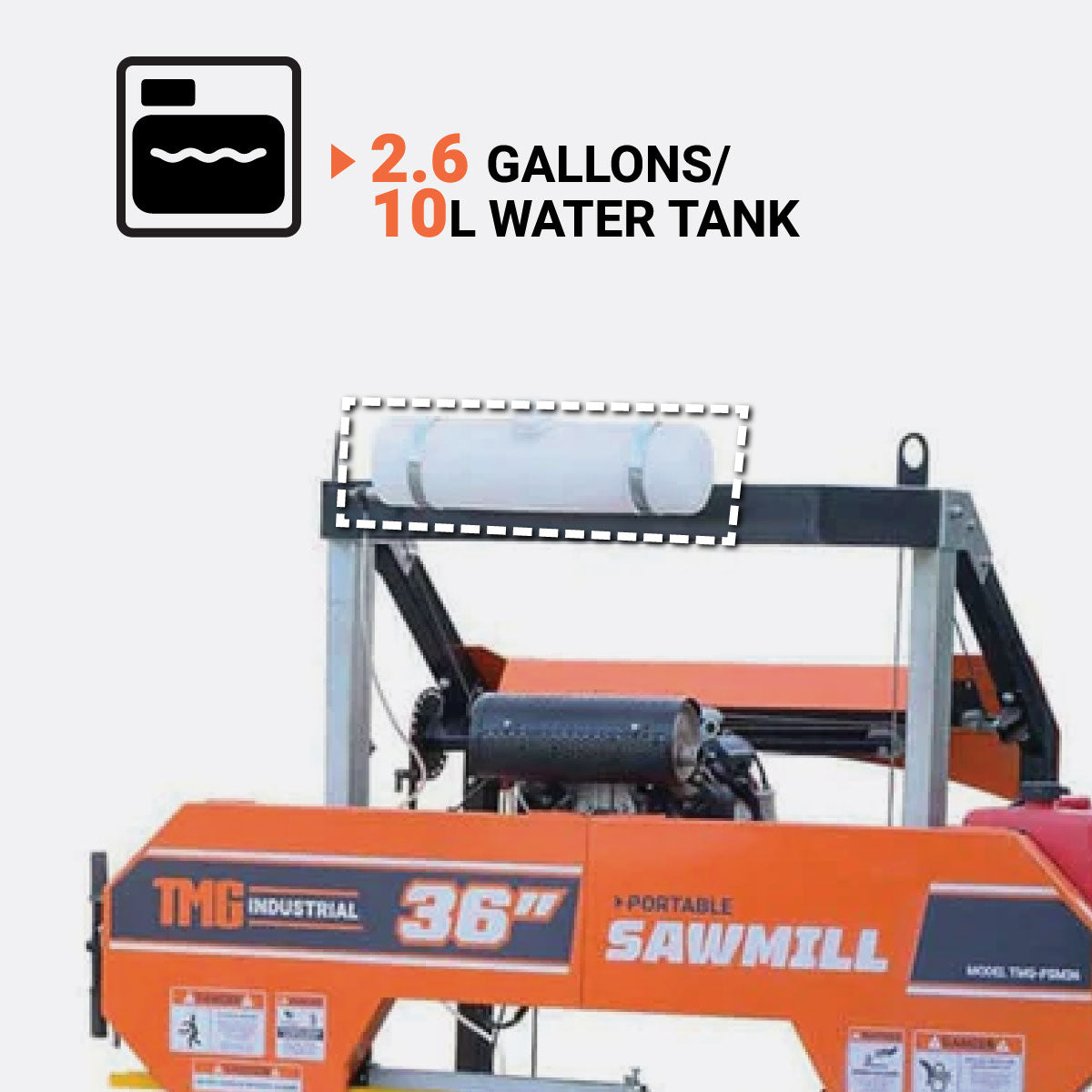

10 L translucent water tank reduces blade friction and overheating

Specifications icon Specifications

  • Engine Model: Honda GX630
  • Engine Horsepower: 21 HP
  • Max Log Diameter: 910 mm
  • Max Log Length: 3940 mm
  • Max Board Width: 800 mm
  • Max Cut Thickness: 178 mm
  • Track Bed Length: 4800 mm
  • Blade Engagement System: Centrifugal Clutch
  • Blade Wheel Diameter: 480 mm
  • Blade Guide: Yes
  • Blade Tension Adjustment: T-Handle Tension Adjustment
  • Blade Length: 4191 mm
  • Blade Width: 32 mm
  • Blade Kerf: 1.1 mm
  • Blade Lubrication: Water
  • Extension Kit Available: No
  • Finish: Galvanizing and Powder Coating
  • Overall Dimensions: 2550 × 2250 × 4900 mm
  • Carriage Design: 4-Post Carriage with Saw Head Anti-tip Self-locking
  • Weight: 630 kg

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

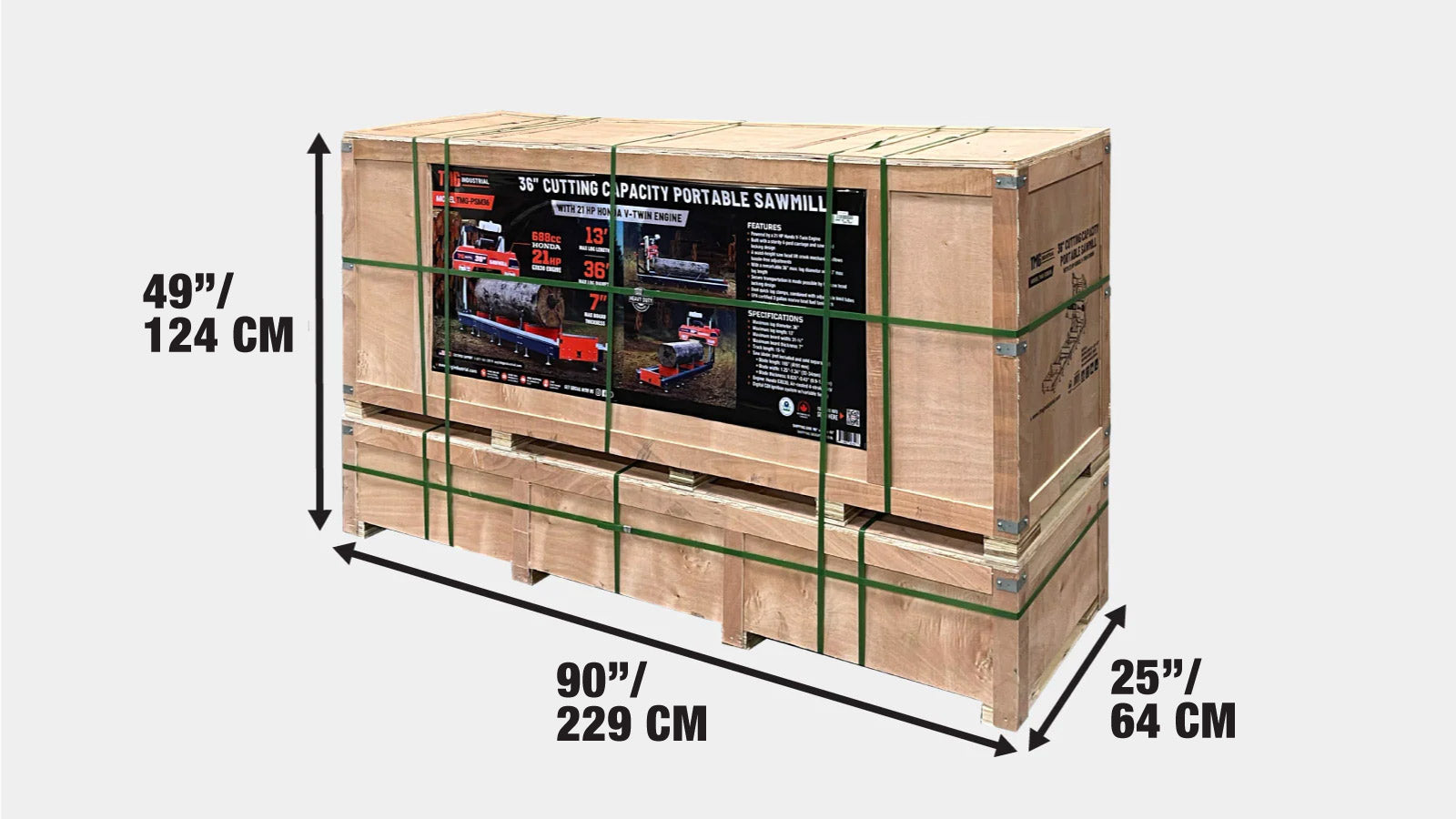

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 229 x 64 x 125 cm (L x W x H)
  • Shipping weight: 660 kg
Shipping from Rowville,VIC
What happens after you place your order?
3.9 m Portable Sawmill (Blade is not Included), 910 mm Diameter, 21 HP Honda V-Twin Engine, TMG-PSM36-shipping-info-image

Product Description icon Product Description

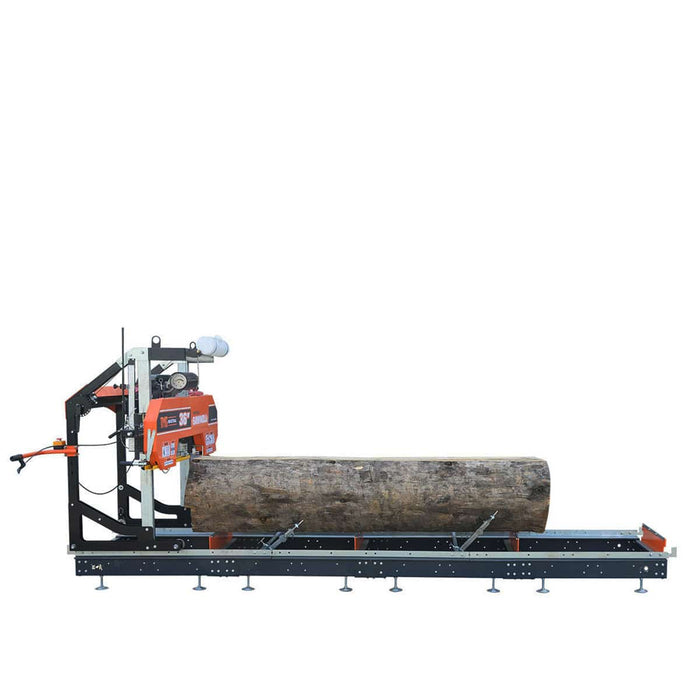

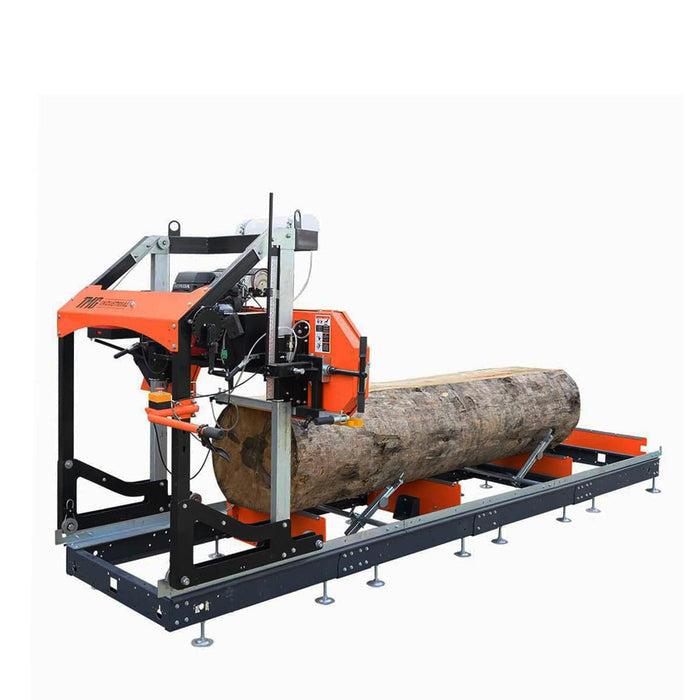

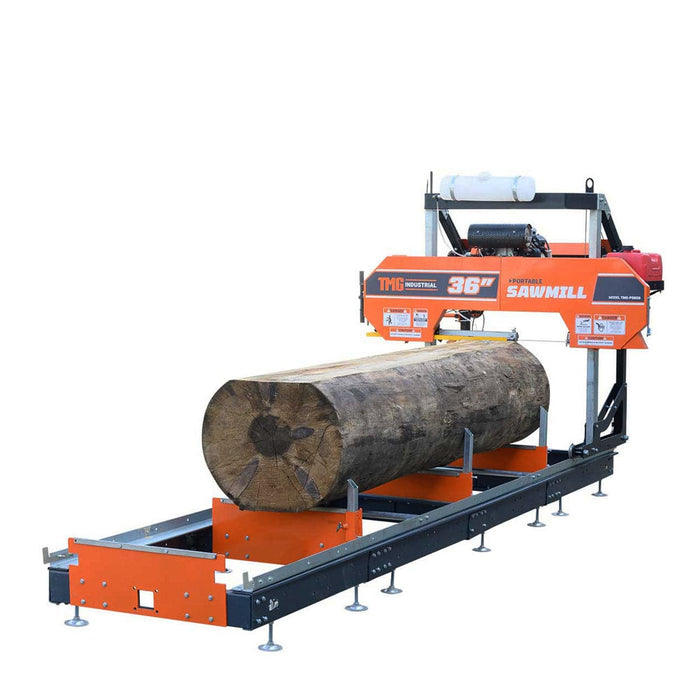

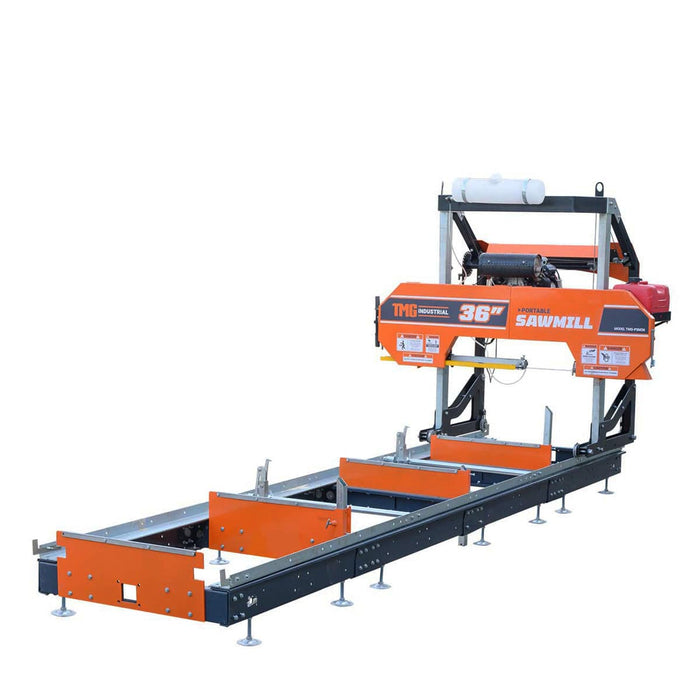

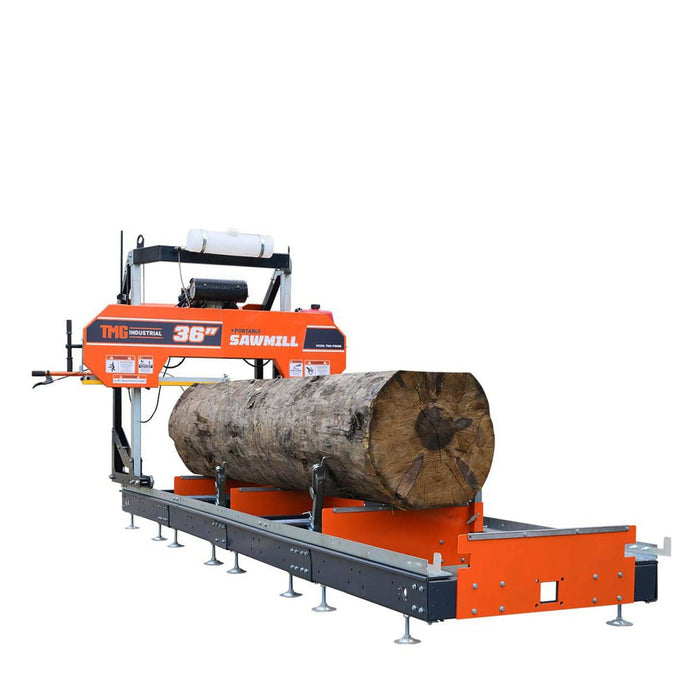

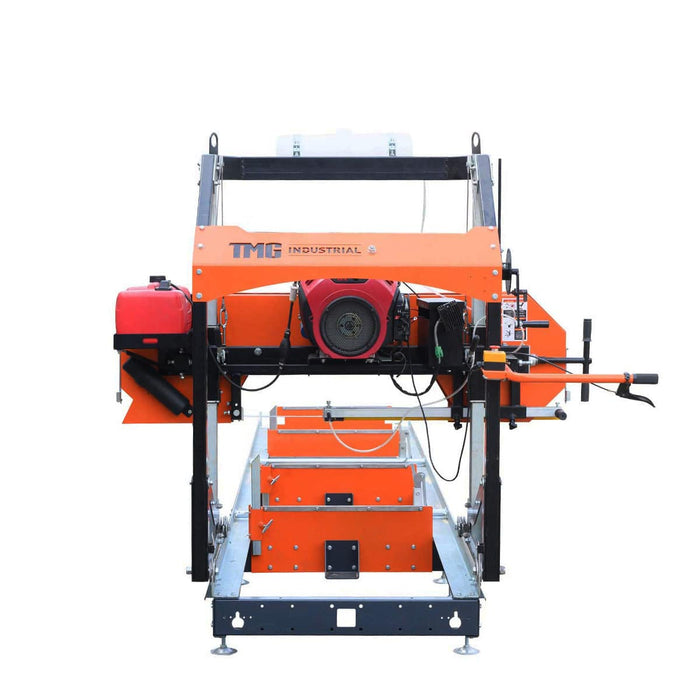

The TMG-PSM36 Portable Sawmill is built for those who demand more power, precision, and capacity in their timber processing work. With a high-output 21 HP Honda engine and large-scale cutting ability, this sawmill is perfect for professionals, rural property owners, and serious DIYers in Australia.

Able to handle logs up to 3.94 metres long and 910 mm in diameter, the TMG-PSM36 makes quick work of converting raw logs into clean, usable timber. The waist-height lift crank and solid carriage frame enhance ease-of-use and safety, while the water-cooling tank helps maintain blade condition.

Whether you’re harvesting your own timber, building sheds or outdoor furniture, or processing lumber for sale, the TMG-PSM36 offers the capacity, power, and performance to get the job done right.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: What are the maximum log dimensions the TMG-PSM36 can handle?
The TMG-PSM36 can mill logs with a maximum diameter of 91 cm (36 inches) and a maximum length of 3.94 metres (13 feet).
Q: What is the maximum board width I can mill with this sawmill?
You can mill boards up to 80 cm (31.5 inches) wide.
Q: What is the maximum cut thickness I can achieve?
The sawmill allows for a maximum cut thickness of 17.8 cm (7 inches).
Q: What type of engine powers the TMG-PSM36?

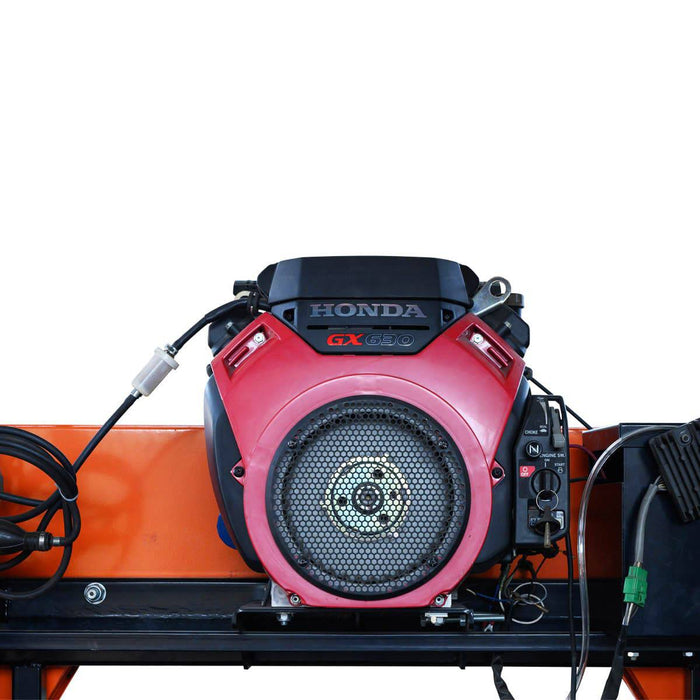

It features a powerful 21 HP Honda GX630 V-Twin engine. This air-cooled, 4-stroke OHV engine has a displacement of 688 cc and features an electric starting system.
Q: What is the standard length of the track system?
The standard track length is 4.8 metres (15.75 feet).
Q: What are the specifications for the saw blade?
The saw blade has a length of 4191 mm (165 inches) and a width of 32 mm (1.25 inches).
Q: How is the saw head adjusted for cutting?
The saw head incorporates a convenient waist-height lift crank mechanism for quick and comfortable adjustments, allowing you to change between cuts effortlessly.
Q: How is the blade lubricated during operation?
The sawmill includes a 10-litre translucent water tank to provide lubrication to the saw blade, helping to keep it sharp and protected.
Q: How many log clamps are included with the sawmill?
The TMG-PSM36 comes with dual quick log clamps and adjustable limit tubes, providing versatility for securing various wood sizes.
Q: What are the shipping dimensions and weight of the TMG-PSM36?
The product is packed in two wood crate shipping boxes. The approximate shipping dimensions are 228.6 cm (90 inches) long × 63.5 cm (25 inches) wide × 124.5 cm (49 inches) high, with a total shipping weight of approximately 650 kg (1455 lb).
Q: How long does delivery typically take to Australia?
While delivery times can vary based on your specific location and accessibility, most orders are processed and shipped within 2 to 3 business days, with typical delivery to Australia ranging from 10 to 15 business days.
Q: Does the TMG-PSM36 come with a warranty?
Yes, the TMG-PSM36 is covered by a 1-year manufacturer warranty. TMG Industrial also offers customer support and spare parts.
