TMG-HB90S

Hydraulic Breaker for 45–100 HP Skid Steers, Universal Mount, TMG-HB90S

Product Manual

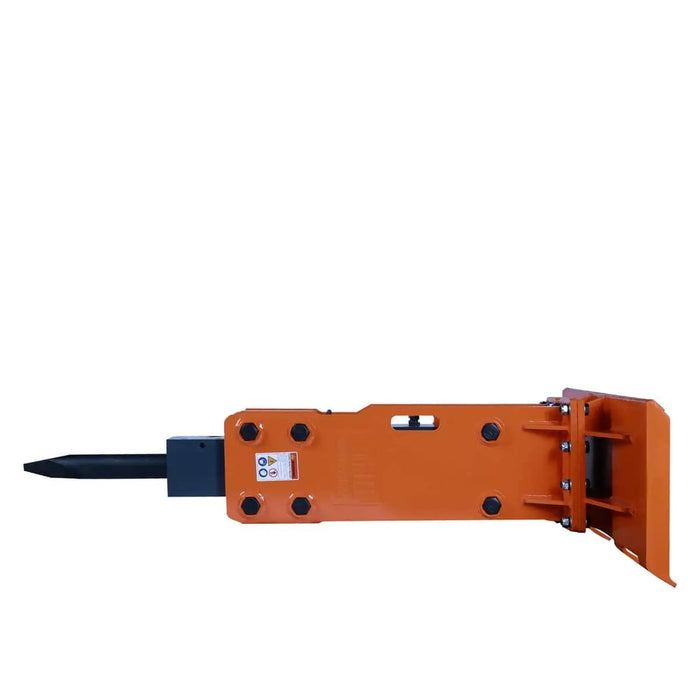

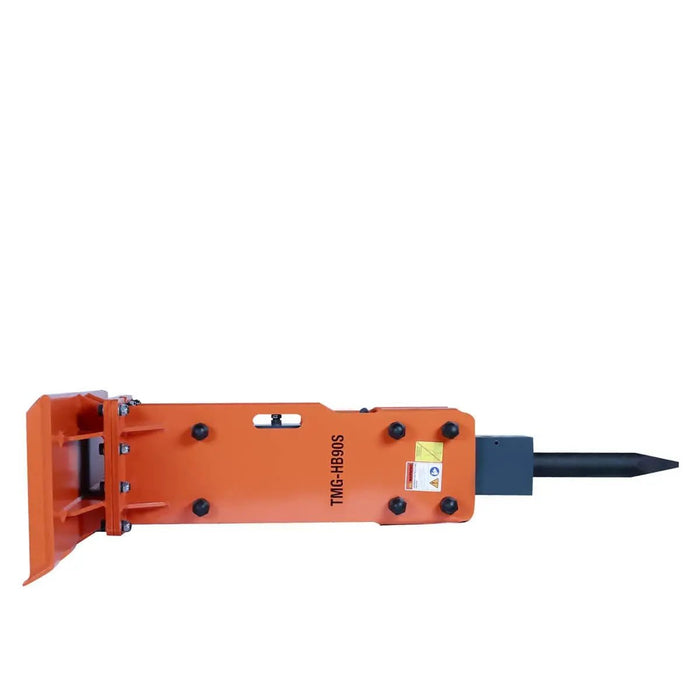

TMG Industrial 45-100 HP Skid Steer Hydraulic Breaker, 3” Moil Point Chisel, 785 J Impact Energy, Universal Mount, TMG-HB90S
CURRENTLY IN STOCK
TMG-HB90S
$4,799.00
$4,799.00 - $4,799.00
$4,799.00
$4,199.00
$4,199.00 - $4,199.00
$4,199.00
$4,799.00 Save $600.00
$4,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

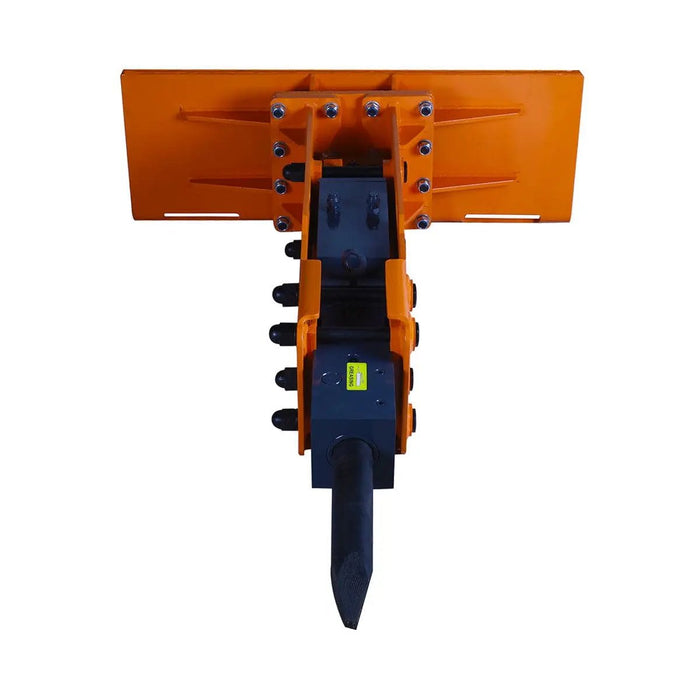

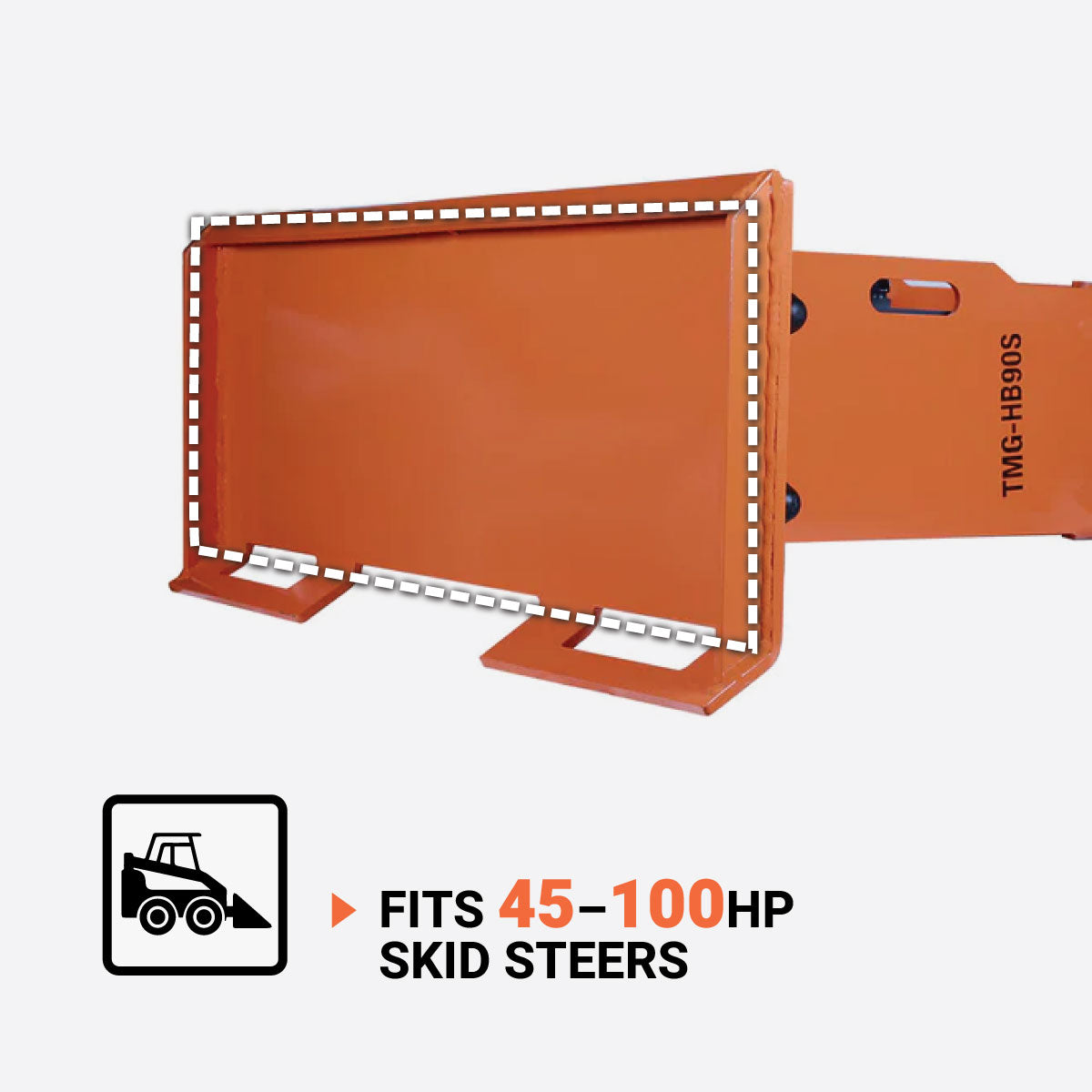

Compatible with 45–100 HP skid steers using universal mount
Feature Image

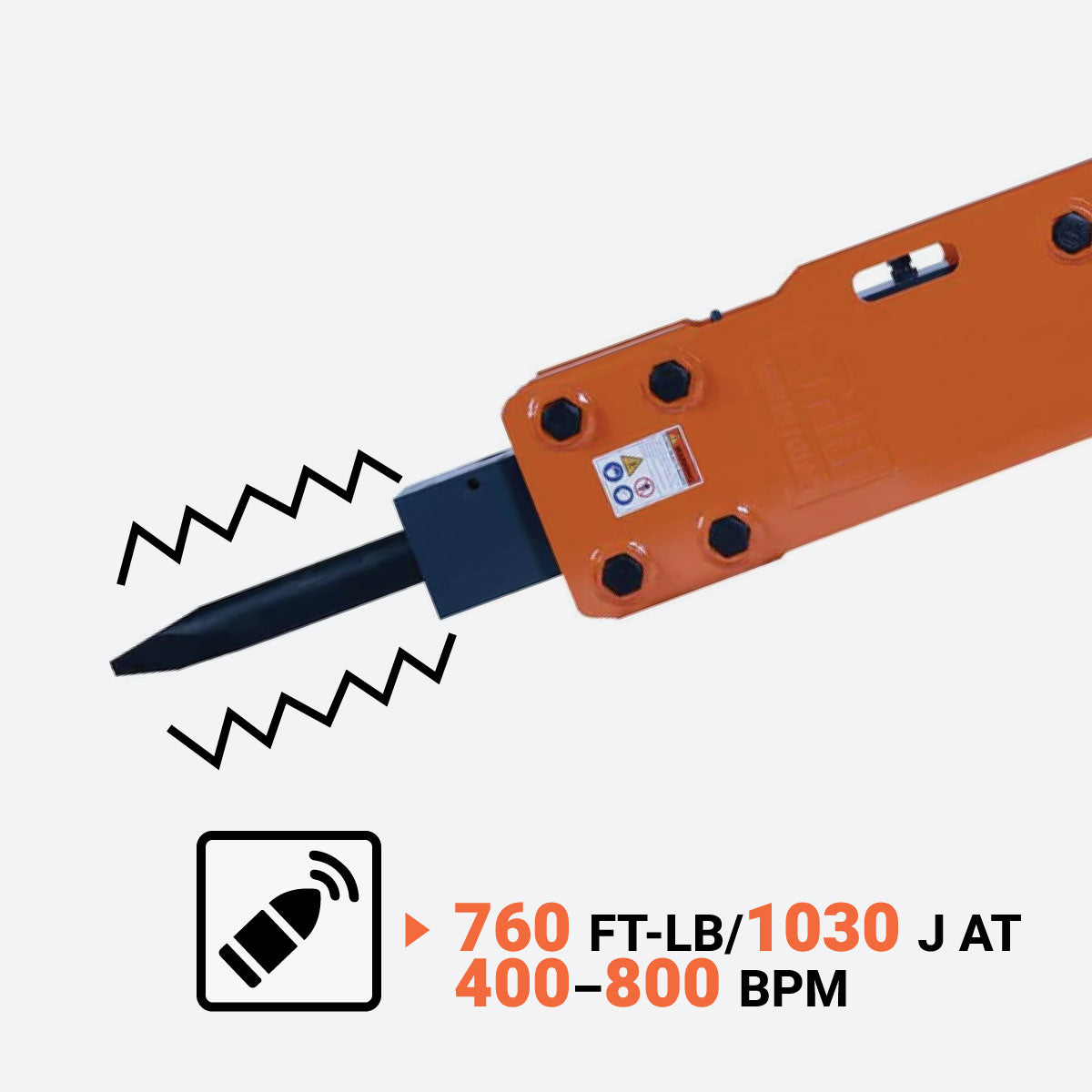

Delivers 1030 J impact energy at 400–800 BPM for mid-size demolition work
Feature Image

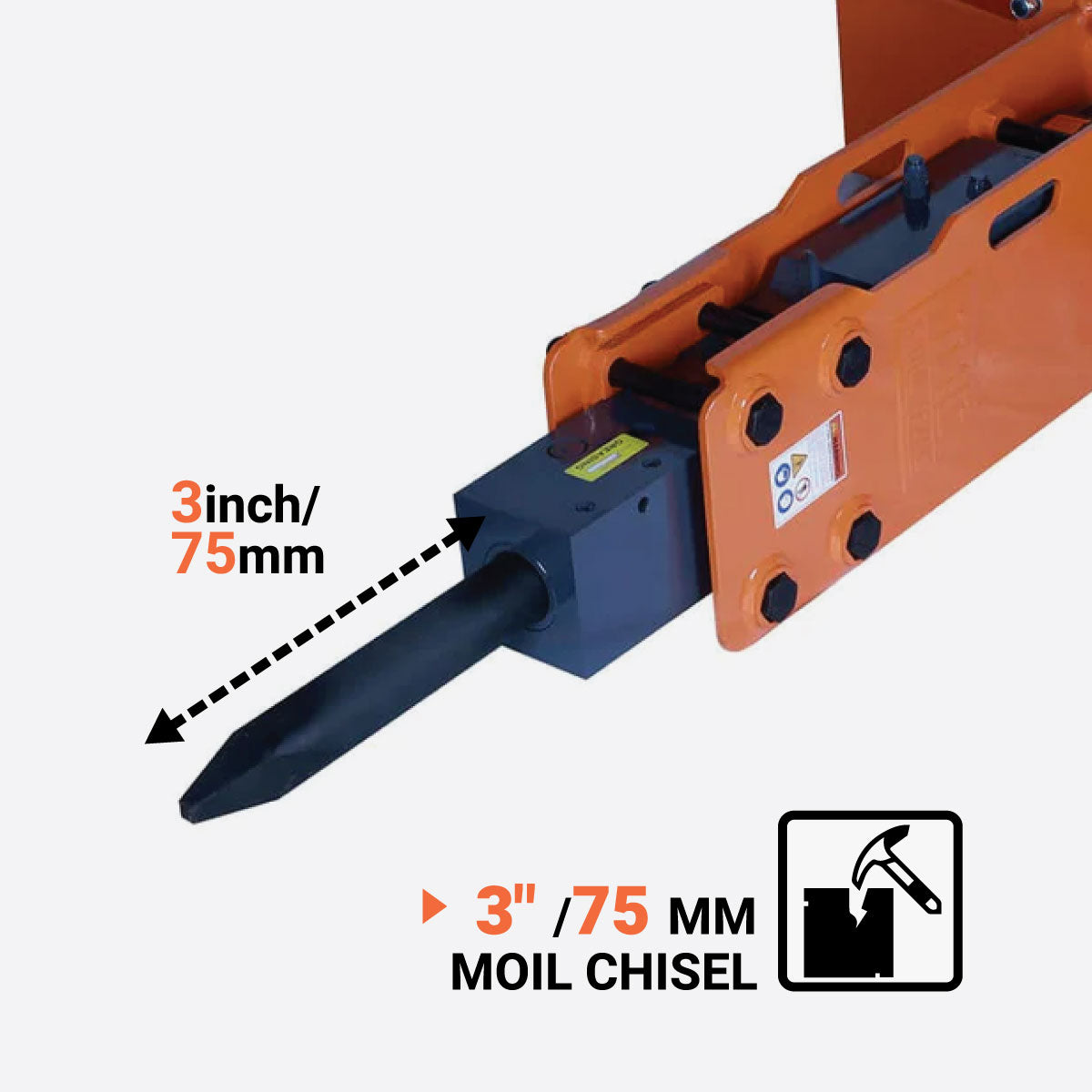

75 mm moil point chisel for efficient breaking of rock and concrete
Feature Image

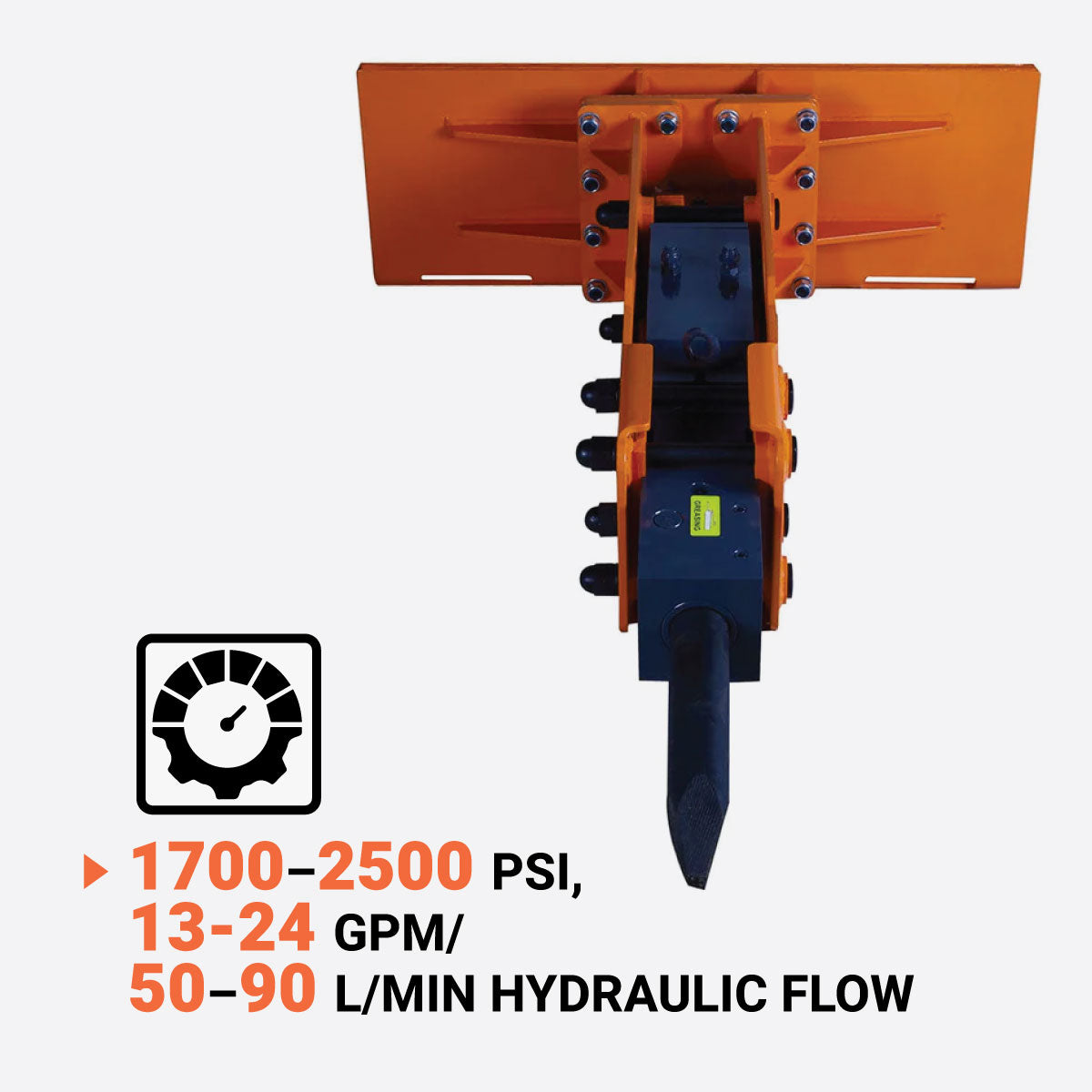

Operates at 1700–2500 PSI with 50–90 L/min hydraulic flow range
Feature Image

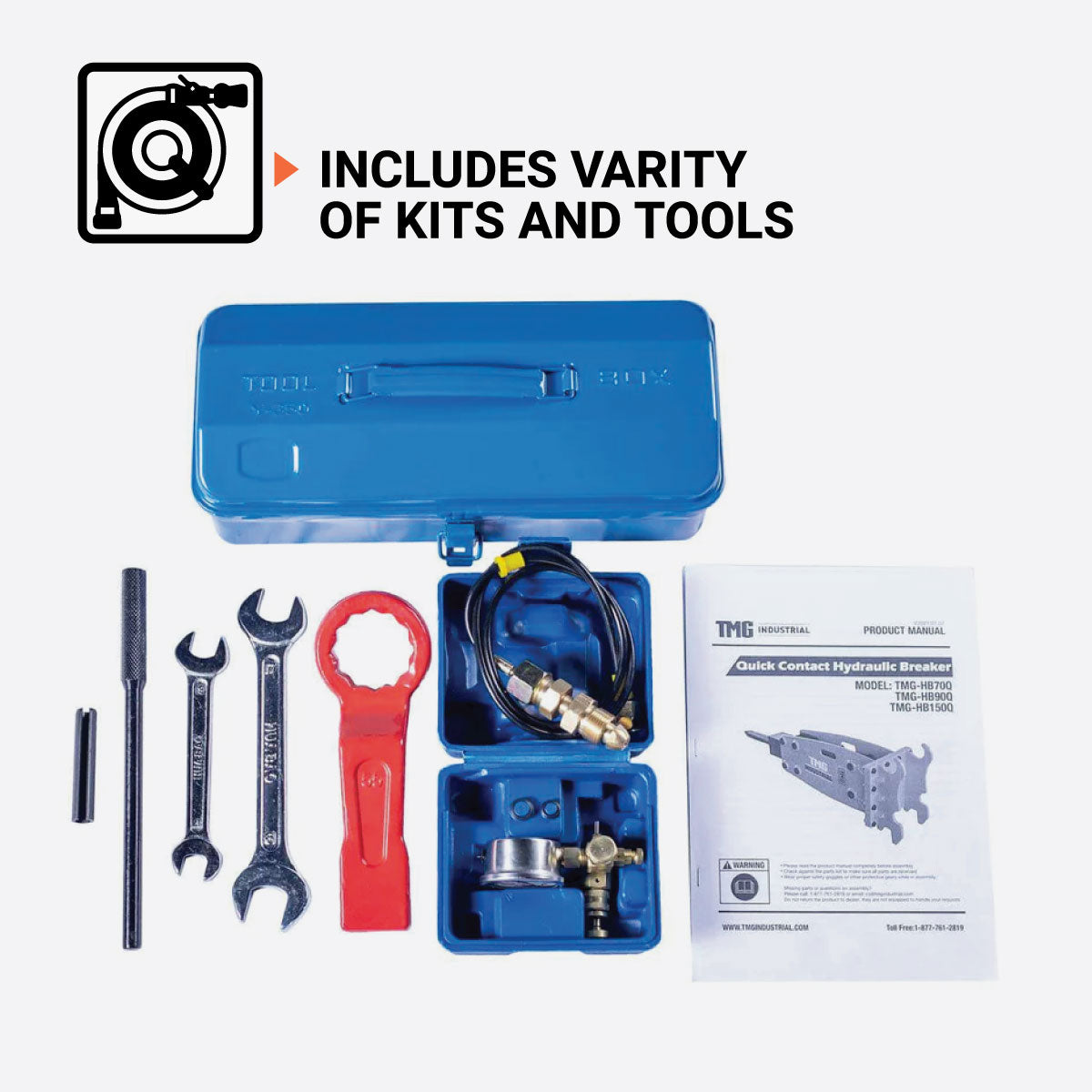

Includes hydraulic hoses, nitrogen charging kit, and service tool kit
Feature Image

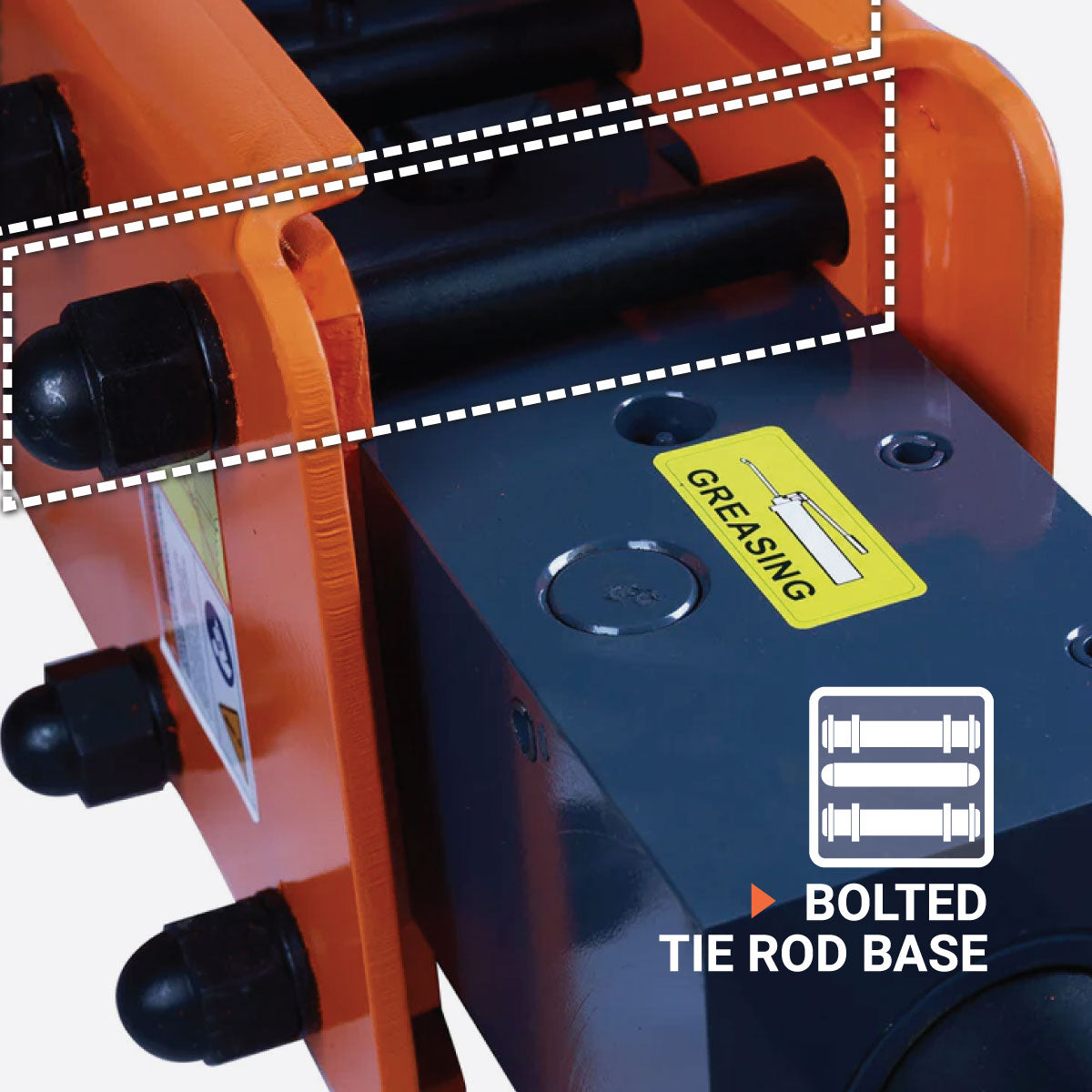

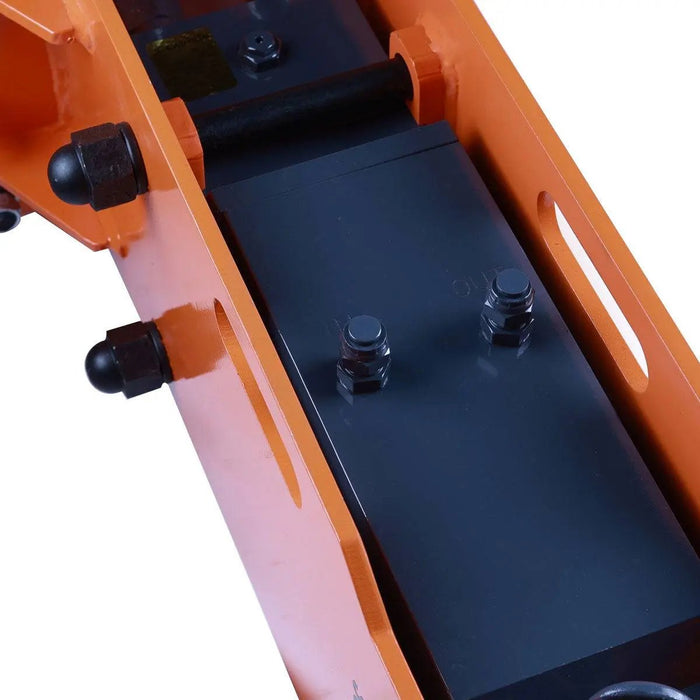

Bottom tie rod bolted structure for ease of maintenance and long-term reliability

Specifications icon Specifications

  • Compatible Equipment: 45–100 HP Skid Steers

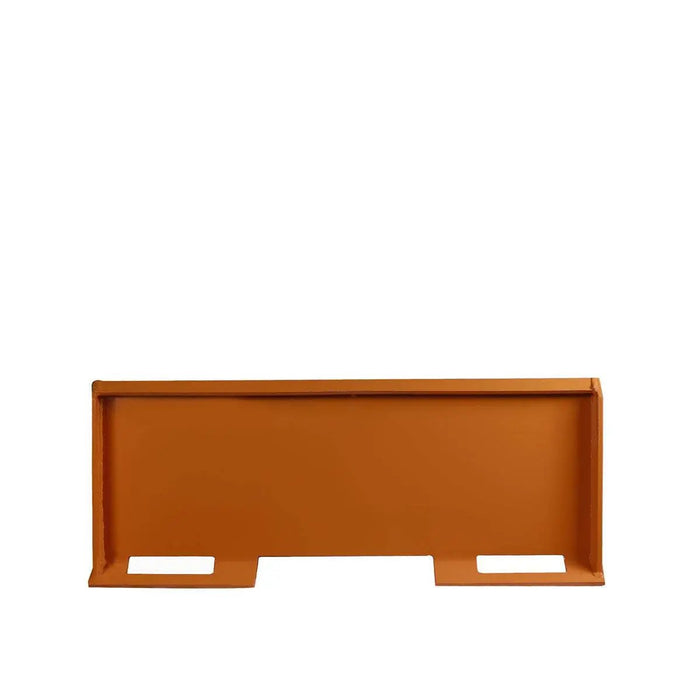

  • Mount Type: Universal Skid Steer Mount
  • Impact Rate (BPM): 400–800 BPM
  • Impact Energy: 1030 J
  • Hydraulic Flow (L/min): 50–90 L/min
  • Hydraulic Pressure (PSI): 1700–2500 PSI
  • Hydraulic Hoses & Couplers Included: Yes, both
  • Hydraulic Couplers Type: 1/2" NPT
  • Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 2.4 m
  • Chisel Diameter: 75 mm
  • Operating Weight: 420 kg

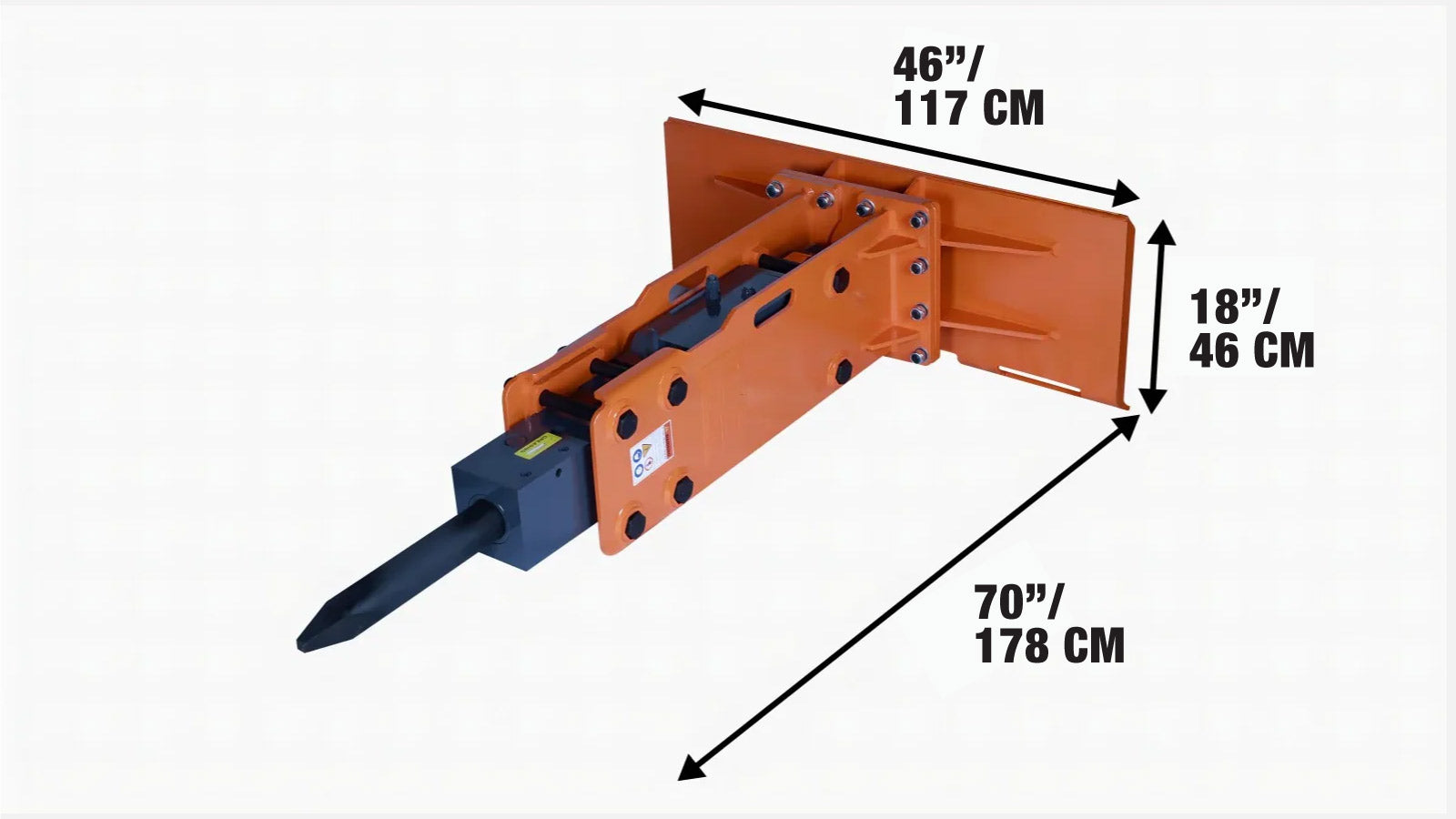

Hydraulic Breaker for 45–100 HP Skid Steers, Universal Mount, TMG-HB90S-specifications-image

Shipping Information icon Shipping Information

Your order will ship from our main Australian warehouse. Orders typically leave the warehouse within 2–3 business days. Standard delivery time is 10–15 business days depending on location.

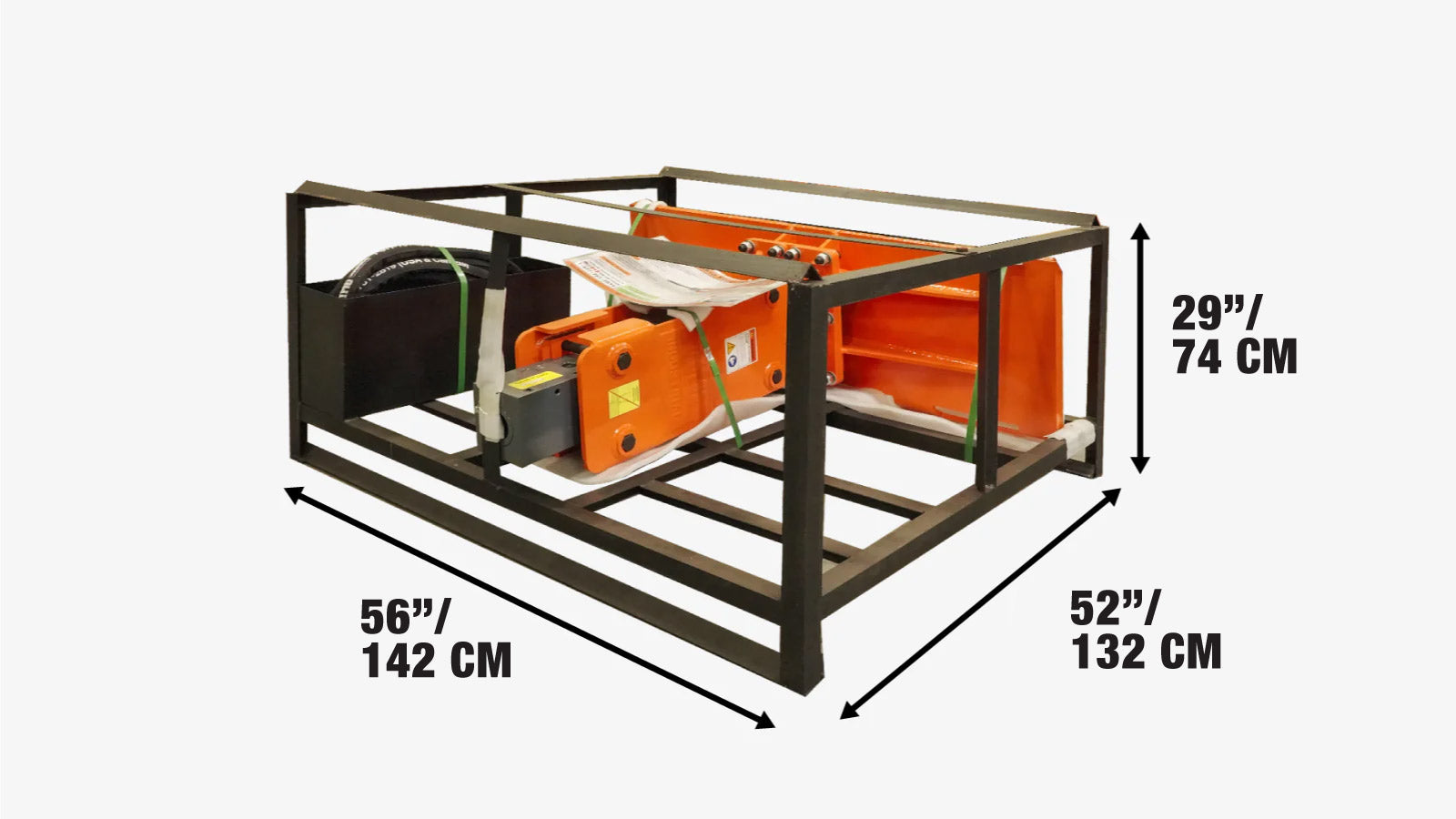

  • Packed in a steel shipping crate
  • Shipping dimensions: 143 x 133 x 74 cm (L x W x H)
  • Shipping weight: approx. 522 kg
  • Delivery available Australia-wide (forklift required for unloading)
Shipping from Rowville,VIC
What happens after you place your order?
Hydraulic Breaker for 45–100 HP Skid Steers, Universal Mount, TMG-HB90S-shipping-info-image

Product Description icon Product Description

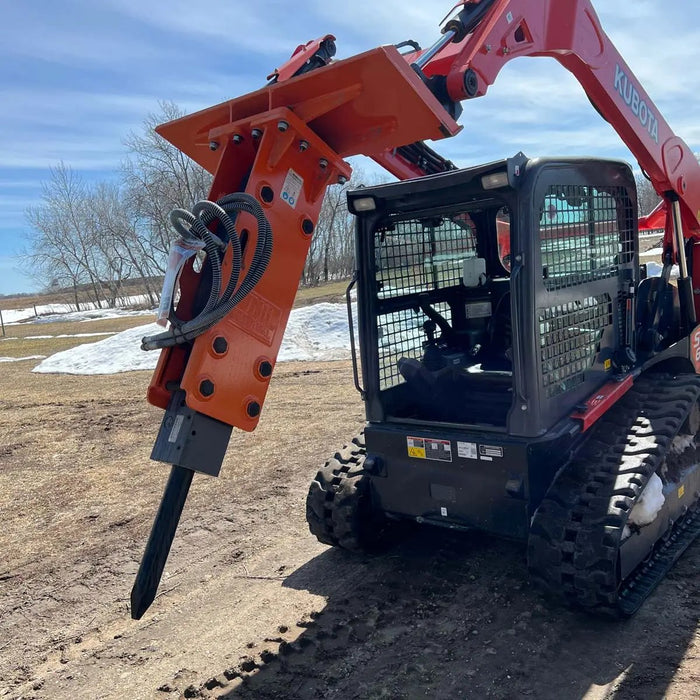

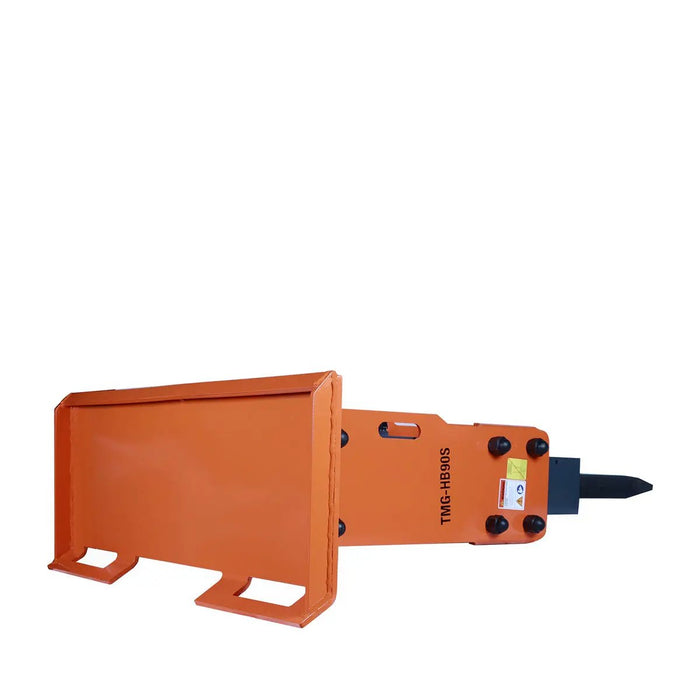

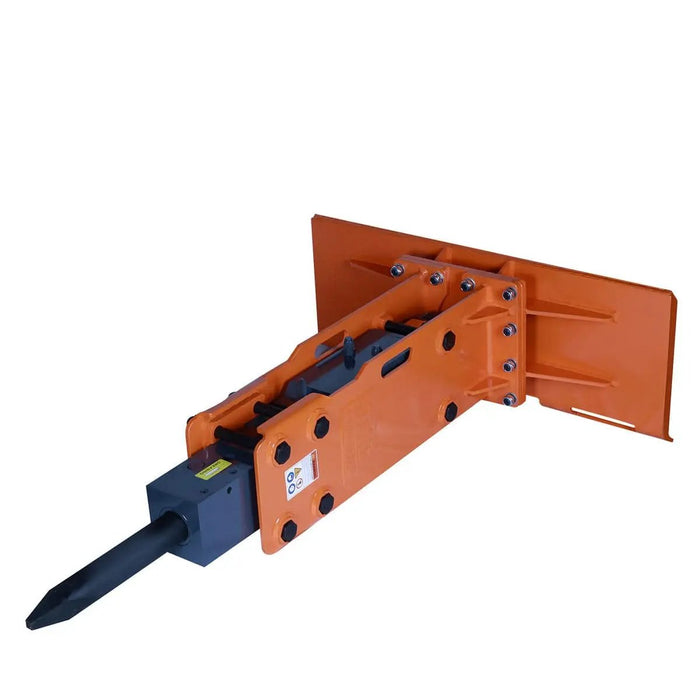

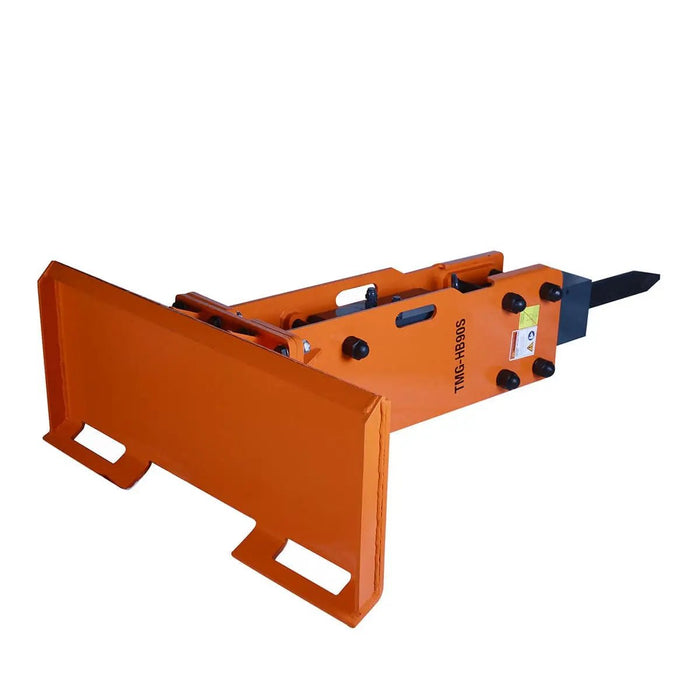

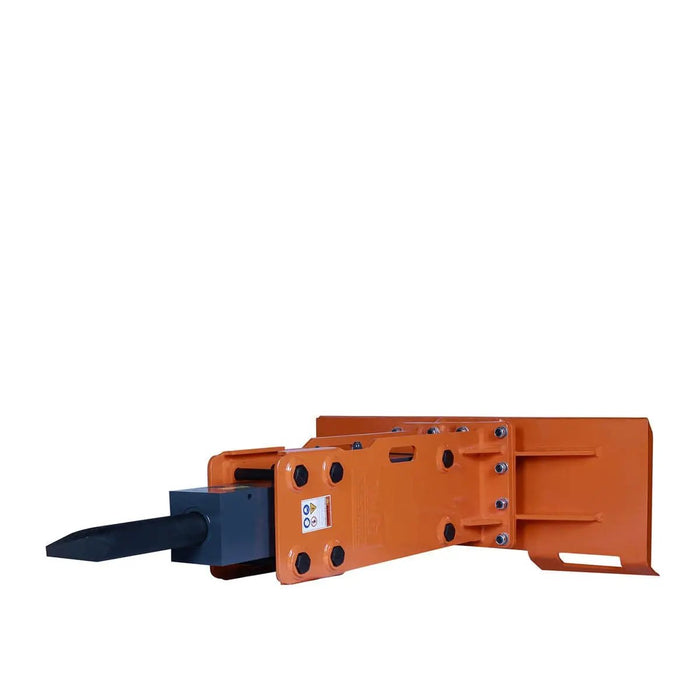

The TMG-HB90S Hydraulic Breaker Attachment is a rugged, high-output solution built for operators of 45–100 HP skid steers across Australia. Its 75 mm chisel and 1030 J of impact energy make it a strong choice for concrete and rock breaking in commercial and industrial settings.

With a 400–800 BPM blow rate, reinforced structure, and shock-absorbing nitrogen assist, the TMG-HB90S is engineered to minimize machine wear and maximise work efficiency. Its ease of maintenance and inclusive installation kit ensure a quick start and long-term usability.

Whether you’re tackling site preparation, foundation breaking, or controlled demolition, the TMG-HB90S provides the performance and dependability you need.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

1. What equipment is the TMG-HB90S compatible with?

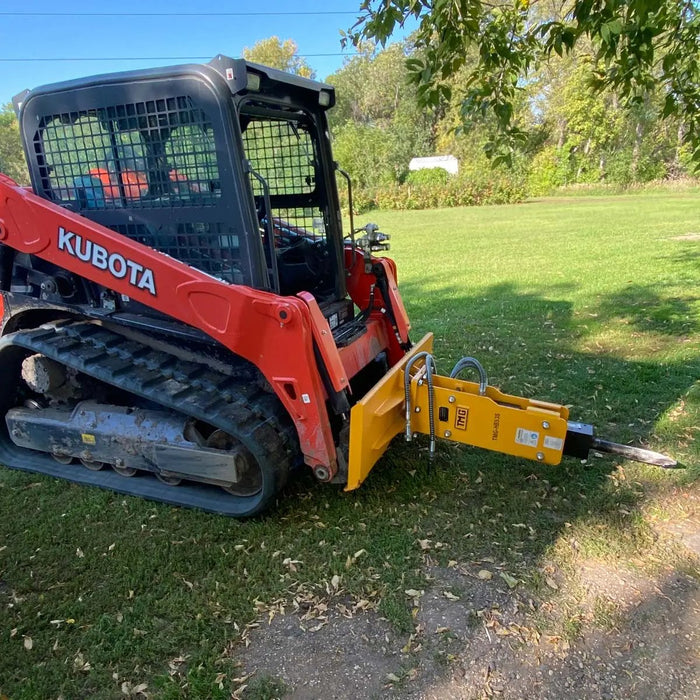

The TMG-HB90S is designed for skid steer loaders with engine power ranging from 45 to 100 horsepower. It features a universal mount, ensuring easy attachment and release to most standard skid steer models.
2. What are the key performance specifications of this hydraulic breaker?
The TMG-HB90S delivers an impact energy of 1030 joules. The chisel diameter is 75 mm (3 inches). It operates at 1700–2500 PSI with 50–90 L/min hydraulic flow range.

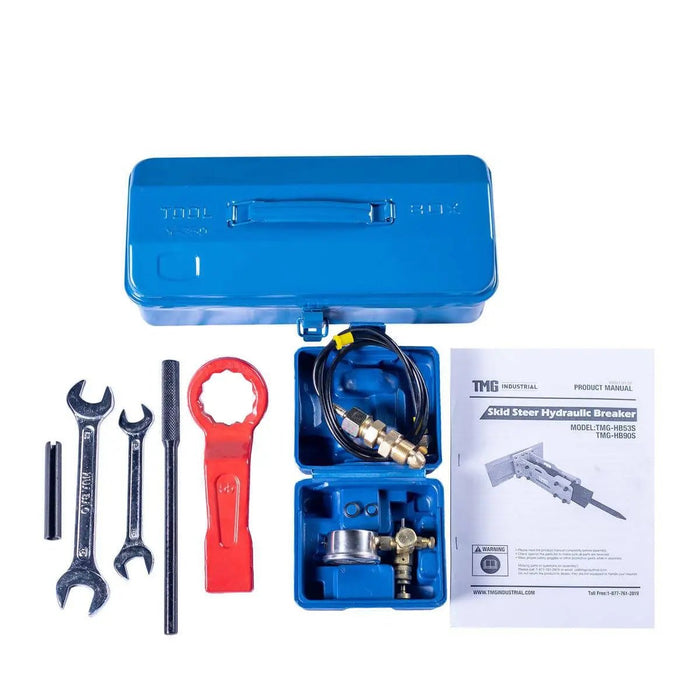

3. What is included with the TMG-HB90S upon purchase?
It includes:
– 1 x 3” Moil point chisel
– 2 x ½” Hydraulic hoses with flat face couplers
– 1 x Nitrogen charge kit with CGA580 cylinder adaptor
– 1 x Service tool kit
4. What industrial applications is the TMG-HB90S suitable for?
The TMG-HB90S has versatile industry applications, including construction, cleanup, demolition, mining, oil and gas, and logging.

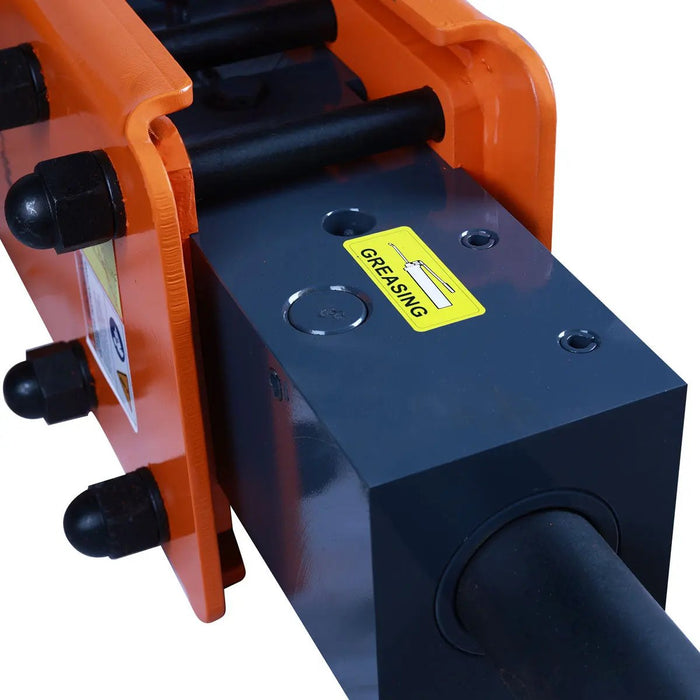

5. What maintenance features does the TMG-HB90S offer?
The breaker features nitrogen-charged operation, which provides superior break force efficiency.
6. Does the TMG-HB90S come with a warranty?
The product has a 1-year warranty against manufacturer defects if purchased directly from TMG.
