CURRENTLY IN STOCK
TMG-SBH55

2340 mm Skid Steer Backhoe Attachment, Universal Mount, 180° Boom and Bucket Rotation TMG-SBH55

Product Manual

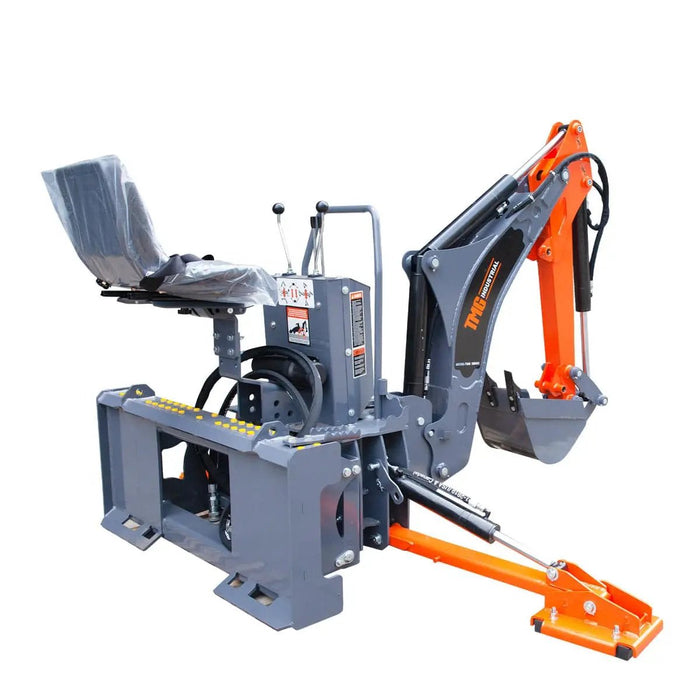

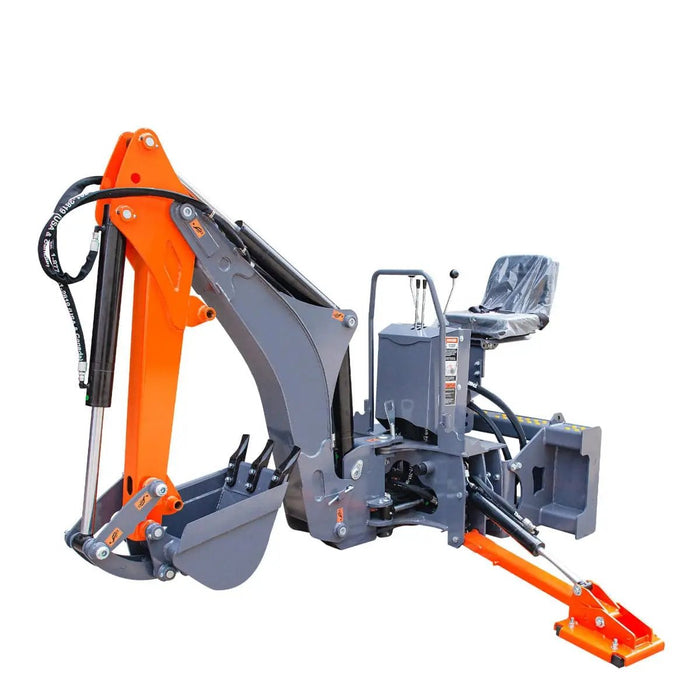

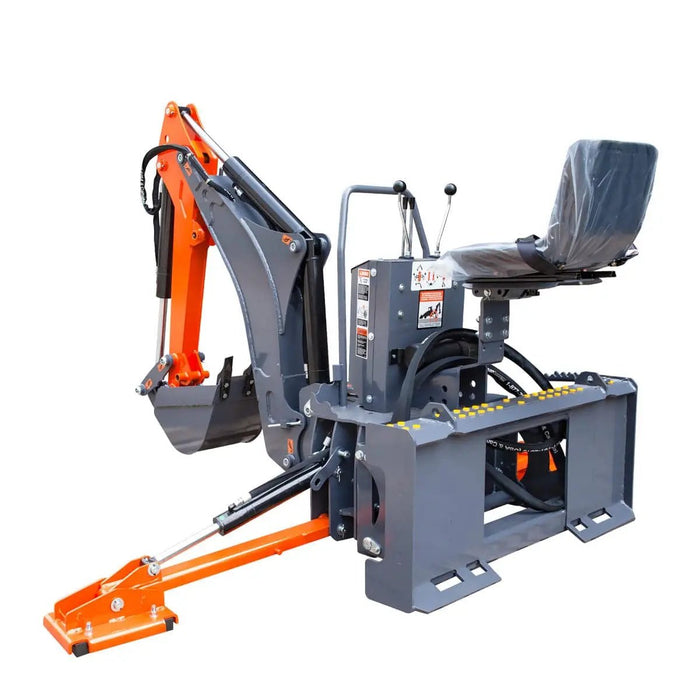

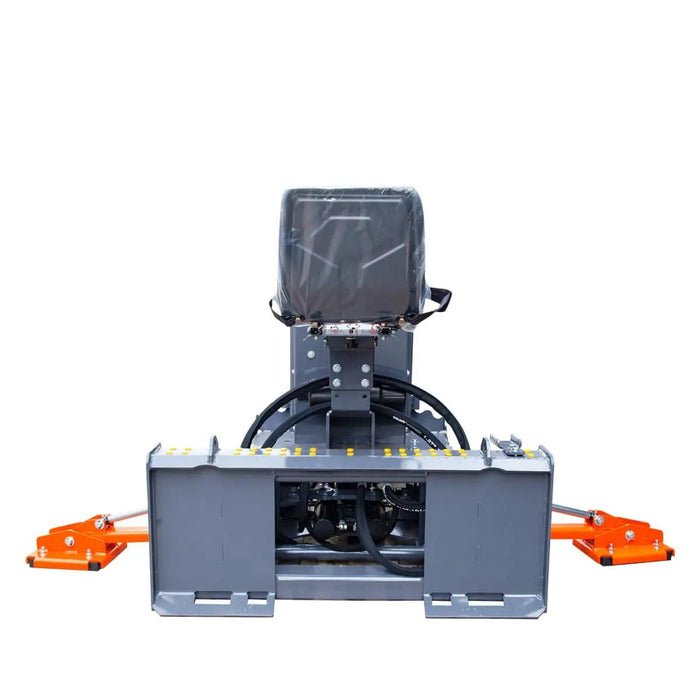

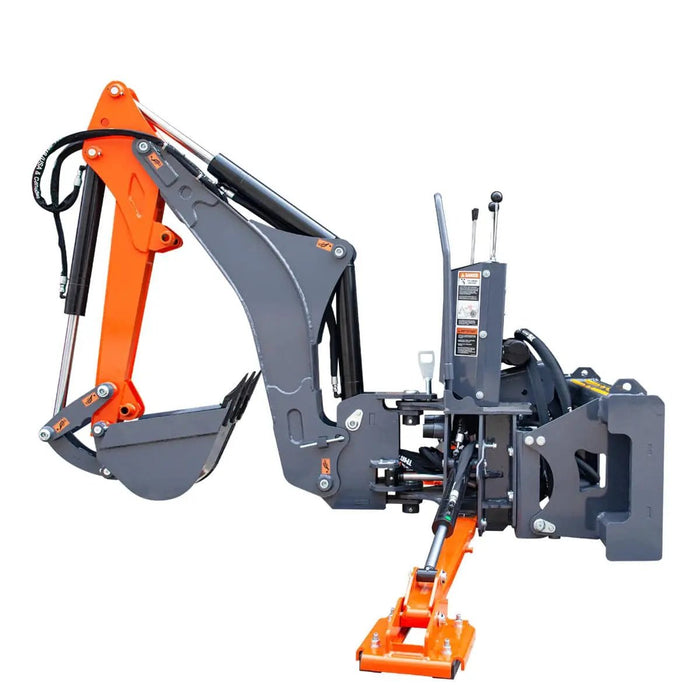

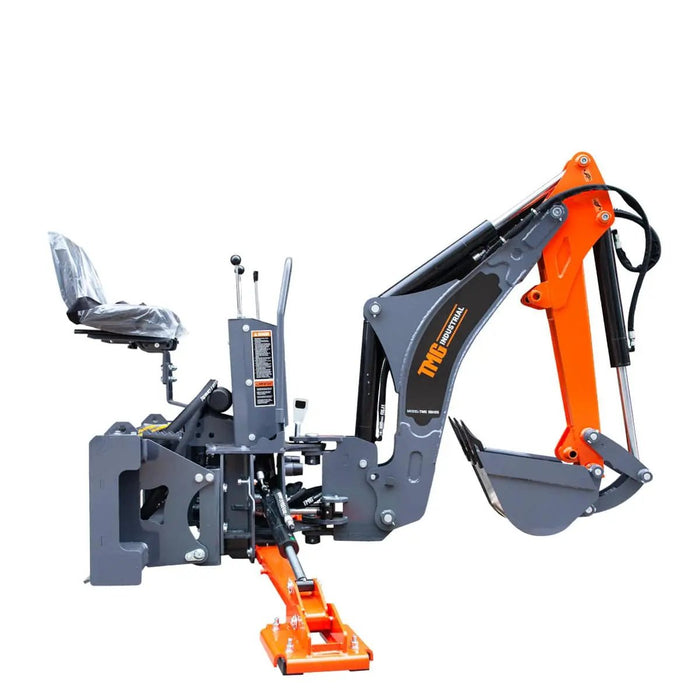

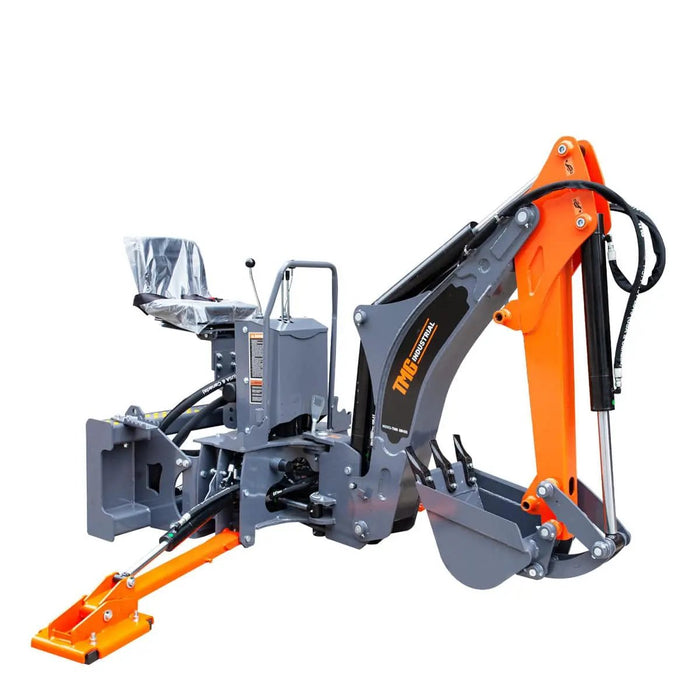

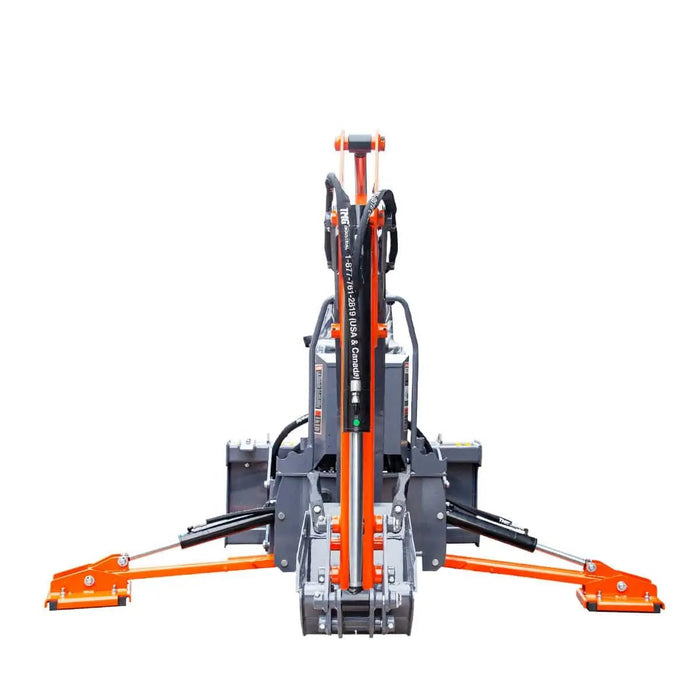

TMG Industrial 8-ft Skid Steer Swing Backhoe Attachment, 30-60 HP Skid Steers, Italian Hydraulic Control Valves, 12” Bucket, TMG-SBH55
CURRENTLY IN STOCK
TMG-SBH55
$7,199.00
$7,199.00 - $7,199.00
$7,199.00
$5,999.00
$5,999.00 - $5,999.00
$5,999.00
$7,199.00 Save $1,200.00
$5,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

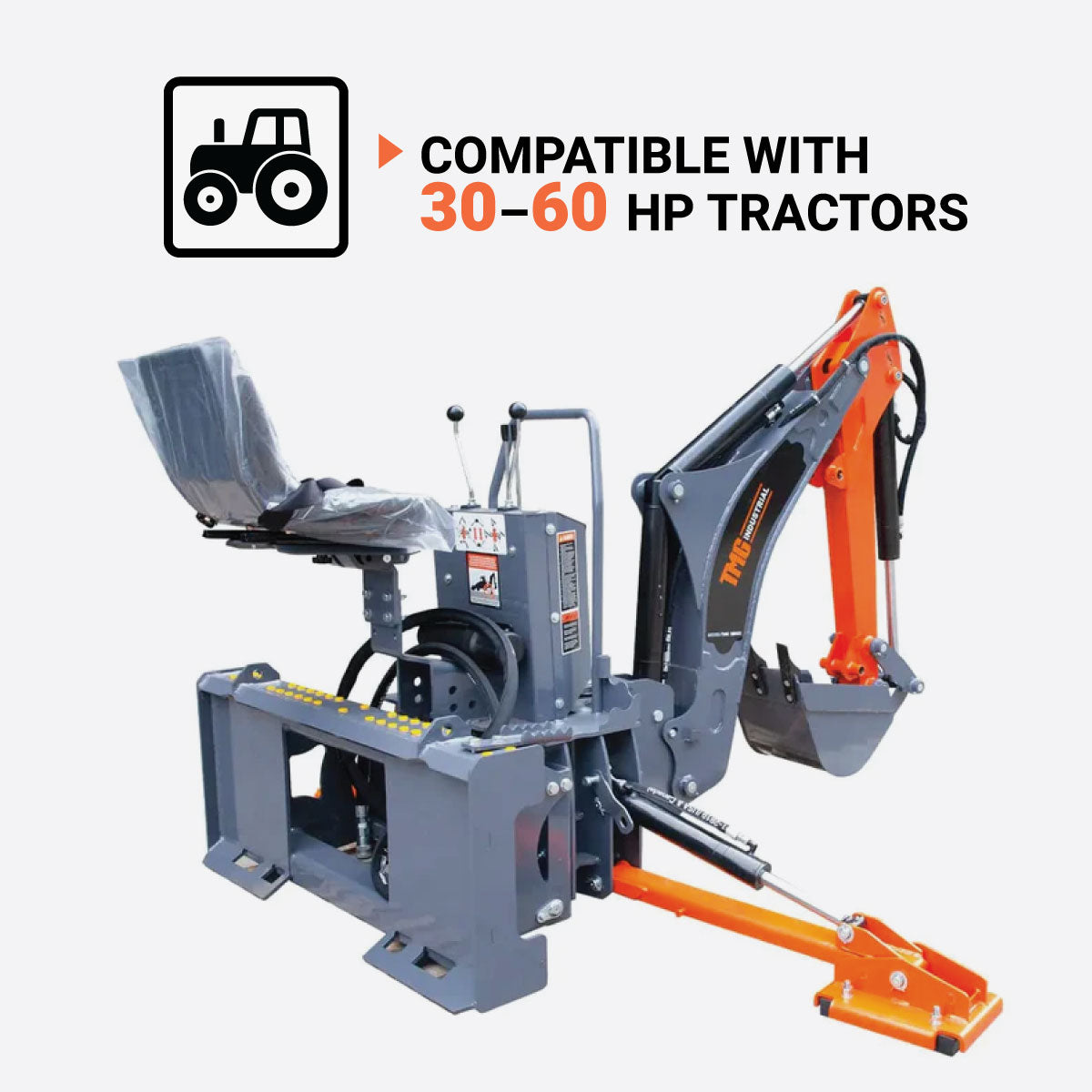

Compatible with 30 – 60 HP skid steer and includes 305 mm (12") digging bucket
Feature Image

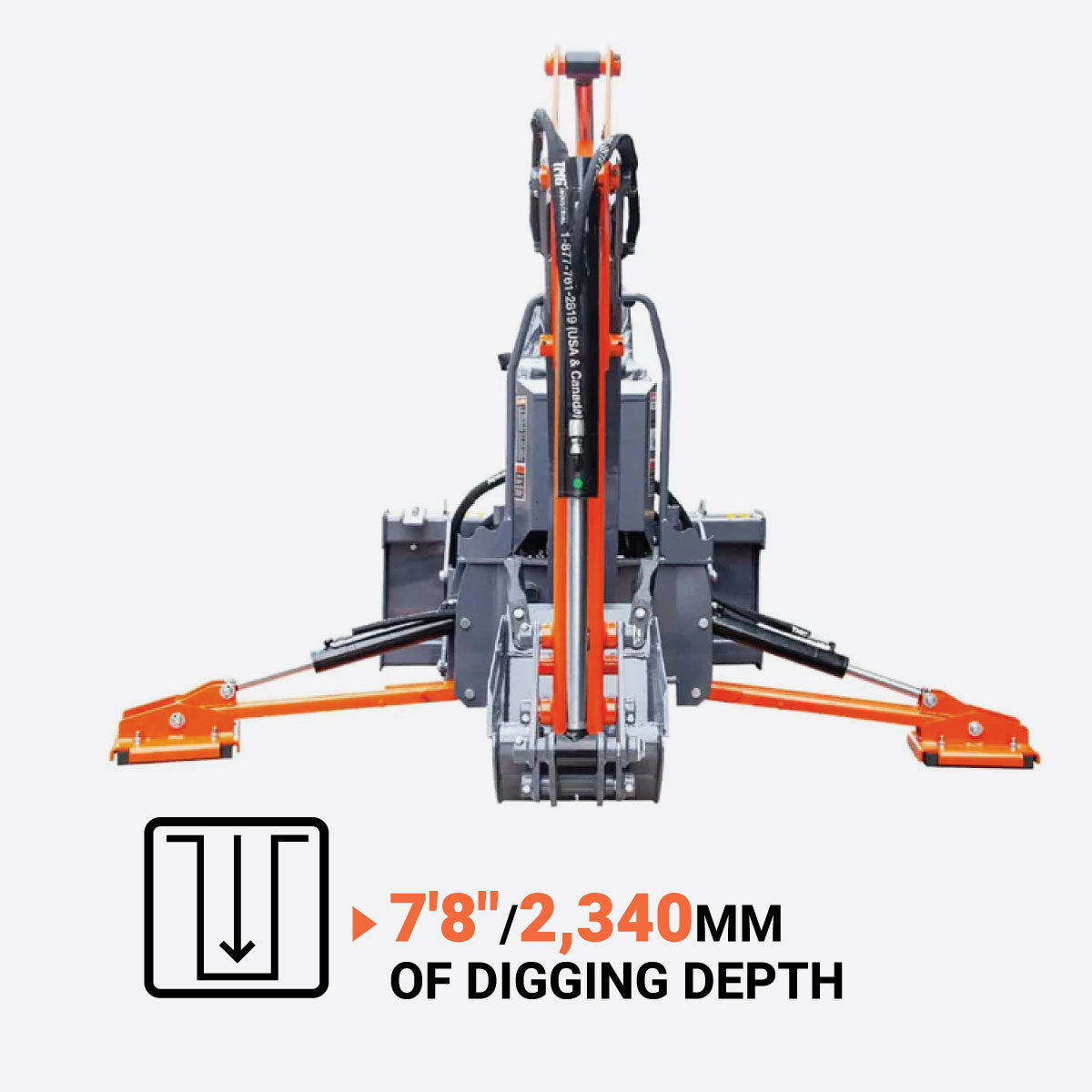

2340 mm (7’8”) of digging depth for easy access to hard-to-reach areas
Feature Image

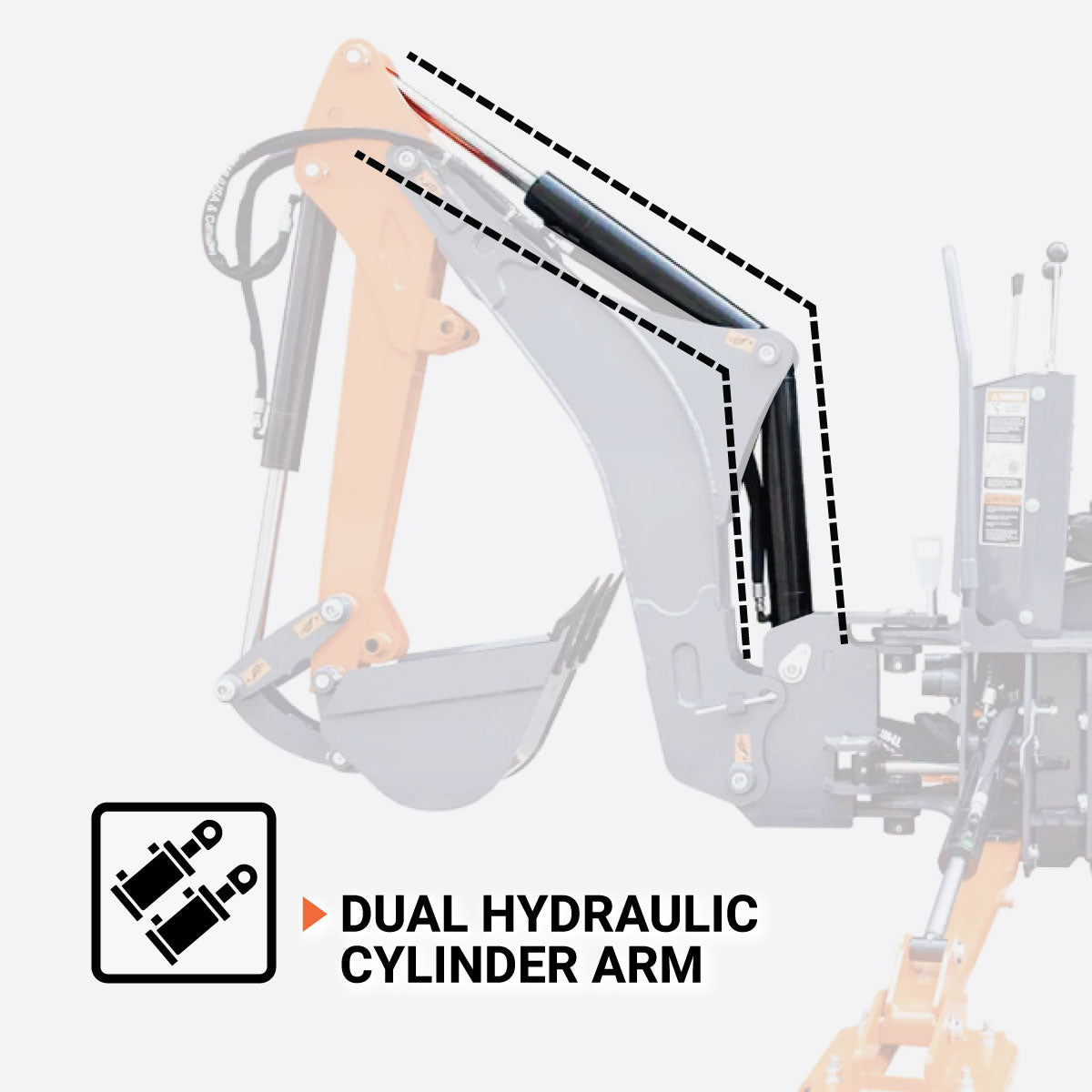

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

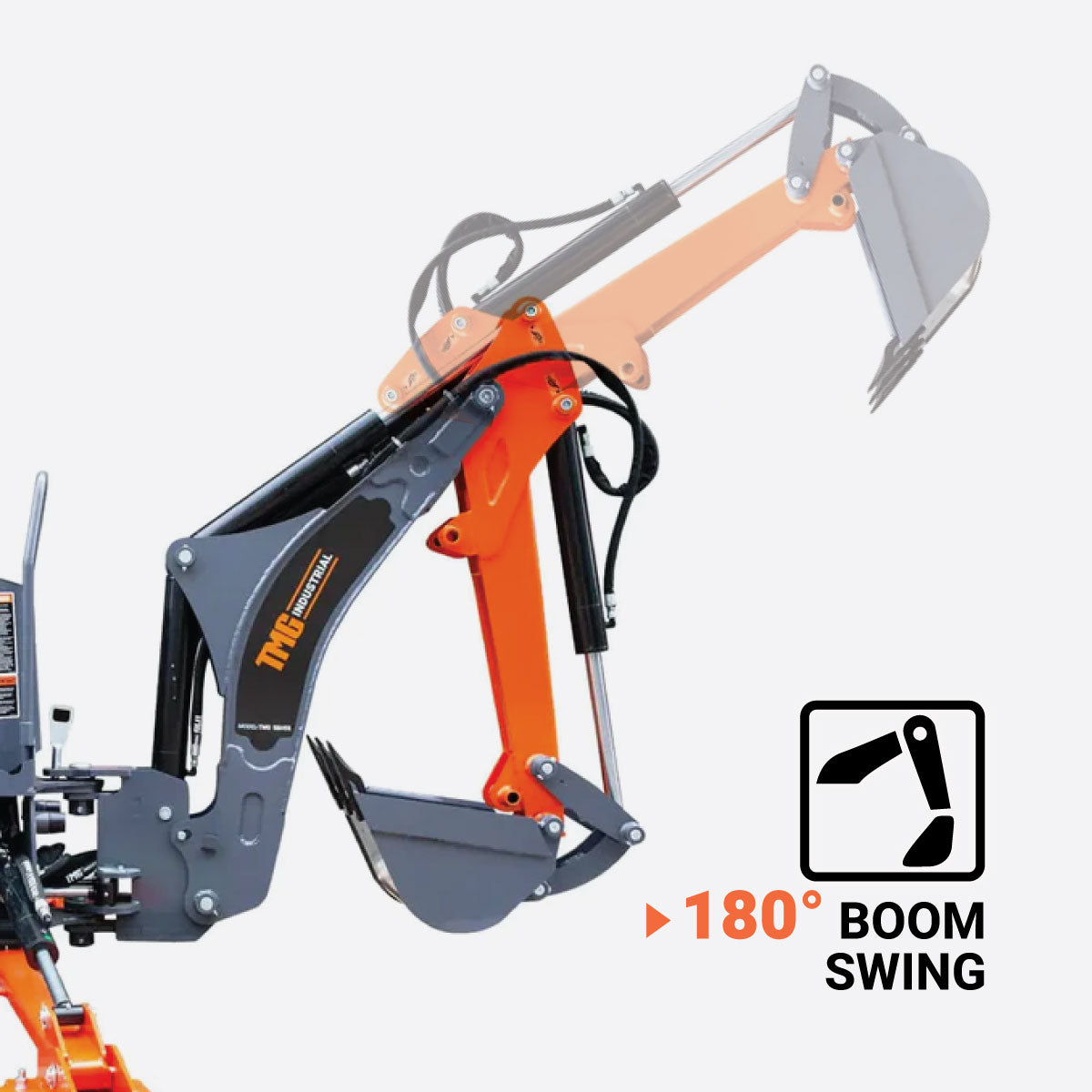

Extensive reach capacity in all directions with 180° of boom swing
Feature Image

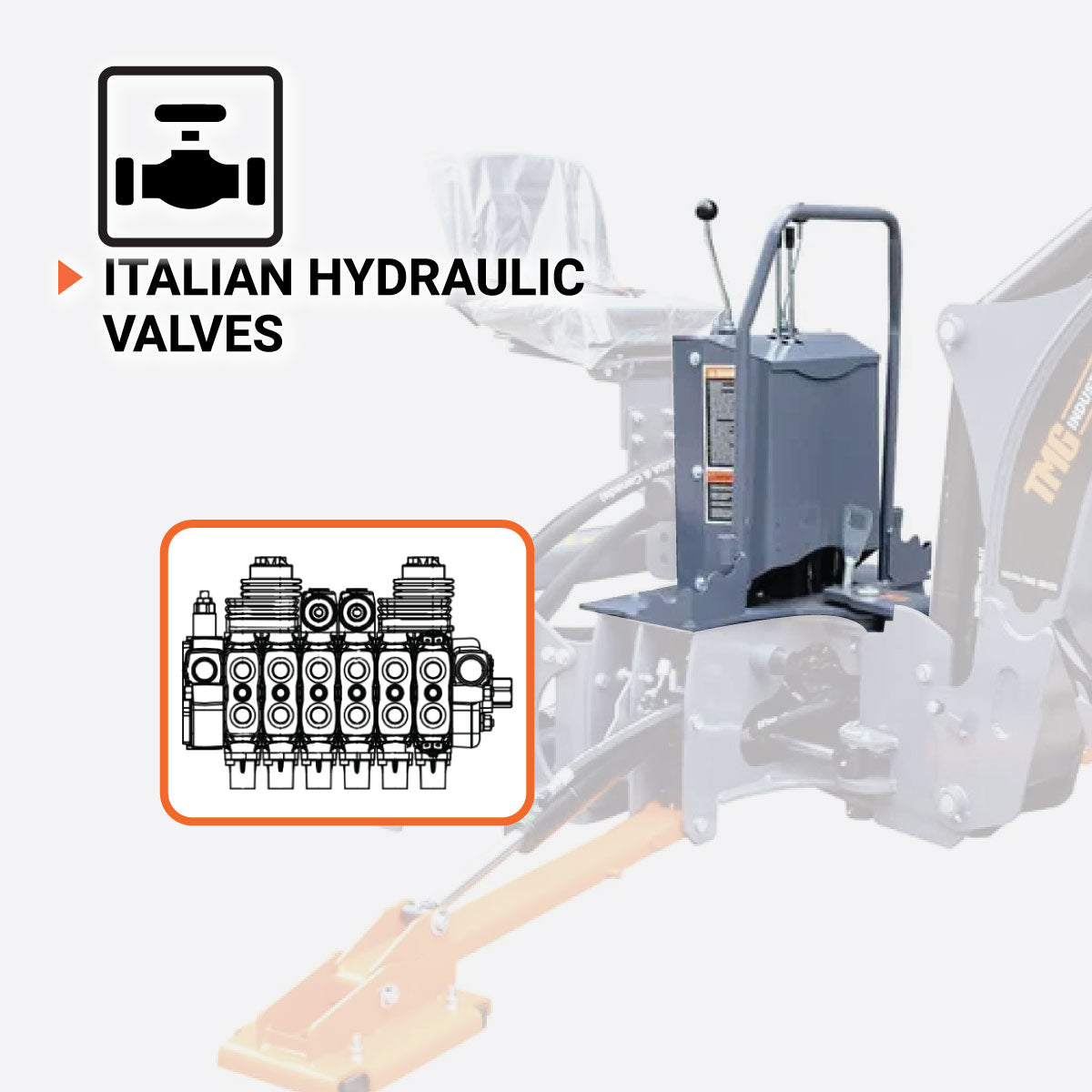

Italian hydraulic control valves finely tuned for impeccable timing and performance
Feature Image

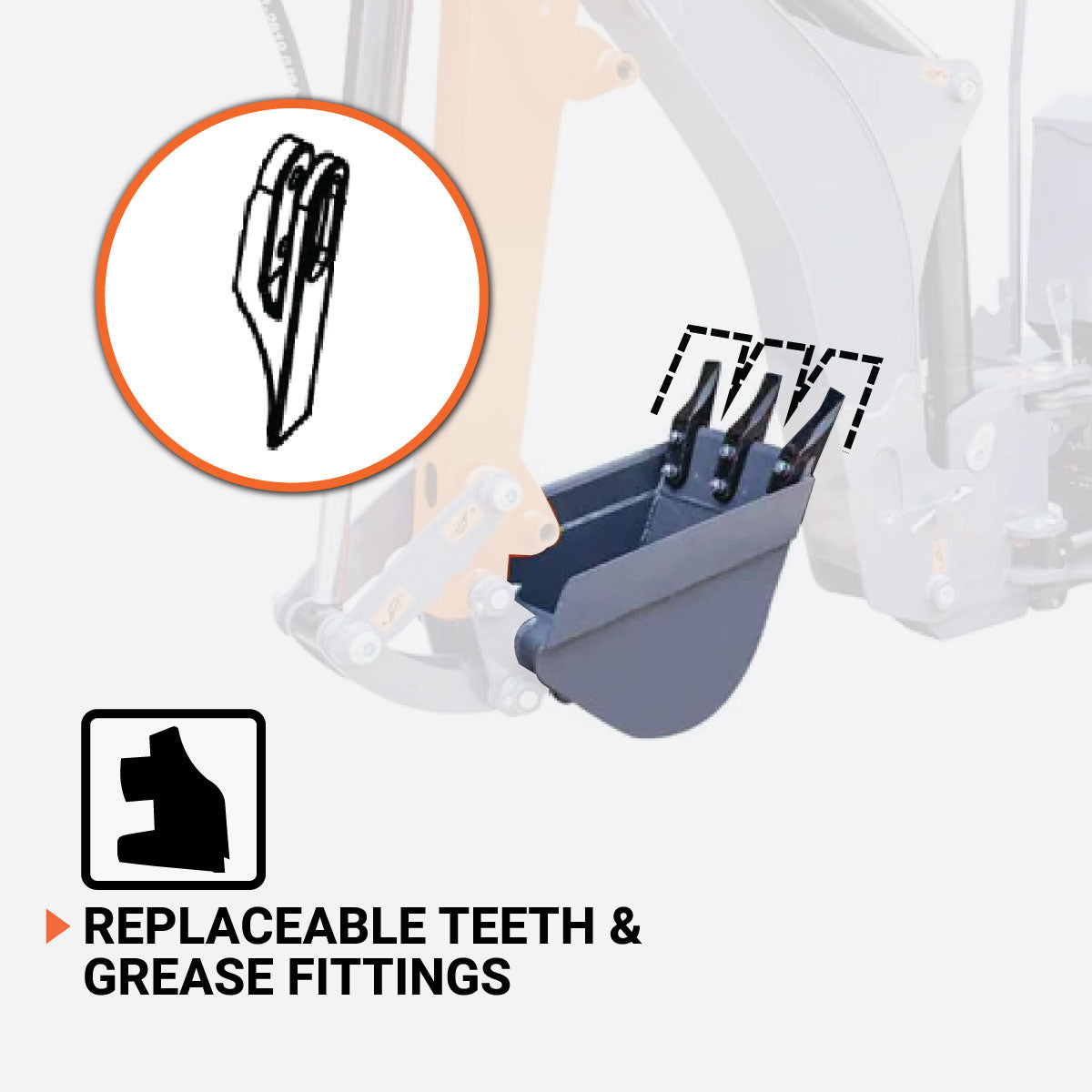

Replaceable teeth and grease fittings allow durable, low-maintenance operation

Specifications icon Specifications

  • Skid Steer Power Required: 30–60 HP
  • Mount Type: Universal skid steer mount
  • Hydraulic Flow Rate: 19–26 L/min
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Spec: 1/2"
  • Number of Hydraulic Hoses: 2
  • Hydraulic Hoses Diameter: DN13
  • Bucket Rotation Degree: 180°
  • Swing Arc: 180°
  • Max. Digging Depth: 2340 mm (7'8")
  • Max. Working Height: 2845 mm (112")
  • Max. Working Length: 3000 mm (118")
  • Max. Loading Height: 1830 mm (72")
  • Stabilizer Width (Spread): 2360 mm (89")
  • Stabilizer Width (Transport): 1650 mm (58")
  • Ground Clearance: 250–305 mm (10"–12")
  • Bucket Size: 305 mm (12")
  • Bucket Capacity: 0.028 m³ (1 cu-ft)
  • Dipper Boom Digging Force: 930 kg (2050 lb)
  • Bucket Digging Force: 1440 kg (3180 lb)
  • Bucket and Boom Dig Simultaneously: Yes
  • Surface Finish: Powder coating
  • Overall Dimensions: 2260 × 1650 × 1520 mm (89" × 65" × 60")
  • Net Weight: 517 kg (1140 lb)

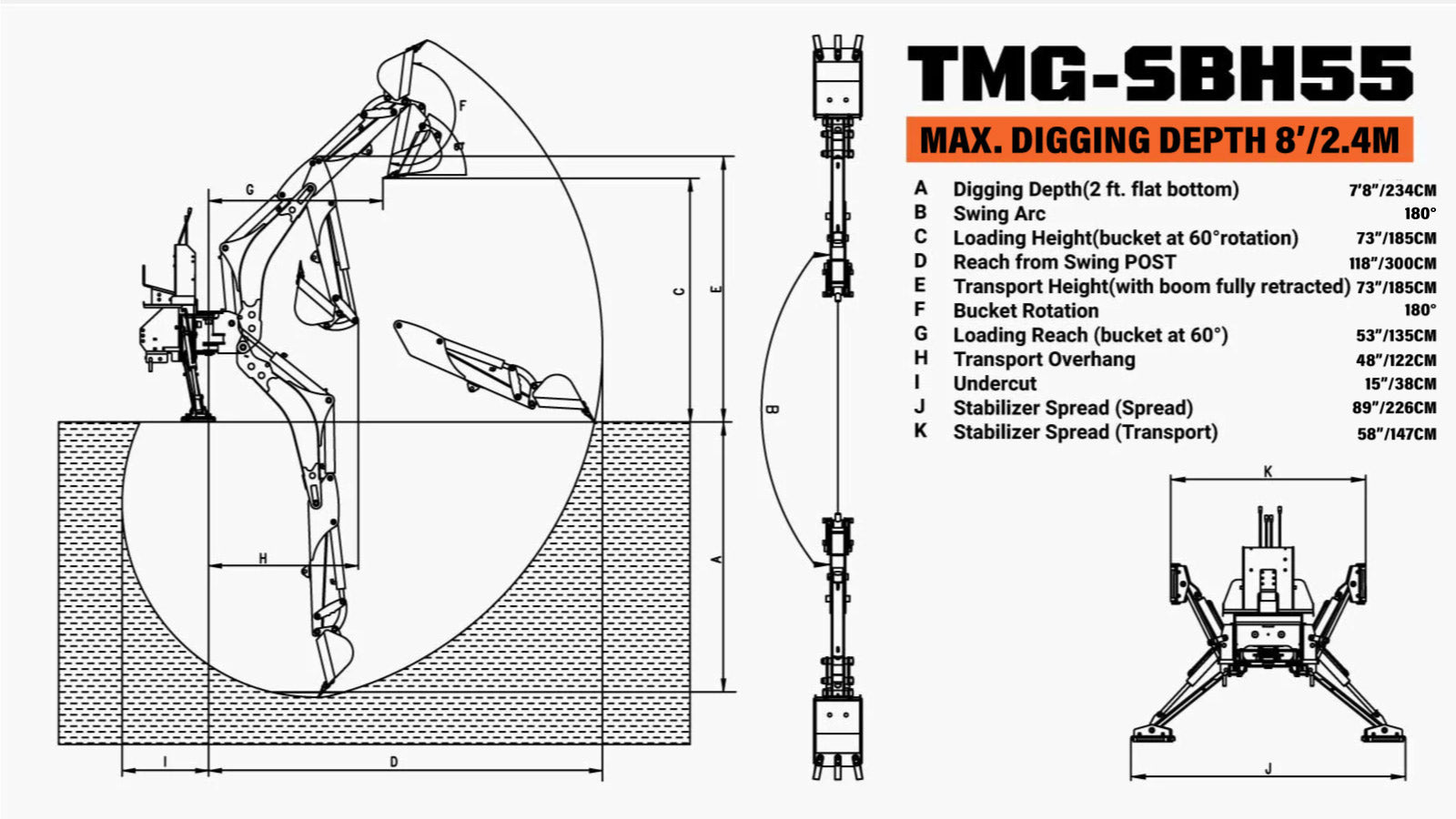

2340 mm Skid Steer Backhoe Attachment, Universal Mount, 180° Boom and Bucket Rotation TMG-SBH55-specifications-image

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances, it will take 2 to 3 business days to process and dispatch your order. Delivery typically takes 10 to 15 business days depending on your location and accessibility.

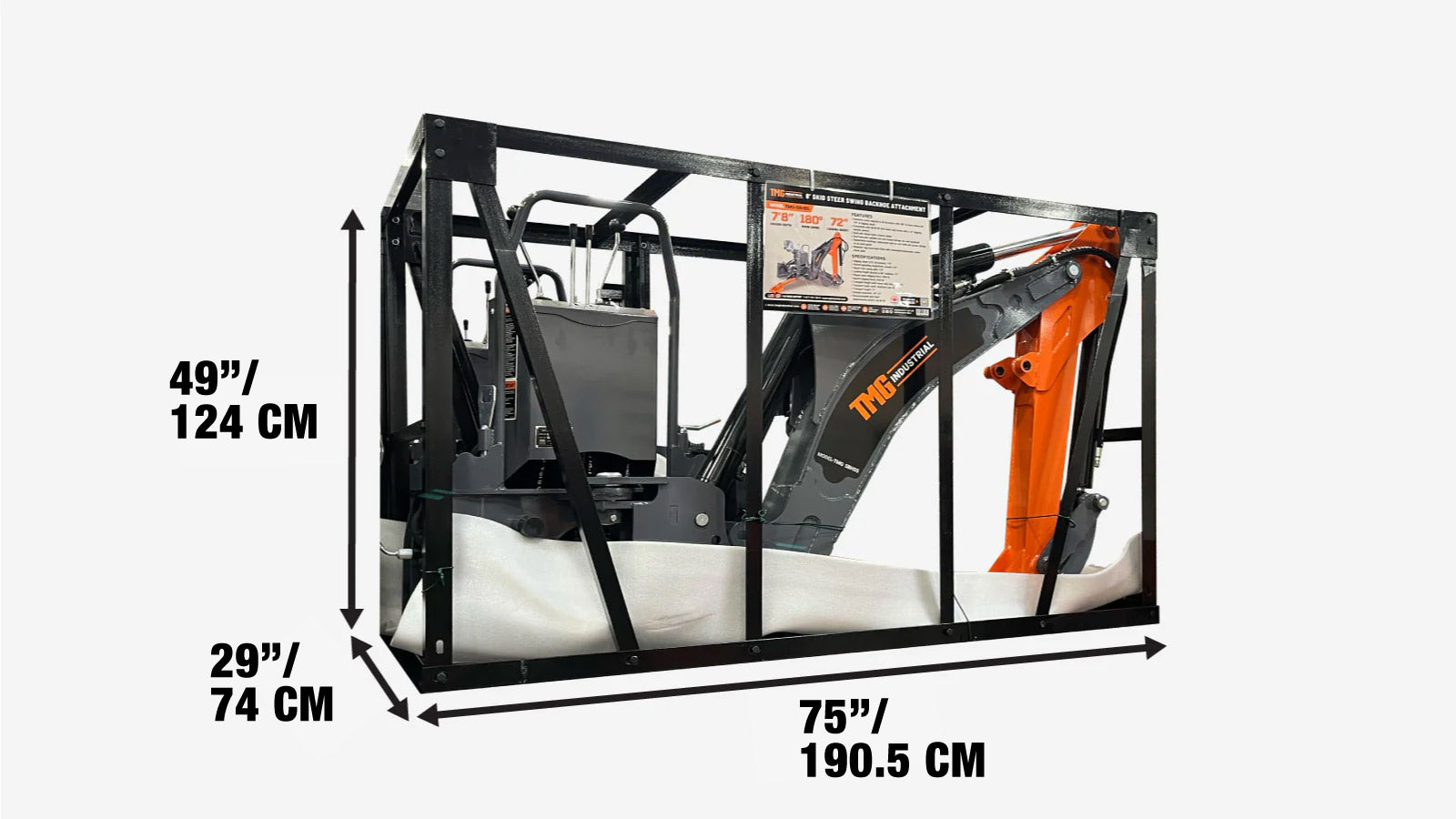

  • This product is packed in a metal crate shipping box
  • Shipping dimensions: 191 × 74 × 125 cm (W × L × H) / 75" × 29" × 49"
  • Shipping weight: 601 kg (1325 lb)
Shipping from Rowville,VIC
What happens after you place your order?
2340 mm Skid Steer Backhoe Attachment, Universal Mount, 180° Boom and Bucket Rotation TMG-SBH55-shipping-info-image

Product Description icon Product Description

The TMG-SBH55 Skid Steer Backhoe Attachment is a great tool for all your digging and excavation needs. With a digging depth of 2340 mm (7’8"), it is designed to truly revolutionize your productivity and efficiency on the job. It has a dynamic reach capacity in all directions, allowing you to cover a large area without the hassle of constantly relocating your setup. Compatible with 30-60 HP skid steers, it comes complete with a 305 mm (12") bucket, making it perfect for tasks like digging ditches, installing sprinkler systems, and landscaping projects.

What sets the TMG-SBH55 apart is its precision-engineered Italian hydraulic control valves, which optimize hydraulic distribution for impeccable timing and work performance. The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, burrowing power, and a full 180° of bucket rotation.

Maintenance is made simple with replaceable bushings, bolt-on cast teeth, and grease fittings on all pivot points. The removable/replaceable rubber street pads on the stabilizer legs reduce damage to surfaces, while open seat visibility and foldable stabilizers ensure you stay in place and maintain a clear view of your work area at all times.



TMG Industrial also carries other similar models: TMG-SBH60.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
