TMG 2500 mm (9’) Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, TMG-TBH90

Product Manual
TMG Industrial 9-ft Tractor Swing Backhoe Attachment, Category 1 & 2, 180° Boom and Bucket Rotation, 15” Bucket Included, TMG-TBH90
CURRENTLY IN STOCK
TMG-TBH90
$7,599.00
$7,599.00 - $7,599.00
$7,599.00
$6,499.00
$6,499.00 - $6,499.00
$6,499.00
$7,599.00 Save $1,100.00
$6,499.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

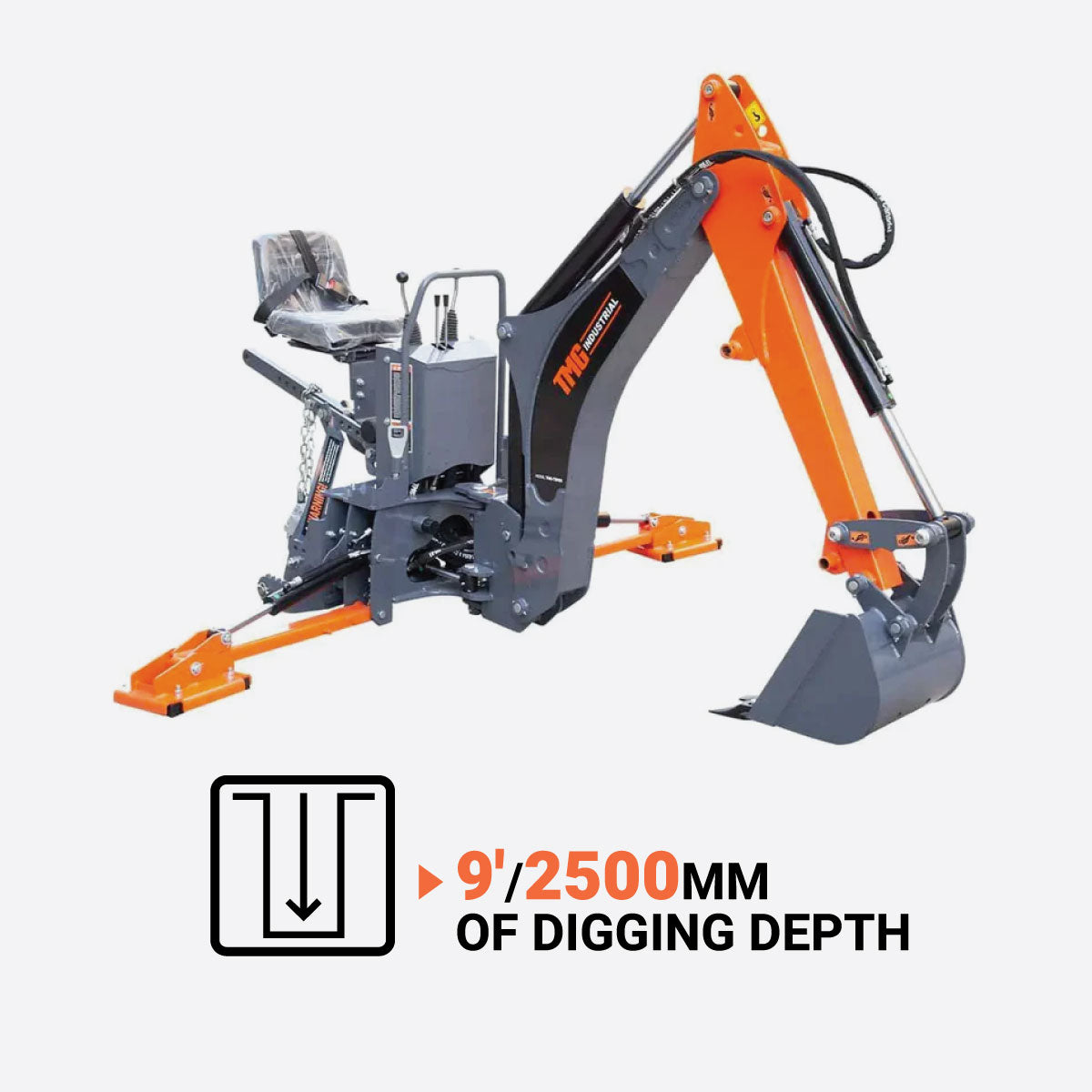

2500 mm (9') of digging depth for easy access to hard-to-reach areas
Feature Image

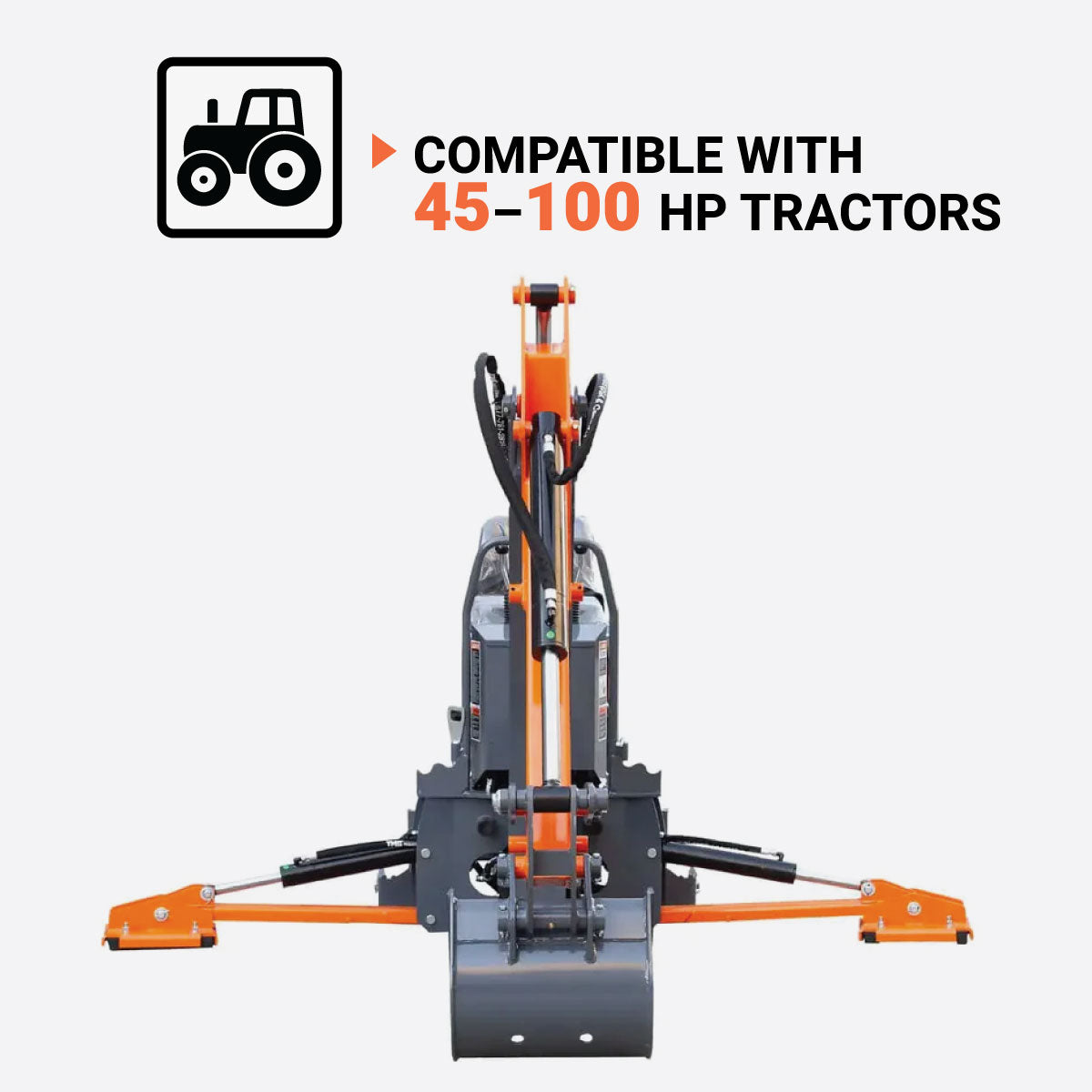

Compatible with 45 – 100 HP tractors and includes 380 mm (15") digging bucket
Feature Image

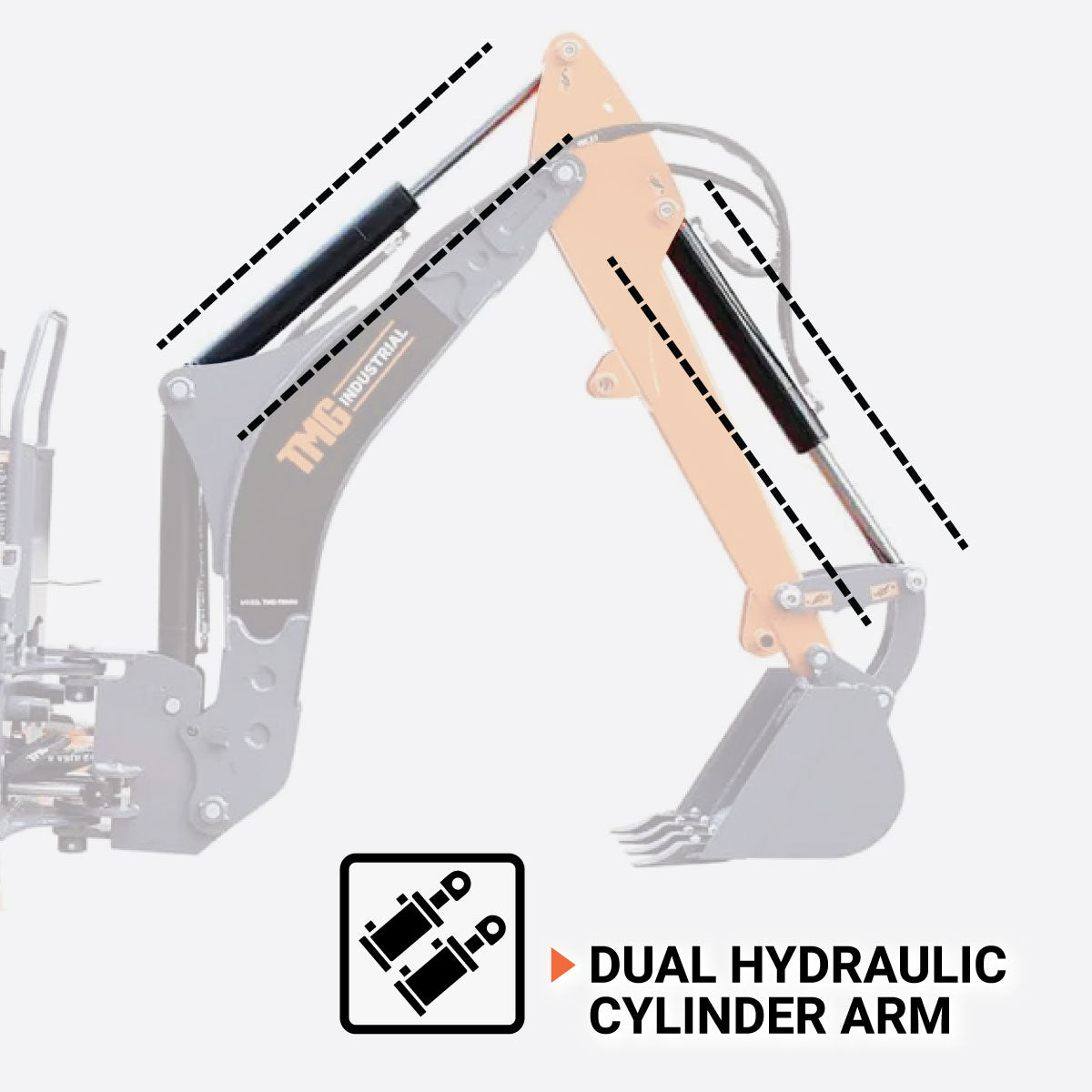

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

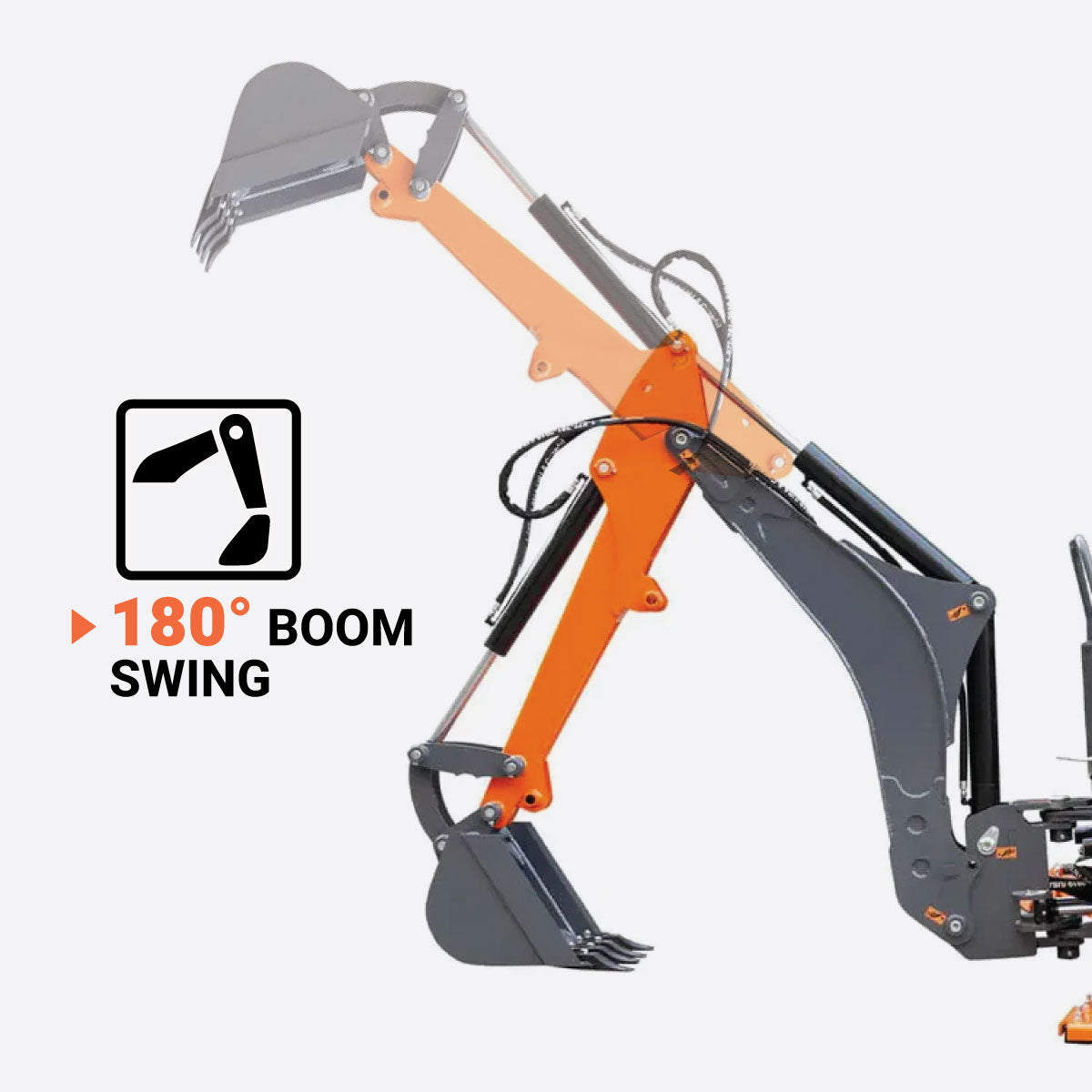

Extensive reach capacity in all directions with 180° of boom swing
Feature Image

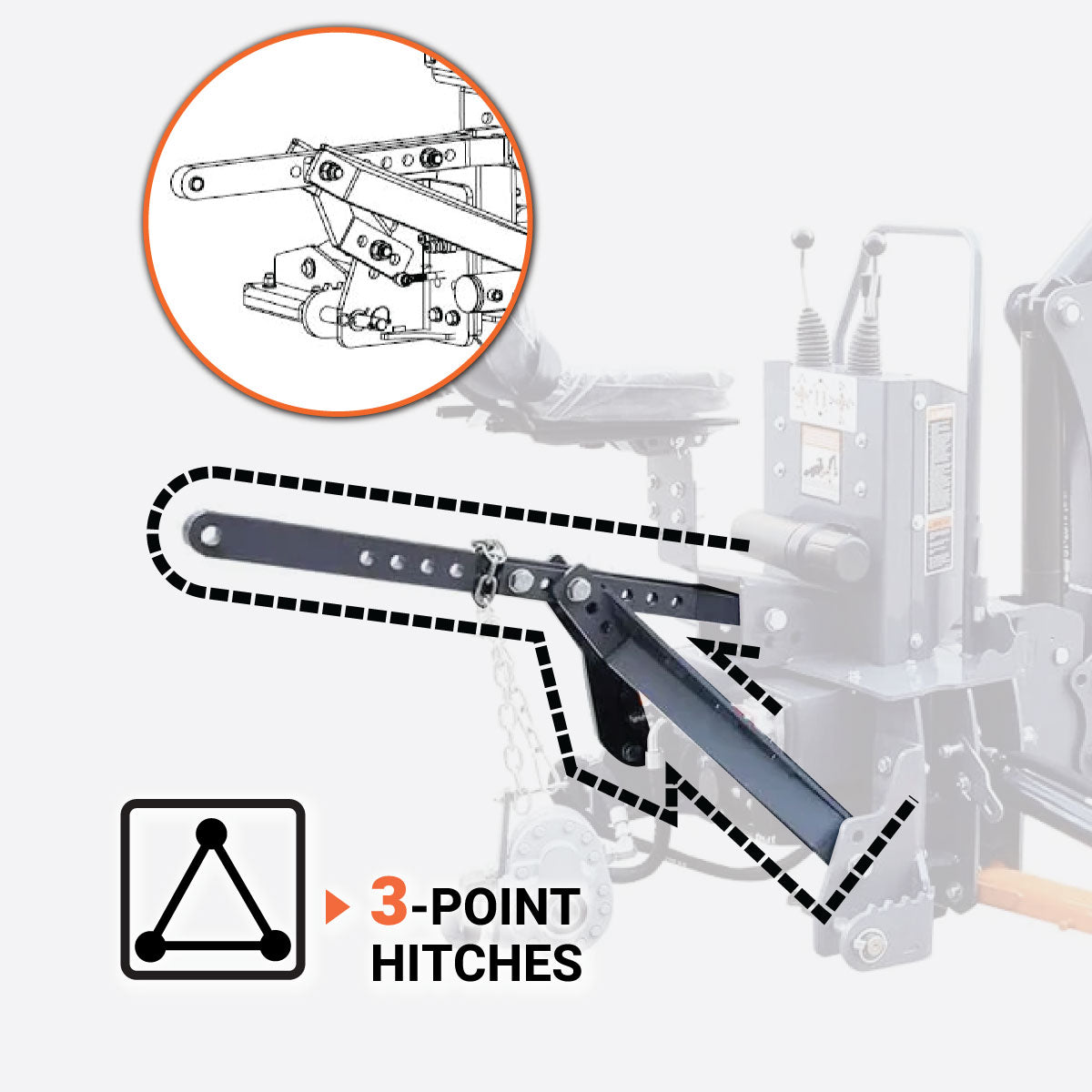

3-point hitch fits Category 1 & 2 tractors for easy attachment
Feature Image

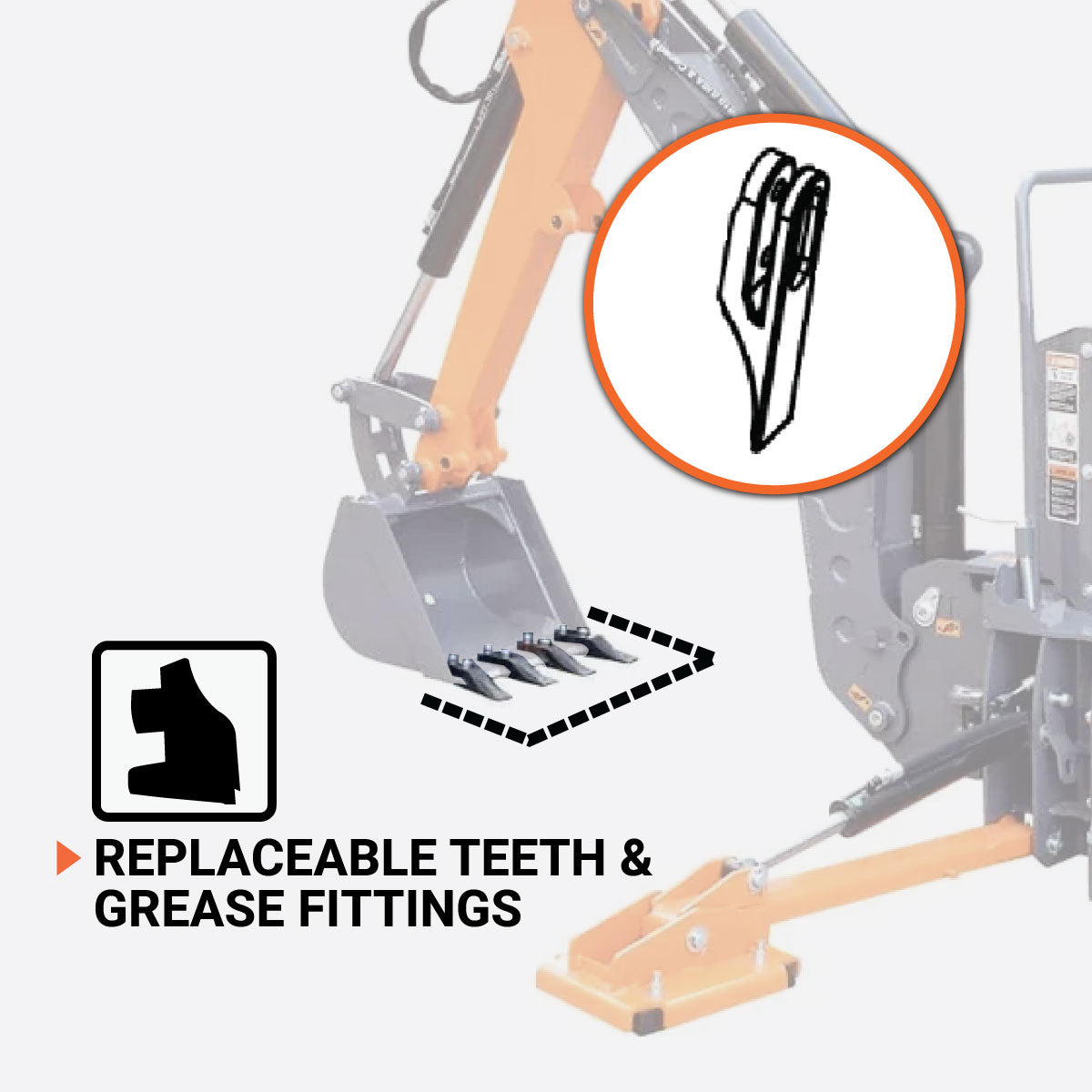

Replaceable teeth and grease fittings allow durable, low-maintenance operation

Specifications icon Specifications

  • Digging depth (2 ft. flat bottom): 9'6"
  • Overall operating height (fully raised): 125”
  • Reach from swing post: 129”
  • Loading height (bucket at 60° rotation): 84”
  • Dipper boom digging force: 2200 lb
  • Bucket digging force: 3300 lb
  • Transport height (with boom fully retracted): 80”
  • Transport width (with stabilizers up): 58”
  • Transport length: 72”
  • Ground clearance: 10”-12”
  • Transport weight (base unit only-no bucket or mounts): 870 lb
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Stabilizer width (spread): 88”
  • Stabilizer width (transport): 58”
  • Operating pressure: 2320 PSI
  • Hydraulic volume requirements: 5-7 GPM
  • Recommended tractor requirements: 30-100 HP
  • Flow divider included: Yes
  • Bucket sizes available: 15”
  • 3-point hitch
  • Category 1 & Category 2 hookups
  • Self-contained gear pump (TMG-TBH90-J): sold separately

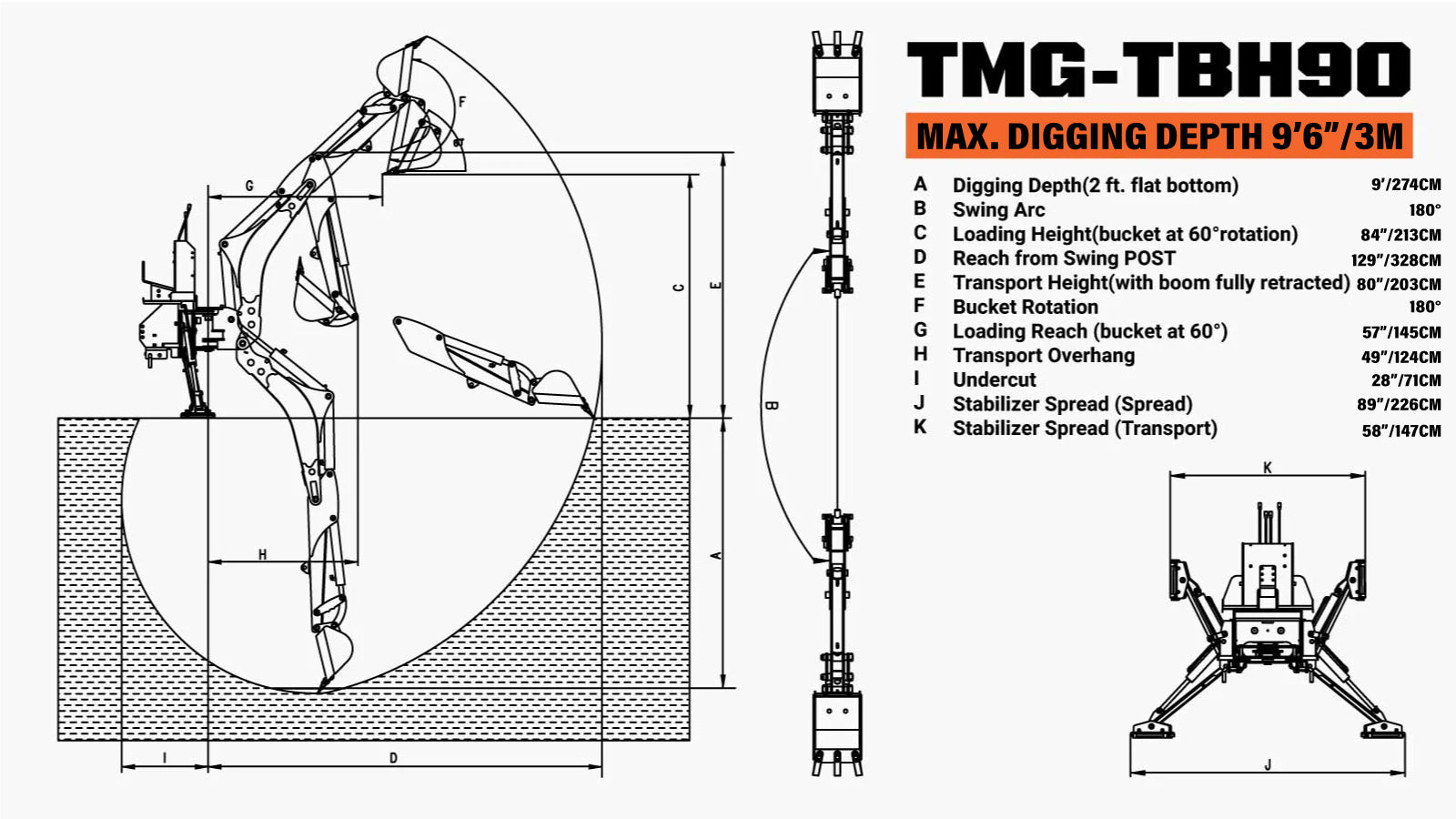

TMG 2500 mm (9’) Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, TMG-TBH90-specifications-image

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

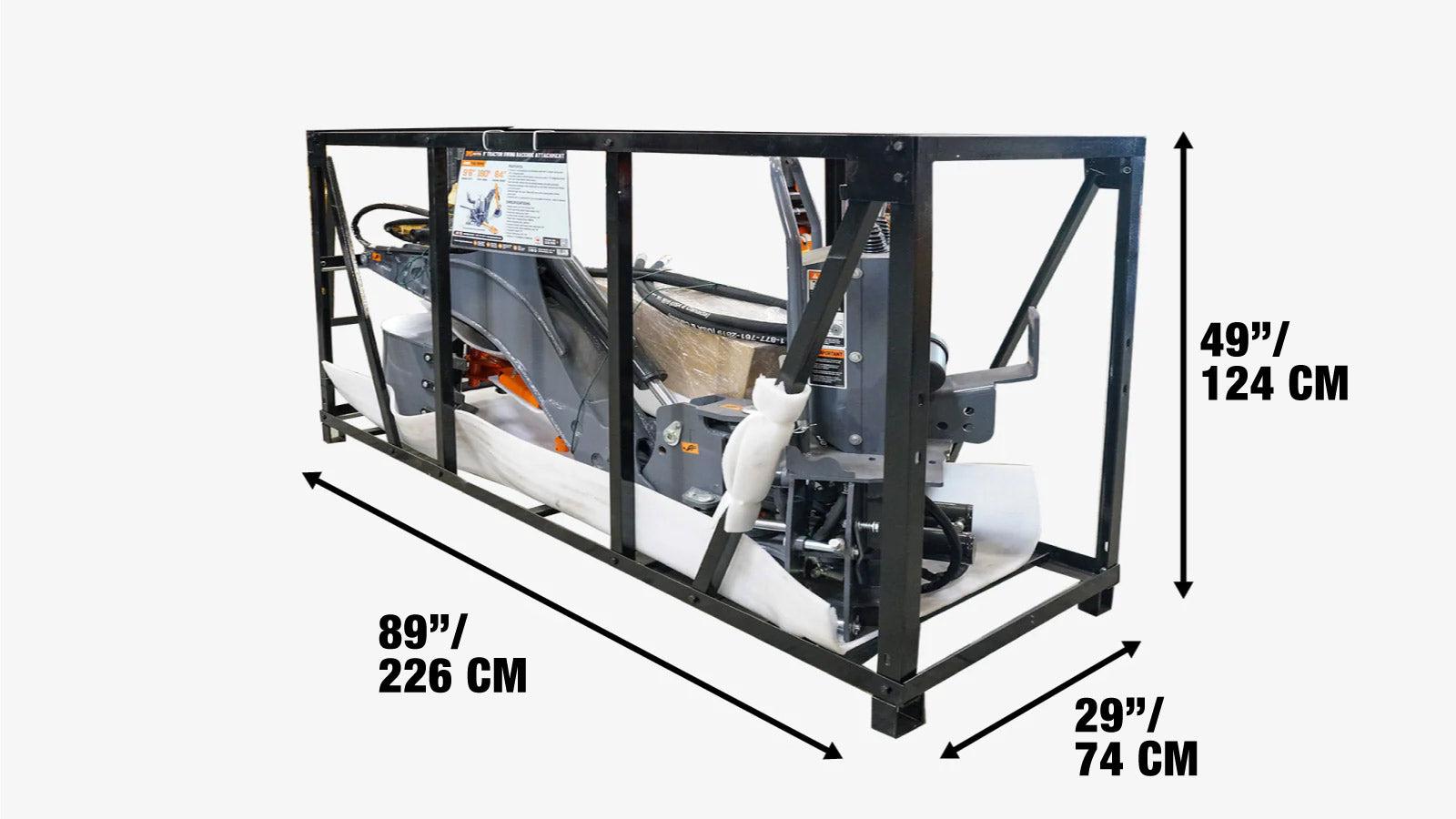

  • This product is packed in a metal crate shipping box.
  • Shipping dimension: 226 x 74 x 125 cm (W x L x H) 89" x 29" x 49"
  • Shipping weight: 572 kg (1260 lb)
Shipping from Rowville,VIC
What happens after you place your order?
TMG 2500 mm (9’) Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, TMG-TBH90-shipping-info-image

Product Description icon Product Description

The TMG-TBH90 2500 mm (9’) Tractor Swing Backhoe Attachment offers a range of capabilities for your excavation projects. Its extensive reach and 180° boom swing allows you to access hard-to-reach areas without needing to reposition the attachment. This backhoe attachment is compatible with tractors between 45 and 100 HP and comes with a 380 mm (15") digging bucket that is perfect for digging trenches, installing irrigation systems, landscaping and more.

This backhoe features Italian Hydro Control valves that optimize the distribution of hydraulic pressure for precise timing and performance. The dual hydraulic cylinder arm and bucket linkage are designed for high breakout force and burrowing power, and allow for 180° of bucket rotation. The 3-point hitch allows you to easily connect the backhoe to your tractor and eliminates the need for a separate excavating machine.

Maintenance is made easy with replaceable bushings, replaceable bolt-on cast teeth, and grease fittings on all pivot points. The stabilizer legs are designed with removable/replaceable rubber street pads to prevent damage to lawns, blacktop and concrete. For tractors not equipped with hydraulic auxiliary system, an optional external self-contained hydraulic pump TMG-TBH90-J is also available for efficient energy transmission and to maximize digging force (sold separately).

TMG Industrial also carries other similar models: TMG-TBH88.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Tractor power required: 45 - 100 HP
  • Mounting type: 3-point hitch CAT 1 & 2
  • Hydraulic flow: 19 - 50 L/min (5 - 13 GPM)
  • Hydraulic pressure: 16 MPa (2320 PSI)
  • Hydraulic hoses & flat face couplers: Included
  • Hydraulic flat face couplers: 1/2"
  • Maximum digging depth: 2500 mm (114")
  • Maximum working height: 2900 mm (125")
  • Maximum working length: 3200 mm (129")
  • Maximum loading height: 1800 mm (84")
  • Ground clearance: 260 mm (10.2")
  • Bucket size: 380 mm (15")
  • Bucket capacity: 0.036 m³ (1.32 ft³)
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Dipper boom digging force: 960 kg (2115 lb)
  • Bucket digging force: 1460 kg (3220 lb)
  • Simultaneous bucket and boom operation: Yes
  • Stabilizer width (spread): 2400 mm
  • Stabilizer width (transport): 1600 mm
  • Flow divider: Included
  • Mechanical thumb: Available
  • Surface finish: Powder coating
  • Overall dimension: 2600 x 1650 x 1700 mm
