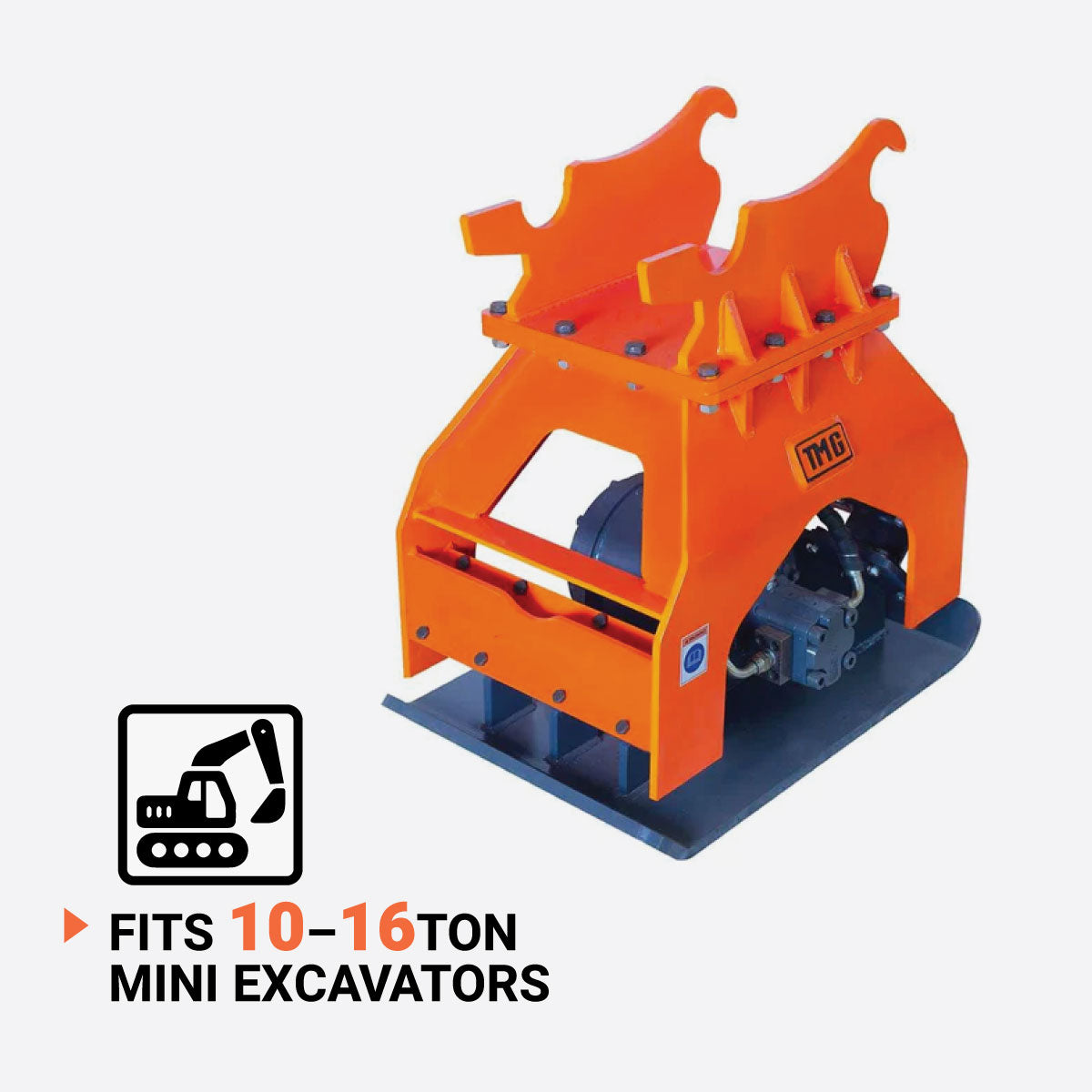

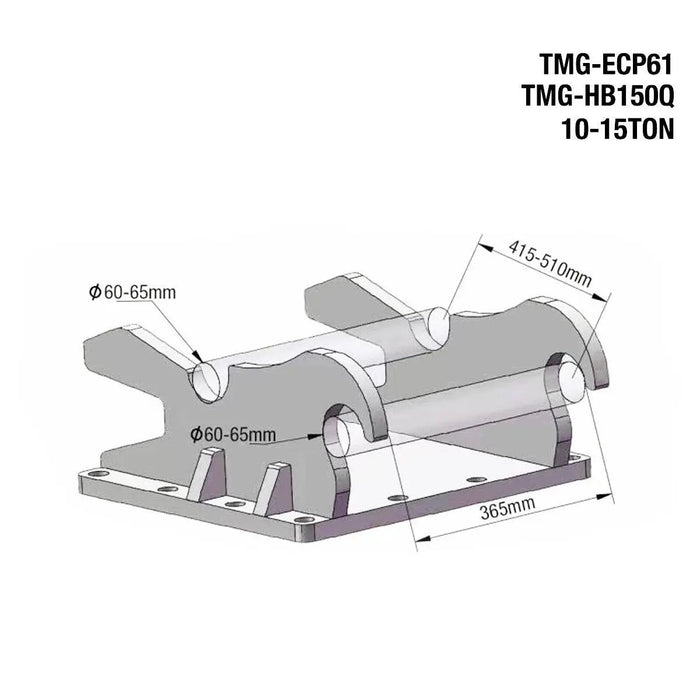

• Compatible Excavators: 10–16 Ton

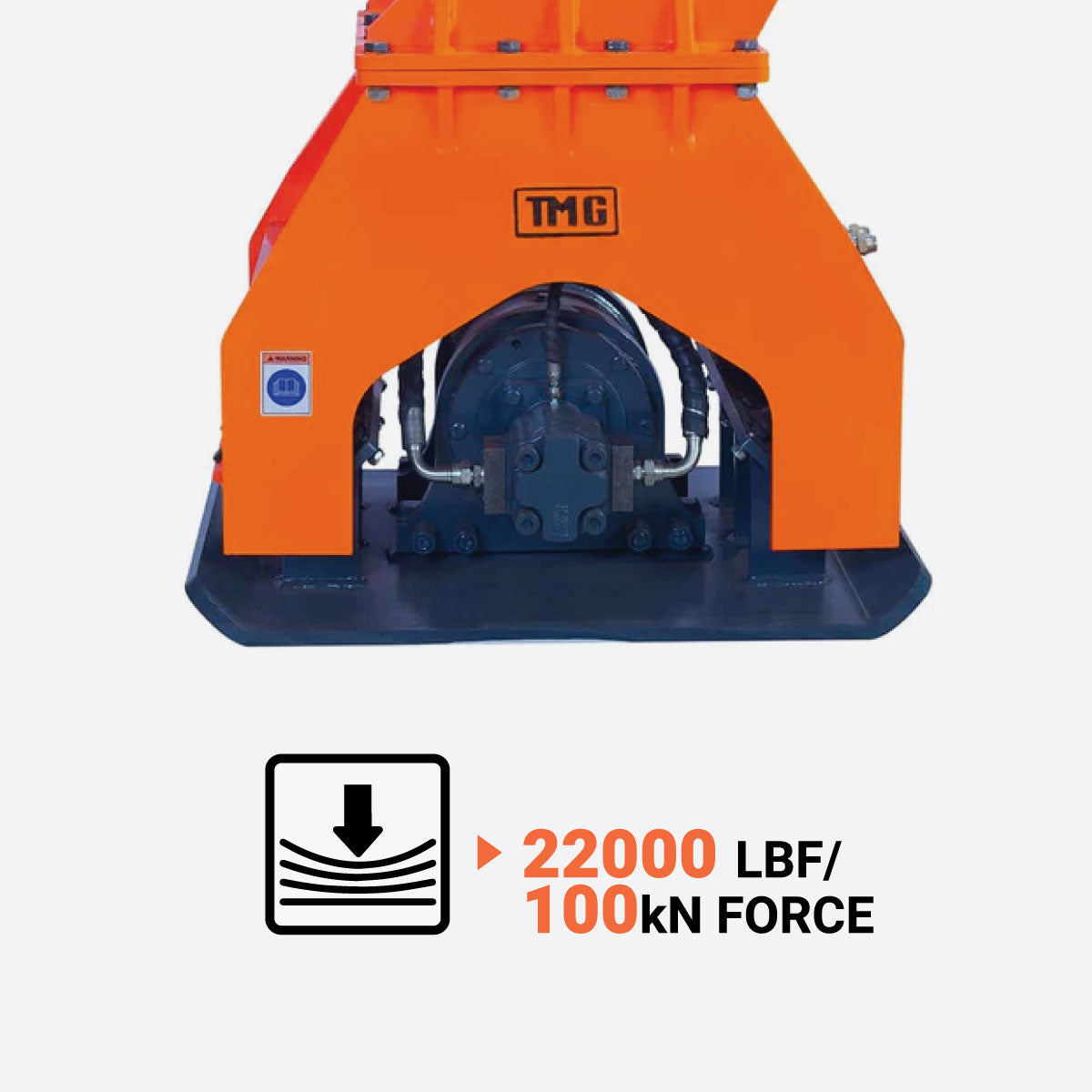

• Impulse Force: 97.9 kN
• Compaction Force: 10 ton
• Compaction Depth (mm): 940–1219 mm

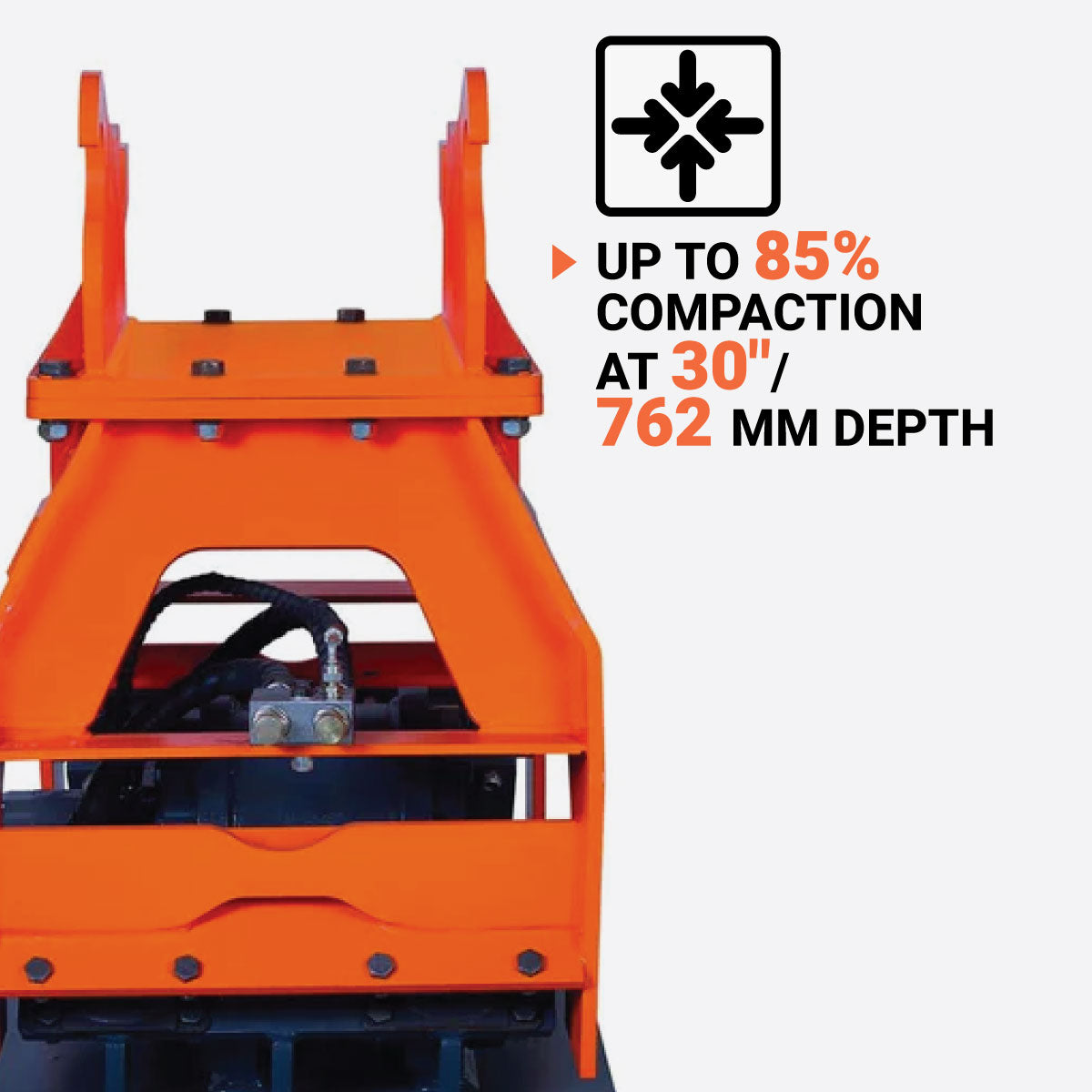

• Compaction Density: 85% at 762 mm
• Exciter Frequency: 2000 RPM
• Bottom Plate Size (mm): 997 x 700 mm

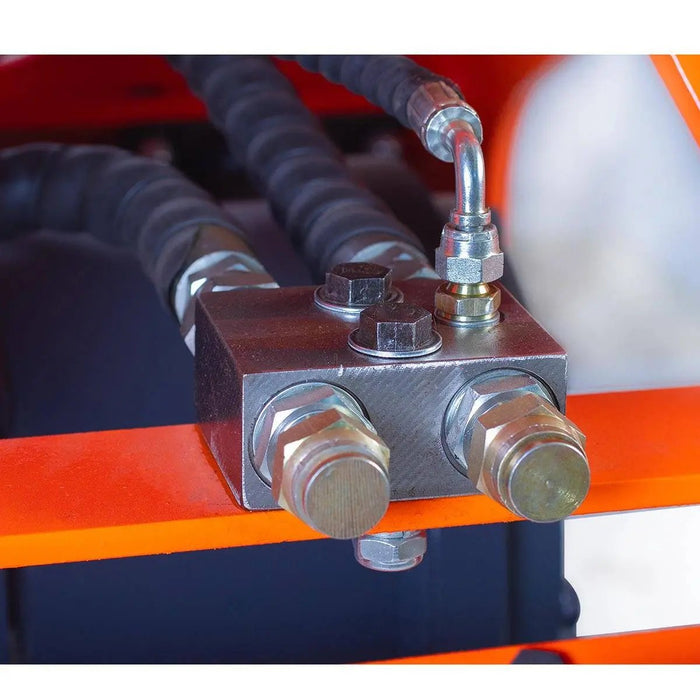

• Hydraulic Flow (L/min): 85–105 L/min
• Hydraulic Pressure: 100–150 bar

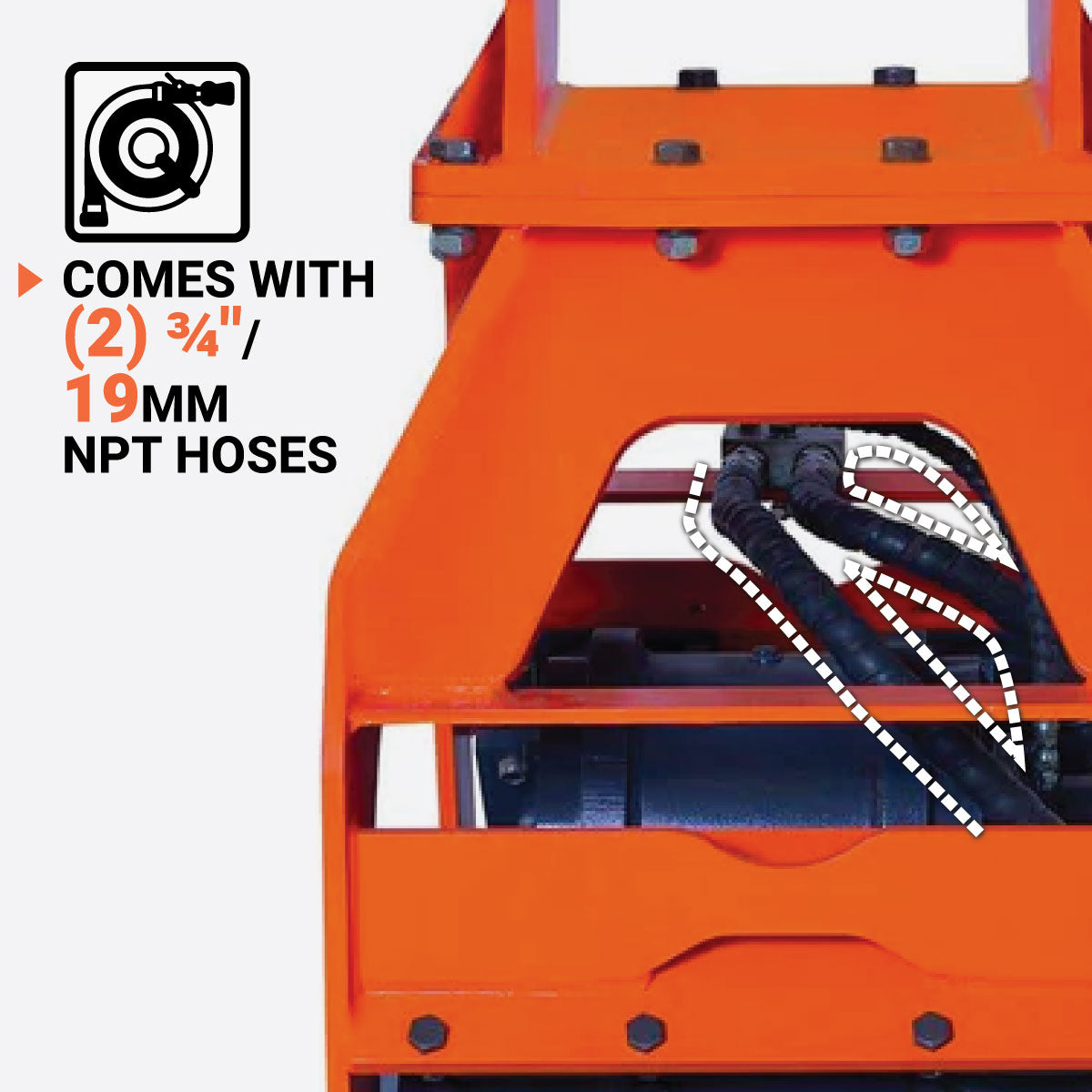

• Hydraulic Hoses Included: (2) ¾" NPT thread high-pressure hoses
• Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 2.1 m
• Net Weight: 710 kg

Orders are dispatched from our primary Australian distribution centers. Processing typically takes 2–3 business days, with delivery expected within 10–15 business days, depending on your location and accessibility.

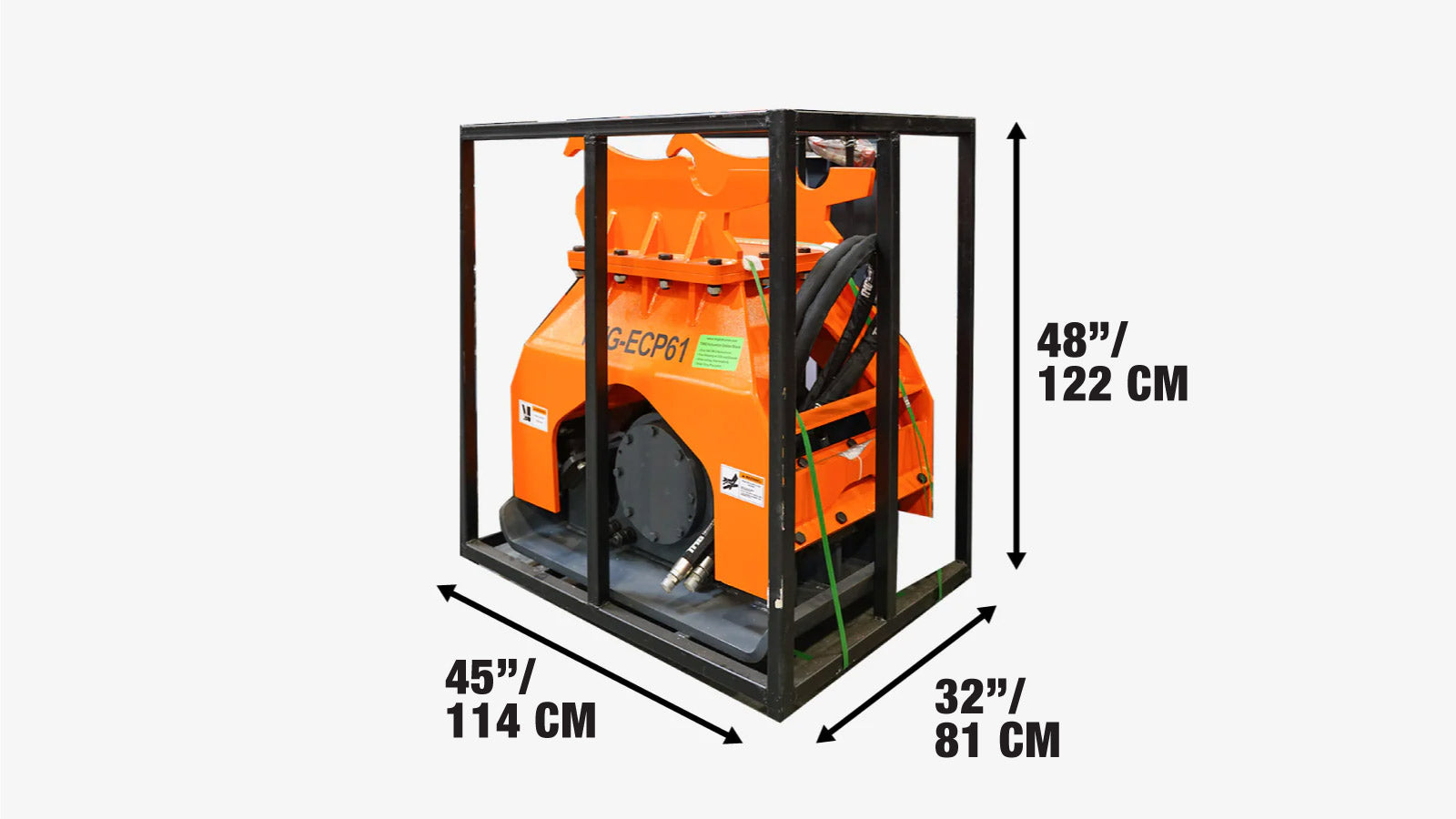

• Packaging: Securely packed in a metal crate

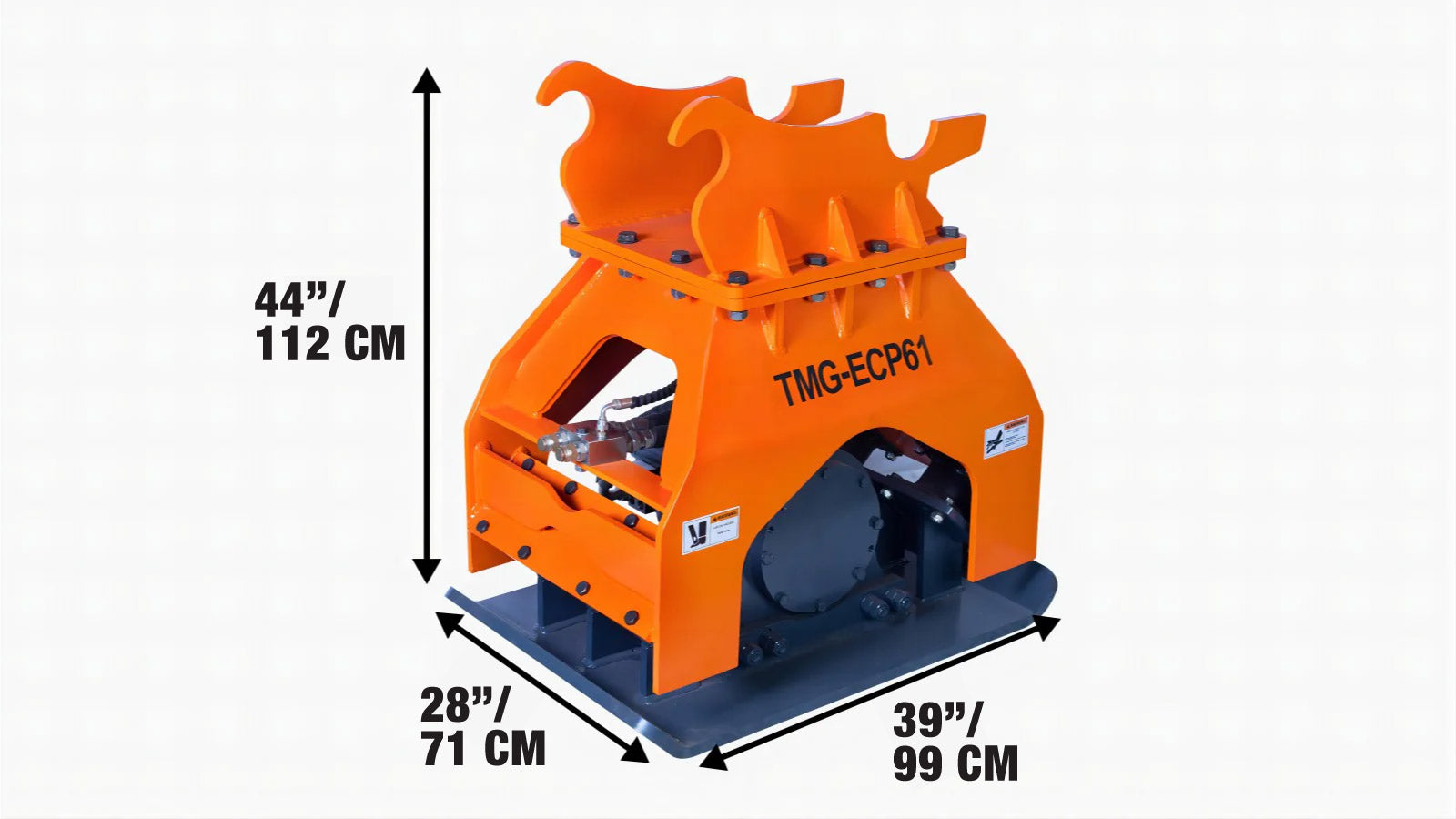

• Shipping Dimensions: 1143 × 813 × 1219 mm (L × W × H)
• Shipping Weight: Approximately 762 kg
• Delivery: Australia-wide; forklift required for unloading

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Q: What is the TMG-ECP61 used for? A: The TMG-ECP61 is a heavy-duty powerhouse capable of compacting a wide range of materials, including soils, gravels, and sands. It's the ideal solution for large-scale construction sites, road building, creating stable foundations, and any other demanding ground preparation needs where significant compaction is required. Its immense impulse force is highly effective on both bituminous and granular materials. Q: What size excavator is the TMG-ECP61 compatible with? A: This plate compactor is designed for use with mid-size excavators weighing between 10 to 16 tons (22,000-32,000 lb) or approximately 9,979 to 14,515 kg. Q: What is the impulse force of the TMG-ECP61? A: The TMG-ECP61 boasts an impressive impulse force of 22,000 lbf (100 kN), making it one of the most powerful options for deep and efficient compaction. Q: What is the effective compaction depth I can achieve? A: You can achieve a substantial effective compaction depth of 37 to 48 inches (94.0 to 121.9 cm) with the TMG-ECP61. Q: What is the compaction density? A: The eccentric weight vibration system is engineered for optimal soil compaction, translating to an 85% compaction density at 30 inches (76.2 cm) depth. Q: What are the hydraulic requirements for the TMG-ECP61? A: The compactor requires a robust hydraulic flow of 23-28 GPM (87.1-106.0 LPM) and operates at a working pressure of 1450-2175 PSI (10.0-15.0 MPa). Q: What are the dimensions of the bottom plate? A: The large bottom plate measures 39 inches x 28 inches (99.1 cm x 71.1 cm), allowing for efficient coverage of larger areas. Q: How much does the TMG-ECP61 weigh? A: The product weighs approximately 1680 lb (762 kg). The shipping weight is also 1680 lb (762 kg). Q: Are hydraulic hoses included? A: Yes, two 3/4" NPT thread high-pressure hydraulic hoses are included, ensuring a strong and efficient connection to your excavator's hydraulic system. Q: Does the TMG-ECP61 have features to protect my excavator and the compactor itself? A: Yes, it comes with several protective features. An overload shutoff valve is integrated to keep the motor within its optimal working range, preventing damage and extending the compactor's lifespan. Industrial-grade rubber cushions are designed to isolate vibrations, protecting your excavator's boom, motor, and bearings from excessive wear and tear. Furthermore, the motor and bearings are fully sealed to prevent the ingress of moisture, dust, dirt, rocks, and other debris, even in the harshest working conditions. Q: What is the warranty on the TMG-ECP61? A: This product is backed by a 1-year manufacturer warranty. For specific warranty details and claims, please refer to the TMG Industrial website's warranty policy. .
