CURRENTLY OUT OF STOCK
TMG-PD950S

Skid Steer Post Driver, Universal Mount, 1030 Joules Energy, TMG-PD950S

Product Manual

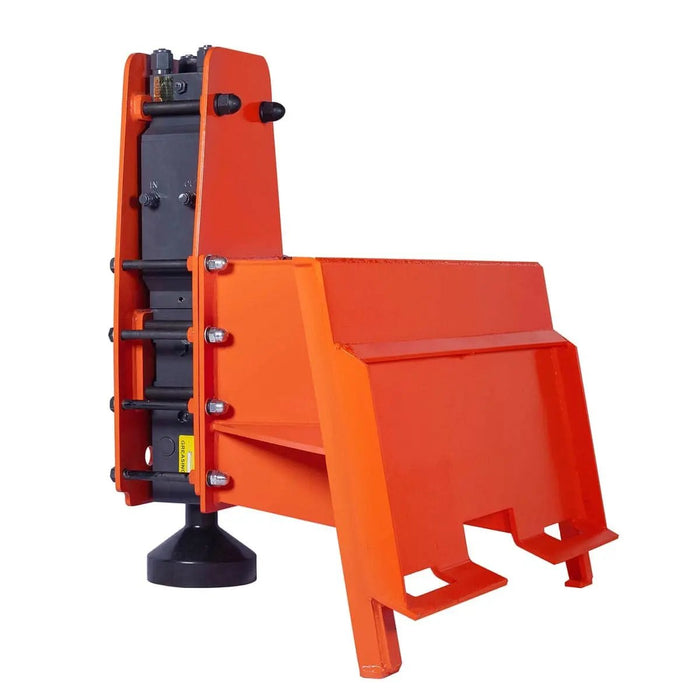

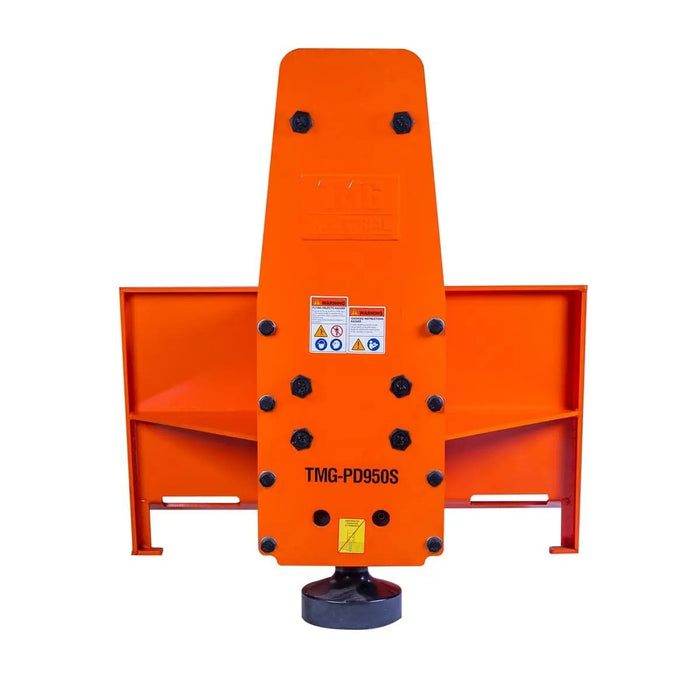

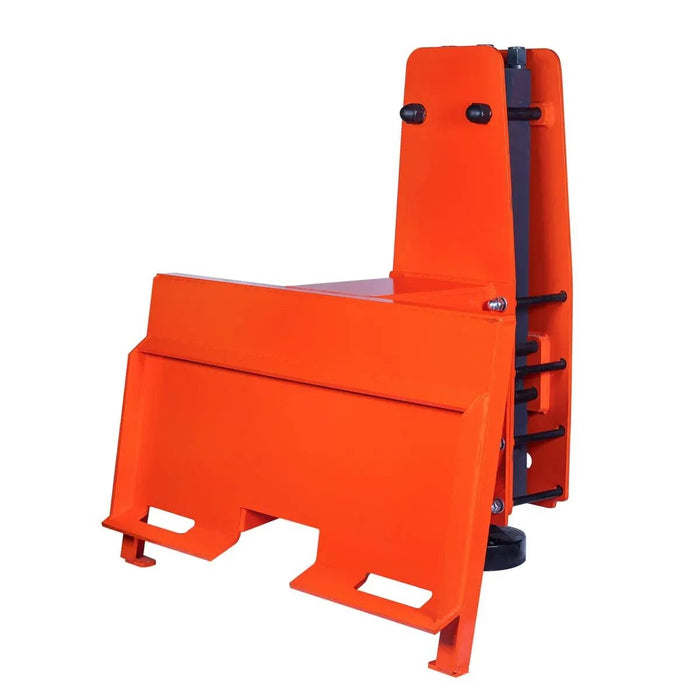

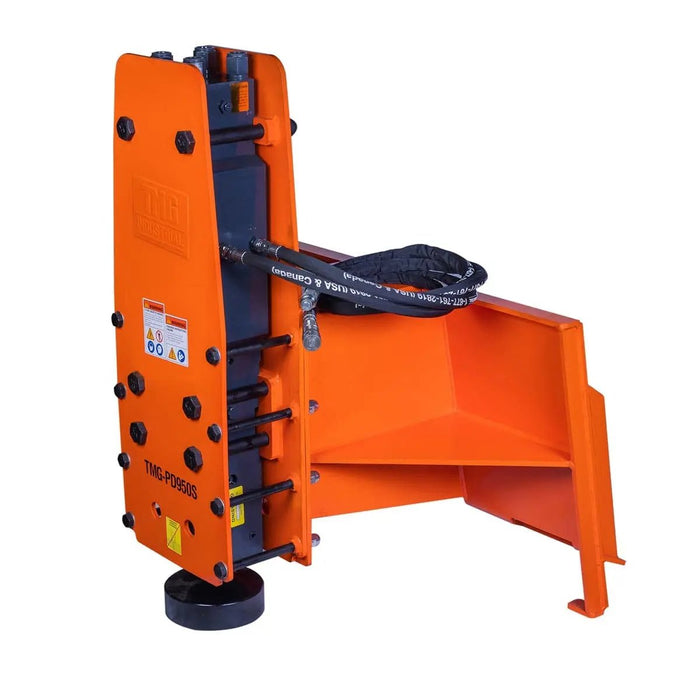

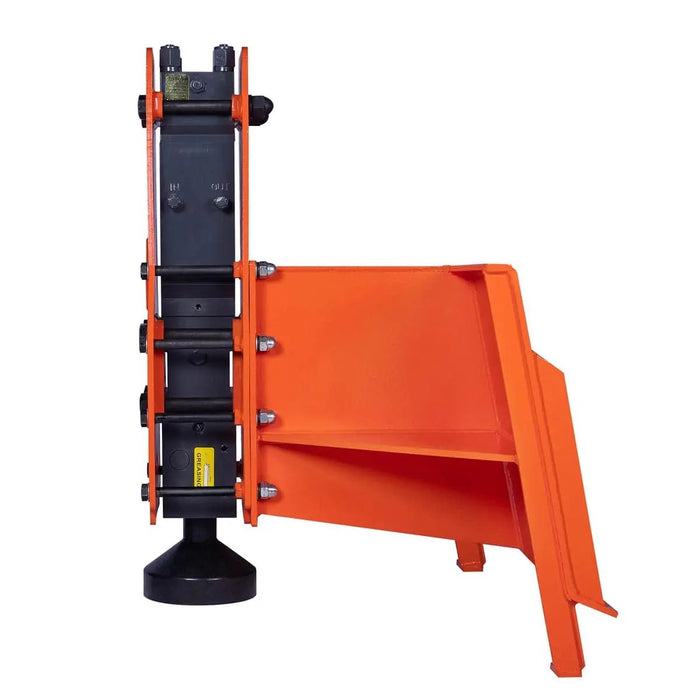

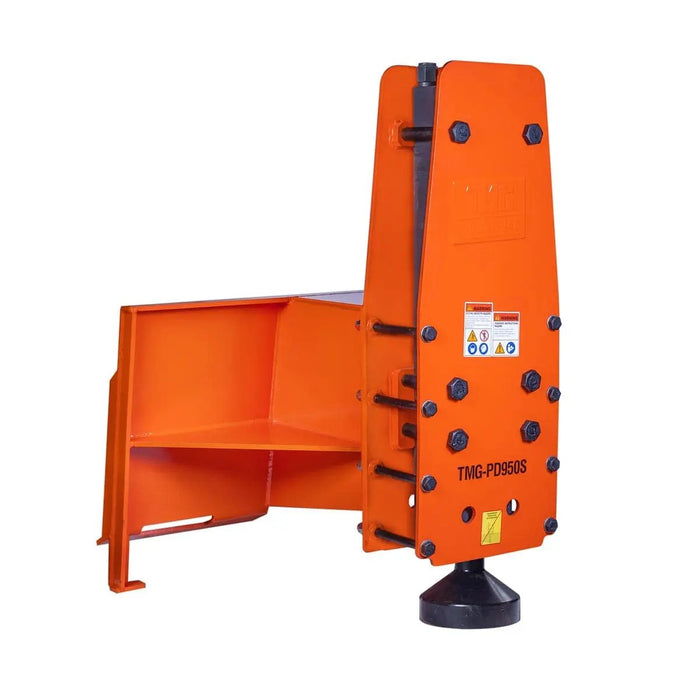

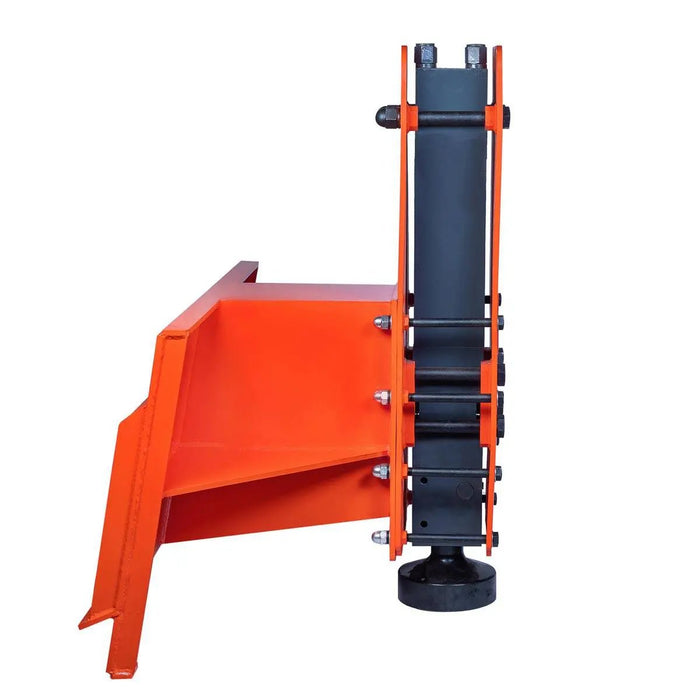

TMG Industrial Skid Steer Post Pounder, 10” Post Diameter, 800 Ft-lb Energy Class, 400-800 BPM Pounding Rate, TMG-PD950S
CURRENTLY OUT OF STOCK
TMG-PD950S
$6,299.00
$6,299.00 - $6,299.00
$6,299.00
$5,299.00
$5,299.00 - $5,299.00
$5,299.00
$6,299.00 Save $1,000.00
$5,299.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

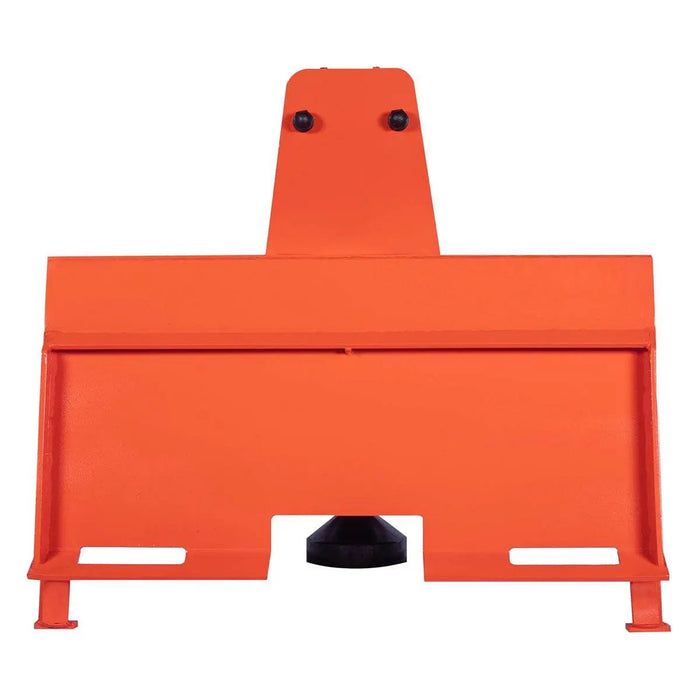

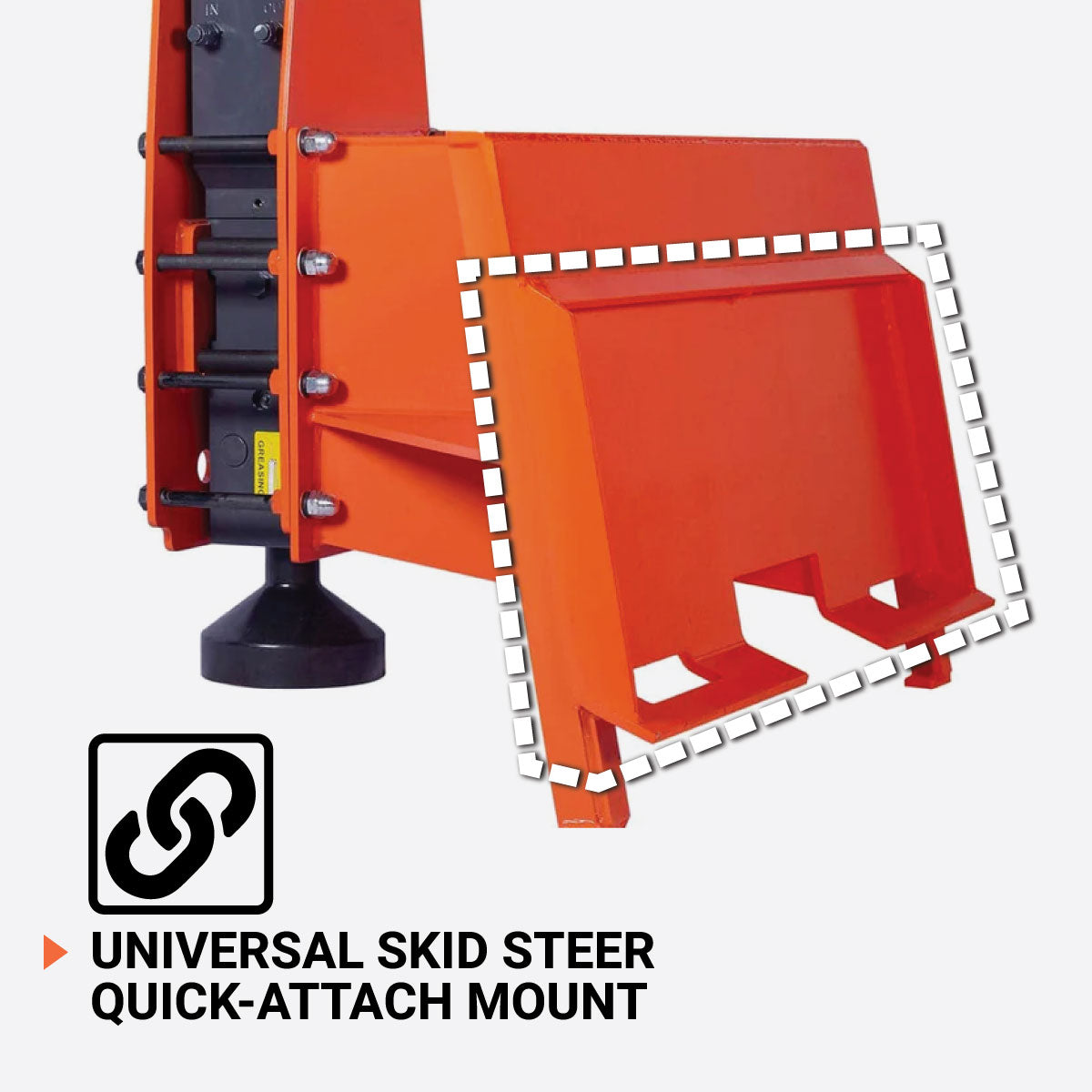

Universal skid steer quick-attach mount for seamless integration
Feature Image

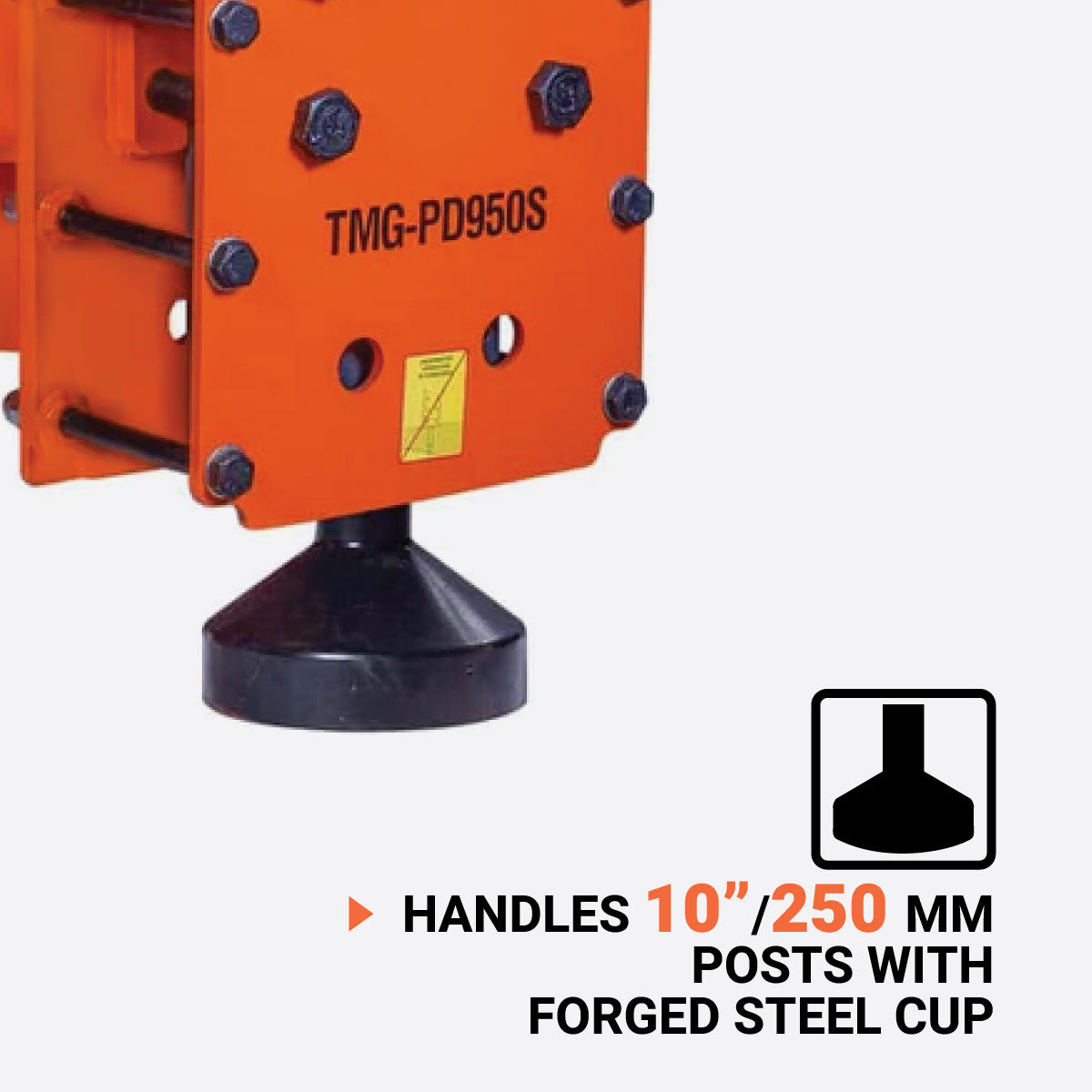

Handles posts up to 250 mm in diameter with a solid steel driving cup
Feature Image

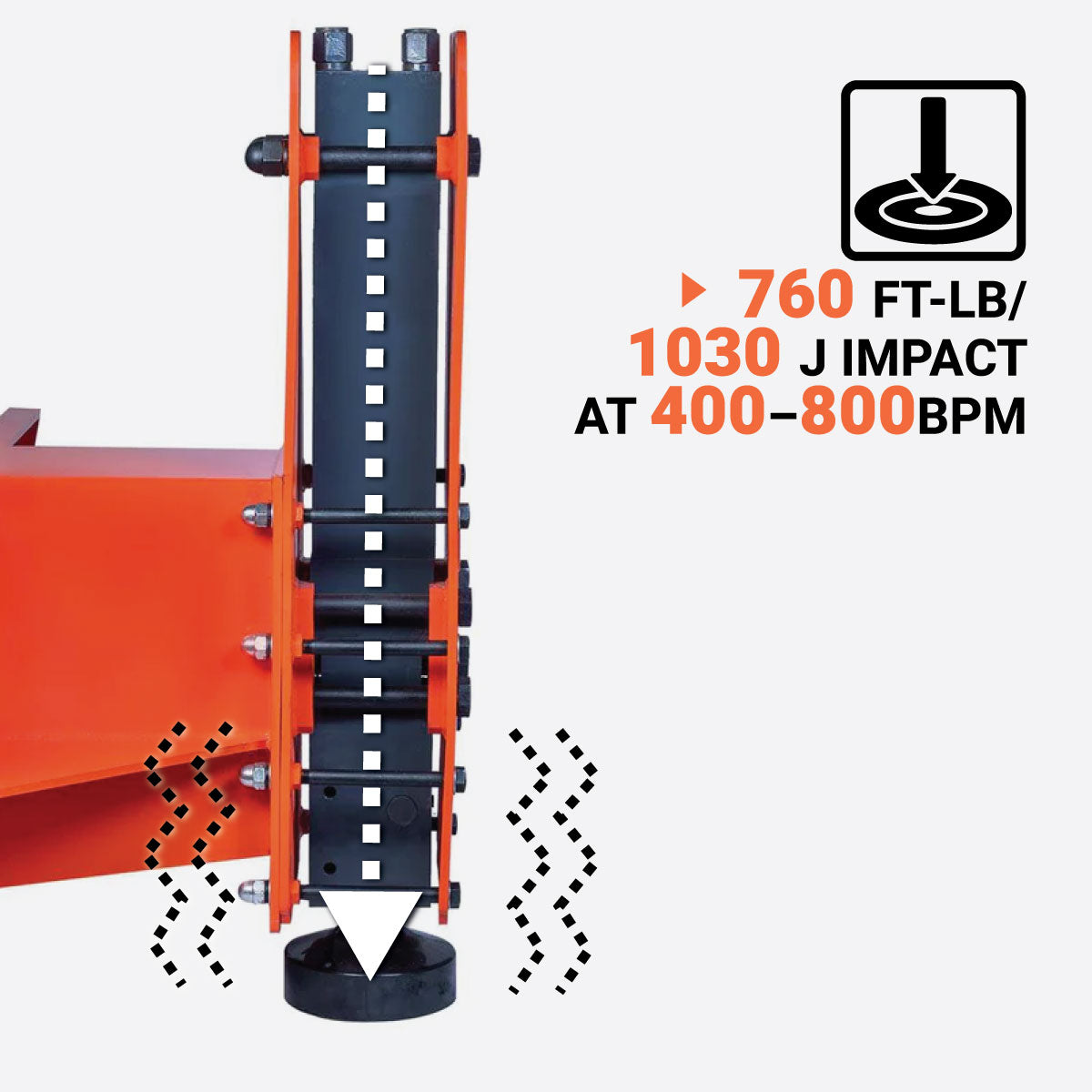

Delivers 1030 J impact energy at 400–800 BPM for efficient post driving
Feature Image

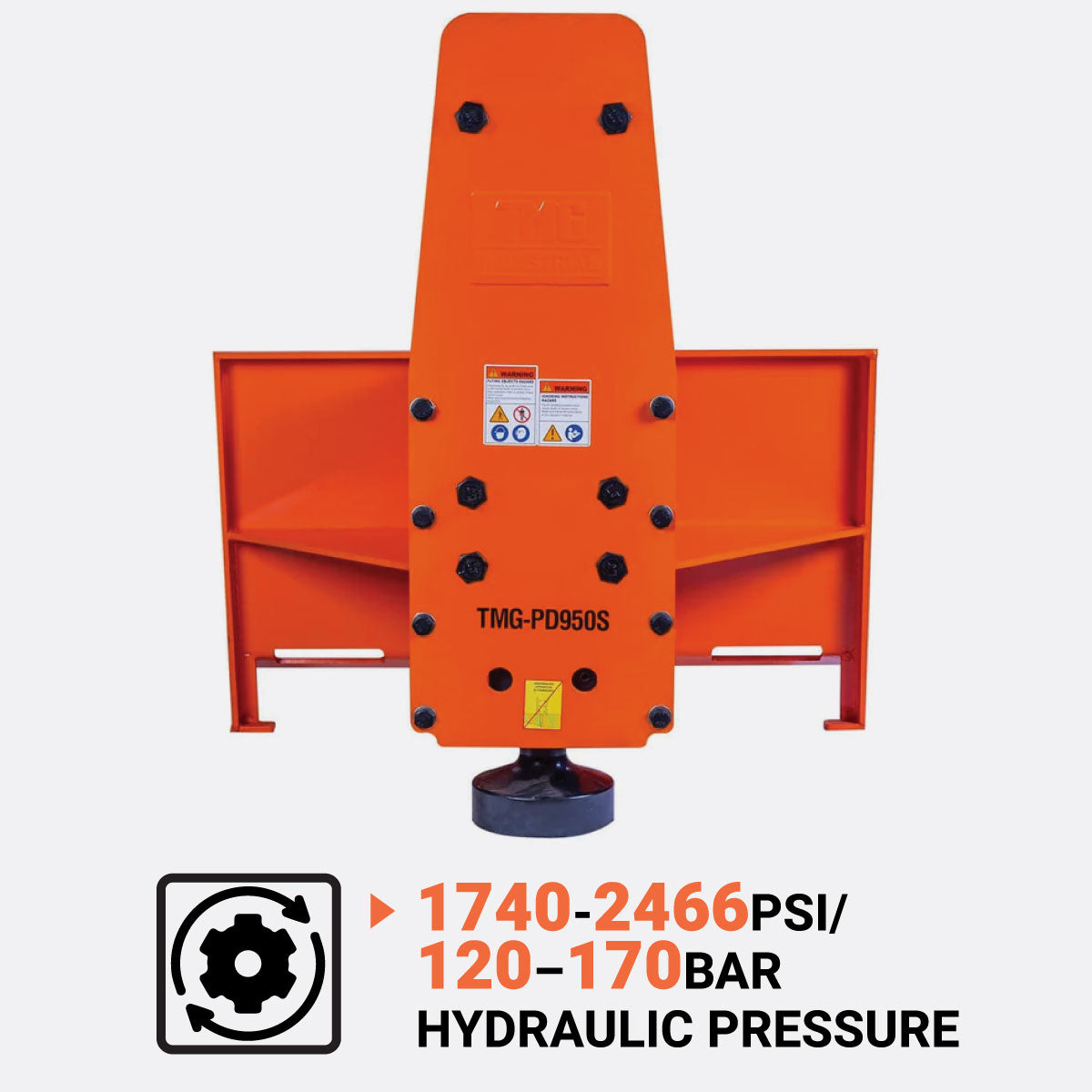

Operates at 120–170 bar hydraulic pressure with 50–90 L/min flow rate
Feature Image

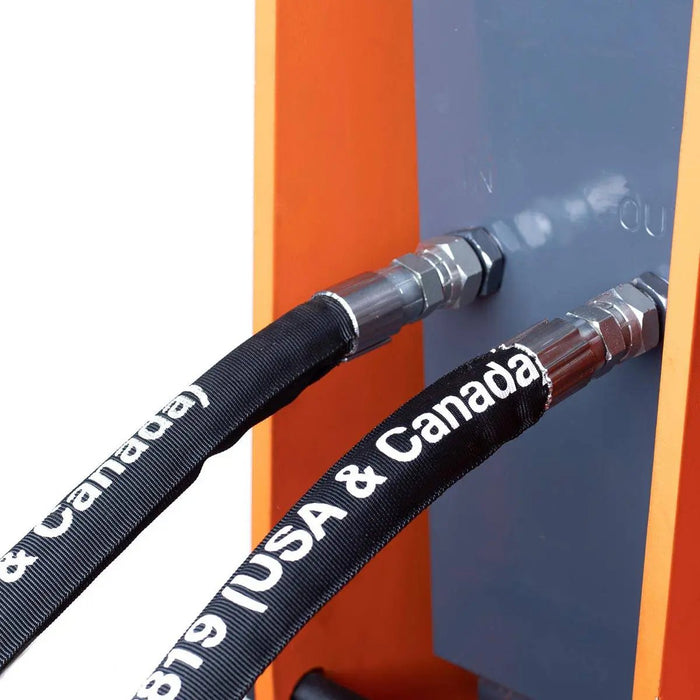

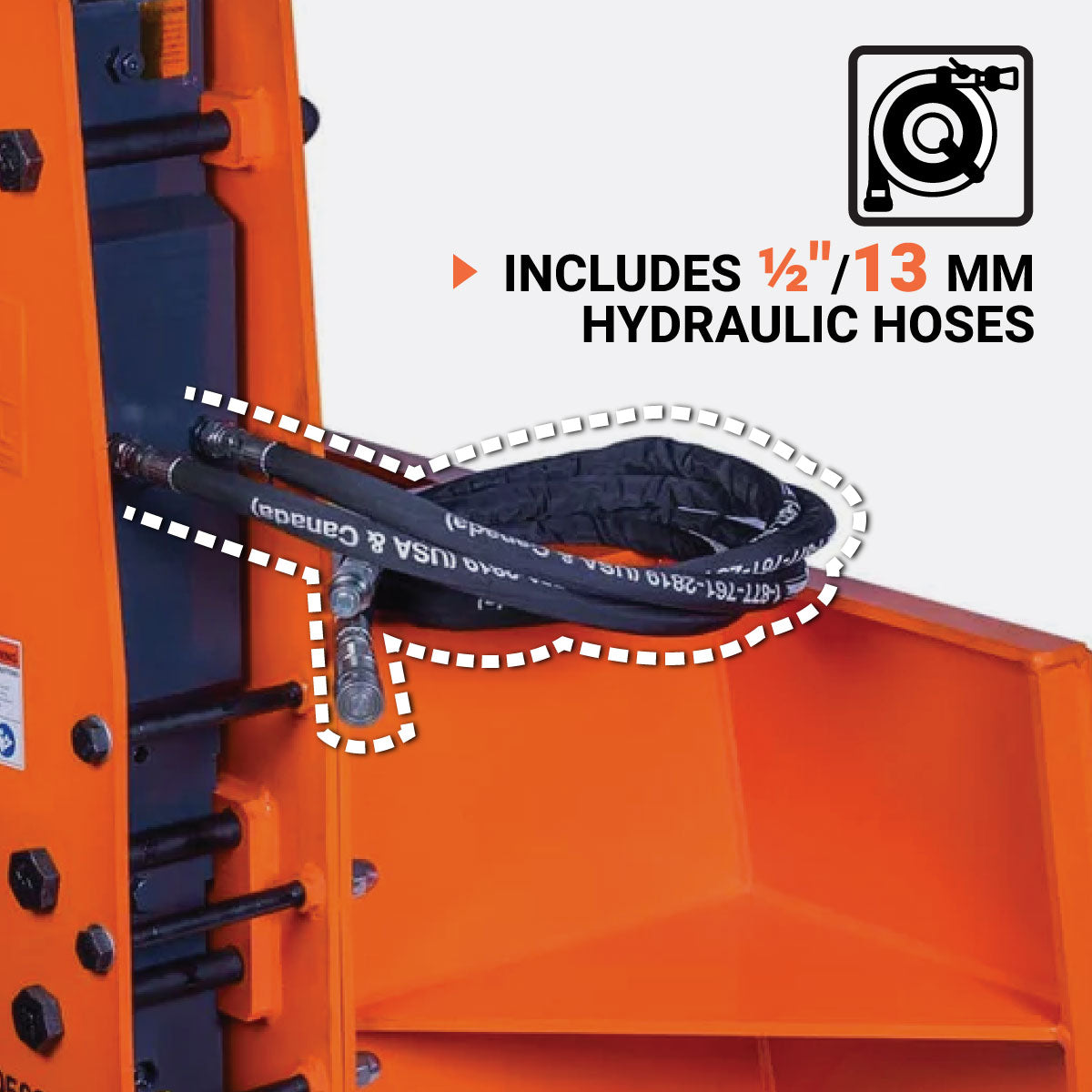

Includes ½" hydraulic hoses with flat face couplers and nitrogen charge kit
Feature Image

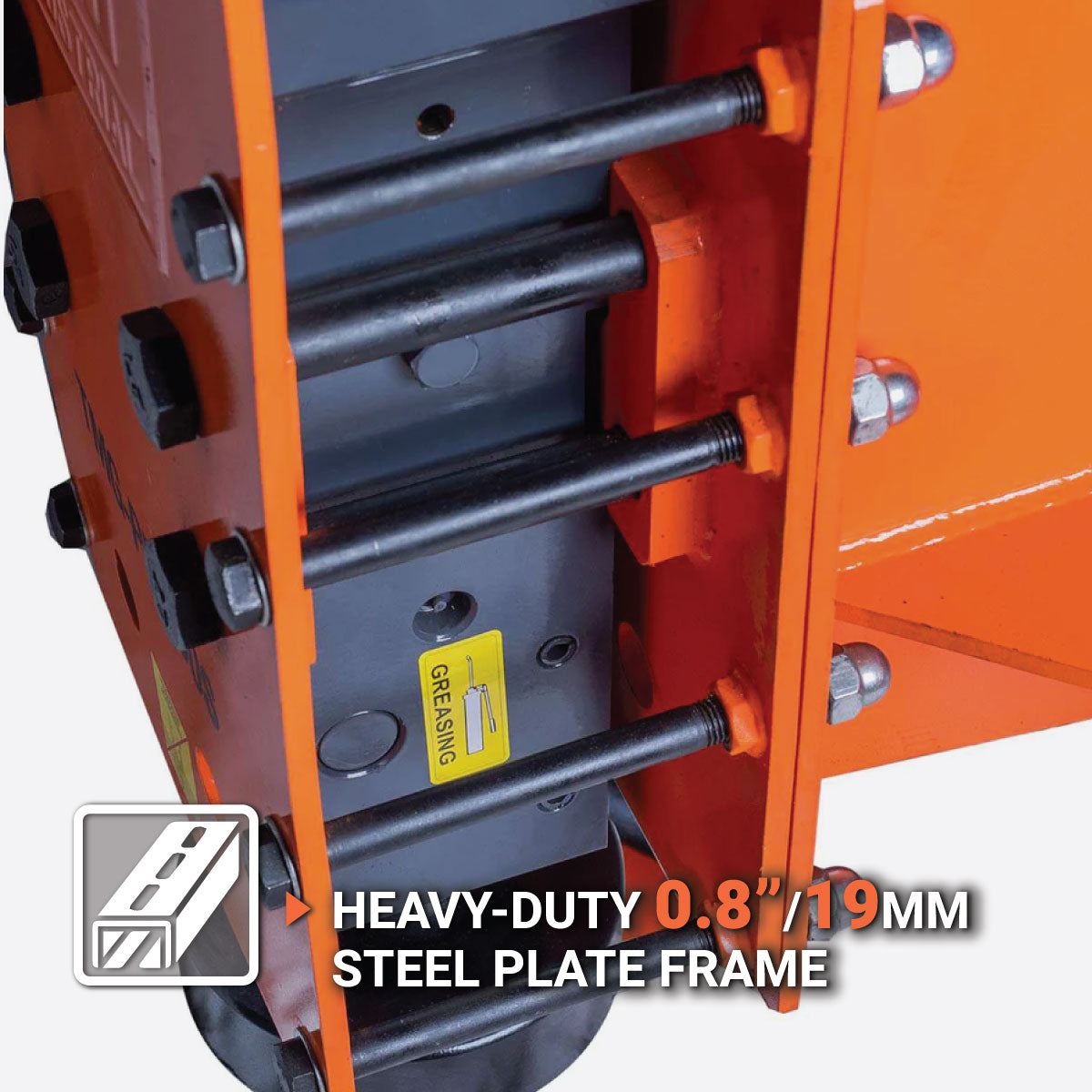

Heavy-duty 19 mm steel plate frame ensures durability in tough conditions

Specifications icon Specifications

  • Skid Steer Lifting Capacity Required: 795 kg
  • Recommended Skid Steer Power: 37–75 kW
  • Mount Type: Universal Skid Steer Mount
  • Hydraulic Flow: 50–90 L/min
  • Hydraulic Pressure: 120–170 bar
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Coupler Size: 1/2" NPT
  • Hydraulic Hoses (Quantity × Size): 2 pcs, 1/2" × 2.4 m
  • Energy Class: 1030 Joule
  • Pounding Rate: 400–800 BPM
  • Chisel Shaft Diameter: 75 mm
  • Driving Cup Size: 250 mm
  • Net Weight: 518 kg

Shipping Information icon Shipping Information

Your order will be shipped from one of our main warehouses in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

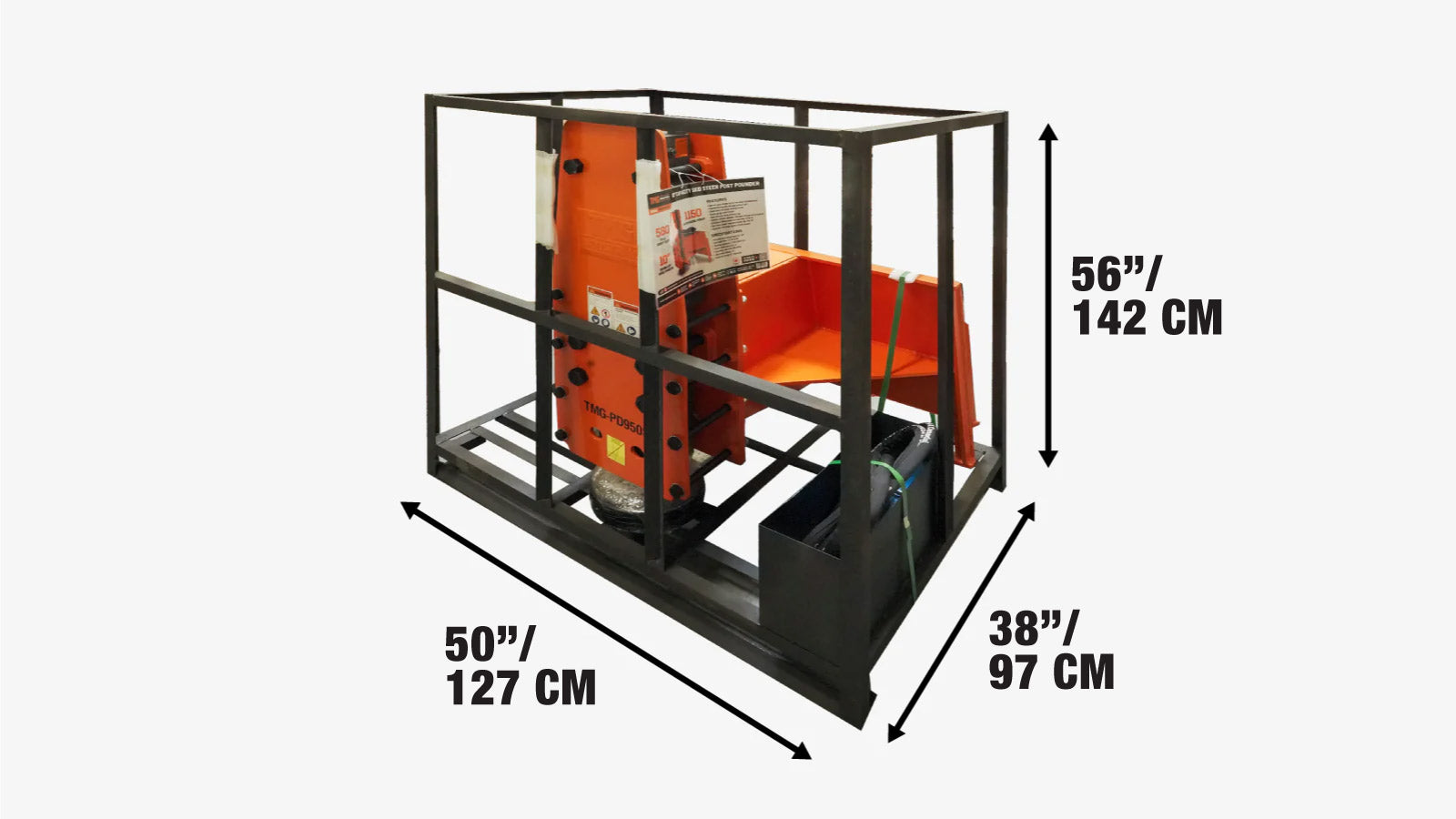

  • This product is packed in a metal crate shipping box
  • Shipping Dimensions: 127 cm × 97 cm × 143 cm (L × W × H)
  • Shipping Weight: 590 kg
Shipping from Rowville,VIC
What happens after you place your order?
Skid Steer Post Driver, Universal Mount, 1030 Joules Energy, TMG-PD950S-shipping-info-image

Product Description icon Product Description

The TMG-PD700S Skid Steer Post Driver is a robust hydraulic attachment built for efficient post installation in fencing, signage, and property development projects across Australia. Delivering up to 838 joules of impact energy at 500–900 BPM, it drives posts quickly and securely into various soil conditions without the need for pre-drilling.

This unit mounts easily to most skid steers using a universal quick-attach plate and is built with a 19 mm thick steel frame for long-lasting durability. A nitrogen-charged cushion chamber reduces recoil and wear while improving operator comfort during extended use.



With a 203 mm post capacity, it handles wood, steel, or composite posts with ease. The package includes hydraulic hoses with flat face couplers, a nitrogen charging kit, and service tools—ready for immediate use out of the crate. Whether on the farm or job site, the TMG-PD700S delivers professional results with minimal setup.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Q: The working pressure on my skid steer is more than 170 Bar. Will this affect the TMG-PD950S?
Having excess pressure on your skid steer will not affect how the post pounder operates.
Q: What is the TMG-PD950S Skid Steer Post Pounder?
The TMG-PD950S is a robust hydraulic post pounder designed for large fence posts, pipes, and signage. It's ideal for fencing, agriculture, and property management.
Q: What is the maximum post diameter it can handle?
It includes a high-strength steel driving cup that accommodates posts up to 250 mm (10 inches) in diameter.
Q: What are the key specifications?
Operating Weight: ~544 kg (1200 lb)
Energy Class: 1030 J (800 ft-lb)
Pounding Rate: 400–800 BPM
Chisel Shaft Diameter: 76 mm (3")
Steel Frame Thickness: 19 mm (¾")
Driving Cup Inside Diameter: 250 mm (10")
Q: What skid steer specs are needed?
Lifting Capacity: ≥ 794 kg (1750 lb)
Power: 37–75 kW (50–100 HP)
Hydraulic Flow: 50–90 L/min (13–24 GPM)
Working Pressure: 1750–2500 PSI (12,066–17,237 kPa)
Hose Diameter: 12.7 mm (½")
Q: Does the unit come ready to use?
Yes. It includes:
– 1x Service toolbox
– 2x ½" hydraulic hoses with flat face couplers
– 1x Nitrogen charge kit (CGA580 adaptor; nitrogen not pre-charged)

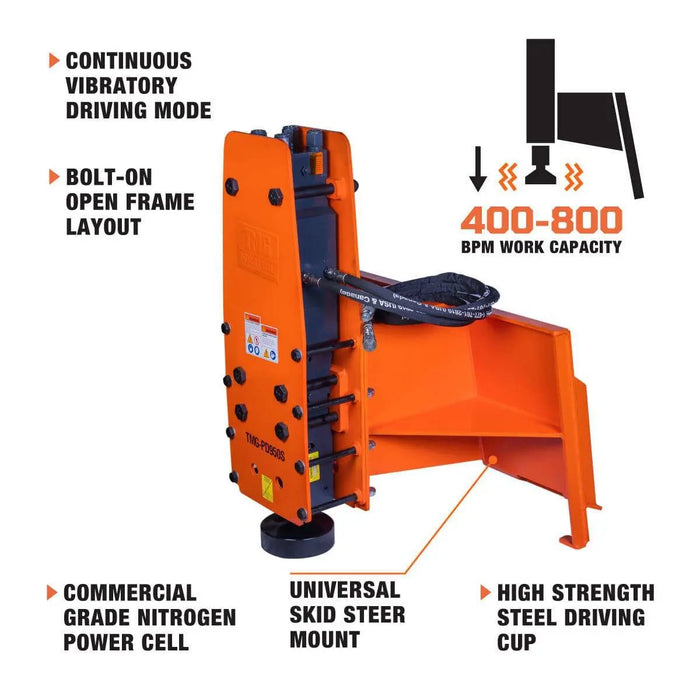

Q: How is the impact force generated?
The nitrogen-charged power cell stores energy during recoil and releases it in continuous vibratory blows, transferring significant power into posts or pipes.
Q: Is it easy to attach to my skid steer?
Yes. It uses a universal quick-attach mount and standard ½" hydraulic lines. The open-frame plate is bolt-on and made of heavy-gauge steel.
Q: Is it suitable for Australian working conditions?
Yes. Though manufactured by a North American brand, its commercial-grade build makes it ideal for tough conditions commonly found across Australia.
Q: What is the warranty?
The TMG-PD950S comes with a one-year manufacturer warranty.
