CURRENTLY IN STOCK
TMG-SG42

1070 mm (42") Mini Skid Steer Skeleton Grapple Attachment, Toro Style Mount, TMG-SG42

Product Manual
TMG Industrial 42” Mini Skid Steer Skeleton Grapple Attachment, Toro Style Mount, 24” Arm Opening, 2000 lb Weight Capacity, TMG-SG42
CURRENTLY IN STOCK
TMG-SG42
$1,499.00
$1,499.00 - $1,499.00
$1,499.00
$1,199.00
$1,199.00 - $1,199.00
$1,199.00
$1,499.00 Save $300.00
$1,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

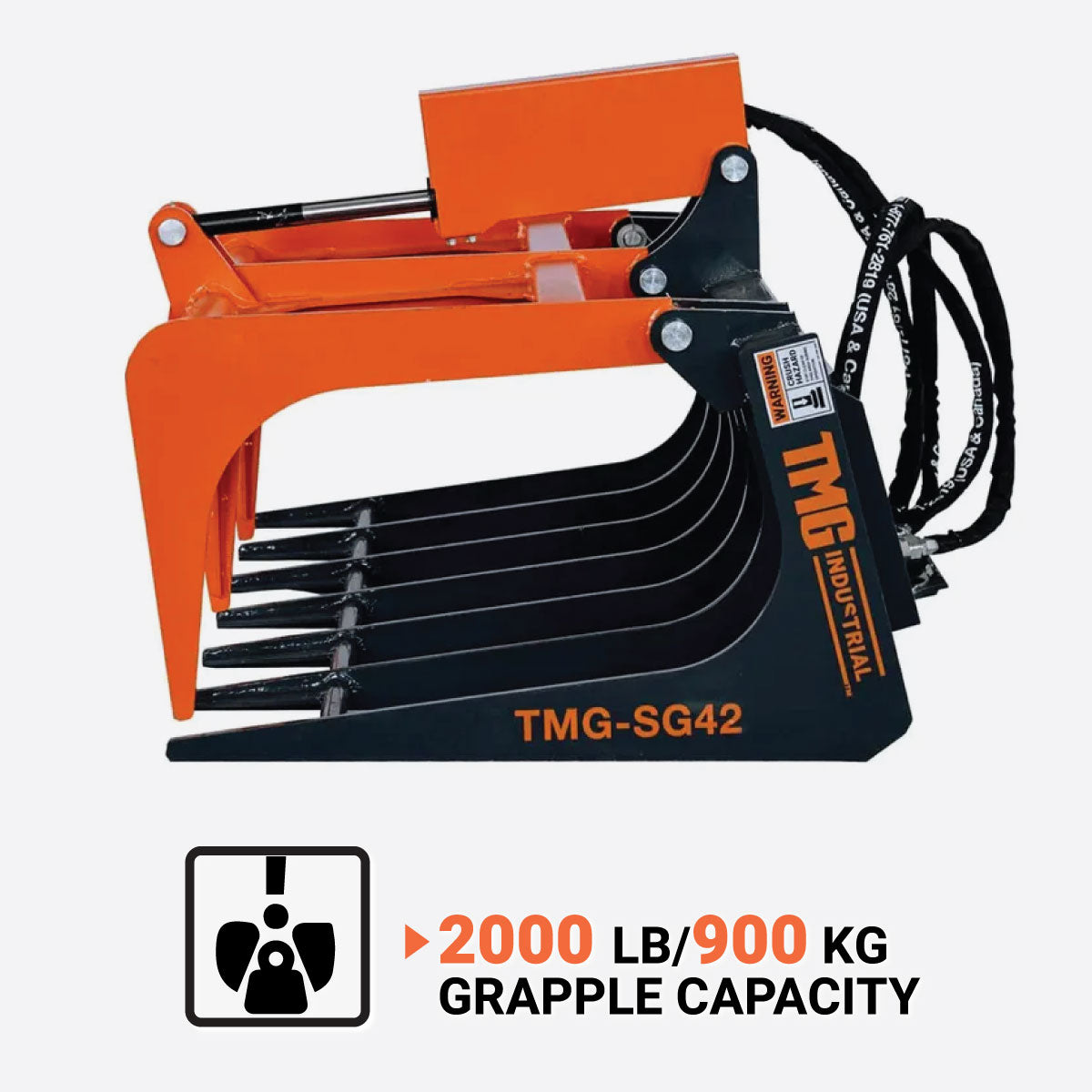

900 kg (2000 lb) grappling capacity for heavy duty material handling
Feature Image

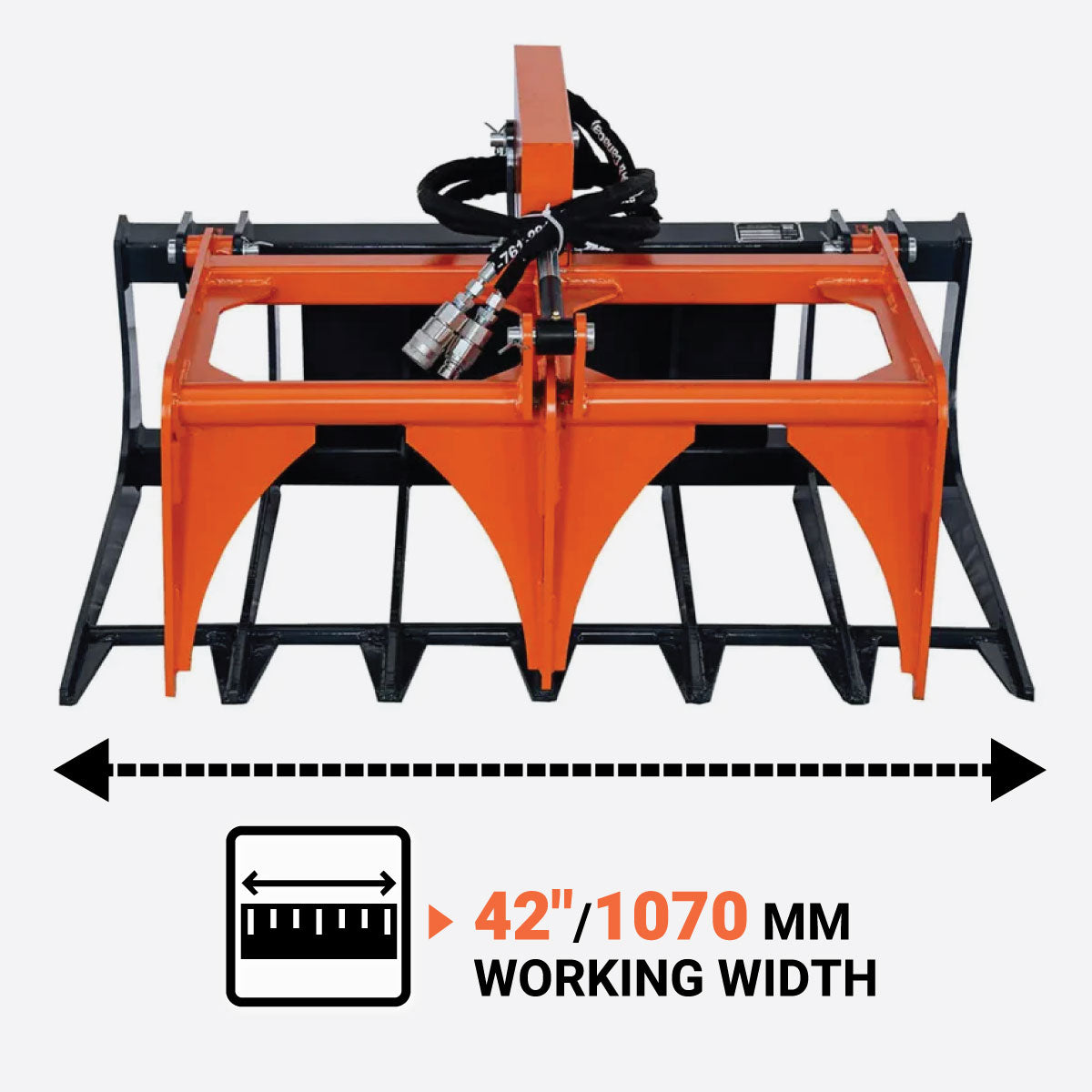

1070 mm (42″) working width with skeleton tine base for debris sifting
Feature Image

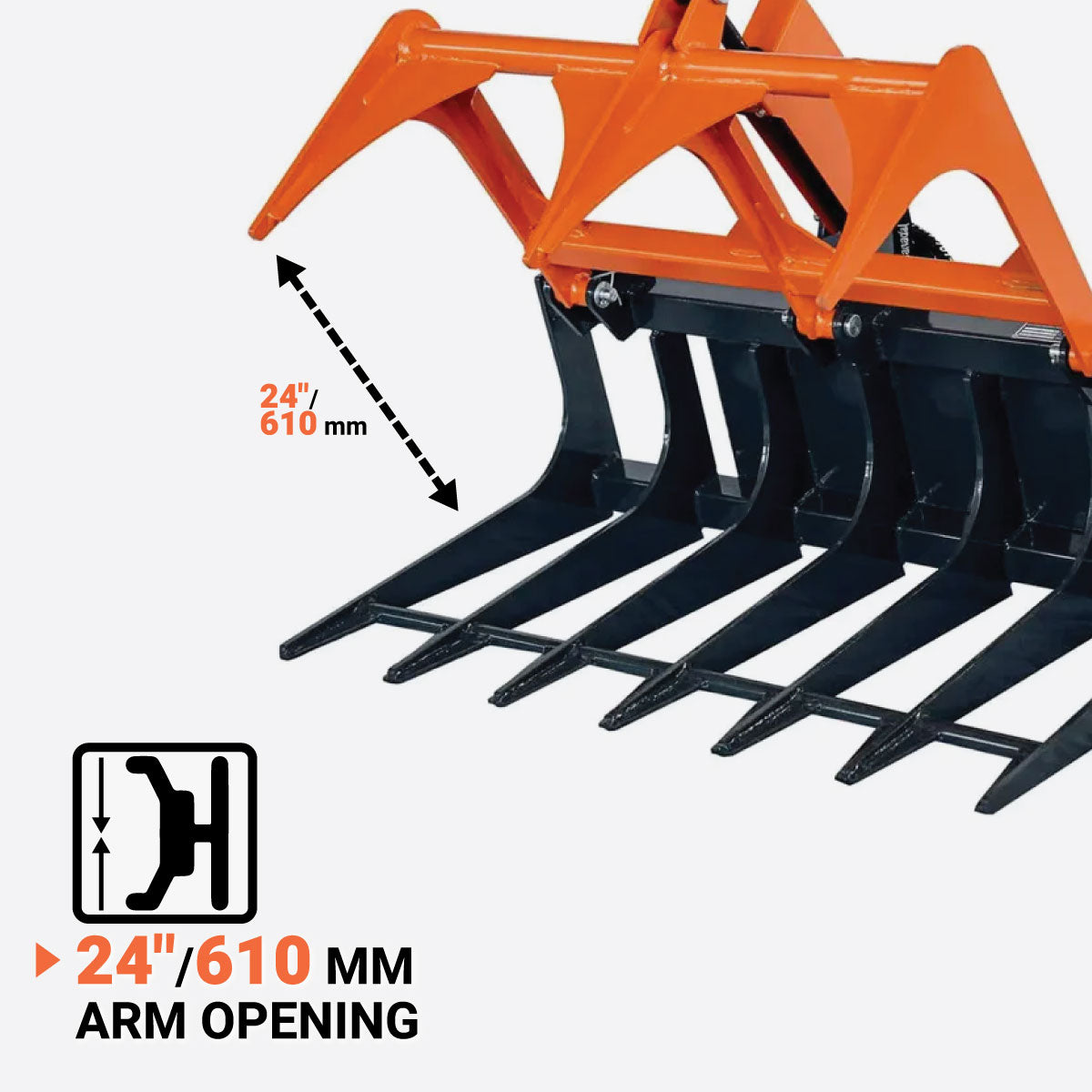

610 mm (24″) arm opening handles varied brush, logs, and debris
Feature Image

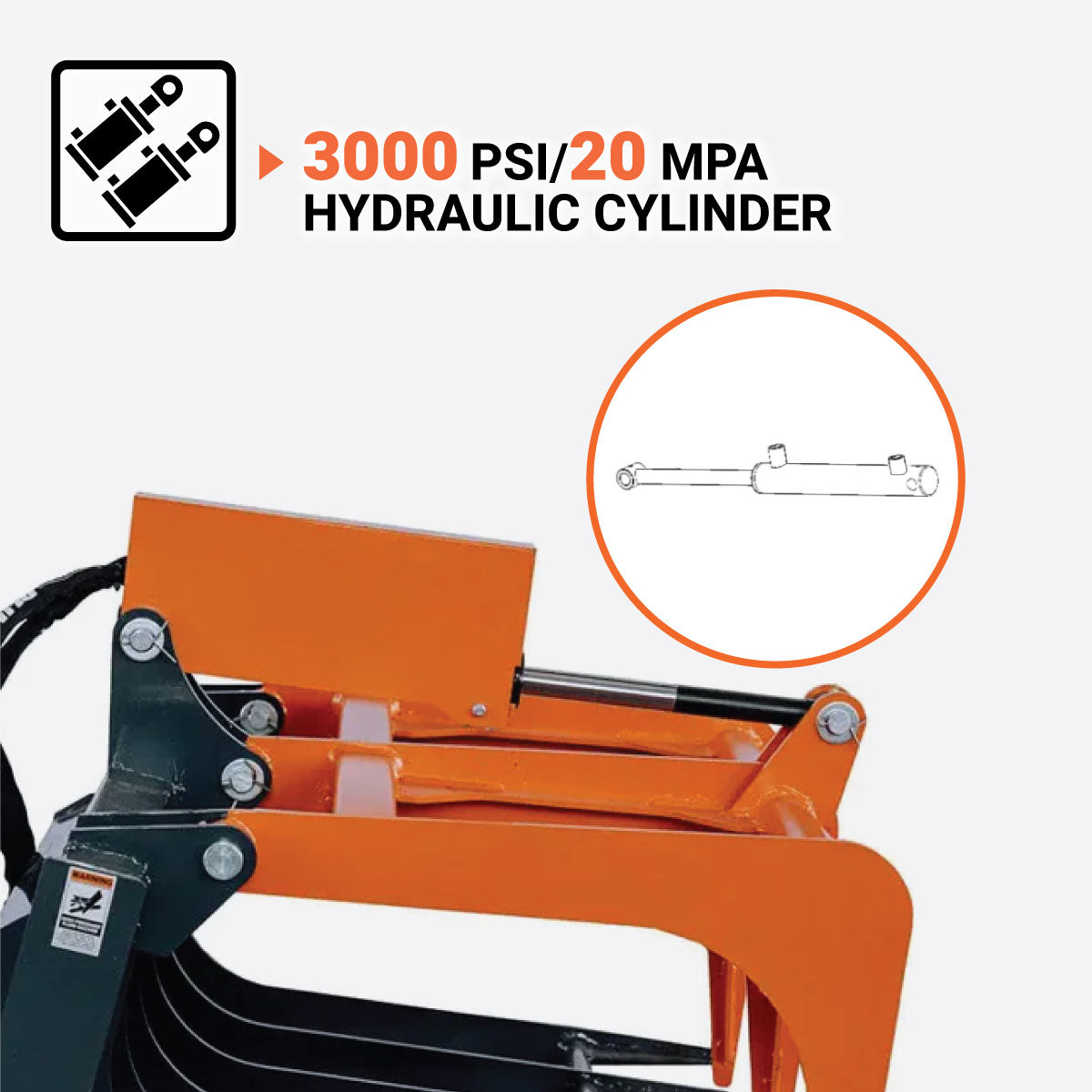

20 MPa (3000 PSI) hydraulic cylinder with protective guard for durability
Feature Image

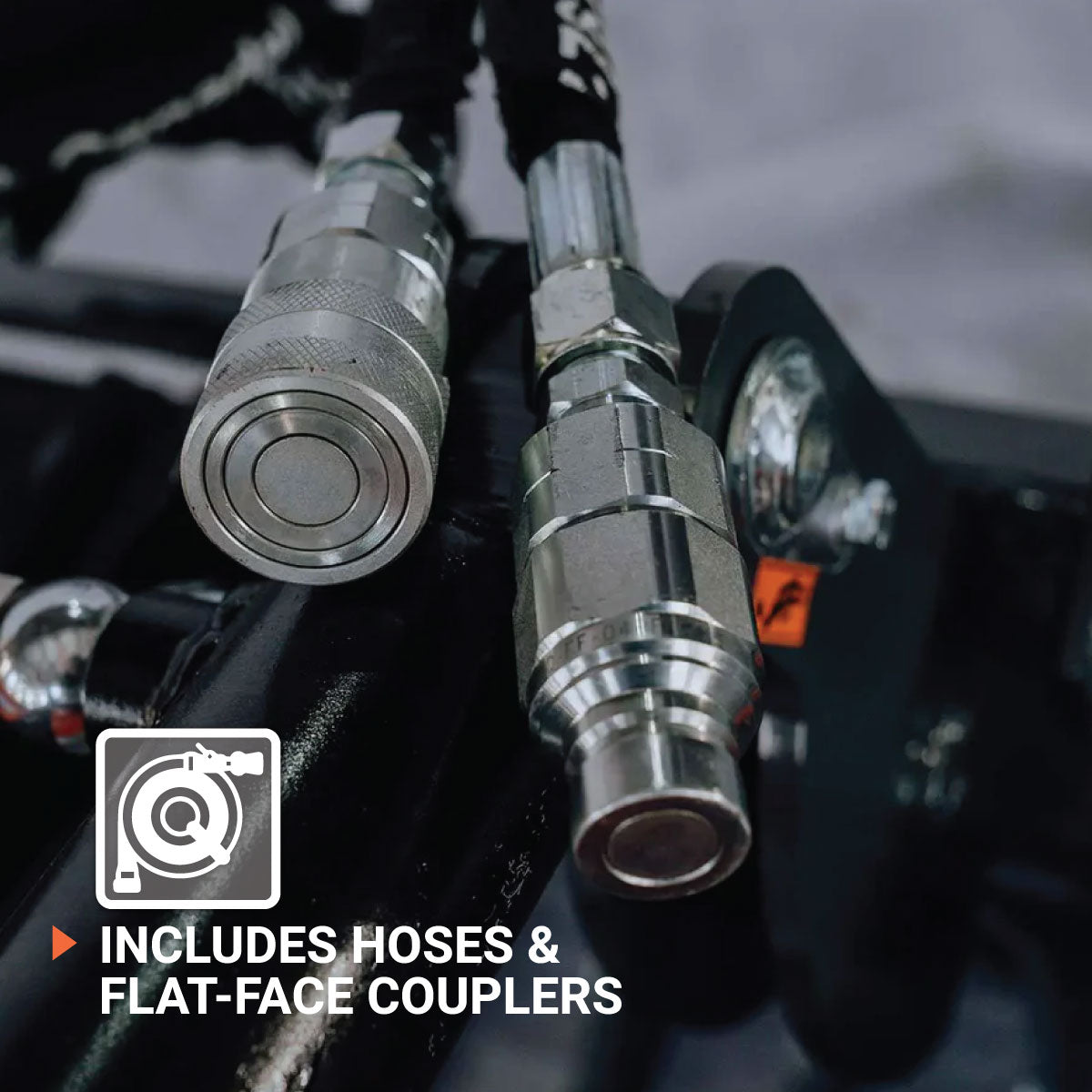

Includes hydraulic hoses and flat face couplers for quick, efficient setup
Feature Image

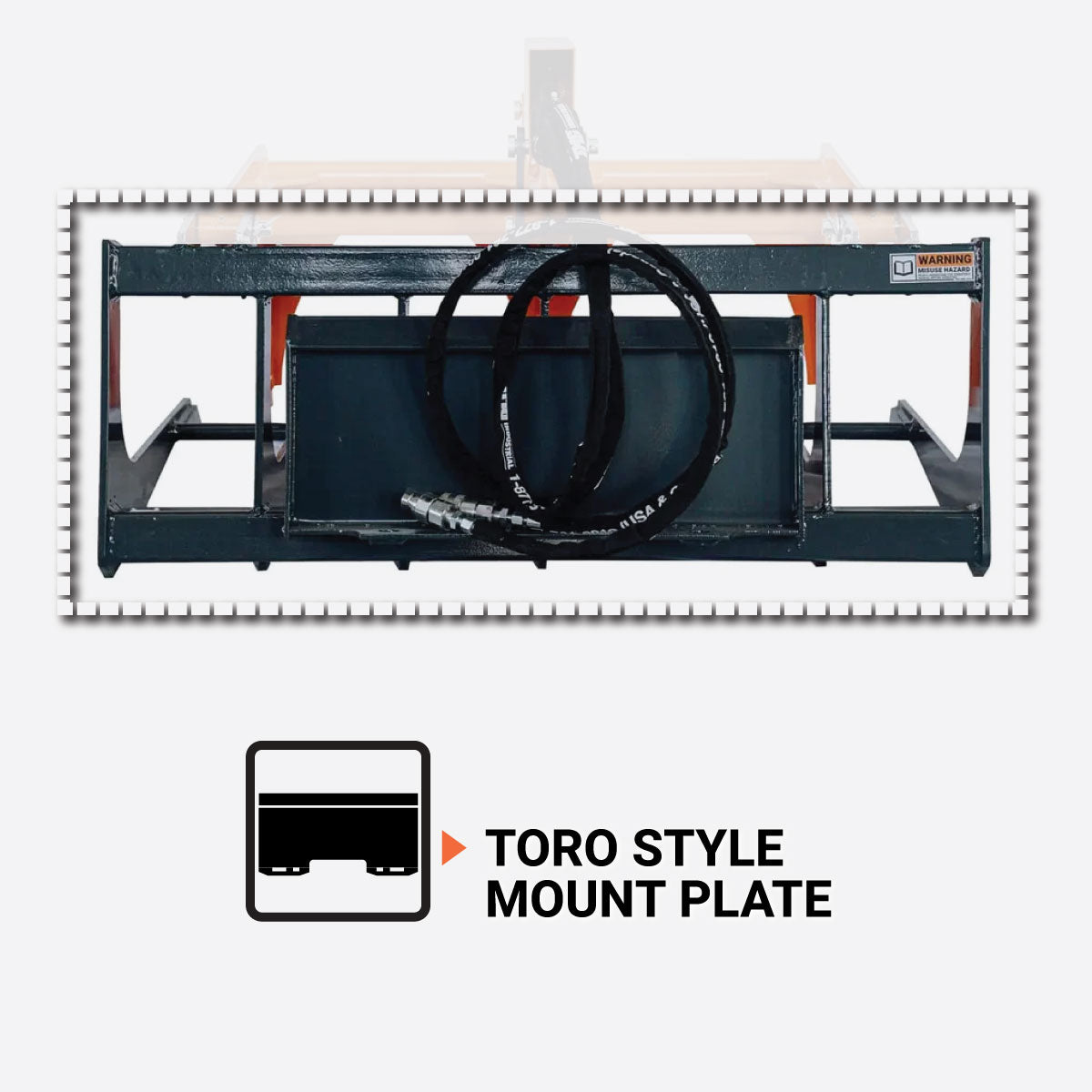

Toro style mount provides fast, secure attachment to your mini skid steer

Specifications icon Specifications

  • Mount Type: Toro Mini Skid Steer Mount
  • Skid Steer Power: n/a
  • Max Hydraulic Pressure: 21 MPa (3000 PSI)
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Coupler Size: NPT 1/2"
  • Number of Hydraulic Hoses: 2
  • Grapple Capacity: 900 kg
  • Open Height: 610 mm
  • Working Width: 1070 mm
  • Tine Spacing: 165 mm
  • Tine Length: 585 mm
  • Overall Dimensions (L x W x H): 1070 x 760 x 640 mm

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take 2 to 3 business days to process the order and ship it. Delivery may take 10 to 15 business days depending on your location and site accessibility.

  • Packaging: Metal crate with shipping box

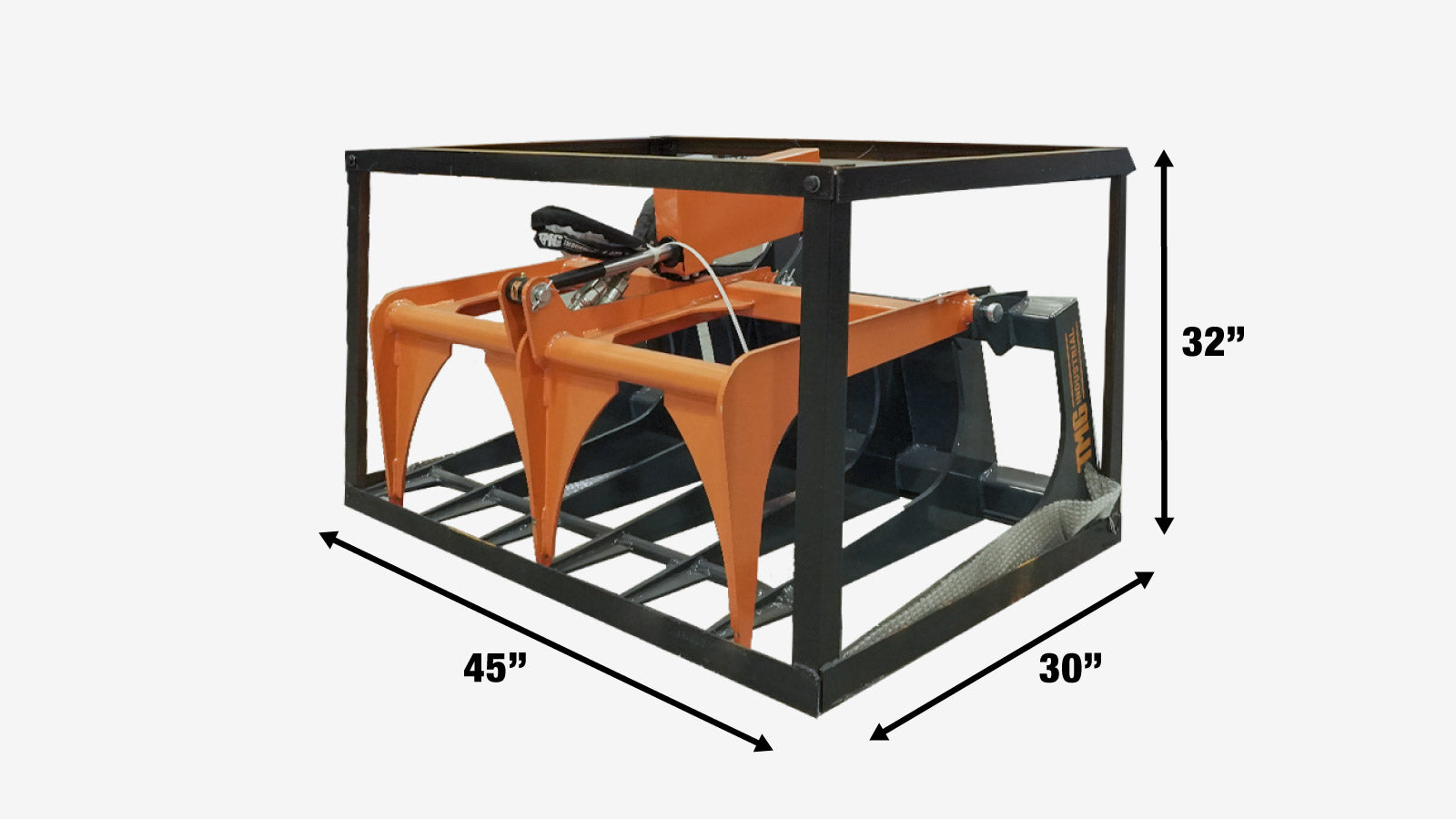

  • Shipping Dimensions (L x W x H): 114 x 76 x 81 cm (45" x 30" x 32")
Shipping from Rowville,VIC
What happens after you place your order?
1070 mm (42

Product Description icon Product Description

The TMG-SG42 Mini Skid Steer Skeleton Grapple Attachment offers powerful performance with a 900 kg (2000 lb) grappling capacity, supported by a sturdy hydraulic cylinder and protective guard for lasting durability. Its 1070 mm (42") working width and 610 mm (24") arm opening adapt to various materials—while the skeleton tine design enables efficient debris sifting. Built for reliability, it's equipped with greaseable pivot points and includes all hardware needed for quick setup—making it a versatile, maintenance-friendly attachment for professional use.

For Skeleton Grapple Attachments with Universal Skid Steer Mounts, please check out these products: TMG-SG60, TMG-SG73, and TMG-SG85.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What is the grappling capacity of the TMG-SG42?
    A: It provides a reliable capacity of 900 kg (2000 lb)—suitable for challenging material handling across multiple industries.
  • Q: What are its key operational dimensions?
    A: Measures 1070 mm (42″) in working width, with an arm opening of 610 mm (24″).
  • Q: What hydraulic pressure is required and is the cylinder protected?
    A: Operates at 20 MPa (3000 PSI) and includes a protective guard to shield the hydraulic cylinder from impact and debris.
  • Q: How easy is maintenance on the TMG-SG42?
    A: The unit is designed for ease of maintenance, featuring greaseable pins and bushings that promote longevity and minimal upkeep.
  • Q: What hardware comes included for installation?
    A: It includes a Toro style mount, hydraulic hoses, and flat face couplers for quick, secure integration with your skid steer.
  • Q: What design features enhance debris handling?
    A: The skeleton tine bottom allows fine debris to fall through, enabling focused handling and efficient cleanup of larger materials.
  • Q: What is the warranty for TMG-SG42?
    A: The TMG-SG42 comes with a 1-year manufacturer warranty, covering defects in materials and workmanship.
