TMG-SG85

2130 mm (84") Skid Steer Skeleton Grapple Attachment, Universal Mount, TMG-SG85

Product Manual
TMG Industrial 84” Skid Steer Skeleton Grapple Attachment, Universal Mount, 34” Arm Opening, 3” Tine Spacing, 2600 lb Weight Capacity, TMG-SG85
CURRENTLY OUT OF STOCK
TMG-SG85
$3,599.00
$3,599.00 - $3,599.00
$3,599.00
$3,199.00
$3,199.00 - $3,199.00
$3,199.00
$3,599.00 Save $400.00
$3,199.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
61-03-4151-5011

Features icon Features

Feature Image

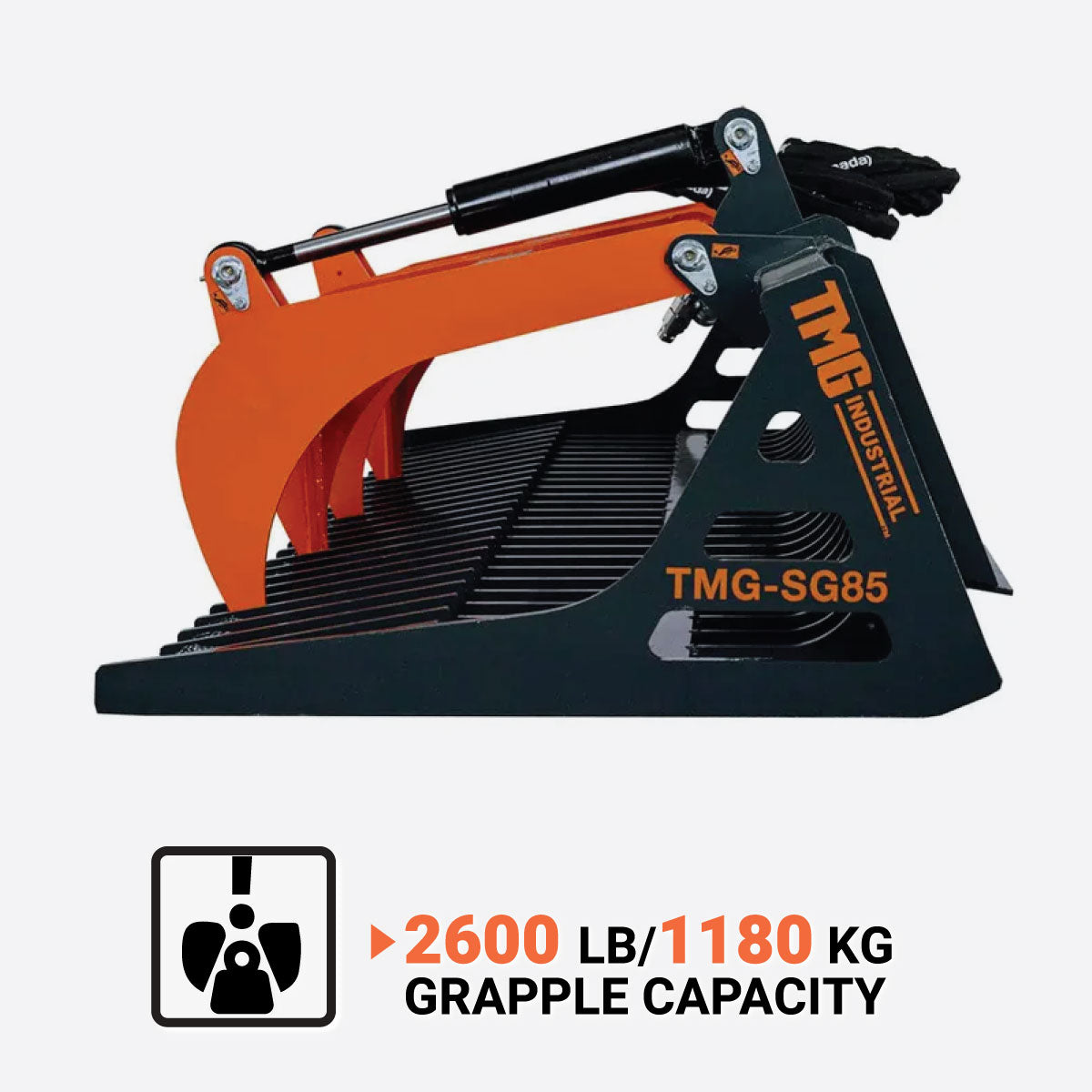

1180 kg (2600 lb) grappling capacity for heavy duty material handling
Feature Image

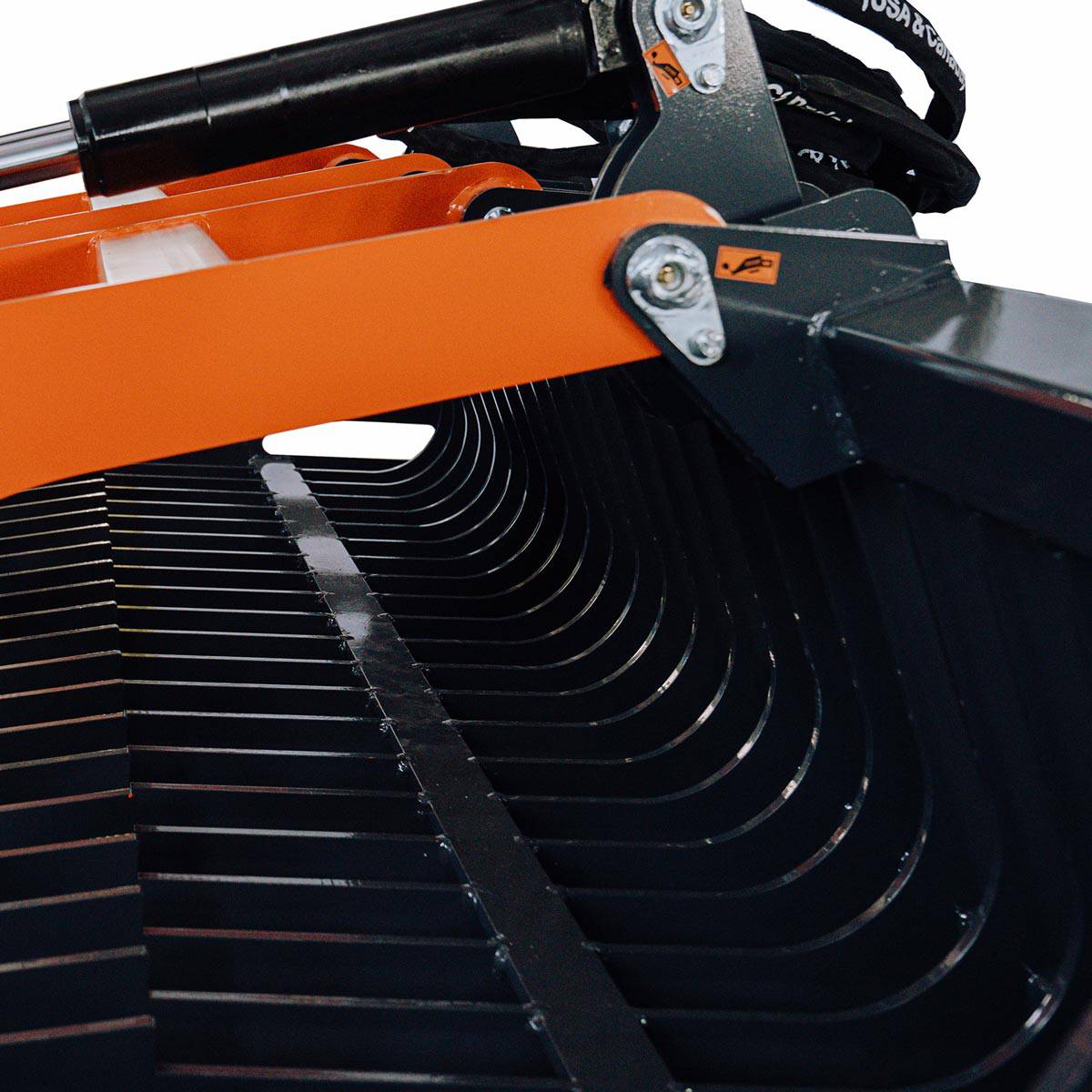

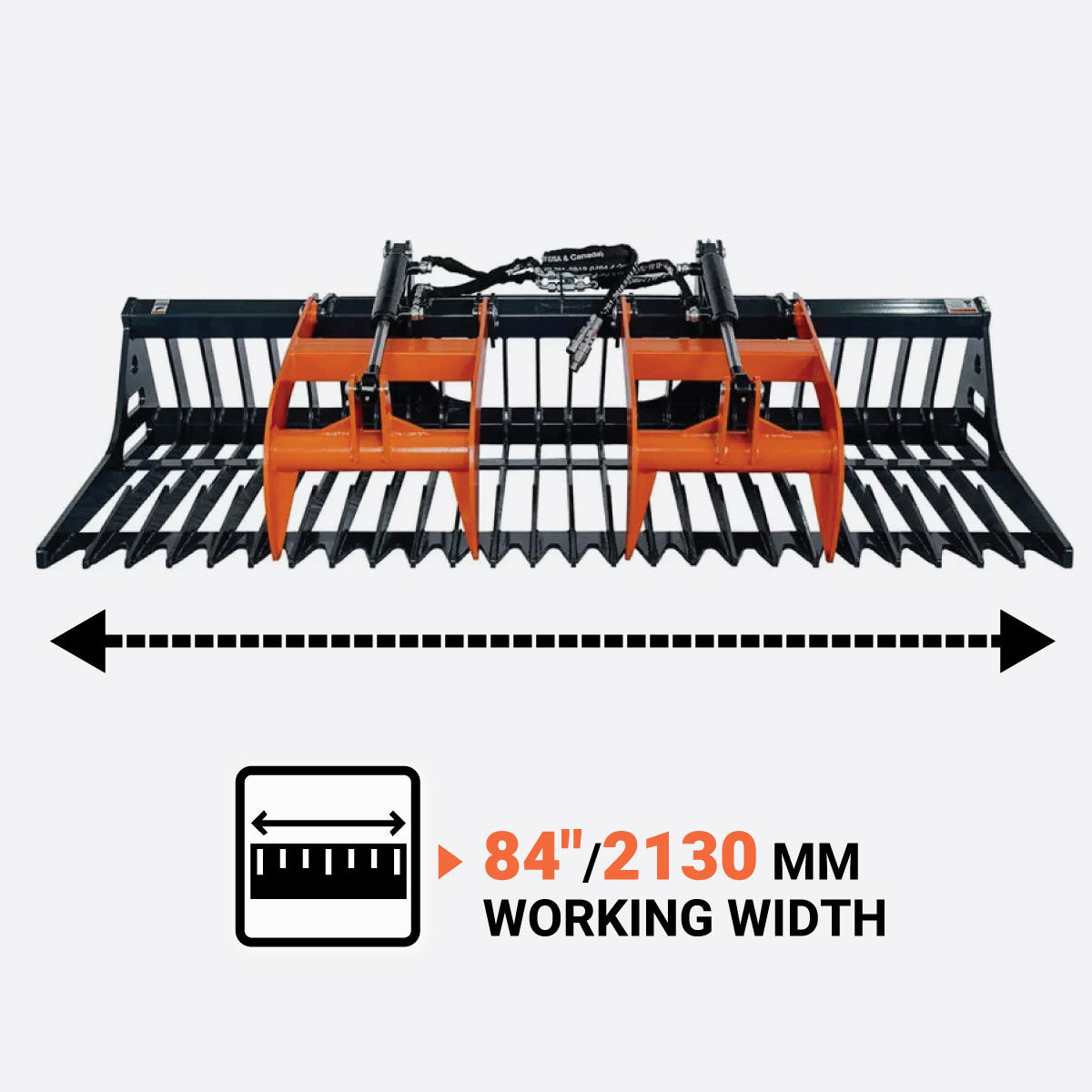

2130 mm (84″) working width with skeleton tine base for debris sifting
Feature Image

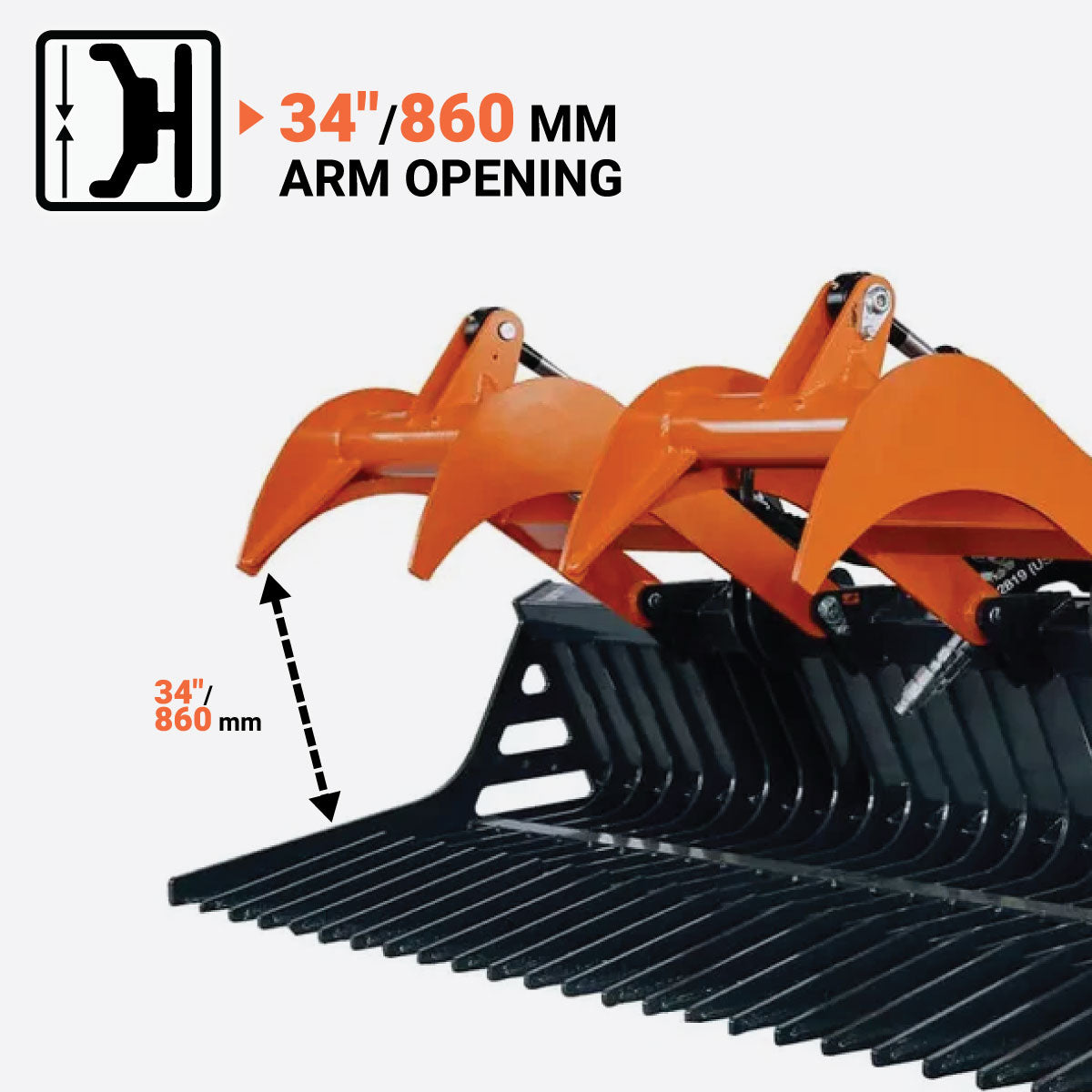

860 mm (34″) arm opening handles varied brush, logs, and debris
Feature Image

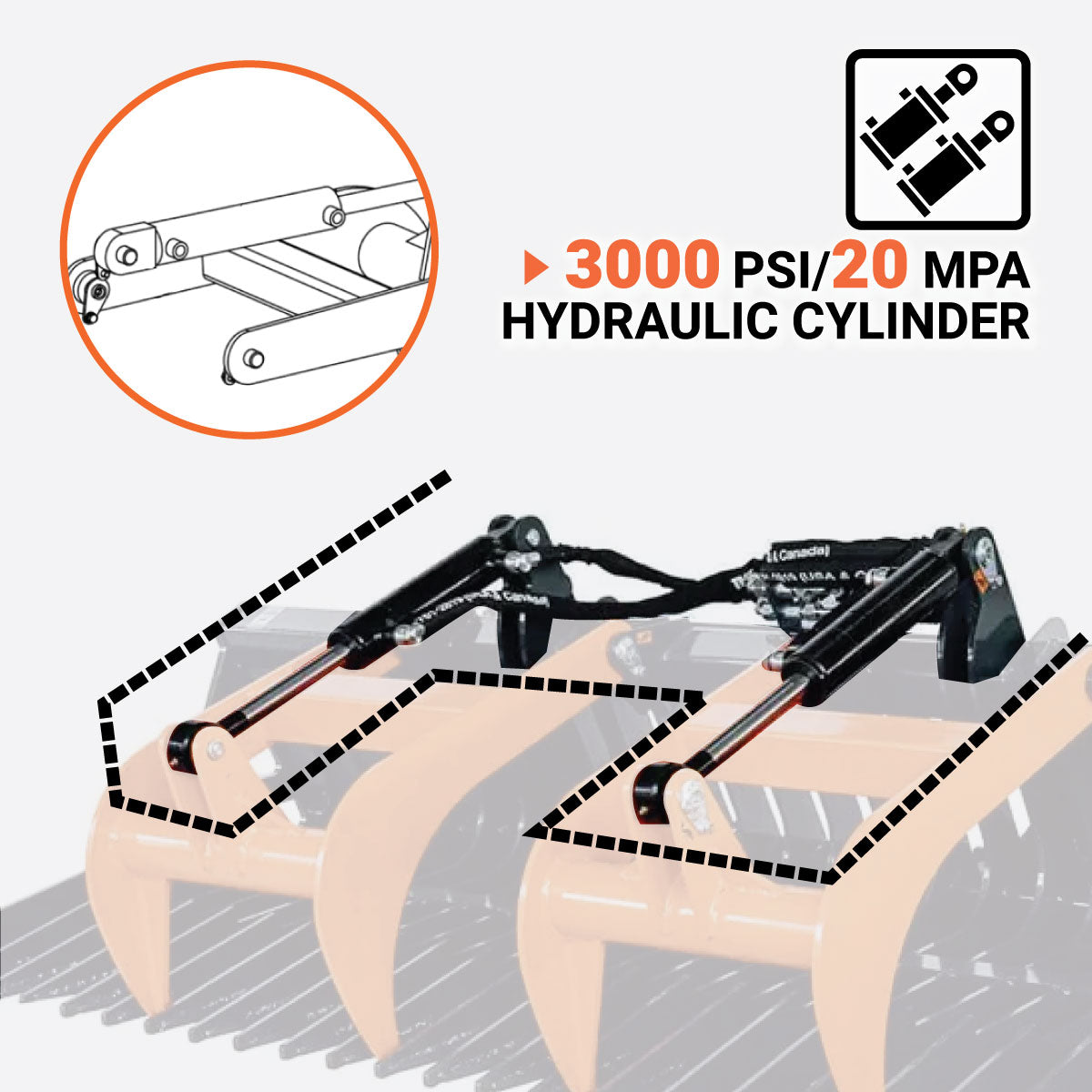

20 MPa (3000 PSI) hydraulic cylinder with protective guard for durability
Feature Image

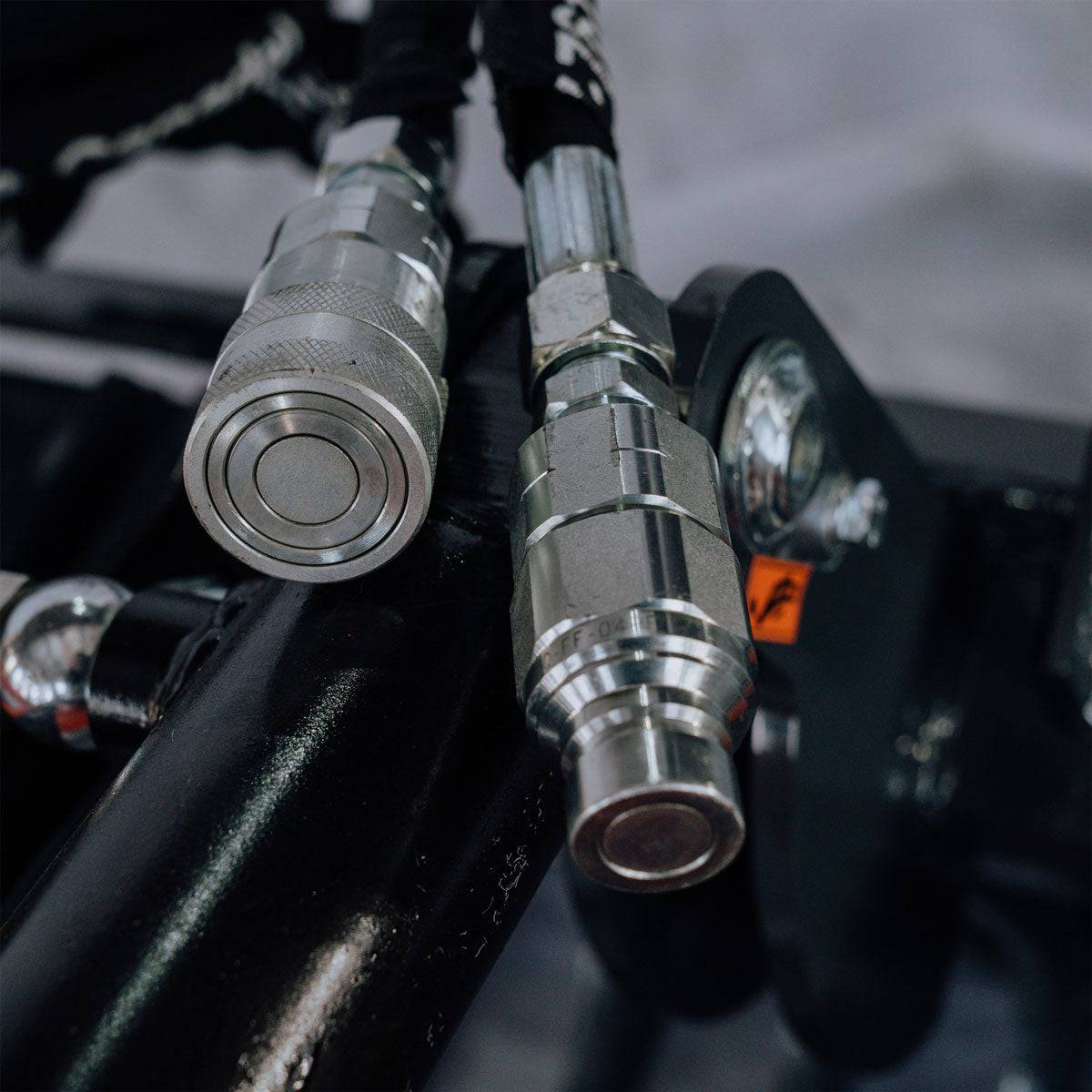

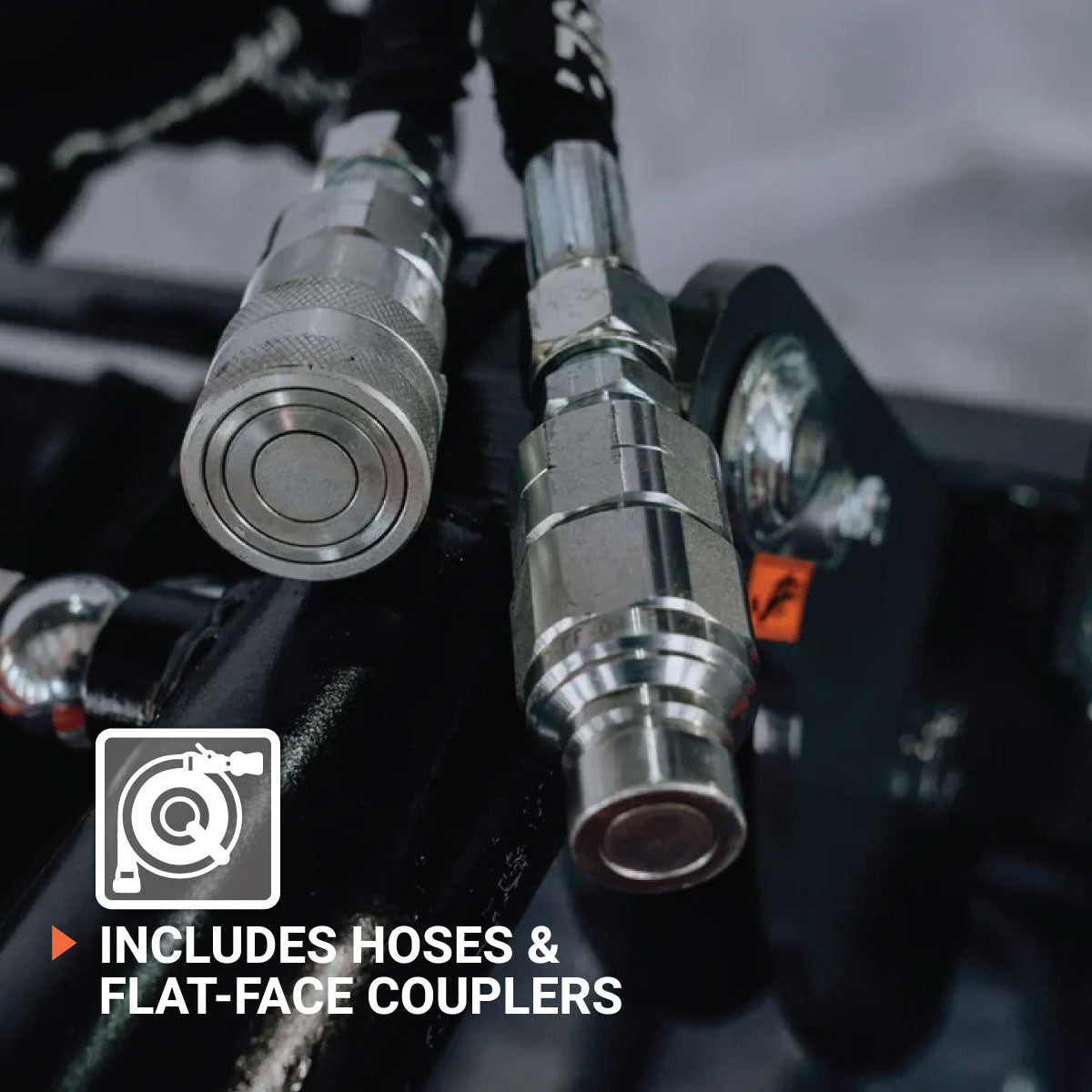

Includes hydraulic hoses and flat face couplers for quick, efficient setup
Feature Image

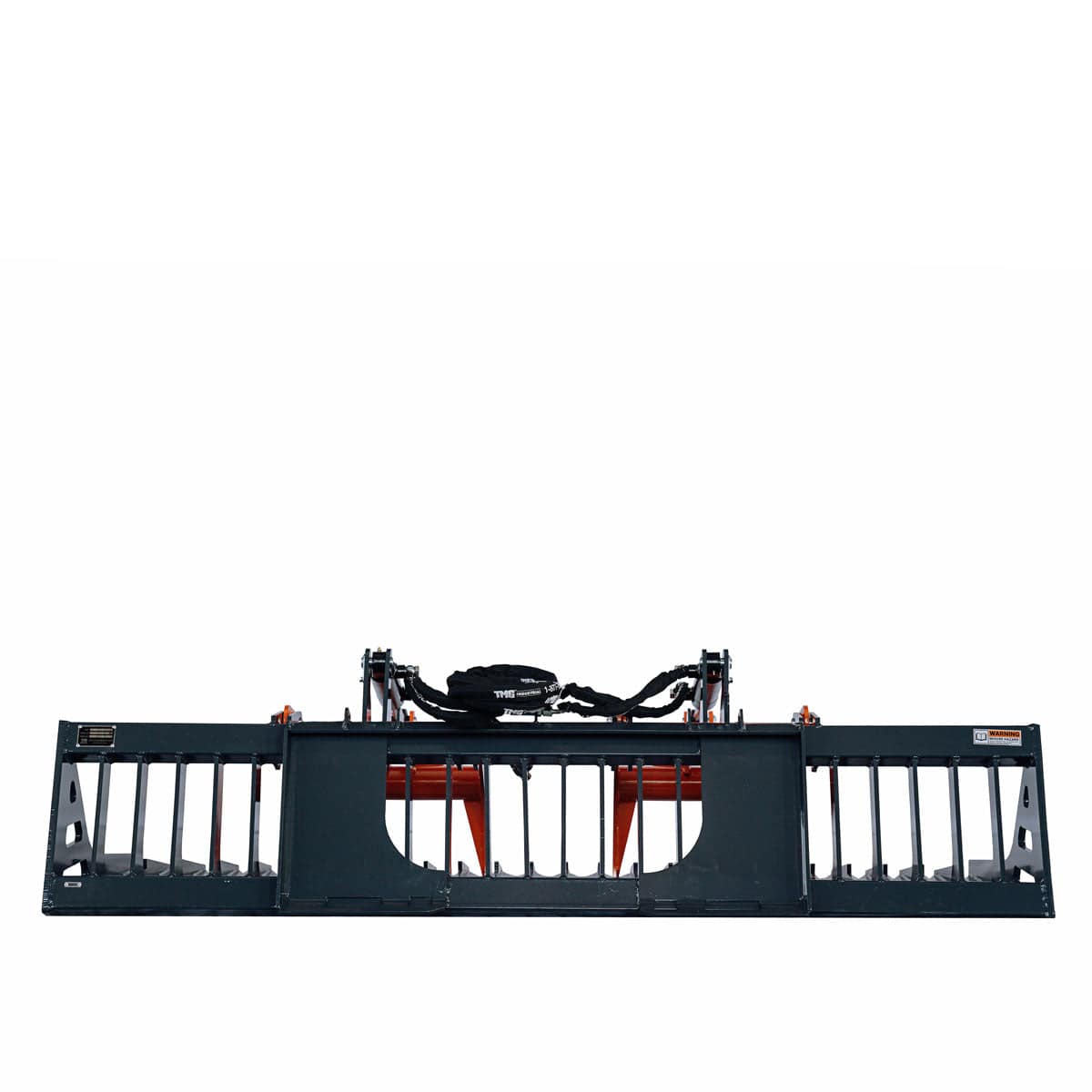

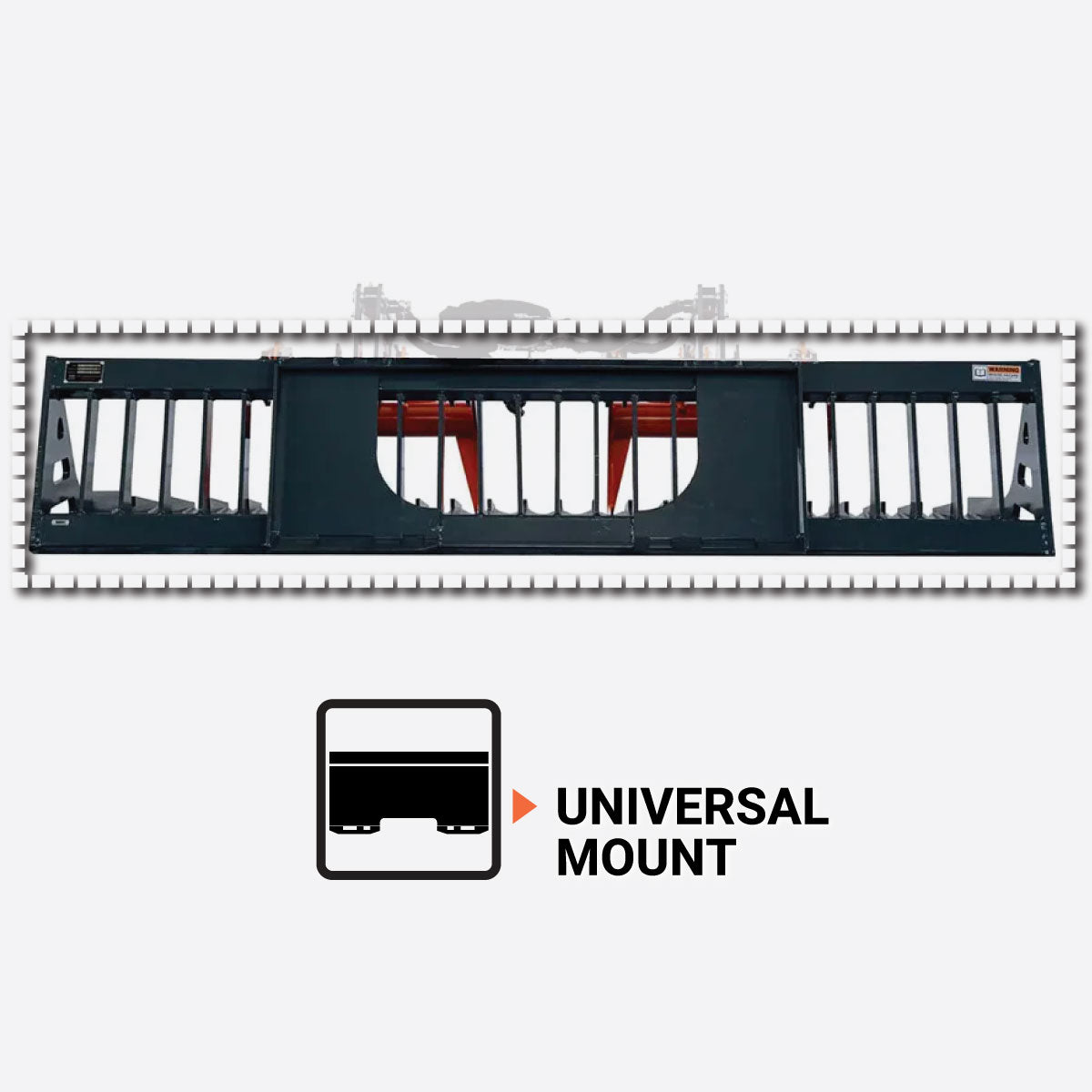

Universal mount provides fast, secure attachment to your skid steer

Specifications icon Specifications

  • Mount Type: Universal Skid Steer Mount
  • Skid Steer Power: 30 to 60 HP
  • Max Hydraulic Pressure: 20 MPa (3000 PSI)
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Coupler Size: NPT 1/2"
  • Number of Hydraulic Hoses: 2
  • Grapple Capacity: 1180 kg
  • Open Height: 860 mm
  • Working Width: 2130 mm
  • Tine Spacing: 76 mm
  • Tine Length: 760 mm

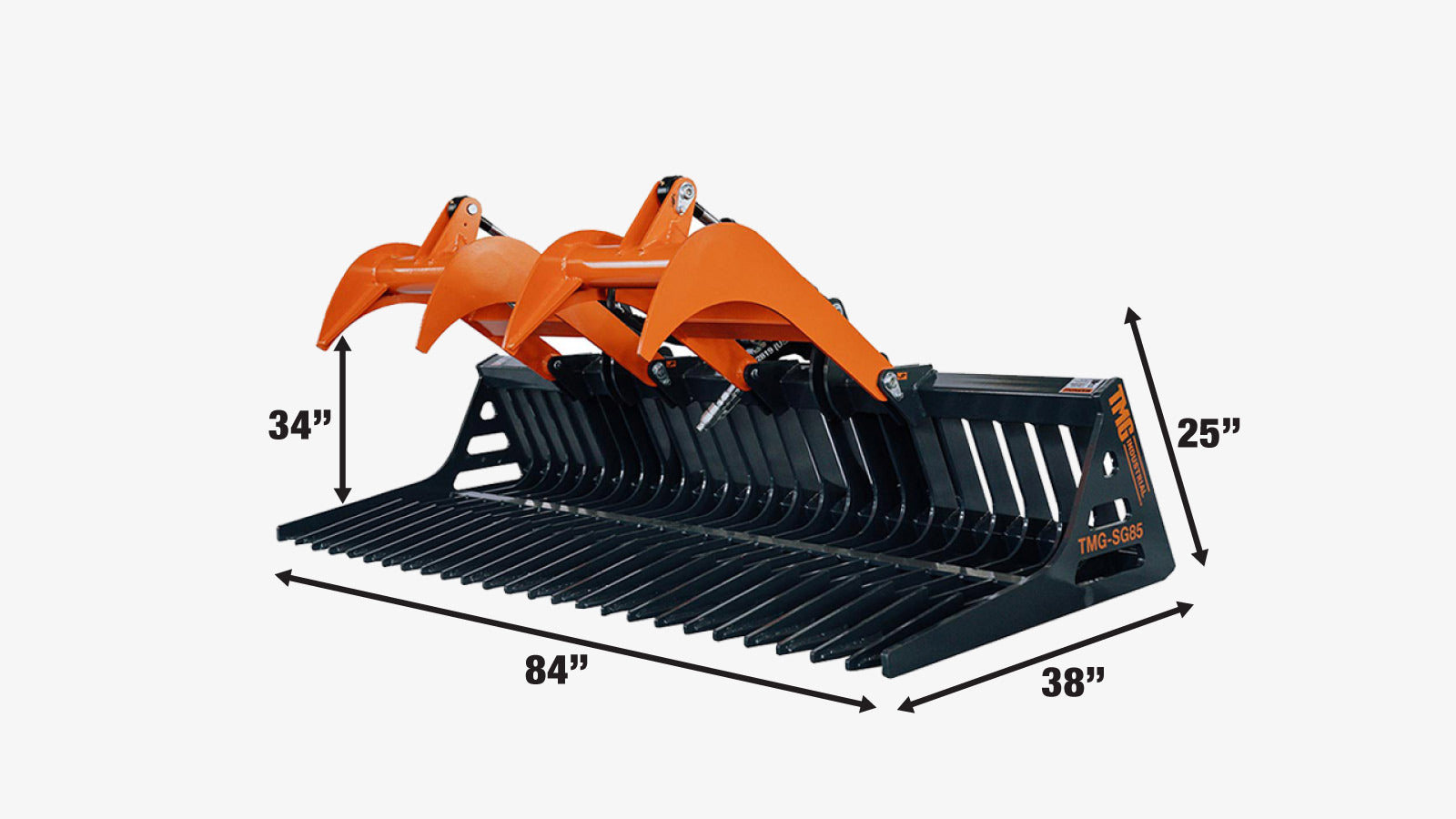

  • Overall Dimensions (L x W x H): 2130 x 970 x 640 mm
2130 mm (84

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take 2 to 3 business days to process the order and ship it. Delivery may take 10 to 15 business days depending on your location and site accessibility.

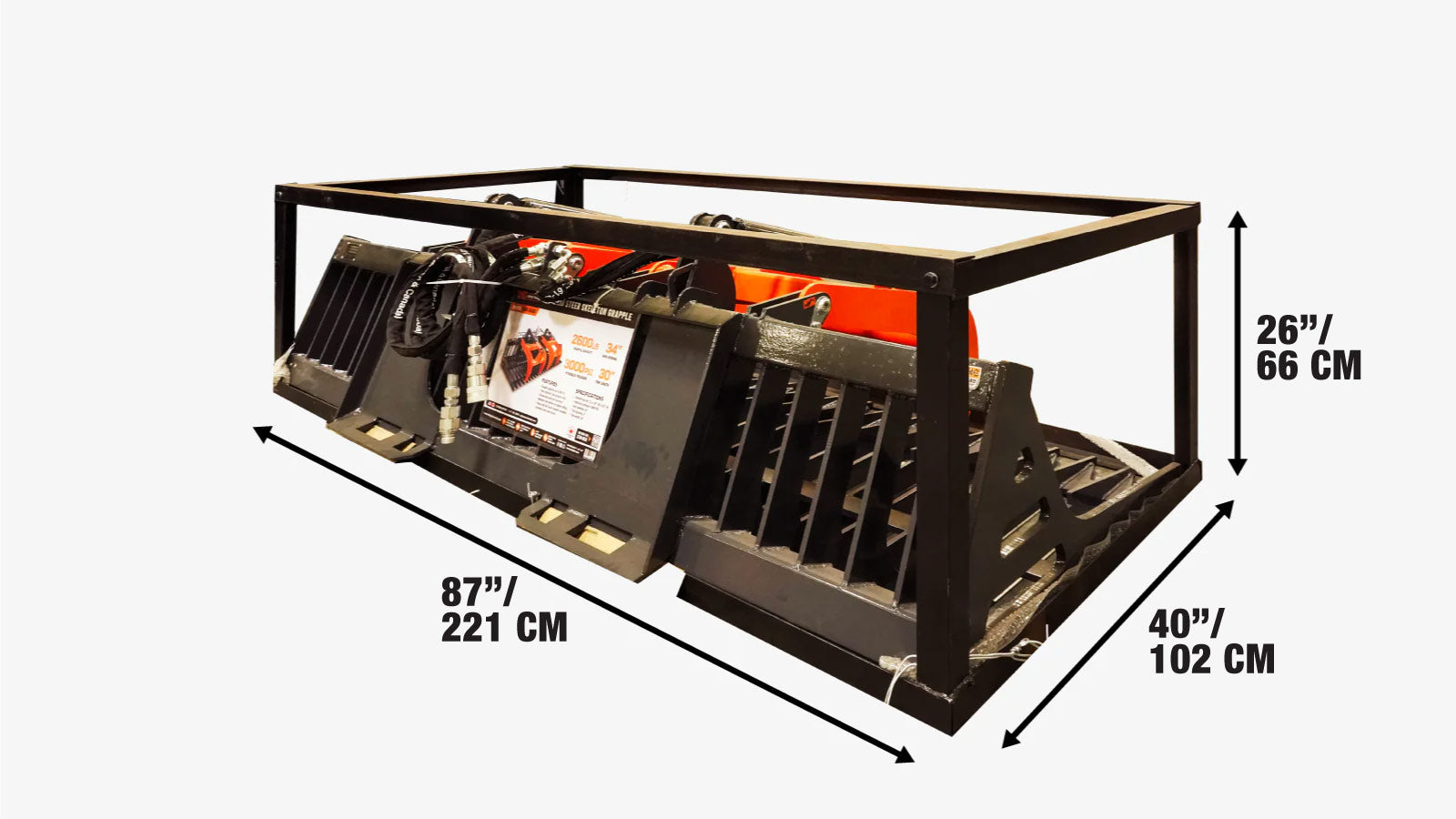

  • Packaging: Metal crate with shipping box
  • Shipping Dimensions (L x W x H): 221 x 102 x 66 cm (87″ x 40″ x 26″)
  • Shipment Weight: 374 kg (825 lb)
Shipping from Rowville,VIC
What happens after you place your order?
2130 mm (84

Product Description icon Product Description

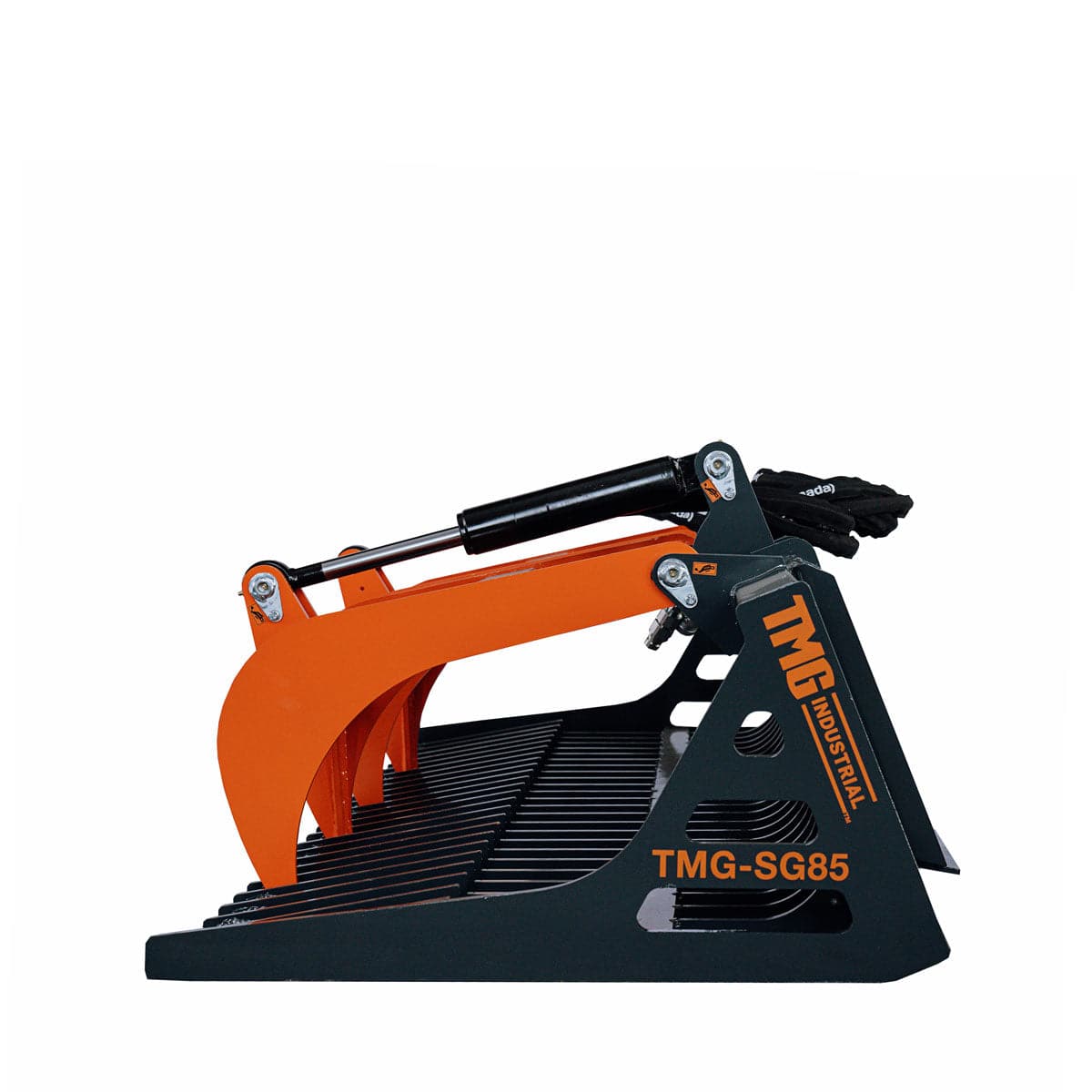

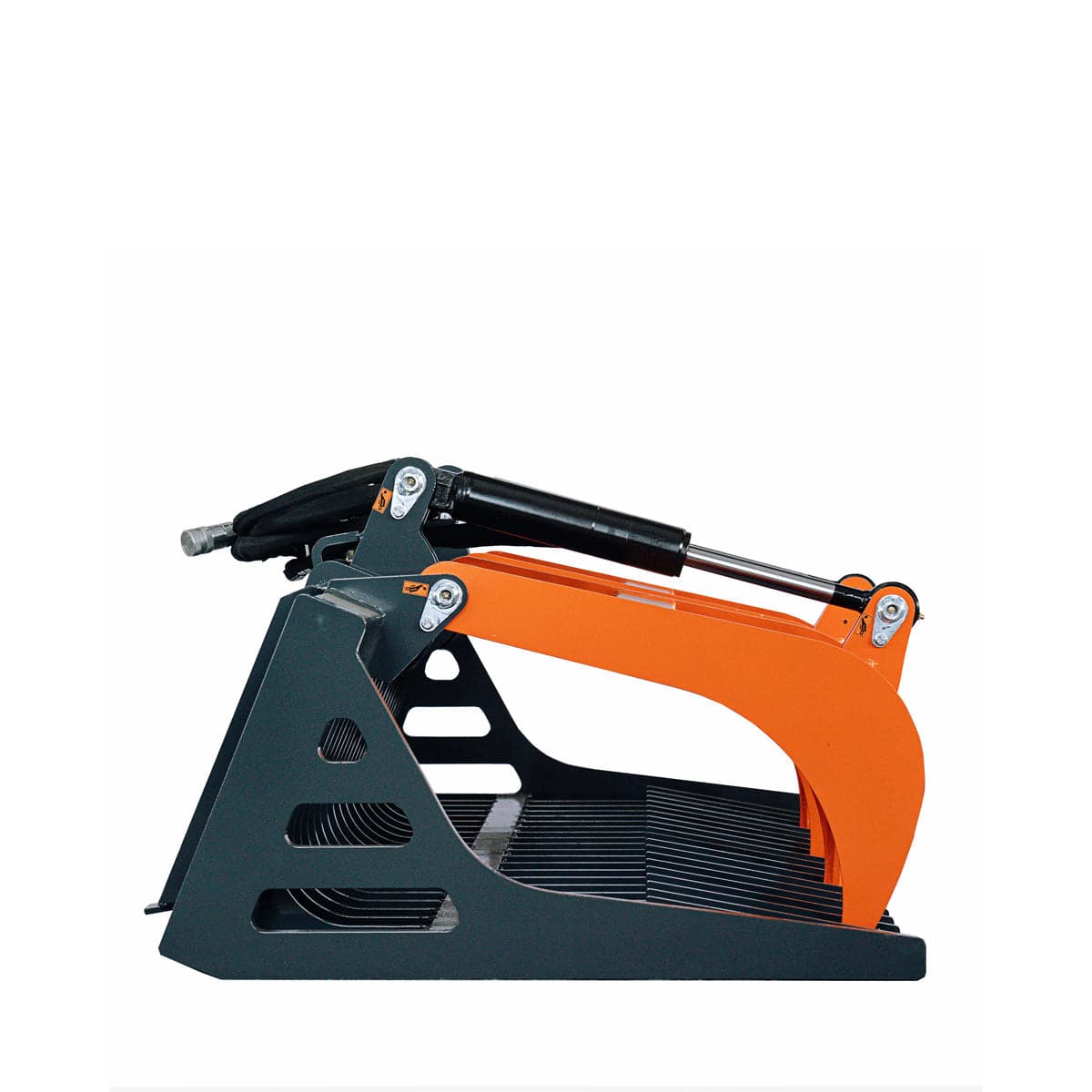

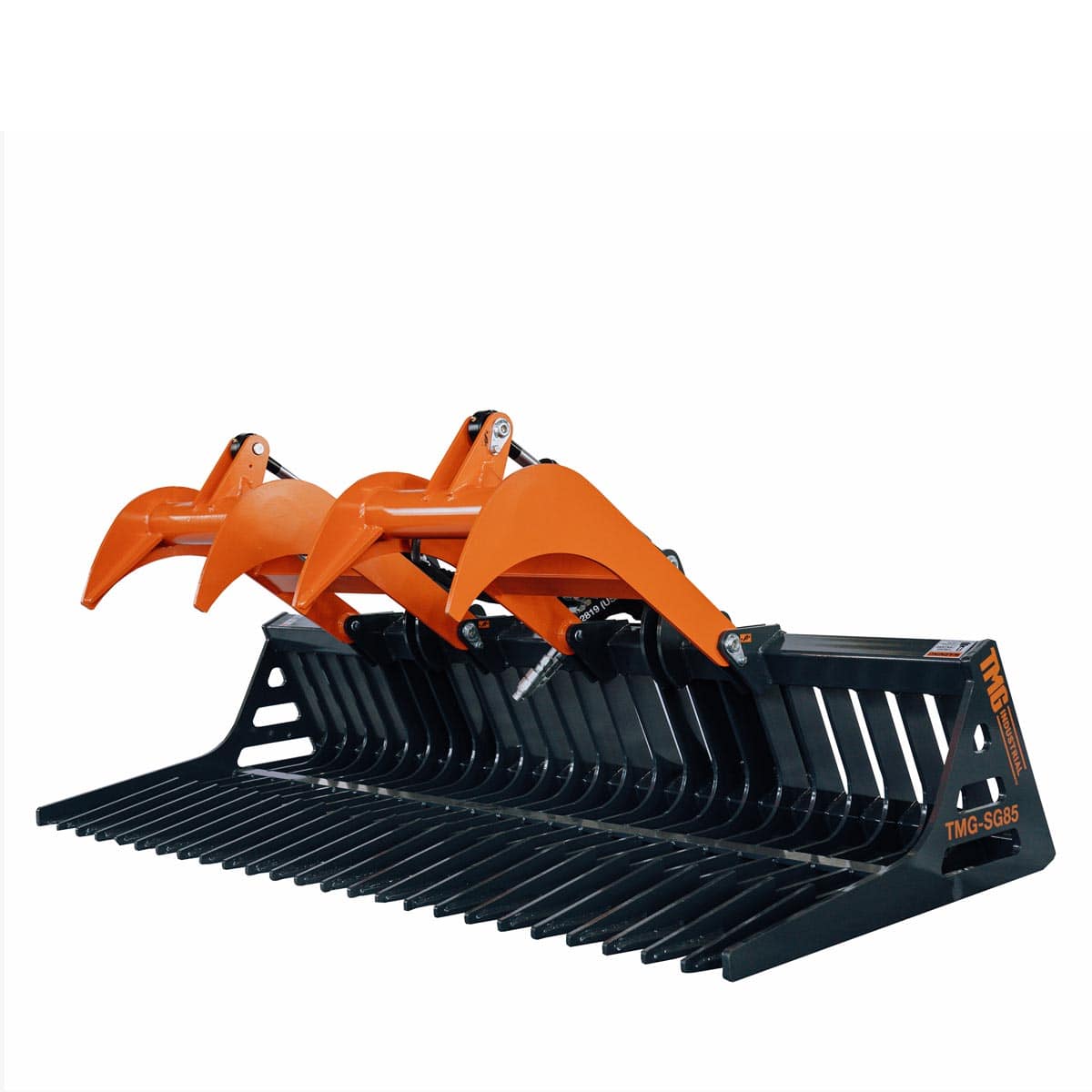

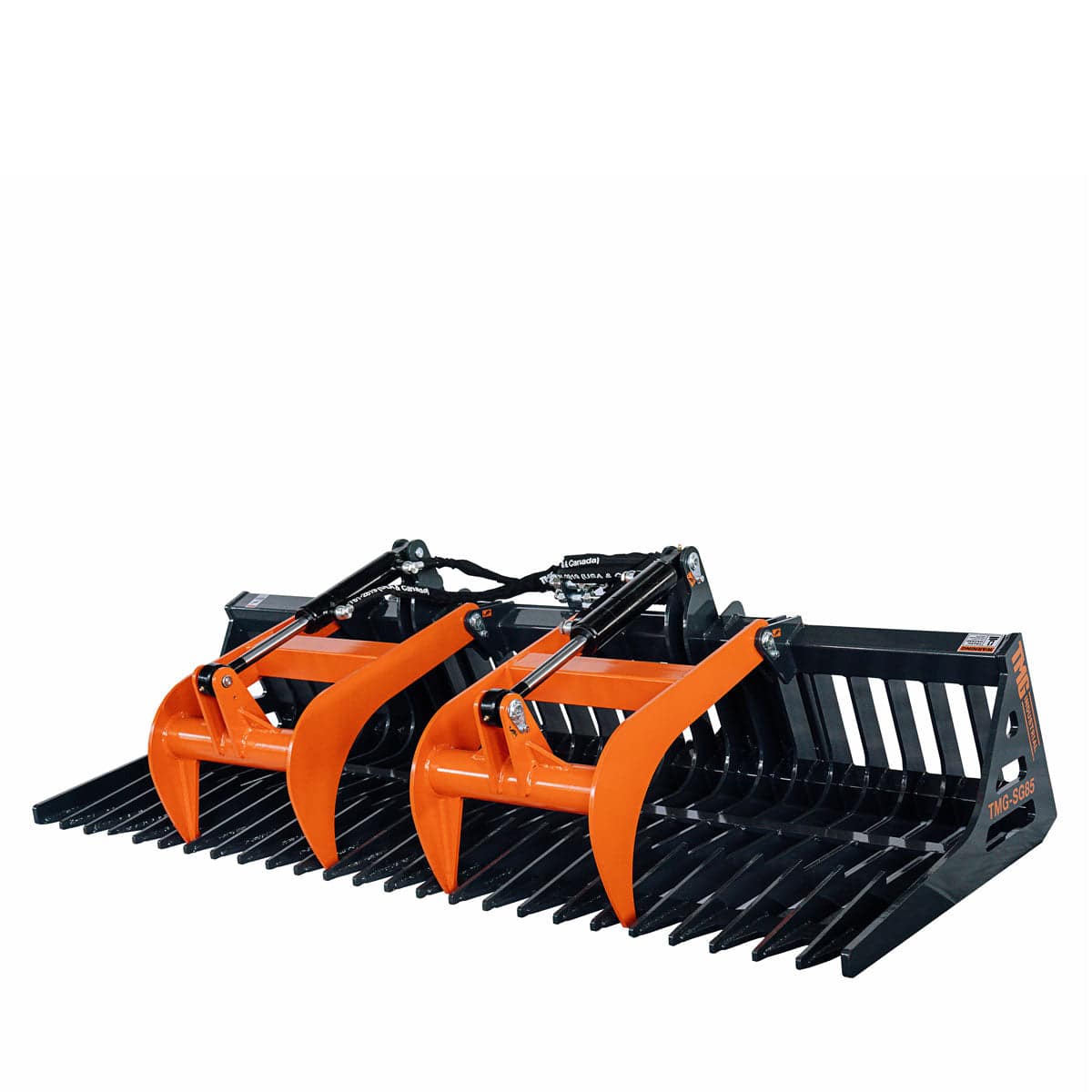

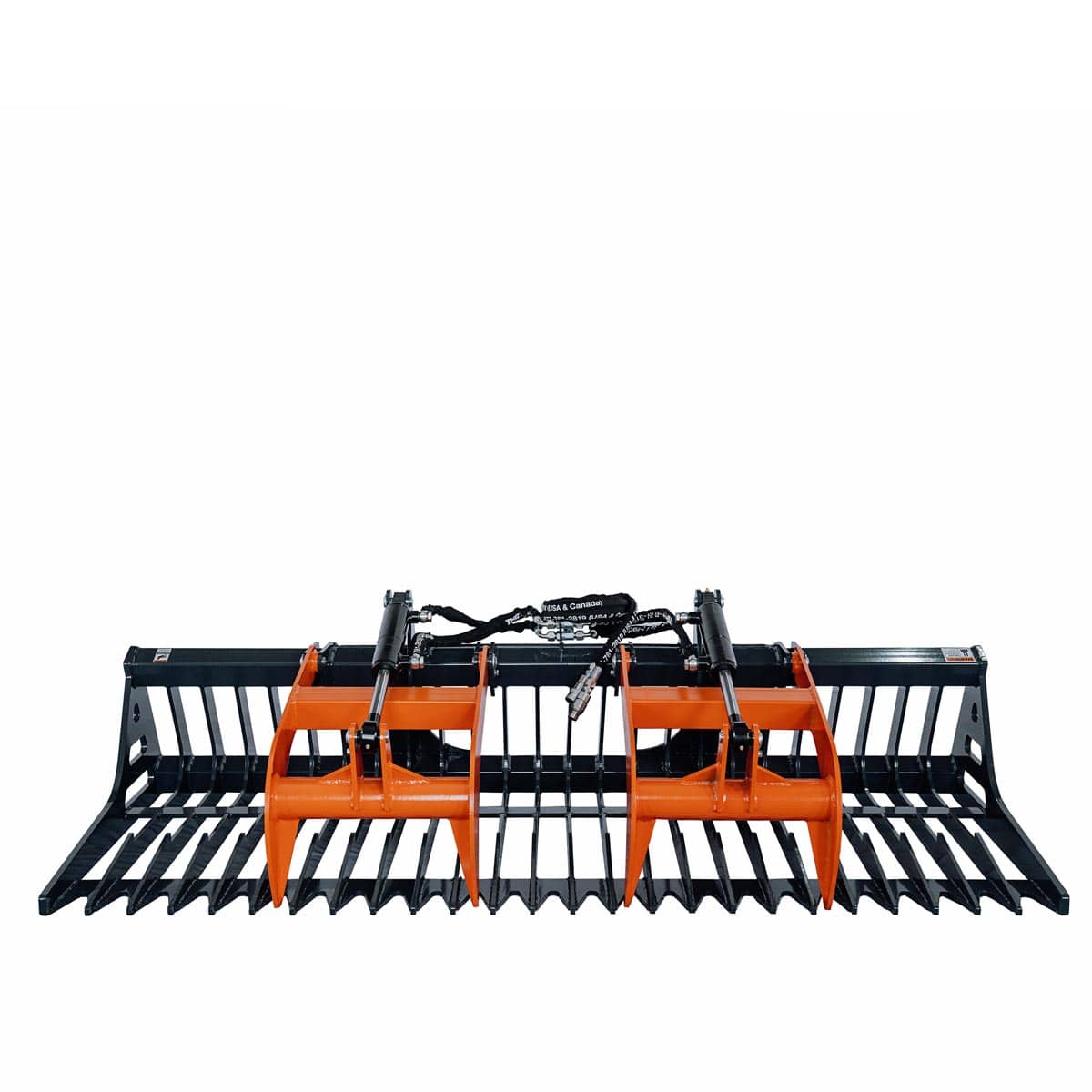

The TMG-SG85 skid steer skeleton grapple attachment offers powerful performance with a 1180 kg (2600 lb) grappling capacity, supported by twin sturdy hydraulic cylinders for lasting durability. Its 2130 mm (84″) working width and 860 mm (34″) arm opening adapt to various materials—while the skeleton tine design enables efficient debris sifting. Built for reliability, it's equipped with greaseable pivot points and includes all hardware needed for quick setup—making it a versatile, maintenance-friendly attachment for professional use.

TMG also carries other models of this skeleton grapple attachment with Universal Skid Steer Mounts: TMG-SG60, TMG-SG73.  For Mini Skid Steer “Toro Mount”, see TMG-SG42.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What is the grappling capacity of the TMG-SG84?
    A: It provides a reliable capacity of 1180 kg (2600 lb)—suitable for challenging material handling across multiple industries.
  • Q: What are its key operational dimensions?
    A: Measures 2130 mm (84″) in working width, with an arm opening of 860 mm (34″).
  • Q: What hydraulic pressure is required?
    A: The attachment operates under 20 MPa (3000 PSI) pressure for a heavy-duty working capacity.
  • Q: How easy is maintenance on the TMG-SG84?
    A: The unit is designed for ease of maintenance, featuring greaseable pins and bushings that promote longevity and minimal upkeep.
  • Q: What hardware comes included for installation?
    A: It includes a universal mount, hydraulic hoses, and flat face couplers for quick, secure integration with your skid steer.
  • Q: What design features enhance debris handling?
    A: The skeleton tine bottom allows fine debris to fall through, enabling focused handling and efficient cleanup of larger materials.
  • Q: What is the warranty for TMG-SG84?
    A: The TMG-SG84 comes with a 1-year manufacturer warranty, covering defects in materials and workmanship.
