TMG-ST2031PV

6 x 9 m Arch Wall Peak Ceiling Storage Shelter with Heavy Duty PVC Fabric Cover, TMG-ST2031PV

Product Manual
TMG Industrial 20' x 30' Arch Wall Peak Ceiling Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-ST2031PV(Previously ST2030PV)
CURRENTLY IN STOCK
TMG-ST2031PV
$2,899.00
$2,899.00 - $2,899.00
$2,899.00
$2,499.00
$2,499.00 - $2,499.00
$2,499.00
$2,899.00 Save $400.00
$2,499.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

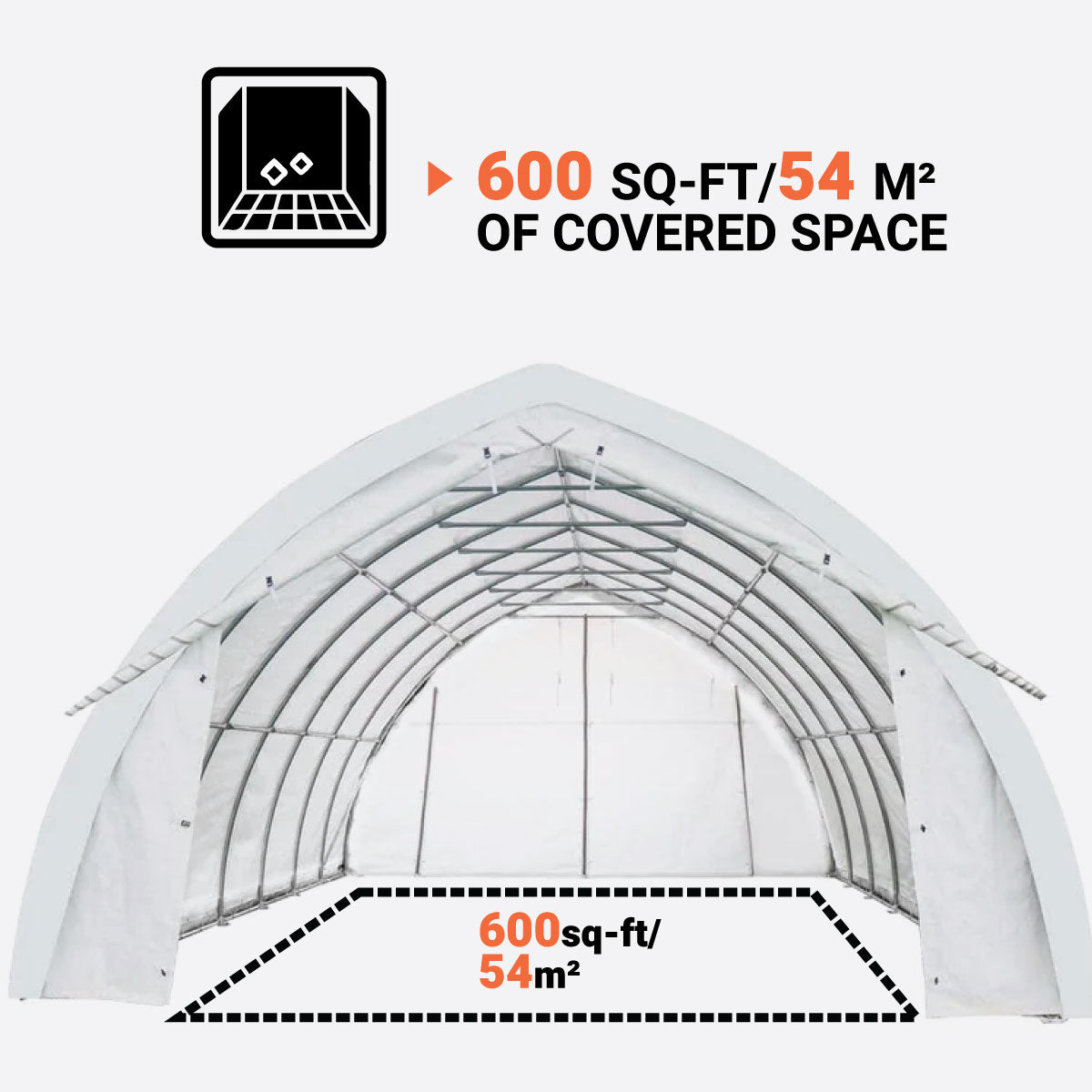

54 m² (600 sq ft) of covered space for equipment, vehicles, and materials
Feature Image

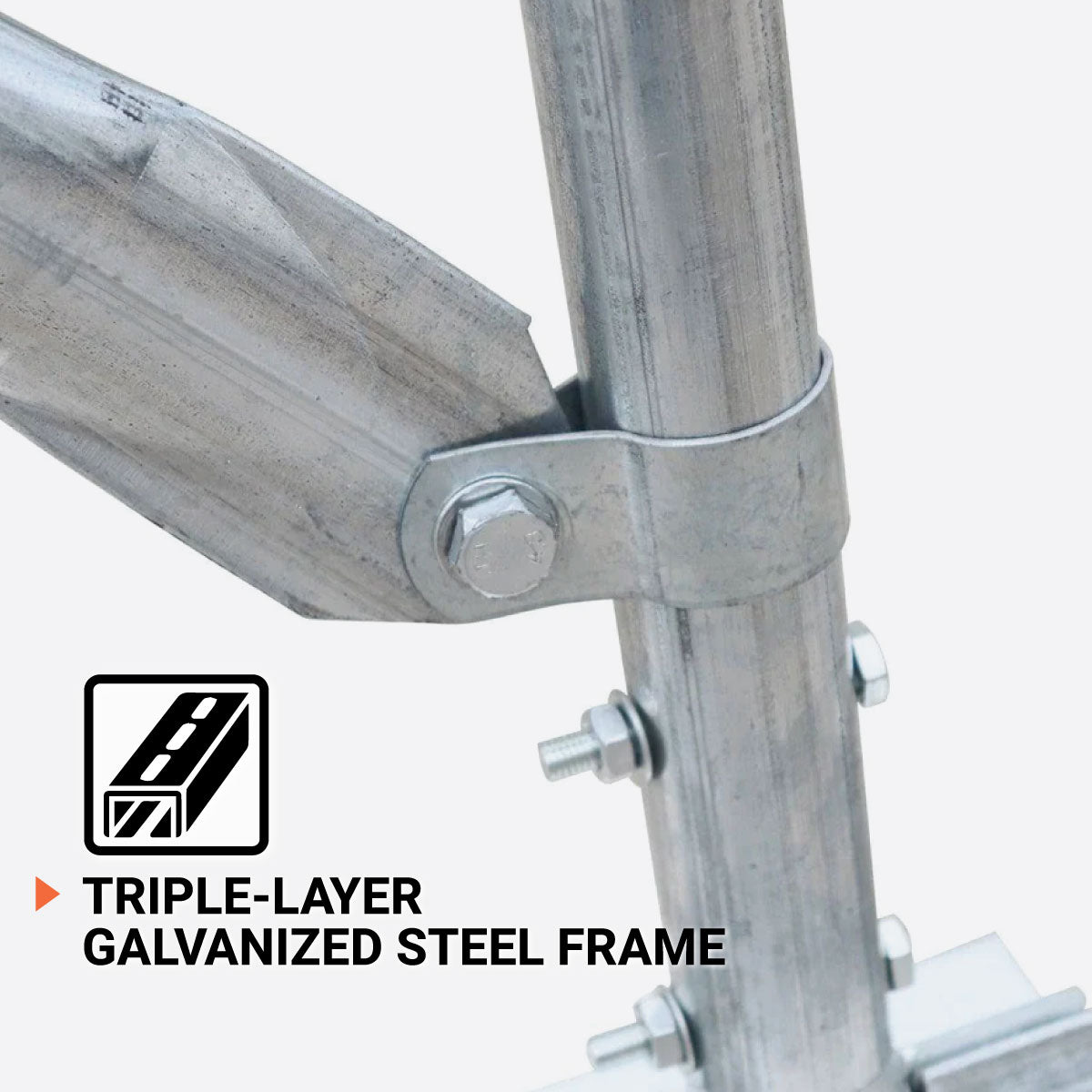

Triple-layer galvanized steel frame resists corrosion and harsh conditions
Feature Image
450 gsm heavy-duty 3-layer ripstop PVC cover is UV stabilized and flame-retardant
Feature Image

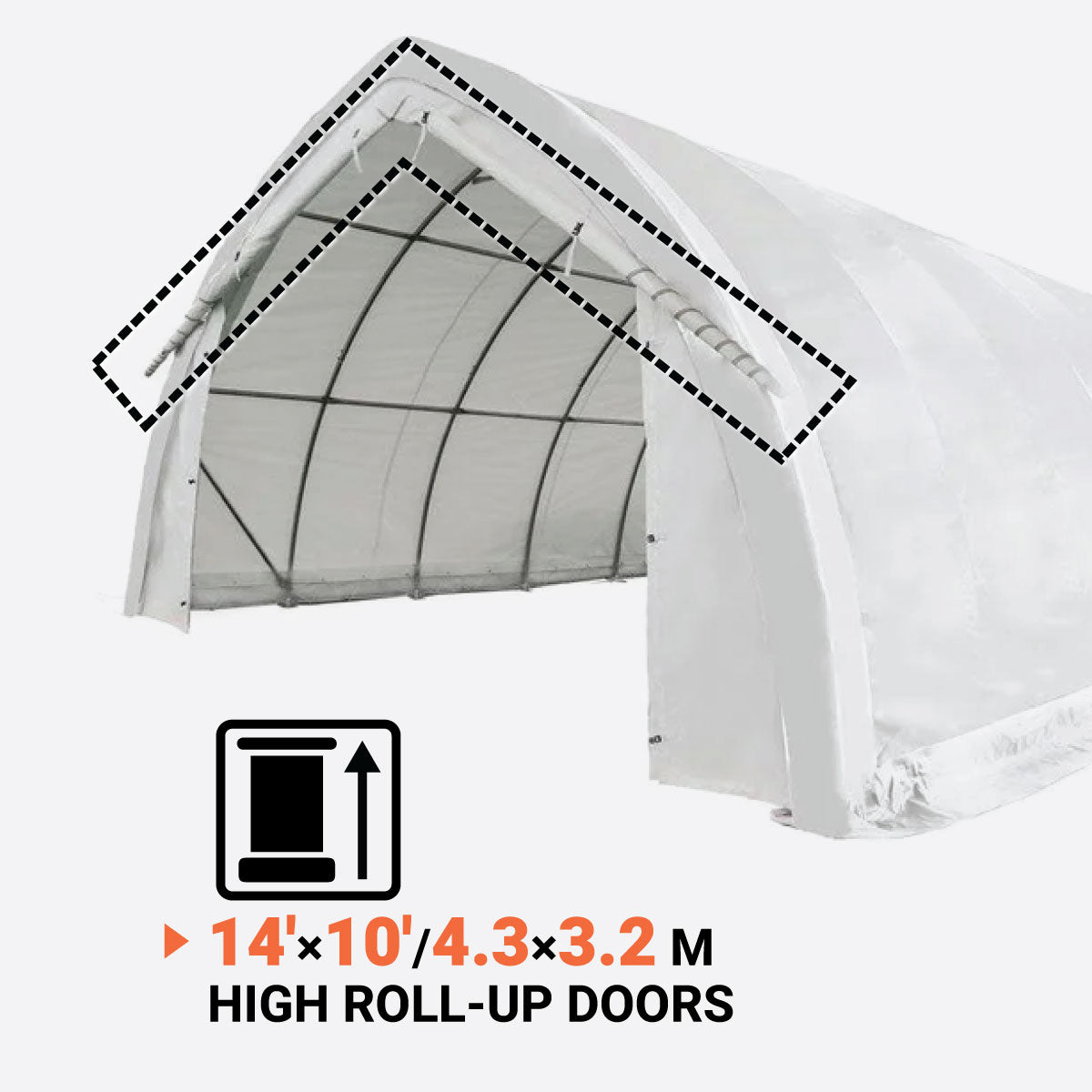

Large 4.3 m (14 ft) wide by 3.2 m (10 ft) high roll-up doors on both ends for drive-through access
Feature Image

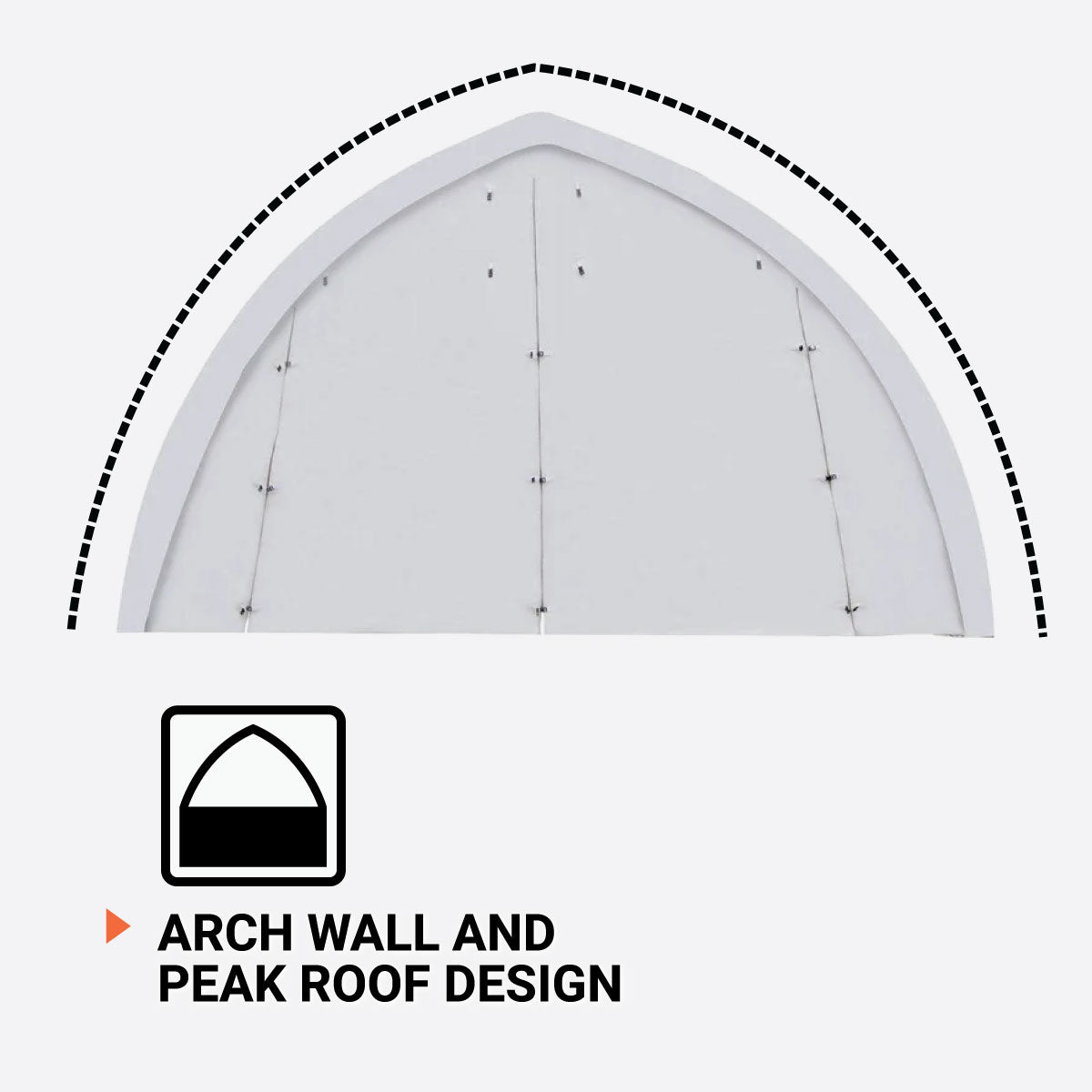

Arch wall and peak roof design with dirt skirts enhances stability and weather protection
Feature Image

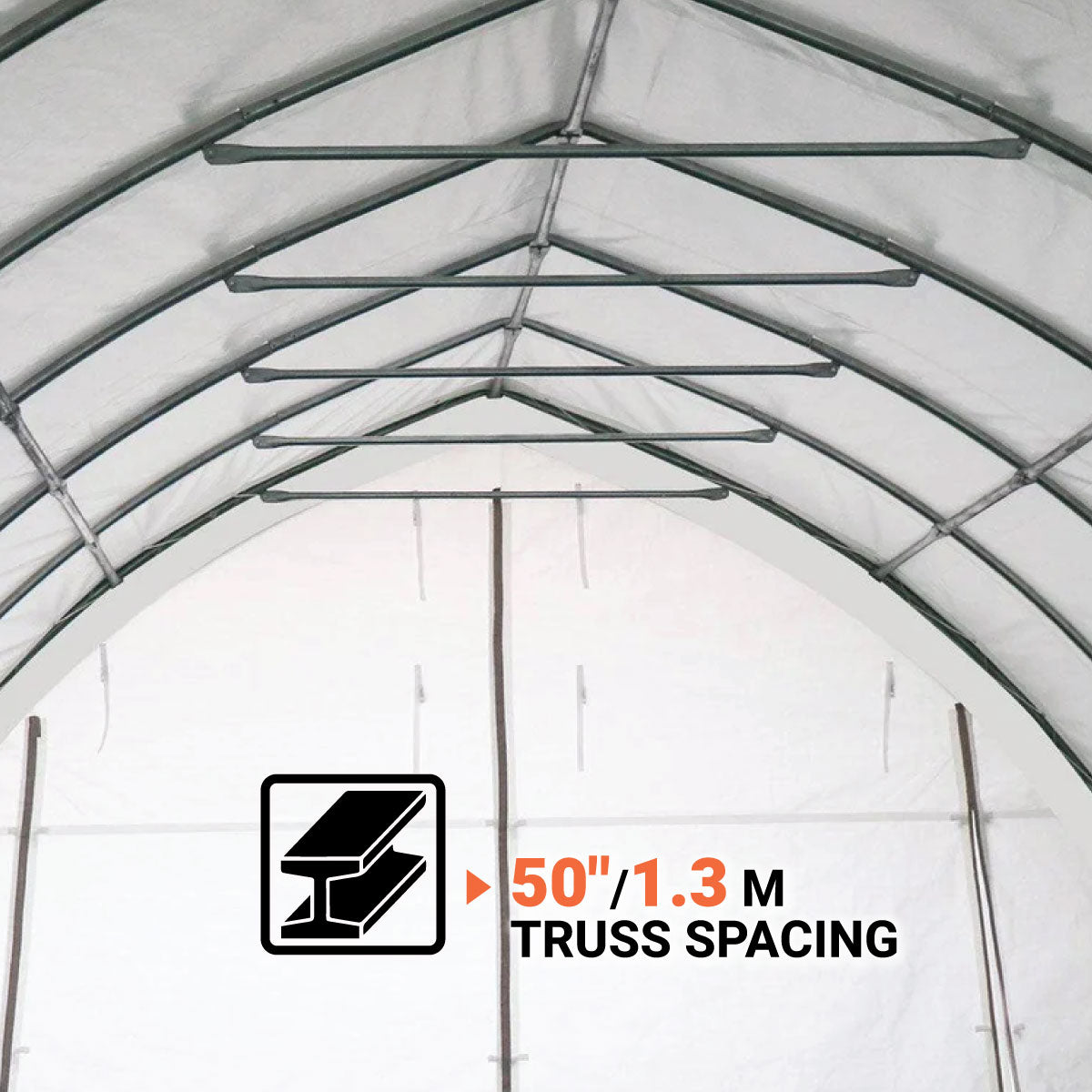

1.3 m (50”) truss spacing for maximum strength and stability

Specifications icon Specifications

  • Structure Type: Arch Wall Peak Ceiling

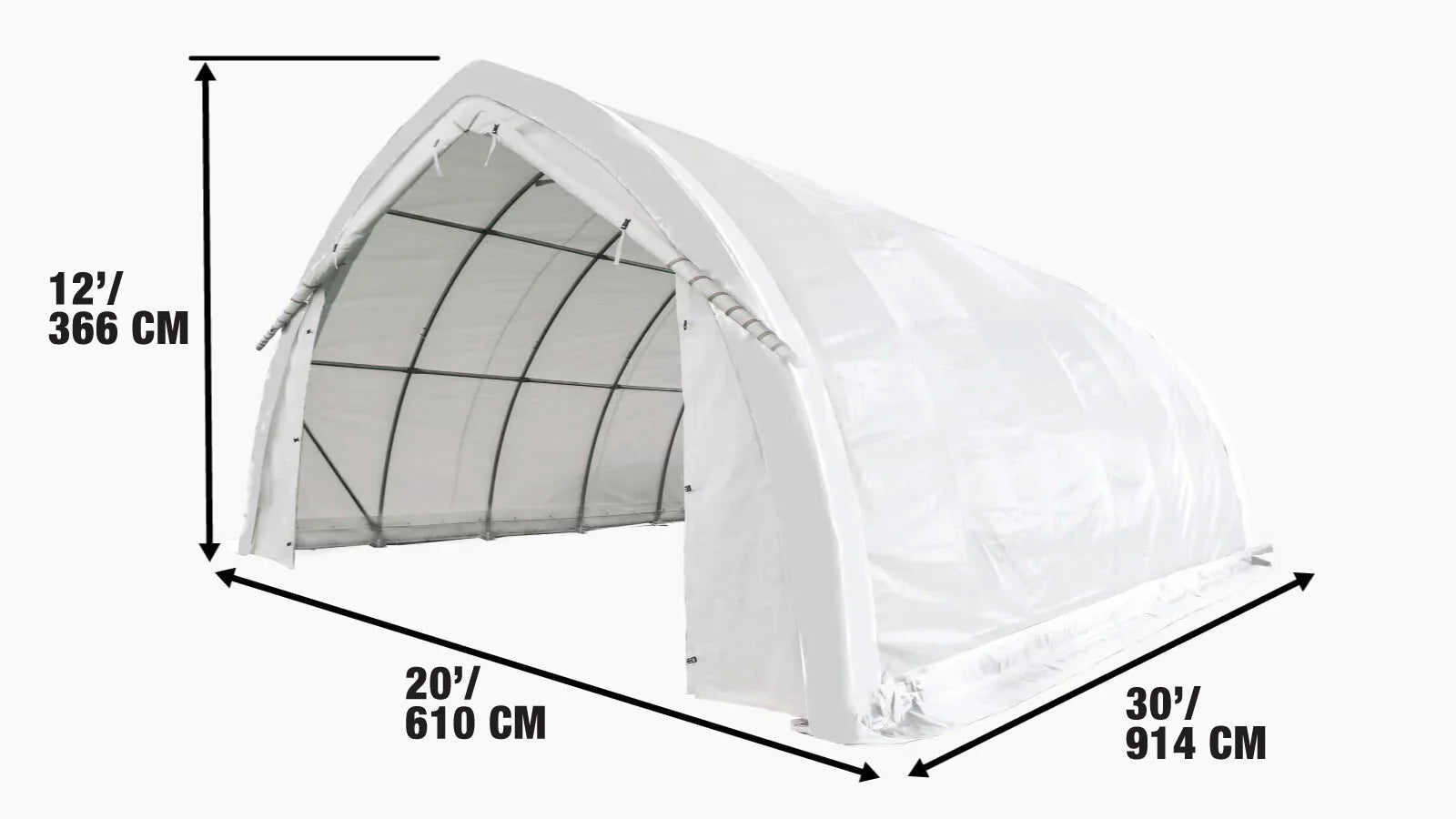

  • Overall Dimensions: 6.1 × 9.1 m (20′ × 30′)
  • Footprint: 54 m² (600 sq ft)
  • Truss Tubes: φ42 mm × 1.3 mm (1.65” – 17 GA)
  • Truss Spacing: 1.3 m (50")
  • Number of Truss Groups: 8
  • Purlin Tubes: φ42 mm × 1.3 mm (1.65” – 17 GA)
  • Purlin Spacing: 1.7 m
  • Number of Purlin Tubes: 35 (7 × 5)
  • Peak Ceiling Height: 3.66 m (12')
  • Sidewall Height: –
  • Cover Material: 450 gsm PVC
  • Door Dimensions (W × H): 4.3 × 3.2 m (14' × 10')
  • Number of Doors: 2
  • Foundation Size Required: 6.3 × 9.3 m
  • Footplate Dimensions: 250 × 150 mm, 150 × 150 mm
  • Net Weight: 290 kg (639 lb)
6 x 9 m Arch Wall Peak Ceiling Storage Shelter with Heavy Duty PVC Fabric Cover, TMG-ST2031PV-specifications-image

Shipping Information icon Shipping Information

Your order will ship from a primary warehouse in Australia. We process and dispatch within 2–3 business days, and most deliveries arrive within 10–15 business days.

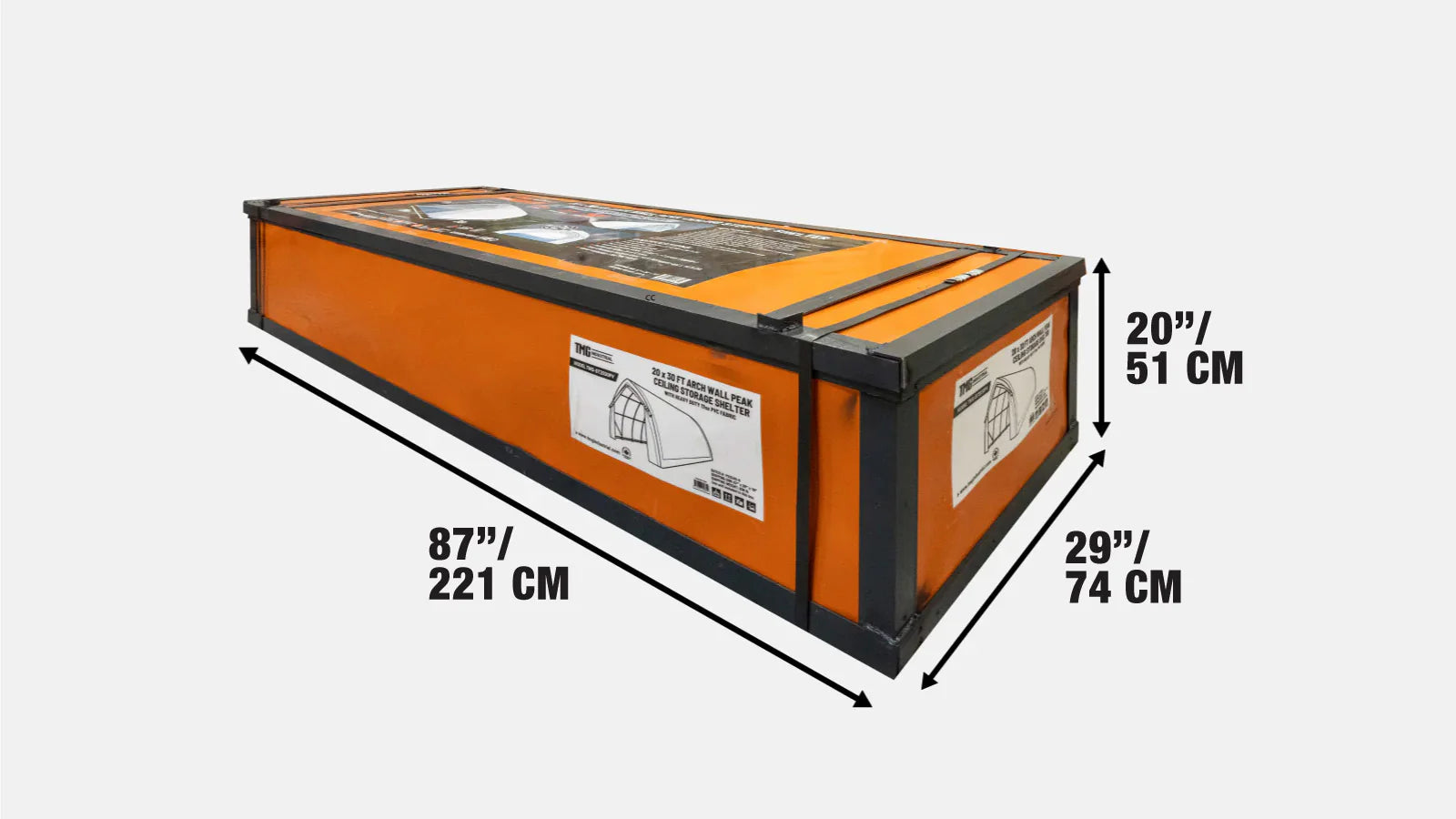

  • Packaging: Packed in a metal crate shipping box
  • Shipping dimensions: 221 x 74 x 51 cm (L x W x H)
  • Shipping weight: 391 kg
Shipping from Rowville,VIC
What happens after you place your order?
6 x 9 m Arch Wall Peak Ceiling Storage Shelter with Heavy Duty PVC Fabric Cover, TMG-ST2031PV-shipping-info-image

Product Description icon Product Description

The TMG-ST2031PV PVC Fabric Arch Wall Peak Ceiling Storage Shelter offers a spacious, durable, and efficient outdoor storage solution for farms, equipment yards, and workshops across Australia. Its 6 x 9 m (20 x 30 ft) footprint provides approximately 54 square metres (600 square feet) of sheltered space—ideal for storing machinery, tools, and materials.

This unit features a robust galvanized steel frame, spaced with 8 structural trusses, offering reliable weather protection. The included 450 gsm PVC cover is UV-stabilized and fire-retardant, ensuring long-term durability against Australia's diverse weather conditions. Two roll-up doors measuring approximately 4.3 m (14 ft) wide by 3.2 m (10 ft) high allows for easy drive-through access, accommodating large equipment and vehicles. The arch wall design, along with dirt skirts, enhances stability and protects against the elements. Pre-drilled footplates make installation straightforward—just mount on a concrete base or equivalent.

Whether you need extra workshop space or protected storage for heavy equipment, the TMG-ST2031PV is a cost-effective solution built to perform.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What are the dimensions and coverage area of the TMG-ST2031PV?
    A: The TMG-ST2031PV measures approximately 6 metres (20 feet) in width and 9 metres (30 feet) in length, providing a covered area of about 54 square metres (600 square feet).
  • Q: What materials are used in the construction of the shelter?
    A: The shelter features a heavy-duty, triple-layered 450 gsm PVC fabric cover that is UV protected, waterproof, and flame retardant. The frame is constructed from commercial-grade galvanized steel, ensuring structural integrity and corrosion resistance.
  • Q: What is the height of the shelter?
    A: The peak ceiling height is approximately 3.66 metres (12 feet) allowing ample space for various storage needs.
  • Q: What foundation is required for installation?
    A: A concrete slab or an equivalent solid foundation is recommended for optimal stability and longevity of the shelter.
  • Q: Are there doors on both ends of the shelter?
    A: Yes, this shelter includes two roll-up doors, one on each end wall, measuring approximately 4.3 metres (14 feet) in width and 3.2 metres (10 feet) in height, facilitating easy access for vehicles and equipment.
  • Q: Is the shelter suitable for Australian weather conditions?
    A: The TMG-ST2031PV is designed to withstand various environmental conditions, including UV exposure, wind or rainfall, making it suitable for use across different Australian climates.
  • Q: Are anchor bolts included with the shelter?
    A: Footplates with pre-drilled holes are included for anchoring purposes; however, anchor bolts are not provided and should be sourced separately based on the installation surface.
  • Q: Can the shelter be used for agricultural purposes?
    A: Absolutely. The TMG-ST2031PV is versatile and suitable for various applications, including agricultural storage, equipment housing, and workshop space.
  • Q: What is the warranty on the TMG-ST2031PV?
    A: It is backed by a 1-year manufacturer warranty.
  • Q: Are replacement covers available?
    A: Yes, replacement covers are available for order, and can be found in the Parts Store on the TMG Industrial website.
