TMG-TBH72

1813 mm (6’) 3-Point Hitch Swing Backhoe Attachment, Category 1, 20 - 65 HP Tractor TMG-TBH72

Product Manual
TMG Industrial 6-FT 3-Point Hitch Swing Backhoe Attachment, 12” Bucket Included, 20-65 HP Tractor, 97” High Reach, Category 1 & 2 Hookups, TMG-TBH72
CURRENTLY IN STOCK
TMG-TBH72
$6,799.00
$6,799.00 - $6,799.00
$6,799.00
$5,799.00
$5,799.00 - $5,799.00
$5,799.00
$6,799.00 Save $1,000.00
$5,799.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

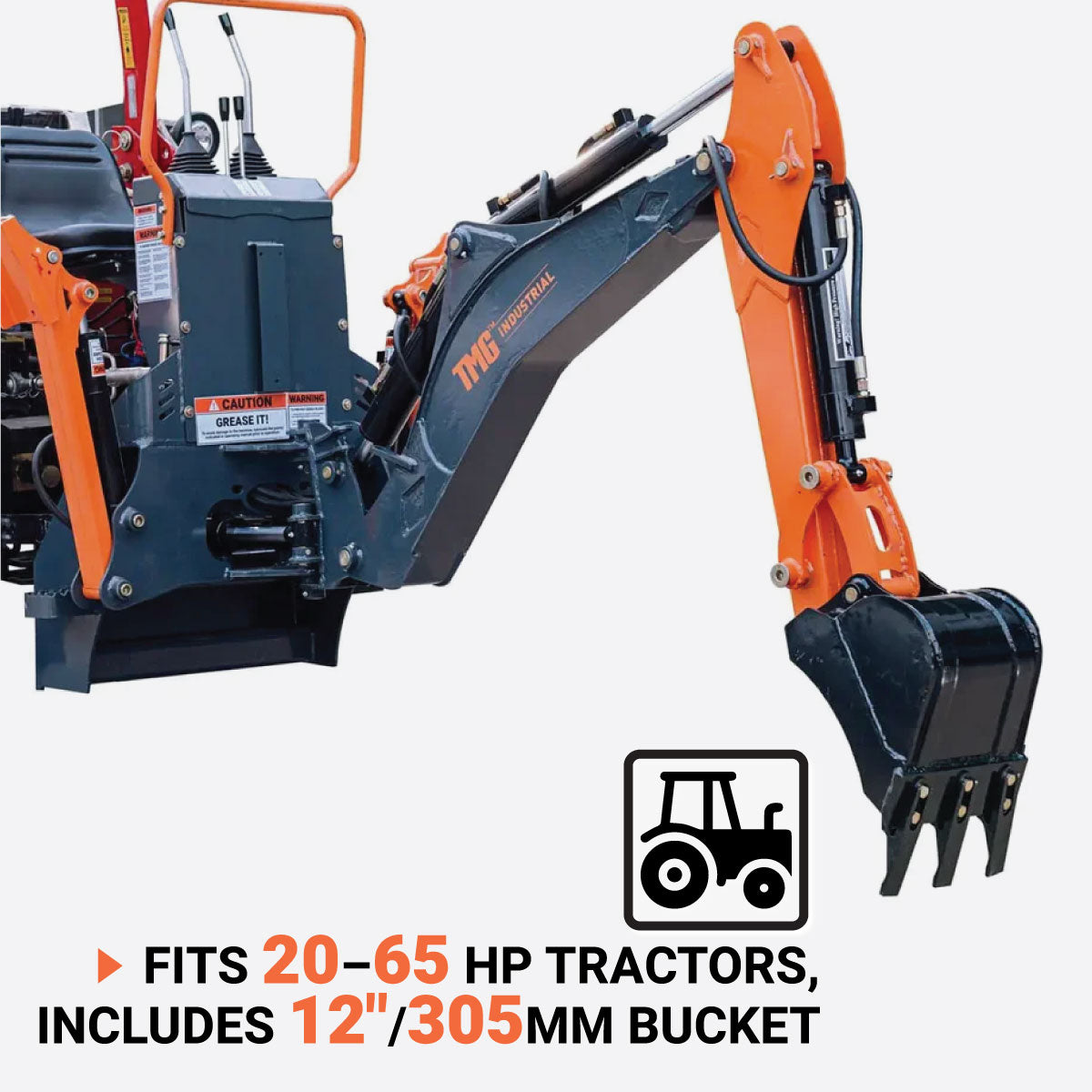

Compatible with 20 – 65 HP tractors and includes 305 mm (12") digging bucket
Feature Image

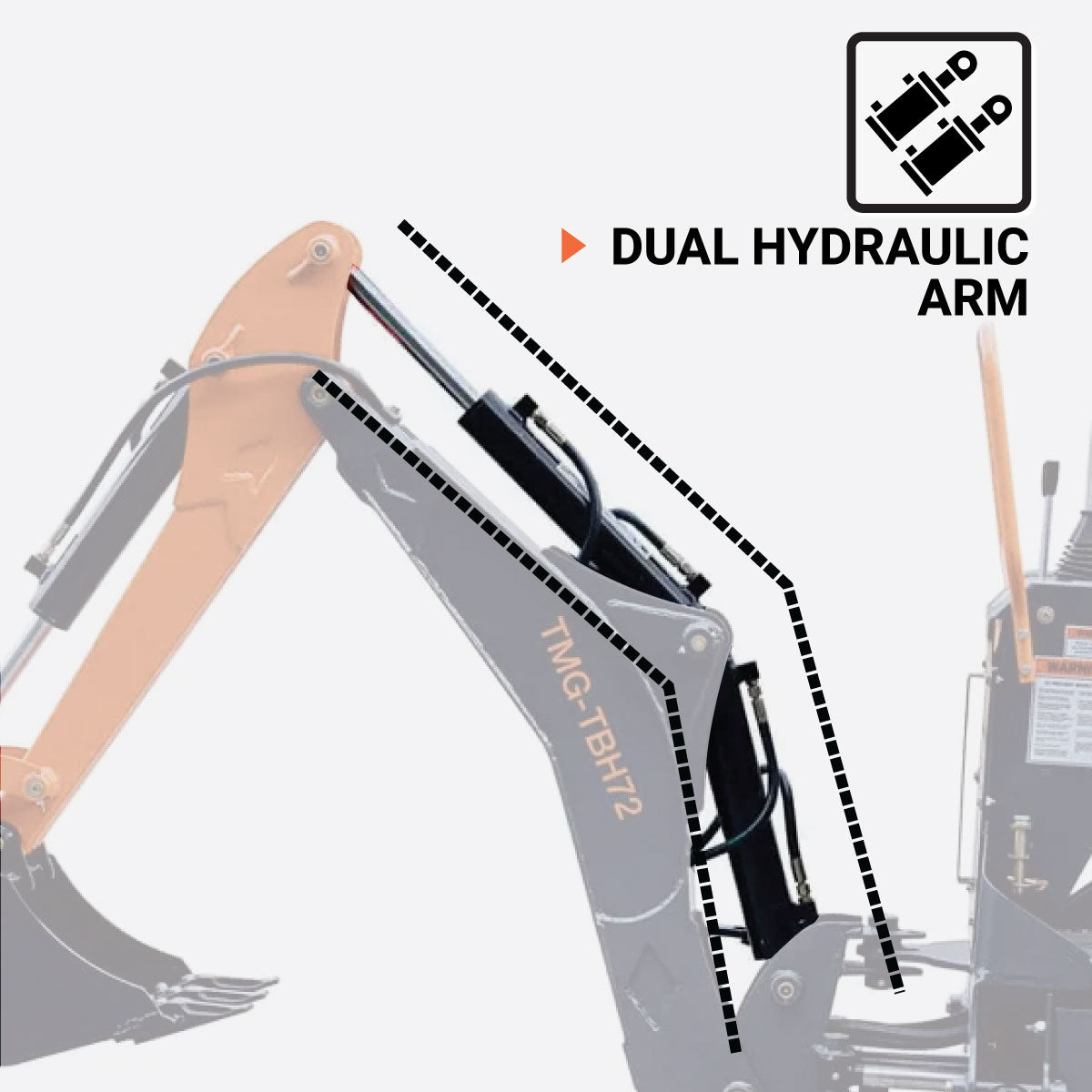

Dual hydraulic cylinder arm provides 172° bucket rotation and high force
Feature Image

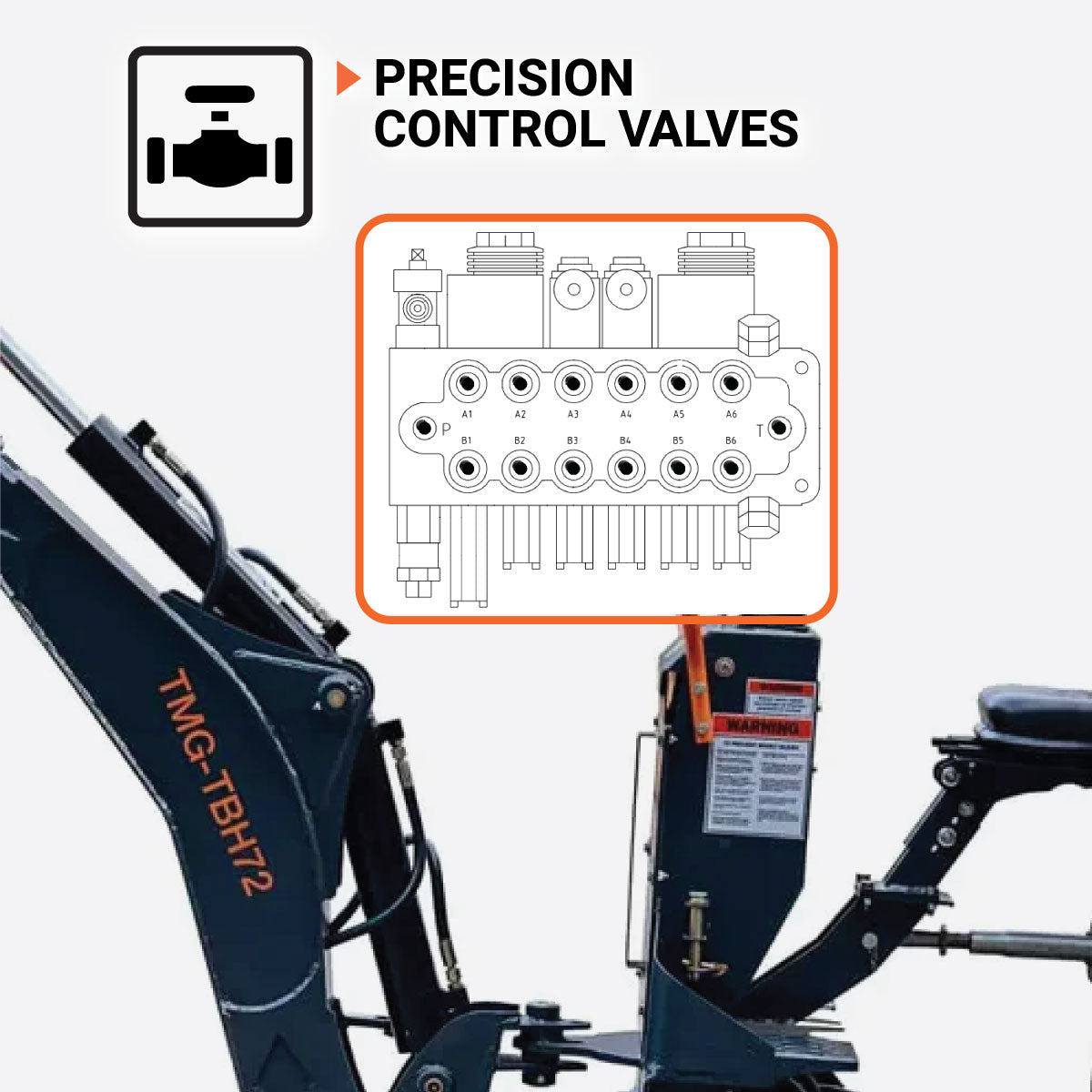

Precision control valves optimize hydraulic timing and work performance
Feature Image

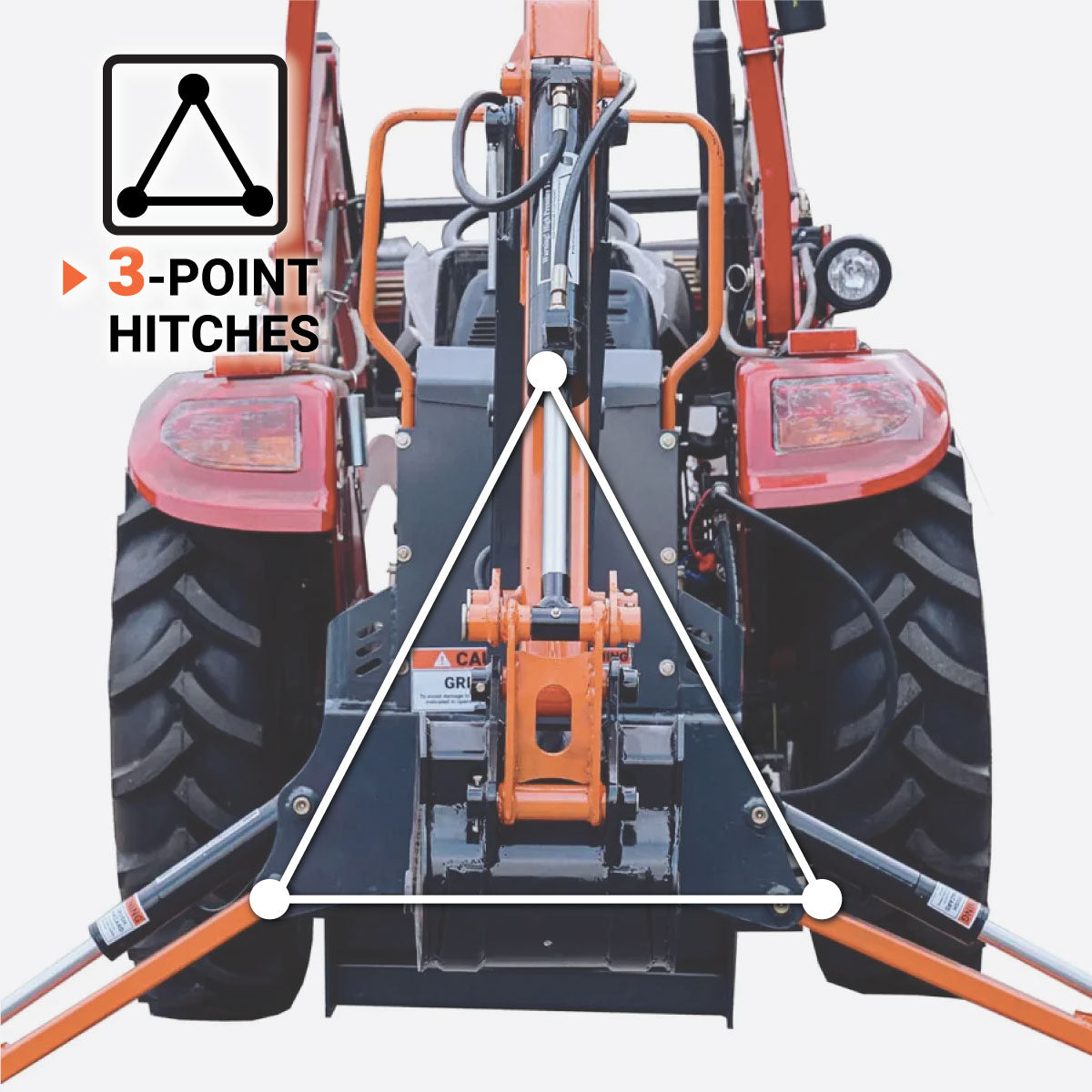

3-point hitch fits Category 1 tractors for easy attachment
Feature Image

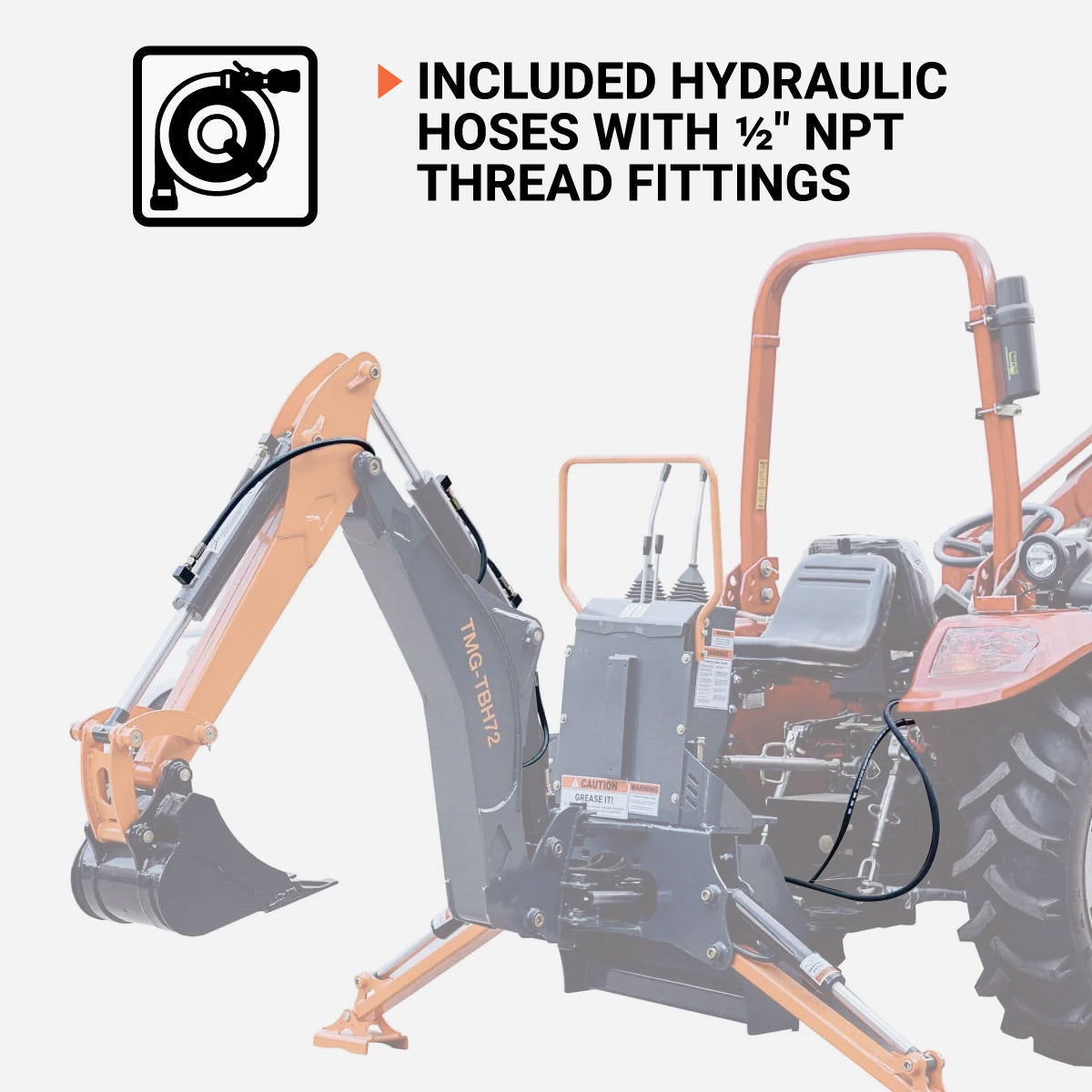

Included hydraulic hoses with ½" NPT thread fittings for simple, hassle-free hookup
Feature Image

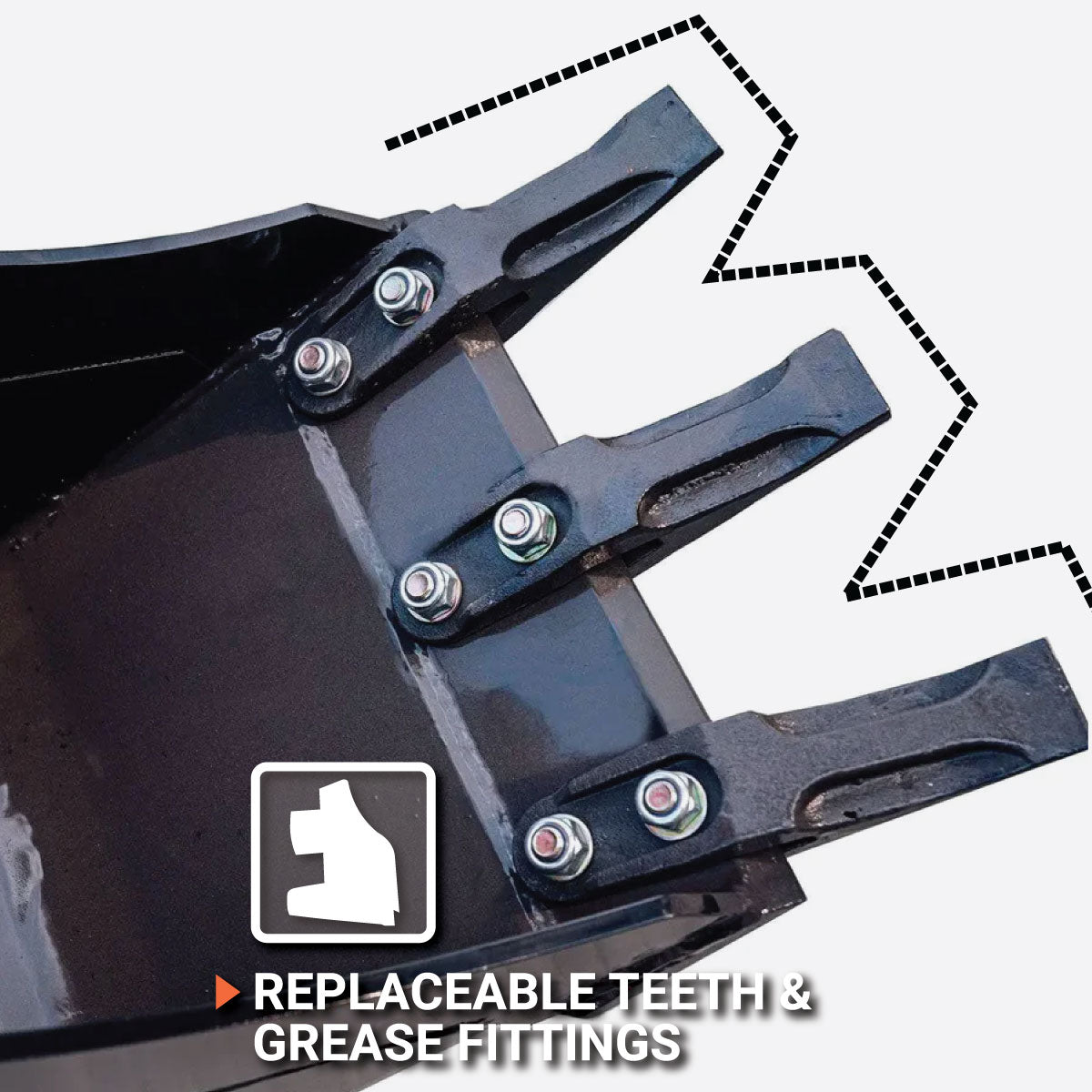

Replaceable teeth and grease fittings allow durable, low-maintenance operation

Specifications icon Specifications

  • Tractor power required: 20 - 65 HP
  • Mounting type: 3-point hitch CAT 1
  • Hydraulic flow: 15 - 50 L/min (4 - 13 GPM)
  • Hydraulic pressure: 16 MPa (2320 PSI)
  • Hydraulic hoses & flat face couplers: Included
  • Hydraulic flat face couplers: 1/2"
  • Maximum digging depth: 1813 mm (72")
  • Maximum working height: 2290 mm (90")
  • Maximum working length: 2458 mm (97")
  • Maximum loading height: 1421 mm (56")
  • Ground clearance: 140 mm (5.5")
  • Bucket size: 305 mm (12")
  • Bucket capacity: 0.014 m³ (0.5 ft³)
  • Bucket rotation: 172°
  • Swing arc: 180°
  • Dipper boom digging force: 600 kg (1320 lb)
  • Bucket digging force: 900 kg (1980 lb)
  • Simultaneous bucket and boom operation: Yes
  • Stabilizer width (spread): 1962 mm
  • Stabilizer width (transport): 991 mm
  • Surface finish: Powder coating
  • Mechanical thumb: Available
  • Overall dimension: 1842 x 990 x 1540 mm

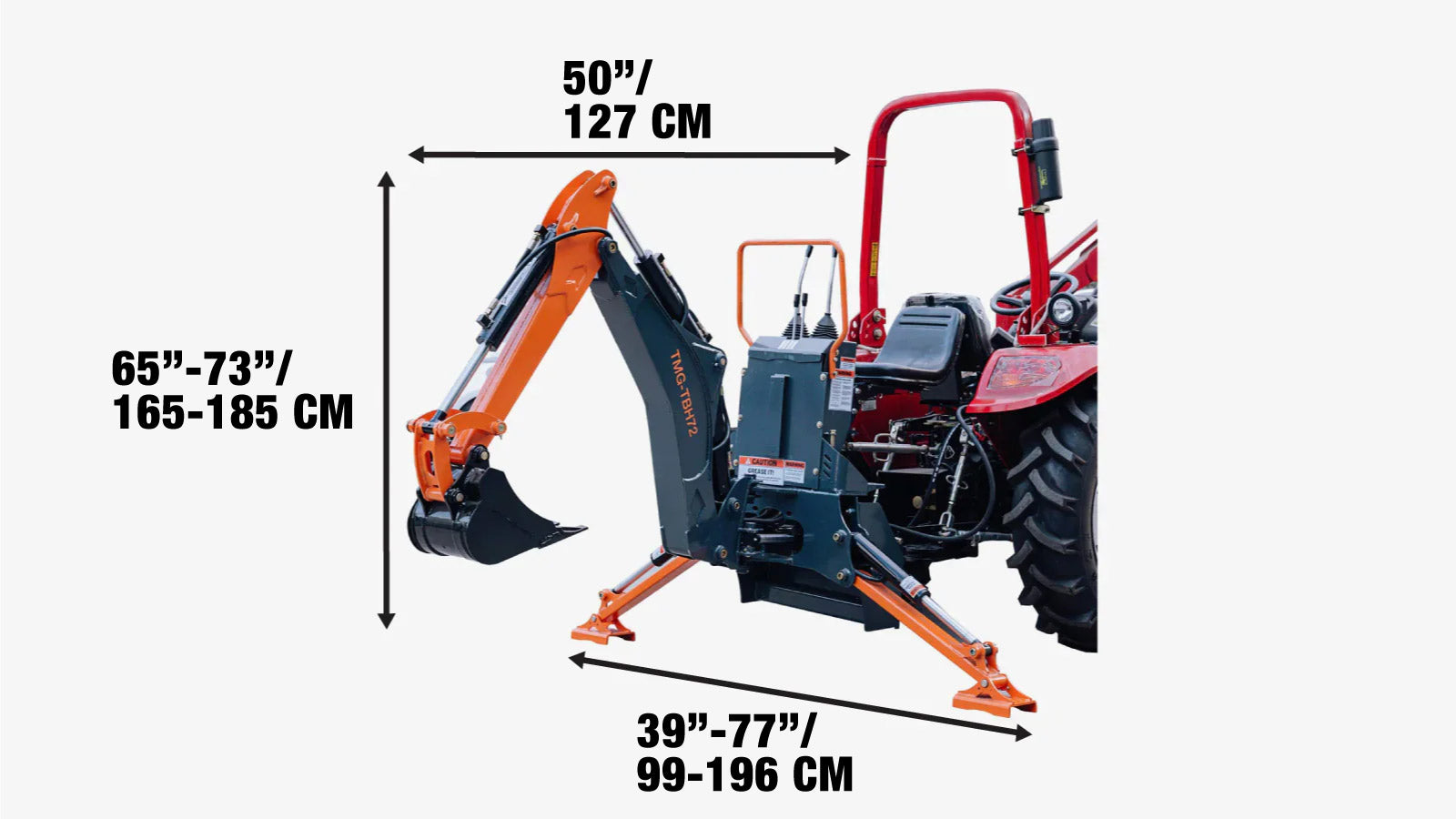

1813 mm (6’) 3-Point Hitch Swing Backhoe Attachment, Category 1, 20 - 65 HP Tractor TMG-TBH72-specifications-image

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances, it will take 2 to 3 business days to process and dispatch your order. Delivery typically takes 10 to 15 business days depending on your location and accessibility.

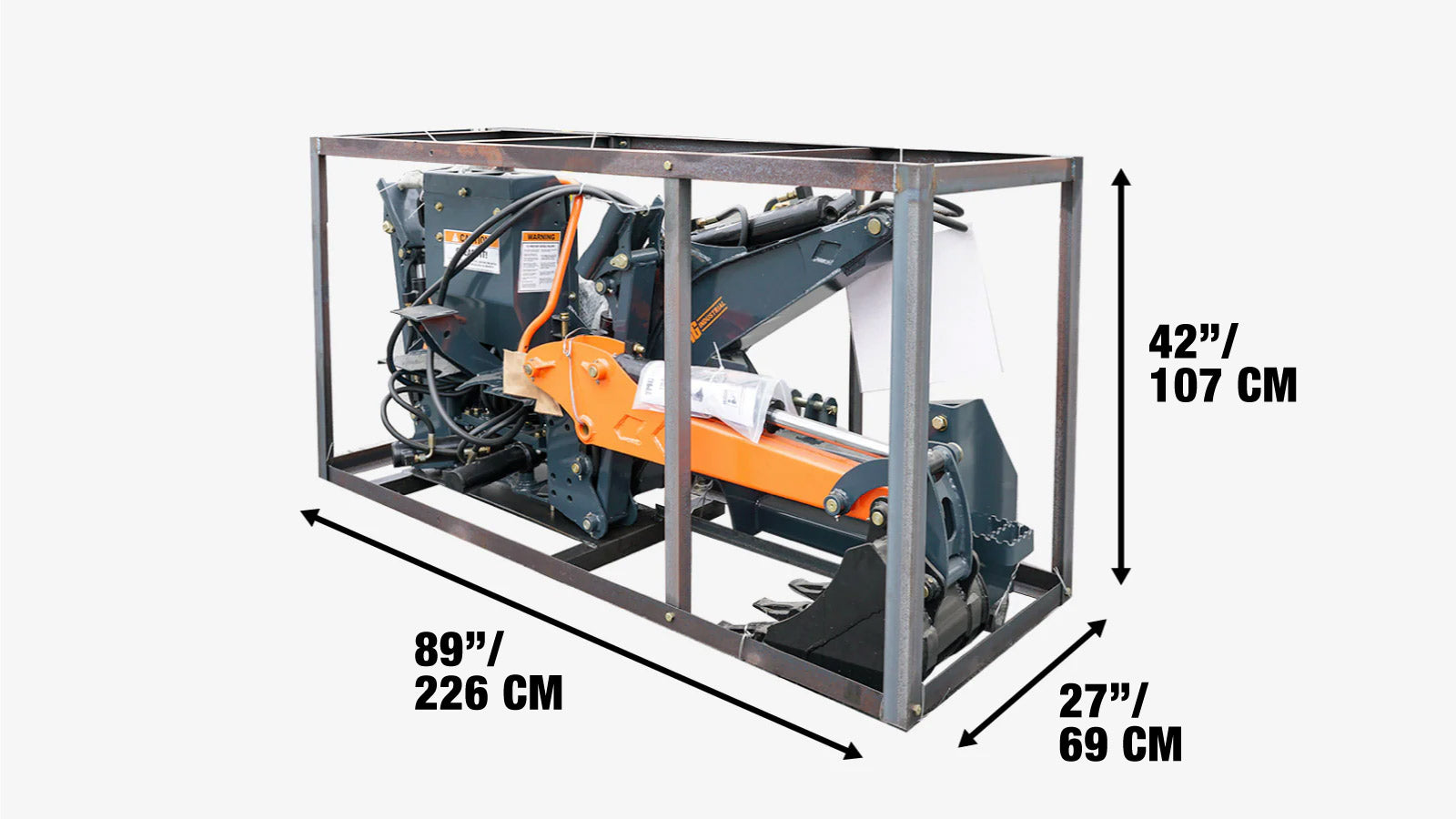

  • This product is packed in a metal crate shipping box
  • Shipping dimensions: 226 x 69 x 107 cm (L x W x H) / 89" x 27" x 42"
  • Shipping weight: 540 kg (1190 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1813 mm (6’) 3-Point Hitch Swing Backhoe Attachment, Category 1, 20 - 65 HP Tractor TMG-TBH72-shipping-info-image

Product Description icon Product Description

The TMG-TBH72 3-Point Hitch Swing Backhoe Attachment turns your tractor into a diverse and functional digging machine with a depth capacity of 1813 mm. The 305 mm wide bucket is ideal for digging ditches, sewage systems, septic tanks, power lines, footings and more. Backfill trenches, maintain slopes and bring your landscaping vision to life with this versatile attachment, complete with a universal 3-point hitch mount to fit your machine.

Well gusseted linkage between the bucket and hydraulic cylinder arm creates a high breakout force and heavy-duty digging power for your construction job or home project. Dynamic reach capacity in all directions, 180° of boom swing and 172° of bucket rotation offers skillful maneuvering and burrowing opportunities in any setting.

Foldable stabilizers allow you to stay securely in place while working with the backhoe’s almost 900 kg of digging force. Able to cover a large work area without having to move your setup. Open seat visibility allows you to clearly see what you’re doing and the included hydraulic hoses with NPT thread fittings and category 1 hookups offer easy, hassle-free setup. Replaceable bolt-on cast teeth and grease fittings on all pivot points will keep this machine working for years to come.

TMG Industrial also carries other similar models: TMG-TBH84.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

  • Q: What tractor power is the TMG-TBH72 compatible with?
    A: It supports 20 – 65 HP tractors.
  • Q: What bucket size is included?
    A: Comes standard with a 305 mm (12") digging bucket.
  • Q: How deep can this backhoe dig?
    A: Maximum digging depth is 1813 mm (72").
  • Q: What is the boom reach?
    A: The boom’s maximum reach is 2458 mm (97").
  • Q: What is the swing and rotation capacity?
    A: Boom swing range is 180°, and bucket rotation is 172°.
  • Q: What are the force ratings (digging / breakout)?
    A: Bucket digging force: 900 kg (1980 lb). Excavating digging force: 600 kg (1320 lb).
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
