2200 mm (7’) 3-Point Hitch Swing Backhoe Attachment, Category 1 & 2, 40 - 100 HP Tractor TMG-TBH84

Product Manual
TMG Industrial 7-FT 3-Point Hitch Swing Backhoe Attachment, 12” Bucket Included, 40-100 HP Tractor, 126” High Reach, Category 1 & 2 Hookups, TMG-TBH84
CURRENTLY IN STOCK
TMG-TBH84
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
$5,999.00
$5,999.00 - $5,999.00
$5,999.00
$6,999.00 Save $1,000.00
$5,999.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
61-03-4151-5011

Features icon Features

Feature Image

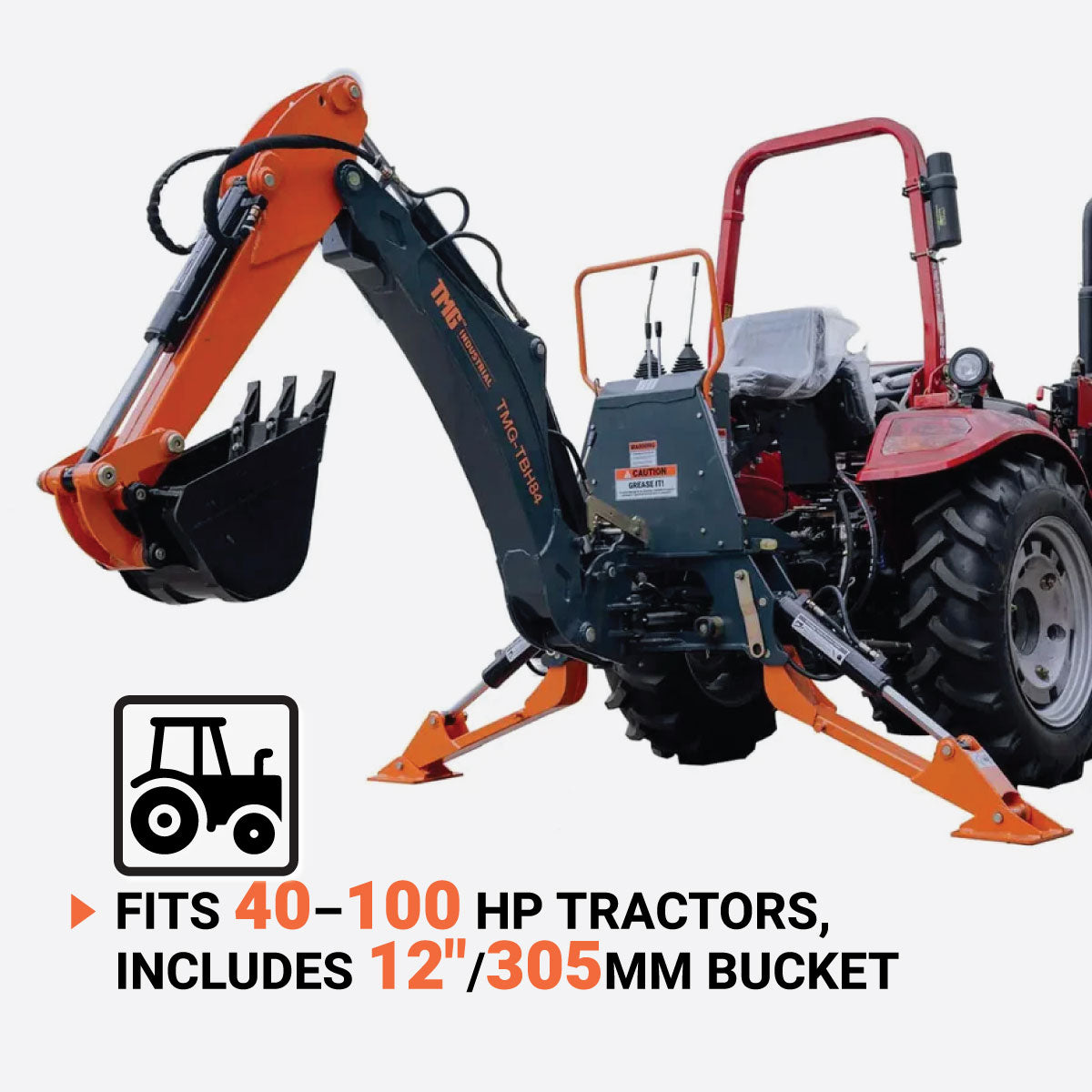

Compatible with 40 – 100 HP tractors and includes 305 mm (12") digging bucket
Feature Image

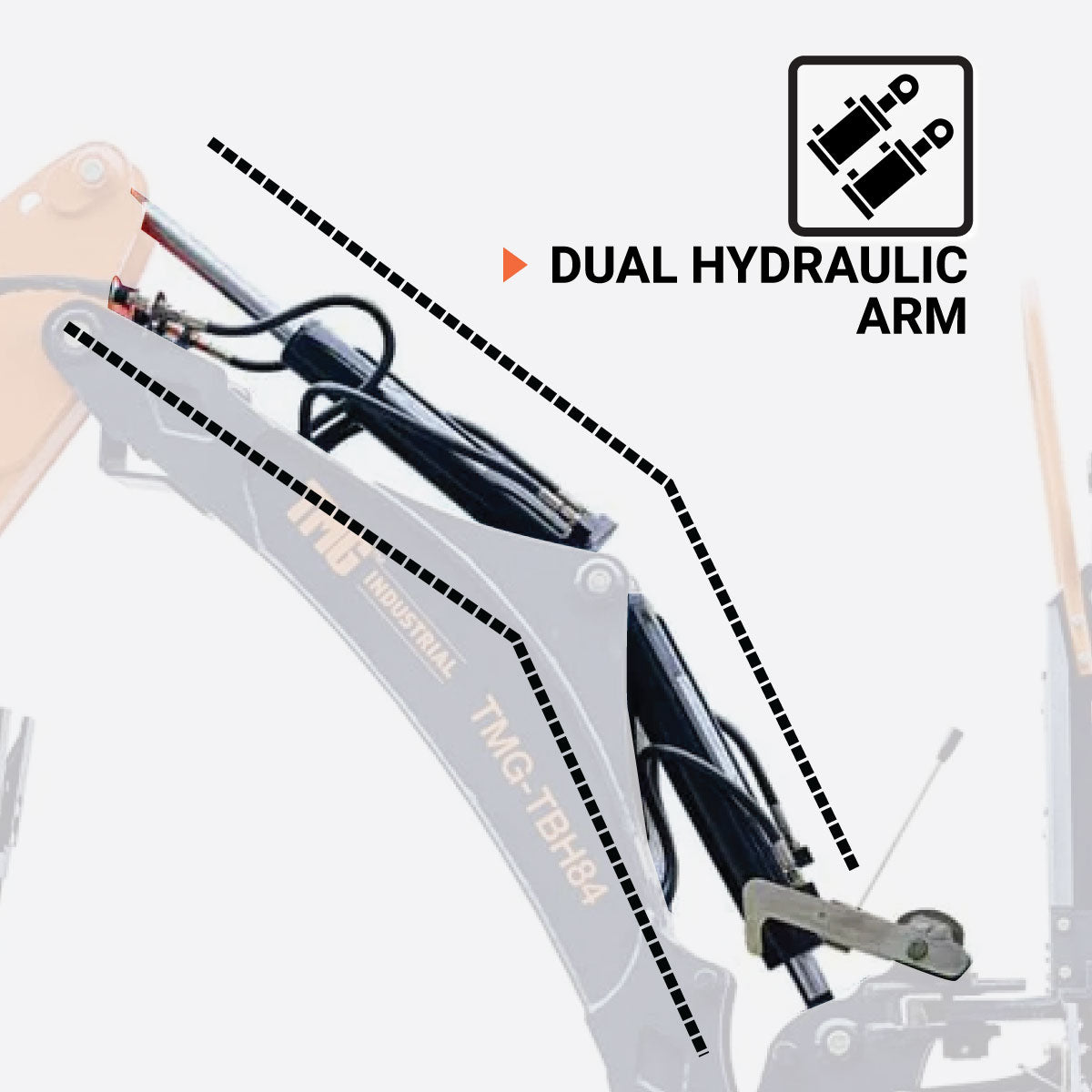

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

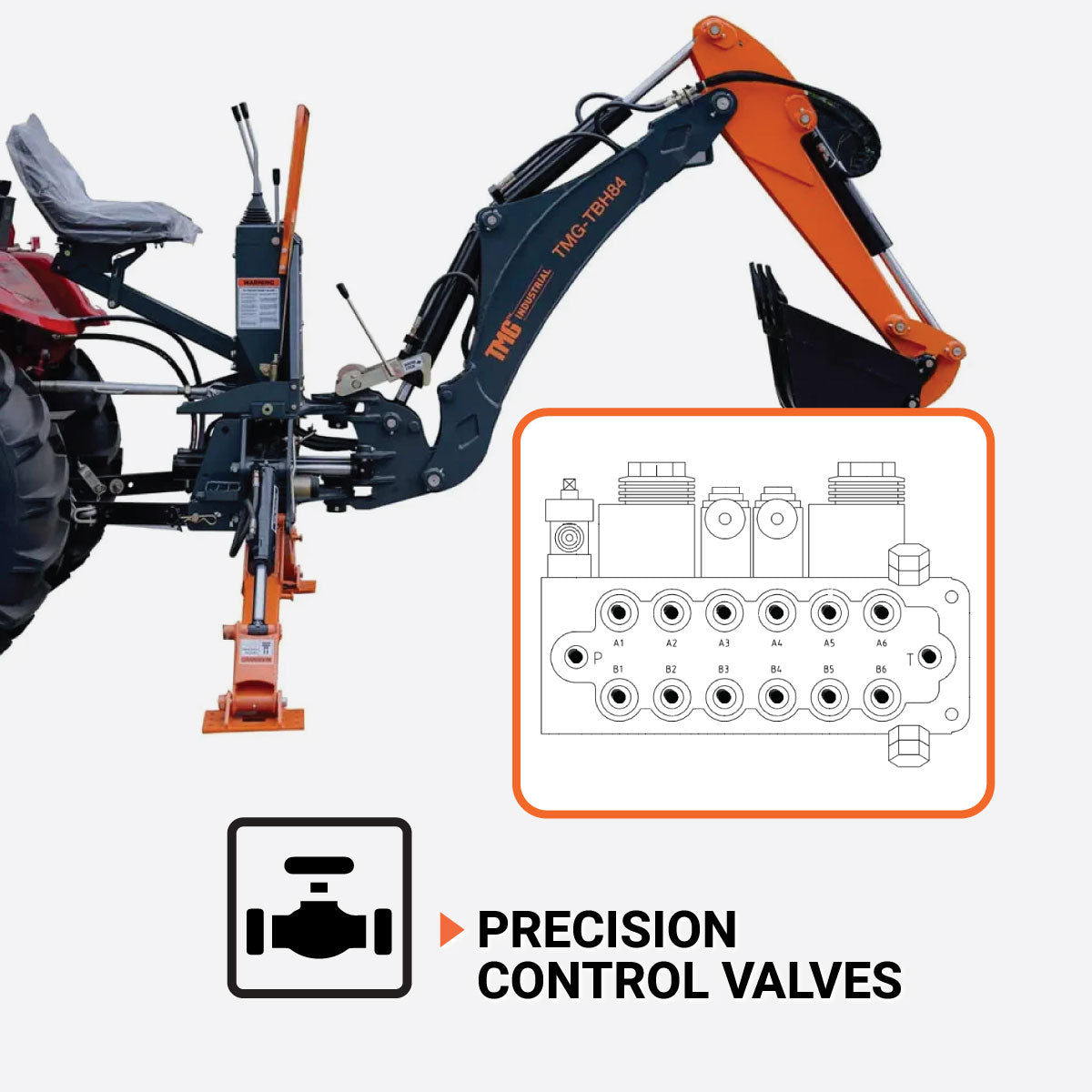

Precision control valves optimize hydraulic timing and work performance
Feature Image

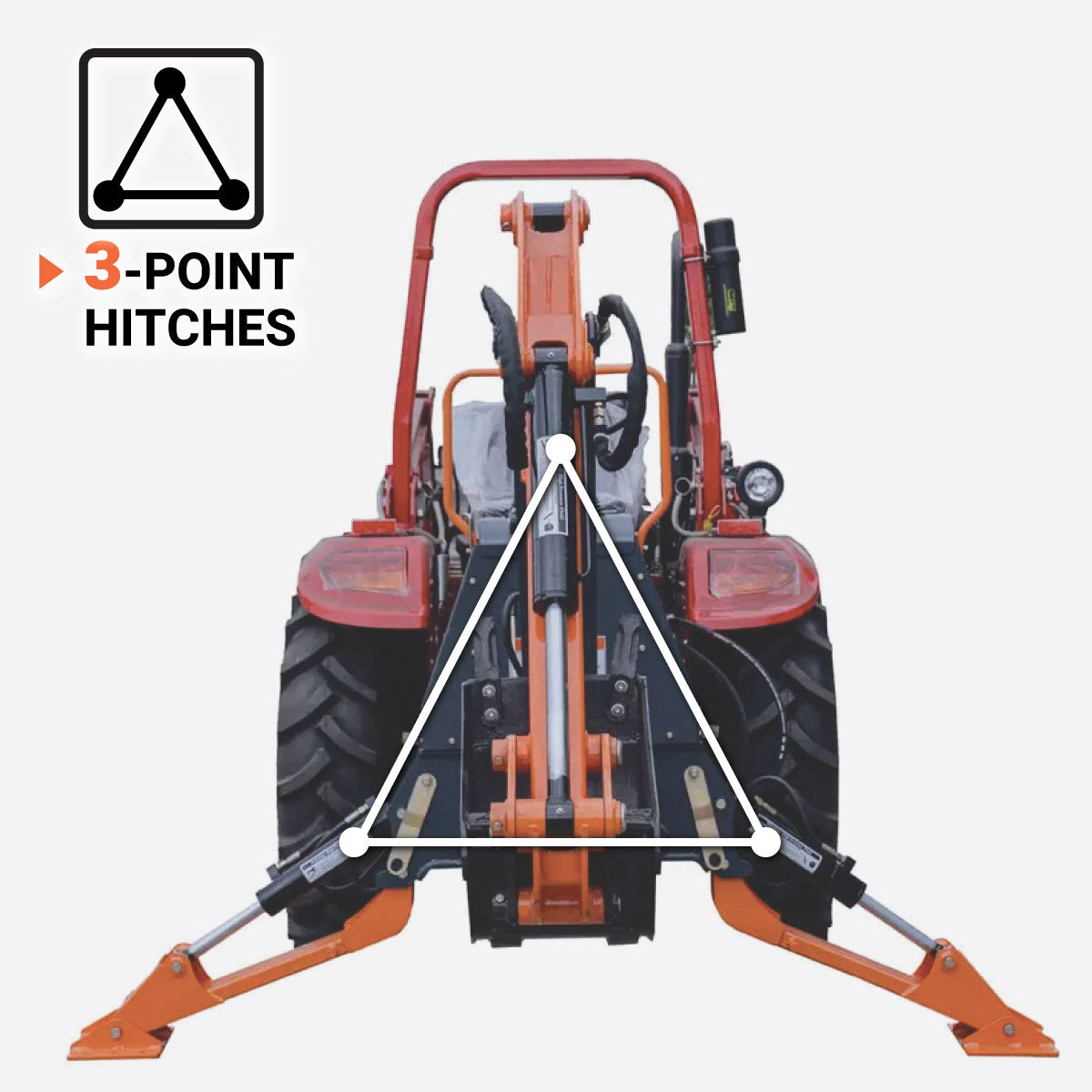

3-point hitch fits Category 1 & 2 tractors for easy attachment
Feature Image

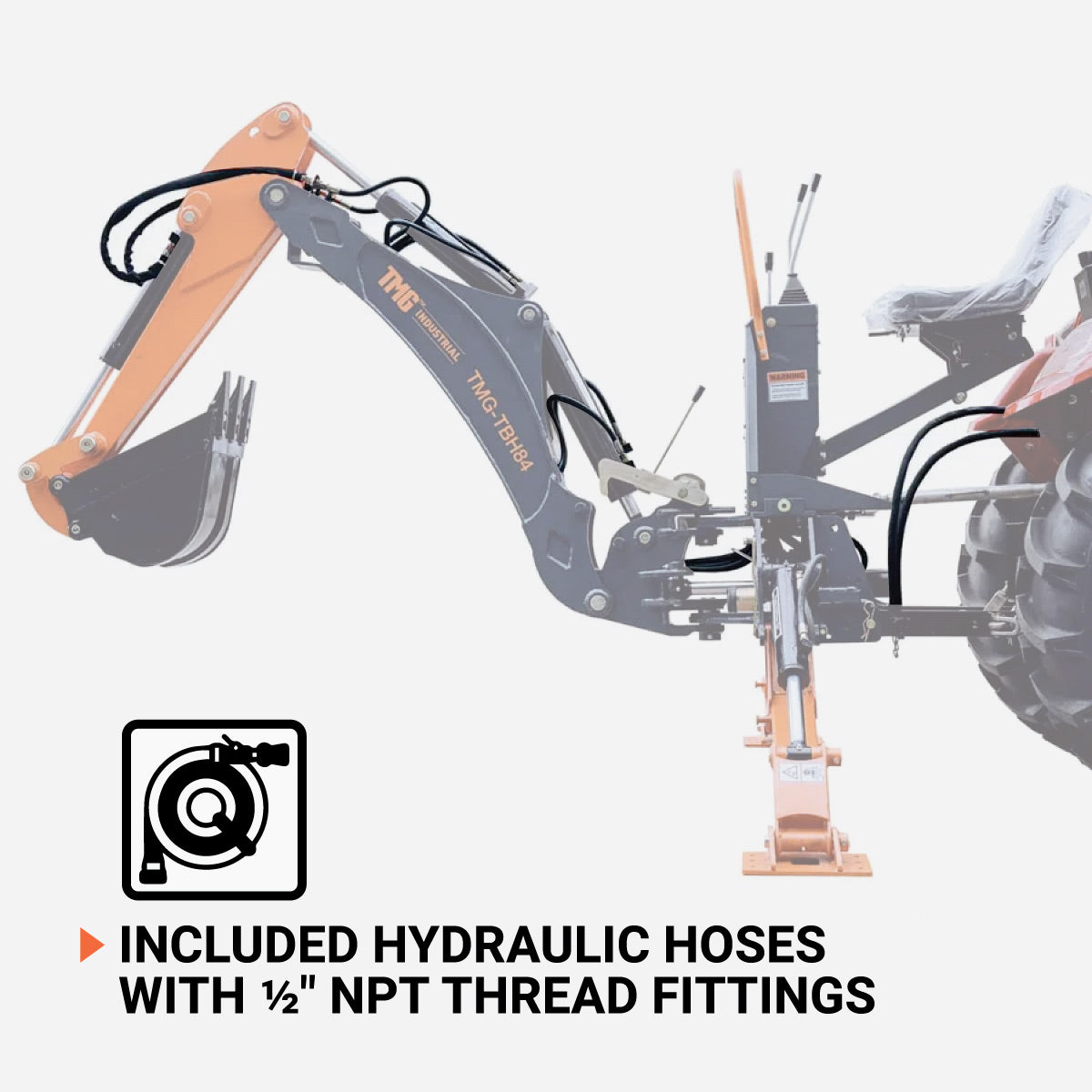

Included hydraulic hoses with ½" NPT thread fittings for simple, hassle-free hookup
Feature Image

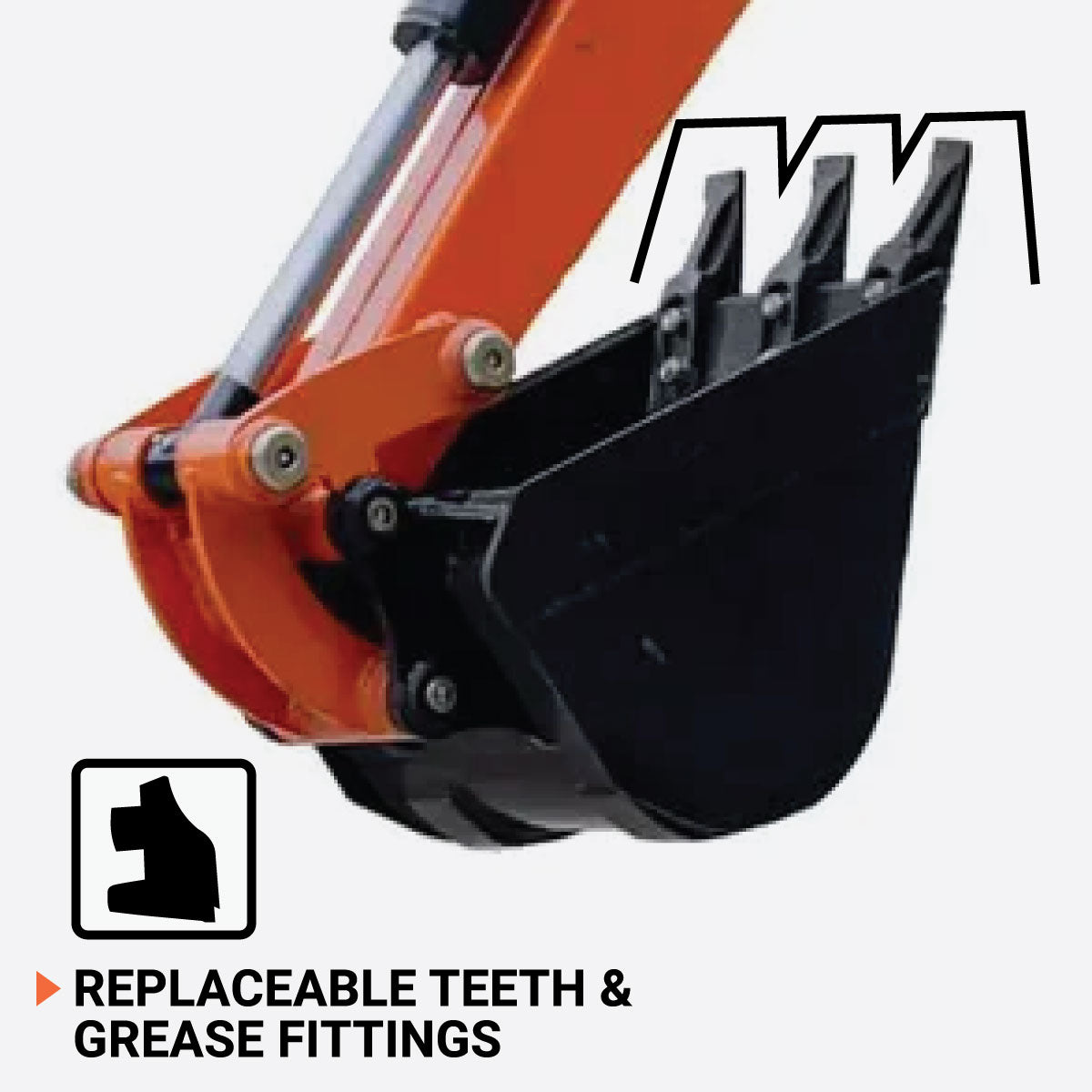

Replaceable teeth and grease fittings allow durable, low-maintenance operation

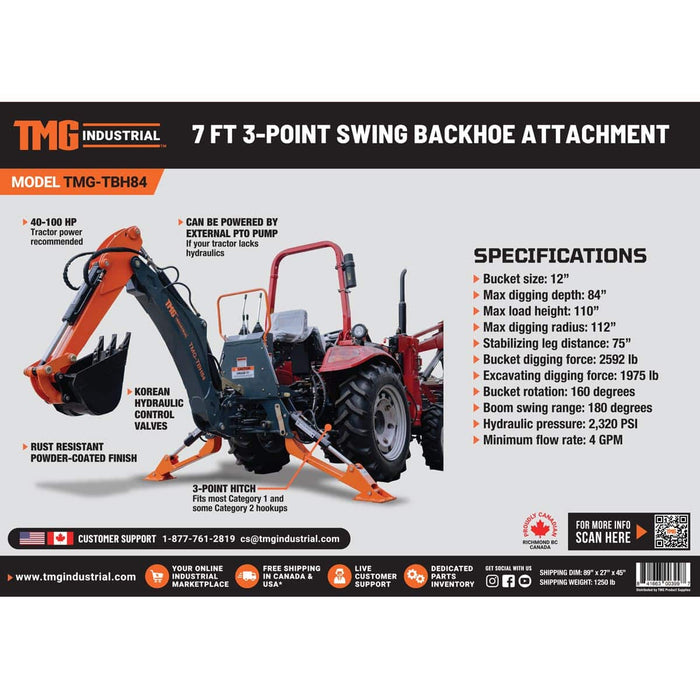

Specifications icon Specifications

  • Tractor power required: 40 - 100 HP
  • Mounting type: 3-point hitch CAT 1 & 2
  • Hydraulic flow: 30 - 50 L/min (8 - 13 GPM)
  • Hydraulic pressure: 16 MPa (2320 PSI)
  • Hydraulic hoses & flat face couplers: Included
  • Hydraulic flat face couplers: 1/2"
  • Maximum digging depth: 2200 mm (84")
  • Maximum working height: 3260 mm (128")
  • Maximum working length: 3200 mm (126")
  • Maximum loading height: 1850 mm (73")
  • Ground clearance: 423 mm (16.5")
  • Bucket sizes: 305 / 355 / 406 mm (12" / 14" / 16")
  • Bucket capacities: 0.028 / 0.033 / 0.038 m³ (1 / 1.17 / 1.34 ft³)
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Dipper boom digging force: 895 kg (1975 lb)
  • Bucket digging force: 1175 kg (2592 lb)
  • Simultaneous bucket and boom operation: Yes
  • Stabilizer width (spread): 1750 mm
  • Stabilizer width (transport): 1180 mm
  • Surface finish: Powder coating
  • Mechanical thumb: Available
  • Overall dimension: 2205 x 1280 x 1765 mm
2200 mm (7’) 3-Point Hitch Swing Backhoe Attachment, Category 1 & 2, 40 - 100 HP Tractor TMG-TBH84-specifications-image

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances, it will take 2 to 3 business days to process and dispatch your order. Delivery typically takes 10 to 15 business days depending on your location and accessibility.

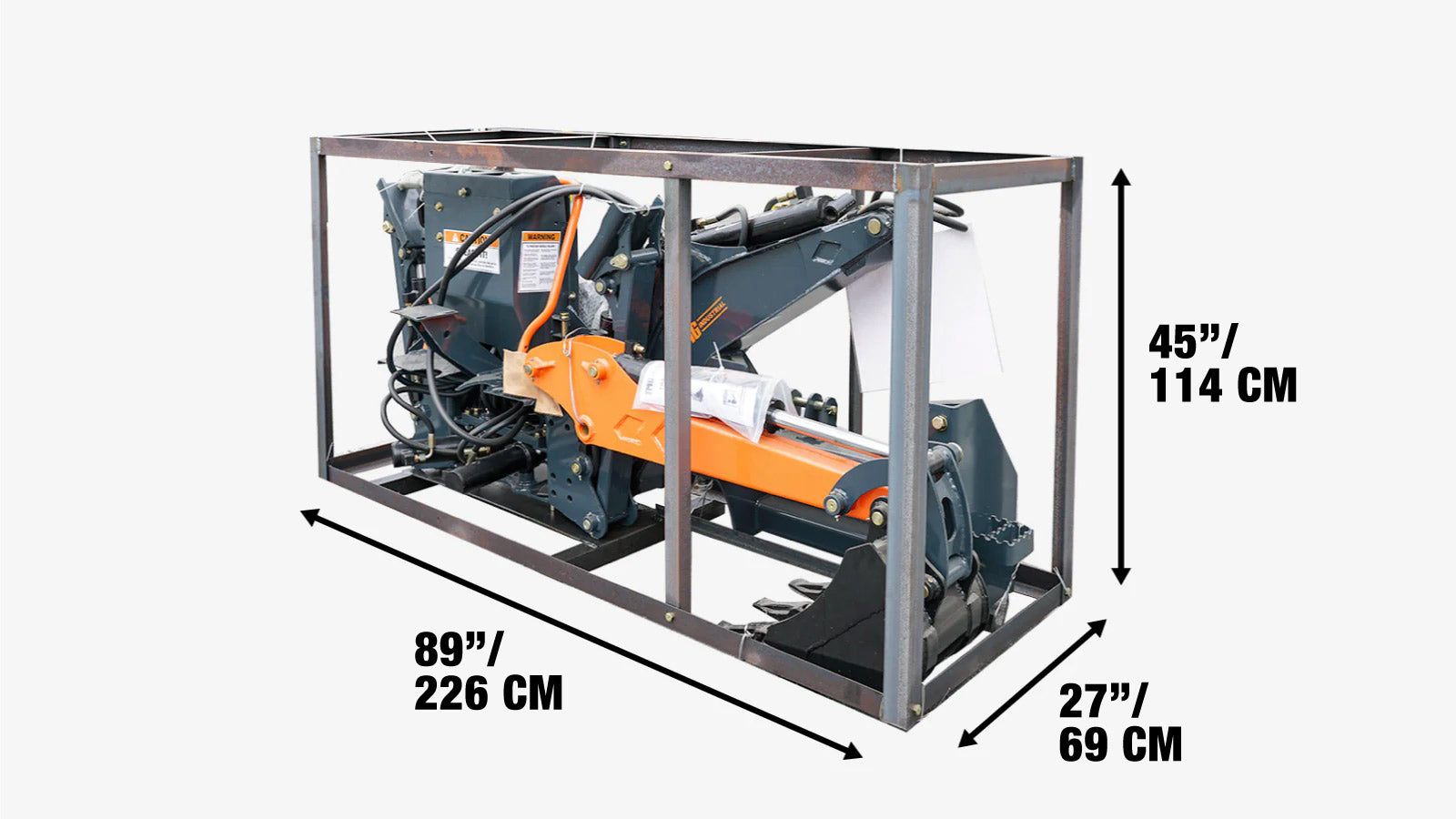

  • This product is packed in a metal crate shipping box
  • Shipping dimensions: 226 x 69 x 114 cm (L x W x H) / 89" x 27" x 45"
  • Shipping weight: 560 kg (1235 lb)
Shipping from Rowville,VIC
What happens after you place your order?
2200 mm (7’) 3-Point Hitch Swing Backhoe Attachment, Category 1 & 2, 40 - 100 HP Tractor TMG-TBH84-shipping-info-image

Product Description icon Product Description

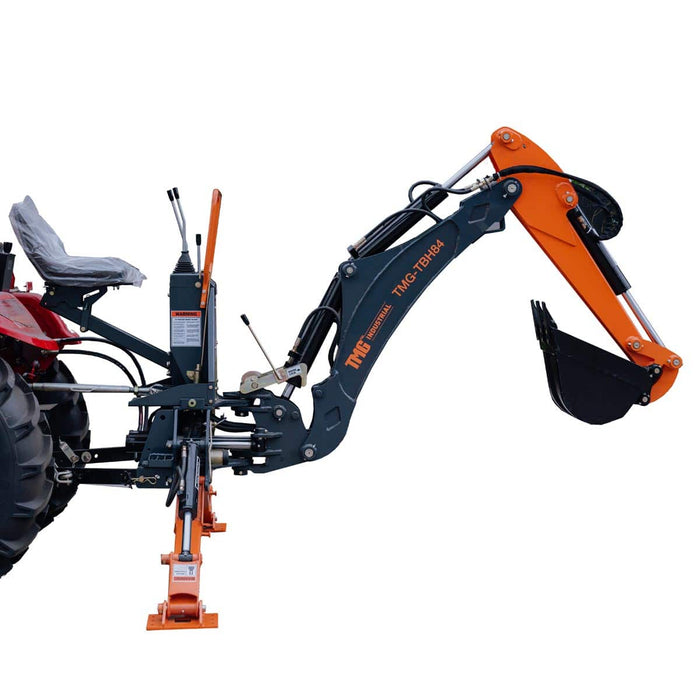

The TMG-TBH84 3-Point Hitch Swing Backhoe Attachment turns your tractor into a diverse and functional digging machine with a depth capacity of 2200 mm. The 305 mm wide bucket is ideal for digging ditches, sewage systems, septic tanks, power lines, footings and more. Backfill trenches, maintain slopes and bring your landscaping vision to life with this versatile attachment, complete with a universal 3-point hitch mount to fit your machine.

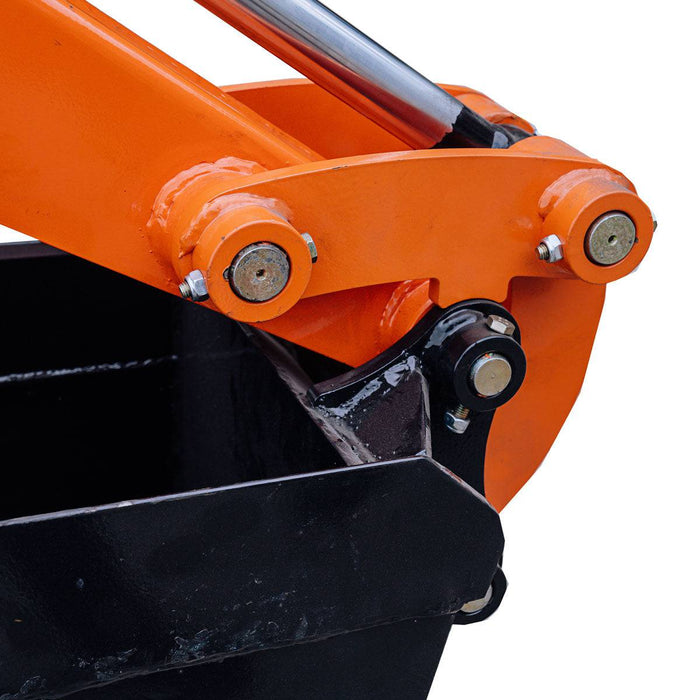

Well gusseted linkage between the bucket and hydraulic cylinder arm creates a high breakout force and heavy-duty digging power for your construction job or home project. Dynamic reach capacity in all directions, 180° of boom swing and 180° of bucket rotation offers skillful maneuvering and burrowing opportunities in any setting.

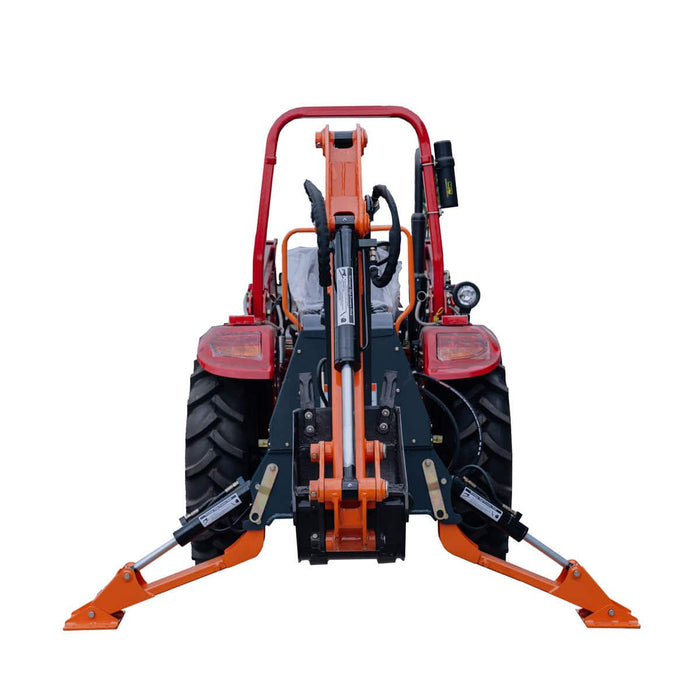

Foldable stabilizers allow you to stay securely in place while working with the backhoe’s almost 1175 kg of digging force. Able to cover a large work area without having to move your setup. Open seat visibility allows you to clearly see what you’re doing and the included hydraulic hoses with NPT thread fittings and category 1 & 2 hookups offer easy, hassle-free setup. Replaceable bolt-on cast teeth and grease fittings on all pivot points will keep this machine working for years to come.

TMG Industrial also carries other similar models: TMG-TBH72.

Warranty icon Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.

More Information

Questions & Answers icon Questions & Answers

Frequently Asked Questions (FAQ)

  • Q: What tractor power is the TMG-TBH84 compatible with?
    A: It supports 40 – 100 HP tractors.
  • Q: What bucket size is included?
    A: Comes standard with a 305 mm (12") digging bucket.
  • Q: How deep can this backhoe dig?
    A: Maximum digging depth is 2200 mm (84").
  • Q: What is the boom reach?
    A: The boom’s maximum reach is 3200 mm (126").
  • Q: What is the swing and rotation capacity?
    A: Boom swing range is 180°, and bucket rotation is 180°.
  • Q: What are the force ratings (digging / breakout)?
    A: Bucket digging force: 1175 kg (2600 lb). Excavating digging force: 895 kg (1975 lb).
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
